Geochemistry of continental subduction-zone fluids

Abstract

The composition of continental subduction-zone fluids varies dramatically from dilute aqueous solutions at subsolidus conditions to hydrous silicate melts at supersolidus conditions, with variable concentrations of fluid-mobile incompatible trace elements. At ultrahigh-pressure (UHP) metamorphic conditions, supercritical fluids may occur with variable compositions. The water component of these fluids primarily derives from structural hydroxyl and molecular water in hydrous and nominally anhydrous minerals at UHP conditions. While the breakdown of hydrous minerals is the predominant water source for fluid activity in the subduction factory, water released from nominally anhydrous minerals provides an additional water source. These different sources of water may accumulate to induce partial melting of UHP metamorphic rocks on and above their wet solidii. Silica is the dominant solute in the deep fluids, followed by aluminum and alkalis. Trace element abundances are low in metamorphic fluids at subsolidus conditions, but become significantly elevated in anatectic melts at supersolidus conditions. The compositions of dissolved and residual minerals are a function of pressure-temperature and whole-rock composition, which exert a strong control on the trace element signature of liberated fluids. The trace element patterns of migmatic leucosomes in UHP rocks and multiphase solid inclusions in UHP minerals exhibit strong enrichment of large ion lithophile elements (LILE) and moderate enrichment of light rare earth elements (LREE) but depletion of high field strength elements (HFSE) and heavy rare earth elements (HREE), demonstrating their crystallization from anatectic melts of crustal protoliths. Interaction of the anatectic melts with the mantle wedge peridotite leads to modal metasomatism with the generation of new mineral phases as well as cryptic metasomatism that is only manifested by the enrichment of fluid-mobile incompatible trace elements in orogenic peridotites. Partial melting of the metasomatic mantle domains gives rise to a variety of mafic igneous rocks in collisional orogens and their adjacent active continental margins. The study of such metasomatic processes and products is of great importance to understanding of the mass transfer at the slab-mantle interface in subduction channels. Therefore, the property and behavior of subduction-zone fluids are a key for understanding of the crust-mantle interaction at convergent plate margins.

Findings

Introduction

Continental subduction zones are generally marked by the occurrence of ultrahigh-pressure (UHP) eclogite-facies metamorphic rocks (e.g., Chopin 2003; Liou et al. 2009; Zheng 2012; Hermann and Rubatto 2014). These rocks contain important records of physical and chemical changes that occur at the slab-mantle interface in deep subduction channel. While arc volcanics above oceanic subduction zones are common and indirectly record the composition of oceanic subduction-zone fluids and their action on the mantle wedge (Stern 2002), so far, no arc volcanics have been found above continental subduction zones (e.g., Rumble et al. 2003; Zheng 2009, 2012). This provides evidence for a difference in the nature of crust-mantle interactions between the two types of subduction zones. Traditionally, the composition of oceanic subduction-zone fluids has been deciphered from the composition of arc volcanics (e.g., Tatsumi and Eggins 1995). These rocks exhibit enrichment of large ion lithophile elements (LILE) and light rare earth elements (LREE) relative to the primitive mantle and thus are generally attributed to slab dehydration and element transport at mantle depths of 80 to 130 km. However, the direct study of high-pressure (HP) blueschist- and eclogite-facies metamorphic rocks exhumed from subducted oceanic crust only provides information about the mass transfer at shallow depths of <80 km (e.g., Agard et al. 2009). On the other hand, UHP eclogite-facies metamorphic rocks are prominent in continental subduction zones, providing us with an excellent target to directly study subduction-zone fluids at subarc depths of >80 km (e.g., Zheng, 2009, 2012).

The transfer of crustal components in the form of fluids at subduction zones occurs in several steps, and the agents of mass transfer vary with time and space (e.g., Bebout 2007; Zheng 2012). While aqueous solutions are primarily responsible for extraction of water-soluble incompatible elements such as LILE from subducting crustal rocks (e.g., Hacker 2008; Bebout 2014), hydrous melts play a dominant role in mobilizing water-insoluble incompatible elements such as LREE from the subducting rocks (e.g., Hermann et al. 2006a; Zheng et al. 2011a). The nature of subduction-zone fluids is dictated by dehydration and melting of crustal rocks under different physicochemical conditions. The mobile agents migrate in pervasive and channelized ways at the slab-mantle interface, resulting in geochemical modification of both slab crust and wedge mantle rocks (e.g., Zheng 2012; Bebout 2013). Although we are not able to directly sample pristine fluids from deeply subducted crustal rocks, working backwards from metamorphic, anatectic and magmatic products in UHP metamorphic terranes provides insights into the geochemical property and behavior of subduction-zone fluids at the subarc depths. This overview outlines our present understanding of continental subduction-zone fluids and their implications for chemical geodynamics (Additional file 1 presents the glossary for the subduction factory).

Water in subduction-zone rocks

Water is a key component of subduction-zone rocks and is present as two species: (1) molecular water (H₂O) and (2) structural hydroxyl (OH). The structural hydroxyl occurs in hydrous minerals and the point defects of nominally anhydrous minerals (NAMs). While hydrous minerals are the major carrier of water in subducted crustal rocks, NAMs carry trace amounts of water into the mantle. In HP to UHP metamorphic rocks, the molecular water occurs not only in the volume defects of minerals as microscale to nanoscale fluid inclusions, but also at the surface defects of mineral grains at grain boundaries and crystal fractures. Pore fluids are a major source of molecular water at subsolidus metamorphic conditions in metasedimentary and metavolcanic rocks, but it is scarce in metaintrusive rocks (Zheng, 2009, 2012). There would be the transformation between structural OH and molecular H₂O with P-T changes in HP to UHP metamorphic rocks.

With subduction of crustal rocks to mantle depths, the majority of water is released in the form of molecular water through breakdown of hydrous minerals. Significant amounts of structural hydroxyl and molecular water are also dissolved into NAMs with increasing pressure (Zheng 2009). The maximum solubility of water in the NAMs is achieved at the maximum pressure during subduction to mantle depths (Chen et al. 2011; Gong et al. 2013). During the exhumation of deeply subducted crustal rocks, on the other hand, the water in the NAMs is exsolved due to its decreased solubility with decreasing pressure (Zheng 2009). The liberated water may result in the formation of retrograde hydrous minerals in UHP rocks (Zheng et al. 2003). If exhumation occurs at elevated temperatures, the hydrous UHP minerals such as phengite may break down during decompression, resulting in local anatexis of the UHP rocks (Gao et al. 2012, 2013; Chen et al. 2013; Liu et al. 2013).

Subduction-zone fluids are categorized into three types in terms of their H₂O contents (e.g., Hermann et al. 2006a; Zheng et al. 2011a): (1) aqueous solution, which contains less than 30 wt. % of solutes; (2) hydrous silicate melt, which contains less than 35 wt. % of dissolved water; and (3) supercritical fluid, which exhibits the complete miscibility between aqueous solution and hydrous melt with variable proportions between the two fluid phases. The aqueous solution and the hydrous melt become progressively miscible with increasing pressure, eventually giving rise to a supercritical fluid above the second critical endpoint at UHP conditions (Manning 2004; Hermann et al. 2006a; Mibe et al. 2011; Adam et al. 2014). In this region, the amount of solutes in the supercritical fluid varies gradually as a function of pressure and temperature (Hack et al. 2007), with a variety of compositions between aqueous solution and hydrous melt (Zheng et al. 2011a; Hermann and Rubatto 2014). On the other hand, the solvus between aqueous solution and hydrous melt might be encountered during decompression of the supercritical fluid, resulting in the separation into aqueous solutions and hydrous melts (Zheng et al. 2011a). This may result in the precipitation of mineral phases depending on the relative solubilties of components before and after the phase separation. The phase separation of supercritical fluids has been directly observed in sophisticated in situ laboratory experiments (Kawamoto et al. 2012). Field-based studies suggested that some multiphase solid inclusions (MSI) may be crystallized from the separated hydrous melts (Ferrando et al. 2005; Frezzotti et al. 2007; Gao et al. 2012), whereas metamorphic zircon and rutile in metamorphic veins inside UHP eclogites may be grown from the separated aqueous solutions (Xia et al. 2010; Zheng et al. 2011b).

During the subduction of crustal rocks, the aqueous solution is generated not only by the prograde breakdown of hydrous minerals such as amphibole, biotite, chlorite, lawsonite, muscovite, serpentine, and zoisite with increasing pressure and temperature (e.g., Schmidt and Poli 2003; Rupke et al. 2004, Spandler and Pirard 2013) but also by the exsolution of molecular water and structural hydroxyl from NAMs (Zheng 2009). While some of these hydrous minerals may be present in small amounts in HP to UHP eclogites, some UHP eclogites may contain neither of these hydrous minerals. Instead, they contain hundreds to thousands of parts per million (ppm) H₂O within NAMs such as garnet and pyroxene, not only as structural OH in point defects (Katayama and Nakashima 2003; Xia et al. 2005; Katayama et al. 2006; Chen et al. 2007; Sheng et al. 2007; Zhao et al. 2007a) but also as molecular H₂O in surface and volume defects (Su et al. 2002; Xiao et al. 2002; Fu et al. 2003; Gao et al. 2007; Ni et al., 2008; Zhang et al. 2008; Meng et al. 2009; Mukherjee and Sachan 2009). Analyses of the total water in NAMs yield the maximum water contents of about 2,500 ppm and about 3,500 ppm, respectively, in garnet and omphacite at UHP conditions (Chen et al. 2011; Gong et al. 2013). At pressures of the mantle transition zone, 1.4 to 1.5 wt % H₂O may occur in ringwoodite included in a diamond (Pearson et al. 2014).

The dehydration of subducting crustal rocks may occur at P-T conditions on and above the wet solidus (Figure 1), resulting in anatexis of HP to UHP metamorphic rocks. This has been observed in many UHP metamorphic rocks where anatexis takes place at relatively high temperatures due to breakdown of hydrous UHP minerals such as phengite during decompression (Gao et al. 2012, 2013; Chen et al. 2013; Liu et al. 2013). In a series of experiments on the rheology of eclogite at 1,300 to 1,500 K and 3.0 GPa, on the other hand, Zhang et al. (2004) observed partial melting of an eclogite that contained no hydrous minerals but only H₂O of up to 300 ppm in garnet, 1,000 to 1,300 ppm in omphacite and 3,000 to 4,000 ppm in rutile. After the experiments, they measured almost no OH in garnet and only 600 to 700 ppm H₂O in omphacite. This indicates the significant loss of water from both garnet and omphacite, demonstrating that water is preferentially enriched in hydrous melts. Likewise, minor amounts of water in feldspar and quartz of the deep continental crust may be accumulated in intergrain boundaries to facilitate partial melting of granitoids at temperatures hundreds of degrees below the dry solidus (Seaman et al. 2013). Therefore, dehydration melting can be caused not only by the breakdown of hydrous minerals but also by the exsolution of structural hydroxyl from NAMs. In either case, water is highly incompatible during partial melting of crustal and mantle rocks.

Figure 1

Metamorphic facies and stability fields of hydrous minerals under subduction-zone conditions. Metamorphism above the coesite/quartz transition line is referred as ultrahigh-pressure (UHP) metamorphism, whereas metamorphism below the coesite/quartz transition line is referred as high-pressure (HP) metamorphism. Dashed lines denote the geothermal gradients at 5°C/km and 15°C/km, respectively, in subduction zones. Solid dark-red curves denote the wet solidi for basalt (Schmidt and Poli 1998) and granite (Holtz et al., 2001), with circles for the second critical endpoints of the basalt-water system (after Mibe et al. 2011) and the granite-water system (after Hermann et al. 2006a). Mineral abbreviations: Amp, amphibole; Chl, chlorite; Cld, chloritoid; Law, lawsonite; Zo, zoisite. Lithological abbreviations: GS, greenschist-facies; EB, epidote blueschist-facies; EA, epidote amphibolite-facies.

The release of fluids is a key to physicochemical processes at the slab-mantle interface in subduction channels. As illustrated in Figure 1, this primarily depends on the thermal structure of subduction zones. As documented by phase equilibrium calculations (Peacock and Wang, 1999; Kerrick and Connolly 2001a, 2001b), hot subduction at high geotherms of >15°C/km results in significant dehydration at shallow depths of <60 km, with abundant occurrences of greenschist- to amphibolite-facies metamorphic rocks but rare occurrences of arc volcanics above such hot subduction zones. In the extreme case, partial melting of subducting seafloor sediment is significant at upper amphibolite- to granulite-facies conditions, but the pressure is too low to induce partial melting of the mantle wedge. In contrast, cold subduction at low geotherms of 5 to 10°C/km leads to insignificant dehydration at the shallow depths, with significant occurrences of HP blueschist- to eclogite-facies metamorphic rocks and arc volcanics above such cold subduction zones (Peacock and Wang 1999). It is the cold subduction that leads to the insignificant dehydration at the shallow depths but the significant dehydration and anatexis at the subarc depths >80 km. Continental subduction generally takes place at low geotherms, yielding UHP metamorphic rocks that provide direct samples for the study of subduction-zone fluids at the subarc depths.

Composition of continental subduction-zone fluids

Experimental constraints

The solute composition of subduction-zone fluids is a function of the following three variables: (1) element solubility, (2) temperature, and (3) pressure. The amount of water in fluids is inversely correlated with that of solutes and thus also changes as a strong function of pressure and temperature. The major solutes are Si, Al, and alkalis (Na, K) with minor amounts of Ca, Fe, and Mg (Hermann et al. 2013). While Al is not significantly fractionated during partial melting, the aqueous solution preferentially dissolves Si and is characterized by a positive spike in alkalis. The aqueous solution and the hydrous melt have different capacities of dissolving and transporting trace elements during subduction-zone processes (e.g., Hermann et al. 2006a; Zheng et al. 2011a).

Figure 2 shows the experimentally determined concentration of major and trace elements in aqueous solutions and hydrous melts at HP to UHP conditions relative to the pelitic protolith that has a common crustal composition (Additional file 2: Table S1). Upon water-rock interaction and hydration melting, water-soluble incompatible trace elements such as LILE and U are preferentially enriched in aqueous solutions; LREE and Th tend to enter hydrous melts whereas heavy rare earth elements (HREE) are highly enriched in residues. The trace element concentrations of aqueous solutions are at least an order of magnitude lower than those of hydrous melts. However, the common water-soluble or fluid-mobile elements like LILE and LREE are not enriched in these fluids if residual assemblages are enriched in phengite and allanite, respectively. Uranium and Nb are more enriched in the fluid phase compared to Th and Ta.

Figure 2

Experimentally determined element distribution of fluids normalized to the starting materials of pelitic composition. The major and trace element compositions of the starting materials and the fluids produced at HP to UHP conditions are given in Additional file 2: Table S1. Blue-green curves denote aqueous solutions, where data at 2.2 GPa are after Spandler et al. (2007); data at 2.5 to 4.5 GPa and 600 and 700°C are after Hermann and Spandler (2008) for major elements and Table S1 in Additional file 2 for trace elements from the same experiments. Red-orange curves denote hydrous melts with data after Hermann and Rubatto (2009).

Although mineral assemblages in the crustal rocks of mafic to felsic compositions are very different at low pressures, they converge to a common paragenesis at UHP conditions that is composed of coesite, garnet, clinopyroxene, phengite, and kyanite and accessory rutile, zircon, apatite, and allanite or monazite (e.g., Schmidt et al. 2004a; Hermann et al. 2006a; Schertl and O’Brien 2013). The proportions of these UHP metamorphic minerals are a function of whole-rock composition and P-T conditions, which exert a primary control on the trace element composition of coexisting fluid phases. LILE are primarily controlled by phengite, and therefore, in K-rich rocks containing high amounts of phengite, LILE are not necessarily enriched in the aqueous solution with respect to the dehydrated residue (Figure 2). In K-poor rocks, on the other hand, phengite may completely break down and thus no longer be a host mineral for LILE. In this case, the liberated fluids are highly enriched in LILE with respect to the dehydrated residue.

Garnet is a major host of HREE, resulting in depletion of HREE in aqueous solutions and hydrous melts (Figure 2). The major hosts for LREE, Th, and partly U are allanite and monazite. As allanite and monazite preferentially incorporate Th over U (Klimm et al. 2008; Skora and Blundy 2012; Stepanov et al. 2012), the coexisting fluid is characterized by a relative enrichment of U over Th (Figure 2). Significant enrichment of Th is only possible by allanite/monazite dissolution in hydrous melts (Hermann 2002; Klimm et al. 2008; Stepanov et al. 2012). On the other hand, U is a water-soluble element and very susceptible to dissolution from crustal rocks into aqueous solutions. Thus, the Th/U ratios of subduction-zone fluids may provide a distinction between the aqueous solutions and the hydrous melts at the slab-mantle interface in the subduction channel.

Rutile is a major host of high-field-strength elements (HFSE) such as Ti, Nb, and Ta. Zircon hosts Zr, Hf and some U, and apatite is the main host for P (e.g., Hermann 2002; Hermann and Rubatto 2009). Rutile preferentially incorporates Ta over Nb during hydration melting (Schmidt et al. 2004b; Xiong et al. 2011a), with Nb/Ta partition coefficients D_Nb/Ta < 1. In contrast, low-Mg amphibole, biotite, and phengite preferentially incorporate Nb over Ta during dehydration melting (Tiepolo et al. 2000; Green and Adam 2003; Stepanov and Hermann 2013), with Nb/Ta partition coefficients D_Nb/Ta > 1. Thus, subduction-zone fluids with elevated Nb/Ta ratios can form either by the breakdown of these hydrous minerals or by the presence of residual rutile in UHP eclogites. These results demonstrate that metamorphic dehydration and partial melting at the subarc depths may cause significant fractionation of trace elements with similar geochemical characteristics.

Because hydrous minerals host a wide range of trace elements, their presence and stability are a crucial factor in dictating the redistribution of elements during dehydration and melting at deep subduction zones. So are nominally anhydrous minor and accessory minerals. However, the stability of these minerals is highly influenced by temperature-pressure, fluid property, and fluid/rock ratio. As an accessory phase in the residue, for instance, monazite can be exhausted at elevated fluid/rock ratios at 800 to 900°C (Skora and Blundy 2010). Because the solubility of essential mineral structural components such as Ce in monazite increases exponentially with increasing temperature, only small amounts of anatectic melts are required to completely exhaust the accessory phase at temperatures >1,000°C (Stepanov et al. 2012). On the other hand, the dissolution of zircon into aqueous fluids can be significantly enhanced by the contemporaneous dissolution of Na-Al silicate components (Wilke et al. 2012). Therefore, the composition of subduction-zone fluids is dictated by the property of chemical reactions with passing rocks, which exerts substantial influence on the mobility of HFSE during subduction-zone metamorphism. Since supercritical fluids become available at UHP eclogite-facies conditions (Figure 1), the dissolution and transport of fluid-immobile incompatible trace elements are possible at the slab-mantle interface in the subduction channel (Zheng et al. 2011a).

Natural constraints

Due to the long journey from at least 100-km depth to the Earth’s surface, direct samples of deep subduction-zone fluids are not preserved in UHP metamorphic rocks. Nevertheless, metamorphic veins and migmatic leucosomes within UHP rocks can be used to retrieve information about the composition of deep fluids. Advanced micro-analytical methods are applied to acquire the geochemical composition of metamorphic and anatectic veins in UHP metamorphic terranes (Zheng et al. 2008; Chen et al., 2012a,2012b; Guo et al. 2012; Yu et al. 2012; Song et al. 2014). This leads to a better understanding of the role of fluids for mass transfer at the slab-mantle interface in subduction channels. In addition, tiny MSI that are trapped within refractory minerals in UHP rocks may derive from anatectic melts (Ferrando et al. 2005; Malaspina et al. 2006; Gao et al. 2012, 2013; Liu et al. 2013), providing insights into the property and composition of deep subduction-zone fluids.

Metamorphic veins

Generally, there are two types of metamorphic veins in deeply subducted continental crust, which are mainly formed at subsolidus conditions: (1) felsic veins, which are primarily composed of variable abundances of felsic minerals such as quartz, feldspar, kyanite, and phengite with minor amounts of mafic minerals such as omphacite, garnet, zoisite, and amphibole (e.g., Franz et al. 2001; Li et al. 2001, Li et al. 2004; Zheng et al. 2007; Wu et al. 2009; Chen et al. 2012a; Sheng et al., 2012, 2013) and (2) mafic veins, which are usually composed of variable abundances of mafic minerals such as omphacite, epidote, zoisite, allanite, and garnet with minor amounts of felsic minerals such as quartz and kyanite (e.g., Gao et al. 2007; John et al. 2008; Zhang et al. 2008; Spandler et al. 2011; Guo et al. 2012). In addition, the veins contain variable abundances of accessory minerals such as rutile, zircon, and apatite. Chemical reaction of the moving fluids with their host rocks scavenges various components into the fluids. This leads to different types of mineral parageneses for metamorphic veins in UHP metamorphic rocks. As a consequence, there is a significant variation in the composition of subduction-zone fluids, sometimes with survival of relict minerals from the fluid-scavenged rocks (e.g., Zheng et al. 2007; Sheng et al. 2012, 2013).

Available analyses on whole-rock geochemistry of metamorphic veins (Rubatto and Hermann 2003; Zhang et al. 2008; Chen et al. 2012a; Guo et al. 2012) provide evidence that many elements can be transported at least over short distances of a few meters. Because the formation of metamorphic veins is closely associated with the flow of aqueous solutions at subsolidus conditions, dissolution-reprecipitation reactions at appropriate fluid/rock ratios are necessary to produce various parageneses of vein-forming minerals. This is particularly so in view of the relatively low solubility of many major and trace elements in aqueous solutions (Figure 2), providing further evidence that dissolution-reprecipitation reactions are important for vein formation. Thus, the veins represent the material assemblages left behind from the passing fluid phase. As such, compositional data of metamorphic veins can be used to define the major element composition of metamorphic fluids by taking into account the solubility of vein minerals in aqueous solutions. Likewise, they can be used to approximate the trace element composition of metamorphic fluids by taking into account the partition coefficients between vein minerals and aqueous solutions.

Migmatic leucosomes and multiphase solid inclusions

In terms of their occurrence, composition, and age, migmatic leucosomes and MSI inside UHP metamorphic rocks can be inferred to represent the crystallized products of anatectic melts during continental collision, whereas restites are residues after partial melting and melt extraction. The majority of leucosomes and MSI have mineral parageneses similar to granitic rocks, suggesting their crystallization from felsic melts. Here, we refer the anatectic melts as the least evolved melts that are not completely separated from their parent rocks and thus experience the lowest extent of crystal fractionation (Li et al. 2013). In contrast, magmatic melts have evolved from different batches of anatectic melts, not only with complete separation from their parent rocks but also with significant crystal fractionation during their transport upward. Magmatic fluids are those exsolved from the magmatic melts during fractional crystallization at declined pressures. Studies of experimental petrology for dehydration melting of crustal rocks commonly produce melts with small ratios of melts to residued minerals. Such experimental melts are petrologically buffered by the multiphase assemblage of residued minerals under HP to UHP conditions. Therefore, they are petrologically more similar to the anatectic melts rather than the magmatic melts.

Geochemical analyses of migmatic leucosomes from UHP metamorphic terranes provide a proxy for the composition of anatectic melts (Zhang et al. 2008; Chen et al. 2012b; Yu et al. 2012; Gao et al. 2013; Liu et al. 2013; Song et al. 2014). This is delineated by plotting the calc-alkalinity index (MALI = NaO + K₂O - CaO in weight percentage) against SiO₂ content (Figure 3a) and Si/Al ratios (molar SiO₂/Al₂O₃) against (Na + K)/Al ratios [molar (Na₂O + K₂O)/Al₂O₃] (Figure 3b). For example, leucosomes inside UHP eclogites from North Qaidam (west-central China) exhibit large variations in composition (Chen et al. 2012b; Yu et al. 2012; Song et al. 2014), with SiO₂ = 57.49 to 78.38 wt %, Al₂O₃ = 12.46 to 20.60 wt %, MALI = -3.22 to 5.86 and A/CNK = 0.68 to 1.26, Si/Al = 2.39 to 5.34, and (Na + K)/Al = 0.22 to 0.77 (Additional file 3: Table S2). Despite the variation from tonalitic to granodioritic to granitic, the composition of leucosomes is predominantly calcic (Figure 3a). The leucosomes exhibit significant enrichment of LILE and LREE but depletion of Nb, Ta, and HREE in the primitive mantle-normalized spidergrams (Figure 4). This generally resembles the distribution patterns of trace elements in common arc volcanics (Kelemen et al. 2003). Nevertheless, the leucosomes exhibit very large variations in trace element ratios, e.g., from 24 to 1,950 for Sr/Nd and from 0.21 to 25 for Th/U (Additional file 4: Table S3).

Figure 3

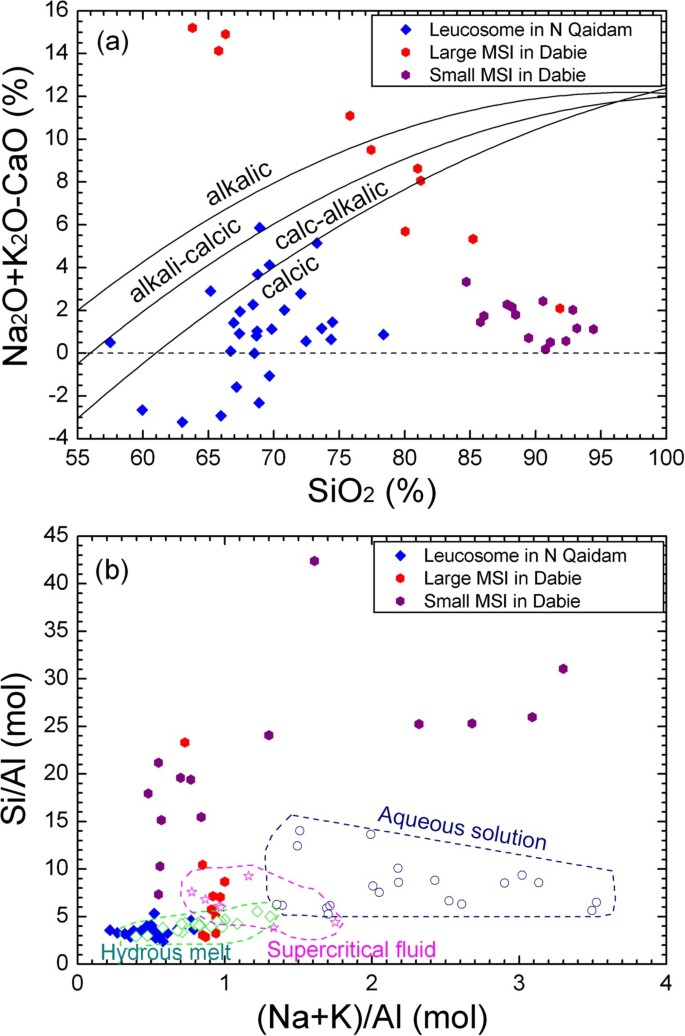

Composition of crystalline products of anatectic melts in UHP metamorphic terranes (Additional file3: Table S2). (a) MALI index (Na₂O + K₂O - CaO) against SiO₂ contents, where the boundaries for calcic, calc-alkalic, alkali-calcic, and alkalic fields are after Frost et al. (2001). (b) Molar SiO₂/Al₂O₃ ratios against molar (Na₂O + K₂O)/Al₂O₃ ratios, where open diamonds, stars, and circles denote the experimental data for aqueous solution, hydrous melt, and supercritical fluid, respectively, used in Figure two of Hermann et al. (2013) for comparison. Data for leucosomes in the UHP metamorphic rocks from North Qaidam are after Chen et al. (2012b), Yu et al. (2012), and Song et al. (2014), and those for multiphase solid inclusions (MSI) in garnet of the UHP eclogites from the Dabie orogen are after Gao et al. (2013). Large MSI have a size of 24 to 160 μm that were directly sampled by the internal ablation method for the LA-ICPMS analysis, whereas small MSI have a size of <24 μm that were sampled by the external ablation method with minor involvement of the host mineral (Gao et al. 2013).

Figure 4

Trace element spidergrams for migmatic leucosomes in the UHP metamorphic terrane of North Qaidam in China (Additional file4: Table S3). Black solid curves denote data from Dulan after Yu et al. (2012) and Song et al. (2014), and blue dash-dot curves denote data from Xitieshan after Chen et al. (2012b). Data for the primitive mantle are after McDonough and Sun (1995).

Restites provide complementary information to leucosomes on the composition of UHP melts. Garnet-rich rocks in the diamond-facies gneisses of the Kokchetav massif, Kazakhstan, display high MgO + FeO contents and depletion of SiO₂ and alkalis. These restites formed at about 1,000°C and 5 GPa, have extreme depletion of LREE and Th, moderate depletion of LILE, enrichment of HREE, and highly variable Nb/Ta ratios, depending on whether residual phengite or residual rutile dominate the Nb/Ta in the restite (Stepanov et al. 2014). These data permit to constrain the composition of extracted melts as K-rich peraluminous granites with high LREE, strongly fractionated REE patterns, and moderate HREE and HFSE contents.

Some MSI are trapped in UHP minerals such as coesite, diamond, and majoritic garnet (Stöckhert et al. 2001; van Roermund et al. 2002; Scambelluri et al., 2008; Zhang et al. 2008), indicating that they were included as supercritical fluids at UHP conditions. Different sizes of felsic MSI in the garnet of UHP eclogites from the Dabie orogen (east-central China) exhibit very large variations in composition (Gao et al. 2013), with SiO₂ = 63.78 to 94.43 wt %, Al₂O₃ = 1.89 to 18.26 wt %, MALI = 0.19 to 15.21, A/CNK = 0.18 to 1.54, Si/Al = 2.86 to 42.40, and (Na + K)/Al = 0.48 to 3.30 (Additional file 3: Table S2). While large MSI tend to exhibit high alkali contents, small MSI generally show high SiO₂ contents. The elevated SiO₂ contents but highly variable Al₂O₃ contents are attributable to the occurrence of almost single quartz phase in the MSI. This is particularly so for the small MSI that exhibit significantly higher Si/Al and (Na + K)/Al ratios than the experimentally defined fields for hydrous melts and supercritical fluids (Figure 3b), suggesting their precipitation from fluids rich in silica and alkalis. Trace element analyses of MSI in the garnet of Dabie eclogites show patterns with depletion of HFSE but more enrichment of LILE than LREE (Figure 5). These features are comparable with those observed in the partial melting experiments (Figure 2). Nevertheless, the MSI also exhibit very large variations in trace element ratios, e.g., from 0.37 to 1,333 for Sr/Nd and from 0.05 to 2.54 for Th/U (Additional file 4: Table S3). The formation of MSI in the garnet is attributed to dehydration melting due to phengite breakdown in the eclogites during exhumation (Gao et al. 2012, Gao et al. 2013; Liu et al. 2013).

Figure 5

Trace element spidergrams for MS inclusions in garnet of UHP eclogite from the Dabie orogen, China (Additional file4: Table S3). (a) Large MS inclusions have a size of 24 to 160 μm that were directly sampled by internal ablation for the LA-ICPMS analysis. (b) Small MS inclusions have a size of <24 μm that were sampled by external ablation with minor involvement of the host mineral. Black curves denote the data from Gao et al. (2013), and blue curves denote the data from Liu et al. (2013). Data for the primitive mantle are after McDonough and Sun (1995). The composition of small MS inclusions was reconstructed by minimizing the Fe content of single MS inclusions relative to the host garnet in order to achieve the accurate estimate of its volume proportion relative to the ablated host garnet. This was based on the correct identification of mineral phases in these small MS inclusions.

Action of subduction-zone fluids

Accessary mineral records of trace element transport

Many field-based studies have indicated that the assumption of HFSE immobility in fluids is not always valid at subduction-zone metamorphic conditions. For example, Ti minerals such as titanite, rutile, and ilmenite in Alpine eclogitic veins are precipitated from metamorphic fluids (e.g., Philippot and Selverstone 1991), and metamorphic rutile is common in quartz-dominated veins hosted by UHP eclogites in Dabie-Sulu (Xiao et al. 2006; Zhang et al. 2008; Zheng et al. 2011b) and Chinese Tianshan (Gao et al. 2007; John et al. 2008). These observations suggest that metamorphic fluids can transport Ti at eclogite-facies conditions at least over short distances of a few meters. Combined with the generally low solubility of Ti in aqueous solutions (Figure 2), this indicates that dissolution-reprecipitation reactions must be involved in order to dissolve and transport the HFSE from host eclogites for rutile-bearing veining (Xia et al. 2010; Zheng et al. 2011a). While it is difficult to extract information about element solubilities from metamorphic and anatectic veins, important conclusions about trace element fractionation can be obtained from accessory minerals.

LA-ICPMS analyses of Nb and Ta concentrations in rutile are available for UHP eclogites and enclosed quartz veins from the Dabie-Sulu orogenic belt (Xiao et al. 2006; Zhang et al. 2008; Zheng et al. 2011b). In the case of large rutile grains, profile analyses yield consistently lower Nb/Ta ratios for internal domains than the continental crust, whereas marginal domains exhibit significant variations and elevations in Nb/Ta ratios (Figure 6a). In the other case of different sizes of rutile grains, the analyses give consistently higher Nb/Ta ratios than the continental crust (Figure 6b). In either case, the increase of Nb/Ta ratios is associated with the decrease of Ta contents, suggesting preferential incorporation of Nb over Ta into the metamorphic rutile. This is in agreement with the experimental observations showing that Ta is preferentially retained in the residue with respect to Nb during metamorphic dehydration and partial melting (Figure 2). In addition, the breakdown of hydrous minerals such as low-Mg amphibole, biotite, and phengite may have provided the high Nb/Ta fluids for rutile growth (Gao et al. 2014).

Figure 6

Plots of Nb/Ta ratios against Ta contents in rutile from UHP eclogite and enclosed quartz veins (Dabie-Sulu, China). (a) Large rutile grains in eclogite (#27a-1) and its enclosed quartz vein (#27b-1) from the Sulu orogen (data from Xiao et al. 2006). (b) Small rutile grains in eclogites and enclosed kyanite-quartz veins from the Sulu orogen (pair 1, data from Zhang et al. 2008) and the Dabie orogen (pair 2, data from Zheng et al. 2011b). Also shown are Nb/Ta ratios for the primitive mantle (McDonough and Sun 1995) and the continental crust (Rudnick and Gao 2003).

Zircon grains of metamorphic origin frequently occur in UHP eclogite-facies metamorphic rocks, exhibiting shapes and structures that indicate significant dissolution of protolith zircon and subsequent overgrowth of metamorphic zircon (e.g., Liati and Gebauer 1999; Rubatto and Hermann 2003; Zheng et al. 2004, 2007; Sheng et al. 2012, 2013). This indicates significant action of fluids on the protolith zircon at subsolidus to supersolidus conditions (Zheng, 2009). Dissolution of the protolith zircon becomes more efficient in supercritical fluids than in aqueous solutions and hydrous melts (Xia et al., 2010). This leads to metamorphic recrystallization of the protolith zircon via the mechanism of dissolution-reprecipitation (Figure 7). The resultant zircon domains commonly exhibit a porous texture in CL images, a consistent enrichment of trace elements such as LREE, HREE, and HFSE and nearly concordant U-Pb ages for the major UHP metamorphic episode. Substantially, zircon is an excellent phase to record the action of fluids because the U-Pb age, trace elements, and O and Hf isotopes can be determined within the same domain of single crystals (Chen et al. 2011; Sheng et al. 2012, 2013).

Figure 7

Trace element discrimination diagrams of metamorphosed zircons from UHP metamorphic rocks. The metamorphic recrystallization proceeds via the mechanisms of solid-state transformation (SST), replacement alteration (RA), and dissolution reprecipitation (DR), respectively. (a) Plot of (Yb/Gd)_N versus (La/Sm)_N, and (b) plot of Hf versus Nb + Ta. The zircon grains are from low-T/UHP metagranite in the Dabie orogen (Xia et al. 2010). The chondrite element values are after Sun and McDonough (1989).

During the subduction and exhumation of crustal rocks, the new growth of metamorphic and anatectic zircons generally depends on the availability of fluids (Zheng 2009; Xia et al. 2013). Likewise, the growth of metamorphic and anatectic garnets is primarily dictated by the breakdown of hydrous minerals such as amphibole, biotite, epidote, lawsonite, phengite, and zoisite at subsolidus and supersolidus conditions, respectively (e.g., Baxter and Caddick 2013; Li et al. 2014; Zhou et al. 2014). All hydrous minerals are important hosts of given trace elements in HP to UHP metamorphic rocks, but with significant differences in trace element abundances. As a consequence, the newly grown zircon and garnet may acquire different concentrations of trace elements due to the breakdown of different hydrous minerals. So do the other minor and accessory minerals. Therefore, the stability of hydrous minerals at the subarc depths is a key not only to the metamorphic dehydration and partial melting but also to the partitioning of trace elements into the metamorphic and anatectic minerals.

Crust-mantle interaction in subduction channel

The mantle wedge above oceanic subduction channels usually belongs to the part of the asthenospheric mantle, which is hot (e.g., Stern 2002). In contrast, the mantle wedge above continental subduction channels commonly belongs to the part of the subcontinental lithospheric mantle (SCLM), which is cold (e.g., Zheng et al. 2013). This difference may be the reason why continental subduction zones generally have lower geotherms than the hot oceanic subduction zones. It is the low geotherms for HP blueschist- to eclogite-facies metamorphism (Figure 1) that results in the insignificant release of aqueous solutions during the subduction of crustal rocks at shallow depths of <80 km (Kerrick and Connolly 2001a, 2001b). As a consequence, there is insignificant loss of fluid-mobile incompatible trace elements from low-T/HP eclogites (Spandler et al. 2003, 2004; Miller et al. 2007; Xiao et al. 2012, 2013). In this regard, naturally exposed HP eclogite-facies rocks cannot serve as the target to investigate the fluid-assisted element mobility at subarc depths of 80 to 130 km, because they would be exhumed before attending the UHP metamorphic conditions (Agard et al. 2009). Instead, UHP eclogite-facies rocks are a sound target for this purpose. As such, the liberation of fluids at mantle depths of >80 km is a key to supra-subduction-channel (SSC) arc volcanism.

Dehydration of crustal rocks becomes prominent during their cold subduction to the subarc depths, where these rocks may be heated to 730 to 950°C at the slab-mantle interface (Hermann and Spandler 2008; Plank et al. 2009; Syracuse et al. 2010; Cooper et al. 2012). This also results in local dehydration melting, which is recorded by anatectic leucosomes, restites, and MSI in UHP metamorphic rocks (Zheng et al. 2011a; Gao et al. 2012, 2013; Chen et al. 2012b, 2013; Yu et al. 2012; Liu et al. 2013; Song et al. 2014; Stepanov et al. 2014). Fluids released from deeply subducting crustal rocks provide metasomatic agents for mass transfer at the slab-mantle interface in subduction channels (Figure 8a). Reaction of the fluids with the mantle wedge peridotite generates metasomatic mantle domains (metasomes) that are responsible for the enrichment of fluid-mobile incompatible trace elements in arc volcanics (Zheng 2012; Spandler and Pirard 2013; Adam et al. 2014).

Figure 8

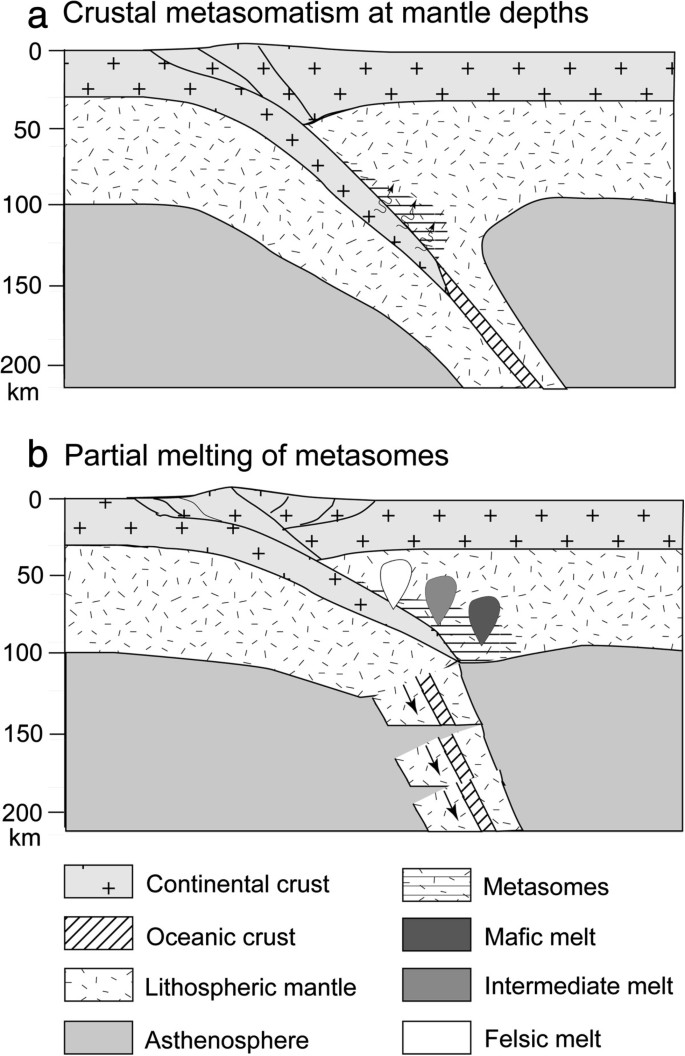

Schematic diagrams of the crust-mantle interaction in a continental subduction channel and the formation of SSC magmatic rocks. (a) The continental crust is subducted to mantle depths of >80 km, contributing incompatible major and trace elements to the SCLM wedge for crustal metasomatism. (b) Partial melting of the ultramafic to mafic metasomes and their underlying UHP crustal rocks yields mafic, intermediate, and felsic melts, respectively, for synexhumation and postcollisional magmatism. The difference in the composition of magmatic rocks is attributed to different extents of melt-peridotite reaction at the slab-mantle interface, where there is a jelly-sandwich structure in which a weak layer composed of metamorphic, anatectic and metasomatic rocks (the jelly) is sandwiched between the overlying mantle wedge and the underlying subducted crustal slab (Zheng et al. 2013).

Orogenic peridotites are common in many UHP terranes (Brueckner and Medaris 2000; Nimis and Morten 2000; Zhang et al. 2000), providing us with an excellent target to study the reaction of subduction-zone fluids with the mantle wedge at the slab-mantle interface in subduction channels (Scambelluri et al. 2007; Zheng 2012). According to the occurrence of crustal derivatives in the orogenic peridotites, two types of crustal metasomatism may take place at mantle depths (Zheng 2012). One is modal metasomatism that is indicated by the presence of new mineral phases such as serpentine, chlorite, amphibole, phlogopite, apatite, carbonate, sulfide, titanite, ilmenite, and zircon, which are absent in primitive and depleted mantle sources. The metasomatic products may occur in serpentinized to chloritized peridotites or in pyroxenites and hornblendites. The new mineral phases are mineralogically and geochemically distinguishable from primary peridotite minerals. The other is cryptic metasomatism that is indicated by the absence of such new mineral phases but the enrichment of fluid-mobile incompatible trace elements such as LILE and LREE relative to HFSE and HREE. In the extreme case, only enrichment of highly incompatible water-soluble trace elements (e.g., LILE) occurs in orogenic peridotites, similar to the product of fluid metasomatism in forearc settings above oceanic subduction zones.

In association with variable occurrences of new mineral phases, variable enrichment of LILE and LREE in orogenic peridotites is prominent due to the crustal metasomatism (Brueckner et al. 2002; Malaspina et al. 2006, 2009; Scambelluri et al. 2006; Zhao et al. 2007b; Zhang et al. 2011). Both newly grown and relict zircon domains have been observed in orogenic peridotites (Katayama et al. 2003; Song et al. 2005; Zhang et al. 2005, 2011; Hermann et al. 2006b; Zheng et al. 2006, 2008; Liati and Gebauer 2009; Xiong et al. 2011b). This indicates that both the chemical transport of dissolved Zr and the physical transport of crustal zircon xenocrysts by either metamorphic fluids or anatectic melts have taken place at the slab-mantle interface in subduction channels (Zheng 2012). While U-Pb ages for the newly grown zircon directly date the metasomatic event, its Lu-Hf isotope composition is primarily inherited from the metasomatic agent and thus has little to do with the composition of the overlying lithosphere. The survival of protolith zircon in the orogenic peridotites suggests that the crustal metasomatism beneath the mantle wedge would have proceeded at kinetically limited conditions, and thus it did not achieve the thermodynamic equilibrium between crustal and mantle components.

Both aqueous solutions and hydrous melts are likely involved in the SSC metasomatism (Figure 8a). The former is commonly indicated by serpentinization and chloritization in orogenic peridotites, whereas the latter is generally recorded by pyroxenite and hornblendite in association with orogenic peridotite (Zheng 2012). The hydrous melts may originate from two types of continental crustal sources, one is the metagranite and other is the metasediment. Low-degree partial melting of the UHP crustal rocks yields alkaline igneous rocks of felsic composition (Zhao et al. 2012), and it is also a key to geochemical differentiation of subducted crustal rocks, because it can result in significant enrichment of melt-mobile incompatible trace elements relative to melt-immobile compatible trace elements in hydrous melts (McKenzie 1989). In contrast, high-degree partial melting of the deeply subducted continental crust gives rise to postcollisional granitoids (Zhao et al. 2007c).

Reaction of the mantle wedge peridotite with the felsic melts can create a variety of metasomatic rocks that range from mafic to ultramafic compositions, depending on the extent of melt-peridotite reaction in subduction channels (Zheng 2012). Olivine-poor metasomes may undergo partial melting upon heating, giving rise to various mafic igneous rocks in continental collision orogens (Zhao et al. 2013). Even andesitic melts could be produced by partial melting of a given mafic metasome that is generated by reaction of abundant felsic melts with the SSC peridotite (Chen et al. 2014). Therefore, various melts from basaltic to granitic compositions could be produced by partial melting of the metasomes in the mantle wedge and its underlying slab-mantle interface (Figure 8b). The crustal components in the metasomes can be identified in a series of diagrams plotting Ba/Th, Sr/Rb, (⁸⁷Sr/⁸⁶Sr)_i, and ϵ_Nd(t) values against (La/Yb)_N values for mafic igneous rocks (Zhao et al. 2013; Chen et al. 2014). Similar diagrams are used to distinguish between metabasalt- and metasediment-derived melts in the SSC mantle source of continental basalts (Xu et al. 2014). These differ from oceanic arc basalts in which only the sediment-derived melt is isotopically inferred in their SSC mantle sources (e.g., Schiano et al. 1995; Elliott et al. 1997; Eiler et al. 2007; Turner et al. 2011).

Prospects for the future

Great advances have been made in the past two decades on the geochemistry of continental subduction-zone fluids. This is primarily achieved by natural observations of exhumed UHP eclogite-facies metamorphic rocks in collisional orogens in addition to experimental investigations of metamorphic dehydration and partial melting at subduction-zone P-T conditions. While metamorphic and anatectic veins in UHP rocks directly record mineral precipitation from these fluids, orogenic peridotites and pyroxenites provide an indirect record of transferring the crustal signal for various elements into the SCLM wedge. As such, continental deep subduction also delivers raw materials to the subduction factory. The crustal metasomatism at the slab-mantle interface in the subduction channel generates new mineral phases in orogenic peridotites, but it is critical to unambiguously distinguish between primary and secondary peridotite minerals. Therefore, we are still on the way to answer the following fundamental questions in subduction-zone processes: (1) How do mineral solubility and element partitioning change along the paths of subduction and exhumation at mantle depths of >80 km? (2) How do aqueous solutions, hydrous melts, and supercritical fluids respectively react with the mantle wedge peridotite to generate different composition of metasomes? (3) What is the role of subduction-zone fluids at the slab-mantle interface in dictating the composition of SSC mafic igneous rocks?

The property and behavior of deep subduction-zone fluids are substantial to the mass transfer at the slab-mantle interface in subduction channels. This is also a particularly important challenge because the fluids mediate the recycling of crustal components into the mantle and the reworking of the crust itself. Continental deep subduction triggers metamorphic dehydration and partial melting at the slab-mantle interface, but it did not create juvenile crust like arc volcanics above oceanic subduction zones. Nevertheless, partial melting of the SSC ultramafic metasomes gives rise to mafic igneous rocks in collisional orogens. The geochemical differentiation through dehydration melting and melt-peridotite reaction in continental subduction zones generally resembles that in oceanic subduction zones. However, this represents a different type of recycling of the continental crust compared to the more common recycling of terrigenous sediment in oceanic subduction zones. Partial melting of the continental SSC ultramafic metasomes also represents a different way of crustal growth and crust-mantle interaction with element fractionation from that in the much better studied case of arc volcanism above oceanic subduction zones. Therefore, it is of great significance to investigate comprehensively UHP metamorphic rocks and their associated assemblages such as ophiolites, peridotites, and pyroxenites in order to unravel the geochemical behavior of fluids and element recycling in the subduction factory.
