Constellation design and performance of future quantum satellite gravity missions
Earth, Planets and Space volume 76, Article number: 101 (2024)
Abstract
Temporal aliasing is currently the largest error contributor to timevariable satellite gravity field models. Therefore, the evolution of sensor technologies has to be complemented by strategies to reduce temporal aliasing errors. The most straightforward way to improve temporal aliasing is through extended satellite constellations because they improve the observation geometry and increase the achievable temporal resolution. Therefore, strategies to optimize the design of larger satellite constellations are investigated in this contribution. A complete constellation modeling procedure is presented, starting from primary design variables (such as the required targeted resolutions) and concluding with concrete orbital elements for the individual satellites. In parallel, it is evaluated if improved instrument sensitivities based on quantum technologies (cold atom interferometry) can be fully exploited in the case of larger constellations. For this, future quantum satellite gravity missions adopting the gradiometry concept (similar to the GOCE mission) and the lowlow satellitetosatellite tracking concept (similar to GRACE/FO) are simulated on optimized constellations with up to 6 satellites/pairs. The retrieval performance of a 6pair mission in terms of the global equivalent water height RMS can be improved by a factor of roughly 3 compared to an inclined doublepair mission. 3Dgradiometry intrinsically has a better dealiasing behavior but has extremely high accuracy requirements for the gradiometer (about 10 µEotvos) and the attitude reconstruction to be of any benefit. All simulations show that when incorporating improved sensor technologies, such as future quantum sensing instruments in extended constellations, temporal aliasing will remain the dominant error source by far, up to five orders of magnitude larger than the instrument errors. Therefore, improving sensor technologies has to go hand in hand with larger satellite constellations and improved space–time parameterization strategies to further reduce temporal aliasing effects.
Graphical Abstract
1 Introduction
Current satellite missions for observing the Earth’s timevariable gravity, such as the Gravity Recovery and Climate Experiment mission (GRACE, Tapley et al. 2004) and the GRACE FollowOn mission (GRACEFO, Kornfeld et al. 2019), are confined in their accuracy mainly due to instrument errors and temporal aliasing introduced by the limited spatiotemporal coverage achievable by a single satellite/pair (cf. Flechtner et al. 2016). Through technological advancements, it can be expected that the noise level of the instruments for future satellite gravity missions can still be significantly reduced. Especially, upcoming quantum technologies are promising for increasing the sensitivity of future instruments even further (Encarnação et al. 2024). Future quantum accelerometers based on cold atom interferometry (CAI) might become particularly useful for observing gravity from space since they are currently rapidly evolving (Lévèque et al. 2022). In view of this progress in technology, the reduction of temporal aliasing errors will become even more relevant in the future. To achieve this, the European Space Agency (ESA) plans to launch the Next Generation Gravity Mission (NGGM, Daras et al. 2024) which consists of a lowlow satellitetosatellite tracking (SST) pair at an inclined controlled orbit around 397 km orbital altitude, which will complement the GRACEContinuity polar pair mission (GRACEC, German Aerospace Center 2024). It is foreseen that, together, both missions will form the Mass Change and Geoscience International Constellation (MAGIC, HellerKaikov et al. 2023; Daras et al. 2024). In the case of SST, a second inclined pair helps to significantly improve the observation geometry by introducing a second observation direction and, in addition, ground track crossover points, which might help to equilibrate instrument errors (discussed in Sect. 2.1). Eventually, this increases the overall space–time sampling and homogeneity of the observation considerably, which allows a substantial reduction of temporal aliasing and, thus, results in more accurate timevariable gravity field solutions.
However, even if a MAGIC doublepair mission considerably reduces this effect, temporal aliasing still remains the dominant error in such a constellation (cf. HellerKaikov et al. 2023), which means that a possible future quantum mission will be even more affected because the relative error contribution of temporal aliasing errors compared to further reduced instrument errors will be even more significant. Hence, the question arises: what would be needed for a quantum satellite gravity mission beyond MAGIC to reduce temporal aliasing even further? Since it is known that (temporal) aliasing is caused by an insufficient (temporal) sampling rate (see Shannon 1949), it is evident that an increase of the (temporal) sampling rate is necessary to mitigate it. For satellite gravity missions, the temporal sampling rate can be defined as the period needed to achieve global observation coverage with a desired spatial resolution. Through a suitable constellation design (see Sect. 2), the achievable temporal sampling rate (i.e., the retrieval period) can be reduced linearly with the number of satellites resp. satellitepairs (in the case of SST). This implies that, theoretically, temporal aliasing can fundamentally be avoided through an arbitrarily large constellation.
Hence, more sophisticated constellations will be essential for future satellite gravity mission designs. To tackle this subject, this contribution aims to highlight how larger satellite constellations for future gravity field missions can be defined (Sect. 2) by introducing a general design strategy and by providing the necessary theory and methodology. Based on the presented approach, several examples for constellations of up to 6 satellites/pairs are subsequently derived and evaluated regarding their stability for retrieving gravity fields. Subsequently (in Sect. 3), the impact of such larger constellations on the performance of future quantum satellite gravity missions will be assessed in depth by conducting realistic fullscale simulations. For all simulations, optimistic future quantum instrument noise models, according to Encarnação et al. (2024), are applied. These models were developed in the frame of the same ESA study (QSG4EMT, see acknowledgments) with the purpose of enabling profound simulations of future quantum satellite gravity missions. Hence, particular attention is paid to evaluating the impact of these quantum instruments on the overall gravity field retrieval performance considering different constellations.
Up to now, recovering timevariable gravity through the satellite gravity gradiometry concept (SGG, like the GOCE mission, see Drinkwater et al. 2003), is deemed impossible since it requires a very accurate gradiometer, which, at the time of writing, is not realizable by means of conventional sensors (Heller et al. 2020). However, future quantum gradiometers promise a performance that is several orders of magnitudes better than what is currently possible (Encarnação et al. 2024). Hence, with the availability of superior future quantum sensors, SGG might become a serious competitor of SST because, compared to SST, SGG also has some advantages, such as the availability of collocated multidirectional observations (see discussion in Sect. 3). Therefore, scenarios for quantum SGG missions will also be simulated in addition to SST scenarios, and both concepts will be compared.
Next to the conventional SST and SGG concepts, possible alternative concepts will also be addressed (in Sect. 4) to emphasize that the presented constellation design may not only be limited to the classical concepts. To highlight this, the impact and benefits of the socalled acrosstrack SST concept are investigated, where satellites of one pair are orbiting roughly side by side (i.e., orthogonal to their flight direction) instead of behind one another (as in the case of inline SST). For this alternative acrosstrack SST concept, future quantum sensors can also be applied (Encarnação et al. 2024).
Finally, in Sect. 5, a summary of all findings and achievements is provided, highlighting the impact of larger constellations and future quantum instruments. Special attention will also be given to the conclusions regarding temporal aliasing by discussing remaining limitations that will path the way for future investigations.
2 Constellation design
In this section, strategies for designing low Earth orbiting satellite constellations are discussed that are suitable for future satellite gravimetry missions (such as SST and SGG) and all other Earth observation satellite missions that require observations with a specific spatial and temporal resolution (e.g., altimetry missions). For this, a threestep approach is presented (see Fig. 1): firstly, a set of primary design variables is determined (Sect. 2.1). Based on these, concrete (Keplerian) orbits can be derived (Sect. 2.2). In a last step, these simplified orbits can be refined to be stable (by exhibiting a repeating ground track) in the Earth’s actual (static) gravity field so that they may serve as actual nominal orbits for a satellite mission (Sect. 2.3). Finally (in Sect. 2.4), a set of concrete constellations is exemplarily introduced (up to six satellites/pairs) to practically apply the previously presented theory. Additionally, a direct stability measure is presented to assess the constellation’s behavior regarding global gravity field retrieval. These constellations will be further used (in Sects. 3 and 4) to highlight their impact on actual satellite gravity mission performances.
2.1 Primary design variables
Mainly independent from the concrete concept, for satellite gravity missions, four general shape patterns/variables can be identified for satellite constellations that directly impact the retrievability of global gravity field models. Likewise, these variables represent the initial degrees of freedom in the constellation design.
Time to global coverage (TTGC). Gaps in the global observation coverage lead to numerical instabilities in the global gravity field retrieval and, eventually, hinder the calculation of independent solutions. Hence, one must ensure that a constellation achieves a global observation coverage that is as homogeneous as possible. In addition, for timevariable gravity field retrieval, one has to ensure that this is achieved in specific periods. These requirements lead to the definition of the socalled time to global coverage (TTGC), which shall be an essential attribute of the (gravity mission) constellation. To safely enable a repeating TTGC, only constellations consisting of satellites on repeating orbits will be investigated that exhibit a common repeat cycle (hence, leading to a repeating constellation). When introducing subcycles (see Sect. 2.2), a constellation can have even more than one TTGC. Hence, usually, several TTGCs can be defined for one constellation. However, it needs to be ensured that these also exist for an actual setup (since fitting subcycles may not always exist, cf. Section 2.2). Eventually, the chosen TTGCs will correspond to the primary gravity field retrieval periods targeted by the mission. Since mitigating temporal aliasing is the main objective of this study, selecting the TTGCs first seems to be the most intuitive approach. If one has other priorities, the determination order of the primary design variables (see below) might need to be adjusted.
Orbital altitude range. Gravity field retrieval from space is, concerning its spatial resolution, primarily limited through the signal attenuation of the shorter wavelengths of the body’s gravity field which effect increases with observation distance. Thus, choosing an orbital altitude as low as possible is usually desirable. However, there might be several mission parameters that limit the achievable minimum altitude (mainly due to aerodynamic drag). The altitude poses, thus, for most missions, a critical input parameter that is predefined by the fundamental satellite/mission design. To implement the desired TTGCs for the constellation, it is necessary to initially allow a specific altitude range since the required repeat and subcycles directly depend on the altitude (see Sect. 2.2). For larger constellations with satellites at different inclinations, different altitudes (for the individual inclinations) might be necessary (since repeat and subcycles also depend on the inclination). The larger the allowed altitude range, the more likely a good TTGC configuration can be found. Since observation homogeneity is generally beneficial, choosing eccentric orbits usually does not benefit satellite gravity missions. This further limits the search space for the satellite orbits to (near) circular orbits.
Spatial resolution/number of satellites. Once the TTGCs and the altitude is determined, the required spatial resolution still needs to be defined regarding a specific TTGC. If the resolution has been determined, the minimum number of needed satellites (resp. satellite pairs) for the chosen altitude can be estimated. Assuming an optimal distribution of the satellites (e.g., simplified on polar orbits), the maximum spacing in longitudinal direction \({d}_{lon}(t)\) is inversely proportional to the number of ascending nodes (i.e., the number satellite revolutions) \({n}_{rev}(t)\) within the appropriate TTGC \(=t\) and the number of satellites \({n}_{sat}\):
where \({l}_{max}\) approximates the maximum degree and order (d/o) of a sphericalharmonic (SH) gravity field model, which can still be stably solved through the given spacing (when assuming a regular grid with the specific spacing). This formula can be interpreted as an extension of the wellknown Colombo–Nyquist sampling rule (see Colombo 1984) for more than one satellite/pair. Note that the inequality sign is intentionally swapped compared to Colombo (1984; see discussion below). Using Kepler’s third law, the number of satellite revolutions \({n}_{rev}\) can be approximated sufficiently well through:
where \({\omega }_{sat}\) is the satellite’s angular velocity, \(GM\) the Earth’s gravitational constant, and \(a\) is the semimajor axis of the orbit, which directly correlates to the chosen altitude from the previous paragraph (a mean value of the selected range should be sufficient). Finally, the maximum number of needed satellites for a specific max. d/o can be approximated through the already defined design variables (\(t, a, {l}_{max}\)) by:
with some scale factor \({k}_{s}\) (see the following discussion). Note that this approximation reflects an upper limit of required satellites/pairs since the worstcase spacing in the longitudinal direction is assumed, omitting the impact of descending arcs completely. Weigelt et al. (2013) provide an analytical approach, which considers descending arcs for polar orbits. This approach is, however, not easily transferable to inclined orbits, where the characteristic diamondshaped spatial gaps emerge when regarding the descending arcs. In addition to this simplification, it can be noted that the sampling in the alongtrack direction is typically much higher (only limited by the instrument sampling rate), which is why the final (normal) equation system that needs to be solved is usually strongly oversampled. Both these circumstances lead to a very unsharp requirement regarding the number of satellites resp. max. resolvable d/o. This means that there is not a concrete number where the retrieval fails and where it still succeeds. With a decreasing number of satellites (resp. increasing max. d/o), one can only observe a steady decrease of the condition number of the normal equation system (i.e., the system gets more and more unstable, c.f. Section 2.4). For a practical application of this approximation, it is hence justified to introduce a factor \({k}_{s}\in \left[1/2, 1\right]\). For the constellations investigated in the scope of this contribution, it has been shown (see Sect. 2.4) that a factor \({k}_{s}\approx 3/4\) poses a good compromise between system stability and constellation size (i.e., number of satellites). Inserting all known values in Eq. 3, applying \({k}_{s}\) as defined and approximating the altitude of a typical low earth orbit (around \(500 km\)), the following rules of thumb can be derived (with the Earth’s gravitational constant \(GM\approx 3.986\cdot {10}^{14} {m}^{3}{s}^{2}\)):
with \({n}_{days}\) as the TTGC \(t\) in days. Obviously, as the formulas suggest, instead of the desired maximum degree, one can also define the desired number of satellites as the third design variable. The given uncertainty range has been estimated through the stability analysis discussed in Sect. 2.3. It reflects effects such as a possibly partially inhomogeneous ground track pattern (cf. Sect. 2.2) or an advantageous interplay with descending arcs for polar constellations (see Weigelt et al. 2013).

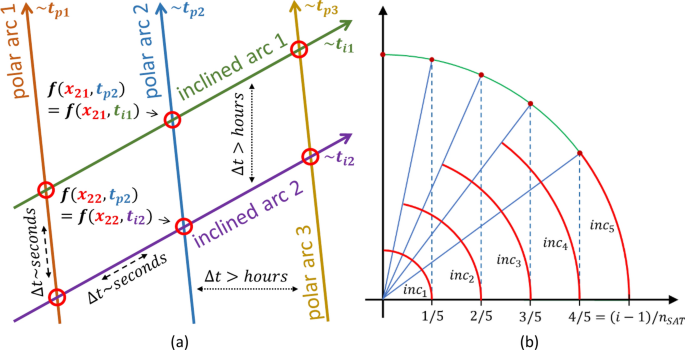

Inclinations. Having already defined the temporal and spatial resolutions, the desired altitude, and the number of satellites/pairs, one still has some degrees of freedom in the constellation design. Foremost, the choice of the inclination/s is still open. There are no general recommendations that are valid for all gravity mission concepts: as already briefly noted in Sect. 1, for SST, it is highly favorable to introduce at least one additional inclination due to the discussed reasons. However, the same can generally not be concluded for SGG, where no significant benefits from additional inclinations can be observed (at least in combination with quantum sensors, cf. Section 3.2). Hence, finding one single design pattern for the inclinations is not possible. Nevertheless, one can identify three general design variants/classes for the determination of the inclinations:

(a)
Polaronly (PO) constellations: the most straightforward variant is achieved when all satellites/pairs are located at a single (near)polar orbit. Such constellations are robust against failures of single satellites/pairs since global coverage can still be retained. Also, since a single inclination is chosen, all satellites can be located at the same altitude for repeating PO constellations. However, from the perspective of a global homogeneous distribution of observations, polaronly constellations are not preferable since they show a strong accumulation of observations near the poles. Additionally, the ground tracks of polaronly constellations do not intersect that often (only at a very acute angle), which is unfavorable for an efficient equilibration of instrument errors (see Fig. 2a for a rationale). From the perspective of gravity field retrieval, the exact choice of the nearpolar inclination is not that important as long as the introduced polar gap is sufficiently small regarding the targeted spatial resolution. PO constellations are generally more interesting for the SGG than the SST concept due to the availability of collocated multidirectional observations (see simulation results in Sect. 3).

(b)
Onesatellite/pairperinclination (OSPI) constellations: an alternative approach is to maximize the number of inclinations given a certain number of satellites/pairs. This is obviously achieved when, on all chosen inclinations, only one satellite/pair is placed. Such OSPI constellations still have many options how to set individual inclinations. However, for gravity field missions, a favorable strategy can be identified, namely, to homogenize the observation density globally. Since the density in the longitudinal direction is anyway homogeneous, the homogenization problem can be reduced to the latitudinal coverage. For the following study, the chosen inclination can be identified with the maximum latitude covered by one satellite. For the sake of simplicity, it is further assumed that every additional satellite linearly increases the observation number per latitude in the covered latitude range. A globally approximate equal density can then be achieved by simply compensating the meridional convergence. Having \({n}_{SAT}\) satellites, this can practically be implemented by dividing the unit radius into \({n}_{SAT}\) equally spaced pieces and by mapping each generated radial distance by the arccosine to the appropriate latitude/inclination \(inc\left(i, {n}_{SAT}\right)\) of satellite \(i\) (cf. Figure 2b):
$$inc\left(i, {n}_{SAT}\right)={\text{cos}}^{1}\left(\frac{i1}{{n}_{SAT}}\right) .$$(5)
When applying this formula, the first inclination is intentionally always set to 90° to retain global coverage. Note that the provided formula is just one of many ways to approximate an equaldensity distribution. Independently of the actual choice of inclinations, the achieved approximation is always rather crude because the observation density of one satellite always increases towards the latitude corresponding to its inclination (which cannot be mitigated). Hence, and because there is no concrete breakdown point regarding spatial gaps (see previous discussion), the precise choice of the inclinations does not influence the global gravity field retrieval significantly (as long as the distribution is somehow equilibrated). The freedom of slightly altering single inclinations for some degrees can practically be used to further optimize the constellation (e.g., for finding better repeat/subcycles or for having a higher observation density over areas of higher interest).

(iii)
Multiplesatellites/pairsperinclination (MSPI) constellations: as the last option to distribute satellites on different inclinations remains a mixture of the previously presented variants, where one may have several satellites on several inclinations. From the perspective of gravity field retrieval, there is no clear preference for MSPI constellations over OSPI constellations. Since it is supposed to have at least one inclined satellite in such a constellation, MSPI also shares the same advantages of OSPI: multidirectional observations (in case of SST) and an abundant number of clear intersections to equilibrate instrument errors (cf. Fig. 2a). However, in MSPI one has obviously a smaller number of directions than in OSPI and also the observation density cannot be equilibrated as well with fewer inclinations. This is why it can be assumed that MSPI constellations might in general produce worse results than OSPI (empirically shown in Sect. 3). Even though OSPI provides a somewhat better homogeneity, MSPI constellations might still be necessary when very short TTGCs (e.g., below one day) are required because, for this, multiple satellites/pairs are usually needed on a single inclination (cf. Sect. 2.2). There might also be other reasons (beyond the scientific mission goal) in favor of MSPI constellations: among others, the deployment of satellites on fewer inclinations might be cheaper and, similar to OP constellations, one introduces a certain level of robustness since single satellites/pairs might fail without losing all observations of one inclination. The actual choice of the number of inclinations and the number of satellites/pairs per inclination might hence be subject to such mission parameters, which will not be treated in the scope of this contribution. Regarding the selection of the inclinations, one can apply a similar approach as presented for the OSPI approach (Eq. 5): e.g., having the satellites/pairs sorted according to their inclination in descending order and having satellites/pairs \(i\) through \(k\) on the same inclination, a homogeneous global observation coverage for MSPI could be approximated by simply defining this inclination as \(inc\left(i, {n}_{SAT}\right)\).
2.2 Repeat and subcycle design
When having defined the targeted TTGCs, the altitude range, the inclinations, and the number of satellites/pairs per inclination (see Sect. 2.1), the optimal altitudes for each inclination can be determined. For this, suitable repeat and subcycles need to be found that implement the demanded TTGCs.
Repeat cycle. The repeat cycle of a satellite \(i\) can be defined as the minimum time \({T}_{i}\) needed to solve the integer equation:
where \({n}_{rev}\) is the integer number of revolutions of the satellite (cf. Eq. 2), \({n}_{E}\) the integer number of revolutions of the Earth (or any other oblate body) and k an arbitrary integer number. To ensure that \(T\) is the minimum time, it is demanded that \({n}_{rev}\) and \(k\cdot {n}_{E}\) are coprime (i.e., they have no common divisor other than 1). In this formula, \({n}_{E}\left({T}_{i},{a}_{i},in{c}_{i}\right)\) reflects the Earth’s rotation relative to the satellite’s nodal precession (accounting for the secular perturbation induced by the Earth’s oblateness):
with \({\omega }_{E}\) the Earth’s angular velocity, \({\omega }_{P}\) the satellites nodal precession rate (see, e.g., Brown 2002), \({C}_{20}\) the appropriate normalized zonal SH coefficient of the Earth’s gravity field and R the reference radius to which the normalized coefficient refers to.
These formulas allow now to calculate the repeat cycle \({T}_{i}\) in several ways, depending on what is fixed/sought (for circular orbits). Since \({n}_{E}\) needs to be an integer, for solving Eq. 6, it is usually helpful to rewrite it in order that \({n}_{E}\) becomes an independent variable:
Equation 10 implies that the repeat cycle \({T}_{i}\) cannot be freely chosen since it is just available in neardaily steps, and the precise value also depends on the chosen altitude and inclination (even if \({\omega }_{P}\) is relatively small in comparison to \({\omega }_{E}\)). When having multiple inclinations, this means that \({T}_{i}\) cannot be exactly the same for all satellites and, consequently, such constellations will not exactly repeat since they will drift relatively in the longitudinal directions (due to different nodal precessions). However, these differences in \({T}_{i}\) are relatively small and do usually not significantly impact the constellation’s overall homogeneity. In the practical application, it is thus helpful to simply approximate/describe the common repeat cycle through \({n}_{E}\) and to define the effective repeat cycle time as the largest value for \({T}_{i}\) over the whole constellation (which, consequently, guarantees complete coverage).
To evaluate Eq. 9, one can insert Eqs. 2 and 8:
Since the altitude (and, hence, \(a\)) has been defined in an interval (see Sect. 2.1), also for \({n}_{rev}\) an allowed interval can be found when applying Eq. 11. Since the interval for \(a\) is assumed to be relatively small in comparison to its amplitude, it should be sufficient to simply insert the limits for \(a\) to obtain the limits for \({n}_{rev}\) (since linearity is assumed in this range). These limits for \({n}_{rev}\) lead now to a concrete set of integer samples, which can be tested if they solve Eq. 6. If no sample is found, the repeat cycle of \({n}_{E}\) days does not exist for the chosen interval of \(a\). In such a case, one needs to either extend the interval or change the targeted repeat cycle. Finally, if a suitable \({n}_{rev}\) is found, Eq. 11 can be used to find (numerically) the corresponding concrete value for \({a}_{i}\) as well as \({T}_{i}\).

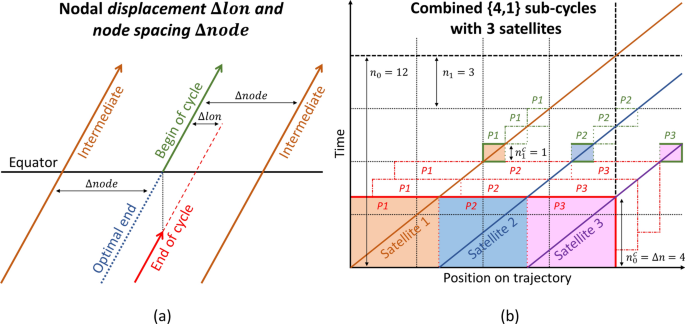

Subcycles. In reallife applications, a precise repeat cycle can only be achieved approximately since an orbit can only be kept with a certain tolerance around its nominal trajectory. This gives rise to the idea of introducing a quality measure that quantifies how “good” an achieved repeat cycle is (e.g., Massotti et al. 2021 already discussed this idea). Here, it is proposed to judge the quality according to the nodal displacement \(\Delta lon\) of the last ascending node in longitudinal direction on the equator with respect to the first node and relative to the node spacing \(\Delta node\). The ascending node spacing of a repeat cycle \(\Delta node\) is simply calculated by:
where \({n}_{rev}\) can now be a positive real number according to Eq. 11 and \(\left\lfloor \cdot \right\rceil\) denotes the rounding to the nearest integer number. The nodal displacement \(\Delta lon\) is calculated by the angle the Earth rotates in the displacement time \(\Delta t\), which the satellite still needs to reach the (nearest) ascending node (cf. Fig. 3a):
Finally, the relative displacement \(\Delta x\) is obtained by the ratio between \(\Delta lon\) and the node spacing \(\Delta node\):
with \(\Delta x\), a very simple but powerful tool is provided to assess the quality of the repeat cycle: if \(\Delta x=0\), a perfect repeat cycle is obtained, and the larger \(\Delta x\), the worse the repeat cycle. While there is no concrete threshold, \(\Delta x<1/2\) has shown to be a reasonable limit for a repeat cycle to be recognized as such when looking at an appropriate groundtrack pattern. The concrete limit has to be set in agreement with the mission's requirements. With the chosen definition, \(\Delta x\) directly impacts Eqs. 3 and 4 since the maximum spacing \({d}_{lon}\) (see Eq. 1) increases by a factor \(1+\Delta x\):
where \({n}_{sat}^{*}\) is the modified number of satellites/pairs needed and \({l}_{max}^{*}\) is the modified maximum achievable resolution when considering an inaccurate repeat cycle.
Eventually, Eq. 16 implies that even a not precise repeat cycle can still be useful for gravity field retrieval. Equation 15 shows that approximate repeat cycles theoretically exist for all number of days. Hence, one might find for an orbit with a certain precise repeatcycle \({n}_{R}\) several socalled subcycles \({n}_{k}<{n}_{R}\), where \(\Delta x\left({n}_{k}\right)<{\Delta x}_{max}\) (\({n}_{k}\) and \(\left\lfloor {n_{rev} \left( {n_{k} } \right)} \right\rceil\) must still be coprime). If found, such an orbit produces nearly regular global patterns in \({n}_{k}\)day periods, which can then be used to implement the required TTGCs of the constellation. To effectively find desired combinations of \({n}_{k}\) subcycles, it is recommended not to fix the actual repeatcycle \({n}_{R}\), but to allow a large range of possible values for it (e.g., up to several years). If the original \({n}_{R}\) is needed to implement a TTGC, it can simply be introduced as an additional subcycle. When establishing the repeatcycle as a degree of freedom, one basically has a discrete 2D search space (together with the orbital altitude) which drastically increases the chance of finding the required combination. Nevertheless, even when having a 2D search space, it is not always possible to find an appropriate solution. In such cases, it might be necessary to iteratively adjust the primary orbit/constellation setup (see Sect. 2.1, e.g., TTGCs, number of satellites, inclinations) until a solution is found.
Combined repeat/subcycles. For PO and MSPI constellations, more than one satellite/pair must be distributed on one inclination. Obviously, it is not really reasonable to place the satellites on the same position, as this would just increase redundancy but not the global observation density. Hence, satellites on the same inclination must operate in tandem to maximize the achievable density (so that Eqs. 3 and 4 hold). One effective way to achieve this is to distribute all \({n}_{sat}\) satellites (which have the same inclination) on the same orbit equally over its repeat cycle so that each satellite covers exactly \(1/{n}_{sat}\) parts of the orbit’s trajectory. In this way, a new combined repeat cycle having a period of
Days is created. Practically, this can be achieved by shifting the \(k\)th satellite on the initial orbit by \(\left(k1\right)\Delta n\) days into the future (e.g., through integration). Hence, when planning MSPI and PO constellations, the combined repeatcycle \({n}_{R}^{c}\) (instead of the orbit’s repeatcycle \({n}_{R}\)) has to be considered when implementing the constellations TTGCs. It is noteworthy that combining satellites in this way may be the only (simple) possibility to achieve TTGCs below one day. This might be relevant if one requires a very high temporal resolution. While it is straightforward to distribute the satellites to optimize one TTGC (see Eq. 17), it gets more complicated when it is required to consider more than one TTGC. It is obviously necessary to optimize more than one (sub)cycle in the shown way. However, generally, one can always only distribute the satellites/pairs regarding one specific (sub)cycle in the described way (see Eq. 17). This means that the length of the other existing (sub)cycles is generally not divided by \({n}_{sat}\) (and are, thus, not optimized). Nevertheless, even if this cannot be achieved in general, it can be implemented for a limited number of particular combinations of (sub)cycles if the applied shift \(\Delta n\) is appropriate for all chosen (sub)cycles \({n}_{k}\) so that
is fulfilled for all these \({n}_{k}\). This means that, for shorter subcycles, the observations of the different satellites/pairs are split among different longer cycles (see Fig. 3b). In this case, \(\Delta n\) effectively optimizes all (sub)cycles simultaneously. Since there exist, especially for shorter repeat cycles, usually not too many solutions, Eq. 18 can be rearranged to directly calculate all possible \({n}_{k}\) given the longest required (sub)cycle \({n}_{0}\) (which must not necessarily coincide with the actual repeatcycle):
Since \({n}_{k}\) needs to be integer, \({n}_{0}\) must practically be a product of all selected \(\left({n}_{sat}\cdot k+1\right)\). In this way, one can find very effectively suitable combinations. E.g., for two satellites/pairs, setting \({n}_{0}=30\) (\(\Delta n=15\)) results in a possible combination of the (combined) subcycles {15,5,3,1}. For three satellites, \({n}_{0}=84\) (\(\Delta n=28\)) enables the combination {28,7,4,1}. Because parts among different cycles need to be combined for this strategy, it might occur that the observed \(\Delta x\left({n}_{k}\right)\) increases since additional shifts of \(\Delta x\left({n}_{k}\right)\) are introduced with every cycle skipped (cf. Figure 3a). To minimize this effect, it might be helpful to introduce \({n}_{k}\cdot k\) (or even better: \({n}_{sat}+{n}_{k}^{c}\)) as an additional subcycle when creating the orbit. Hence, it can be concluded that finding optimal combinations of subcycles for multiple satellites is not trivial and it usually just succeeds for a very limited number of combinations. However, often it is just important to optimize one subcycle \({n}_{T}\) in this way (e.g., the shortest since it defines the temporal resolution) and for the others it is not that critical if the perfect minimum is missed. This usually succeeds since one can simply multiply \({n}_{0}\) (resp. \(\Delta n\)) with an arbitrary number, so that \({n}_{T}\) becomes part of the subcycle set. Then, by evaluating Eq. 18, one can inspect how far the optimum is missed for the other subcycles and, possibly, further adjust \(\Delta n\).
2.3 Nominal orbit design
Keplerian elements. At this point, nearly all Keplerian elements have been determined for all orbits in the constellation (see Fig. 1): (1) the inclinations \(in{c}_{i}\) from the primary orbit design; (2) the semimajor axes \({a}_{i}\) (resp. the revolution time \({T}_{rev}\)) from the repeat/subcycle design; (3) the eccentricity \(ecc\) as (near) zero; and (4) the argument of perigee \(\omega\) as zero (since it has no meaning for \(ecc=0\)). What is still missing is the right ascension of the ascending node \(\Omega\) and the time reference (time since perigee \({t}_{per}\) or true anomaly \(\nu\)). Since the ascending node is drifting (see Eq. 8) for all nonpolar orbits (due to the Earth’s oblateness) and, since orbits on different inclinations are also drifting relatively, setting a specific \({\Omega }_{i}\) will have no significant impact on gravity field retrieval (in the long run, if the different \({\omega }_{P,i}\) show no resonances). Hence, setting all \({\Omega }_{i}=0\) is justified and represents a worstcase moment of the constellation where the gaps on the equator will be maximum. But, also, all other choices for \({\Omega }_{i}\) are legit due to the given reasons. Eventually, even the choice of the concrete time reference \({t}_{per,i}\) will have no significant impact since the constellation’s TTGCs are solely defined by the individual (sub)cycles. If required, \({\Omega }_{i}\) and \({t}_{per,i}\) can be chosen in such a way that the satellites always fly exactly over specific locations (every repeat cycle but at different daytimes).
Repeat ground track (RGT) design. After all orbital elements are determined, the actual constellation design is finished. However, the formulas provided in Sects. 2.1 and 2.2 for the oblate Earth are just approximate and do not reflect the real osculating behavior of the actual orbits. Thus, if one uses the initial state vector (ISV) calculated from the Keplerian elements, the desired orbit features, especially the repeatcycle \({n}_{R}\), will probably be missed. In fact, to even have a repeat cycle, the orbit itself must be repetitive so that:
with \({{\varvec{x}}}^{E}\) the state vector (i.e., position and velocity) in the Earthfixed frame at an arbitrary time \(t\), \({{\varvec{x}}}_{0i}^{E}\) the ISV and \({T}_{i}\) the precise repeat cycle of satellite \(i\). An orbit that satisfies this equation is called a repeat ground track (RGT) orbit. Evidently, such an orbit can just be implemented in a static environment where one has no nonconservative or timevariable forces (e.g., drag or tidal forces). Hence, in an Earthfixed frame, only the Earth’s static gravity field can be considered for calculating RGT orbits. Since, for low Earth orbiting satellites, the Earth’s static gravity field is far more dominant than any tidal and timevariable contributions, RGT orbits are particularly suitable as nominal satellite orbits. To maintain such an orbit, just nonconservative and the (small) tidal forces need to be compensated actively (which is anyway necessary for nondecaying orbits). Thus, nominal RGT orbits should be optimal regarding fuel/energy consumption. Assuming an approximative solution (i.e., ISV) is already given (e.g., through a Kepler orbit), an RGT orbit might be found, e.g., by Newton’s method (in the sense of variational equations, see, e.g., Lara 1999):
Equation 21 describes the remaining gap \(\Delta {{\varvec{x}}}_{i}^{E}\) after one repeat cycle \({T}_{i}\) when using the approximate solution \({{\varvec{x}}}_{0i}^{E}\) (e.g., obtained through Keplerian elements). In Eq. 22, a firstorder Taylorexpansion is introduced to describe the propagation of a small change \(\Delta {{\varvec{x}}}_{0i}^{E}\) of the ISV to the resulting gap \(\Delta {{\varvec{x}}}_{i}^{E}\). Setting Eq. 22 to zero yields Newton’s method (Eq. 23). By iterating Eq. 23 with updated \({{\varvec{x}}}_{0i}^{E}={{\varvec{x}}}_{0i}^{E,old}+\Delta {{\varvec{x}}}_{0i}^{E}\), a solution can usually be obtained in the near vicinity of the original orbit (for nearcircular low Earth orbiting satellites if the approximation has been good enough). If needed, the Jacobian can also be tweaked in several ways in order to preserve certain elements (e.g., position) and, as an alternative, the period \({T}_{i}\) can also be added to an extended ISV and, thus, be varied. For longer periods \({T}_{i}\), it is usually very hard to find good approximations and it might occur that the targeted \({n}_{R,i}\) is missed (and the solution converges instead to another integer value). In such cases, it might be helpful to first solve a reduced problem assuming an equatorial symmetric gravity field (i.e., only consisting of zonal SH coefficients). In such a case, a rotated RGT condition can be established on a very short time scale, with each revolution of the satellite and Eq. 21 can be altered to:
with \({\text{R}}_{Z}\left(\cdot \right)\) the rotation matrix around the zaxis. Since the revolution time of low Earth orbiting satellites is short (< 2h), usually even a coarse approximation is sufficient to obtain a solution. In a second step, this approximate solution (which is already very close to the true one) can be used to solve the initial problem (Eq. 21).
2.4 Selected constellations
Overview. Now that the theoretical backgrounds have been discussed, some concrete constellations will be presented, which will be used for the simulations presented in the following sections. A selfimposed limit of 6 satellites/pairs is introduced for these exemplary constellations to confine the search space and simulation effort. Among the set of selected constellations, an attempt is made to maximize the heterogeneity regarding number of satellites and constellation type (i.e., PO, OSPI, MSPI). Concretely, constellations having 1, 2, 3, and 6 satellites resp. satellite pairs are hence proposed. For each number of satellites/pairs, one example of each constellation type is selected. This leads to a total of 9 constellations since for 1 satellite/pair, all types yield the same polar orbit, and for 2 satellites/pairs, OSPI and MSPI are also identical. The orbital altitude range for the subcycle search is set between 370 and 440 km. TTGCs are tweaked for weekly and daily retrieval periods. The daily period has been chosen because it is the shortest period for which global coverage can still be achieved for all investigated constellations (especially the one and twopair constellations). The weekly period has been chosen because it is the shortest period for which all constellations (even singlepair) reach the target resolution, which is currently deemed relevant for timevariable gravity field recovery (about 2° spacing on the equator for recovering up to \({l}_{max}\approx 90\), cf. results in Sect. 3.3). For the same reason, investigating even longer periods (e.g., months) is considered as not that crucial for future larger constellations, as their main objective is to increase the TTGCs. However, if necessary, finding/implementing longer TTGCs is usually not that problematic from the perspective of constellation design. Since it has not always been possible to find a solution that optimizes both periods (one and seven days), a compromise has been made for the weekly period so that the actual TTGC might also be somewhat shorter in those cases (e.g., 5 days). This is not considered critical since, especially for larger constellations, the observation density is already high enough to achieve a sufficient spatial resolution, even in these shorter periods. An overview of all constellations is provided in Table 1. Figure 4 (left side) exemplarily shows the ground track coverage of the 6pair constellations after one day of retrieval time.
The inclinations of the constellation having two inclined orbits (MSPI2/3, OSPI2) are aligned with the inclinations chosen for the ESA MAGIC science support study in Phase A (to be comparable, see HellerKaikov et al. 2023). For the constellations with three inclined orbits (MSPI6, OSPI3), the lowest inclination is set intentionally to 40° which is somewhat lower than the “optimal” third inclination according to Eq. 5 (which would correspond to 48° in both cases). This is done to highlight/check that the precise choice of the inclinations does not significantly impact the achievable gravity field retrieval performance, as stated in Sect. 2.1.
Stability analysis. Having calculated the selected constellations, it is deemed important to find a measure to quantify the constellations’ performances and to verify that the previously introduced design strategies work as expected. For this, it is proposed to introduce one of the most direct stability measures possible: the condition number, induced by the \({L}^{2}\), norm of the normal equation (NEQ) system which solves for the SH coefficients of the gravity field which is observed by a given satellite gravity mission. As satellite gravity mission, the classical SST concept (with an intersatellite distance of about 220km) is chosen with simplified whitenoise assumption regarding instrument performance and also a simplified processing approach (acceleration approach, see, e.g., MayerGuerr 2006). By setting up the NEQ systems up to different maximum SH degree and orders, one can now investigate how the system (i.e., the constellation) behaves regarding the chosen resolution in terms of stability for different retrieval periods (i.e., TTGCs).

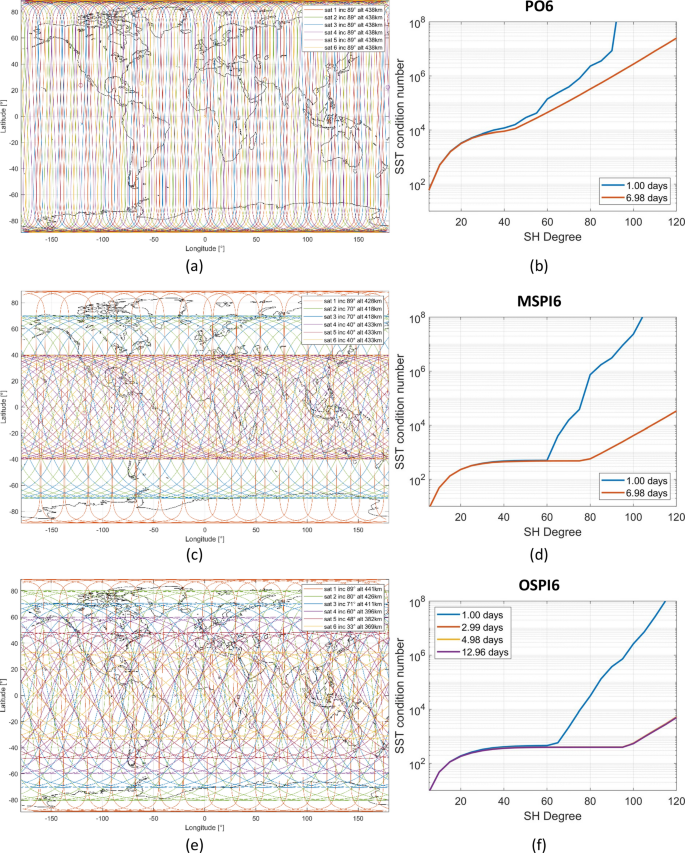

The results for the 6pair missions are shown in Fig. 4 (on the right side) and they are in agreement with the rationales provided in Sect. 2.1: MSPI6 and OSPI6 constellations perform rather similarly with a slight advantage for the OSPI6 constellation. As expected for SST, the stability of PO constellations is much worse than for the inclined constellations. The effect of the missing additional observation directions (and intersections) reflects in a steady increase of the condition number with increasing maximum d/o even for longer retrieval periods. This effect can also be observed for the inclined constellations but starting only at a much higher maximum d/o (probably related to the size of the polar region where only one pair is available). For daily retrieval periods a steep change in gradient at a certain d/o (around 60) is observable which is in a very good agreement with the ruleofthumb formula (Eq. 4) given in Sect. 2.1. Also, one can see that a solution is still obtainable with higher maximum d/o but at the cost of the system’s stability. Higher condition numbers implicate stronger correlations between coefficients and, thus, also stronger individual weights on certain observations. In presence of an undersampled signal in the time and space domain, these strong individual weights increase the induced temporal aliasing error since the inherent dealiasing capability of the constellation (enabled through the targeted homogeneous sampling pattern) gets corrupted. Eventually, this means that one can expect a deteriorating interaction with temporal aliasing beyond this change in gradient which will negatively affect the overall solution (which might not be worth the increase in spatial resolution). Another interesting observation is that, as soon as sufficient ground track density is achieved, a further increase has practically no impact on the system's stability. This can be observed very well, for instance, in the example of the OSPI6 constellation where more than two TTGCs could be implemented (Fig. 4f): the condition numbers for all TTGCs spanning from about 3 to 12 days are practically identical. This implies that, for larger constellations, shorter accumulation periods are usually preferred since, after a certain minimum period, one basically just adds redundancy instead of stability to the system.

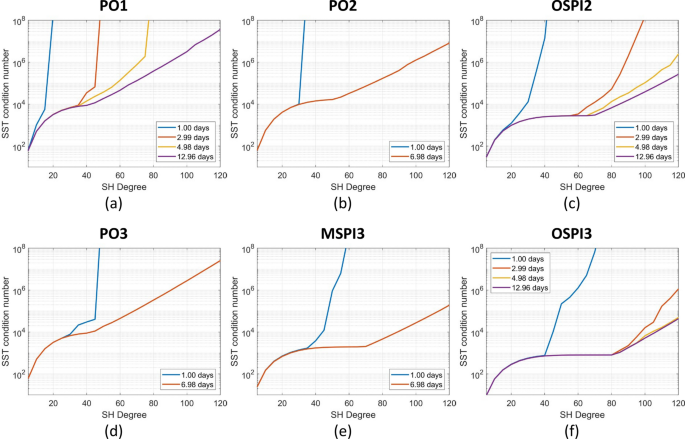

Figure 5 depicts the condition numbers for the rest of the selected constellations (1–3 pairs). Basically, all statements made for the 6pair constellations are also valid for these smaller constellations: it is seen that the change in gradient occurs now at lower degrees in agreement with Eq. 4 and OSPI3 is still somewhat more stable than MSPI3. As for PO6, the smaller polar constellations show a similar steady increase of the condition number. It shall be considered that the shown condition numbers are just valid for inlineSST observations with the measurements performed in flight direction. Especially, the stability of the polar constellations might differ (i.e., increase) significantly for other concepts (such as SGG or noninline SST, see Sect. 4).
3 Satellite gravity mission simulations
With the presented constellation examples (Sect. 2.4), a broad set of samples is available now, covering all targeted constellation types and sizes. Hence, this set will further be used to examine the concrete impact of constellation type and size in conjunction with future quantum instruments on the global gravity field retrieval by simulating the (established) satellite gravity mission concepts SST and SGG for these constellations: after a brief introduction of the simulation setup/environment (Sect. 3.1), the obtained simulation results will be discussed/investigated, firstly, for a simplified static trueworld model (Sect. 3.2) and, conclusively, also for a realistic timevariable model (Sect. 3.3). Larger polar (PO) SST constellations (with more than one pair) are not investigated in this contribution since it is known from earlier studies (e.g., Wiese et al. 2011) that multiple polar SST pairs will not fundamentally improve the observation geometry and, basically, just add redundancy (see discussion in 2.4).
3.1 Simulation setup
An updated version of the TUM fullscale satellite gravity field mission simulator is used to perform the SST and SGG simulations (Daras et al. 2015; Daras 2016). This fullscale simulator aims to yield realistic results that are compatible with current SH products of actual gravity data processing centers (for GRACE/FO and GOCE). For the results shown in this paper, the simulator has been improved compared with the original version to avoid numerical problems when dealing with very low instrument noise scenarios In addition, the simulator has been extended by a new module that allows SGG observation simulation/processing (originating from the original TUM GOCE gravity field processor; see Pail et al. 2011). In the following, the simulation setup will be briefly explained: firstly, the different forward model setups will be discussed (i.e., how observations are generated from “trueworld” models). Subsequently, the backward modeling will be explained (i.e., how the observations are parameterized), including the applied instrument noise model.
Forward modeling. The SST and SGG gravity observations are simulated based on existing gravity field models, which shall represent the “true world” in the simulation environment. Here, static and timevariable models can be distinguished. As static gravity field model, the GOCO05s model (see, e.g., Kvas et al. 2021) is used. As timevariable models, the ESA Earth system model (ESM, Dobslaw et al. 2015) is incorporated for the nontidal signal components and the EOT11a ocean tide model (Savcenko and Bosch 2012) for the tidal part. The simulation period covers the first day resp. first week of January 2002. Using the appropriate functional models (for SST and SGG), errorfree observations can be derived. After adding the corresponding observation noise (see Fig. 6) to it, the “true” (simulated) observations are obtained, which can then be used for the gravity field retrieval (in the scope of the backward modeling). For the simulations, two forward modeling scenarios are distinguished:

1.
A simplified static forward model, where the Earth’s gravity is assumed constant over time (i.e., only the static gravity field model is used). Since this simplified model directly scales with the instrument performance and the system stability, it will be denoted as the productonly model.

2.
A realistic timevariable forward model where the Earth’s gravity field is authentically changing over time according to background model data (ESM and ocean tides). Since only a static gravity field parametrization is applied in the backward model (see below), the timevariable scenario will inevitably introduce temporal aliasing (due to the insufficient parametrization) into the obtained solution (which is completely avoided for productonly). Hence, higher noise levels for these scenarios are expected because an additional error source is introduced. Therefore, this scenario is denoted as the fullnoise model.
Note that, within this study, uncertainties related to an imprecise knowledge of the orbits are neglected (i.e., it is assumed that the satellites' positions/velocities are known sufficiently well).
Backward modeling. The TUM fullscale simulator estimates SH gravity field solutions using a shortarc leastsquares adjustment (LSA) approach. This method is described in detail, e.g., by MayerGürr (2006) for the SST concept but can also be applied to SGG (for the noise modeling part): in this approach, the observations are split into short arcs (e.g., with the length of several hours) and are modeled consistently within these arcs. This allows to describe the noise within one arc rigorously through covariance matrices. For SST, observations are parameterized in terms of rangerate measurements in lineofsight direction using the integral equation approach (see Daras et al. 2015), which is a nonlinear model and requires to coestimate additional orbital parameters (per arc level). SGG, on the other hand, is parameterized by gravity gradient observations and is, in this perspective, simpler than SST since it only requires a linear model, and the orbits do not have to be coestimated.
In addition to the primary SST or SGG observations, also GNSS observations are used for gravity field recovery and assumed to be known with a simplified (white noise) accuracy of 1 cm in each dimension. However, due to the comparable low accuracy of GNSS, the impact of these observations on the final solution is basically neglectable (especially when using quantum instruments which are longterm stable). Using this setup, global gravity fields are estimated for a daily as well as a weekly period for all investigated constellations. The unknown gravity field itself is parameterized through static SHcoefficients up to a certain maximum d/o. The maximum d/o is set according to the stability assessments in Sect. 2.4: for weekly solutions, gravity fields are always estimated up to d/o 90. For daily solutions, the maximum d/o is adjusted to the constellation size: d/o 15 for one pair, d/o 25 for two pairs, d/o 40 for three pairs, and d/o 60 for six pairs (cf. Figures 4 and 5). In the case of the fullnoise forward model (see above), the observations are reduced by dealiasing models for nontidal atmosphere and ocean signals (from the ESA ESM data, components AO and AOerr) and tidal signals (through the ocean tide model GOT4.7, Ray 2008).

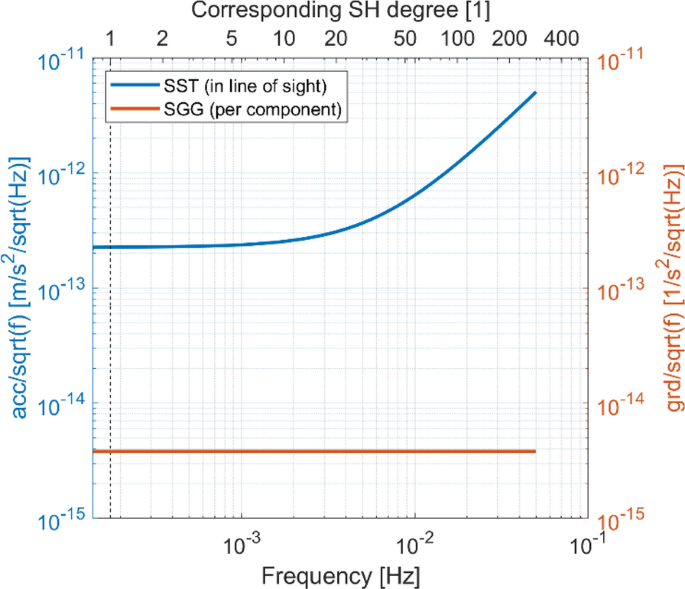

Instrument/noise modeling. The instruments are simulated by assuming noise models for the observations. To be realistic, it is supposed that these noise models already contain all significant individual contributors (e.g., accelerometers, ranging instrument, angularrate reconstruction, temperature instabilities, misalignments, etc.). Since this study focuses on future quantum satellite gravity missions, possible future (quantum) instrument developments are considered. Especially for accelerometers and gradiometers, the current developments in the field of cold atom interferometry (CAI) may lead to significant improvements for future satellite gravity missions. Encarnação et al. (2024) provide a broad overview of such future quantum instrument scenarios. To investigate the impact of constellations, it is hence decided to pick the most optimistic (future) noise assumptions from this study for our simulations (to be minimally impacted by the limited instrument performance). The resulting observation noise models are depicted in terms of their amplitude spectral densities (ASDs) in Fig. 6 for SST (as accelerations in lineofsight direction) and for SGG (as gradient components). Compared to the noise models of conventional electrostatic instruments, quantum instruments benefit particularly in the long wavelengths since they are not impaired by the same drift effects as their electrostatic counterparts. By applying a cosine transform, these ASDs can be converted into covariance matrices, which are then used as stochastic information for the gravity observations in the simulations. For SGG, it is assumed that one can measure all three main diagonal elements of the gravity gradient tensor with the same accuracy (which is actually needed to allow an angular rate reconstruction with sufficient performance to fully exploit the gradient signal; see Encarnação et al. 2024). Eventually, this means that, for SGG scenarios, simultaneous observations in all three directions are given in contrast to (inline) SST, where only observations in flight directions are available. With this, SGG also accumulates three times more observations in the same time span as SST. For simulating SST, an intersatellite distance of about 220 km (similar to GRACE/FO) is chosen for each pair. For SGG, for each satellite, a gradiometer arm length of 1 m is assumed (the SST and SGG error curves in Fig. 6 are hence directly comparable). The SST quantum noise model consists internally mainly of two future CAI accelerometers (one for each satellite), projected on the lineofsight, and one future laser ranging interferometer (LRI). Since it is assumed that the future LRI limits the overall performance, the projected (combined) SST noise is larger than the SGG noise in Fig. 6.
3.2 Productonly simulation results

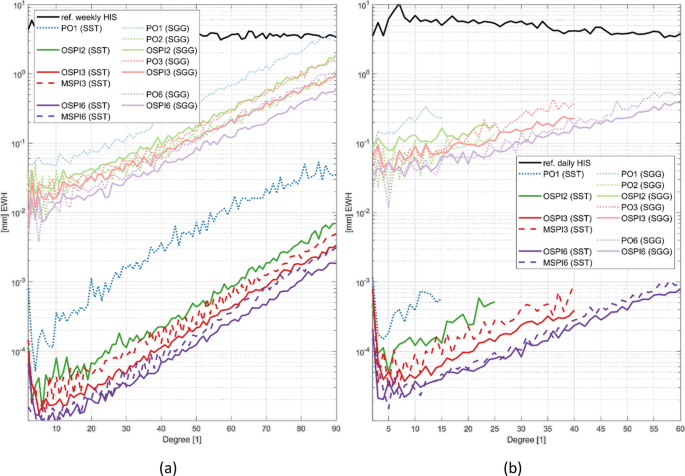

General discussion. The productonly simulation results will be discussed first. A complete summary of all simulation results is provided in Fig. 7 in terms of empirical degree errors (i.e., closedloop errors of the simulations) of equivalent water heights (EWH, see, e.g., HellerKaikov et al. 2023). The results shown lead to the following main conclusions:

Applying the given quantum instrumenterror margins, SST performs significantly better, resulting in gravity field retrieval errors about three orders of magnitude smaller than that of SGG (even though very optimistic noise assumptions for the gradiometer have been made and three times as many observations are available, see Encarnação et al. 2024). This underlines once more the sensitivity advantage of SST over SGG, which can easily be understood when interpreting SST as a kind of longarm gradiometry: the stability of numerically derived gradients of a (sufficiently smooth) function increases linearly with the distance of the underlying sample points (accelerometer positions in the concrete case). When comparing the 220 km arm length of SST with the 1 m of SGG, it is evident that the accuracy of accelerometer measurements of SST satellites may be about five orders of magnitude lower than that of an SSG satellite to reach a comparable gradient accuracy. In the assumed instrument case, SST (lineofsight) acceleration errors are about two orders of magnitude larger (i.e., worse) than the comparable gradient errors of SGG (see Fig. 6) due to the limiting accuracy of the intersatellite ranging instrument (Encarnação et al. 2024). Eventually, this leads to the observable difference in the shown productonly solution of about three orders of magnitude.

Extrapolating the achieved productonly accuracies of the SST scenarios to higher d/o suggests that retrieving timevariable gravity (EWH) becomes theoretically possible up to about d/o 200 (intersection between signal and noise curve, see Fig. 7) when applying the given instrument noise. Concerning the productonly results for SST and SGG, it can generally be stated that the noise levels in the solutions (Fig. 7) scale about linearly with the assumed noise levels of the instrument ASDs (Fig. 6) since also the underlying functional relations are relatively linear. Since the noise floor of the assumed quantum instrumentation is nearly four orders of magnitude lower than that of GRACEFO (Darbeheshti et al. 2017), also the resulting productonly errors are about four orders of magnitude smaller (compare to Flechtner et al. 2016).

Although the sensitivity of SST is much higher, with the assumed quantum instrument performances, even SGG becomes sensitive to timevariable gravity (up to about d/o 100). Compared to the conventional electrostatic stateoftheart gradiometer employed in the GOCE mission (Siemes et al. 2019, Christophe et al. 2018), the noise floor of the assumed quantum gradiometer is roughly four orders of magnitude lower (about 4 µE). When comparing to the productonly retrieval errors (Fig. 7), it is evident that this low noise level is required to be sensitive to timevariable gravity (at least about 40 µE). However, these error levels can just be reached when assuming that the angular rates can be reconstructed directly through the CAI gradiometer, which requires a more sophisticated setup that is probably not realizable any time soon (Encarnação et al. 2024).

With an increasing number of satellites, the productonly retrieval error decreases for all scenarios. This can mainly be attributed to the increased redundancy when having more observations (according to the \(\sqrt{n}\)law of error propagation) since it is supposed that the system stability is reasonably good in all cases (because the resolutions have been chosen in agreement with the analysis in Sect. 2.4). This implies that the achievable error reduction with larger constellations is rather conservative within the performed simulations.

The weekly SST singlepair scenario is an exception that displays a more significant degradation of performance, which cannot be attributed to a decreased redundancy alone. What comes into play here is (as already mentioned) the suboptimal system stability caused by having only observations in one direction (north–south) and nearly no stabilizing intersections between ground tracks. Single satellite SGG is basically not impacted by this since even a single gradiometer provides observations in all three directions, and the whitenoise instrument behavior does not significantly benefit from intersecting ground tracks.

Interestingly, the disproportionate large performance leap between the single and doublepair SST retrieval performance becomes less prominent in the case of a daily retrieval. When comparing the daily and weekly singlepair performance with each other, it is seen that the error level remains nearly constant. In contrast, the error levels of all other solutions decrease to some extent with the increasing retrieval period. While it is not completely clear why this happens, it is assumed that the instrument error equilibration through the ground track intersections (in the case of OSPI/MSPI, see Fig. 2a) does not work as well if the distance between the intersections becomes too large (as it might be the case for daily ground tracks).

In the case of SST, it can be observed that the OSPI constellations perform marginally better than MSPI. This matches the prediction from the constellation design in Sect. 2.1.

Also, for SGG, the inclined (OSPI) constellations perform, on average, slightly better than the polar constellations. However, there are also some exceptions, and some weekly scenarios show, especially in the high d/o, different behaviors between the corresponding PO and OSPI variants. This might be because different orbital altitudes had to be chosen for different constellations to implement the necessary TTGCs. Hence, the attenuation of the gravity field signal, especially in higher d/o, also slightly varies, which consequently impacts the retrieval performance. Since the differences are anyway relatively small, for SGG, no clear preference for inclined constellations over polar constellations can be expressed.

For the daily retrieval period, it is seen that larger constellations allow to stably parameterize the gravity field to higher d/o according to the target resolutions defined in the constellation design phase. After the stability analysis in Sect. 2.4, this is a second evidence that the constellation design process works as intended and that the derived concrete constellations meet their initial expectations.

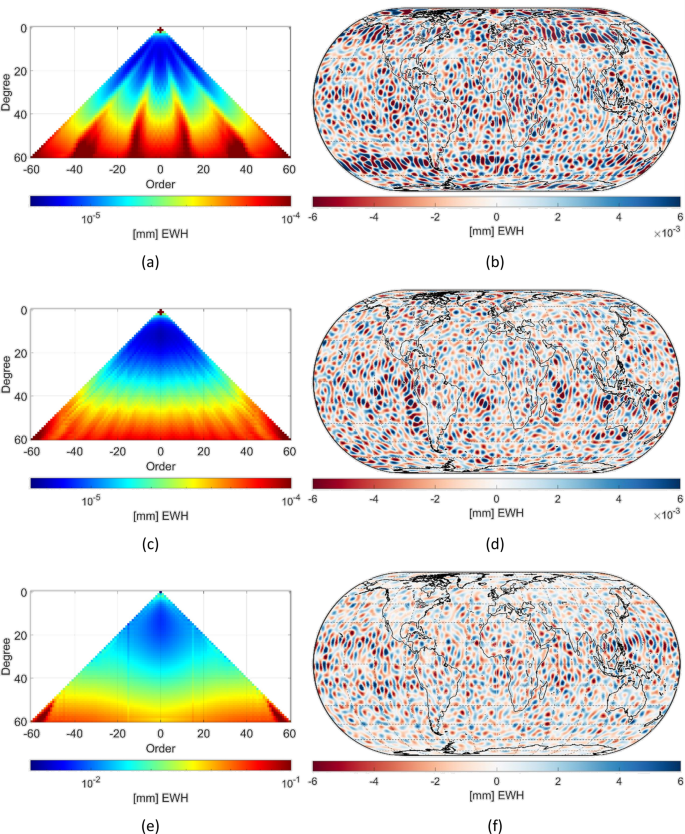

Error structure analysis. For the sixpair solutions of the different constellations (MSPI6SST, OSPI6SST, and PO6SGG), a more indepth analysis is performed to investigate the differences in their error distributions in the SH and spatial domain. For this, the formal errors of the coefficients are plotted in triangle form along with the empirical spatial errors in Fig. 8. In the case of productonly, the formal coefficient errors are perfectly representative of the empirical errors (which are shown in Fig. 7 in terms of degree errors) since the instrument noise is modeled accurately by the simulator. Hence, the formal errors shown (Fig. 8, left column) also directly relate to the empirical error distribution in the spatial plots (Fig. 8, right column). Starting from the spatial plots, the influence of the different constellations can be clearly observed:

For the MSPI6 constellation, the three chosen inclinations of the satellite orbits can be recognized well in the spatial plot (Fig. 8b) as the latitudes where the error amplitudes are changing (on the northern hemisphere north of Iceland and over southern Italy). In the coefficient triangle (Fig. 8a), the inclinations are even better discernible as offzonal lobes, one lobe for each (nonpolar) inclination for sine and cosine coefficients. Although these inhomogeneities are visible and impair the solution to some extent, they may not be considered significant for the overall retrieval sensitivity and achievable resolution (see Fig. 7b).

In contrast to MSPI6, the OSPI6 error patterns are more homogeneous. This is true in the spatial and spectral domains: in the spatial domain (Fig. 8d), the individual inclinations of the orbits cannot be identified with the naked eye. Only a slightly increasing amplitude towards the equator is vaguely visible. This integral homogeneity is also observed in the spectral domain (Fig. 8c), where the individual lobes of the inclinations nearly vanish, and only a faint increase of the errors towards the sectorial coefficients remains (which roughly translates to equatorial regions in the spatial domain). From the perspective of the constellation design, this increased homogeneity of OSPI compared to MSPI has already been expected (see 2.1) due to the higher number of observation directions and better observation homogeneity.

As previously discussed, in contrast to the sixpair SST scenarios, the SGG scenario PO6 exposes an error level about three orders of magnitudes larger. Ignoring this fact, the error patterns themselves are otherwise comparable to OSPI6: the spatial error distribution (Fig. 8f) is also relatively homogeneous with a weak increase towards the equator (slightly more visible than for OSPI6). This behavior can also be tracked well in the SH coefficients (Fig. 8e), where a small sectorial lobe with increased errors is especially visible (starting around d/o 50 and indicating a limitation of the constellation). Neglecting these sectorial lobes, the PO6 scenario shows the best performance in the zonal region (relating to polar areas), slightly degrading towards the sectorial areas (relating to equatorial regions). This is also well explained by the constellation design (see 2.1), which states that PO constellations highlight a maximally unilateral accumulation of observations around the poles at the expense of the equatorial zones.

Additionally noteworthy, in contrast to SST, SGG enables a very stable retrieval of the lowest d/o. This indicates that the lowd/o instabilities in the case of SST are primarily induced by the measurement concept (e.g., through the single measurement direction) and not by the instrument itself (since quantum sensors are assumed that do not feature increased longwavelength errors).
3.3 Fullnoise simulation results
General discussion. After the productonly results have been examined, the more realistic evaluation of the fullnoise results will be addressed. The only difference to the productonly results of the previous section is that the observations (i.e., the forward model, see Sect. 3.1) now include realistic time variations of the gravity field signal, which will cause temporal aliasing. Similarly to the productonly results in Fig. 7, Fig. 9 summarizes the corresponding fullnoise degree errors, again for a daily and weekly retrieval period. From this figure, the following insights can be gained:

All fullnoise results are limited in their accuracy (in the low d/o) at around 1 mm/degree in terms of EWH. Compared to the productonly solutions (Fig. 7), this is a deterioration of nearly five orders of magnitude for SST and still about two orders of magnitude for SGG. This leads to the conclusion that temporal aliasing will pose the largest error source by far when applying the given future instrumentation, including quantum sensor. This has already been expected from the beginning (see Sect. 1), but is now clearly proven by the simulations and highlights once more the urgent need to significantly reduce the impact of temporal aliasing for future missions.

Larger constellations have a considerable influence on the reduction of temporal aliasing. E.g., the maximum recoverable d/o increases for the weekly SST solutions from about 15 for a singlepair, to about 40 for a doublepair, to about 50 for a threepair, and to about 70 for a sixpair mission. For a daily retrieval period, the relative differences in the maximum recoverable d/o for the different constellation sizes are even more pronounced: it increases from about d/o 5 for a single pair to 20 for two pairs, to about 35 for three pairs and about 45 for six pairs.

Daily SGG solutions perform slightly better but are generally very similar to daily SST solutions. This emphasizes that also the sensitivity advantage of SST over SGG (see Fig. 7b) is consequently meaningless if superimposed by temporal aliasing. The slight advantage of SGG can be explained by the collocated multidirectional measurements (except for PO6), which, eventually, help to homogenize the normal equation system and, thus, increase the mission’s intrinsic dealiasing capability.

Interestingly, weekly SGG solutions do not scale as well with the constellation size as SST and daily SGG. While some improvements can still be distinguished (especially in the longer wavelengths), they are relatively small, and, performancewise, all solutions are similar to the weekly threepair OSPI SST solution. An obvious explanation for this is a different interaction with the timevariable signal on a weekly scale, possibly caused by the different instrument noise ASDs and its dynamic interplay with denser ground track patterns (compare discussion in 3.2).

Similar to the productonly SST solutions, also for fullnoise SST, OSPI constellations perform better than their MSPI counterparts. However, for fullnoise SST, the advantage of OSPI over MSPI seems to be more prominent in a way that a sixpair MSPI solution is only slightly better than a threepair OSPI solution and, likewise, the threepair MSPI is only marginally better than the twopair OSPI. This suggests that, for fullnoise, having more inclinations is favorable for optimizing the intrinsic dealiasing capability of the scenario.

In the case of SGG, for the fullnoise scenarios, PO constellations seem to perform constantly slightly better than their inclined relatives. This is, to some extent, in contradiction to the productonly results where the inclined constellations slightly outperform, on average, the polar ones. This again indicates that, for SGG, no clear benefit can be obtained by applying inclined constellations (in contrast to SST).

According to the previous results, with some minor exceptions, one can establish the following rule of thumb: if an SST (SGG) scenario performs better in the productonly case as another SST (SGG) scenario, then the same is probably also true for the fullnoise case. The reason for this might again be found in the constellation’s intrinsic dealiasing capability, which usually increases with the stability resp. homogeneity of the underlying normal equation system. Eventually, the system’s homogeneity is indicated by the productonly errors (since they follow the formal errors).

Even though the constellation size helps to mitigate temporal aliasing to some extent, the improvements are rather conservative (within one order of magnitude) when compared to the overall temporal aliasing error contribution (which might reach up to five orders of magnitude compared to productonly scenarios of future SST mission, compare Figs. 7 and 9). Eventually, this means that the temporal aliasing problem is not fundamentally solved through the investigated constellations. As an explanation, basically, two remaining error sources can be identified (see Sect. 5.2 for a more elaborated discussion): firstly, the daily temporal sampling allows theoretically to recover just twodaily frequencies according to the Nyquist–Shannon sampling theorem. However, it is known that strong signals with daily and subdaily frequencies (e.g., from tides, atmosphere, and ocean) exist, which, consequently, cause strong residual temporal aliasing. Secondly, in the shown simulations, a timestatic parametrization (i.e., step function) is applied, which cannot even account for a linear changing signal and, hence, can never truly describe the forward modeled signal.

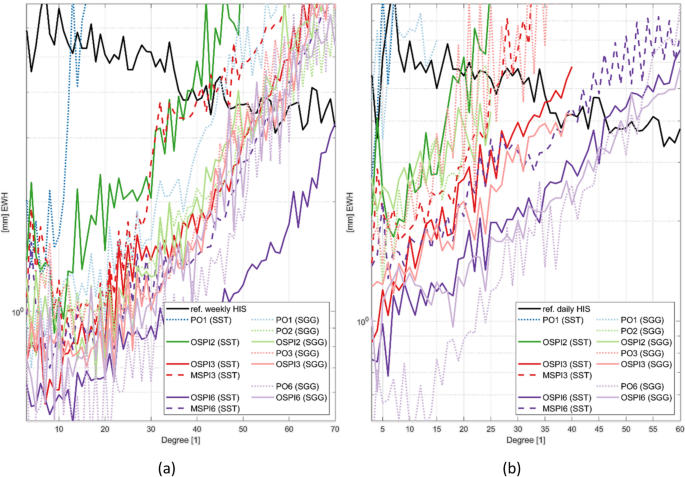

In addition to Fig. 9, Table 2 summarizes the performance of all conducted fullnoise simulations by comparing their global cumulative mean errors at different resolutions (max. d/o). While the conclusions are generally similar to Fig. 9, the global mean errors allow an even better comparison in terms of absolute numbers. E.g., at a resolution of 4° (d/o 45) and for a weekly retrieval, an inclined twopair SST mission improves the singlepair mission by a factor of roughly 1.7 from 171 mm to 100 mm EWH. Adding a third inclined pair further halves this error margin to about 52 mm. The sixpair OSPI6 SST constellation reduces the error once more to about 32 mm. This is a considerable improvement by a factor of roughly six over the singlepair constellation. These relative scales are more or less representative of what is achievable with larger constellations regarding the intrinsic mitigation of temporal aliasing. In comparison, without temporal aliasing, with the assumed quantum sensors, an error of less than 1 µm EWH would be expected at this resolution (cf. Fig. 7a). This highlights once again the enormous difference in scale between temporal aliasing and possible future instrument error levels. It shall be noted that all presented results are obtained without any sophisticated postprocessing resp. filtering (only spectral limitation). When applying dedicated temporalaliasing filters resp. postprocessing strategies, it can be assumed that all global errors will further decrease. For GRACE, sophisticated postprocessing filters (Kusche et al. 2009; Horvath et al. 2018) allow improvements by a factor of up to two compared to simple filter methods (such as Gaussian filtering or spectral limitation). Currently developed temporal aliasing filters (see, e.g., Hauk et al. 2023) may lead to further slight improvements (less than a factor of two). Since there is no specific reason why the mentioned filters will perform significantly differently on other (possibly larger) constellations and noise models, similar error reduction rates are expected when applied to the scenarios of this study. Hence, it is also not expected that the achieved improvement through filters will be will sufficiently large (i.e., more than one order of magnitude) to impact any of the assessments made within this study.

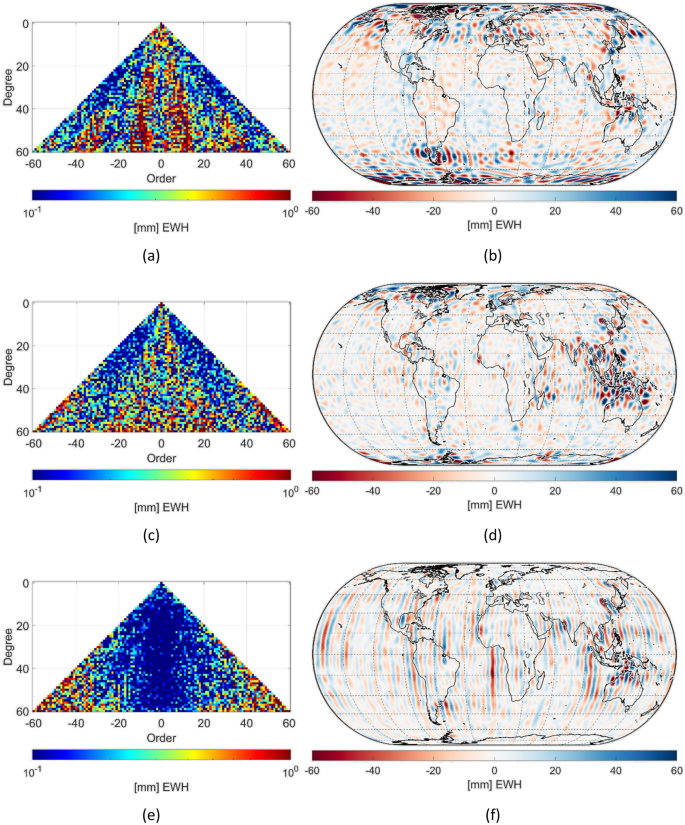

Error structure analysis. Similar to productonly, also for the fullnoise scenarios, an indepth analysis of the resulting error patterns of the different daily sixpair solutions (MSPI6SST, OSPI6SST, and PO6SGG) will be performed in the spatial and spectral domain (see Fig. 10). In contrast to the productonly analysis, for investigating the coefficients, the empirical error is chosen instead of the formal. This is done because, in the presence of a temporal gravity signal, the formal errors do not realistically represent the empirical ones (since the timevariability is not modeled in the least squares adjustment approach). In fact, the estimated formal errors of the fullnoise scenarios would be identical to the productonly scenarios (driven by the instrument noise model, cf. Figure 8) since the backward model is not altered between these scenarios. As previously discussed, the fullnoise errors are strongly dominated by temporal aliasing, meaning that all observed patterns (in Fig. 10) are basically governed by the highfrequency timevariable signal and not by the instrument noise (as in the case of productonly). Even though the error source and magnitude have completely changed, constellationcharacteristic patterns can still be observed in the case of fullnoise (Fig. 10):

For MSPI6, the chosen inclinations of the individual satellites in the constellation can well be observed in the spatial error distribution (Fig. 10b), similar to productonly but more strongly concentrated in the polar regions. The two lobes of the inclined orbits are also clearly discernible in the coefficient triangles (Fig. 10b). In comparison to the productonly formal error (Fig. 10a), the zonal lobe is more pronounced, causing larger polar spatial errors.

In the coefficient triangle of the OSPI6 constellation (Fig. 10c), the individual lobes of the different inclinations cannot be observed anymore. Instead, a relatively wide zonal lobe is visible, and an increased sectorial error in the higher d/o. In the spatial domain, this translates to a somewhat increased error magnitude in the polar and equatorial regions. However, as already observed in the degree errors (Fig. 9b), the overall error magnitude is again somewhat lower for MSPI6 (except for the equatorial region).

While for the two sixpair SST scenarios, the fullnoise empirical errors stay at least somewhat similar to the corresponding formal errors, the same cannot be concluded for the PO6 SGG scenario: the spatial error now shows an anisotropic striping pattern in the north–south direction which increases its magnitude towards the equator (Fig. 10f). Interestingly, the zonal and nearzonal coefficients of PO6 (Fig. 10e) highlight a significantly reduced noise compared to the inclined SST scenarios, which cannot be solely explained by the increased observation density in the polar regions (since it would then more follow the behavior of the formal error). The reason for this may be found in the individual orbits of the PO6 constellations, which have, among others, also a threeday subcycle. This means that the combined subcycle of the six satellites unintentionally realizes a halfdaily period, which enables a sufficient sampling of at least a part of the tidal signal (with a coarser resolution; see width of the zonal area). Eventually, this highlights the importance and the possible benefit of introducing subdaily retrieval periods (see discussion in Sect. 5).

Comparing the lowest d/o between SGG and SST, it is again visible that SGG allows a very stable reconstruction of the lowest wavelengths of the gravity field while SST struggles to do so.
4 Acrosstrack SST (ASST)
The previous Sect. (3) focused solely on the already established satellite gravity mission concepts SGG and (inline) SST. However, for future gravity missions, alternative concepts might also become feasible where the presented constellation design strategies might still be applicable. To highlight this, this section is dedicated to the evaluation of the socalled acrosstrack SST concept, which poses one (theoretically) viable option for such an alternative gravity mission concept: in Sect. 4.1, the acrosstrack concept is explained, and a motivation is given why and when this concept might be useful. Subsequently, in Sect. 4.2, simulation results of constellations applying the acrosstrack concept and quantum instruments will be presented and compared to the results from the classical concepts (from Sect. 3).
4.1 The acrosstrack SST concept

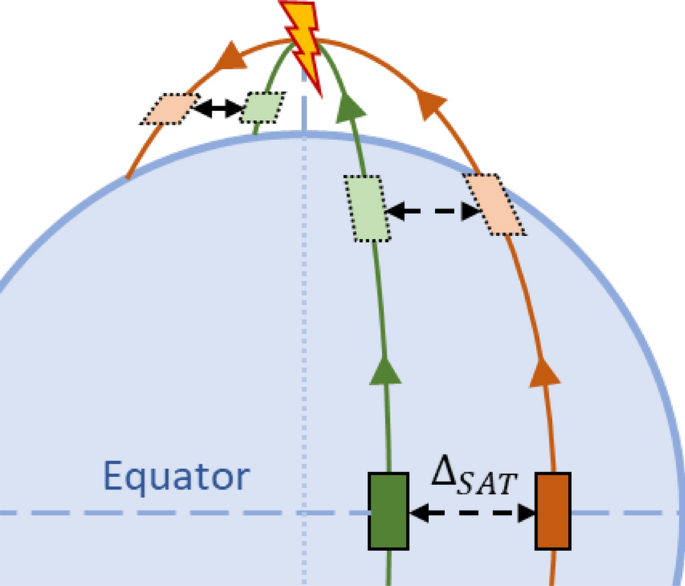

Motivation and idea. The investigations in the previous Sect. (3) indicate that gradiometry, applied on polar (PO) constellations, yields competitive solutions in presence of temporal aliasing (cf., e.g., Fig. 9). However, for gradiometry it is (at the time of writing) unrealistic to obtain the necessary measurement sensitivity to observe the Earth’s timevariable gravity field, even when employing quantum sensors (see Encarnação et al. 2024). Hence, it might be useful if an SGGlike retrieval stability on a PO constellation could also be achieved through an SST mission since SST has a fundamentally higher sensitivity (see discussion in 3.2). Additionally, using PO constellations could have some further advantages (e.g., regarding reliability and the realization of subdaily subcycles, see Sect. 2). From classical inlineSST (ISST or simply SST), it is known that the SGG fullnoise retrieval performance cannot be reached on PO constellation, since only observations in inflight direction are available, which introduces increased instabilities in the solution (see, e.g., Fig. 4b). This is in contrast to SGG, where measurements are obtained in all three directions simultaneously. Since the measurement principles of SST and SGG are otherwise strongly linked (cf. Sect. 3.2), the number of observation directions is obviously the only significant conceptual difference, which may cause the inferior performance of SST. This gives rise to the idea of measuring SST in another direction, which is maximally different (i.e., orthogonal) to the classical inflight measurement direction to avoid the aforementioned instabilities. In general, there might be several ways to realize a second direction (e.g., through highlow SST, see Pail et al. 2019), but a straightforward idea, which implements this in a lowlow configuration, is the socalled acrosstrack SST (ASST) concept. As the name suggests, in the ASST concept, SST measurements are obtained in the acrosstrack direction, roughly perpendicular to the orbit trajectory and radial position vector. This observation direction can be achieved by simply adjusting the right ascension of the ascending node \(\Omega\) of one satellite so that the two satellites have the desired distance (e.g., at the equator, see Fig. 11). ASST can be interpreted as a degenerated form of the pendulum concept, with a maximum tilt of 90° (see, Panet et al. 2013). An advantage of ASST is that both satellite orbits can still be designed (e.g., through the method presented in 2.4) in a way that they do not drift over time relative to each other, which might be required to enable an SST mission with a sufficient lifespan. The major disadvantage of ASST is that the orbits converge on their way from the equator to the pole, meaning that the intersatellite distance is strongly varying. On each pole, the two satellites meet and switch their position (left–right). In an idealized Keplerian case, the satellites would, in fact, collide on the poles. However, this is not considered a fundamental problem in the real application since orbits can always be slightly adjusted if necessary. For an actual implementation, the most significant difficulties are assumed to be related to the intersatellite ranging near the poles, which must be able to handle very small intersatellite distances and large rotation rates to still track the other satellite. Eventually, it could be necessary to stop the measurements beyond a certain latitude, which would, introduce a polar gap. While this kind of difficulties might be relevant when actually realizing this concept, these problems will not be further considered in the scope of this more theoretical study. For the sake of simplicity, it is thus assumed that observations can be obtained on every position with equal accuracy.
Combining ASST and ISST. Even though ASST allows to measure in a second direction, it is not assumed that acrosstrack measurements are inherently better suited for gravity field recovery than measurements in the inflight direction obtainable through classical ISST. Hence, it is also not expected that a polar ASSTonly constellation has a fundamental advantage over a comparable polar ISSTonly constellation. However, following the previous comparison with SGG, it is assumed that combining both directions within one polar (PO) constellation is the key to reaching the targeted gradiometry performance since the two observation directions should perfectly complement each other: in fact, when translating the zerotracecondition of the (harmonic) gravity gradient to SST, it is evident that two observation directions should render the third direction redundant. Hence, two SST measurements in different directions should theoretically have the same information content as SGG when the main diagonal of the gravity gradient is measured.
IASST constellations. There are basically two different types of larger combined ISST and ASST (PO) constellations imaginable (socalled IASST constellations):

The first type simply incorporates dedicated ISST and ASST satellite pairs into one constellation. Each pair will then cover its own ground track as defined by the constellation design (cf. Sect. 2). When using this constellation type, there are many possible ways to mix ISST with ASST. One straightforward way is to use both halfhalf and interleave ISST and ASST pairs on the ground track of the targeted retrieval period.

As an alternative IASST constellation type, one could also create satellite triplets instead of pairs with one central satellite, one satellite orbiting ahead (for ISST), and one aside (for ASST). This requires one satellite less than the first type because the central satellite is targeted twice, and ISST and ASST observations will be collocated on (roughly) the same position. On the downside, this might require designing three different satellite types (in comparison to two when assuming a symmetric design for the former constellation type). Also, with collocated observations, the achievable spatiotemporal resolution is more limited since there are basically as many satellite triplets needed as pairs required for the former type to achieve a similar ground track coverage.
Due to these disadvantages of the latter constellation type, only the former will be investigated in this study. Additionally, when using the simpler former type, the comparison of the resulting IASST constellations to the classical ISST constellations (of Sect. 3) should be fairer regarding size, cost, and performance (since pairs are compared to pairs and not to triplets).
4.2 ASST simulation result
Simulation setup. For simulating the ASST concept for quantum satellite gravity missions, the simulation setup is kept identical to the setup defined in Sect. 3.1 for the classical concepts. Hence, also for the ASST investigations, daily and weekly solutions are evaluated for the productonly and fullnoise case. As discussed in 4.1, to limit the complexity, the noise behavior of the lineofsight observations for ASST is assumed to be identical to ISST. For implementing the IASST constellations, the PO constellations (see Sect. 3.4) are reused again. Concretely, the following interleaved IASST constellations are investigated (in brackets the SST type of each pair): PO2 (A, I), PO3 (A, I, A), PO6 (A, I, A, I, A, I). For comparison, also ASSTonly scenarios are simulated in addition on the aforementioned PO constellations.

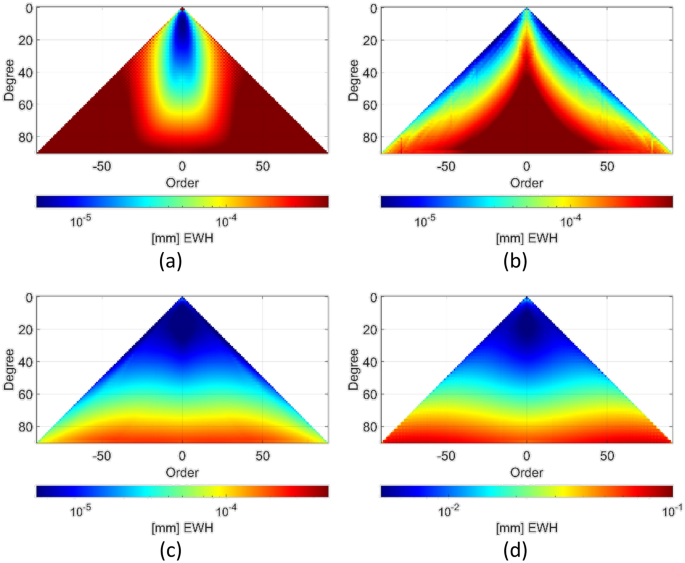

Preanalysis of the formal errors. In Sect. 3, it has been shown that the homogeneity of the formal errors, obtained from least squares adjustment, is a good indicator of the overall solution’s stability (cf. Sect. 2.4) and, eventually, also for the retrieval performance. This is evidently true for productonly but also for fullnoise since the intrinsic dealiasing seems to work best if the solution’s normal equation system homogeneously weights the coefficients. The formal errors of weekly solutions of the different concepts on polar orbits are shown in Fig. 12 (applying the same quantum noise models from Fig. 6). As expected, the GRACElike ISST (Fig. 12a) and the alternative ASST concept (Fig. 12b) expose a highly heterogeneous error distribution on polar orbits. Eventually, this is considered the main reason why GRACE/FO and GRACElike scenarios perform comparatively weakly when influenced by temporal aliasing ("striping patterns”). Even though ISST and ASST error patterns are strongly heterogeneous, it is also evident that they are complementary: ISST performs well in the zonal region, and ASST performs well in the sectorial areas. Remarkably, in contrast to ISST, ASST also shows in the lowest d/o a good performance. This already indicates that a combination of both concepts might be promising. Indeed, the heterogeneity in the formal errors vanishes when combining ISST and ASST into a polar twopair constellation (PO2, see Fig. 12c). The remaining degree dependency of the formal errors is inevitable due to the gravity signal attenuation at the satellite altitude. In 4.1, it has been further stated that SGG and IASST should yield roughly the same result resp. pattern due to their close physical relationship. The validity of this statement is demonstrated when comparing the IASST error pattern to an analogous twopair SGG error pattern (Fig. 12d): it is evident that the shape is very similar (even if the instrument noise is not identical for both concepts). This basically proves the utility of ASST for polar constellations, considering that the sensitivity of SGG is three orders of magnitude worse. Based on these formal error patterns (Fig. 12c), it can already be expected that the weekly twopair IASST solution will perform well in the following comparisons.

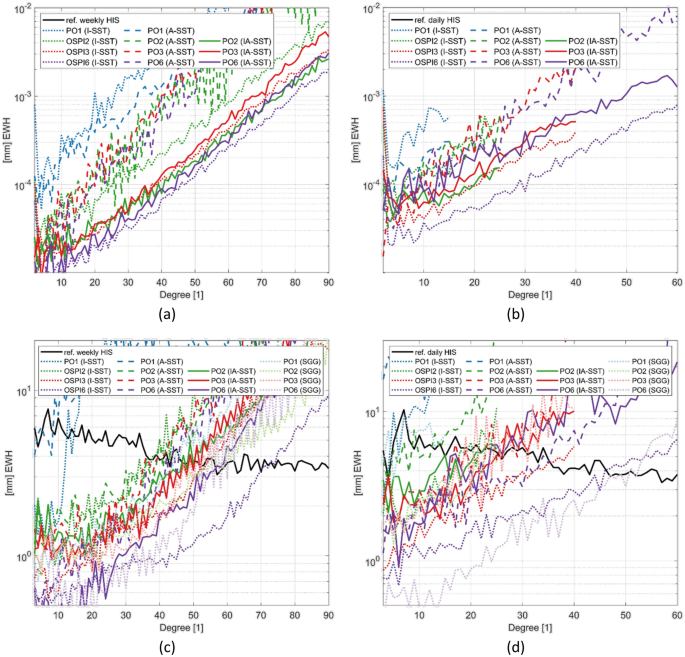

General insights. An overview of all IASST and ASST simulation (productonly as well as fullnoise) results is given in terms of degree errors in Fig. 13 (compare also to Table 2). To have a better comparison to the results of the classical concepts (of Sect. 3), the PO SGG and OSPI SST solutions are printed again (cf. Figs. 7 and 9). When evaluating Fig. 13, the following general statements can be made:

In the case of the 7day solutions (productonly and fullnoise), IASST performs well and is mostly competitive with the OSPI SST solutions and PO SGG solutions (see Fig. 13a and c). This was expected from the previous investigations of the formal errors (Fig. 12c).

In all scenarios, IASST shows nearly no improvements when increasing the constellation size. This means that, despite a higher redundancy and better spatiotemporal coverage, additional polar pairs do not improve the observation geometry any further. While this may sound negative at first, it may also imply that the observation geometry is already very good with two pairs (see Fig. 12c). This is evident in the case of the 7day productonly scenarios where the IASST PO2 solution is already nearly on par with the bestperforming sixpair OSPI SST solution.

Unfortunately, the IASST performance deteriorates somewhat when considering the shorter daily solutions. It is supposed that this is caused by the spatial separation of both measurement direction in the chosen interleaved IASST constellation design (see Sect. 4.1): in case of daily solutions, the targeted spatial resolution of the estimated gravity fields is close to the maximum achievable resolution of the accumulated ground track (see Sect. 2.4). It is assumed that in such cases the least squares adjustment cannot connect the interleaved ISST and ASST observations anymore which basically eliminates the advantage of combining both. Eventually, this means that the formulas for determining the maximum achievable resolution provided in Sect. 2 do not hold for interleaved IASST constellations when an optimal exploitation of the advantages of IASST is intended (as seen in Fig. 13b and d, the formulas still hold if one accepts a decreased performance). Without proof, a factor of roughly two (lower resolution or more satellites) is expected to adapt the formulas for IASST.

As anticipated from the formal error analysis (Fig. 12), ASST performs consistently worse than IASST (when disregarding the partially degenerated daily solutions). The ASST singlepair solution performs similarly to the ISST singlepair solution in the case of productonly. In the case of the fullnoise singlepair scenarios, ISST beats ASST.

In the case of productonly and similar to IASST, the ASST performance does also not improve further with an increasing constellation size. So, also, for ASST, the observation geometry cannot be further improved when more pairs are added. This is also expected since it is assumed that polar ASST has similar deficiencies than ISST from which this fact is already known.

Interestingly, multipair ASST fullnoise scenarios perform somewhat better than what the productonly results predict (cf. Fig. 13a and c). Especially the 7day fullnoise twopair ASST scenario is competitive to the corresponding OSPI2 and IASST PO2 scenarios. This seems strange since the singlepair ASST scenario does not share the same behavior.
Error structure analysis. To further investigate the behavior of the IASST and ASST constellations in the presence of temporal aliasing, the empirical error structures of the weekly sixpair (PO6) fullnoise solutions are shown in Fig. 14 in the spectral and spatial domain (similar to Fig. 10). Similar to what has been found in Sect. 3.3, also the IASST and ASST fullnoise error patterns are closely related to their formal errors:

For the ASSTonly sixpair (PO6) solution, the same zonal lobe is visible in the empirical coefficient errors (Fig. 14a) as it is present in the formal errors (see Fig. 12b). In the spatial domain (Fig. 14b), the zonal lobe causes a longitudinal striping, which is complementary to the latitudinal striping that would be visible for ISSTonly PO constellations (see previous discussion on the formal errors).

Also, the empirical coefficient error of the combined IASST PO6 solution (Fig. 14c) follows the behavior of the IASST formal error (Fig. 12c). Since the error patterns are relatively homogeneous, no pronounced striping is visible in the spatial domain (Fig. 14d).

The empirical errors of the weekly SGG PO6 solution (Fig. 14e) are again similar to IASST PO6 and also to the corresponding formal errors of SSG (Fig. 12d). Eventually, the sixpair SGG solution performs slightly better than IASST in the zonal region, which is contributed the higher redundancy and the tight collocation of the different measurement direction. The better performance in the zonal area causes a slight inhomogeneity in the overall error distribution, which is expressed in the spatial error as a somewhat pronounced latitudinal striping (Fig. 14e).

Noteworthy, also in the empirical errors, IASST (but also ASST) shows a good performance in the retrieval of the lowest d/o (Fig. 14c, e). This indicates that the inline measurement direction causes the deterioration in the long wavelengths in the case of conventional ISST.
5 Conclusions and outlook
At the end of this work, a summary over all study subjects is provided in Sect. 5.1, highlighting the main achievements and conclusions. Finally, to close this study, an outlook on future research topics is given in Sect. 5.2 by discussing the main (remaining) causes of temporal aliasing.
5.1 Summary and conclusions
In this contribution, a constellation design procedure for future satellite gravity missions is presented and discussed (Sect. 2). Based on exemplary larger constellations, the functionality and impact of the constellation design on the gravity field retrieval performance for the classical SST and SGG gravity mission concepts is investigated by conducting various simulations (Sect. 3). Additionally, also the alternative ASST concept is evaluated (Sect. 4) to emphasize that the presented constellation design procedure is not limited to the classical gravity mission concepts. In the following, the most important insights and achievements of each of these three main sections will be briefly summarized and the impact of future quantum sensors is discussed.
Constellation design. The presented method allows to design constellations of arbitrary size in three different configurations: polaronly (PO), onesatelliteperinclination (OSPI) and multiplesatellitesperinclination (MSPI). The procedure encourages the modeling of the constellations based on central mission parameters such as the required spatial and temporal resolution. Subcycles even allow to optimize for multiple spatial and temporal resolutions. By using the concept of combined subcycles, the achievable temporal resolution is indefinitely extendible, given that enough satellites are provided. Through the repeat ground track design, the derived analytical orbits can be further adjusted to realize the desired features also in Earth’s actual (static) gravity field. Finally, the correctness of the modeling approach is empirically proven by a representative set of exemplary constellations up to six satellites/pairs and by introducing a generic stability/quality measure for the SST gravity field retrieval performance.
SST and SGG simulations. Fullscale gravity mission simulations proved that larger constellations can achieve their primary purpose and enable a stable gravity field retrieval with higher spatial resp. temporal resolution. Additionally, in most cases, also the solution’s stability can be further increased when introducing additional satellites/pairs, which, eventually, also increases the retrieval performance in the presence of temporal aliasing. With future instrument specifications, even SGG may become sensitive to timevariable gravity and could pose then a possible alternative to SST. For SGG, no significant benefit could be identified when applied on nonPO constellations. In contrast, for SST, it could be shown that maximizing the number of inclinations in a constellation yields, in most cases, the best results. However, even though larger constellations usually reduce temporal aliasing to some extent, the remaining temporal aliasing error still dominates the overall error budget by up to five(!) orders of magnitude (when compared to the productonly case). Hence, it can be concluded that temporal aliasing cannot be reduced to a satisfactory level when just trusting in the intrinsic dealiasing capability of the constellation.
ASST concept. Acrosstrack SST (ASST) combined with conventional Inline SST (ISST, resulting in an IASST mission) can leverage homogeneous SGGlike error patterns on polaronly constellations. This basically allows to combine the advantage of SGG (homogeneous error structure on polaronly constellations) with the benefits of SST (significantly higher sensitivity). This is proven through simulations and the investigations of the different error patterns. Fullnoise IASST results are mostly comparable with SGG and also competitive with the inclined ISST constellations. The downside of ASST is the supposed higher complexity due to strongly varying intersatellite distances and the lower achievable spatiotemporal resolution when interleaving ISST and ASST pairs in a constellation.
Impact of future quantum sensing instruments. When assuming an optimistic sensor development, future instruments that employ cold atom interferometry may be able to significantly increase the sensitivity for gravity field observables by about four orders of magnitude for SST and SGG (in comparison to GRACEFO resp. GOCE, see Encarnação et al. 2024). However, this study has also shown that SST cannot gain significant benefit from it since even constellations with up to 6 pairs are not able to reduce the temporal aliasing error to a level where this superior quantum instrument sensitivity is required. In fact, the MAGIC noise specification (HellerKaikov et al. 2023) would currently be more than sufficient for all investigated scenarios as long as no major leap in mitigating temporal aliasing is achieved. In contrast to SST, for SGG, the baseline is different: since the stateoftheart GOCE performance not sufficiently sensitive to timevariable gravity (about one order of magnitude), a future quantum gradiometer can still substantially increase the gravity field retrieval performance when compared to a GOCElike instrument by about two orders of magnitude (until reaching the temporal aliasing limit). Hence, without solving the temporal aliasing problem, SGG may currently benefit much more than SST from quantum instruments. According to Encarnação et al. (2024), for reaching the assumed quantum gradiometer noise, an elaborated 3D CAI setup would be required to enable a sufficiently accurate reconstruction of the angular rates, which is needed to determine the gravity gradient. Eventually, the availability of such an instrument is not expected any time soon. Yet, even with this complex setup, regarding the pure sensitivity on the longwavelength gravity field signal, quantum SGG still remains about three orders of magnitude less accurate than quantum SST. However, this circumstance is currently completely shadowed by temporal aliasing when retrieving global gravity fields, which is why quantum SST and SGG show similar performance (when considering constellations with at least two pairs).
5.2 Outlook
The simulations in this study have shown that for future (quantum) satellite gravity missions, temporal aliasing will be the most critical error component by a wide margin, even when introducing larger satellite constellations. As a cause for this, two reasons can be identified, which will be briefly addressed in the following paragraphs.

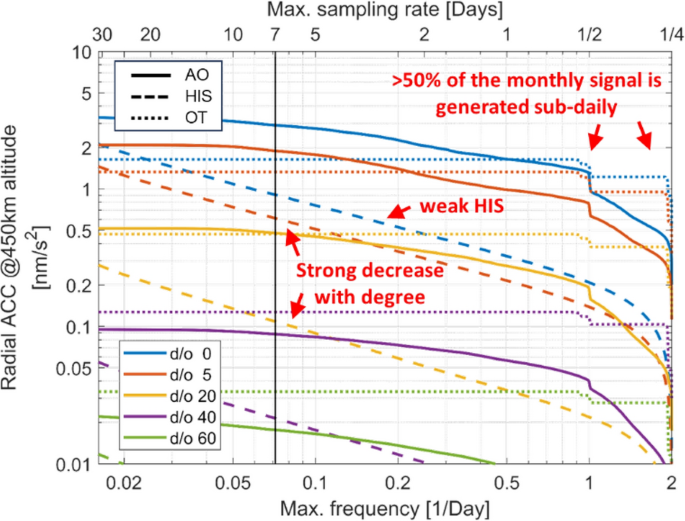

Temporal and spatial signal energy distribution. Within the conducted simulations and in the constellation design, only daily retrieval periods are considered as the maximum temporal sampling rate. According to the Nyquist–Shannon sampling theorem, a daily sampling rate allows to correctly reconstruct only wavelengths longer than two days. However, in the temporal gravity signal, which is introduced in the forward model of the simulation, more than half of the total monthly signal energy is generated on daily and subdaily wavelengths (see Fig. 15, sum of blue lines). This can be mainly attributed (1) to ocean tides (OT, Fig. 15 dotted lines) since tidal excitation frequencies are primarily located around daily and halfdaily frequencies and (2) to nontidal atmosphere and ocean signal (AO, Fig. 15 solid lines) where various processes are related to the day–night cycle. These significant signal components cannot be correctly recovered with daily sampling rates. Instead, these nonreconstructible components are then causing temporal aliasing. According to the applied ocean tide models and the nontidal ESM model, the gravity signal energy is strongly decreasing just below halfdaily wavelengths (cf., Fig. 15). This means that temporal sampling rates (retrieval periods) of less than six hours are required to correctly reconstruct these frequencies. While not impossible to achieve, in agreement with the rule of thumb established in Sect. 2.1 (Eq. 4), it would require at least about 20 satellites to realize a quarterdaily global coverage with a resolution of 3° (corresponding to a maximum d/o of 60). This underlines that rather large constellations are essential to meet future gravity mission requirements and that technological advancements that enable these may become crucial.
Usually, the gravity signal attenuation due to upward continuation is not considered an advantage of satellite gravity field recovery. However, in combination with temporal aliasing, it well might become one. To understand this, one can look at the decrease of the omitted gravity signal energy on the sensing instruments at satellite altitude with the increase of the resolution (i.e., maximum SH d/o): due to the outward continuation of the gravity field, the omitted signal energy strongly decreases with an increasing maximum d/o (see different colors in Fig. 15). This means that most of the energy which causes temporal aliasing can already be reconstructed when recovering the gravity field only to a relatively low maximum d/o with the highest temporal sampling. E.g., even when retrieving quarterdaily fields just up to d/o 20, the omitted signal energy can already be reduced by about a factor of four. Hence, and also due to outward continuation, spatial aliasing is considered unproblematic, which, consequently, allows to estimate lowerresolution gravity field solutions (e.g., quarterdaily solution) independently without introducing significant errors. For the stated reasons, it is deemed necessary to further investigate constellations with subdaily retrieval periods and its impact on temporal aliasing reduction. This, by either introducing simply more satellites or by trying to find subdaily subcycles with lower spatial resolution. In any case, subdaily retrieval periods will probably require the concept of combined subcycles since it is not likely to find simple subdaily subcycles within a close altitude range. Hence, subdaily periods are not easily achievable with OSPI constellations.
Parametrization. Next to the insufficient temporal sampling, the second reason for the observed temporal aliasing errors is found in the static gravity field parametrization, which is inappropriate for describing timevariable gravity: in the forward model of the simulator, the timevariable gravity is described in the timedomain realistically as a continuous function (e.g., through linear or cubic splines). However, in the conventional modeling (e.g., of the standard monthly GRACE/FO solutions) and within this study, the estimated gravity field is only introduced statically in the backward model. When deriving multiple static gravity field solutions of subsequent retrieval periods (e.g., daily or weekly solution), the resulting timevariable gravity field then only resembles a step function in the time domain. It is evident that a step function is inadequate to model a changing behavior, not even if it is just linear. Consequently, even if sufficient sampling would be available, modeling the gravity field as a step function in the time domain would still introduce a significant error. Investigating timevariable parametrization strategies is, hence, considered the second main objective for future studies. Generally, two types of such timeaware parametrization schemes can be distinguished for gravity field modeling, depending on the properties of the different signal components: for signals that consist of distinct known excitation frequencies (such as tidal signals), tailored coparametrization strategies can be applied (e.g., see Hauk and Pail 2018). This parameterization type has the advantage that long accumulation times (e.g., years) can be used to estimate the additional parameters stably, eliminating the need for short retrieval periods and, thus, larger constellations. However, the latter approach is nonapplicable for randomly occurring signals (such as nontidal signals). The only known way these signal components can be recovered is by using a direct parameterization (e.g., through splines), which again requires short retrieval periods. Since nontidal signal components (such as AO) significantly contribute to the overall signal energy, it is not assumed that temporal aliasing can be dramatically improved without considering these nontidal components as well.
Eventually, a significant leap in reducing temporal aliasing can only be expected when considering both a sufficient sampling provided by an extended constellation and an adequate parametrization of signals in space and time.
Availability of data and materials
Data associated with this manuscript will be made available on reasonable request.
References
Brown C (2002) Elements of spacecraft design. American Institute of Aeronautics and Astronautics, Inc, Reston, p 106
Christophe B, Foulon B, Liorzou F, Lebat V, Boulanger D, Huynh PA, Zahzam N, Bidel Y, Bresson A (2018) Status of development of the future accelerometers for next generation gravity missions. In: Freymueller J, Sánchez L (eds) International symposium on advancing geodesy in a changing world, international association of geodesy symposia, vol 149. Springer, Cham. https://doi.org/10.1007/1345_2018_42
Colombo O (1984) The global mapping of gravity with two satellites, In: Netherlands Geodetic Commission, in publications on Geodesy. vol 7(3). http://www.ncg.knaw.nl/eng/publications/geodesy.html
Daras I, Pail R, Murböck M, Yi W (2015) Gravity field processing with enhanced numerical precision for LLSST missions. J Geod 89(2):99–110. https://doi.org/10.1007/s0019001407642
Daras I, March G, Pail R, Hughes CW, Braitenberg C, Güntner A, Eicker A, Wouters B, HellerKaikov B, Pivetta T, Pastorutti A (2024) Masschange and geosciences international constellation (MAGIC) expected impact on science and applications. Geophys J Int 236(3):1288–1308. https://doi.org/10.1093/gji/ggad472
Daras I (2016) Gravity Field Processing Towards Future LLSST Satellite Missions, Deutsche Geodätische Kommission der Bayerischen Akademie der Wissenschaften, Reihe C, Dissertationen, Heft 770. 23–39. ISBN: 9783769651829.
Darbeheshti N, Wegener H, Müller V, Naeimi M, Heinzel G, Hewitson M (2017) Instrument data simulations for GRACE Followon: observation and noise models. Earth Syst Sci Data 9:833–848. https://doi.org/10.5194/essd98332017
Dobslaw H, BergmannWolf I, Dill R et al (2015) The updated ESA earth system model for future gravity mission simulation studies. J Geod 89:505–513. https://doi.org/10.1007/s0019001407878
Drinkwater MR, Floberghagen R, Haagmans R, Muzi D, Popescu A (2003) GOCE: ESA’s First earth explorer core mission. In: Beutler G, Drinkwater MR, Rummel R, Von Steiger R (eds) Earth gravity field from space—from sensors to earth sciences space sciences series of ISSI, vol 17. Springer, Dordrecht. https://doi.org/10.1007/9789401713337_36
Encarnação J, Siemes C, Daras I, Carraz O, Strangfeld A, Zingerle P, Pail P (2024) Towards a realistic noise modelling of quantum sensors for future satellite gravity missions. arXiv. https://doi.org/10.48550/arXiv.2404.07835
Flechtner F, Neumayer KH, Dahle C, Dobslaw H, Fagiolini E, Raimondo JC, Güntner A (2016) What can be expected from the GRACEFO laser ranging interferometer for earth science applications?, Remote sensing and water resources. Space sciences series of ISSI, vol 55. Springer, Cham. https://doi.org/10.1007/9783319324494_11
German Aerospace Center (2024) GRACEC—GermanUSAmerican environmental mission has been extended, press release. https://www.dlr.de/en/latest/news/2024/gracecgermanusamericanenvironmentalmissionhasbeenextended
Hauk M, Pail R (2018) Treatment of ocean tide aliasing in the context of a next generation gravity field mission. Geophys J Int 214(1):345–365. https://doi.org/10.1093/gji/ggy145
Hauk M, Wilms J, Sulzbach R, Panafidina N, HartDavis M, Dahle C, Müller V, Murböck M, Flechtner F (2023) Satellite gravity field recovery using variancecovariance information from ocean tide models. Earth Space Sci 10(10):e2023ea003098. https://doi.org/10.1029/2023ea003098
Heller B, Siegismund F, Pail R, Gruber T, Haagmans R (2020) Temporal gravity signals in reprocessed GOCE gravitational gradients. Remote Sensing 12(21):3483. https://doi.org/10.3390/rs12213483
HellerKaikov B, Pail R, Daras I (2023) Mission design aspects for the mass change and geoscience international constellation (MAGIC). Geophys J Int 235(1):718–735. https://doi.org/10.1093/gji/ggad266
Horvath A, Murböck M, Pail R, Horwath M (2018) Decorrelation of GRACE time variable gravity field solutions using full covariance information. Geosciences 8(9):323. https://doi.org/10.3390/geosciences8090323
Kornfeld RP, Arnold BW, Gross MA, Dahya NT, Klipstein WM (2019) GRACEFO: the gravity recovery and climate experiment followon mission. J Spacecraft Rockets 56(3):931–951. https://doi.org/10.2514/1.a34326
Kusche J, Schmidt R, Petrovic S, Rietbroek R (2009) Decorrelated GRACE timevariable gravity solutions by GFZ, and their validation using a hydrological model. J Geod 83:903–913. https://doi.org/10.1007/s0019000903083
Kvas A, Brockmann JM, Krauss S, Schubert T, Gruber T, Meyer U, MayerGürr T, Schuh WD, Jäggi A, and Pail (2021) GOCO06s – a satelliteonly global gravity field model, Earth Syst. Sci. Data, 13, 99–118. https://doi.org/10.5194/essd13992021
Lara M (1999) Searching for repeating ground track orbits: a systematic approach. J of Astronaut Sci 47:177–188. https://doi.org/10.1007/BF03546198
Lévèque T, Fallet C, Lefebve J, Piquereau A, Gauguet A, Battelier B, Bouyer P, Gaaloul N, Lachmann M, Piest B, Rasel E, Müller J, Schubert C, Beaufils Q, Pereira Dos Santos F (2022) CARIOQA: definition of a quantum pathfinder mission. Proceedings of international conference on space optics (ICSO) 2022; 3–7 October 2022; Dubrovnik; Croatia, arXiv: 2211.01215 [physics.atomph]. https://doi.org/10.48550/arXiv.2211.01215
Massotti L, Siemes C, March G, Haagmans R, Silvestrin P (2021) Next generation gravity mission elements of the mass change and geoscience international constellation: from orbit selection to instrument and mission design. Remote Sensing 13(19):3935. https://doi.org/10.3390/rs13193935
MayerGürr T (2006) Gravitationsfeldbestimmung aus der Analyse kurzer Bahnbögen am Beispiel der Satellitenmissionen CHAMP und GRACE, Dissertation, Rheinische FriedrichWilhelmsUniversität Bonn. https://nbnresolving.org/urn:nbn:de:hbz:5N09047
Pail R, Bruinsma S, Migliaccio F et al (2011) First GOCE gravity field models derived by three different approaches. J Geod 85:819–884. https://doi.org/10.1007/s001900110467x
Pail R, Bamber J, Biancale R, Bingham R, Braitenberg C, Eicker A, Flechtner F, Gruber T, Güntner A, Heinzel G, Horwath M, Longuevergne L, Müller J, Panet I, Savenije H, Seneviratne S, Sneeuw N, van Dam T, Wouters B (2019) Mass variation observing system by high low intersatellite links (MOBILE)—a new concept for sustained observation of mass transport from space. J Geodetic Sci 9(1):48–58. https://doi.org/10.1515/jogs20190006
Panet I, Flury J, Biancale R et al (2013) Earth system mass transport mission (e.motion): a concept for future earth gravity field measurements from space. Surv Geophys 34:141–163. https://doi.org/10.1007/s1071201292098
Ray R (2008) GOT4.7. Extension of Ray R (1999) A global ocean tide model from Topex/Poseidon altimetry GOT99.2., NASA Tech Memo 209478
Savcenko R, Bosch W (2012) EOT11a—empirical ocean tide model from multimission satellite altimetry, DGFIReport No.89
Shannon CE (1949) Communication in the presence of noise. Proc IRE 37(1):10–21
Siemes C, Rexer M, Schlicht A, Haagmans R (2019) GOCE gradiometer data calibration. J Geod 93:1603–1630. https://doi.org/10.1007/s00190019012719
Tapley BD, Bettadpur S, Watkins M, Reigber C (2004) The gravity recovery and climate experiment: mission overview and early results. Geophys Res Lett. https://doi.org/10.1029/2004gl019920
Weigelt M, Sneeuw N, Schrama EJO, Visser PN (2013) An improved sampling rule for mapping geopotential functions of a planet from a near polar orbit. J Geod 87:127–142. https://doi.org/10.1007/s0019001205850
Wiese DN, Visser P, Nerem RS (2011) Estimating low resolution gravity fields at short time intervals to reduce temporal aliasing errors. Adv Space Res 48(6):1094–1107. https://doi.org/10.1016/j.asr.2011.05.027
Acknowledgements
Computations were carried out using resources of the Leibniz Supercomputing Centre (LRZ).
Funding
Open Access funding enabled and organized by Projekt DEAL. The main work presented in this paper was performed in the framework of the project “Quantum Space Gravimetry for monitoring Earth’s Mass Transport Processes—QSG4EMT”, Contract No. 4000138395/22/NL/SD funded by the European Space Agency.
Author information
Authors and Affiliations
Contributions
P.Z. performed research and wrote the paper; R.P., T.G. and I.D. contributed to the final manuscript with suggestions and corrections.
Corresponding author
Ethics declarations
Competing interests
The authors declare no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Zingerle, P., Gruber, T., Pail, R. et al. Constellation design and performance of future quantum satellite gravity missions. Earth Planets Space 76, 101 (2024). https://doi.org/10.1186/s40623024020343
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s40623024020343
