Analysis of a secondary 16day planetary wave generation through nonlinear interactions in the atmosphere
Earth, Planets and Space volume 76, Article number: 124 (2024)
Abstract
Using a nonlinear model of the general circulation of the middle and upper atmosphere (MUAM), spatiotemporal structures of planetary waves (PWs) during boreal winter were studied. Modeling of global atmospheric circulation was performed for January–February. Despite the tropospheric PW sources shaped in the model, the phenomenon of 16day PW excitation arise out of internal atmospheric sources in the southern lower thermosphere was discovered. To explain the observed phenomenon, a number of numerical experiments were carried out according to different scenarios with a selective turning (on/off) tropospheric sources of PW individual modes (having periods of 4–16 days) in the model. Also, the evolution of perturbed potential enstrophy for a 16day PW, as well as the contribution of nonlinear interactions between individual PW to it, was studied. This made it possible for the first time to demonstrate explicitly the process of generation a secondary 16day PW as a result of the nonlinear interconnection of 4day and 5day PWs.

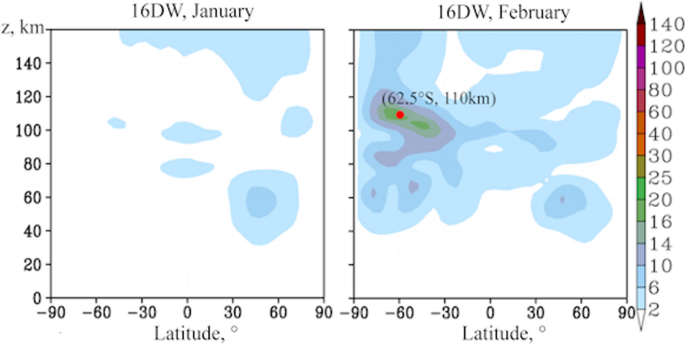

Graphical Abstract
1 Introduction
Planetary waves (PWs) cause the longitudinal variations of atmospheric parameters. PWs represent periodic changes in all hydrodynamic quantities, i.e., wind, temperature, pressure, density, and are classified on the bases of the temporal and spatial scales. PWs are formed due to the latitudinal gradient of potential vorticity and are characterized by different zonal wave numbers (an integer of waves that fall on the circle of latitude). Transferring energy and momentum, while propagating upwards from their sources, PWs significantly affect the general atmospheric circulation, temperature mode and composition throughout the entire layer of the middle and upper atmosphere reaching by its influence the mesosphere and lower thermosphere heights, and are also a foundational aspect of atmospheric meridional circulation in extratropical region (Haynes et al. 1991; Holton et al. 1995). The propagation of PWs during boreal winter due to the increase in wave activity contributes to the formation of specific types of atmospheric phenomena such as sudden stratospheric warming (SSW) (Nath et al. 2016; Baldwin et al. 2021) when interacting with the general circulation. PWs are also an important link in transmitting a signal from a quasibiennial oscillation of the equatorial zonal wind (QBO) (Koval et al. 2022) and/or from El Nino Southern Oscillation (ENSO) (e.g., Ermakova et al. 2019) up to the polar latitudes.
Another important outcome of the planetary waves’ upward propagation, accompanied by an increase in their amplitudes complimented by an atmospheric density decrement, is the occurrence of various nonlinear processes. Generation of secondary planetary waves, through nonlinear interconnections of waves and waves with the mean flux is an example of such processes. Numerous studies of PWs (see, for example, Jacobi et al. 1998; Pancheva 2000; Forbes and Zhang 2017; Forbes et al. 2020; He et al. 2020) including atmospheric tides showed the existence of secondary waves, which are the sum or difference of waves rallied into nonlinear interconnections. It was shown that the mechanism of atmospheric tides modulation as an effect of nonlinear interconnections of the atmospheric solar tide and the PW is a quadratic nonlinear process (Teitelbaum and Vial 1991). This theory was applied to the study of interactions between such waves having a large or global scale as atmospheric normal (resonant) modes (NMs) and Rossby waves in Pogoreltsev (2001); He and Forbes (2022).
The idea of wave interactions as a quadratic nonlinear process was proposed by Smith (1983) and further developed by Pogoreltsev (2001) and Didenko et al. (2022) to describe the variability of the squared potential vorticity (or enstrophy) in stratosphere of the Northern Hemisphere during its winter. Planetary waves’ amplification in the troposphere, the lower stratosphere, accompanied by variations in wind fields through which PW propagates, leads to the SSW onset. Potential vorticity transfer process between waves occurs to provide the energy balance or the potential enstrophy balance under the evolution of such extreme events. The previous studies have demonstrated the need to analyze nonlinear wave interactions along with the interactions of waves with the mean flux through the SSW studies (Labitzke and Kunze 2009; Pogoreltsev et al. 2015).
In recent work by Koval et al. (2023), a description of simulation experiments during the initialization of the model for boreal winter conditions (January–February) is presented and the formation of atmospheric global circulation, taking into account the comparative contribution of different modes of planetary waves is defined. The results allowed quantifying how various hydrodynamic fields, in particular, zonal wind and temperature, respond to the inclusion of various PW sources in the model of the general circulation MUAM. The mode choice under the boreal winter conditions was imposed by the wellknown fact that PWs wave activity increase during this period: PW waveguides are localized in the atmosphere areas where the difference between the wave phase velocity and the wind speed is positive, according to the formula for refractivity index (e.g., Albers et al. 2013). That is why winter background conditions with westerly winds in the stratosphere are favorable for the PW propagation. However, it was in the Southern (summer) Hemisphere that the effect was found when analyzing model runs, showing the unexpected generation process of the 16day wave as a result of the internal atmospheric sources influence, although tropospheric sources of this wave were not specified in this run. The purpose of this work is to study the reasons for this wave arising, as well as to evaluate the efficiency of the quadratic nonlinear process of secondary PWs generation in the middle and upper atmosphere. The transfer of eddy potential enstrophy between wave modes during the development of nonlinear wave processes was taken into consideration to explain the observed effects.
2 Methods and approaches
2.1 The MUAM model
A number of numerical experiments were carried out with the Middle and Upper Atmosphere Model (MUAM, Fröhlich et al. 2003; Pogoreltsev et al. 2007; Koval et al. 2022) to study the global and the regional circulation of the atmosphere and the planetary waves’ impact thereon. MUAM as a nonlinear threedimensional mechanistic model allows simulating the general circulation in the atmospheric region from the surface to the levels of 300–400 km, that is, to the ionospheric heights of the F2 layer. Currently, the model keeps developing, a parameterization of atmospheric heating rates due to the release of latent heat, which takes into consideration as daily and longitude variations and the El Nino–Southern Oscillation (ENSO) phase relation has been included (Ermakova et al. 2017). Special attention in the model is given to atmospheric wave dynamics. This enables the middle and upper atmosphere processes of interconnections of waves with the mean flux, as well as the role of PW in the propagation of various external influences (QBO, ENSO, variations in solar activity, etc.) on global spatial scales to be complete investigated (Gavrilov et al. 2018; Medvedeva et al. 2019; Koval et al. 2018a; 2022; 2023). The ability both to analyze the amplitudes of planetary waves and to link these waves with different sources of origin is one of the MUAM advantages. Fourdimensional fields (time step is 2 h) of geopotential, three components of wind speed vector and temperature are the main parameters calculated by the model.
Horizontal resolution in latitude and longitude of MUAM as finitedifference model is 5° × 5.625°, respectively. Using pressure scale height—H, the surface pressure—ps, pressure in hPa—p, a dimensionless logisobaric vertical coordinate or height can be obtained by the formula x = −Hln(p/ps). While the upper boundary varies from 135 to 300–400 km depending on solar activity and thermospheric temperature, the quantity of vertical levels is also ranging (48–60 levels). The MarchukStrang technique of splitting (Strang 1968) is used to solve prognostic equations, and the Matsuno scheme (Matsuno 1966) is used for the integration in time with a timestep of 225 s. The model with 56 vertical levels version spanning an atmosphere vertical region from the surface to about height of 300 km is used in the current work.
The MUAM has radiation module which uses several parameterizations such as varying over days and seasons atmosphere heating and cooling. The first one takes into account the ultraviolet and visible spectral bands (125–700 nm), the second one is the 8, 9.6, 14 and 15 μm infrared bands. Additional dynamic heat sources, parametrization of molecular as well as turbulent viscosity, ion drag, and thermal conductivity are also involved in the lower thermosphere of the model. Planetary waves can be excited at the lower boundary of the model corresponding to the Earth's surface. Tropospheric changes such as cloudiness and weather conditions are not modeled. The MUAM make allowance for three parameterizations of gravity waves (GW). Different phase velocities GW, specifically orographic waves are included.
The model can simulate planetary waves such as stationary planetary waves (SPWs), the eastward waves, defined as Kelvin waves, westward travelling atmospheric normal modes (NMs) (Pogoreltsev et al. 2014). To simulate various PWs the heat balance equation is modified with the additional terms of the form of timedependent sinusoidal harmonics. The zonal wavenumbers m of these harmonics are 1 and 2; periods are matching to simulated PWs. The method given by Swarztrauber and Kasahara (1985) for Hough functions is used to adjust the latitude structures of NM units. Thuswise, atmosphere reacts to the wave influence at low boundary and the periods of this reaction are resonant and equal to the NMs periods (Pogoreltsev 1999). When conducting model experiments, (1,1), (1,2), (1,3), (2,1), and (2,2) NMs in the LonguetHiggins classification (1968) were considered. Under ideal conditions in a nondissipative atmosphere and in the absence of background wind, these normal modes correspond to waves with periods of 5, 10, 10, 4, 7 days, respectively. But in the real atmosphere, in the presence of external factors, such as the dissipation and inhomogeneous stratification, the spectra of PW are blurred and shifted from the classical behavior (this is clearly shown in figures showing wavelet spectra below). Therefore, when designating such waves, the prefix “quasi” is often used. For example, in the works of Yamazaki & Matthias (2019); Yamazaki et al. (2021) it was shown that the period of PW may vary when measured at different latitudes, and the mean period of 4day PW is 3.8 ± 0.4 days. For simplicity, we do not use the prefix “quasi”. The NMs sources specified in the MUAM give the amplitudes of the modeled waves comparable to those observed in the stratosphere (Pogoreltsev et al. 2009).
2.2 Settings of the model run experiments
In Koval et al. (2023) work, MUAM numerical experiment is described. It implied a series of model runs which were conducted for January–February conditions to evaluate variability of the global circulation as a response of various wave components influence. Ultrafast wave with period of about 3.5 days, zonal number m = 1 (Kelvin wave) travelling to the east; NMs with periods of about 5, 10, 16 days (m = 1) and with periods of about 4 and 7 days (m = 2) travelling to the west were considered. Geopotential height fields were expanded into the four harmonics (m = 1–4) with the longitudetime Fourier expansion to obtain the PW amplitudes. Then the least squares approximation to the given oscillation periods was carried out.
The conducted model experiments differed by turning on/off the studied PW sources, i.e., model run No.1 (a reference run) was realized to calculate the atmospheric circulation with the integration of all considered PWs sources. The other runs implied the tuning off the individual waves sources (Koval et al. 2023). Comparison of the amplitudes variations in the geopotential height (the run No.1) for each wave with the amplitudes of the same waves according to the results of the model experiment with the wave source switched off showed the omission of waves excitation in the model middle atmosphere, and the PW amplitudes with the sources switched off could be considered as a numerical noise. Such a conclusion was valid with respect to the Kelvin wave and all NMs with the exception of the 16day PW. It was shown that a 16day PW in the southern lower thermosphere (about 62.5° S; 110 km altitude) existed independently of the tropospheric source. The largest amplitude variations in geopotential height reach 15 m during the switching off the wave source in the troposphere, whereas it is about 24 m for the turnedon case. Thus, a phenomenon of 16day PW excitation by intrinsic model atmospheric sources was revealed. The presented below nonlinear PW interaction mechanism, capable of generating secondary PW, was considered to interpret this effect.
2.3 Nonlinear interaction of atmospheric waves
PWs exhibit their spatial inhomogeneity while propagating in nonlinear systems such as the atmosphere. The waves nonlinear influence each other, generate secondary waves and interact with the mean flow. One of the ways to study such influences and interactions, taking into account the generation of secondary PW, is to study the pertubed potential enstrophy, which is the potential vorticity squared. The balance equation of the eddy potential enstrophy is obtained from to the conservation equation of potential vorticity, while various variants of the potential vorticity are possible. For instance, potential vorticity for the case of quasigeostrophic approximation was used to obtain the quasigeostrophic eddy potential enstrophy equation in early papers (Smith 1983). Subsequently, for example, in Pogoreltsev and Sukhanova (1993), it was noted that the use of quasigeostrophic quantities and approximations is not always justified, in particular while modeling stationary PWs. Vanishing of the geopotential (or pressure) disturbances at the equator is the consequence of quasigeostrophic approximation using, which in turn leads to total isolation of the hemispheres while modeling, since there is no exchange of wave energy between the hemispheres. An Ertel’s potential vorticity is used in this work to obtain the eddy potential enstrophy equation. Such a vorticity, unlike quasigeostrophic potential vorticity, is a dynamic quantity describing both dynamic (vorticity) and thermodynamic (potential temperature) properties (Haynes and McIntyre 1987) and is implied the quasigeostrophic approximation rejection.
Recently, Didenko et al. (2022) presented a transformation of the pertubed potential enstrophy equation for a detailed specification of the potential enstrophy balance and analysis of nonlinear wave processes. The common form of the eddy potential enstrophy balance can be conceived as:
Here P is the Ertel’s potential vorticity; \(\overrightarrow{V}\)–wind vector which includes zonal, meridional and vertical components; S presents terms describing the additional contributions to the momentum equation and diabatic outflows and inflows; \({\rho }_{0}\) is the density being a heightdependent function only. The lines at the top means zonally averaged components and the primes define the deviation from the zonally averaged values or perturbations.
In Smith et al. (1984) and White et al. (2015) works, the Eq. (1) left side terms described as a measure of wave activity time variations or wave transience. The terms responsible for the nonlinear interactions between planetary waves, the divergence and advection of potential enstrophy flux, nonlinear interactions between planetary waves and mean flux, the dissipation are defined the right part of the Eq. (1).
In this context, any perturbation in Eq. (1) with wavelength λ, frequency ω and phase φ is approximated by the zonal harmonics sum with m from 1 to infinity. For example, the disturbance of the Ertel’s potential vorticity:
Since Eq. (1) describes various nonlinear processes, including interactions between PWs, the generation of secondary PW when obtaining the equation of eddy potential enstrophy for individual wave modes are also should be considered. When a signal representing two cosine/sinuous waves with m numbers and ω frequencies (m1, ω1) and (m2, ω2) get through some quadratic system come out to be nonlinear, the signal at the system’s output will be a secondary wave (2m1, 2ω1), (2m2, 2ω2), (m1–m2, ω1–ω2) and (m1 + m2, ω1 + ω2). Using the numerical modeling results of NMs, the contribution from both nonlinear interactions between PWs and nonlinear selfinteractions were shown by Pogoreltsev (2001). This theory is used in this work with a view to calculate explicitly the eddy potential enstrophy variations of the wave with a 16day period during January–February, as well as the contribution made to this change by the nonlinear interactions of other PWs.
To test the feasibility of modeling wave structures in MUAM, data from the EOS MLS (The Earth Observing System Microwave Limb Sounder) instrument onboard the Aura satellite (Waters et al. 2006) and The ModernEra Retrospective analysis for Research and Applications, Version 2 (MERRA2, Gelaro et al. 2017) were used. To obtain values at regular grid nodes, corresponding to MUAM, the spatially irregularly distributed MLS remote sensing data are interpolated using the natural neighbor method onto a grid with a spatial resolution of 5° × 5.625° (latitude and longitude, respectively) for each pressure level. The geopotential height longtime matrices at fixed latitude are subjected to Fourier transform to obtain time series of individual zonal harmonics amplitudes and phases (Yamazaki 2023). Further, the time series of amplitudes and phases of the westward and eastward propagating planetary waves are obtained using the complex Morlet wavelet transform (Torrence & Compo 1998).
3 Results
3.1 Amplitudes of planetary waves in January and February
An amount of numerical experiments were implemented with the MUAM for various scenarios with selective switching on/off of tropospheric sources of individual PW modes with periods of 4–16 days (see Koval et al. 2023), to explain the observed effect of 16day PW generation in the lower thermosphere of Southern Hemisphere. Figure 1a shows the amplitudes of the 16day PW averaged over January (left panels) and February (right panels) according to the MUAM results with all the considered waves’ sources included. Grey lines determine the structure of the waveguide. The waveguide of the PW concept characterizing atmospheric regions where the profiles of background wind and temperature contribute to propagation of PW was proposed by Dickinson (1968). Later, Matsuno (1970) introduced the zonalmean refractivity index squared with respect to the quasigeostrophic approximation under the assumption that the strongest propagation of a PW occurs in areas with major positive index values, and wave attenuation in its negative values. The regions of the positive refractive index are located equatorward from the specified contours. In general, the distribution of the structure of the 16day PW is typical for the winter season: the maximum amplitude is achieved in the winter stratosphere, while in the southern stratosphere there is a barrier to wave propagation associated with a strong easterly wind. In this region in Fig. 1a, the region of negative refractive index is prominent. In the mesosphere, the wind turns eastward, a waveguide appears again, and the wave propagates into the lower thermosphere and above in both hemispheres. The simulated distribution of zonal mean zonal wind from the relevant MUAM model run is presented in Fig. 3 of Koval et al. (2023).
The PW structure corresponds to reanalysis data, satellite, radar observations (Pancheva et al. 2008, 2010; Forbes and Zhang 2017; Pedatella and Forbes 2009; Huang et al. 2017) and previous studies of general circulation of the atmosphere and its wave components (e.g., Gavrilov et al. 2018; Koval et al. 2018a). For a more detailed analysis of the possibility of PW modeling in the MUAM model, in the “Discussion and summary” section a comparison is also made of the constructed wavelet spectra of PW according to MUAM data, satellite remote sensing and reanalysis. In addition, a comparison was made for 16day variations in PW amplitudes of various hydrodynamic fields (except for geopotential height) according to the model data (Koval et al. 2018b), as well as those presented in the work of McDonald et al. 2011; Gong et al. 2019 and Li et al. 2021 show good agreement.
It can be concluded that the MUAM data are consistent with the data from the above studies, and it reliably reproduces the observed PW amplitudes.

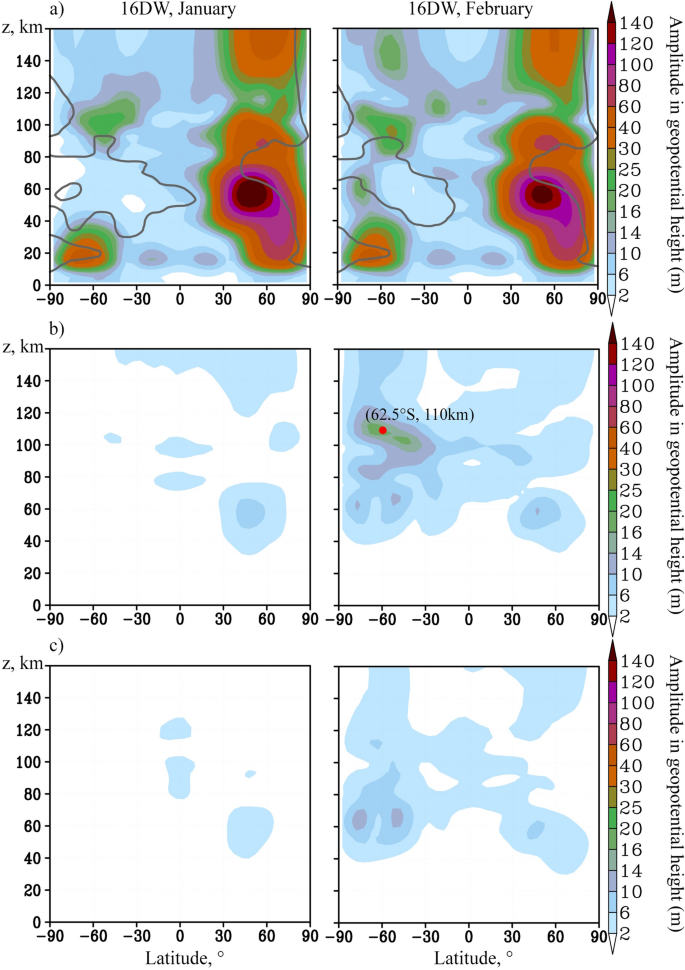

Figure 1b shows similar distributions of 16day PW amplitudes, but for a model scenario with the tropospheric source of this wave turned off. There is an area marked with a red dot where the 16day wave is observed regardless of the source in the troposphere in February (Fig. 1b–right panel). Thus, it is obvious that in February in the Southern Hemisphere lower thermosphere the westward propagating 16day PW amplitude decreased by only 10% when the source of the wave was turned off.
Due to the amplitudes maxima of 4 and 5day waves in the southern lower thermosphere in the MUAM, it was suggested that the essential source of the 16day wave in this region at the same heights as the area marked with a red dot (see Fig. 2) is the nonlinear interconnection of 4 and 5day waves.
The generation of a 16day PW as a result of nonlinear interactions of a 4 and 5day waves’ assumption is explained by the theory of secondary PW occurrence described in the previous section. According to the theory, interacting of two waves results in a secondary wave with the zonal wave number m and frequency which can match with the sum or difference of the parent waves. As was mentioned above, the sources of 4, 5 and 16day waves (zonal wave number m = 2, 1, 1, respectively), with periods of 90, 120 and 360 h, which conforms to frequencies 3.09, 2.3 and 0.7 (10 − 6 Hz), are the additional terms in the MUAM heat balance equation. Periods and frequencies values are justified by the fact that PW are characterized by a strong quasiperiodicity, i.e., the data contain nonstationary power at many different frequencies (Pogoreltsev 2007). Therefore, the wave number and frequency of a 16day PW is the difference between the wave numbers and frequencies of 4 and 5 day waves. Considering the 16 day wave method generation, the Eq. (1) of eddy potential enstrophy for this PW can be represented as:
where the subscripts are the wave periods in days. It follows from Eq. (3) that the change in the 16day PW wave activity (the left part term of the equation) is determined by nonlinear interactions between the waves (the first two terms in the right part), divergence and advection of the potential enstrophy flow (the third and fourth terms in the right part), interaction of the 16day PW with the mean flow and dissipation (the fifth and sixth terms in the right part).

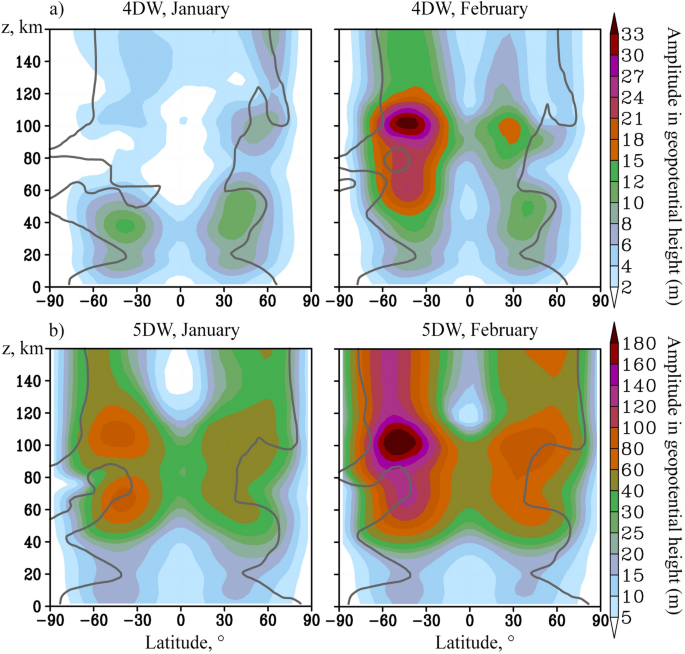

Figure 2 shows amplitude distributions of 4 and 5day PWs averaged over January (left) and February (right) calculated for a scenario with the sources of these waves included. We consider wave amplitudes in region (62.5° S; 110 km altitude) marked by red dot in Fig. 1b. Figure 2a shows the increase of wave amplitudes in February relative to January in the region under consideration. The amplitudes of the 5day wave here rise by 2 times, and the 4day wave by 8 times.
The structures of westward propagating NMs are subject to strong temporal (as well as interseasonal, see “Discussion and summary”) variability. Figure 2a demonstrates, in particular, that in the southern lower thermosphere there is an intensification of the 4 and 5day wave in February. This may be explained by the variability of the background wind fields. In particular, the speed and direction of the wind in the stratosphere determines the structure of the waveguide along which the wave propagates upward. Figure 2 shows that the waveguide is located closer to the equator and is limited by gray contours. It can be seen that in Fig. 2a in January in the southern stratosphere, the waveguide is interrupted, according to the refractive index formula (Albers et al. 2013), as the easterly jet stream in this area surpasses the phase velocity of the 5day wave (see also discussion in Koval et al. 2018b). And for the 4day PW (Fig. 2b) in January, the waveguide region in the stratosphere is narrower than in February.
The MUAM run with the sources of three waves (4, 5 and 16day PW) turned off was carried out to verify indirectly the assumption of 16day wave generation through the nonlinear interaction of 4 and 5day PW. Figure 1c shows the amplitudes of the 16day PW based on this model scenario for January and February. Indeed, the amplitudes of the 16day wave almost disappear both in January and February in the considered lower thermosphere region of the Southern Hemisphere when all three sources are turned off. Thus, the effect of 16day PW generation, shown in Fig. 1b, by 4 and 5day waves is confirmed. In the next subsection, we demonstrate the interaction of these primary waves through the balance equation of the perturbed potential enstrophy.
3.2 Eddy potential enstrophy variations of the 16day PW
The terms in Eq. (3) were calculated using the hydrodynamic quantities fields obtained from the MUAM run with switched off source of the 16day wave when the wave was observed regardless of its tropospheric source (Fig. 1b). Calculations were carried out for January and February, at 110 km altitude and results were averaged over 52.2°− 67.5° S latitudinal band. Figure 3a shows the calculating results of the potential enstrophy evolution of the 16day PW, i.e., the left part of Eq. (3) term. The oscillation of the eddy potential enstrophy with of about 16days period equivalent to the period of the wave under consideration is clearly distinguishable. The sum of the second and third terms of Eq. (3) corresponding to the nonlinear interactions between 4 and 5day PW provided the generation of the 16day wave, which is determined as a secondary, is shown in Fig. 3b. The units are 10^{12}(kg∙m^{–3})^{2}∙PVU^{2}/day, where 1PVU (potential vorticity unit) = 10^{–6} K∙m^{2}∙kg^{–1}∙s^{–1}.

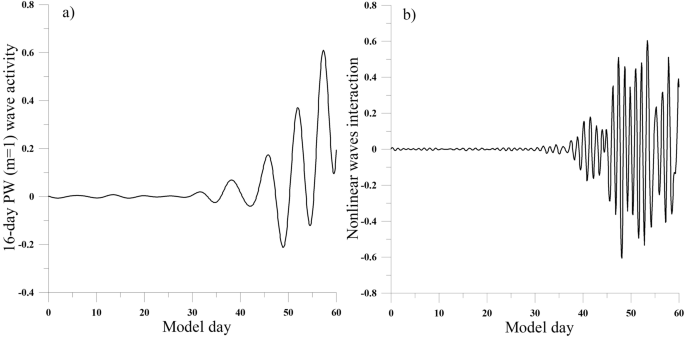

Figure 3a shows that the change in wave activity defining in the evolution of 16day wave eddy potential enstrophy starts in early February with a maximum on February 26. Such a behavior of wave activity is in agreement with the previously obtained results presented in Fig. 2 as concerning to 4 and 5day waves maximum amplitudes in February. Beyond that, the values presented in Fig. 3b are comparable to the values in Fig. 3a. This allows us to conclude that the change in wave activity of the 16day wave is basically due to nonlinear interactions between the planetary waves under consideration. The generation of secondary PW also begins in early February with maximums observed during the period from February 15 to February 23. The contribution of terms responsible for the interaction of 16day wave with the mean flux, divergence and advection of the eddy potential enstrophy flow balance and, as a consequence, to the wave activity variations is not significant. The most obvious examples to illustrate are the calculation results of 16day PW interaction with the mean flow in Fig. 4. These results are obtained for the same area as in Fig. 3. The contribution of wavemean flux interaction is also increasing in February, but the values shown in Fig. 4, less by several orders of magnitude.

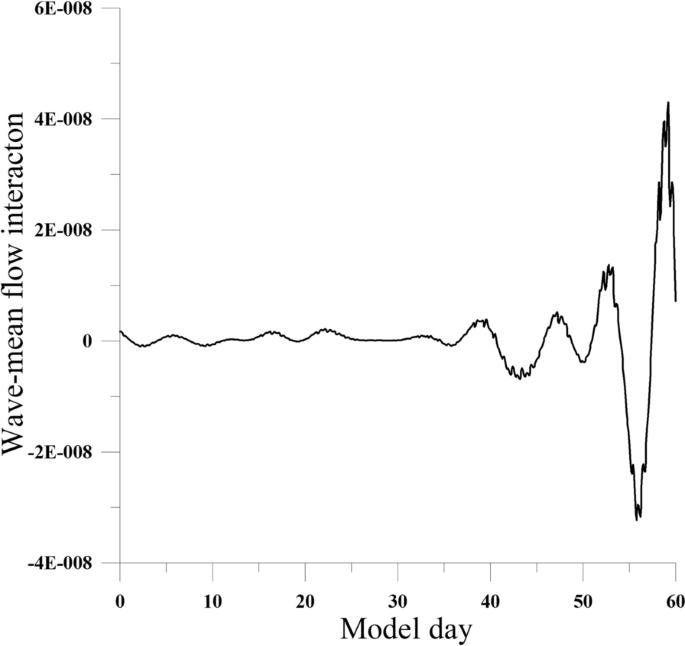

The comparison of results in Figs. 3 and 4 demonstrates that both the wave activity variations of the 16day PW and their maximum values are due to the nonlinear interconnection between PW. Moreover, the mean flow does not affect variations in wave activity.
4 Discussion and summary
In the previous study (Koval et al. 2023), a numerical simulation was carried out implying the initialization of the threedimensional nonlinear mechanistic numerical model of the global circulation of the middle and upper atmosphere MUAM for January–February dynamic conditions. The obtained hydrodynamic fields and their further numerical processing made it possible to evaluate the relative contribution of various planetary waves’ impact to the thermodynamic regime and its variations in the atmospheric layers up to the heights of the thermosphere. The scenarios of the model experiment implied switching on/off the individual PW sources, which are specified in the MUAM. Despite the tropospheric PW sources shaped in the model, the phenomenon of 16day PW excitation arise out of internal atmospheric sources in the southern lower thermosphere was discovered during the experiment. The study of this phenomenon formed the basis of the current study. The results of numerical modeling with switching off the sources of various PW modes showed that the mechanism of secondary 16day PW observed in the region of lower thermosphere excitation is 4 and 5 day PWs nonlinear interconnections.
To confirm this fact and to demonstrate explicitly the interaction of the 4 and 5day waves leading to secondary 16day PW generation, the equation of the eddy potential enstrophy balance was modified for 16day PW, taking into account the nonlinear interaction of primary waves. Consideration of this equation terms allowed to demonstrate explicitly the generation of 16day PW with a zonal wave number m = 1, in response to the nonlinear interconnection between a 4day PW with a zonal wave number m = 2 and a 5day PW with a zonal wave number m = 1. The calculation results showed that the terms related to nonlinear PW generation in the eddy potential enstrophy equation are dominant in the 16day PW activity variations. Moreover, the maximum changes are detected in February, when the 4 and 5day wave’s amplitudes also reach their maximum values in the observed region.
A natural question arises: what is the realism of the meteorological fields reproduced by MUAM in general and PWs in particular. This question has already been discussed many times in previous studies: when comparing modeling data with observational data (e.g., Medvedeva et al. 2019; Koval et al. 2018b; 2022). It was shown that the MUAM satisfactorily reproduces the wind, temperature and spatiotemporal structure of PWs. In this study, we decided to expand the comparison and constructed wavelet spectra of PWs propagating westward according to MUAM simulation, also according to MLS and MERRA2 data. Figure 5 shows examples of such spectra, calculated in the region of maximum amplitudes of the 16day PW (as shown in Fig. 1a, this is 62.5° N and 60 km altitude). Left panels show spectra according to MERRA2 data for different years (Fig. 5a, b, c: 1990, 2013 and 2018). Right panels show similar distributions for different MUAM runs. Figure 5d corresponds to the MUAM run used in this study (when all PW sources are included). Figure 5e and f represents the MUAM runs used in studying the influence of the QBO on the atmospheric circulation (Koval et al. 2022). The sources of waves in the model are the same, the difference between the simulations is only in the presence of a procedure for nudging the zonal wind to the easterly (Fig. 5e) and westerly (Fig. 5f) QBO phases, which is described in the corresponding article.
From Figs. 5a, b, c, a strong variability of PW amplitudes is visible, both temporal and interannual one, observed according to MERRA2 data. We performed similar calculations of wavelet spectra using MLS data (see the “Methods and approaches” section). Figures with MLS data are not presented here, because they are generally similar to the MERRA2 for the corresponding time intervals. Figure 5d, e, f demonstrates that MUAM reproduces interannual variability: here it is interpreted as the difference between runs (ensembles of simulations are built on this principle when analyzing climate data, e.g., Pogoreltsev et al. 2007). The amplitude values of the simulated PWs also correspond to reanalysis and satellite remote sensing data.

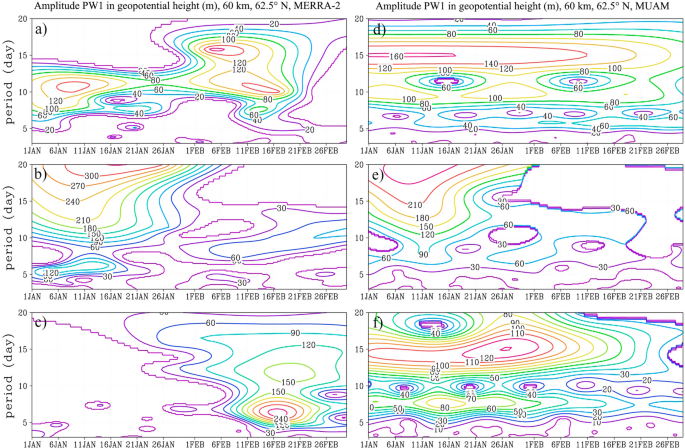

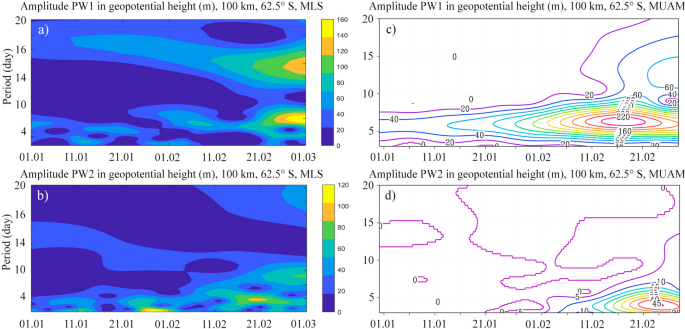

In addition, we compared the spectra of geopotential height variations in the region of southern lower thermosphere, in which the process of generating a 16day wave was considered (marked with a red dot in Fig. 1b). For comparison, only MLS data at 100 km altitude were used here. Spectra constructed for different years also show significant interannual variability. Figure 6a, b shows examples of wavelet spectra in the winter of 2020–2021, for PWs with zonal numbers 1 and 2, respectively. Figure 6c, d represents similar distributions according to the model—for the run studied in this article. Although the amplitude values in the Fig. 6 are very different, the similarity of the general structure of oscillations is important here: in Fig. 6a, c (wave number 1) we see in February maximums at periods close to the 5 and 16days, and in Fig. 6b, d (wave number 2) we see the maximum close to the 4day wave. This, on one hand, demonstrates the feasibility of coexistence in the real atmosphere of NMs with the periods under consideration. This may indirectly indicate the generation of a 16day wave by the mechanism considered in this study. On the other hand, this demonstrates the realism of the oscillations modeled in MUAM.
PW propagation and secondary PW generation, as a result of nonlinear interactions, play an essential role in the formation of the Earth’s and other planets dynamic regime, as well as in the intercoupling of atmospheric layers, including the atmosphere–ionosphere coupling. As was shown in present study, wave interactions can significantly influence the development of wave motions, therefore, further investigations in the direction of nonlinear PW effects should throw a great deal of light on the solution of the abovementioned problems. In addition to the generation of a secondary 16day wave, which is the difference in frequencies and wave numbers of 4 and 5day waves, the model also generates a secondary 2day wave (the sum of frequencies and wave numbers of these waves) despite the absence of a separate 2day wave source in the MUAM. At the same time, its spatial structure coincides with the structure of 4 and 5day waves, and an increase in its amplitude in February is also noticeable, coinciding with the strengthening of primary waves. However, due to the fact that 2day wave is not always secondary and tends to intensify in February, a more detailed study of this wave is a subject for future research.
