A study on the predominant period of long-period ground motions in the Kanto Basin, Japan

Earth, Planets and Space201466:100

https://doi.org/10.1186/1880-5981-66-100

Received: 30 January 2014

Accepted: 19 August 2014

Published: 26 August 2014

Abstract

We analyzed seismic waveforms of moderate to large shallow earthquakes recorded in the Kanto Basin, Japan, to clarify the characteristics of long-period ground motions in deep sedimentary basins. Our analysis revealed a tendency of long-period ground motions to develop in limited periods up to around 7 s. In addition, we found a specific relation between the predominant period of long-period ground motions and the depth of bedrock. The predominant period tends to increase in proportion to bedrock depth until it reaches approximately 7 s; however, it becomes almost constant for bedrock depths greater than 2 km. These observations, in conjunction with numerical experiments performed in this study using realistic sedimentary basin structure models, indicate that the characteristic of long-period ground motions, excited by the basin-induced fundamental Love waves, is controlled strongly by the shallow sedimentary structure, if the bedrock depth exceeds approximately 2 km. This result might also be important in understanding and evaluating the characteristics of long-period ground motions in other deep sedimentary basins of the world for moderate to large shallow earthquakes.

Keywords

Long-period ground motionPredominant periodSedimentary basinLove waveKanto Basin

Findings

Introduction

In deep sedimentary basins, long-period ground motions induced by large-amplitude seismic surface waves might cause damage to large-scale constructions, such as high-rise buildings and oil storage tanks (e.g., Koketsu and Miyake2008). Thus, it is necessary to study the characteristics of long-period ground motions in the corresponding areas for the purposes of estimation and mitigation of the damage from future destructive earthquakes. Since the analysis of velocity waveforms has been extensively carried out in these fields (e.g., Joyner2000; Hatayama et al.2004; Chen et al.2012), we deal with long-period ground motions in terms of velocity waveforms in this study.

In past studies, the dependence of the predominant period of long-period ground motions on bedrock depth has been studied by assuming simple sedimentary layer structures (e.g., Kudo1978). The conventional approach is effective and has advantages for calculation costs; however, a modeling using only few layers would be oversimplification of subsurface structure if the bedrock depth is deepened and the physical effects of the sedimentary structure on wave propagation become complex. In this study, we regard this effect as crucial for a deep understanding of the characteristics of the long-period ground motions in deep sedimentary basins and try to investigate the characteristics of the spatial variation of the predominant period in association with local sedimentary basin structure. We selected the Kanto Basin as the target basin because high-density seismic observation networks are deployed and the population density is very high.

Because seismic wave propagation in deep sedimentary basins might be sensitive to variations of seismic velocity with depth in the sediment, the characteristics of long-period ground motions should be investigated based on realistic sedimentary structure models. In this study, using realistic sedimentary velocity models constructed from vertical seismic profiling (VSP) measurements, we discuss the reasons why the predominant period of long-period ground motions in deep sedimentary basins is limited to several seconds to around 7 s for moderate to large shallow earthquakes.

Predominant period of long-period ground motions in deep sedimentary basins

To investigate the characteristics of the predominant period of long-period ground motions in deep sedimentary basins, we analyzed the velocity seismograms from seven moderate to large shallow earthquakes (magnitude 5.8 to 7.5) that occurred around the Kanto Basin (Figure 1a). These earthquakes were selected to cover wide azimuthal distribution and provide sufficient data. The seismograms analyzed were collected from 664 stations of K-NET, KiK-net, and SK-net shown in Figure 1b.
Figure 1

Map showing the locations of the earthquakes, Kanto Basin, and observation stations. (a) Locations and focal mechanisms of the seven earthquakes analyzed in this study. The rectangle indicates the enlarged area shown in (b). (b) Map showing the Kanto Basin and locations of seismic observation stations (gray circles). Local variation of bedrock depths (Koketsu et al.2008) is illustrated by color gradations.

As shown in Figure 1b, the depth of the bedrock locally exceeds 4 km in the Kanto Basin (Koketsu et al.2008). The long-period ground motion induced by seismic surface waves is well observed in the central part of the deep basin. Figure 2 shows an example of the seismograms recorded at three stations in the center of the Kanto Basin. After the onset of the short-period S waves, the large-amplitude long-period surface waves are clearly observed. A conventional Fourier spectrum analysis, using the horizontal velocity seismograms from the 150 s time window, including S and surface waves, reveals that the predominant periods of these surface waves are approximately 7 s, as shown by the spectrum plots in the right of Figure 2. This result coincides with the analysis of surface waves (Love waves) of the 2004 Mid-Niigata earthquake by Furumura and Hayakawa (2007). Moreover, it is interesting to note that the predominant periods are almost identical among all stations, irrespective of the bedrock depth at the observation stations.
Figure 2

Examples of velocity seismograms and velocity spectra. (a) Velocity seismograms and velocity spectrum of horizontal ground motions recorded at SITH04 and TKY007 from the 2004 Mid-Niigata earthquake. The spectrum is calculated as the square root of the sum of the square of the NS and EW component spectral amplitudes. (b) Velocity seismograms and velocity spectrum of horizontal ground motions recorded at SITH04 and TKY015 from the 2008 Iwate-Miyagi earthquake.

Figure 3 shows the dependence of the predominant period of long-period ground motions on the bedrock depth from four earthquakes, which provide a sufficient quantity of data and a wide azimuthal coverage. The same spectrum analysis as used in Figure 2 is applied to the horizontal velocity seismograms to estimate the dominant period at each station. The dominant period was searched over the period longer than 1 s to avoid the influence of high-frequency body waves. As for the three earthquakes located northwards from the Kanto Basin, the predominant period has a tendency to increase with the bedrock depth in the shallow part of the basin (<about 2 km), whereas it is almost constant in the deeper part of the basin, even though there is a large scatter of data. In contrast, the observed predominant period is almost constant (approximately 7 s) for the 2004 Southeast-Off Kii Peninsula earthquake located southwestward of the Kanto Basin, irrespective of the bedrock depth at the observation station. This finding might be explained by the propagation of large-amplitude surface waves excited and developed by the low-velocity seafloor sediments of the Pacific Ocean (Miyake and Koketsu2005).To examine the statistical relationship between the bedrock depth and the predominant period of observed long-period ground motions, we calculated probability density function (PDF) of predominant period at an interval of 0.1 km in bedrock depth. Figure 4 shows the estimated PDF of predominant period as a function of the bedrock depth. As seen in Figure 3, the predominant period (high-probability-density area in Figure 4) shows a tendency to increase with bedrock depth in the shallow part of the basin (<about 2 km), whereas it is almost constant (approximately 7 s) in the deeper part of the basin. Although there is a large scatter of data, this observation implies that the physical effect of the bedrock on long-period ground motions is sufficiently strong to be observable in the shallow part of the basin, but it becomes very weak where the depth of the bedrock exceeds about 2 km.
Figure 3

Comparison between the predominant period of long-period horizontal ground motion and bedrock depth. (a) 2004 Southeast-Off Kill Peninsula earthquake, (b) 2004 Mid-Niigata earthquake, (c) 2008 Iwate-Miyagi earthquake, and (d) 2011 north Ibaraki earthquake. The number of data is shown at the lower right of the each figure.

Figure 4

Relationship between bedrock depth and predominant period of long-period horizontal ground motion. Probability density plot was estimated from 2032 data of the seven earthquakes analyzed in this study. The cross indicates the theoretical prediction from the 1D model analysis shown in Figure 6.

Long-period ground motion is characterized by the effects of the source, path, and local site (e.g., Joyner2000). In relation to this, our observational results, which are obtained from seven earthquakes having different hypocenter distances and wide azimuthal coverage, confirm that the local site effect is an important factor to characterize the predominant period of long-period ground motions in the Kanto Basin. Thus, we focus our attention to the effect of the local site structure on surface wave excitation.

Seismic velocity structure of the sediment and surface wave modes

The seismic velocity structure of the Kanto Basin has been investigated by many researchers using a variety of geophysical techniques, such as seismic refraction experiments, H/V spectral ratio analysis, and microtremor array exploration (e.g., Koketsu and Higashi1992; Sato and Higashi2006; Yamanaka and Yamada2006). In addition, limited numbers of VSP measurements at deep boreholes (deeper than 1 km) have revealed very accurate in situ seismic velocity structures (Yamamizu1996,2004). Assembling the results from 14 VSP measurements, Yoshimoto and Takemura (2014) indicated that the depth variation of seismic velocity of the sediment in the Kanto Basin could be modeled satisfactorily by the exponential asymptotically bounded velocity function (Ravve and Koren2006) in the first-order approximation. It is worth noting that at most of the VSP measurement points, the S-wave velocity shows a continuous increase with depth from 0.5 km/s or less at the free surface to about 2 km/s at depths of 1.5 km (Yoshimoto and Takemura2014).

Figure 5a shows a seismic velocity structure model of the SITH01 at Iwatsuki (see Figure 1b), which is located in the mid-northern part of the Kanto Basin (Yoshimoto and Takemura2014). The bedrock depth of 2.8 km at this site is a representative value for the middle part of the Kanto Basin (see Figure 1b). We calculated the medium response (Harkrider1964) for this 1D structure model to discuss the period-amplitude relationship of the basin-induced Love and Rayleigh waves (hereafter, we call ‘medium response/wavenumber’ the amplitude response for estimating the strength of surface wave excitation). Figure 5c shows the tendency for Love waves to dominate the Rayleigh waves in this structure, and the fundamental Love waves would be the most dominant surface waves. This result is consistent with the observations of distinct Love wave excitations in the Kanto Basin (e.g., Yamazaki et al.1992; Kato et al.1993). An intriguing feature of the amplitude response shown in Figure 5c is the sharp cutoff of its amplitude above about 10 s, indicating that the Love wave excitation becomes less effective for periods above 10 s.

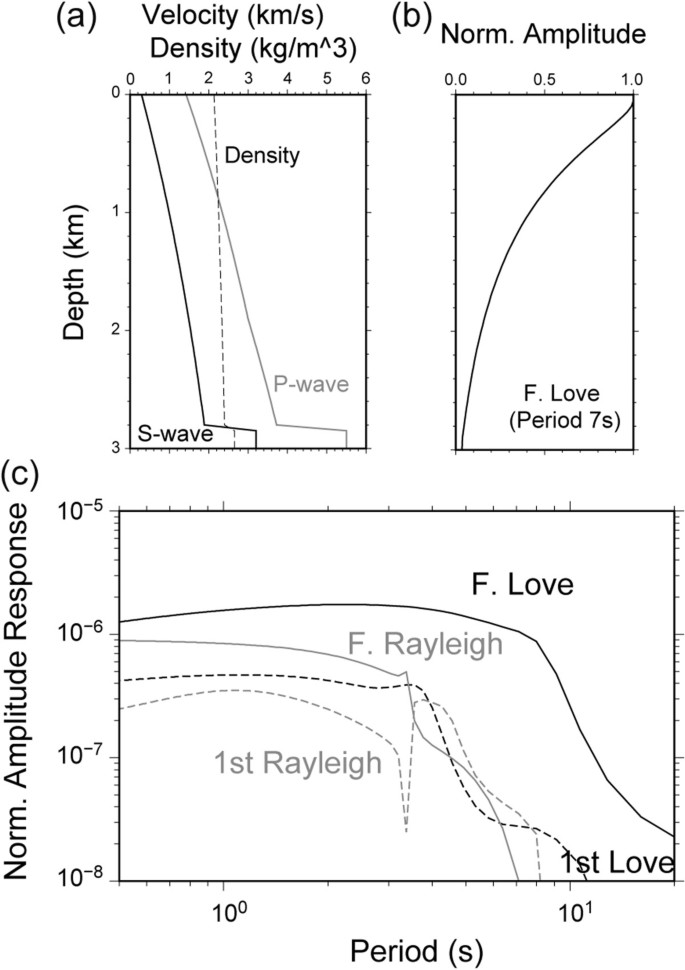

Figure 5

Seismic velocity structure of the sediment and the amplitude response of different surface wave modes. (a) Seismic velocity structure model of the SITH01 at Iwatsuki from Yoshimoto and Takemura (2014). (b) Depth variation of the normalized amplitude of the fundamental Love wave at a period of 7 s for Iwatsuki's model (calculated by a computer program by Herrmann (2013)). (c) Amplitude response of the Love and Rayleigh waves calculated from Iwatsuki's model.

Discussion and conclusion

As seen in Figure 4, it is evident that the predominant period of long-period ground motion is affected by the bedrock depth of the sedimentary basin. A similar observation has been reported for the Osaka sedimentary basin, western Japan (Miyakoshi and Horike2006). Hence, it might be meaningful to investigate the relationship between the amplitude response of fundamental Love waves and the bedrock depth by modifying Iwatsuki's structure model, which shows a standard characteristic of the sediment of the Kanto Basin (Yoshimoto and Takemura2014).

Figure 6 shows the amplitude response of the fundamental Love wave calculated for different bedrock depths up to 5 km in intervals of 0.5 km, where the deep structure for the calculation is constructed from the Japan Integrated Velocity Structure Model by Koketsu et al. (2008). As can be seen in this figure, the amplitude response shows a clear peak for shallow bedrock depths (<about 2 km), indicating the strong excitation of the fundamental Love waves at this peak period. In contrast, the excitation is shown to become very weak at longer periods by the steep fall-off of the amplitude response above the peak period. The flattening of the amplitude response in the short periods is due to the upward bending of seismic rays in the sediment with vertical velocity gradient. It is also interesting that the shape of the amplitude response is similar among the different structure models for deep bedrock depths. This result indicates that the excitation of the basin-induced fundamental Love wave is strongly characterized by the shallow sedimentary velocity structure, irrespective of the bedrock depth. The illustration of the depth variation of long-period Love wave amplitude in Figure 5b might be suggestive of the weak physical effect of the bedrock on the excitation of long-period Love waves.
Figure 6

Amplitude response of the fundamental Love wave for the seismic velocity structure models with different bedrock depths. Iwatsuki's structure model is used in the calculation as a reference structure model. The inverted triangles indicate the peak of the amplitude response.

We overlay the theoretical prediction for the fundamental Love wave excitation discussed above on Figure 4 (cross in the figure) to compare it with the observation. The theoretical prediction explains well the observed relationship between bedrock depth and the predominant period of long-period ground motions for shallow bedrock depths (<about 2 km), except for a slight overestimation. This result might indicate the effective excitation of Love waves in the basin edge area (e.g., Kinoshita et al.1992). One possible cause for the overestimation is the 3D geometrical effect of the Kanto Basin, which has not been taken into account in our theoretical consideration. As the Kanto Basin has a 3D shape in which the bedrock depth increases towards the center, it is likely that the observed Love waves at a certain station show the excitation effect from shallower parts of the basin if the incident wave for the Love wave excitation comes from outside the basin. A dipping bedrock interface might enhance the trapping of the incident wave energy in the sediment; thus, exciting the surface waves more effectively (e.g., Frankel1993). However, we do not discuss this effect in detail in this paper.

There are seismic observations from the Kanto Basin reporting the predominant period of long-period ground motions longer than 10 s (e.g., Tanaka et al.1979). In this paper, we noted the observation that the predominant period of long-period ground motion of moderate to large shallow earthquakes has the tendency to become almost constant (approximately 7 s) in the Kanto Basin. However, as for the large to great shallow earthquakes at local to regional distances, we should expect long-period ground motions with predominant periods longer than 10 s, in relation to the source spectrum having very rich energy in the long period. It is appropriate to leave the quantitative research on this topic for a future study.

In this paper, we reported the observation that the predominant period of long-period ground motion of moderate to large earthquakes shows the tendency to increase with bedrock depth in the shallow parts of the basin, whereas it is almost constant in the deeper parts of the basin. By using realistic sedimentary structure models and conventional surface wave theory, this observation was interpreted as indicating that the shallow velocity structure at less than about 2 km depth plays an important role in the excitation of basin-induced Love waves in the deep sedimentary basins. This perception and the associated seismic investigations could be very important in the evaluation of the development of surface waves, not only in deep sedimentary basins in land areas, but also in thick accretionary prisms in marine areas throughout the world.
