Fluid-metapelite interaction in an ultramafic mélange: implications for mass transfer along the slab-mantle interface in subduction zones

Earth, Planets and Space volume 66, Article number: 47 (2014) Cite this article

Abstract

The slab-mantle interface in subduction zones is a site of tectonic mixing of crustal and mantle rocks. It is the interface for fluid flow of slab-derived components into the mantle wedge. To assess the fluid-rock interaction along the slab-mantle interface, we studied the bleaching of pelitic schist in an ultramafic mélange. The Nishisonogi metamorphic rocks in Kyushu, Japan, comprise ultramafic mélanges intercalated with epidote-blueschist facies schists. The ultramafic mélange consists of tectonic blocks of various lithologies and a matrix of chlorite-actinolite schist and serpentinite. Along the contact with the mélange matrix, pelitic schist blocks are bleached mainly due to the modal increase of albite and the consumption of carbonaceous material. The bleaching is probably attributed to infiltration of Na-rich external fluid from the mélange matrix. Mass balance analysis indicates losses of C, Rb, K2O, Ba, Pb, and SiO2 from the bleached pelitic schist, although Al2O3, TiO2, Sc, Y, Zr, Nb, La, Ce, and Nd remain immobile. This suggests fractionation of large-ion lithophile elements (LILE) and Pb from the high-field-strength elements and rare earth elements during the bleaching. If this ultramafic mélange is analogous to the slab-mantle interface, similar infiltration metasomatism will promote liberation of C, Si, LILE, and Pb from subducting metapelites and enhance metasomatism of the mantle wedge.

Findings

Introduction

Fluid flow is an agent of large-scale mass transfer in subduction zones and plays a key role in mantle metasomatism and arc magmatism (Peacock 1990; Bebout 1996, 2007a, 2007b, 2013; Manning 2004; Klemd 2013; Spandler and Pirard 2013). At great depths in subduction zones (15 to 100 km), fluids (aqueous fluids in shallower levels and possibly silicate melts in deeper levels; cf. Bebout 2007a, [b]) derived from subducting slabs can transport various components into the mantle wedge, causing hydration and metasomatism of the mantle (Maury et al. 1992; Ryan et al. 1996; Morris and Ryan 2003; Schmidt and Poli 2003; Rüpke et al. 2004). It is generally believed that such fluid flow is essential to generate arc magmas with elevated concentrations of fluid-mobile components such as large-ion lithophile elements (LILE; e.g., Ba, K, Rb, Cs), B, U, and Pb (Morris et al. 1990; Hawkesworth et al. 1993; Tatsumi and Eggins 1995; Davidson 1996; Elliott 2003).

Recent studies of subduction zone mélanges have revealed that significant fluid flow and fluid-rock interaction took place along the slab-mantle interface (Bebout and Barton 1989, 1993, 2002; Sorensen and Grossman 1989, 1993; King et al. 2003, 2006, 2007; Breeding et al. 2004; Marschall et al. 2006; Spandler et al. 2008; Miller et al. 2009; Penniston-Dorland et al. 2010, 2012). The mélanges represent tectonic and metasomatic mixing of sedimentary, mafic, and ultramafic rocks along the interface region at the contact between the subducting slab and the mantle wedge. The mixing may involve devolatilization reactions that would not occur during simple (essentially closed-system) metamorphism of each lithology. Moreover, fluid-rock interactions or exchanges between the sedimentary and ultramafic rocks will produce new hybrid rocks. The hybrid rocks have the potential to take up and release components distinct from the protoliths. Thus, fluid-rock interaction in mélanges probably affects the mass transfer of slab-derived components into the wedge mantle.

This paper describes an example of fluid-metapelite interaction in a subduction zone mélange intercalated with epidote-blueschist facies schists. Metapelites are the most important reservoirs of LILE in subducting slabs. Mass balance analysis provides evidence of the liberation of C, Si, LILE, and Pb from metapelites during infiltration metasomatism.

Geological background

The Nishisonogi metamorphic rocks in Kyushu, Japan, represent a Late Cretaceous subduction complex that consists of epidote-blueschist facies schists with minor serpentinite (Figure 1). The schists include mainly pelitic, psammitic, and mafic lithologies. Phengitic muscovite in the pelitic and psammitic schists yields K-Ar and 40Ar/39Ar plateau ages of 85 to 60 Ma (Hattori and Shibata 1982; Faure et al. 1988). The matrix mineral assemblages of the pelitic and psammitic schists are carbonaceous material + garnet + chlorite + muscovite + albite + quartz ± epidote and albite + muscovite + quartz ± chlorite, respectively. The psammitic schist locally contains glaucophane + epidote/piemontite + hematite + rutile ± garnet in the matrix. The mafic schist occurs as conformable layers (<100 m in thickness) within the pelitic and psammitic schists. The matrix mineral assemblages of the mafic schist are actinolite/barroisite + epidote + chlorite + albite ± quartz and glaucophane + epidote + chlorite + albite + hematite ± quartz, with the former assemblage being dominant. The serpentinite, which is in tectonic contact with the schists, occurs as pod-like bodies (<150 m in diameter) and ultramafic mélanges (<350 m in thickness). The serpentinite pods typically have metasomatic rinds (Uchida and Muta 1957, 1958; Mori et al. 2007). The matrix mineral assemblage of the serpentinite is antigorite + magnetite ± dolomite ± magnesite ± talc; chrysotile and lizardite are rare. The ultramafic mélanges contain tectonic blocks of metagabbro, mafic schist, pelitic schist, and albitite in a matrix of chlorite-actinolite schist, talc schist, and schistose serpentinite (Nishiyama 1989, 1990). Small blocks (<5 m in diameter) of jadeitite, omphacitite, rodingite, and zoisitite are found locally (Nishiyama 1978; Shigeno et al. 2005, 2012a, [b]; Mori et al. 2011).One of the largest ultramafic mélanges in the study area is exposed at Nishikashiyama district in Nagasaki, Japan (Figure 1). A wide variety of rocks such as epidote-barroisite schist, epidote-glaucophane schist, pelitic schist, and albitite appear as discrete tabular blocks less than 10 m in thickness (Figure 2a). These blocks are mutually isolated by a mélange matrix (<5 m in thickness) of chlorite-actinolite schist. The mélange matrix locally contains thin lenses (<2 m in thickness) of serpentinite. In this mélange, all pelitic schist blocks show bleaching along the contact with the mélange matrix (Figure 2b,c). The pelitic schist is normally black but becomes white when within several centimeters of the mélange matrix. The boundary between the unaltered part and bleached part of the pelitic schist is parallel to the contact.

Figure 1
figure 1

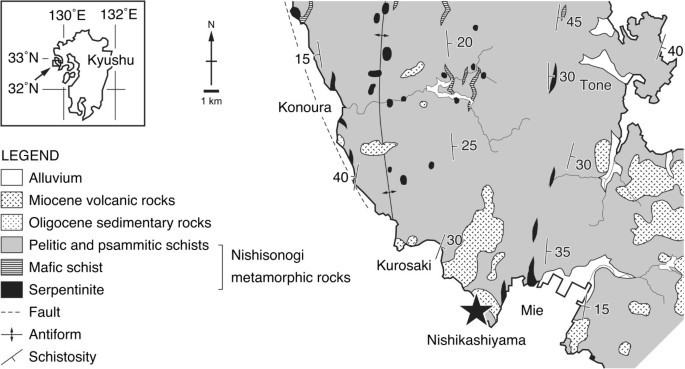

Geologic map of the southern part of Nishisonogi Peninsula, Kyushu, Japan. Star indicates sampling locality.

Full size image
Figure 2
figure 2

Photographs of the Nishikashiyama mélange. (a) Tectonic blocks of epidote-barroisite schist and pelitic schist in a mélange matrix of chlorite-actinolite schist, outcrop 1. (b, c) Bleaching of pelitic schist in outcrops 1 and 2, respectively. BPS, bleached pelitic schist; CAS, chlorite-actinolite schist; UPS, unaltered pelitic schist.

Full size image

Sampling and analytical methods

To study the bleaching of pelitic schist blocks, samples were collected from two outcrops in Nishikashiyama (Figure 2b, c). From each outcrop, one sample of bleached pelitic schist (BPS), three samples of neighboring unaltered pelitic schist (UPS), and one sample of chlorite-actinolite schist (CAS) were taken. The BPS and UPS represent different stratigraphic layers of pelitic schist; sampling along a single layer was not possible.

The minerals in the samples were examined with a polarizing microscope under transmitted and reflected light. The modal compositions were measured by counting 2,000 points with a grid interval of 0.1 mm for each sample. Fluid inclusions and opaque minerals were analyzed with a Horiba Jobin Yvon LabRAM HR800 Raman spectrometer (HORIBA Jobin Yvon Inc., Edison, NJ, USA) equipped with a 514-nm argon ion laser housed at Kumamoto University, Japan.

The whole-rock compositions of the samples were determined with a PANalytical MagiX Pro X-ray fluorescence (XRF) spectrometer (PANalytical B.V., Almelo, The Netherlands) and a PerkinElmer 2400 II CHN element analyzer (PerkinElmer, Waltham, MA, USA) housed at the Kitakyushu Museum of Natural History and Human History, Japan. About 300 g of each sample was powdered and homogenized. About 4 g of the sample powder was heated to 950°C for 3 h to measure loss on ignition (LOI). Then, 1 g of the heated powder was prepared as a 1:5 dilution glass bead for XRF. The details of the XRF analysis followed the method of Mori and Mashima (2005). About 0.2 g of the unheated powder was used for CHN (H2O and C) analysis. Finally, the XRF, LOI, and CHN data were combined as whole-rock compositions.

Petrography

Photomicrographs of the samples are shown in Figure 3. Modal compositions are shown in Figure 4.

Figure 3
figure 3

Photomicrographs of selected samples. (a) UPS. (b) BPS. (c) CH4-rich (+CO2) fluid inclusions in BPS and the representative Raman spectrum. (d) CAS. Ab, albite; Act, actinolite; Cal, calcite; Chl, chlorite; CM, carbonaceous material; Ep, epidote; Ms, muscovite; Qtz, quartz; Ttn, titanite.

Full size image
Figure 4
figure 4

Modal compositions of samples. Abbreviations are shown in Figure 3. The data are listed in Additional file 1: Table S1.

Full size image

Unaltered pelitic schist

The mineral assemblage of UPS is carbonaceous material + chlorite + muscovite + albite + quartz + titanite ± garnet ± calcite ± epidote (Figure 3a). Ore minerals are rare. A minor amount of accessory tourmaline is present in some samples. Carbonaceous material is 5 to 9 vol% in the mode and occurs either as a matrix mineral or as inclusions in albite. It contains graphite and disordered carbons and is considered metamorphosed organic matter. Albite (15 to 37 vol%) typically occurs as porphyroblasts of 1 to 2 mm in diameter. Chlorite (7 to 15 vol%) and muscovite (14 to 33 vol%) define the schistosity of the UPS. Quartz is 19 to 38 vol% in the mode. Titanite is present in all the UPS samples.

Bleached pelitic schist

The mineral assemblage of the BPS is chlorite + muscovite + albite + quartz + titanite ± epidote (Figure 3b). This is essentially the same as the mineral assemblage of the UPS except for the notable absence of carbonaceous material. The BPS lacks carbonaceous material not only in the matrix but also in the albite porphyroblasts. The modal compositions indicate that the BPS is richer in albite (43 and 69 vol% in outcrops 1 and 2, respectively) and is generally poorer in muscovite (18 and 4 vol%) and quartz (29 and 8 vol%) than the UPS. Titanite is present in all the BPS samples.

The albite porphyroblasts have numerous fluid inclusions along clusters of healed microcracks (Figure 3c). This is a feature not found in UPS. The fluid inclusions are typically less than 5 μm in size, have round shapes, and are filled by one phase (H2O liquid) or two phases (liquid and a small gas bubble) at room temperature. There are two types of the two-phase inclusions: CH4-rich (±CO2) inclusions and H2O inclusions. There is no obvious difference in the mode of occurrence of these two types.

Chlorite-actinolite schist

The mineral assemblage of the CAS is actinolite + chlorite + titanite + albite ± tourmaline (Figure 3d). The actinolite is dominant in the mode (85 and 93 vol% in outcrops 1 and 2, respectively), defines the schistosity, and occurs as euhedral grains of 0.1 to 5 cm long. Chlorite, titanite, and albite occur in the interstices among the actinolite grains.

Whole-rock chemistry

The whole-rock compositions of the samples are listed in Additional file 1: Table S1. As shown in Figure 4, carbonaceous material is the major reservoir of carbon. The sample NK11 contains both carbonaceous material and calcite (Figure 4), but division between C and CO2 is difficult. Thus, carbon in all the samples is regarded as C in the mass balance analysis discussed below.

Discussion

Bleaching process of pelitic schist

The bleaching of the pelitic schist involves the changes in mineralogy and whole-rock chemistry. There are two possible mechanisms. As the UPS is a boundary layer, it may represent diffusive exchange of components between the pelitic schist and ultramafic mélange matrix. Boundary flow of external fluids may cause infiltration metasomatism of the pelitic schist.

To examine the bleaching mechanisms, the chemical mass balance between the UPS and BPS was estimated using the isocon method (Grant 1986). As shown in Figure 2, the UPS gradually changes into the BPS upon approaching the margin of the pelitic schist block. There are no structural discontinuities between them, in contrast to the contact between the BPS and CAS. Thus, the UPS is considered the protolith of the BPS. In each outcrop, the average composition of the UPS was used as the unaltered reference frame. We regarded the standard deviation of the UPS compositions as the inherent heterogeneity of the protolith and used it to calculate the uncertainties of the mass balance analysis (Baumgartner and Olsen 1995).

The isocon diagrams for the BPS are shown in Figure 5. The isocon is defined by TiO2, Al2O3, P2O5, Sc, Y, Zr, Nb, La, Ce, and Nd. These components are thought to be immobile in this metasomatic system. In outcrop 1, the isocon slope (=1.11 ± 0.03) indicates that the UPS had lost 10% of its bulk mass during the bleaching. The elemental mass changes include losses of 15% SiO2, 23% K2O, 95% C, 47% Rb, 21% Ba, and 47% Pb, along with gains of 33% MgO, 34% Na2O, 109% Ni, and 161% Cu, relative to the protolith values. The isocon diagram for outcrop 2 shows more dispersive distribution of data than that for outcrop 1, suggesting more intense metasomatism. In outcrop 2, the isocon slope (=1.17 ± 0.03) indicates that the UPS lost 14% of its bulk mass during the bleaching. The elemental mass changes include losses of 23% SiO2, 93% K2O, 96% C, 95% Rb, 91% Ba, and 55% Pb, along with gains of 57% MgO, 204% Na2O, 96% Ni, and 59% Cu, relative to the protolith values.

Figure 5
figure 5

Isocon diagrams for BPS. Concentrations are scaled as follows: ×0.1 for SiO2; ×0.5 for Al2O3; ×1 for total iron (as Fe2O3) and Na2O; ×2 for MgO, K2O, and H2O; ×10 for TiO2, CaO, and C; ×50 for MnO and P2O5; ×100 for Zr and Ba; ×500 for V, Cr, Ni, Rb, Sr, Nb, and Ce; and × 1,000 for Sc, Cu, Zn, Y, La, Nd, and Pb. Open and solid squares show mobile and immobile components, respectively. The data are listed in Additional file 1: Table S2.

Full size image

The chemical mass balance suggests that the bleaching of the pelitic schist is an open system with respect to some mobile components. For example, the significant gain of Na2O (Table 1) is probably unable to explain by simple exchange between the pelitic schist and ultramafic mélange matrix. As the Na2O concentration is typically low in the ultramafic mélange matrix, influx of Na-rich fluid would be necessary. Although the diffusive exchange of components is possible, the fluid flow and infiltration metasomatism are considered more important mechanisms of the bleaching.

Table 1 Element mass changes in BPS
Full size table

Element mobility and mineral stability

The elemental mass changes (Table 1) are coupled to the stability of the key host minerals in the BPS (Figure 4). The loss of SiO2 and C corresponds to the decrease of quartz and the consumption of carbonaceous material, respectively. The loss of K2O, Rb, and Ba is correlated with the decrease of muscovite. The gain of Na2O and MgO reflects the increase of albite and chlorite, respectively. In outcrop 1, the gain of CaO and Sr is comparable with the increase of epidote [see Additional file 1: Table S1]. Some immobile components such as TiO2, Y, Nb, La, Ce, and Nd are probably held in titanite that remains stable. The mass change of total iron is inconsistent with the modal change. This may be because total iron contains ferric (mainly in epidote and chlorite) and ferrous oxides (mainly in chlorite).

A salient change during the bleaching of the pelitic schist is the consumption of carbonaceous material (Figures 3 and 4). As the BPS and CAS have the low C concentration and do not contain carbonate minerals, we infer that the infiltration of fluid from the mélange matrix converted the carbonaceous material to carbonic fluids. If the infiltrating fluid is reducing relative to the pore fluid in the pelitic schist, the carbonaceous material will be converted to hydrocarbons (CH4, etc.). Alternatively, if the infiltrating fluid is oxidizing, the carbonaceous material will be converted to CO2. The CH4-rich (±CO2) fluid inclusions in the BPS may be the traces of such processes (Figure 3c). Unfortunately, there are few records of the redox state of the fluids in the samples. Nishiyama (1990) described CO2 metasomatism of an exposed metabasite block in the Mie mélange 2.5 km northeast of Nishikashiyama (Figure 1). He speculated that the origin of the CO2-rich fluid ( X CO 2 > 0.785 ) was the oxidation of carbonaceous material in pelitic schist blocks. However, such a process may not be a suitable explanation for the case of the Nishikashiyama mélange because the BPS and CAS contain titanite and actinolite (Figure 3b, d). These minerals are destabilized under high- X CO 2 conditions (cf. Nishiyama 1990).

Implications for mass transfer along the slab-mantle interface

The most striking result of the mass balance analysis is the obvious correlation between the elemental mass changes and the ion radius and charge number. As shown in Figure 6a, a significant mass of LILE (Rb, K, Ba) and Pb with relatively large ion radii and low charge numbers is lost in the BPS. In contrast, the high-field-strength elements (HFSE; e.g., Ti, Nb, and Zr) and rare earth elements (REE; e.g., La, Ce, and Nd) remain immobile. Consequently, the infiltration metasomatism causes fractionation of LILE and Pb from the HFSE and REE along with the bleaching of the pelitic schist. Because the CAS has low concentrations of LILE and Pb [see Additional file 1: Table S2], these components are probably liberated from the pelitic schist blocks and migrate away via the fluid flow.

Figure 6
figure 6

Selected element mobility during fluid-metapelite interaction in subduction zone mélange. Mass ratio is plotted against the ion radius (six-coordinated). Estimated bulk and element mass changes are indicated as percentage relative to the protolith abundance. (a) Nishikashiyama, this study. (b) Syros, data from Breeding et al. (2004).

Full size image

Breeding et al. (2004) reported similar fluid-metapelite interaction from an eclogite facies mélange exposed in Syros, Greece. Near the meta-ultramafic mélange matrix, the mineral assemblage of the metapelite was altered from phengite + sodic pyroxene + epidote + garnet + glaucophane + quartz + titanite + rutile + zircon to glaucophane + chlorite + albite + magnetite + apatite + titanite + rutile + zircon (Figure 6b). The difference between the mineralogical changes in Syros and Nishikashiyama probably reflects the difference in the P-T conditions of the fluid-metapelite interaction. Nevertheless, the elemental mass changes are similar (Figure 6). LILE, Pb, Sr, and U are significantly lost during the alteration, but the HFSE, REE, and Th remain nearly immobile. Such a fluid-metapelite interaction and element fractionation may occur at various depths (eclogite facies and epidote-blueschist facies to lower P-T conditions) along the slab-mantle interface in subduction zones.

Conclusions

This paper describes bleaching of pelitic schist blocks in an ultramafic mélange intercalated with epidote-blueschist facies schists of the Nishisonogi metamorphic rocks. The bleaching is attributed to infiltration of Na-rich external fluid and involves liberation of C (as carbonic fluids), Si, Rb, K, Ba, and Pb from the pelitic schist. Titanium, Nb, Zr, La, Ce, and Nd remain immobile, so the LILE and Pb are fractionated from the HFSE and REE. Such a fluid-metapelite interaction may occur at various depths along the slab-mantle interface that is the site of tectonic mixing of sedimentary, mafic, and ultramafic rocks. Therefore, ultramafic mélanges are a potential source of slab-derived components and play an important role in material recycling in subduction zones.

Authors’ information

YM is a researcher/curator of petrology in Kitakyushu Museum of Natural History and Human History (KMNH). MS is a researcher of petrology/structural geology in KMNH. TN is a professor of petrology in Graduate School of Science and Technology, Kumamoto University.

Abbreviations

Ab:

albite

Act:

actinolite

BPS:

bleached pelitic schist

Cal:

calcite

CAS:

chlorite-actinolite schist

Chl:

chlorite

CM:

carbonaceous material

Ep:

epidote

Ms:

muscovite

Qtz:

quartz

Ttn:

titanite

UPS:

unaltered pelitic schist.

References

  1. Baumgartner LP, Olsen SN: A least-squares approach to mass transport calculations using the isocon method. Econ Geol 1995, 90: 1261–1270. 10.2113/gsecongeo.90.5.1261

    Article  Google Scholar

  2. Bebout GE: Volatile transfer and recycling at convergent margins: mass-balance and insights from high- P / T metamorphic rocks. In Subduction top to bottom. Edited by: Bebout GE, Scholl DW, Kirby SH, Platt P. Washington D.C: American Geophysical Union, Geophysical Monograph series 96; 1996:179–193.

    Chapter  Google Scholar

  3. Bebout GE: Metamorphic chemical geodynamics of subduction zones. Earth Planet Sci Lett 2007, 260: 373–393. 10.1016/j.epsl.2007.05.050

    Article  Google Scholar

  4. Bebout GE: Trace element and isotopic fluxes/subducted slab. Treat Geochem 2007, 3: 1–50.

    Article  Google Scholar

  5. Bebout GE: Metasomatism in subduction zones of subducted oceanic slabs, mantle wedges, and the slab-mantle interface. In Metasomatism and the chemical transformation of rocks. Edited by: Harlov DE, Austrheim H. Springer, Berlin: Lecture notes in earth system science; 2013:289–349.

    Chapter  Google Scholar

  6. Bebout GE, Barton MD: Fluid flow and metasomatism in a subduction zone hydrothermal system: Catalina Schist terrane, California. Geology 1989, 17: 976–980. 10.1130/0091-7613(1989)017<0976:FFAMIA>2.3.CO;2

    Article  Google Scholar

  7. Bebout GE, Barton MD: Metasomatism during subduction: products and possible paths in the Catalina Schist, California. Chem Geol 1993, 108: 61–92. 10.1016/0009-2541(93)90318-D

    Article  Google Scholar

  8. Bebout GE, Barton MD: Tectonic and metasomatic mixing in a high- T , subduction-zone mélange – insights into the geochemical evolution of the slab–mantle interface. Chem Geol 2002, 187: 79–106. 10.1016/S0009-2541(02)00019-0

    Article  Google Scholar

  9. Breeding CM, Ague JJ, Bröcker M: Fluid–metasedimentary interactions in subduction zone mélange: implications for the chemical composition of arc magmas. Geology 2004, 32: 1041–1044. 10.1130/G20877.1

    Article  Google Scholar

  10. Davidson JP: Deciphering mantle and crustal signature in subduction zone magmatism. In Subduction top to bottom. Edited by: Bebout GE, Scholl DW, Kirby SH, Platt P. Washington D.C: American Geophysical Union, Geophysical Monograph series 96; 1996:251–262.

    Google Scholar

  11. Elliott T: Tracers of the slab. In Inside the subduction factory. Edited by: Eiler J. Washington D.C: American Geophysical Union, Geophysical Monograph series 138; 2003:23–45.

    Chapter  Google Scholar

  12. Faure M, Fabbri O, Monie P: The Miocene bending of southwest Japan: new 39Ar/40Ar and microtectonic constraints from the Nagasaki schists (western Kyushu), an extension of the Sanbagawa high-pressure belt. Earth Planet Sci Lett 1988, 91: 105–116. 10.1016/0012-821X(88)90154-9

    Article  Google Scholar

  13. Grant JA: The isocon diagram – a simple solution to Gresens' equation for metasomatic alteration. Econ Geol 1986, 81: 1976–1982. 10.2113/gsecongeo.81.8.1976

    Article  Google Scholar

  14. Hattori H, Shibata K: Radiometric dating of pre-Neogene granitic and metamorphic rocks in northwest Kyushu, Japan – with emphasis on geotectonics of the Nishisonogi zone. Bull Geol Surv Japan 1982, 33: 57–84.

    Google Scholar

  15. Hawkesworth CJ, Gallagher K, Hergt JM, McDermott F: Mantle and slab contributions in arc magmas. Annu Rev Earth Planet Sci 1993, 21: 175–204. 10.1146/annurev.ea.21.050193.001135

    Article  Google Scholar

  16. King RL, Kohn MJ, Eiler JM: Constraints on the petrologic structure of the subduction zone slab–mantle interface from Franciscan Complex exotic ultramafic blocks. Geol Soc Am Bull 2003, 115: 1097–1109. 10.1130/B25255.1

    Article  Google Scholar

  17. King RL, Bebout GE, Moriguchi T, Nakamura E: Elemental mixing systematics and Sr-Nd isotope geochemistry of mélange formation: obstacles to identification of fluid sources to arc volcanism. Earth Planet Sci Lett 2006, 246: 288–304. 10.1016/j.epsl.2006.03.053

    Article  Google Scholar

  18. King RL, Bebout GE, Grove M, Moriguchi T, Nakamura E: Boron and lead isotope signatures of subduction-zone mélange formation: hybridization and fractionation along the slab-mantle interface beneath volcanic fronts. Chem Geol 2007, 239: 305–322. 10.1016/j.chemgeo.2007.01.009

    Article  Google Scholar

  19. Klemd R: Metasomatism during high-pressure metamorphism: eclogites and blueschist-facies rocks. In Metasomatism and the chemical transformation of rocks. Edited by: Harlov DE, Austrheim H. Lecture notes in earth system science, Springer, Berlin; 2013:351–413.

    Chapter  Google Scholar

  20. Manning CE: The chemistry of subduction-zone fluids. Earth Planet Sci Lett 2004, 223: 1–16. 10.1016/j.epsl.2004.04.030

    Article  Google Scholar

  21. Marschall HR, Ludwig T, Altherr R, Kalt A, Tonarini S: Syros metasomatic tourmaline: evidence for very high-δ11B fluids in subduction zones. J Petrol 2006, 47: 1915–1942. 10.1093/petrology/egl031

    Article  Google Scholar

  22. Maury RC, Defant MJ, Joron JL: Metasomatism of the sub-arc mantle inferred from trace elements in Philippine xenoliths. Nature 1992, 360: 661–663. 10.1038/360661a0

    Article  Google Scholar

  23. Miller DP, Marschall HR, Schumacher JC: Metasomatic formation and petrology of blueschist-facies hybrid rocks from Syros (Greece): implications for reactions at the slab–mantle interface. Lithos 2009, 107: 53–67. 10.1016/j.lithos.2008.07.015

    Article  Google Scholar

  24. Mori Y, Mashima H: X-ray fluorescence analysis of major and trace elements in silicate rocks using 1:5 dilution glass beads. Bull Kitakyushu Mus Nat His Hum Hist, Ser A 2005, 3: 1–12.

    Google Scholar

  25. Mori Y, Nishiyama T, Yanagi T: Chemical mass balance in a reaction zone between serpentinite and metapelites in the Nishisonogi metamorphic rocks, Kyushu, Japan: implications for devolatilization. Island Arc 2007, 16: 28–39. 10.1111/j.1440-1738.2007.00556.x

    Article  Google Scholar

  26. Mori Y, Orihashi Y, Miyamoto T, Shimada K, Shigeno M, Nishiyama T: Origin of zircon in jadeitite from the Nishisonogi metamorphic rocks, Kyushu, Japan. J Metamorphic Geol 2011, 29: 673–684. 10.1111/j.1525-1314.2011.00935.x

    Article  Google Scholar

  27. Morris JD, Ryan JG: Subduction zone processes and implications for changing composition of the upper and lower mantle. Treat Geochem 2003, 2: 451–470.

    Article  Google Scholar

  28. Morris JD, Leeman WP, Tera F: The subducted component in island arc lavas: constraints from be isotopes B-Be systematics. Nature 1990, 344: 31–36. 10.1038/344031a0

    Article  Google Scholar

  29. Nishiyama T: Jadeitite from the Nishisonogi metamorphic region. J Geol Soc Japan 1978, 84: 155–156. (in Japanese) (in Japanese) 10.5575/geosoc.84.155

    Article  Google Scholar

  30. Nishiyama T: Petrologic study of the Nagasaki metamorphic rocks in the Nishisonogi peninsula – with special reference to the greenrock complex and the reaction-enhanced ductility. Mem Geol Soc Japan 1989, 33: 237–257. (in Japanese with English abstract) (in Japanese with English abstract)

    Google Scholar

  31. Nishiyama T: CO2-metasomatism of a metabasite block in a serpentinite melange from the Nishisonogi metamorphic rocks, southwest Japan. Contrib Mineral Petrol 1990, 104: 35–46. 10.1007/BF00310644

    Article  Google Scholar

  32. Peacock SM: Fluid processes in subduction zones. Science 1990, 248: 329–337. 10.1126/science.248.4953.329

    Article  Google Scholar

  33. Penniston-Dorland SC, Sorensen SS, Ash RD, Khadke SV: Lithium isotopes as a tracer of fluids in a subduction zone mélange: Franciscan Complex, CA. Earth Planet Sci Lett 2010, 292: 181–190. 10.1016/j.epsl.2010.01.034

    Article  Google Scholar

  34. Penniston-Dorland SC, Bebout GE, Pogge von Strandmann PAE, Elliott T: Lithium and its isotopes as tracers of subduction zone fluids and metasomatic processes: evidence from the Catalina Schist, California, USA. Geochim Cosmochim Acta 2012, 77: 530–545.

    Article  Google Scholar

  35. Rüpke LH, Morgan JP, Hort M, Connolly JAD: Serpentinite and the subduction zone water cycle. Earth Planet Sci Lett 2004, 223: 17–34. 10.1016/j.epsl.2004.04.018

    Article  Google Scholar

  36. Ryan J, Morris J, Bebout G, Leeman B: Describing chemical fluxes in subduction zones: insights from “depth-profiling” studies of arc and forearc rocks. In Subduction top to bottom. Edited by: Bebout GE, Scholl DW, Kirby SH, Platt P. Washington D.C: American Geophysical Union, Geophysical Monograph series 96; 1996:263–268.

    Google Scholar

  37. Schmidt MW, Poli S: Generation of mobile components during subduction of oceanic crust. Treat Geochem 2003, 3: 567–591.

    Article  Google Scholar

  38. Shigeno M, Mori Y, Nishiyama T: Reaction microtextures in jadeitites from the Nishisonogi metamorphic rocks, Kyushu, Japan. J Mineral Petrol Sci 2005, 100: 237–246. 10.2465/jmps.100.237

    Article  Google Scholar

  39. Shigeno M, Mori Y, Shimada K, Nishiyama T: Origin of omphacitites from the Nishisonogi metamorphic rocks, western Kyushu, Japan: comparison with jadeitites. Eur J Mineral 2012, 24: 247–262.

    Article  Google Scholar

  40. Shigeno M, Mori Y, Shimada K, Nishiyama T: Jadeitites with metasomatic zoning from the Nishisonogi metamorphic rocks, western Japan: fluid–tectonic block interaction during exhumation. Eur J Mineral 2012, 24: 289–311. 10.1127/0935-1221/2012/0024-2195

    Article  Google Scholar

  41. Sorensen SS, Grossman JN: Enrichment of trace elements in garnet amphibolites from a paleo-subduction zone: Catalina Schist, southern California. Geochim Cosmochim Acta 1989, 53: 3155–3177. 10.1016/0016-7037(89)90096-3

    Article  Google Scholar

  42. Sorensen SS, Grossman JN: Accessory minerals and subduction zone metasomatism: a geochemical comparison of two mélanges (Washington and California, U.S.A.). Chem Geol 1993, 110: 269–297. 10.1016/0009-2541(93)90258-K

    Article  Google Scholar

  43. Spandler C, Pirard C: Element recycling from subducting slabs to arc crust: a review. Lithos 2013, 170–171: 208–223.

    Article  Google Scholar

  44. Spandler C, Hermann J, Faure K, Mavrogenes JA, Arculus RJ: The importance of talc and chlorite “hybrid” rocks for volatile recycling through subduction zones; evidence from the high-pressure subduction mélange of New Caledonia. Contrib Mineral Petrol 2008, 155: 181–198. 10.1007/s00410-007-0236-2

    Article  Google Scholar

  45. Tatsumi Y, Eggins S: Subduction zone magmatism. Blackwell Science, Oxford; 1995.

    Google Scholar

  46. Uchida Y, Muta K: The talc deposits in northern Kyushu (1) – the distribution and types of talc deposits –. J Geol Soc Japan 1957, 63: 586–597. (in Japanese with English abstract) (in Japanese with English abstract) 10.5575/geosoc.63.586

    Article  Google Scholar

  47. Uchida Y, Muta K: The talc deposits in northern Kyushu (2) – on the talc deposits of the Nishisonogi type. J Geol Soc Japan 1958, 64: 494–515. (in Japanese with English abstract) (in Japanese with English abstract) 10.5575/geosoc.64.494

    Article  Google Scholar

Download references

Acknowledgements

This study is financially supported by Grant-in-Aid for Young Scientists B (Nos. 16740303 and 21740385 to YM) from Japan Society for the Promotion of Science and by Grant-in-Aid for Scientific Research A (No. 17204045 to TN) and Grant-in-Aid for Scientific Research C (No. 24540524 to YM) from the Ministry of Education, Culture, Sports, Science and Technology, Japan. We appreciate reviews and comments by T. Morishita and anonymous reviewers.

Author information

Authors and Affiliations

  1. Kitakyushu Museum of Natural History and Human History, 2-4-1 Higashida, Yahatahigashi-ku, Kitakyushu, 805-0071, Japan

    Yasushi Mori & Miki Shigeno

  2. Graduate School of Science and Technology, Kumamoto University, 2-39-1 Kurokami, Chuo-ku, Kumamoto, 860-8555, Japan

    Tadao Nishiyama

Authors
  1. Yasushi Mori
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Miki Shigeno
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Tadao Nishiyama
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Yasushi Mori.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors’ contributions

YM carried out the field investigation and sampling, performed the microscopic observation and analyses (Raman, XRF, CHN, and LOI), and drafted the manuscript. MS participated in the design of the study and helped in the field investigation, sampling, and CHN analysis. TN participated in the design of the study and helped in the field investigation and Raman analysis. All authors read and approved the final manuscript.

Electronic supplementary material

40623_2013_45_MOESM1_ESM.pdf

Additional file 1:The file contains two tables showing modal compositions of samples (Table S1) and whole-rock compositions of samples (Table S2).(PDF 39 KB)
