Source characteristics of ocean infragravity waves in the Philippine Sea: analysis of 3-year continuous network records of seafloor motion and pressure

  • 1Email author,
  • 2,
  • 3,
  • 3 and
  • 3
Earth, Planets and Space201466:99

https://doi.org/10.1186/1880-5981-66-99

Received: 6 June 2014

Accepted: 16 August 2014

Published: 26 August 2014

Abstract

Continuous 3-year records of broadband ocean-bottom seismometers and pressure gauges of the seafloor network (Dense Oceanfloor Network System for Earthquakes and Tsunamis (DONET)) in the Nankai Trough region made it possible to monitor incoming ocean infragravity (IG) waves. Application of a slant-stacking technique revealed that the most energetic IG waves are incoming across the Nankai Trough from the Philippine Sea with limited energy of reflected waves back from the nearest coast. The sources of the most energetic waves are narrowly and stably localized into two closely adjacent azimuthal windows with mutually different wave spectral characteristics. Both sources show a seasonal variation, weak in summer and strong in winter. Although less energetic, IG waves propagating parallel to the trough and coast are observed. Such waves are greatly amplified when IG waves from a distant typhoon are incoming to the trough, suggesting the secondary origin of IG waves that can emit even more energetic waves than the originally incoming waves.

Keywords

  • Infragravity wave
  • Seafloor network
  • Pressure gauge
  • BBOBS
  • DONET
  • Philippine Sea

Findings

Introduction

Ocean infragravity (IG) waves are sea surface gravity waves with periods of several minutes and wavelengths of tens of kilometers. The phase velocity of IG waves observed in deep ocean environments is accurately explained by the gravity wave theory (e.g., Webb et al.1991). These waves are considered to be excited by non-linear interactions between oceanic swells (Longuet-Higgins and Stewart 1962; Herbers et al. 1995) and may be enhanced by tidal modulation in coastal oceans (Guza and Thornton 1982; Okihiro and Guza 1995; Tomson et al. 2006) and deep sea (Sugioka et al. 2010). IG waves also are considered to excite the Earth's hum (Rhie and Romanowicz 2004, 2006; Tanimoto 2005; Nishida et al. 2008; Fukao et al. 2010; Nishida 2013).

Dolenc et al. (2005) compared the power spectra of ocean-bottom seismic records at a station located offshore of the Monterey Bay in California with the wave spectral densities measured by the nearby National Oceanic and Atmospheric Administration (NOAA) buoy. They observed two types of IG wave modulations with short (30- to 40-s) and long (10-day) periods, the latter being correlated with the ocean tides at the station. Sugioka et al. (2010) also observed the tidal modulation of IG waves on the records of broadband ocean-bottom seismometers (BBOBS) at deep seafloors. They further found a remarkable correlation of the IG spectral peak with the seafloor depth. Godin et al. (2013) showed a pronounced dependence of the energy density of IG wave on the frequency and local water depth using pressure gauge records of 28 locations on the seafloor off New Zealand. Harmon et al. (2012) used five differential pressure gauges located off the coast of Sumatra and applied an array analysis. They detected IG waves that propagate along the coast from southeast or south. Crawford et al. (1991) took advantage of a simultaneous measurement of sea-bottom pressure and seafloor displacement at a single station. They measured the sea-bottom pressure changes due to IG waves and the resultant seafloor vertical displacement to take their ratio (compliance) which carries information about the elastic structure of the oceanic crust. When we analyze the sea-bottom pressure and/or seafloor displacement, IG waves, a ubiquitous phenomenon on the sea, can be a strong background noise. Understandings of IG wave-related phenomena are important from the view point of seismology as well as oceanography.

A submarine cable network named the Dense Oceanfloor Network System for Earthquakes and Tsunamis (DONET) was recently deployed offshore of the Kii Peninsula in the Nankai Trough region (Kaneda 2010; Kawaguchi et al. 2010; Nakano et al. 2013). This network is equipped with six instruments at each station, including a three-component BBOBS and an absolute pressure gauge. Thus, DONET provides a good opportunity for array-based compliance analysis to study the crustal structure beneath the network, the generation mechanisms of IG waves, and the IG wave-related seismic phenomena including the Earth's hum. In this study, we investigate the nature of incoming IG waves to DONET on the basis of continuous 3-year observations.

Data and method

DONET is an ongoing project and currently consists of five nodes, each of which consists of four stations. Figure 1 shows the station distribution of this network and the seafloor topography in the Izu-northern Bonin region. The station interval is 15 to 20 km, on the order of the wavelengths of targeted IG waves of our interest. The four stations at C node are set at seafloor depths between 3,500 and 4,400 m, while 16 stations at other nodes are positioned at depths between 1,900 and 2,500 m. The average of theoretical phase velocities of IG wave calculated at a period of 120 s for all stations is 135 m/s with a standard deviation of 14 m/s, while the average of phase velocities at the same period for 16 stations at other nodes is 129 m/s with a standard deviation of 4 m/s. We regarded the 16 stations as an array and analyzed the records of broadband ocean-bottom seismometers (Guralp CMG-3 T, Guralp Systems, Reading, UK) and quartz pressure gauges (Paroscientific, Inc., Redmond, WA, USA) from January 2011 to December 2013. For each station, both records were band-pass-filtered between 0.005 and 0.025 Hz and were corrected for the instrumental response. Both displacement and pressure time series were divided into segments of 3,600 s with an overlap of 1,800 s. Segments including earthquake signals, artificial noise, and boisterous noise disturbances due to extreme weather or nearby typhoon activity were discarded. The record sections at various stations were mutually shifted according to a presumed slowness vector and were then stacked. Each slant-stacked record section was auto-correlated and Fourier-transformed to obtain a power spectrum. The same procedure was repeated with numerous slowness vectors to obtain a two-dimensional frequency-slowness spectrum (e.g., Rost and Thomas 2002; Nishida et al. 2005), and all similarly obtained spectra for 1 day were stacked. The pressure records were similarly processed. The power spectral density (PSD) of either seafloor displacement or pressure was averaged over the analyzed frequency range to obtain the average PSD as a slowness vector function. We searched for the slowness vector that maximizes the average PSD. The direction and amplitude of such a slowness vector were regarded as the incident azimuth and apparent slowness of the incoming IG waves, respectively.
Figure 1
Figure 1

Distribution of DONET stations and submarine topography. The map in the inset shows the location of close-up region, and the blue line shows the track of Typhoon Man-yi from 13 to 17 September, 2013. The color contour is consistent with the marine depth. The black circles show the stations. The A, B, D, and E nodes are located at a depth of approximately 2,000 m, whereas the C node is located approximately 4,000 m deep. The square indicates the midpoint of the array of all the stations of the A, B, D, and E nodes. The wave front of a very long-period IG wave hypothetically emanating from the midpoint of the array is shown for every 15 min of travel time. The two gray and black lines show the azimuthal windows of 110° to 130° (ESE) and 140° to 160° (SSE), respectively.

Result

Figure 2a shows an example of the comparison of the seafloor records of vertical displacement (black) and pressure (red). Both were band-pass-filtered between 0.005 and 0.025 Hz and were normalized by the maximum amplitude of each trace, and the polarity of the pressure record was reversed. The agreement between the two traces was remarkable, which was expected if the signal is an IG wave whose phase velocity is much lower than that of a seismic wave (Crawford et al. 1991). Figure 2b shows an example of comparison of the stacked records of vertical displacement (black) and pressure (red). Stacking was accomplished by using a slowness vector that makes the stacked IG wave most energetic. The determined slowness value was consistent with that expected from the seafloor depth and the observed frequency range. This consistency, coupled with the remarkable waveform match shown in Figure 2, offered the most direct support for our interpretation of the observed disturbance as the IG waves. The station configuration and the response function of this array at 0.01 Hz (Rost and Thomas, 2002) are shown in Figure 3. The response function is represented in the slowness vector domain, where its spread around the origin indicates how narrowly in absolute value and how unbiasedly in azimuthal direction the slowness vector can be constrained by the array. The response function of our array is sharp and isotropic enough to warrant further analyses.Figure 4 shows four examples of the average PSD distribution in the slowness vector domain. Highly similar diagrams were also obtained for seafloor displacement fluctuation, as expected from the waveform match between the displacement and pressure records (Figure 2). Figure 4a,b shows typical patterns in winter, Figure 4c shows the typical pattern in spring, and Figure 4d shows a pattern when a typhoon was located in the Philippine Sea approximately 1,000 km to the south of the network. All the figures show a relatively large power between two dashed circles with slowness values of 7 and 9 s/km, or phase velocity values of 140 and 110 m/s, respectively, indicating that the observed waves are IG waves within a frequency range of 0.005 to 0.025 Hz propagating through the ocean at depths around 2,000 m. The IG signal intensity is persistently highest for the incoming waves crossing the Nankai Trough from the southeast (SE). This incoming direction actually consists of two closely adjacent directions: the south-southeast (SSE) and east-southeast (ESE) (see Figure 5 for a histogram of the measured incoming direction). Waves from the SSE direction through the deeper ocean are usually more energetic (Figure 4a) but are at times less energetic (Figure 4b) than those from the ESE direction through the shallower ocean (see Figure 1). These waves, either from SSE or ESE, are particularly strong in winter (see Figure 6).
Figure 2
Figure 2

Examples of records sections of vertical displacement (black) and pressure (red). They are band-pass-filtered between 0.005 and 0.025 Hz on 1 January, 2013. (a) Single-station records and (b) slant-stacked records by an appropriately chosen slowness vector. Each of the records is normalized by its maximum value. The polarity of the pressure record is reversed.

Figure 3
Figure 3

Array configuration (right) and array response function at 0.01 Hz represented in the relative slowness vector domain (left). In the right, the blue and red circles are the 16 stations used in the analysis and the midpoint of this array, respectively. In the left, the amplitude of the PSD is normalized by the maximum value as shown by the color bar.

Figure 4
Figure 4

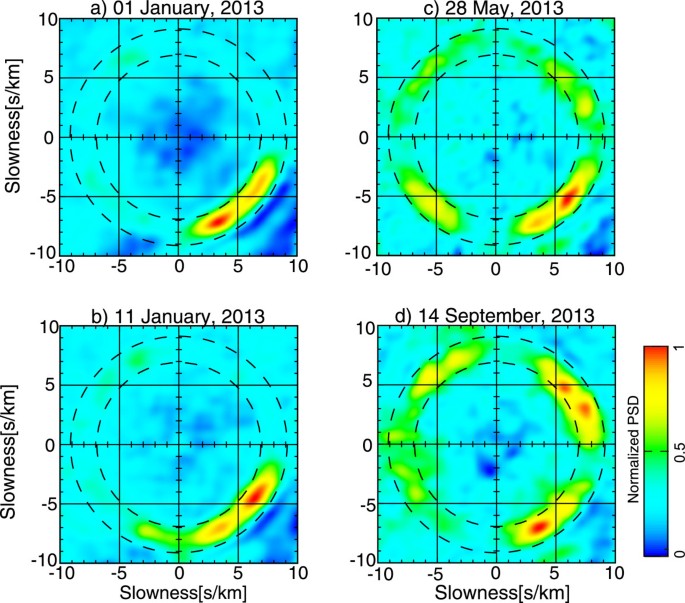

Four examples of the average PSD distribution in the slowness vector domain. The average of PSD is taken over a frequency range between 0.005 and 0.025 Hz. The recorded day is shown at the top of each diagram. The radii of two dashed circles indicate the slowness values of 7 and 9 s/km. The amplitudes of the PSDs in each diagram are normalized by their maximum value. The slowness (incoming direction, velocity) values estimated from the position of the red peak are (a) 7.9 s/km (153°, 127 m/s); (b) 7.8 s/km (125°, 128 m/s), (c) 8.0 s/km (131°, 126 m/s), and (d) 7.8 s/km (153°, 128 m/s).

Figure 5
Figure 5

Histogram of the incoming direction of strong IG waves. The incoming directions are estimated from the pressure gauge records for the 3-year period. The shaded bars show two dominant incoming directions of SSE and ESE.

Figure 6
Figure 6

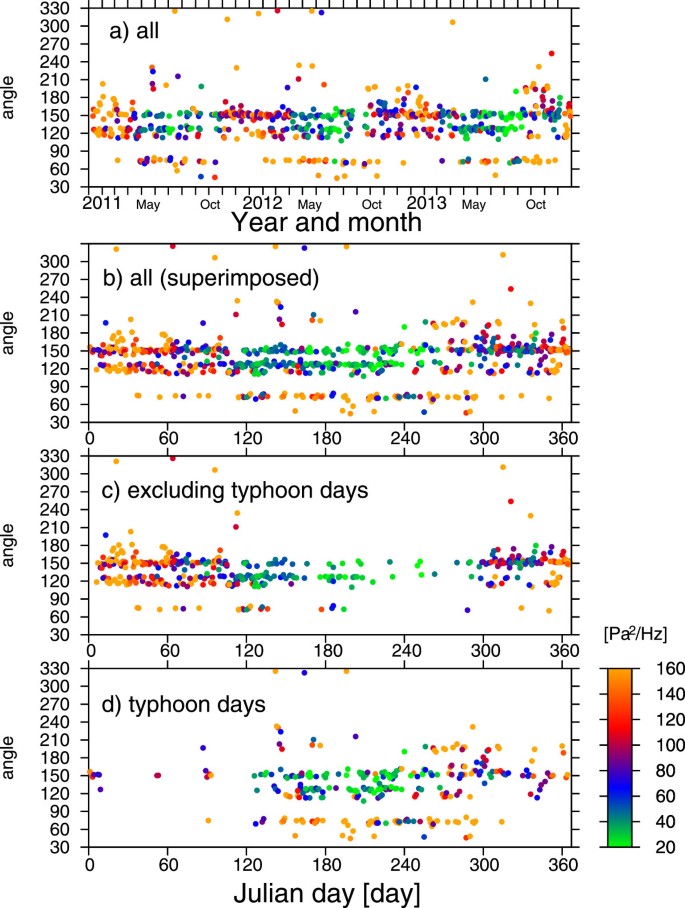

Daily variation of the incoming direction of the maximum-amplitude IG waves. The color indicates the maximum amplitude measured in terms of the average PSD between 0.005 and 0.025 Hz. (a) Results through the entire 3-year period. (b) Results for each year plotted on the same Julian day. (c) Results excluding days in which the Japan Meteorological Agency reported a typhoon or typhoons in the Pacific. (d) Results for days in which a typhoon or typhoons existed in the Pacific.

An example of the typical pattern in spring (and summer) is shown in Figure 4c, where the waves from the SE reduce their intensity so that wave signals from the other directions, particularly from the southwest (SW) and from the northeast (NE) to east-northeast (ENE), become more visible. These waves may be interpreted as edge waves trapped by reflections from the coast and refractions backward from the Nankai Trough to propagate through the corridor in between. Figure 4d shows the impact of Typhoon Man-yi on 14 September, 2013, where it was located on the Philippine Sea far to the south of the network as sketched in the inset of Figure 1 (Japan Meteorological Agency (JMA); http://www.jma.go.jp/jma/jma-eng/jma-center/rsmc-hp-pub-eg/trackarchives.html). This typhoon moved from a back azimuth of 175° to 193° during the day and amplified the IG waves incoming from the SSE direction, and even more greatly from the NE to ENE direction, whereas those incoming from the ESE remained weak. Strengthening of IG waves from the NE to ENE direction is commonly observed when a typhoon is reported to be on the Philippine Sea, regardless of the exact incoming direction of IG waves originated by the typhoon, which varies widely in a range between the SSE and SW. These observations suggest that the amplified IG waves from the NE to ENE direction were generated secondarily at far distances from the primary (typhoon) source.We measured the incoming direction of the most energetic IG waves during the 3-year period. In the subsequent discussion, we show only the results from the pressure records, which are in agreement with those from the displacement records within an error of 5°. Figure 5 shows a histogram of the measured incoming direction. The SE direction dominates, although the detail is composed of two closely adjacent directions with a clear gap in between: one is SSE in a range of 140° to 160° (measured clockwise from the north) and the other is ESE in a range of 110° to 130°, which account for 40% and 32% of the total measurements, respectively. Together, these two directions account for 72% of the measurements. Figure 6a shows the daily variations of the incoming direction of the most energetic IG waves throughout the 3 years, where the color indicates the PSD value. The seasonal variations of the incoming directions are clarified by Figure 6b, in which the results for each of 3 years are superimposed. Several features can be observed from this figure: (1) The SSE and ESE persist as the dominant incident directions; (2) the energy of the IG wave incoming from these two directions shows the same seasonal variations of strong in winter and weak in summer; and (3) in summer, strong waves occasionally are incoming from the other directions. To explore observation (3) in detail, we divided the plots in Figure 6b into two as Figure 6c,d. The plots in Figure 6d are limited to the days on which the JMA reported a typhoon or typhoons on the Philippine Sea, whereas the plots in Figure 6c exclude such days. Figure 6c reinforces observations (1) and (2), which imply two distinct excitation sources of IG waves which are spatially stable and seasonally varying synchronously. Figure 6d indicates that the typhoon-associated IG waves are incoming from separate directions, one more or less directly from the typhoon in the SSE (as shown in Figure 4d) to SW and the other apparently from the submarine topographic high in the NE to ENE. IG waves incoming from this direction are often more energetic than those directly from the source on the typhoon's track. It is noted that the wave amplitudes from the two stationary sources in the SSE and ESE directions remained largely unchanged, even in the days where a typhoon was reported to be on the Philippine Sea.

Discussion

We have identified two distinct excitation sources of IG waves in the SSE and ESE directions away from the network. Figure 7 shows that the IG waves from these two sources have different spectral characteristics. If we search for the source using the lower-frequency components (0.005 to 0.01 Hz), it is dominantly located in the SSE window (140° to 160°) as shown in Figure 7a, which accounts for 60% of the total measurements. If, on the other hand, search is made for the source using the higher-frequency components (0.01 to 0.025 Hz), it is dominantly located in the ESE window (110° to 130°) as shown in Figure 7b, which accounts for 52% of the total measurements. Clearly, lower-frequency IG waves are incoming more dominantly from the SSE than from the ESE. Higher-frequency IG waves are incoming more dominantly from the ESE than SSE but also include other incoming directions of 40° to 80° (16%), 190° to 230° (13%), and 300° to 330° (2%). The signal intensities in the higher frequency range are in general weaker than those in the lower frequency range as shown by the difference of detected IG wave PSD amplitude. This is in part because the higher-frequency IG wave decreases its amplitude more rapidly with depth than the lower-frequency IG wave. Although Figure 4c,d shows relatively large power in the NW direction (300° to 330°), the waves from this direction are usually very weak as compared to those from the SE direction (Figure 4a,b). The most energetic waves incoming from the SE direction are poorly accompanied by reflections from the nearest coast, where wave scattering, wave-wave conversion, and dissipation may be significant. As illustrated in Figure 1, the ocean in the ESE window is shallower with larger and more densely populated islands, whereas the ocean in the SSE window is deeper with smaller and more sparsely populated islands. We suggest that the spectral difference between the two azimuthal windows (Figure 7) reflects these differences in seafloor topography, which should affect the processes of generation and propagation of IG waves. In Figure 1, we added the inverse refraction diagram for a very long IG wave incoming to the array, which was obtained by combining the Tsunami Travel Times (TTT) software (Wessel 2009) with the bathymetry data of ETOPO1 (http://www.ngdc.noaa.gov/mgg/global/global.html). This diagram demonstrates that the wave front of the long IG wave in the ESE widow is more strongly distorted by the seafloor complexity than that in the SSE window. Although the DONET alone cannot locate the sources in the ESE and SSE windows, installation of a temporal seafloor array in the southeast window, e.g., near the Torishima Island (Figure 1), may suffice to determine these two source locations simultaneously.Besides the stationary sources discussed above, IG waves can be generated sporadically by extreme weather, typically by typhoons. The incoming direction of the typhoon-originated IG waves depends in a seemingly complex way on the past track of the moving typhoon, as shown in the inset of Figure 1. Most unexpectedly, a typhoon to the south far from the network always enhances IG waves incoming from the NE to ENE direction (Figure 6d). The enhanced IG waves are often more energetic than those directly from the source region (Figure 4d), suggesting some amplification mechanism at the secondary source at distances far away from the primary source.
Figure 7
Figure 7

Daily variation of the incoming direction of the maximum-amplitude IG waves. (a) Waves band-pass-filtered between 0.005 and 0.01 Hz and (b) waves band-pass-filtered between 0.01 and 0.025 Hz. See Figure 6 for other explanations.

Conclusion

Although IG waves are known to be a ubiquitously observable phenomenon (Webb et al. 1991), this does not necessarily mean that IG waves are generated everywhere in the ocean. We have identified persistent, energetic IG sources in two azimuthal windows SSE and ESE of the network. The identified sources are rather localized and remain geographically stationary but show seasonally varying intensities of strong in winter and weak in summer. Higher-frequency waves are more dominantly incoming from the shallower ocean with more complex seafloor topography in the ESE direction. Lower-frequency waves are more dominantly incoming from the deeper ocean with less complex seafloor topography in the SSE direction. As shown in Figures 4c and 7b, an additional remarkable observation was the persistence of feeble IG waves incoming from the SW direction and from the NE-ENE directions, which may be interpreted as edge waves generated by reflections from the coast and refractions backward from the Nankai Trough to propagate as trapped waves in between. In particular, IG waves incoming from the NE-ENE directions are greatly amplified when IG waves originated by a typhoon on the Philippine Sea are incident. The amplified amplitudes often well exceed the amplitudes of incident waves from the primary origin. A seafloor network equipped with broadband ocean-bottom seismometers and pressure gauges, such as the DONET, is highly useful for detecting IG waves and observing the related phenomena.

Declarations

Acknowledgements

The Generic Mapping Tools (Wessel and Smith 1991) and Seismic Analysis Code (Goldstein et al. 1998) were used in this study. A part of the DONET data is available from http://www.jamstec.go.jp/donetevent/NINJA/top.do. We thank Dai Suetsugu for all his help. We also thank two anonymous reviewers and the associate editor (Azusa Nishizawa) for many constructive comments.

Authors’ Affiliations

(1)
Department of Deep Earth Structure and Dynamics Research, Japan Agency for Marine-Earth Science and Technology, Yokohama, Japan
(2)
Earthquake Research Institute, University of Tokyo, Bunkyo-ku, Japan
(3)
Research and Development Center for Earthquake and Tsunami, Japan Agency for Marine-Earth Science and Technology, Yokohama, Japan

References

  1. Crawford WC, Webb SC, Hildebrand JA: Seafloor compliance observed by long-period pressure and displacement measurements. J Geophys Res 1991, 96: 16,151–16,160. doi:10.1029/91JB01577View ArticleGoogle Scholar
  2. Dolenc D, Romanowicz B, Stakes D, McGill P, Neuhauser D: Observations of infragravity waves at the Monterey ocean bottom broadband station (MOBB). Geochem Geophys Geosyst 2005, 6: Q09002. doi:10.1029/2005GC000988View ArticleGoogle Scholar
  3. Fukao Y, Nishida K, Kobayashi N: Seafloor topography, ocean infragravity waves, and background Love and Rayleigh waves. J Geophys Res 2010, 115: B04302. doi:10.1029/2009JB006678Google Scholar
  4. Godin OA, Zabotin NA, Sheehan AF, Yang Z, Collins JA: Power spectra of infragravity waves in a deep ocean. Geophys Res Lett 2013, 40: 2159–2165. doi:10.1002/grl.50418View ArticleGoogle Scholar
  5. Goldstein P, Dodge D, Firpo M, Ruppert S: What's new in SAC2000? Enhanced processing and database access. Seismological Research Lett 1998, 69: 202–205.View ArticleGoogle Scholar
  6. Guza RT, Thornton EB: Swash oscillations on a natural beach. J Geophys Res 1982, 87: 483–491. doi:10.1029/JC087iC01p00483View ArticleGoogle Scholar
  7. Harmon N, Henstock T, Srokosz M, Tilmann F, Rietbrock A, Barton P: Infragravity wave source regions determined from ambient noise correlation. Geophys Res Lett 2012, 39: L04604. doi:10.1029/2011GL050414View ArticleGoogle Scholar
  8. Herbers THC, Elager S, Guza RT: Generation and propagation of infragravity waves. J Geophys Res 1995, 100: 24,863–24,872. doi:10.1029/95JC02680View ArticleGoogle Scholar
  9. Kaneda Y: The advanced ocean floor real time monitoring system for mega thrust earthquakes and tsunamis. Application of DONET and DONET2 data to seismological research and disaster mitigation 2010. MTS/IEEE OCEANS 2010 MTS/IEEE OCEANS 2010Google Scholar
  10. Kawaguchi K, Araki E, Kaneko S, Nishida T, Komine T: Subsea engineering ROV and seafloor observatory construction. Proceedings of international symposium on underwater technology 2010/international workshop on scientific use of submarine cables and related technologies 2010, SSC11–1019, CD-ROM 2010.Google Scholar
  11. Longuet-Higgins MS, Stewart RW: Radiation stress and mass transport in gravity waves, with application to ‘surf beat’. J Fluid Mech 1962, 13: 481–504.View ArticleGoogle Scholar
  12. Nakano M, Nakamura T, Kamiya S, Ohori M, Kaneda Y: Intensive seismic activity around the Nankai trough revealed by DONET ocean-floor seismic observations. Earth Planets Space 2013, 65: 5–15. doi:10.5047/eps.2012.05.013View ArticleGoogle Scholar
  13. Nishida K: Earth's background free oscillations. Annu Rev Earth Planet Sci 2013, 41: 719–740. doi:10.1146/annurev-earth-050212–124020View ArticleGoogle Scholar
  14. Nishida K, Kawakatsu H, Fukao Y, Obara K: Background Love and Rayleigh waves simultaneously generated at the Pacific Ocean floors. Source distribution of Earth's background oscillations. Geophys Res Lett 2008, 35: L16307.View ArticleGoogle Scholar
  15. Nishida K, Fukao Y, Watada S, Kobayashi N, Tahira M, Suda N, Nawa K, Oi T, Kitajima T: Array observation of background atmospheric waves in the seismic band from 1 mHz to 0.5 Hz. Geophys J Int 2005, 162: 824–840. doi:10.1111/j.1365–246X.2005.02677.xView ArticleGoogle Scholar
  16. Okihiro M, Guza RT: Infragravity energy modulation by tides. J Geophys Res 1995, 100: 16,143–16,148. doi:10.1029/95JC01545View ArticleGoogle Scholar
  17. Rhie J, Romanowicz B: A study of the relation between ocean storms and the Earth's hum. Geochem Geophys Geosyst 2006, 7: Q10004. doi:10.1029/2006GC001274View ArticleGoogle Scholar
  18. Rhie J, Romanowicz B: Excitation of Earth's continuous oscillations by atmosphere–ocean-seafloor coupling. Nature 2004, 431: 552–556. doi:10.1038/nature02942View ArticleGoogle Scholar
  19. Rost S, Thomas C: Array seismology: methods and applications. Rev Geophys 2002, 40(3):1008. doi:10.1029/2000RG000100View ArticleGoogle Scholar
  20. Sugioka H, Fukao Y, Kanazawa T: Evidence for infragravity wave-tide resonance in deep oceans. Nat Commun 2010, 1: 84. doi:10.1038/ncomms1083View ArticleGoogle Scholar
  21. Tanimoto T: The oceanic excitation hypothesis for continuous oscillations of the Earth. Geophys J Int 2005, 160: 276–288. doi:10.1111/j.1365–246X.2004.02484.xView ArticleGoogle Scholar
  22. Tomson J, Elgar S, Raubenheimer B, Herber THC, Guza RT: Tidal modulation of infragravity waves via nonlinear energy losses in the surfzone. Geophys Res Lett 2006, 33: L05601. doi:10.1029/2005GL025514Google Scholar
  23. Webb SC, Zhang X, Crawford W: Infragravity wave in the deep ocean. J Geophys Res 1991, 96: 16,151–16,160. doi:10.1029/90JC02212View ArticleGoogle Scholar
  24. Wessel P: Analysis of observed and predicted tsunami travel times for the Pacific and Indian oceans. Pure Appl Geophys 2009, 166(1–2):301–324.View ArticleGoogle Scholar
  25. Wessel P, Smith WHF: Free software helps map and display data. Eos Trans AGU 1991, 72: 441.View ArticleGoogle Scholar
