Patterns of GPS-TEC variation over low-latitude regions (African sector) during the deep solar minimum (2008 to 2009) and solar maximum (2012 to 2013) phases
© Tariku; licensee Springer. 2015
- Received: 16 May 2014
- Accepted: 11 February 2015
- Published: 4 March 2015
Due to the unique geometry of the geomagnetic fields near the magnetic equator and low-latitude regions, the satellite communication system in the African sector is strongly influenced by the effects resulting from the accumulation of electrons in their ionosphere. Hence, this paper investigates the patterns of the vertical total electron content (VTEC) variation detected by the Global Positioning System (GPS) over low-latitude regions during a very low (2008 to 2009) and a high solar activity (2012 to 2013) phases. The study has been carried out by considering eight ground-based dual-frequency GPS receivers installed recently at different regions in Ethiopia. In this work, the diurnal, monthly, and seasonal variations in the GPS-VTEC have been analyzed. It has been found that the diurnal variability of VTEC has shown minimum values at around 0300 UT (0600 local time (LT)) and maximum values nearly between 1000 and 1300 UT (1300 and 1600 LT) during both the low and the high activity phases. Moreover, the maximum and minimum of monthly mean hourly VTEC values are observed in October and July, respectively, during both the low (2009) and the high solar activity (2012) phases. It has also been depicted that seasonal mean hourly VTEC values have shown maxima and minima in the March equinox and the June solstice, respectively, during both the low and the high solar activity phases.
- Vertical TEC
- Low solar activity
- High solar activity
Ionosphere is the ionized region of the Earth’s upper atmosphere where there are sufficient number of free electrons that can largely affect the propagation of radio waves. Hence, acting as a dispersive medium, the ionosphere has great influence on the satellite navigation and communication. This influence is directly proportional to the density of free electrons which could change the phase and strength of electromagnetic radio frequency waves. According to Bagiya et al. (2009), when the satellite signal propagates through the ionosphere, the carrier experiences a phase advance and the code experiences a group delay due to the accumulation of electrons along the path of the signals from the satellite to the receiver. As a result, the carrier phase pseudo ranges are measured too short, and the code pseudo ranges are measured too long compared to the geometric range between the satellite and the receiver, which induces a significant range error in the positioning and navigation system.
Due to the unique geometry of the geomagnetic fields, these effects are more pronounced near the magnetic equator and low-latitude regions such as the African regions. In such regions, the satellite communication system is largely affected by the effects resulting from the accumulated electrons in their ionosphere. Moreover, the daytime ionosphere is characterized by an F region electron density trough at the geomagnetic equator and two crests within ±20° magnetic latitudes which is formed due the so-called fountain effect (Moffett and Hanson 1965). The African sector, in general, has the largest landmass under the equatorial anomaly strip, with an ionosphere that is characterized with complex electrodynamic structures that are not yet well understood. Perhaps, this could be largely due to the sparse results of ionospheric studies from the continent.
where 1 TECU = 1 × 1016 electrons/m2 and N e is the total number of the accumulated electrons in each square meter area through the differential distance (ds) along the path from the satellite to the receiver on the ground.
Employing the applications of GPS, there have been so far many researches carried out over various low-latitude and equatorial regions in the world, especially during the solar minimum phase. Based on the findings, the researchers have stated their own views regarding the characterization of the variation of the GPS-TEC of the specific ionospheric region in a specific time. Olwendo et al. (2012a), for instance, found the semiannual variation with two maxima occurring in the months of March-April and September-October. They also reported that seasonal variations in the nighttime TEC reveal semiannual periodicity with high background levels observed in the equinoctial months and low background levels in solstice over the Kenyan regions. In addition, Olwendo et al. (2012b) found out that the highest and the least monthly VTEC values are observed in the equinoctial months and in the June solstice months, respectively, during the period of 2009 to 2011 over the same regions (Kenyan regions). Shimeis et al. (2014) on the transient variations of vertical total electron content over some African stations from 2002 to 2012 noted that the diurnal variation of the VTEC presents multiple maxima during the equinox from 2005 to 2008 and during the summer solstice from 2006 to 2012. According to their findings, a nighttime VTEC enhancement and winter anomaly are also observed during the study period. They also explained that during the deep solar minimum (2006 to 2009) the diurnal variation of the VTEC observed over Alexandria is similar to the diurnal variation observed during quiet magnetic period at equatorial latitudes. Ouattara et al. (2012) in connection with seasonal TEC variability in West Africa equatorial anomaly region noted that, during equinoxes, the TEC shows dome profiles, and during solstices, the profiles are more complex with dome and multi-peaks. Akala et al. (2013) on the comparison of equatorial GPS-TEC observations over an African station and an American station during the minimum and ascending phases of solar cycle 24 showed that the maximum and minimum seasonal VTEC values are observed in the March equinox and solstices, respectively, during the solar minimum phases in both the African and American stations. However, during the ascending phase of the solar activity, the maximum values were recorded during the December solstice and minimum during the June solstice. Le Huy et al. (2014) on the time variations of the total electron content in the Southeast Asian equatorial ionization anomaly for the period 2006 to 2011 also showed that, during the deep solar minimum (2008 to 2009), the amplitude of crests of ionization becomes small during several months in summer and winter. According to their findings, both crests move significantly equatorward in winter than other seasons, and there is a tendency for both crests to appear earlier in winter and later in summer. Galav et al. (2010) also depicted as the seasonal variations in daytime TEC show a semiannual periodicity, with a minimum in winter over the Indian regions. In addition, over a low-latitude Singapore station, Kumar et al. (2014) have noted that the GPS-TEC values get decreased between 0300 and 0430 UT and started to increase between 0430 and 0930 UT during the period of 2011. They have also depicted that the TEC values are found to be highest during the equinoctial months during the period of 2010. D’ujanga et al. (2012) on total electron content variations in equatorial anomaly region showed that the highest TEC values occurred in the time interval between 1300 and 1700 local time (LT) during the period of 2010 over the Uganda region, with the highest values being exhibited during equinoctial months. Similar studies in other regions have been conducted by Huang and Cheng (1995), Huang and Cheng (1996), Tsai et al. (2001), Walker et al. (1994), Walker and Ma (1972), Wu et al. (2004, 2008), and Zhao et al. (2009) using various satellites and techniques.
However, over Ethiopia, very few researches have been so far conducted to assess features of the ionospheric TEC variability during both the low and the high solar activity phases. Nigussie et al. (2013) and Asmare et al. (2014) in connection with the IRI model validation have, of course, attempted to see the TEC variability over the region. Nevertheless, nobody has so far adequately studied the GPS-TEC variability, especially during the high solar activity phase. Hence, this is the first extensive study conducted to observe the pattern of the diurnal, monthly, and seasonal GPS-TEC variability during both the low (2008 to 2009) and the high (2012 to 2013) solar activity phases over the African sector with a focus over the Ethiopian regions.
TEC from dual-frequency GPS receivers
and (P 2 − P 1) and (Ф 1 − Ф 2) are the differential code and phase measurements, respectively.
The integrated TEC from the receiver to satellite as shown is proportional to the accumulated effect by the time the signal arrives at the receiver. This affects the GPS range observables: a delay is added to the code measurements and advance to the phase measurements (Gao and Liu 2002). The GPS data in the receivers are recorded in the Receiver Independent Exchange (RINEX) format and is then converted to GPS observable files using a suitable model. These GPS observables are either code pseudo ranges (P) or carrier phase (Ф) measurements. By cross-correlating the f 1 and f 2 modulated carrier signals which are generally assumed to travel along the same path through the ionosphere, the receiver obtains the time delay of the code and the carrier phase difference. These are used to calculate the pseudo range and differential carrier phase which result in the determination of the slant code TEC and slant phase TEC, respectively.
Here, R e is the Earth’s radius in kilometers.
Data sources and method of analysis
Geographic and geomagnetic coordinates of the GPS stations with their corresponding selected days
Year with corresponding sampled days
Lat. (°N), Long. (°E)
Lat. (°N), Long. (°E)
21/03, 25/04, 21/06, 21/09, 21/10, 21/12,
03/01, 02/02, 21/03, 02/04, 02/05, 11/06, 11/07, 21/07, 22/07, 23/07 10/08, 24/09, 02/10, 02/11, 01/12
10/03, 21/03, 22/03
21/03, 05/04, 21/06, 15/09, 21/10, 21/12
21/03, 22/03, 01/04, 02/04
21/03, 22/03, 01/04, 02/04
28/01, 26/02 10/03, 21/03, 22/03, 01/04, 02/04

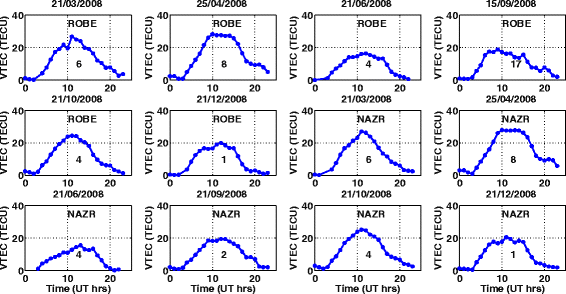

Diurnal variation of GPS-VTEC

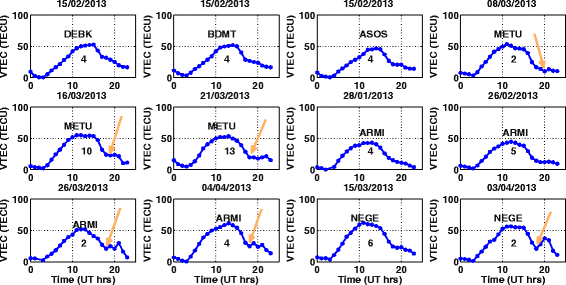

Furthermore, small enhancements in the VTEC values are observed in the nighttime variation of VTEC nearly between 1800 and 2000 UT (2100 and 2300 LT), especially for days considered from equinoctial months and then drops again (mostly after 2300 UT). According to Galav et al. (2010), this may be due to the pre-reversal enhancement which is attributed to variation of the vertical F region drifts which are large and upward during 18 to 20 LT over the equator. The F region plasma is raised further up under the influence of the enhanced vertical drift at the equator during the equinoxes. This can delay the decay time of the plasma which results in high-level background density during the equinoctial months. As depicted in the lower panel of Figures 2 and 5, this event is the most pronounced on most of the days considered from equinoctial months during the high solar activity phase in the time interval of 1800 to 2000 UT (2100 to 2300 LT). Nonetheless, during the low solar activity period, the pre-reversal enhancement drifts are much smaller to affect any nighttime density enhancement at low latitude through the described process. This is clearly observed for days considered from the solstice months, especially in the June solstice months (see Figures 2, 3, and 4).
In general, according to the low-latitude ionospheric (LION) computer model, the ionospheric parameters such as TEC vary with the activities of the Sun, which includes diurnal, seasonal, solar cycle, and geomagnetic changes (Bittencourt et al. 2007). Moreover, when there are no vertical plasma drifts, the peak electron density maximizes near the magnetic equator in the late afternoon hours. Hence, these model results agree with the results determined in this work over the equatorial and the low-latitude (Ethiopian) regions, as shown in Figures 2, 3, and 4.
Monthly and seasonal variation of GPS-VTEC
In connection with the TEC variation during the extreme solar minimum period, Sharma et al. (2012) noted that the minimum and maximum seasonal values of VTEC are generally observed during the solstice and the equinoctial months, respectively, over the low (Delhi) and equatorial (Trivandrum) regions. They also noted that the observed weak ionospheric activities (such as low TEC values) during the period of 2007 to 2009 are due to the decrease of the solar activity. The low and high values of the VTEC observed during the low and the high solar activity phases, in our result, are mostly due to the decrease and increase of the solar activity, respectively. In addition, Olwendo et al. (2012b) found out that the highest and the lowest monthly VTEC values are observed in the equinoctial months and in the June solstice months, respectively, during the period of 2009 to 2011 over the Kenyan regions. These results are almost consistent with the result obtained in our study as shown in Figure 6.
The demands of developing countries (such as the African countries) to use modern technology for their better development are tremendously increasing. As a result, they are becoming the users of different types of devices (such as GPS) for various applications. Hence, this work investigates the pattern of GPS-TEC in the low and the equatorial regions of Africa with a focus over Ethiopia. In this paper, we have described the diurnal, monthly, and seasonal VTEC variation over Ethiopia during both the low (2008 to 2009) and the high (2012 to 2013) solar activity phases by considering eight GPS receivers installed recently at different regions of the country. It has been depicted that the diurnal peak VTEC values are observed in days considered from equinoctial months; while the minimum peak values are observed in days sampled from June solstice months. The diurnal variability of VTEC has shown the minimum values at around 0300 UT (0600 LT) and the maximum values between around 1000 and 1300 UT (1300 and 1600 LT) during both the low and the high solar activity phases. In addition, the maximum and minimum monthly mean hourly VTEC values are observed in October and July, respectively, during both the low (2009) and the high (2012) solar activity phases. Similarly, the maximum and minimum seasonal mean hourly VTEC values are observed in the March equinox and the June solstice, respectively. Moreover, the monthly and seasonal peak VTEC values observed in the high solar activity phase are larger than those correspondingly observed peak VTEC values in the low solar activity phase by about 50% and 60%, respectively.
The author is very grateful to the World Data Center, UNAVCO, and NOAA for donating their free Dst (or Ap) index, GPS data, and daily sunspot number, respectively, for a better success of the early planned work.
