Recovery of orthometric heights from ellipsoidal heights using offsets method over Japan

Earth, Planets and Space volume 67, Article number: 134 (2015) Cite this article

Abstract

One of the most important applications of a geoid model is a recovery of orthometric heights from ellipsoidal heights (normally obtained from GNSS). The application of the geoid model for recovering orthometric heights from ellipsoidal heights is normally achieved by fitting the geoid model to a local vertical datum. The fitting procedure is usually accomplished by least squares collocation (LSC), using planar or spherical covariance functions. This procedure warps the gravimetric geoid model onto the local vertical datum, hence the local geoid model derived by this procedure, though convenient for local applications, it is not an equipotential surface. We propose offsets method for practical orthometric height recovery from a geoid model. The proposed procedure is more realistic because it does not constrain the local geoid to be coincident to the local vertical datum. We compare the performance of plannar fitting and offsets methods over Japan using a cross-validation procedure. Results show that offsets method performs better than the normally used planar fitting in the recovery of orthometric heights from ellipsoidal heights using a geoid model. The standard deviations of the differences between established and converted orthometric heights at randomly selected GPS/levelling test points over Japan are ±4 and ±3 cm for planar fitting and offsets methods, respectively. The offsets method is therefore more appropriate for converting ellipsoidal heights to orthometric heights than the planar fitting in the area of study.

Background

One of the challenges to geodesists today is how to determine a consistent and functional vertical component of the geodetic datum. The existing height systems are defined in different ways but basically referred to the local mean sea level. The natural height datum is the geoid, which is part of the integrated geodetic datum. In geodetic positioning, the geoid is normally approximated with a rotational reference ellipsoid (with semi-minor axis perpendicular to the equatorial plane) as a conventional reference surface.

The precise geoid model not only enables us to convert ellipsoidal heights to levelled heights but also plays an important role in combining levelling data with GPS measurements to study vertical crustal movements for a longer period of time (Kuroishi et al. 2002). Amos and Featherstone (2009) investigated the use of quasi-geoid in the unification of New Zealand’s local vertical datums. A precise geoid model is necessary for the establishment of a rigorous orthometric height system and unification of vertical datums. An accuracy of ±1 cm for the global geoid model is considered sufficient for these purposes. However, the current high-resolution gravitational model (EGM2008) approximates the global geoid at an accuracy of ±15 cm (e.g. Pavlis et al. 2012).

Satellite positioning is gaining a lot of applications in Earth sciences today. One of the most extensively used satellite positioning in Earth sciences is the Global Positioning System (GPS). It is fast and efficient in determination of positions based on the World Geodetic System of 1984 (WGS84). It measures heights above WGS84 reference ellipsoid. These heights are called ellipsoidal heights (h). However, orthometric heights (H) are the functional heights for mapping, engineering works, navigation and other geophysical applications (Ayhan 1993).

The orthometric heights are normally obtained through spirit levelling, which is a very tedious and expensive process. The application of GNSS for height determination using a precise geoid model is desired. The current application involves warping the gravimetric geoid model to fit onto the local vertical datum. The problem with this method is that the surface realised after fitting is not an equipotential surface hence its physical applications are limited.

This paper describes the procedure of vertical datum establishment and related practical challenges. From the practical challenges, the usual straightforward relationship between the vertical datum (obtained through spirit levelling) and the reference ellipsoid (obtained through GPS levelling) is modified by adding another variable called an offset (distance between the geoid and a local vertical datum). It then compares two methods (planar fitting and offsets) for orthometric height recovery from a regionally defined gravimetric geoid model over Japan. An improved geoid model over Japan (Odera and Fukuda 2014) and rigorous orthometric heights over Japan (Odera and Fukuda 2015) have been used in this study. To avoid unnecessary repetitions of rigorous orthometric heights, they are simply referred to as orthometric heights in the subsequent sections.

Methods

Establishment of a vertical datum

Although the global horizontal positioning is currently being achieved through ITRF, a functional vertical datum remains a problem at the local, regional and global levels. The usual way of obtaining heights from appropriate height differences is to begin at the seashore where the geoid, or quasi-geoid, is accessible (Vaníček and Krakiwsky 1982). For practical convenience, the mean sea level is normally assumed to be coincident with the geoid or that the separation between them is negligible. Although this assumption is valid theoretically, it is difficult to achieve in practice. The establishment of the vertical datum is achieved by determining the mean sea level on the seashore. A tide gauge station is set up at the seashore and next to it, a reference benchmark (RBM) is established as shown in Fig. 1.

Fig. 1
figure1

Establishment of a local vertical datum

Full size image

The difference in height between the RBM and the conventional zero of the tide gauge (CZTG), ΔH BM − TG, is precisely determined. Observations at the tide gauge are made over a period of time (preferably 18.6 years, but rarely met in practice) to determine the local mean sea level, H LMSL. The height of the RBM above LMSL is then obtained as H LMSL + ΔH BM − TG. The heights of all other points in the network are subsequently obtained from the height of the RBM by accumulating the height differences along the interconnecting levelling lines (Cannon 1929).

The heights derived in this manner are generally referred to as orthometric heights (H). It should be noted that the position of the instantaneous sea level (ISL) in Fig. 1 is only indicative (the exact position may vary). In this approach, each country defines its own mean sea level, hence the existence of numerous vertical datums in the world today. The assumption that the geoid coincides with the mean sea level ignores the presence of sea surface topography (SST) as shown in Fig. 1. Rizos (1980) observed that the mean value of LMSL observed at the tide gauge stations cannot be considered to coincide with the geoid. Similar studies also confirmed this fact (Rapp and Balasubramania 1992; Pan and Sjöberg 1998).

Planar fitting and offsets methods

Currently, the local geoid model is assumed to coincide with the local vertical datum in most practical applications. This ignores the existence of the SST and distortions in the local vertical datum (LVD). Distortions in the local vertical datum are mostly caused by periodic crustal deformations while the inconsistency between the LMSL and geoid (SST) is largely caused by short and long periodic factors, e.g. air pressure, ocean temperature, glacial melt, long periodic tides and polar motion, among other factors. The set-up is shown in Fig. 2. A simplified mathematical model in this assumption, ignoring the small contribution of the total deflection of the vertical (θ) for practical applications, is normally given as

Fig. 2
figure2

Local geoid (local vertical datum) and reference ellipsoid

Full size image
$$ N=h-H, $$
(1)

where N is the gravimetric geoid undulation, H is orthometric height based on the local vertical datum and h is ellipsoidal height at a point P, on the topographical surface. Equation (1) shows a perfect scenario which deviates from the practical reality because of the way local vertical datums are established, orthometric height system adopted and related systematic and non-systematic errors.

It should be noted that there is no vertical datum in the world today that is based on a rigorous orthometric height system. This is because of the difficulty in determining rigorous mean gravity along the plumbline between the geoid and a point at the topographical surface. This set-up may work after making a number of assumptions (not necessarily valid), where the local vertical datum is to be maintained and the problem is only how to convert ellipsoidal heights into the local vertical datum. However, it cannot be used in a country where there are many local height datums or systems. It is also not applicable for unification of regional height datums. This is the usual technique used in the conversion of ellipsoidal heights into orthometric heights. Planar or spherical covariance functions are normally used to fit a gravimetric geoid model onto a local vertical datum. The interpolation of geoid undulations is done using least squares collocation (LSC). Development and applications of LSC techniques in geodesy and related fields have been studied by several authors (e.g. Krarup 1969; Moritz 1973; Tscherning 1976; Kearsley 1977; Moritz 1980; Knudsen 1987; Forsberg 1987; Schaffrin 1989).

We propose a solution that treats the local vertical datum as a constant surface at the origin but varying elsewhere due to distortions in the local vertical datum. The local vertical datum may deviate from the “true” local mean sea level depending on how the vertical datum is determined and the height system adopted. The local mean sea level also varies from the local geoid model because of the presence of SST (more specifically, dynamic sea surface topography). A simplified representation of this set-up is given in Fig. 3.

Fig. 3
figure3

Local vertical datum, local geoid and reference ellipsoid

Full size image

Considering Fig. 3, the relationship between the local vertical datum, local geoid model and reference ellipsoid is expressed as

$$ {O}_{\mathrm{LVD}}=h-H-N, $$
(2)

where O LVD is the offset of the existing LVD with respect to the local geoid, the orthometric height H is obtained from the local levelling network, ellipsoidal height h is obtained from GPS data and the geoid undulation N is obtained from a precise geoid model.

The above procedure is more realistic because it does not constrain the local geoid to be coincident to the local vertical datum. It can be used for the establishment of a geoid consistent vertical datum and regional unification of height datums using a precise regional geoid model. The set-up can also be applied where the local vertical datum is to be maintained and the problem is only how to convert ellipsoidal heights into the local orthometric heights. In this procedure, the geoid undulation and offset are interpolated using Kriging technique (Krige 1951; Schaffrin 2001). This technique is referred to as offsets method in this study. A comparative study of the two techniques (LSC and Kriging) in interpolation of gravity anomalies can be found in Odera et al. (2012). Amos and Featherstone (2009) used a similar model for unification of vertical datums based on a quasi-geoid model in New Zealand. They used an iterative gravimetric quasi-geoid computation procedure which is different from our proposal. A new method used over Japan decomposes differences between GPS/levelling and gravimetric geoid undulations into two components, namely ramp and residual geoid height but applies LSC for fitting (Miyahara et al. 2014).

Results and discussion

The local vertical datum offsets over Japan are computed by Equation (2) at 816 GPS/levelling points using gravimetric geoid undulations on a 1 × 1.5 arc-minute grid (Odera and Fukuda 2014). Figure 4 shows the distribution of GPS/levelling data over Japan. The offsets are then interpolated onto the grids (1 by 1.5 arc-minute) using Kriging technique. This means that there is a gravimetric geoid undulation and an offset for every grid point. Spatial distribution of the offsets over the study area is shown in Fig. 5. The converted orthometric height at a point is then obtained as

Fig. 4
figure4

Distribution of GPS/levelling data over Japan. Black dots represent data points (796) while red dots represent test data points (20)

Full size image
Fig. 5
figure5

Local vertical offsets over Japan (units in centimeters)

Full size image
$$ H=h-N-{O}_{\mathrm{LVD}}, $$
(3)

where the gravimetric geoid undulation (N) and offset (O LVD) are interpolated from the neighbouring grids by inverse distance weighting (IDW) for easier application. IDW is a practical approximation that would not need extra painstaking computation at the application level.

To assess the accuracy of this technique, 20 GPS/levelling points, evenly distributed over Japan, are randomly selected (out of 816 points) as test points. The remaining 796 points are used as data points. Figure 4 shows the distribution of data and test points. The test points are excluded in the evaluation of Kriging parameters to facilitate a cross-validation procedure. They are also excluded in the IDW interpolation. The converted orthometric heights (Equation 3) at the test points are compared with the established orthometric heights. The comparison is also carried out using the planar fitting by LSC. Again, the test points are excluded in the evaluation of empirical covariance function in LSC. The statistics of the differences between the established and converted orthometric heights at 20 test points using the planar fitting and offsets methods are given in Table 1. The actual differences between the established and converted orthometric heights at the test points using offsets method are given in Fig. 6.

Table 1 Statistics of the differences between established and converted orthometric heights at 20 test points, using planar fitting and offsets methods (units in centimeters)
Full size table
Fig. 6
figure6

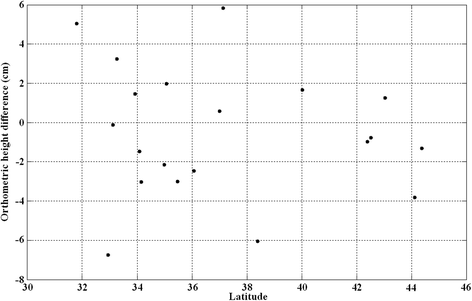

Differences between established and converted orthometric heights at test points using offsets method

Full size image

The standard deviations of the differences between established and converted orthometric heights at the test points using planar fitting and offsets methods are ±4.0 and ±3.3 cm, respectively. The offsets method is therefore more appropriate for accurate conversion of ellipsoidal heights to orthometric heights over Japan than the planar fitting. The actual height differences (Fig. 6) show that the orthometric heights of most points (16 out of 20) would be determined within 4 cm. Although offsets method is being applied for the first time over Japan, LSC has been used in the past with similar results as obtained in this study (e.g. Fukuda et al. 1997; Kuroishi et al. 2002; Kuroishi, 2009).

Apart from orthometric height determination from ellipsoidal height, local vertical offsets can be used to study deformations related to a local vertical datum although only approximately. The offsets around Aburatsubo tidal station in Tokyo Bay (origin of levelling network) is nearly 0 cm (Fig. 5), indicating a near coincidence between the geoid model and the Japanese local vertical datum at the origin. However, two distinct trends are observed with reference to Aburatsubo tidal station. The local vertical datum is generally below the gravimetric geoid model towards north while the local vertical datum is generally above the gravimetric geoid model towards south. This interpretation is based on the fact that gravimetric geoid model in the study area is above the reference ellipsoid. The two trends are not uniform indicating the presence of systematic errors (error propagation with distance from the origin) and non-systematic errors. The non-systematic errors may be due to ground movements caused by crustal deformations. Large offsets (>15 and < −25 cm) are generally occurring in known tectonically active areas over Japan. Crustal deformations over Japan caused by earthquakes, tsunamis, volcanic eruptions and related forces have led to a number of revisions of geodetic control values due to displacement of physical survey marks (e.g. Doi et al. 2005; Tobita 2009; Hiyama et al. 2011).

The boundary between vertical datum and a precise geoid model cannot be explained purely from this study. The said boundary is a result of various errors associated with geoid determination, local vertical datum establishment, crustal deformations and related datasets among others. An understanding of this boundary would be a key to a realization of a geoid consistent vertical datum in Japan.

Conclusions

Recovery of orthometric heights from ellipsoidal heights using offsets method is found to perform better than planar fitting. In addition, this method does not constrain the gravimetric geoid model to fit onto the local vertical datum. The standard deviations of the differences between established and converted orthometric heights at randomly selected GPS/levelling test points over Japan are ±4 and ±3 cm for planar fitting and offsets methods, respectively. The offsets method is therefore more appropriate for converting ellipsoidal heights to orthometric heights over Japan than planar fitting. It is expected that this accuracy would improve with improvements in geoid modelling and modernisation of local vertical datum.
