# Recovery of the 6-year signal in length of day and its long-term decreasing trend

- Pengshuo Duan
^{1, 2}Email author, - Genyou Liu
^{1}, - Lintao Liu
^{1}, - Xiaogang Hu
^{1}, - Xiaoguang Hao
^{1}, - Yong Huang
^{1, 2, 3}, - Zhimin Zhang
^{1, 2}and - Binbin Wang
^{1, 2}

**Received: **13 June 2015

**Accepted: **14 September 2015

**Published: **5 October 2015

## Abstract

There is a significant 6-year oscillation signal (called 6-year signal in this paper) existing in the interannual variations of length of day (LOD). It is unclear to understand its nature variation features. This paper extracts quantitatively the 6-year signal, from 1962~2012, using normal Morlet wavelet (NMWT) method combining wavelet packet and Fourier analysis technique, for the first time, and we investigate it in both time and frequency domains. The results indicate that the amplitude of a 6-year signal shows a long-term decreasing trend and the total amplitude reduction is about 0.05 ms during the past 50 years. The ratio of above reduction to the mean amplitude of 0.124 ms reaches 40 %. For interpreting the phenomenon on the above long-term decreasing trend, this paper proposes two alternatives; however, there is still no firm conclusion and it is required to be further explored.

### Keywords

Length of day Long-term decreasing trend NMWT method Background trend## Background

Variations of length of day (LOD) have a wide spectral range of periods, which contains seasonal signals (e.g., annual and semiannual), interannual, and decadal variations (Chao et al. 2014; Zheng et al. 2000). The seasonal variations are excited by atmospheric, ocean, and land hydrology (Chen 2005); the above decadal term is supposed to be caused by core-mantle coupling and interaction (Mandea et al. 2010; Mound and Buffett 2003; Wang et al. 2000). However, the interannual variations are less clear (Holme and de Viron 2013). Many publications indicate that a large part of the interannual variations can be attributed to the atmospheric angular momentum (AAM) (Chen 2005; Chao and Yan 2010) or the combined effects of EI Niño–Southern Oscillation (ENSO) and quasi-biennial oscillation (QBO) (Chao 1989). However, the geophysical mechanism of the signals in lower frequency band on LOD interannual scales (e.g., the obvious 6-year signal) is still unknown. Although gravitational coupling is most likely (Mound and Buffett 2006), numerous previous studies speculated the above geophysical mechanism may stem from the Earth’s internal core-mantle electromagnetic coupling (Abarco del Rio et al. 2000, 2003; Holme and de Viron 2005, 2013; Gorshkov 2010; Silva et al. 2012; Davies et al. 2014). Consequently, the topic on geophysical mechanism of the 6-year signal has been controversial up to date. On the other hand, the interpretations of the nature variation feature of the 6-year signal are non-unique (Abarco del Rio et al. 2000, 2003; Holme and de Viron 2013; Gorshkov 2010). For instance, Abarco del Rio et al. (2000) made the first robust observation of power near the 6-year period signal with a mean amplitude of 0.12 ms in the LOD series based on wavelet analysis and singular spectrum analysis (SSA); actually, the result from Abarco del Rio et al. (2000) has indicated that the signals on 6~7-year scales show a decreasing phenomenon, but which was not described; Gorshkov (2010) indicated that the 6~7-year oscillation signals decreased abruptly in the 1990s and speculates it is due to the stronger signals in a 2~3-year band canceling out the 6~7-year signals; while, Holme and de Viron (2013) further indicated that the “6-year oscillation” shows an apparent drop in amplitude in the 1990s (but this amplitude returns to full strength in the next cycle), and they interpreted it as the consequence of the LOD decadal background trend in the 1990s.

To make the geophysical mechanism of the 6-year signal be clear, firstly, we have to extract accurately the 6-year signal and study its own nature variation features precisely (including its instantaneous amplitude, phase, and periodic), in both time and frequency domains. For resolving the above problem, this paper studies quantitatively the monthly LOD data from 1962 to 2012, using normal Morlet wavelet (NMWT) method (Liu et al. 2007) combining orthogonal Daubechies wavelet (Daubechies 1988) with higher-order vanishing moment based on wavelet packet analysis and Fourier analysis technique. NMWT is very suitable for harmonic analysis even if the instantaneous amplitude of the harmonic signal to be analyzed is slowly varying with time (Liu et al. 2007). We extract the 64–96-month (5.3–8-year) band signals based on wavelet packet analysis from original LOD series, which shows an obvious decreasing phenomenon in the 1990s. The above phenomenon is identical to the published results (Abarco del Rio et al. 2000; Holme and de Viron 2013; Gorshkov 2010). But, the signal extracted by wavelet packet analysis contains more frequency components due to it covering a wide frequency range so that it cannot be a perfect representative of the actual 6-year signal. Fortunately, this paper indicates that we can obtain the signal with a quite narrow frequency range and accurate phase using NMWT method and its energy concentrates at 0.0138 cycles per month (cpm). In this work, we will show how to recover the target 6-year signal using NMWT method in detail.

## Methods

### Data and resources

*Ω*is the Earth mean rotation rate and

*C*

_{ m }is the principal moment of inertia of the Earth’s mantle of about 7.1 × 10

^{37}kgm

^{2}.

### NMWT method and its two properties

*f*(

*t*) ∈

*L*

^{2}(

*R*), the CWT form is as follows

*a*and

*b*are scale and time translating indices, respectively;

*ψ*is the analysis wavelet or admissible wavelet kernel function; and the horizontal line signifies the function conjugate. The admissible condition of wavelet is

*σ*is the window width operator of wavelet and the unit of

*σ*is month. Formula (4) tells us that the traditional Morlet wavelet is designed to be composed by two Gauss functions; the aim of doing this is only to make the analysis wavelet meet the wavelet admissible condition. However, NMWT alters the traditional Morlet wavelet basis function, and it is different from the traditional Morlet wavelet transform. The reformed Morlet wavelet is

*G*(

*τ*) is more simple. If

*σ*is large enough,

*G*(

*τ*) will be close to admissible wavelet. Then, a mathematical transformation called normal Morlet wavelet transform (i.e., NMWT) based on the simplified

*G*(

*τ*) wavelet basis in

*L*

^{1}(

*R*) space has been defined. NMWT is especially suitable for harmonic and quasi-harmonic analysis, which is due to NMWT owning two extremely important properties and another two obvious following virtues as well, i.e., ➀ NMWT can identify and extract the target signals from the original time series without inverse transform; ➁ Phase shifting of the signals extracted by NMWT does not happen. Liu et al. (2007) studied the harmonic signals in the polar motion based on NMWT method, and they got a very ideal result. This paper will study and recover quantitatively the 6-year signal in LOD through further combining NMWT, wavelet packet analysis, and Fourier analysis technique. This paper uses the reformed Morlet wavelet

*G*(

*τ*) to construct the normal Morlet wavelet

*g*(

*τ*), the definition form is given by

*σ*reflects the window width of normal Morlet wavelet and the larger

*σ*can guarantee the higher-frequency resolution. This paper takes

*σ*= 3. For

*f*(

*t*) ∈

*L*

^{1}(

*R*), NMWT is defined as follows

*a*,

*b*∈

*R*,

*a*≠ 0, and

Assuming that the mathematical form of the 6-year harmonic signal to be analyzed can be expressed as the final complex formula *f*(*t*) = *A* exp(*iω*(*t* − *t*
_{0})), where *i* is the imaginary unit and \( \omega =\frac{2\pi }{T} \), then, the two important properties of NMWT are as follows (In this article, it is unnecessary to repeat the proof process, which is shown in detailed by Liu et al. 2007)

Property 1: *W*
_{
g
}
*f*(*T*, *b*) = *f*(*b*), (∀ *t* = *b*, *a* = *T*);

Property 2: \( \frac{\partial }{\partial a}\left|{W}_gf\left(a,b\right)\right|=0,\left(\forall a=T\right) \);

Property 1 demonstrates that, for the periodic function *f*(*t*), we apply NMWT to *f*(*t*), then the wavelet coefficients (at *a* = *T*) equal to signal *f*(*b*) with ∀ *t* = *b* exactly. That is to say both of the correct instantaneous phase and amplitude are precisely recovered, which is unrelated with *σ*.

Property 2 demonstrates that, when *b* is fixed, |*W*
_{
g
}
*f*(*a*, *b*)| spectrum can get local maxima at *a* = *T*; |*W*
_{
g
}
*f*(*a*, *b*)| spectrum along the locations of local maxima, with *b* changing, generates a line called harmonic “ridgeline”; following the “ridgeline”, we can recognize the harmonic signal with periodic *T*. Extracting the NMWT values that the “ridgeline” corresponds to, we can recover the harmonic signal, which is also unrelated with *σ*.

The above two properties of NMWT are the theoretical basis of extracting precisely the harmonic signal from original time series. Hence, they are very useful and important. Furthermore, NMWT method is also applicable for analyzing the quasi-harmonic signals with a slowly and slightly varying amplitude and frequency (Liu et al. 2007). Consequently, NMWT method should be very suitable for studying accurately the 6-year signal in LOD series.

## Results

*f*< 0.051 cpm.

*W*

_{ g }

*f*(

*a*,

*b*) (NMWT spectrum), i.e., |

*W*

_{ g }

*f*(

*a*,

*b*)| (see Fig. 4). Where

*W*

_{ g }

*f*(

*a*,

*b*) means applying NMWT to time signal

*f*(

*t*) (i.e., the LOD time series on the interannual scales);

*g*signifies the normal Morlet wavelet; and

*a*and

*b*are scale factor and translating index, respectively. From Fig. 4, we can see the continuous and stable “ridgeline” (the thin black lines are the local maxima, and they represent the instantaneous frequency or periodic variations) for the corresponding quasi-harmonics in |

*W*

_{ g }

*f*(

*a*,

*b*)| spectrum on 1.6–6.7-year scales. Consequently, it is valid to see the 6-year signal as a quasi-harmonic signal according to the viewpoint from Liu et al. (2007) that NMWT values along the “ridgeline” recovering the corresponding quasi-harmonics. Figures 5 and 6 are respectively the corresponding 6-year quasi-harmonics signals from original series and the AAM removed series, which are both extracted by NMWT. Obviously, the target 6-year signal (i.e., the real signals present in Figs. 5 and 6) shows the decreasing trend in the whole, which is unrelated to the wavelet edge effect.

*N*) is 45 and the corresponding compactly supported length is 89. Choosing the higher order of vanishing moment can help us extract signals with more accuracy (Daubechies 1988; Hu et al. 2005, 2006). The second method is using NMWT method; we extract the instantaneous values that the “ridgeline” corresponds to, from NMWT spectrum (Liu et al. 2007); thus, we can get the target signal with accurate phase in the time domain, whose frequency spectrum peak is very close to 0.0138 cpm (see Fig. 7a, b).

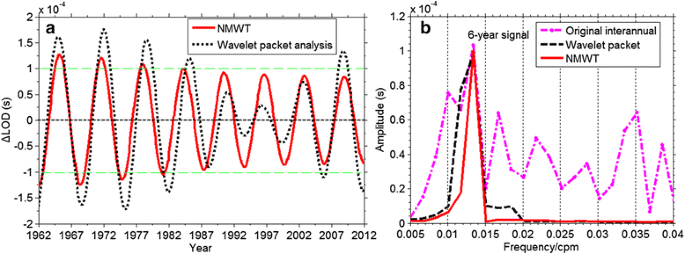

Figure 7a indicates that the signal from wavelet packet method shows an obvious decreasing phenomenon in the 1990s, which is consistent with a previous study (Abarco del Rio et al. 2000; Holme and de viron 2013; Gorshkov 2010); however, Fig. 7a also shows the signal based on NMWT is gradually weakening during 1962–2012 instead of abrupt change in some period. Figure 7b reveals the three Fourier amplitude spectrum peaks (all values are about 0.104 ms) locating at 0.0138 cpm, from original signal and wavelet packet and NMWT, are very consistent with each other; but, obviously, the signal with the most concentrated energy and the most narrow frequency range and no side-lobe interference and the very ideal filtering effect is from NMWT method.

^{−4}s (0.05 ms) during 1962~2012 years. The ratio of the above reduction (0.05 ms) to the mean amplitude of (0.124 ms) reaches about 40 %. Figure 8b indicates that the magnitude of the 6-year signal with a mean amplitude of 0.124 ms concentrates closely at the 0.0138 cpm, which demonstrates the 6-year signal based on NMWT method should be reliable and correct. Talking about the above, the concept about long-term variation of the 6-year signal extracted by NMWT method can be defined as follows: the total envelope curve variation trend of the 6-year signal is called the long-term variation of this signal.

## Discussion

In this study, we find the 6-year signal in LOD showing the long-term decreasing trend during the past 50 years, which is unrelated to AAM effects. We have a careful review about the result of this paper. In order to test the reliability of the result from NMWT and further verify whether the instantaneous amplitude of the 6-year signal is constant or varying with time, a simple and effective method is used, which is windowed Fourier transform.

*t*

_{1}(1962~1980),

*t*

_{2}(1968~1986),

*t*

_{3}(1974~1992),

*t*

_{4}(1980~1998),

*t*

_{5}(1986~2004),

*t*

_{6}(1992~2010); and then, we compute the normalized Fourier amplitude spectrum one by one in

*t*

_{ i }(

*i*= 1,2,…6) period and obtain all the spectrum peak values locating at about 0.0138 cpm in each frequency domains (see Fig. 11). Figure 11a shows the comparison of relative amplitude values in

*t*

_{1}and

*t*

_{6}periods. From Fig. 11a, we also can see that the relative amplitude of the 6-year signal in

*t*

_{1}period is about 0.0275, which is larger than that (about 0.0135) in

*t*

_{6}. The ratio of the former to the latter is about 2, while the result from NMWT gives the ratio about 1.5 (see Fig. 8a). Because we cannot guarantee that 3 cycles of the 6-year signal can exactly and completely locate each chosen period (i.e.,

*t*

_{i}), some errors in the above method are possible. However, the 6-year signal strength decreasing from

*t*

_{1}to

*t*

_{6}period is beyond doubt. Figure 11b further shows all the relative amplitude values of the 6-year signal in the above six periods and, overall, the spectrum peaks is showing the declining trend, which is consistent with the result of NMWT.

On the other hand, in theory, if the 6-year signal is a stable harmonic signal with an invariant amplitude, it will be recovered precisely by NMWT method with a constant amplitude, which is determined by the properties of NMWT (Liu et al. 2007). Moreover, the long-term reduction is so large that it has occupied the mean amplitude (0.124 ms) about 40 %, which means the above phenomenon cannot be simply attributed to the errors produced in data processing or the method this paper uses. However, the result based on the wavelet packet gives us some enlightenment to resolve the debates on the variation feature of the 6-year signal in LOD from previous studies. We propose a viewpoint that the 5~8-year signal from wavelet packet shows a decreasing phenomenon in the 1990s (Fig. 7a), which may be the result of the 6-year signals beating against the other frequency signals in the 5~8-year bands (see Figs. 8b and 7b).

*M*is the Earth’s mass of about 5.98 × 10

^{24}kg;

*C*

_{ m }is the principal moment of inertia of the Earth’s mantle of about 7.1 × 10

^{37}kgm

^{2};

*R*

_{ e }is the Earth’s mean radius of about 6,372,797 m; Δ

*J*

_{2}expresses the change of Earth’s dynamic oblateness, which is related to the Earth’s principal moment of inertia (Cheng et al. 2013; Cheng and Tapley 2004; Cox and Chao 2002; Dickey et al. 2002); ∆

*M*signifies the Earth’s total mass change, which is independent of the mass geographical distribution (Chao and William 1988; Yan and Chao 2012); \( {k}_2^{\prime } \) is the love number of −0.31; and LOD

_{mean}= 86400 s. The Δ

*J*

_{2}data is from Cheng et al.(2013) based on Satellite Laser Ranging (SLR) at 30-day intervals from 1976–2011. Figure 12a indicates that the secular variation of Δ

*J*

_{2}is showing a quadratic decreasing trend, but not the linear trend (Cheng et al. 2013).

Formula (9) contains the following two possibilities: The first possibility ∆*M* ≡ 0, namely the total mass is conserved within the Earth system; then, formula (9) shows the mathematical relationship between Δ*J*
_{2} and ∆LOD. We can compute the “equivalent” mass-induced ∆LOD, because the long-term variation is mainly related to the PGR-poster glacial rebound and melting of the glaciers and ice-sheets mass change (Cheng et al. 2013). Consequently, under the condition of mass conservation, ∆LOD is also determined by the same above factors. Figure 12b shows that the contribution from mass redistribution within the Earth system is consistent with long-term change of the 6-year signal in trend, but the former decreasing rate is about three times larger than that of the latter. Consequently, there should be other components to prevent the long-term decreasing rate of the 6-year signal.

The second possibilities: *ΔM* ≠ 0, namely, considering of the GMB effect (Yan and Chao 2012). Assuming that the secular decreasing trend of the 6-year signal can be fully interpreted by formula (9), thus, we can get ∆*M* within the Earth’s system, in turn. By calculation, the secular ∆*M* change is in a mean rate of about +2.1 × 10^{14} kg/year, from 1976~2011, however, the actual secular variation of ∆*M*, especially its precise value, is still to be further studied due to its some unknown factors, while the results from Yan and Chao (2012) indicated that the annual amplitude of *ΔM* caused by Earth’s surface geophysical fluids including atmospheric, oceanic, and land hydrology (i.e., GMB effect) reaches about 41.7 × 10^{14} kg. Basing from above, the global total mass change ∆*M* reaches about +7.63 × 10^{15} kg, during 1976~2012. Given that a mean sea level of 1 cm corresponds to a ∆*M* of 3.6 × 10^{15} kg (Chao and William 1988), the sea level has risen by 2.1 cm during the past 36 years. It is essential to estimate accurately the GMB long-term effect for interpreting the secular decreasing phenomena of the 6-year signal.

Then, will the secular decreasing trend of the 6-year signal come from the Earth’s core? This is required to be further explored.

## Conclusions

This paper extracts the 6-year temporal signal without AAM effects using NMWT method, quantitatively. The 6-year signal from NMWT shows the following features: 1) the signal with accurate phase, that is, the phase shifting does not happen; 2) the signal with a very narrow frequency range and a high energy concentration degree and a mean amplitude of about 0.124 ms; 3) the secular trend showing a continuous decreasing trend during the past 50 years instead of the abrupt change in some periods. Two possibilities in explaining the long-term decreasing of the 6-year signal are given. We hope this paper can provide a valuable reference for investigating the 6-year signal quantitatively and resolving its geophysical mechanism ultimately.
