An approach to source characterization of tremor signals associated with eruptions and lahars

  • Hiroyuki Kumagai1Email author,
  • Patricia Mothes2,
  • Mario Ruiz2 and
  • Yuta Maeda1
Earth, Planets and Space201567:178

https://doi.org/10.1186/s40623-015-0349-1

Received: 31 May 2015

Accepted: 26 October 2015

Published: 4 November 2015

Abstract

Tremor signals are observed in association with eruption activity and lahar descents. Reduced displacement (D R) derived from tremor signals has been used to quantify tremor sources. However, tremor duration is not considered in D R, which makes it difficult to compare D R values estimated for different tremor episodes. We propose application of the amplitude source location (ASL) method to characterize the sources of tremor signals. We used this method to estimate the tremor source location and source amplitude from high-frequency (5–10 Hz) seismic amplitudes under the assumption of isotropic S-wave radiation. We considered the source amplitude to be the maximum value during tremor. We estimated the cumulative source amplitude (I s) as the offset value of the time-integrated envelope of the vertical seismogram of tremor corrected for geometrical spreading and medium attenuation in the 5–10-Hz band. For eruption tremor signals, we also estimated the cumulative source pressure (I p) from an infrasonic envelope waveform corrected for geometrical spreading. We studied these parameters of tremor signals associated with eruptions and lahars and explosion events at Tungurahua volcano, Ecuador. We identified two types of eruption tremor at Tungurahua: noise-like inharmonic waveforms and harmonic oscillatory signals. We found that I s increased linearly with increasing source amplitude for lahar tremor signals and explosion events, but I s increased exponentially with increasing source amplitude for inharmonic eruption tremor signals. The source characteristics of harmonic eruption tremor signals differed from those of inharmonic tremor signals. We found a linear relation between I s and I p for both explosion events and eruption tremor. Because I p may be proportional to the total mass involved during an eruption episode, this linear relation suggests that I s may be useful to quantify eruption size. The I s values we estimated for inharmonic eruption tremor were consistent with previous estimates of volumes of tephra fallout. The scaling relations among source parameters that we identified will contribute to our understanding of the dynamic processes associated with eruptions and lahars. This new approach is applicable in analyzing tremor sources in real time and may contribute to early assessment of the size of eruptions and lahars.

Keywords

Amplitude source location method High-frequency seismic amplitude Scaling relation Ejecta volume Volcano monitoring

Findings

Introduction

Volcanic eruptions and lahars excite tremor signals that exhibit oscillatory and/or noise-like waveforms lasting for periods of several tens of seconds to hours or longer. Quantifying the sources of these signals is important for understanding the dynamic processes associated with eruptions and lahars and for monitoring volcanic activity. Reduced displacement (D R), a measurable quantity defined by Aki and Koyanagi (1981), has been used in various studies of tremor signals (e.g., Fehler 1983; McNutt 1992; Alparone et al. 2003; Benoit et al. 2003). McNutt (1994) showed that the volcanic explosivity index (VEI; Newhall and Self 1982) is correlated with D R estimated for eruption tremor, although McNutt (2004) later showed that there is a wide range of D R values for each VEI. McNutt and Nishimura (2008) investigated the relations between D R and several factors such as vent radius, erupted volume, and tremor time history. There are, however, fundamental problems in using D R to characterize tremor sources. Aki and Koyanagi (1981) originally defined D R as the root-mean-square displacement amplitude corrected for geometrical spreading for each spectral peak in tremor and showed from observed tremor signals that D R depends on tremor’s frequency. Furthermore, tremor duration is not considered in the calculation of D R. These issues complicate making comparison of D R values estimated for tremor episodes having different tremor frequencies and durations.

Battaglia et al. (2005a, b) showed that a source location method using seismic amplitudes is useful for locating the source of tremor signals associated with eruptions at the Piton de la Fournaise volcano, and they used the tremor source amplitude to estimate the amount of erupted lava. Kumagai et al. (2013) demonstrated that the source amplitude determined by the amplitude source location (ASL) method in a frequency band of 5–10 Hz can be used as a quantitative measure of the size of various volcano-seismic events. In this study, we extended the methodology of the above studies to estimate the source amplitudes and cumulative source amplitudes for individual tremor signals associated with eruptions and lahars and explosion events at Tungurahua volcano, Ecuador. There are two main types of eruption tremor at Tungurahua: noise-like inharmonic waveforms and harmonic oscillations. Both types of tremor exhibit scaling relations, which are useful for characterization of the sources of tremor signals. We show that inharmonic and harmonic tremors have different source characteristics and that the cumulative source amplitudes of inharmonic tremor are consistent with previous estimates of ejecta volume. These parameters may be used to measure tremor signals and derive estimates of the size of volcanic eruptions and lahars.

Method

Battaglia and Aki (2003) developed the ASL method, which uses seismic amplitudes under the assumption of isotropic S-wave radiation. Kumagai et al. (2010) showed that this method can be used to locate various volcano-seismic signals, including tremor associated with eruptions and lahars in a high-frequency band, where the assumption of isotropic S-wave radiation is valid because of the path effect caused by scattering of seismic waves (Takemura et al. 2009; Kumagai et al. 2011a). The ASL method has been used in various volcano-seismic studies (e.g., Battaglia et al. 2003, 2005a, 2005b; Kumagai et al. 2011b, 2014; Ogiso and Yomogida 2012, 2015). Kumagai et al. (2013) estimated the source amplitudes of volcano-tectonic earthquakes, long-period events, and explosion events using the ASL method and found the following scaling relation between seismic magnitude (M) and source amplitude (A s):
$$ M=1.10 \log {A}_{\mathrm{s}}+2.96. $$
(1)

In this relation, M was derived from the relation of Watanabe (1971) using maximum vertical velocity amplitudes and A s (m2/s) was estimated from vertical velocity envelopes corrected for geometrical spreading and medium attenuation in the 5–10-Hz frequency band (see below). This relation indicates that source amplitudes estimated in the high-frequency band can be used to quantify event size. In the following, we extend the approaches described above to quantify tremor sources.

We follow the ASL method of Kumagai et al. (2010, 2013), in which grid nodes are distributed in a search domain and the far-field S-wave approximation is used. Since we focus on tremor signals associated with eruptions and lahars, grid nodes are positioned over the volcano surface. The particle velocity v ij band-passed in frequency around f at the ith station from the jth grid node may be written as
$$ {v}_{ij}\left({t}_s+{\tau}_{ij}\right)={A}_0\left({\boldsymbol{\upxi}}_j\right){s}_0\left({t}_s\right)\frac{1}{r_{ij}}{e}^{-C{\tau}_{ij}}, $$
(2)
where t s is the source origin time, r ij is the distance between station i and source node j, τ ij is the S-wave travel time from the jth grid node to the ith station, ξ j is the location of the jth grid node, and A 0 and s 0 are the radiation coefficient and the second time derivative of the moment function, respectively. We assume a constant value of A 0, which corresponds to isotropic S-wave radiation. Here, C is given by
$$ C=\frac{\pi f}{Q}, $$
(3)
where Q is the quality factor of an S wave for medium attenuation. We use sliding time windows for the source time t s k , defined as
$$ {t}_s^k={t}_s+\left(k-1\right){T}_{\mathrm{w}},\kern0.72em \left(k=1,2,3,\dots \right) $$
(4)
where T w is the window duration. The envelope amplitude averaged over the time window T w is obtained from eqs. 2 and 4 as follows:
$$ \begin{array}{l}{g}_{ij}\left({t}_s^k+{\tau}_{ij}\right)=\frac{1}{T_w}{\displaystyle {\int}_0^{T_w}{\tilde{v}}_{ij}\left(t+{t}_s^k+{\tau}_{ij}\right)dt},\\ {}\kern2.88em ={A}_{jk}\frac{1}{r_{ij}}{e}^{-C{\tau}_{ij}},\end{array} $$
(5)
where \( \tilde{v} \) ij (t) is the envelope of v ij (t). Here, A jk , which is the source amplitude at the jth grid node and source time t s k , is given as
$$ {A}_{jk}=\frac{1}{T_{\mathrm{w}}}{A}_0\left({\boldsymbol{\upxi}}_j\right){\displaystyle {\int}_0^{T_{\mathrm{w}}}{\tilde{s}}_0\left(t+{t}_s^k\right)dt}, $$
(6)
where \( {\tilde{s}}_0(t) \) is the envelope of s 0(t). We estimate the source amplitude A jk by using the following equation:
$$ {A}_{jk}=\frac{1}{N}{\displaystyle \sum_{i=1}^N{g}_i^o\Big({t}_s^k}+{\tau}_{ij}\Big){r}_{ij}{e}^{C{\tau}_{ij}}, $$
(7)
where N is the number of stations. Here, g i o (t) is the observed velocity envelope amplitude averaged over the time window T w at the ith station:
$$ {g}_i^o\left({t}_s^k+{\tau}_{ij}\right)=\frac{1}{T_w}{\displaystyle {\int}_0^{T_w}{\tilde{v}}_i^o\left(t+{t}_s^k+{\tau}_{ij}\right)}dt, $$
(8)
where \( {\tilde{v}}_i^o(t) \) is the envelope of the observed velocity waveform v i o (t) corrected for site amplification as a function of f. To evaluate the fits between the observed and calculated amplitudes in each time window, we use the normalized residual function E jk , defined as
$$ {E}_{jk}=\frac{{\displaystyle \sum_{i=1}^N{\left\{{g}_i^o\left({t_s}^k+{\tau}_{ij}\right)-{g}_{ij}\left({t_s}^k+{\tau}_{ij}\right)\right\}}^2}}{{\displaystyle \sum_{i=1}^N{\left\{{g}_i^o\left({t_s}^k+{\tau}_{ij}\right)\right\}}^2}}. $$
(9)

We use a grid search to find the minimum residual between the observed and calculated amplitudes in each time window. We identify the maximum A jk among those estimated at the minimum residual positions in individual sliding time windows during tremor. We regard this maximum A jk and its position as the source amplitude (A s ) and location of tremor, respectively.

We define the cumulative source amplitude (I s ) as
$$ {I}_s=\frac{1}{N}{\displaystyle \sum_{i=1}^N{\displaystyle {\int}_0^T{\tilde{v}}_i^o}(t){r}_i{e}^{C{\tau}_i}dt}, $$
(10)
where T is the tremor duration, r i is the distance between the source and the ith station, and τ i is the S-wave travel time from the source to the ith station. Here, we call \( {\tilde{v}}_i^o(t){r}_i{e}^{C{\tau}_i} \) the source amplitude function. For eruption tremor, we also define the cumulative source pressure (I p) as
$$ {I}_p=\frac{1}{N}{\displaystyle \sum_{i=1}^N{\displaystyle {\int}_0^T{\tilde{P}}_i(t)}{r}_idt,} $$
(11)
where \( {\tilde{P}}_i(t) \) is the envelope of the observed infrasonic waveform. We also estimate reduced displacement (D R) defined as
$$ {D}_R=\frac{1}{N}{\displaystyle \sum_{i=1}^N{a}_i{r}_i/\left(2\sqrt{2}\right)}, $$
(12)

where a i is the peak-to-peak seismic amplitude of tremor at the ith station.

Results

Tremor signals

Tungurahua (elevation, 5023 m) is an andesitic stratovolcano in the Ecuadorian Andes. This volcano has continued its eruptive activity since 1999, in which major eruptions were characterized by vulcanian and strombolian eruptive styles and were accompanied by pyroclastic flows (Hall et al. 1999, 2013; Samaniego et al. 2011; Mothes et al. 2015). There are five permanent broadband seismic stations at Tungurahua (Fig. 1a), which were installed by an international collaboration between Japan and Ecuador (Kumagai et al. 2010). Each station is equipped with a broadband seismometer (Güralp CMG-40 T, 0.02−60 s) and an infrasonic sensor (ACO 7144/4144, 0.01−10 s).
Fig. 1

Source locations of eruption and lahar tremor signals. a Observation station locations (solid triangles) at Tungurahua volcano, Ecuador. Black and red circles represent source locations and amplitudes, respectively, of an eruption tremor episode on 16–17 March 2013 (Fig. 2). Orange circles indicate source locations and amplitudes of other eruption tremor episodes listed in Table 1. The radius of each circle indicates the source amplitude scaled to the reference circle at the lower left of the map. Topographic contour interval is 100 m. Inset map shows the location of Tungurahua volcano. b Source locations of lahar tremor signals listed in Table 2 (blue circles)

We performed ASL analysis of tremor signals associated with eruptions and lahars recorded by this network. Following Kumagai et al. (2010, 2013), we used filtered (5–10-Hz band-pass) vertical velocity seismograms. We did not correct for site amplification factors because Kumagai et al. (2010) reported that the normalized residuals for an explosion event at Tungurahua were smaller without the corrections. We used a 10-s sliding time window with no overlap, grid intervals of 200 m, a homogeneous S-wave velocity of 1443 m/s, and Q = 60 (Kumagai et al. 2010). Coordinated universal time (UTC) was used throughout this study.

Figure 2a, b shows seismic and infrasonic records, respectively, at the five stations during an eruption episode on 16–17 March 2013. This episode started with a vulcanian outbreak followed by sustained eruptions for more than 1 h. There are two types of tremor associated with eruption activity at Tungurahua: noise-like inharmonic seismic waveforms and repetitive infrasonic impulses (Fig. 3a), which we call inharmonic tremor, and harmonic oscillations in both seismic and infrasonic waveforms with dominant peak frequencies around 1–2 Hz (Fig. 3b), which we call harmonic tremor. We note that harmonic tremor contained seismic energies in 5–10 Hz, although the peaks existed around 1–2 Hz. Inharmonic and harmonic tremors have been observed at various volcanoes (e.g., McNutt 1992; Garcés et al. 1998; Johnson 2003; Lees et al. 2008; Matsumoto et al. 2013; Ichihara et al. 2013).
Fig. 2

Eruption tremor records. Seismic (a) and infrasonic (b) records from the five stations shown in Fig. 1 during the eruption episode on 16–17 March 2013

Fig. 3

Eruption tremor signals and an eruption event. Vertical seismic and infrasonic records of a inharmonic tremor on 16 March 2013 at station BBIL, b harmonic tremor on 2 February 2014 at station BBIL, and c an explosion event on 7 December 2011 at station BPAT

ASL analysis

For our ASL analysis of the tremor shown in Fig. 2, we used large amplitude portions of the tremor seismic signals. ASLs for individual time windows were determined to be near the summit vent (black circles in Fig. 1a), where the maximum source amplitude and its location (red circle in Fig. 1a) were regarded as the source amplitude and location for this tremor. We then estimated the cumulative source amplitude (I s) and pressure (I p). To estimate I s, we used the envelope of the vertical velocity seismogram in the 5–10 Hz frequency band (Fig. 4a, b). We first estimated the linear trend of the pre-tremor noise level and then measured the offset value from the trend line at the end of the tremor (Fig. 4c). We used the seismic waveforms at different stations for which the offsets were clearly defined and averaged the offset values to estimate I s for each tremor episode. We estimated I p by the same method but using the unprocessed infrasonic waveforms. We estimated D R using vertical seismograms with a 1-Hz high-pass filter.
Fig. 4

Cumulative source amplitude estimation. a Band-pass-filtered (5–10 Hz) vertical velocity seismogram recorded at station BBIL during the eruption episode on 16–17 March 2013. b Envelope of seismogram in a corrected for geometrical spreading and medium attenuation (source amplitude function). c Time integration of seismogram in b (thick line) and the linear trend estimated from pre-tremor noise (thin line). Offset value from trend line at the end of the tremor (arrows) was regarded as the cumulative source amplitude

The above method was used to analyze tremor signals associated with eruption episodes between 2010 and 2014 (Table 1); these included a number of harmonic tremor signals, from which we selected their typical signals for our analyses. ASLs for both the inharmonic and harmonic tremor signals were determined to be near the summit vent (orange circles in Fig. 1a).
Table 1

Eruption tremor episodes analyzed in this study. Tremor duration was estimated as the interval during which the envelope amplitude averaged over a 5-s interval was larger than the noise amplitude before the tremor onset

Date and time of tremor onset

Duration (s)

Source amplitude (m2/s)

Cumulative source amplitude (m2)

Cumulative source pressure (Pa m s)

Inharmonic tremor

 2010-05–28 13:46:53

28380

(5.3 ± 1.0) × 10−1

(3.71 ± 0.43) × 103

(1.19 ± 0.30) × 109

 2012–12–16 12:34:45

9345

(2.49 ± 0.46) × 10−1

(8.20 ± 0.12) × 102

(2.67 ± 0.57) × 108

 2012–12–16 15:10:05

24350

(3.45 ± 0.21) × 10−1

(1.84 ± 0.14) × 103

(5.0 ± 1.0) × 108

 2013–03–16 22:56:57

7620

(4.26 ± 0.59) × 10−1

(7.68 ± 0.90) × 102

(1.83 ± 0.35) × 108

 2013–07–14 11:46:32

3895

(2.81 ± 0.13) × 10−1

(5.6 ± 1.1) × 102

(1.08 ± 0.18) × 108

 2014–02–01 22:38:46

17795

(5.76 ± 0.78) × 10−1

(2.05 ± 0.29) × 103

(6.4 ± 1.4) × 108

Harmonic tremor

 2010–05–29 12:54:41

235

(9.44 ± 0.47) × 10−2

(1.16 ± 0.09) × 101

(2.66 ± 0.33) × 106

 2010–05–29 21:07:21

420

(1.96 ± 0.26) × 10−1

(2.61 ± 0.12) × 101

(5.15 ± 0.96) × 106

 2010–05–29 21:15:07

125

(5.70 ± 0.82) × 10−2

2.84 ± 0.45

(2.0 ± 1.0) × 105

 2010–05–29 23:51:24

260

(1.12 ± 0.13) × 10−1

(1.25 ± 0.14) × 101

(2.67 ± 0.48) × 106

 2012–12–17 03:45:42

690

(1.70 ± 0.14) × 10−1

(3.31 ± 0.44) × 101

(1.74 ± 0.36) × 106

 2012–12–17 05:36:10

2605

(1.55 ± 0.15) × 10−1

(1.63 ± 0.13) × 102

(2.27 ± 0.46) × 107

 2012–12–17 08:16:46

965

(1.76 ± 0.18) × 10−1

(1.04 ± 0.11) × 102

(1.23 ± 0.29) × 107

 2014–02–02 02:34:17

145

(1.06 ± 0.73) × 10−1

6.86 ± 0.82

(4.8 ± 1.7) × 105

 2014–02–02 12:24:28

510

(1.50 ± 0.89) × 10−1

(4.05 ± 0.43) × 101

(1.54 ± 0.30) × 106

 2014–02–02 21:55:24

875

(1.59 ± 0.40) × 10−1

(5.97 ± 0.40) × 101

(1.38 ± 0.23) × 107

We also estimated ASLs, source amplitudes, I s, I p, and D R values for explosion events reported by Kumagai et al. (2013). Following the procedure of Kumagai et al. (2013), we used time windows that preceded the arrivals of infrasonic waves to estimate source amplitudes and locations because the seismograms were strongly affected by seismic waves generated by the infrasonic waves (Fig. 3c). ASLs for these events were also determined to be near the summit vent. We used the total seismogram to estimate the I s value for each explosion event, so the results included the effects of infrasonic waves.

Our plots of I s values versus source amplitudes (Fig. 5a) indicate that I s increased linearly with source amplitude for the explosion events, but I s increased exponentially with the source amplitude for the inharmonic tremor signals. The harmonic tremor signals had similar source amplitudes to those of the explosion events and I s values that lay between those of the explosion events and the inharmonic tremor signals. We did not find a clear relation between I s and source amplitude for the harmonic tremor signals. There was a proportional relation between I p and I s for the tremor signals and explosion events (Fig. 5b) but no clear proportional relation between I p and D R, especially for tremor signals (Fig. 5c).

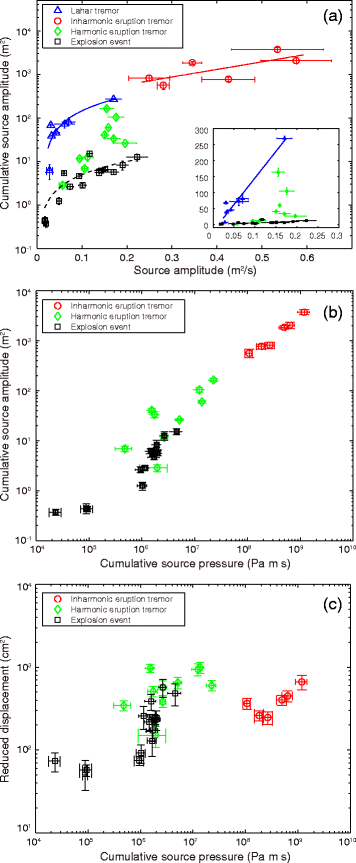

Fig. 5

Comparison of source parameters. a Cumulative source amplitude versus source amplitude. b Cumulative source amplitude versus cumulative source pressure. c Reduced displacement versus cumulative source pressure. Inset in a is an enlargement of a plotted with a linear scale on the vertical axis. Vertical and horizontal bars on the data points indicate probable errors of the individual estimates

Tremor signals associated with lahars at Tungurahua on 17 February 2011 (Fig. 6) were characterized by long spindle shapes. Our ASL analyses of lahar tremor episodes between 2008 and 2014 (Table 2) showed their sources to be on the northern and western flanks of the volcano (Fig. 1b). Our plot of I s values versus for lahar tremors (Fig. 5a) suggests that I s increased linearly with source amplitude.
Fig. 6

Vertical unprocessed velocity seismograms of lahar tremor signals on 17 February 2011

Table 2

Lahar tremor episodes analyzed in this study. Tremor duration is not shown because onset and end times were unclear

Date and time of estimation of source amplitude

Source amplitude (m2/s)

Cumulative source amplitude (m2)

2008-08-23 04:58:20

(2.78 ± 0.71) × 10−2

6.2 ± 2.3

2010-05-05 19:27:20

(3.24 ± 0.41) × 10−2

(3.86 ± 0.08) × 101

2010-11-16 20:21:10

(1.70 ± 0.18) × 10−1

(2.69 ± 0.07) × 102

2011-02-17 05:23:00

(7.0 ± 1.4) × 10−2

(8.0 ± 1.3) × 101

2011-11-11 20:56:30

(6.2 ± 2.2) × 10−2

(7.2 ± 1.3) × 101

2014-03-11 22:29:00

(4.22 ± 0.75) × 10−2

(4.52 ± 0.42) × 101

2014-04-24 16:32:30

(3.06 ± 0.50) × 10−2

(6.78 ± 0.49) × 101

Discussion

According to Ichihara et al. (2012), the transfer coefficient for an incident infrasonic wave to generate a seismic wave is on the order of 10−7 m/s/Pa. The unprocessed seismic velocity and infrasonic data recorded during the eruption episode of 16–17 March 2013 (Fig. 2) have amplitudes of around 10−4 m/s and 102 Pa, respectively, suggesting that the eruption tremor seismic signals may be affected by infrasonic waves. For explosion events, the seismic waves generated by infrasonic waves were more clearly identified (Fig. 3c). We did not use these to locate the explosion events because the ASLs estimated from them were not near the summit of the volcano. On the other hand, the ASLs of the eruption tremor signals derived from the large amplitude parts of the recorded data were determined to be near the summit (Fig. 1a). This feature suggests that the seismic waves of the eruption tremor signals were dominantly radiated from their sources and the scatters of the ASLs may be caused by the effects of infrasonic waves and other ground noise.

Our results indicate that I s increases linearly with source amplitude for explosion events and lahar tremor signals, but I s increases exponentially with source amplitude for inharmonic tremor signals (Fig. 5a). Because the logarithm of the source amplitude is proportional to the magnitude of explosion events (eq. 1), the proportional relationship between source amplitude and I s for explosion events indicates that I s can be used as a measure of the explosion event size.

Let us consider the proportional relationship between source amplitude and I s. As shown by eq. 5, I s is the time integration of the source amplitude function, in which the source amplitude represents the maximum amplitude. If we approximate the source amplitude function as a triangular function with a maximum amplitude of A s and a duration of T, we obtain I s = A s T/2. Thus, the proportional relationship between the source amplitude and I s may occur when T is constant (i.e., if all events have similar durations). We considered the source characteristics of explosion event waveforms recorded at station BBIL (Fig. 7a) for which sources were located near the summit vent. The explosion events had different amplitudes but similar durations (Fig. 7a), indicating that the proportional relation mentioned above holds, thus suggesting that for explosion events, duration is not dependent on source amplitude or magnitude.

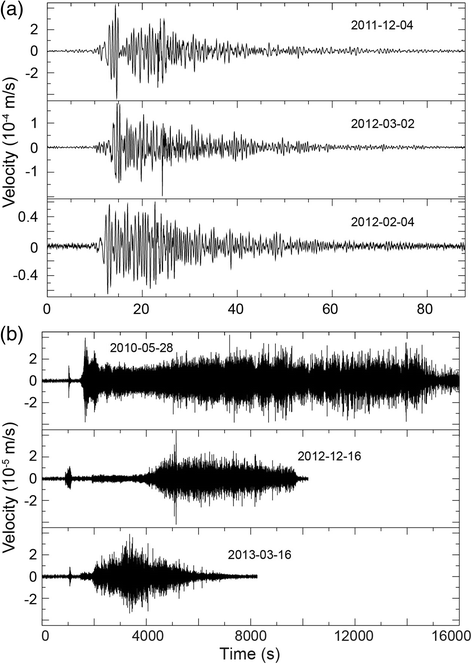

Fig. 7

Explosion events and eruption tremor signals. a Vertical unprocessed velocity seismograms for three explosion events. We estimated event duration as the interval during which the envelope amplitude averaged over a 2.5-s interval was larger than the noise amplitude before the event onset. Our estimated durations for events 2011-12-04, 2012-03-02, and 2012-02-04 were 67.5, 75, and 75 s, respectively. b Band-pass-filtered (5–10 Hz) vertical velocity seismograms for three eruption tremor episodes. Note that a, b are at different time scales

It is interesting that the proportional relation between source amplitude and I s may also hold for lahar tremor signals (Fig. 5a). Six out of seven lahar tremor signals corrected for geometrical spreading and medium attenuation (Fig. 8) were of roughly the same durations (2000–3000 s) but had different amplitudes; the seventh had the smallest I s and a much shorter duration. The sources of the lahar tremor signals were located in different regions (Fig. 1b), indicating that our estimated lahar source character was not controlled by local topographic and/or sedimentary conditions.
Fig. 8

Lahar tremor signals corrected for geometrical spreading and medium attenuation for seven lahar tremor episodes

For the inharmonic tremor signals, I s increased exponentially with source amplitude (Fig. 5a) and the relation between I s and I p was proportional (Fig. 5b). According to the study of Johnson (2003), which was based on the linear theory of sound (Lighthill 1978), I p defined by eq. 6 may be proportional to the cumulative mass flux or total mass ejected during an eruption, although turbulence-related processes have also been proposed to explain complex spectral features of infrasonic records observed during eruptions at Tungurahua (e.g., Fee et al. 2010). The proportional relationship between I s and I p suggests that I s can be used as a measure of the total ejected mass during an eruption and accordingly that the source amplitude may be proportional to the peak mass flux.

The exponential increase of I s with source amplitude (A s) can be given \( {I}_{\mathrm{s}}=\alpha {10}^{\beta {A}_{\mathrm{s}}} \), where α and β are constants. This relation suggests that the source amplitude function of an inharmonic eruption tremor has a typical amplitude (α) with duration (T) proportional to the exponential function of the source amplitude (T \( {10}^{\beta {A}_{\mathrm{s}}} \)). The inharmonic tremor signals at station BBIL in the 5–10-Hz frequency band (Fig. 7b) have amplitudes around 10−5 m/s and their durations vary considerably.

The above relation does not hold for harmonic tremor signals (Fig. 5a), although the relation between I s and I p is proportional (Fig. 5b). Some of the harmonic tremor signals had similar source amplitudes but different I s values (Fig. 5a). These signals were characterized by different durations of harmonic oscillation with similar amplitudes.

The proportionality between I p and D R is not clear, especially for the tremor signals (Fig. 5c). Although the tremor source can be characterized by using both source amplitude and I s, it cannot be characterized by using D R alone. Thus, to characterize a tremor source, it is important to use a reference frequency band and to take into account the duration of tremor.

To quantify the amounts of tephra fallout at Tungurahua during eruptions in December 2012 and March 2013, Bernard et al. (2013) collected tephra samples at more than 40 locations. They found that the volume of fallout for the December 2012 eruption ((2.84−4.59) × 105 m3) was larger than that of the March 2013 eruption ((1.70−2.33) × 105 m3). For the March 2013 eruption, we observed inharmonic tremor signals and very few harmonic tremor signals during 16–17 March 2013, and we estimated I s for inharmonic tremor to be 7.68 × 102 m2 (Table 1). For the December 2012 eruption, we observed inharmonic tremor on 16 December, which was followed by harmonic tremor activity during 17–20 December. The sum of I s for the inharmonic tremor of 16 December 2012 is 2.66 × 103 m2 (Table 1), which is roughly three times that of 16–17 March 2013. This difference of I s estimates is roughly consistent with the difference in the volume estimates of Bernard et al. (2013).

We also estimated cumulative I s during the harmonic tremor activity of 17–20 December 2012 and 16–17 March 2013, for which we assumed a fixed source location at the summit vent. Our estimate of the sum of I s for all of the inharmonic and harmonic tremor signals during 16–20 December 2012 was 1.76 × 104 m2, which is 31 times that of 16–17 March 2013 (5.64 × 102 m2) and is clearly inconsistent with the volume estimates of Bernard et al. (2013).

Harmonic tremor signals can be generated by repetitive triggering of a fluid-filled cavity (e.g., Aki et al. 1977; Chouet 1986), self-excited oscillations associated with a fluid flow in a volcanic conduit (Julian 1994), or magma column oscillations (Jellinek and Bercovici 2011; Bercovici et al. 2013). Our results may be explained if we consider that the inharmonic tremor signal is directly related to mass transport associated with magma eruptions and that the harmonic tremor is triggered by a gas flow without tephra fallout.

Conclusions

We proposed an approach to characterize sources of tremor signals using the ASL method and applied it to estimate source location, source amplitude, and cumulative source amplitude during tremor at Tungurahua volcano, Ecuador. For eruption tremor, we also estimated the cumulative source pressure from infrasonic records. We estimated these parameters for eruption and lahar tremor signals and explosion events recorded by five broadband seismic and infrasonic stations. We identified two types of eruption tremor, noise-like inharmonic waveforms and harmonic oscillatory signals. We showed that cumulative source amplitude increased linearly with increasing source amplitude for lahar tremor signals and explosion events, but I s increased exponentially with increasing source amplitude for inharmonic eruption tremor signals. We also found a proportional relation between cumulative source amplitude and cumulative source pressure for the explosion events and eruption tremor, which suggests that cumulative source amplitude may be used as a measure of total ejecta mass during an eruption episode. The cumulative source amplitudes we estimated for inharmonic tremor were consistent with previous estimates of tephra fallout volume. Automated ASL analysis can be applied to estimate source parameters in real time, which would contribute to early assessment of the size of eruptions and lahars. This is of particular importance in rapid hazard evaluations. Future studies will be necessary to test the applicability of the approach described here at other volcanoes and to clarify the variety and universality of the scaling relations among source parameters. These efforts would contribute to a better understanding of the dynamic processes of volcanic eruptions and lahars and lead to improvements in monitoring of volcanic activity and associated seismicity.
