Characteristics of the surface ruptures associated with the 2016 Kumamoto earthquake sequence, central Kyushu, Japan

  • Yoshiki Shirahama1Email author,
  • Masayuki Yoshimi1,
  • Yasuo Awata1,
  • Tadashi Maruyama1,
  • Takashi Azuma1,
  • Yukari Miyashita1,
  • Hiroshi Mori2,
  • Kazutoshi Imanishi1,
  • Naoto Takeda1,
  • Tadafumi Ochi1,
  • Makoto Otsubo1,
  • Daisuke Asahina1 and
  • Ayumu Miyakawa1
Earth, Planets and Space201668:191

https://doi.org/10.1186/s40623-016-0559-1

Received: 31 July 2016

Accepted: 29 October 2016

Published: 24 November 2016

Abstract

The 2016 Kumamoto earthquake sequence started with a M J (Japan Meteorological Agency magnitude) 6.5 event on April 14, and culminated in a M J 7.3 event on April 16. Associated with the sequence, approximately 34-km-long surface ruptures appeared along the eastern part of the Futagawa fault zone and the northernmost part of the Hinagu fault zone. We carried out an urgent field investigation soon after the earthquake to map the extent and displacement of surface ruptures with the following results. (1) The rupture zone generally consisted of a series of left-stepping en echelon arrays of discontinuous fault traces of various lengths. (2) Slip exceeding 100 cm occurred on previously unrecognized fault traces in the alluvial lowland of the Kiyama plain and on the western rim of the Aso volcano caldera. (3) Large slip with maximum dextral slip of 220 cm was measured throughout the central section of the rupture zone along the Futagawa segment, and the slip gradually decreased bilaterally on the adjoining northeastern and southwestern sections. (4) The surface rupture mostly occurred along fault traces mapped in previous active fault investigations. (5) Most of the surface ruptures were produced by the mainshock, and significant postseismic slip occurred after the mainshock.

Keywords

2016 Kumamoto earthquake surface ruptureFutagawa fault zoneHinagu fault zoneSlip distributionUrgent field investigation

Introduction

The 2016 Kumamoto earthquake was a series of shallow earthquakes in central Kyushu, Japan, that started with a M J (Japan Meteorological Agency magnitude) 6.5 event at 21:26 Japan Standard Time on April 14 and included the M J 7.3 mainshock at 01:26 on April 16 (Fig. 1a). These earthquakes caused severe damage to houses and infrastructure in the epicentral region, especially in the communities of Mashiki, Nishihara, and Minamiaso in Kumamoto Prefecture, where instrumental ground motions reached the maximum level of 7 on the Japan Meteorological Agency seismic intensity scale. This sequence occurred mainly along the active Futagawa and Hinagu fault zones (Earthquake Research Committee, the Headquarters for Earthquake Research Promotion (hereinafter refer to as ERC, HERP), 2016a, b) (Fig. 1b).
Fig. 1

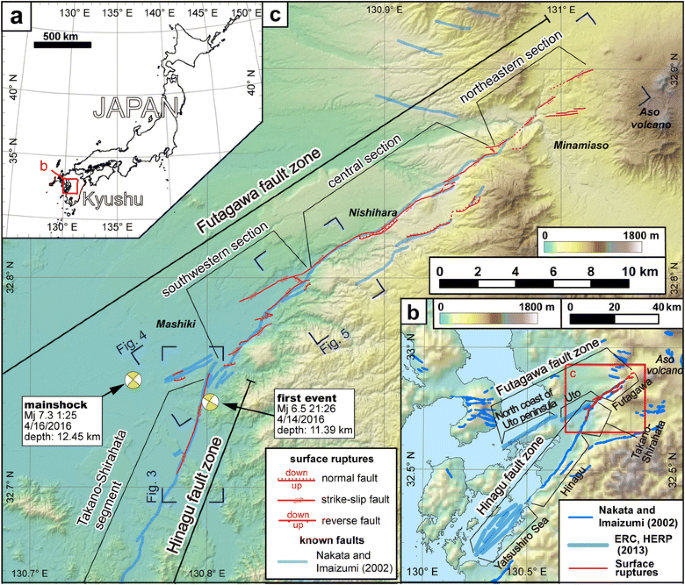

a Location of the study area in Kyushu, southwestern Japan. b Active faults in the western part of central Kyushu (blue lines after Nakata and Imaizumi 2002, light blue lines after ERC, HERP 2013) and the 2016 surface ruptures (red lines). c Distribution of surface ruptures associated with the 2016 Kumamoto earthquake sequence observed during our survey (red lines), previously mapped active faults (blue lines), and the best double-couple solution of centroid moment tensor diagrams for the mainshock and the initial M J 6.5 event (yellow beach balls) determined by the Japan Meteorological Agency, and unconfirmed ruptures interpreted from aerial photographs (Geospatial Information Authority of Japan 2016c) (dashed red lines)

We began an urgent field investigation on the day of the mainshock to map coseismic ruptures and measure their displacements. This three-week exercise documented approximately 34 km of surface ruptures associated with the 2016 Kumamoto earthquake sequence. The ruptures occurred mainly on the eastern part of the Futagawa fault zone, an eastern extension of the Futagawa fault zone across the western rim of the caldera of Aso volcano, and the northernmost part of the Hinagu fault zone (Fig. 1c). We surveyed offset artificial and natural features at more than 200 places. In addition, we interviewed local residents and measured faulted features repeatedly to investigate postseismic activity of the surface ruptures.

In this paper, we report the distribution and morphology of surface ruptures and their displacements. We then discuss their active tectonic implications.

Outline of the Futagawa and Hinagu fault zones

The Futagawa fault zone extends ENE–WSW between the Aso caldera and the north coast of the Uto Peninsula, and the Hinagu fault zone extends NE–SW between Mashiki and the south end of the Yatsushiro Sea (Fig. 1b). These were defined as separate seismogenic fault zones by ERC, HERP (2013) with the following characteristics. The Futagawa fault zone consists of three segments: Futagawa, Uto, and the north coast of the Uto Peninsula segments (Fig. 1b). The Futagawa segment has 0.2 m/kyr of dextral long-term slip rate and 0.1–0.3 m/kyr of vertical long-term slip rate, and paleoseismological studies indicate that its latest rupture event occurred 2200–6900 years ago. The distribution of seismicity indicates that the fault plane of the Futagawa segment is nearly vertical near the surface and northwest-dipping at depth. The Hinagu fault zone consists of the Takano-Shirahata, Hinagu, and Yatsushiro Sea segments (Fig. 1b). The Takano-Shirahata segment has a long-term dextral slip rate of 0.04–0.2 m/kyr, and its latest event occurred 1200–1600 years ago. The fault plane of the Takano-Shirahata segment is probably nearly vertical, because seismicity in 1999 and 2000 was distributed almost directly beneath the surface fault trace.

Active traces of the Futagawa and Hinagu fault zones were previously mapped on the basis of aerial photographs and field surveys by Ikeda et al. (2001), Nakata et al. (2001), and Nakata and Imaizumi (2002). In the Futagawa fault zone, right-lateral offsets of ridges and gullies were reported (Research Group for Active Faults of Japan 1991), and many tectonic features clearly indicate south-side-up ground displacements (Ikeda et al. 2001). In the Hinagu fault zone, fault scarps in the Takano-Shirahata segment irregularly faced east or west along the disconnected fault trace, and in the Hinagu and Yatsushiro Sea segments fault traces are recognized as scarps clearly showing southeast-side-up displacement.

Methods

We mapped surface ruptures associated with the 2016 Kumamoto earthquake sequence and measured their displacement using measuring tapes, leveling staffs, and handheld laser rangefinders. Here, we report slip measurements in terms of strike-slip and vertical components, because most of the surface ruptures had predominantly dextral strike-slip or vertical offsets with little extension. Only surface ruptures along the northeastern part of the Futagawa segment had a significant extensional component. Near the Takaki area on the Takano-Shirahata segment, we measured displacements twice (April 16 and 28) after the mainshock to assess possible afterslip.

In this urgent survey, we needed to survey over 34-km-long ruptures in short time. Because most of the ruptures appeared in inhabited areas, they were likely to be quickly erased by recovery works or weathering. We, therefore, decided to use a simple and primitive method for a measurement of displacement (Fig. 2) with an accuracy of 1 cm. To avoid underestimation of strike-slip displacement, we carefully selected reference markers (i.e., roads, footpaths between paddy fields, walls) which were long enough (20–30 m) to cover the deformation zone (generally <10 m) (Fig. 2a). For measuring slip on normal faults, we selected artificial or natural piercing points and measured displacements consisting of lateral, vertical, and extensional components. If there is any warping deformation away from the fault trace, this method would underestimate the total slip. At some points accompanied with warping deformation, therefore, we obtained topographic profiles with a handheld laser rangefinder to consider the total deformation. The uncertainty of our data depends strongly on the reliability of the selected piercing points or markers; therefore, we employed only clear and obvious reference points. We expect the uncertainty of our data as a whole would not exceed ±10% of the total slip.
Fig. 2

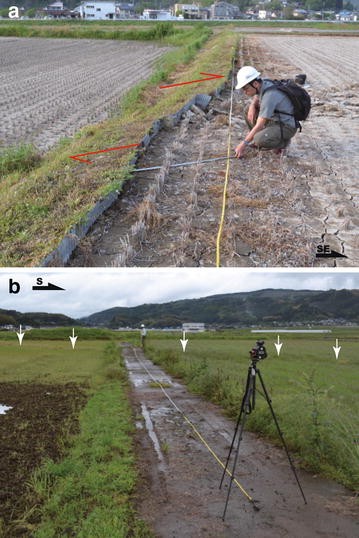

a Measuring horizontal displacement. The grassy footpath in the paddy field was displaced dextrally (red half-arrows). b Measuring a cross section. The east side of the road in the paddy field was uplifted relative to the west side along the surface rupture (white arrows). A handheld laser rangefinder was used to construct a cross section along the line of the yellow measuring tape

Results

Here, we describe the 2016 surface ruptures separately for the Takano-Shirahata segment of the Hinagu fault zone, the Uto segment of the Futagawa fault zone, and Futagawa segment of the Futagawa fault zone (Fig. 1b). Locations and photographs of these three areas are shown in Figs. 35, respectively. The measured slip distributions of the surface ruptures are compiled in Fig. 6 for all three areas. Original data to make Fig. 6 are compiled in Additional file 1 for right-lateral displacements along the Futagawa fault zone, Additional file 2 for right-lateral displacements along the Hinagu fault zone, and Additional file 3 for south-side-up displacements along the Futagawa fault zone.
Fig. 3

a Distribution of surface ruptures (red lines), previously mapped active fault traces (blue lines), and locations of photographs (solid circles) and the trench site (yellow box) along the Takano-Shirahata segment of the Hinagu fault zone (Fig. 1c). b Cultural features including rows of wheat displaced dextrally (red half-arrows) at Kamitakano along the rupture (white arrows). c Edge of a road displaced dextrally. d Postseismic activity shown by a crack in a paved road at Takaki. The open crack, filled with asphalt after the mainshock, opened further by the time the photograph was taken on April 28. e Array of left-stepping tension cracks produced by dextral faulting in the alluvial plain at Takaki, as seen on April 16 after the mainshock. f Aerial photographs of Takaki (Geospatial Information Authority of Japan 2016a, b) on April 15 (left) and April 20 (right). No surface rupture was apparent on April 15, whereas a distinct surface rupture displacing rice paddies and footpaths was discernible on April 20. The black arrow shows the location of E. g Dextral offset of wheel tracks by 75 cm on a farm road in Takaki

Takano-Shirahata segment

Surface ruptures trending NNE–SSW appeared along 6 km of the northern part of the Takano-Shirahata segment of the Hinagu fault zone. It is noted that they directly coincided with previously recognized fault traces (Fig. 3a). Along this segment, the strike-slip component of displacement reached a maximum of 70–80 cm at Takaki (Figs. 3g, 6a) and gradually decreased with distance from Takaki to the north and south.

Most ruptures in this segment were left-stepping en echelon arrays of open cracks with little vertical displacement (Fig. 3e), consistent with nearly pure right-lateral strike-slip. The southernmost ruptures, at Yamaide, displayed only a few centimeters of dextral slip. North of Takigawa, ruptures appeared in the alluvial plain on both sides of the Yakata River (Fig. 3b). At Kamitakano, roads, houses, and fields were systematically disrupted by 50–60 cm of dextral offset (Figs. 3c, 6a). In the Takaki area, ruptures in paddy fields coincided exactly with fault traces previously mapped by a paleoseismological survey (Shimokawa and Kinugasa 1999). North of Tsuchiyama, the surface ruptures scattered and then vanished.

Some residents at Takaki reported that only small cracks were present on April 15, the day after the initial M J 6.5 event, and that after the April 16 mainshock those cracks had grown, displaying more than 40 cm of dextral displacement. In addition, some researchers reported that no clear ruptures were present along the Futagawa and Hinagu fault zones on April 15 (Asia Air Survey Co. 2016). In aerial photographs of Takaki taken before and after the mainshock (Geospatial Information Authority of Japan 2016a, b), no surface rupture was apparent on April 15, but ruptures were clearly visible on April 20 (Fig. 3f). It is clear that surface ruptures along this section were mainly produced by the mainshock.

We also observed a temporal growth at Takaki. Our first measurements on April 16 indicated dextral displacements of about 50 cm (Fig. 3c), whereas our second measurements on April 28 indicated displacements of about 60 cm. We also found that temporarily repaired cracks in a road crossing the surface rupture had opened further by April 28 (Fig. 3d).

Uto segment

At Kitaamagi, in the easternmost part of the Uto segment of the Futagawa fault zone, we documented two sets of ruptures trending ENE–WSW in an isolated area with 500–600 m long about 3 km from the nearest surface ruptures in the adjoining Futagawa segment (Fig. 4a). The southern rupture appeared along a preexisting north-facing fault scarp on the northern margin of the Kitaamagi upland (Ikeda et al. 2001; Fig. 4b), displaying approximately 30 cm of south-side-up normal offset and a small amount of dextral offset. A few hundred meters to the north, faint open cracks appeared near a previously mapped south-facing fault scarp.
Fig. 4

a Distribution of surface ruptures, previously mapped fault traces, and location of photographs (black dots) and the trench survey (yellow box) in the Uto segment and the southwestern section of the Futagawa segment of the Futagawa fault zone (Fig. 1c). b Surface rupture (white arrows) across a road and paddy field at Kitaamagi. c Surface rupture at Fukuhara showing dextral displacement of footpath in a paddy field (red half-arrows). d Left-stepping tension cracks showing a dextral slip in a wheat field at Togawa. e Surface rupture across a road at Shimotogawa with the north side downthrown by normal faulting with little lateral slip. f Surface ruptures on the north side of the Kiyama plain showing dextral offset of a road and paddy field. g Tensional cracks and mole track at Shimojin. The northwestern side of the wheat field was locally upthrown. h Dextral displacement at Tanaka along a surface rupture consistent with a fault trace exposed in previous trenching. i Surface rupture with sinistral and reverse offset at Shimojin, connecting two left-stepping en echelon dextral ruptures on the northern and southern edges of the Kiyama River alluvial plain. j Dextral displacement of a wheat field at Dozon, where the maximum slip of 220 cm was measured

Futagawa segment

Distinct surface ruptures extend about 28 km along the Futagawa segment between Mashiki and Minamiaso (Fig. 1c). We describe them here in three sections that are based on differences in morphology, geometry, and slip distribution of the surface ruptures.

Southwestern section

In the southwestern section of the Futagawa segment, most ruptures displayed 70–100 cm of dextral offset (Fig. 6a). Near Dozon, at the eastern end of this section, ruptures are composed of two strands that bound the Kiyama plain, a 5-km-long north strand along the northern edge and a 7-km-long main strand, along the southern edge of the plain (Fig. 4a). The main strand consisted of a left-stepping en echelon array of five sub-strands striking NE-SW. These sub-strands displayed dominantly dextral slip and south-side-up normal slip and were separated by releasing stepovers 1–2 km long and 0.5–1 km wide. This complex distribution of the sub-strands resulted in large scattering of measured displacements of the southwestern section (Fig. 6). The main strand ended just east of Shimojin, and the north strand continued eastward to the main strand in the adjoin central section. The north strand was a relatively continuous and displayed a few restraining double bends. Displacements on the two strands were largest (90–120 cm) at their northeastern tips, and systematically decreased toward the west (Fig. 6a). These two strands constituted a tweezers-shaped pair of splay faults, connected by a NW-striking sinistral-slip rupture near their closest approach (Fig. 4a, i). Most of the surface ruptures were accompanied by left-stepping en echelon arrays of open cracks associated with dextral faulting, sometimes with a small south-side-up normal component (Fig. 4c, d, f, g, h). At ruptures south of Shimojin and in Shimotogawa, the north side was downthrown 40–50 cm by normal faulting (Fig. 4e). Near Shimojin and Fukuhara, pairs of dextral ruptures striking NW–SE were connected by a rupture with sinistral and reverse offsets (Fig. 4a, i). The vertical and horizontal displacements on those sinistral ruptures both systematically decreased toward the northwest. The ruptures along the main strand nearly coincided with the previously recognized fault trace. The north strand was previously recognized as an active fault, Kiyama fault, only estimated by geological analyses of borehole cores (Tsuruta and Watanabe 1978).

Central section

In the central section of the Futagawa segment between Dozon and Oginosaka, the ruptures formed two strands: a 12-km-long main strand and a 4-km-long south strand 2–2.5 km away (Fig. 5a). The main strand displayed a large dextral slip of about 200 cm (Fig. 6a). At Dozon, we measured 220 cm of dextral displacement (Figs. 4j, 6a), the largest displacement on the 2016 surface ruptures. Along the main strand from Dozon past Nishihara, the rupture followed a preexisting fault scarp several tens of meters high, and representing a fault zone 100–400 m wide. Normal fault ruptures formed a left-stepping en echelon array on the slope and shoulder of the preexisting scarp (Fig. 5c), and dextral-reverse fault ruptures appeared along the foot of the fault scarp with vertical slip up to 60 cm (Fig. 5b). Those arrays of ruptures suggest the existence of dextral slip along the rupture zone. A paved road crossing the rupture zone at very low angle in a counterclockwise direction to the general trend of the scarp was stretched about 200 cm in a 300-m-long part of the road. This feature of the damaged road was observed on strike-slip rupture associated with the 2000 Tottori-ken Seibu earthquake (Fusejima et al. 2001). This strongly suggests that the dextral slip of about 200 cm also occurred across the scarp.
Fig. 5

a Distribution of surface ruptures, previously mapped fault traces, and location of photographs (black dots) in the central and northeastern sections of the Futagawa segment of the Futagawa fault zone (Fig. 1C). b Surface rupture (red half-arrows) crossing a road at Nishihara. South side was upthrown and displaced to the southwest by reverse and dextral faulting. c Array of left-stepping tension cracks (white arrows) south of Nishihara related to dextral and normal faulting on the hillside. d Surface rupture crossing a road at the Okirihata dam showing dextral slip. e Surface rupture at Komori with the north side downthrown by normal faulting. f Surface rupture crossing the bridge at Oginosaka which was compressed by dextral faulting (red arrows). g Surface ruptures at Kawayo showing dextral offset of a field and footpath. h A small graben crossing a road, defined by surface ruptures in the foreground and background. i Surface ruptures and fissures (red lines) near the Nigorigawa River that defined small grabens

Fig. 6

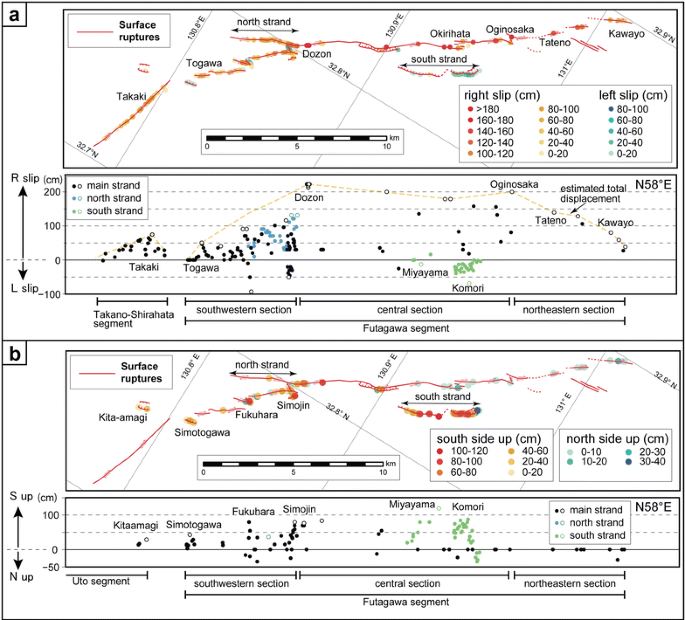

a Distribution of the strike-slip component of surface ruptures (red lines) at measured locations (colored dots with the amount of displacement represented by their shade) along the Futagawa and Hinagu fault zones (top); explanation of surface ruptures in Fig. 1C. Diagram of slip distribution along the fault zone (bottom). Open dots show the representative displacement at each sub-strand. Dashed yellow line shows the estimated total displacement. b Distribution of the vertical component of surface ruptures along the Futagawa fault zone

Ruptures along the main strand continued eastward into the mountains and along talus slopes. The Okirihata dam was damaged by surface ruptures, and the banks of its impoundment on both sides of the dam were offset dextrally by 180 cm (Figs. 5d, 6a). The ruptures outlined a rhomboidal stepover 1.5 km long and 400 m wide located northeast of the dam. Father northeast, the ruptures intersected a road at several points where we measured about 150 cm of dextral fault slip.

In the central section, most dextral slip measurements were around 200 cm, which is considered for a representative slip along the Futagawa segment. Some measurements less than 180 cm probably reflect the partial displacements on the rupture zone along the central section (Fig. 6a).

Whereas the main strand displayed little or no vertical displacement, ruptures on the south strand were dominated by southeast-side-up normal slip (Fig. 6b) along fault planes with measured dip angles between 50° and 70°. These ruptures exhibited normal slip up to 120 cm (Fig. 5e), horizontal displacements in the dip direction up to 30 cm, and sinistral strike-slip displacements up to 70 cm (Fig. 6). All along the 4-km-long ruptures were distinguished from ruptures associated with mass movement by their continuity across rivers and ridges. The combination of dextral offsets on the main strand and primarily normal offsets on the southern strand may represent large-scale slip partitioning, as reported by King et al. (2005) for the Kunlun fault. In that case, decreasing the dextral offsets with the distance from the main strand may produce relative sinistral motion on the south strand.

Northeastern section

Along the 8-km-long northeastern section of the Futagawa segment, ruptures consisted of several en echelon arrays and gradually decreased in displacement toward the northeast (Figs. 5a, 6a). The central and northeastern sections were separated at Oginosaka by a stepover 2 km long and 1 km wide, connected by NW-striking ruptures with sinistral displacement, similar to stepovers described in the southwestern section near Shimojin and Fukuhara.

At Oginosaka, on the north side of the stepover, a rupture oriented ENE–WNW passed beneath a bridge oriented E–W, where about 200 cm of compression damaged the abutments (Fig. 5f). On the south side of the stepover, east of Oginosaka, an extensional branch rupture was observed in aerial photographs taken on April 16 (Geospatial Information Authority of Japan 2016c). From Tateno to the end of the rupture, three strands 1–2 km long constituted an en echelon array separated by releasing stepovers 100–500 m wide. The dextral displacement decreased along this array from 140 cm at Tateno and 120 cm at Kawayo (Fig. 5g) to 80 cm at Aso Farm Land and several centimeters at the eastern end (Fig. 6a).

Another E–W trending branch rupture 2.5 km long appeared south of Kawayo (Fig. 5a, i). This branch was a zone of sub-parallel fissures and grabens (Fig. 5h, i). Although much of the natural topography had been artificially modified, some of these grabens appeared to coincide with preexisting small valleys.

Discussion

Morphology and geometry of surface ruptures

The 2016 Kumamoto earthquake sequence produced about 34 km of surface ruptures. This discussion focuses on the 28-km surface ruptures along the Futagawa segment of the Futagawa fault zone, which we divided into three sections on the basis of fault geometry and slip distributions.

The surface ruptures generally appeared along previously recognized fault traces, but did not always follow them precisely (Figs. 1c, 3a, 4a, 5a). Large dextral strike-slip displacements of about 200 cm occurred along the 12-km-long central section of the Futagawa segment, accompanied by significant normal slip in the middle part of the section. Surface ruptures of the southwestern and northeastern sections of the Futagawa segment were characterized by arrays of releasing stepovers 7–8 km long and 2.5 km wide that diverged toward the ends of the segment, unlike the continuous curvilinear traces that were previously mapped there (e.g., Ikeda et al. 2001) (Fig. 4a). Especially in the southwestern section, stepovers of the ruptures appeared where fault traces were indistinct in the previous fault maps. This reflects the difficulty of mapping active faults where their distribution is complex.

The most remarkable features of the 2016 surface rupture were the development of sub-parallel ruptures at various scales. Our observations showed that these sub-parallel ruptures accommodated coseismic slip by two different deformation styles, slip partitioning and graben formation. The most conspicuous slip partitioning was in the northeastern part of the central section of the Futagawa segment, where two sub-parallel primary ruptures formed 2–2.5 km apart (Fig. 5a). The southern rupture (south strand) displayed south-side-up normal slip greater than 100 cm with a small strike-slip component, whereas the northern rupture displayed dextral slip exceeding 150 cm with little or no vertical slip (Figs. 5d, 6a). Both of these ruptures occurred on previously mapped active fault traces (Nakata and Imaizumi 2002), suggesting that slip partitioning has been repeated during previous large earthquakes to form fault-related landforms. Grabens were especially prominent in the northeastern section of the Futagawa segment (Fig. 5i). Some of these had a distinct geomorphic expression suggestive of similar behavior in the past. Thus, to reconstruct the history of surface rupture in this area, paleoseismic trenching would be desirable because these grabens may preserve sedimentary evidence of past earthquakes.

Comparison with previous surveys

The total surface rupture length of about 28 km, the maximum slip of 220 cm, and the mainshock magnitude of M J 7.3 are all broadly consistent with the fault length, slip, and earthquake magnitude assigned to the Futagawa segment by the ERC, HERP (2013) based upon the length of the segment. In addition, along the Futagawa segment, dextral slip of about 200 cm was measured throughout the central section, and slip gradually decreased bilaterally away from the central section to the far ends of the southwestern and northeastern sections. These lines of evidence strongly suggest that the April 16 mainshock was an example of the representative event anticipated for the Futagawa segment. On the other hand, the surface ruptures on the Takano-Shirahata segment of the Hinagu fault zone were only about 6 km long and were limited to its northernmost part. Understanding the implications of the 2016 Kumamoto earthquake sequence on the long-term behavior of the Takano-Shirahata segment will require further tectonic, geomorphic, and paleoseismic investigations.

Paleoseismic trenching studies were previously conducted at two sites where surface ruptures occurred in the 2016 Kumamoto earthquake sequence (Figs. 3a, 4a): the Takaki trench on the Takano-Shirahata segment (Shimokawa and Kinugasa 1999) and the Tanaka trench on the southwestern section of the Futagawa segment (Kumamoto Prefecture 1996; Yoshioka et al. 2007). Both trenches, excavated on the geomorphically distinct fault scarps suggestive of past faulting, exposed steeply dipping faults with evidence of Holocene faulting. Our field mapping revealed that surface ruptures around both sites lay along single traces and that locations of the ruptures coincided with the locations of the faults in the trench walls. This result shows that trenching can capture a history of multiple faulting when sites have been selected on the basis of sound tectonic and geomorphic interpretations.

The trenching survey at Tanaka revealed dextral 5.2 m displacement of sediment containing a volcanic ash (28 ka; AT tephra [Machida and Arai 2003)] along a fault trace (ERC, HERP 2013). At the location of the Tanaka trench, we measured 60 cm of dextral slip associated with the Kumamoto earthquake. To explain this accumulated displacement (5.8 m), 9–10 events similar to the 2016 earthquake are needed. Then, the recurrence period can be roughly estimated as about 3 kyrs.

Temporal growth of surface ruptures

Our observations and eyewitness account from the Takano-Shirahata segment, and the southwestern section of the Futagawa segment showed that small cracks associated with the initial M J 6.5 event on April 14 grew into primary ruptures with large slip during the mainshock. These observations were supported by interferometric synthetic aperture radar (InSAR) measurements (Fig. 7). Just after the initial event, widespread deformation was apparent at the west and northwest side of the Hinagu fault zone, but no significant deformation had occurred along the Futagawa and Hinagu fault zones (Geospatial Information Authority of Japan 2016d) (Fig. 7a). After the mainshock, major slip had observed along these fault zones (Geospatial Information Authority of Japan 2016e) (Fig. 7b). We found evidence for further slip after the mainshock in the northern part of the Takano-Shirahata segment, where dextral slip of 50 cm as of April 16 had increased by 20% as of April 28, 12 days after the mainshock. Similar field observations were reported after the Napa earthquake of August 24, 2014 (Bray et al. 2014; Hudnut et al. 2014; Lienkaemper et al. 2016). In the case of Napa, afterslip amounted to 30–60% of the total slip. The temporal growth of surface ruptures associated with the Kumamoto earthquake were documented along both the Hinagu and Futagawa fault zones by geodetic surveys such as InSAR measurements (Fujiwara et al. 2016; Geospatial Information Authority of Japan 2016f) (Fig. 7c). These data suggest that when we measure the coseismic displacement, we need to survey in short time after the earthquake as our survey.
Fig. 7

InSAR images of the Kumamoto earthquake sequence with 2016 surface ruptures added (red lines). Analysis by Geospatial Information Authority of Japan from ALOS-2 raw data of JAXA. a InSAR image published just after the M J 6.5 event on April 14 (Geospatial Information Authority of Japan 2016d). b InSAR image published two days after the mainshock (Geospatial Information Authority of Japan 2016e). c InSAR image showing deformation during the 15 days after the mainshock (Geospatial Information Authority of Japan 2016f)

Detailed seismological observations have shown that the rupture plane of the mainshock differed from that of the initial M J 6.5 event, which was south of the junction of the Futagawa and Hinagu fault zones (e.g., Shimizu et al. 2016; Uchide et al. 2016; Fig. 1c). This means that large slip on the Takano-Shirahata segment coincided with slip from the mainshock on the rupture plane of the Futagawa segment. The surface ruptures around the junction between the two segments, therefore, may record seismic events generated by two different rupture planes at depth. The temporal changes in surficial slip may reflect the structural complexity around the junction of the Futagawa and Hinagu fault zones.

Conclusions

  1. 1.

    Surface ruptures occurred along 28 km of the Futagawa segment of the Futagawa fault zone, 6 km of the northern part of the Takano-Shirahata segment of the Hinagu fault zone, and 1 km of the eastern part of the Uto segment of the Futagawa fault zone.


  2. 2.

    Rupture zones generally consisted of left-stepping en echelon arrays of discontinuous fault traces of various lengths.


  3. 3.

    Along the Futagawa segment, dextral slip of about 200 cm was measured throughout the central section, and the slip gradually decreased bilaterally along the adjoining southwestern and northeastern sections.


  4. 4.

    Surface ruptures generally followed previously documented active fault traces, except in the northeastern and southwestern sections of the Futagawa segment.


  5. 5.

    Slip along the Takano-Shirahata segment occurred after both the initial M J 6.5 event and the mainshock, suggesting that surface ruptures along this segment may record seismic activity generated by two different rupture planes at depth.
