A grooved glass surface-plate for making a flat polished surface

Earth, Planets and Space201769:1

https://doi.org/10.1186/s40623-016-0587-x

Received: 14 September 2016

Accepted: 8 December 2016

Published: 3 January 2017

Abstract

To obtain a flat polished surface for microchemical analyses such as EPMA, SIMS, and ATR micro-FTIR, a glass plate with a grooved surface was developed for hand polishing with an abrasive film. It eases the polishing process by minimizing slipping or sticking, and results in negligible relief in the sample surface.

Keywords

EPMASIMSATR micro-FTIRPolished sectionsSurface-plate

Introduction

The flatness of the polished surface is important in the preparation of samples for microanalysis by techniques such as EPMA, SIMS, and ATR micro-FTIR, which are essential techniques in the quantitative analysis of geological samples. Conventional polishing techniques involve final buffing with a cloth, which leads to undesired relief that develops on the polished surface near the boundaries of relatively soft and hard materials, for example soft glass inclusions in hard quartz phenocrysts and hard glassy ash particles mounted in soft resin. While the unevenness is essential for the examination, identification, and textural interpretation of ore minerals using the reflected light microscope (Craig et al. 1981), such unevenness may interfere with successful analysis with either micro-FTIR spectroscopy (Lowenstern and Pitcher 2013) or the electron microprobe (e.g., Lengauer et al. 1997). The method of hand polishing described here uses a newly developed glass plate with a grooved surface that greatly aids in achievement of a flat polished surface.

Conventional polishing techniques

Conventional polishing techniques use either a polishing cloth or an abrasive film on a flat surface-plate. While soft material tends to wear down, hard materials endure the abrasion. The flexibility of the polishing cloth causes it to follow, and so accentuate, the resulting surface difference between hard and soft materials. As a result, unevenness develops on the polished surface (Fig. 1). An abrasive film is more rigid than a cloth and so does not follow the surface differences between different materials. However, direct interaction between the flat abrasive film and the flat polishing surface can result in sticking (Fig. 2a), or a thin fluid film between the polishing surface and the abrasive film can cause the abrasive film to slip (Fig. 2b). Because of these problems, the abrasive film was hardly used for finishing.

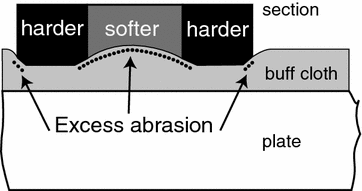

Fig. 1

Conventional polishing and relief that can develop as a result of use of a traditional buff cloth (cross section)

Fig. 2

Polishing with abrasive film on a adhered to a flat surface (cross section). Star indicates sticking or scratching

Grooved glass surface-plate

The newly developed glass surface-plate allows ideal interaction between the flat polishing surface and an attached abrasive film (Fig. 3). The surface-plate prototype itself is approximately 200 by 300 and 8 mm thick (Fig. 4a). The top of the plate contains grooves that are <100 µm deep and 4 mm wide along the entire length of the plate. The grooves are separated by ridges 3 mm across (Fig. 4b, c). Sample size should be larger than threefold the spacing of grooves. The depth of the grooves can be shallower; empirically, 25 µm is enough. A polishing film (e.g., diamond-impregnated film Suzuko POLYMOND, alumina-coated film 3M Scotch wrapping film sheet) is stuck to the wet glass plate like a suction cup. The rigidity of the abrasive film reduces the impact of the variation in hardness of phases within the sample. The grooves prevent the formation of a film of polishing fluid (water) and also provide channels for egress of waste particles. Flat ridges between the grooves give a flat polishing surface. Although the use of grooved cast-ion, copper, or lead laps also allows preparation of excellent relief-free sections (Craig et al. 1981), they require constant resurfacing.
Fig. 3

Polishing with abrasive film on the grooved glass surface-plate (cross section). This system prevents fluid build-up between sample and polishing material and provides optimal contact

Fig. 4

Grooved glass surface-plate prototype. a Overview (200 mm × 300 mm × 8 mm). b, c Cross section

The grooves on a glass surface can be made by etching using dilute hydrofluoric acid on a masked float glass plate by a trained chemist. Shallow grooves can also be drilled into a hard metal such as bronze, in lieu of using glass. Plates with the listed specification are also available commercially from a Japanese dealer (Tsukuba-hikari-kagaku Co, Ltd; Product No. TH-025; FAX: +81-29-851-4696; WWW: http://t-h-k.jp).

Efficiency

The grooved surface-plate allows a flat polished surface even if the sample comprises both relatively hard and soft materials (Fig. 5). The flat surface encourages ideal contact between the flat sensor head of ATR micro-FTIR and the polished surface. As a side effect, the flat surface requires more effort to locate melt inclusions in gold-coated phenocrysts when using a reflected light microscope imaging. However, inclusions should be easily found with backscatter imaging, which is not affected by sample relief.
Fig. 5

Comparison of optical microphotographs. a Polished surface using conventional buff. b Re-polished surface using grooved glass surface-plate. mt magnetite. px pyroxene. gl matrix glass. An arrow Rounded edge of magnetite
