Lateral variation of the uppermost oceanic plate in the outer-rise region of the Northwest Pacific Ocean inferred from Po-to-s converted waves

Earth, Planets and Space201870:106

https://doi.org/10.1186/s40623-018-0880-y

©  The Author(s) 2018

  • Received: 27 December 2017
  • Accepted: 20 June 2018
  • Published:

Abstract

The uppermost structures of incoming oceanic plates have been investigated by seismic exploration surveys, primarily based on two-dimensional profiles. However, their regional-scale lateral variations and shear wave velocity structures with higher-frequency components remain elusive. This study, using passive seismic records, attempted to retrieve Po-to-s converted waves (Pos) by cross-correlating Po wave coda from the radial and vertical components in the 2–6 Hz frequency band and to show lateral variations of the shear wave velocity within the oceanic crust, including crust-related seismic interfaces and layer-dependent anisotropic structures. Po waves were collected from continuous records acquired from active seismic surveys performed across wide areas of the Northwestern Pacific over shorter observation periods and passive seismic surveys performed near the Japan Trench over longer observation periods. As a result, this study obtained clear Pos waves converted at the basement and oceanic Moho of the seaward region, whereas weakened or no Pos waves were observed at ocean bottom seismometers near the trench. The primary reasons for Pos wave weakening or absence were considered to be structural changes, including normal faults due to the plate flexures in the outer-rise region, hydration at the uppermost oceanic plate, and fractures associated with volcanic activities that can be seen on the oceanic plate (petit spots). Furthermore, layer-dependent shear wave anisotropies were estimated for the sediment and crust. Fast polarization directions were oriented in trench-parallel directions near the trench and in the NNW–SSE directions in the seaward region. The pattern change to near-trench polarization directions would correspond to stress field-induced aligned fractures, including cracks and normal faults, created by stress fields induced by plate bending in the outer-rise region.
Graphical Abstract image

Keywords

  • Po wave
  • Incoming oceanic plate
  • Basement
  • Moho
  • Anisotropy

Introduction

The seismological characteristics of incoming oceanic plates in various subduction zones have been investigated by both active and passive seismic surveys (e.g., Ranero et al. 2003; Ranero and Sallarès 2004; Grevemeyer et al. 2007; Shinohara et al. 2008; Brillon et al. 2013; Fujie et al. 2013, 2016; Obana et al. 2012, 2013, 2014, 2018; Kodaira et al. 2014; Bécel et al. 2015; Shillington et al. 2015). Several active survey results have revealed seismic velocity reductions at the uppermost oceanic plate near trenches (Ranero et al. 2003; Ranero and Sallarès 2004; Grevemeyer et al. 2007; Fujie et al. 2013; Shillington et al. 2015), which can be explained by fractures associated with plate bending in the outer-rise region (Faccenda et al. 2009). If pore water in such fractures and bound water in hydrous minerals are present in sufficient amounts in the crust and uppermost mantle, water may plausibly be transported to deep subduction zones, potentially controlling seismic activities at the plate interface (Shelly et al. 2006) and within the subducting slab (Hacker et al. 2003; Yamasaki and Seno, 2003; Kita et al. 2006; Eberhart-Phillips et al. 2013). In addition to seismic velocity, seismic anisotropy information is important for investigating fracture creation near trenches, as shear wave speeds increase when polarized into aligned fractures.

Active seismic surveys are useful for investigating the uppermost oceanic plate. Although most passive seafloor observations use teleseismic waves because part or all survey areas are distant from seismically active regions (e.g., Brillon et al. 2013), the high-frequency components of such waves are insufficient relative to those of active sources. If converted waves could be retrieved from passive seismic surveys at high frequencies, signals obtained from different approaches could be compared or interpreted.

This study attempted to detect Po-to-s converted waves (Pos) isolated from Po wave propagating within the oceanic mantle. When P and S waves are excited by an earthquake occurring within the subducting slab, Po and So waves are developed from the multiple scatterings of the P and S waves owing to small-scale stochastic random heterogeneities in the oceanic mantle (Shito et al. 2013). These waves propagate over distances up to 3000 km and often manifest long-duration, high-frequency (> 2 Hz) recordings in the seafloor observation (Kennett and Furumura, 2013; Shito et al. 2013, 2015). This study used Po waves observed in the northwestern part of the Pacific Plate (Fig. 1 and Additional file 1: Fig. S1). In this region, the Pacific Plate (ages 130–140 Ma) is moving in a west-northwest direction with subducts from the Japan and Kuril Trenches. As Po waves are observed at the seafloor through refraction at the basement and inside or bottom (Moho) of the oceanic crust, Pos waves converted at these interfaces may also be observed (Fig. 2).
Fig. 1
Fig. 1

OBS locations used in this study. a Red and yellow triangles indicate OBSs for active and passive seismic surveys, respectively. Orange dash line roughly represents the ridge line of the outer-rise region. Yellow stars indicate the locations where Pos waves tend to be weak toward the trench (see Fig. 4). b Zoomed-in map for box displayed in Fig. 1a

Fig. 2
Fig. 2

Schematic of Po and Pos waves observed at an OBS. a Po waves propagated in the oceanic mantle from an earthquake. b Pos waves were generated at the basement and oceanic Moho beneath an OBS

In this paper, the process of extracting Pos waves from Po wave coda and the estimation of anisotropic structures explained in detail in “Methods” section. “Results” section describes the retrieval of Pos waves converted at the basement and oceanic Moho, as well as the pattern of the fast polarization direction. Lateral variations of the fast polarization direction between the outer-rise and seaward regions are described in “Discussion” section.

Methods

Po waves from OBS observation

Two ocean bottom seismometers (OBSs) data sets were used: one from active seismic surveys (Fujie et al. 2013) and the other from passive seismic surveys (Obana et al. 2012, 2013, 2014, 2018), in which three-component, short-period (4.5 Hz) sensors were deployed in the northwestern part of the Pacific Plate. The first set consisted of linear arrays with station spacings of ~ 6 km (lines from A–A′ to E–E′ in Fig. 1) and had shorter observation periods (58 days for line A–A′, 22 days for line B–B′, 40 days for line C–C′, and 21 days for lines D–D′ and E–E′). Po waves were collected from these data sets in time series where airgun shot signals were not recorded. In the second data set, planar OBS arrays were deployed with station spacings of 25–30 km from lines from F–F′ to J–J′ (Fig. 1). The latter data set was acquired by passive seismic surveys over four periods. The OBS array locations were shifted to overlap each other, and the total observation period was 497 days (66 + 104 + 253 + 74). More than 350 OBS locations were used in the two data sets.

The horizontal orientation of each OBS in the active seismic surveys was determined using air gun shot signals (see Tonegawa et al. 2015). When the orientation could not be determined due to low signal-to-noise ratios (S/N), this study used T waves excited by earthquakes occurring in subduction zones between Mariana and Kamchatka, with magnitudes of 4.5–6.0 and focal depths shallower than 50 km to estimate the horizontal orientations of OBSs (see Tonegawa et al. 2016). The backazimuth (BAZ) range covered at most 220°. The horizontal orientations of OBSs used in passive seismic surveys were estimated using T waves. As π ambiguities exist in the orientations estimated by both techniques, the seismic phase polarities could not be identified in this study.

Po waves excited by earthquakes (magnitudes of 4.5–6.5) occurring at any depth in the subduction zones between Mariana and 180°E (east of Kamchatka) were collected from continuous OBS observation records (Additional file 1: Fig. S1). Po waves were manually selected to remove direct P arrival contamination; in the cases of earthquakes that occur above subducting slabs (hanging wall sides) or with short propagation paths between the hypocenter and OBS, Po waves are not sufficiently developed within the oceanic plate. To ensure sufficient scattering within the mantle, thereby removing contamination by direct P arrivals, earthquake signals with a straight line greater than 300 km between the hypocenter and the OBS were used.

Extraction of Pos waves

The normalized cross-spectra were used, calculated as
$$R\left( \omega \right) = \frac{{z^{*} \left( \omega \right) \cdot r\left( \omega \right)}}{{\left| {z\left( \omega \right)} \right|^{2} }},$$
(1)
$$T\left( \omega \right) = \frac{{z^{*} \left( \omega \right) \cdot t\left( \omega \right)}}{{\left| {z\left( \omega \right)} \right|^{2} }},$$
(2)
where z(ω), r(ω), and t(ω) represent the vertical, radial, and transverse components of Po coda seismograms in the frequency domain, respectively, and asterisks (*) indicate the complex conjugates. To preserve the relative amplitudes of R(ω) and T(ω), the normalization was performed using a single component, z(ω). Equations (1) and (2) are equivalent to the descriptions of radial and transverse receiver functions in the frequency domain (Langston 1979; Ammon 1991). Applying the inverse Fourier transform to Eqs. (1) and (2), the radial- and transverse-normalized cross-correlation functions (RCF and TCF, respectively) were obtained.
A Gaussian-shaped bandpass filter of 2–6 Hz was applied to calculate Eqs. (1) and (2), and time windows of − 2 to 6 s and from − 2 to 18 s were used for the vertical and horizontal components, respectively, from handpicked Po arrival times. The shorter time window of the vertical component was determined to avoid water reverberation contamination of the Po wave (Pow) and allow the first portion of Po waves to be used; Fig. 3a shows the Po waves at 0–2 s (2–6 Hz) of an earthquake aligned as a function of epicentral distance with a reduced velocity of 8 km/s alongside the Pow waves at 8–10 s. The RCF and TCF amplitudes exceed one because of the shorter time window in the vertical component; however, their relative amplitudes are preserved. Figure 3b displays the Pos waves at 2–4 s (2–6 Hz), during which the first peak corresponding to Pos waves converted at the top of the basement (Pos1). Clear Pos waves were obtained in the RCFs at 1.5–2.5 s lag time (Fig. 3c). In the Northwestern Pacific, the typical marine sediment Vp, Vp/Vs, and thickness are 1.6 km/s, 8 (Fujie et al. 2013; Tonegawa et al. 2015), and < 0.4 km (e.g., Fujiwara et al. 2007; Nakamura et al. 2013), respectively, resulting in a differential travel time of 1.75 s between vertically propagating P and S waves. This agrees well with the observed lag times of Pos1. Later phases were also observed at 2.0–3.0 s lag times, corresponding to Pos waves converted from the oceanic Moho. When a strong Pos wave was detected with a delay time of approximately 1 s after Pos1, it was defined as a Pos wave converted from the oceanic Moho (Pos2). Delay times were determined using a velocity model (Vp = 6.27 km/s, Vs = 3.49 km/s) and an oceanic crust thickness of 7 km (White et al. 1992), resulting in a differential travel time of 0.89 s between the vertically propagating P and S waves.
Fig. 3
Fig. 3

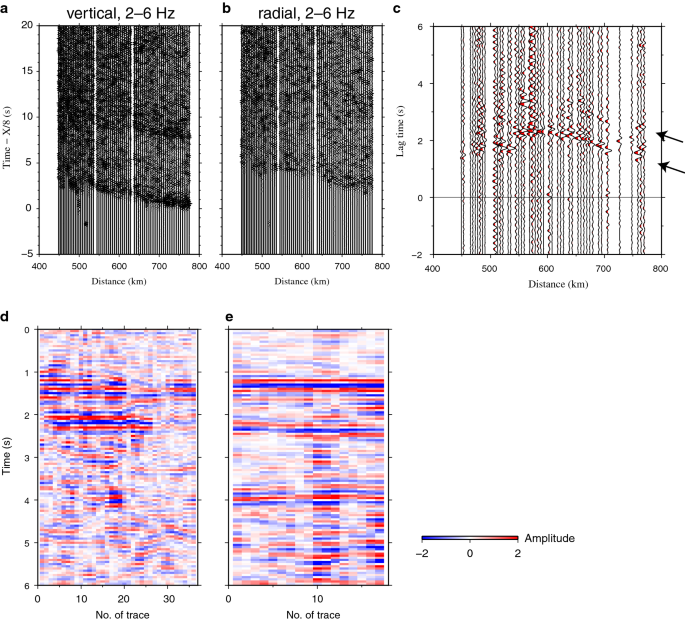

Waveform examples for Pos wave retrieval calculations. Bandpassed waveforms in the a vertical and b radial components at 2–6 Hz for an event (Additional file 1: Fig. S1) observed at OBSs along line A–A′ (Fig. 1). c RCFs using waveforms in a, b at 2–6 Hz. Two arrows correspond to Pos waves. d Examples of RCFs for multiple events observed at a single OBS from passive seismic surveys. e The same as d, but at another OBS from an active seismic survey

Furthermore, the averaged Pos1 and Pos2 amplitudes are displayed for each OBS. For each RCF trace, the maximum Pos1 and Pos2 amplitudes were measured within a time window of 0.6 s from handpicked arrival times of those waves. The averaged Pos1 and Pos2 values at each OBS are displayed to investigate the lateral variations in their amplitudes.

Estimation of anisotropy

We apply a traditional cross-correlation approach (e.g., Ando et al. 1983; Fukao 1984) for estimating the splitting parameters (the fast polarization direction and delay time) of the marine sediment layer and oceanic (igneous) crust and count the cumulative number of both parameters in three regions: two outer-rise regions and a seaward region. Both parameters were obtained at OBSs located in each region and plotted in rose diagrams and histograms, respectively. This allowed us to use splitting information at OBSs where clear Pos waves were observed, but the number of available records was minimal due to the short observation periods. Time windows of 0.6 s were used from handpicked Pos1 and Pos2 arrival times. The delay time search ranges of both layers were within 0.15 s, as determined by typical time delays at each layer and region. For each trace, the fast polarization direction and delay time of the marine sediment layer were estimated using Pos1 with a t test error estimation (e.g., Kuo et al. 1994; Chang et al. 2009; Giannopoulos et al. 2015). If C (cross-correlation coefficient) > 0.9, ∆t (delay time) ≥ 0.03 s, and ∆t error < 0.03 s, the anisotropic effect of the sediment layer was removed from Pos2 (Oda 2011) under the assumption the Pos1 and Pos2 emerging in each trace have similar incidence angles of S waves within the marine sediment and suffer similar splitting effects. The anisotropic structure of the oceanic crust was estimated using the corrected Pos2. When C > 0.9 and ∆t < 0.03 s, the anisotropic structure of the oceanic crust was also estimated using the uncorrected Pos2. Because signal-to-noise ratios of Pos2 were small compared with those of Pos1, the acceptance criterion was lowered to C > 0.8. Additional criteria were set for the Pos amplitude: (1) Pos arrival times can be handpicked, and (2) the S/N of Pos waves is greater than 2, in which S/N is defined as the ratio of the root-mean-square (RMS) amplitudes of Pos waves of 0.6 s over the noise records of − 2 to 0 s in the NCF lag time.

Additional file 1: Figure S2 demonstrates two-layer anisotropic structure estimations from a RCF-TCF pair observed at one OBS. Crosses and dash lines in Additional file 1: Fig. S2b correspond with splitting parameter measurements with uncertainties from the t test. The determined delay times and slow (negative delay time) polarization directions were − 0.03 s and − 63° from the radial direction at the sediment layer (Additional file 1: Fig. S2b) and − 0.1 s and 2° at the crustal layer (Additional file 1: Fig. S2d). Splitting parameters could be estimated within errors of ± 0.02 s and ± 20°, and linear particle motions could be obtained in the corrected Pos waveforms (Additional file 1: Fig. S2c and e).

Results

Observations of Pos waves from the basement and Moho

Figures 4, 5, and 6 show the observed RCFs and TCFs along lines from A–A′ to E–E′ and F–F′ to J–J′, respectively. Each box along the lines corresponds to a suite of RCFs/TCFs observed at one OBS. The waveform polarities are unity in each box, but have an ambiguity of π in the horizontal orientation of each OBS. The blank boxes in Fig. 4 indicate OBSs where the RCFs and TCFs were not available, as no information was available for the OBS horizontal orientation or Po and Pos wave arrival times due to low S/N. The blank boxes in Fig. 6 represent the OBSs described above or were placed to adjust relative OBS locations along the F–F′ to J–J′ lines.
Fig. 4
Fig. 4

The RCFs from lines from A–A′ to E–E′ (Fig. 1). a Each box corresponds to a single OBS, in which the observed RCFs (2–6 Hz) are aligned in the order of BAZ from left to right. Pos1 and Pos2 correspond to Pos waves converted at the top of the basement and oceanic Moho, respectively. Gray-shaded area indicates the bathymetry along line A–A′. Yellow star indicates location where Pos waves tend to be weak toward the trench, also shown in a geographical map (Fig. 1). Orange circle corresponds roughly to the ridge point in the outer-rise region, shown in a geographical map with orange dash line (Fig. 1). b–e The same as Fig. 8a, but for lines B–B′, C–C′, D–D′, and E–E′, respectively

Fig. 5
Fig. 5

Same as Fig. 4, but for TCFs

Fig. 6
Fig. 6

Same as Fig. 4, but for the RCFs and TCFs from lines from F–F′ to J–J′ (Fig. 1)

Pos1 waves were clearly extracted at lag times of 0.5–2.0 s from most of the survey region (Fig. 4a–e, Additional file 1: Fig. S3a). Exceptions are observed in the northwestern portion of line A–A′ (light-blue star and bottom arrow in Fig. 4a) and the western parts of lines B–B′ and C–C′ (light-blue stars and bottom arrows in Fig. 4b, c) where the Pos1 amplitudes tended to weaken with proximity to the trench. The feature in lateral variation of Pos2 amplitude was similar but weaker to those of Pos1. When Fig. 4a is compared to Fig. 2 in Fujie et al. (2013), the lateral variations in Pos amplitudes obtained in this study were in good agreement with the active survey results in spite of the reflectivity clearly seen in the active survey.

Since the RCF/TCFs available from lines F–F′ to J–J′ were much higher than those from lines A–A′ to E–E′, this study investigated lateral variations in Pos wave appearances near the Japan Trench. The RCFs in Fig. 6a–e show Pos waves observed at OBSs deployed around the western parts of lines B–B′ and C–C′. The Pos1 amplitudes for each OBS fluctuated on a local scale, allowing identification at some OBSs but not others (Additional file 1: Fig. S3a). Pos2 amplitudes were observed at three OBSs along line J–J′ and scattered at OBSs along lines G–G′, H–H′, and I–I′. At OBSs in line F–F′, close to the Japan Trench (Fig. 1), the Pos1 amplitudes were significantly weaker, and the Pos2 amplitudes could not be identified.

Shear wave anisotropy at the sediment and crust

TCFs are shown along all lines (Figs. 5, 6f–j), from which Pos1 and Pos2 can be identified at most and some OBSs, respectively. These observations indicate that shear wave anisotropy was present at the sediment layer across the entire survey region and possibly at the oceanic crust in sporadic regions. Three regions K–M (Fig. 7) were selected based on TCF amplitude and tectonic setting: two outer-rise regions and one seaward region for regionally averaged splitting parameters. As shown in Fig. 7, the fast polarization directions at OBSs near the trench were estimated to be the trench-parallel in the regions K and L, consistent with Tonegawa et al. (2013, 2015), whereas the NNW–SSE-trending directions were estimated for OBSs in the region M. Although the splitting parameters estimated for the oceanic crust were less than those of the sediment layer, similar patterns and degrees of the shear wave anisotropy to sediment could be obtained at the oceanic crust (Additional file 1: Fig. S4).
Fig. 7
Fig. 7

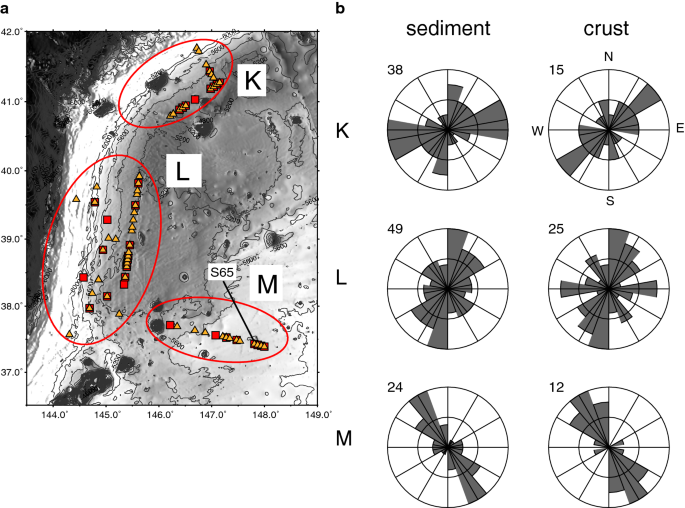

Fast polarization direction results. a Geographical map for three regions, K, L, and M, indicated by ellipsoids, and OBSs used for estimating splitting parameters of sediment (orange triangles) and igneous crust (red squares). S65 indicates the OBS used in Additional file 1: Fig. S2. b Rose diagrams of the fast polarization direction for regions K–M (row) and sediment and crustal layers (column). Numbers at the top left indicate the used Pos waves counted at OBSs within each region

Discussion

Lateral variations in Pos wave amplitudes near the trench

Pos1 and Pos2 amplitudes weakened as they approached the trench along A–A′, B–B′, and C–C′, and their appearance changed starting slightly east of the ridge line (orange circles in Fig. 4a–c, orange line in Fig. 1) in the outer-rise region (yellow stars in Figs. 1, 4a–c). Possible reasons for this absence of waves include (1) structural variations in the seafloor, basement, and oceanic Moho topography or seismic velocity anomalies in the outer-rise to trench region (Fig. 8), and (2) noise levels at OBSs near the trench are larger than those in the seaward region.
Fig. 8
Fig. 8

Schematic for our interpretation of Pos wave appearances and fast polarization direction patterns

Structural changes occurred between the outer-rise and trench regions because many normal faults develop at the uppermost oceanic plate due to the horizontal extension along the trench-normal direction associated with plate bending (Ranero et al. 2003; Ranero and Sallarès, 2004; Grevemeyer et al. 2007; Fujie et al. 2013). This has the potential to induce seafloor, basement, and oceanic Moho deformations. If Po waves enter such undulated interfaces, converted Pos1 and Pos2 amplitudes would be weakened by ineffective conversion or/and ray-path bending. As their travel times also vary at each OBS as a function of BAZ, the coherence of Pos waves may be reduced in the aligned time-domain RCFs. Additionally, seismic velocity reductions at shallower parts of oceanic plates have been revealed by active seismic surveys (Ranero et al. 2003; Ranero and Sallarès 2004; Grevemeyer et al. 2007; Fujie et al. 2013; Shillington et al. 2015). These can be explained by hydration at the crust and mantle through fractures due to the plate bending. If the seismic velocity contrast at the basement and Moho in this region was decreased by velocity reduction degrees at the sediment, igneous crust, and mantle, converted Pos amplitudes would be weakened. These structural factors may alter the appearance of the Pos waves along the A–A′ and B–B′ lines as well as across the northern part of the passive survey area (Figs. 6, 8).

For the line C–C′ and the southern part of the passive survey area, an additional factor contributed to the absence of Pos waves: Many petit spots have been reported by previous studies along the western part of line C–C′ (e.g., Hirano 2010). Petit spots are submarine volcanos formed on the oceanic plate, providing an outlet for alkali magma ascending from the asthenosphere (Hirano et al. 2006, 2010; Machida et al. 2015). The formation of these volcanoes, alongside their conduits and magma chambers, induces fractures in the oceanic lithosphere. In the case of high volcanic activities, the basement and oceanic Moho could also be highly deformed or broken: Hence, converted Pos1 and Pos2 amplitudes would be weakened as in the case of fault-induced deformations of the basement and Moho. Detailed investigations of the structural variations in this region are expected to be performed in future research using depth-dependent profiles from active seismic surveys.

To confirm the aforementioned point (2) contributing to Pos wave absences, noise levels were calculated for each OBS site. RMS amplitudes with a time window of − 2 to 0 s in lag time in the RCF were estimated for noise levels. Additional file 1: Figure S3c shows a geographical map of the estimated noise levels at each OBS site, indicating noise levels increase slightly near the Japan Trench but decrease slightly near the Kuril Trench relative to seaward OBSs. Although the Pos1 was identified at most of OBSs near the Japan Trench, the Pos2 was identified at only a few OBSs. These Pos2 absences may be caused by weak Pos2 amplitudes obscured by the relatively high noise levels near the Japan Trench.

Shear wave anisotropy associated with plate bending

The results of this study revealed fast polarization directions were oriented parallel to the trench from the outer-rise to trench region, but NNW–SSE-trending direction in the seaward region. The magnetic lineation across the entire survey region in this study is oriented NE-SW (normal to the direction of line A–A′) (Nakanishi 2011). If the fractures and cracks formed at the spreading center during oceanic plate formation were preserved, the fast polarization would be estimated in the NE-SW direction. The present results, which contradict this expectation, thus indicate other mechanisms for creating anisotropic structure are present within the sediment across all surveyed regions and crust in spatially sporadic regions. An active seismic survey shows no significant P wave velocity difference in the crust around the intersection between line A–A′ and the northeastern segment of line E–E′ (Kodaira et al. 2014). Weak and spotted anisotropic structures obtained in this study may be linked to the small azimuthal differences in P wave velocity.

Possible anisotropy creation mechanisms include (1) aligned fractures (cracks and normal faults) associated with a stress field (anisotropy for the sediment and crust), (2) aligned topography at the seafloor (anisotropy for the sediment), and (3) anisotropic minerals (particularly clay for the sediment anisotropy). Because it is difficult to explain the observed patterns of the fast polarization direction in the regions K–M using mechanism (3), mechanisms (1) and (2) are considered in the subsequent paragraphs. Here, because the marine sediments in the Northwestern Pacific have a high porosity (80%, Kanazawa et al. 2001) and slow Vs (0.2 km/s, Tonegawa et al. 2013) in which the solid and fluid phases become continuous (bi-connected), systematic water flow channeling may occur under stress fields, inducing anisotropic seismic velocities in an effective medium. This text considered such pore channeling as cracks in the sediment.

It is suggested that current cracks were created by the stress fields associated with plate bending. As the oceanic plate surface curves upward in the outer-rise region, horizontal extensions in the trench-normal direction dominate at the uppermost oceanic plate, and hence trench-parallel cracks and normal faults are created. Under stress field near the trench, a preferred topography orientation (such as horst and graben) also developed at the seafloor in a trench-parallel direction (Nakanishi 2011). Because the aligned topography direction is similar to that of cracks and normal faults beneath the seafloor, deviations in splitting measurements from such effects would be small in the fast polarization direction and minor in delay times.

Conversely, horizontal compression is expected to dominate in the seaward region, indicating a plate flexure transition zone is present between the unbending seaward and bending outer-rise regions (Fig. 8). In this study, the fast polarization directions at the sediment and crust in the region M were oriented in the NNW–SSE direction. It appears that this direction is not trench-normal, but corresponds to the unbending plate, associated with the bathymetry because the water depth increases moving further seaward (to SSE). Moreover, on aligned topography, because Pos1 and Pos2 were clearly seen at similar lag times at OBSs in the region M, it is considered that the topography of the seafloor, basement, and Moho is simple and less significant aligned features on the seafloor. This may indicate that cracks are created due to horizontal compression associated with the plate flexure in this region. In order to investigate this in details, it is expected to perform seismic exploration surveys around this area or/and examine other plate-unbending areas.

Conclusion

Pos waves were retrieved from Po wave coda observed at OBSs deployed across the Northwestern Pacific. These Pos waves, converted from the basement and oceanic Moho, could be identified throughout the region, except in areas proximal to the trench. These weakened or absent Pos waves near the trench were caused by normal faults and hydration at the uppermost oceanic plate. Additionally, the volcanic activities of petit spots associated with plate flexure induced heterogeneous structures in shallow depths, thereby reducing Pos converted amplitudes. Fast polarization directions near the trench were oriented parallel to the trench, which differ from the pattern in the seaward region, corresponding to normal faults and cracks created by plate bending. Such patterns can be seen from the ridge of the outer-rise region, but may be emphasized near the trench where aligned (horst and graben) topography is developed.

Abbreviations

OBS:

ocean bottom seismometer

RCF/TCF:

radial/transverse cross-correlation function

Pos :

Po-to-s

BAZ:

backazimuth

S/N :

signal-to-noise ratio
