# Stochastic finite-fault simulation of the 2017 Jiuzhaigou earthquake in China

*Earth, Planets and Space*
**volume 70**, Article number: 128 (2018)

## Abstract

In this study, the strong ground motion of the Jiuzhaigou Ms7.0 earthquake, which occurred in northern Sichuan, China, was simulated based on the stochastic finite-fault method. The earthquake event was recorded by 66 strong ground-motion stations operated by the China Strong Motion Networks Center. We simulated 11 records selected within 200 km source-to-site distance. According to previous studies and empirical relationships, we estimated the region-specific input parameters. The zero-distance kappa filter obtained had a value of 0.0206 s. Two different source models were applied in this study: the random slip model and specified slip model. Using the stochastic finite-fault method, we simulated the PGA, Fourier spectrum and response spectrum at all stations. The stochastic simulated result based on the specified slip distribution models had no significant bias at most stations. Using a model with a random slip distribution, the simulated response spectra also matched the observed result, which indicated that the stochastic finite-fault method is not very sensitive to the input slip distributions and fault dimensions. We divided the study area into 1116 sites to simulate the spatial distribution of PGA based on the two models. The simulated maximum intensity of the epicentral area reached level IX, which was similar to the observed maximum intensity and indicated that the simulated result could be used in prediction of an imminent earthquake disaster. For future earthquake prediction, seismic hazards could even be estimated quickly without obtaining detailed information about the fault plane.

## Introduction

On August 8, 2017 at 13:19 (local time), an earthquake with magnitude *Ms*7.0 occurred in Jiuzhaigou County of Sichuan Province at the eastern margin of the Tibetan Plateau. According to the China Earthquake Networks Center (CENC 2017), the epicenter was located at 33.20°N, 103.82°E and had a focal depth of 20 km. This powerful earthquake significantly impacted society and the natural environment. It was reported that the earthquake caused 25 deaths and injured more than 500 people. The seismic intensity from the field survey in the magistoseismic area reached IX, and the affected area with seismic intensity greater than VI was approximately 18,295 km^{2}.

The Jiuzhaigou earthquake was located in the region between the eastern Kunlun fault system and the Longmen Shan fault system. This region is tectonically complex with high seismicity, which is related to the extrusion of the Indian Plate to the Eurasian Plate. The seismogenic fault for the Jiuzhaigou earthquake was associated with a blind fault not shown on the Chinese active fault map (Han et al. 2018). The epicenter was close to the Minjiang, Tazang and Huya faults (Han et al. 2018). Based on the CAP waveform inversion method, Yi et al. (2017) gave the focal mechanism solution to this earthquake. The strikes, dips and rakes of the two nodal planes of the focal mechanism are 156°/79°/− 9° and 248°/81°/− 169°, which are similar to the results from the global centroid moment tensor and USGS solutions. According to the focal mechanism solutions and the spatial distribution of aftershocks, the seismogenic fault for the Jiuzhaigou earthquake was a left-lateral strike-slip fault and is considered to have ruptured a branch of the eastern Kunlun fault system.

The stochastic finite-fault simulation method has been widely recognized as one of the most important tools for generation of synthetic ground-motion records. This method has previously been used to simulate strong motions from several large earthquakes including the 1999 *Mw*7.6 Chi–Chi earthquake (Roumelioti and Beresnev 2003), 2008 *Mw*8.0 Wenchuan earthquake (Ghasemi et al. 2010) and 2011 *Mw*9.0 Tohoku earthquake (Ghofrani et al. 2013). Compared with deterministic and hybrid ground-motion simulation methods, the advantages of the stochastic method are its independence from small earthquake selection and good performance at high frequencies (Motazedian and Atkinson 2005).

In this study, we applied the stochastic finite-fault method proposed by Motazedian and Atkinson (2005) to simulate and analyze accelerograms and response spectra of the Jiuzhaigou earthquake. The region-specific seismic parameters including anelastic attenuation, local site effects and path effects were estimated from previous studies and empirical relationships. Once input parameters were calibrated, ground-motion characteristics such as peak ground acceleration (PGA), Fourier spectra and response spectra were estimated and compared with the observations at all 11 stations. Then, we used the model parameters to simulate the ground scenario in the study area.

## Ground-motion data

The earthquake event was recorded by 66 strong ground-motion stations operated by the China Strong Motion Networks Center (CSMNC). All of the accelerograms were recorded by digital instruments (MR2002/SLJ-100, ETNA/ES-T, and ETNA/SLJ-100). The sample rate was 200 Hz, and the preceding 20 s was prestored as the pre-event part.

In this paper, we selected those records with source-to-site distances within 200 km to simulate. The quality of each record was evaluated based on the signal-to-noise ratio technique (SNR ≥ 3). All ground-motion records were baseline-corrected via removal of the mean and the linear trend in recorded acceleration and then bandpass-filtered in the frequency range of 0.02–20 Hz with a fourth-order Butterworth filter. This frequency band included the main destructive and representative characteristics of the ground motion. The entire database consists of 11 sets of ground-motion time histories. Table 1 lists the stations used in this study along with geographical location, instrument type, site condition, V_{S30} and epicentral distances. The site class was based on the surface geology reported by the CSMNC and V_{s30} data derived from the work of Yan et al. (2016). Figure 1 shows the locations of the recording stations, as well as the projection of the fault plane and the epicenter of the earthquake. The maximum amplitudes for this earthquake were recorded at station JZB, where peak ground acceleration (PGA) was 185 cm/s^{2} for the north–south components.

## Methodology

In stochastic finite-fault modeling, a large fault is divided into *N* subfaults, and each subfault is considered as a point source. Each subfault is simulated using a stochastic point source method. The Fourier acceleration amplitude spectrum is a result of contributions from the earthquake source, path attenuation and site effect, and the radiation from a specific site can be defined by

where *C* is the scaling factor, *M*_{0} is the moment and *R* is the shortest distance from the source to the site. The \({\text{Source}}\left( {M_{0} ,f} \right)\) is the displacement source spectrum given by Brune’s omega-squared model and is presented by

where *f*_{c} is the source corner frequency represented by

where \(\Delta \sigma\) is the stress drop parameter in bars, and *β* is the shear-wave velocity in km/s.

The path effects \({\text{Path}}\left( {R,f} \right)\) are modeled by multiplication of geometrical spreading and anelastic attenuation functions in the frequency domain (Boore 2003) as

where *G*(*R*) is the distance-dependent geometrical spreading function, \({\text{An}}\left( {f,R} \right) = \exp \left[ { - \pi fR/Q\left( f \right)\beta } \right]\) is the anelastic whole path attenuation function, where *Q*(*f*) is the frequency-dependent quality factor and *β* is the shear-wave velocity of the crust. The path effects depend on the source location due to different paths between source and site and control the attenuation characteristics of simulated ground motion.

The site effects include the upper crust amplification factor Am(*f*) and the upper crust attenuation factor *V*(*f*):

The amplification factor mainly results from the seismic impedance effect through the velocity gradient in the surface layers. There are several methods to estimate the site amplification, such as the standard spectral ratio method and the horizontal-to-vertical ratio method. The upper crust attenuation factor is a high-frequency truncation filter, commonly described as a high-cut filter, which is controlled by the *kappa* parameter. The decay parameter *kappa* represents the effect of intrinsic attenuation upon the wave field as it propagates through below the site.

The rupture starts from the hypocenter and triggers the nearby subfaults when the rupture spreads to their centers. Then, the spectra of subfaults are Fourier transformed to the time domain. The total ground motion at the site is obtained by summing up the contribution of each subfault with a proper delay time:

where *nl* and *nw* are the numbers of subfaults along the strike and dip of the main fault, respectively, and \(\Delta t_{ij}\) is the relative delay time from the *ij*th subfault to the site.

## Modeling parameters

The stochastic finite-fault simulation method needs to take into account the effects of source, path and site-effect parameters within the region of interest in order to generate the best results. Several parameters need to be defined as they control the physical aspects of ground motion. The parameters used in the present study were estimated based on published information or constrained from the available data. The input parameters are summarized in Table 2.

In the present study, we used the source parameters given by CENC where the epicenter of the earthquake obtained was 33.20°N, 103.82°E and the focal depth was 20 km. The stress drop parameter was the most important parameter controlling the high-frequency spectral amplitudes and high-frequency energy content. According to the research of Wang et al. (2017), the stress drop for this earthquake was 38.5 bars. The fault dimension and slip distribution affected the high-frequency seismic radiation (Causse et al. 2010), which controlled the seismic moment of each subfault. In this study, we used two different fault models to investigate the effects of different source models on the variations in the ground-motion levels.

**Slip model 1**

According to the joint inversions of InSAR data and teleseismic waveforms by Zhang et al. (2017), the dimension of the fault rupture plane was divided into 21 subfaults along the strike and 20 subfaults along the down-dip direction. The total length and width were 32 km and 30 km, respectively. Figure 2 depicts the slip distributions and fault dimension of model 1.

**Slip model 2**

For model 2, we used the random slip model and the central starting point in order to simulate future events for which the corresponding slip distribution will be unknown. The fault plane dimension was estimated by the empirical relationship of Leonard (2010). The fault plane was divided into 23 × 15 subfaults with dimensions of 1 km × 1 km.

Path effects were defined as a combination of geometrical spreading, anelastic attenuation and ground-motion duration effects. For the anelastic attenuation, the frequency-dependent relation quality factor \(Q = 84.9f^{0.71}\) obtained from Wang et al. (2017) for the northwest Sichuan region was used in the present study. To account for the geometrical spreading, we used a bilinear model defined in Ghasemi et al. (2010) to express the geometric spreading function. The bilinear model was simply assumed to be 1/*R* for distances less than 75 km and 1/*R*^{0.5} for distances beyond 75 km. The ground-motion duration at hypocentral distance could be represented by a distance-dependent duration model obtained by Atkinson and Boore (1995).

The site effects included site amplification and near-surface attenuation. The overall site amplification functions were derived from the work of Yu and Li (2012), which were generated by using the quarter-wavelength method (Joyner et al. 1981). The high-frequency decay parameter (\(\kappa\)) represented the high-frequency attenuation of seismic waves due to local site conditions. Several studies have explored the relationships between geotechnical site properties and \(\kappa\). \(\kappa\) can be related to the frequency-independent quality factor (Motazedian 2006; Ugurhan and Askan 2010). Ktenidou et al. (2015) suggested that hard-rock sites have a lower bound for \(\kappa\). Fu et al. (2016) reported that *κ* values for horizontal and vertical components are closely related to elevation and velocity images at 0–10 km depth. In this study, the spectral decay method proposed by (Anderson and Hough 1984) was applied

in which *f*_{e} represents the starting frequency of the linear trend, *f*_{max} denotes the ending frequency (Douglas et al. 2010) and *R* is the epicentral distance. We estimated \(\kappa\) in the Jiuzhaigou region using data from moderate-to-large earthquakes recorded by the CSMNC during the 2008 Wenchuan and 2017 Jiuzhaigou earthquakes. The distribution of the \(\kappa\) values with the epicentral distance of the recording seismic stations is shown in Fig. 3. The best fit line to the \(\kappa\) factor for the average horizontal components versus epicentral distance was obtained as \(0.00005R + 0.0206\).

The other source parameters, namely material density, shear-wave velocity and pulsing percentage, were assigned with commonly used values according to a previous study on Wenchuan earthquake simulation (Ghasemi et al. 2010).

## Results and discussion

### Comparison of the different models

Using the model parameters listed in Table 2, we simulated the ground-motion record and compared it with the observed acceleration time series and Fourier amplitude spectra (FAS) as well as the 5%-damped pseudo-acceleration response spectra (PSA) in the EW and NS directions for all selected stations. For the FAS and 5%-damped PSA, we used the horizontal-component geometric mean of the observed ground motion to compare with the simulated record. For simulated acceleration time series, we selected the one with peak value closest to the average of ten trials.

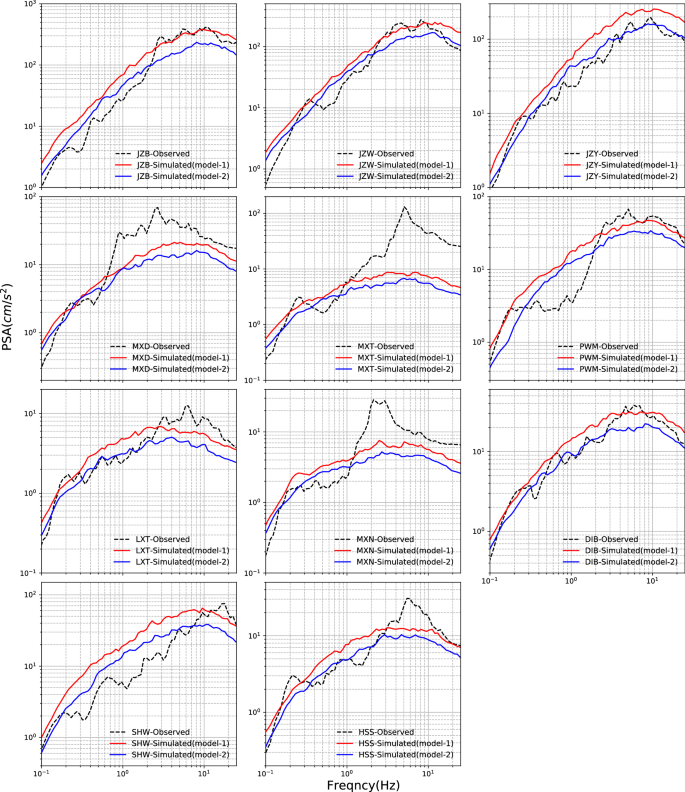

In Figs. 4, 5 and 6, we compare the simulated accelerograms for different source models with the observed acceleration at three representative stations with different azimuth coverage. As can be seen, the time series are reasonably similar between the observed and simulated records for both models, and the simulated FAS and PSA match very well with the observed values. Through the comparison of the 5%-damped PSA for the simulated and observed ground motions (Fig. 7), we find that the stations have good spectral fitting. At near-fault stations such as JZB, JZW, JZY, SHW and PWM, simulated spectra from model 1 and model 2 match sufficiently with observed spectra. At far-fault stations such as MXT, MXD and MXN, the simulated spectra from the two models are underestimated at high frequencies (> 1 Hz). We observe that the PGA values generally match well with the observations at most of the stations (Fig. 8). In the stochastic simulation method, we simplified the model of the source, path and site effects for such a complex event. This simplification may have caused the discrepancies between the simulated and observed results. If more information regarding site amplification and path effects was included, the simulated results would be further improved.

We also calculated the overall PSA spectral residuals for all records to compare the goodness of fit from different models. The residuals at each station were calculated as the logarithm (base 10) of the ratios of simulated PSA to observed PSA. The distributions of residuals versus fault distance at nine representative frequencies are shown in Fig. 9. The distributions of residuals shown in the plots for most of the frequencies are closely distributed around zero. For the low-frequency range between 0.1 and 1 Hz, both model 1 and model 2 overestimate the observed records. The discrepancy at the lower frequencies might be attributed to the inherent limitations of stochastic methods that simplify the complexity of the rupture and propagation processes. In the frequency range between 3 and 20 Hz, the residuals of model 1 are lower than those of model 2 in most of the stations. These differences verify that the slip distribution and fault dimension affected the seismic radiation in the whole frequency band. Although the simulated results from the two models have some differences, all of the model residuals are within the error range. This result means that the quality of the simulated results has little affect by the slip distribution.

### Spatial distribution of ground-motion intensity

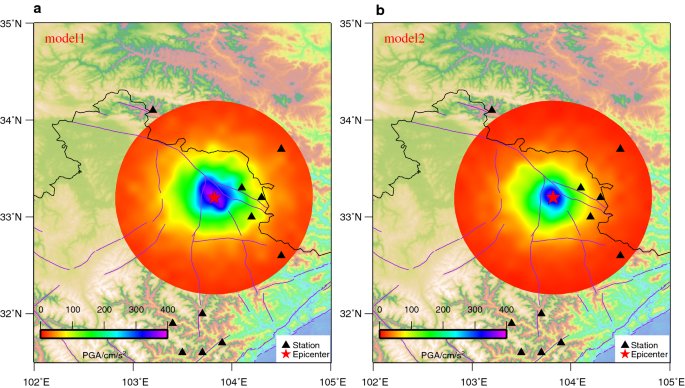

Figure 10 displays the distribution patterns of simulated PGAs from the two slip models. We use two model parameters for simulated ground motions in the study area. The study area is divided into approximately 1116 grids with a size of 0.1° covering an area of 31.5–35°N, 102.0–105°E.

From the PGA distributions of the two models, we find that the main influence area of PGA obtained from model 1 is obviously greater than that from model 2. This result is matched to the area of the fault distribution. The distribution ranges of PGA values are approximately matched with the field observations, which are extended along the northwest direction with the highest amplitudes localized around the epicentral region. The simulation results from model 1 indicate ground motions reaching acceleration levels of 387.41 cm/s^{2} in the epicentral region, and the peak value from model 2 is 368.60 cm/s^{2} in the epicentral region. The simulated maximum intensity in the epicentral area was level IX on the Chinese seismic intensity scale (GB/T 17742 2008), which was similar to the observed maximum intensity.

## Conclusions

In the current study, we simulated strong ground motions recorded for the *Ms*7.0 Jiuzhaigou earthquake based on the stochastic finite-fault method at 11 stations. We used some previous studies and empirical relationships to estimate the specific regional parameters. Based on Fourier amplitude spectra at higher frequencies, \(\kappa_{0}\) for horizontal components was calculated as 0.0206 s. Based on the slip distribution and fault dimension using the research of Zhang et al. (2017), the stochastic simulated result had no significant bias at most of the stations. Using a model with a random slip distribution, the simulated response spectra were also matched to the observed values. These results indicate that the stochastic finite-fault method is not very sensitive to the input slip distributions and fault dimensions. We used two models to simulate the ground scenario at 1116 sites. The simulated maximum intensity at the epicentral area was level IX, which was similar to the observed maximum intensity and indicates that the simulated result could be used to predict an imminent earthquake disaster.

The slip distribution plays an important role in affecting the high-frequency seismic radiation (Causse et al. 2010), and the near-field ground motion is greatly affected by the complexity of the slip distribution and rupture propagation. Perhaps the random slip distributions cause more uncertainties in the near-field ground-motion simulation. According to Beresnev et al. (1998), using the random slip models does not lead to any appreciable decrease in the accuracy of predicting the mean, nor does it increase the standard deviation compared to the actual slip distribution. Ghasemi et al. (2010) simulated the 2008 Wenchuan earthquake using two different slip models and pointed out that the quality of the simulated results decreases at longer periods without information about the slip distribution.

In the regions where real recordings are insufficient, using the stochastic finite-fault method for simulating strong ground motions is useful to understand ground-motion characteristics and distributions particularly. If we obtain enough accurate region-specific input parameters, we can reproduce realistic earthquake ground motions within the period range of engineering interest. In the field of seismic engineering, we mainly focus on the high-frequency band, especially for moderate earthquakes. For future earthquake prediction, even though we did not obtain enough information about the fault plane and slip distribution, we could still estimate the intensity of ground motion if we knew the region-specific input parameters, which could be useful in studies of GMPE and ground-motion characteristics for highly seismic areas of China and in the preparation of hazard maps for these regions.
