Variation of volcanic gas composition during the eruptive period in 2014–2015 at Nakadake crater, Aso volcano, Japan

Earth, Planets and Space201870:151

https://doi.org/10.1186/s40623-018-0919-0

  • Received: 28 March 2018
  • Accepted: 5 September 2018
  • Published:

Abstract

Volcanic gas composition measurement by Multi-GAS was repeated during the eruptive period in 2014–2015 as well as the quiet period preceding the eruption at Nakadake crater, Aso volcano. The eruptive activity is characterized by continuous ash emission with intermittent Strombolian activity and temporal pauses. Volcanic gas composition measured during the eruptive period showed a rapid and large variation. In particular, the CO2/SO2 and SO2/H2S ratios varied in the rages of 1–8 and 3–300 during the ash eruption with a clear negative correlation. The large variation and the negative correlation of the compositions are attributed to two orders of magnitude difference of degassing pressure, such as 20 and 0.2 MPa; the gases with the large CO2/SO2 and the small SO2/H2S ratios are derived from the high pressure. The rapid and large composition variation suggests frequent ascent of bubbles formed at various depth during the eruption. The maximum CO2/SO2 ratio decreased with decreasing eruption intensity that suggests decrease in contribution of the bubbles derived from a large depth. With time, H2O/SO2 ratio of the gases increases from 30 to > 60, suggesting increase in a hydrothermal contribution.
Graphical Abstract image

Keywords

  • Aso volcano
  • Eruption
  • Volcanic gas
  • Multi-GAS
  • Degassing

Introduction

Expansion of bubbles in magmas is the major driving force of explosive eruptions, and behavior of bubbles in magmas controls variation of eruption styles. Volcanic gas composition constraints conditions of bubble formation and separation of bubbles from magmas. Composition of gases discharged during eruption, however, was poorly known in the past because of the difficulty of gas sampling from an erupting vent. Recent development of gas monitoring techniques enabled composition measurement of volcanic gases discharged during eruptions and has revealed the role of bubbles in magmas during eruptions. Emission of CO2-rich gases measured during Strombolian and lava fountaining eruptions by Fourier transform infrared absorption spectroscopy (FT-IR) revealed that these eruptions are driven by CO2-rich bubbles formed at a high pressure (Allard et al. 2005; Burton et al. 2007). Increase in CO2/SO2 ratio of volcanic gases was observed by Multi-GAS measurement prior to paroxysmal explosions at Stromboli and Villarrica volcanoes and is attributed to supply of CO2-rich bubbles formed at a high pressure (Aiuppa et al. 2009, 2017). These examples suggest that supply of CO2-rich bubbles drives eruptions; however, there is few measurement of the gas composition during eruptions other than Strombolian or lava fountaining eruptions. Variation of CO2/SO2 ratio in volcanic gases was not detected at Asama volcano before and after vulcanian eruptions but the composition data during the eruption were not obtained (Shinohara et al. 2015a).

Nakadake crater, Aso volcano, is a persistently degassing volcano with frequent magmatic eruptions, which are characterized by continuous ash eruption with intermittent Strombolian activity (Ono et al. 1995; Sudo et al. 2006). Volcanic gas composition measurement is repeated using Multi-GAS since 2003 (Shinohara et al. 2015b). This article reports results of the recent measurement including a period of recent eruptions in 2014–2015. The recent eruptive activity is the typical activity of the volcano, and gas measurement was performed during ash eruptions with variable intensities and during temporal pauses of the eruptions. Conditions to cause observed gas composition variation are evaluated in relation to variation of the eruptive activities. Gas composition variation is measured also during a quiet period before the eruption, and changes in gas supply processes during the quiet period and the eruptive period are discussed.

Aso volcano

Aso volcano is a large caldera volcano, with the size of 25 km north–south and 18 km east–west, and repeated gigantic pyroclastic flow eruptions from 270 to 90 ka. Several post-caldera cones, with compositions ranging from basalt to rhyolite, are formed near the center of the caldera after the last caldera forming eruption (Ono and Watanabe 1985). Nakadake cone is a presently active basalt to basaltic-andesitic stratocone of Aso volcano (Fig. 1 map). During the past 6000 years, dominant eruptive products at Nakadake cone are black ash with some scoria, indicating that the foremost eruption style was continuous ash emission, that is called “ash eruption” (Ono et al. 1995). The Nakadake cone is currently quite active with ash eruptions in 1974, 1979, 1984–1985, 1985–1995 and 2014–2015 (Ikebe et al. 2008; Ono et al. 1995; Yokoo and Miyabuchi 2015).
Fig. 1
Fig. 1

Location maps. a The location of Aso volcano in Japan; b distribution of the Yudamari crater lake and the fumarolic area at the southern wall of the summit crater of Nakadake central cone, Aso volcano. Contours are in 10-m intervals. The numbers in squares indicate the locations of plume measurement (Table 1). The location 8 is located further 1 km to the northeast from the point on the map

During quiet stages of the volcano, the summit crater of Nakadake cone is filled with a hot and acid crater lake with water temperature ranging 40–80 °C and acidity levels of pH = − 1 to + 1 (Ohsawa et al. 2003, 2010; Miyabuchi and Terada 2009). The Nakadake crater repeated a cyclic activity as follows (Kawakatsu et al. 2000; Sudo et al. 2006): When the lake water level becomes low, phreatic eruptions occur. After the lake completely dries, high-temperature gas vents appear at the bottom with incandescence, then start to emit volcanic ashes. With widening of the vent, the ash eruption becomes continuous and intense, and is associated with intermittent Strombolian explosions. The crater lake water recovers with weakening of the magmatic eruptive activity (Sudo et al. 2006).

The most recent magmatic eruption started on November 27, 2014, with continuous ash eruption and intermittent Strombolian explosions that continued until May 21, 2015, with temporal pauses of the ash emissions. Variation of the crater lake volume, SO2 flux from the crater and related activities between 2000 and 2016 are reported by Fukuoka Regional Headquarters, Japan Meteorological Agency (2016) and Terada and Hashimoto (2017). The lake water was at 100% level in 2009, decreased to a low level for a few times in 2010, 2011 and 2012, then almost dried at the end of 2013 and fumaroles appeared at the crater bottom. The SO2 flux was about 500 t/d before 2013 and increased to 500–2000 t/d in the late 2013 after drying of the crater lake water. Temperature of fumaroles at the crater bottom increased, and incandescence was observed even in the daylight on November 18, 2014. The eruption started from the high-temperature vent on November 25 and became intensive with enlargement of the vent (Yokoo and Miyabuchi 2015). The eruption style is the continuous ash eruption with intermittent Strombolian explosions, similar to the past eruptions. The ash eruption culminated in late January, discharging ~ 2 × 106 tons of ash until February 2, 2015 (Marumoto et al. 2017; Yokoo and Miyabuchi 2015). The SO2 flux increased to 1000–3000 t/d during the most active period. The eruption continued with some temporal pauses until May 21, 2015. After the cease of the eruption in May 2015, the crater lake water immediately recovered by June 6, 2015, but the SO2 flux continued to be high as 1000–2000 t/d until present (August, 2017).

Gas emission occurs at two locations in the Nakadake crater: fumaroles on the southern wall of the crater and center area of the crater (Fig. 1b). During the quiet stage, the crater is filled with the hot and acid lake water and intensive gas emission occurs through the lake water (lake gas; Fig. 2a; Shinohara et al. 2015b). After drying the lake, fumaroles appeared at the center of the crater floor (Fig. 2b). The eruption started from one of the intense fumaroles, which became a single location of eruption and degassing on the crater floor. The main vent discharges volcanic gases not only during the ash eruption but also during temporal pauses of the eruption (vent gas; Fig. 2c–g). Degassing from the southern fumaroles (fumarolic gas) was continuous regardless of the changes from the quiet period to the eruptive period.
Fig. 2
Fig. 2

Photographs of the degassing and eruptive activities at the Nakadake crater, Aso volcano. All photographs, except c, were taken from the location 4 in Fig. 1, and show the two separate degassing sources of the main vent (or the crater lake) on the left and the fumaroles on the southern rim on the right. a The crater lake and the fumarolic area during the quiet period on August 19, 2010. b Gas emission occurs at the main vent after disappearance of the crater lake and the fumaroles on November 18, 2014. c Intensive ash eruption on January 12, 2015. d The intermediate ash eruption on January 13, 2015. e The weak ash eruption on March 17, 2015. f Gas emission from the main vent on May 19, 2015

Variation of volcanic gas compositions of the lake gas and the fumarolic gas at the southern wall until March 2009 was reported by Shinohara et al. (2015b). The fumarolic gases have a typical magmatic gas composition with high SO2 and H2 contents and have high equilibrium temperatures estimated based on their chemical and isotopic composition up to 900 °C, suggesting that the fumarolic gases are directly derived from magma degassing (Shinohara et al. 2015b; Tsunogai et al. 2011). The lake gases are poor in HCl and H2S due to reaction in the lake water, but have high contents of SO2 and H2, indicating the magmatic gas supply also to the lake gas. The CO2/SO2 ratios of the lake gas are smaller than those of the fumarolic gas, in most cases. Shinohara et al. (2015b) interpreted the contrasting compositions as the result of differentiation of the magmatic gas to a CO2-rich vapor phase and a CO2-poor liquid phase under a hydrothermal system. The fumarolic gas is the mixture of the magmatic gas and the CO2-rich vapor of the hydrothermal system and the gas components that remained in the CO2-poor liquid phase are the source of the lake gases.

The crater bottom is dry during the eruptive period. A hydrothermal system, however, is suggested to be located at shallow depth surrounding the eruption vent based on observations of salt fallouts during ash eruptions (Shinohara et al. 2018). Fallout of hollow salt shells was observed during and shortly after ash eruptions in 2015. The chemical composition of the salt shells was similar to the salts formed by the drying of the crater lake water. The hollow structure of the shells suggests that they were formed by the heating of hydrothermal solution droplets suspended by a stream of the plume. The salt shells suggest the existence of a hydrothermal system beneath the crater floor, even during the course of magmatic eruptions.

Methods

Composition of volcanic gases discharged from the southern fumaroles, the crater lake surface (during the quiet period) or the main vent (during the eruptive period) are estimated by the plume measurement with the Multi-GAS and alkali filter pack techniques (Aiuppa et al. 2005; Shinohara 2005). The Multi-GAS instrument has a non-dispersive infrared CO2–H2O analyzer (LI-840, LI-COR, Inc., Lincoln, USA), SO2 and H2S electrochemical sensors (KTS-512 and KHS-5TA, respectively, Komyo Rikagaku K.K., Kawasaki, Japan) and a H2 semiconductor sensor (Model GM12s, Sensor Tech K.K., Rittou, Japan). Data are recorded at 1-s intervals. The gas analyzer and sensors were calibrated with standard gases before and after each field trip. The electrochemical H2S sensors have significant cross-sensitivity, and a filter-type scrubber for SO2 (Type KP-SO2J, Komyo Rikagaku K.K., Kawasaki, Japan) was placed in front of the KHS-5TA sensor to reduce the cross-sensitivity to SO2 (Shinohara et al. 2011). Capacity of the scrubber is 1500 ppm min, which can remove SO2 of 150 ppm for 10 min. The scrubber needs to be replaced after exposure to the plume with high SO2 concentration. Cross-sensitivity of the H2S sensor to SO2 is about 0.1% with the scrubber that can quantify the SO2/H2S ratio up to 1000. The relative concentrations of S, Cl and F were obtained using the alkali filter pack technique (Shinohara and Witter 2005). The effect of partial absorption of H2S by the alkaline filters was corrected by the method described by Shinohara et al. (2011).

Concentration ratios of the gas species in the volcanic gas are estimated based on a slope of a linear correlation on a scatter plot of two gas species concentrations (Shinohara et al. 2011, Table 1). In order to reduce a high-frequency noise on the LI-COR data, a running average of 15 s are used for the data analyses. Sensor response time is different for the different types of sensors, and the data are plotted by shifting the time to obtain the maximum correlation; e.g., the CO2 data are plotted with the SO2 data obtained several seconds later to compensate the slower response of the SO2 sensor. Typical time lag between CO2 data and other gas data is, 7 s for SO2, 4 s for H2S, 1 s for H2O and 10 s for H2 (Shinohara et al. 2011). One sigma errors of the estimated concentration ratios by the instruments are ± 5% for CO2/SO2, SO2/H2S and H2O/SO2 ratio, and ± 15% for H2/SO2 ratio. The large error of the H2/SO2 ratio is due to slower response of the H2 sensor than other sensors, particularly in the low concentration range below 1 ppm (Shinohara et al. 2011). Actual error on natural plume measurements depends on concentrations of volcanic gas species, speed of concentration changes and background fluctuation in the atmosphere. Typical errors of the plume measurements are ± 10% for the CO2/SO2 and SO2/H2S ratios and ± 30% for the H2/SO2 ratio (± 1σ). The typical error on the H2O/SO2 ratio is ± 10% under a stable atmospheric condition, but the error on the H2O/SO2 ratio becomes larger with a larger fluctuation of the atmospheric background H2O concentration. The analytical error of the alkali filters is ± 5% for both SO2/Cl and F/Cl ratios (± 1σ).
Table 1

Estimated gas composition

Date

Site

CO2/SO2

H2O/SO2

H2/SO2

SO2/H2S

SO2/Cl

Cl/F

AETS (°C)

(yy/mm/dd)

No.

Note

(mol ratio)

Fumarolic gas

15/10/2003

3



5.0

26a

6.2

8.1



04/10/2004

2



1.8

135

6.0#

15

13

26/10/2006

2



3.6

60a

0.010

6.0

19

500

19/09/2007

1



4.8

43

0.28

13

11

3.7

890

28/02/2008

1



2.2

20a

0.11

20

11

2.5

890

29/02/2008

1



2.1

35a

0.05

20

12

2.7

720

10/07/2008

1

e

3.6

45a

0.15

29

5.7

6.6

840

10/07/2008

1

f

2.2

50a

0.07

23

4.8

8.0

720

11/07/2008

1

e

3.0

65a

0.10

25

4.7

7.2

740

11/07/2008

1

f

3.0

55a

0.13

32

4.8

7.2

800

28/10/2008

1



1.7

40a

0.15

31

9.0

4.3

860

23/03/2009

1

e

4.0

70a

0.13

19

7.9

5.4

740

23/03/2009

1

f

2.7

60a

0.11

23

7.0

5.1

740

19/11/2009

1

e

4.3

50a

0.33

12

12.5d

3.4d

900

19/11/2009

1

f

3.0

44

0.36

17

12.5d

3.4d

950

19/11/2009

1

g

2.9

45

0.33

17

12.5d

3.4d

930

19/11/2009

1

h

3.4

37

0.38

15

12.5d

3.4d

970

06/07/2010

1



3.2

47

0.010

8.6

6.5

7.0

530

19/08/2010

1



4.5

89

0.05

7.0

5.0

8.5

600

01/10/2010

1



4.7

70

0.03

6.5

9.0

20

560

28/04/2011

1



10.0

80

0.010

5.0

9.7

25

480

05/12/2011

1



4.6

60a

0.013

13

120

540

27/03/2012

1



4.5

40

0.024

5.0

7.9

6.7

590

15/03/2013

1



5.3

40

0.07

6.0

13

5.2

700

06/08/2013

1



3.8

50a

0.11

7.0

15

7.5

730

07/10/2013

1



6.2

50

0.20

6.5

13

3.8

790

28/02/2014

1

K

3.5

30

0.07

6.0

16d

4.0d

730

28/02/2014

1

L

6.0

50a

0.05

5.0

16d

4.0d

640

06/06/2014

1



5.8

30

0.30

9.0

20

3.3

940

18/11/2014

1



3.1

64

0.30

6.0

8.5

3.2

810

Lake Gas

19/10/2003

4



0.8

3.0

33

04/10/2004

6



1.9

66

70#

107

1.6

25/04/2005

4



1.2

34

0.06

6.5

5.0

90

700

19/11/2005

4



2.3

56

0.05

59

210

1.3

710

26/10/2006

5



2.2

50a

0.020

50

100

18

620

27/10/2006

4



2.6

0.010

60

26

17/09/2007

5



1.7

190a

0.06

140

130

4.0

630

18/09/2007

6



2.0

120a

0.05

85

44

3.1

640

28/02/2008

7



1.4

80a

0.06

170

40

3.3

740

10/07/2008

5



1.3

11/07/2008

5



0.8

70a

0.05

100

79

15

710

28/10/2008

5



1.7

180a

0.05

300

90

3.4

650

23/03/2009

5



1.0

90a

0.030

2000

24

4.9

730

24/03/2009

5



1.0

100a

0.010

2000

28

9.0

610

06/07/2010

5



0.5

42

0.05

100

6.5

23

760

19/08/2010

5



0.7

80a

0.05

1000

13

17

780

28/04/2011

5



0.7

30

0.022

4.5

3.0

66

610

19/05/2011

6

K

0.5

20a

0.07

10

5.7d

8.0d

800

19/05/2011

6

L

1.0

45a

0.04

7.0

5.7d

8.0d

640

27/03/2012

5

K

0.34

54

0.08

200

55d

4.9d

820

27/03/2012

5

L

0.87

50a

0.06

20

55d

4.9d

700

15/03/2013

5



0.35

50

0.06

150

70

10

780

06/08/2013

5



0.7

80

0.08

40

10

23

710

07/10/2013

5



0.7

80

0.08

40

4.8

17

710

28/02/2014

5



0.8

0.06

10

7.1

65

06/06/2014

5



0.6

50a

0.20

60

8.1

3.2

900

18/11/2014

5



1.0

40a

0.05

500

11

2.2

840

During eruption

12/01/2015

3

A

8.0

30

0.11

3.0

770

12/01/2015

3

B

1.6

30

0.11

40

870

12/01/2015

3

C

1.6

30

0.11

300

990

25/02/2015

8

B’

1.7

60

0.16

24

4.9

790

17/03/2015

6

A”

4.0

400b

0.10

3.0

2.2d

5.1d

510

17/03/2015

6

B”

1.6

70b

0.015

30

2.2d

5.1d

560

17/03/2015

6

C”

1.6

70b

0.008

300

2.2d

5.1d

570

19/05/2015

4



3.2

0.007

6.5

57

11

440c

20/05/2015

2



2.4

0.006

4.6

8.6

18

430c

20/05/2015

4



3.5

0.011

3.4

6.8

20

440c

20/05/2015

5



2.4

5.7

4.6

12



e, f, g and h are results of sequential measurements within a single day. K and L are end-member compositions of variable composition obtained by a single measurement. A, B and C (and their prime and double prime) are representative compositions of the variable compositions observed in a day during the eruptive period (see text for details)

not determine, # Measured by the test tube (Komyo Rikagaku Kogyo Co.)

aThe poor quality data with the correlation factor < 0.6, due to large variation in the atmospheric H2O concentration

bThe poor quality data due to large variation in the atmospheric H2O concentration

cCalculated with an assumption of H2O/SO2 = 100

dA single AF sample collected during the multiple measurement of Multi-GAS

During the quiet period, we estimated separately the composition of the fumarolic gas and the lake gas by selecting the measurement location considering the wind direction and the actual plume movement. The crater lake and the fumaroles are inaccessible because of the steep wall of the summit crater (Fig. 1b), and the plume measurement are conducted on the crater rim at locations indicated in Fig. 1b. During the quiet stage, we can safely access to various locations, including the southern rim of the crater near the fumaroles (site 1 in Fig. 1), which enables the separate measurement of the fumarolic gas from the lake gas (Fig. 1). Cross-contamination of these gases, however, can sporadically occur by changes in the local wind direction because of the adjacent location of these sources. In most cases, we can estimate a representative composition of each target gas by neglecting minor peaks with compositions clearly different from the target gas composition (Table 1). These peaks with different compositions are likely derived from sporadic contamination of the gases from non-target sources. The effect of contamination on the alkaline-filter data, however, could not be removed because the filter sampled the plume during 30–60 min, and its results are an average composition during the sampling period.

During the eruptive period, it was not possible to perform the separate measurement of the gases from the different sources, i.e., the fumaroles and the eruptive vent, because of the limited access to avoid danger. The measured plume includes contribution from both sources. On January 12, February 25 and March 17, 2015, the measured plume compositions are quite variable during each observation. The scatter plots show quite large scattering and one or two representative concentration ratios cannot be estimated for each day based on the scatter plots (Additional file 1: Fig. S1). The large scattering is likely due to temporal variation of the source gas composition or of contribution from different sources. In order to quantify the temporal variation, the gas concentration ratios are obtained by comparing peak concentration of each species at the time of major SO2 concentration peak (Additional file 2: Tables S1–S3). Typical errors of the peak concentration ratio for high SO2 peaks (such as > 10 ppm) are considered as similar to those obtained based on a linear correlation on scatter plots; ± 10% for the CO2/SO2 and SO2/H2S ratios, ± 20% for the H2O/SO2 ratio, and ± 30% for the H2/SO2 ratio (± 1σ). Larger errors might be associated with peaks with lower SO2 concentration.

In addition to the gas measurement, we observed infrasonic waves at a station of the crater rim (site 4 in Fig. 1) where no effect by topographic barriers should be considered for their propagation. The station was equipped with a low-frequency microphone (Datamark SI104; flat response in 0.1–1000 Hz) and a digitizer (Datamark LS-8800) in which data were recorded into an SD card with a sampling frequency of 100 Hz. The data had GPS-synchronized time stamps.

Results

Quiet period

Compositions of the fumarolic gas and the lake gas were separately estimated, but the effect of the cross-contamination can be recognized in some gases (Table 1). On 28 February 2014 (fumarolic gas), and 19 May 2011 and 27 March 2012 (lake gas), the scatter plots show large scattering between two ratios. In these cases, the two end-member ratios are estimated (K and L, Table 1). Variation of the composition is likely due to the cross-contamination of the fumarolic gas and the lake gas. During the period of high water level, the lake gas has smaller CO2/SO2 ratios and larger SO2/H2S and SO2/Cl ratios than the fumarolic gas (Shinohara et al. 2015b). Mixing of the fumarolic gas to the lake gas results in a larger CO2/SO2 ratios and smaller SO2/H2S and SO2/Cl ratios than the lake gas. For an example, the L composition on 27 March 2012 has a larger CO2/SO2 ratio (0.87) and smaller SO2/H2S ratio (20) than the K composition (CO2/SO2 = 0.34 and SO2/H2S ratio = 200). The L composition is likely a composition affected by the mixing of the fumarolic gas to the K composition that is likely more representative of the lake gas composition. Large difference in the SO2/Cl ratios was obtained for the lake gas measured on subsequent days on 26 and 27 October 2006, and 17 and 18 September 2007. The large SO2/Cl ratios of >100 measured on the first day in both cases are likely the less-contaminated lake gases and the smaller ratios measured in the second day are caused by contamination of the fumarolic gas, as a mixing of the HCl-rich fumarolic gases effectively decreases the SO2/Cl ratio.

On 10 and 11 July 2008, 23 March and 19 November 2009, multiple compositions are obtained by sequential measurements for the fumarolic gas (e, ee, g and h on Table 1). The compositions have a variation slightly larger than the typical errors, up to twice of the errors. The variation in 10 and 11 July 2008, and 23 March 2009 is less likely due to the lake gas contamination, because a significant contribution of the lake gas with quite large SO2/H2S ratio is not suggested from the small variation of the SO2/H2S ratio of the fumarolic gas. The variation larger than the typical error may imply the actual error under the real conditions or is a temporal or spatial variation in the fumarolic gas composition. Many fumaroles distribute along the southern wall of the crater and can cause the spatial variation.

Long-term variation of the lake gas and the fumarolic gas compositions have the features similar to those observed during 2003–2009 (Shinohara et al. 2015b; Fig. 3). The gas compositions did not show significant changes prior to the eruption, even on 18 November, only 10 days before the beginning of the eruption on November 27, 2014. The CO2/SO2 ratio of the lake gas ranges from 0.34 to 2.6 and that of the fumarolic gas ranges from 1.7 to 10. These ratios symmetrically vary with a central value of about two; these gases have similar CO2/SO2 ratios when the ratios are close to two, and a larger deviation of the lake gas ratio from the central value to a large ratio occurs with a large deviation of the fumarolic gas ratio to a smaller ratio (Fig. 3a). The H2O/SO2 ratio of the fumarolic gas does not show clear temporal variation with an average of 53 ± 22 (av ± 1σ, hereafter, error on an average is expressed in this form; Fig. 3b). The H2O/SO2 ratio of the lake gas has the similar average of 55 ± 18 by excluding the poor quality data of the correlation factor < 0.6 (Table 1). The fumarolic gas SO2/H2S ratio ranges from 5 to 30, a common range for high-temperature volcanic gases (Giggenbach 1996) and shows a gradual increase in 2006–2008, then a gradual decrease in 2008–2011 (Fig. 3c). The lake gas SO2/H2S ratio is from one to two orders of magnitude larger than the fumarolic gas, with exceptions of the low values during the low water level period. The large SO2/H2S ratio in the lake gas is due to the reaction consuming H2S to form elemental sulfur in the lake water (Shinohara et al. 2015b). The fumarolic gas SO2/Cl ratio does not show clear temporal variation with an average of 10 ± 4 with excluding an outlier data on December 5, 2011 (Fig. 3d). The lake gas SO2/Cl ratio is commonly larger than the fumarolic gas, except for the low values during the low water level period. The large SO2/Cl ratio is due to efficient dissolution of HCl in the lake water, and the small ratio during the low water level period is caused by evaporation of the highly Cl-concentrated lake water (Shinohara et al. 2015b; Capaccioni et al. 2016).
Fig. 3
Fig. 3

A long-term variation of the gas concentration molar ratios from 2003 to 2015. a CO2/SO2 molar ratio, b H2O/SO2 molar ratio, c SO2/H2S molar ratio, d SO2/Cl molar ratio, e H2/SO2 molar ratio and f Apparent equilibrium temperature. Circles and squares are the lake gas and the fumarolic gas compositions, respectively, and diamonds are the representative compositions during the eruptive period (Table 1, see text for details). Shadowed areas indicate the low lake volume periods

The fumarolic gas H2/SO2 ratio shows a large variation ranging from 0.01 to 0.34 (Fig. 3e). The H2/H2O ratios in high-temperature volcanic gases are controlled by the following reaction (Giggenbach 1987):
$${\text{H}}_{ 2} {\text{S}} + 2{\text{H}}_{ 2} {\text{O}} = 3{\text{H}}_{2} + {\text{SO}}_{2} .$$
(1)
Apparent equilibrium temperatures (AET; Matsuo 1960; Ohba et al. 1994; Shinohara et al. 2011) can be calculated for reaction (1) by the following equation (Table 1; Fig. 3f):
$$K_{\left( 1 \right)} \left( T \right) = \frac{{f_{{{\text{SO}}_{2} }} \times f_{{{\text{H}}_{2} }}^{3} }}{{f_{{{\text{H}}_{2} {\text{S}}}} \times f_{{{\text{H}}_{2} {\text{O}}}}^{2} }} \approx \frac{{X_{{{\text{SO}}_{2} }} \times X_{{{\text{H}}_{2} }}^{3} }}{{X_{{{\text{H}}_{2} {\text{S}}}} \times X_{{{\text{H}}_{2} {\text{O}}}}^{3} }} \times P_{\text{t}} ,$$
(2)
where K is the equilibrium constant, f is the fugacity, X is the mole fraction, and Pt is the total pressure. Equation (2) can be simplified to the second equations by assuming that fugacity coefficient ratios are unity and water fugacity is equal to total pressure. AETs of the fumarolic gases under an atmospheric pressure condition are calculated to range from 400 to 1000 °C (Table 1, Fig. 3f). AETs for reaction (1) commonly agree with the measured temperature at high-temperature fumaroles, such as > 700 °C (Ohba et al. 1994; Shinohara et al. 2002). The high estimated AETs are a good proxy of fumarolic temperature and the high estimated temperatures suggest that the fumarolic gas is a direct discharge of a magmatic gas (Shinohara et al. 2015b). The AET was not calculated for the lake gases, since the SO2/H2S ratios of the lake gases are largely changed by the sulfur forming reaction in the lake water.

Eruptive period

On January 12, February 25 and March 17, 2015, the measured plume compositions are quite variable during each observation. The large scatter is likely due to temporal variation of the source gas composition or of contribution from different sources. In order to quantify the temporal variation, the gas concentration ratios are obtained by comparing peak concentration of each species at the time of major SO2 concentration peak (Additional file 2: Tables S1–S3). Variation of the gas concentration ratios at the peaks are shown in Figs. 4, 5 and 6, for January 12, February 25, and 17 March, 2015, respectively. Waveforms of the infrasonic for these 3 days observed at the crater rim are shown in Fig. 7, in which occurrences of explosions with peak amplitude > 50 Pa are indicated by red circles. On January 12, 2015, an intensive ash emission continued during the measurement (Fig. 1c). The ash emission was accompanied by frequent explosions, and the infrasonic amplitude was continuously large (Fig. 7a). The CO2/SO2 and SO2/H2S ratios have large ranges from 1 to 8 and from 3 to 300, respectively (Fig. 4a, d). During the early measurement by 10:20, the CO2/SO2 ratios are split into two values of two and eight. Then the ratio shows gradual decrease from eight to two after 10:55 (Fig. 4a). The SO2/H2S ratios show a similar variation; two values of about five and > 15 are observed before 10:20, and the ratios increased from about five to 100 after 10:55 (Fig. 4b). The H2O/SO2 and H2/SO2 ratios are 30 ± 13 and 0.12 ± 0.03, respectively, and do not show clear temporal variation (Fig. 4c, d). The composition variation does not seem to correlate with the occurrence of explosions.
Fig. 4
Fig. 4

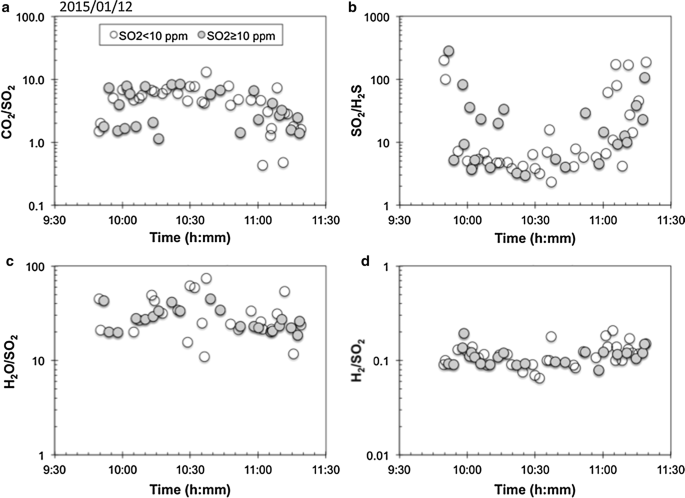

A short-term variation of gas concentration molar ratios on 12 January 2015. a CO2/SO2 molar ratio, b H2O/SO2 molar ratio, c SO2/H2S molar ratio, and d H2/SO2 molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 10 ppm, and white circles are ratios of low concentration peaks of SO2 < 10ppm

On February 25, 2015, a moderate ash emission continued during the measurement conducted at 1 km northeast from the crater (site 8 in Fig. 1b). Because of the distance from the crater, the plume was diluted with the air with the maximum SO2 concentration of 5.8 ppm, and a smaller number of peaks were quantified with lower quality than in January (Additional file 2: Table S2). The amplitude of infrasonic waves was relatively small until 13:05, then increased later with explosions with every 5–10 min (Fig. 7b). However, there were no changes in the appearance of the ash emission as the surficial phenomenon. The estimated ratios show a large scatter and do not show clear temporal variation (Fig. 5). The compositions obtained for peaks with relatively high concentration (> 4 ppm SO2) are plotted in the same range of the ratios in January.
Fig. 5
Fig. 5

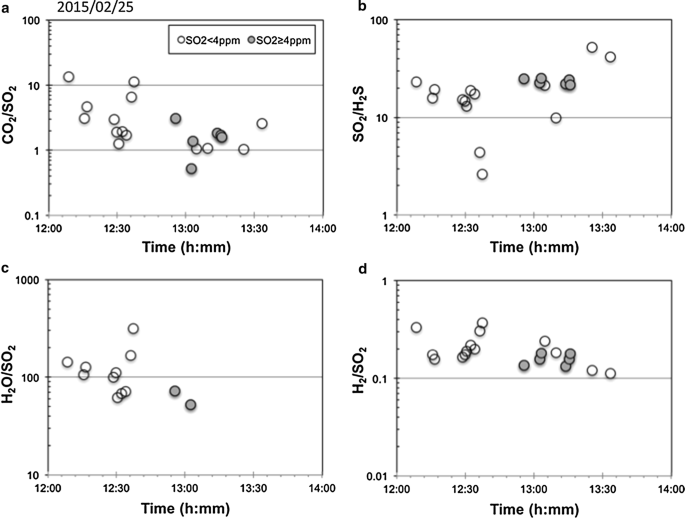

A short-term variation of gas concentration molar ratios on 25 February 2015. a CO2/SO2 molar ratio, b H2O/SO2 molar ratio, c SO2/H2S molar ratio, and d H2/SO2 molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 4 ppm, and white circles are ratios of low concentration peaks of SO2 > 4 ppm

On March 17, 2015, an ash eruption continued during the measurement. Intensity of the ash eruption was moderate at the beginning of the measurement, and became very weak after 12:00. Fallouts of hollow salt shells were observed at the end of the measurement after 13:00 (Shinohara et al. 2018). However, no clear change in the intensity of infrasonic waves was identified regardless of the change in the ash eruption intensity (Fig. 7). The CO2/SO2 ratios show a scatter between 0.6 and 4 (Fig. 6a). The SO2/H2S ratios varied in a large range from 2 to 400. All peaks with high SO2 concentrations (> 10 ppm) have large SO2/H2S ratios (> 10), and majority of the low concentration peaks (< 10 ppm) have smaller ratios of less than 20 (Fig. 6b). The H2O/SO2 ratio scatters between 30 and 400, and the ratios of the high SO2 concentration peaks (> 10 ppm) have a constant value with an average of 70 ± 23 (Fig. 6c). The H2/SO2 ratios show a larger variation between 0.004 and 0.2 (Fig. 6d).
Fig. 6
Fig. 6

A short-term variation of gas concentration molar ratios on 17 March 2015. a CO2/SO2 molar ratio, b H2O/SO2 molar ratio, c SO2/H2S molar ratio, and d H2/SO2 molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 10 ppm, and white circles are ratios of low concentration peaks of SO2 < 10ppm

On May 19 and 20, 2015, the measurements were conducted at four different times and locations and the plume compositions are stable during each measurement (Table 1). On May 19, 2015, the plume without ashes was measured. Based on visual observation during the measurement, the plume was largely derived from the fumaroles at the southern wall with minor contribution from the main vent (Fig. 1f). On May 20, 2015, a moderate ash eruption occurred in the middle of the measurement, when the composition B on May 20, 2015, was measured (Table 1). The plume was a mixture of the main vent gas and the fumarolic gases, whose contribution are quite variable with time. The four compositions are similar but have a variation slightly larger than the typical errors, up to twice of the errors, except for the large SO2/Cl ratio measured on 19 May. This variation is similar to that obtained by the sequential measurement during the quiet period, such as on November 19, 2009. The composition obtained during the ash eruption (B on May 20, 2015, in Table 1) has larger CO2/SO2 and H2/SO2 ratios than other compositions (A and C) obtained in the same day, but the CO2/SO2 ratio is similar to that obtained on May 19, 2015, for the plume mainly derived from the fumarolic gas without eruption. The composition variation does not simply correlate with the sources (the main vent or the fumaroles) nor occurrence of the ash eruption.

Correlation among the ratios

A large scattering of the gas composition was observed during the eruptive period (Figs. 4, 5, 6), but the variation does not show a systematic correlation with surface manifestations, such as intensive explosions recognized in the records of the infrasonic waves. Among the variations, systematic correlations are observed between the CO2/SO2 and SO2/H2S ratios, in particular of the results on January 12, 2015 (Fig. 8a). Logarithm of the CO2/SO2 ratio linearly decreases from 8 to 1.5 with increase in logarithm of the SO2/H2S ratio from 3 to 30, and the CO2/SO2 is a constant at 1.6 ± 0.24 in the SO2/H2S ratio range from 30 to 300. The H2O/SO2 and H2/SO2 ratios show a larger scatter than the CO2/SO2 and are almost constant at 30 ± 8 and 0.11 ± 0.03, respectively (Fig. 8b, c). Based on the correlation, we assume the following three representative compositions to interpret the observed variation; the CO2/SO2 and SO2/H2S ratios are 8 and 3.0 for composition A, 1.6 and 30 for B and 1.6 and 300 for C (Table 1). All compositions have the same H2O/SO2 and H2/SO2 ratios of 30 and 0.11, respectively. The AETs under one atmosphere condition are calculated for the compositions A, B and C as 770 °C, 870 °C and 990 °C, respectively (Table 1). The highest estimated temperature of 990 °C agrees with the petrological estimate of the magma temperature, ranging from 1000 to 1100 °C (Saito et al. 2017).

On February 25, 2015, the high SO2 concentration peaks (> 4 ppm) have a similar composition of CO2/SO2 = 1.7 ± 0.8, SO2/H2S = 24 ± 1.5, H2O/SO2 = 63 ± 14 and H2/SO2 = 0.16 ± 0.02 (composition B’; Fig. 9; Table 1). This composition is similar to the B composition on January 12, 2015, except for the H2O/SO2 ratio. Two low SO2 peaks of small SO2/H2S ratios around 3 have the CO2/SO2 ratios around 8, that agree with the A composition in January, but have the larger H2O/SO2 and H2/SO2 ratios of 200 and 0.3, respectively, than the A composition (composition A’). The composition A’, however, has a large uncertainty due to the low SO2 concentration. The AETs under one atmosphere condition for the compositions B’ is calculated as 790 °C (Table 1).

On March 17, 2015, the data show a larger scatter on the CO2/SO2-SO2/H2S diagram but the data distribution largely overlaps with that on January 12, 2015 (Fig. 10a). The high SO2 concentration peaks (> 10 ppm) have large SO2/H2S ratios (> 10). The CO2/SO2 ratio of these peaks scatters between 0.6 and 4, and has an average value of 1.6 ± 0.8, which is similar to the composition B and C of 12 January. With decreasing SO2/H2S ratio, CO2/SO2 ratio increases up to 4, which is slightly smaller than 8 of the composition A on 12 January. The peaks with large SO2/H2S ratios (> 30) have a constant H2O/SO2 ratio at 68 ± 20, which is similar to the composition on 25 February. The H2O/SO2 ratio increases up to 200 with decreasing SO2/H2S ratio down to 3. The H2/SO2 ratio increases from 0.005 to 0.1 with decreasing SO2/H2S ratio from 300 to 30. Based on these variation, representative composition of A”, B” and C” are estimated (Table 1), however, the composition A” have a large uncertainty due to the low SO2 concentration. The AETs under one atmosphere condition of the compositions A”, B” and C” are 570 °C, 530 °C and 560 °C, respectively (Table 1).

The CO2/SO2 and SO2/H2S ratios of May 2015 are 2.9 ± 0.6 and 5.1 ± 1.3, respectively, and are similar to composition A” of March 17, 2015. The H2/SO2 ratio of March is 0.008 ± 0.003, which is smaller than the composition A” but similar to the H2/SO2 ratios with large SO2/H2S ratios such as compositions B” and C”. The AET is calculated as about 440 °C by assuming one atmosphere and H2O/SO2 = 100 (Table 1).

Discussion

Eruptive period

Composition variation on January 12, 2015

The CO2/SO2 and SO2/H2S ratios on January 12, 2015, show a systematic correlation; the data align on two straight lines among three representative compositions A, B and C (Fig. 8a). The composition variation can be caused either by mixing of gases from three sources or by temporal variation of gas composition. Even during the eruptive period, there are two degassing sources: the erupting vent and the fumarolic area on the southern crater wall (Fig. 1). However, on January 12, 2015, the crater was filled with the ash laden plume discharged by intensive ash eruption and the erupting vent seems to be a far dominant source of the plume. The rapid and large composition variation is likely reflecting the variation of degassing condition at the erupting vent.

Variation of CO2/SO2 ratio of magmatic gases is observed at various volcanoes and has often been attributed to changes in gas–magma equilibrium pressure. Because of the low solubility, CO2 starts effective exsolution at pressure higher than S, resulting in a larger CO2/S ratio in gases exsolved at a higher pressure (Burgisser et al. 2015; Edmonds 2008). Rapid variation of CO2/SO2 ratio during Strombolian or lava fountaining eruptions at Stromboli and Etna volcanoes are interpreted to be due to variation of the pressure from which the gases are derived (Allard 2010; Burton et al. 2007; La Spine et al. 2015). Increases of CO2/SO2 ratios are observed prior to paroxysm eruptions at Stromboli and Villarrica volcanoes and are attributed to supply of CO2-rich bubbled formed at a deep source (Aiuppa et al. 2009, 2017). A solubility modeling revealed that the CO2/St ratio range from 0.65 to 9.1 measured at Villarrica volcano corresponds to variation of the equilibration pressures ranging from 0.1 to 20–35 MPa (Aiuppa et al. 2017). The CO2/SO2 ratio variation from 1.6 to 8 observed on January 12, 2015, at the Nakadake crater can be caused by a similar variation in the equilibrium pressure.

The variation of the CO2/SO2 ratio is associated with a large variation of the SO2/H2S ratio from 3 to 300 (Fig. 8). A large SO2/H2S ratio is a common feature of high-temperature fumarolic gases and a small ratio is that of low-temperature gases. These features are commonly considered as a result of temperature dependence of sulfur redox reaction equilibrium (Giggenbach 1987; Symonds et al. 1994). Under an oxygen fugacity controlled by a solid-state buffer, such as QFM, temperature dependence of the H2/H2O ratio in the gas phase is small (Giggenbach 1987) and the large temperature dependence of the equilibrium constant of the reaction (1) results in a large SO2/H2S variation with temperature (Fig. 10 in de Moor et al. 2016). The decrease in SO2/H2S ratios from 300 to 3 can be caused by temperature decrease in an equilibrium magma degassing from 1000 to 770 °C under an oxygen fugacity buffer of ∆QFM + 1.3. The estimated temperature range agrees with the range of the apparent equilibrium temperatures (Table 1), and the highest temperature is a reasonable temperature of the erupting basaltic andesite magma.

The estimated temperature of 770 °C seems to be too low as a temperature of the erupting magma (Saito et al. 2017). Heterogeneous cooling of a magma can be caused by mixing with the air or hydrothermal solution, or adiabatic expansion of bubbles. The air or hydrothermal solution contains atmospheric oxygen and the mixing results in oxidation and cannot cause the observed composition variation. An adiabatic expansion of rapidly ascending bubbles can cause a significant cooling. Burgisser et al. (2012) demonstrated that an isentropic expansion of bubbles from 0.5 to 0.065 MPa can cause a cooling of 350 °C. Many explosions occurred during the measurement (Fig. 7), and the explosion can be caused by the rapidly ascending bubbles. The adiabatic bubble expansion occurs with an absence of thermal interaction with the surrounding magma. Under such a condition, oxygen fugacity of the gas cannot be controlled by the magma, as the chemical exchange is slower than the thermal exchange. The SO2/H2S variation is less likely caused by the temperature variation under a control of an oxygen fugacity buffer. Furthermore, the large CO2/SO2 variation is less likely caused by the temperature variation. Few studies on magma degassing focused on temperature dependence but mainly on pressure, magma composition or redox dependences (Burgisser et al. 2015; Moretti et al. 2003; Witham et al. 2012). In general, temperature dependences of volatile solubility in a silicate melt are rather minor than their pressure and composition dependence (e.g., Holloway and Blank 1994).
Fig. 7
Fig. 7

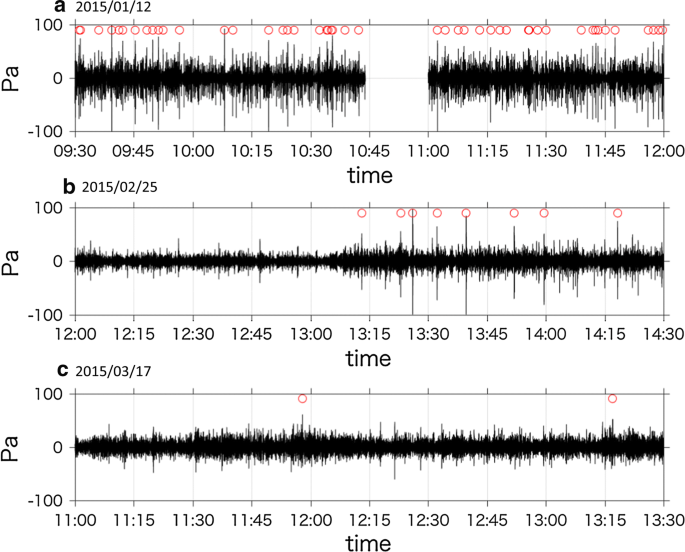

Infrasonic waveforms observed at the location 4 on Fig. 1. Red circles indicate explosions with peak pressures of > 50 Pa. Data-gap of 15 min was due to works at the station

A closed-system cooling of a gas phase also decreases SO2/H2S ratio by temperature dependence of reaction (1). The amount of H2S which can be produced by the equilibrium shift is limited by the amount of H2 in the original gases. Reaction (1) consumes three moles of H2 to form one mole of H2S. The closed-system cooling of the gases with H2/SO2 of 0.1 cannot decrease the SO2/H2S ratio from 300 to 3. Consumption of all H2 (0.1 mol) in an original gas with 1 mol of SO2 produces 0.033 mol of H2S, resulting in the SO2/H2S ratio decrease from 300 to 28 and the H2/SO2 decrease from 0.1 to zero. The decrease in SO2/H2S by reaction (1) should be associated with the H2/SO2 decrease. The constant H2/SO2 ratio indicates an absence of the simple closed-system cooling.

Variation of the gas–magma equilibrium pressure can cause a variation of the SO2/H2S ratio. Under a condition of the gas–magma equilibrium, temperature and oxygen fugacity is likely constant, where the SO2/H2S ratio is proportional to a reciprocal of total pressure (Eq. 2). A pressure variation from 0.1 to 20–35 MPa is suggested to cause the CO2/SO2 ratio variation from 1.6 to 8. The SO2/H2S ratio decreases from 300 to 3 can be caused by a two orders of magnitude increase in the equilibrium pressure, e.g., from 0.2 to 20 MPa. The CO2/SO2 ratio shows the negative correlation with the SO2/H2S ratio in SO2/H2S ratio range from 3 to 30, but the CO2/SO2 ratio is almost constant in the larger SO2/H2S ratio range from 30 to 300 (Fig. 8). The different correlation can be due to different pressure dependences of the CO2/SO2 and SO2/H2S ratios. The linear pressure dependence on the SO2/H2S ratio (Eq. 2) implies that the SO2/H2S ratios of 3, 30 and 300 of the compositions A, B and C can be created at the equilibrium pressures of 0.2, 2.0 and 20 MPa, respectively. In contrast, a logarithm of the CO2/S ratio is proportional to the pressure (Fig. 7 in Aiuppa et al. 2017). The pressure decrease from 2.0 to 0.2 MPa causes only a small decrease in the CO2/SO2 ratio from 1.7 to 1.5. The small difference cannot be quantified by the present method, and the CO2/SO2 ratios are judged as a constant under these conditions. At these pressures, the AETs of the compositions A, B and C are calculated as a common temperature of 990 °C for the three compositions.
Fig. 8
Fig. 8

Correlation of gas concentration molar ratios on 12 January 2015. a correlation of CO2/SO2 molar ratio with SO2/H2S molar ratio, b correlation of H2O/SO2 molar ratio with SO2/H2S molar ratio, and c correlation of H2/SO2 molar ratio with SO2/H2S molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 10 ppm, and white circles are ratios of low concentration peaks of SO2 < 10ppm. Red, blue and green circles indicate the compositions A, B and C, respectively

Kinetics of gas reactions are faster than those of gas–magma reactions and reactions among gas species will remain in thermodynamic equilibrium during a rapid bubble ascent in magmas even under a condition causing the adiabatic cooling (Burgisser et al. 2012). By a pressure decrease, reaction (1) proceeds to the right side and the SO2/H2S and H2/H2O ratios increase. The gases exsolved at a high pressure will change composition by the rapid ascent of bubbles and will have a composition in equilibrium under the atmospheric pressure condition at the surface. Under the atmospheric pressure (0.1 MPa), the AETs of the compositions A, B and C are 770 °C, 870 °C and 990 °C (Table 1). The difference in the AETs can be due to the adiabatic cooling of the gas phase by decompression; the composition A gas equilibrated with the magma at 20 MPa and 990 °C cooled to 770 °C at 0.2 MPa, and the composition B gas equilibrated with the magma at 2.0 MPa and 990 °C cooled to 870 °C at 0.2 MPa. The constant H2O/SO2 ratio of 30 may correspond to the ratio of the bulk magmatic gas discharged on January 12, 2015.

Composition variation during the later eruptive period

The CO2/SO2 and SO2/H2S ratios of February 25 and March 17, 2015, show a larger scatter but are plotted along the correlation observed on January 12, 2015 (Figs. 8, 9, 10). The compositions B’, B” and C” are similar to the composition B or C (Table 1; Fig. 11a), suggesting these gases are derived from similar conditions of those on 12 January. The composition A” of March 17, 2015, has a smaller CO2/SO2 ratio of 4 compared with that of 8 on January 12, 2015. The pressure dependence of the CO2/S ratio (Aiuppa et al. 2017) suggests that the twice smaller CO2/SO2 ratio can be caused by a twice lower equilibrium pressure. The lower equilibrium pressure should also cause a larger SO2/H2S ratio of the gas phase, that is not the case on March 17, 2015. This discrepancy might be, at least partly, due to a larger estimation error of the CO2/SO2 and SO2/H2S ratios of the composition A” than of the composition A, because of the low plume concentrations (Fig. 10). The CO2/SO2 and SO2/H2S ratios in May 2015 are 2.9 ± 0.6 and 5.1 ± 1.3, respectively (Table 1; Fig. 11a). These gases have intermediate compositions of composition A” and B” on March 17, 2015, and are likely in the gas–magma equilibrium under intermediate pressures between 2 and 10 MPa.
Fig. 9
Fig. 9

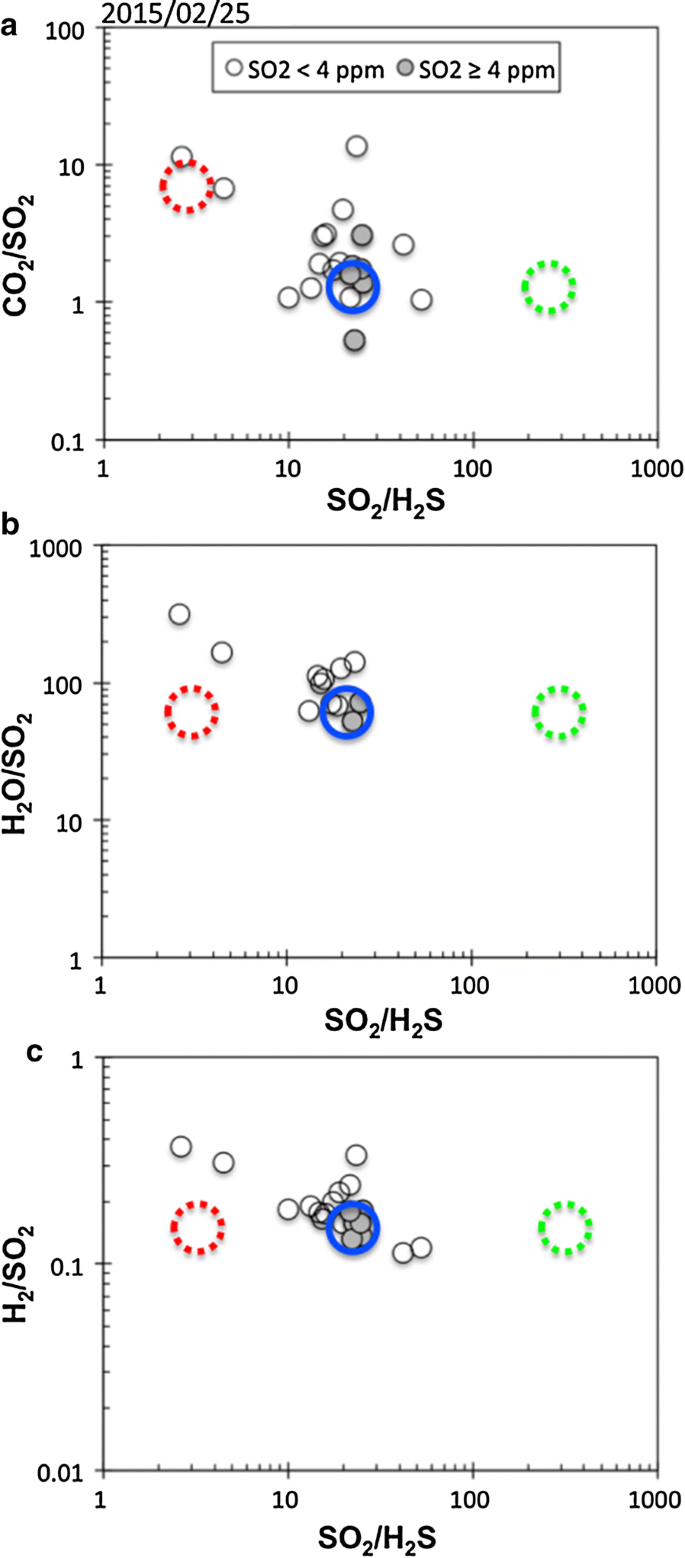

Correlation of gas concentration molar ratios on 25 February 2015. a correlation of CO2/SO2 molar ratio with SO2/H2S molar ratio, b correlation of H2O/SO2 molar ratio with SO2/H2S molar ratio, and c correlation of H2/SO2 molar ratio with SO2/H2S molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 4 ppm, and white circles are ratios of low concentration peaks of SO2 > 4 ppm. Blue circle indicates the composition B’, and red and green dotted circles indicate the compositions A and B, respectively

Fig. 10
Fig. 10

Correlation of gas concentration molar ratios on 17 March 2015. a correlation of CO2/SO2 molar ratio with SO2/H2S molar ratio, b correlation of H2O/SO2 molar ratio with SO2/H2S molar ratio, and c correlation of H2/SO2 molar ratio with SO2/H2S molar ratio. Grey circles show ratios obtained for high concentration peaks of SO2 ≥ 10 ppm, and white circles are ratios of low concentration peaks of SO2 < 10ppm. Red, blue and green circles indicate the compositions A”, B” and C”, respectively

Fig. 11
Fig. 11

Variation of the representative compositions of A series (SO2/H2O = 3; red), B series (SO2/H2S = 30; blue) and C-series (SO2/H2S = 300; green). a CO2/SO2 molar ratio, b H2O/SO2 molar ratio, and d apparent equilibrium temperature

The H2/SO2 ratio of the composition B’ on 25 February is similar to that of the composition B on 19 January, resulting in a similar but slightly lower AET of 790 °C than that of the composition B (Table 1). The composition B’ can be explained by adiabatic cooling of the gas phase equilibrated with the magma at 2 MPa, similar to composition B. The slightly lower AET is due to a larger H2O/SO2 ratio of composition B” (60) than that of composition B (30; Fig. 11b). The larger H2O/SO2 ratio can be due to a mixing of an external water, such as a hydrothermal solution at shallow depth surrounding the erupting vent, suggested by fallouts of salt materials (Shinohara et al. 2018). The salt fallouts were observed during the eruptive period of the Nakadake crater, and have a round hollow shell structure and compositions similar to the crater lake water. These features suggest that the salts are formed by drying droplets of a hydrothermal solution in the erupting plume, implying distribution of a hydrothermal solution near surface surrounding the erupting vent (Shinohara et al. 2018).

The H2/SO2 ratios of the composition B” and C” on 17 March are much smaller than those in the early stage, results in lower AETs (Table 1; Fig. 11c). The composition A” has a H2/SO2 ratio of 0.1, similar to those of the early stage, but has a larger H2O/SO2 ratio of 400, resulting in a low AET of 510 °C, similar to the AETs of the compositions B” and C”. The chemical shift of reaction (1) in a gas phase by cooling can explain the difference of the compositions B and B”, but not of C and C”. If the H2/SO2 ratios of compositions B and C decrease from 0.1 to 0.01, SO2/H2S ratios decrease from 30 to 16, and from 300 to 30, respectively. If the composition C” is also derived from a magma degassing at a low pressure, similar to the composition C, an additional oxidation process may be required for the composition C”, such as a mixing with the air. The H2O/SO2 ratios of the compositions A”, B” and C” are larger than those on January 12, 2015 (Fig. 11b), and can be due to a mixing of a hydrothermal solution, as suggested for the composition B’. The low AETs on March 17, 2015, can be partly due to cooling by the mixing of a hydrothermal solution. The shallow hydrothermal solution may contain oxygen derived from the air and can contribute oxidation of the gas components. Further evaluation, however, cannot be made with the present limited information.

The H2/SO2 ratios in May 2015 are similarly low to those of the compositions B” and C”. H2O/SO2 ratios were not quantified in May because of a larger fluctuation of the background H2O concentration in the atmosphere. By assuming the H2O/SO2 = 100, AETs are calculated as 430–440 °C, which are even lower than those on 17 March (Fig. 11c). The low AETs suggest further cooling of the gases by an increase in the hydrothermal contribution.

Degassing process during the eruptive period

The Nakadake is a persistently degassing volcanic cone, which discharges 200–600 t/d of SO2 even during the quiet period (Miyabuchi and Terada 2009; Shinohara et al. 2015b). The persistent degassing can be caused by the conduit magma convection (Kazahaya et al. 1994; Shinohara 2008). The conduit magma convection is likely the mechanism of the persistent degassing at the Nakadake cone. This hypothesis is supported by observation of clear glass shards in the lake sediment and in the products of small eruptions from the lake, implying degassing of a molten magma near surface (Miyabuchi et al. 2008; Miyabuchi and Terada 2009). The large SO2 fluxes of 1000–3000 t/d were measured during the eruptive period (Fukuoka Regional Headquarters, Japan Meteorological Agency 2016). The erupting magma contributes only a small portion of the SO2 degassing and the major amount is derived by the conduit magma convection. 2 × 106 tons of ash was discharged during the early 70 days of the eruptive period (Yokoo and Miyabuchi 2015), and the total SO2 discharged during the same period is calculated as 1.4 × 105 tons, taking an average of 2000 t/d. The S content of melt inclusions in andesitic scoria erupted on November 29, 2014, ranges from 0.008 to 0.036 wt% (Saito et al. 2017). Using the maximum S content, we can calculate the minimum estimate of the magma which supplied the SO2 as 2 × 108 tons, that is 100 times larger than the amount of the erupted magma. Dissolved volatiles in the erupted magma contribute only 1% of the gas emission, and 99% of the gases are derived from a magma convecting in the conduit or by bubbles already existed in a magma chamber where the melt inclusions formed.

Variation of the gas composition observed on January 12, 2015, is caused by a variation of gas–magma equilibrium pressure, such as ranging from 20 to 0.2 MPa (Fig. 12a). During magma ascent, bubbles form and grow with decompression. In the early stage of bubble formation, the gas phase is likely in chemical equilibrium with the magma because of rapid chemical reactions under a magmatic temperature. Bubbles ascend relative to the magma by their buoyancy, and the bubble ascent rate increases with the bubble size. Rapid ascent of a large bubble reduces chemical interaction of the gas phase with the magma and finally loses the interaction. The gas–magma equilibrium pressure estimated from the gases discharged to the surface implies a pressure where the gas phase lost chemical interaction with the magma. Thermal diffusivity is larger than chemical diffusivity and thermal interaction will continue even after cessation of chemical interaction, but will be stopped by a very large bubble ascent rate, which causes cooling by the adiabatic expansion of bubbles. Lower AETs are obtained for the composition with higher equilibrium pressures. A high equilibrium pressure implies rapid bubble ascent that started at the high pressure that likely causes a large bubble ascent rate, resulting in a large degree of the adiabatic cooling. During the early measurement by 10:20 on January 12, 2015, the CO2/SO2 ratios are split into two values of two and eight (Fig. 4a). The two distinct ratios rather than scattering between the two ratios suggest two distinct bubble sources at different depth rather than a bubble ascent from variable depth.
Fig. 12
Fig. 12

Schematic diagrams showing the mechanism of the composition variation observed during the eruptive period. a On 12 January 2015, gases discharge during intensive ash eruptions are derived from a wide range of pressure from 20 to 0.2 MPa, causing a rapid and large variation in gas composition, in particular of CO2/SO2 and SO2/H2S ratios. The fumarolic gases likely be derived from gases separated at a high pressure. b On 17 March, the rapid and large variation of gas composition indicates bubble ascent from a wide range of pressure. But decrease in the composition range suggests decrease in the maximum degassing pressure and decrease in contribution of bubbles formed at a high pressure. c On May 2015, the stable gas composition implies degassing of a well-mixed magma under a stable condition

The gas–magma separation at near atmospheric pressure is suggested from the composition C and can be caused by degassing at the top of the convecting magma in a conduit. The bubbles ascend through the convecting magma column and caused the composition variation. The rapid expansion of bubbles near surface may cause explosions. However, we could not find a clear correlation between observation of high CO2/SO2 ratios and occurrence of explosions. The plume which we measured reached to the crater rim with drifting by the wind, and the observed composition may not correspond to composition of each bubble but is likely an average composition of multiple bubbles and surface degassing.

The variations of CO2/SO2 and SO2/H2S ratios of February 25 and March 17, 2015, are modeled as the result of gas emission from various gas–magma equilibrium pressures by assuming that those ratios are similar to the representative compositions on January 12, 2015. On 25 February and 17 March, the large CO2/SO2 and small SO2/H2S ratios are obtained only with low concentration plumes (Figs. 9, 10). Plume concentration is not a direct measure of gas flux but tends to be small when flux is small. The low plume concentration suggests that contribution of bubbles with a larger equilibrium pressure decreased after January 12, 2015. The smaller CO2/SO2 ratio of the composition A” compared to the composition A suggests that the maximum equilibrium pressure is smaller on 17 March than on 12 January (Fig. 12b). The H2/SO2 and H2O/SO2 ratios increased and the AET decreased with time (Fig. 11), and these changes can be caused by increase in near-surface mixing of a hydrothermal solution with time.

The CO2/SO2 and SO2/H2S ratios of May 19 and 20, 2015, indicate that the gases equilibrated with the magma at a constant and intermediate pressure are discharged. The compositions with the low equilibrium pressure (e.g., compositions C, C’ and C”) were not observed in May, suggesting that the pressure at the top of the convecting magma increased to the intermediate pressure. We do not have a clear model to explain the mechanism of the pressure increase at the top of the magma column. The pressure increase at the top of the convecting magma column will reduce gas volume proportion in the magma, then reduce fragmentation of magmas by bubble expansion and may lead to cessation of the ash eruption soon after.

Volcanic gases are discharged not only from the main vent but also from the fumaroles at the southern crater rim (Fig. 2). The fumarole plumes are often pale transparent in contrast to the white opaque plume of the main vent, indicating a higher temperature of the fumarolic gas than the main vent gas. A high temperature at the source prevents water condensation in a plume by a mixing with the air and often forms a transparent plume (Matsushima and Shinohara 2006). Size of the plumes derived from the fumaroles look smaller than that from the main vent but in the same order of magnitude. The observed composition variation likely reflects mainly what occurred at the main vent but also includes contribution of the fumarolic gases. The gases equilibrated as low pressures (the compositions C and C”) are less likely discharged from the fumaroles but likely from the main vent where near surface distribution of the magma is inferred from the continuous ash eruption with frequent Strombolian activity. The gases equilibrated at a high pressure (e.g., the composition A, and A”) can leak from the magma conduit to the surroundings to be discharged at the fumaroles (Fig. 12). A significant cooling of gas temperature from the magma temperature was estimated for the composition A and is attributed to the adiabatic expansion of bubbles. The gas ascent to the fumaroles, however, less likely causes the significant cooling, because the gas ascent through channels is an isenthalpic process, whereas the free expansion of bubbles in a magma is isentropic process. At present, contribution of the fumarolic gases to the observed composition is not clear. We need separate measurement of the plumes derived from the two sources by applying a drone or FT-IR (Allard et al. 2005; Mori et al. 2016).

The large SO2 fluxes of 1000–3000 t/d are measured during the eruptive period but similarly large fluxes of 1000–2000 t/d are measured during the pre-eruptive and post-eruptive periods, implying that the large SO2 flux, therefore the large magma convection rate, is not a direct cause of the eruptions. The volcanic gas compositions measured during the eruptive period showed large and rapid variation, in particular the CO2/SO2 and SO2/H2S ratios varied from 1.5 to 8, and from 4 to 100, respectively, within a few minute (Fig. 4a, b). The composition variation is interpreted as the result of degassing at variable pressure, likely caused by rapid ascent of large bubbles. Recent gas composition measurements during Strombolian and lava fountaining eruptions at Stromboli and Etna volcanoes demonstrated that these eruptions are driven by rapid ascent of bubbles formed at a large depth (Aiuppa et al. 2009; Allard et al. 2005; Burton et al. 2007). Similarly the ash eruptions at the Nakadake volcano can be driven by the rapid bubble ascent. The composition variation suggesting the large degassing pressure variation becomes less significant with time and disappeared in May, 2015, just before the end of the eruptive activity. This temporal variation is consistent with the idea of bubble-driven eruption. Occurrence of each explosion, however, did not directly correlate with the rapid composition variation. If the eruption is driven by a bubble-rich magma, bulk gas composition should become more CO2-rich with increasing eruption intensity. However, we could not estimate an average composition of gases on each day and cannot evaluate variation of bulk gas composition, such as a correlation of the CO2/SO2 ratio of the bulk gas and intensity of the eruptive activity. We need further detailed data set to conclude the bubble-driven eruption at the Nakadake crater.

Degassing process during the quiet period

During the quiet period, the lake gas and the fumarolic gas have different and variable compositions (Fig. 3). The composition differences and variation might be caused by differentiation between these gases and with the crater lake water. HCl and H2S in the lake gas are largely controlled by entrapment by the crater lake water. The CO2/SO2 ratio of these gases is contrasting; the lake gases have smaller ratios of 0.34–2.6 than those of fumarolic gases of 1.7–10 with small overlap. The CO2/SO2 ratios of these gases show a symmetric variation with a central value of about two (Fig. 3a). These features indicate that these gases are derived from a single source with the CO2/SO2 ratio of two. Shinohara et al. (2015b) interpreted that the fumarolic gas is a mixture of a magmatic gas and a CO2-rich vapor separated from an underground hydrothermal system, and the gases remained in a liquid phase in the hydrothermal system are the source of the lake gases. A wide range of the CO2/SO2 ratios was observed during the eruptive period and is modeled as the result of variable degassing pressure. The variable degassing pressure during eruptions might be caused by rapid ascent of bubbles from variable depth. The observed range of the CO2/SO2 ratio during the eruptive periods is similar to that of the lake and the fumarolic gases during the quiet period. The wide range of the CO2/SO2 ratios observed during the quiet period can be also caused by variation of the degassing pressure. The fumarolic gas with the large CO2/SO2 ratio can be derived by a gas leakage from a magma at a great depth, and the lake gas with the small CO2/SO2 ratio is the gases discharged by a low-pressure degassing of the magma which already lost the CO2-rich bubbles to the fumarolic gases. Variation of the gas–magma separation to the fumarolic gases can cause the temporal variation of the CO2/SO2 ratios.

Similar CO2/SO2 ratios were measured for the lake and fumarolic gases in October 2004 and October 2008 (Fig. 3a). In these cases, the same magmatic gas separated from the same depth may be supplied to both the lake and fumarolic gases. The composition difference of these gases is mainly caused by low-temperature differentiation in the lake, and the fumarolic gas likely retains features of the magmatic gas composition. The H2O/SO2 ratios of the fumarolic gas do not show clear temporal variation with an average of 53 ± 22 (Fig. 3b). This value is larger but with some overlap with the ratios of 30 ± 13 obtained during the most active eruptive period on January 12, 2015. The central value of the lake and fumarolic gas CO2/SO2 ratios is two, and likely represents the bulk gas composition discharged from the volcano during the quiet period. This value is similar to that observed in May 2015 when a single composition was observed. The similarity of the bulk gas compositions implies a small variation of volatile contents in the magmas supplied during the quiet period and the eruptive period, and does not agree with the idea that the ash eruption was driven by a bubble-rich magma. However, the similarity of the bulk gas CO2/SO2 ratio during the active eruptive period was not confirmed because of the lack of the bulk composition estimate during the most active eruptive period.

Conclusion

Variation of volcanic gas composition was measured by Multi-GAS during the eruptive period in 2014–2015 and during the quiet period preceding the eruption. Volcanic gas composition during the eruptive period is characterized by its rapid and large variation. On January 12, 2015, gas compositions were measured during the intensive ash eruption with intermittent Strombolian activity. The CO2/SO2 and SO2/H2S ratios varied rapidly during a few hours of the measurements, within the ranges from 1.5 to 8 and from 3 to 300, respectively. The variation shows a well-constrained correlation between two end-member compositions; the one is CO2/SO2 = 8 and SO2/H2S = 3 and the other is CO2/SO2 = 1.5 and SO2/H2S = 300. These contrasting compositions can be caused by a large variation of the gas–magma equilibrium pressure ranging from 0.2 to 20 MPa. The rapid and large composition variation is likely the results of frequent bubble ascent from variable depth. The AETs calculated at one atmosphere range from 770 to 990 °C. The high AETs are similar to that of magma and are consistent with degassing from the erupting magma. The low AETs are calculated for the gases with larger CO2/SO2 ratios and are attributed to cooling by adiabatic expansion of bubbles caused by rapid ascent. The rapid and large variation of the CO2/SO2 and SO2/H2S ratios were observed also in the later period in February and March, but the maximum CO2/SO2 ratio decreased to 4 on March 17, 2015, suggesting decrease in the maximum degassing pressure. Increase in a mixing of hydrothermal solution to the main vent plume is suggested based on the H2O/SO2 ratio increase and the AETs decrease from January to March. On May 19 and 20, 2015, the last day of the eruptive period, composition variation was not observed during the measurements and a single gas composition with intermediate CO2/SO2 and SO2/H2S ratios of 3 and 5, respectively, were obtained.

Conditions of volcanic gas degassing during the eruptive period is interpreted as follows based on the volcanic gas composition data. During the intensive ash eruption, a rapid and large gas composition variation is caused by frequent ascent of bubbles from various depth. The bubble ascent from various depth continued during the eruptive period, but contribution of the bubbles derived from the high pressure decreased with time. Contribution of a hydrothermal solution also increased. At the end of the eruptive period, degassing condition becomes stable without contribution of bubbles from various depth, resulting in a stable volcanic gas composition. The correlation between evolution of eruptive activities and gas supply conditions is consistent with the idea of an eruption driven by CO2-rich bubbles supplied from a great depth that has been proposed for Strombolian and lava fountaining eruptions. However, some data do not clearly support this idea, such as the lack of time correspondence between each explosion with the time of large CO2/SO2 ratio peaks. Average CO2/SO2 ratios also did not show significant difference between those during the eruptive period and the quiet period. Further investigations are necessary to test this hypothesis for the ash eruption.

Abbreviations

AET:

Apparent equilibrium temperature

FT-IR:

Fourier transform infrared absorption spectroscopy

QFM:

Quartz–Fayalite–Magnetite

Declarations

Authors’ contributions

HS and RK performed Multi-GAS measurements, and AY performed geophysical and visual observation of the volcanic activity. All authors contributed to discussion and preparation of the manuscript. All authors read and approved the final manuscript.

Acknowledgements

We thank Drs. T. Kagiyama, T. Ohkura, M. Utsugi, S. Yoshikawa, H. Inoue, S. Komori, Y. Miyabuchi, N. Geshi and H. Hoshizumi for their support during the fieldwork, and Ms. M. Someya for sample analyses.

Competing interests

The authors declare that they have no competing interests.

Funding

This work is partially supported by Grants-in Aid for Scientific Research (KAKENHI) 22340130, 25287115 and 17H02955 from the Japan Society for the Promotion of Science (JSPS) to HS.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Geological Survey of Japan, National Institute of Advanced Industrial Science and Technology, 1-1-1 Higashi, Tsukuba Ibaraki, 305-8567, Japan
(2)
Aso Volcanological Laboratory, Kyoto University, Sakanashi, Aso Kumamoto, 869-2611, Japan

References

  1. Aiuppa A, Inguaggiato S, McGonigle AJS, O’Dwyer M, Oppenheimer C, Padgett MJ, Rouwet D, Valenza M (2005) H2S fluxes from Mt. Etna, Stromboli, and Vulcano (Italy) and implications for the sulfur budget at volcanoes. Geochim Cosmochim Acta 69:1861–1871View ArticleGoogle Scholar
  2. Aiuppa A, Federico C, Giudice G, Giuffrida G, Guida R, Gurrieri S, Liuzzo M, Moretti R, Papale P (2009) The 2007 eruption of Stromboli volcano: insights from real-time measurement of the volcanic gas plume CO2/SO2 ratio. J Volcanol Geotherm Res 182:221–230View ArticleGoogle Scholar
  3. Aiuppa A, Bitetto M, Francofonte V, Valasquez G, Parra C, Giudice G, Liuzzo M, Moretti R, Moussallam Y, Peters N, Tamburello G, Vaderrama O, Curtis A (2017) A CO2-gas precursor to the March 2015 Villarrica volcano eruption. Geochem Geophys Geosys. https://doi.org/10.1002/2017GC006892 View ArticleGoogle Scholar
  4. Allard P (2010) A CO2-rich gas trigger of explosive paroxysms at Stromboli basaltic volcano, Italy. J Volcanol Geotherm Res 189:363–374View ArticleGoogle Scholar
  5. Allard P, Burton M, Muré F (2005) Spectroscopic evidence for a lava fountain driven by previously accumulated magmatic gas. Nature 433:407–410View ArticleGoogle Scholar
  6. Burgisser A, Oppenheimer C, Alletti M, Kyle PR, Scaillet B, Carrol MT (2012) Backward tracking of gas chemistry measurements at Erebus volcano. Geochem Geophys Geosyst. https://doi.org/10.1029/2012GC004243 View ArticleGoogle Scholar
  7. Burgisser A, Alletti M, Scaillet B (2015) Simulating the behavior of volatiles belonging to the C–O–H–S system in silicate melts under magmatic conditions with the software D-compress. Comput Geosci 79:1–14View ArticleGoogle Scholar
  8. Burton M, Allard P, Muré F, La Spina A (2007) Magmatic gas composition reveals the source depth of slug-driven Strombolian explosive activity. Science 317:227–230View ArticleGoogle Scholar
  9. Capaccioni B, Rouwet D, Tassi F (2016) HCl degassing from extremely acidic crater lakes: preliminary results from experimental determinations and implications for geochemical monitoring. In: Ohba T, Capaccioni B, Caudron C (eds) Geochemistry and geophysics of active volcanic lakes, vol 427. Geological Society of London Spe Publ, London. https://doi.org/10.1144/sp437.12 View ArticleGoogle Scholar
  10. de Moor M, Aiuppa A, Avard G, Welmann H, Dunbar N, Muller C, Tamburello G, Giudice G, Liuzzo M, Moretti R, Conde V, Galle B (2016) Turmoil at Turrialba volcano (Costa Rica): degassing and eruptive processes inferred from high-frequency gas monitoring. J Geophys Res Solid Earth. https://doi.org/10.1002/2016JB013150 View ArticleGoogle Scholar
  11. Edmonds M (2008) New geochemical insights into volcanic degassing. Philos Trans R Soc A 366:4559–4579View ArticleGoogle Scholar
  12. Fukuoka Regional Headquarters, Japan Meteorological Agency (2016) Volcanic activity of Asosan volcano—October 2014–February 2015 (in Japanese). Reports of Coordinating Committee for Prediction of Volcanic Eruption, pp 166–186. http://www.data.jma.go.jp/svd/vois/data/tokyo/STOCK/kaisetsu/CCPVE/Report/120/kaiho_120_23.pdf
  13. Giggenbach WF (1987) Redox processes governing the chemistry of fumarolic gas discharges from White Island, New Zealand. Appl Geochem 2:143–161View ArticleGoogle Scholar
  14. Giggenbach WF (1996) The origin and evolution of fluids in magmatic-hydrothermal systems. In: Barnes HL (ed) Geochemistry of hydrothermal ore deposits, 3rd edn. John Wiley, New York, pp 737–796Google Scholar
  15. Holloway J, Blank J (1994) Application of experimental results to C–O–H species in natural melts. Rev Mineral 30:187–230Google Scholar
  16. Ikebe S, Watanabe I, Miyabuchi Y (2008) The sequence and style of the 1988–1995 eruptions of Nakadake Aso volcano, Kyushu, Japan. Bull Volcanol Soc Jpn 53:15–33 (in Japanese with English abstract) Google Scholar
  17. Kawakatsu H, Kaneshima S, Matsubayashi H, Ohminato T, Sudo Y, Tsutsui T, Yamasato H, Ito H, Legrand D (2000) Aso94: Aso seismic observation with broadband instruments. J Volcanol Geotherm Res 101:129–154View ArticleGoogle Scholar
  18. Kazahaya K, Shinohara H, Saito G (1994) Excess degassing of Izu-Oshima volcano: magma convection in a conduit. Bull Volcanol 56:207–216View ArticleGoogle Scholar
  19. La Spine A, Burton M, Allard P, Alparone S, Muré F (2015) Open-path FTIR spectroscopy of magma degassing processes during eight lava fountains on Mount Etna. Earth Planet Sci Lett 413:123–134View ArticleGoogle Scholar
  20. Marumoto K, Sudo Y, Nagamatsu Y (2017) Collateral variations between the concentrations of Mercury and other water soluble ions in volcanic ash samples and volcanic activity during the 2014–2016 eruptive episodes at Aso volcano, Japan. J Volcanol Geotherm Res 341:149–157View ArticleGoogle Scholar
  21. Matsuo S (1960) On the origin of volcanic gases. J Earth Sci Nagoya Univ 8:222–245Google Scholar
  22. Matsushima N, Shinohara H (2006) Visible and invisible volcanic plumes. Geophys Res Lett. https://doi.org/10.1029/2006GL026506 View ArticleGoogle Scholar
  23. Miyabuchi Y, Terada A (2009) Subaqueous geothermal activity of acidic crater lake revealed by lacustrine sediments, Aso volcano, Japan. J Volcanol Geotherm Res 187:140–145View ArticleGoogle Scholar
  24. Miyabuchi Y, Ikebe S, Watanabe K (2008) Geological constraints on the 2003–2005 ash emissions from the Nakadake crater lake, Aso volcano, Japan. J Volcanol Geotherm Res 178:169–183View ArticleGoogle Scholar
  25. Moretti R, Papale P, Ottonello G (2003) A model for the saturation of C–O–H–S fluids in silicate melts. In: Oppenheimer C, Pyle D, Barclay J (eds) Volcanic Degassing, vol 213. Gol Soc London Sp Pul, London, pp 81–101Google Scholar
  26. Mori T, Hashimoto T, Terada A, Kazahaya R, Shinohara H, Tanaka R (2016) Volcanic plume measurements using a UAV for the 2014 Mt. Ontake eruption. Earth Planets Space. https://doi.org/10.1186/s40623-016-0418-0 View ArticleGoogle Scholar
  27. Ohba T, Hirabayashi J, Yoshida M (1994) Equilibrium temperature and redox state of volcanic gas at Unzen volcano, Japan. J Volcanol Geotherm Res 60:263–272View ArticleGoogle Scholar
  28. Ohsawa S, Sudo Y, Mawatari H, Shimoda G, Utsugi M, Amita K, Yoshikawa S, Yamada M, Iwakura K, Onda Y (2003) Some geochemical features of Yudamari crater lake, Aso volcano, Japan. Geotherm Res Rep Kyushu Univ 12:62–65 (in Japanese with English abstract) Google Scholar
  29. Ohsawa S, Saito T, Yoshikawa S, Mawatari H, Yamada M, Amita K, Takamatsu N, Sudo Y, Kagiyama T (2010) Color change of lake water at the active crater lake of Aso volcano, Yudamari, Japan: is it in response to change in water quality induced by volcanic activity? Limnology 11:207–215View ArticleGoogle Scholar
  30. Ono K, Watanabe K (1985) Geological map of Aso volcano 1:50,000. geological map of volcanoes 4. Geological Survey of Japan (in Japanese with English abstract)Google Scholar
  31. Ono K, Watanabe K, Hoshizumi H, Ikebe S (1995) Ash eruption of the Naka-dake crater, Aso volcano, southwestern Japan. J Volcanol Geotherm Res 66:137–148View ArticleGoogle Scholar
  32. Saito G, Ishizuka O, Ishizuka Y, Hoshizumi H (2017) Volatile content of magmas of the 2014, 1989, and 1979 eruptions of Naka-dake, Aso volcano based on melt inclusion analyses. In: JpGU 2017 abstract, SVC47–P20Google Scholar
  33. Shinohara H (2005) A new technique to estimate volcanic gas composition: plume measurements with a portable multi-sensor system. J Volcanol Geotherm Res 143:319–333View ArticleGoogle Scholar
  34. Shinohara H (2008) Excess degassing from volcanoes and its role on eruptive and intrusive activity. Rev Geophys 46:RG4005. https://doi.org/10.1029/2007rg000244 View ArticleGoogle Scholar
  35. Shinohara H, Witter J (2005) Volcanic gases emitted during mild Strombolian activity of Villarrica volcano. Chile. Geophys Res Lett 32:L20308. https://doi.org/10.1029/2005GL024131 View ArticleGoogle Scholar
  36. Shinohara H, Kazahaya K, Saito G, Matsushima N, Kawanabe Y (2002) Degassing activity from Iwodake rhyolitic cone, Satsuma-Iwojima volcano, Japan: formation of a new degassing vent, 1990–1999. Earth Planets Space 54:175–185. https://doi.org/10.1186/BF03353017 View ArticleGoogle Scholar
  37. Shinohara H, Matsushima N, Kazahaya K, Ohwada M (2011) Magma-hydrothermal system interaction inferred from volcanic gas measurements obtained during 2003–2008 at Meakandake volcano, Hokkaido, Japan. Bull Volcanol 73:409–421View ArticleGoogle Scholar
  38. Shinohara H, Ohminato T, Takeo M, Tsuji H, Kazahaya R (2015a) Monitoring of volcanic gas composition at Asama volcano, Japan, during 2004–2014. J Volcanol Geotherm Res 303:199–208View ArticleGoogle Scholar
  39. Shinohara H, Yoshikawa S, Miyabuchi Y (2015b) Degassing activity of a volcanic crater lake: volcanic plume measurements at the Yudamari crater lake, Aso volcano, Japan. In: Rouwet D, Christenson B, Tassi F, Vandemeulebrouck J (eds) Volcanic lakes. Springer, Berlin. https://doi.org/10.1007/978-3-642-36833-2_8 View ArticleGoogle Scholar
  40. Shinohara H, Geshi N, Yokoo A, Ohkura T, Terada A (2018) Salt shell fallout during the ash eruption at the Nakadake crater, Aso volcano, Japan: evidence of an underground hydrothermal system surrounding the erupting vent. Earth Planets Space 70:46. https://doi.org/10.1186/s40623-018-0798-4 View ArticleGoogle Scholar
  41. Sudo Y, Tsutsui T, Nakaboh M, Yoshikawa M, Yoshikawa S, Inoue H (2006) Ground deformation and magma reservoir at Aso volcano: location of deflation source derived from long-term geodetic surveys. Bull Volcanol Soc Jpn 51:291–309 (in Japanese with English abstract) Google Scholar
  42. Symonds R, Rose W, Bluth G, Gerlach T (1994) Volcanic-gas studies: methods. results, and applications. Rev Mineral 30:1–66Google Scholar
  43. Terada A, Hashimoto T (2017) Variety and sustainability of volcanic lakes: response to subaqueous thermal activity predicted by a numerical model. J Geophys Res Solid Earth. https://doi.org/10.1002/2017JB014387 View ArticleGoogle Scholar
  44. Tsunogai U, Kaminura K, Anzai S, Nakagawa F, Komatsu DD (2011) Hydrogen isotopes in volcanic plumes: tracers for remote temperature sensing of fumaroles. Geochim Cosmochim Acta 75:4531–4546View ArticleGoogle Scholar
  45. Witham F, Blundy J, Hohn S, Lesne P, Dixon J, Churakov S, Botcharnikov R (2012) SolEx: a model for mixed COHSCl-volatile solubilities and exsolved gas compositions in basalt. Comput Geosci 45:87–97View ArticleGoogle Scholar
  46. Yokoo A, Miyabuchi Y (2015) Eruption at the Nakadake 1st crater of Aso volcano started in November 2014. Bull Volcanol Soc Jpn 60:275–278 (in Japanese) Google Scholar

Copyright

© The Author(s) 2018

Advertisement
