Comment on “Earthquake-induced prompt gravity signals identified in dense array data in Japan” by Kimura et al.

Earth, Planets and Space201971:51

https://doi.org/10.1186/s40623-019-1030-x

  • Received: 3 April 2019
  • Accepted: 20 April 2019
  • Published:

Abstract

A recent work by Kimura et al. (Earth Planets Space 71:27, 2019. https://doi.org/10.1186/s40623-019-1006-x) (hereafter referred to as K19) claims to provide the first observational constraints on the prompt elastogravity signals (PEGS) induced by an earthquake. To make their claim, the authors argue that the observations shown in Vallée et al. (Science 358:1164–1168, 2017. https://doi.org/10.1126/science.aao0746) (hereafter referred to as V17) are spurious and their modeling inaccurate. Here we show that K19’s claim is invalid because it is based on flawed data processing. In fact, K19’s analysis involves an incomplete correction of the instrument response of broadband seismic sensors, which essentially dismisses low-frequency components of the data that are critical for the detection of intrinsically low-frequency signals such as PEGS. As a direct consequence, signals are much more difficult to observe than in V17, where the low part of the signal spectrum is carefully taken into account. This deficient data processing also explains why the signal amplitude reported by K19 after stacking data from multiple stations is lower than the individual signals reported by V17. Moreover, failing to take appropriate measures of data quality control, K19 used signals from low-quality sensors to call into question the signals detected by high-quality sensors. Finally, K19 use an inadequate simulation approach to model PEGS, in which the important effect of the ground acceleration induced by gravity changes is ignored. In summary, K19 do not show any viable arguments to question the observations and modeling of PEGS presented in V17.
Graphical Abstract image

Keywords

  • Prompt elastogravity signals
  • Tohoku earthquake
  • Instrument response
  • Noise levels

Introduction

The study of prompt elastogravity signals (PEGS) generated by earthquakes is now becoming a mature research area. After the pioneering works in modeling (Harms et al. 2015; Harms 2016; Heaton 2017) and observation (Montagner et al. 2016), PEGS have been directly observed, understood and modeled in the last 2 years (Vallée et al. 2017; Juhel et al. 2018, 2019; Vallée and Juhel 2019). In particular, Vallée et al. (2017) (hereafter referred to as V17) showed that the data from regional high-quality broadband sensors recording the 2011 Tohoku earthquake exhibit the distinctive features of PEGS. A downward acceleration trend is clearly observed before the P-waves arrival (Fig. 1 of V17), and its shape and amplitude at each station is consistent with modeling that includes both the coseismic gravity perturbations and their induced elastic Earth response (Fig. 3 of V17). Juhel et al. (2019) confirmed, with a normal-mode modeling approach, the accuracy of the results of V17. Finally, PEGS observation is not restricted to earthquakes with magnitude larger than 9, as shown by recent observations made for earthquakes with magnitudes between 7.9 and 8.8 (Vallée and Juhel 2019).
Fig. 1
Fig. 1

Low-frequency deficit induced by the instrument correction made by K19. Black lines show how an acceleration signal with flat spectrum is recorded by several sensors as a function of frequency (modified from Fig. S1 of K19). The V17 correction uses the complete instrument response of the STS1 and STS2 sensors (dashed and dotted lines, respectively) while the K19 correction uses a frequency-independent counts-to-velocity conversion factor (blue and red lines, respectively. The blue and red areas (for STS1 and STS2, respectively) highlight the difference between the two procedures in the analyzed frequency range, 0.002–0.03 Hz

In this context, Kimura et al. (2019) (hereafter referred to as K19) re-examined the data of the 2011 Tohoku earthquake and claimed, to our surprise, that their study “provides the first constraint of prompt elastogravity signals by observation.” These authors argued that observations made by V17 are not confirmed by analysis of data from neighboring stations and “were only local noises,” “outliers,” or artifacts due to signal processing. Here, we will show that all the arguments of K19 against the soundness of the analysis by V17 and the claim of originality of PEGS observation made by K19 are invalid. We will focus on showing the following:
  1. 1.

    The reasons why K19 failed to confirm the observations by V17 are trivial (“Biased observational analysis made by K19” section). We show that the data processing used by K19 involves an incomplete correction for instrument response that de-emphasizes the low-frequency components of the data. However, PEGS are intrinsically low-frequency signals. The very clear signals shown by V17 are weaker or even unobservable in the analysis of K19 because the latter did not consider a suitable frequency band. In this section, we will also demonstrate the robustness of the V17 data processing.


  2. 2.

    In addition to their inappropriate data processing, K19 do not take into account station quality and erroneously discard high-quality signals on the basis of noisy signals from neighboring stations. If K19 had used appropriate data processing and quality control criteria, their study would have simply confirmed the V17 observations.


  3. 3.

    The claims of originality by K19 are invalid because they are based on inappropriate data processing. Failing to detect PEGS on data from individual stations (with incorrect processing), K19 showed that PEGS are detected after stacking data from multiple stations. But by doing so, the detection significance of their stack remains lower than even only one of the individual signals shown in V17. Based on this stacking of incorrectly processed data, K19 incorrectly claimed their result provides the first reliable PEGS observation.


  4. 4.

    Inappropriate data processing also misled K19 into questioning the PEGS modeling made in V17. The argument put forward by K19 is that the amplitude of their stack (of incorrectly processed data) is smaller than the signals observed and modeled by V17. We will show (in the “Erroneous conclusions about PEGS amplitudes” section) that stacking the same data as K19, but after instrument response correction following V17’s procedure, results in a signal stack with the same amplitude as predicted by V17’s model and with a much higher significance than K19’s sub-optimal stack.



Biased observational analysis made by K19

Inappropriate data processing with incomplete instrument response correction

K19 used the following data preprocessing steps: (1) Raw data were divided by the sensitivity coefficient of the broadband seismometers, which is defined as the velocity-to-counts conversion factor in the frequency band where the instrument response is flat, and (2) the result was converted into acceleration by differentiation. The frequency-independent conversion factor applied in step 1 is adequate for signals whose frequencies of interest are between a few 0.01 Hz to ~ 10 Hz, but is insufficient for PEGS observation. As shown in the theoretical study of Harms et al. (2015), the accelerations in PEGS are related to the second time integral of the seismic moment function, and thus their spectrum behaves as 1/f3 at frequencies f lower than the earthquake corner frequency. PEGS are therefore low-frequency signals, and the potential to observe them with seismometers is maximized when the lowest reliable frequencies are fully used. That is why V17 deconvolved the raw data by the instrument response and carefully used a causal high-pass filter at 0.002 Hz to mitigate the instrumental noise at even lower frequencies.

Figure 1 shows how much of the low-frequency signal in the analysis frequency band (0.002–0.03 Hz) is damped by the K19 processing compared to the V17 processing. The low-frequency signal loss induced by the K19 processing is very large for STS2 sensors (more than a factor of 15 of reduction at 0.002 Hz), and is significant even for STS1 sensors (a factor larger than 2 at 0.002 Hz). Importantly, although it is not highlighted in K19 study, most of the sensors they used (9 out of 11 stations shown in their Fig. 2  and 22 out of the 27 sensors used in their stacking analysis) are STS2 sensors. Not surprisingly, the only two sensors in which a signal is visible in their Fig. 2, FUK and SBR, are the STS1 sensors.
Fig. 2
Fig. 2

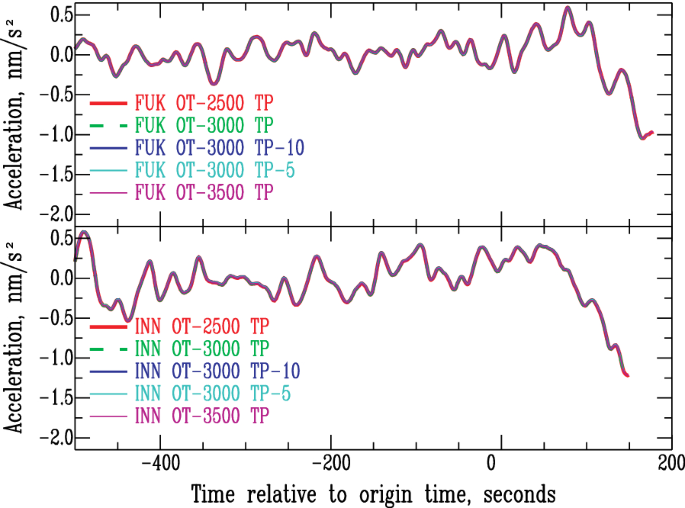

Robustness of the V17 data processing illustrated for two stations of the F-net network. FUK (top) and INN (bottom) are STS1 and STS2 sensors, respectively. For each sensor, the curves show the obtained vertical acceleration signals for different choices of the original time window. These choices can be read in the name given to each curve: the negative number following “OT” gives the starting time (in s) of the window relative to the Tohoku earthquake origin time; the negative number following “TP” gives the ending time (in s) of the window relative to the P-wave arrival time at each station. No differences can be observed in the resulting accelerations in the 0.002–0.03 Hz frequency band

It is therefore obvious that the K19 processing lowers the PEGS detection potential, but it is much less clear why they used such an observational strategy. K19 justify their processing strategy as a way to avoid the non-causality of the instrument response deconvolution. Such a non-causality effect indeed exists, but is a problem only if the deconvolution is applied to a time series containing an undesirable subsequent signal. That is why it is crucial to cut the signals at the P-wave arrival, as done in the V17 procedure, to avoid any contamination. Once this operation is done, it is difficult to imagine how a signal removed from the analysis (i.e., the P direct wave) could still have an adverse role. As K19 possibly worried about an influence of the limits of the original time windows, we show in Fig. 2 that their arbitrary choice does not have any role on the obtained accelerations: As long as a sufficiently long pre-origin time signal is used and the P-wave is not included, the V17 procedure gives the same acceleration signals in the 0.002–0.03 Hz frequency range regardless of the choice of time window. We also recall that V17 provided in their Supplementary Material (Additional data) their exact data processing procedure (using Seismic Analysis Code—SAC), so that every reader can assess its robustness.

The V17 procedure is not affected by spurious effects and restores the signal with higher fidelity than the K19 procedure. Thus any claim of non-detection using the K19 procedure is highly dubious, especially if the signals are readily apparent with the V17 approach. For instance, at station NE93, K19 consider the signal (see their Fig. 3b) as noise, whereas V17 observe a signal with amplitude ~ − 1 nm/s2. NE93 is equipped with a CMG3T sensor, a broadband sensor with a response similar to that of an STS2, thus the K19 procedure eliminates a large part of the PEGS recorded at this station.
Fig. 3
Fig. 3

Objective comparison between PEGS signals observed in Southwest Japan. All signals have been processed using the V17 procedure and the FUK signal (top row) is therefore exactly the same as the one shown in Figs. 1 and 3 of V17. The other three signals are the only other ones among the stations shown in Fig. 2 of K19 that meet the quality criterion of V17. All signals show consistent PEGS, supporting the use of only one of them (FUK) in the V17 study. Due to its correct data processing and appropriate noise considerations, this figure is the logical alternative to Fig. 2b of K19

Mixing high-quality with low-quality sensors

PEGS are not equally well recorded by all sensors, because of their intrinsic characteristics combined with differences in site quality. However, K19 used in their Figs. 2 and 3 all the existing broadband sensors in a given area, regardless of their quality, as an argument to discard the direct PEGS observations. They made the same error when they directly compared the signals recorded by the Matsushiro gravimeter and by the collocated MAJO seismometer, without acknowledging that the pre-event seismic noise at MAJO is much lower (see V17). Their Figure 3a, b is also particularly misleading because signals are not shown with the same vertical scale. Finally, in Fig. 3a of K19, despite the deficient data processing, a signal is still visible at the excellent STS1 sensor of station MDJ. K19 reject this evidence by judging it is inconsistent with data at neighboring stations. However, the difference is simply explained by the much lower noise at MDJ.

In contrast, the V17 study considered all the signals that satisfy an objective quality control criterion: their amplitude in the 1800 s preceding the earthquake had to be below a given amplitude threshold. This threshold was set at ± 0.8 nm/s2 so that a signal with an amplitude of − 1 nm/s2 occurring just before the P arrival time is unlikely to be random noise. All the sensors shown in Fig. 3 of K19, except for the NE93 and MDJ sensors used by V17, have pre-event noise amplitude levels of more than ± 2 nm/s2, and often much more. Such noisy data were not shown in the V17 study, and they are of little use to invalidate PEGS observations.

At this stage, it is interesting to mention a specific point about the MDJ station. If K19 had used the V17 data processing, they would have obtained the clear MDJ signals that can be seen in Figs. 1, 2, and 3 of V17. When quantified by the signal-to-noise ratio (SNR) criterion that K19 used to evaluate the stack significance (i.e., the ratio between the amplitude at the P arrival time and the standard deviation σ of the seismic noise), the SNR reaches ~ 9 at station MDJ. When properly processed, this unique sensor has a better SNR than the stack of 27 stations considered by K19, whose SNR is only 7. The V17 study did not require any stacking because it was based on signals that could be directly observed at several stations (and confirmed by signal modeling).

Objective comparisons confirm V17 observations

Based on the aforementioned considerations, Figs. 2 and 3 of K19 do not bring any valid argument to question the observations made by V17. On the contrary, the sensors in Southwest Japan used in Fig. 2 of K19 confirm the V17 observations. Some of these sensors, in addition to FUK also used in V17, indeed meet the pre-event noise quality criterion required by V17. This is expected because V17 explicitly mentioned that, to avoid redundant signals at similar locations, not all the high-quality F-net sensors were used in their analysis.

In practice, after application of the V17 data processing, four stations (FUK, SBR, IZH, and INN) have pre-event noise whose absolute values remain below 0.8 nm/s2, and therefore offer an unbiased opportunity to validate the FUK observations shown in V17. Not surprisingly, these four signals, shown in Fig. 3, strongly support the FUK observations: They all exhibit a clear downward trend after the earthquake origin time (with an optimal SNR at the STS1 sensors FUK and SBR), with consistent amplitudes reaching values of ~ − 1 nm/s2 at the P arrival time.

Erroneous conclusions about signal amplitudes

The K19 study does not provide any valid modeling of the expected PEGS amplitudes. Although, based on the works of Heaton (2017) and V17, K19 correctly described that PEGS originate from two effects, a direct gravity perturbation and an induced ground acceleration, they only modeled the first effect. In their Fig. 1, K19 only show the direct gravity term, in the very crude approximation of an infinite space. The values shown in their Fig. 1 differ by a factor of ~ 100 compared to the amplitudes of their stack (their Fig. 7a), but K19 did not comment on why it is so.

Despite being unable to model their own observations, K19 try to discard the modeling made by V17. While K19 correctly noted that the signals simulated by V17 were on the order of − 1 nm/s2, they compared these amplitudes obtained in the 0.002–0.03 Hz frequency band with their observed stack amplitude (− 0.25 nm/s2), which suffers from strong deficit in this frequency band (Fig. 1 and previous sections). K19 therefore appear unaware that meaningful comparisons between two signals can only be done if they have been processed in the same way.

Observations and theory are fortunately in much better agreement when comparisons are properly made in the same frequency band. In Fig. 4, we show the stacked trace of the same 27 stations used by K19, but applying the instrument response correction used by V17. The observed stack amplitude confirms that the PEGS in Southwest Japan in the 0.002–0.03 Hz frequency band reach an amplitude of the order of − 1 nm/s2 at the P-wave arrival time, consistently with the V17 modeling. Moreover, the SNR of the stack reaches a value of 14 with the V17 processing, whereas K19 obtained a smaller value of 7 with their processing. Thus, the appropriate data processing strongly increases the significance of the stack. In more challenging observation configurations than the Tohoku earthquake case, this difference is clearly key for PEGS detection.
Fig. 4
Fig. 4

Consistency between observed PEGS amplitudes and V17 modeling. Stacked trace (station-averaged vertical acceleration) of the same 27 sensors considered in Fig. 7a of K19, but deconvolving the data by the instrument response (as done in V17) before stacking. Note that the stacked trace Ss is shown with an opposite sign (scale to the right). The stack SNR (scale to the left) is defined as the ratio between |Ss| and the standard deviation of noise calculated in the 10 min preceding earthquake origin time. At the P wave arrival, Ss ~ − 1 nm/s2 and SNR ~ 14

Contrary to the opinion expressed by K19, there is no urgent need to improve the V17 modeling approach and to develop a “better theoretical model […] that addresses the fully coupled equations between the elastic deformation and gravity”. The adequacy of the V17 and Juhel et al. (2019) approaches is not only supported by their agreement with the observations, but V17 showed that the error made by neglecting the full coupling (i.e., by neglecting that gravity-induced motion itself creates a gravity perturbation, and so on) is only a few percent. Additionally, Juhel et al. (2019) numerically modeled the direct gravity perturbation with and without self-gravitation and found only minor differences in the 0.002–0.03 Hz frequency band of interest. Solving the fully coupled equations is therefore a numerical challenge that would offer a more elegant solution, but is not a prerequisite to model the PEGS observations.

Conclusion

K19’s study illustrates the difficulties to observe a small-amplitude signal when using non-optimal data processing or non-optimal sensors. This trivial finding does not provide any valid argument to challenge previous observations made by V17 using a better processing applied to objectively selected data. K19’s claims to discard previous PEGS modeling is based on an obviously biased use of their observations. In light of these two major errors, their claims of pioneering findings are invalid.

The K19 study provides only a modest contribution to the recent PEGS observations made by other groups, in particular, by the V17 study. Recent progress in the research on PEGS has yielded new advances that go far beyond the K19 study. Readers interested in how PEGS can be optimally observed may refer to the more sophisticated stacking approaches described by Montagner et al. (2016) and Vallée and Juhel (2019). Vallée and Juhel (2019) also show how multiple PEGS observations made for earthquakes of different focal mechanisms and depths are accurately modeled by the methods described by V17 and Juhel et al. (2019). Therefore, the remaining challenges today are no longer to show that PEGS are well understood, modeled, and observed for magnitudes larger than 8, but to lower this magnitude threshold and to reduce the detection delay, in order to make PEGS even more valuable for early warning systems.
