Evaluation for hypocenter estimation error in the southwestern Kuril trench using Japan and Russia joint seismic data

Abstract

The southwestern Kuril trench is seismically active due to the subduction of the Pacific plate. Great earthquakes in this zone have frequently induced fatal disasters. Seismic monitoring and hypocenter catalogs provide fundamental information on earthquake occurrence and disaster mitigation. Real-time hypocenter and magnitude estimates are extremely crucial data for tsunami warning systems. However, this region is located in the international border zone between Japan and Russia. The Japan Meteorological Agency and Russian Academy of Sciences have routinely determined hypocenters and issued earthquake information independently. Waveform data have not yet been exchanged internationally in real time. Here, we evaluated how a hypothetical Japan–Russia joint seismic network could potentially improve the hypocenter estimation accuracy. Experiments using numerical and observed data indicated that the joint network extended the distance over which hypocenters can be accurately determined over 100 km eastward compared to the Japan network only. This fact suggests that joint seismic data have the potential to improve the hypocenter accuracy in this region, which would provide improved performance in gathering disaster information at the moment of a tsunami warning.

Introduction

The southwestern Kuril trench is one of the most seismically active regions in the world. The subduction of the Pacific plate at a rate of ~ 9 cm/year has resulted in the frequent generation of large earthquakes. Great earthquakes of moment magnitude (Mw) > 8.0, e.g., the 1963 Mw8.3 interplate and 1994 Mw8.2 intraslab earthquakes, have induced strong ground shaking and generated tsunamis, causing severe destruction (Fig. 1). The Headquarters for Earthquake Research Promotion (HERP) of the Japanese government (2020) evaluated earthquake occurrence probabilities reaching as high as 80% for M > 7.8 earthquakes over the next 30 years in this region. In addition, a possible megathrust earthquake of M > 8.8 has been anticipated with a high (7–40%) likelihood probability by HERP. These extremely high occurrence probabilities for large earthquakes in the future require the implementation of disaster prevention and mitigation measures to reduce the damage caused by earthquakes and tsunamis.

Fig. 1
figure1

Seismological stations operated by Japan and Russia. a Tectonic setting of target region. PA, Pacific plate, OK, Okhotsk plate, AM, Amur plate; EU, Eurasian plate; NA, North American plate. b Seismic station distribution; blue: Japanese station; red: Russian stations. Epicenters of great earthquakes were from Japan Meteorological Agency, and mechanism of the 1952 was from Ichikawa (1971), the 1958 was from Fukao and Furumoto (1979), the 1963 was from Kanamori (1970), and others were from Global CMT project (Global CMT Web Page, 2020). c The P-wave seismic velocity structure

Tsunami inundation simulations have indicated that a tsunami produced by a subduction earthquake can arrive at the shore 20 min after the earthquake (Hokkaido Local Government 2012). In this event, a tsunami warning is issued primarily using the hypocenter location and magnitude. A reliable and instant hypocenter determination is required for reliable tsunami alerts.

The southwestern Kuril region is a peripheral area between Japan and Russia. Both Japanese and Russian institutions operate regional seismological networks in this area (Fig. 1). The Japanese dense seismic network is managed by Hokkaido University, the Japan Meteorological Agency (JMA), the National Research Institute for Earth Science and Disaster Resilience (NIED), and the Japan Agency for Marine-Earth Science and Technology (JAMSTEC) (Fig. 1). All waveform data are transmitted to the data center and exchanged in real time among Japanese institutions. The JMA performs waveform monitoring and hypocenter location services in real time to issue earthquake information. Tsunami alerts are issued by the JMA 3 min after an earthquake is detected.

The Sakhalin Branch of the Geophysical Survey (SBGS), Russian Academy of Sciences, operates the seismic network in the Russian Far East. The SBGS has deployed seismic stations on three residential islands along the southwestern Kuril trench (Fig. 1). Real-time waveform monitoring and hypocenter estimation are conducted routinely. Russian authorities issue tsunami warnings based on hypocenter information from the SBGS.

The distribution of islands determines the geographical configuration of seismic networks (Fig. 1). The extents of national territory might also control the geometry of seismic networks. Consequently, Japanese and Russian stations occupy the western and eastern parts of this region, respectively (Fig. 1). A hypothetical joint seismic network would improve the network configuration greatly. Accordingly, Hokkaido University and the SBGS have been in cooperation to exchange seismic data. Here, we evaluate the hypocenter determination performance using the Japan–Russia international joint seismic network with both synthetic and observed seismic data.

Hypocenter determination experiment by synthetic travel time data

Synthetic travel time data

A hypothetical Japan–Russia joint seismic network might have the potential to improve hypocenter errors. Numerical experiments of hypocenter determination using synthetic travel time data were performed. The experimental procedures were as follows: (1) the theoretical travel times of P- and S-waves were calculated at each seismic station from a given virtual hypocenter; (2) statistical random errors were added to the travel times from step (1); and (3) the hypocenter locations were estimated using the travel time data from step (2).

Virtual hypocenters were distributed at grid points diagonally along the trench between E145 and E151 degrees (Figs. 1 and 2). Hypocenter depths offshore and near islands were set to 10 km and 100 km, respectively. A total of 12 virtual hypocenters were given. Theoretical travel times at each station were calculated for each 12 hypocenters using Hirata and Matsu’ura’s (1987) algorithm. The one-dimensional seismic velocity structure model shown in Fig. 1 is applied.

Fig. 2
figure2

Simulated hypocenter determination using synthetic travel time data. The given hypocenters at each grid are shown by open stars. a Calculated hypocenters for given shallow (10 km depth) earthquakes using the Japan network only. b Same as a but using the Japan–Russia joint network data. The 90 travel times and hypocenters were produced from one given virtual hypocenter

Although observed travel times involve random and systematic errors, pseudo-errors were added to the theoretical travel times. Phase reading errors were simulated using a Gaussian probabilistic function with a variance of 1 s for P-wave arrival times and 2 s for S-wave arrival times. Velocity structure errors were given as a function of the hypocentral distance: a Gaussian probabilistic function with a variance of 0 s for epicentral distances less than 25 km, 0.05 s for 25–50 km, 0.10 s for 50–100 km, 0.20 s for 100–200 km, and 0.10 s for every 100 km increment thereafter. Each virtual hypocenter produced a total of 90 travel time data points with statistical random errors. In addition to the direct S-wave, arrival phases of converted and refracted waves may include in actual waveform data. It is necessary to carefully read the S-wave arrivals taking into account the travel time residual.

Hypocenters were determined using simulated travel time data processed using Hirata and Matsu’ura’s (1987) nonlinear inversion program. This algorithm uses a given hypocenter location and its errors as prior information for maximum likelihood estimation. Iterations were calculated using the previous hypocenter location and station corrections, and 10 iterations were performed.

Reproducibility of shallow virtual earthquakes

Comparisons were evaluated between the given and estimated hypocenters using the Japanese network only and the Japan–Russia joint network. First, we tested the reproducibility of the given virtual hypocenters with a depth of 10 km in the offshore region in Fig. 2 and Additional file 1: Fig. S1. Figure 2a indicates the estimated hypocenters using only the Japanese seismic network. One given hypocenter produced 90 estimated hypocenters.

The Japanese network was capable of determining the hypocenters to the west of latitude E146 (Fig. 2a). Although the horizontal hypocenter locations west of E147 were well estimated, the depth varied widely. The variance in both the depth and the horizontal location to the east of latitude E148 suggested low reliability.

The Japan–Russia joint network data successfully improved the hypocenter error. The hypocenter distribution shown in Fig. 2b using the joint network clearly indicates an obvious reduction in the variance at E147, as shown in Fig. 2a. The hypocenter variance at E148 was also improved. These conclusions can also be found in the standard deviation data shown in Table 1. Remarkable error reductions were identified on all components on the grids at E147 and E148. Table 1 also suggests good estimation results on the latitudinal component but less accurate estimates on the longitudinal component. The depth accuracy for the hypocenters to the east of E148 was still poor and had no resolution. The horizontal hypocenter locations at E149 and E150 were not improved and were unreliable. These results suggest that the joint network is able to give reliable horizontal locations to the west of E148. The depth component might be valid to the west of E147.

Table 1 Standard deviations of the estimated hypocenter locations at each grid point

Reproducibility of intermediate-depth virtual earthquakes

The same test was performed for virtual earthquakes at an intermediate depth (100 km) in the nearshore region (Fig. 3 and Additional file 1: Fig. S2). The Japanese network can determine the depth component well to the west of E147 (Fig. 3a, Table 1). The horizontal components, however, showed large variance at E147. The deviation from the true hypocenter increased both horizontally and vertically to the east of E148.

Fig. 3
figure3

Same as Fig. 2 but for intermediate (100 km depth) virtual hypocenters a using the Japan network only and b using the Japan–Russia joint network data

The Japan–Russia joint network provided remarkable reductions in the variance in the latitudinal and depth components on the grids at E147 and E148 (Fig. 3b, Table 1). The depth component was also improved at E149 and E150. However, the longitudinal component did not improve much at E148 and to the east. The errors on the longitudinal component for these intermediate-depth earthquakes were approximately twice as large as those for the shallow-depth earthquakes.

Summary of numerical experiments

The numerical experiments using synthetic travel time data suggested the following features: (1) the joint network can reduce hypocenter errors, (2) the joint network can determine reliable hypocenters to the west of E147 for all earthquakes, (3) shallow- and intermediate-depth earthquakes are simulated with relatively large errors on the depth and longitudinal components, respectively, and (4) even the joint network cannot give an adequate accuracy to distinguish hypocenter depths to the east of E148. These facts indicate that compared with the Japan network alone, the joint network has the capability to determine reliable hypocenters more than 100 km to the east.

Hypocenter determination using observed travel time data

Seismic network and observed data

The determination of hypocenters was tests using observed seismological data. The Japanese seismic network is distributed on Hokkaido with a high density (station spacing of approximately 20 km) (Fig. 1). Data from three cabled ocean bottom seismographs operated by JAMSTEC are also included. Only stations in eastern Hokkaido were applied to reduce the travel time error due to the anomalous seismic velocity structure in central Hokkaido (e.g., Kita et al. 2012).

The Russian stations are deployed on three residential islands: three stations on Kunashir Island and one station each on the islands of Itrup and Sikotan (Fig. 1). No stations are operated to the east of station KUR because the islands are uninhabited. The maximum interstation distance between stations SHO and KUR is approximately 200 km.

Digital continuous waveform data with GPS time stamps are synchronously recorded at both the Japanese and the Russian seismic networks. The JMA routinely reads the P- and S-wave arrival times from integrated waveform data from all Japanese institutions and published bulletins. The SBGS also routinely extracts the P- and S-wave arrival times for the Russian stations. Hokkaido University receives the above arrival time data from the JMA and SBGS and produces a combined arrival time catalog. The JMA and SBGS catalog registered earthquakes with magnitude more than 4.5 in common. These unified P- and S-wave arrival time data were used for the hypocenter determination.

Hypocenter determination from the Japan–Russia joint network observation data

The numerical experiments suggested an improvement in the hypocenter accuracy using the joint Japan and Russia network data. Hypocenters were calculated using the observed travel time data. Earthquakes from 2010 September 7 to 2014 January 9 were applied.

The initial hypocenters were estimated using Hirata and Matsu’ura’s (1987) algorithm. The 1-D seismic velocity structure was the same as that in the numerical experiments (shown in Fig. 1). A station correction was calculated for each station using the average residual between the theoretical and observed arrival times of all earthquakes. The final hypocenters were determined by an iterative procedure with the above station corrections. Figure 4a shows a comparison of the hypocenter locations from the joint network and Japan network only. The horizontal and depth migration tendencies agree with the numerical simulation results. A comparison with USGS PDE hypocenters estimated from the global network is also shown in Fig. 4b. Hypocenters projected to perpendicular to the trench axis are also shown in Additional file 1: Fig. S3. These data suggest that the true hypocenters are shallower than those determined using the Japan network only.

Fig. 4
figure4

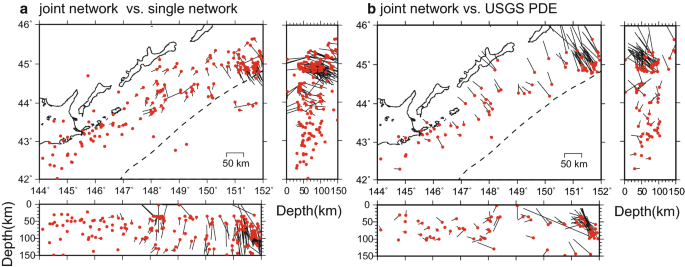

Hypocenter locations using observed travel time data. a Hypocenters determined from the Japan–Russia joint network (red circles) and from the Japan network only (end of line). b Comparison of hypocenters from the Japan–Russia joint network data (red circle) and USGS PDE catalog (U.S. Geological Survey, 2017). (end of line)

Discussion and conclusion

The numerical experiments indicate that the joint network data can effectively determine reliable hypocenters to the west of E147. The variance reductions at each grid point shown in Table 1 suggest significant variance improvements, even at E148 and E149. The Russian stations strongly contribute to this upgrade. Although a hypocenter comparison between the joint network and USGS PDE data for Mw > 5.0 earthquakes shows locations that are systematically shifted northeast from those determined by the joint network, the differences are not significant (Fig. 4b).

The data in Table 1 indicate that an earthquake with a 10 km depth at E148 may produce a ± 47 km depth error at the 95% confidence level (1.96 × SD). This indicates that it will be difficult to distinguish between shallow- and intermediate-depth earthquakes to the east of E148. Even the joint network reveals a trade-off between the depth component and the horizontal location in the region farther to the east. Tsunami warnings should be issued regardless of how deep the depth is calculated for the hypocenter.

The hypothetical joint seismic network gives potential errors of approximately ± 20 km on the horizontal components and ± 50 km on the depth component at the 95% confidence level for two historical great earthquakes: the JMA magnitude (Mj) 8.2 1994 earthquake (N43.375, E147.673, depth of 28 km) and the 1958 Mj8.1 earthquake (N43.776, E148.290, depth of 13 km, JMA catalog). These location error ranges are sufficiently acceptable for tsunami warning systems. However, the potential errors of events farther to the east, namely, the 1963 Mj8.1 earthquake (N44.048, E149.825, depth of 0 km, JMA catalog), are approximately ± 60 km on the horizontal components and ± 70 km on the depth component. A maximum horizontal error of 120 km may cause a tsunami to arrive at the coastline more than 10 min earlier than predicted for a wave speed of 500 km/s.

Scientists usually use aftershock distributions to characterize earthquakes. The hypocenter location variance data in Table 1, however, indicate that the hypocenter locations to the east of E147 likely involve systematic errors that are too large to apply these locations for scientific purposes. For instance, the aftershock data of great earthquakes in this region will not provide clues to distinguish the true nodal planes of focal mechanisms. Heterogeneous three-dimensional velocity structure due to subduction should also be taken into account for more precise hypocenter estimation.

The joint seismological network has the potential to improve the hypocenter accuracy in the southwestern Kuril trench. Quick and reliable tsunami warnings due to anticipated great and megathrust earthquakes are required because of the high occurrence probability of such events (HERP 2017). The Japanese and Russian governmental agencies responsible for issuing tsunami warnings do not operate a regional real-time seismic data exchange at present. Experimental real-time data have been successfully transmitted between Hokkaido University (Hokkaido, Japan) and the SBGS (Sakhalin, Russia) since 2002 (Ichiyanagi et al. 2002). This feasibility study shows that the real-time exchange of seismic waveform data is technically possible.
