Synthetic analysis of the efficacy of the S-net system in tsunami forecasting

A Correction to this article was published on 15 March 2021

This article has been updated

Abstract

The Seafloor Observation Network for Earthquakes and Tsunamis along the Japan Trench (S-net) is presently the world’s largest network of ocean bottom pressure sensors for real-time tsunami monitoring. This paper analyzes the efficacy of such a vast system in tsunami forecasting through exhaustive synthetic experiments. We consider 1500 hypothetical tsunami scenarios from megathrust earthquakes with magnitudes ranging from Mw 7.7–9.1. We employ a stochastic slip model to emulate heterogeneous slip patterns on specified 240 subfaults over the plate interface of the Japan Trench subduction zone and its vicinity. Subsequently, the associated tsunamis in terms of maximum coastal tsunami heights are evaluated along the 50-m isobath by means of a Green’s function summation. To produce tsunami forecasts, we utilize a tsunami inversion from virtually observed waveforms at the S-net stations. Remarkably, forecasts accuracy of approximately 99% can be achieved using tsunami data within an interval of 3 to 5 min after the earthquake (2-min length), owing to the exceedingly dense observation points. Additionally, we apply an optimization technique to determine the optimal combination of stations with respect to earthquake magnitudes. The results show that the minimum requisite number of stations to maintain the accuracy attained by the existing network configuration decreases from 130 to 90 when the earthquake size increases from Mw 7.7 to 9.1.

Introduction

As a response to the disastrous 2011 Tohoku-oki tsunami, the National Research Institute for Earth Science and Disaster Resilience (NIED) of Japan installed a large-scale cabled seafloor observatory called the Seafloor Observation Network for Earthquakes and Tsunamis along the Japan Trench (S-net). S-net is an advancement of its predecessor the Deep Ocean-floor Network system for Earthquakes and Tsunamis (DONET) firstly deployed around the Nankai Trough in 2006 (Kaneda et al. 2015). Each observatory of S-net is strategically placed to address key scientific and practical issues related to earthquakes and tsunamis with the total coverage encompassing the entire focal region of the 2011 Tohoku-oki earthquake and its surrounding areas. The dense offshore observation stations of S-net would enable timely and accurate tsunami forecasts, and thus effective warnings (Mulia and Satake 2020). Furthermore, combined with existing land-based instruments, S-net is expected to provide an additional and a more precise constraint for operational earthquake early warning and to study submarine earthquake processes and offshore seismicity (Kanazawa et al. 2016; Wallace et al. 2016; Nishikawa et al. 2019).

Although S-net is equipped with both ocean bottom pressure sensors and seismometers, here we focus our analysis only on the role and performance of the system in tsunami detection and forecasting using synthetic pressure sensor readings. Since the first establishment of S-net in 2016, the network has registered only a few tsunamis from: the 20 August 2016 off Sanriku earthquake characterized by a magnitude of Mw 6.0 (Kubota et al. 2020b), the 22 November 2016 off Fukushima earthquake with a magnitude of Mw 7.0 (Kubota et al. 2020a), and a far-field event of the 8 September 2017 Chiapas, Mexico earthquake (Mw 8.1) (Mochizuki et al. 2018). The real tsunami events provide important insights on the viability of the observing systems, particularly that of instrumentation-related matters (Kubota et al. 2018). However, tsunamis are infrequent natural phenomena, and thus give limited access to comprehensively appraise the efficacy of tsunami observing systems against plausible various tsunami characteristics. Therefore, synthetic experiments are needed as a proxy or to complement the scarce tsunami data of the actual events.

The use of synthetic experiments conjointly with a data assimilation scheme through computer simulations has been commonly applied to assess the performance of prospective or even existing observing systems as operational forecast and methods evolve. Such an approach is termed as observing system simulation experiment, which is a well-established methodology in atmospheric and oceanographic fields (Hoffman and Atlas 2016; Fujii et al. 2019). In the tsunami case, synthetic experiments have also been applied to test either new forecasting methods or performance of observing systems. Several studies that are related to the utilization of S-net have been proposed (Tsushima et al. 2012a; Maeda et al. 2015; Yamamoto et al. 2016; Tanioka 2018, 2020; Fauzi and Mizutani 2020). Additionally, previous studies have demonstrated the benefit of cost-effective synthetic experiments aided by numerical simulations to identify optimal locations for placement of tsunami observation networks (Mulia et al. 2017a, 2019; Heidarzadeh et al. 2019; Navarrete et al. 2020; Wang et al. 2020). Here, we perform an analogous approach to analyze the capability of the existing S-net system in enhancing tsunami forecasts associated with a large number of hypothetical megathrust earthquakes in the study area. Additionally, we examine the proportion of stations that predominantly contribute to the overall forecast skill. The analysis would improve our understanding on the effect of station distribution in response to sources of different size and location. Furthermore, the result may also help the decision-making process should particular subsets of stations need to be altered in the future, or to set priority order for maintenance works. Overall, the numerous scenarios and optimization proposed in this study provide complementary information to the existing knowledge on the role of S-net in tsunami forecasting.

S-net configuration

S-net consists of 150 seafloor observatories equipped with ocean bottom pressure sensors and seismometers (Kanazawa et al. 2016; Mochizuki et al. 2018). A study by Mizutani et al. (2020) demonstrated that a collocated pressure sensors and seismometers can be beneficial for processing of pressure data. All observatories are connected via submarine optical cables partitioned into six segments, with one or both ends of the respective segment linked with ground stations, to which the data are transmitted in real-time (see Fig. 1). The network uses in total a length of approximately 5800 km of cable connecting each station deployed in a variety of water depths ranging from 102 to 7830 m with a spatial interval between 30 and 60 km, encompassing an area of 1000 km × 300 km. The ocean bottom pressure sensor of S-net is based on the Paroscientific Digiquartz pressure sensor capable to output the data at 1 kHz frequency (Kanazawa et al. 2016). A similar device has also been used, though possibly of different versions, by other ocean observation networks (Polster et al. 2009), including the Deep-ocean Assessment and Reporting of Tsunamis developed by NOAA’s Pacific Marine Environmental Laboratory (Yilmaz et al. 2004).

Fig. 1
figure1

Bathymetry of study area and locations of S-net. Station names at both ends of each segment are annotated. The red dashed contour lines mark the 50-m isobath

As a regional observing system, S-net spatial coverage is astounding and considerably wider than the previously established DONET system. Besides the focal region of the 2011 Tohoku-oki earthquake, the design of S-net spatial distribution is also aimed at smaller events, so that at least one observatory is expected to exist in the focal region of Mw 7.5 earthquakes occurring in the targeted seismogenic zone (Kanazawa et al. 2016). Furthermore, the outer trench segment located in the outer-rise region would be beneficial for real-time tsunami detections (Mulia et al. 2019), as the wave propagates faster in deep water. The tsunamis associated with potential outer-rise earthquakes near the Japan Trench have been evaluated through numerical simulations by Baba et al. (2020). However, this study is limited to account for tsunamis generated by great interplate earthquakes only.

Stochastic slip model

We discretize the plate interface of the Japan Trench subduction zone obtained from the SLAB 2 model (Hayes et al. 2018) with the downdip limit of 40 km, into 240 curvilinear grids with approximate sizes varying from ~ 20 to ~ 40 km2 as shown in Fig. 2. We then apply a method by Mai and Beroza (2002) to characterize complexity of earthquake slip represented by a spatial random field according to a von Karman autocorrelation function. We consider the range of earthquake magnitudes of Mw 7.7–9.1 with a magnitude interval of 0.1. In our study, the random slip is initially calculated on a rectangular fault of 1 km × 1 km grid spacing with length and width estimated using a magnitude–area scaling relation (Wells and Coppersmith 1994). Then, the result is interpolated and projected into the specified curvilinear grids of subfaults with arbitrary rupture area to facilitate the tsunami Green’s function computation. The slip on each subfault is assumed to be constant and obtained by applying a bilinear interpolation without altering the mean slip, hence preserving the moment magnitude of the interpolated sample. The mean slip for the specified magnitude range is shown in Table 1. A kinematic rupture process can be incorporated in the stochastic slip model (Mai et al. 2005), which would affect the tsunami nucleation, particularly for extremely large earthquakes (Satake et al. 2013; Goda et al. 2014). In this study, however, we neglect such a detailed modeling as we emphasize on a large number of earthquake scenarios. Moreover, the contribution of the kinematic component for near-field tsunami hazards is minimum (Williamson et al. 2019).

Fig. 2
figure2

Slab depth from the SLAB 2 model (Hayes et al. 2018), discretization of the plate interface, and examples of stochastically generated slip. The blue and red contour lines in the right panel indicate the coseismic subsidence and uplift, respectively, with intervals of 0.5 m for Mw 7.7, 1 m for Mw 8.4, and 4 m for Mw 9.1. PP Pacific Plate, OP Okhotsk Plate, PSP Philippine Sea Plate

Table 1 Calculation of total number of samples and mean slip of each magnitude

Once the random slip of the respective magnitude is generated, we calculate the sea surface displacement using a triangular dislocation in a half-space proposed by Nikkhoo and Walter (2015), assuming a rake angle of 90°, an instantaneous deformation, and a long wave approximation. The advantage of such a method is that the geometry of the seismogenic zone or the curvature of the trench can easily be approximated, which is more appropriate than a standard rectangular fault model for large earthquake events (Sepúlveda et al. 2017). Therefore, each rectilinear grid consists of two triangular meshes with the same slip amount (Additional file 1: Figure S1). Examples of the random slip and its corresponding displacement for earthquakes of magnitude Mw 7.7, 8.4, and 9.1 are shown in Fig. 2.

Virtual observations and number of samples

To efficiently generate a large number of tsunamis virtually observed at S-net stations, we utilize a tsunami Green’s function summation leveraging the linear superposition theory (Satake 1987). We simulate tsunamis from the 240 subfaults with 1-m slip by solving the linear shallow water equations using a numerical tsunami simulation code called JAGURS (Baba et al. 2015, 2017). We set the simulation time at 5 h and the numerical grid size at 1 arc minute with the bathymetry data resampled from the GEBCO 30 arc-second bathymetric grid (Weatherall et al. 2015). The virtual tsunami observations are then obtained by applying the precalculated Green’s function to the stochastically generated slip described in Sect. 3. Since S-net observes pressure changes instead of sea surface fluctuations, the pressure readings are affected by the coseismic permanent seafloor displacement if the observatories are located inside the source region (Tsushima et al. 2012b; Tanioka 2018). Therefore, similar to previous studies (Maeda et al. 2015; Inazu et al. 2016; Mulia et al. 2017b), we subtract the simulated waveforms at S-net stations by the corresponding initial displacement at the station locations. This will cause a constant offset or bias in the pressure readings indicating the coseismic permanent seafloor displacement effect. We then add a random Gaussian noise with a maximum amplitude of 1 cm, considering the ability of bottom pressure sensors in detecting sub-centimeter tsunamis (Wang et al. 2019; Kubota et al. 2020b).

We perform a statistical analysis to estimate the required number of samples at each earthquake magnitude interval, reflecting the expected optimum variance of the corresponding tsunamis. The analysis aims at efficiently determining the number of samples, which suggests that incorporation of more scenarios than the required number will no longer contribute to the variability of coastal tsunami heights, thus is redundant. Like the virtually observed waveforms at S-net, we also store tsunami waveforms at specified coastal points along the 50-m isobath for validation purposes. However, we only consider the maximum elevation of the first three waves where the highest tsunami wave height is typically registered, termed as coastal tsunami heights. Subsequently, the arrival time is defined at the identified peak. We apply statistical measure that shows the extent of variability of samples around the mean using a coefficient of variation, CV = σ/μ, where σ is the standard deviation and μ is the mean of tsunami heights at all coastal points and considered samples (Mulia et al. 2020). At each magnitude interval, we calculate the coefficient of variation at every increment of samples from 2 to 200 as shown in Fig. 3. As expected, the variability increases with the decrease of magnitude owing to the larger probability of location for smaller earthquakes. For instance, the variation of coastal tsunami heights due to Mw 7.7 earthquakes is quite stable if more than 150 samples are used. This stable condition is attained with a smaller number of samples for larger earthquakes. By visual inspection, we draw a straight line connecting a point at curves of each magnitude, beyond which the fluctuation of coefficient of variation is less prominent (see Fig. 3). This line marks the requisite number of earthquake scenarios at each magnitude, which is summarized in Table 1. The total number of scenarios considered in this study is 1,500. Figure 4 shows examples of coastal tsunami heights and arrival times at the specified coastal points by earthquakes of magnitude Mw 7.7, 8.4, and 9.1 in conjunction with complementary statistical properties in terms of mean and percentiles (10th and 90th).

Fig. 3
figure3

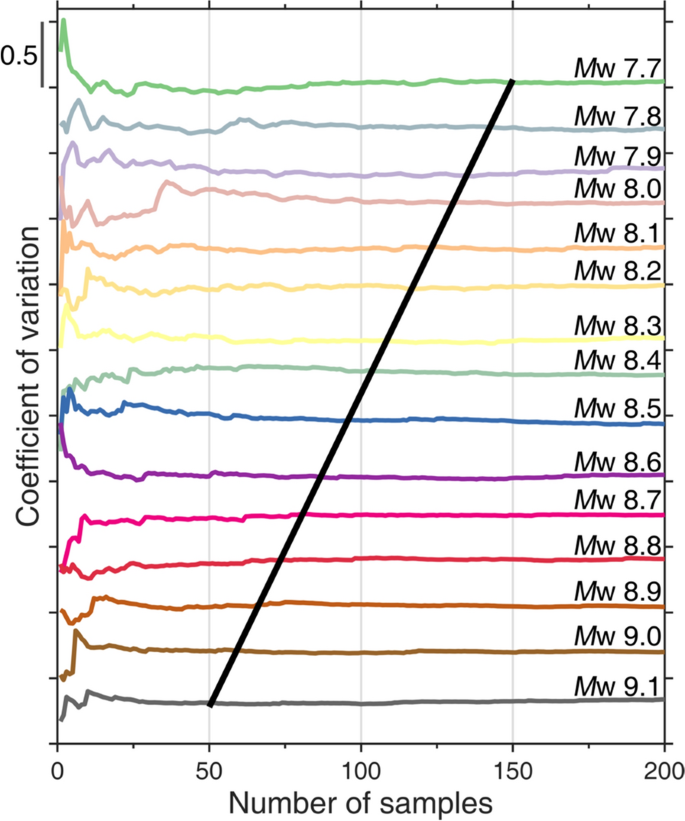

Coefficient of variation of coastal tsunami heights. The black line indicates the required number of samples at each magnitude

Fig. 4
figure4

Simulated coastal tsunami heights and arrival times at locations marked in the top left panel associated with all samples of magnitude Mw 7.7, Mw 8.4, and Mw 9.1

Tsunami forecasting

We employ a tsunami waveform inversion method to forecast coastal tsunami heights (Mulia et al. 2019), which is an extension of the original study applied to characterize the inducing earthquake (Satake 1987, 1989; Gusman et al. 2016). Unlike the source characterization, in forecasting, the inversion time window is started immediately from the earthquake origin time to a certain instant for an effective warning dissemination. The forecasts can then be obtained by applying the inverted parameters (slip amount on the 240 faults, in our study) from observed waveforms (at S-net stations) to the synthetic waveforms or precalculated Green’s function at locations of interest, which in our case are the coastal points indicated in Fig. 5. Our tsunami waveform inversion takes into account the effect of permanent seafloor displacement as suggested by Tsushima et al. (2012b). However, another issue that may arise in the bottom pressure data is the interference of a low-frequency component of seismic waves that are difficult to distinguish from tsunami signals, particularly at stations near the source region (Saito and Kubota 2020). A proper way to synthesize such occurrences was demonstrated by Saito and Tsushima (2016), but it is beyond the scope of this paper. Here, we simply omit the first 3 min of observed waveforms in the inversion analysis following a study by Inazu et al. (2016). Therefore, our inversion time window is started at 3 min after the earthquake origin time. The forecasted tsunami heights are then evaluated against the reference values described in Sect. 4, using an accuracy score in percentage (Tsushima et al. 2009).

Fig. 5
figure5

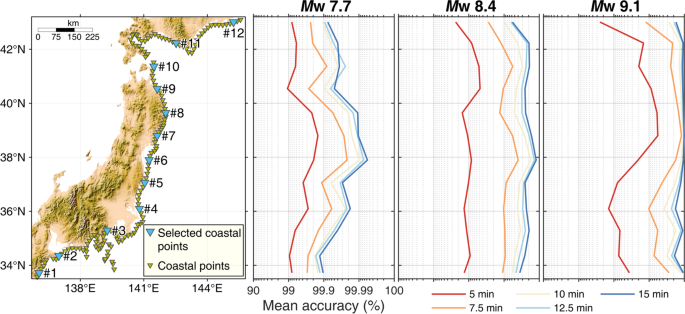

Forecast accuracies at 12 coastal points indicated in the left panel for magnitude of Mw 7.7, Mw 8.4, and Mw 9.1, using various inversion time windows

Figure 5 shows examples of forecast accuracies for coastal tsunami heights associated with earthquakes of magnitude Mw 7.7, 8.4, and 9.1, at 12 locations of interest. These locations are selected merely for visual clarity. Note that the accuracy is based on the mean accuracy of samples for the respective magnitude as tabulated in Table 1. We perform the tsunami waveform inversion with various time windows: 3–5 min, 3–7.5 min, 3–10 min, 3–12.5 min, and 3–15 min. It is not surprising that, in general, more data exponentially improves the accuracy. Furthermore, Fig. 5 indicates that forecast accuracy for larger earthquakes is better than the smaller ones, because tsunamis of large earthquakes are registered at more S-net stations. Another plausible explanation for the reduction of accuracy associated with small earthquakes is the decrease of tsunami signal-to-noise ratio, as we fix the noise level. However, further sensitivity analyses should be conducted to provide quantitative information supporting the notion. The least accurate result of the smallest considered magnitude of Mw 7.7 yields a mean accuracy of 99% by using only tsunami data from 3 to 5 min after the earthquake. This short time window interval is well-compensated by the exceedingly dense observation points. Therefore, the dynamics of the tsunami in the early stages related to the source process, where the most energetic part of the offshore tsunami normally occurs (Mulia et al. 2017a) can be well-captured, and thus in turn leads to accurate forecasts.

Forecasting accuracies by S-net indicated in this study would be different for far-field events or source areas beyond the specified seismogenic region. However, the vast coverage of S-net should be able to protect the same coastal locations from various incident tsunami wave directions. Moreover, forecasting far-field tsunamis is not as challenging as for near-field events for which the tsunami lead time is critical. Even though our results show that larger tsunamis can be forecasted more accurately than the smaller ones, such large source areas on the other hand result in extremely short lead times as depicted in Fig. 4. Therefore, lead time information must be regarded as one of the crucial factors in tsunami forecasting, for it would determine the effectiveness of observing and warning systems (Williamson and Newman 2018; Mulia et al. 2019).

Optimized stations distribution

We adopt an optimization scheme similar to a previous study (Mulia et al. 2019) to determine the optimal combination of stations that give the smallest forecast error. During the optimization, the combinatorial search of optimal observation sets is performed by iteratively computing the tsunami waveform inversion. For simplification, here we use one inversion time window of 3–5 min only. We apply the optimization to three groups of samples based on magnitude ranges of Mw 7.7–8.1, Mw 8.2–8.6, and Mw 8.7–9.1. This experiment aims at further understanding the effect of station distribution and quantity to the forecast accuracy with respect to different earthquake magnitudes. We set the number of stations, which is equivalent to the number of decision variables in the optimization, of 10 to 140 with an interval of 10. The forecast results using 150 stations are taken from the previous stage in Sect. 5.

The optimization results are shown in Fig. 6. In general, more stations lead to better accuracy for all specified earthquake magnitude ranges. However, it is apparent that tsunamis from smaller earthquakes are more difficult to forecast, which further confirm the previous results in Sect. 5. For example, using 10 stations, the lowest mean accuracy at one or more of the considered coastal points is approximately 50% for the magnitude range of Mw 7.7–8.1, whereas are 65% and 78% for the Mw 8.4–8.6 and Mw 8.7–9.1, respectively. Consequently, smaller earthquake magnitudes or tsunami sources require more stations to attain a level of forecast accuracy comparable to larger earthquakes. This is clearly indicated in Fig. 6, where a level of mean accuracy of approximately 99% can be achieved using 130 stations for Mw 7.7–8.1, 110 stations for Mw 8.4–8.6, and 90 stations for Mw 8.7–9.1. The corresponding optimized station distribution for the three magnitude ranges is plotted in Fig. 7. The figure evinces that the optimization tends to spread the stations sufficiently wide enough to gain the appropriate azimuthal coverage.

Fig. 6
figure6

Optimization results for three specified magnitude intervals. The curves are based on the 12 representative coastal points indicated in Fig. 5. The red dashed vertical lines mark the minimum number of stations, beyond which the mean accuracy is saturated

Fig. 7
figure7

Optimal S-net stations to attain an approximately 99% mean accuracy with respect to the three specified magnitude intervals associated with the results plotted in Fig. 6

Discussion

It is worth noting that regardless of the earthquake magnitudes, significant maximum coastal tsunami heights predominantly occur between the latitude of 38oN–40oN (see Fig. 4). The same occurrence was also shown by the previous studies (e.g., Fukutani et al. 2015; Murphy et al. 2016). Moreover, Murphy et al. (2016) compared their modeled coastal tsunami heights against wave heights and run-ups from three historical events of the 2011 Tohoku-oki earthquake, the 1993 and 1986 Sanriku earthquakes, which also produced higher tsunamis within approximately the same latitude range. This may imply particular characteristics of the coastal areas responsible for the amplification of tsunamis. However, the arrival time plots (Fig. 4) suggest that large tsunamis at these locations arrive earlier (within ~ 20 min) compared to the neighboring coastal points on the mainland, which may also be an indication of coastal point locations being close to the seismogenic plate interface. Nonetheless, the highly energetic tsunamis contribute to the relatively more accurate forecasts than other areas (Fig. 5), which is likely attributed to the S-net segments of Miyagi and Iwate and Northern Sanriku.

We note that accuracies stated in this study may not reflect the actual operational forecast performance. First, mechanical issues are commonly encountered in practice that would deteriorate the data quality (Kubota et al. 2018), and hence the corresponding forecast accuracy. Second is likely due to the oversimplification in synthesizing real pressure waveforms. However, even an advanced approach to more realistically mimic the pressure data, as demonstrated by Saito and Tsushima (2016), also proved that the dense S-net stations substantially contribute to the forecast accuracy. Unfortunately, their study was applied to a limited number of scenarios. A study to evaluate the S-net system by Inoue et al. (2019) considered more hypothetical earthquake scenarios, but their objective was to characterize the source rather than forecasting. Last is related to the forecasting algorithm, in which tsunami forecasting methods by tsunami waveform inversion typically use auxiliary basis functions (e.g., Gaussian shape, cosine-tapered function) instead of a fault model. The structure of the basis function would to some extent affect the accuracy of the forecasted coastal tsunami heights. Apart from that, other forecasting methods may also yield different level of accuracies (Hadihardaja et al. 2011; Mulia et al. 2016; Yamamoto et al. 2016; Lee et al. 2020).

Notwithstanding the aforementioned limitations, this study is necessary to appraise and highlight the benefit of utilizing the dense offshore tsunami observation network for tsunami forecasting, which are proven and tested against numerous plausible hypothetical scenarios. A supplementary example using a single hypothetical tsunami event generated by an earthquake of magnitude Mw 7.7 is presented in Additional file 1: Figure S2 to S4. The figures clearly show that the same length of data (3–5 min window) at considerably less number of stations results in a poor forecast performance, thus the existence of S-net has greatly improved the skill of coastal tsunami height forecasts in the study area. The experiment also shows that the optimized 130 stations can produce a comparable accuracy to that of all 150 S-net stations. Therefore, by applying the optimization technique, we are able to reveal the contribution of subsets of S-net stations in response to tsunamis of different sizes. The results shown in Fig. 6 can also be interpreted as the limit of requisite number of stations for different magnitude ranges, beyond which the accuracy level is saturated. With such information one can determine which stations should be given priority in sustaining accurate tsunami forecasts. However, the nature of our optimization allows for exclusion of stations selected for larger earthquakes when being optimized for smaller events and vice versa, hence the result should be viewed with some caution. Furthermore, since we consider near-field events only, the optimized station distribution may not be relevant for far-field tsunamis or source areas outside the specified seismogenic region. The list of subsets of optimal S-net stations with respect to the specified magnitude ranges depicted in Fig. 7 can be found in Additional file 2: Table S1.

Conclusion

We have comprehensively evaluated the performance of the S-net system in enhancing the tsunami forecasting skill in the study area by utilizing a large number of plausible hypothetical scenarios associated with megathrust events, occurring on the Japan Trench subduction zone and its vicinity. Our study demonstrates that the vast coverage of S-net significantly contributes to the accuracy of forecasted coastal tsunami heights along the Pacific coast of Japan. Based on the proposed synthetic experiments, it is evident that the dense offshore tsunami observation network of S-net is capable of producing the desired forecast performance using relatively short tsunami data, which is difficult to achieve when only a few stations are available. However, in the real cases, various technical issues that may cause the deterioration of data quality should be anticipated. Additionally, we also determine the contribution of subsets of S-net stations to the forecast accuracy corresponding to various earthquake magnitude ranges through an optimization approach, which in general suggests that more observation points are needed for smaller earthquake-induced tsunamis. Furthermore, the results indicate the preeminent stations of S-net that should be sustained to ensure accurate tsunami forecasts.

Availability of data and materials

Bathymetric data are based on GEBCO 30 arc-second grid available at https://www.gebco.net/. Locations of S-net stations are obtained from the NIED website https://www.bosai.go.jp/inline/gallery/index.html. The SLAB 2 model is downloaded from https://github.com/usgs/slab2.
