Volcanic unrest at Hakone volcano after the 2015 phreatic eruption: reactivation of a ruptured hydrothermal system?

Abstract

Since the beginning of the twenty-first century, volcanic unrest has occurred every 2–5 years at Hakone volcano. After the 2015 eruption, unrest activity changed significantly in terms of seismicity and geochemistry. Like the pre- and co-eruptive unrest, each post-eruptive unrest episode was detected by deep inflation below the volcano (~ 10 km) and deep low frequency events, which can be interpreted as reflecting supply of magma or magmatic fluid from depth. The seismic activity during the post-eruptive unrest episodes also increased; however, seismic activity beneath the eruption center during the unrest episodes was significantly lower, especially in the shallow region (~ 2 km), while sporadic seismic swarms were observed beneath the caldera rim, ~ 3 km away from the center. This observation and a recent InSAR analysis imply that the hydrothermal system of the volcano could be composed of multiple sub-systems, each of which can host earthquake swarms and show independent volume changes. The 2015 eruption established routes for steam from the hydrothermal sub-system beneath the eruption center (≥ 150 m deep) to the surface through the cap-rock, allowing emission of super-heated steam (~ 160 ºC). This steam showed an increase in magmatic/hydrothermal gas ratios (SO2/H2S and HCl/H2S) in the 2019 unrest episode; however, no magma supply was indicated by seismic and geodetic observations. Net SO2 emission during the post-eruptive unrest episodes, which remained within the usual range of the post-eruptive period, is also inconsistent with shallow intrusion. We consider that the post-eruptive unrest episodes were also triggered by newly derived magma or magmatic fluid from depth; however, the breached cap-rock was unable to allow subsequent pressurization and intensive seismic activity within the hydrothermal sub-system beneath the eruption center. The heat released from the newly derived magma or fluid dried the vapor-dominated portion of the hydrothermal system and inhibited scrubbing of SO2 and HCl to allow a higher magmatic/hydrothermal gas ratio. The 2015 eruption could have also breached the sealing zone near the brittle–ductile transition and the subsequent self-sealing process seems not to have completed based on the observations during the post-eruptive unrest episodes.

Introduction

Phreatic eruptions have no direct involvement of magma and are instead driven by the thermal energy of hydrothermal water. However, thermal energy itself is mainly provided by heat from magma, and recent geophysical observations have revealed that deep intrusion of magma or magmatic fluid precedes phreatic eruptions. The uncertain time lag between such an intrusion and the eruption makes forecasting phreatic eruptions extremely challenging (Stix and De Moor 2018), as demonstrated by a series of eruptions of Ontake volcano recently.

The 2007 phreatic eruption of Ontake volcano was preceded by a magma intrusion at a depth of approximately 3 km beneath the eruption center, approximately 2 months before the eruption (Nakamichi et al. 2009). In contrast, the 2014 phreatic eruption of the volcano, which killed more than 60 trekkers in the summit area, was only preceded by a volcano-tectonic earthquake swarm that started 17 days before the eruption and no magmatic intrusion seems to have preceded it (Takagi and Onizawa 2016). However, surprisingly, the ejecta of the 2014 eruption contained a trace amount of juvenile (magmatic material newly emplaced beneath the surface) fragments, and a series of geological investigations implied that the magmatic body intruded to 3 km deep beneath the volcano just before the 2007 eruption was released by the 2014 eruption (Miyagi et al. 2020). This sequence implies that an eruption can be triggered by an intrusion event years prior. We, thus, cannot estimate eruption probability based only upon intensity of volcanic unrest or source depth of deformation, especially when a series of eruptions and/or unrest episodes have occurred recently at the volcano. For such eruption types, evaluation of volcanic unrest based upon models of the interaction between the hydrothermal system and magma intrusions is critical to avoid underestimation of eruption probability.

Hakone volcano, located near the nation’s capital Tokyo, is one of the largest tourist destinations in Japan and attracts more than three million tourists annually to the site of previous phreatic eruptions, named Owakudani (Owakidani) steaming area (Fig. 1). At this volcano, episodes of volcanic unrest have repeated every few years since the beginning of the twenty-first century, and eventually in 2015, a small phreatic eruption occurred at Owakudani steaming area (Mannen et al. 2018). Even after this eruption, volcanic unrest continued to take place, and evaluation of these events has yet to be done. Here, we summarize the recent episodes of volcanic unrest and discuss possible future phreatic activity.

Fig. 1
figure1

Index map of Hakone volcano. a Location of Hakone volcano. b Shaded relief map of Hakone volcano. C Sampling locations. Blue lines indicate the Owakuzawa River and its tributary. Red star, soil gas location; yellow circles, fumarole; green squares, steam production well (SPW). The two digits before the hyphen indicate year of emergence (e.g., fumarole 15–2 was formed in 2015). Since the eruption crater and fumaroles are formed in an area within 100 m from the SPW52, the area is called an eruption center area

Background

Hakone volcano and its activity in the twenty-first century

Here, we review Hakone volcano and its latest activity based on Mannen et al. (2018). Hakone is a caldera volcano located approximately 80 km SW of Tokyo (Fig. 1a). Its eruption history started at least 400 ka with two caldera-forming stages. Andesitic effusive eruptions since 40 ka have formed a complex of lava flows and domes named the Younger Central Cones (YCC) in the center of the caldera (Fig. 1b). At 3 ka, the latest magmatic eruption occurred near the northernmost part of YCC and formed a lava dome named Kanmurigatake, which erupted within an amphitheater that was created by a sector collapse just before the dome formation. The most active steaming area and the center of the latest phreatic eruptions named Owakudani is located at the eastern flank of Kanmurigatake.

Hakone is not very active in terms of magmatic eruptions; however, it is notable for its high seismicity, with at least 7 intense earthquake swarms observed in the twentieth century. Most of the swarms did not accompany clear intensification of steaming activity, while the volcanic unrest from 1933 to 1935 culminated with the formation of a new steam vent 1 km south of Owakudani, although the exact location of the vent is not known.

The continuous instrumental monitoring of Hakone volcano started after the volcanic unrest of 1959–1960; however, the first major seismic swarm to be detected by the network did not occur until 2001. The 2001 unrest consisted of an earthquake swarm, and deep and shallow inflation as observed by Global Navigation Satellite System (GNSS) and a tiltmeter network, and culminated with a blowout of a steam production well (SPW) in Owakudani (SPW52, 500 m deep; Fig. 1c). Since the 2001 unrest, major volcanic unrest episodes comprising earthquake swarms, deep inflation detected by a GNSS network, and deep low frequency events (DLF) were observed in 2006, 2008–2009 and 2013 (Harada et al. 2018; Yukutake et al. 2019). These volcanic unrest episodes were not accompanied by significant increases of steaming activity in the steaming areas of the volcano; however, in March 2015, a new volcanic unrest episode started with a deep inflation and increase of both volcano-tectonic (VT) and DLF seismicity. This volcanic unrest was followed by a blowout of SPW (SPW39 in Fig. 1c) in early May, and eventually, on June 29, a small phreatic eruption started and lasted until the early morning of July 1. The 2015 volcanic unrest after the eruption seems to have continued until late August, which is evident from crustal inflation monitoring by GNSS (Harada et al. 2018).

Subsurface structure of Hakone volcano

Various geophysical and geochemical investigations over the last decade have modeled the subsurface structure of Hakone volcano. They are summarized in Fig. 2 and as follows. At approximately 20 km beneath the northern caldera rim of the volcano, DLFs occur sporadically. Since many of the DLF swarm events were followed by inflation of the edifice and shallow VT earthquake swarms, DLFs are interpreted as a signal indicating migration of magmatic fluid (Yukutake et al. 2015, 2019). A seismic tomography study revealed the velocity structure beneath Hakone volcano and showed that the volcano has an active magma-hydrothermal system (Yukutake et al. 2015). Yukutake et al. (2015) identified a high-Vp/Vs and low-Vs body and named it Region 1, which was considered to represent a magma chamber located at approximately 10 km depth. Above Region 1, a low-Vp/Vs and low-Vs body (Region 2) was identified and interpreted as a fluid-rich zone. The upper boundary of Region 2 is shallower than 5 km, and interestingly, the boundary seems to reach near the surface just beneath Owakudani. Above Region 2 is a fracture zone, where most of the VT earthquakes occur. Some fraction of the VT earthquakes in the fracture zone of Hakone volcano can be attributed to reactivation of pre-existing fractures caused by fluid migration (Yukutake et al. 2010, 2011). Significant anisotropy in the shallow crust beneath Hakone volcano also indicates pre-existing fractures that are controlled by the regional stress field (Honda et al. 2014). The fracture zone and Region 2 overlap slightly and both are considered to form the hydrothermal system.

Fig. 2
figure2

A schematic model of subsurface structure of Hakone volcano. Diameter of the caldera is approximately 10 km; however, structure beneath the volcano such as magma chamber and open crack are not to scale. This model is a modified version of previous models (Yukutake et al. 2015; Mannen et al. 2018) based on recent studies (Doke et al. 2018; Kobayashi et al. 2018; Yoshimura et al. 2018; Mannen et al. 2019; Ohba et al. 2019; Yukutake et al. 2019)

A magnetotelluric study in and around Hakone volcano revealed a bell-shaped conductive body beneath the volcano, the top of which reaches the surface near Owakudani (Yoshimura et al. 2018). Since the bell-shaped conductive body nests a resistive body beneath it, they are considered to represent the hydrothermal system of the volcano. The bell-shaped body is interpreted as a smectite-rich zone, which was formed by the prolonged hydrothermal activity of the volcano. In Owakudani and the surrounding area (Fig. 1), a series of local high-resolution magnetotelluric surveys was conducted and revealed that the bell-shaped conductive body is exposed on the surface in the bottom of Owakudani valley (Mannen et al. 2019; Seki et al. 2020). A geological investigation of a borehole showed that the bell-shaped conductive body corresponds to altered volcanic sediment accompanying smectite as predicted by Yoshimura et al. (2018) (Mannen et al. 2019; Seki et al. 2020). Hypocenters of VT earthquakes at Hakone are located within the resistive body (i.e., hydrothermal system) (Yoshimura et al, 2018). Peculiarly, seismic signals other than VTs, such as volcanic tremor and low frequency events, are rare in this volcano. The only shallow non-VT seismic events detected by our network were an isolated shallow M = 0.3 event that occurred near Owakudani during the 2006 unrest (Tanada et al. 2007) and tremors sourced from the boiling conduit during the 2015 eruption (Yukutake et al. 2017). Since shallow tremors and low frequency earthquakes are common in volcanoes that have active hydrothermal systems, the paucity of shallow seismic signals related to the migration of fluids even during volcanic unrest episodes could be a significant feature of Hakone volcano.

Geochemical monitoring has provided evidence for development of a sealing zone (Fig. 2) and injection of magmatic fluid into the hydrothermal system through the zone (Ohba et al. 2019). Very shallow geological and resistivity structures (≤ 500 m deep) were summarized by Mannen et al. (2019); the very shallow inflation source of the 2015 eruption (Doke et al. 2018; Kobayashi et al. 2018), which was interpreted as a vapor pocket located 150 m deep beneath the eruption center (Fig. 2; surface elevation is approximately 1000 m above sea level), was determined by a high-resolution magnetotelluric survey (CSAMT) to be a high resistivity zone within the apex of the bell-shaped conductive body (Yoshimura et al. 2018).

The 2015 eruption and unrest

The time sequence of the 2015 unrest and eruption of Hakone volcano was already summarized by Mannen et al. (2018). Here, we briefly review this event. The onset of the 2015 unrest was first recognized in early April from increases in DLFs and the baseline length across the volcano detected by GNSS, which were interpreted as inflation of a magma chamber due to addition of magma or magmatic fluid (Harada et al. 2018; Mannen et al. 2018; Yukutake et al. 2019) (Fig. 3). Then, an earthquake swarm, a blowout of SPW39, and an increase in the CO2/H2O ratio of the fumarole gas emitted near the future eruption center followed (Mannen et al. 2018; Ohba et al. 2019). Although the seismicity and the CO2/H2O ratio began decreasing after mid-May, a small phreatic eruption occurred on the morning of June 29 and lasted until the early morning of July 1 (Yukutake et al. 2017; Mannen et al. 2018). The eruption was seemingly triggered by the formation of an open crack in the morning of June 29 near the surface (830–854 m above sea level) to deeper than 530 m above sea level as indicated by satellite InSAR and analysis of data obtained from broadband seismometers and tilt meters (Honda et al. 2018; Doke et al. 2018). However, chemical and component analyses of the erupted ash and water indicated a shallow (shallower than 850 m above sea level or 150 m deep from the surface) origin (Mannen et al. 2019). Even after the eruption, shallow and deep inflation (0.8 km and –6.5 km above sea level, respectively) continued without a significant change in the inflation rate until August (Harada et al. 2018). The seismicity began in the central part of the caldera and then propagated to the peripheral areas (Fig. 4a).

Fig. 3
figure3

Sequential change of a) CO2/H2S (C/S) molar ratio of fumarole gas emitted from a fumarole in Owakudani (Daita et al, 2019; Ohba et al, 2019), b) baseline length across Hakone volcano (Odawara – Susono2 + 20,747 m), c) cumulative number of deep low frequency events, and d) daily number of volcano-tectonic earthquakes in Hakone volcano. Durations of VAL 2 or more are shown as yellow hatches (May 6–Nov. 20 for 2015 and May 19–Oct. 9 for 2019) and durations of volcanic unrest defined as periods of baseline increase are shown as blue hatches (December 1, 2012–March 1, 2013, April 1–August 1 of 2015, May 1–Nov 1 of 2017 and March 1–August 1 of 2019)

Fig. 4
figure4

Maps of hypocenters of volcano-tectonic earthquakes during the co-eruptive (2015) and post-eruptive (2017 and 2019) volcanic unrest episodes. Day 0 is set to the first day of a month during which onset of the edifice inflation was observed and shown in the bottom-right corner of each panel. Hypocenters of earthquakes that occurred within 180 days after day 0 are plotted. Colors indicate days after day 0 and the radius of each circle indicates magnitude of the earthquake. The total number of earthquakes during the 180 days are shown in the bottom-right corner of each panel. A in b) indicates the earthquake swarm in early May in 2017. B in c) indicates the swarms on 18 and 19 of May in 2019

The 2017 unrest episode

The 2017 unrest of Hakone volcano was subtle to detect based on seismicity. Seismicity rates in 2017 were generally low and only 242 earthquakes were detected in the Hakone area by the routine analysis of Hot Springs Research Institute. This annual number is within the range of that in an ordinary year without volcanic unrest after 2000 (Fig. 5). However, slight increases of seismicity were observed in mid-April and early May at sea level beneath Mt. Kintoki at the northern rim of the caldera (A in Fig. 4b). Concurrently, in early May, the baseline length crossing Hakone volcano began to increase slowly and continued to increase until early November (Fig. 3), which can be interpreted as a deep inflation event. Daita et al. (2019) reported an increase in the CO2/H2S (C/S) ratio of fumarole gas in Kamiyu, a steaming area north of Owakudani. Previous increases in the C/S ratio have been observed accompanying volcanic unrest; however, this increase in the C/S ratio was not sharp and did not attenuate swiftly, unlike the increases in the C/S ratio accompanying the 2013 and 2015 unrest episodes (Daita et al. 2019; Ohba et al. 2019) (Fig. 3). An increase in DLF events was also observed in early April (Fig. 3).

Fig. 5
figure5

Annual number of volcano-tectonic earthquakes in Hakone volcano detected by routine analysis of Hot Springs Research Institute of Kanagawa Prefecture. Open circles indicate years that underwent volcanic unrest, while dots indicate years without unrest

The 2019 unrest episode

The 2019 unrest episode at Hakone volcano appears to have begun with a slight increase in seismicity in March, which lasted until the end of October. The sudden onset of a seismic swarm occurred on May 18 beneath the western caldera rim (B in Fig. 4c). Although the location of swarm events was remote from Owakudani (3 km west and outside of the latest eruption centers), the number of earthquakes exceeded a set criterion and the Japan Meteorological Agency (JMA), which is in charge of volcano monitoring and alerting, announced a rise in Volcano Alert Level (VAL) from 1 to 2 for the volcano in the early morning of May 19. VAL 2 remained in place until October 7. The baseline length crossing Hakone volcano began to increase in mid-March and continued until the beginning of August. The C/S ratio of Kamiyu also began to increase after the end of April; however, the increase in C/S ratio was not sharp and again did not attenuate quickly, similar to the 2017 unrest episode (Fig. 3). During the volcanic unrest, ratios of magmatic gases such as SO2 and HCl relative to H2S, which is a hydrothermal gas, increased significantly in Owakudani, although a significant net increase in magmatic gas was not observed by a Differential Optical Absorption Spectroscopy (DOAS) campaign, as discussed later. A slight increase in DLF events at the beginning was also observed during the unrest; however, interestingly, a far larger number of DLFs was observed in the latest phase of the unrest in late October (Fig. 3).

Data

Field surveys after the eruption

Since the entry of researchers around the eruption center was allowed after the 2015 eruption (beginning in March 2016), we have monitored fumarole temperature and chemical compositions of volcanic gases and hot spring waters. Here, we summarize these results.

Fumarole temperature

New fumaroles, which emit super-heated steam (> 100 ºC), were created in the eruption center area in 2015. Most of them were formed during the eruption but some formed during the unrest phase before the eruption or even long after the eruption. Up until present, steam temperatures have been routinely measured for at least 20 fumaroles, five of which are relatively active and long-lived and are shown in Fig. 6 (see Fig. 1c for the locations). The maximum measured temperature among them (164.3 ºC) was recorded on April 10, 2018 at fumarole 15–1, which is the fumarole created in the main crater formed during the eruption (Mannen et al. 2019). As shown in Fig. 6, steam temperatures have not decreased for all fumaroles. However, a decline of the maximum measured temperature in the steaming area is detected, at a rate of ~ 7.7 ºC/yr, using infrared images of the whole area taken continuous since early 2016 (Harada 2018). These observations imply a waning trend in thermal activity in the eruption center area as a whole, while several stable fumaroles constantly emit super-heated steam from depth (probably ~ 150 m deep; Mannen et al. 2019). It is noteworthy that no temperature change related to the volcanic unrest in 2017 and 2019 was apparent from these observations.

Fig. 6
figure6

Temporal changes in temperature of steam emitted from fumaroles in Owakudani. The durations of volcanic unrest episodes are shown as shaded yellow (VAL2 or more) and blue (baseline across the volcano is increasing). See caption of Fig. 3 for details. Timing of heavy rains due to typhoons, which seem to have temporarily lowered steam temperature from some fumaroles, is also shown (Lan on October 23 in 2017 and Hagibis on October 18, 2019). The location of fumaroles is shown in Fig. 1c

SO2 emission from Owakudani steaming area

We conducted DOAS surveys to quantify emission rates of SO2 from the Owakudani steaming area (Abe et al. 2018; Fig. 7). SO2 emission from Owakudani reached more than 100 t/day just after the 2015 eruption; however, the emission rate decreased rapidly and is now estimated to be approximately 10 t/day. The DOAS measurements contain large errors (up to 2–8 t/day) and no significant increase in SO2 during volcanic unrest episodes in 2017 and 2019 was measured.

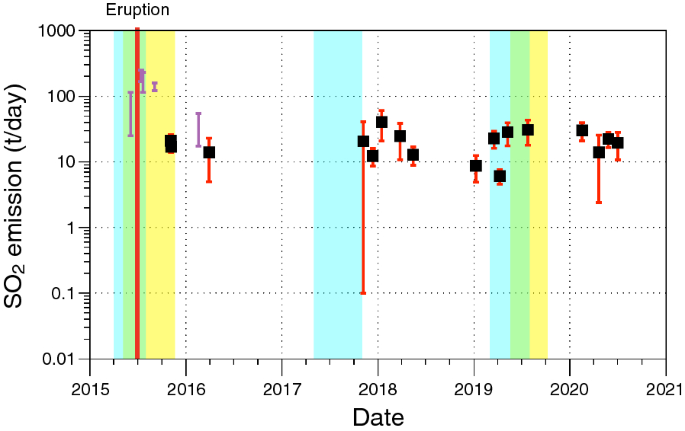

Fig. 7
figure7

Sequential change of SO2 emission from Owakudani steaming area (after Abe et al, 2018). Black squares with error bars indicate measurements by Meteorological Research Institute (2015, 2016) and Hot Springs Research Institute of Kanagawa Prefecture (after 2017), while others (error bars only) are measurements by JMA

Fumarole gas

An accurate chemical analysis of volcanic gas requires meticulous sampling and complicated lab procedures (Ozawa 1968), limiting the monitoring frequency. We, thus, launched a long-term test of simple gas measurements using a detector tube named Passive Dosi-tube (GASTEC 2018). Passive Dosi-tube was originally developed to measure personal exposure to gas in the workplace and obtain time averaged gas concentration in the environment for a prolonged time (1–10 h). For this study, two sets of dosi-tubes composed of H2S, SO2 and HCl sensors (GASTEC No. 5D, 4D and 14D, respectively) were installed near (2–4 m) the vent of fumarole 15–2 (Fig. 1c) for 1 to 2 h. A set of dosi-tubes is directly exposed to the air while another set is installed in a 500 ml ventilated container filled with silica gel granules (150 g) to prevent condensation of water in and around the dosi-tubes. The dosi-tubes were expected to measure ratios of volcanic gas in the atmosphere near the fumarole rather than a direct measurement of steam emitting from the volcano; thus, the observed ratio may be altered by processes in the atmosphere such as gas absorption by water droplets in the steam. However, we aimed to monitor obvious sequential changes in gas ratios with high frequency measurements. Since the dosi-tube measures the volume fraction of the target gas in the atmosphere, the gas ratio is a volumetric ratio and molar ratio assuming an ideal gas. The sequential change of SO2/H2S and HCl/H2S ratios, both of which indicate the ratio of magmatic gas to hydrothermal gas, are shown in Fig. 8. Since the start of monitoring (in March 2018), SO2/H2S ratios show a constant decrease, and HCl remained nearly undetected until March 2019. However, both SO2/H2S and HCl/H2S ratios started to increase after March 2019 and peaked around June 2019. Since then, both SO2/H2S and HCl/H2S ratios showed a gradual decline; however, both ratios are still higher than those before March 2019 at the time of writing (mid 2020).

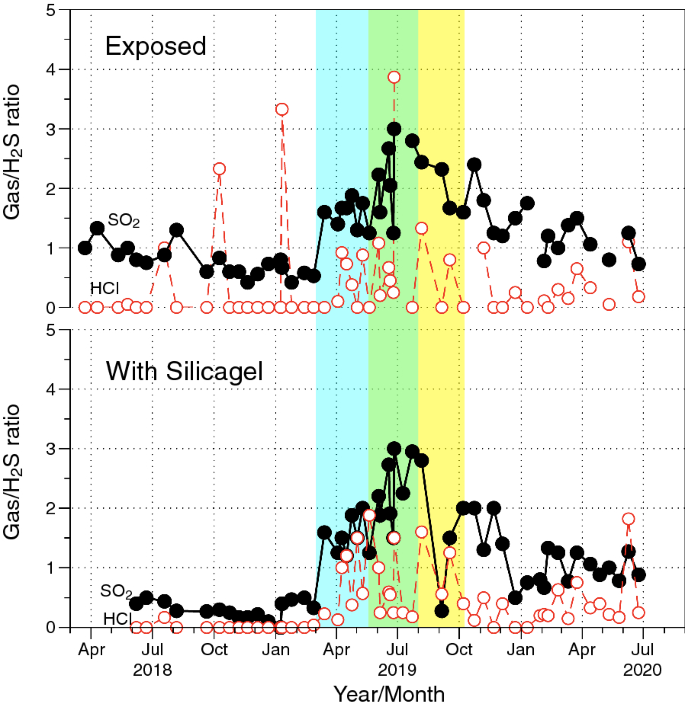

Fig. 8
figure8

Sequential change of magmatic components (SO2 and HCl) relative to a hydrothermal component (H2S) within the atmosphere near the 15–2 fumarole, measured by dosi-tubes. Each panel shows values obtained by a set of dosi-tubes exposed to the air (upper panel) and another set within a container filled with silica gel (lower panel). The durations of volcanic unrest episodes are shown as shaded yellow (VAL2 or more) and blue (baseline across the volcano is increasing). See caption of Fig. 3 for details. The spikes in HCl/H2S ratio of the exposed set (HCl/H2S > 2) are considered to be errors caused by color changes due to steam precipitation within the tube

Soil gas

Near the Owakudani steaming area, volcanic gas is seeping out from the soil under a building floor (Loc. 3 in Fig. 1c). We made weekly measurements of CO2 and H2S in the ventilated air from under the building floor using standard detector tubes since the end of the eruption (Fig. 9). The detector tubes used are GASTEC 2LC (CO2) and 4L (H2S). Since the volcanic gas emitted from soil is not affected by nearby rainfall, and the building ventilation system enables almost constant flux of air from the subfloor, we can expect stable measurements of emitted gas. The soil gas shows a constant increasing in H2S, while CO2 remains almost stable. Interestingly, both H2S and CO2 show subtle increases during the 2017 and 2019 unrest episodes. The C/S (= CO2/H2S) ratio decreased almost constantly after the 2015 eruption; however, slight increases can be recognized during the 2017 and 2019 unrest episodes.

Fig. 9
figure9

Sequential change in the volcanic component of soil gas near the center of the 2015 eruption (Loc. 3 in Fig. 1c). The soil gas concentrations were measured by detector tubes. No pressure correction was applied. The durations of volcanic unrest episodes are shown as shaded yellow (VAL2 or more) and blue (baseline across the volcano is increasing). See caption of Fig. 3 for details

Artificial hot springs

In Owakudani, artificial hot springs (AHS) have been created by mixing steam from SPW and spring water pumped up from the caldera floor to supply the local hotel industry (Mannen et al. 2019). AHS is not a diluted condensation of steam from the production well because less-soluble gases such as CO2 and H2S are barely absorbed in the water; however, its chemistry can be useful to monitor the hydrothermal system beneath the steaming area. We routinely analyzed the chemistry of AHSs from SPWs 39 and 52 (Fig. 1c). Here, we show temporal changes of Cl and SO4 content, which are possibly magmatic in origin, and major anions in the AHSs (Fig. 10).

Fig. 10
figure10

Sequential changes in the chemistry of artificial hot springs created by the steam from SPW52 (red circle) and SPW39 (orange triangle), and water from the Owakuzawa river (green diamond)

SPW52, which is 500 m deep and the well that blew out during the 2001 unrest, had shown a continuous decrease in Cl of the AHS since the beginning of monitoring; however, after early April just before the onset of the 2017 unrest, Cl content spiked. The Cl content again showed a constant decrease after the end of the 2017 unrest, but then increased significantly when the baseline length across Hakone volcano started to increase in early May 2019. The Cl content of SPW39 (413 m deep) also showed an unrest-related increase. For both AHSs, SO4 changes during the unrest were observed but less significant.

River water from the eruption center

The entire eruption center area forms the headstream of the Owakuzawa river. Thus, water from Owakuzawa is presumably affected by volcanic gas and natural hot springs within the area, and its chemical components can reflect hydrothermal activity. To obtain water highly affected by the fumarole activity within the eruption center even during severe volcanic unrest, our sampling point was located just outside of the restriction area (at 470 m downstream of 15–12 fumarole; Fig. 1b; Fig. 2 in Mannen et al, 2018). Indeed, just after the 2015 eruption, water from the river showed a significant increase in Cl and SO4 (Fig. 10; Mannen et al. 2018). After the eruption, the Cl and SO4 contents showed constant decline; however, they apparently rose slightly at the beginning of the 2019 unrest. The Cl and SO4 changes related to the 2017 unrest were ambiguous (Fig. 10).

Seismicity related to volcanic unrest after the 2015 eruption

We examined the depth variation of seismic events beneath the 2015 eruption center area to detect any changes related to the eruption. Figure 11 shows the depth variation of earthquakes occurrence within the 2015 eruption center area during volcanic unrest episodes in this century. Interestingly, the seismicity depth change from before and after the eruption seems to be significant. Before the 2015 eruption, hypocenters of more than 60% of earthquakes in and around the Owakudani steaming area were located shallower than 2 km depth, while such earthquakes comprise less than 40% of the total after the eruption. This observation indicates that the fraction of shallower earthquakes declined significantly after the 2015 eruption.

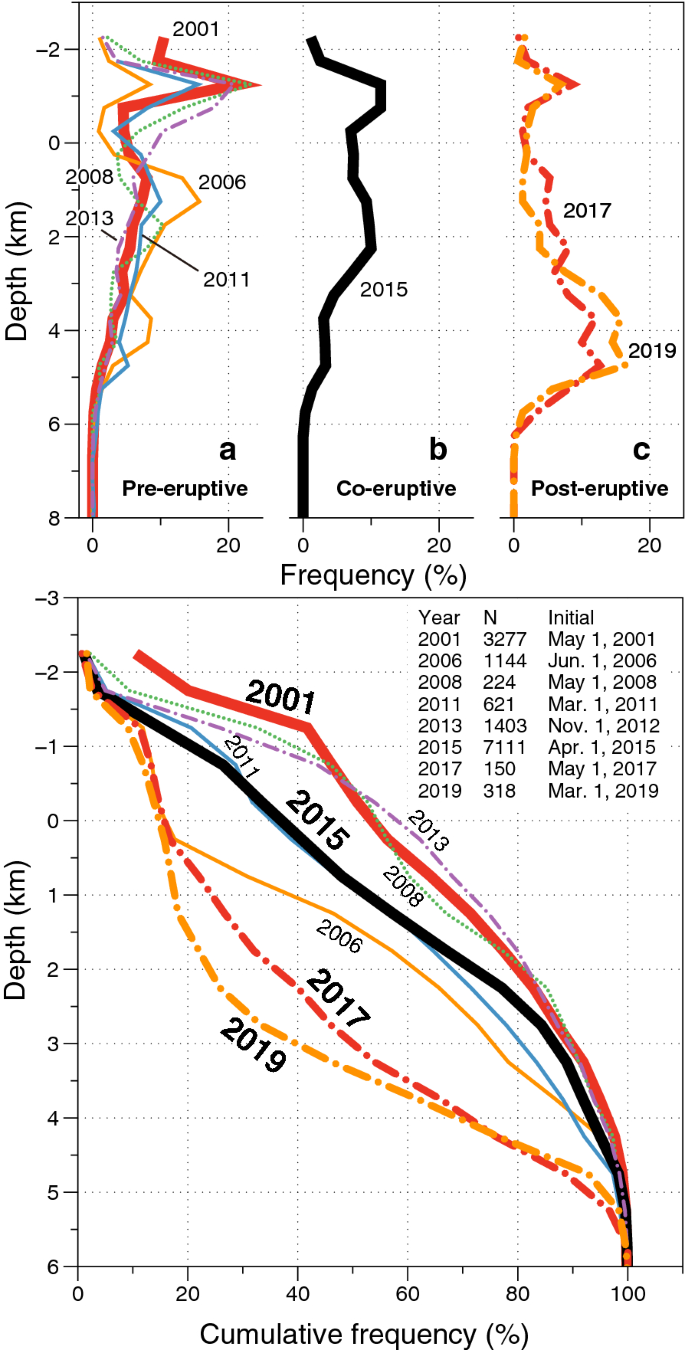

Fig. 11
figure11

Frequency–depth variations of volcano-tectonic earthquakes in the hydrothermal system during post-2001 volcanic unrest episodes. Frequencies of every 500 m depth interval are shown. Upper panels; frequency–depth variations of a) pre- b) co- and c) post-eruptive volcanic unrests. Lower panel d) shows cumulative frequency–depth variations for each volcanic unrest episode. We count the number of earthquakes with epicenters within 2 km of the summit of Kamiyama (35.2333º N 139.0208 º E). Here, the earthquakes during volcanic unrest are defined as those occurring within 6 months of the initial date. The initial dates and total number of earthquakes (N) are shown in the upper right of d). The hypocenter catalog is obtained by the routine analysis by the Hot Springs Research Institute of Kanagawa Prefecture. Error of hypocenter location is estimated by square of the diagonal element of the error covariance matrix as 0.05 km (NS), 0.06(EW), and 0.14 km (depth). Note that hypocenter depths for earthquakes shallower than 0 km are not well constrained

Discussion

Lowered VT activity and depressurization beneath the 2015 eruption center

The 2015 eruption appears to have been triggered by inflation at depth as indicated by an increase of baseline length across the volcano (Harada et al, 2018; Kobayashi et al.2018; Mannen et al. 2018) (Fig. 12a, b). Similar deep inflation was also recognized since the earliest phase of the post-eruptive unrest episodes in 2017 and 2019 by GNSS monitoring (Fig. 3). DLFs were also detected in the earliest phase of the pre-, co-, and post-eruptive unrest. However, subsequent seismicity seems to be different for the post-eruptive unrest episodes. VT earthquakes beneath the central cone were not as prevalent during the post-eruptive unrest episodes, especially in the shallow region (Figs. 4 and 11), although significant seismic activity took place beneath the caldera rim, remote from the active fumarole (A and B in Fig. 4). Assuming pore pressure increase is the trigger for VT seismicity (Yukutake et al. 2011; Mannen et al. 2018), such a significant difference can be interpreted as lower pore pressure rise in the hydrothermal system beneath the central cone, especially in the shallower part of the system (< 4 km deep). The insufficient pressurization of the hydrothermal system beneath the central cone compared with the pre-eruptive unrest episodes can be explained by the destruction of the cap-rock of the volcano by the 2015 eruption (Fig. 12c and d).

Fig. 12
figure12

Schematic model of the pre- and post-eruptive hydrothermal systems. Not drawn to scale. See text for depth and dimension of the features. a) Before the 2015 eruption, cap-rock and sealing at the brittle–ductile transition (BDT) were intact and magmatic gas accumulated within the pressurized pores beneath the BDT. We assume individual hydrothermal systems beneath the central cones and caldera rim are separated by a low-permeable sealing. b) Ruptures of sealing at the BDT induced by a deep inflation event allowed rapid migration of accumulated heat, fluid and pore pressure beneath the BDT to the liquid-dominated zones of the hydrothermal systems. Volcano-tectonic earthquakes (VTs) and steaming from the steam production wells (SPW) increased due to the pressurization of the hydrothermal system. c) The 2015 eruption formed paths for steam from the vapor-dominated (VD) zone to the surface. Due to the path, the post-eruptive hydrothermal system beneath the central cone was depressurized and volume of the VD zone increased. The rupture of seals at the BDT healed beneath the caldera rim, but were maintained beneath the central cones, which allows migration of heat and pore fluid beneath the BDT. d) Post-eruptive unrest episodes were also triggered by deep inflation event. Beneath the central cones, no extensive pressurization of the hydrothermal system occurs because pores beneath the BDT were not pressurized due to the rupturing in the 2015 eruption. Heat migration from deep to shallow lowered the liquid phase fraction within the VD zone and caused less effective scrubbing, which allowed enrichment of soluble gas (SO2 and HCl) within the steams from the VD zone and fumaroles. Magmatic CO2 within the fumaroles also rose, but not significantly due to no release of accumulated CO2 within the pressurized pores beneath the BDT

Mannen et al (2019) concluded that the materials erupted in the 2015 eruption were derived from cap-rock (from surface to 100 m deep) based on geological and magnetotelluric analyses. The enthalpy of the maximum temperature of steam emitted from the fumarole (2805 kJ/kg, 164.3 ºC at the surface; Fig. 6) is very close to that of saturated steam coexisting with liquid water at ~ 200 ºC and ~ 1.5 MPa, which is a hydrothermal condition at the depth of 150 m assuming hydrostatic pressure. Magnetotelluric surveys and InSAR analysis indicate that a vapor-rich portion of the hydrothermal system is located approximately 150 m below the surface of the eruption center and named the portion ‘vapor pocket’ (Kobayashi et al. 2018; Doke et al. 2018; Mannen et al. 2019). This line of evidence implies that the 2015 eruption tapped vapor from the uppermost part of the hydrothermal system and some vapor routes through the cap-rock created by the eruption are still alive as indicated by surviving high temperature fumaroles (≥ 160 ºC). Such degassing routes after the eruption can inhibit pressurization of the hydrothermal system during an unrest episode. The higher resistivity of the enlarged vapor pocket after the eruption (Mannen et al. 2019) indicates an increase in the vapor phase, presumably due to depressurization caused by the breach of the cap-rock (Fig. 12c). Also, the intensive seismic and hydrothermal activities during the 2015 activity may have increased the permeability of the hydrothermal system beneath Owakudani and contributed to the inhibition of pressure increase in the region during the post-eruptive unrest (Sibson et al. 1975).

Even though the eruption breached the cap-rock beneath Owakudani, pore pressure seems to have increased in other parts of the hydrothermal system during the post-eruptive unrest episodes. The seismic swarm beneath the northern (2017; A in Fig. 4b) and western (2019; B in Fig. 4c) caldera rim during the unrest episodes could be the manifestation of fluid injection from depth to a separated part of the hydrothermal system that caused a pore pressure rise and fluid migration as observed in the previous unrest (Yukutake et al. 2011), although a detailed analysis remains yet to be done (Fig. 12d).

Doke et al. (2020) detected a contraction source in the west of Owakudani using InSAR time series analysis, which is distinct from the vapor pocket beneath the eruption center. This result implies that the hydrothermal system beneath the central cone of Hakone volcano is not a single large expanse as implied from the resistivity structure (Yoshimura et al, 2018), which is highly interconnected. We, thus, need to assume a complex of multiple hydrothermal sub-systems separated by low-permeable seals, and each sub-system hosts a localized earthquake swarm as observed in the previous unrest episodes (Fig. 12).

Increase of magmatic gas during the post-eruptive unrest

During the post-eruptive unrest episodes, magmatic gas species, such as SO2, HCl and CO2 were observed to increase compared to H2S, which is a representative hydrothermal gas (Figs. 3, 8 and 9). The net increase of HCl emission during the post-eruptive unrest periods is also implied from river water chemistry and an increase of HCl in the vapor pocket beneath Owakudani was indicated by the chemistry of AHSs generated from SPWs (Fig. 10). Since HCl tends to be degassed from shallow magma (Rouwet et al. 2017), this might suggest intrusion and degassing of shallow magma during the post-eruptive unrest. However, no indication of shallow intrusion, such as low frequency earthquakes and harmonic tremor, was observed in our geophysical monitoring. Also, our DOAS survey observed no significant gross increase in SO2 emissions (Fig. 7). The emissions of SO2 during the post-eruptive unrest episodes were less than the standard criterion to indicate magma involvement (> 100 t/d) (Symonds et al. 2001).

SO2 and HCl are magmatic, but they are highly soluble in liquid water. We, thus, attribute the increase of these gases to a change in liquid–vapor ratio in the uppermost part of the hydrothermal system (~ 150 m deep). In the environment where liquid water exists, SO2 and HCl can be scrubbed from the coexisting volcanic gas; thus, the increase of these gases can imply drying-out of the hydrothermal system (Symonds et al. 2001). Since the fumarole temperatures showed no significant increase during the post-eruptive unrest episodes (Fig. 6), significant heating of the hydrothermal system that vaporized all liquid water in the shallowest hydrothermal system is highly improbable. Instead, a slight increase of heat flux changed the liquid–vapor ratio in the uppermost part of the hydrothermal system (~ 150 m deep) without any change of temperature in the vapor–liquid coexisting system. The increase of heat flux may be attributed to the injection of hot and pressurized magmatic fluid into the hydrothermal system by the rupture of the sealing zone at depth, possibly at the brittle–ductile transition (Fig. 12c, d).

Previous model of volcanic unrest

Ohba et al. (2019) proposed another mechanism to explain unrest phenomena at Hakone volcano, which relies on steady degassing of magma rather than newly derived magmatic fluid from depth. They emphasized the increase of atmospheric gases such as Ar and N2 in the fumarole emissions a few months before the onset of the 2015 unrest and interpreted this as the development of a sealing zone between the hydrothermal and magma-peripheral systems. During the pre-unrest phase, a sealing zone developed near the brittle–ductile transition and the pressure of magmatic gas represented by CO2 beneath the sealing zone increased. Meanwhile, pressure in the hydrothermal system dropped due to the lack of magmatic gas influx from the magma-peripheral system, allowing atmospheric gas to seep into the hydrothermal system, as detected by their survey of the fumarole gas.

This is an interesting model that interprets the results of gas monitoring; however, the model neglects geophysical observations such as deep inflation and DLFs in the early phase of the volcanic unrest episodes. If the deep inflation was caused by pressurization of volatile species beneath the sealing zone, deflation should have occurred after the breach of the sealing zone. This means deep deflation should have been observed when VT earthquakes surged. Also, the DLF events in the very early phase of the unrest episodes indicate injection of magma or magmatic fluid from depth. We acknowledge that it is hard to explain the increase of atmospheric species in the fumarole during the pre-unrest phase; however, we point out that this was observed only in fumarole N, which is located near the eruption center of the 2015 eruption. This means that the injection of atmospheric species seems to have occurred only in a very limited part of the hydrothermal system, probably near the surface of the steaming area. In the steaming area, reactivation of an almost extinct steam production well (SPW39) was recognized on April 17 (Mannen et al. 2018) and inflation of the steaming area was recognized by InSAR on May 7 (Doke et al. 2018). These observations indicate that underground fracturing and a local uplift (≤ 200 m in diameter) due to very shallow inflation (~ 150 m depth; vapor pocket) could have started before May 2015 (Kobayashi et al. 2018; Doke et al. 2018). Indeed, fracturing of the surface was visually observed after mid-June (Mannen et al. 2018) and such fracturing may have introduced air into the shallowest region of the hydrothermal system near the uplift region.

Degassing of CO2 during the unrest episodes and its implication

The increase in the C/S ratio from the very early phase of the unrest episodes at Hakone volcano can be explained by a breach of the sealing zone that leads to a significant pressure contrast between the hydrothermal system and a CO2 reservoir beneath it. The sealing zone may not be necessarily be identical to the brittle–ductile transition as implied by Ohba et al. (2019). However, it is noteworthy that no significant change in SO2 and H2S emission had been recognized in the peripheral fumaroles around the eruption center (Ohba et al, 2019). Also, our DOAS survey implies no significant increase of SO2 emission during the post-eruptive unrest episodes occurred in 2017 and 2019 (Fig. 7). These observations may mean that principally, CO2 was injected into the hydrothermal system, implying magma degassing deeper than the levels of SO2 exsolution but shallower than that of CO2. The breach of the sealing zone and the migration of the hydrothermal fluid from the magma-peripheral to the hydrothermal systems might have accompanied bubbling of CO2 (Lowenstern 2001), although no corresponding geophysical signal was observed.

Degassing from newly derived magmatic fluid may have been the source of the CO2 and the reason for the increase in the C/S ratio; however, the 2017 and the 2019 unrest episodes did not show sharp increases in the C/S ratio even though these events were accompanied by DLFs (Fig. 3). Such a difference in the temporal change in the C/S ratio during the volcanic unrest episodes indicates a change in physical structure caused by the 2015 eruption. We previously proposed a breach of the shallow cap-rock. In addition to that, we propose a breach of the deep sealing zone during the 2015 eruption, with its annealing process after the eruption still incomplete. Assuming the sealing zone remained breached, volatiles steadily degassed from the magma chamber cannot be stored beneath the sealing zone in large quantity (Fig. 12c). Thus, only newly derived magmatic fluid may contribute to the CO2 rise during the volcanic unrest, and the observed CO2 increase at the surface became subtle as observed during the unrest episodes in 2017 and 2019 (Fig. 12d). Based on this model, we expect that the sequential change of the C/S ratio characterized by a strong increase just after the beginning of an unrest and a strong decrease after the climax as observed in 2013 and 2015 (Fig. 3) will resume after a restoration of the sealing zone in the future.

Model caveats

Deep inflation sources during Hakone unrest episodes have been located using inversion analysis. However, their optimum depths were not unique, ranging from 6.5 km for the 2015 unrest and eruption (Harada et al. 2018) to 10 km for the 2019 unrest (Doke et al. 2019). Mannen et al. (2018) interpreted deep inflation during Hakone unrest episodes, as indicated by GNSS data analysis, as magma replenishment. Kobayashi et al. (2018) located the source of the deep inflation during the 2015 unrest and eruption (4.8 km deep) and considered the inflation source to represent a magma chamber. However, these source depths are shallower than Region 1, which is considered to represent a magma chamber from seismic tomography, and are instead located in the hydrothermal system (Yukutake et al. 2015). We may, thus, need to assume magma intrusion or accumulation of magmatic fluid in the deeper part of the hydrothermal system. As discussed above, intrusion of magma to the hydrothermal system is possible, but relatively low emission of magmatic gases observed are seemingly at odds with the model.

Accumulation of magmatic fluid within the deeper part of the hydrothermal system may increase the likelihood of a large phreatic eruption in the future. Post-eruptive deflations, such as those observed after the Ontake eruption in 2014 (Murase et al. 2016; Narita and Murakami 2018) and Te Maari eruption in 2012 (Hamling et al. 2016), indicate accumulation of magmatic fluid before the major phreatic eruption. Such post-eruptive deflation was not observed after the 2015 eruption of Hakone and this could be an alert for a large phreatic eruption in future. Since intrusion of magmatic fluid at depth can occur without significant seismic and geodetic precursors as shown by the 2014 eruption of Ontake (Takagi and Onizawa 2016), we should be alert even to minor volcanic unrest episodes.

Conclusion

The volcanic unrest episodes of Hakone volcano observed after its latest phreatic eruption in 2015 were reviewed. Like the pre- and co-eruptive unrest, the post-eruptive unrest episodes that occurred in 2017 and 2019 were accompanied by inflation of the volcano and deep low frequency events, both of which can be interpreted as a magma replenishment to the deep magma chamber (~ 10 km) or injection of magmatic fluid into the bottom of the hydrothermal system (~ 6.5 km). Seismicity beneath the 2015 eruption center during the post-eruptive unrest episodes was, however, significantly lower than that of pre- and co-eruptive unrest episodes of the volcano, especially in the shallower portion of the hydrothermal system. Such minimal seismicity can result from a breach of the cap-rock during the 2015 eruption, which inhibited pore pressure accumulation within the hydrothermal sub-system beneath the eruption center area. Accompanying the post-eruptive unrest episodes, increases of magmatic components such as SO2, HCl and CO2 relative to a hydrothermal component H2S of fumarole gas were observed. Amounts of Cl in an artificial hot spring generated by steam from deep steam production wells and river water were found to have increased. Intrusion of magma to shallow depth is, however, improbable given the stable fumarole temperature, the lack of non-tectonic earthquakes (low frequency event and harmonic tremor), and limited SO2 emission (< 100 t/d). Instead, the increased proportion of magmatic gas (SO2 and HCl) relative to the hydrothermal gas (H2S) during the 2019 unrest implies depletion of the liquid phase in the shallowest portion of the vapor–liquid coexisting hydrothermal system due to the increased heat flux from depth.

The sealing zone of the volcano, presumably located near the brittle–ductile boundary, also seems to have been breached by the 2015 eruption as no sharp rise in the C/S ratio of the fumarole gas was observed during the post-eruptive unrest episodes. The sharp rise of the C/S ratio can be interpreted as a release of CO2 that had accumulated beneath the sealing zone. We, thus, anticipate re-establishment of the temporal C/S change as seen during the pre-eruptive unrest episodes after the complete re-establishment of the sealing zone. The rupture of cap-rock by the 2015 eruption may lower the possibility of future phreatic eruptions originating from the shallow hydrothermal system; however, accumulation of magmatic fluid in the deeper part of the hydrothermal system cannot be ruled out, and the possibility of a future large phreatic eruption cannot be eliminated.

Availability of data and materials

The datasets that were used to create figures in this paper appear in Supplementary Information before the publication.

Abbreviations

BDT:

Brittle–ductile transition

CSAMT:

Controlled source audio-frequency magnetotelluric

DLF:

Deep low frequency events

DOAS:

Differential optical absorption spectrometry

InSAR:

Interferometric synthetic-aperture radar

JMA:

Japan Meteorological Agency

SPW:

Steam production well for making hot spring water in Owakudani.

VAL:

Volcano Alert Level

VT:

Volcano-tectonic
