Changes in the b value in and around the focal areas of the M6.9 and M6.8 earthquakes off the coast of Miyagi prefecture, Japan, in 2021

Abstract

We investigated changes in the b value of the Gutenberg–Richter’s law in and around the focal areas of earthquakes on March 20 and on May 1, 2021, with magnitude (M) 6.9 and 6.8, respectively, which occurred off the Pacific coast of Miyagi prefecture, northeastern Japan. We showed that the b value in these focal areas had been noticeably small, especially within a few years before the occurrence of the M6.9 earthquake in its vicinity, indicating that differential stress had been high in the focal areas. The coseismic slip of the 2011 Tohoku earthquake seems to have stopped just short of the east side of the focus of the M6.9 earthquake. Furthermore, the afterslip of the 2011 Tohoku earthquake was relatively small in the focal areas of the M6.9 and M6.8 earthquakes, compared to the surrounding regions. In addition, the focus of the M6.9 earthquake was situated close to the border point where the interplate slip in the period from 2012 through 2021 has been considerably larger on the northern side than on the southern side. The high-stress state inferred by the b-value analysis is concordant with those characteristics of interplate slip events. We found that the M6.8 earthquake on May 1 occurred near an area where the b value remained small, even after the M6.9 quake. The ruptured areas by the two earthquakes now seem to almost coincide with the small-b-value region that had existed before their occurrence. The b value on the east side of the focal areas of the M6.9 and M6.8 earthquakes which corresponds to the eastern part of the source region of the 1978 off-Miyagi prefecture earthquake was consistently large, while the seismicity enhanced by the two earthquakes also shows a large b value, implying that stress in the region has not been very high.

Introduction

An earthquake of magnitude (M) 6.9 occurred on March 20, 2021, at 18:09, on the Pacific coast of Miyagi prefecture, northeastern Japan, and successively, an M6.8 earthquake occurred on May 1, 2021, at 10:27, at about 50 km south of the M6.9 earthquake (Fig. 1a, b) (Earthquake Research Committee (ERC) 2021a, b, c). Both earthquakes were located on the periphery of the slip region of the 2011 M9.0 Tohoku earthquake (Fig. 1a), almost corresponding to the down-dip end of the interplate coupling zone between the overriding continental and the subducting Pacific plates (Igarashi et al. 2001). As can be seen in Fig. 1a, the foci of the two 2021 earthquakes were located in the area where the coseismic slip (orange contours) of the 2011 Tohoku earthquake was relatively large and the afterslip (black contours) during 7 months just after the earthquake occurrence was small compared to the surrounding region (Ozawa et al. 2012). Interestingly, it was reported that the focus of the M6.9 earthquake was situated at the border point where the interplate slip during the period from 2012 through 2021 inferred by the analysis of repeating earthquakes was large on the northern side and notably small on the southern side (Tohoku University 2021b).

Fig. 1
figure1

Earthquakes off the Pacific coast of Tohoku district. a Yellow stars represent the epicenters of the 2021 M6.9 and M6.8 earthquakes; open star shows the epicenter of the 2011 M9.0 Tohoku earthquake. Focal mechanism for these earthquakes, obtained by using the focal mechanism catalog of F-net (Full Range Seismograph Network of Japan) by NIED: National Research Institute for Earth Science and Disaster Resilience (Okada et al. 2004), is displayed as a beach ball symbol. Red and blue regions represent preliminary-determined slip areas of the 2021 M6.9 and M6.8 earthquakes, respectively (Tohoku University 2021a). The coseismic slip distribution of the 2011 Tohoku earthquake (Ozawa et al. 2012) is shown by orange contours with an interval of 16 m, except for the interval of 12 m between 4-m contours and 16-m contours. Black contours with an interval of 1 m indicate the afterslip distribution of the same earthquake (Ozawa et al. 2012). Green and purple regions show coseismic slip areas of the 1978 M7.4 off-Miyagi prefecture earthquake (Yamanaka and Kikuchi 2004) and the 2005 M7.2 earthquake that occurred at off-Miyagi prefecture (Yaginuma et al. 2006), respectively. Black rectangle shows the study region in b. AO (Aomori), IW (Iwate), MI (Miyagi), FU (Fukushima), IB (Ibaraki) are abbreviations of prefecture names. b Seismicity (depth 0–100 km, M ≥ 0.5) in and after 2018. Cross-sectional views along the line segments from P1 to P2, indicated by “A” and “B”, are shown in Fig. 3. Red and blue contours with an interval of 0.4 m indicate the coseismic slip distributions of the M6.9 and M6.8 earthquakes, respectively (Tohoku University, 2021a). We traced each slip contour from the original (Tohoku University 2021a), created numerical data that list the longitude and latitude consisting of the slip contours (Additional files 2 and 3 for the M6.9 and M6.8 earthquakes, respectively), and drew the contours using the numerical data

When the M6.9 earthquake occurred on March 20, the ERC (2021a, b) pointed out that the focal area was located in the western part of the source region of the so-called off-Miyagi prefecture earthquake (Fig. 1b), an interplate earthquake that has occurred sequentially at intervals of about 38 years, the most recent one being the M7.4 earthquake in 1978 (green contours in Fig. 1a, b; Yamanaka and Kikuchi 2004). Note that the focal area of the M6.8 earthquake on May 1 was located at the west of the slip region of the M7.2 earthquake that occurred at off-Miyagi prefecture in 2005 (purple contours in Fig. 1a, b; Yaginuma et al. 2006). There was an overlap with the southeastern part of the source region of the 1978 off-Miyagi prefecture earthquake (Fig. 1b).

Here, we report the results of our analysis on spatio-temporal changes in the b value of the Gutenberg–Richter’s (GR) law (Gutenberg and Richter 1944) in and around the focal areas of the M6.9 and M6.8 earthquakes and in the source regions of the 1978 and 2005 off-Miyagi prefecture earthquakes, and discuss the implications of these results, noting the stress state on the plate interface in these regions.

Method

We exploited the GR law, log10N = a − bM, where N is the number of events equal to or above M, and a and b are constants (Gutenberg and Richter 1944). Globally, on average, b ~ 1, but locally, b values show substantial spatial and temporal variation. In some cases, the proportion of earthquakes with large magnitudes is higher (b < 1), in others, the proportion of earthquakes with small magnitudes exceeds the average expectation (b > 1) (Figs. 2, 3, 4, 5).

Fig. 2
figure2

b-value analysis based on seismicity before the 2021 M6.9 earthquake. a Maps of b values obtained from seismicity during the three periods; top panel: from 2012 to 2014, middle panel: from 2015 to 2017, and bottom panel: from 2018 to immediately before the 2021 M6.9 earthquake. In making these maps, we selected earthquakes along the plate interface (Nakajima and Hasegawa 2006): earthquakes were chosen if their depths were within a range from 5 km above the interface to 15 km below it. We calculated the b value and simultaneously Mc (Figures S1a-c of Additional file 1) for each grid node (0.02° spacing) selecting all events within a search radius of 10 km. Other symbols are the same as in Fig. 1. Epicenters of M ≥ 6.0 earthquakes that occurred in the corresponding periods are shown by open stars. b Top panel: Δb (= bbottombtop), the difference in b values between the periods 2012–2014 (btop: top panel in a) and 2018–2021 (bbottom: bottom panel in a). Bottom panel: logPb, the logarithm of the probability that bbottom is not different from btop

Fig. 3
figure3

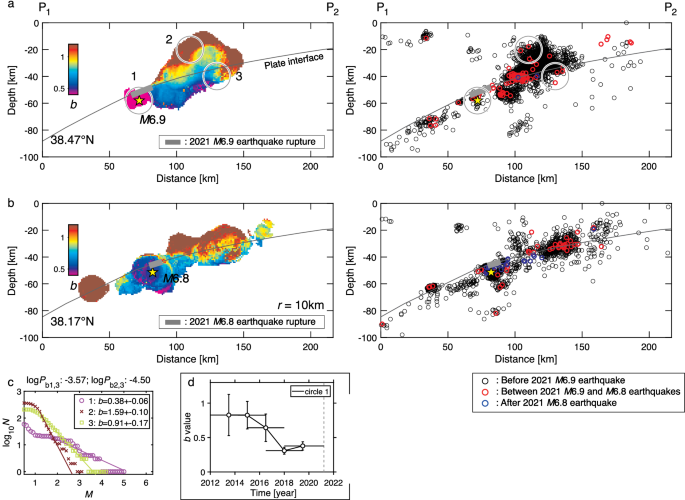

Cross-sectional views of b values and seismicity since 2018 until the 2021 M6.9 earthquake. a Left panel: b values computed based on seismicity along the line segment “A” in Fig. 1b. To create this figure, we project sampled earthquakes onto a vertical plane extending from P1 to P2 in Fig. 1b, roughly perpendicular to the Japan trench axis (Fig. 1a). At each grid node (1 km grid spacing), we selected all events within a search radius of 10 km and considered a swath width of 10 km, resulting, at each grid node, in a cylindrical sample volume of 20 km diameter and 10 km depth. Black curve indicates the upper surface of the Pacific plate (Nakajima and Hasegawa 2006). Grey segments indicate the rupture areas of the 2021 M6.9 and M6.8 earthquakes (Tohoku University 2021a) (hypocenters indicated by stars). Right panel: black, red, and blue circles represent seismicity before the 2021 M6.9 earthquake, between the 2021 M6.9 and M6.8 earthquakes, and after the 2021 M6.8 earthquake, respectively. b Same as a for the cross-section along the line segment “B” in Fig. 1b. c Events within the three circles of radius r = 10 km, indicated by “1”, “2”, and “3”, are used to show a fit of the GR law to observations. Color corresponds to the b value indicated by the color bar. The uncertainty estimates are according to Shi and Bolt (1982). logPb1,3 is the logarithm of the probability that the b values for the circles 1 and 3 are not different and logPb2,3 is the same as that for circles 2 and 3. d Plot of b values as a function of time for circle 1

Fig. 4
figure4

b-value analysis for the period between the M6.9 and M6.8 earthquakes. a Map of b values obtained from the seismicity for the period from March 22, at 0:00 to May 1, at 10:26 (b2021/03/22–2021/05/01), where we do not consider the period (March 20, at 18:10–March 21, 23:59) from immediately after the M6.9 March 20 earthquake to the end of March 21, avoiding the time period with large temporal variation in b. Other symbols are the same as in Fig. 1. b Δb (= b2021/03/22–2021/05/01 − b2018/01/01–2021/03/20), subtraction of the b value in the bottom panel in Fig. 2a (b2018/01/01–2021/03/20), from the b value in a (b2021/03/22–2021/05/01). c logPb, the logarithm of the probability that b2018/01/01–2021/03/20 and b2021/03/22–2021/05/01 are not different

Fig. 5
figure5

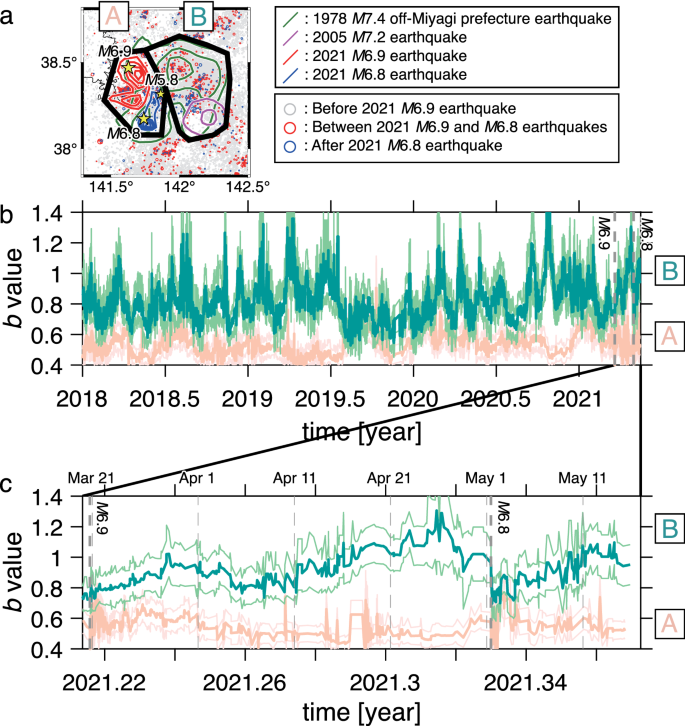

Time series of b values. a Map showing the regions “A” and “B” considered in b, c. Stars indicate the epicenters of the M6.9 March 20 earthquake, the M5.8 April 18 earthquake, and the M6.8 May 1 earthquake. Other symbols are the same as in Fig. 1. b Plot of b values as a function of time, as obtained from seismicity data along the plate boundary for the period since 2018. We used a moving window approach, whereby the window covered 100 events. The uncertainty estimates are according to Shi and Bolt (1982). Thick vertical dashed lines indicate moment of the M6.9 and M6.8 earthquakes. c Zoom-in figure for the period from immediately before the 2021 M6.9 earthquake to May 15, 2021. Thin vertical dashed lines show March 21, April 1, 11, and 21, and May 1 and 11

To estimate b values consistently over space and time, we employed the Entire-Magnitude-Range (EMR) technique (Woessner and Wiemer 2005), which simultaneously calculates the completeness magnitude Mc, above which all events are considered to be detected by the referential seismic network. EMR applies the maximum-likelihood method represented by Eq. (6) of Utsu (1999) (e.g., Aki 1965; Utsu 1965) when computing the b value to events with magnitudes greater than Mc. We calculated the b values (Figs. 2, 3, 4, 5), provided that we found a minimum of 20 events with magnitudes greater than Mc for a given sample. We evaluated the uncertainty of the maximum-likelihood estimates of the b value, as described in Shi and Bolt (1982). The difference in b is not considered to be significant if the test proposed by Utsu (1992, 1999) is not passed. If logPb, the logarithm of the probability that the b values are not different, is equal to or smaller than − 1.3 (logPb ≤ − 1.3), then the difference in b is significant (Schorlemmer et al. 2004; Nanjo and Yoshida 2017). A fit of the GR law to observations for three circle areas is given in Fig. 3c, where the b value was estimated by the maximum-likelihood method (Aki 1965; Utsu 1965, 1999), rather than a coefficient of the GR law. The b value is smaller for the circle 1 (b = 0.4 ± 0.1) than for the circle 2 (b = 1.6 ± 0.1), taking an intermediate value for the circle 3 (b = 0.9 ± 0.2), indicating the significant difference in b among the three circle areas. This significance is further supported by the Utsu test (Utsu 1992, 1999; Schorlemmer et al. 2004; Nanjo and Yoshida 2017), revealing logPb1,3 (the logarithm of the probability that the b values for the circles 1 and 3 are not different) to be − 3.6, and logPb2,3 for the circles 2 and 3 to be − 4.5 (Fig. 3).

The b value is known to be sensitive to differential stress and its inverse correlation with differential stress has been evidenced by many laboratory and field studies (Mogi 1963; Scholz 1968, 2015; Lei 2003; Schorlemmer et al. 2005; Goebel et al. 2013). Investigation into space–temporal variation in b values to probe the stress state in the Earth's crust (Smith 1981; Schorlemmer et al. 2005; Narteau et al. 2009) has been applied to locate asperities (Hirose et al. 2002; Yabe 2003; Tormann et al. 2015; Nanjo and Yoshida 2018), and to estimate frictional properties (e.g., Sobiesiak et al. 2007; Ghosh et al. 2008) on the plate interface along subduction zones. Foreshocks have been known to show small b values (Suyehiro et al. 1964; Gulia and Wiemer 2019). Patches with small b values on active faults have been observed to coincide with locations of subsequent large earthquakes (Schorlemmer and Wiemer 2005; Nanjo et al. 2016, 2019; Nanjo 2020).

Data

We used the Japan Meteorological Agency (JMA) earthquake catalog, which includes earthquakes since 1919 in and around Japan. Our analysis was based on earthquakes with M ≥ 0.5 during the period from January 1, 2012 through May 15, 2021, in a depth range of 0–100 km in the study region (Fig. 1b). We did not consider the period from immediately after the M9.0 Tohoku earthquake on March 11, 2011 to the end of 2011, avoiding the time period with large temporal variation in b. Most pre-shocks and aftershocks of the two M6.9 and M6.8 earthquakes in 2021 in the study region (Fig. 1b) occurred on and around the plate interface between the continental plate and the subducting Pacific plate (Fig. 3), so our primary approach was to develop maps about the b value and its cross sections.

A b-value analysis is critically dependent on a robust estimate of completeness of the processed earthquake data. In particular, underestimates in Mc lead to systematic underestimates in b values. We always paid attention to Mc when assessing Mc at each node and each time window (Additional file 1: Figures S1–S3). As discussed in other studies using the JMA catalog (Nanjo et al. 2010; Schorlemmer et al. 2018), Mc in offshore regions is expected to increase with distance from the coast, and Mc that had once increased during the period of an early aftershock sequence of the Tohoku earthquake, decreased afterward (Additional file 1: Figure S1). One of the reasons for this change in Mc was due to a change in the criterion for creating the JMA earthquake catalog in order to avoid the loss of integrity of work to determine hypocenters and the magnitudes of earthquakes (JMA 2012; Schorlemmer et al. 2018).

Results

Figure 2a represents b maps in three periods: from January 1, 2012 through December 31, 2014, from January 1, 2015 through December 31, 2017, and from January 1, 2018 through March 20, 2021 before the occurrence of the M6.9 earthquake. The left panels of Fig. 3a, b are east–west cross-sectional views of b values, crossing the M6.9 and M6.8 hypocenters, respectively, based on seismicity (black circles in the right panels) from January 1, 2018 to immediately before the M6.9 earthquake (March 20, 2021, at 18:08). It is notable (Figs. 2 and 3) that the hypocenter of the M6.9 earthquake is located within an especially small-b-value structure (blue to purple) along the plate interface. The b value around the hypocenter of the M6.8 earthquake is also very small.

Note that the decrease in the b value in the area near the foci of the two 2021 earthquakes became conspicuous in later periods before the M6.9 earthquake (Fig. 2). In the first period, the local b value for the seismicity around the eventual M6.9 hypocenter was b = 0.8 ± 0.3 (light blue), nearly a global average (b ~ 1) (Fig. 3d). However, the b value in the intermediate period became 0.6 ± 0.2 (blue), and it decreased to a low value (0.4 ± 0.1) in the last period. As shown in Fig. 2b, the decrease in the b value around the focus of the 2021 M6.9 earthquakes in the last period relative to the first period was statistically significant (Utsu 1992, 1999; Schorlemmer et al. 2004; Nanjo and Yoshida 2017). The decrease in the b value in region A, a region surrounding focal areas of the 2021 M6.9 and M6.8 earthquakes, is also seen from Additional file 1: Figure S4 although the decrease in b is not clear in the focal area of the M6.8 earthquake as that in the focal area of the M6.9 earthquake (Additional file 1: Figures S5 and S6).

Incidentally, it might be worth noting that the b values in the middle panel of Fig. 2a are small in the focal area of the future M6.2 earthquake that occurred in 2020 (in the bottom panel of Fig. 2a).

Figure 4a shows a b map calculated for earthquakes that occurred during the period between the M6.9 and M6.8 earthquakes. It is notable that the b values in most parts of the focal regions of the two earthquakes, especially the southern part of the focal region of the M6.9 quake and the northern part of the focal region of the M6.8 quake in that period, were as small as those before the occurrence of the M6.9 earthquake, as is demonstrated by Fig. 4b, c. It might also be noteworthy that the b value for the seismicity induced in the eastern part of the source area of the 1978 off-Miyagi prefecture earthquake (green contours) seems to have increased after the M6.9 earthquake.

We also examined the temporal change in the b value in regions A and B shown in Fig. 5a during the period from January 1, 2018 through May 15, 2021. Similar to region A, region B corresponds to the eastern part of the source region of the 1978 off-Miyagi prefecture earthquake with M7.4, which includes the source area of the 2005 M7.2 earthquake that occurred at off-Miyagi prefecture. It is clear (Fig. 5b, c) that the b value in region A had been consistently small before the occurrence of the two earthquakes in 2021, and it is to be noted (Fig. 5c) that the small b-value state in region A continued after the occurrence of the M6.8 earthquake on May 1. This seems to indicate that a highly stressed state continued after the M6.8 earthquake in the area where the b value had been small before the M6.9 earthquake. Some possible interpretations of this result are discussed in the next section.

On the other hand, the b value in region B had been relatively large compared to the b value in region A throughout the whole period before the M6.9 earthquake, although region B showed a rather large range in b extending from 0.6 to 1.2 (Fig. 5). It is also worth noting that the large-b-value state in region B has been continuing not only after the occurrence of the M6.9 earthquake on March 20, but also after the M6.8 earthquake on May 1. We suppose this result suggests that the differential stress in the eastern part of the source region of the 1978 off-Miyagi prefecture earthquake has been relatively low throughout the entire study period.

Discussion

By making maps and cross sections of the b value in the region around the foci of the March 20 and May 1, 2021, off-Miyagi prefecture earthquakes, we found that the b value in their focal areas had been considerably and consistently small and that the value became as low as 0.4–0.6 within a few years before their occurrence (Figs. 2 and 3). The distinct small b-value spot corresponded to the eventual M6.9 hypocenter (Figs. 2 and 3). This close match between the area of low and decreasing b values and the eventual M6.9 and M6.8 hypocenters supports the idea that the b value may be a stress meter for the Earth’s crust. Our finding also indicates that the stress before the M6.9 and M6.8 earthquakes had been high in the eventual focal areas, and the differential stress there had been heightened as time progressed. Here, it is to be noted that the coseismic slip of the 2011 Tohoku earthquake (orange contours in Fig. 1a) stopped just short of the east side of the focus of the M6.9 earthquake and the afterslip of the 2011 Tohoku earthquake in 7 months (black contours in Fig. 1a) had been relatively small in the focal areas of the two 2021 earthquakes, compared to the surrounding regions. Further, it is reported that the focus of the M6.9 earthquake was situated at the border point where the interplate slip during the period from 2012 through 2021 has been large on the northern side and notably smaller on the southern side (Tohoku University 2021b).

The appearance of the notably small-b-value spot might have been related to the characteristics of the interplate slip events. We believe our results present a clear additional example to supplement previous retrospective studies that showed a correlation between patches of small b values and sources of large earthquakes, e.g., at Izmit (Turkey), Parkfield and Ridgecrest (California), Tohoku and Kumamoto (Japan), and Iquique (Chile) (Wiemer and Wyss 2002; Schorlemmer and Wiemer 2005; Nanjo et al. 2012, 2016; Tormann et al. 2012, 2015; Schurr et al. 2014; Nanjo 2020).

It is notable that the b value for the events after the M6.9 earthquake on March 20, which occurred mainly near the southern end of the slip area had been as small as 0.5–0.6 (blue) (bottom panel of Fig. 2a and left panel of Fig. 3b). We should have focused our attention more on the observation that the events after the M6.9 earthquake showed a small b value and the rupture of the quake had not covered the whole small-b-value area that had existed before the quake, although it is not certain if we could have foreseen the occurrence of the M6.8 earthquake before May 1.

The finding that the b value that had appeared to be small before the M6.9 earthquake was still low after the M6.8 earthquake is somewhat an enigma (Fig. 5). This might mean that the two earthquakes had not fully unloaded the stress on the pre-existing asperity as interpreted for the Parkfield earthquake in 2004 (Tormann et al. 2012). However, we consider that such an interpretation cannot be applied to our case, because the rupture areas of the two earthquakes on March 20 and May 1 seem to cover almost entirely the small-b-value zone that had existed before their occurrence (bottom panel of Fig. 2a). One possible explanation may be that some patches with high stress had remained unruptured, and events after the M6.8 earthquake have been occurring there. The results of seismic source analysis of the M6.9 and M6.8 earthquakes (Tohoku University 2021a), which indicate a rather complex rupture process, seem to support this idea. Moreover, we would like to point out the occurrence of an M5.8 earthquake on April 18 at the far end of the rupture area of the earthquake on May 1 (Fig. 5a and Additional file 1: Figure S3c). The sequential occurrence of the M6.9, M5.8 and M6.8 earthquakes in the small-b-value zone that had been observed before these earthquakes indicates that there had existed at least three high-stress asperities. This also seems to imply that additional smaller patches might have remained unruptured.

ERC (2021a), after a meeting held on March 22, commented that it was necessary to pay attention to the occurrence of another large earthquake that might result in a similar or even stronger seismic intensity during the period of one week, especially in a few days. We suppose that, in the background of this caution, ERC (2021a) concerned about the occurrence of the so-called off-Miyagi prefecture earthquake that has been occurring sequentially at intervals of about 38 years, and whose probability of occurrence within the next 30 years was estimated to be about 60–70% as of January 1, 2021 (ERC 2021a,2021b). In addition, Nakata et al. (2016) based on numerical simulation, suggested that the time interval between the M ~ 9 earthquake and the subsequent earthquake off the coast of Miyagi prefecture would become shorter than the average recurrence interval during the later stage of the M ~ 9 earthquake cycle. As was pointed out in the Introduction, the two 2021 earthquakes occurred in the western part of the source region of the 1978 M7.4 off-Miyagi prefecture earthquake, and the focal area of the M6.8 earthquake is located west of the source region of the 2005 earthquake that occurred off the coast of Miyagi prefecture, fracturing the southern part of the source region of the 1978 earthquake (Fig. 1b). Therefore, it might not be unreasonable for ERC (2021a) to have been anxious about the possibility of the occurrence of a large earthquake on the east side of the focal areas of the two 2021 earthquakes.

Concerning this anxiety, we would like to note that the b value in the region had consistently been rather large before the two 2021 earthquakes and that the seismicity induced there by those earthquakes has been showing a large b value as well (Figs. 4 and 5). This indicates that stress in the region on the east side of the focal area of the two 2021 earthquakes had not been so high and the low-stress state has been continuing. Therefore, we conjecture that the probability of occurrence of a large earthquake in the adjacent region in the very near future may not be so large, although it is necessary to continue to watch for any signal that indicates change in local stress in the region.

Conclusions

This study revealed that the b value in and around the focal areas of the M6.9 and M6.8 earthquakes that occurred off the Pacific coast of Miyagi prefecture, northeastern Japan, on March 20 and May 1, 2021, respectively, had been considerably low before their occurrence. The b value in the vicinity of the M6.9 earthquake decreased to around 0.4 in the last few years. On the other hand, the b value on the east side of the focal areas that corresponds to the eastern part of the source region of the 1978 off-Miyagi prefecture earthquake had been relatively large during the whole period that was investigated. This result implies that the stress in the region had not been as high as the stress in the focal areas of the two earthquakes in 2021 and that the low-stress state there has been continuing.
