Estimation of source, path, and site factors of S waves recorded at the S-net sites in the Japan Trench area using the spectral inversion technique

Abstract

S-net is a large-scale ocean bottom (OB) network in the Japan Trench area, consisting of inline-type 150 observatories equipped with seismometers and pressure gauges. Among them, 41 observatories have been buried about one meter beneath the seafloors in the shallow water regions (water depth <1500 m). We analyzed the strong-motion data recorded at the S-net sites from earthquakes with magnitudes 3.5 < Mw ≤ 7 and focal depths < 70 km to understand the site amplification effect on the recorded motions. We used the spectral inversion technique and obtained some fundamental properties of the earthquake source spectra, path attenuation, and site factors from the horizontal-component S-wave portions of the recordings. We obtained that the source spectra followed the \({\omega }^{-2}\) source model generally well, and the estimated magnitudes were mostly within ± 0.3 magnitude units of the catalog magnitudes. The stress drops increased systematically with the focal depths, and the values for the shallow earthquakes in the Pacific Plate were higher than those for the interplate earthquakes with comparable focal depths. The path-averaged quality factors were generally frequency-dependent and were somewhat larger than those in the past studies. The peak site frequencies ranged between about 0.2 and 10 Hz, while the peak amplification factors ranged between 10 and 50. Even though the peak frequencies and amplification factors differed from site to site, the peak frequencies were mostly higher than 2 Hz at the outer trench stations, while they were lower than 2 Hz at many inner trench stations. The amplification factors at a few OB sites in the shallow water regions were comparable with the theoretical ones computed from the 1-D subsea model. The amplification factors at intermediate frequencies (~ 0.3 to 2 Hz) generally increased with P-wave travel time in the sediments estimated from the multi-channel seismic survey. At about 20% of the sites (mainly at the unburied stations), spurious site spectra were recognized at frequencies higher than about 4 Hz. If the site spectra between 4 and 10 Hz are required, using only the X-component records is recommended.

Graphical Abstract

Introduction

S-net is a large-scale ocean-bottom network for earthquakes and tsunamis in the Japan Trench area established after the 2011 Tohoku–oki earthquake disaster. One of the main objectives of the establishment of the S-net was to enhance the Japan Meteorological Agency (JMA) earthquake early warning (EEW) and tsunami early warning (Aoi et al. 2020). The network consists of inline-type 150 observatories divided into six segments, namely, S1, S2, S3, S4, S5, and S6 (Fig. 1). It transmits waveform data to the data center of the National Research Institute for Earth Science and Disaster Resilience (NIED) continuously. The observatories and cables in shallow water regions (water depth < 1500 m) have been buried one meter beneath the seafloors to protect them from fishing activities and increase ground coupling except for three stations, S1N08, S1N12, and S6N24. The total numbers of buried and unburied stations are 41 and 109, respectively.

Fig. 1
figure 1

Index maps. Left panel: black-filled triangles denote the recording stations on land (KiK-net) and color-filled polygons denote the recording stations on the ocean bottom (S-net). The six segments of the S-net (S1–S6) are denoted by different polygons, with station codes at the start and end of each segment. The short-dashed rectangle indicates the location of sites, namely, S3N26, S3N25, S3N24, S3N23, S3N22, S3N21, S3N20, S3N19, and S6N12 from left to right, respectively, discussed later. The NAM, PHS, and ST are shorthand for the North-American Plate, Philippine Sea Plate, and Sagami Trough, respectively. Right panel: location of the epicenters of earthquakes used in the present study. The depth to the Pacific Plate is marked with contours (thin dashed lines) at interval of 10 km. The 10 km contour coincides roughly with the Trench axes. The plate-depth data were taken from Hirose (2022)

Several previous studies reported that the average amplitudes of the long-period ground motions between about 1 and 20 s were larger at the ocean bottom seismograph sites in the Nankai Trough area (e.g., Nakamura et al. 2015; Kubo et al. 2019) and the Japan Trench area (Dhakal et al. 2021) compared to the average amplitudes at the strong-motion stations on land. Hayashimoto et al. (2019) constructed an equation to estimate the magnitude of the suboceanic earthquakes for EEW using the vertical component records at the seafloor sites to avoid the large amplification of the horizontal-component ground motions due to sediments and also to minimize the effect of the rotational noises during strong shakings. These studies have indicated that understanding the site amplification effects on the recorded motions is essential for the reliable estimation of magnitudes and ground motions for an EEW. Therefore, one of the main objectives of this paper is to evaluate the S-wave site amplification factors at the S-net sites in the Japan Trench area based on the recorded strong-motion data.

In the present study, we used the spectral inversion technique (e.g., Andrews 1986; Iwata and Irikura 1988), described at some length in a later section, to simultaneously separate the source, path, and site factors of S waves recorded at the S-net stations. Therefore, the analysis of the source and path factors was an integral part of the present study to validate them and infer the site amplification factors. It also must be emphasized that the study of source spectra of earthquakes is crucial to understand the source processes of earthquakes and predict strong-motions from future earthquakes (e.g., Aki 1967; Hanks 1979; Morikawa and Sasatani 2003; Allmann and Shearer 2009). In addition, as the seismic waves in the present study were observed in wide offshore area, it was of interest to examine the path-averaged quality factor of S waves in the offshore region as most past studies were based on recorded motions on land (e.g., Nakamura et al. 2006; Nakano et al. 2015).

In the next two sections, we describe the data and methods, respectively. Then, we present and discuss the source spectra of S waves. We present estimated magnitudes of the earthquakes and compare them with the catalog magnitudes. We also derive stress drops of the earthquakes and discuss them. Following the discussion of the source spectra, the path-averaged quality factors for S waves are presented and compared with several previous studies. Finally, we present and discuss the site amplification factors at the S-net sites in some details. It is expected that the results presented in this study provide a basis for more detailed studies in the future about developing ground-motion prediction models for EEW and other seismological applications.

Data

We prepared the initial earthquake data set based on the moment tensor catalog of F-net, NIED. Then, we obtained 10 min of continuously recorded accelerograms at the S-net stations, beginning from 1 min before the earthquake origin time, from more than 1500 earthquakes, which occurred between February 2016 and October 2021. The moment magnitudes (Mw) of the earthquakes ranged between 3.8 and 7.0, and focal depths were shallower than 70 km. S-net sensors are housed inside cylindrical pressure vessels and record waveforms in three mutually perpendicular directions. However, the sensor axes are not aligned in the horizontal and vertical directions. In this study, conversions of the waveform data from the sensor axes to the horizontal and vertical directions were carried out following the procedures in Takagi et al. (2019). The present study used waveform data from two horizontal directions, namely, X and Y. The X direction coincides with the direction of the long axis of the cylindrical pressure vessel, and the Y direction is perpendicular to the X direction.

In the present study, all records were processed uniformly. The mean of a 1-min pre-event noise window was subtracted at each time step for the S-net records. In this paper, the mean or average implies the arithmetic mean of the data under consideration. For the land-station records, the mean of 10 s pre-event noise window was subtracted if the noise window was available; otherwise, the mean of the whole record was subtracted. Then, fourth-order low-cut filtering was applied to suppress low-frequency noises at 0.07 Hz. The S-wave arrival times were picked manually. After several trial analyses, the following magnitude-dependent S-wave time windows were selected: 8 s for Mw < 4.5, 12 s for 4.5 ≤ Mw < 5, 16 s for 5 ≤ Mw < 5.5, and 20 s for Mw ≥ 5.5. The one second time windows just before and after the defined time windows for the S waves were cosine-tapered. Then, zeroes were padded in the rear end, such that the window length remained 40.96 s for all recordings. The equal length allows one to evaluate the Fourier spectra at identical frequency points between all recordings. To evaluate the signal-to-noise ratios (SNRs), noise time histories of equal lengths with the corresponding S-wave time histories were selected from the pre-event parts of the records, and cosine tapering and zero paddings were applied to the noise time histories similar to that for the S-wave parts as explained above. Then, Fourier spectra were computed and smoothed using a Parzen window of 0.2 Hz for both S-wave and noise parts of equal durations of 40.96 s. Finally, the SNRs were obtained as the ratios of mean values of the smoothed spectra of two horizontal components between the S-wave and noise parts.

Final records were selected after imposing the following criteria. The vector peak ground accelerations (PGAs) of the original records were between 5 and 50 cm/s2. The maximum PGA value of 50 cm/s2 was selected to avoid nonlinear site response and minimize the effect of the rotational noises in the records (e.g., Dhakal et al. 2017; Nakamura and Hayashimoto 2019; Takagi et al. 2019). The focal depths were shallower than 70 km to avoid the complicated attenuation effect for the deeper earthquakes. The epicentral distances were between 20 and 200 km. The choice of the distance limits was arbitrary, but it was expected that the minimum distance of about 20 km reduced the effect of the location errors for the records at small epicentral distances. The records were selected if the SNRs were larger than three at all frequencies between 0.1 and 20 Hz. At least three records exceeding the above threshold SNRs were available at each station and for each earthquake.

A preliminary analysis of the focal and centroid moment tensor depths estimated by the JMA showed that the two depth parameters differed largely for many events, even though the magnitudes of the events were smaller than about 5.5. The F-net, NIED, moment tensor solution obtains the depths of the events keeping the epicentral locations the same as that of the JMA epicentral locations. We found that the JMA centroid depths and NIED moment tensor depths were similar. In this study, we used the epicentral location from the JMA and depth from the F-net moment tensor solution to calculate the source-to-site distance used in the spectral inversion described in the next section. Hereafter, unless stated otherwise, the term ‘distance’ is used to mean the source-to-site distance, and the ‘depth’ in the sense of depth obtained in the F-net NIED moment tensor solution. The location of the S-net stations and the epicenters of the selected events used in this study are depicted in the left and right panels of Fig. 1, respectively. The final data set contained 6326 recordings from 605 earthquakes. The general distributions of the data set in terms of the magnitude and distance, magnitude and depth, S-wave arrival time and distance, and the peak ground acceleration and distance are shown in Fig. 2a–d, respectively.

Fig. 2
figure 2

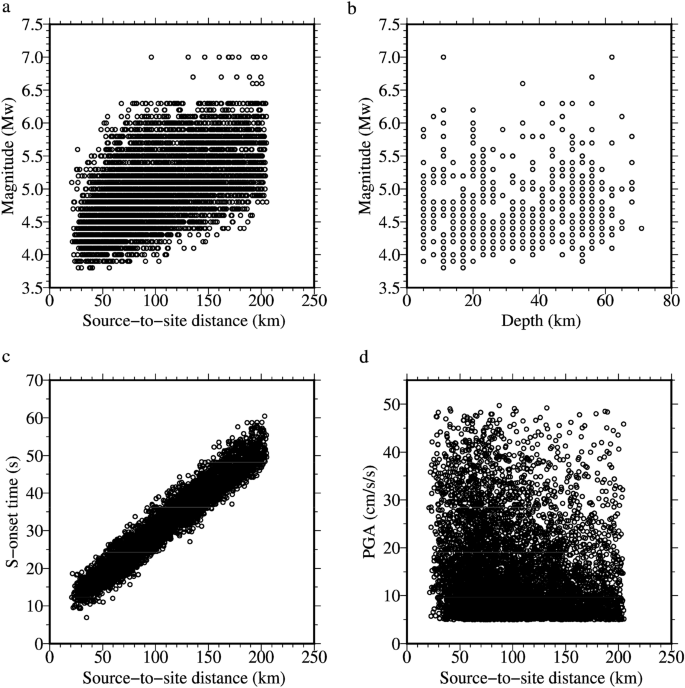

General distribution of data in terms of magnitude and distance a, magnitude and depth b, S-onset time and distance c, and PGA and distance d

Methods

Spectral inversion method is a simple yet powerful technique for estimation of either site amplifications, path attenuation, and source parameters of earthquakes or their combinations and has been used in several previous studies (e.g., Andrews 1986; Iwata and Irikura 1988; Castro et al. 1990; Kato et al. 1992; Yamanaka et al. 1998; Satoh and Tatsumi 2002; Bindi et al. 2004; Tsuda et al. 2006; Oth et al. 2011; Ren et al. 2013; Nakano et al. 2015; Klimasewski et al. 2019; Fletcher and Boatwright 2020). In the present study, the observed S-wave acceleration Fourier spectra were expressed in the form shown in the following equation:

$${O}_{ij}\left(f\right)={S}_{i}\left(f\right){G}_{j}\left(f\right){R}_{ij}^{-1}exp\left\{\frac{-\pi {R}_{ij}f}{{Q}_{s}(f){V}_{s}}\right\}$$
(1)

where \({O}_{ij}(f)\) is the observed S-wave Fourier amplitude spectrum at the jth station for the ith earthquake at frequency \(f\), \({S}_{i}\left(f\right)\) is the source spectral amplitude of the ith earthquake at frequency \(f\), \({G}_{j}\left(f\right)\) is the site amplification factor at the jth station at frequency \(f\), \({Q}_{s}\left(f\right)\) is the average quality factor for S wave along the propagation path at frequency \(f\), \({R}_{ij}\) is the distance between the jth site and ith event, and \({V}_{s}\) is the average S-wave velocity along the propagation path.

In the present study, the Fourier spectral amplitudes were computed as the mean values of the two horizontal components, as described in the previous section. The spectral amplitudes between 3 and 20 Hz were resampled with interval of approximately 0.1 Hz to save the computational time, and the results were obtained at 294 frequencies between ~ 0.0732 and 20 Hz. Equation (1) was linearized by taking base-10 logarithms and was solved by a least-square method after rearranging the terms and using the constrained conditions explained in the next paragraph (see Additional file 1 for details). The least-square solution obtained in this study may be expressed, as shown in the following equation (e.g., Searle 1971):

$$\widehat{x}= {\left({A}^{T}A\right)}^{-1}{A}^{T}b$$
(2)

where \(\widehat{x}\) is a solution set of unknown parameters (the source, path, and site factors), A is the design matrix of known values for the source, path, and site terms, and b is the set of observations for a given frequency. The T and −1 in Eq. (2) indicate the usual transpose and inverse matrix operations, respectively.

Reasonably, as the method was used by Andrews in 1986, a constrained condition is required in the inversion due to a trade-off between independent parameters. For example, Iwata and Irikura (1988) used the constrained condition that the site amplification factors were greater than two at all sites, while Yamanaka et al. (1998) and Nakano et al. (2015) used the theoretical amplification factors evaluated at a reference site. In the present study, we used the approach employed by Yamanaka et al. (1998) and Nakano et al. (2015). The theoretical amplification factors at two reference sites on land were used as constrained conditions. The use of one reference site could be sufficient for the constrained condition. However, using two or more reference sites provides more robust results if the reference sites are the rock sites. The theoretical amplification factors at the two reference sites, namely, IBRH14 and MYGH11, were calculated based on the structure estimated by the inversion of the surface-to-borehole spectral ratios (SBSRs) (see Fig. 1 for the location of the sites). Simulated annealing technique (e.g., Yamanaka 2005) was used to invert the spectral ratios for velocity models. The borehole sensors at the two sites were set up at the depths of 100 and 207 m in the layers having S-wave velocities of 3.2 and 2.78 km/s, respectively, according to the PS-logging data (see Additional file 2). The observed SBSR at the two sites (IBRH14 and MYGH11) computed from several earthquake records and theoretical SBSR using the velocity models obtained from the inversion of the observed SBSR are shown in Fig. 3a, d, respectively. The velocity models are shown in Fig. 3b, e, respectively. The theoretical amplification factors, used as constraints in the spectral inversion, are plotted in Fig. 3c, f, respectively. The layer parameters used to compute the theoretical values of the SBSR and site amplification factors are presented in the Additional file 2. The plots show that the observed spectral ratios are mostly one at frequencies lower than 2 Hz, suggesting that the shallow sediments produce small or no amplification at those frequencies. The theoretical amplification factors of about two at those frequencies show the free surface effects. In contrast to the small amplification at the lower frequencies at the reference sites, amplification factors of about 10 was seen at frequencies around 10 Hz at both sites. The estimated Vs values at the depths of borehole sensors were about 2.8 km/s, close to the PS-logging values mentioned previously. Hence, the amplification factors obtained at the other sites from the solution of Eq. (1) might be considered close to the absolute site amplification factors above the seismic basement of ~ 3 km/s (e.g., Nakano et al. 2015). The Vs value was 3.45 km/s in Nakano et al. (2015) referred to as the seismic basement. We used \({V}_{s}\) equal to 3.5 km/s in Eq. (1), and the source, path, and site factors obtained in the present study are described in the next sections.

Fig. 3
figure 3

a, d Surface-to-borehole spectral ratios (SBSR) at the IBRH14 and MYGH11 sites, respectively. Grey lines denote the SBSR for the individual earthquakes, while the black lines denote the mean values. The red lines denote the theoretical SBSR computed from the S-wave velocity models shown in the panels b and e, respectively. c, f Theoretical amplification factors at the IBRH14 and MYGH11 sites computed from the velocity models shown in the panels b and e, respectively. The theoretical values were computed using the propagator matrix method (Ch. 5, Aki and Richards 2002), assuming vertically propagating plane S wave. See Additional file 2 for the values of layer parameters used in the theoretical computation of the spectral ratios and amplification factors

Results and discussion

Source spectra

The obtained acceleration source spectra, \({S}_{i}\left(f\right)\), from the inversion were multiplied by \({\omega }^{-2}\), where \(\omega\) is the circular frequency equal to \(2\pi f\), to obtain the displacement source spectra. The plots of displacement source spectra are shown in Fig. 4 for nine example events (see Table 1 for details about the events). The \({\omega }^{-2}\) source spectral model shown in Eq. (3) for far-field S-wave spectra (e.g., Aki 1967; Brune 1970, 1971) were fitted with the displacement spectra, searching for the flat spectral level, \(\Omega\), and the corner frequency, \({f}_{c}\), which minimized the misfit function defined by Eq. (4) (e.g., Satoh and Tatsumi 2002) for each earthquake separately:

$$D(f) =\frac{\Omega }{1+ {\left(\frac{f}{{f}_{c}}\right)}^{2}}$$
(3)

where \(D(f)\) is the displacement spectral amplitude at frequency, \(f\):

$$\mathrm{misfit}= \sum \frac{1}{f}{\left({\mathrm{log}}_{10}\left(\frac{{S}_{f}}{{D}_{f}}\right)\right)}^{2}df$$
(4)

where \({S}_{f}\) is the source spectral amplitude obtained from inversion at frequency \(f\), \({D}_{f}\) is the model spectral amplitude at frequency \(f\), and \(df\) is the frequency width, \({f}_{i+1}- {f}_{i}\). Considering the smaller SNRs at lower frequencies and simple forms for the source spectral model, the summation in Eq. (4) was taken over three frequency ranges based on the magnitudes of the earthquakes: 0.2–10 Hz for Mw ≤ 5, 0.1–10 Hz for 5 < Mw ≤ 6.0, and 0.07–10 Hz for Mw > 6.

Fig. 4
figure 4

Location map of example events and their source spectra obtained from the spectral inversion. a Focal-mechanism plots coincide with the locations of corresponding epicenters, and the colors of the compression parts indicate the corresponding depths to the foci. b Black lines denote the displacement source spectra obtained from the inversion and red lines show the fitted lines using the \({\omega }^{-2}\) source model. The labels, C1, C2, C3 means three crustal events, whose catalog magnitudes are indicated with letter M, respectively. The estimated magnitudes based on the flat level of the \({\omega }^{-2}\) source models are given inside the parentheses. c, d Similar to b, but for the interplate and intraslab earthquakes, respectively. See Table 1 for details about the events

Table 1 Source parameters of the earthquakes, whose epicentral locations and source spectra are shown in Fig. 4

The fitted source spectral models for the nine example events mentioned above are also shown in Fig. 4. It was found that the \({\omega }^{-2}\) model fits the source spectra generally well within the range of frequencies under consideration. Even though the spectra were fitted for frequencies up to 10 Hz, the fits were reasonably good up to 20 Hz for the crustal and interplate earthquakes (Fig. 4b, c), while the models underestimated the spectra to some extent at frequencies over 10 Hz for the intraslab earthquakes (Fig. 4d). The earthquake types are discussed later.

We estimated magnitudes of the earthquakes from the source spectra obtained in this study and compared them with the catalog magnitudes. First, we calculated the seismic moment, \({M}_{o}\), using Eq. (5) (e.g., Brune 1970; Iwata and Irikura 1988; Nakano et al. 2015), and then obtained the magnitude (Mw) using Eq. (6) (Hanks and Kanamori 1979):

$${M}_{o}=4\pi \rho {V}_{s}^{3}R\Omega /{R}_{\theta \phi }P$$
(5)
$${M}_{w}=\frac{2}{3}{\mathrm{log}}_{10}{M}_{o}-10.7$$
(6)

where \(\rho\) is density, \({V}_{s}\) is S-wave velocity in the source region, R is distance (unit reference distance of 1 km in this study), \(\Omega\) is flat level of displacement source spectrum, \({R}_{\theta \phi }\) is the average radiation coefficient, and \(P\) is the energy partition ratio. Following Nakano et al. (2015), we used the \({V}_{s}\) values of 3.6 km/s for the crustal earthquakes and 4.0 km/s for the other earthquakes. Similarly, the densities of 2700 and 3000 kg/m3 were used for the source regions of the crustal and other earthquakes, respectively. The values of 0.63 and \(1/\sqrt{2}\) were used for \({R}_{\theta \phi }\) and P, respectively, as we used the mean value of the two horizontal components. These values were identical to those used by Nakano et al. (2015). A comparison of the F-net catalog and estimated magnitudes is shown in Fig. 5. We found that the two groups of magnitudes generally agree well, despite the fact that the catalog magnitudes were estimated using much lower frequency ground motions recorded by broadband seismic stations. The differences were mostly smaller than 0.3 magnitude units except for a few events.

Fig. 5
figure 5

Comparison between the F-net NIED catalog magnitudes and the magnitudes estimated from the source spectra. The correlation coefficient (r) and root mean square error (rmse) between the catalog and estimated magnitudes are indicated in the plot

Stress drop is an important source parameter used in the simulation of high-frequency ground motions and bears special interest in seismology (e.g., Boore and Atkinson 1987). Here, we discuss the stress drop values assuming simple circular fault models following the previous studies (e.g., Oth et al. 2010; Nakano et al. 2015). First, the source radius for each event was calculated using Eq. (7), and then the stress drop was calculated using Eq. (8) (Brune 1970, 1971):

$$r =0.37 \times \frac{{V}_{s}}{{f}_{c}}$$
(7)

where \(r\) is radius of the source, \({V}_{s}\) is S-wave velocity, and \({f}_{c}\) is corner frequency:

$$\Delta \sigma =\frac{7}{16}\times \frac{{M}_{0}}{{r}^{3}}\times {10}^{-5}$$
(8)

where \(\Delta \sigma\) is stress drop, and \({M}_{0}\) and \(r\) are defined in Eqs. (5) and (7), respectively. Expressing the seismic moment and radius in Nm and m, respectively, Eq. (8) gives the stress drop values in units of bar equal to \({10}^{5}\mathrm{ N }{\mathrm{m}}^{-2}\). The stress-drop values for the earthquakes used in this study are plotted as a function of depths in Fig. 6. It was found that the stress drops generally increased with the depths (Fig. 6a). The logarithms of stress drops were fitted with depths assuming a linear relationship, which is given in the following equation:

$${\mathrm{log}}_{10}(\Delta \sigma )=1.2768+0.0124D$$
(9)

where \(\Delta \sigma\) is stress drop in unit of bar as abovementioned, and D is depth in unit of kilometer. The stress-drop residuals obtained as the logarithmic ratios between the results obtained from Eqs. (8) and (9) are shown as a function of depths in Fig. 6b.

Fig. 6
figure 6

a Plots of stress drop versus depth. The values for the different earthquake types are denoted by different symbols. The PAC-C (red squares) and NAM-C (blue triangles) in the legends denote the crustal earthquakes in the Pacific and North American Plates, respectively. The Unclassified (inverted triangles, green) means the earthquakes, whose tectonic types were not ascertained. b Plots of stress-drop residuals against depth. The different symbols correspond to the different earthquake types as indicated in a above. The filled symbols denote the mean residuals for the corresponding earthquake types computed in the interval of 10 km and the vertical bars denote the range of one standard deviation. The mean residuals are shifted slightly in horizontal directions from the centers of the corresponding intervals for clarity

To get an idea about the variation of the stress drops between the earthquakes, the earthquakes were divided into four types based on their tectonic origins: interplate (IP) earthquakes, intraslab (S) earthquakes, crustal earthquakes in the Pacific Plate (PAC-C), and crustal earthquakes in the North American Plate (NAM-C). The earthquake types were decided based on their hypocentral locations (JMA), focal mechanisms obtained from the F-net NIED moment tensor solutions, and plate-boundary data compiled by Hirose (2022). Some earthquakes could not be classified easily and were grouped as unclassified. It was found that the mean stress-drop residuals for the shallow earthquakes in the Pacific Plate (depths < 30 km) were larger than the mean residuals for the interplate earthquakes within the corresponding depth ranges. The difference was quite large (almost a factor of four, ~ 0.6 on the base 10 log scale) for depths shallower than 10 km. Allmann and Shearer (2009) reported that the stress drops for the intraplate earthquakes in the oceanic lithosphere were twice as high as those for the interplate earthquakes based on a global data set. For depths deeper than 30 km, the differences between the interplate and intraslab earthquakes were minor. The mean residuals for the crustal earthquakes (NAM-C) were small or near zero except for the depth range between 30 and 40 km, where the mean residual was noticeably larger than that of other groups of earthquakes. The mean residuals for the unclassified earthquakes were close to zero except for the depths between 10 and 20 km, in which the mean residual was larger than those from the other groups of earthquakes. However, the number of earthquakes was just two in the depth range, and it is likely that the events belonged to the intraslab type.

The stress drops obtained in Nakano et al. (2015) were slightly larger for the intraslab earthquakes than the interplate ones for the deeper events. The stress-drop values in Nakano et al. (2015) and current study were quite comparable. For example, the average values for the interplate and intraslab earthquakes at a depth of about 40 km were about ~ 50–60 bars in Nakano et al. (2015, Fig. 17), which were close to the value of about 60 bars obtained in the present study. However, we found that the average values of the stress drops for the crustal earthquakes were slightly larger in the present study than those in Nakano et al. (2015). The spatial distributions of the stress drop for the interplate, intraslab, and crustal earthquakes are depicted in Additional file 3. The plots do not show a noticeable lateral variation of the stress drops but depict that the stress drops, on average, increase with the depth of the events, as discussed above.

Path factors

In the present study, we simply assumed the R−1 factor for geometrical attenuation. In this section, we discuss the path attenuation in terms of the quality factor, \({Q}_{s}\), for S wave. The \({Q}_{s}\) values obtained in the present study are plotted as a function of frequency in Fig. 7. The \({Q}_{s}\) values estimated in several previous studies using similar techniques and earthquake events from similar regions (e.g., Satoh and Tatsumi 2002; Nakamura 2009; Oth et al. 2011; Nakano et al. 2015) are also depicted in the plots for comparison. One major difference between the previous and present studies is that the results in the previous studies were derived using the records primarily from the stations on land as the seafloor observatories were limited or unavailable. As a result, the average paths covered by the seismic waves between the previous and present studies may have varied significantly. The \({Q}_{s}\) values obtained in this study showed the following features. The values generally increased linearly with frequencies up to 3 Hz, became almost constant between 3 and 10 Hz, and rose gently above 10 Hz (see Fig. 7). The relation between the frequencies and \({Q}_{s}\) values obtained in the present study is given in Eq. (10) for frequencies between 0.3 and 3.3 Hz. The values between 3.3 and 10 Hz may be considered constant, equal to the value at 3.3 Hz. The values at other frequencies may be regarded as similar to those to be explained shortly.

$${Q}_{s}=310 {f}^{1.12}$$
(10)

Nakamura (2009) obtained 3-D attenuation structures beneath the Japan Islands. The region numbers 4 and 13 in Nakamura (2009) correspond to the 0–30 km and 30–60 km depth ranges in the fore-arc region of northeast Japan. The 30–60 km region overlaps with the present study area to some extent. The \({Q}_{s}\) values for the two regions in Nakamura (2009) are shown by the dashed and solid red lines in Fig. 7. The applicable frequency ranges in Nakamura (2009) were between 1 and 10 Hz. The plots show that \({Q}_{s}\) values obtained in this study were generally larger than those for the 30–60 km depth ranges in Nakamura (2009) in the applicable frequency ranges, though the differences were smaller near 1 and 10 Hz.

Fig. 7
figure 7

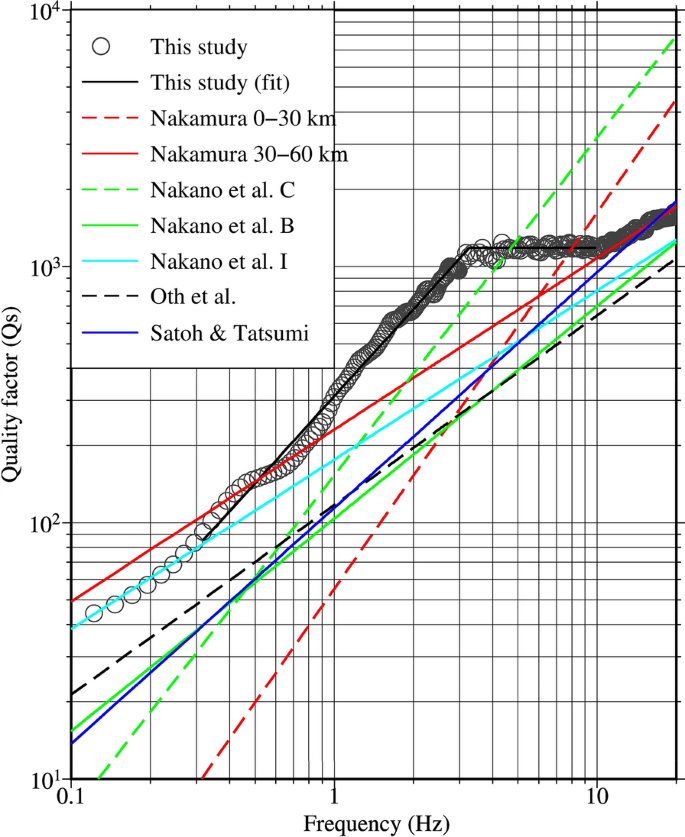

Relationships between the Qs values and frequencies. The values obtained in the present study are denoted by circles. The red dashed and solid lines denote the relationships for the shallower (0–30 km) and deeper (30–60 km) parts of the fore-arc region in the north–east Japan (Nakamura 2009). The green dashed line, green solid line, and cyan-colored line denote the relationships for fore-arc region corresponding to the Japan Trench subduction zone for crustal (C), plate boundary (B), and intraslab (I) earthquakes, Region 2, in Nakano et al. (2015). The black dashed line denotes the relationship reported in Oth et al. (2011) for subcrustal earthquakes, and the blue line denotes the relationship reported in Satoh and Tatsumi (2002) for north–east Japan

Nakano et al. (2015) obtained three sets of \({Q}_{s}\) values corresponding to the three types of earthquakes: crustal, plate boundary (or interplate), and intraplate (or intraslab), denoted by the letters C, B, and I, respectively, following the notations in their paper. The \({Q}_{s}\) values for the region number two in their study, close to the region in the present study, are shown for the different earthquake groups in Fig. 7. The applicable frequency ranges in Nakano et al. (2015) were between 0.5 and 20 Hz for the interplate and intraslab earthquakes, while they were between 0.5 and 5 Hz for the crustal earthquakes. The \({Q}_{s}\) values at lower and higher frequencies in the present study were close to the \({Q}_{s}\) values for the intraslab earthquakes in Nakano et al. (2015), while the \({Q}_{s}\) values at frequencies around 4–5 Hz were close to the crustal earthquakes in Nakano et al. (2015).

The \({Q}_{s}\) values plotted in Fig. 7, marked with Oth et al. (2011), were for subcrustal earthquakes from wide onshore areas, the larger part of which faces the Pacific Ocean and Philippine Seas. The applicable frequency ranges were between about 0.5 and 20 Hz in Oth et al. (2011). The \({Q}_{s}\) values plotted in Fig. 7 for Satoh and Tatsumi (2002) were for subduction earthquakes in northeast Japan and were valid between 0.2 and 20 Hz. The \({Q}_{s}\) values in Oth et al. (2011), Nakanao et al. (2015) for interplate earthquakes (Nakano et al. (2015) B in Fig. 7), and Satoh and Tatsumi (2002) were noticeably smaller than the values in the present study, except for Satoh and Tatsumi (2002) at frequencies higher than about 10 Hz. In summary, the average \({Q}_{s}\) values obtained in this study are either similar to or larger than those in the previous studies mentioned above. The larger values in the present study are generally as expected, because the seismic rays travel a considerable portion of the high Q Pacific Plate (e.g., Umino and Hasegawa 1984) as the S-net sites are closer to the Pacific Plate compared to the networks in the other studies. Even though the path-averaged \({Q}_{s}\) values differed between the present and other studies to some extent, the slopes of the fitted lines between the frequencies and \({Q}_{s}\) values were around unity at most frequencies. Future studies are required to image the detailed \({Q}_{s}\) structure in the seafloor regions.

Site spectra

We discuss the site amplification factors obtained from the spectral inversion in this section. First, we present the site amplification factors at three KiK-net sites (stations on land), namely, FKSH19, IWTH23, and IWTH27 (see Fig. 1 for the location of the sites). The site amplification factors at the three sites are shown in Fig. 8. The mean SBSRs computed from several earthquake records at the sites are also shown in the figure. The borehole sensors were set up in the layers having Vs values of 3.06, 2.2, and 2.79 km/s at the FKSH19, IWTH23, and IWTH27, respectively, according to the PS-logging data. Therefore, the SBSRs may be considered equivalent to the site amplification factors at the sites with respect to a reference rock site. The peak frequencies of the spectral ratios were approximately 3.27, 16.06, and 7.34 Hz at the three sites, FKSH19, IWTH23, and IWTH27, respectively. The peak frequencies and their amplitudes matched well between the spectral ratios and the amplification factors at all the sites. The overall shapes of the curves for the spectral ratios and amplification factors were similar. The values of amplification factors at frequencies lower than about 2 Hz were smaller than two, suggesting no amplification effect by the sediments at the frequencies. The above comparison suggests that the obtained site amplification factors at the three sites were reasonable.

Fig. 8
figure 8

Comparison of the mean surface-to-borehole spectral ratios of horizontal component recordings (black lines) and site amplification factors (red lines) from the spectral inversion at three KiK-net sites. a FKSH19, b IWTH23, and c IWTH27. See Fig. 1 for the location of the sites

Hereafter, we describe the site spectra at the S-net sites. The site spectra at nine example sites are plotted in Fig. 9 (red lines) along with the individual-earthquake site spectra (grey lines) and theoretical amplification factors (blue lines) at each site computed from the J-SHIS (Japan Seismic Hazard Information Station) velocity model (Fujiwara et al. 2009, 2012). The sites were from the S3 segment except for one site and were located almost in the east–west direction (see Fig. 1 for the location of the sites). The sites were S3N26 (water depth 128 m), S3N25 (230 m), S3N24 (849 m), S3N23 (1220 m), S3N22 (1645 m), S3N21 (2779 m), S3N20 (5225 m), S3N19 (5591 m), and S6N12 (6111 m), from west to east directions, respectively. The panels a to i in Fig. 9 are arranged in the order of increasing water depths. The curves for the amplification factors from the inversion (red lines) showed multiple peaks and were generally different from site to site. The shallow water sites (a, b, c) showed relatively smaller amplifications (about ten or less) at lower frequencies compared with the values at the deeper water sites (d, e, f, g, h) (about ten or over) except for the deepest site, S6N12, panel i. The S6N12 site, among the nine sites, showed a peak amplification value of about 20 at approximately 6.68 Hz. The spectra at most sites showed a decreasing trend with frequencies higher than about 10 Hz. We explain later that the peak amplification factors at some sites were influenced to some extent by factors irrelevant to the site geology.

Fig. 9
figure 9

Comparison of the site amplification factors (red lines) obtained from the spectral inversion with the theoretical amplification factors (blue lines) using the J-SHIS subsurface velocity model. The grey lines denote the site factors corresponding to each earthquake deduced by dividing the original spectra by the source spectrum of corresponding earthquake and path factors. The plots a, b, c, d, e, f, g, h, and i correspond to sites, namely, S3N26, S3N25, S3N24, S3N23, S3N22, S3N21, S3N20, S3N19, and S6N12, indicated in each panel (see Fig. 1 for the location of the sites). The number of earthquake records (N) used in the spectral inversion and the depth to the seafloor (D) are indicated for each site. See Additional file 4 for the J-SHIS model at the sites mentioned above

The theoretical amplification factors computed for the vertical incidence SH wave using the J-SHIS velocity model above the seismic basement (Vs 3.2 km/s) are comparable with the results from the spectral inversion over wider frequencies at the two shallow-water sites, S3N26 (water depth 128 m) and S3N25 (230 m), as shown in Fig. 9a, b. Meanwhile, the theoretical values underestimated the site amplification factors from the inversion at the other sites. The differences generally increased with the increase of water depths. A similar tendency was seen at a few other shallow and deep-water sites (see the Additional file 4). The velocity profiles used to compute the amplification factors at the example sites are shown in the Additional file 4. While the total thicknesses of sedimentary layers above the Vs 3.2 km/s layer were between about 1.5 (S6N12, S3N24) and 4 km (S3N19), the thicknesses of layers with Vs < 1 km/s were between about 0.1 (S6N12) and 0.9 km (S3N20). The sites located toward the land from the Japan Trench axis showed greater thickness of the sediments than the sites located farther offshore from the trench axis. The obtained site amplification factors at the sites were generally consistent with the distribution of thickness of sedimentary layers in the J-SHIS model. Large amplification factors were obtained at the thicker sediment sites, such as the S3N19, S3N20, and S3N21, where the thicknesses of the sedimentary layers were about 3–4 km (see the Additional file 4). The J-SHIS model in the oceanic region was constructed using the limited geophysical survey data (Fujiwara et al. 2012) and lacked information for shallow sediments with velocities smaller than 600 m/s. Thus, the differences in site amplification factors between the inversion and J-SHIS model may be attributed to the preliminary nature of the velocity model. Moreover, the S-wave time windows selected in this study may have included the 3-D effects of the sedimentary layers around the sites (e.g., Dhakal and Yamanaka 2012). Despite such limitations, the similar amplification factors between the spectral inversion results and the theoretical values at some of the shallow water sites suggest that the site amplification factors obtained in this study may serve as a basis for the validation and improvement of the velocity models in the offshore region.

Sawazaki and Nakamura (2020) analyzed the spectral ratios of coda portions of the ground motion records between the horizontal Y and X components and reported that the spectral ratios show a characteristic shape ‘N’ with peaks and troughs at about 7 and 13 Hz, respectively. They showed that the two frequencies coincided roughly with the natural vibration periods of the cylindrical pressure vessels in the Y and X directions, respectively. They suggested that the natural vibrations were induced due to the poor coupling between the seabed and cylindrical pressure vessels that housed the S-net sensors. The ‘N-shaped’ spectral ratios were conspicuous at several unburied seismometer sites. To avoid or minimize the effect of the natural vibrations of the pressure vessels on the estimated site spectra, we performed the spectral inversion of only the horizontal X-component spectra, and comparisons of the source, path, and site spectra were made with the values described previously (obtained using the mean spectra of horizontal X and Y components). The moment magnitudes, corner frequencies, stress drops, and \({Q}_{s}\) values derived from the two inversions are plotted in Fig. 10. We found that the source spectra and path factors from the two inversions were essentially the same in a statistical sense.

Fig. 10
figure 10

a Comparison of the estimated magnitudes (Mw) between the inversions of the X-component spectra and the mean spectra of X and Y components. b, c Similar to the plot a, but for the corner frequencies (Hz) and stress drops, respectively. d Comparison of the quality factors between the two inversions plotted against the frequencies

Example comparisons of the site spectra from the two inversions at nine selected sites, locations being depicted in Fig. 11, are shown in Fig. 12. In addition, shown in Fig. 12 are the mean spectral ratios between the horizontal Y and X component records (Y/X ratios). The site spectra and the Y/X ratios at three sites, namely, S2N14, S2N15, and S2N16, are shown in the panels a, b, and c, respectively. The water depths at the sites were 162, 264, and 874 m, respectively. The three sites were buried sites. It can be seen that the Y/X spectral ratios are near one, and the site spectra from the two inversions (the red and blue curves denoting the results for the mean spectra of two components and X-component spectra only) are very similar. Similarly, the panels d, e, f, g, h, and i in Fig. 12 show the site spectra and Y/X spectral ratios for the other six sites, where the sensor houses were not buried. The water depths ranged between 2247 and 6230 m. The site spectra from the two inversions showed similitude in shape and peak values. The Y/X spectral ratios had obvious troughs at frequencies near 10 Hz or higher at all the sites, but the peaks were not so prominent except for the two sites, namely, S2N21 and S2N22 (see the panels h and i in Fig. 12). The peak frequencies of the site spectra and the Y/X spectral ratios were generally different. However, we found that the site spectra at 30 sites (20% of the total stations) obtained from the inversion of the mean spectra of X and Y components were noticeably contaminated at frequencies that corresponded with the peaks and troughs of the Y/X spectral ratios. The list of 30 sites, along with the peak frequencies and other properties, is provided in the Additional file 5 (see Fig. 11 for the location of the sites). Out of the 30 sites, the example plots of the site spectra from the two inversions and the Y/X spectral ratios are shown in Fig. 13 for the selected nine sites. The peak amplitudes of the mean Y/X spectral ratios ranged between about 3 and 9, and the peak frequencies were between about 4 and 9 Hz at the 30 sites. The upper three panels (a, b, c) in Fig. 13 depict the spectra for the three sites, for which the maximum values of the Y/X spectral ratios were about 3; the sites in the middle three panels (d, e, and f) had the maximum Y/X spectral ratios of about 4. The last three panels (g, h, and i) had the maximum Y/X spectral ratios of about, 7, 7.5, and 9, respectively. The plots depict that the site spectra from the two inversions were generally similar except for the frequencies at and around the peaks and troughs of the Y/X spectral ratios. We found that the difference between the two inversion results becomes conspicuous when the peak value of the Y/X spectral ratios is about 3 or larger.

Fig. 11
figure 11

Red circles denote the locations of the sites for which the site spectra are plotted in Fig. 12. The site codes are written near the site symbols. Red triangles denote the locations of the sites, where the site spectra at higher frequencies were spurious (see Fig. 13)

Fig. 12
figure 12

Example comparison of the site spectra obtained from the spectral inversions of mean spectra of X- and Y-component records (red lines) and spectra of X-component records (blue lines). The plots a, b, c, d, e, f, g, h, and i correspond to sites, namely, S2N14, S2N15, S2N16, S2N17, S2N18, S2N19, S2N20, S2N21, and S2N22, as indicated in each panel. See Fig. 11 for the location of the sites. The black lines denote the mean spectral ratios between the horizontal Y- and X-component records. The number of earthquake records (N) used for each site and the depth to the seafloor (D) are indicated in each plot

Fig. 13
figure 13

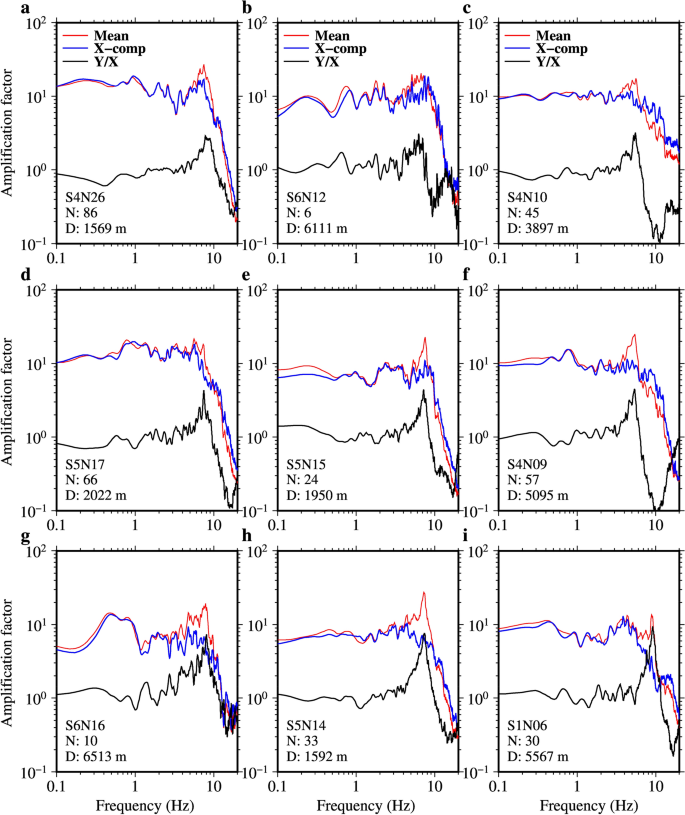

Example comparison of the site spectra obtained from the spectral inversions of mean spectra of X- and Y-component records (red lines) and spectra of X-component records (blue lines) at sites, where the spurious site spectra were recognized. The plots a, b, c, d, e, f, g, h, and i correspond to sites, namely, S4N26, S6N12, S4N10, S5N17, S5N15, S4N09, S6N16, S5N14, and S1N06, as indicated in each panel. See Fig. 11 for the location of the sites. The black lines denote the mean spectral ratios between the horizontal Y- and X-component records. The number of earthquake records (N) used for each site and the depth to the seafloor (D) are indicated in each plot

It is interesting to see how the amplification factors from the spectral inversion were spatially distributed over different sites for a given frequency to get a general picture of the variation in the site spectra. The spatial distributions of the site amplification factors for three frequencies, approximately 0.33 Hz, 1 Hz, and 5 Hz, are shown in Fig. 14b–d, respectively. The amplification factors at 5 Hz are plotted from the analysis of X-component records only to avoid the spurious spectra discussed above. Figure 14a shows the two-way travel time in the sedimentary layers for the P wave obtained from the multi-channel seismic (MCS) reflection survey (Nishizawa et al. 2022). The outer trench sites, part of the S6 segment, mostly showed smaller values (~ 0.5 s) for the travel times. Similarly, the two-way travel times were smaller than 1 s at several sites close to the coast and in the S1 segment. At the other sites, the two-way travel times were mostly larger than 1 s. The longest two-way travel time was about 2.5 s beneath the S2N21 site (see Fig. 14a). The longer travel times indicate thicker low velocity sediments compared with the smaller ones. The site amplification factors for 0.33 and 1 Hz, depicted in Fig. 14b, c show the patterns roughly similar to the distribution of the two-way travel times shown in Fig. 14a. In contrast, the amplification factors for 5 Hz were larger than the ones for the lower frequencies at many sites in the S6 segment, where the two-way travel times were smaller. The median values of the amplification factors over the S-net sites were about 10 for the three frequencies, discussed above. The smaller travel times and larger amplification for the higher frequencies might suggest the thickness of the sediment to be relatively small in the outer trench sites. Azuma et al. (2019) obtained sediment thicknesses based on travel-time differences between P and PS converted waves at the sedimentary basement below the S-net sites and suggested that the sediment thicknesses in the landward of the trench tend to be thicker than those estimated by two-way travel times of the deepest reflectors on the MCS profiles (Nishizawa et al. 2022). We plan to integrate the travel-time information, site spectra, and the available subsea models to reconstruct the improved velocity models in our future studies.

Fig. 14
figure 14

a Two-way travel time for P wave from the base of sediment to the seafloor estimated by multi-channel seismic (MCS) reflection survey (Nishizawa et al. 2022). The color filled squares and circles denote the sites located, within and beyond 5 km from the survey line, respectively. The open squares denote the sites, where the travel times were not estimated. b, c, and d Amplification factors at frequencies of approximately 0.33, 1, and 5 Hz, respectively

Finally, the relationships between the two-way travel times and amplification factors at the frequencies of 0.33, 0.5, 1, 2, 5, and 10 Hz are presented in Fig. 15a–f, respectively. The amplification factors from the two inversions, using the mean spectra of X and Y components and X-component spectra only, showed similar trends with the two-way travel times as expected. The plots for the 0.33, 0.5, 1, and 2 Hz indicated that the amplification factors generally increased with the two-way travel times, albeit the small values of correlation coefficients (~ 0.25). We found that the correlation coefficients decreased with the increase in frequency over 2 Hz and was approximately zero at 10 Hz. The mean amplification factors were approximately 10 and 2 at frequencies of 5 and 10 Hz, respectively. These latter results may suggest that the thicker sediment layers dampen the higher frequency components more than the lower ones due to the lower Qs values in the sediments (e.g., Boore and Smith 1999).

Fig. 15
figure 15

Relationships between the two-way travel times for P wave and site amplification factors at frequencies of approximately 0.33, 0.5, 1, 2, 5, and 10 Hz (panels af), respectively. The red and black lines indicate the linear fits between the travel times and logarithms of amplification factors. The numerals in parentheses indicate the values of correlation coefficients between the corresponding data sets. Note the difference in the scale of the vertical axis for 10 Hz f compared to the scales for other frequencies. The amplification factors are lower than five for 10 Hz at most sites

Conclusions

We analyzed the strong-motion records at the S-net sites following the earthquakes with magnitudes 3.5 < Mw \(\le\) 7 and focal depths < 70 km and evaluated the source, path, and site spectra of S waves for understanding the S-wave site amplification factors at the sites. We used the spectral inversion technique to obtain the source, path, and site spectra simultaneously from the horizontal-component S-wave portions of the recordings.

The source spectra were fitted with the conventional \({\omega }^{-2}\) source model searching for the flat levels of the spectra and corner frequencies, and it was found that the source spectra followed the \({\omega }^{-2}\) source model generally well for most earthquakes up to 10 Hz. The estimated magnitudes from the flat levels of the source spectra were mostly within ± 0.3 magnitude units of the F-net NIED catalog magnitudes. The stress drops increased with focal depths, which is consistent with the previous studies in the region. The stress drops for the shallow earthquakes in the Pacific Plate were higher than those for the interplate earthquakes with comparable focal depths, while the values were similar for events with depths greater than about 30 km. The path-averaged quality factors increased with frequency up to about 3 Hz, remained almost constant between about 3 and 10 Hz, and then increased gently up to 20 Hz. The values were either similar to or larger than those reported in the previous studies.

The peak site frequencies were between about 0.2 and 10 Hz, and the peak amplification factors ranged between about 10 and 50. The peak frequencies and amplification factors generally differed from site to site. However, a moderate regional pattern was observed. The peak frequencies were mostly higher than about 2 Hz at the outer trench sites, while they were lower than 2 Hz at many inner trench sites. The amplification factors at a few shallow-water sites close to the coast were comparable with the theoretical ones computed from the J-SHIS subsea model. The amplification factors from the inversion were larger in the regions, where the sedimentary layers were thicker in the J-SHIS model. However, the amplification factors were considerably underestimated by the J-SHIS model at many sites over wide frequencies. The amplification factors at intermediate frequencies (~ 0.3 to 2 Hz) generally increased with the P-wave travel time in the sediments estimated from the multi-channel seismic reflection survey. All the above results, by and large, suggested that the site spectra were reasonable. However, it was found that the site spectra included dominant peaks at frequencies between about 4 and 10 Hz at about thirty unburied stations, resulting from the coupling problem between the instrument vessels and seabed sediments. We performed the spectral inversion using only the spectra from the horizontal X-component records and found that the spurious peaks at those sites were eliminated, while the source spectra and path factors were very similar to those from the joint use of both X- and Y-component records. We recommend avoiding the Y-component records if the site spectra between about 4 and 10 Hz are required at the unburied stations for any application. Moreover, the site spectra over about 10 Hz may not be reliable due to the higher modes in the Y directions and vibrations of the sensor vessels in the X directions.

The results discussed in this paper may be used in the prediction of ground motions for EEW, engineering design of offshore structures, and so on. It is expected that the abovementioned results may also serve as a basis for more detailed future studies regarding the source properties of the subduction zone earthquakes, quality factor of the crust and mantle, and improvement of the subsurface velocity models in the region.

Availability of data and materials

The strong-motion recordings at the KiK-net sites and PS-logging data used in this study were obtained from NIED K-NET, KiK-net, National Research Institute for Earth Science and Disaster Resilience, https://doi.org/10.17598/nied.0004. https://www.kyoshin.bosai.go.jp/. The strong-motion recordings at the S-net sites were retrieved from NIED S-net, National Research Institute for Earth Science and Disaster Resilience, https://doi.org/10.17598/nied.0007. https://hinetwww11.bosai.go.jp/auth/download/cont/?LANG=en. The J-SHIS deep subsurface model was downloaded from the website: http://www.j-shis.bosai.go.jp/map/JSHIS2/download.html?lang=en. The hypocenter information of the events were taken from the website: https://www.data.jma.go.jp/svd/eqev/data/bulletin/hypo_e.html. The moment magnitudes and depths of the moment tensor solutions were taken from the website: http://www.fnet.bosai.go.jp/event/joho.php?LANG=en. The plate-boundary data used in the classification of earthquake types were retrieved from https://www.mri-jma.go.jp/Dep/sei/fhirose/plate/en.index.html. Readers are suggested to check the abovementioned websites for details about the original data, and to contact the authors for data request for other specific information, such as the list of earthquakes and the numerical values of the results discussed in the paper. All the websites were last-accessed on May 10, 2022.

Abbreviations

F-net:

Full-range seismograph network

JMA:

Japan Meteorological Agency

J-SHIS:

Japan Seismic Hazard Information Station

KiK-net:

Kiban Kyoshin network

MCS:

Multi-channel seismic reflection survey

Mj:

JMA magnitude

Mw:

Moment magnitude

NIED:

National Research Institute for Earth Science and Disaster Resilience

PAC:

Pacific Plate

PHS:

Philippine Sea Plate

S-net:

Seafloor observation network for earthquakes and tsunamis along the Japan Trench

SNR:

Signal-to-noise ratio

S-to-B:

Surface-to-borehole

S-wave:

Secondary wave/shear wave

References

  • Aki K (1967) Scaling law of seismic spectrum. J Geophys Res 72:1217–1231

    Article  Google Scholar

  • Aki K, Richards PG (2002) Quantitative seismology. Second ed. University Science Books.

  • Allmann BP, Shearer PM (2009) Global variations of stress drop for moderate to large earthquakes. J Geophys Res 114:B01310. https://doi.org/10.1029/2008JB005821

    Article  Google Scholar

  • Andrews DJ (1986) Objective determination of source parameters and similarity of earthquakes of different size. In Earthquake Source Mechanics, Geophysical Monograph Series 37:259–267

  • Aoi S, Asano Y, Kunugi T, Kimura T, Uehira K, Takahashi N, Ueda H, Shiomi K, Matsumoto T, Fujiwara H (2020) MOWLAS: NIED observation network for earthquake, tsunami and volcano. Earth Planets Space 72:126. https://doi.org/10.1186/s40623-020-01250-x

    Article  Google Scholar

  • Azuma R, Takagi R, Toyokuni G, Nakayama T, Suzuki S, Sato M, Uchida N, Hino R (2019) Seafloor sediment thickness below S-net observatories revealed from PS conversion wave at the sedimentary base. Seismological Society of Japan, Fall meeting, S06-08

  • Bindi D, Castro RR, Franceschina G, Luzi L, Pacor F (2004) The 1997–1998 Umbria-Marche sequence (central Italy): source, path, and site effects estimated from strong motion data recorded in the epicentral area. J Geophys Res 109:B04312. https://doi.org/10.1029/2003JB002857

    Article  Google Scholar

  • Boore DM, Atkinson GM (1987) Stochastic prediction of ground motion and spectral response parameters at hard-rock sites in eastern North America. Bull Seismol Soc Am 77(2):440–467. https://doi.org/10.1785/BSSA0770020440

    Article  Google Scholar

  • Boore DM, Smith CE (1999) Analysis of earthquake recordings obtained from the Seafloor Earthquake Measurement System (SEMS) Instruments deployed off the coast of Southern California. Bull Seism Soc Am 89(1):260–274. https://doi.org/10.1785/BSSA0890010260

    Article  Google Scholar

  • Brune JN (1970) Tectonic stress and the spectra of seismic shear waves from earthquakes. J Geophys Res 75:4997–5009

    Article  Google Scholar

  • Brune JN (1971) Correction. J Geophys Res 76:5002

    Google Scholar

  • Castro RR, Anderson JG, Singh K (1990) Site response, attenuation and source spectra of S waves along the Guerrero, Mexico, subduction zone. Bull Seismol Soc Am 80(6A):1481–1503. https://doi.org/10.1785/BSSA08006A1481

    Article  Google Scholar

  • Dhakal YP, Yamanaka H (2012) Delineation of S-wave time window in the Kanto basin for tuning velocity models of deep sedimentary layers. Int Symp Earthq Eng JAEE 1:85–94

    Google Scholar

  • Dhakal YP, Shin A, Kunugi T, Suzuki W, Kimura T (2017) Assessment of nonlinear site response at ocean bottom seismograph sites based on S-wave horizontal-to-vertical spectral ratios: a study at the Sagami Bay area K-NET sites in Japan. Earth Planets Space 69:29. https://doi.org/10.1186/s40623-017-0615-5

    Article  Google Scholar

  • Dhakal YP, Kunugi T, Suzuki W, Kimura T, Morikawa N, Aoi S (2021) Strong motions on land and ocean bottom: comparison of horizontal PGA, PGV, and 5% damped acceleration response spectra in northeast Japan and the Japan Trench area. Bull Seism Soc Am 111:3237–3260. https://doi.org/10.1785/0120200368

    Article  Google Scholar

  • Fletcher JB, Boatwright J (2020) Peak ground motions and site response at Anza and Imperial Valley, California. Pure Appl Geophys 177:2753–2769. https://doi.org/10.1007/s00024-019-02366-2

    Article  Google Scholar

  • Fujiwara H, Kawai S, Aoi S, Morikawa N, Senna S, Kudo N, Ooi M, Hao KX, Hayakawa Y, Toyama N, Matsuyama H, Iwamoto K, Suzuki H, Liu Y (2009) A study on subsurface structure model for deep sedimentary layers of Japan for strong-motion evaluation. Technical Note of the National Research Institute for Earth Science and Disaster Prevention, No. 337 (in Japanese)

  • Fujiwara H, Kawai S, Aoi S, Morikawa N, Senna S, Azuma H, Ooi M, Hao KX, Hasegawa N, Maeda T, Iwaki A, Wakamatsu K, Imoto M, Okumura T, Matsuyama H, Narita A (2012) Some improvements of seismic hazard assessment based on the 2011 Tohoku earthquake. Technical Note of the National Research Institute for Earth Science and Disaster Prevention, No. 379, 1–349 (in Japanese)

  • Hanks TC (1979) b values and ω−γ seismic source models: implications for tectonic stress variations along active crustal fault zones and the estimation of high-frequency strong ground motion. J Geophys Res 84(B5):2235–2242. https://doi.org/10.1029/JB084iB05p02235

    Article  Google Scholar

  • Hanks TC, Kanamori H (1979) A moment magnitude scale. J Geophys Res 84(B5):2348–2350. https://doi.org/10.1029/JB084iB05p02348

    Article  Google Scholar

  • Hayashimoto N, Nakamura T, Hoshiba M (2019) A technique for estimating the UD-component displacement magnitude for earthquake early warnings that can be applied to various seismic networks including ocean bottom seismographs. Q J Seismol 83:1–10 (in Japanese with English abstract)

    Google Scholar

  • Hirose F (2022) Plate configuration. Retrieved from https://www.mri-jma.go.jp/Dep/sei/fhirose/plate/en.index.html. Accessed 10 May 2022

  • Iwata T, Irikura K (1988) Source parameters of the 1983 Japan Sea earthquake sequence. J Phys Earth 36:155–184

    Article  Google Scholar

  • Kato K, Takemura M, Ikeura T, Urao K, Uetake T (1992) Preliminary analysis for evaluation of local site effects from strong motion spectra by an inversion method. J Phys Earth 40:175–191. https://doi.org/10.4294/jpe1952.40.175

    Article  Google Scholar

  • Klimasewski A, Sahakian V, Baltay A, Boatwright J, Fletcher JB, Baker LM (2019) κ0 and broadband site spectra in Southern California from source model-constrained inversion. Bull Seismol Soc Am 109(5):1878–1889. https://doi.org/10.1785/0120190037

    Article  Google Scholar

  • Kubo H, Nakamura T, Suzuki W, Dhakal YP, Kimura T, Kunugi T, Takahashi N, Aoi S (2019) Ground-motion characteristics and nonlinear soil response observed by DONET1 seafloor observation network during the 2016 southeast off-Mie, Japan, earthquake. Bull Seismol Soc Am 109:976–986. https://doi.org/10.1785/0120170296

    Article  Google Scholar

  • Morikawa N, Sasatani T (2003) Source spectral characteristics of two large intra-slab earthquakes along the southern Kurile-Hokkaido arc. Phys Earth Planet Inter 137:67–80. https://doi.org/10.1016/S0031-9201(03)00008-6

    Article  Google Scholar

  • Nakamura R (2009) 3-D Attenuation structure beneath the Japanese islands, source parameters and site amplification by simultaneous inversion using short period strong motion records and predicting strong ground motion. Doctoral Dissertation, The University of Tokyo, 1–206

  • Nakamura T, Hayashimoto N (2019) Rotation motions of cabled ocean-bottom seismic stations during the 2011 Tohoku earthquake and their effects on magnitude estimation for early warnings. Geophys J Int 216:1413–1427. https://doi.org/10.1093/gji/ggy502

    Article  Google Scholar

  • Nakamura R, Satake K, Toda S, Uetake T, Kamiya S (2006) Three-dimensional attenuation (Qs) structure beneath the Kanto district, Japan, as inferred from strong motion records. Geophys Res Lett 33:L21304. https://doi.org/10.1029/2006GL027352

    Article  Google Scholar

  • Nakamura T, Takenaka H, Okamoto T, Ohori M, Tsuboi S (2015) Long-period ocean-bottom motions in the source areas of large subduction earthquakes. Sci Rep 5:16648. https://doi.org/10.1038/srep16648

    Article  Google Scholar

  • Nakano K, Matsushima S, Kawase H (2015) Statistical properties of strong ground motions from the generalized spectral inversion of data observed by K-NET, KiK-net, and the JMA Shindokei Network in Japan. Bull Seismol Soc Am 105(5):2662–2680. https://doi.org/10.1785/0120140349

    Article  Google Scholar

  • Nishizawa A, Uehira K, Mochizuki M (2022) Sediment distribution beneath S-net stations derived from multi-channel seismic reflection profiles and hypocenter determination using the sediment correction. Technical Note of the National Research Institute for Earth Science and Disaster Resilience, No. 471 (in Japanese with English abstract)

  • Oth A, Bindi D, Parolai S, Giacomo DD (2010) Earthquake scaling characteristics and the scale-(in)dependence of seismic energy-to-moment ratio: insights from KiK-net data in Japan. Geophys Res Lett 37:L19304. https://doi.org/10.1029/2010GL044572

    Article  Google Scholar

  • Oth A, Bindi D, Parolai S, Giacomo DD (2011) Spectral analysis of K-NET and KiK-net data in Japan, Part II: on attenuation characteristics, source spectra, and site response of borehole and surface stations. Bull Seismol Soc Am 101(2):667–687. https://doi.org/10.1785/0120100135

    Article  Google Scholar

  • Ren Y, Wen R, Yamanaka H, Kashima T (2013) Site effects by generalized inversion technique using strong motion recordings of the 2008 Wenchuan earthquake. Earthq Eng Eng Vib 12:165–184. https://doi.org/10.1007/s11803-013-0160-6

    Article  Google Scholar

  • Satoh T, Tatsumi Y (2002) Source, path, and site effects for crustal and subduction earthquakes inferred from strong motion records in Japan. J Struct Constr Eng (Transactions AIJ) 67(Issue 556):15–24. https://doi.org/10.3130/aijs.67.15_2 (in Japanese with English abstract)

  • Sawazaki K, Nakamura T (2020) “N”-shaped Y/X coda spectral ratio observed for in-line-type OBS networks; S-net and ETMC: interpretation based on natural vibration of pressure vessel. Earth Planets Space 72:130. https://doi.org/10.1186/s40623-020-01255-6

    Article  Google Scholar

  • Searle SR (1971) Linear models. John Wiley & Sons, Inc.

    Google Scholar

  • Takagi R, Uchida N, Nakayama T, Azuma R, Ishigami A, Okada T, Nakamura T, Shiomi K (2019) Estimation of the orientations of the S-net cabled ocean-bottom sensors. Seismol Res Lett 90:2175–2187. https://doi.org/10.1785/0220190093

    Article  Google Scholar

  • Tsuda K, Archuleta RJ, Koketsu K (2006) Quantifying the spatial distribution of site response by use of the Yokohama high-density strong-motion network. Bull Seismol Soc Am 96(3):926–942. https://doi.org/10.1785/0120040212

    Article  Google Scholar

  • Umino N, Hasegawa A (1984) Three-dimensional Qs structure in the northeastern Japan arc. Zisin 37(2):217–228 (in Japanese with English abstract). https://doi.org/10.4294/zisin1948.37.2_217

  • Wessel P, Smith WHF (1998) New, improved version of generic mapping tools released. Eos Trans AGU 79:579. https://doi.org/10.1029/98EO00426

    Article  Google Scholar

  • Yamanaka H (2005) Comparison of performance of heuristic search methods for phase velocity inversion in shallow surface wave method. J Environ Eng Geophys 10:163–173. https://doi.org/10.2113/JEEG10.2.163

    Article  Google Scholar

  • Yamanaka H, Nakamura A, Kurita K, Seo K (1998) Evaluation of site effects by an inversion of S-wave spectra with a constraint condition considering effects of shallow weathered layers. Zisin 55:193–202. https://doi.org/10.4294/zisin1948.51.2_193 (in Japanese with English abstract)

    Article  Google Scholar

Download references

Acknowledgements

We would like to thank the Japan Meteorological Agency for providing us with hypocenter information for the earthquakes used in this study. We are thankful to the two anonymous reviewers for their constructive comments which helped us significantly improve the manuscript. We would also like to thank Wessel and Smith (1998) for providing us with Generic Mapping Tools, which were used to make figures in the paper. We extend our gratitude to Khagendra Acharya for English language editing.

Funding

This study was supported by “Advanced Earthquake and Tsunami Forecasting Technologies Project” of NIED and JSPS KAKENHI Grant Number JP20K05055.

Author information

Authors and Affiliations

Authors

Contributions

Y.P.D. processed the strong-motion recordings, performed the spectral inversion, and drafted the manuscript. T.K. and S.A. conceptualized the study. A.W. prepared the site condition information at the land sites. H.Y. obtained the reference site amplification factors used in the inversion. A.N. contributed to relate the seismic survey results with the results of spectral inversion. All the authors discussed the contents and provided their comments. All authors read and approved the manuscript.

Corresponding author

Correspondence to Yadab P. Dhakal.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1:

Matrix equation used in the spectral inversion

Additional file 2:

Velocity profiles at the reference sites on land

Additional file 3:

Plots of focal mechanisms and stress drops of earthquakes

Additional file 4:

J-SHIS velocity profiles and comparison of site amplification factors

Additional file 5:

List of sites with spurious spectra

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Dhakal, Y.P., Kunugi, T., Yamanaka, H. et al. Estimation of source, path, and site factors of S waves recorded at the S-net sites in the Japan Trench area using the spectral inversion technique. Earth Planets Space 75, 1 (2023). https://doi.org/10.1186/s40623-022-01756-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40623-022-01756-6

Keywords

  • Site amplification
  • Path effects
  • Stress drops
  • Spectral inversion
  • S-net
  • Ocean bottom seismographs
  • Japan Trench
