# Filtering ionosphere parameters to detect trends linked to anthropogenic effects

*Earth, Planets and Space*
**volume 66**, Article number: 113 (2014)

## Abstract

The great concern about the global warming observed in the troposphere has generated a large interest in the study of long-term trends in the ionosphere since the early 1990s, which has now become a significant topic in global change investigations. Some research works link ionosphere trends to anthropogenic sources such as the increase in greenhouse gas concentration, and others to natural causes such as solar and geomagnetic activity long-term changes, and secular variations in the Earth's main magnetic field. In all the cases, in order to analyze ionospheric trends, solar activity effect must be filtered out first since around 90% of ionosphere parameter variance is due to solar variations. The filtering process can generate ‘spurious’ trends in the filtered data series which may lead to erroneous conclusions. foF2 data series which include solar cycle 23 are analyzed in the present work in order to detect the effect of different filtering procedures on the determination of long-term trends. In particular, solar cycle 23 seems to have had an extreme ultraviolet (EUV) emission greater than that deduced from traditional solar EUV proxies during the maximum epoch and lower during the minimum epoch. When solar activity is filtered assessing the residuals of a linear regression between foF2 and Rz, or between foF2 and F10.7, this fact may bias trend values especially because it is at the end of the time series. The length of the period considered for trend assessment, the saturation and hysteresis effect of some ionosphere parameters, and the solar EUV proxy used are also considered in this study in order to quantify a possible spurious trend that may result as a by-product of a filtering process. Since trends expected as a consequence of anthropogenic effects are relatively small, these spurious effects may surely mask, or enhance, trends expected from anthropogenic origins.

## Background

Long-term changes in ionospheric parameters were analyzed by many authors since the early 1990s, and, in general, after filtering the effects of solar activity, long-term variations, or trends, were reported. These trends were attributed to solar extreme ultraviolet (EUV) radiation changes (Adler et al. 1997; Yamazaki and Yumoto 2012), geomagnetic activity variations (Mikhailov and Marin 2001; Danilov 2002; Mikhailov 2001, 2006), the increase in greenhouse gas concentration (Bremer 1992, 1998; Upadhyay and Mahajan 1998; Ulich and Turunen 1997; Jarvis et al. 1998), and/or secular variations of the Earth's main magnetic field (Foppiano et al. 1999; Elias and Adler 2006; Elias 2009; Yue et al. 2008; Cnossen and Richmond 2008, 2013; Cnossen et al. 2012).

The ionosphere varies greatly because of changes in the sources of ionization, that is, the solar EUV radiation, and changes in the neutral part of the upper atmosphere in which it is embedded which also depends on solar radiation, so that solar EUV radiation is the dominant influence on the ionosphere. In fact, solar EUV proxies such as Rz and F10.7 usually explain around 90% of ionospheric parameters' variance once the annual variation has been filtered out from ionospheric data. This 90% value is obtained considering that for most ionospheric stations, the correlation coefficient between annual or 12-month running mean data of the critical frequency of the F2 layer, foF2 (or the E layer, foE) for example, and Rz (or F10.7) is around 0.95. This means a variance explained of 0.95^{2}, that is, 0.90 or 90%. Long-term trends would represent then at most the remaining 10%. This makes necessary to filter ionospheric time series in order to enhance and make ‘significantly’ detectable these trends. Filtering procedures are based on the dependence of ionospheric parameters on solar EUV radiation which is almost linear as can be deduced from the well-known direct association of these parameters to solar EUV proxies such as Rz or F10.7. However, it should be noticed that for Rz > 160 and F10.7 > 200, a saturation effect takes place which results in a nonlinear dependence (Liu et al. 2006, 2011). The risk of not considering this effect, which is significant at some stations but weak at others, is described in ‘Saturation effect.’

The ionospheric parameter analyzed in the present work is the critical frequency of the F2 layer, foF2, which is a measure of the peak electron density, NmF2, in the ionosphere through

Filtering is a standard mathematical operation which in our case is used to enhance features, as it is a long-term trend, otherwise not visibly apparent in the data. However, filtering can have unexpected consequences such as the introduction of spurious oscillations or a spurious trend (Chandler and Scott 2011). Special care is therefore required when making inferences from filtered time series.

foF2 data series which include solar cycle 23 are analyzed in the present work in order to detect the effect of different filtering procedures on the determination of long-term trends. The minimum of this solar cycle, between 2007 and 2009, is characterized by lower EUV solar radiation than during previous solar cycles. Well-known solar activity proxies and also measurements give diverse results regarding the true percentage decrease (Solomon et al. 2013). The fact is that cycle 23 has had a EUV emission different than that deduced from traditional solar EUV proxies such as Rz and F10.7. Emmert et al. (2010) suggested that the long-term relationship between EUV irradiance and F10.7 has changed markedly since around 2006 with EUV levels decreasing more than expected from the F10.7 proxy. This result is also suggested by Chen et al. (2011). The opposite happened to the relationship between EUV and Rz during the solar cycle 23 maximum and declining phase where Rz underestimates EUV solar radiation (Lukianova and Murusla 2011).

When solar activity is filtered assessing the residuals of a linear regression between foF2 and Rz, or between foF2 and F10.7, which is a common filtering technique used in most of the publications that analyze ionosphere trends, the relationship between foF2 and the EUV proxy considered is expected to be the same over the whole period of analysis. If this is not the case, as happens during solar cycle 23, a spurious trend may be obtained. For example, a negative trend would result due to the overestimation of EUV radiation during the last minimum, or, considering the cycle 23 maximum, if Rz is being used as a solar EUV proxy, the underestimation of EUV would result in a spurious positive trend.

The length of the period considered for trend assessment, the saturation and hysteresis effect of some ionosphere parameters, and the solar EUV proxy used are also considered in this study in order to quantify a possible nonreal trend that may result as a by-product of a filtering process in comparison to the trends expected in the upper atmosphere as a consequence of anthropogenic effects.

The data analyzed and expected results due to the departure from linearity of foF2 vs EUV proxy are presented in ‘Data analysis’, followed by the ‘Discussion and conclusions.’

## Methods

Monthly median foF2 at 12 LT from three stations, which include solar cycle 23, were analyzed: Juliusruh (54.6°N, 13.4°E), Slough (51.5°N, 359.4°E), and Sodankyla (67.3°N, 26.3°E).

As a first step, the seasonal variation, present in foF2 but not in solar activity, is filtered out applying a 12-month running mean to both foF2 and the solar activity index considered. This process decreases the degrees of freedom by 1/12. Another possibility would have been to analyze annual data, and in this case, the number of data would have been reduced in 1/12, so both options are statistically equivalent.

The next step in order to finally assess trends is to filter out solar activity. One option is to apply an 11-year running mean to the time series, in which case the series are shortened in 11 years, and the degrees of freedom must be reduced again in 1/(12 × 11) assuming we are working with monthly data or 1/12 if the series is annual. Since ionospheric time series are relatively short, this is not always a convenient procedure. Another option is to estimate the foF2 residuals from the regression between the experimental values and a modeled value representing foF2 values due only to solar activity effects, that is

where foF2res is the foF2 residual, foF2exp is the experimental (or measured) foF2 data, and foF2mod is the modeled foF2 value in terms of solar activity which can be obtained through a model or through the well-known linear relationship between foF2 and a solar activity index such as Rz or F10.7, that is

where *a* and *b* are constants which can be determined with least squares. Finally, a regression of foF2res with time is adjusted with least squares so that

where *α* and *β* are the regression coefficients and *α* is the trend we are interested in.

As can be noticed, *α* will depend on the steps previous to its calculation, and especially on the filtering process applied to the series involved.

There are at least five issues to consider regarding the latter filtering process: (1) saturation effect, (2) hysteresis effect, (3) nonlinearity, (4) the choice of the model or solar activity index to assess the modeled value, and (5) length of the period considered. Each of them is analyzed in the following subsections.

## Results and discussion

### Saturation effect

Saturation takes place in the case of some ionospheric stations, when Rz or F10.7 exceeds a certain value, beyond which the ionosphere seems not respond to a further increase in EUV radiation (Balan et al. 1994; Liu et al. 2003; Ma et al. 2009). It is linked to a breakdown of the linearity between foF2 and EUV (or solar index), as reported in Liu et al. (2006, 2011), and the consequences may strongly influence the long-term trend reached.

Figure 1 shows as an example the case of Sodankyla. foF2 12-month running mean in terms of Rz increases with a certain rate until around Rz = 160, and beyond this value, a lower rate of foF2 increase can be noticed. This problem can be overcome in some cases using foF2^{2} (∝NmF2) instead of foF2, as can be noticed in Figure 1b. But since this is not always the case, another possibility is to exclude the period from the analysis.

This situation results in persistent negative residuals which will affect the trend value according to where this period of persistence is located within the whole period of analysis. If it is in the middle, it may not cause any spurious results, but if it is close to an extreme, it will depend if it is at the beginning, inducing a spurious positive trend, or at the end inducing a spurious negative trend.

In the case of Sodankyla, the period of saturation, that is, solar cycle 19, is at the beginning of the time series so it should be expected to be a positive or a less negative trend than the trend without considering this period. In fact, the trend from cycle 20 to cycle 23 results -0.010 and -0.008 MHz/year for the period from cycle 19 to cycle 23. Although the difference is not statically significant, it results from the saturation effect.

### Hysteresis effect

The hysteresis effect refers to the fact that for the same value of solar activity level, foF2 may differ for the rising and falling parts of the 11-year solar cycle. The variation of foF2 then, over a complete solar cycle, displays a curve similar to the hysteresis variation of a magnetization cycle.

This phenomenon has been known for a long time (Naismith et al. 1961; Rao and Rao, 1969; Adler and Manzano 1995) and is attributed to the behavior of geomagnetic activity throughout the solar cycle (Mikhailov and Mikhailov 1995; Apostolov and Alberca 1995). The enhanced geomagnetic activity during the falling phase of the solar cycle would produce stronger F2 layer storm effects than during the rising phase.

If a time series presenting a hysteresis is filtered using a linear relationship between the variables, a spurious trend is obtained if the length of the time series does not include complete cycles. A schematic example of this is shown in Figure 2 which depicts an artificial hysteresis of*y* in terms of *x* and the trends obtained when different lengths are considered (from Adler and Elias 2008). This spurious trend can be offset as one considers more cycles in the trend estimation, as can be noticed from Figure 2b, or, as suggested by Danilov and Mikhailov (1999), using only the points around the maximum and minimum of a cycle.

Figure 3 shows foF2 measured at Slough using different colors for each complete solar cycle, and it can be clearly noticed that in addition to the hysteresis for each cycle, the ascending and descending slopes of each solar cycle phase are not the same for different cycles. Table 1 presents the trends obtained when the filtering is made for the period beginning in 1960 and ending in different ‘half’ cycles from solar cycle 22. That is, from 1960 until the first minimum of solar cycles 22, then from 1960 until the maximum of solar cycle 22 and so on until the last period from 1960 until the end of cycle 23. Cycles 22 and 23 were chosen because they present the stronger hysteresis. It can be noticed that trend absolute values decrease as each half cycle is added.

### Nonlinearity of foF2 vs solar EUV proxy

One kind of nonlinearity between foF2 and solar EUV proxies is linked to the relationship between both variables. Liu and Chen (2009) and Liu et al. (2011) conclude that a quadratic regression, instead of a linear one, can describe the solar activity dependence fairly good and that higher-order regressions do not significantly improve the fitting. Chen et al. (2014), analyzing TEC-EUV relation under extremely low solar EUV, suggest a cubic fitting which takes into account the extreme ionosphere when solar EUV vanishes. As an example, Figure 4 shows foF2 residuals obtained considering foF2mod = a F10.7^{2} + b F10.7 + c and also considering foF2mod = a F10.7 + b, for the case of Juliusruh. The linear trends together with their equation are also shown in the figure. In the case of this station, the linear trend is almost the same for both cases, being -0.009 MHz/year.

Nonlinearity also refers to the possibility that the factor responsible for trends in the ionosphere, whichever may be, does not act with the same intensity along the solar cycle. In fact, Emmert et al. (2008) found that there is a solar cycle dependence of the long-term trends in thermospheric density (approximately - 5 and -2% per decade at solar minimum and maximum, respectively) and Mlynczak et al. (2010) observed that the infrared radiative cooling rates by CO_{2} and NO in Earth's thermosphere, which are the dominant radiative cooling mechanisms for the thermosphere, also vary with solar cycle activity level.

As an example, the trend of foF2 measured at Juliusruh has been assessed using the data set considering separately solar maximum and solar minimum epochs (see Figure 5). Periods around solar cycle minimum with Rz < 25 and around maximum with Rz > 85 were chosen for each epoch analysis. The trend values are -4 × 10^{-3} MHz/year if only solar minimum periods are considered and -5 × 10^{-3} MHz/year for periods of solar maximum. In this case, they are not statistically different, but the possibility of a statistically significant difference in trend estimation for other stations or as more solar cycles are included if CO_{2} and NO continue to increase should be kept in mind.

### EUV proxy

The choice of the model or solar EUV proxy may affect the trend values as long as the model or proxy selected does not effectively reflect the real variance of foF2 due to the solar EUV radiation, which is the part one wants to filter before trend determination.

Figure 6 shows the residuals of foF2 measured at Slough, Juliusruh, and Sodankyla filtered using Rz and F10.7 as solar EUV proxies. It can be noticed in the three cases that Rz underestimates EUV during solar cycle 23 maximum (around year 2002) and that F10.7 overestimates EUV during solar cycle 23 minimum (around years 2008 and 2009). Trend values for the 1960 to 2009 period, listed in Table 2, are different, and for two of the three stations, even the sign differs. All trend values are significantly different from zero at a 95% confidence level, except in the case of Sodankyla filtered with Rz. The significance was assessed calculating the statistic *t* as *α*/*σ*:

where *σ* is the standard deviation of trend *α* and *r* is the correlation coefficient of the regression between foF2res and time. The statistic *t* value obtained in each case is tested against the Student's *t* value of 1.96 which corresponds to 48 degrees of freedom (50, which results from the 50 years of monthly data divided by 12 due to the 12-month running mean, minus 2) and 0.025 significance level. As can be deduced from Table 2, in all cases except Sodankyla filtered with Rz, *t* results greater than 1.96.

### Length of period

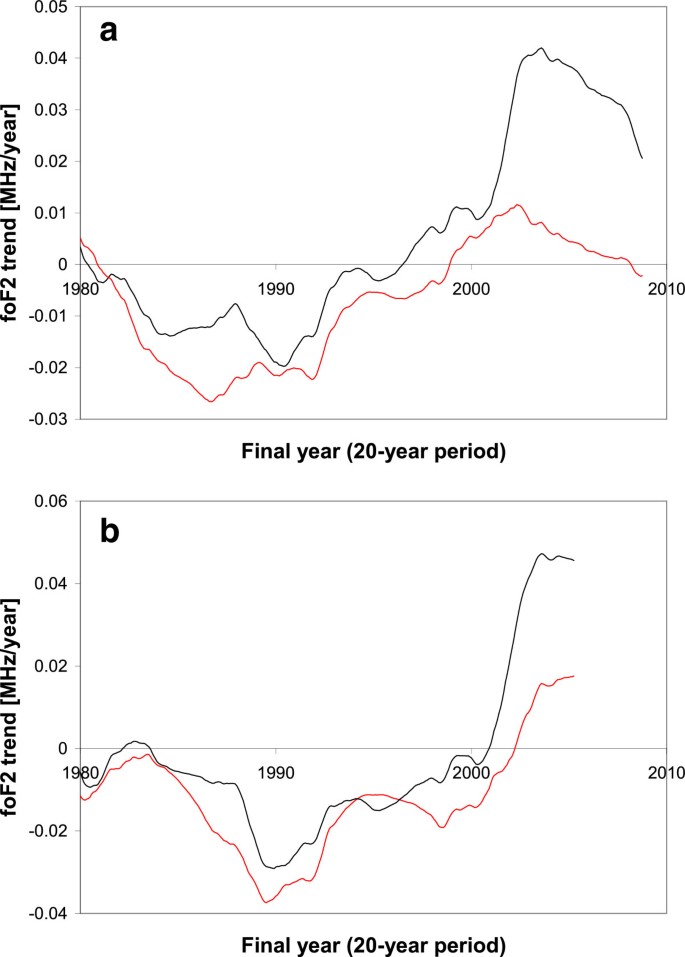

The length of the period considered is related to the stability of the trend value in terms of the time series length. Mielich and Bremer (2013) discuss in detail this point for hmF2 and foF2 data, showing that trends for increasing data intervals present more stable variations, and suggest that the derived mean hmF2 and foF2 trends are more reliable for longer data intervals.Figure 7 shows the foF2 trend estimated first for the 1960 to 1980 period and since then adding 1 year but beginning always in 1960. The 95% confidence level is also shown in the figure. For the period since 1960 until 1990 and 2000, the trend seems to be stabilized and negative in agreement with the decreasing trend in foF2 expected from a cooling in the thermosphere. However, when solar cycle 23 begins to be included in the trend estimation, the trend value becomes less negative or even positive when Rz instead of F10.7 is used to filter out solar activity effect.Figure 8 shows the running foF2 trend using a window of 20 years. That is, a 20-year period is considered in the trend estimation. Here, it is clear that when solar cycle 23 is included in trend estimation for a relatively short period (which is 20 years spanning only two solar cycles), a positive trend may be obtained as a result of the persistent positive residuals obtained in the filtering process due to EUV proxies underestimating solar EUV radiation during this period.

## Conclusions

One of the main foci of climate science is to determine the extent to which human activities are altering the planetary energy balance through the emission of greenhouse gases and pollutants. The ionosphere is one component affected by greenhouse gases. However, this anthropogenic effect is so small that in order to detect it, all other variability must be filtered out first.

In this paper, several sources which may hinder the filtering process have been analyzed. Filtering is a critical step toward trend estimation since a bad filtering leads inevitably to a bad result unless there is compensation, which occurs randomly. Lastovicka et al. (2006), having noticed that results on long-term trends in foF2 and their interpretation did not reveal a consistent pattern, carried out a joint analysis foF2 trend estimation. One problem in fact is the filtering process selected by each author which gives different results in some cases for the same foF2 time series analyzed.

Recently, Mielich and Bremer (2013) analyzed more than 100 stations in order to detect the best index to filter solar activity from foF2 and hmF2. They conclude that F10.7 is a better index for the description of the solar activity than Rz. Damboldt and Suessmann (2012) filtered the solar cycle influence using a Comité Consultatif International des Radiocommunications (CCIR) ionospheric prediction model, which uses Rz as a solar EUV proxy. They obtained a trend reversal in hmF2 in 1963 to 1964 with negative trends from 1942 to 1963 and positive trends from 1964 to 2005, which is in contrast to the results reported in most other publications of ionospheric long-term trends. A plausible cause of this would be that CCIR uses Rz as solar activity index.

According to the results presented here, three recommendations for trend assessments which can be easily handled are suggested. One is not to include periods with F10.7 > 200, or at least test that the residuals for these periods are not systematically negative. The other two were already made by Mielich and Bremer (2013): use F10.7 instead of Rz, since it follows more closely EUV solar flux, and the length of period considered should be long enough so as to obtain a stable trend since at least the last 4 to 5 years of the data series considered (almost half a solar cycle).

Why is important to do a correct filtering of ionospheric (or atmospheric in general) parameters? We live in the Earth and we want to understand and predict the atmosphere behavior which is essential for human life. A correct filtering would guarantee a good result from which right conclusions regarding variations of small amplitudes such as long-term trends are extracted.

Regarding ionosphere, at least the five mentioned issues regarding filtering process should be taken into account in order to be sure about trend value results.
