Dynamic faulting on a conjugate fault system detected by near-fault tilt measurements

Earth, Planets and Space201567:38

https://doi.org/10.1186/s40623-015-0207-1

  • Received: 31 October 2014
  • Accepted: 19 February 2015
  • Published:

Abstract

There have been reports of conjugate faults that have ruptured during earthquakes. However, it is still unclear whether or not these conjugate faults ruptured coseismically during earthquakes. In this paper, we investigated near-fault ground tilt motions observed at the IWTH25 station during the 2008 Iwate-Miyagi Nairiku earthquake (M w 6.9). Since near-fault tilt motion is very sensitive to the fault geometry on which the slip occurs during an earthquake, these data make it possible to distinguish between the main fault rupture and a rupture on the conjugate fault. We examined several fault models that have already been proposed and confirmed that only the models with a conjugated fault could explain the tilt data observed at IWTH25. The results support the existence of simultaneous conjugate faulting during the main rupture. This will contribute to the understanding of earthquake rupture dynamics because the conjugate rupture releases the same shear strain as that released on the main fault, and thus it has been considered quite difficult for both ruptures to accelerate simultaneously.

Keywords

  • Conjugate rupture
  • 2008 Iwate-Miyagi Nairiku earthquake
  • Near-fault tilt
  • Accelerometers

Correspondence/Findings

Introduction

Sometimes an earthquake occurs on a complex fault system such as fault steps, jogs, or branches (Scholz 2002). There have been several field observations on the conjugate faulting. I reviewed several earthquakes as described below and summarized the findings in Figure 1. The earthquakes were categorized into two groups based on the timing of conjugate rupture with respect to the main one. In category 1 earthquakes, the conjugate fault rupture occurred simultaneously with the main rupture, while in category 2 earthquakes, the conjugate fault rupture occurred after the main rupture.
Figure 1
Figure 1

Schematic illustration of the earthquake ruptures that have been reported as conjugated fault ruptures. (a) Category 1 earthquakes and (b) category 2 earthquakes. Solid stars indicate the initiation location of the rupture, and gray stars indicate the hypocenter of the secondary rupture. Arrows show the direction of fault motion. Solid lines are fault traces in map view for strike slip earthquakes and in cross-section for thrust earthquakes.

Category 1

1987 East Chiba earthquake

Fukuyama (1991) investigated the rupture process of the 1987 earthquake that occurred off the east coast of Chiba (M 6.7) based on the relocated aftershock distribution. The rupture was initiated at the deep southern corner where a conjugate fault could be recognized from the relocated aftershock distribution. In this model, the rupture propagated unilaterally along the main fault as well as on the conjugate fault.

1997 Kagoshima earthquake

Horikawa (2001) analyzed the May 1997 Kagoshima earthquake (M 6.0) by inverting strong ground motions based on the fault model constructed by the aftershock distribution (Miyamachi et al. 1999). He concluded that the rupture was initiated close to the junction of two fault segments and propagated bilaterally.

2000 western Tottori earthquake

Fukuyama et al. (2003) investigated a detailed aftershock distribution of the 2000 western Tottori earthquake (M w 6.6). They found that there was aftershock activity along the conjugate fault trace within 1 h after the main shock at the northern end of the coseismic main rupture region close to the main shock hypocenter. This suggests that a possible conjugate rupture occurred simultaneously with the main rupture as expected by the fault model of Iwata and Sekiguchi (2002).

2007 Niigata Chuetsu-Oki earthquake

Yukutake et al. (2008) relocated the aftershocks of the 2007 Chuetsu-Oki earthquake (M w 6.6) and found that there was a conjugate fault close to the hypocenter region and that the hypocenter was located close to the junction. Aochi and Kato (2010) investigated the possibility of a spontaneous rupture along the conjugated fault using the boundary integral equation method.

Category 2 1987

Superstition hills earthquake

The Superstition Hills earthquake (M 6.8) occurred 12 h after the Elmore Ranch fault earthquake (M 6.2) (Hudnut et al. 1989; Magistrale et al. 1989; Wald et al. 1990). The Superstition Hills fault is a conjugate of the Elmore Ranch. It should be noted that the Elmore Ranch earthquake was initiated northeast of the fault and the rupture propagated toward the junction. The Superstition Hills earthquake was initiated at the junction and propagated toward the southeast.

2000 Wharton basin earthquake

The June 2000 Wharton Basin earthquake (M w 7.8) occurred in the region of diffuse deformation between the Indian and Australian plates, and it is considered as an intraplate earthquake. Robinson et al. (2001) reported, from the analysis of teleseismic waveforms, and relocated aftershock distribution that the Wharton Basin earthquake consisted of two subevents, which were conjugate but they ruptured sequentially. The second rupture initiated around the hypocenter of the first rupture.

2012 Sumatra earthquake

The April 2012 Sumatra earthquake (M w 8.6) occurred at the northwestern end of the Wharton Basin. This is an intraplate earthquake similar to the 2000 Wharton earthquake. According to the back projection of teleseismic data from European and Japanese seismic arrays, it consisted of four subevents that were conjugate and were cascaded together; the rupture propagated sequentially (Meng et al. 2012).

Category 2 earthquakes (1987 Superstition Hill, 2000 Wharton Basin, and 2012 Sumatra) ruptured sequentially along the conjugate fault system, while in the category 1 earthquakes (1987 East Chiba, 2000 Western Tottori, and 2007 Niigata Chuetsu-oki), there is the possibility that the rupture propagated simultaneously along both conjugate faults. The aim of this paper is to investigate the category 1 earthquakes in detail.

Based on theoretical modeling of dynamic fault ruptures, several investigations were made on fault steps (e.g., Harris and Day 1993; Kase and Kuge 1998) and fault branches (e.g., Poliakov et al. 2002; Kame et al. 2003). The above observations are consistent with the theoretical investigation of Kase and Kuge (1998) where they found that the conjugate fault could be initiated where the main rupture terminated. Xu et al. (2015) systematically investigated the physical mechanism of this conjugated faulting using two dimensional (2-D) dynamic rupture simulations. Actually, slip on the two conjugate faults releases the same strain so that it becomes difficult for the rupture to propagate simultaneously on both faults when the main rupture is propagating. The only exception could be at the initiation of the rupture or after the termination of the previous rupture.

It should, however, be noted that all of the above results are based on the relocated aftershock distribution as well as the fault slip distribution estimated by waveform inversions. As can be seen in the fault model database (Mai 2004), waveform inversion results are not unique and may include a certain amount of uncertainty. Thus, there remains the possibility that conjugate faulting did not occur simultaneously during the main rupture. Therefore, we need a solid observation showing that conjugate faulting has occurred during the main rupture.

The Iwate-Miyagi Nairiku earthquake (M w 6.9, MJMA 7.2) occurred on 13 June 2008 at 23:43 (UT). The hypocenter location was estimated to be at a latitude of 39.0269° N and a longitude of 140.8779° E; its depth was 6.5 km (Sekine et al. 2008). This was one of the largest intraplate earthquakes with reverse faulting that had occurred at a shallow depth inland in northeast Japan. According to the F-net moment tensor estimated by regional broadband seismograms, the estimated fault strike, dip, and rake angles were N209° E, 51°, and 104°, respectively, and the seismic moment was estimated to be 2.72 × 1019 Nm (NIED 2008a). Based on the aftershock distribution estimated by the Hi-net microseismic network, the fault length and width were roughly 30 and 10 km, respectively (NIED 2008b).

Before the earthquake, no active fault traces had been recognized in the source region. However, immediately after the earthquake, several fault surface breaks were observed (e.g., Ishiyama et al. 2008; Maruyama et al. 2009), suggesting a west-northwest dipping reverse fault with north-northeast strike.

In this paper, in order to investigate the conjugate faulting during the main rupture, we analyzed the near-fault accelerograms to estimate the coseismic tilt motion in addition to the tiltmeter collocated as well as Global Positioning System (GPS) data. Through this analysis, we constrained the fault slip model of the 2008 Iwate-Miyagi Nairiku earthquake and clarified whether a conjugated fault slip occurred during the main rupture based on the near-fault tilt data.

Tilt observations

The IWTH025 station, which is a KiK-net and Hi-net station (latitude 39.00923° N, longitude 140.86363° E, height 386 m; the location was confirmed by a field survey), which is called Ichinoseki-Nishi, and it is located very close to the epicenter of the 2008 Iwate-Miyagi Nairiku earthquake (2.3 km south-southwest of the epicenter, Figure 2a). At this station, a three-component accelerometer was installed on the surface, and a three-component accelerometer, a three-component velocity seismometer, and a two-component tiltmeter were installed at the bottom of a 260-m-deep borehole (Figure 2c). The corresponding records should provide us with important information on the source process of this earthquake. Since the tiltmeter was designed to measure tiny tilt changes such as from earth tides (approximately 10−7 radians), the observation range was not sufficient to measure such a huge ground tilt near the fault. Thus, the signal was saturated immediately after the earthquake occurred, and the tiltmeter recorded only the static tilt change after the seismic radiation passed away (see Figure 3).
Figure 2
Figure 2

Location of the IWTH25 station and its observation system. (a) Location of the IWTH25 station (red circle) plotted with other K-NET (solid triangles) and KiK-net stations (solid circles). The blue star indicates the epicenter location of the 2008 Iwate-Miyagi Nairiku earthquake. The rectangular region shows the fault area of the 2008 earthquake. The red open rectangle in the upper right inset stands for the area plotted. (b) Close-up view of the location of IWTH25 plotted with the GPS station ICNS. The map image data is from the Geological Survey of Japan through http:/cyberjapan.jp. Brown contours indicate the heights at an interval of 20 m. (c) Schematic illustration of the IWTH25 station. Beneath the observation hut, a three-component accelerometer was installed, and it was isolated from the basement of the hut. In front of the hut, a 260-m-deep borehole was dug. At the bottom of the borehole, a sensor capsule was installed that included a three-component short-period velocity seismometer, a three-component accelerometer, and a two-component tiltmeter.

Figure 3
Figure 3

Tilt data at the IWTH25 station. (a) Tilt change data observed by the tiltmeter installed at the bottom of the borehole at the IWTH25 station. The full scale of the recording system was about ±1.6 × 10−3 radians (the same as the full scale plotted). The static tilt changes were observed after the large amplitude oscillation ended. (b) Velocity seismogram of the surface accelerometer at the IWTH25 station. The initial offset in the original accelerogram was removed before numerical integration. The gradient of the velocity observed after the main waveforms corresponds to the acceleration step caused by the tilt change.

Tilt measured by accelerograms

We first computed ground displacements on the surface as well as at the bottom of the borehole of the IWTH25 station by numerically integrating the accelerograms two times in the time domain. In this integration procedure, we only removed the initial offset of acceleration in the original records and we kept the other offsets in the following processes. It should be noted that we did not apply any baseline corrections to the accelerograms except for the initial offset for the following reason.

It is well known that strong motion accelerograms sometimes include baseline shifts caused by local tilts. When an accelerogram tilts, its axes deviate from the gravity axis, which causes additional acceleration. Several techniques for baseline correction have been proposed (e.g., Iwan et al. 1985; Boore 2001; Graizer 2006; Kinoshita 2008). However, as pointed out by Boore et al. (2002), translation motion and rotation motion observed by pendulum-type seismometers cannot intrinsically be separated. Thus, it is theoretically impossible to extract the rotation component from an accelerogram. Therefore, in the present analysis, we did not correct the baselines to obtain the displacements. We judged that a baseline shift occurred (i.e., rotational motion occurred) only when the displacements behaved as t2-type displacements.

As can be seen in Figure 4, ground displacements behaved in almost the same way for both locations. In particular, they were almost identical in terms of their UD (up-down) and NS (north-south) components until 5 s. Careful observation shows that in the EW (east-west) component, a significant difference (approximately 0.2 m) between the two displacements occurred between 3 and 8 s (Figure 4). Since the ground motion displacements of UD and NS moved similarly for both surface and borehole data until 5 s, and no t2-type behavior was observed in the EW component during this time window, the difference in the EW component should be considered as a well-recorded signal of ground motion reflecting a large-scale deformation (at least larger than 260 m in scale). This motion can be interpreted as a rotation along the horizontal axis oriented in the NS direction, i.e., EW tilt motion. Since the distance between the two accelerograms was 260 m, the tilt angle change was calculated to be 0.8 × 10−3 radians (Table 1), which is five orders of magnitude larger than that of a typical tidal change observed by conventional tiltmeters. Hereafter, we call this tilt motion DIF tilt. It should be noted that this tilt change occurred during the coseismic deformation, i.e., during the increase in displacements.
Figure 4
Figure 4

Displacement and tilt waveforms at IWTH25. (a) Displacement waveforms on the surface (red) and at the bottom of the borehole (blue) of the IWTH25 station. The origin on the time axis corresponds to the first arrival time of the signal. (b) Temporal variation of the tilt (bottom), its velocity (middle), and its acceleration (top). Tilt motion was computed as the difference between the surface data and borehole data divided by the distance (260 m).

Table 1

Observed and predicted displacements and tilts at IWTH25 and ICNS

Data/Model

Disp. East [m]

Disp. North [m]

Disp. up [m]

Tilt E-down [×10 −3 radian]

Tilt N-down [×10 −3 radian]

ICNS GPS1

0.439

0.339

1.577

-

-

IWTH25acc_S2

0.3

0.65

1.5

2.16

−0.73

IWTH25acc_B3

0.1

0.65

1.5

-

-

IWTH25tilt4

-

-

-

0.23

0.14

IWTH25_diff5

-

-

-

0.8

> ± 0.1

IWTH25-ICNS6

-

-

-

3.2

−3.9

Ohta et al. (2008)7

0.235

−0.179

0.341

−0.122

0.010

Takada et al. (2009) 8

0.367

−0.517

0.580

−0.054

−0.056

Suzuki et al. (2010) 9

0.321

0.334

0.892

−0.097

0.110

Suzuki + conj. fault10

0.258

0.599

1.465

0.108

0.141

1GPS displacement at ICNS station taken from (Ohta et al. 2008). 2Displacement and tilt (SUF tilt) measured by the surface accelerogram at IWTH25. 3Displacement measured by the borehole accelerogram at IWTH25. 4Tilt measured by the tiltmeter at IWTH25. 5Tilt measured by the spatial derivative of surface and borehole displacements at IWTH25 (DIF tilt). 6Tilt measured by the spatial derivative between ICNS and IWTH25 (borehole). 7–9Predicted displacements and tilts at IWTH25 by the fault models of Ohta et al. (2008), Takada et al. (2009), and Suzuki et al. (2010), respectively. 10Predicted displacements and tilts at IWTH25 by the fault model of Suzuki et al. (2010) with fault 3 (conjugate fault) of Takada et al. (2009).

Regarding the NS component, the surface displacement started to behave as t2-type after 5 s (Figure 4) so that in this time window the NS displacement at the surface might include surface tilt around the sensor. We could see similar features in the UD and EW components. Thus, we could not estimate the NS tilt motion correctly and we were unable to determine whether it was positive or negative.

The error in the tilt estimates depends on how precisely the displacements were estimated at both locations, and a typical uncertainty in displacement is on the order of 3 cm. Therefore, the uncertainty in tilt motion reached 1 × 10−4 radians in this case.

Static tilt measured by other instruments

Some other observations were made of the static tilt change at and around the IWTH25 station. Static tilt change represents the tilt change measured by the difference between the tilt before and after the earthquake, thus it might include post-seismic deformation in addition to the coseismic one. A pendulum-type tiltmeter was installed at the bottom of the borehole in the same capsule as the borehole accelerometer. The static tilt change was observed to be 0.23 × 10−3 radians down to the east and 0.14 × 10−3 radians down to the north (Figure 3a, Table 1). This is more or less consistent with the DIF tilt observed by the accelerometers. Although the magnitude of the EW tilt change measured by the tiltmeter was smaller, the tilt direction was consistent with those of the accelerograms taking into account the uncertainty in the NS component.

From the accelerogram on the surface, we could estimate the surface tilt by measuring the static offset appearing in the surface accelerogram, which was 2.2 × 10−3 radians down to the east (Figure 3b, Table 1). We call this tilt SUF tilt to avoid potential confusion with DIF tilt. The SUF tilt change was larger than the DIF tilt change, but the tilt direction was again consistent with the DIF tilt. In the borehole accelerogram, the static offsets were not consistent among the three components, suggesting that these offsets were not caused only by tilt motion. Accordingly, we did not use the offset of the borehole accelerogram for the tilt estimation.

In addition, we could roughly estimate the tilt change using the GPS displacement at the station named ICNS (39.01206° N, 140.86314° E, 468.5 m, Figure 2b) with respect to the displacement at IWTH25. The coseismic displacements at ICNS were estimated to be 0.439 m to the east, 0.339 m to the north, and 1.557 m upward (Ohta et al. 2008, Table 1). Since the ICNS station is located about 320 m N6.5° W from IWTH25, and it is 83 m higher than that of IWTH25 (Figure 2b), a tilt motion of 3 × 10−3 radians down to the east can be estimated (Table 1). This is again consistent with other observations.

Interpretation of tilt data

The tilt estimated above should be quite useful for interpreting the dynamic faulting of this earthquake. Several kinematic fault models have been proposed for this earthquake. Ohta et al. (2008) constructed a fault model consisting of two planar faults by inverting GPS data around the source region. Takada et al. (2009) estimated a fault model to fit the Interferometric Synthetic Aperture Radar (InSAR) data. Takada’s model consists of five planar reverse faults, one of which has a conjugate dip. Abe et al. (2013) updated Takada’s model by assuming two nonplanar fault segments. Asano and Iwata (2008), Suzuki et al. (2010), and Cultrera et al. (2013) estimated the kinematic fault motion using strong motion seismograms. Hikima et al. (2008) used strong motion and geodetic data. Yokota et al. (2009) used 1-Hz GPS data. Asano and Iwata (2008), Hikima et al. (2008), Yokota et al. (2009), Suzuki et al. (2010), and Cultrera et al. (2013) assumed one planar fault divided by approximately 2 × 2 km2 subfaults, and the strike- and dip-slip developments were estimated at each subfault.

Here, we compute the ground deformation at the IWTH25 station using the models by Ohta et al. (2008), Takada et al. (2009), and Suzuki et al. (2010). Ground displacements and ground tilts were computed using the crustal deformation code from Okada (1992). The results are summarized in Table 1.

As shown in Ohta et al. (2008), the model by Ohta et al. could not fit the GPS data at ICNS which is close to the IWTH25 station. Thus, apparently, this model could not explain the deformation at IWTH25 as shown in Table 1. This is because they used only two planar rectangular faults, on each of which uniform slip was assumed. Therefore, the fault model estimated using GPS data was not suitable for the present purpose.

Suzuki et al. (2010) used 180 subfaults (each with 2 × 2 km2 areas) with seven time windows (each has a 0.8-s duration with an interval of 0.4 s) and estimated strike- and dip-slips at each spatiotemporal window. Thus, their model includes spatial variation of slip on the fault as well as rake angle variation in spite of a planar single fault assumption. As shown in Figure 5 and Table 1, in their model, the ground deformation direction could be explained, where the existence of the shallow asperity controls the ground deformation. However, their model could not explain the tilt direction at IWTH25.
Figure 5
Figure 5

Ground deformation and ground tilt computed using the Takada et al. ( 2009 ) model. (a) Ground displacements are shown. Arrows represent horizontal displacements and contours indicate vertical displacements. (b) Ground tilt distribution. Arrows show the tilt direction (dipping direction) and contours show the magnitudes of tilt. (c) Magnified version of (a). (d) Magnified version of (b). Green and red circles show the locations of the epicenter and the IWTH25 station, respectively.

Takada et al. (2009) inverted the InSAR data to estimate the orientation of five planar faults and their slips. In order to explain the spatial extent of the large displacement area on the surface, they introduced a conjugate fault (fault 3 in Takada et al. 2009) at the western boundary of the aftershock region. In their model, since the IWTH25 station is located at the edge of rectangular faults, near-field ground deformation cannot be modeled well there (Figure 6 and Table 1). In addition, it is not clear whether the estimated slip on the conjugate fault occurred coseismically during the earthquake or after the earthquake as a post-seismic deformation because the acquisition of satellite imagery data for InSAR analysis was not continuous. However, it is worth considering the conjugate fault because the InSAR data include information on the spatial extent of the slip that was not constrained by other observations.
Figure 6
Figure 6

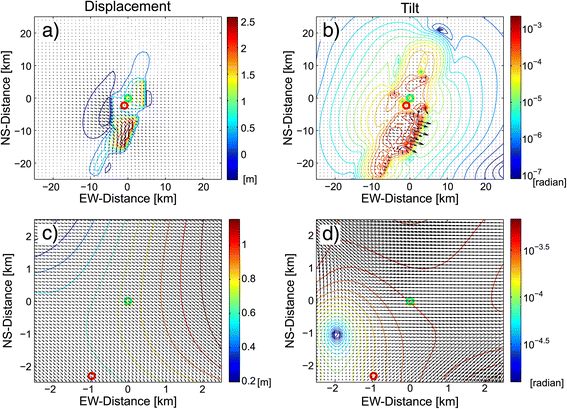

Ground deformation and ground tilt computed using the Suzuki et al. ( 2010 ) model. (a) Ground displacements, (b) ground tilt distribution, (c) magnified version of (a), and (d) Magnified version of (b). Legends are the same as in Figure 5.

Therefore, we think that both the heterogeneous slip distribution on the main west-dipping fault and some contribution on the east-dipping conjugate fault are required to explain the ground deformation and ground tilt at the IWTH25 station. Thus, we computed the ground deformation with the Suzuki et al. (2010) slip model and the conjugate fault (fault 3 of Takada et al. 2009) (Figure 7 and Table 1). The obtained results fit remarkably well with the observations at IWTH25. Thus, we concluded that a conjugate fault slip is required to explain the displacement and tilt motion at IWTH25.
Figure 7
Figure 7

Ground deformation and ground tilt computed using the Suzuki’s model with Takada’s conjugate fault. Main fault slip distribution is taken from Suzuki et al. (2010) and the conjugate fault is from fault 3 of Takada et al. (2009). (a) Ground displacements, (b) ground tilt distribution, (c) magnified version of (a), and (d) Magnified version of (b). Legends are the same as in Figure 5.

An interesting consequence of this result is that the slip on the conjugate fault occurred simultaneously during the dynamic rupture of this earthquake on the main fault because the tilt change at IWTH25 occurred coseismically during the earthquake rupture as indicated above. If both the west-dipping main fault and the east-dipping conjugate fault slipped simultaneously during the earthquake, the initiation mechanism for the conjugate fault rupture might be of interest. It should be pointed out that the conjugate fault and the branched fault had opposite slip directions at the junction. In the future, it would be interesting to investigate the rupture dynamics for the simultaneous rupture of conjugate faults in the future.

Conclusion

At the IWTH25 station, near-field tilt motion was observed by two sets of accelerometers vertically collocated on the surface and at the bottom of a 260-m-deep borehole during the 2008 Iwate-Miyagi Nairiku earthquake. The amount of tilt was estimated to be 0.8 × 10−3 radians down to the east. To explain this tilt motion based on pre-existing fault models, we concluded that a slip along the conjugate fault coseismically occurred during the earthquake. This represents an important direct observation of a conjugated fault rupture in the field.
