Source rupture processes of the foreshock and mainshock in the 2016 Kumamoto earthquake sequence estimated from the kinematic waveform inversion of strong motion data

Earth, Planets and Space201668:147

https://doi.org/10.1186/s40623-016-0519-9

Received: 17 May 2016

Accepted: 29 July 2016

Published: 31 August 2016

Abstract

The 2016 Kumamoto earthquake sequence started with an MJMA 6.5 foreshock occurring along the northern part of the Hinagu fault, central Kyushu, Japan, and the MJMA 7.3 mainshock occurred just 28 h after the foreshock. We analyzed the source rupture processes of the foreshock and mainshock by using the kinematic waveform inversion technique on strong motion data. The foreshock was characterized by right-lateral strike-slip occurring on a nearly vertical fault plane along the northern part of the Hinagu fault, and it had two large-slip areas: one near the hypocenter and another at a shallow depth. The rupture of the mainshock started from the deep portion of a northwest-dipping fault plane along the northern part of the Hinagu fault, then continued to transfer to the Futagawa fault. Most of the significant slip occurred on the Futagawa fault, and the shallow portion of the Hinagu fault also had a relatively large slip. The slip amount on the shallowest subfaults along the Futagawa fault was approximately 1–4 m, which is consistent with the emergence of surface breaks associated with this earthquake. Right-lateral strike-slip dominated on the fault segment along the Hinagu fault, but normal-slip components were estimated to make a significant contribution on the fault segment along the Futagawa fault. The large fault-parallel displacements recorded at two near-fault strong motion stations coincided with the spatiotemporal pattern of the fault slip history during the mainshock. The spatial relationship between the rupture areas of the foreshock and mainshock implies a complex fault structure in this region.

Keywords

2016 Kumamoto earthquakeSource rupture processKinematic source inversionStrong motion dataFutagawa and Hinagu faults

Introduction

The 2016 Kumamoto earthquake sequence started with an MJMA 6.5 earthquake at a shallow depth in Kumamoto Prefecture, which is in the central part of Kyushu Island, southwest Japan, at 21:26 Japan Standard Time (JST) on April 14, 2016 (12:26 UTC on April 14, 2016). A larger earthquake of MJMA 7.3 occurred at 01:25 JST on April 16, 2016 (16:25 UTC on April 15, 2016), just 28 h after the MJMA 6.5 earthquake (Fig. 1). Hereafter, we call the MJMA 6.5 event of April 14 the “foreshock” and the MJMA 7.3 event on April 16 the “mainshock.” Moment tensor solutions determined routinely by NIED (Fukuyama et al. 1998) and the Global CMT Project (Ekström et al. 2012) are also shown in Fig. 1b. Both events generated severe strong ground motions in the near-source region, and the ground motion during the mainshock was felt in most of southwest Japan. A seismic intensity observation station at Mashiki town hall (93051, red triangle in Fig. 1a) recorded a seismic intensity of 7 on the Japan Meteorological Agency (JMA) scale during both events, and another station at Nishihara village hall (93048, blue triangle in Fig. 1a) recorded a seismic intensity of 7 during the mainshock. These two near-fault stations belong to the seismic intensity information network deployed by the Kumamoto prefectural government, and their observed records were released via the JMA.
Fig. 1

a Map of studied area. Rectangle in lower-right inset indicates study area. Blue and red stars denote epicenters of foreshock and mainshock, respectively. Blue and red rectangles represent surface projection of assumed source fault planes of foreshock and mainshock, respectively. Triangles indicate strong motion stations used. Stations used for source inversion analysis of foreshock are gray-filled, and stations used for source inversion analysis of mainshock are bordered by thick lines. Brown lines represent surface traces of active faults compiled by Nakata and Imaizumi (2002). b Moment tensor solutions of foreshock and mainshock determined by F-net of NIED (Fukuyama et al. 1998) and Global CMT Project (Ekström et al. 2012)

This earthquake sequence occurred along the Futagawa fault zone and the northern part of the Hinagu fault zone in central Kyushu. The Futagawa–Hinagu fault system is one of the major active fault systems on Kyushu Island and is a right-lateral strike-slip fault system. This fault system is thought to be part of the western extension of the Median Tectonic Line, which is the longest active right-lateral strike-slip fault in Japan (e.g., Chida 1992; Okada 1980; Yeats 2012). The average horizontal slip rate of the Futagawa–Hinagu fault system has been 0.88 mm/year in the late Quaternary (Tsutsumi and Okada 1996). Surface breaks caused by the mainshock were found along the Futagawa–Hinagu fault system by emergency field surveys (e.g., Geological Survey of Japan 2016; Okada and Toda 2016). The crustal deformation and surface rupture along the Futagawa–Hinagu fault system were also identified by multiple-aperture interferometry (MAI) analysis using ALOS-2/PALSAR-2 data (Yarai et al. 2016). These observational results imply that the fault rupture is associated with the Futagawa fault and northern part of the Hinagu fault.

This paper focuses on the source rupture processes of the two significant events during the 2016 Kumamoto earthquake sequence based on kinematic waveform inversion analyses using strong motion data. The obtained spatiotemporal source models were compared with reported surface breaks, displacement time histories observed at near-fault strong motion stations, and the seismic activity during this earthquake sequence.

Methods

The kinematic source rupture processes of the two earthquakes were estimated with the multiple time-window linear waveform inversion method (Hartzell and Heaton 1983; Olson and Apsel 1982). This method is commonly used to infer the kinematic source rupture process of large inland crustal earthquakes (e.g., Asano et al. 2005; Ma et al. 2001; Sekiguchi et al. 2000; Tanaka et al. 2014; Wald and Heaton 1994; Yoshida et al. 1996). The observational equation is based on the representation theorem (Maruyama 1963; Burridge and Knopoff 1964) and was discretized in space and time. For discretization in space, the assumed fault plane was divided into small subfaults. For discretization in time, the temporal moment release history at the center of each subfault was represented by several time windows, and its basis function was a smoothed ramp function. The optimum number of time windows was determined by trial and error during a preliminary analysis. The unknown model parameters were the amplitude of the basis functions corresponding to each time window at each subfault. The rupture front of the first time window propagated radially at a constant velocity from the rupture starting point, which was fixed at the hypocenter determined by JMA. The rake angle variation was limited within a certain range, as described in Table 1. In order to suppress excessive complexity, we included a spatiotemporal smoothing constraint following Sekiguchi et al. (2000). The relative weight of the smoothing constraint equation against the observational equation was determined to minimize Akaike’s Bayesian information criterion (ABIC) (Akaike 1980). The inverse problem was solved using the linear least-squares method with a nonnegative constraint (Lawson and Hanson 1974).
Table 1

Summary of settings in waveform inversion analysis



Foreshock

Mainshock

Origin timea

2016/04/14 21:26:34.43

2016/04/16 01:25:05.47

Epicentera

32.7417°N, 130.8087°E

32.7545°N, 130.7630°E

Hypocenter deptha

11.39 km

12.45 km

Fault segment



#1

#2

Strike/dip

212°/89°

205°/72°

235°/65°

Rake angle variation

−164° ± 45°

−142° ± 45°

−142° ± 45°

Length

14 km

14 km

28 km

Width

13 km

18 km

18 km

Subfault size

1 km × 1 km

2 km × 2 km

Number of subfaults

182

63

126

Number of time windows

5

9

Duration/time-shift of time window

1.0 s/0.5 s

1.0 s/0.5 s

Target frequency range

0.05–1 Hz

0.05–0.5 Hz

Resampling of data

10 Hz

5 Hz

Number of stations

13

15

aOrigin time and hypocenter were taken from the JMA unified earthquake catalog

We assumed a single nearly vertical fault plane for the MJMA 6.5 foreshock based on its aftershock distribution and the moment tensor solution by the F-net project of the National Research Institute for Earth Science and Disaster Resilience (NIED, Fukuyama et al. 1998). The strike and dip angles of the fault plane were 212° and 89°, respectively. For the MJMA 7.3 mainshock, we assumed a fault model consisting of two fault segments based on the aftershock distribution and the surface trace of known active faults. Figure 2 shows spatial distributions of the foreshocks and aftershocks in four periods. The aftershock distribution after the mainshock implies that the fault planes of the mainshock dipped northwestward, whereas the aftershocks of the foreshock occurring before the mainshock appeared to align vertically. The first segment (segment #1) was set along the Hinagu fault, and the second (segment #2) was set along the Futagawa fault. The difference in strike angles between the two segments was 30°. We assumed that the rupture propagated smoothly from the Hinagu fault to the Futagawa fault with no time lag. Spatiotemporal smoothing was applied to each fault segment separately. Table 1 summarizes the detailed information on the settings of the waveform inversion analyses.
Fig. 2

Aftershocks larger than JMA magnitude of 2 in four different periods and fault models. Size and color of circles correspond to magnitude and depth of aftershocks. Rectangles represent surface projection of assumed source fault planes of foreshock and mainshock in inversion analyses

We used strong ground motion data observed by K-NET, KiK-net, and F-net, which are nationwide observation networks operated by NIED (Okada et al. 2004; Aoi et al. 2011), and strong motion data from the JMA seismic intensity observation network (Nishimae 2004). Records from downhole sensors were used for the KiK-net stations. K-NET and JMA have sensors at the ground surface, and F-net sensors are installed in a vault. Original acceleration data were numerically integrated into velocity in the time domain except at the F-net stations, which had a velocity-type strong motion seismograph installed. The S-wave portion of three-component velocity waveforms was used in the analysis. Figure 1 shows a map of the strong motion stations used in the analyses.

Theoretical Green’s functions were calculated using the discrete wavenumber method (Bouchon 1981) with the reflection and transmission matrix method (Kennett and Kerry 1979). A one-dimensional velocity structure model was assumed for each station, considering the depth at which the sensor was installed. Because sedimentary layers over the seismic bedrock affect the amplitude and shape of seismic waveforms, considering the difference in velocity structure models among strong motion stations is quite important to preparing reliable Green’s functions (e.g., Asano and Iwata 2009). Thus, a different one-dimensional velocity structure model was prepared for each station (Fig. 3); these were extracted from the three-dimensional Japan Integrated Velocity Structure Model (Koketsu et al. 2012). The smallest S-wave velocity in this velocity structure model was 350 m/s. Both the data and Green’s functions were bandpass-filtered prior to the inversion analysis.
Fig. 3

P- and S-wave velocity structure models at shallow depths for each station

Results and discussion

Source rupture process of foreshock

Figure 4a shows the resulting final slip distribution of the foreshock. The obtained source model had a seismic moment of 2.04 × 1018 N-m (MW 6.1). The maximum and average slips were 1.16 and 0.36 m, respectively. The best estimate for the propagation velocity of the first time-window triggering front was 2.2 km/s. The variance reduction was 37.7 %.

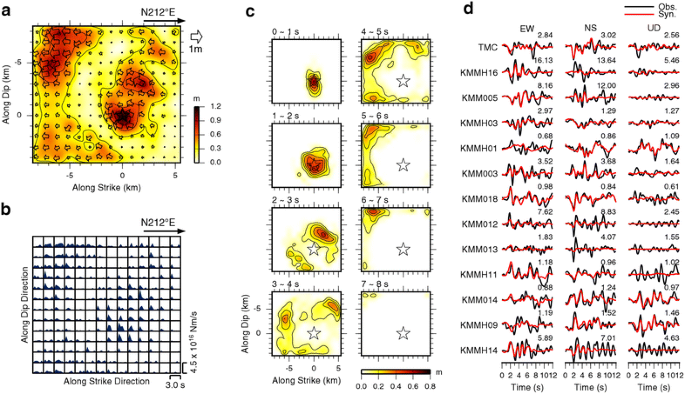

Fig. 4

Source model of foreshock. a Spatial distribution of final slips on fault plane with contour interval of 0.3 m. Arrow shows slip vector of hanging wall relative to foot wall. Open star indicates hypocenter or rupture starting point. b Obtained moment-rate function for each subfault. c Snapshot of temporal slip progression every 1 s. d Comparison of observed velocity waveforms (black traces) and synthetic velocity waveforms (red traces). Velocity waveforms were bandpass-filtered from 0.05 to 1 Hz. Waveform amplitudes were normalized by the maximum observed amplitude. Maximum observed amplitude of each component is shown above each trace in centimeters per second. EW east–west, NS north–south, UD up–down

The duration of moment release was approximately 2 s at most subfaults (Fig. 4b), and the total duration of the rupture was approximately 8 s (Fig. 4c). Right-lateral strike-slip dominated the rupture area. A large slip was found near the hypocenter or rupture starting point. The rupture mainly propagated upward and northeastward (Fig. 4c), and another large-slip area ruptured approximately 4 s after the origin time at a depth of 5 km, close to the northeastern end of the Hinagu fault beneath the town of Mashiki, where a seismic intensity of 7 was recorded. The rupture propagation toward the southwest was not significant during this foreshock. Instead, another MJMA 6.4 earthquake occurred at 00:03 JST on April 15, 2016, about 2.5 h after the foreshock at a depth of 6.71 km, close to the southwestern end of the foreshock’s rupture area (see the top-right panel in Fig. 2). The synthetic waveforms reproduced the observed waveforms well (Fig. 4d).

Source rupture process of mainshock

Significant slip occurred along the Futagawa fault (segment #2), as shown by the resulting final slip distribution of the mainshock in Fig. 5a. The obtained source model had a seismic moment of 4.50 × 1019 N-m (MW 7.0), which was 22 times larger than the foreshock. The maximum and average slips were 5.13 and 1.87 m, respectively. The best estimate for the propagation velocity of the first time-window triggering front was 2.4 km/s. With this source model, the synthetic waveforms reproduced the characteristics of the observed waveforms well (Fig. 5c). The variance reduction was 45.3 %.
Fig. 5

Source model of mainshock. a Spatial distribution of final slips on fault plane with contour interval of 1.0 m. Arrow shows slip vector of hanging wall relative to foot wall. Open star indicates hypocenter or rupture starting point. Dashed lines represent boundaries of fault segments #1 and #2. b Obtained moment-rate function for each subfault. c Comparison of observed velocity waveforms (black traces) and synthetic velocity waveforms (red traces). Velocity waveforms were bandpass-filtered from 0.05 to 0.5 Hz. Waveform amplitudes were normalized by the maximum observed amplitude. Maximum observed amplitude of each component is shown above each trace in centimeters per second. EW east–west, NS north–south, UD up–down

The large slip in fault segment #1 was concentrated at a shallow depth at the northeastern end of the Hinagu fault, where surface breaks were also reported by emergency field surveys (e.g., Geological Survey of Japan 2016; Okada and Toda 2016). The rupture of segment #2 started at the deep portion of the fault and extended upward and northeastward; it ceased to rupture within 20 s (Fig. 6). The duration of moment release was longer in shallow subfaults than in deeper subfaults (Fig. 5b). The slip amount of the shallowest subfaults along the Futagawa fault was approximately 1–4 m, which is consistent with the emergence of surface breaks associated with this earthquake (e.g., Geological Survey of Japan 2016; Okada and Toda 2016). The slip direction on segment #1 was close to pure right-lateral strike-slip, and that on segment #2 had a significant normal-slip component, particularly in the large-slip area. The northeastern end of the rupture area of the mainshock was located inside the Aso caldera. However, it was previously thought before this earthquake sequence that the Futagawa fault system lay to the west of the Aso somma, and did not extend to the caldera. Although most of the large-slip area was along the previously known Futagawa fault outside the Aso somma, non-negligible slips were estimated to be inside the western part of the Aso caldera, where surface breaks generated by this mainshock were also discovered (e.g., Geological Survey of Japan 2016). Thus, it could be that the Futagawa fault system extends to the Aso caldera and is concealed by thick volcanic deposits within the caldera.
Fig. 6

Temporal slip progression during mainshock and observed displacements at near-fault stations. Left panel of each row shows snapshot of temporal slip progression every 2 s. Right panel shows horizontal particle motions on ground surface corresponding to each timeframe at two near-fault stations. Red Mashiki town hall (station #93051, red triangle in left panel); blue Nishihara village hall (station #93049, blue triangle in left panel); cross location at beginning of timeframe

As stated in the Introduction, the acceleration time histories on the ground surface were recorded at two near-fault stations. The locations of these two stations (93048 at Nishihara village hall and 93051 at Mashiki town hall) are indicated in the snapshots in Fig. 6 and the map in Fig. 1. These two stations were located within 2 km of the surface trace of the Futagawa fault. Thus, the fault-parallel motion at these stations can be considered to resemble the nearby fault motion. We calculated the displacement waveforms from the observed acceleration records by double integration in the time domain with the appropriate baseline correction but did not perform any filtering of these data. Figure 6 shows the comparison of the particle motions on the horizontal plane obtained from these displacement waveforms with the rupture snapshots for each timeframe. Because the timing and amount of the fault-parallel displacements coincided with the spatiotemporal slip history estimated by the kinematic waveform inversion of the strong motion data, we confirmed that the obtained source model represents the spatiotemporal slip history during this event.

Figure 7 shows the comparison of waveforms by forward modeling for these two near-fault stations. Both the velocity and displacement waveforms are shown in this figure. These near-fault stations are located on a ground surface covered with Quaternary terrace deposits and volcanic deposits (e.g., Hoshizumi et al. 2004), so precise modeling of a shallow velocity structure is necessary to recover the amplitude at these stations. For station 93051, the permanent displacement in the NS and UD components was explained well by this model, but the EW component was not perfectly reproduced. The permanent displacements in the EW and UD components for station 93,048 were also underestimated. Because the permanent displacement or near-field term in such near-fault ground motions is generally sensitive to the locations and minute geometry of causative faults and attenuates rapidly with distance (e.g., Hisada and Bielak 2003), more detailed modeling of surface breaking faults at shallow depths is necessary to improve ground motion modeling in near-fault areas. Fault discretization is also crucial for near-fault ground motion modeling. Nevertheless, the synthetic velocity and displacement waveforms explained the phases in the observed waveforms well.
Fig. 7

Waveform comparison by forward modeling for two near-fault stations. (top) Comparison of observed velocity waveforms (black traces) and synthetic velocity waveforms (red traces). Velocity waveforms were bandpass-filtered from 0.05 to 0.5 Hz. Waveform amplitudes were normalized by the maximum observed amplitude. Maximum observed amplitude of each component is shown above each trace in centimeters per second. (bottom) Comparison of observed displacement waveforms (black traces) and synthetic displacement waveforms (red traces). EW east–west, NS north–south, UD up–down

Spatial relationships among foreshock, mainshock, and aftershocks

The final slip distributions for the foreshock and mainshock were compared with the spatial distributions of the aftershocks. Figure 8a shows a map view of the final slip distribution of the mainshock with aftershocks (MJMA > 2) occurring within 24 h of the mainshock. On fault segment #1 along the Hinagu fault, the large-slip area at shallow depth had a small number of aftershocks. Fault segment #2 had a relatively small number of aftershocks during this period, particularly in the northeastern half of the fault plane located inside the Aso caldera. There was an area with seismic activity north of Mt. Aso (Fig. 8a) that was outside the rupture area of the mainshock. We think that this seismic activity was remotely triggered by the change in regional stress due to the mainshock.
Fig. 8

Comparison between spatial slip distributions and aftershocks. a Map view of final slip distribution on fault plane of mainshock, with aftershocks within 24 h after mainshock. Blue line represents surface projection of source fault plane of foreshock. b Comparison of final slip distribution of foreshock with aftershocks occurring from 21:26 JST on April 14, 2016, to 00:03 JST on April 15, 2016

The large slip of the foreshock and small events immediately after this foreshock also seem to have had a complementary distribution in space (Fig. 8b). Although the fault plane of the foreshock was partially overlain with that of the mainshock, the exact locations of large slips at shallow depth were not the same as those of the mainshock.

Fault segment #1 of the mainshock spatially overlapped the rupture area of the foreshock but had a different dip angle from the fault plane of the foreshock. That is, the rupture of the mainshock was initiated on another fault plane closely parallel to the fault plane of the foreshock along the Hinagu fault, as expected from the difference in spatial patterns of the hypocenters before and after the mainshock (Fig. 2), and continued to be transferred to the Futagawa fault. This implies a complex fault structure along the Futagawa–Hinagu fault system. In order to examine this hypothesis, further studies on aftershock relocation and reflection surveys to image the complex structure of fault planes in the source region are necessary.

The MW 7.9 Denali earthquake on November 3, 2002, was an inland crustal earthquake along the Denali fault system, Alaska, and was preceded by the MW 6.7 Nenana Mountain earthquake on October 23, 2002. The aftershocks of the Nenana Mountain earthquake formed a vertical plane along the Denali fault system. The rupture of the Denali earthquake started on the Susitna Glacier fault, which is a splay fault south of the McKinley strand of the Denali fault system, where the Nenana Mountain earthquake occurred. It then propagated eastward along the main strand of the Denali fault system. (e.g., Ratchkovski et al. 2004). The spatial and temporal relationships between the foreshock and mainshock of the 2016 Kumamoto earthquake sequence look similar to those of the 2002 Denali earthquake sequence.

Conclusions

The source rupture processes of the foreshock and mainshock in the 2016 Kumamoto earthquake sequence were estimated by kinematic waveform inversion of strong motion data. The foreshock was a right-lateral strike-slip event occurring on a nearly vertical fault plane along the northern part of the Hinagu fault, and two large-slip areas were found near the hypocenter and at shallow depth. The rupture of the mainshock started from the deep portion of a northwest-dipping fault plane along the Hinagu fault. Then, it continued to be transferred to the Futagawa fault and propagated northeastward and upward to generate significant slips with surface breaks. The peak slip of the mainshock was 5.1 m, including the normal component of the slip, and the duration of the rupture was approximately 20 s. The slip amount of the shallowest subfaults along the Futagawa fault was approximately 1–4 m, which is in rough agreement with the emergence of surface breaks associated with the mainshock. The large fault-parallel displacements at two near-fault stations coincided with the spatiotemporal pattern of the fault slip history during the mainshock. The spatial relationship between the rupture areas of the foreshock and mainshock implies a complex fault structure in this region. The central and southern parts of the Hinagu fault were not ruptured during this earthquake sequence.

Declarations

Authors’ contributions

KA analyzed the data and drafted the manuscript. TI participated in the design of the study and processed the displacement waveforms. Both authors read and approved the final manuscript.

Acknowledgements

Strong motion data from K-NET, KiK-net, and F-net were provided by the National Research Institute for Earth Science and Disaster Resilience, Japan. The strong motion data from the seismic intensity observation network were released by the Japan Meteorological Agency and Kumamoto prefectural government. The JMA unified earthquake catalog is produced by JMA in cooperation with the Ministry of Education, Culture, Sports, Science and Technology (MEXT). We thank two anonymous reviewers and guest editor Haruo Horikawa for their helpful comments and suggestions on improving the manuscript. Generic Mapping Tools (Wessel and Smith 1998) was used to draw the figures. This study was supported by a Grant-in-Aid for Special Purposes (16H06298, PI Prof. Hiroshi Shimizu) from MEXT and by the Earthquake and Volcano Hazards Observation and Research Program of MEXT.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Disaster Prevention Research Institute, Kyoto University
