Ultra-low velocity zone heterogeneities at the core–mantle boundary from diffracted PKKPab waves

Earth, Planets and Space201769:115

https://doi.org/10.1186/s40623-017-0692-5

  • Received: 17 January 2017
  • Accepted: 31 July 2017
  • Published:

Abstract

Diffracted waves around Earth’s core could provide important information of the lowermost mantle that other seismic waves may not. We examined PKKPab diffraction waves from 52 earthquakes occurring at the western Pacific region and recorded by USArray to probe the velocity structure along the core–mantle boundary (CMB). These diffracted waves emerge at distances up to 10° past the theoretical cutoff epicentral distance and show comparable amplitudes. We measured the ray parameters of PKKPab diffraction waves by Radon transform analysis that is suitable for large-aperture arrays. These ray parameters show a wide range of values from 4.250 to 4.840 s/deg, suggesting strong lateral heterogeneities in sampling regions at the base of the mantle. We further estimated the P-wave velocity variations by converting these ray parameters and found the CMB regions beneath the northwestern edge of African Anomaly (Ritsma et al. in Science 286:1925–1928, 1999) and southern Sumatra Islands exhibit velocity reductions up to 8.5% relative to PREM. We suggest that these low velocity regions are Ultra-low velocity zones, which may be related to partial melt or iron-enriched solids.
Graphical Abstract image
Graphical abstract

.

Keywords

  • Diffracted PKKPab waves
  • Core–mantle boundary
  • Lateral heterogeneity
  • Low velocity zones

Introduction

It is well known that there exist significantly complex structures at the core–mantle boundary (CMB). These complex structures range from large low shear velocity provinces (LLSVPs) of thousands of kilometers (e.g., Ni and Helmberger 2003; Garnero and McNamara 2008; Garnero et al. 2016) to small-scale scatterers of a few to tens of kilometers (e.g., Vidale and Hedlin 1998; Mancinelli and Shearer 2013; Waszek et al. 2015). Other complex features include ultra-low velocity zones (ULVZs) (Helmberger et al. 2000; Rost and Revenaugh 2003a; Rost et al. 2010), D” discontinuity (e.g., Nataf and Houard 1993; Rost and Revenaugh 2003b; Hernlund et al. 2005) and seismic anisotropy in D” (e.g., Kendall and Silver 1996; Garnero et al. 2004; Long 2009; Lynner and Long 2014). All these complex structures are not surprising since the CMB is the most dramatic thermal and compositional boundary within the Earth (Garnero 2000). Although these structures are important for us to understand the dynamic process and evolution inside the Earth (Garnero 2004; McNamara and Zhong 2005; Tackley 2012), due to uneven distribution of earthquakes and seismic stations, there are still areas near the CMB that have not been well probed. Moreover, conventional tomographic methods often poorly resolve small-scale structures at the CMB owing to ray coverage and frequency content (Rawlinson et al. 2010; Liu and Gu 2012). In contrast, unconventional methods, such as diffracted waves traveling a long distance along the CMB, may provide additional information.

Core-diffracted waves, such as P diff and SPdKS/SKPdS waves, have been widely used to probe the lowermost mantle structure (e.g., Wysession 1996; Earle and Shearer 2001; Thorne and Garnero 2004; Xu and Koper 2009; Thorne et al. 2013; Hosseini and Sigloch 2015). Although their results have revealed strong lateral velocity variations near the CMB, there are limitations in their mapping areas due to small detectable amplitudes or specific raypath geometry of phases used. As a complementary approach, diffracted PKKPab waves can sample regions that other phases cannot, thus improving the mapping coverage of small-scale structures at the CMB.

PKKP is a P-wave traveling through the core and reflecting once at the underside of the CMB. Like PKP, there are four branches of PKKP phase (PKKPab, PKKPbc, PKKPcd and PKKPdf) (Fig. 1). In general, PKKPcd and PKKPdf are difficult to see due to very small amplitudes, while PKKPab and PKKPbc are more easily identified in short-period seismograms (Earle 2002; Rost and Garnero 2006; Ivan and Cormier 2011; Niu et al. 2012). The theoretical cutoff distance of PKKPab for a 500-km-depth earthquake in the PREM (Dziewonski and Anderson 1981) is about 104° (minor arc distance). However, because PKKPab waves can diffract around the CMB (Fig. 1), the diffracted waves can always be detected at distances beyond this cutoff distance in short-period seismograms. Although the diffraction could occur on either (or both) side(s) of the PKKPab raypath along the CMB, in this paper, we name the diffracted waves as PKKPab diffraction waves.

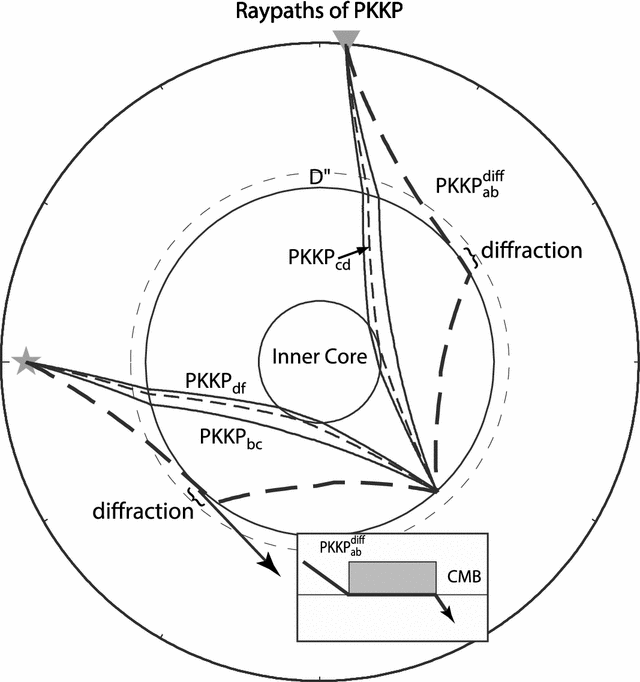

Fig. 1
Fig. 1

Raypaths for different PKKP branches. PKKPdf and PKKPbc raypaths are denoted as solid lines, and PKKPcd as well as PKKPab diffraction paths are denoted as thinner and thicker dashed lines, respectively. The ray paths are generated for an event (gray star) with a focal depth of 500 km, and the minor epicenter distance to the station (gray inverted triangle) is 95°. The diffracted portions along the core–mantle boundary on the two sides are about 9.0° in total. The inserted box shows one-sided diffraction of PKKPab waves along the CMB

PKKPab diffraction waves can be clearly detected at distances beyond this cutoff distance in short-period seismograms, thus providing unique solutions to small-scale velocity structures at the CMB. In spite of these merits, there are only a few studies utilizing PKKPab diffraction waves (Rost and Garnero 2006; Ivan and Cormier 2011), which is mainly because of lack of high-quality data. With the increase in temporary/permanent stations all around the world, PKKPab diffraction phase now may provide more opportunities to resolve the CMB structures in regions that have not been studied previously.

In this study, we collect PKKPab diffraction waves recorded by the USArray from earthquakes located along the western boundary of Pacific Ocean and try to resolve CMB velocity structures by measuring the ray parameters of these diffracted waves. The wide distribution of USArray ensures broader mapping areas sampled by PKKPab diffraction waves. This study exhibits a wide range of velocity perturbations from about −8.5 to +4.2% relative to PREM. The results also show two Ultra-low velocity zones beneath the northwestern edge of African and southern Sumatra Islands, which could be explained by thermal/chemical variations, such as partial melting and iron-enriched material in the lowermost mantle.

Data and methods

In order to obtain clear PKKPab diffraction phases, and to avoid possible contaminations from depth phases or strong scattering in the lithosphere, we only selected earthquakes with depths greater than 100 km and magnitudes larger than 5.4 (Table 1). We also excluded data with epicentral distances larger than 104° where PKKPab waves begin to appear. Therefore, our earthquakes are generally distributed along the western boundary of Pacific Ocean (Fig. 2). All the stations we selected are from USArray, which spans a large area with a relatively dense distribution. After removing the instrument response and band-pass filtering with a frequency band of 0.9–2.1 Hz, we visually checked the seismic recordings and selected the ones with clear PKKPab diffraction phases and good signal-to-noise ratios. During this process, the recordings with very complex waveforms are also discarded, to avoid possible biases from complicate rupture process in the source. Finally, a total of 2540 seismic recordings from 52 earthquakes are selected. Two examples of such PKKP waves are shown in Fig. 3.
Table 1

Earthquakes used in this study

No.

Date

Latitude

Longitude

Depth

Mag (Mw)

1

2006.12.27.20.42

−11.4345

166.4710

137.5

6.0

2

2007.11.19.01.18

−13.5186

166.9850

124.7

6.3

3

2008.09.08.18.52

−13.6631

167.0310

118.4

6.9

4

2009.03.26.19.19

−18.0120

−178.4360

577.4

5.9

5

2009.09.03.13.26

19.3514

144.7600

446.9

6.2

6

2009.10.25.07.53

−20.4310

−176.2160

231.3

6.0

7

2009.10.31.19.09

−20.8720

−178.5080

536.9

5.9

8

2010.03.04.14.02

−21.2118

−178.6730

558.9

6.5

9

2010.03.08.09.47

−23.0250

−177.1090

171.4

6.1

10

2010.03.20.14.00

−23.0354

−179.1010

413.0

6.6

11

2010.06.17.13.06

−23.1320

−177.2220

155.5

6.0

12

2010.06.30.04.31

−23.2850

179.1800

572.8

6.4

13

2010.08.04.07.15

−23.5142

−179.7430

562.3

6.5

14

2010.08.15.15.09

−26.0435

178.4770

551.8

6.3

15

2010.12.13.01.14

26.9670

140.0160

524.5

6.2

16

2011.01.12.21.32

27.2502

125.7230

228.2

6.5

17

2011.01.23.19.15

27.4033

126.8230

152.0

5.8

18

2011.02.21.10.57

29.0570

139.2510

436.0

6.5

19

2011.08.25.10.39

29.9330

138.8870

421.9

5.9

20

2011.11.08.02.59

31.1797

130.1830

167.2

6.9

21

2012.02.10.01.47

−33.1905

179.7820

211.2

6.0

22

2012.07.18.08.09

−3.3752

152.2790

418.9

5.9

23

2012.10.23.08.53

−33.8530

179.4020

195.0

5.9

24

2013.04.05.13.00

42.7130

131.1050

561.9

6.3

25

2013.04.21.03.22

−5.5179

146.8590

219.7

6.1

26

2013.05.23.17.19

−5.7808

154.4580

353.5

7.4

27

2013.06.15.11.20

−5.7825

148.3750

180.8

6.0

28

2013.07.24.03.32

−23.132

−177.2220

155.5

6.0

29

2014.03.02.20.11

27.4312

127.3670

119.0

6.5

30

2014.03.05.09.56

−14.7378

169.8230

638.0

6.3

31

2014.05.04.09.15

−24.6108

179.0860

527.0

6.6

32

2014.05.09.10.32

−18.9616

−175.5360

192.3

5.9

33

2014.06.30.19.55

28.3404

138.8440

511.0

6.2

34

2014.07.21.14.54

−19.8015

−178.4000

615.4

6.9

35

2014.11.01.18.57

−19.6903

−177.7590

434.0

7.1

36

2014.12.30.21.17

−20.3263

−178.5640

599.3

6.0

37

2015.03.16.03.00

−4.0737

152.0290

196.0

5.9

38

2015.04.28.16.39

−20.8865

−178.6330

581.0

6.1

39

2015.05.20.00.30

−19.3021

−175.5250

203.0

6.0

40

2015.06.16.06.17

−20.3944

−179.0020

656.0

5.9

41

2015.06.21.21.28

−20.4307

−178.3280

562.6

6.0

42

2015.06.23.08.59

−19.5686

−175.0400

138.0

5.5

43

2015.06.23.12.18

27.7375

139.7250

460.0

6.5

44

2015.07.07.20.03

−22.9379

−177.1330

169.6

5.8

45

2015.07.17.18.49

−18.1214

−178.1890

536.1

5.8

46

2015.11.02.03.04

−18.1736

−177.8380

608.4

5.6

47

2016.02.14.18.09

30.3018

138.8500

412.8

5.7

48

2016.05.27.04.08

−20.8101

−178.6480

567.5

6.4

49

2016.05.28.05.38

−21.9724

−178.2040

405.7

6.9

50

2016.08.22.09.33

29.8965

139.1310

404.4

5.6

51

2016.08.25.17.04

30.6151

137.8460

456.0

5.9

52

2016.09.24.21.28

−19.7819

−178.2440

596.4

6.9

Fig. 2
Fig. 2

Map showing the distribution of the earthquakes (black stars) and stations (black inverted triangles) for PKKPab diffraction data analysis. Earthquakes and stations are connected with major-arc paths (gray lines). For a group of ray paths with similar azimuths, we choose the one with a median distance value as the represented ray path and only plot those represented rays. The diffracted paths of PKKPab diffraction waves along the CMB are shown as black lines on both the source and receiver sides

Fig. 3
Fig. 3

Example of seismic recordings for a 12/01/2011 event and b 21/04/2013 event, respectively. They show clear PKKPbc and PKKPab diffraction phases and the theoretical travel times of these two phases are denoted by gray dashed lines

To estimate seismic velocities of the lowermost mantle, we first determined the ray parameters of the PKKPab diffraction waves. Then, we converted the obtained ray parameters into apparent velocities according to:
$$V_{\text{cmb}} = R_{\text{cmb}} /p$$
(1)
where \(V_{\text{cmb }}\) is the apparent velocity of the CMB, \(p\) is the ray parameter of PKKPab diffraction wave and \(R_{\text{cmb}}\) is the radius of the core in the Earth.
Considering the complex waveforms and the large apertures of the USArray, instead of using traditional methods such as beam forming or slant stacking (Rost and Thomas 2002), we adopted an alternative approach, the Radon transform method (we termed it as RTM hereafter) (Gu and Sacchi 2009; Schultz and Gu 2013), to calculate the ray parameters of PKKPab diffraction waves. Radon transform is defined as:
$$m\left( {\tau ,p} \right) = \mathop \sum \limits_{i = 1}^{N} d\left( {t = \varphi \left( {\tau ,\Delta ,p} \right),\Delta _{i} } \right)$$
where \(\varphi\) is a time function that depends on reduced time \(\tau\), epicenter \(\Delta\) and ray parameter \(p.\) In this study, we assumed a linear relationship with \(\varphi \left( {\tau ,\Delta ,p} \right) = \tau + p\Delta\) for the analysis of PKKPab diffraction wave owing to its geometric propagation path inside the Earth. RTM first transforms the data from \(t -\Delta\) domain into \(\tau - p\) domain and filters the transformed data in order to discriminate different ray parameters by inversion [details can be found in Gu and Sacchi (2009)]. The strongest energy focus in Radon (\(\tau ,p\)) domain corresponds to the expected ray parameter along which the data are stacked. The obvious advantage of RTM is that it could isolate the ray parameter based on inversion in \(\tau - p\) domain, which is suggested to be more robust and reliable (Beylkin 1987; Sacchi and Ulrych 1995). Besides, this method could apply to a wider range of epicenter distances and is more efficient to phases whose ray parameters are very close than conventional stacking methods (Schultz and Gu 2013).

Before we use RTM, several procedures are carried out to ensure data quality and to reduce contaminations from heterogeneous structures in the mantle. Firstly, we calculated the amplitude envelope of all the seismograms. This procedure simplifies the complicated short-period waveforms without loss of general information (Eaton and Kendall 2006; Gu and Sacchi 2009), thus making it easier to handle. Then, we corrected ellipticity (Dziewonski and Gilbert 1976; Kennett and Gudmundsson 1996) and mantle heterogeneity through GyPSuM tomographic model (Simmons et al. 2010). Finally, we classified all the recorded data into different groups for every 5° according to their azimuths. Considering that the sampling regions of our data span about 30° in longitude and 75° in latitude at the CMB, this classification ensures that for each event, seismograms in the same group are aligned in almost the same great circle, thus avoiding azimuthal heterogeneity in the source and receiver regions. After grouping by azimuth, we further checked the number and distribution of the data in each subgroup and excluded the subgroups that have less than 10 seismic recordings and unevenly distributed data in distance, in order to avoid possible bias from individual anomalous PKKPab diffraction waves. After this selection, in total, we obtained 106 event–station subgroups (gray lines in Fig. 2). In the next step, RTM is applied to each subgroup separately to obtain ray parameters. Then, we converted all the ray parameters into P-wave velocities based on Eq. (1).

The obtained apparent velocity from ray parameter depends on the frequency of the waves and the velocity structures at the base of the mantle (Chapman and Phinney 1972; Mula and Müller 1980). Therefore, the apparent velocity in Eq. (1) is different from the actual velocity at the CMB (Mula and Müller 1980). However, in our study, the estimated sampling thickness for short-period PKKP waveforms is about one or two wavelength, which is on the order of tens of km above the CMB (Sylvander et al. 1997). Thus, the inferred apparent velocity is a good approximation of the actual velocity near the CMB.

Results

First, synthetic tests are carried out to validate the RTM we adopted. Considering our data are not sensitive to discontinuities (no top reflections at a discontinuity are observed) and the results are averaged velocities above the CMB, we tested two models modified from PREM, in which it has either a gradual P-wave velocity decrease from 0 to 8% (low velocity model) or increase from 0 to 6% (high-velocity model) in a 60-km layer atop the CMB (Fig. 4a). The choice of 60 km is because of its consistency with the thickness of general ULVZs and the resolution of our PKKP diffractions. Synthetic seismograms for a 500-km-deep earthquake are calculated using DSM (direct solution method) (Geller and Takeuchi 1995; Kawai et al. 2006) (Fig. 4b). The retrieved slownesses for the low velocity and high velocity models generally represent their characteristics of velocity change. Here we only show results from the low velocity model (Fig. 4b). It is obvious that the PKKPab diffraction phases appear in the epicentral distances much shorter than its theoretical cutoff distance. The restored ray parameter for these synthetic seismograms from RTM is 4.520 s/deg, which is larger than that of PREM (4.428 s/deg) (Fig. 4c). The converted velocity according to Eq. (1) is ~2% slower than that of PREM. The recovered velocity from the high-velocity model is about +2.6%. Although the synthetic tests do not fully recover the averaged velocity changes in the input model (-4 and 3%), it is not surprising, considering the non-ray theoretical nature and finite-frequency effects of diffracted waves (Hosseini and Sigloch 2015). We then applied RTM to calculate the PKKP ray parameters for each subgroup of seismograms in our data. As an example, Fig. 5 exhibits the results of data in Fig. 3. The ray parameters of both PKKP phases can be identified very clearly.
Fig. 4
Fig. 4

a Models used in synthetic tests of RMT. Compared to PREM (gray line), the test model (black line) has either a P-wave velocity decrease from 0 to 8% (low velocity model) or an increase from 0 to 6% (high-velocity model) in a 60-km layer atop the CMB. b Synthetic seismograms calculated using DSM for a 500-km-depth event based on the low velocity model in a. The seismograms are band-pass filtered with the same frequency band as the observed data. The black lines denote the travel times of PKKPbc and PKKPab diffraction waves, respectively. c Radon transform image of synthetic seismograms in b. The normalized amplitudes (shown in different color) are energy of seismogram summations along their corresponding ray parameters

Fig. 5
Fig. 5

Radon transform images of the two observations in Fig. 3. The ray parameters of PKKPbc and PKKPab diffraction phases are clearly identified

Most of the PKKPab diffractions can only be seen clearly in frequency bands between 0.5 and 2.1 Hz. To check the frequency effect on the velocity of PKKPab diffraction, we choose several frequency bands and calculated their ray parameters separately. Figure 6 shows the histograms of ray parameters of PKKPab diffraction waves in three different frequency bands (0.9–2.1, 0.5–1.5 and 0.5–2.1 Hz). The mean values of the ray parameter are 4.506, 4.517 and 4.503 s/deg, with standard deviations of 0.113, 0.093 and 0.114 s/deg, respectively. Similar results in different frequency bands suggest that velocity structures at the top of several tens of km above the CMB in this area are quite uniform.

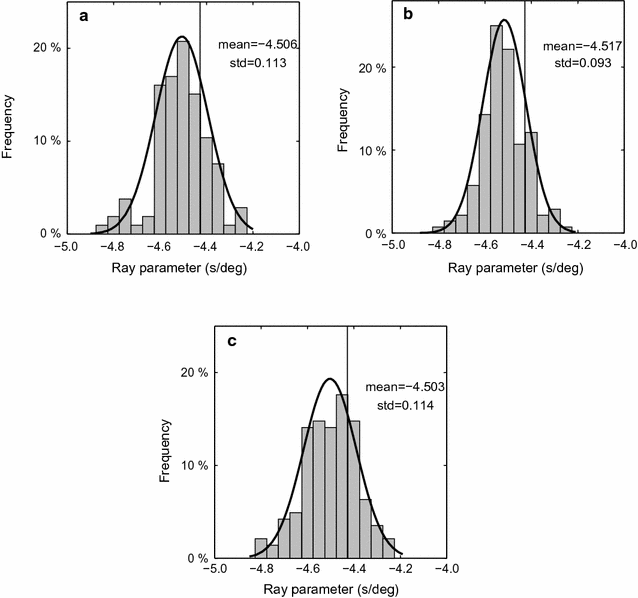

Fig. 6
Fig. 6

a Histogram of PKKPab diffraction ray parameters after ellipticity and mantle heterogeneity corrections. The seismograms are band-pass filtered between 0.9 and 2.1 Hz. The mean value of the ray parameters is 4.506 s/deg, and the standard deviation is 0.113 s/deg. The vertical black line denotes the theoretical ray parameter of PKKPab diffraction calculated for PREM. b, c same as a, but for the ray parameter distribution of PKKPab diffractions from 0.5–1.5 Hz and 0.5–2.1 Hz bands, respectively

The variations of the ray parameter are not from structures near the source/receiver, since the aperture of the stations and the earthquakes would average the difference effectively. The tomographic corrections for PKKPab diffraction waves in the mantle are also rather small, indicating that the heterogeneity in the mantle may not be the cause either. It is also suggested that noise in the data or CMB topography could not account for such various and coherent ray parameter variations of PKKPab diffraction waves (Sylvander et al. 1997; Doornbos 1980). Based on these evidences, we suggest that the variations in ray parameter should be from the complex structures along the CMB.

The converted velocity variations from ray parameters are plotted on the middle points of the diffracted paths along the CMB on both sides, with a P-wave tomographic model of mantle from GyPSuM (Simmons et al. 2010) as background (Fig. 7). The areas sampled by PKKPab diffraction waves in this study are generally located along two “strips” at the CMB. On the source side, the sampled region starts from the southwest of Indonesia, extends across the southwest of Australia and ends up at southern Indian Ocean. On the receiver side, the region starts from the northeast side of South America, extends across the Atlantic Ocean and then ends at the northern part of Atlantic Ocean. Most of the sampled regions exhibit low velocity anomalies in the tomographic image, except for only a few high-velocity areas.

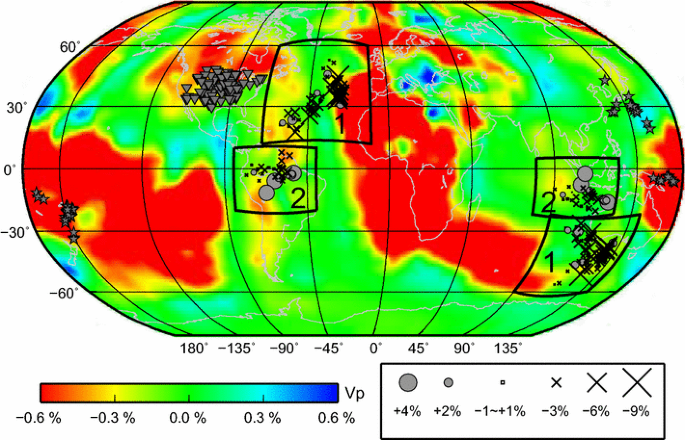

Fig. 7
Fig. 7

P-wave velocity variations plotted at the middle points of diffracted paths of PKKPab in two regions (marked by box 1 and 2) at the CMB. Slow and fast are shown using black crosses and gray circles, respectively. The background is the P-wave tomographic model at the CMB from GyPSuM (Simmons et al. 2010). The gray stars denote the earthquakes, and the gray inverted triangles denote the stations

Discussion

ULVZs at the CMB

The inferred P-wave velocity perturbations along the CMB from PKKPab diffraction waves exhibit a wide range, and show velocity reductions up to about 8.5%. We approximately divided the diffracted regions at the CMB into four regions, with two on the receiver side and their corresponding regions on the source side (as labeled in Fig. 7). In comparison with tomographic model of GyPSuM, we found that the north region on the receiver side is located at the northwestern edge of African Anomaly (Ni and Helmberger 2003; Wang and Wen 2004, 2007; Sun and Miller 2013). Its corresponding region on the source side is in the southwest of Australia. The low velocity variations in these regions could be between −6.0 and −8.5%, which is quite similar to that of ULVZs. Since the southwest of Australia is a region with no low velocity signature or a low possibility of ULVZs (Thorne and Garnero 2004; Lay 2015), we suggest that the resulted P velocity heterogeneities are from the receiver side, the northwestern edge of African Anomaly.

Our results show an overall change of the velocity reduction from east to west in this region (Fig. 8), with the strongest velocity reduction (~8.5%) in the eastern part (near the northwestern edge of African Anomaly). We binned the P-wave velocity reductions using a 10-degree moving window with a 5-degree overlap. There is an overall trend that the slow anomalies decrease gradually with the increase in longitude, although it is not very strong. This may indicate that ULVZs are closely related to the boundary of LLSVP (Thorne et al. 2004; McNamara et al. 2010; Hier-Majumber and Drombosky 2016), and the velocity reduction in ULVZ may also be associated with its distance to LLSVP. Further investigations with more data may be needed.
Fig. 8
Fig. 8

P-wave velocity anomalies at the CMB near African Anomaly plotted as a function of sampling longitude. Slow and fast anomalies are shown in gray crosses and black circles, respectively. The binned data (gray solid circles with one standard deviation) are calculated with a 10-degree moving window and a 5-degree overlap. Although there are several fast anomalies, the slow anomalies show a trend that the values decrease gradually with the increase of longitude, meaning the closer they are to the African Anomaly, the larger P-wave velocity reductions they exhibit

Thorne and Garnero (2004) have systematically studied the global SPdKS waves and proposed a ULVZ likelihood map. Our region in the northwestern side of African Anomaly in general agrees with the region of high ULVZ likelihood in their map, but extends further west. Using PKKP data recorded by Yellowknife array, Rost and Garnero (2006) also mapped ULVZs in a region located further north of our study region, with a similar lateral extension. Their results did not show systematic velocity changes, but they did notice that PKKPab diffraction waves sampling the west of the region show larger departures from theoretical ray paths than those to the east.

Some low velocity zones with velocity reductions of 3–5% are also detected on the source side beneath southern Sumatra Islands. Their corresponding regions on the receiver side are in the northeast of South America. South America is a region that generally shows high-velocity anomalies in various tomographic models (Zhao 2004; Li et al. 2008; Simmons et al. 2010) and shows low likelihood in SPdKS study (Thorne and Garnero 2004). Therefore, this region is unlikely to cause the low velocities we observed. In other words, the velocity reductions in region 2 more likely result from the CMB beneath southern Sumatra Islands.

The high-velocity anomalies (up to 4%) in region 2 are more likely to be related to subducted slabs, thus making the north of South America a good place for these heterogeneities. However, in the corresponding source side beneath southern Sumatra Islands, the high velocities are located on both sides of the slow anomaly, which we cannot definitely rule out the contribution from this region either. In this case, we could not clearly solve the origin ambiguity of PKKPab diffraction anomalies, although South America could provide a more proper explanation. It is noted that the high-velocity anomalies could not merely result from the temperature change, because such change would be too much under the CMB conditions (Wentzcovitch et al. 2006). We suggest that chemical changes in the subducted oceanic crust may also play an important role in this case.

In general, our results show strong lateral velocity variations that can change between −8.5% and up to +4.2%, which is consistent with the magnitude of velocity perturbations from both global (e.g., Sylvander et al. 1997) and regional studies (e.g., Xu and Koper 2009). These strong lateral heterogeneities are much larger than those calculated from global tomographic models and imply significantly complex structures at the CMB that have long been known to exist [see Garnero (2000); Lay and Garnero (2011) for a review], even on the small-scale level (Ma et al. 2016; Sun et al. 2016). The explanations for these heterogeneities, however, are still inconclusive. Wysession et al. (1992) correlated the strong lateral heterogeneity at the CMB with core flow models from geomagnetics (Voorhies 1986). They demonstrated that the adjacent fast and slow regions possibly correspond to areas of core upwelling and down welling, respectively. Other explanations probably include chemical variations and/or thermal variations [see Tackley (2012) for a review]. For the origin of ULVZ-like structures, partial melt (Williams and Garnero 1996; Berryman 2000; Lay et al. 2004; Hernlund and Tackley 2007) or iron-enriched lower mantle materials introduced by subducted paleo-slabs (Dobson and Brodholt 2005) or core interactions from below (Sakai et al. 2006) may provide reasonable explanations (Wicks et al. 2010; Bower et al. 2011).

Comparison with previous studies

Unlike previous studies (Rost and Garnero 2006), in this study, we did not carry out the analysis of absolute travel times of PKKPab diffraction or relative travel times with respect to PKKPbc. Travel time analysis, though, could verify our results inferred from ray parameters. However, in the short-period (0.5–2.0 s) recordings, both PKKPab diffraction waves and PKKPbc waves are strongly affected by the high-frequency coda waves from scattering in the lithosphere, making it difficult to pick their onsets. In contrast, ray parameter analysis is less biased by small-scale inhomogeneities near the source and along the descending legs of the ray as long as the receivers are aligned closely in great circle paths (Ivan et al. 2015).

Global/regional studies of P diff (e.g., Wysession and Okal 1989; Wysession et al. 1992; Sylvander et al. 1997; Ivan et al. 2015) generally determine ray parameters based on equation \(p = {\text{d}}T/{\text{d}}\Delta\), where T is the travel time of a target phase and \(\Delta\) is the epicentral distance. For dense seismic arrays, beam forming or slant stacking (Rost and Thomas 2002) is often used, assuming incoming waves are plane waves. However, in our study, the onsets of PKKPab diffraction waves are hard to recognize in high-frequency waveforms; thus, the first method is not suitable. On the other hand, the distance of our data spans about 10°, so beam forming or slant stacking method is not proper either (Thomas et al. 1999). The RTM we adopted in this study could isolate different ray parameters by inversion in \(\tau - p\) domain, which not only fits the data globally, but also can effectively isolate similar ray parameters with less uncertainty. Although the RTM has been used previously in mid-mantle studies (e.g., An et al. 2007; Gu et al. 2009), this is the first time we successfully apply it to PKKP signals of a large distance range.

In general, PKKPab diffractions have no power to resolve the ambiguity of CMB heterogeneity locations. To resolve this problem, one way is to compare with other phases that sample similar regions, at least in one side, such as PcP, ScP, SPdKS and PKP (e.g., Idehara 2011; Jensen et al. 2013; Ma et al. 2016). In most cases, this may be difficult to do because of limited earthquake and station distributions. Then, the much easier way is to compare with mantle tomographic models, since small-scale structures are usually related to large-scale heterogeneities as indicated in tomography models (Zhao 2004; Montelli et al. 2006; French and Romanowicz 2015). Nevertheless, more characteristics of PKKP waves may be needed to identify anomaly locations.

Conclusions

We have examined diffracted PKKPab waves from 52 earthquakes occurring along the boundary of Western Pacific and recorded by USArray. Ray parameters of PKKPab diffraction waves are determined using the Radon transform method and then converted to velocity variations in the sampling regions at the base of the mantle. Our results show that beneath the northwestern edge of African Anomaly and southern Sumatra Island, the velocity reductions are as large as about −8.5%, which suggests the existence of ULVZs. The velocity change in northern Atlantic Ocean may indicate different effects that LLSVP plays on ULVZs according to the distance away from it. It should be also noted that although PKKPab diffractions enable us to resolve small-scale structures at the CMB and improve the sampling coverage, intrinsic ambiguity exists in identifying the exact areas of velocity anomaly. More evidences from tomographic models and additional phases such as SPdKS and ScP are needed to solve this problem in the future.

Abbreviations

CMB:

Core–mantle boundary

LLSVPs:

Large low shear velocity provinces

LVZ:

Low velocity zone

PREM:

Preliminary reference Earth model

RTM:

Radon transform method

ULVZs:

Ultra-low velocity zones

Declarations

Authors’ contributions

XM and XS carried out the research. XM analyzed the seismic data. XM and XS wrote the manuscript. Both authors read and approved the final manuscript.

Acknowledgements

We thank Azusa Nishizawa and three anonymous reviewers for their constructive comments and suggestions. The manuscript benefits a lot from them. The authors are supported by China National Science Foundation (No. 41330209) and the 973 project of Ministry of Science and Technology of China (2014CB845901). Figures are made using Generic Mapping Tools (Wessel and Smith 1995). The facilities of IRIS Data Services, and specifically the IRIS Data Management Center, were used for access to waveforms, related metadata, and/or derived products used in this study. IRIS Data Services are funded through the Seismological Facilities for the Advancement of Geoscience and EarthScope (SAGE) Proposal of the National Science Foundation under Cooperative Agreement EAR-1261681.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences, Wushan, Tianhe, Guangzhou, 510640, China

References

  1. An Y, Gu YJ, Sacchi M (2007) Imaging mantle discontinuities using least-squares Radon transform. J Geophys Res 112:B10303View ArticleGoogle Scholar
  2. Berryman JG (2000) Seismic velocity decrement ratios for regions of partial melt in the lower mantle. Geophys Res Lett 27:421–424View ArticleGoogle Scholar
  3. Beylkin G (1987) Discrete Radon transform. IEEE Trans Acoust Speech Signal Process 35:162–172View ArticleGoogle Scholar
  4. Bower DJ, Wicks JK, Gurnis M, Jackson JM (2011) A geodynamic and mineral physics model of a solid-state ultralow-velocity zones. Earth Planet Sci Lett 303:193–202View ArticleGoogle Scholar
  5. Chapman DH, Phinney RA (1972) Diffracted seismic signals and their numerical solutions. Methods Comput Phys 12:165–230Google Scholar
  6. Dobson DP, Brodholt JP (2005) Subducted banded iron formations as a source of ultralow-velocity zones at the core-mantle boundary. Nature 434:371–374View ArticleGoogle Scholar
  7. Doornbos DJ (1980) The effect of a rough core-mantle boundary on PKKP. Phys Earth Planet Inter 21:351–358View ArticleGoogle Scholar
  8. Dziewonski AM, Anderson DL (1981) Preliminary reference Earth model (PREM). Phys Earth Planet Inter 25:297–356View ArticleGoogle Scholar
  9. Dziewonski AM, Gilbert F (1976) The Effect of small, aspherical perturbations on travel times and a re-examination of the corrections for ellipticity. Geophys J Int 44:7–17View ArticleGoogle Scholar
  10. Earle PS (2002) Origins of high-frequency scattered waves near PKKP from large aperture seismic array data. Bull Seismol Soc Am 92:751–760View ArticleGoogle Scholar
  11. Earle PS, Shearer PM (2001) Distribution of fine-scale mantle heterogeneity from observations of Pdiff coda. Bull Seismol Soc Am 91:1875–1881View ArticleGoogle Scholar
  12. Eaton DW, Kendall JM (2006) Improving seismic resolution of outermost core structure by multichannel analysis and deconvolution of broadband SmKS phases. Phys Earth Planet Inter 155:104–119View ArticleGoogle Scholar
  13. French SW, Romanowicz B (2015) Broad plumes rooted at the base of the Earth’s mantle beneath major hotspots. Nature 525:95–99View ArticleGoogle Scholar
  14. Garnero EJ (2000) Heterogeneities of the lowermost mantle. Annu Rev Earth Planet Sci 28:509–537View ArticleGoogle Scholar
  15. Garnero EJ (2004) A new paradigm for Earth’s core-mantle boundary. Science 304:834–836View ArticleGoogle Scholar
  16. Garnero EJ, McNamara AK (2008) Structure and dynamics of Earth’s lower mantle. Science 320:626–628View ArticleGoogle Scholar
  17. Garnero EJ, Maupin V, Lay T, Fouch MJ (2004) Variable azimuthal anisotropy in Earth’s lowermost mantle. Science 306:259–261View ArticleGoogle Scholar
  18. Garnero EJ, McNamara AK, Shim S-H (2016) Continent-sized anomalous zones with low seismic velocity at the base of Earth’s mantle. Nat Geosci 9:481–489View ArticleGoogle Scholar
  19. Geller RJ, Takeuchi N (1995) A new method for computing highly accurate DSM synthetic seismograms. Geophys J Int 123:449–470View ArticleGoogle Scholar
  20. Gu YJ, Sacchi M (2009) Radon transform methods and their applications in mapping mantle reflectivity structure. Surv Geophys 30:327–354View ArticleGoogle Scholar
  21. Gu YJ, An Y, Sacchi M, Schultz R, Ritsema J (2009) Mantle reflectivity structure beneath oceanic hotspots. Geophys J Int 178:1456–1472View ArticleGoogle Scholar
  22. Helmberger DV, Ni S, Wen L, Ritsema J (2000) Seismic evidence for ULVZ beneath Africa and eastern Atlantic. J Geophys Res 105:23865–23878View ArticleGoogle Scholar
  23. Hernlund JW, Tackley PJ (2007) Some dynamical consequences of partial melting in Earth’s deep mantle. Phys Earth Planet Inter 162:149–163View ArticleGoogle Scholar
  24. Hernlund JW, Thomas C, Tackley PJ (2005) A doubling of the post-perovskite phase boundary and structure of the Earth’s lowermost mantle. Nature 434:882–886View ArticleGoogle Scholar
  25. Hier-Majumber S, Drombosky TW (2016) Coupled flow and anisotropy in the ultralow velocity Zones. Earth Planet Sci Lett 450:274–282View ArticleGoogle Scholar
  26. Hosseini K, Sigloch K (2015) Multifrequency measurements of core-diffracted P waves (Pdiff) for global waveform tomography. Geophys J Int 203:506–521View ArticleGoogle Scholar
  27. Idehara K (2011) Structural heterogeneity of an ultra-low-velocity zone beneath the Philippine Islands: implications for core-mantle chemical interactions induced by massive partial melting at the bottom of the mantle. Phys Earth Planet Inter 184:80–90View ArticleGoogle Scholar
  28. Ivan M, Cormier VF (2011) High frequency PKKPbc around 2.5 Hz recorded globally. Pure appl Geophys 168:1759–1768View ArticleGoogle Scholar
  29. Ivan M, Ghica DV, Gosar A, Hatzidimitriou P, Hofstetter R, Polat G, Wang R (2015) Lowermost mantle velocity estimations beneath the central North Atlantic area from Pdif observed at Balkan, East Mediterranean, and American stations. Pure Appl Geophys 172:283–293View ArticleGoogle Scholar
  30. Jensen KJ, Thorne MS, Rost S (2013) SPdKS analysis of ultralow-velocity zones beneath the western Pacific. Geophys Res Lett 40:4574–4578View ArticleGoogle Scholar
  31. Kawai K, Takeuchi N, Geller RJ (2006) Complete synthetic seismograms up to 2 Hz for transversely isotropic spherically symmetric media. Geophys J Int 164:411–424View ArticleGoogle Scholar
  32. Kendall JM, Silver PG (1996) Constraints from seismic anisotropy on the nature of the lowermost mantle. Nature 381:409–412View ArticleGoogle Scholar
  33. Kennett BLN, Gudmundsson O (1996) Ellipticity corrections for seismic phases. Geophys J Int 127:40–48View ArticleGoogle Scholar
  34. Lay T (2015) Deep earth structure: lower mantle and D. Seismology and the structure of the earth. In: Kanamori H, Schubert G (eds) Treatise on geophysics, vol 1, 2nd edn. Elsevier, Amsterdam, pp 683–723View ArticleGoogle Scholar
  35. Lay T, Garnero EJ (2011) Deep mantle seismic modeling and imaging. Annu Rev Earth Planet Sci 39:91–123View ArticleGoogle Scholar
  36. Lay T, Garnero EJ, Williams Q (2004) Partial melting in a thermochemical boundary layer at the base of the mantle. Phys Earth Planet Inter 146:441–467View ArticleGoogle Scholar
  37. Li C, van der Hilst RD, Engdahl ER, Burdick S (2008) A new global model for P wave speed variations in Earth’s mantle. Geochem Geophys Geosyst 9:Q05018Google Scholar
  38. Liu Q, Gu YJ (2012) Seismic imaging: from classical to adjoint tomography. Tectonophysics 566–567:31–66View ArticleGoogle Scholar
  39. Long MD (2009) Complex anisotropy in D” beneath the eastern Pacific from SKS-SKKS splitting discrepancies. Earth Planet Sci Lett 283:181–189View ArticleGoogle Scholar
  40. Lynner C, Long MD (2014) Lowermost mantle anisotropy and deformation along the boundary of the African LLSVP. Geophys Res Lett 41:3447–3454View ArticleGoogle Scholar
  41. Ma X, Sun X, Wiens DA, Wen L, Nyblade A, Anandakrishnan S, Aster R, Huerta A, Wilson T (2016) Strong seismic scatterers near the core-mantle boundary north of the Pacific Anomaly. Phys Earth Planet Inter 253:21–30View ArticleGoogle Scholar
  42. Mancinelli NJ, Shearer PM (2013) Reconciling discrepancies among estimates of small-scale mantle heterogeneity from PKP precursors. Geophys J Int 195:1721–1729View ArticleGoogle Scholar
  43. McNamara AK, Zhong S (2005) Thermochemical piles beneath Africa and the Pacific. Nature 437:1136–1139View ArticleGoogle Scholar
  44. McNamara AK, Garnero EJ, Rost S (2010) Tracking deep mantle reservoirs with ultra-low velocity zones. Earth Planet Sci Lett 299:1–9View ArticleGoogle Scholar
  45. Montelli R, Nolet G, Dahlen FA (2006) A catalogue of deep mantle plumes: new results from finite frequency tomography. Geochem Geophys Geosyst 7:Q11007View ArticleGoogle Scholar
  46. Mula AH, Müller G (1980) Ray parameters of diffracted long period P and S waves and the velocity and Q structure at the base of the mantle. J Geophys Res 86:4999–5011View ArticleGoogle Scholar
  47. Nataf H-C, Houard S (1993) Seismic discontinuity at the top of D”: A world-wide feature? Geophys Res Lett 20:2371–2374View ArticleGoogle Scholar
  48. Ni S, Helmberger DV (2003) Seismological constraints on the South African superplume: could be the oldest distinct structure on Earth. Earth Planet Sci Lett 206:119–131View ArticleGoogle Scholar
  49. Niu F, Kelly C, Huang J (2012) Constraints on rigid zones and other distinct layers at the top of the outer core using CMB underside reflected PKKP waves. Earthq Sci 25:17–24View ArticleGoogle Scholar
  50. Rawlinson N, Pozgay S, Fishwick S (2010) Seismic tomography: a window into deep Earth. Phys Earth Planet Inter 178:101–135View ArticleGoogle Scholar
  51. Ritsema J, van Heijst HJ, Woodhouse JH (1999) Complex shear wave velocity structure imaged beneath Africa and Iceland. Science 286:1925–1928View ArticleGoogle Scholar
  52. Rost S, Garnero EJ (2006) Detection of an ultralow velocity zone at the core-mantle boundary using diffracted PKKPab waves. J Geophys Res 111:B07309Google Scholar
  53. Rost S, Revenaugh J (2003a) Small-scale ultralow-velocity zone structure imaged by ScP. J Geophys Res 108:2056View ArticleGoogle Scholar
  54. Rost S, Revenaugh J (2003b) Detection of a D” discontinuity in the south Atlantic using PKKP. Geophys Res Lett 30:1840View ArticleGoogle Scholar
  55. Rost S, Thomas C (2002) Array seismology: methods and applications. Rev Geophys 40:1008View ArticleGoogle Scholar
  56. Rost S, Garnero EJ, Stefan W (2010) Thin and intermittent ultralow-velocity zones. J Geophys Res 115:B06312Google Scholar
  57. Sacchi M, Ulrych TJ (1995) High-resolution velocity gathers and offset space reconstruction. Geophysics 60:1169–1177View ArticleGoogle Scholar
  58. Sakai T, Kondo T, Ohtani E, Terasaki H, Endo N, Kuba T, Suzuki T, Kikegawa T (2006) Interaction between iron and post-perovskite at core-mantle boundary and core signature in plume source region. Geophys Res Lett 33:L15317View ArticleGoogle Scholar
  59. Schultz R, Gu YJ (2013) Flexible, inversion-based Matlab implementation of the Radon transform. Comput Geosci 52:437–442View ArticleGoogle Scholar
  60. Simmons NA, Forte AM, Boschi L, Grand SP (2010) GyPSuM: a joint tomographic model of mantle density and seismic wave speeds. J Geophys Res 115:B12310View ArticleGoogle Scholar
  61. Sun D, Miller MS (2013) Study of the western edge of the African large low shear velocity province. Geochem Geophys Geosyst 14:3109–3125View ArticleGoogle Scholar
  62. Sun D, Helmberger DV, Miller MS, Jackson JM (2016) Major disruption of D″ beneath Alaska. J Geophys Res Solid Earth 121:3534–3556View ArticleGoogle Scholar
  63. Sylvander M, Ponce B, Souriau A (1997) Seismic velocities at the core-mantle boundary inferred from P waves diffracted around the core. Phys Earth Planet Inter 101:189–202View ArticleGoogle Scholar
  64. Tackley PJ (2012) Dynamics and evolution of the deep mantle resulting from thermal, chemical, phase and melting effects. Earth-Sci Rev 110:1–25View ArticleGoogle Scholar
  65. Thomas C, Weber M, Wicks CW, Scherbaum F (1999) Small scatterers in the lower mantle observed at German broadband arrays. J Geophys Res 104:15,073-15,088Google Scholar
  66. Thorne MS, Garnero EJ (2004) Inferences on ultralow-velocity zone structure from a global analysis of SPdKS waves. J Geophys Res 109:B08301View ArticleGoogle Scholar
  67. Thorne MS, Garnero EJ, Grand S (2004) Geographic correlation between hot spots and deep mantle lateral shear-wave velocity gradients. Phys Earth Planet Inter 146:47–63View ArticleGoogle Scholar
  68. Thorne MS, Garnero EJ, Jahnke G, Igel H, McNamara AK (2013) Mega ultra low velocity zone and mantle flow. Earth Planet Sci Lett 364:59–67View ArticleGoogle Scholar
  69. Vidale JE, Hedlin MAH (1998) Evidence for partial melt at the core-mantle boundary north of Tonga from the strong scattering of seismic waves. Nature 391:682–685View ArticleGoogle Scholar
  70. Voorhies CV (1986) Steady flows at the top of Earth’s core derived from geomagnetic field models. J Geophys Res 91:12444–12446View ArticleGoogle Scholar
  71. Wang Y, Wen L (2004) Mapping the geometry and geographic distribution of a very low velocity province at the base of the Earth’s mantle. J Geophys Res 109:B10305Google Scholar
  72. Wang Y, Wen L (2007) Geometry and P and S velocity structure of the “African Anomaly”. J Geophys Res 112:B05313View ArticleGoogle Scholar
  73. Waszek L, Thomas C, Deuss A (2015) PKP precursor: implications for global scatterers. Geophys Res Lett 42:3829–3838View ArticleGoogle Scholar
  74. Wentzcovitch RM, Tsuchiya T, Tsuchiya J (2006) MgSiO3 postperovskite at D” conditions. Proc Natl Acad Sci USA 103:543–546View ArticleGoogle Scholar
  75. Wessel P, Smith WHF (1995) New version of the generic mapping tools released. EOS Trans AGU 76:329View ArticleGoogle Scholar
  76. Wicks JK, Jackson JM, Sturhahn W (2010) Very low sound velocities in iron-rich (Mg, Fe)O: implications for the core-mantle boundary region. Geophys Res Lett 37:L15304View ArticleGoogle Scholar
  77. Williams Q, Garnero EJ (1996) Seismic evidence for partial melt at the base of the Earth’s mantle. Science 273:1528–1530View ArticleGoogle Scholar
  78. Wysession ME (1996) Large-scale structure at the core-mantle boundary from core-diffracted waves. Nature 382:244–248View ArticleGoogle Scholar
  79. Wysession ME, Okal EA (1989) Regional analysis of D’’ velocities from the ray parameters of diffracted P profiles. Geophys Res Lett 16:1417–1420View ArticleGoogle Scholar
  80. Wysession ME, Okal EA, Bina CR (1992) The structure of the core-mantle boundary from diffracted waves. J Geophys Res 97:8749–8764View ArticleGoogle Scholar
  81. Xu Y, Koper KD (2009) Detection of a ULVZ at the base of the mantle beneath the northwest Pacific. Geophys Res Lett 36:L17301View ArticleGoogle Scholar
  82. Zhao D (2004) Global tomographic images of mantle plumes and subducting slabs: insight into deep Earth dynamics. Phys Earth Planet Inter 146:3–34View ArticleGoogle Scholar

Copyright

© The Author(s) 2017

Advertisement
