Volcanic activity on Io and its influence on the dynamics of the Jovian magnetosphere observed by EXCEED/Hisaki in 2015


Jupiter’s moon Io, which orbits deep inside the magnetosphere, is the most geologically active object in the solar system. Kurdalagon Patera, a volcano on Io, erupted in 2015 and became a substantial source of Jovian magnetospheric plasma. Based on Earth-orbiting spacecraft observations, Io plasma torus (IPT) exhibited the peak intensity (nearly double) of ionic sulfur emissions roughly 2 month later, followed by a decay phase. This environmental change provides a unique opportunity to determine how the more heavily loaded magnetosphere behaves. Indeed, the extreme ultraviolet spectroscope for exospheric dynamics onboard the Earth-orbiting spacecraft Hisaki witnessed the whole interval via aurora and IPT observations. A simple-minded idea would be that the centrifugal force acting on fast co-rotating magnetic flux tubes loaded with heavier contents intensifies their outward transport. At the same time, there must be increased inward convection to conserve the magnetic flux. The latter could be accompanied by (1) increased inward velocity of field lines, (2) increased frequency of inward transport events, (3) increased inward flux carried per event, or (4) combinations of them. The Hisaki observations showed that the densities of major ions in the IPT increased and roughly doubled compared with pre-eruption values. The hot electron fraction, which sustains the EUV radiation from the IPT, gradually increased on a timescale of days. Pairs of intensified aurora and IPT brightening due to the enhanced supply of hot electrons from the mid-magnetosphere to the IPT upon aurora explosions observed during both quiet and active times, enabled the study of the mid-magnetosphere/IPT relationship. Hisaki observations under active Io conditions showed that: (1) the hot electron fraction in the torus gradually increased; (2) brightening pairs were more intense; (3) the energy supplied by the largest event maintained enhanced torus emission for less than a day; (4) the time delay of a torus brightening from a corresponding aurora intensification was roughly 11 h, that is, the same as during quiet times, suggesting that the inward convection speed of high-energy electrons does not change significantly.



Jupiter is a fast rotation planet that has Galilean moons, one of which is Io, the most volcanically active body in the solar system. Jupiter’s magnetosphere is the largest in size and the most powerful in energy among those of solar system planets. The solar wind (SW) stretches the planetary magnetic field lines on the anti-solar side and creates a long magnetotail. The Jovian magnetosphere is traditionally divided into three regions: inner (equatorial distance closer than 10 R J, where R J is the Jovian radius = 71,492 km), middle (10–40 R J), and outer (>40 R J) magnetospheres, respectively. The magnetic field in the inner magnetosphere remains approximately dipole-like, while neither the dipole shape of the middle nor that of the outer magnetospheric field lines are substantially deformed. The geologically active Io, orbiting at the jovicentric radial distance of ~6 R J, releases up to ~1000 kg s−1 of volcanic gases (mainly SO2 and its fragments S and SO) into the inner part of the magnetosphere (Thomas et al. 2004). The volcanic ejecta are break into their constituent atoms and orbit along the Io orbit. Neutral atoms are ionized dominantly by the reaction with ambient electrons and subsequently are accelerated to co-rotation speed (equals to Jovian System-III rotation period: 10 h) to move together with the magnetic field lines that are rooted in Jupiter (e.g., 540 eV for S+ ions). These magnetically picked-up ions form the torus-shaped distribution centered at 6 R J, called Io plasma torus (IPT). The kinetic energy of the ions then heats the electrons. Most of the energy radiates in the UV spectral range to the space. The radiation energy from the IPT is therefore supplied ultimately from the rotational energy of Jupiter. This basic idea was first introduced during the Voyager era (Broadfoot et al. 1979).

However, the energy source for IPT emissions still remains unclear. The energy picked up by ions can only fuel 34–74% of the IPT radiation (Delamere and Bagenal 2003). Sophisticated models require an additional source of energy (Barbosa et al. 1985; Shemansky 1988; Delamere and Bagenal 2003; Delamere et al. 2005; Steffl et al. 2006). One of the feasible physical processes supplying additional energy is the inflow of hot electrons from the mid-magnetosphere. Indeed, the centrifugally driven interchange mode in the magnetosphere is considered to sustain the inflow of hot electrons (Thorne et al. 1997). Two magnetic tubes should exchange their positions, with the flux tube loaded with Io-origin ions outward and the buoyant flux filled with tenuous hot plasma inward (Cap 1976). The mass density radial profile in the Jovian magnetosphere is favorable for the operation of this interchange mode because Io fills the magnetic flux tube located inside with dense and heavy ions. The discovery of small-scale buoyant flux tubes by in situ measurements on the Galileo orbiter supports this scenario (Thorne et al. 1997). Sharply bounded buoyant magnetic flux tubes were very rarely encountered (0.2% per total measurement time), implying a small volume-filling factor of the buoyant tubes.

The hot electron inflow to the IPT might be enhanced by events that are manifested as aurora brightenings. The energy stored in the magnetosphere with a stressed magnetic field is transiently released. Spacecraft observations showed that high-energy electrons and ions of Jovian magnetospheres are sometimes accelerated toward Jupiter (Mauk et al. 2002), as seen in the Earth’s magnetosphere (Kivelson and Russell 1995).

In the beginning of 2014, the Earth-orbiting spacecraft Hisaki observed unique phenomena; the Jovian aurora and IPT suddenly brightened and the time of the brightenings correlated (see Fig. 1). This behavior suggests that hot electrons arrive at IPT from the mid-magnetosphere and fuel it (Yoshikawa et al. 2016). Yoshikawa et al. (2016) studied the hot electron transport between the two radial distances by treating the brightenings as markers. The electrons responsible for the aurora and IPT emission have different energy ranges; however, it is considered that both populations are enhanced by the same energized magnetic flux tubes convecting toward the planet. The travel time between two locations (aurora source region and IPT) was estimated from Hisaki observations to be approximately 11 h given the dynamic pressure of the SW is low (less than 0.1 nPa) and that the IPT radiation power remained stable at ~400 GW in the spectral range of 65–78 nm (Yoshikawa et al. 2016).

Fig. 1
figure 1

Schematic view of the Jovian magnetosphere. The magnetosphere is the cavity in the solar wind (SW) created by the Jovian magnetic field and is stretched antisunward. The aurora is manifested by increasing energetic (energy of 100–300 keV) electron precipitation along the magnetic field line to Jupiter’s polar atmosphere from the middle/outer magnetosphere (time = t 1). Inward transport of hot electrons (energy of 10–100 s of electron volts, presumed to come from the middle magnetosphere together with energetic electrons) to the inner part of the magnetosphere causes torus brightening (time = t 2). An issue addressed for years is the energy source that sustains the intense radiation of the IPT. The hot electron transport from the distant region is one candidate. If the position of high-energy electron emergence in the middle/outer magnetosphere does not greatly change, the travel time (t 2 − t 1) represents the average inward velocity between the two regions

The geological conditions changed in the beginning of 2015. The Keck and Gemini N ground-based telescopes imaged Io over hundred nights in 2015. De Kleer and de Pater (2016a, b) conducted near-infrared (NIR) observations with adaptive optics to resolve the emission from individual volcanic hot spots. On January 26, 2015, they detected an unusual eruption up to 68 GW µm−1 sr−1 classified as a “mini-outburst”, at Kurdalagon Patera (48.8°N, 221.3°W), although the NIR brightness was below the detection limit (lower than a few GW µm−1 sr−1) on January 16. On March 27, the NIR radiation level dropped to ~10 GW µm−1 sr−1. No measurement was reported between January 26 and March 27, 2015 (see Fig. 8 in de Kleer and de Pater 2016a). The time evolution, that is, sudden appearance of emission, rapid decay, and high peak brightness, resembled that of the “mini-outburst”, but the peak brightness was a factor of ~5 lower. This 2-month outburst was expected to release substantial ejecta to the IPT; the density and composition of the IPT might change accordingly.

Continuous observations by Hisaki covering this whole period are unique and facilitate the study of the dynamics in the Jovian magnetosphere under active Io conditions. It is expected that volcanic ejecta filled the magnetic flux in the vicinity of Io after the volcanic gases arrived, the brightness of the IPT increased, and the outward transport of magnetic fluxes was enhanced due to the increase of centrifugal force acting on the heavy flux tubes. The corresponding inward convection of flux tubes must have been elevated to maintain flux conservation. This enhanced inflow could be realized by: (1) increased inward velocity of field lines, (2) increased frequency of inward transport events, (3) increased size of inward flux events, or (4) the combination of these characteristics.

Here, we present remote sensing observations of the Jovian aurorae and the IPT by Hisaki during the active period of the Kurdalagon volcano. The pairwise brightening events that were detected during the active period enabled us to study the mid-magnetosphere/IPT connection under different conditions. The aim is to determine whether the enhanced transport of magnetic flux of the IPT, outward and inward, affects mid-magnetospheric dynamics.


The data were provided by EXCEED onboard the Earth-orbiting satellite Hisaki, which has produced quasi-continuous extreme ultraviolet (EUV) spectral images of solar planetary exospheres since its launch in 2013 (Yoshioka et al. 2014; Masunaga et al. 2015). The EXCEED/Hisaki observes a preselected target that satisfies the criterion that its elongation angle from the Sun exceeds 90° for outer planets or 25° for Venus and Mercury. In this study, we analyzed the dataset collected between November 27, 2014, and May 14, 2015 (total of 168 days, observation coverage time of ~50%). The observation of Jupiter began when the elongation angle of the planet was 102° on November 27 (it reached opposition on February 6) and continued until the elongation angle reached 82° on May 14.

Figure 2a shows a typical EUV spectrum. A unique, narrow entrance slit in the center and broad widths on the sides, resembling a dumbbell shape, have been used since December 18, 2013 (except for some periods of high-resolution observations; Yoshioka et al. submitted). Quasi-continuous observations of the IPT simultaneous with Jovian aurorae in the EUV spectral range (52–148 nm) were initiated. The central part of the slit was placed in the northern part of Jupiter; the sides were placed in the IPT position to enable simultaneous monitoring of IPT and aurora by Hisaki.

Fig. 2
figure 2

a A typical EUV spectrum (53–147 nm) measured by the Hisaki spacecraft before the volcanic eruption. The spectrograph mixes spatial and spectral information on the X-axis, whereas the spatial information on the equatorial plane is represented on the Y-axis. Three types of origins are observed: Jupiter’s aurora, IPT, and geocorona. b The slit shape of Hisaki and its position relative to Jupiter. The uniquely shaped slit is superimposed on the real, visible image of Jupiter taken by the Field-of-View guidance camera on Hisaki. The white arc represents the Io orbit at 6 R J. The two green lines are Jovian magnetic field lines that reach the Io orbit

The spectra show the emission features of three sources, Jupiter’s aurora, IPT, and geocorona. The aurora is observed on the disk of Jupiter and from 90 to 145 nm in the spectral range covering parts of the H2 Lyman (B-X) and Werner band (C-X) emissions. The IPT is observed on both sides of Jupiter. Terrestrial emissions, called geocorona, are identified as slit-shaped illuminations at well-established wavelengths such as 121.6 nm (Lyman-alpha), 83.4 nm (ionic oxygen), and 58.4 nm (helium). The temporal resolution of the data is 1 min. Every orbital period of the spacecraft (104 min) was continuously monitored for 40 min (Yoshikawa et al. 2014). The apparent position of the slit relative to Jupiter is presented in Fig. 2b. This position is monitored by an onboard Field-of-View guiding camera, and possible slippage is corrected by an onboard attitude control system; therefore, continuous monitoring of the two key targets within 5 arcseconds is ensured (Yamazaki et al. 2014).

Io environment during this period

As stated previously, the geological conditions on Io started to change in the beginning of 2015. Ground-based observations in the NIR spectral range indicated an unusual eruption of Kurdalagon Patera, classified as a “mini-outburst”, on January 26, 2015. Because of sparse of observations, the exact start date of the eruption is unknown. Based on the information that the NIR brightness was below the detection limit on January 16, increased to 68 GW µm−1 sr−1 on January 26, and dropped to ~10 GW µm−1 sr−1 on March 27 (see Fig. 8 in de Kleer and de Pater 2016a), the eruption might have started between January 16 and 26.

The SW affects the environment of the IPT and the Jovian magnetosphere. Murakami et al. (2016) investigated the contribution of the dynamic SW pressure to the IPT environment. They detected occasions when the dusk/dawn brightness ratio of the IPT was enhanced in response to rapid increase of the dynamic SW pressure. These observations indicated that the dawn-to-dusk electric field over the inner magnetosphere is enhanced under compressed SW conditions. To remove the effect of the SW on the IPT, the SW conditions around Jupiter that correspond to Hisaki’s observation period must be determined. Because of the lack of SW measurements in the vicinity of Jupiter, we extrapolated the SW data measured on Earth using the simulation of the magnetohydrodynamic propagation (Fig. 3e). The uncertainty of the arrival time of SW at Jupiter is expected to be ≤24 h at the elongation angle of the observation conditions (Tao et al. 2005).

Fig. 3
figure 3

a Long-term variation of the radiation power of the IPT in the shorter spectral range (65–78 nm) versus day-of-year (DOY) in 2015. The brightness on dawn and dusk sides was averaged. b Time series of each emission brightness from singly (S II), doubly (S III), and triply (S IV) ionized sulfurs and oxygen ions (OII/OIII). The timing of the rise seen for singly ionized sulfur is the earliest, 5 days earlier than the volcanic eruption identified from ground-based observations in the infrared region (de Kleer and de Pater 2016b). The triangles mark the times of the brightenings correlated with the internally driven aurorae. After DOY 40, the brightenings are clear in this plot. c Aurora light curve with spectral binning (90–147 nm) applied. The circles indicate the times when the internally driven transient events of aurorae started. After DOY 40, transient events occurred more frequently and became brighter. d The same as (c) but with an enlarged scale to clearly show small transient events before DOY 40. e Simulated dynamic solar wind (SW) pressure. We extrapolated SW data measured on Earth to Jupiter with a simulation of the magnetohydrodynamic (MHD) propagation. The SW with high dynamic pressure is expected to arrive at Jupiter (e.g., DOY 10, 11, 47, 66 and 74). The red line indicates our criteria for defining quiet SW conditions for Jupiter. Note that the marks in (b)–(d) point to the period with a dynamic SW pressure below 0.1 nPa

The SW conditions from November 2014 to March 2015 were less quiet than that in a previous study (Yoshikawa et al. 2016). The dynamic SW pressure increased suddenly on day-of-year (DOY) −10, 11, 47, 66, and 74 in 2015. Discontinuous increase of the dynamic SW pressure, which is typical for forward shocks, might influence the IPT environment.

What did Hisaki observe during this period?

Figure 3a–d shows the long-term light curves of the IPT and aurorae observed by Hisaki. The curve in Fig. 3a presents the IPT radiation power based on binning over a shorter EUV range (65–78 nm) and shows that the intensity started to increase near DOY 21 and had doubled (~750 GW) by DOY 70. The IPT emission at 83.4 nm (ionic oxygen) is important for studying the composition of the IPT. The contamination due to the geocorona was relatively low during midnight observations by Hisaki. However, we excluded this emission from the spectral binning to increase the signal-to-noise ratio. Figure 3b presents each emission light curve; it shows that singly ionized sulfur emission (S II) was the first to become brighter (at ~DOY 21) and that the enhancement of doubly ionized (S III) emission followed (at ~DOY 24). The radiation power of S II and S III emissions increased at approximately the same rate, 2.1 and 2.2 GW day−1, respectively, whereas the rise of S III was delayed by 3 days. Sharp IPT brightenings (short timescale brightenings) were apparent for S II and S III, especially after DOY 40.

Figure 3c presents an aurora light curve with spectral binning applied over the range of 90–147 nm (apparent variation was removed). The observed aurora light curve varies depending on the rotation of Jupiter, with a ~10-degree tilt between the dipole and spin axes. Therefore, we determined the best-fitted sinusoidal curve with 10-h periodicity (Jovian System-III rotation period) and removed it from the observed light curve. The residual intensity is shown in Fig. 3c. This result shows that aurora transient events were very clear after DOY 40. Figure 3d displays the same data as Fig. 3c but with an enlarged scale to illustrate the transient aurora events that occurred before DOY 40. Figure 3e presents the simulated dynamic SW pressure at Jupiter, as cited previously. It is clear that the variation of the dynamic SW pressure neither correlated with nor triggered the gradual increase of the IPT radiation; however, it induced short-term brightenings of aurorae and the IPT, for example, on DOY 10, 11, 47, 66, and 74.

Despite of the sparse observations in the NIR range, the Kurdalagon eruption must have occurred between DOY 16 and 26. The gradual increase of the IPT radiation power detected by Hisaki beginning on DOY 21 is consistent with the eruption date implied by NIR observations.

Based on the available information and simulation, we conclude that the eruption of Kurdalagon Patera very likely contributed to the gradual enhancement and subsequent variation of the IPT radiation power observed by Hisaki.

The time lag between the material eruption from Io and the time when it ionized and joined the IPT should be considered; however, presently, it can be only concluded that this lag was shorter than 5 days.

Data analysis

Figure 4a–c presents examples of EUV spectra in the shorter spectral range, showing S II (64.2 nm), S IV (65.7 nm) S III (68.0 nm), S III (70.3 nm), S III (72.9 nm), S IV (75.0 nm), and S II (76.5 nm). These spectra were obtained on DOY 10 (before the eruption, quiet phase), DOY 40 (rising phase of the eruption), and DOY 70 (at peak radiation). These DOYs are marked by lines in Fig. 3b.

Fig. 4
figure 4

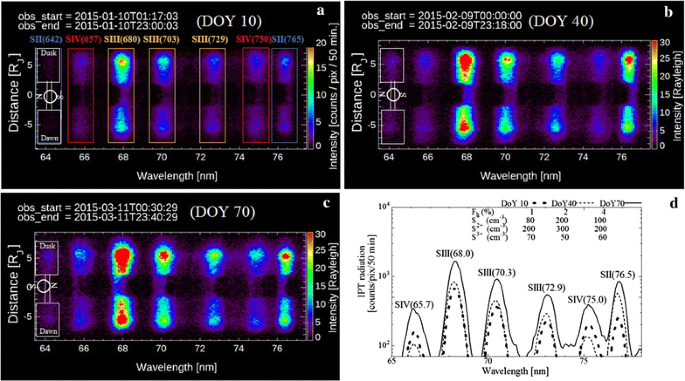

a Spectrum in the short EUV range (65–78 nm) obtained on day-of-year (DOY) 10 in 2015 (before the eruption). Emissions from ionized sulfur occurred at S II (64.2 nm), S IV (65.7 nm), S III (68.0 nm), S III (70.3 nm), S III (72. 9 nm), S IV (75.0 nm), and S II (76.5 nm). The slit shape and directions (dawn–dusk and north–south) are displayed. b Spectrum on DOY 40 (rising phase of the eruption). c Spectrum on DOY 70 (peak of the eruption). Note that the north–south direction was overturned because of the maneuvering of the spacecraft. d Spectra in the shorter spectral range on DOY 10, 40, and 70. By applying spectral diagnosis, the hot electron fraction (F h) and sulfur ion densities were deduced (numbers in the figure). The hot electron fraction gradually increased between DOY 10 and 70, although the densities of S+ and S2+ decreased on DOY 70

Figure 4d shows the spectra after the spatial binning on both ansae. It is apparent that the brightness increased over time at most wavelengths, although there are exceptions such as S II (65.7 nm) and S IV (75.0 nm). The nonuniform evolution of spectral features indicates changes of the ionic composition and hot electron fraction in the IPT.

A spectral diagnosis method can be adapted to deduce the column densities of the ionic components. The basis of this method was introduced in detail by Shemansky (1980) and Steffl et al. (2004); it has been used for our Hisaki data analysis (Yoshioka et al. 2014; Tsuchiya et al. 2015). We applied the spectral diagnosis method to the spectra obtained on DOY 10, 40, and 70; the plasma densities of ions and two electron energies (<10 eV, cold; ~100 eV, hot) were used as parameters. Energetic electrons, responsible for aurora brightenings, are insensitive to spectral diagnosis in the EUV range and therefore were not included in this study. The calculation scheme and related assumptions were previously described in Yoshioka et al. (2011); however, in this study, the latest atomic database (CHIANTI Version 7.1.3) was employed. The deduced parameters, ion densities and hot electron fractions (F h), are displayed in Fig. 4d. Here, we assumed constant densities along the line-of-sight, which intersects with the torus (length: ~9 R J).

Next, we examined the time lag between the IPT and internally driven aurora brightenings using the same methods and criteria that were previously employed (Yoshikawa et al. 2016). To remove the influence of SW variation and to examine the influence of volcanic activity alone on the IPT, we excluded the dataset obtained when the dynamic SW pressure was higher than 0.1 nPa, as studied by Kimura et al. (2015) and Yoshikawa et al. (2016).

Figure 5 shows enlarged plots of Fig. 3a, d, e to focus on the event that occurred on DOY 59 when the aurora and IPT were brightened and correlated. The brightening durations of the IPT and aurora were not longer than 10 h. The nature of the IPT response to the aurora was reported in Yoshikawa et al. (2016) who analyzed a dataset recorded under quiet SW conditions and volcanic activity on Io.

Fig. 5
figure 5

a Aurora and IPT brightenings on day-of-year (DOY) 59. The periodic System-III variation (period: 10 h) has been removed from the original aurora light curve. The vertical lines indicate the start times of the brightenings. The error bars for the time are also presented. b Prediction of the dynamic SW pressure

The dataset of the previous Jupiter observation campaign from December 2013 to January 2014 includes short-term (not longer than one Jovian planetary rotation) aurora intensifications under quiet SW conditions (Kimura et al. 2015; Badman et al. 2016). These short-duration events were regarded as internally driven compared with intensifications lasting for more than 2 days under high SW pressure conditions, which were defined as externally driven (Kimura et al. 2015).

We defined the transient aurora event on DOY 59 as internally driven based on the same criteria for data selection used in previous studies: (1) the dynamic SW pressure was lower than 0.1 nPa 24 h before and after transient events were observed and (2) the transient aurora lasted less than one planetary rotation (10 h). Here, we defined the beginning of the upward deviation as the brightening time, as indicated by a vertical line in Fig. 5. The error bars are also indicated.

On DOY 59, the IPT brightening lagged ~13 h behind the auroral brightening. In the same manner as described for DOY 59, we identified 21 brightening pairs, that is, 21 major elevated features of the IPT light curve accompanied precursory transient enhancements of aurorae. Figure 6b shows the time lag measured during the volcanically active period, whereas Fig. 6a represents the quiet period of the volcano in 2014 (Yoshikawa et al. 2016).

Fig. 6
figure 6

a Time lags between brightenings of aurorae and those of the IPT. For volcanically quiet conditions in 2014, nine events were selected during which the IPT enhancements and internally driven aurora transients correlate. b Time lags under volcanically active conditions in 2015. With the same criteria applied as that used in the 2014 analysis, we detected 21 events as pairs of brightenings


The ionic composition of the IPT changed during Io’s volcanically active period. In the beginning phase of the eruption (DOY 10–40), the density of singly and doubly ionized sulfur increased (S+: 80–200 cm−3, S2+: 200–300 cm−3; see numbers in Fig. 4), whereas the density of S3+ decreased by a factor of 2. This relationship can be ascribed to a scenario in which (1) the volcanic eruption provided ejecta to the IPT; and (2) the electron impact increased the density of S+ (and later S2+), but the increase of neutrals was accompanied by a decrease in the density of S3+ (70–50 cm−3) because of charge exchange. On DOY 36 (roughly 15 days after the increase of S II), the density of S3+ began to increase because of electron impact with abundant S2+. The ultraviolet spectrometer on the Cassini spacecraft detected ionic compositional change during the decay phase of volcanic activity (Steffl et al. 2004), which is similar to the evolution observed by Hisaki after DOY 70, although the rising phase of total brightness was not captured. Our results are the first to show temporal variations of the ionic compositions in the initial phase of volcanic activity on Io.

The hot electron fraction, deduced from three spectra on DOY 10, 40, and 70, gradually increased. Dramatically large brightenings occurred between DOY 40 and 70. The spectral diagnosis indicated an increase in the hot electron fraction with each event (e.g., on DOY 59, the fraction increased from 2.4 to 3.0%); however, the fraction returned to pre-brightening power within a day, as observed for the total radiation power of the IPT. The average hot electron fraction increased gradually and independently of the brightening pair (Hikida et al. in preparation).

The sizes of the error bars in Fig. 6 are mainly attributed to the discontinuity of Hisaki observations because Hisaki cannot observe Jupiter during daytime. Under different volcanic conditions, the measured time lags (11 h) are slightly longer than the period of Jovian magnetospheric rotation. During Kurdalagon’s volcanically active period, the average time lag increased by half an hour and the greatest amount of scatter in the data points was obtained. These findings suggest that the inward velocity of the magnetic field lines with hot electrons might not increase significantly (<5%).

The frequency of the IPT brightening events triggered by internally driven aurorae did not increase after the eruption (Fig. 3). Except for the periods of increased dynamic SW pressure, the frequency of the brightening pairs remained unchanged (the average cycle of appearance is approximately 5 days). However, the brightening pairs were more intense than those before the eruption. Before the eruption, the upward deviation of the IPT was 20–30 GW per event, whereas it was roughly 100 GW after the eruption (Fig. 3a, b). The outbreak of intense brightening pairs is considered not only the result of increased ionic density but also increased hot electron fraction (Note that the ionic density had doubled at its maximum, as shown in Fig. 4d). In summary, the dense magnetospheric conditions increased the intensity of brightening pairs; these dense conditions might have induced inward transportation accompanied by more hot electrons in the mid-magnetosphere.

During active SW periods (dynamic pressure >0.1 nPa), the brightening pair showed a unique behavior. Figure 7 shows examples for DOYs 66 and 87. Both DOYs are indicated by red marks in Fig. 3b–d. In both cases, the quiescent intervals of SW lasted for days immediately preceding the aurora brightenings. An unprecedented aurora intensification, exceeding 400 GW, occurred on DOY 66 (Fig. 7a) and the most intense transient, approaching 800 GW, took place on DOY 87 (Fig. 7c). These events were enhanced due to the long quiescent intervals of SW (Kita et al. 2016) and increase of ion and hot electron densities during high volcanic activity. Figure 7b is the prediction of the dynamic SW pressure, showing that the quiescent interval of SW lasted for at least 2 days (it lasted for 10 days, not shown in the figure) before the discontinuous increase of the dynamic SW pressure. Note that the uncertainty of the arrival time should be considered, as stated previously. The aurora and IPT seemed to have brightened at the same time. The late brightening, which might be identical to the one during the quiet period of SW, occurred 14.4 h later. Based on the spectral diagnosis, a temporal increase of the hot electron fraction from 2 to 4% was expected on DOY 66; the fraction then decreased to the pre-brightening level within 1–2 days. Figure 7c, d shows a similar event on DOY 87 during which two IPT brightenings occurred and correlated with one auroral transient. The quiescent interval before the aurora brightening was 7 days (not shown in the figure). The late brightening lagged 14.6 h behind the aurora enhancement, accompanied by the temporal hot electron increase from 5 to 7% (Hikida et al. in preparation).

Fig. 7
figure 7

a, c Aurora and IPT brightenings on DOY 66 and 87, respectively. The format is the same as that in Fig. 5. b, d Predictions of the dynamic SW pressure

The time difference between the simultaneous brightening of the IPT and aurora transient was not measureable due to the poor time resolution in this study. The correlation between the simultaneous brightening of IPT and the aurora can be explained by faster inward velocity from distant regions. If we assume that hot electrons travelled from the middle magnetosphere (20 R J) and the apparent simultaneous brightening of IPT was delayed by 1 h (comparable with the time resolution in this study), the inward velocity would have been 300 km s−1. However, given the small number of clear events, it is difficult to draw definitive conclusions about the simultaneous brightening of IPT during the active period of SW. Furthermore, in most cases, it is difficult to determine the brightening timing with the present method because the rising time of the late brightening is unknown. We selected a few clear brightening pairs (as shown in Fig. 7); the time lag ranged from 10 to 15 h. Further investigation is necessary after revision of the present method. Superposed epoch analysis might be effective.

Kita et al. (2016) reported positive correlation between the auroral power and duration of the quiescent interval of SW during the period of DOY −10 to DOY 50. After DOY 50, two cases on DOY 66 and 87 are predicted with quiescent intervals longer than 5 days. The intervals induced the largest brightening of IPT and aurora.

Based on the small number of events during active SW, we note that (1) the brightenings were intense after long quiescent intervals, (2) the transient IPT light curve had two peaks in some cases, where the former was simultaneous with the aurora and the latter lagged roughly 10–15 h behind.

Remote sensing methods are used to measure the column density along the line-of-sight and the volume-filling factor of the inward flux tubes is low; therefore, even if out-reaching Io-genic structures peeled off outwards from the IPT (Yang et al. 1994), they were invisible in the spectrum. This is a methodological limit of the remote sensing technique.

Measurements of the radial distance of 10–13 R J using a plasma particle detector on the Galileo spacecraft indicated hot plasma injection for more than 6 h (Mauk et al. 2002). This timescale is roughly equivalent to that of the IPT brightenings observed by Hisaki (Fig. 5). However, the plasma densities at 10–13 R J are too low for Hisaki to detect any emissions from this region. In terms of the timescale, it can be noted that the short-term IPT brightenings might have hot electrons of the same origin as the plasma injection discovered by the Galileo spacecraft.


The geological change on Io associated with the Kurdalagon Patera eruption in the beginning of 2015 most likely changed the environment on the IPT. This dramatic environmental change provides us with a unique opportunity to determine the characteristics of the more heavily loaded magnetosphere using the Hisaki spacecraft. It should take some time for volcanic ejecta to be ionized, fill magnetic flux tubes, and increase the power of radiation from the IPT; however, this time lag was not measured. It must have been shorter than 5 days. During the initial phase of the event, the emission of S+ brightened first; S2+ followed after a 3 days delay. The density and emission of S3+ decreased because of loss due to the charge exchange with abundant neutrals. The following composition evolution observed by Hisaki, based on which S3+ emissions became brighter and those of S+ and S2+ dimmer, was similar to that observed by Cassini.

With respect to the magnetospheric reaction to the environment change of plasma density, we have found that (1) the hot electron fraction, which is responsible for the radiation power in the shorter EUV range, gradually increased in the IPT with an independent outburst of the brightening pair; (2) the responses of IPT brightenings to internally driven aurorae, which presumably result from the inward transfer of high-energy electrons from the distant region, were delayed by roughly 11 h and this time lag does not seem to change in comparison with that during volcanic inactivity; (3) the outburst frequency of brightenings did not increase; (4) the amount of hot electrons in the IPT temporally increased after the auroral transient. The brightening pairs were more intense. The intensified aurora is evidence showing that the inner region of the magnetosphere influences the distant regions and that the two distant regions are connected; and (5) even the energy supplied by the largest event maintained the enhanced torus emission for less than a day only. The apparently large energy input, which was triggered by the aurora intensifications, did not contribute to the average radiation power in the IPT. It contributed to temporally fuel the IPT. Therefore, small-scale transfer, which was invisible in the spectrum, might be present and supply the energy to the IPT.





extreme ultraviolet


extreme ultraviolet spectroscope for exospheric dynamics


Io plasma torus




near-infrared spectral region


solar wind
