Five parameters for the evaluation of the soil nonlinearity during the Ms8.0 Wenchuan Earthquake using the HVSR method

Earth, Planets and Space201769:116

https://doi.org/10.1186/s40623-017-0702-7

  • Received: 27 February 2017
  • Accepted: 8 August 2017
  • Published:

Abstract

The consideration of soil nonlinearity is important for the accurate estimation of the site response. To evaluate the soil nonlinearity during the 2008 Ms8.0 Wenchuan Earthquake, 33 strong-motion records obtained from the main shock and 890 records from 157 aftershocks were collected for this study. The horizontal-to-vertical spectral ratio (HVSR) method was used to calculate five parameters: the ratio of predominant frequency (RFp), degree of nonlinearity (DNL), absolute degree of nonlinearity (ADNL), frequency of nonlinearity (fNL), and percentage of nonlinearity (PNL). The purpose of this study was to evaluate the soil nonlinearity level of 33 strong-motion stations and to investigate the characteristics, performance, and effective usage of these five parameters. Their correlations with the peak ground acceleration (PGA), peak ground velocity (PGV), average uppermost 30-m shear-wave velocity (V S30), and maximum amplitude of HVSR (A max) were investigated. The results showed that all five parameters correlate well with PGA and PGV. The DNL, ADNL, and PNL also show a good correlation with A max, which means that the degree of soil nonlinearity not only depends on the ground-motion amplitude (e.g., PGA and PGV) but also on the site condition. The fNL correlates with PGA and PGV but shows no correlation with either A max or V S30, implying that the frequency width affected by the soil nonlinearity predominantly depends on the ground-motion amplitude rather than the site condition. At 16 of the 33 stations analyzed in this study, the site response showed evident (i.e., strong and medium) nonlinearity during the main shock of the Wenchuan Earthquake, where the ground-motion level was almost beyond the threshold of PGA > 200 cm/s2 or PGV > 15 cm/s. The site response showed weak and no nonlinearity at the other 14 and 3 stations. These results also confirm that RFp, DNL, ADNL, and PNL are effective in identifying the soil nonlinearity behavior. The identification results vary for different parameters because each parameter has individual features. The performance of the PNL was better than that of DNL and ADNL in this case study. The thresholds of ADNL and PNL are proposed to be 2.0 and 7%, respectively.
Graphical Abstract image
Graphical Abstract

.

Keywords

  • Wenchuan Earthquake
  • Soil nonlinearity
  • Site response
  • HVSR method
  • DNL
  • PGA
  • PGV
  • V S30

Introduction

It is well known that seismic waves can be amplified by surface soil layers that have a strong impedance contrast with deep bedrock. This is often called site response (or soil amplification) and can exacerbate earthquake damage such as in the 1985 Mexico Earthquake (Celebi et al. 1987) and 1989 Loma Prieta Earthquake in the USA (Borcherdt and Glassmoyer 1992). It is therefore important to the earthquake engineering community to be able to accurately evaluate the site response. However, there has been a long-standing debate between geotechnical engineers and seismologists over whether site response is linearly or nonlinearly associated with ground-motion amplitude (Field et al. 1997; Beresnev and Wen 1996).

Real strong-motion records of the 1994 Northridge Earthquake in the USA were cited as direct evidence of nonlinear site response (e.g., Trifunac and Todorovska 1996; Beresnev et al. 1998; Hartzell 1998). When the ground motion exceeds a certain threshold, site response changes occur, reflecting a shift of the resonant frequencies toward lower values and a reduction in the associated amplification. Further evidence has been observed for many subsequent strong earthquake events such as the 1995 Kobe Earthquake in Japan (Aguirre and Irikura 1997; Pavlenko and Irikura 2002), 1999 Chi-chi Earthquake in Taiwan (Pavlenko and Loh 2005; Pavlenko and Wen 2008), 2011 Christchurch Earthquake in New Zealand (Wen et al. 2011), and 2011 Tohoku Earthquake in Japan (Bonilla et al. 2011).

Many methods were proposed in previous studies to identify the nonlinearity of the site response such as the transfer function method (Wen 1994) and horizontal-to-vertical spectral ratio (HVSR) method. Because of its simplicity and ease of operation, the HVSR method has been used successfully in evaluating the nonlinear site response of several typical earthquakes, such as the 1994 Northridge Earthquake (Dimitriu 2002) and 2010 Darfield Earthquake sequence in New Zealand (Wen et al. 2011), and some observational networks such as the Kyoshin network (K-net) and Kiban Kyoshin network (KiK-net; Régnier et al. 2013, 2016).

The HVSR method has also been used to evaluate the nonlinearity of the site response of the 2008 Ms8.0 Wenchuan Earthquake. For example, using the HVSR method together with the short-term Fourier transform, Xu (2010) identified clear soil nonlinearity for sites that recorded peak ground acceleration (PGA) >200 cm/s2. It was found that these sites were located in areas where soil liquefaction was observed. Rong et al. (2016) used the HVSR method to investigate the nonlinear site response at 21 strong-motion stations. They found that the predominant frequency decreased with increasing ground-motion level, but they did not observe a decrease in the amplitude of the soil amplification because of limited data. However, these studies did not systematically investigate the features of some parameters that could be used to quantitatively evaluate the level of soil nonlinearity such as the degree of nonlinearity (DNL). This parameter was defined by Noguchi and Sasatani (2008) and has been used in many case studies such as for the identification of the soil nonlinearity of strong-motion sites at the ocean bottom (Dhakal et al. 2017).

The objective of this study was to evaluate the level of soil nonlinearity of 33 strong-motion stations using five parameters and to identify the PGA and peak ground velocity (PGV) thresholds beyond which the site response evidently behaved nonlinearly during the Wenchuan main shock. These parameters include DNL, frequency of nonlinearity (fNL), and percentage of nonlinearity (PNL), defined by Régnier et al. (2013), and the ratio of the predominant frequency (RFp) and absolute degree of nonlinearity (ADNL), as defined in this study.

The second objective of this study was to investigate the characteristics, performance, and effective usage of these five parameters to evaluate the nonlinear behavior of the site response. The correlations between these five parameters and PGA, PGV, average uppermost 30-m shear-wave velocity (V S30), and maximum amplitude of HVSR (A max) were investigated to analyze the effect of the site condition and ground-motion amplitude on the degree and frequency width of the soil nonlinearity.

Dataset and data processing

More than 400 strong-motion records were collected during the main shock of the 2008 Ms8.0 Wenchuan Earthquake (Li et al. 2008), and more than 2000 records were acquired from 383 aftershocks (Li 2009). Several large PGAs were recorded, for example, 957.3 cm/s2 at station 51WCW, −824.6 cm/s2 at station 51MZQ, and −585.7 cm/s2 at station 51SFB. A large ground-motion amplitude might trigger the change of the site response from the linear to nonlinear stage.

The HVSRs, representative of soil amplification, were calculated using the strong-motion records obtained from the main shock (i.e., strong motion) and aftershocks (i.e., weak motion), separately. Here, strong motion is defined as record with PGA > 100 cm/s2, observed in any one of the components during the main shock of the Wenchuan Earthquake. Consequently, 33 strong-motion stations were selected; their locations are shown in Fig. 1. To provide reliable estimates of PGA and PGV, a baseline correction was made to these 33 records using the method proposed by Boore (2010). The station code, PGA, PGV, and V S30 (proxy for the site condition) of each station are listed in Table 1.
Fig. 1
Fig. 1

Locations of strong-motion stations and earthquake epicenters selected in this study. The gray line is the path between the source and site. The source parameters were obtained from a catalogue database of the China Earthquake Networks Center (http://www.csndmc.ac.cn/)

Table 1

Site conditions of the 33 strong-motion stations and the recorded PGA and PGV values during the Ms8.0 Wenchuan Earthquake and parameters identified for the evaluation of the soil nonlinearity

No.

Station codeb

Record number

V S30 a (m/s)

A max

PGA (cm/s2)

PGV (cm/s)

F p (Hz)

fNL (Hz)

DNL

ADNL

PNL (%)

Nonlinearity level

EW

NS

Mean

EW

NS

Mean

Weak

Strong

RFp

1

51AXT

8

376.1

4.95

−289.4

203.4

242.6

29.0

−31.3

30.1

3.91

2.98

1.31

7.96

4.98

0.21

6.78

Medium

2

51CXQ

5

542.0

4.32

−184.8

−166.9

175.7

−22.9

14.2

18.0

3.96

3.56

1.11

10.21

2.48

0.08

1.87

Weak

3

51GYS

10

388.2

11.01

320.4

274.0

296.3

−20.5

23.7

22.0

8.25

4.79

1.72

6.69

5.38

0.37

24.13

Strong

4

51GYZ

6

366.5

6.50

424.4

−410.6

417.5

27.5

−42.0

34.0

4.20

2.15

1.95

2.83

4.07

0.37

26.81

Strong

5

51HSD

31

366.6

5.14

−102.5

89.8

95.9

6.2

5.3

5.7

12.21

11.08

1.10

11.52

2.77

0.09

5.82

Weak

6

51HSL

33

351.3

3.31

−107.6

−142.6

123.9

7.4

9.4

8.3

3.56

3.61

0.99

11.57

2.73

0.08

3.15

Weak

7

51JYC

60

430.5

9.45

298.0

282.9

290.3

22.4

−34.2

27.7

7.28

5.42

1.34

2.88

10.55

0.75

30.52

Strong

8

51JYD

37

475.6

11.64

−510.1

456.8

482.7

27.3

34.4

30.6

8.01

3.71

2.16

6.64

6.52

0.41

20.79

Strong

9

51JYH

33

322.8

5.58

−512.9

−347.7

422.3

20.6

−30.0

24.8

12.89

7.67

1.68

8.30

5.93

0.27

12.06

Strong

10

51JZB

13

354.3

3.90

−96.4

104.6

100.4

−4.7

−4.1

4.4

2.93

2.83

1.03

12.55

2.90

0.13

7.50

Medium

11

51JZG

34

325.6

3.19

−169.8

241.4

202.5

−10.9

8.6

9.7

5.18

4.83

1.07

8.01

2.64

0.09

2.87

Weak

12

51JZW

40

457.3

4.88

−128.1

173.6

149.2

−9.8

10.0

9.9

4.44

3.42

1.30

8.20

4.13

0.17

8.88

Medium

13

51JZY

31

340.6

3.80

−91.7

100.0

95.8

−7.8

−7.3

7.5

6.74

6.25

1.08

6.49

2.49

0.07

2.27

Weak

14

51LDD

5

378.0

6.96

109.3

−111.8

110.5

6.2

−7.6

6.9

1.86

1.61

1.15

9.33

3.02

0.17

3.41

Weak

15

51LDL

11

348.6

6.84

−109.3

−120.5

114.7

4.9

6.4

5.6

2.34

2.44

0.96

8.69

3.16

0.16

5.52

Weak

16

51LXM

73

325.5

8.76

320.9

−283.8

301.8

22.4

19.0

20.6

2.73

2.44

1.12

7.23

3.14

0.13

6.64

Weak

17

51LXS

43

340.9

3.20

221.3

261.7

240.7

9.1

8.8

8.9

3.81

3.66

1.04

11.77

3.33

0.16

6.38

Weak

18

51LXT

70

350.8

2.27

339.6

342.2

340.9

19.1

13.0

15.7

7.18

6.69

1.07

6.10

4.42

0.17

5.20

Medium

19

51MXT

13

584.6

2.08

−306.6

302.2

304.4

27.7

−20.4

23.7

2.07

0.07

4.09

None

20

51MXD

87

299.4

4.26

246.6

−206.1

225.5

−17.5

−33.4

24.2

0.98

0.98

1.00

5.08

2.61

0.12

3.24

Weak

21

51MXN

65

430.0

3.53

−421.1

349.2

383.5

33.3

26.9

29.9

1.61

1.51

1.06

5.81

3.86

0.18

7.76

Medium

22

51MZQ

3

551.3

3.52

−824.6

803.3

813.9

−136.3

66.3

95.0

4.59

3.76

1.22

3.96

4.19

0.32

16.96

Medium

23

51PJD

9

389.5

8.24

−195.8

−190.3

193.0

19.6

−15.5

17.4

2.78

2.69

1.04

11.67

2.78

0.16

4.31

Weak

24

51PJW

11

337.9

5.62

97.7

101.2

99.4

−20.0

10.1

14.2

3.61

3.42

1.06

8.79

3.09

0.15

5.64

Weak

25

51QLY

19

508.5

7.62

−173.7

−199.8

186.3

16.5

8.3

11.7

6.74

6.20

1.09

9.67

3.02

0.13

6.14

Weak

26

51SFB

8

379.3

12.34

558.2

−585.7

571.8

−85.0

79.1

82.0

6.98

2.73

2.55

4.10

9.58

0.99

48.53

Strong

27

51SPA

56

374.4

3.82

−186.6

131.6

156.7

−6.9

−8.0

7.5

6.59

6.01

1.10

10.60

2.30

0.08

2.82

Weak

28

51TQL

8

526.3

7.86

−122.1

116.2

119.1

3.5

−3.4

3.5

8.30

7.67

1.08

7.76

3.13

0.16

10.76

Medium

29

51WCW

9

511.2

7.81

957.3

652.4

790.3

−53.4

45.0

49.1

8.74

2.15

4.07

4.54

10.50

1.01

44.78

Strong

30

51XJD

9

370.2

2.45

−94.9

132.1

112.0

−5.9

−9.9

7.7

5.32

3.66

1.45

1.63

0.05

2.85

Medium

31

62SHW

9

419.0

2.80

−91.4

108.8

99.7

−9.2

6.1

7.5

4.59

5.81

0.79

2.58

0.09

3.79

None

32

62WIX

9

584.6

1.50

−142.6

−141.1

141.9

11.8

9.1

10.4

0.94

0.00

0.22

None

33

62WUD

32

227.8

5.50

−184.8

−163.9

174.1

−16.5

13.5

14.9

1.07

1.12

0.96

4.69

5.00

0.30

8.94

Medium

“–” means that F p and fNL cannot be identified

aThe V S30 data were taken from the NGA-West2 database (http://peer.berkeley.edu/ngawest2/databases/)

bStations 51MXT and 62WIX are located at rock sites, and the other stations are located at alluvial sites based on station construction reports

For weak motions, the records obtained from hundreds of aftershocks were selected based on the following criteria: (1) The geometric mean of PGA of two horizontal components should be >2 and <100 cm/s2. The lower boundary is assigned to avoid noise contamination and the upper boundary value is set to remove data potentially affected by soil nonlinearity. Many studies reported that the threshold of PGA causing nonlinear site response is >100 cm/s2 (e.g., Régnier et al. 2016; Dhakal, et al. 2017); (2) to ensure a relatively low level of scattering of the HVSR results, each station should provide at least three records that match criterion (1).

Overall, 890 records from 157 aftershocks were available for this study. Figure 1 shows the epicenters of these aftershocks and the locations of the corresponding triggered stations. The magnitude–distance and magnitude–PGA distributions of these records are shown in Fig. 2, clearly illustrating that the records have uniform distribution within a range <200 km.
Fig. 2
Fig. 2

Magnitude versus a hypocenter or rupture distance and b PGA of the strong-motion records used in this study. The hypocenter distance is used for aftershocks, and the rupture distance (shortest distance between the station and rupture surface) is used for the main shock, which is calculated according to the fault slip model provided by the USGS. The vertical dashed line is the boundary between strong and weak motions defined in this study

A Butterworth filter with a bandwidth of 0.3–25.0 Hz was applied to each record. The S-wave portion was then detected following the method of Ren et al. (2013). To remove truncation errors, a cosine-type tapered window was used. The Fourier amplitude spectrum (FAS) for each component was calculated. A 0.5-Hz-width Parzen window was then used to smooth the spectrum. Finally, the resultant horizontal FAS H(f) was determined based on the geometric mean using Eq. (1), where H 1(f) and H 2(f) represent the FAS of two orthogonal horizontal components:
$$\ln H(f) = \frac{{\ln H_{1} (f) + \ln H_{2} (f)}}{2}$$
(1)

Site response calculated with the HVSR method

The site responses of the 33 stations in the frequency range of 0.5–20.0 Hz were calculated individually using the HVSR method for strong and weak motions, as shown in Figs. 3 and 4. Multiple HVSR curves produced a geometric mean, which was used to determine the site response under weak motions, while only one curve was available for strong motions. It clearly shows that site response under strong motion is considerably smaller than that under weak motion in the high-frequency band for stations 51GYS, 51GYZ, 51JYC, 51JYD, 51JYH, 51SFB, and 51WCW, and the predominant frequency (F p) significantly shifts from high to low frequency. This implies that strong soil nonlinearity occurred during the main shock at these stations. Although less evident, a similar phenomenon can be observed at stations 51AXT, 51JZW, 51LXS, 51QLY, 51TQL, and 62WUD, implying medium or weak nonlinearity.
Fig. 3
Fig. 3

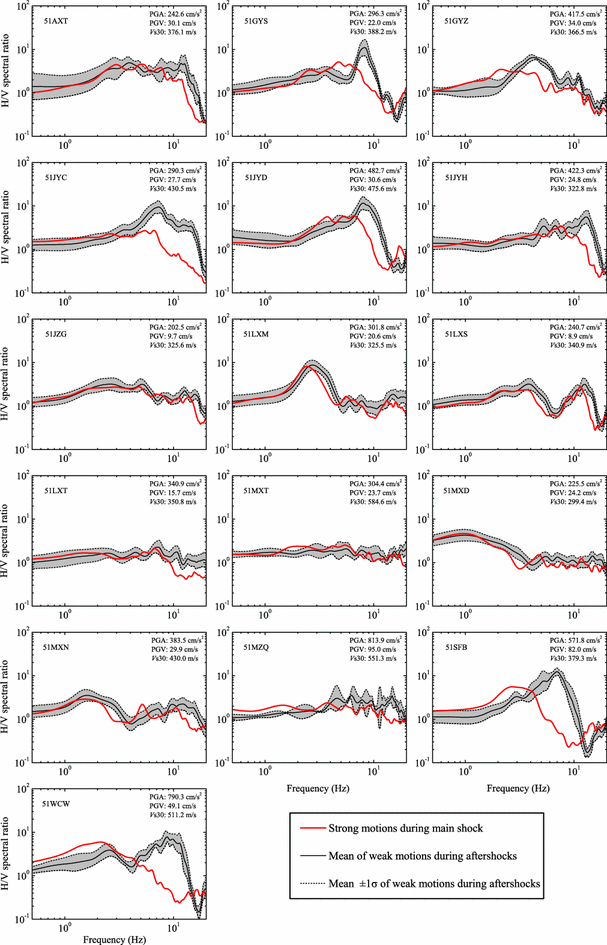

Site responses calculated using the HVSR method for 16 strong-motion stations with PGA > 200 cm/s2 under strong and weak motion during the 2008 Ms8.0 Wenchuan Earthquake sequence. The V S30, PGA, and PGV values recorded during the main shock for each station are presented. The shaded area indicates the range of the mean plus–minus one standard deviation

Fig. 4
Fig. 4

Same as Fig. 3 but for 17 stations with PGA < 200 cm/s2

The values of PGA and PGV, recorded during the main shock, and V S30 for each station are also presented in Figs. 3 and 4. It can be observed that the sites at which a small PGA or PGV was recorded, such as 51HSD, 51HSL, 51LDD, 51LDL, 51XJD, and 62SHW, show weak evidence of soil nonlinearity. Furthermore, there is absolutely no evidence of soil nonlinearity for sites without covering soil such as 51MXT and 62WIX. According to station construction reports, only 51MXT and 62WIX are located at rock sites. The other stations are located at alluvial sites. Therefore, the correlations of the nonlinearity with PGA, PGV, V S30, and A max should be analyzed in detail considering the purpose of this study.

Definition of the five parameters used to evaluate the soil nonlinearity

To investigate the effects of the nonlinear behavior of soils on the site response, Régnier et al. (2013) proposed using two parameters per event and four parameters per site based on various earthquake records from the KiK-net database in Japan. The fNL and PNL were proposed by their study, the DNL was proposed by Noguchi and Sasatani (2008), and RFp and ADNL are proposed in this study.

The parameter DNL is defined as follows:
$${\text{DNL}} = \sum\limits_{{i = N_{1} }}^{{N_{2} }} {|\log \left[ {\frac{{R_{\text{strong}} (i)}}{{R_{\text{weak}} (i)}}} \right]|\left( {f_{i + 1} - f_{i} } \right)},$$
(2)
where R strong(i) and R weak(i) represent the HVSR values at the frequency f i for S-waves during strong (PGA > 100 cm/s2 in this study) and weak motions (PGA < 100 cm/s2 in this study), respectively, and N 1 and N 2 represent the beginning and ending frequencies, usually set as 0.5 and 20.0 Hz. Figure 5a shows an illustration of the calculation of DNL, which actually represents the non-overlapping parts of both areas enclosing the HVSRs for S-waves during strong and weak motions and the horizontal ordinate of the frequency.
Fig. 5
Fig. 5

Illustration of the calculation of a DNL, b ADNL, c PNL, and d fNL based on the example of site 51WCW

It should be noted that the average HVSR for S-waves during weak motion is used when calculating the value of DNL; however, its standard deviation is not included. To consider the effect of the standard deviation, we propose an improved parameter called the absolute degree of nonlinearity (ADNL), which is defined as follows:
$${\text{ADNL}} = \sum\limits_{{i = N_{1} }}^{{N_{2} }} {\Delta (i) \cdot \left[ {\log (f_{i + 1} ) - \log (f_{i} )} \right]}$$
(3)
$$\Delta (i) = \left\{ {\begin{array}{*{20}l} {\log (R_{\text{strong}} (i)) - \log (R_{\text{weak}}^{ + } (i))} \hfill & {R_{\text{strong}} (i) \ge R_{\text{weak}}^{ + } (i)} \hfill \\ {\log (R_{\text{weak}}^{ - } (i)) - \log (R_{\text{strong}} (i))} \hfill & {R_{\text{strong}} (i) \le R_{\text{weak}}^{ - } (i)} \hfill \\ 0 \hfill & {\text{others}} \hfill \\ \end{array} }\right.,$$
(4)
where R weak + (i) and R weak (i) represent the values of the average HVSR plus–minus one standard deviation at the frequency f i for S-waves during weak motion. To balance the contributions from high and low frequencies, the frequency interval was calculated on a logarithmic scale. An illustration of the calculation of ADNL is shown in Fig. 5b based on the example of site 51WCW.
The definition of PNL proposed by Régnier et al. (2013) is as follows:
$${\text{PNL}} = A_{2} /A_{1}$$
(5)
$$A_{1} = \sum\limits_{{i = N_{1} }}^{{N_{2} }} {R_{\text{weak}} (i) \cdot \left[ {\log (f_{i + 1} ) - \log (f_{i} )} \right]}$$
(6)
$$A_{2} = \sum\limits_{{i = N_{1} }}^{{N_{2} }} {\delta (i)} \cdot \left[ {\log (f_{i + 1} ) - \log (f_{i} )} \right]$$
(7)
$$\delta (i) = \left\{ {\begin{array}{*{20}l} {R_{\text{strong}} (i) - R_{\text{weak}}^{ + } (i)} \hfill &\quad {R_{\text{strong}} (i) \ge R_{\text{weak}}^{ + } (i)} \hfill \\ {R_{\text{weak}}^{ - } (i) - R_{\text{strong}} (i)} \hfill &\quad {R_{\text{strong}} (i) \le R_{\text{weak}}^{ - } (i)} \hfill \\ 0 \hfill &\quad {\text{others}} \hfill \\ \end{array} } \right.$$
(8)

An illustration of how to calculate PNL is shown in Fig. 5c for the example of station 51WCW, where A 1 is the area enclosing the HVSR curve derived from weak motion and the horizontal ordinate of the frequency, A 2 is the area difference between the two HVSR curves derived from weak and strong motions, and PNL represents the percentage of the relative change from linear to nonlinear site response.

Based on the definitions of DNL, ADNL, and PNL, all parameters characterize one feature of soil nonlinearity, that is, the reduction in the site response amplitude at high frequency. In fact, the frequency dependence of the effects of soil nonlinearity has been underlined in previous studies (e.g., Wen et al. 1994; Delépine et al. 2009). Régnier et al. (2013) defined the parameter fNL to reveal another feature of soil nonlinearity, that is, the shift of the predominant frequency toward lower values.

Figure 5d shows an illustration of the calculation of fNL based on the example of site 51WCW. Taking a ratio of the HVSR of the S-wave during weak motion over that during strong motion, amplification of the nonlinear response can be observed below a given frequency compared with the linear case and deamplification takes place above this given frequency. This critical frequency is determined as the value of fNL. Notably, if fNL is smaller, it is probable that the frequency band affected by soil nonlinearity will be wider.

To clearly reveal the shift degree of the predominant frequency from linear to nonlinear site response, we defined a new parameter, RFp, which is the ratio of the predominant frequency (F p) under weak and strong motions:
$${\text{RF}}_{\text{p}} = F_{\text{p, weak}} /F_{\text{p, strong}} ,$$
(9)
where \(F_{\text{p, weak}}\) and \(F_{\text{p, strong}}\) represent the predominant frequencies identified by HVSR curves calculated using weak and strong motions, respectively.

Evidence of soil nonlinearity during the Wenchuan main shock

The values of RFp, DNL, ADNL, fNL, and PNL for each site were calculated (Table 1). Based on these parameters, sites showing nonlinear behavior were identified; the correlations between these parameters and PGA, PGV, V S30, and A max were investigated.

Parameter RFp

Figure 6 shows the parameter RFp plotted versus the mean PGA and PGV of the two horizontal components. Note that for PGA > 200 cm/s2 or PGV > 20 cm/s, F p under strong motion becomes much smaller than under weak motion at most sites, representative of soil nonlinearity. This phenomenon was identified at sites 51MZQ, 51WCW, 51SFB, 51JYD, 51GYZ, 51JYH, 51GYS, 51JYC, 51AXT, 51JZW, and 51XJD. The threshold of PGA used here is the same as that reported by Xu (2010) who evaluated the soil nonlinearity during the Wenchuan Earthquake using the time–frequency analysis technique. Considering the shaded area of Fig. 6, it is evident that the level of nonlinearity increases as the PGA value increases, implying strong dependence on the ground-motion amplitude.
Fig. 6
Fig. 6

Predominant frequency F p as weak motion over strong motion versus a PGA and b PGV. The dashed lines indicate the threshold values of PGA and PGV beyond which the site response is nonlinear. The shaded area shows the variation of the level of nonlinearity with PGA

It should be noted that the site response at station 51MZQ does not indicate soil nonlinearity behavior as strongly as station 51WCW, even though the PGA is >800 cm/s2 and the value of PGV is close to 100 cm/s. The surface geology at station 51MZQ shows only a 1.5-m-thick overburden above the soft bedrock (shear velocity ~400 m/s), indicative of low possibility of soil nonlinearity (Ren et al. 2013). This indicates that the soil nonlinearity might be correlated with the site condition.

We compared the values of RFp of this study with those provided by Ren et al. (2013) who used the generalized inversion technique. As shown in Fig. 7, the values produced by the two methods are similar for most stations, implying that our results are reliable and that our approach for the identification of the soil nonlinearity is acceptable.
Fig. 7
Fig. 7

Comparison of F p as weak motion over strong motion based on the HVSR method in this study and the generalized inversion technique of Ren et al. (2013)

Parameter DNL

The linear relationships between DNL and PGA and PGV were regressed, respectively, as shown in Fig. 8a:
$${\text{DNL}} = 5.550 \cdot \log ({\text{PGA}}) - 8.916\quad (R = 0.65)$$
(10)
$${\text{DNL}} = 4.115 \cdot \log ({\text{PGV}}) - 0.840\quad (R = 0.61)$$
(11)
Fig. 8
Fig. 8

Values of a DNL, b ADNL, and c PNL for the 33 stations versus the recorded PGAs and PGVs during the Wenchuan Earthquake including empirical relationship fitting. The dashed lines indicate the threshold of DNL, ADNL, and PNL proposed in this study (i.e., 4.0, 0.2, and 7%) beyond which the site response exhibits evident nonlinear behavior. The shaded areas indicate the regions covering the values of DNL (or ADNL, PNL) and PGA (or PGV) beyond their thresholds. The PGA and PGV thresholds are proposed to be 200 cm/s2 and 15 cm/s, respectively

Because the values of DNL were calculated using the logarithmic expression of HVSR (see Eq. 2), the regressions used DNL values on a linear scale but PGA and PGV values on a logarithmic scale. In the following regressions, linear scale was also used for ADNL and PNL but logarithmic scale used for PGA, PGV, and A max. It shows that DNL positively correlates with PGA and PGV. The regression correlation coefficients of 0.65 and 0.61 indicate a moderate correlation. This is in accordance with conclusions reached in previous studies (e.g., Wen et al. 2011; Dhakal et al. 2017).

Noguchi and Sasatani (2011) suggested a DNL value of 4.0 to identify the nonlinear site response, which has been used in several previous studies such as Dhakal et al. (2017). Based on this DNL value, it could be assessed that 12 stations exhibited soil nonlinearity (Fig. 8a): 51MZQ, 51WCW, 51SFB, 51JYD, 51JYC, 51JYH, 51GYZ, 51GYS, 51LXT, 51AXT, 51JZW, and 62WUD. Most of these can also be identified using parameter RFp.

To understand the dependence of soil nonlinearity on the site condition, we investigated the correlation between DNL and V S30, as shown in Fig. 9a. The values of V S30 were derived from the NGA-West2 database (Ancheta et al. 2013). To eliminate the effect of the ground-motion amplitude as much as possible, the data were separated into three groups based on different PGA levels: PGA < 200 cm/s2, 200 < PGA < 400 cm/s2, and PGA > 400 cm/s2. However, whichever group was used, a poor relationship between DNL and V S30 was observed. The values of V S30 in the NGA-West2 database for sites in southwest China were estimated using an extrapolation procedure based on soil profiles at depths shallower than 30 m. It was confirmed that the values were overestimated for sites with low shear-wave velocity and underestimated for sites with high shear-wave velocity (Ancheta et al. 2013). This estimation bias might be the cause of unreliable results of the analysis of the correlation between DNL and V S30.
Fig. 9
Fig. 9

a DNL versus V S30, b DNL versus A max, c ADNL versus A max, and d PNL versus A max. The data were separated into three groups based on different PGA levels: PGA < 200 cm/s2, 200 < PGA < 400 cm/s2, and PGA > 400 cm/s2. The relationships between DNL and A max, ADNL and A max, and PNL and A max for each group of data are presented based on linear fitting on a logarithmic scale. The correlation coefficient R is also given for each regression

As an alternative to V S30, we used A max calculated using weak motion because A max can be considered as a proxy for the site condition. It is known that greater soil amplification can be generated at sites with a stronger impedance contrast between the surface soil layers and bedrock. Generally, large values of A max are achieved at sites with soft soil and small values of A max are obtained at sites with rigid soil or outcrops. The values of DNL versus A max are presented in Fig. 9b. An empirical relationship between them was regressed by linear fitting for each group of data. The results are as follows: when PGA > 400 cm/s2
$${\text{DNL}} = 8.337 \cdot \log (A_{\text{max} } ) - 0.364\quad (R = 0.63)$$
(12)
when 200 < PGA < 400 cm/s2
$${\text{DNL}} = 5.554 \cdot \log (A_{\text{max} } ) + 0.679\quad (R = 0.59)$$
(13)
when PGA < 200 cm/s2
$${\text{DNL}} = 2.803 \cdot \log (A_{\text{max} } ) + 0.988\quad (R = 0.64)$$
(14)

The respective correlation coefficient (R) of 0.63, 0.59, and 0.64 for each regression indicates a moderate correlation between DNL and A max. This implies that the degree of soil nonlinearity significantly depends on the site condition.

Parameter ADNL

The empirical linear relationships between ADNL and PGA and PGV were also regressed (Fig. 8b):
$${\text{ADNL}} = 0.591 \cdot \log ({\text{PGA}}) - 1.143\quad (R = 0.66)$$
(15)
$${\text{ADNL}} = 0.451 \cdot \log ({\text{PGV}}) - 0.297\quad (R = 0.65)$$
(16)

The R value is 0.66 and 0.65, respectively, indicating moderate correlations, similar to the relationships between DNL and PGA and PGV. The empirical relationships between ADNL and A max were also regressed (Fig. 9c), implying moderate correlation.

Parameter fNL

Table 1 shows the value of fNL for each site. Note that fNL could not be identified at four sites (51MXT, 51XJD, 62SHW, and 62WIX) because of the small difference of the HVSR during strong and weak motions, implying the absence of soil nonlinearity.

The dependence of fNL on PGA and PGV was investigated, as shown in Fig. 10a, b. To eliminate the effect of the site condition as much as possible, the data were separated into two groups based on different A max levels: A max < 5.0 and A max > 5.0. The reason behind using A max rather than V S30 was already explained for the analysis of DNL. The empirical relationships between fNL and PGA and PGV were regressed for each group of data:

when A max > 5.0
$$\log ({\text{fNL}}) = - 0.405 \cdot \log ({\text{PGA}}) + 1.781\quad (R = 0.61)$$
(17)
$$\log ({\text{fNL}}) = - 0.336 \cdot \log ({\text{PGV}}) + 1.234\quad (R = 0.64)$$
(18)
when A max < 5.0
$$\log ({\text{fNL}}) = - 0.423 \cdot \log ({\text{PGA}}) + 1.877\quad (R = 0.69)$$
(19)
$$\log ({\text{fNL}}) = - 0.342 \cdot \log ({\text{PGV}}) + 1.291\quad (R = 0.78)$$
(20)
Fig. 10
Fig. 10

The fNL values for 29 stations versus the recorded a PGAs and b PGVs during the Wenchuan Earthquake. The data were separated into two groups based on different A max levels: A max < 5.0 and A max > 5.0. Linear fitting on a logarithmic scale was applied; the correlation coefficient R is given for each regression. c fNL versus V S30 and d fNL versus A max. The data were separated into three groups based on different PGA levels: PGA < 200 cm/s2, 200 < PGA < 400 cm/s2, and PGA > 400 cm/s2

The respective value of R is larger than 0.6 for each regression, showing moderate correlations between fNL and PGA and PGV. The value of fNL decreases as PGA increases, consistent with the above-mentioned observation that RFp depends on PGA. The value of RFp increases as PGA increases, which means that the predominant frequency shifts toward the low-frequency band, which could cause a wider frequency band affected by soil nonlinearity and consequently a lower fNL value.

The dependences of fNL on V S30 and A max were investigated, as shown in Fig. 10c, d, respectively. The data were also separated into three groups based on different PGA levels. The figures show that there is no correlation between fNL and V S30 or A max, whichever group of data was analyzed. This is in accordance with the conclusion by Régnier et al. (2013) who determined a regression correlation coefficient of only 0.35 between fNL and V S30. Therefore, the frequency width affected by soil nonlinearity predominantly depends on the ground-motion amplitude (e.g., PGA or PGV) rather than the site condition.

Parameter PNL

Figure 8c shows the correlations between PNL and PGA and PGV. The empirical relationships between these parameters were regressed using the following equation (Régnier et al. 2013):
$${\text{PNL}} = a \cdot \left\{ {\tanh [\ln ({\text{PGA}}) - b] + 1} \right\},$$
(21)
where a and b are the regression coefficients, that is, a = 23.77 and b = 6.20 for PGA and a = 20.72 and b = 3.54 for PGV, obtained in this study. The correlation coefficient is 0.73 for both PGA and PGV, revealing that PNL has a strong positive correlation with PGA or PGV, similar to the other parameters (RFp, DNL, and ADNL).

The empirical relationship between PNL and A max was also regressed (Fig. 9d), indicating that PNL has a moderate positive correlation with A max, similar to DNL and ADNL.

Discussion

Our analysis shows that all five parameters have moderate correlations with PGA or PGV, proving the dependence of the soil nonlinearity on the ground-motion amplitude. The larger the ground motion is, the stronger the soil nonlinearity is. In addition, the soil nonlinearity also depends on the site condition; Fig. 9 shows that DNL, ADNL, and PNL positively correlate with A max. A larger A max value generally corresponds to a stronger impedance contrast between the surface soil layers and overburden bedrock; therefore, the softer the soil layer is, the stronger the soil nonlinearity is. Note that stations 51MXT and 62WIX are located at rock sites, leading to small values of DNL, ADNL, and PNL, as shown in Fig. 8. Although the PGAs reached to 304.4 and 141.9 cm/s2, respectively, there is no evidence of soil nonlinearity at both stations.

The distribution of RFp versus PGA shown in Fig. 6 represents a PGA threshold of 200 cm/s2 beyond which most stations evidently show nonlinear site response. The same PGA threshold was also derived from the regressed relationships between DNL and PGA shown in Fig. 8a based on a DNL threshold of 4.0 suggested by Noguchi and Sasatani (2011). Based on Fig. 4, the site responses under strong and weak motions do not differ much for most stations at which the recorded PGAs are almost below 200 cm/s2 during the Wenchuan main shock.

Corresponding to the threshold of PGA (i.e., 200 cm/s2), the threshold of ADNL was proposed to be 0.2. Beyond this value, 10 stations exhibited evident soil nonlinearity. Two sites (51JZW and 51LXT) that were included when using the DNL parameter (see Fig. 8a, b) were excluded because the standard deviations are considered when using ADNL, making the difference between the HVSRs for S-waves during strong and weak motions smaller. When the standard deviation is large as calculating the average HVSR, it seems to be more scientific and reasonable to use ADNL rather than DNL.

The proposed threshold of PNL was 7%, regarding a PGA threshold of 200 cm/s2. Beyond this value, 13 stations exhibited evident soil nonlinearity. Most of them were also identified based on DNL and ADNL thresholds, except for 51JZB, 51MXN, and 51TQL. Both DNL and ADNL represent an absolute change of amplitude from linear to nonlinear site response, but PNL represents a relative change percentage. The amplitudes of the linear site response of stations 51JZB, 51MXN, and 51TQL are not large (Figs. 3, 4); in other words, the A max values are small, that is, 3.90, 3.53, and 7.86, respectively. This could inherently increase the relative change from linear to nonlinear site response. Therefore, in this case study, the performance of PNL is better than that of DNL and ADNL.

Based on RFp, DNL, ADNL, and PNL, 11, 12, 10, and 13 stations, respectively, were identified as sites with evident soil nonlinearity during the Wenchuan main shock (Table 2). The results of this identification might vary based on different parameters because each parameter has an individual feature; however, to identify sites with very strong soil nonlinearity (e.g., 51WCW or 51SFB), any one of above four parameters would be effective. It is not easy to conclude whether the performance of RFp is better or worse than that of DNL, ADNL, and PNL. For example, nonlinear site response was identified at station 51XJD using RFp but cannot be identified based on DNL, ADNL, and PNL (Table 2). For station 62WUD, the identification is ineffective using RFp but effective using DNL, ADNL, and PNL. This is because RFp focuses on the shift of the predominant frequency, but the three other parameters focus on the change of amplitude from linear to nonlinear site response. Figure 10 shows that parameter fNL is effective in evaluating the frequency band affected by soil nonlinearity, but less effective in identifying evidence of nonlinearity because this parameter cannot reflect the change of the predominant frequency or amplitude of the site response during weak and strong motions.
Table 2

Strong-motion stations with evident nonlinear site response during the Wenchuan main shock based on identification with RFp, DNL, ADNL, and PNL, respectively

No.

Station code

Parameters used to identify the soil nonlinearity

Nonlinearity level

RFp

DNL

ADNL

PNL

1

51AXT

Medium

2

51GYS

Strong

3

51GYZ

Strong

4

51JYC

Strong

5

51JYD

Strong

6

51JYH

Strong

7

51JZB

Medium

8

51JZW

Medium

9

51LXT

Medium

10

51MXN

Medium

11

51MZQ

Medium

12

51SFB

Strong

13

51TQL

medium

14

51WCW

Strong

15

51XJD

Medium

16

62WUD

Medium

and mean that the site response does and does not evidently behave nonlinearly

Based on the proposed DNL, ADNL, and PNL thresholds of soil nonlinearity in conjunction with the fitted functions of DNL, ADNL, and PNL versus PGV, a PGV threshold of ~15 cm/s is proposed (Fig. 8). However, this threshold is 20 cm/s based on the distribution of RFp versus PGV (Fig. 6). To maintain compatibility, we suggest 15 cm/s as PGV threshold beyond which the site response potentially behaves nonlinearly.

As listed in Table 2, 16 stations were identified as sites with evident nonlinear site response during the Wenchuan main shock. According to the large values of RFp, DNL, ADNL, and PNL, strong nonlinearity was suggested for seven stations, including 51GYS, 51GYZ, 51JYC, 51JYD, 51JYH, 51SFB, and 51WCW, and medium nonlinearity was suggested for the other nine stations. Evidence of soil nonlinearity can be observed at several other stations, such as 51CXQ, although not evident. Figure 4 shows that a slight reduction in the site response amplitude of the high-frequency band could be observed during strong motions. Therefore, we suggest a weak level of soil nonlinearity for such kind of stations. The level of soil nonlinearity for each station is presented in Table 1. Soil nonlinearity could not be observed at three stations (51MXT, 62SHW, and 62WIX) because 51MXT and 62WIX are located at rock sites and the PGA and PGV values (i.e., 99.7 cm/s2 and 7.5 cm/s, respectively) at station 62SHW are small. Figure 11 shows the station locations with different colors of triangles indicating different soil nonlinearity levels. The contour map of PGA during the Wenchuan main shock is also shown in Fig. 11. The site responses of stations with a PGA > 200 cm/s2 mostly behaved nonlinearly (strong and medium levels).
Fig. 11
Fig. 11

Distribution of 33 strong-motion stations with different levels of nonlinear site response during the Wenchuan main shock and the PGA contour map

Conclusions

In this study, 33 strong-motion stations were selected to evaluate the soil nonlinearity during the 2008 Ms8.0 Wenchuan Earthquake using the HVSR method. Five parameters were calculated, RFp, DNL, ADNL, fNL, and PNL, to characterize the nonlinear behavior of soil. The characteristics, performance, and effective usage of these parameters were analyzed, and their correlations with PGA, PGV, V S30, and A max were investigated. Based on this, the following conclusions were drawn:
  1. (1)

    RFp, DNL, ADNL, and PNL all have strong positive correlations with PGA and PGV, whereas fNL has a negative correlation. The DNL also correlates well with A max, but fNL shows no correlation with either A max or V S30. The empirical relationships between DNL and PGA and PGV, DNL and A max, ADNL and PGA and PGV, ADNL and A max, fNL and PGA and PGV, PNL and PGA and PGV, and PNL and A max were all regressed, and moderate correlation coefficients were determined.


  2. (2)

    Overall, 16 sites were found to exhibit strong and medium soil nonlinearity during the main shock of the Wenchuan Earthquake, where the ground-motion level was almost beyond a threshold of PGA > 200 cm/s2 or PGV > 15 cm/s; 14 sites exhibited weak nonlinearity; and 3 sites exhibited no nonlinearity. The thresholds of ADNL and PNL are proposed to be 2.0 and 7%, respectively, beyond which the site response represents evident nonlinear behavior. Eight sites (51MZQ, 51WCW, 51SFB, 51JYD, 51JYC, 51JYH, 51GYZ, and 51GYS) could be identified using any of the four parameters, RFp, DNL, ADNL, and PNL, whereas the other eight sites (51AXT, 51JZW, 51XJD, 51LXT, 51MXN, 51TQL, 51JZB, and 62WUD) could be identified using individual parameters. This study confirms that RFp, DNL, ADNL, and PNL all are effective in identifying the soil nonlinearity and can be selected based on user preference. The performance of PNL is better than that of DNL and ADNL in this case study.


  3. (3)

    The good correlations between DNL (ADNL, PNL) and PGA and PGV and between DNL (ADNL, PNL) and A max imply that the degree of soil nonlinearity not only depends on the ground-motion amplitude (e.g., PGA or PGV) but also on the site condition. However, the frequency width affected by soil nonlinearity predominantly depends on the ground-motion level rather than the site condition, as inferred by the phenomenon that fNL has a good correlation with PGA but does not correlate with V S30 or A max.



Abbreviations

A max

maximum amplitude of HVSR calculated using weak motions

ADNL:

absolute degree of nonlinearity

DNL:

degree of nonlinearity

F p

site-predominant frequency

fNL:

frequency of nonlinearity

GIT:

generalized inversion technique

HVSR:

horizontal-to-vertical spectral ratio

KiK-net:

Kiban Kyoshin network

K-NET:

Kyoshin network

NGA:

next-generation attenuation

PGA:

peak ground acceleration

PGV:

peak ground velocity

PNL:

percentage of nonlinearity

RFp

ratio of predominant frequency

V S30

average uppermost 30-m shear-wave velocity

Declarations

Authors’ contributions

YFR analyzed the data, interpreted the results, and drafted the manuscript. RZW designed the study, interpreted the results, and made conclusions. XXY and KJ collected strong-motion records and processed the data. All authors read and approved the final manuscript.

Acknowledgements

The authors thank Kuo-liang Wen from the National Central University, Taiwan, for suggestions with respect to this study. We thank two anonymous reviewers for their valuable suggestions and constructive comments, which have considerably improved the quality of the manuscript.

Competing interests

The authors declare that they have no competing interests.

Data and resources

Strong-motion records used in this article were obtained from the China Strong-Motion Networks Center at http://www.csmnc.net/ (last accessed December 2012). The V S30 measurements were taken from the Next Generation Attenuation (NGA) site database of the Pacific Earthquake Engineering Research (PEER) Center at http://peer.berkeley.edu/ngawest2/databases/ (last accessed February 2015). Some of the figures were produced using Generic Mapping Tools (GMT).

Funding

This work was supported by the Science Foundation of the Institute of Engineering Mechanics, China Earthquake Administration (Grant No. 2016A04), National Natural Science Fund (No. U1534202), and Nonprofit Industry Research Project of the China Earthquake Administration (Grant No. 201508005).

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Key Laboratory of Earthquake Engineering and Engineering Vibration, Institute of Engineering Mechanics, China Earthquake Administration, No. 29 Xuefu Road, Harbin, 150080, Heilongjiang, People’s Republic of China

References

  1. Aguirre J, Irikura K (1997) Nonlinearity, liquefaction, and velocity variation of soft soil layers in Port Island, Kobe, during the Hyogo-ken Nanbu earthquake. Bull Seismol Soc Am 87:1244–1258Google Scholar
  2. Ancheta TD, Darragh RB, Stewart JP, Seyhan E, Silva WJ, Chiou BSJ, Wooddell KE, Graves RW, Kottke AR, Boore DB, Kishida T, Donahue JL (2013) PEER NGA-West2 database. PEER report, 2013/03Google Scholar
  3. Beresnev IA, Wen KL (1996) Nonlinear soil response—a reality. Bull Seismol Soc Am 86:1964–1978Google Scholar
  4. Beresnev IA, Field EH, Abeele KVD, Johnson PA (1998) Magnitude of nonlinear sediment response in Los Angeles basin during the 1994 Northridge, California, Earthquake. Bull Seismol Soc Am 88:1079–1084Google Scholar
  5. Bonilla LF, Tsuda K, Pulido N, Régnier J, Laurendeau A (2011) Nonlinear site response evidence of K-NET and KiK-net records from the 2011 off the Pacific coast of Tohoku Earthquake. Earth Planets Space 63:785–789. doi:10.5047/eps.2011.06.012 View ArticleGoogle Scholar
  6. Boore DM (2010) TSPP-A collection of FORTRAN programs for processing and manipulating time series. U.S. Geol. Surv. Open-File Rept. 2008–1111, revision 2.11Google Scholar
  7. Borcherdt RD, Glassmoyer G (1992) On the characteristics of local geology and their influence on ground motions generated by the Loma Prieta earthquake in the San Francisco Bay region, California. Bull Seismol Soc Am 82:603–641Google Scholar
  8. Celebi M, Prince J, Dietel C, Onate M, Chavez G (1987) The culprit in Mexico City-amplification of motions. Earthq Spectra 3:315–328View ArticleGoogle Scholar
  9. Delépine N, Lenti L, Bonnet G, Semblat JF (2009) Nonlinear viscoelastic wave propagation: an extension of nearly constant attenuation (NCQ) models. J Eng Mech 135:1305–1314. doi:10.1061/(ASCE)0733-9399(2009)135:11(1305) View ArticleGoogle Scholar
  10. Dhakal YP, Aoi S, Kunugi T, Suzuki W, Kimura T (2017) Assessment of nonlinear site response at ocean bottom seismograph sites based on S-wave horizontal-to-vertical spectral ratios: a study at the Sagami Bay area K-NET sites in Japan. Earth Planets Space 69:29. doi:10.1186/s40623-017-0615-5 View ArticleGoogle Scholar
  11. Dimitriu P (2002) The HVSR technique reveals pervasive nonlinear sediment response during the 1994 Northridge earthquake (M w 6.7). J Seismol 6:247–255View ArticleGoogle Scholar
  12. Field EH, Johnson PA, Beresnev IA, Zeng Y (1997) Nonlinear ground-motion amplification by sediments during the 1994 Northridge earthquake. Nature 390:599–602View ArticleGoogle Scholar
  13. Hartzell S (1998) Variability in nonlinear sediment response during the 1994 Northridge, California, Earthquake. Bull Seismol Soc Am 88:1426–1437Google Scholar
  14. Li XJ (2009) Uncorrected acceleration records from fixed observation for Wenchuan Ms8.0 aftershocks. Seismological Publishing House, Beijing (in Chinese) Google Scholar
  15. Li XJ, Zhou ZH, Yu HY, Wen RZ, Lu DW, Huang M, Zhou YN, Cu JW (2008) Strong motion observations and recordings from the great Wenchuan earthquake. Earthq Eng Eng Vib 7:235–246View ArticleGoogle Scholar
  16. Noguchi S, Sasatani T (2008) Quantification of degree of nonlinear site response. In: 14th world conference on earthquake engineering, Beijing, paper ID: 03-03-0049Google Scholar
  17. Noguchi S, Sasatani T (2011) Nonlinear soil response and its effects on strong ground motions during the 2003 Miyagi-Oki intraslab earthquake. Zisin 63:165–187 (in Japanese with English abstract) View ArticleGoogle Scholar
  18. Pavlenko O, Irikura K (2002) Nonlinearity in the response of soils in the 1995 Kobe earthquake in vertical components of records. Soil Dyn Earthq Eng 22:967–975View ArticleGoogle Scholar
  19. Pavlenko O, Loh CH (2005) Nonlinear identification of the soil response at Dahan downhole array site during the 1999 Chi-Chi earthquake. Soil Dyn Earthq Eng 25:241–250. doi:10.1016/j.soildyn.2004.08.004 View ArticleGoogle Scholar
  20. Pavlenko O, Wen KL (2008) Estimation of nonlinear soil behavior during the 1999 Chi-Chi, Taiwan, Earthquake. Pure Appl Geophys 165:373–407. doi:10.1007/s00024-008-0309-9 View ArticleGoogle Scholar
  21. Régnier J, Cadet H, Bonilla LF, Bertrand E, Semblat JF (2013) Assessing nonlinear behavior of soils in seismic site response: statistical analysis on KiK-net strong-motion data. Bull Seismol Soc Am 103:1750–1770. doi:10.1785/0120120240 View ArticleGoogle Scholar
  22. Régnier J, Cadet H, Bonilla LF, Bard PY (2016) Empirical quantification of the impact of nonlinear soil behavior on site response. Bull Seismol Soc Am 106:1710–1719. doi:10.1785/0120150199 View ArticleGoogle Scholar
  23. Ren YF, Wen RZ, Yamanaka H, Kashima T (2013) Site effects by generalized inversion technique using strong motion recordings of the 2008 Wenchuan earthquake. Earthq Eng Eng Vib 12:165–184. doi:10.1007/s11803-013-0160-6 View ArticleGoogle Scholar
  24. Rong MS, Wang ZM, Woolery EW, Lyu YJ, Li XJ, Li SY (2016) Nonlinear site response from the strong ground-motion recordings in western China. Soil Dyn Earthq Eng 82:99–110. doi:10.1016/j.soildyn.2015.12.001 View ArticleGoogle Scholar
  25. Trifunac MD, Todorovska MI (1996) Nonlinear soil response—1994 Northridge, California, Earthquake. J Geotech Eng ASCE 122:725–735View ArticleGoogle Scholar
  26. Wen KL (1994) Non-linear soil response in ground motions. Earthq Eng Struct Dyn 23:599–608View ArticleGoogle Scholar
  27. Wen KL, Beresnev IA, Yeh YT (1994) Nonlinear soil amplification inferred from downhole strong seismic motion data. Geophys Res Lett 21:2625–2628View ArticleGoogle Scholar
  28. Wen KL, Huang JY, Chen CT, Cheng YW (2011) Nonlinear site response of the 2010 Darfield, New Zealand earthquake sequence. In: 4th IASPEI/IAEE international symposium, 23–26 Aug 2011, Santa BarbaraGoogle Scholar
  29. Xu XR (2010) Recognition soil nonlinearity area applying the time-frequency analysis method in Wenchuan earthquake. Dissertation, National Central University, TaiwanGoogle Scholar

Copyright

Advertisement
