Coseismic and postseismic deformation associated with the 2016 Mw 7.8 Kaikoura earthquake, New Zealand: fault movement investigation and seismic hazard analysis
Earth, Planets and Space volume 70, Article number: 62 (2018)
The 2016 moment magnitude (Mw) 7.8 Kaikoura earthquake demonstrated that multiple fault segments can undergo rupture during a single seismic event. Here, we employ Global Positioning System (GPS) observations and geodetic modeling methods to create detailed images of coseismic slip and postseismic afterslip associated with the Kaikoura earthquake. Our optimal geodetic coseismic model suggests that rupture not only occurred on shallow crustal faults but also to some extent at the Hikurangi subduction interface. The GPS-inverted moment release during the earthquake is equivalent to a Mw 7.9 event. The near-field postseismic deformation is mainly derived from right-lateral strike-slip motions on shallow crustal faults. The afterslip did not only significantly extend northeastward on the Needles fault but also appeared at the plate interface, slowly releasing energy over the past 6 months, equivalent to a Mw 7.3 earthquake. Coulomb stress changes induced by coseismic deformation exhibit complex patterns and diversity at different depths, undoubtedly reflecting multi-fault rupture complexity associated with the earthquake. The Coulomb stress can reach several MPa during coseismic deformation, which can explain the trigger mechanisms of afterslip in two high-slip regions and the majority of aftershocks. Based on the deformation characteristics of the Kaikoura earthquake, interseismic plate coverage, and historical earthquakes, we conclude that Wellington is under higher seismic threat after the earthquake and great attention should be paid to potential large earthquake disasters in the near future.
On November 13, 2016, a destructive earthquake with Mw 7.8 struck the Kaikoura region, South Island, New Zealand, which triggered large-scale crustal deformation (Hamling et al. 2017), thousands of landslides (Gorum and Yildirim 2017), and a widespread tsunami (Power et al. 2017). The earthquake rupture was initiated in North Canterbury and propagated more than 170 km northward along at least 12 separate faults (Bradley et al. 2017; Hamling et al. 2017; Kaiser et al. 2017). Geological field investigations and seismological and geodetic constraints show that the Kaikoura earthquake was an extraordinarily complex multi-fault rupture incident (Duputel and Rivera 2017; Hamling et al. 2017; Hollingsworth et al. 2017; Shi et al. 2017; Zhang et al. 2017).
The complex tectonic setting of New Zealand contributed to the occurrence of the 2016 Mw 7.8 multi-fault rupture event. Tectonically, New Zealand, consisting of the South and North islands, is dominated by oblique convergence of the Australian and Pacific plates at rates of 39–48 mm/year (Fig. 1; Beavan et al. 2016). The Hikurangi subduction zone on the North Island accommodates most of the relative plate convergence (Nicol and Beavan 2003), whereas oblique-dextral transpressional convergence along the Alpine strike-slip fault dominates the tectonics of the central South Island (Norris and Cooper 2007). In addition, the tectonics of southwestern New Zealand are dominated by oblique convergence at the Puysegur subduction interface, where the Mw 7.8 Dusky Sound earthquake occurred on July 15, 2009 (Beavan et al. 2010). New Zealand’s tectonics are incredibly active, and interseismic accumulated strain is released by various mechanisms such as instantaneous earthquake ruptures (Beavan et al. 2010; Elliott et al. 2012), volcanic explosions (Chardot et al. 2015; Kilgour et al. 2016), ongoing postseismic mechanisms (Motagh et al. 2014), and aseismic slow-slip events (SSEs; McCaffrey et al. 2008; Wallace and Beavan 2006).
The 2016 Kaikoura earthquake took place in an extremely complex and active tectonic environment, destroying two distinguishing seismotectonic domains (Fig. 1) including the contractional North Canterbury fault zone and dominantly strike-slip Marlborough fault system (Hamling et al. 2017). Seismological studies indicate that the coseismic rupture included at least three distinct southwest–northeast-propagating phases (Kaiser et al. 2017). Geodetic and geological evidence reveals highly complex surface deformation characteristics associated with the 2016 Kaikoura earthquake, mainly showing right-lateral oblique-slip motion in the North Canterbury region and dominantly right-lateral strike-slip motion in the Marlborough fault zone (Hamling et al. 2017). The earthquake caused considerable coseismic deformation, more than 10 m horizontal deformation along multiple faults, and ~ 8 m uplift of the Papatea fault-bounded block (Hamling et al. 2017; Kääb et al. 2017; Shi et al. 2017). The Kaikoura earthquake also triggered highly variable coastal deformation, reflecting the rupture complexity along a transpressional plate boundary (Clark et al. 2017). Seismological and geodetic inversion models indicate that coseismic rupture not only occurred on shallow crustal faults but also at the Hikurangi subduction interface with small-scale thrusting-dominated movements (Hamling et al. 2017; Holden et al. 2017). Clustered aftershocks were mainly concentrated in mainshock rupture regions (Fig. 1), showing a mixture of reverse and strike-slip faulting across three dominant spatial clusters (Kaiser et al. 2017). Widespread slow-slip movements in two known regions offshore the east coast of the North Island and beneath the Kapiti region and in a slow-slip region in the subduction zone beneath the upper South Island were immediately triggered by the Kaikoura earthquake and continued over a period of weeks to months (Wallace et al. 2017).
Previous studies illuminated the complexity of the 2016 Mw 7.8 multi-fault rupture using geodetic, seismological, and geological observations. However, ongoing fault movements should be investigated to assess the potential earthquake risk in New Zealand. In our study, we use Global Positioning System (GPS) observations to construct a coseismic model with six-segment geometry and preliminarily investigate the postseismic 6-month deformation. Coulomb stress changes due to coseismic and postseismic fault slip are also investigated. Our extensive analysis of complex fault interactions and the kinematics of the multi-fault rupture contributes to clarifying the seismogenic patterns and occurrence mechanisms, assessing the seismic hazard, and estimating the earthquake magnitude.
The GeoNet (https://www.geonet.org.nz/), based on a collaboration between the Science and Earthquake Commission and the Institute of Geological and Nuclear Sciences (GNS) with funding from Land Information New Zealand (Hamling et al. 2017), has been used to monitor geological disasters in New Zealand such as earthquakes, volcanic activities, massive landslides, tsunamis, and slow-slip events (SSEs). In our study, we only consider GPS observations from GeoNet to construct seismic geodetic inversion models and investigate fault movements during the coseismic and postseismic phases of the Kaikoura earthquake.
The coseismic deformation is investigated using a superset of GPS-determined surface coseismic offsets from previous studies (Hamling et al. 2017) including 191 continuous and 80 campaign stations. These observations and that of more than 100 International Global Navigation Satellite System (GNSS) Service (IGS) reference stations were processed using the GPS Analysis at Massachusetts Institute of Technology/Global Kalman filter (GAMIT/GLOBK, version 10.60) software; final station coordinates were projected in the International Terrestrial Reference Frame 2014 (ITRF14). The coseismic offsets at continuous GPS stations were estimated using observations made 5 days prior to and 12 h following the earthquake, whereas the campaign GPS observations (available since 1999) made days (near field) to weeks (far field) after the earthquake in the northern part of the South Island were remeasured (Hamling et al. 2017).
Only available continuous GeoNet GPS stations were chosen to examine the postseismic deformation of the Kaikoura earthquake. Daily GeoNet GPS time series in the IGS08 reference frame including GPS data processed using the GNSS-Inferred Positioning System and Orbit Analysis Simulation Software (GIPSY-OASIS-II 6.1.1) are available from the Nevada Geodetic Laboratory, University of Nevada, Reno (NGL/UNR, http://geodesy.unr.edu/, last accessed on May 20, 2017). The data analysis (http://geodesy.unr.edu/gps/ngl.acn.txt) was based on the final, non-fiducial daily products from the Jet Propulsion Laboratory (JPL) archive including satellite orbit and clock estimates, wide-lane and phase bias estimates, Earth orientation parameters, and an IGS antenna calibration file. The tropospheric refractivity was modeled using the global mapping function (GMF); the first-order ionospheric effects were removed by applying ionosphere-free combinations of both carrier phase and pseudo-range measurements, and the ocean tidal loading effects were corrected using the tidal model FES2004 (Finite element solutions, 2004).
Postseismic signal extraction
We only utilized GPS stations of a region with a longitude range of 170.2°E–176.5°E and latitude range of 40.0°S–44.0°S, considering insignificant contributions of postseismic fault movements to the deformation of GPS observations away from mainshock rupture regions. We used a general expression for the time-series function [Eq. (1)] to parameterize multi-various signal constituents (such as tectonic motion mechanisms, hydrological loading effects, atmospheric refraction delays, and other factors) and applied the least squares fitting algorithm to extract postseismic signals (Jiang et al. 2017):
where t i is the ith daily epoch (unit: year); y0 is the nominal position; v is the linear trend term; A and φ are the amplitude and initial phase of annual and semiannual sinusoidal terms, respectively; O is the offset caused by non-seismic sources; c, p, and τlog are the coseismic offset, postseismic amplitude, and relaxation time, respectively; to and tq are the occurrence epochs related to non-seismic and seismic sources, respectively; H is the step function; and ε is the error term.
We performed four steps to gain the postseismic deformation field: (1) calculating the interseismic velocity field of the 53 continuous GPS stations (Additional file 1: Table S1) using least squares fitting. Most of these stations witnessed interseismic, coseismic, and postseismic deformation; (2) interpolating the interseismic 3-D velocities of the six stations (Fig. 2a and Additional file 1: Table S1) installed after the mainshock based on the velocity interpolation for stain rate (VISR) software (Shen et al. 2015); (3) identifying the optimal logarithmic relaxation time based on ten stations (Fig. 2a) with good signal-to-noise ratios. The optimal logarithmic relaxation constant was inferred to be 6 days in our study (Fig. 2b); (4) estimating the logarithmic amplitudes for the north, east, and up directions of all stations. Finally, we chose 57 stations (Additional file 1: Table S2) to investigate the postseismic afterslip during the first 6-month period.
Coseismic and postseismic deformation fields
A superset of GPS coseismic observations from Hamling et al. (2017) reliably captured abundant surface deformation characteristics in response to complex multi-fault ruptures. Campaign GPS stations made up the deficiency in the spatial coverage of the measurements in the mainshock regions in which only few continuous GPS stations are distributed in the near field (Fig. 1). Investigation of the static coseismic deformation suggests that the Kaikoura earthquake mainly destroyed two distinct tectonic domains, showing right-lateral oblique-slip movements in the North Canterbury region and dominantly right-lateral strike-slip motions in the Marlborough fault system (Fig. 4a). Continuous and campaign GPS observations indicate more than 6 m of lateral movement near Cape Campbell. Coseismic uplift occurred in the vicinity of Kaikoura and Cape Campbell. Regions of subsidence are observed in North Canterbury, near the epicenter and in the mid–far field of coseismic deformation in the Marlborough fault system. The GPS-derived coseismic deformation shows that horizontal northeastward peak motions can reach 6.1 m at the station AAR8, whereas the maximum vertical uplift reaches 2.7 m at the station AC6K.

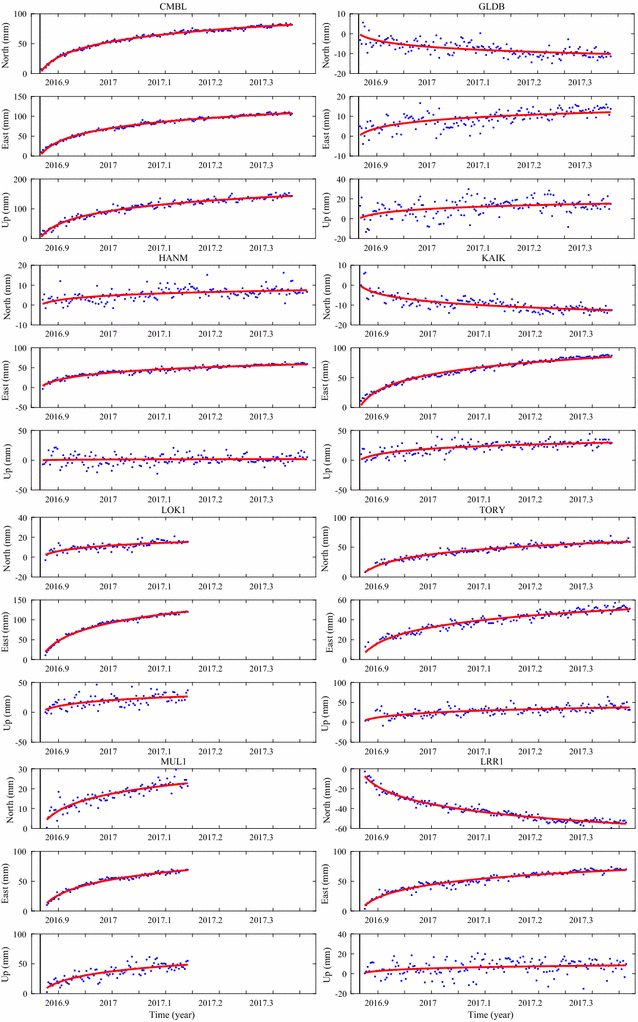

Postseismic afterslip started immediately after the earthquake and decayed rapidly during the first 6-month postseismic period. Figure 3 shows the postseismic GPS coordinate time series with long-term trends and seasonal signals corrected, which fit logarithmic decay function models well and are typically dominated by time-dependent, stress-driven afterslip following moderate or massive earthquakes. Regarding surface movement patterns, postseismic horizontal deformation exhibits coseismic deformation patterns (Fig. 4) and shows much greater spatial-scale wavelengths. In addition to larger deformation around the mainshock areas, visible deformation was also recorded in the uppermost South Island regions, suggesting that the afterslip continued to move northeastward. When compared with coseismic deformation in the vertical direction, postseismic deformation as a whole shows uplift in the northern South Island and southern North Island. The accumulated GPS-derived postseismic deformation shows a maximum horizontal movement of ~ 14.5 cm at the station LOK1 and a maximum vertical uplift of ~ 14.5 cm at the station CMBL, both of which are located next to Cape Campbell.
Geodetic slip models
Coseismic slip model
Relevant information about the active faults is available from the New Zealand Active Faults Database, which is widely used for geological research, hazard modeling, and infrastructure planning (Langridge et al. 2016; Litchfield et al. 2013). A multi-fault rupture model was reported by Hamling et al. (2017). This well-established model consists of 19 shallow crustal faults and the southern Hikurangi subduction interface. We simplified the fault model using six separated rectangular faults to investigate the first-order patterns of coseismic slip, considering the limited spatial coverage of GPS observations to constrain more detailed slip models. We properly simplified the fault geometry and adopted fault parameters (Additional file 1: Table S3) from Hamling et al. (2017), which can be used to constrain the major deformation characteristics of the earthquake. Shallow crustal faults were discretized into a series of rectangular patches with a spatial scale of 4 km × 4 km, whereas a larger spatial scale of 6 km × 6 km was used for the deep subduction interface.
Based on the elastic half-space dislocation theory (Okada 1985), we inverted the GPS coseismic offsets from Hamling et al. (2017) to investigate the coseismic slip of multiple seismogenic faults. The smoothing coseismic slip model was achieved using the steepest descent method (SDM; https://www.gfz-potsdam.de/sektion/erdbeben-und-vulkanphysik/daten-produkte-dienste/downloads-software/) iterative algorithm (Wang et al. 2013), a constrained least squares optimization problem for estimating the dip-slip and strike-slip components of all discretized subpatches. The optimal smoothing model was achieved through adjusting the normalized smoothing factor, which is usually determined by using a trade-off value between model roughness and data misfit (Fig. 5a).
The detailed spatial distribution of the coseismic slip is shown in our best-fitting geodetic model (Fig. 5b and Additional file 1: Figure S1). The smoothing geodetic coseismic model suggests that the mainshock rupture not only propagated along shallow crustal multiple faults, but also involved a small contribution of the deep subduction interface (Fig. 5b). The coseismic slip shows dominantly right-lateral strike-slip motions in the Marlborough fault system, dextral oblique-slip motions in North Canterbury, and more thrusting motions at the Hikurangi subduction interface. Our coseismic model shows that the strike-slip movement reaches up to 23.9 m and dip-slip movement reaches up to 13.8 m, assuming absolute dextral strike-slip and thrusting movements that agree with the focal mechanism and surface deformation. Our results demonstrate that the maximum slip of ~ 24.2 m occurs at a depth of ~ 10 km, in a transition region between the Needles and Kekerengu faults (Fig. 5b).
The predicted coseismic deformation is highly consistent with the observed GPS deformation (Fig. 5c, d), and the correlation between the GPS observations and model predictions reaches up to ~ 99% (Table 1). The total moment released by the earthquake is ~ 8.28 × 1020 Nm, equivalent to a magnitude of Mw 7.9 with a uniform crustal shear modulus of 30 GPa, which is consistent with previous studies based on GPS and Interferometric Synthetic Aperture Radar (InSAR) observations (Hamling et al. 2017).
Postseismic afterslip model
Afterslip describes postseismic ongoing aseismic fault motions occurring on or beneath mainshock rupture regions over several months to several years (Huang et al. 2014). In our study, postseismic deformation derived from continuous GPS observations was inverted for optimal smoothed afterslip based on a homogeneous elastic half-space crust model. Compared with the coseismic model, the shallow crustal faults are extended along the strike and the Hikurangi subduction interface is extended along the strike and downdip (Additional file 1: Table S4) to investigate the more widely distributed afterslip. Considering more time-consuming computation, we discretized the shallow faults and deep subduction interface into 5 km × 4 km and 10 km × 10 km rectangular subpatches, respectively, in the postseismic inversion model.
Based on our best fits (Fig. 6b and Additional file 1: Figure S2), the first-order patterns of the afterslip show more dextral strike-slip movements on the five crustal faults and visible thrusting motion at the Hikurangi subduction interface. The near-field postseismic deformation is mainly derived from the significant right-lateral strike-slip motions on the shallow crustal faults, whereas the deep-seated afterslip at the Hikurangi subduction interface mostly contributes to mid- and far-field surface deformation. During the postseismic phase, apparent postseismic fault movements not only continue along the northeastern Needles fault but also occur at the Hikurangi subduction interface (Fig. 6b). The maximum afterslip was associated with the shallow Needles fault with a magnitude of 56 cm at ~ 2 km depth (Fig. 6b), revealing that fault rupture continues to move northeastwards but much smaller than the mainshock rupture reaching up to 24 m. In addition, one high-slip concentration area with a peak of 53 cm was identified at the deep (~ 35 km) Hikurangi subduction interface (Fig. 6b), which is partially recovered by our model according to the resolution test (Additional file 1: Figure S4), mainly resulting from the poor spatial coverage of observations in the postseismic phase.
The model predictions agree well with GPS observations (Fig. 6c, d); the data-model correlation of our postseismic model reaches up to 99% (Table 1). The 6-month afterslip has a cumulative geodetic moment of 1.19 × 1020 Nm, corresponding to 14% of the coseismic moment release and Mw 7.3, assuming a uniform crustal shear modulus of 30 GPa.
Coseismic Coulomb stress changes in mainshock rupture regions
Calculation of static Coulomb stress changes
Coulomb stress change analysis contributes to illuminating stress transmissions, understanding earthquake interactions, and assessing seismic hazard associated with large earthquakes. The Coulomb failure criterion describes the fracture behavior of rock considering both shear and normal stress changes on a predefined surface (King et al. 1994; Liu et al. 2017; Shan et al. 2013a; Stein 2000):
where ΔCFS is the Coulomb failure stress (CFS) change; Δτs and Δσn are the shear stress and normal stress changes on the receiver fault, respectively; and \(\mu '\) is the equivalent friction coefficient. Based on the seismic stress triggering theory, positive (increased) CFS change causes regional faults to be closer to failure and leads to seismic activity, whereas faults in stress shadow areas are further away from failure, reducing the possibility of seismicity (Freed 2005; Shan et al. 2015).
We employed the PSGRN/PSCMP code (Wang et al. 2006) to calculate ΔCFS induced by the 2016 Kaikoura mainshock slip and afterslip, which determines forward solutions of surface and subsurface deformation resulting from common geophysical sources in a layered gravitational half-space. The simplified finite fault models and corresponding slip distribution results were regarded to be dislocation sources when examining coseismic Coulomb stress changes. The differential Green’s functions were generated using a homogeneous elastic half-space model with a uniform crustal shear modulus of 30 GPa.
We calculated the Coulomb stress changes around the mainshock regions induced by coseismic slip at different depths (1, 9, 17, and 35 km). Based on the mainshock rupture patterns, the shallow (< 25 km depth) receiver faults were assigned average parameters (230° strike, 70° dip, and 150° rake), whereas a 221° strike, 12° dip, and 125° rake were considered for the deep interface fault. Multiple friction coefficients (\(\mu '\)) were tested to verify the stability of the results. The numerical results indicate that the amplitudes of ΔCFS vary depending on the different friction coefficients, but the spatial distribution patterns of Coulomb stress changes are highly consistent (Additional file 1: Figure S5). Therefore, we considered an empirical and moderate effective coefficient of friction of 0.4 (Shan et al. 2013a, b; Xiong et al. 2010, 2017) for our ΔCFS calculation and discussion.
Static Coulomb stress changes
The coseismic stress perturbation results suggest that the ΔCFS due to the Kaikoura earthquake can reach several MPa around mainshock rupture regions. The ΔCFS also exhibits complex coseismic deformation patterns and diversity for each depth (Fig. 7a–d), undoubtedly reflecting the complexity of multi-fault ruptures associated with the Kaikoura earthquake.
In terms of coseismic stress perturbation at 1 km depth, the stress shadow covers most of the major rupture zone, which explains that aftershocks occurred only sporadically at shallow depths (< 5 km depth). However, a large increase in the Coulomb stress was observed at the end of the Kekerengu fault, which meets the Needles fault offshore the east coast of the upper South Island. In addition, positive Coulomb stress change was observed at the northeastern Needles fault (Fig. 7a), which triggered shallow afterslip (reaching up to 0.56 m at 2 km depth; Fig. 6b). At the depth of coseismic peak slip (~ 9 km depth), widespread increased Coulomb stress was observed in North Canterbury. The occurrence of nearly half of the aftershocks can be explained by the Coulomb stress triggering mechanism. In the deep regions (17 km depth) of shallow crustal faults, most of the mainshock rupture regions experienced loaded stress changes, which contributed to the occurrence of most aftershocks. In Fig. 7b (9 km depth) and c (15 km depth), many aftershocks surround the Needles fault, characterized by high positive stress changes of more than 6 MPa. This confirms that stress loading derived from earthquake deformation contributes to the failure of regional faults. We can conclude that the stress is unloaded in a wider area in the Marlborough fault system (Fig. 7b, c), whereby the Kekerengu fault is the major source of moment release of the earthquake. The earthquake released most of the interseismic accumulated tectonic stress around the Kekerengu fault, which indicates reduced seismic risk in these regions. We calculated the Coulomb stress changes at 35 km depth, where deep peak slip occurs. We discovered that aftershocks rarely appear along the downdip of the subduction interface, but most of these regions experienced coseismic stress increase. We therefore assume that afterslip was relatively active, as evidenced based on one high-slip concentration in our study. In addition, many aftershocks occurred in stress shadow regions, which may be the result of the use of a too simplified model responding to such complex multi-fault rupture. Widely distributed positive coseismic Coulomb stress was also observed around Wellington, although the magnitudes are much smaller than the ΔCFS around the mainshock regions.

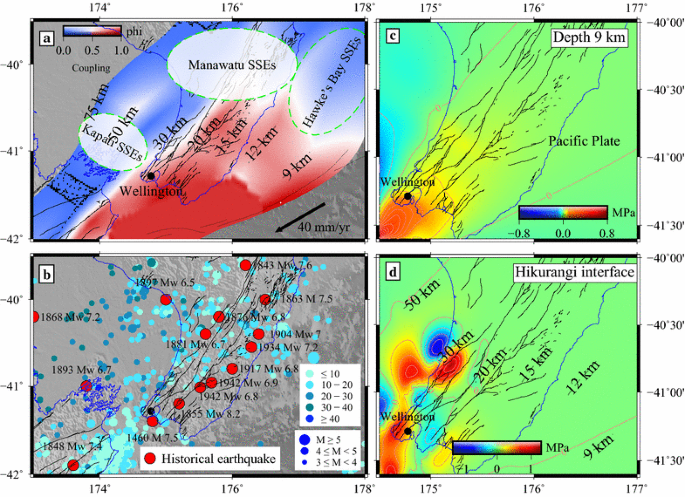

Seismic hazard assessment in the Wellington region
Wellington, the nation’s capital, is the largest city within a zone with very high seismic risk and has witnessed many devastating earthquakes (Fig. 8b) including the 1460 M 7.5 Wellington earthquake and 1855 Mw 8.2 Wairarapa earthquake (Eiby 1968). Rapid plate convergence (~ 40 mm/year) of the Australian–Pacific collision zone contributes to relatively frequent strain accumulation, which is released in form of earthquake deformation and volcanic explosion. Geodetic investigations carried out over more than 10 years suggest that the SSEs preceding the Kaikoura earthquake are absent in the Wellington region. They are aseismic relative to normal earthquakes and show a diverse behavior with respect to duration, moment release, occurrence depth, and recurrence interval at the Hikurangi margin (Wallace and Beavan 2010; Wallace and Eberhart-Phillips 2013). An interseismic long-term fault coupling investigation (Fig. 8a) and geodetic studies revealed that the Wellington region was highly locked and strongly aseismic in the decades before the 2016 Kaikoura earthquake (Wallace 2004; Wallace and Beavan 2010).
The 2016 Mw 7.8 Kaikoura earthquake that severely destroyed the northern South Island had a coseismic slip of more than 20 m beneath the Marlborough fault system. However, no significant surface deformation was observed during the coseismic or postseismic phases in the Wellington region, especially in the eastern regions. The CFS change investigation at 9 km depth suggests that the total CFS increase induced by coseismic and postseismic slip covers the Wellington region (Fig. 8c), which might lead to future seismic activity. We also checked the spatial distribution of the stress changes at the Hikurangi subduction interface and found that most of the plate interface is loaded due to the Kaikoura earthquake. Based on the static stress triggering mechanism, we suggest that the widely distributed CFS increase could promote widespread slow-slip movements along the Hikurangi subduction interface on the North Island. Aftershocks (based on the GeoNet earthquake catalogue) are widely distributed in the mainshock regions and on the North Island, but only a few of them occurred in the Wellington region (Fig. 8b). According to the study of Wallace et al. (2017), the Kaikoura earthquake immediately triggered widespread slow-slip movements, but none of them occurred in the Wellington region.
Considering the deformation characteristics associated with the Kaikoura earthquake and interseismic plate coverage and historical earthquakes, we conclude that no effective tectonic movements adequately encouraged the release of stress in Wellington. Multifaceted evidence consistently confirms that the Wellington region is still under high seismic threat. Accordingly, great attention should be paid to these regions and measures should be taken to reduce future earthquake damage.
We used GPS measurements to establish coseismic and postseismic models, investigated Coulomb stress changes, and assessed the seismic hazard associated with the 2016 Mw 7.8 Kaikoura earthquake. Several conclusions can be drawn:
The coseismic deformation mainly involved two different tectonic regions: right-lateral oblique-slip movements in North Canterbury and right-lateral strike-slip motions in the Marlborough fault system. Postseismic deformation shows a logarithmic behavior in time and decays slowly in space, with the motion tendency being consistent with coseismic patterns.
Our optimal geodetic coseismic model shows that coseismic rupture did not only occur with dominantly dextral strike-slip motions on shallow crustal faults but also at the Hikurangi subduction interface characterized by small-scale thrusting motions. The GPS-inverted moment of the coseismic model is equivalent to a magnitude 7.9 earthquake.
The near-field postseismic deformation is mainly derived from right-lateral strike-slip motions on shallow crustal faults. The postseismic model suggests that the afterslip not only significantly extends northeastward on the Needles fault but also occurs at the plate interface, slowly releasing energy over the past 6 months, which is equivalent to a magnitude 7.3 earthquake.
The ΔCFS exhibits coseismic deformation complex patterns and diversity for each depth, undoubtedly reflecting multi-fault rupture complexity associated with the Kaikoura earthquake. The increased ΔCFS of coseismic deformation can reach several MPa, which can explain the occurrence of afterslip in two high-slip regions and the majority of aftershocks.
