How the intensity of isolated substorms is controlled by the solar wind parameters


Analysis of 163 isolated substorms showed that their intensity quantified as a maximum absolute value of the AL index increases with an increase in the velocity and number density of the solar wind plasma and hence its dynamic pressure. Most of the coupling functions describing the energy loading to the magnetosphere, e.g., the Kan–Lee electric field (EKL) and the Newell factor (dΦ/dt), do not include the dynamic pressure as an input parameter. Having examined the correlation between these functions and the dynamic pressure, we found that, surprisingly, while almost uncorrelated for any arbitrary time interval, both EKL and dΦ/dt correlate with the dynamic pressure within 1 h before the onset of isolated substorms. That is, an increase in the solar wind dynamic pressure is associated with an increase in the solar wind driving before the onset. We assume that the increase in the dynamic pressure as early as before substorm growth path creates the conditions inside the magnetosphere that impede the occurrence of substorms and increase the threshold for the instability leading to expansion onset, forcing the accumulation of greater amount of energy in the magnetosphere. This energy is released during substorm expansion, producing a more intense magnetic bay.


The concept of classical substorm is based on the loading of solar wind energy into the Earth’s magnetosphere followed by a sudden release of this energy during substorm expansion. To characterize the time interval of the loading, which typically lasts 0.5–2 h, McPherron (1970) introduced the term “growth phase.” It was inferred from the number of observations that the growth phase starts when the Bz component of the interplanetary magnetic field (IMF) turns southward. This approach was subsequently supported by many experimental and theoretical works (see, for example, Russell and McPherron 1973; Shukhtina et al. 2005; Boakes et al. 2009).

However, despite extended efforts in the study of magnetospheric substorms, there are many key problems, which remain unsolved, such as a location of substorm onset and the mechanism leading to a sudden release of energy. A relationship between substorm processes and ring current development is unclear either. The latter problem is especially important taking into account the recent results of Antonova et al. (2014, 2015, 2017) and Kirpichev et al. (2016), who showed that a significant part of the auroral oval maps to the plasma ring that surrounds the Earth. Accordingly, the transverse currents in this ring are a high-latitude continuation of the ring current.

The dependence of loading–unloading processes on the parameters of the solar wind and IMF is one of the unsolved problems of the magnetospheric substorm physics. In particular, the relationship between intensity of an isolated substorm (characterized by the maximum absolute value of the AL index) and these parameters is unknown. Results of previous studies are ambiguous and often contradictory. For example, Kallio et al. (2000) concluded that substorm intensity is determined by the direct input of energy during the expansive phase, which contradicts the results of Lyons (1996) and Lyons et al. (1997), who found that a number of substorm onsets are associated with a northward turning of the IMF Bz component. Shukhtina et al. (2005) and Milan et al. (2009) showed that the intensity of substorms is determined by the total magnetic flux transported from the dayside magnetosphere to the tail before substorm onset. However, later Li et al. (2013) demonstrated that the intensity of substorms correlates well with the electric field determined by the Kan–Lee formula (Kan and Lee 1979), which is independent of the total amount of energy uploaded to the magnetosphere during the growth phase. Vorobjev et al. (2016) made a statistical study of the loading–unloading processes of the magnetosphere during isolated substorms and showed that there is a strong relationship between the integral values of energy uploaded to the magnetosphere during the growth and expansive phases and the substorm intensity quantified as a total energy of auroral precipitation.

Therefore, to establish the factor controlling substorm intensity, which varies in a wide range, is a fundamental unsolved problem. It is clear that the solar wind plasma and the IMF are the main sources of the magnetospheric substorm energy. Conventionally, it is assumed that the Bz component of the IMF is responsible for substorm generation. The solar wind velocity (V) and number density (N), and hence the dynamic pressure (P), do not change significantly on the timescales of substorm and usually are not considered as independent sources of substorms. However, there are some studies, which point to a possible importance of the solar wind kinetic energy for substorm development. For example, Barkhatov et al. (2017) showed that the prediction of the AL index variations using the neural networks is more successful when the input parameters contain not only the IMF components, but also the dynamic pressure integrated over 2–3 h before substorm onset. At the same time, Newell et al. (2013, 2016) studied the long-term effects of substorms, including diurnal, seasonal, and annual variations, and showed that the probability to predict the appearance of substorm series increases when the solar wind velocity is used as a unique input parameter instead of more complicated functions, which include the components of the IMF. The effect of the dynamic pressure is not significant. The results by Maggiolo et al. (2017) suggest that the solar wind velocity’s dominant impact on geomagnetic activity is caused by the compression regions at the interface of fast/slow solar wind regimes, which are very geo-effective, as they are associated with high solar wind pressure and strong interplanetary magnetic field.

In the present study, we test the hypothesis that prior to the substorm growth phase the solar wind plasma parameters (generally N and Pd) not only determine the magnetospheric state, but also to a large extent determine the intensity of a following isolated substorm. The characteristics of this magnetospheric state defined by solar wind V, N and P are responsible for the amount of energy uploaded during the growth phase and subsequently released during the expansive phase, and hence for the intensity of a substorm. Therefore, we study the behavior of the IMF components, as well as of the solar wind velocity, number density, and dynamic pressure, preceding isolated substorms of different intensities, in order to examine their influence on the energy loading to the magnetosphere before substorm onset. The dependence of the loading on the SYM/H index of geomagnetic activity is also investigated.

Data analysis

In the current study, we used the list of 163 isolated substorms of different intensities available at The isolated substorms included in this list were selected using diurnal variations and 1-min values of the AL index during the winter seasons from 1995 to 2013, according to the following criteria:

  1. 1.

    The time interval between two consecutive substorms should be at least 3 h.

  2. 2.

    The AL magnitude should not exceed 1500 nT.

  3. 3.

    The substorm duration should not be less than 3 h.

  4. 4.

    The time of the end of substorm corresponds to the instant at which the absolute value of AL is < 0.2 of the absolute value of AL minimum.

The selection of substorms in accordance with criteria 1–3 was performed by visual inspection of the AL index diurnal variations, while the time of onset (T0) corresponding to the nth AL index was determined as follows. For substorms with minimum AL less than − 300 nT, T0 corresponded to the time for which |(ALn − ALn−1)| > 60 nT and |(ALn+1 − ALn−1)| > 100 nT. For weak isolated substorms (ALmin > − 300 nT) a simpler criterion was used: |(ALn − ALn−1)| > 30 nT. (Please see Vorobjev et al. (2016) for details.)

The solar wind parameters, IMF, and geomagnetic indices were taken from 1-min OMNI database provided by the NASA’s Space Physics Data Facility. For each substorm an 8-h interval (4 h before and 4 h after T0) was inspected to eliminate the events for which data gaps of more than 10-min duration were present in the time series.

Generation conditions for substorms of different intensities

All selected substorms were divided into three groups, depending on the minimum value of AL variation: weak (ALmin > − 300 nT), moderate (− 600 nT < ALmin < − 300 nT), and strong (− 1500 nT < ALmin < − 600 nT). For each group we calculated the average values of ALmin, as well as the values of the solar wind parameters and PC and SYM/H indices averaged over 1-h interval that started 1, 2 and 3 h before onset. Figure 1 shows the results of averaging over one (the black circles, bold line), two (the pluses, solid line), and three (the crosses, dashed line) hours before T0. As can be seen, the three curves are very close to each other, especially for solar wind velocity and number density. This means that the solar wind V, N, and hence P before an isolated substorm are very stable during at least 3 h (see Fig. 1a, b), increasing with |〈ALmin〉| increasing. Figure 1c, d shows that the SYM/H index decreases and the PC index increases with |〈ALmin〉| increasing, and the geomagnetic activity 1 h before T0 [typical timescale of the growth phase, according to McPherron (1970)] tends to be higher.

Fig. 1
figure 1

Average values of the solar wind velocity (a) and number density (b); SYM/H (c) and PC (d) indices of geomagnetic activity versus substorm intensity. The averaging is performed over 1-h interval starting one (curve 1), two (curve 2), and three (curve 3) hours before substorm onset

It is important to note that higher values of V, N, PC, and |SYM/H| lead to stronger isolated substorms. This tendency holds for all time intervals, even for that of 3 h before T0. For weak substorms the average velocity does not exceed 400 km/s, while for strong substorms it is higher than 450 km/s. The average number density is ~ 6 cm−3 and ~ 9 cm−3 for weak and strong substorms, respectively. The weak substorms take place when SYM/H ~ − 5 nT, while the strong ones occur when SYM/H ~ − 16 nT.

While an increase in the geomagnetic indices before strong substorms (see Fig. 1c, d) can be anticipated, a simultaneous increase in both solar wind velocity and density (and hence the dynamic pressure) is unexpected, taking into account that these two quantities tend to be anticorrelated: The high-speed flows of the solar wind that originated in the coronal holes have low density, while the dense solar wind streams in the region of the heliospheric current sheet have relatively low speeds. Figure 2a, b shows a relation between the values of the solar wind plasma density and velocity for all analyzed events averaged over 1 h before T0 (Fig. 2a, the red dots) and after T0 (Fig. 2b, the blue dots). The straight lines correspond to the best linear fit. As seen from Fig. 2a, b, the number density tends to decrease with velocity increasing. However, both N and V show an increase with increasing intensity of isolated substorms (see Fig. 2c, d).

Fig. 2
figure 2

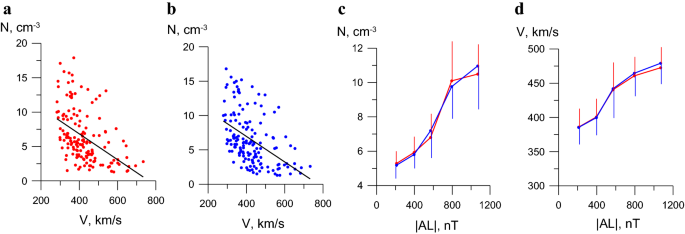

Relationship between the solar wind plasma density and velocity for the time intervals of 1 h before (a red dots) and after (b blue dots) substorm onset. The average values of the solar wind density (c) and velocity (d) for substorms of different intensities. The averaging is made 1 h before (red) and 1 h after (blue) onsets. Data are averaged in the 200-nT bins starting from 100 nT

In summary, it was found that the solar wind velocity and number density are almost constant during a long time interval covering at least 3 h before and 1 h after the onset. However, the minimum value of AL variation decreases with increasing average values of the velocity and density, and hence of the dynamic pressure. We interpret this effect as follows. The steady state of the magnetosphere before an isolated substorm depends on the parameters of the solar wind. The higher values of N and V create the conditions that constrain substorm development. In other words, for higher dynamic pressure it is necessary to load larger amount of energy into the magnetosphere during the growth phase to be able to achieve the threshold, which should be overcome for substorm generation. Subsequently, this energy releases during the expansion phase, leading to the stronger substorms.

How the solar wind density, velocity, and pressure are related to some coupling functions containing the IMF values

Recently, Vorobjev et al.(2016) have showed that the intensity of isolated substorms strongly correlates with the Kan and Lee (1979) electric field EKL= V·BT·sin2(/2), and the Newell et al. (2007) parameter dΦ/dt = V4/3·B 2/3 T ·sin8/3 (/2) (where BT = (By2 + Bz2)1/2, and = arctg(By/Bz)). Therefore, it is important to clarify whether there is a correlation between these functions and the solar wind V, N, and P. We also included in the analysis the sign of the IMF Bz component, considering that according to many authors the behavior of Bz component is very important for substorm development.

Figure 3 shows the relation between the solar wind velocity (Fig. 3a), number density (Fig. 3b), and dynamic pressure (Fig. 3c), and the Bz component. We used the data 1 h before substorm onset, averaged for different bins of Bz values, taken with a step 2 nT. The solid lines represent the best linear fits obtained by the least-squares method. The correlation coefficients between V, N, P, and Bz for the binned data (in parentheses for the original arrays) are r = 0.31 (0.40); 0.79 (0.55) and 0. 88 (0.59), correspondingly. The use of the orthogonal regression method does not cause a noticeable modification in the linear fits and correlation coefficients. As can be seen, nearly the same solar wind velocity is observed when Bz changes both value and orientation. In fact, Fig. 3a shows the average value of V. On the contrary, the values of N and P increase with southern IMF increasing. This result indicates that before isolated substorm onset the loading of the magnetosphere, determined by the level of southern Bz, increases with the solar wind number density and dynamic pressure.

Fig. 3
figure 3

Relationship between the solar wind velocity (a), plasma density (b) and dynamic pressure (c), and the IMF Bz component. The averaging is performed 1 h before the substorm onset. The vertical lines indicate the mean square deviation, and the solid lines represent the best linear fits

The solar wind velocity V, being one of the components of the coupling functions EKL and dΦ/dt, is also significant. Figure 4 shows the variations of EKL and dΦ/dt with the dynamic pressure. The mean values of the functions obtained by averaging over 1 h before substorm onset were calculated for 10 bins of the dynamic pressure, with the width of a bin taken as 0.5 nPa. As seen from the figure, both EKL and dΦ/dt strongly correlate with the dynamic pressure and the correlation coefficients are equal to r = 0.81 (0.61) and r = 0.85 (0.58), respectively. This means that an increase in the dynamic pressure strengthens the solar wind driving before isolated substorm onset. The original correlation coefficients for basic variables (N, P, Ekl, dF/dt) are at level from 0.55 to 0.61. They are not as exciting as for the binning data, but are rather high to take these correlations into consideration.

Fig. 4
figure 4

Values of EKL and dΦ/dt, which characterize the solar wind driving before the substorm expansive phase versus solar wind dynamic pressure. The dots represent the average values of the functions binned every 0.5 nPa, the vertical lines indicate the mean square deviation, and the solid lines represent the best linear fits

There is no reason to assume that such a close relationship between the dynamic pressure and the EKL and dΦ/dt functions keeps for other randomly selected periods. To support this point of view we selected three arbitrary time intervals in December 2000, 2004 and 2007. December is in the middle of the winter season, and the years 2000 and 2007 correspond to the minimum and maximum of solar activity, respectively, and 2004 is in between. The correlation coefficients for the original arrays are r = 0.12 and r = 0.09 for the year 2000, r = 0.07 and r = 0.06 for the year 2004, and r = 0.32 and r = 0.23 for the year 2007, for EKL and dΦ/dt, respectively.

Discussion and conclusions

Our results can be analyzed in the framework of the substorm model based on the solar wind energy loading into and the subsequent unloading in the magnetosphere. In this approach, the substorm starts due to development of an instability, which does not require any external trigger to start. To explain the observed effects, it is necessary to analyze the stability of plasma and magnetic field distributions in the magnetosphere under changing conditions in the solar wind and IMF. It is a complex problem, which is far from its final solution. We can only propose some qualitative explanation.

Isolated substorms develop during the time intervals when the Earth’s magnetosphere is in quasi-stable states. Each state has a long duration (> 3 h) and corresponds to a specific condition in the solar wind and IMF. Prior to growth phase onset, the interplanetary magnetic field is predominantly northward. In this case, both the transverse currents in the magnetotail and the ring current are weak, and the geomagnetic field is nearly dipolar not only in the inner magnetosphere, but also at considerable distances from the Earth.

The magnetosphere compression by an increased P does not produce the conditions to generate an isolated substorm. A change in the IMF Bz component sign leads to a change in transverse and field-aligned current in the magnetosphere and its configuration (see, for example, Sibeck et al. (1991) and later works). Redistribution of the magnetic flux between dayside and nightside regions of the magnetosphere takes place, which is commonly attributed to the “loading” of the magnetosphere. If the solar wind parameters remain almost unchanged during a few hours, the development of the substorm instability is suppressed by some factors and an increase in the energy uploading before the onset T0 is required for substorm generation. Indeed, an increase in the solar wind dynamic pressure leads to an increase in the pressure in the plasma sheet (Tsyganenko and Mukai 2003) and the ring current (see Antonova et al. (2017) and references therein). This permits to assume that the growth of ring current intensity could also play a role of stabilizing factor for substorm instability development. It is known that the existence of vertical magnetic component is unfavorable for the development of tearing (Nishida 1978) and current disruption (Lui et al. 1992) instabilities. According to Antonova et al. (2013, 2017), the ring current makes the main contribution into the SYM/H variation. This is supported by numerous results including the latest results of Gkioulidou et al. (2014). The compression of the magnetosphere leads to the increase in the ring current, decrease in the magnetic field inside the current, and hence the increase in SYM/H. Simultaneously, the vertical component of the magnetic field increases outside the ring current and near-Earth magnetotail, which increases the thresholds of instabilities such as tearing (mode) and current disruption. Therefore, more energy is required to be uploaded to the magnetosphere during the growth phase to generate substorm. Subsequently, more intense isolated substorms will develop for stronger SYM/H, as shown in Fig. 1c.

Intensity of substorms developed due to instabilities of magnetosphere–ionosphere interactions of field-aligned currents as considered in (Kan et al. 1988; Stepanova et al. 2002) also depends on the solar wing parameters. It should be noted that in the case of Bz > 0, when the solar wind density (and hence the dynamic pressure) increases, plasma in the plasma sheet is getting more dense and cold (Terasawa et al. 1997). Borovsky et al. (1998) showed that the solar wind material reaches the near-Earth nightside plasma sheet in about 4 h, which enhances particle precipitating fluxes and diminishes the average energy of precipitating ions and electrons. In general, when the number density of the solar wind increases, the energy flux of precipitating electrons and hence auroral luminosity in emission (1NG N2+) of 391.4 nm are reduced (Vorobjev et al. 2004). Consequently, the electron density and conductivity in the E layer of the ionosphere are also reduced, as well as the intensity of ionospheric and field-aligned currents, and auroral arcs gradually vanish. This effect leads to stabilization of the instabilities discussed by Kan et al. (1988) and Stepanova et al. (2002), which relate substorm onset to the intensification of field-aligned currents.

All aforementioned factors restrain the generation of substorms, regardless of whether the substorm is generated by instability in the magnetosphere or by an electrostatic instability, developing in the region of upward field-aligned currents (Stepanova et al. 2002; Antonova et al. 2009). Thus, an increase in the solar wind dynamic pressure restrains generation of an isolated substorm.

We cannot exclude a possible alternative explanation of our results that BT as well as its Bx component is effective for substorm generation. Recently, Maggiolo et al. (2017) have reported a significant correlation between BT and the solar wind dynamic pressure (P). For our purpose, this result implies that if Bz correlates with BT, then Bz, EKL and dΦ/dt should correlate with both BT and P, providing a possible explanation of correlations presented in Figs. 3 and 4. However, since the IMF vector lies generally in the equatorial plane, one should not expect any correlation between BT and Bz, and indeed, Maggiolo et al. (2017) report an extremely low level of correlation between BT and Bz (their Fig. 4).

In our Fig. 3, Bz varies from − 4 nT to + 8 nT. We checked the relationship between BT and Bz using monthly intervals of December 2000, 2004 and 2007. As in Fig. 3, all data were fitted by linear regressions with correlation coefficients for bin averages and original arrays being ~ 0.8 and 0.1–0.2, respectively. Despite the large correlation coefficients for bin averages, the slopes of the fitted lines for all three December intervals are very low: the level of BT is ~ 6 nT in 2000, varies from 5 to 7 nT in 2004, and varies from 4 to 5 nT in 2007. There is no increase in BT with increasing Bz in the selected intervals. This evidence suggests that taking BT into account is not effective to explain the correlations between P and coupling functions EKL and dΦ/dt presented in Fig. 4. Some correlation between BT and Bz is possible in our dataset prior to substorm onset when significant correlation between P and Bz was discovered (Fig. 3c). As expected, BT increases from ~ 3 to 9 nT as Bz decreases from 4 to − 8 nT, with correlation coefficients for bin averages and original arrays being 0.82 and 0.47, respectively. Correlation of BT and Bz is possible for moderate and strong solar wind driving, when strong BT correlates with strong N and P in the solar wind during solar mass injections and magnetic storms, which are not discussed in this paper which examines only intervals of isolated substorms when solar wind dynamic pressure does not change significantly during long time intervals (> 3 h) before onset. The IMF Bz component tends to change from northward before the growth phase to southward prior to the substorm, indicating no correlation during such intervals in the events we studied. There is also no correlation between Bz and P before substorm growth phase, when the Bz is predominantly northward. Yet, the levels of solar wind N and P before growth phase are very significant factors controlling the isolated substorm intensity.

Finally, we conclude that an increase in the solar wind dynamic pressure as early as before substorm growth path results in the formation of the magnetospheric conditions that impede the isolated substorm generation. Therefore, more energy is required to be uploaded into the magnetosphere to generate a substorm. Subsequently, this energy will be released during the substorm expansion phase, generating more intense magnetic bays. We still do not exclude the possibility of alternative explanation of our results; however, at present our concept seems to be the most realistic.
