Near-seafloor magnetic mapping of off-axis lava flows near the Kairei and Yokoniwa hydrothermal vent fields in the Central Indian Ridge
Earth, Planets and Space volume 70, Article number: 188 (2018)
The Kairei (KHF) and Yokoniwa hydrothermal fields (YHF) are hosted in mafic as well as ultramafic rocks distributed at an off-axis volcanic knoll of the Central Indian Ridge. Despite intensive investigations, their geological and geophysical background is still debated. Here, we show the results of near-seafloor magnetic anomaly surveys conducted using a submersible. We investigated the bulk magnetization of the hydrothermally altered zone and the surrounding lava flows and evaluated their intensities compared with previously reported values at axial areas of seafloor spreading environments. The KHF is characterized by low coherence between observed and modeled anomalies and low values of magnetization. This result suggests that magnetic minerals within basaltic lava flows were likely altered by hydrothermal fluid circulation. The variation pattern in the observed magnetic anomalies above the lava flows is in phase with that of the modeled magnetic anomalies for the simple assumption that the magnetization direction is parallel to the geomagnetic field. This result suggests that these lava flows preserve normal magnetic polarity corresponding to the Brunhes Chron. The estimated magnetic-anomaly-derived absolute magnetizations show a reasonable correlation with the natural remanent magnetizations of rock samples collected from the seafloor of the same region; their relationship is consistent with previously reported datasets from the Mariana Trough and Mid-Atlantic Ridge. The estimated magnetization intensity reaches 20 A/m in the study area, which is clearly greater than those of previously reported off-axis areas, suggesting that recent volcanic eruption may have occurred in these off-axis areas. The high magnetization distributions are commonly observed at the bottoms of the western slope from the KHF and YHF. This finding provides new insight into the distribution of highly magnetized lava flows in the off-axis areas and indicates the distribution of recent off-axis volcanic activities, which is potentially linked to the sub-seafloor hydrothermal circulation.
Hydrothermal circulation within the oceanic lithosphere is a fundamental process in submarine volcanic systems such as mid-ocean ridges and essentially affects the solid-Earth cooling, ocean temperature, and material cycles (e.g., Elderfield and Schultz 1996). The Kairei hydrothermal field (KHF), known as the first confirmed active seafloor hydrothermal system of the Central Indian Ridge (CIR) since its discovery in 2000 (Gamo et al. 2001), is situated in the southernmost segment of the CIR, namely CIR-S1, near the Rodrigues ridge–ridge–ridge triple junction (Fig. 1). This hydrothermal system is likely related to water–rock reactions of mafic as well as ultramafic host rocks because high H2 and CH4 gas content of vent fluids was observed, and the presence of ultramafic rocks was confirmed 10–20 km from the vent field (Gallant and Von Damm 2006; Kumagai et al. 2008; Nakamura et al. 2009; Okino et al. 2015). The Yokoniwa hydrothermal field (YHF) was identified in 2009 in the same segment of the CIR-S1 (Fujii et al. 2016a; Fig. 1). This field is located on top of a shallow dome-like massif developed between two nodal basins at the northern end of CIR-S1 and the southern end of CIR-S2, which is recognized as a non-transform offset massif known as Yokoniwa Rise (Okino et al. 2015). Previous sea-surface magnetic anomaly studies have identified the Brunhes/Matuyama boundary along the eastern off-axis areas of CIR-S1 and S2 (Honsho et al. 1996; Sato et al. 2009; Okino et al. 2015; Fig. 2b, c), suggesting that the Yokoniwa Rise formed in the Brunhes normal chron (~ 0.78 Ma). The YHF has been suggested to be an inactive mature hydrothermal system hosted by highly serpentinized ultramafic rocks based on near-seafloor magnetic anomalies and rock magnetic studies as well as visual observation of diminishing low-temperature venting and small dead chimneys (Fujii et al. 2016a, b).

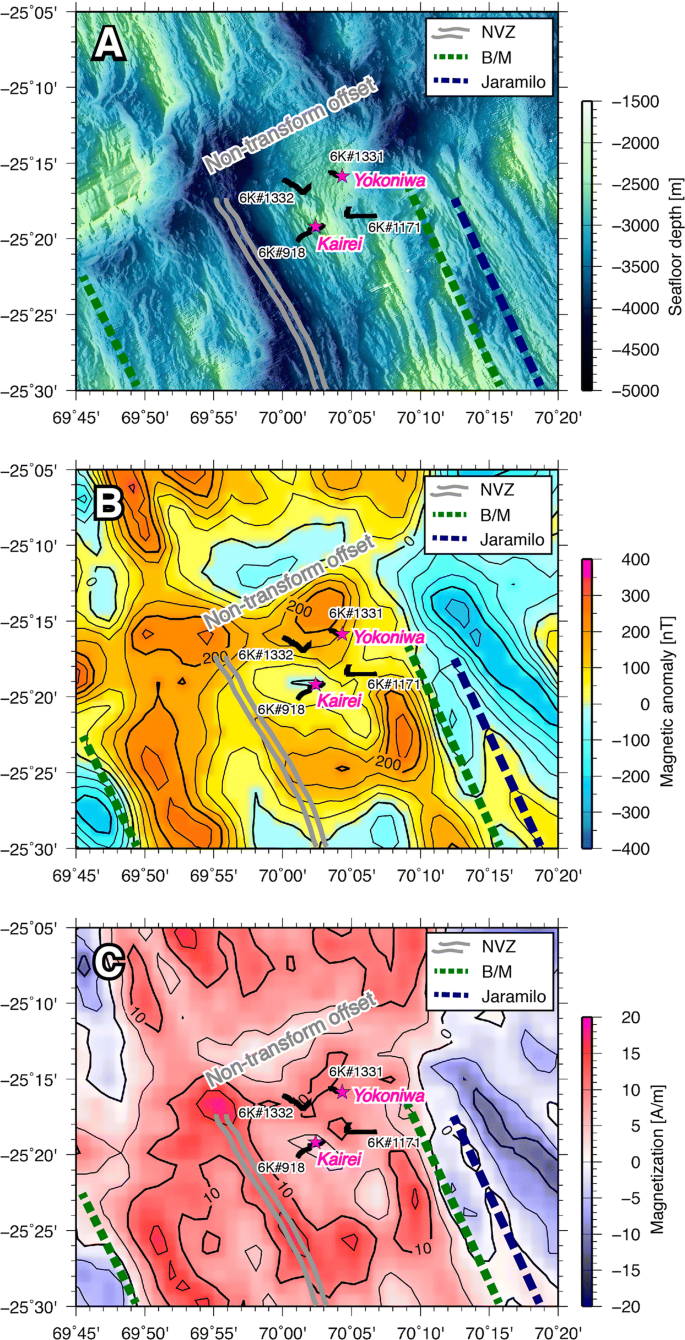

CIR-S1, where the KHF and YHF occur in an off-axis area, is a 20-km long segment with a deep axial valley. Undeformed volcanic cone structures and volcanic knolls are distributed within a neo-volcanic zone (Fig. 2a). The segment shortens with seafloor age in the off-axis area, which implies that CIR-S1 was newly created during the evolution of the triple junction (Honsho et al. 1996; Mendel et al. 2000). The off-axis knoll with the KHF, known as the Hakuho knoll, is composed entirely of pillow and sheet lavas (Fig. 1). Magnetization distribution deduced from sea-surface magnetic anomalies shows a relatively low value at the Hakuho knoll owing likely to a thin extrusive overlying layer or a hydrothermally altered extrusive layer. The YHF is located on the side of a more magnetized region aligned parallel to the adjacent non-transform offset and may have originated from enhanced magnetization as a result of serpentinization of the ultramafic body (Fujii et al. 2016a, b). Submersible and dredge surveys showed that gabbro and serpentinized peridotite are extensively exposed in a further off-axis area (eastern side) from the Hakuho knoll (Nakamura et al. 2009; Okino et al. 2015; Sato et al. 2015; Fig. 1). Nakamura et al. (2009) proposed a theoretical model of KHF genesis suggesting that both troctolite–seawater and basalt–seawater interactions can be sources of H2-rich fluids. Whether troctolites 15 km from the KHF can react is still debated. Fujii et al. (2016a) proposed a three-stage formation model of ultramafic-hosted hydrothermal systems and speculated that magmatic intrusion at depth could be a driving force for hydrothermal circulation; however, shallow basaltic volcanism near the YHF has also been reported and could be an alternative driving force (Fig. 1). The geological and geophysical background factors of the hydrothermal system such as circulation style, driving force, and fluid pathway remain to be confirmed in this segment.
In this study, we explored off-axis lava flows near the KHF and YHF in CIR-S1. Near-seafloor magnetic anomaly data were obtained by using a submersible. To determine the lava freshness, we investigated the bulk magnetization of the lava flows and evaluated their intensities compared with previously reported values at an axial area of a spreading environment. This study provides insight into the distribution of highly magnetized lava flows, which indicate the distribution of recent extrusions and are potentially linked to sub-seafloor hydrothermal circulation as a heat source.
We performed near-seafloor magnetic surveys surrounding the KHF and YHF using the submersible SHINKAI 6500 (6K) during three scientific cruises of the R/V Yokosuka; YK05-16, YK09-13, and YK13-03 (Fig. 2). Dive 6K#918, during YK05-16, covered the eastern slope of the axial valley and the off-axis knoll at 2200–3000 m depth, where the KHF is located. Dive 6K#1171, during YK09-13, covered the eastern side of the KHF at the foot of the eastern slope at 2900–3200 m depth. Dive 6K#1331, during YK13-03, covered only the western side of the YHF at 2400–2700 m depth. Dive 6K#1332, also during YK13-03, covered the northern side of the KHF and the western side of the YHF at 2700–3200 m depth.
Three components of the magnetic field were successfully measured by using a three-axis fluxgate-type magnetometer that was rigidly fixed to the front side of the submersible. Attitude data of heading, pitch, and roll were obtained by using a gyrocompass and a motion sensor (Octans, iXblue Inc., USA). The observed data were first corrected for the effects of induced and permanent magnetizations of the submersible to obtain regional magnetic anomalies after subtraction of the International Geomagnetic Reference Field (IGRF; Isezaki 1986). The data for calibration were obtained during the helical loops performed spontaneously at mid-depth above the seafloor. All dive surveys were navigated by acoustic ranging operated in the sea-surface vessel by using a super-short baseline positioning system. The magnetic data were collected at an altitude of a few to several tens of meters. To conduct the following two-dimensional analyses, the data along the dive tracks were projected onto a straight line. The directions of the x, y, and z components were defined as being parallel to, perpendicular to, and downward of the projection line, respectively. The y component actually had some variation, implying that the structure is not exactly two-dimensional. These anomalies were produced mainly by local topography and the vertical motion of the submersible.
The two-dimensional forward method combined with frequency analysis was applied to estimate the absolute magnetization under consideration of topography and altitude variation (Fujii et al. 2015; 2016a; Honsho et al. 2009). Absolute magnetization intensity was estimated from the ratio of the observed magnetic anomaly to the synthetic anomaly computed for a 1-A/m magnetization intensity representing the unit magnetization intensity of the seafloor. The synthetic anomaly was calculated by using a two-dimensional forward calculation based on a polygonal body (Talwani and Heirtzler 1964). The upper boundary of the magnetized layer was constrained by the topographic surface, which was defined by the depth and altitude of the vehicle. The magnetized layer was assumed to be uniformly magnetized with infinite half-space and a magnetization direction parallel to the geocentric axial-dipole field, showing an inclination of − 43° and a declination of 0°. Absolute magnetization was estimated at 16-m intervals along the track using a 256-m-wide sliding window. Spectra were then averaged over wavelengths between 43 and 256 m to obtain a ratio of observed to synthetic anomalies, together with error, coherency, and phase. These calculations were applied to all sets of the segments for the x and z components. The averaged values between the x and z ratio of observed to synthetic anomalies were adopted as our best estimate of absolute magnetization intensity. Estimations with a coherency greater than 0.5 in both components were retained for further interpretation. The magnetization polarity was regarded as normal polarity for the phases between − 30° and 30°.
Previously reported magnetic data along 6K#1331 from Fujii et al. (2016a) was reanalyzed by using the same analytical condition and assumption mentioned above in order to discuss the magnetization intensity and distribution in comparison with the KHF.

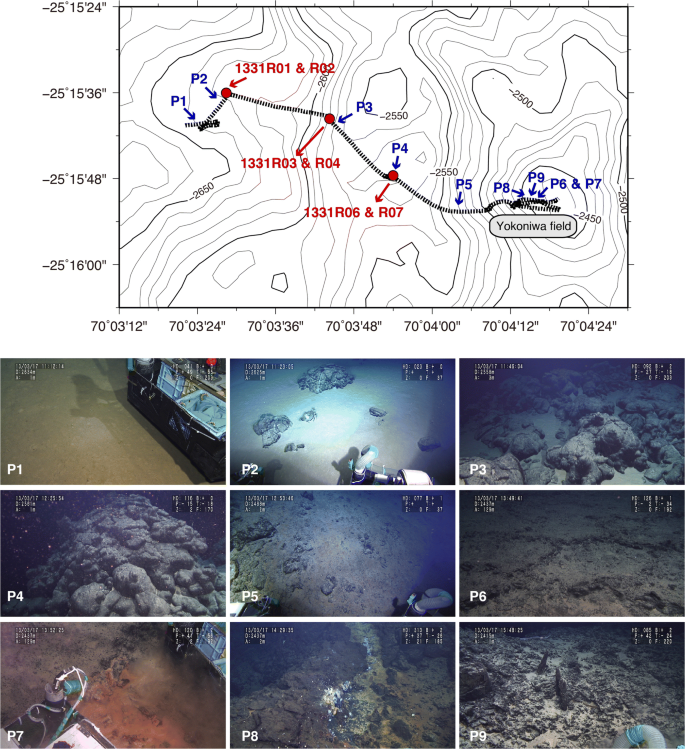

The geological feature of seafloor surface along the dive tracks was constrained by examining video and still camera records for each dive. In some limited areas, no visual observation of the surface geology was obtained because of the higher altitude of the vehicle. Route maps of dive 6K#918 have been previously reported by Kumagai et al. (2008).
Three components of the magnetic field were successfully measured near the KHF and YHF. The maximum amplitude of observed magnetic anomalies along the 6K#1171 and 6K#1332 dive surveys reached 5000 nT. In contrast, that of 6K#918 reached 10,000 nT (Fig. 3). The contribution of magnetic sources shallower than 50 m, particularly those shallower than 10 m, was significant for the observed short-wavelength anomaly variations at an altitude of a few to several tens of meters (Fujii et al. 2016a; Honsho et al. 2009). We tested signal sensitivity for several layer thicknesses based on forward modeling. Therefore, variation in the observed magnetic anomalies reflects mainly the magnetization distribution of the uppermost crust, which geologically is the accumulation of lava flows and massive lavas covered by thin sediment (Fujii et al. 2016a; Honsho et al. 2009).
The results of the magnetization solution estimated from the observed anomalies along 6K#918 were compared with bathymetric signatures, sampled rock, and hydrothermal fields, as shown in Fig. 3. The estimated magnetization intensity with high coherency (> 0.5) was 4–28 A/m (Fig. 3). Nearly all showed a phase of normal polarity at − 30° to 30° in both the x and z components, representing the acquisition of basement remanence during the normal geomagnetic polarity period. Strong estimated magnetization higher than 10 A/m along 6K#918 was observed only on the western part of the KHF (0.3–2.0 km area in Fig. 3), where basaltic rock samples were collected (Figs. 1 and 3). Local geological conditions in this region show mainly piles of flat or lobate sheet flows and some sediment-covered lavas (Fig. 4). Seafloor shallower than the KHF showed an estimated magnetization intensity of up to 10 A/m (Fig. 3). In contrast to the highly magnetized seafloor, the area of the KHF and its western slope show low coherency and a complicated phase (2.0–3.3 km area in Fig. 3) owing mainly to low signal-to-noise ratio caused by the weakly magnetized uppermost crust. Such low-coherence estimations can also be caused by changes in basement lithology or magnetization direction owing to block rotation in addition to geometric error caused by sediment burial. Local geological conditions in this region show reddish sediments and hydrothermal signatures such as dead and active chimneys and unique ecosystems (Kumagai et al. 2008; Fig. 4).
The estimated magnetization intensity with high coherency along 6K#1331 was 3–20 A/m. Higher values of estimated magnetization were locally observed mid-depth of the survey track around the sites where basaltic lava samples 1331R03 and 1331R04 were collected (0.7–1.0 km area in Fig. 5). Nearly all showed a phase of normal polarity in both the x and z components. Local geological conditions in this region show massive lava flows (Fig. 6) generally in the deeper western area, although whitish sediment covering seafloor is partly dominant (Fig. 6). From the bottom to top of the steep slope toward the YHF, the analytical results of the magnetic anomaly generally show low coherency and a complicated phase, and the magnetization values are less than 5 A/m even for data with high coherency (Fig. 5). In this slope, brownish sediments with black blocky rocks were observed; these rocks were too weak for the vehicle manipulators to grab. On top of the Yokoniwa Rise, active hydrothermal fluid shimmering with maximum temperature of 4.2 °C and several dead chimneys were found, as reported in the 6K#1176 dive on November 14, 2009, and discussed by Fujii et al. (2016a).
The estimated magnetization intensity with high coherency along 6K#1171 was generally 4–11 A/m (Additional file 1: Figure S1). Data with a phase of normal polarity in both the x and z components were observed at only a few places. The collected rock samples along the survey tracks of the 6K#1171 are all basaltic lavas (Fig. 1).
The estimated magnetization intensity with high coherency along 6K#1332 was 4–15 A/m (Additional file 2: Figure S2). Those with a phase of normal polarity in both the x and z components reached a maximum of 11A/m. The collected rock samples along the survey tracks of the 6K#1332 are all basaltic lavas (Fig. 1).
Magnetic signature of Kairei hydrothermal field
The KHF is characterized by low coherence between observed and modeled anomalies under a simple assumption of magnetization direction and source geometry in addition to low magnetization intensity deduced from magnetic anomalies (Fig. 3). This result indicates that the KHF magnetization is less than that of the surrounding seafloor. The KHF is likely hosted by basaltic lava. The basaltic lava samples were widely collected around the KHF (Fig. 3). The major element composition of these samples (6K#918R02, 6K#918R03, and 6K#918R10) was analyzed by microprobe analysis of glass chips (Kumagai et al. 2008); the results demonstrated that all lava samples near the KHF are tholeiite with 50.9–51.5 wt% SiO2, 0.02–0.05 wt% K2O, 2.7– 3.0 wt% Na2O, 8.1–8.4 wt% FeO, and 1.06–1.19 wt% TiO2 (Additional file 5: Table S1; Additional file 1: Figure S1).
The general correlation between reduced crustal magnetization and hydrothermal activity in basalt-hosted systems has been well documented in the following locations: in mid-ocean ridges (MORs); on the Trans-Atlantic Geotraverse (TAG) site developed along the detachment faults of the northern Mid-Atlantic Ridge (MAR; Tivey et al. 1993); the Krasnov site within the axial volcanic ridge near the axial valley wall of the mid-MAR (Szitkar et al. 2014); the 4°48′S area within the axial rift on very fresh lavas in the southern MAR including the Comfortless Cove, Turtle Pits, and Red Lion sites (Tivey and Dyment 2010); the Endeavour Field and Raven Field developed within the axial rift valley of the Juan de Fuca Ridge (JFR; Tivey and Johnson 2002; Tivey et al. 2014); and a hydrothermal site on the southwestern Indian Ridge (SWIR; Zhu et al. 2010). Moreover, it was clearly demonstrated that reduced magnetization zones associated with hydrothermal areas are accompanied by basalt to andesite-hosted systems in the following regions: in back-arc regions; at the Snail and Yamanaka sites along a back-arc spreading center; at the Archean site at the foot of an axial high; and at the Pika and Urashima sites on an off-axis knoll of the Southern Mariana Trough (Fujii et al. 2015) as well as at the Hakurei Field along the caldera wall of the Izu–Ogasawara arc–back-arc (Honsho et al. 2013); at the Brothers Field of the Kermadec intraoceanic arc volcano (Caratori Tontini et al. 2012); and at sites of the Palinuro volcano on the Aeolian volcanic arc (Caratori Tontini et al. 2014a, b; Szitkar et al. 2015).
Four possible factors are generally considered for producing magnetic lows related to hydrothermal activity: (i) alteration of magnetic minerals (titanomagnetite) within the volcanic basement rock, (ii) accumulation of nonmagnetic hydrothermal deposits, (iii) thermal demagnetization, and (iv) self-reversal. It is considered that the primary process causing weak magnetization is alteration of the host rock with highly corrosive hydrothermal fluid, which altered the magnetic mineral (titanomagnetite) that carries strong natural remanent magnetization (NRM) in volcanic rock to less magnetic or nonmagnetic mineral phases (e.g., Hochstein and Soengkono 1997; Irving 1970; Johnson and Atwater 1977; Hall 1992; Ade-Hall et al. 1971; Watkins and Paster 1971; Fujii et al. 2018). The presence of thick hydrothermal deposits increases the distance between the magnetic field measurements and the underlying magnetized basement rocks, resulting in an apparent magnetic low (Szitkar et al. 2014). Thermal demagnetization is also a possible source for reduced magnetization if the subsurface temperature beneath a vent site approaches the Curie temperature of the mineral carrying the magnetic signal, as reported in an early magnetic study of Wooldridge et al. (1992). Reduced magnetization near the Kairei site is widely distributed toward the west even in the area where active hydrothermal venting has not been observed, and therefore, thermal demagnetization is not likely the main cause of magnetization low. Demagnetized zones at both active and inactive vent sites have been also confirmed in the southern Marian Trough (Fujii et al. 2015), the Endeavour Field in the JFR (Tivey and Johnson 2002), and the Krasnov site in the MAR (Szitkar et al. 2015). These results suggest that hydrothermal alteration rather than elevated temperatures should be the primary mechanism for the reduced crustal demagnetization. Furthermore, Tivey et al. (2014) demonstrated that discrete areas of reduced magnetization of the Endeavour Field in the JFR are associated with active and inactive hydrothermal vent deposits in consideration of high conductive heat flow. Another possibility for the magnetic low over hydrothermal fields is self-reversed chemical remanent magnetization (CRM), which has been discussed for the last 40 years (e.g., Verhoogen 1956; O’Reilly and Banerjee 1966). Self-reversal could be produced during extreme low-temperature oxidation (maghemitization) of titanomagnetite by ionic reordering. A recent study of oxidized basalts recovered at nine drilling sites in the Pacific Ocean indicated that very high oxidation states (z > 0.9) and relatively high Ti contents (x > 0.6) are needed to produce natural self-reversed components and that self-reversed magnetization is not a general feature of the magnetization carried by oceanic basalt (Doubrovine and Tarduno 2006).
Our results of these magnetic field surveys and previous studies suggest that the reduced magnetization at the KHF indicates alteration of titanomagnetites within volcanic basement rock and/or accumulation of hydrothermal deposits. The area of the KHF (2.7–3.0 km area in Fig. 3) clearly shows very low, near null magnetization and strong correlation with active vents and hydrothermal ecosystems (Fig. 4). It is noted that the area of very low magnetization extends to the western slope from the KHF (2.0–2.7 km area in Fig. 3). Reddish sediments as well as broken lava flows were observed in this area (Fig. 4), implying that accumulated hydrothermal deposits and/or previous hydrothermal alteration of the crust can play roles in the very weakly magnetized crust. Shallow exposure of an ultramafic body covered by very thin extrusions may exist, although geological observation shows basaltic lavas widely distributed in this field; no ultramafic rocks were collected (Figs. 1 and 4).
Off-axis lava flows near the Kairei and Yokoniwa hydrothermal fields
The variation pattern in observed magnetic anomalies above the lava flows on the western slope and east side of the KHF is in phase with that of synthetic magnetic anomalies assuming an infinite source layer with magnetization parallel to the geocentric axial-dipole field (Fig. 3). The magnetization estimates in the lava-dominant area at the bottom of the western slope of the YHF also show good coherence between the observed and synthetic magnetic anomalies (Fig. 5). The solutions collected along the dives of the 6K#1171 and 6K#1332 partly show similar signatures. These results suggest that these lava flows, erupted during a recent normal polarity period, preserve normal magnetization at the initial stage of cooling. This result is consistent with previous sea-surface magnetic surveys, which identified the Brunhes/Matuyama boundary along the eastern off-axis areas (Honsho et al. 1996; Okino et al. 2015; Sato et al. 2009; Fig. 2). Therefore, it is considered that these lavas likely erupted during the Brunhes normal epoch and acquired normal polarity thermoremanent magnetization (TRM).
We practically utilized the estimations of magnetization with high coherency (> 0.5) and normal polarity (− 30° to 30°) in both the x and z components for the following discussion and regarded them as a reliable estimate for magnetic signatures of the extrusive lavas with normal polarity, based on the study by Honsho et al. (2009) (Fig. 7). The estimated magnetization intensity reached 20 A/m at the bottoms of the western slopes of the KHF and YHF (Figs. 3, 5, and 7), which is suggestive of recent volcanic activity compared with the estimated magnetization reported in axial areas of the MAR and CIR, and in an axial area and an off-axis knoll of the southern Mariana Trough (Cordier et al. 2010; Fujii et al. 2015; Honsho et al. 2009). The NRM of zero-age basalt typically carries a strong intensity of several tens of A/m, although this intensity dramatically decreases to several A/m with the age, following low-temperature oxidation (e.g., Gee and Kent 1994; Johnson and Tivey 1995). Therefore, a high magnetization zone can be interpreted here as relatively fresh basalt that erupted during the recent period. The primary TRM intensity of oceanic basalt is theoretically controlled by various variables such as the amount of titanomagnetite, the magnetic domain state distribution, the grain chemistry of titanomagnetite, and the strength of the past geomagnetic field. Although it is difficult to discuss quantitative criteria for freshness based on the remanence intensity, it can be noted that a magnetization intensity greater than 10 A/m has not been generally observed in an off-axis seafloor millions of years old (Gee and Kent 1994; Johnson and Tivey 1995; Zhou et al. 2001). The highly magnetized lava flow zones (~ 20 A/m) in the study area are in a seafloor approximately 250 kyr old if a constant half-spreading rate of 30 mm/yr is assumed (Okino et al. 2015; Fig. 5). This intensity of ~ 20 A/m is too high for off-axis areas in case of an exponential reduction in the NRM intensity with a time constant of 20,000 to 100,000 years (Gee and Kent 1994; Johnson and Tivey 1995).
The rock magnetic properties of NRM and magnetic susceptibility for lava samples collected along dive 6K#1331 on the western slope of the Yokoniwa Rise have been reported by Fujii et al. (2016a). We additionally measured these for lava samples collected along dive 6K#918 on the western slope of the Hakuho Knoll. Rock samples were divided into four cubic sub-samples (2-cm cubic), which were utilized for measurements of NRM at the Atmosphere and Ocean Research Institute (AORI), the University of Tokyo using a spinner magnetometer (Natsuhara Giken DSPIN). Further, magnetic susceptibility was measured using an AGICO KLY-3 Kappabridge at National Institute of Polar Research, and bulk grain density was measured using a high-precision microbalance and a gas pycnometer (AccuPycTM 1330 Pycnometer) at the AORI. All basaltic lava samples from dive 6K#918 (Additional file 3: Figure S3) showed average NRM intensity values of 2.9–18.4 A/m and magnetic susceptibility of 0.0016–0.0023 SI (Table 1; Fig. 8a). Measured data for all cubic specimens are shown in Additional file 5: Table S1. The lava NRM variation along dive 6K#918 is generally consistent with the magnetic anomaly-derived absolute magnetization there (MADAM; Figs. 3, 8b). In contrast, all basaltic lava samples from dive 6K#1331 (Additional file 4: Figure S4) showed low NRM values, less than 2 A/m, and low magnetic susceptibility, less than 0.001 SI (Table 1). This result is inconsistent with the higher values of MADAM (0.7–1.0 km area in Figs. 5, 8b). This difference between magnetization from magnetic anomalies and that from rock samples can be explained by the grain size heterogeneity within lava flows and/or the degree of low-temperature oxidation as discussed by Fujii et al. (2015). The results of the comparison between rock NRM and MADAM in this study are consistent with the results reported in the studies by Honsho et al. (2009) and Fujii et al. (2015) (Fig. 8b). Due to the degree of crystallization linked to rapid cooling, the magnetic grain size is smaller in the outcrop than in the interior of the lava flows occurring below the seafloor (e.g., Marshall and Cox 1971; Kent and Gee 1996). This results in the lowest NRM intensity on the lava surface, followed by a large increase from the glassy margin to the interior, which in turn is followed by a gradual decrease, and finally a peak further interior. This pattern of NRM intensity variation was observed in relationship rock NRM intensities along with magnetic susceptibility (Fig. 8a) when magnetic susceptibility increases is assumed to be representative of the degree of crystallization. In addition to magnetic grain size distribution, low-temperature oxidation process may provide weaker rock NRM than MADAM, which represents the bulk magnetization of the accumulated lava flows, because it must occur faster on the surface than in the interior of the lavas. Although, until now, the evidence for oxidation heterogeneity in lava has not been examined, the pattern that NRM of rock samples tend to be of smaller values (< ~ 5 A/m) than MADAM (Fig. 8b) is common for the Central Indian Ridge (this study), southern Mariana Trough (Fujii et al. 2015) and Mid-Atlantic Ridge (Honsho et al. 2009). Figure 8 clearly shows that the NRM of rock samples does not have a one-to-one correlation with MADAM estimates. The rock NRM tends to be higher than MADAM for higher values, while it is lower than MADAM for lower values. The material investigation required to interpret this relationship remains to be conducted, but field-geophysical observation using near-seafloor magnetic anomalies can provide important insights into the sub-seafloor lava heterogeneity as well as its bulk magnetization.
Short-wavelength variations in magnetic anomalies within the Brunhes Chron can be created by geomagnetic field intensity variation. Studies on near-seafloor magnetic anomalies at different spreading centers (Gee et al. 2000; Pouliquen et al. 2001; Honsho et al. 2009; Cordier et al. 2010) show that the magnetic anomalies recorded near the oceanic crust are related to temporal variations in geomagnetic intensity (e.g., Guyodo and Valet 1999). The estimates of paleointensity variations from submarine basaltic glasses are remarkably similar to those documented from independent palaeointensity records over the past several tens of thousands of years, and they have been used to determine the eruptive ages of young mid-ocean ridge lava flows (e.g., Carlut and Kent 2000; Gee et al. 2000; Bowles et al. 2006; Searle et al. 2010). The magnetic data shown in this study did not cover the area extending from the spreading axis to off-axis regions, and therefore, it is difficult to compare the obtained profile to the paleointensity variation with considerable certainty. If a constant half-spreading rate of 30 mm/yr is assumed here (Okino et al. 2015), the age of the studied seafloor along dive 6K#918 is approximately 200–300 kyr (Fig. 7). For this period, the local maximum of geomagnetic paleointensity is certainly shown in global stacks of reliable relative paleointensity records from marine sediments (Valet et al. 2005; Channell et al. 2009). Cordier et al. (2010) reported continuous across-axis distribution of absolute magnetization of the CIR covering the last 800 kyr period estimated using near-seafloor magnetic data acquired during the submersible Nautile dives and the analytical method of Honsho et al. (2009). The obtained absolute magnetization intensity shows a maximum value of ~ 20 A/m at the spreading center, and a local maximum value of ~ 10 A/m in the 190–280-kyr-old seafloor. Since the lack of off-axis volcanism is reinforced by the backscatter images and K-Ar ages obtained for a few samples in this area (Cordier et al. 2010), approximately 10 A/m can be regarded as the normal signature for the uppermost crustal magnetization during this age. Therefore, we considered that paleointensity variation could not be a significant factor to provide the seafloor magnetization intensity of 20 A/m, as seen along the dive 6K#918, on off-axis seafloors over the effect of low-temperature oxidation.
**The magnitude of TRM is proportional to the strength of the ambient geomagnetic field and also depends on geochemistry, such as the iron content of the rocks. Good linear correlations between NRM and FeO content were obtained from the dredge samples of the southern East Pacific Rise (EPR), upon calculation using the microprobe analysis of glass chips (Gee and Kent 1997). This result indicates that the magnetization of abyssal basalts can vary by up to a factor of 4 as a function of their iron content alone, from about 12 A/m for 9 wt% FeO to > 50 A/m for the highest FeO values of ~ 15 wt%. Three basalt samples, 6K#918R02, 6K#918R02, and 6K#918R10, collected near the KHF show FeO content of 8.1–8.4 wt%, as measured by the aforementioned microprobe analysis (Kumagai et al. 2008; Additional file 5: Table S1). These values are comparable to lower end-members of the NRM–FeO relationship of the EPR (Gee and Kent 1997), suggesting that the primary TRM intensity of basaltic lavas near the KHF tends to be smaller because of the low-iron content of the parent magma. Therefore, the geochemical data for lava samples do not contradict our interpretation that the estimated high magnetization intensity of 20 A/m here is indicative of a recent eruption.
Our estimation of the magnetization intensity of 20 A/m for the highly magnetized off-axis lava flows in the present study, along with the result of the rock magnetic, geochemical, and magnetic anomaly studies from other regions, implies that the basaltic volcanic eruption may have occurred in the off-axis knolls near KHF and YHF during the recent period (Fig. 7). Moreover, it is noteworthy that for both KHF and YHF, which are demonstrably accompanied by recent eruptions, the highly magnetized lavas with estimated magnetization intensities of up to 20 A/m were observed only near their western slope bottoms. We speculate that this off-axis volcanic activity might be the source of heat for the hydrothermal circulation within the KHF and YHF. The duration of hydrothermal circulation is essentially controlled by the duration and depth of the volcanic activity. The reported life-span of seafloor intermittent hydrothermal activity is for 100–1000 years at a fast-spreading ridge for a short-lived system (Haymon et al. 1991, 1993), and 140,000 years at the detachment-fault-controlled slow-spreading ridges for a long-lived system (Humphris and Cann 2000; Lalou et al. 1995). Although the mechanism and actual conditions of this off-axis volcanism cannot be determined because of inadequate geophysical data; the time-span of recent eruptions (< 20,000–100,000 kyr) estimated from magnetization intensities, matches those of the hydrothermal systems known from the presently active KHF and elsewhere. Further investigation of the detailed sub-seafloor structure and heat flow studies are needed for better understanding of the circulation style and duration of hydrothermal systems.
We conducted near-seafloor magnetic field measurements and rock magnetic and geochemical studies of seafloor lava flows using the submersible SHINKAI 6500 near the Kairei and Yokoniwa hydrothermal fields of the Central Indian Ridge. The integrated analysis of the magnetic anomaly and comparison with the rock magnetic properties led to the following conclusions:
The Kairei hydrothermal field is associated with a lack of magnetization and it extends several hundred meters toward the western slope. The hydrothermal alteration of magnetic minerals present in extrusive lavas and in deposits of nonmagnetic hydrothermal material are likely responsible for the reduced magnetization.

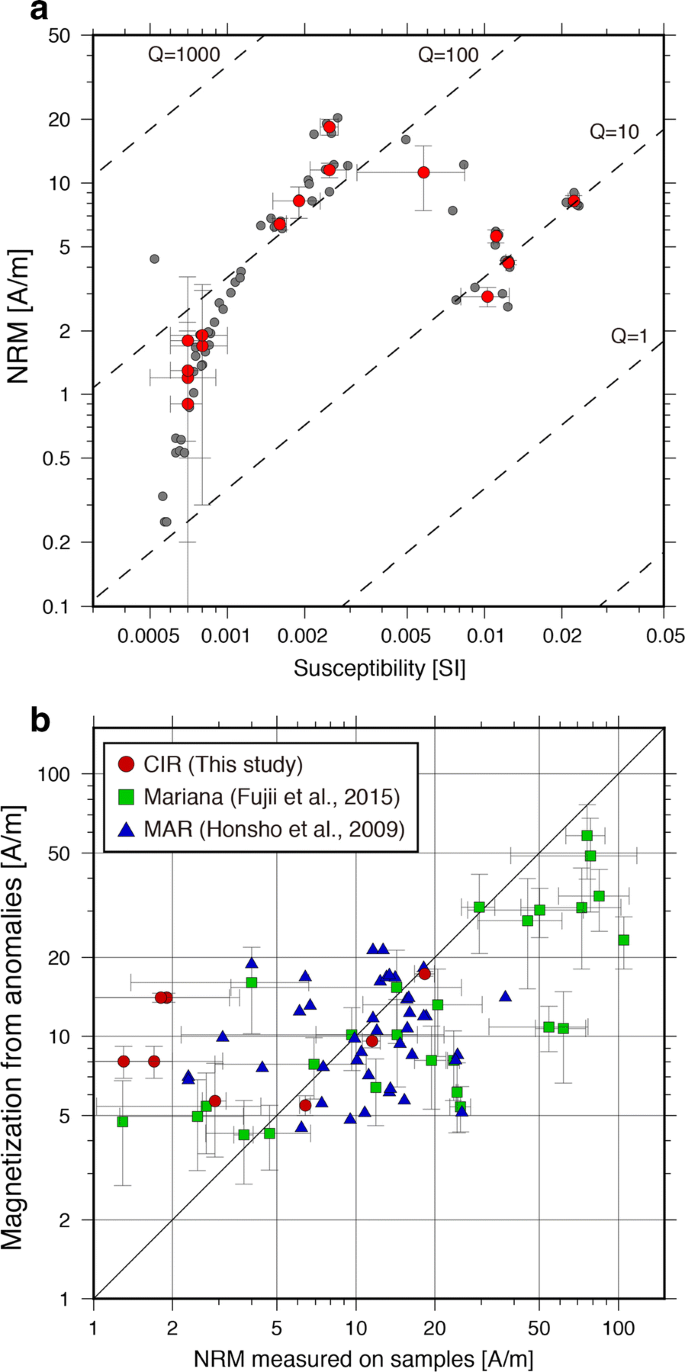

The MADAM estimates are generally consistent with the NRM intensities of collected rock samples from the corresponding seafloor lava, although the NRM values are partly smaller than the MADAM estimates for low values. This discrepancy can be explained by the heterogeneity in magnetic grain size distribution as well as the spatial difference in the degree of low-temperature oxidation.
The magnetization intensity from magnetic anomalies reaches 20 A/m in the study area, which is clearly greater than that of previously reported off-axis areas. This result suggests that a recent volcanic eruption may have occurred in the off-axis areas. High magnetization distributions are commonly observed at the bottoms of the western slopes of the KHF and YHF. This finding provides new insight into the distribution of highly magnetized lava flows in off-axis areas and indicates the distribution of recent off-axis volcanic activities, which is potentially linked to the sub-seafloor hydrothermal circulation.
Central Indian Ridge
chemical remanent magnetization
International Geomagnetic Reference Field
Kairei hydrothermal field
natural remanent magnetization
Yokoniwa hydrothermal field
