Longitudinal differences in the statistical characteristics of ionospheric spread-F occurrences at midlatitude in Eastern Asia
Earth, Planets and Space volume 71, Article number: 47 (2019)
Abstract
Spread-F is known as the electron density inhomogeneous structures in F layer of ionosphere and can usually be classified as frequency spread-F (FSF) and range spread-F (RSF). Few studies have reported on the statistical characteristics of spread-F occurrences at midlatitudes in Eastern Asia, particularly the comparison of spread-F occurrences between China and Japan. In this paper, we used spread-F data recorded by ten ionosondes located between 25°N and 45°N from 1997 to 2016, to investigate the longitudinal differences in the statistical characteristics of spread-F occurrence and the probable mechanism for its occurrence at midlatitudes in Eastern Asia. Variations in the spread-F occurrences with the solar and geomagnetic activities, season and local time are presented. The main conclusions are as follows: (a) the occurrence percentage of FSF is higher than that of RSF, of which the former is anti-correlated with the solar or geomagnetic activities; (b) higher FSF occurrence percentages mostly appeared during summer, while RSF occurred more frequently in winter near 45°N latitude such as Urumqi, Changchun and Wakkanai; (c) the maximum of the FSF occurrence percentages mostly appeared between 01:00 and 02:00 LT approximately, whereas that of RSF appeared near 00:00 LT; (d) the spread-F occurrence percentages in the coastal or marine areas are higher than those in the inland region between 35°N and 45°N latitudes; however, this phenomenon is not obvious at lower latitudes; and (e) both the mean occurrences of FSF and RSF reach the minimum around 31°N latitude. These above results are helpful for understanding variations in spread-F occurrence at midlatitudes in Eastern Asia.
Introduction
Spread-F has been widely studied since it was first defined on the ionogram in the early 1930s (Booker and Wells 1938). Several observations since then revealed the main morphological features of spread-F occurrence, including its dependences on solar and magnetic activities, season, longitude, latitude, local time and the background ionosphere (Aarons et al. 1980; Abdu et al. 1981, 1983, 1998; Fukao et al. 2004; Li et al. 2013; Lynn et al. 2011; Wang et al. 2007, 2018; Xu et al. 2010). Previous studies have focused on low latitudes especially for the equatorial region. In order to understand the global characteristics of spread-F, the variations at midlatitudes have attracted great interest of many researchers since 1980s. Bowman (1984) analyzed the data recorded at Brisbane (36.4°S, 226.6°E) in Australia and showed a reduction in spread-F occurrence following an increased geomagnetic activity. Furthermore, data from two midlatitude ionosonde stations (Lannion in France and Canberra in Australia) of similar geomagnetic latitudes showed the latent correlations between spread-F occurrence and geomagnetic activity (Abdu et al. 1983; Bowman 1994; Hoang et al. 2010). Huang et al. (2011) compared the spread-F occurrence percentages using the data of two Chinese ionosonde stations located at Changchun (43.84°N, 125.28°E) and Urumqi (43.75°N, 87.64°E). The results showed that the spread-F occurrence at Changchun was higher than that at Urumqi especially during the low solar activity years and anti-correlations between the spread-F occurrence and the solar 10.7 fluxes. Bhaneja et al. (2018) investigated the seasonal and solar cycle variations in midlatitude spread-F at five different North American sites spanning between Puerto Rico (18.5°N, 67.1°W) and California (34.8°N, 120.5°W). They found that spread-F events occurred more frequently during solar minimum years for all five stations. The minimum spread-F occurrence percentages happened near spring equinox for all the sites except Vandenberg. Meanwhile, they found that the influence of geomagnetic on the spread-F occurrence was weak.
Most scholars did not classify spread-F when they discussed the statistical variations on the spread-F occurrence. In detailed studies, spread-F can be classified as the frequency spread-F (FSF) and range spread-F (RSF). The echo of FSF distributes spreading along the frequency axis close to the critical frequencies of the ordinary and extraordinary traces of the ionograms; hence, they are associated with irregularities nearby the F region peak; meanwhile, the echo of RSF distributes spreading along the vertical height axis. Some scholars have analyzed the differences between FSF and RSF occurrence. Chandra et al. (2003) analyzed the spread-F occurrences at Ahmadabad (23°N, 72.4°E) in the Indian zone and Cachoeira Paulista (22.5°S, 45°W) in Brazil. The RSF occurrences at Cachoeira Paulista always showed a maximum in summer during low-sunspot years, and similar phenomenon had been found at Ahmadabad. Hajkowicz (2007) studied the ionosonde data obtained over a wide range of southern latitudes (in latitude range: 23°S–52°S). The spread-F at low midlatitude (23°S–36°S) and midlatitude regions (44°S–48°S) were characterized by a strong peak in RSF occurrence in winter, but an enhanced RSF activity was observed in local summer in Japan. Bhaneja et al. (2009) conducted a study using ionosonde data over a full solar cycle at Virginia (37.95°N, 284.53°E). They found that the spread-F events occurred more frequently during the late fall or early winter particularly during solar minimum. RSF was more prevalent during solar minimum, whereas FSF was prevalent in solar maximum conditions. Chen et al. (2011) employed a digisonde at Wuhan (30.5°N, 114.4°E), China, to observe the spread-F. They found that the FSF events were highly active in summer; meanwhile, the RSF showed very low occurrence during the whole night. Paul et al. (2018) investigated the occurrence rate of spread-F using the ionosonde data in the European longitude sectors (Nicosia, Athens and Pruhonice) during 2009, 2015 and 2016. He found that RSF in nighttime occurred more frequently in lower midlatitude regions during high solar activity, whereas FSF played the dominant role at higher midlatitudes.
The gravitational Rayleigh–Taylor instability (R–T) theory was the primary mechanism to explain the formation of irregularities in the equatorial region. Spread-F occurrences at midlatitudes are affected by many factors (Booker 1979; Bowman 1990; Fukao et al. 2004; Perkins 1973). One of them is the acoustic gravity wave (AGW). AGW was considered to be a seeding mechanism that creates density perturbations in the ionosphere, leading to spread-F at midlatitude regions. Since most of the AGWs in the ionosphere originate from the lower atmosphere, there should be some regional features of spread-F occurrences due to the different local meteorological or ground conditions. Booker (1979) discussed the role of AGWs in the generation of spread-F and concluded that AGWs play a key role in the formation of spread-F. Bowman (1990) studied the data at Bribie Island (27.05°S, 153.16°E) and Moggill (60 km south of the Bribie Island) in Australia. They found that the F2 region combined with the observation of TIDs (traveling ionospheric disturbances) associated with the electron density depletions was fully consistent with the involvement AGWs. Many scholars found that the behavior of the AGWs in the midlatitude F region is related to the spread-F occurrence in the nighttime ionosphere (Bowman 1994, 1996, 1998; Bowman and Mortimer 2000, 2003; Chen et al. 2011; Dyson et al. 1995; Fukao et al. 2004). Xiao et al. (2009) presented an observational evidence for the AGWs’ seeding of the ionospheric plasma instability by revealing the observational linkage between spread-F and AGWs based on the HF Doppler frequency shift measurements at Peking University. These observational facts showed the close relation between AGWs and spread-F and were regarded as the evidence of the seeding role of the AGWs in the spread-F formation. Statistical results showed that the AGWs were not the only factor in triggering spread-F. Nighttime spread-F structures have been found following the Perkins-type instability processes (Perkins 1973). It is shown that such layers are linearly unstable at night, if the field-aligned integrated Hall conductivity exceeds the field line-integrated Pedersen conductivity. The instability involves the growth of an altitude perturbation, shaped like a plane wave, which is accompanied by large polarization electric fields. In addition, the spread-F has also been correlated with geomagnetic storms through the excitation of TIDs and subsequent F region uplifts. A series of complicated physical processes may lead to the generation of spread-F events. The Perkins instability theory is accepted as the most reasonable explanation of the spread-F phenomenon at midlatitudes.
The midlatitude region of Eastern Asia covers typical geomorphological features such as continents, oceans and land–sea junctions, the longitude span is large, and the longitude of geomagnetic field varies greatly. Therefore, a comparative statistical characteristic of the spread-F at different longitude regions in Eastern Asia is of great scientific significance. Due to insufficient data, few studies have been carried out on the longitudinal and latitudinal differences in spread-F occurrences at stations with similar geographical latitude in Eastern Asia. For a more detailed study, various types of spread-F occurrences should be examined separately. This paper aims to present the statistical comparison of FSF and RSF occurrence percentages using ionosonde data from six Chinese stations and four Japanese stations at midlatitudes. These stations are roughly distributed over four latitude chains. In particular, obvious differences among the 10 sites in terms of ground conditions, geographical environment and geomagnetic dip are observed where the sites are distributed within the mainland, on the coast and in island. The analysis focused on (1) the difference in FSF and RSF occurrence percentages at different sites located at nearly the same latitude, particularly on the variation in occurrence probability with solar and geomagnetic activities, season and local time; (2) the difference in FSF and RSF occurrence percentages between China and Japan from between 25°N and 45°N at midlatitudes; and (3) trying to find the possible mechanism for the difference in spread-F occurrence percentages. In “Data set and method of analysis” section, the source of the data and the method of analysis of spread-F occurrence are described briefly. “Statistical results and discussion” section presents the statistical results and discussion on the spread-F occurrences at the 10 stations. The probable mechanism of longitudinal and latitudinal differences was discussed in “Probable mechanism of longitudinal and latitudinal differences in spread-F occurrences” section. We summarize the conclusions in “Summary and conclusions” section.
Data set and method of analysis
China Research Institute of Radio-wave Propagation (CRIRP) built a long-term network of ionospheric observation stations covering the mainland of China. In this study, we extracted data of simultaneous spread-F that occurred during 1997 and 2016 from six digital ionosondes located at Kunming (25.64°N, 103.72°E), Suzhou (31.34°N, 120.41°E), Lanzhou (36.06°N, 103.87°E), Qingdao (36.24°N, 120.42°E), Urumqi (43.75°N, 87.64°E) and Changchun (43.84°N, 125.28°E). The download linkage of the ionosonde data from the four stations in Okinawa (26.68°N, 128.15°E), Yamagawa (31.2°N, 130.62°N), Kokubunji (35.71°N, 139.49°E) and Wakkanai (45.16°N, 141.75°E) is provided in the Web site: http://wdc.nict.go.jp/. Details of the geographical coordinates and data set of the stations are presented in Fig. 1 and Table 1. The ionosonde data of Suzhou and Kunming used for this study were obtained in June 2009 and August 2007, respectively. For the convenience of comparison, the data used at Yamagawa and Okinawa stations in Japan were also obtained from 2009 to 2007.
The terrain or geographical location of the 10 stations is different. Urumqi is in the center of the Europe–Asia continent, whereas Changchun and Lanzhou are inland cities. Kunming is located in the middle-to-low-latitude transitional area. This region is in the west of the Yunnan–Guizhou Plateau, near the special terrain of the Tibetan plateau where the ionosphere exhibits complex characteristics. Qingdao and Suzhou are situated in a typical coastal area in the midlatitude region. Wakkanai, Kokubunji, Yamagawa and Okinawa in Japan are all located in coastal areas. In this study, we used the spread-F occurrence percentages to describe the spread-F statistical characteristic, which is defined as follows:
where y, m and h represent the year, month and local time (LT), respectively; n is the number of FSF or RSF occurrences that appear at the same local time but on different days of a single month; and N is the total number of observations in local time for a given year. To examine their seasonal variations, the data were grouped into the following four seasons: summer (May, June, July and August), spring equinox (March and April), autumn equinox (September and October) and winter (January, February, November and December). Since the spread-F is mostly a nighttime phenomenon, only data between local time 6:00 PM and 6:00 AM were considered in this study.
Meanwhile, solar and geomagnetic activities are the two main factors that influence the ionosphere activities. The data set covered the entire Solar Cycle 23 and more than half of Solar Cycle 24. Solar Cycle 24 was abnormal and different from the preceding solar cycles (Chen et al. 2011), and its maximum solar activity index was 50% lower than the former one. We used F10.7 and Ap index to identify the solar and geomagnetic activities, separately. In order to obtain the relationship between the spread-F and the geomagnetic and solar activities, the spread-F events are divided into three or two groups based on the F10.7 or Ap index to conduct statistical studies, respectively (Abdu et al. 2003). The classification is listed as follows:
In order to analyze the correlation between the spread-F occurrence rates and the F10.7 or Ap index, the normalized probability was used. The normalized spread-F occurrence rate is defined as follows:
where p is the normalized FSF or RSF occurrence rate and mi is the number of FSF or RSF event occurrences when F10.7 or Ap index is within a certain level.
Statistical results and discussion

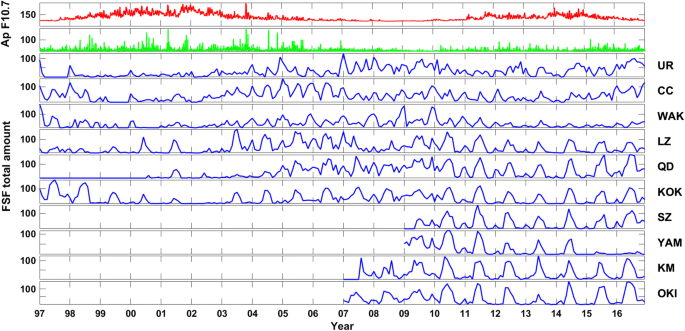

Figure 2 shows the variation in daily F10.7, Ap index and monthly mean of FSF occurrence percentages with local time. Figure 3 shows how the daily F10.7, Ap index and total amount of FSF vary with local time. The following common features could be found: (1) the FSF occurrences frequently occurred after midnight; (2) when the solar 10.7 fluxes and Ap index increase, the FSF occurrences decrease at the 10 stations, meaning a negative correlation between the FSF occurrences and solar and geomagnetic activity; (3) FSF occurred mostly during the summer; (4) there is no significant difference in the total number of FSF between the 10 stations between 2004 and 2009. However, the total number of FSF in LZ, QD, KOK, SU, YAM, KM and OKI are obviously larger than that in the other three stations between 2010 and 2015. Most of the features are nearly in agreement with the results given by the other authors (such as Bowman 1996; Huang et al. 2011; Igarashi and Kato 1993; Niranjan et al. 2003). But there is some difference in this result. A large difference was found in the FSF occurrence percentages among the stations at nearly the same latitude. The FSF occurrence percentages at OKI were higher than those of KM. The maximum FSF occurrence percentage was approximately 80% and occurred in June 2010 and in July 2016 at OKI. However, the FSF occurrences at YAM were remarkably lower than those at SZ, especially between 2015 and 2016 when the FSF occurrences at YAM were less than 15%. The FSF occurrences at LZ and QD were much larger than those at KOK, but the differences of FSF occurrences between UR, CC and WAK was not obvious. The peak occurrence percentages of FSF in these 10 stations can reach 88% approximately. Another noteworthy phenomenon is the higher FSF occurrence percentages in winter versus the increase in latitude. Therefore, the results at UR, CC and WK showed a more complex situation. Figures 4 and 5 reveal that normalized FSF occurrence percentages varied with local time on all the three solar activities and two geomagnetic activities levels. It can be seen that when F10.7 is less than to 100, the normalized FSF occurrence percentages are the largest. In sunrise or sunset periods at SZ, KM, KOK and OKI stations, the FSF occurrence percentages at medium solar activity level is sometimes even higher than those at low solar activity level. When the solar activity is high, there will be almost no FSF events at many stations. The normalized FSF occurrence percentages are much greater when Ap is less than 12. The results of Figs. 4 and 5 give us a clearer understanding of the effect of solar or geomagnetic activity on the FSF occurrences.
Figures 6 and 7 show that the daily F10.7, Ap index and monthly mean of RSF occurrence percentages and FSF total amount vary with local time for the 10 stations. The variation on RSF occurrences was different from FSF in the following ways: (1) the RSF occurrences in these 10 stations are much lower than the FSF occurrences; (2) the RSF frequently occurs near midnight; (3) longitudinal changes in total amount of RSF in China and Japan. It seems that the RSF has a negative correlation with the solar or geomagnetic activity at LZ and QD. Meanwhile, no remarkable difference is observed in the RSF occurrences between SZ and YAM. Figures 8 and 9 show that the normalized RSF occurrence percentages vary with local time on all the three solar activities and two geomagnetic activities levels. The normalized RSF occurrence percentages are the largest on the low solar activity except KOK. Moreover, the RSF occurrence percentages on medium solar activity are higher than those on low solar activity at some time of some stations.

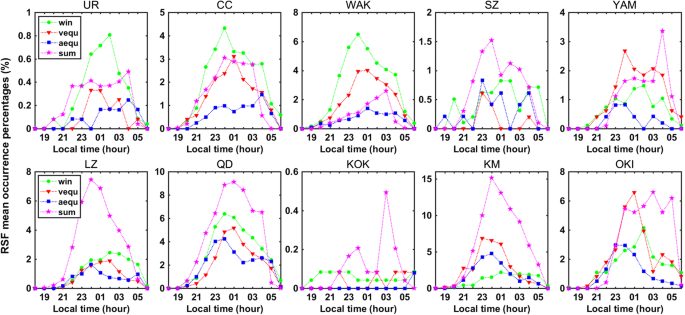

The seasonal variations in the FSF occurrence percentages observed at the 10 sites are shown in Fig. 10. The FSF occurrences were higher during summer than during other seasons at LZ, QD, KOK, SZ, YAM, KM and OKI. Nevertheless, FSF occurred mostly during summer and winter at UR, CC and WAK. The FSF occurrence during winter is even higher than those during summer at WAK. Another more obvious phenomenon is that the difference of FSF occurrence percentages in four seasons at LZ, QD, KOK, SZ, YAM, KM and OKI is greater than that at UR, CC and WAK. FSF occurrence percentages were higher during the autumn equinox than during the spring one at UR, LZ and QD. However, the difference between these two seasons is not obvious at the other sites. Figure 11 reveals the seasonal RSF occurrence percentage variations at the 10 sites. RSF occurred mostly in the winter months at UR, CC and WAK which is different from FSF. The RSF occurrences were higher during summer at SZ, LZ, QD, KOK, KM and OKI. However, the RSF occurred mostly during the vernal equinox at YAM. Figure 12 shows the local time variations in the monthly mean of FSF and RSF occurrence percentages. Statistically speaking, FSF started at 21:00 LT and lasted approximately until 05:00 LT. Meanwhile, the peak value of FSF occurrence percentages appeared at about 02:00 LT at CC, LZ, QD. At the four other sites in Japan, the peak occurrences were observed at 01:00 LT. As a contrast, the peak of RSF occurrence percentages appeared at approximately 00:00 LT except YAM. The FSF occurrence percentages decrease with the increase in longitude from 31°N to 45°N latitude. However, the RSF occurrence percentages increase with the increase in longitude near 45°N latitude. This difference still indicates a very strong longitudinal effect for the ten stations which located at almost the same latitudes. Some details will be discussed in the next section.
The main features of the spread-F occurrences from our statistics are in agreement with the midlatitude observations in the other sectors reported by other scholars (such as Bowman 1984, 1994, 1996; Deminov et al. 2005, 2009; Hanumath Sastri 1977; Ossakow 1981; Rao Rama et al. 2004). For example, the FSF occurrences have a negative correlation with the solar and geomagnetic activities, where the FSF occurrences reached maxima mostly during the summer months. The RSF occurred mostly during summer and winter at UR, CC and WAK, but only during summer at the other seven stations. The peak values of FSF occurrence appeared during the post-midnight period. This variation is the same as that pointed out by Igarashi and Kato (1993). By using the data of Far East stations, Igarashi and Kato (1993) have pointed out the same result where the spread-F occurrence peaks appeared from June to July in summer and from December to January in winter. Huang et al. (2011) investigated the spread-F occurrences at UR and CC stations; they found that (1) spread-F occurrence showed a high value during low solar activity and (2) spread-F occurred mostly in winter and summer. These features are the same as our findings as the data used at the same stations. A comprehensive statistical study of midlatitude spread-F in the North American sector was presented using the ionosonde data observed at Puerto Rico (18.5°N, 67,1°W), Virginia (37.95°N, 75.5°W), Texas (32.4°N, 99.8°W), Colorado (40°N, 105.3°W) and California (34.8°N, 120.5°W) (Bhaneja et al. 2018). Each station had a maximum spread-F occurrence during different seasons. The spread-F mostly occurred during winter in Texas. The annual maxima of spread-F occurrence over the lower midlatitude region (< 50°N) are found near summer solstices and independent of solar activity (Paul et al. 2018). And they also found that there was a clear inverse correlation between the spread-F occurrences with solar activity. These results are also consistent with our conclusions.
Abdu et al. (2003) showed that the RSF events are associated with developed or developing plasma bubble events, and the FSF events are associated with narrow-spectrum irregularities that occur near the peak of the F layer. The difference in the mechanism possibly results in the difference in FSF and RSF occurrence percentages. Although differences were observed in the statistics for the RSF and FSF in each station, both types showed pronounced minima in occurrence percentages near solar maximum, and the RSF occurrences at these 10 stations in Eastern Asia were far lower than the FSF occurrences. Our conclusion agrees with the former results (Bhaneja et al. 2009; Hajkowicz 2007) where the maximum of the spread-F activity was present during the local summer in Japan. Our findings agree with the above statistical results, except the WAK station. Sinno and Kan (1980) and Huang et al. (1994) reported similar variations in the spread-F occurrences in Eastern Asia (Japan and Taiwan). Chen et al. (2011) found that the FSF and RSF have a minor occurrence peak in winter at Wuhan (30.5°N, 114.4°E). The variations on the spread-F occurrence in Wuhan are similar to that in Suzhou since both sites are located at similar latitude.
Probable mechanism of longitudinal and latitudinal differences in spread-F occurrences
The longitudinal and latitudinal effects of the spread-F occurrences at midlatitude have been discussed by many authors (Huang et al. 2011; Kherani et al. 2009; Wang et al. 2018; Perkins 1973; Yakoyama et al. 2008; Zhou et al. 2005). They argued that AGW and Perkins instability may be the main mechanism for the occurrence and evolution of spread-F at midlatitude. In this case study, 10 stations at exactly four longitudes from approximately 25°N–45°N were selected to further investigate the FSF and RSF occurrences. These 10 stations are obviously different in geographical environment. Some stations are located in typical inland cities, other sites are in coastal areas and the rest are surrounded by oceans. The most striking fact is that both FSF and RSF occurrences at ocean or ocean–land junction regions are higher than those at inland regions at 35°N and 45°N latitude.
The possible impact of AGW on the spread-F occurrence percentages
Earlier studies showed that the midlatitude spread-F occurrence was influenced by several factors such as electron density gradient, neutral wind, electric field, local geomagnetic field and AGW. Although the role of AGW in the spread-F evolution is still not proved yet, many discussions have been conducted on the role of the AGW in triggering spread-F both theoretically and observationally (Booker 1979; Bowman 1990, 1994, 1996, 1998, 2001; Kherani et al. 2009; Huang and Kelly 1997; Xiao et al. 2009). Direct measurements of the AGWs near the ground surface are difficult, considering that their amplitude is extremely small in lower atmosphere. However, AGWs are still considered one of the important driving mechanisms for midlatitude spread-F. It is well known that most of AGWs in the ionosphere originate from lower atmosphere and ground conditions are one of the determining factors in generating AGWs. Huang et al. (2011) found that the AGW play an important role among the factors of the spread-F occurrences due to the different ground conditions by using the ionosonde data of UR and CC in China. The two stations have remarkable discrepancies of ground meteorological conditions. CC station is located near the coast, whereas UR is located in the very center of the Europe–Asia continent. The results showed that the spread-F occurrences at CC was always much higher than those at UR. This result has aroused our great interest. In this study, QD and CC lies near the coast, whereas LZ and UR is located in the Europe–Asia continent. The FSF and RSF occurrences at QD and CC were higher than those at LZ and UR. This seems that the spread-F occurrence near the sea is greater than that in inland stations. But the spread-F occurrences at many other sites are not so. The RSF occurrences at WAK and YAM are greater than those at other sites at near the same latitude. Meanwhile, the FSF occurrence at OKI is greater than that at KM. This result indicates that the generation of spread-F is not only influenced by AGW, but also by other factors. It is certain that different locations provide different source conditions for AGW generation, which in turn present different influences on the spread-F occurrence. For the ten stations, although some of them have near the same geographical latitude, there is large disparity in their terrain topography. This is important because they give different source conditions of AGW’s generation which gives different influences on the spread-F occurrence. Our result also verifies the correctness of the conclusion obtained by Huang et al. (2011). On the other hand, Huang et al. (2011) pointed that the spread-F occurrences at CC and UR tended to be higher in summer and winter seasons than in equinox. Our findings also confirm this conclusion.
Kherani et al. (2009) examined the influences of AGWs on the evolutions of plasma bubbles deduced from the observations in Brazil. These findings clearly indicated the impact of AGWs seeding on the growth of plasma bubbles, thereby influencing the spread-F occurrence. Abdu et al. (2009) also discussed the role of AGW in the equatorial region and pointed out that the polarization electric field in an instability development can enhance under the action of AGWs. Observationally, the role of AGW as a seeding has been discussed by many authors (Nicolls and Kelley 2005; Xiao and Zhang 2001; Xiao et al. 2009; Pietralla et al. 2017; Kherani et al. 2009). Xiao et al. (2009) revealed a close relation between the AGWs and the midlatitude spread-F by analyzing 6-year HF Doppler records. Now our work provides observational facts on the large difference of spread-F occurrence percentages at ten stations that are approximately at similar geographical latitudes. However, for the stations in each group, there is a large disparity in their terrain topography. Considering the seeding role of AGW in excitation of the spread-F events, it could be reasonably assumed that levels of AGW activities are different in the F regions over the ten stations. This may be very important because they give different source conditions of AGW’s generation which may lead to variations in differences in spread-F occurrences.
Wang et al. (2018) used the ionosonde data of Haikou, Guangzhou, Beijing and Changchun to investigate spread-F occurrence percentages, the possible threshold of foF2 for FSF occurrence and the relationship between hʹF and RSF occurrence. They pointed out that the difference in foF2 and hʹF at different longitudes brought the variation in the spread-F occurrences. Additionally, we also checked the foF2 and hʹF data at the 10 sites in this paper, but the results showed that there were no obvious differences of foF2 and hʹF between the stations at nearly the same latitudes. Furthermore, it is well known that the variation in foF2 is connected with the heights of F2 region, so it may also affect spread-F occurrence percentages, but not the key factor in determining the difference of spread-F occurrences here. Meanwhile, even under favorable background conditions, certain triggering factors like AGW, electric field and so on are often needed for the spread-F occurrences. Therefore, our results indicated that the AGW was an important factor for spread-F event, but not the only one.
The possible impact of Perkins instability on the spread-F occurrence percentages
In contrast to the rich observational history for low-latitude spread-F, observations of spread-F at midlatitudes are relatively poor. Despite this brief history, a consistent understanding of climatological behavior of the spread-F in longitudinal occurrence has emerged from a variety of observational techniques. Perkins (1973) had proposed a system including three coupled nonlinear partial differential equations that could provide a basis for an instability process consistent with the spread-F event in the midlatitude ionosphere when appropriately solved. Hence, Perkins instability is now accepted as the most reasonable explanation of the spread-F phenomenon at midlatitudes (Kelley and Fukao 1991; Miller 1997; Zhou et al. 2005). The nighttime ionosphere at midlatitudes is typically dynamically stable as the upward \(E \times B\) drift due to eastward electric field and/or equatorward neutral wind supports the F region plasma against downward, gravity-driven diffusion (Perkins 1973). This equilibrium can be written by using an effective electric field \(E_{0}^{*} = E + U \times B\), where E is electric field, U is neutral wind and B is magnetic field (Kelley et al. 2003):
where \(\theta\) is an angle between \(E_{0}^{*}\) and geomagnetic east, D is the dip angle of the magnetic field, \(g\) is the magnitude of the gravitational acceleration at the F layer height and \(\nu_{in}\) is the density-weighted collision frequency. The left and right sides are balanced in the steady state. The simple form of the linear growth rate for the Perkins instability is given as (Perkins 1973):
where \(\alpha\) is the angle between geomagnetic east and the wave vector, \(\left\langle \nu \right\rangle_{0}\) is the background of \(\left\langle {\nu_{in} } \right\rangle\), H is the neutral scale height and \(\gamma\) is proportional to the effective electric fields and \(\sin \left( {\theta - \alpha } \right)\sin \alpha\). Since U blows southeastward during the nighttime in the northern hemisphere due to a diurnal time, \(E_{0}^{*}\) would typically be northeastward. The dip angle of the magnetic field over the 10 sites in this study is very different. The dip angle of the magnetic field decreases with the increase in longitude at the same latitude whenever under high or low solar activity. Therefore, the dip angle of the magnetic field at UR is the largest, and the dip angle of the magnetic field at OKI is the smallest. The largest dip angle is about 64°, and the smallest one is about 38°. This will probably cause the differences between \(E_{0}^{ *}\) and \(\sin \left( {\theta - \alpha } \right)\sin \alpha\) at different sites and then cause the difference in growth rate of Perkins instability which may lead to the variation in spread-F occurrence percentages.
Considerable effort is currently being made to increase the understanding of the spread-F occurred at midlatitude and the suggested Perkins instability process. Yakoyama et al. (2008) developed a three-dimensional numerical simulation in the nighttime midlatitude ionosphere and applied to the Perkins instability evolution in the F region. Nevertheless, they found that the growth rate of Perkins instability is too small to explain some observational results. So it is necessary to consider other mechanisms to intensify the instability in the F region. Furthermore, although the southeastward neutral wind in the post-sunset period is suitable for generating the irregularity structure through the Perkins instability, the dynamo electric field induced by neutral wind is southwestward. The electric field can also modulate the F region and seed the Perkins instability. Therefore, the actual physical process is more complicated. In spite of this, the Perkins instability can still be invoked to partly explain the statistical results in this manuscript. The AGW or Perkins instability may be one of the causes of the spread-F events. To determine whether the spread-F variation is due to the lower atmosphere and ground condition influences, further studies using weather observation data (including the weather satellite images or other meteorological data) should be conducted. Therefore, further investigation about the mechanisms for the spread-F occurrences is still needed.
Summary and conclusions
In this study, we investigated the variations in the FSF and RSF occurrences, and the possible mechanisms for the longitudinal differences in the spread-F occurrence percentages at midlatitudes in Eastern Asia include the years of the data used in 23rd and 24th solar cycles. The major conclusions are summarized as follows:
-
(1)
The occurrence percentages of FSF in these ten stations are higher than RSF. The FSF occurrence percentages are higher during the low solar activity years at all sites. Moreover, the spread-F occurrences are anti-correlated with the geomagnetic activity. The spread-F events seldom occur at some sites when \({\text{F}}10.7 \ge 180\) or \({\text{Ap}} \ge 12\).
-
(2)
The FSF occurred mainly during the summer except WAK, whereas the RSF occurred mostly in the winter at UR, CC and WAK. Post-midnight FSF was the most frequently observed type of spread-F events, whereas the peak value of the RSF occurrence appeared at approximately 00:00 LT.
-
(3)
Spread-F occurred more often at coastal or marine areas than at inland area especially near 35°N–45°N latitudes due to different geographical locations. Nevertheless, the mean occurrence of FSF at SZ is higher than that at YAM. The mean occurrence of RSF at KM is higher than that at OKI. Another phenomenon that needs more attention is that FSF and RSF mean occurrences at 31°N latitude are the lowest for the four latitude chains.
-
(4)
It is well known that the AGW and Perkins instability both likely play important roles in the spread-F occurrences. Due to the limitation of data, the generation mechanism of spread-F should be further studied.
This study presented a preliminary variation in the spread-F occurrence percentages including some new results, which is helpful in understanding the ionospheric variation in Eastern Asia. The above data and statistical results presented in this paper can be used as a reference for future studies.
Abbreviations
- FSF:
-
frequency spread-F
- RSF:
-
range spread-F
- EIA:
-
equatorial ionization anomaly
- F10.7:
-
the monthly average data of solar 10.7-cm radio flux
- R–T:
-
Rayleigh–Taylor
- PRE:
-
pre-reversal electric field
- TID:
-
traveling ionospheric disturbance
- AGW:
-
acoustic gravity wave
- CRIRP:
-
China Research Institute of Radio-wave Propagation
