Solar wind parameter and seasonal variation effects on the South Atlantic Anomaly using Tsyganenko Models

Abstract

We studied the space weather effects on the South Atlantic Anomaly (SAA) magnetic response using Tsyganenko models. For the physical parameters characterizing the SAA, the study considered the minimum magnetic field, the location (longitude and latitude) of the SAA center, and the area of the SAA. Regarding the space weather parameters, we considered the solar wind dynamic pressure, the interplanetary magnetic field components, \(B_{yIMF}\) and \(B_{zIMF}\), the Dst index, and the geodipole tilting angle. To study the magnetic field response of the SAA, several different versions of the Tsyganenko models, namely, T96, T01, and TS05, were used to describe the external magnetic field contributions. The main internal magnetic field was calculated by the International Geomagnetic Reference Field (IGRF-12). The magnetic field study of the SAA was realized in long- and short-term (seasonal and diurnal) variations. We found that the Dst index and the geodipole tilting angle were the strongest influencing parameters on the SAA magnetic field response at all altitudes. Moreover, it was revealed that both magnetic poles might be a possible cause of the SAA magnetic field response, resulting from the space weather conditions. Furthermore, the magnetic field behavior of the SAA was affected by hourly variations, where the largest changes occurred at dayside.

Introduction

The Earth’s lowest magnetic field intensity is expanding from Africa, through South Atlantic Ocean to South America, hence the so-called South Atlantic Anomaly (SAA). Recently, this phenomenon is interpreted as the presence of negative geomagnetic fluxes at the core–mantle boundary under the Earth’s surface, which in turn decreases locally the field strength. Such an interpretation is discussed in detail by Terra-Nova et al. (2017),  Tarduno et al. (2015), Cottaar and Lekic (2016) and Aubert (2015).

The SAA is an important subject of research in several scientific fields, such as in geomagnetism, where Pavón-Carrasco and De Santis (2016) studied the possible geomagnetic reversal, in space plasma physics, to understand the close approach of the inner radiation belt, and in spacecraft design, to mitigate the radiation effects on the on-board instrument at low earth orbit (LEO), etc. In this paper, we are addressing our efforts to study the space weather effects on the magnetic field response of the South Atlantic Anomaly.

Fig. 1
figure1

SAA Parameters' Illustration. The SAA variables are displayed in two different views. The contours in a are colored based on the energetic particle (= radiation) population (light red for the high population and light blue for the low population). b, c roughly demonstrate the movement and the expansion of the SAA, respectively

Fig. 2
figure2

Input data. The left panel shows the daily solar wind data from the ACE spacecraft, and the right panel, the geodipole tilting angle (computed by the GEOPACK package subroutines), with the Dst index profile from 2010 to 2014

Fig. 3
figure3

Temporal variations of the two SAA variables. a represents the area and b the \(B_{{\min }}\), by adopting the Tsyganenko models T96, T01, and TS05, at an altitude of 800 km

Fig. 4
figure4

Statistical study results. The statistical study illustrates the correlation coefficients of the latitudinal and longitudinal SAA center movements according to altitude for the Tsyganenko models, T96, T01 and TS05, referencing the different space weather parameters

Fig. 5
figure5

Statistical study results. The statistical study illustrates the correlation coefficients of the area and the \(B_{{\min }}\) of the SAA center according to altitude for the Tsyganenko models, T96, T01 and TS05, referencing the different space weather parameters

Fig. 6
figure6

Magnetic poles temporal variations. Magnetic poles and the SAA variation profiles for the four variables: the area, the minimum/maximum magnetic field intensity, the latitudinal and longitudinal center movements at 1000 km altitude

Fig. 7
figure7

Statistical study results. Correlation coefficients between the magnetic pole area and \(B_{{max }}\) variations, with respect to the space weather parameters, and according to the altitudes, 100, 500, and 1000 km

Because space weather activity is directly affecting the trapped radiation belts and the inner magnetosphere, much research had been carried out in studying the effects of space weather on the South Atlantic Anomaly. For example, the SAA magnetic field long-term response of the center of its location, due to proposed sinusoidal profiles of the solar wind ram pressure, the z-component of the interplanetary magnetic field, \(B_{zIMF}\), and the Dst index, using Tsyganenko model (T96), was researched by Qin et al. (2014), as well as Schaefer et al. (2016) and Ye et al. (2017). Moreover, the effect of the Dst index on the short-term response of the SAA proton maximum flux and area, using NOAA 17 data, was studied by Zou et al. (2015). In both studies, the results were obtained for specific and fixed altitudes, and for two parameters each. Furthermore, in this study’s previous paper (Girgis and Hada 2018), solar wind ram pressure and IMF components on the SAA’s magnetic field response using Tsyganenko model T96 were studied, by maintaining a constant Dst index. In addition, the solar cycle variation effects on the SAA proton flux were also studied by Nakano and Heckman (1968) and Dragt (1971), on its westward drift rate by Grigoryan et al. (2008), on its northward drift rate by Badhwar (1997) and Casadio and Arino (2011), as well as the anti-correlation between the solar radio flux \(F_{10.7}\) and the proton flux by Huston et al. (1996) and Huston and Pfitzer (1998).

Fig. 8
figure8

Geodipole tilting effect. The figure shows the effects of the geodipole tilting angle on the magnetic poles and the SAA. a, b show the contour plots of the magnetic strength (black lines) and the field lines (white lines) for the two geodipole tilting angles, 29.5° and − 29.5°, respectively. c, d correspond to the contour mapping of the magnetic strength, according to a , b, respectively, where the white lines represent the initial position of the magnetic pole boundaries and the dotted black lines, constitute the variations of the magnetic pole boundaries. The contour lines and the colors are plotted according to the logarithmic scale

Fig. 9
figure9

Dst index effect. The figure shows the Dst index effect on the magnetic poles and on the SAA. a, b show the contour plots of the magnetic strength (black lines) and the field lines (white lines) for the two Dst index cases, − 7 nT (dotted lines) and − 210 nT (solid black lines), respectively. c corresponds to the contour mapping of the magnetic strength, according to b, where the white lines represent the initial position of the magnetic pole boundaries and the dotted black lines, the variations of the magnetic pole boundaries. Note: the contour lines and the colors are plotted according to the logarithmic scale

Fig. 10
figure10

SAA hourly variations. Diurnal variation of the SAA variables: the area, the \(B_{{\min }}\), the latitudinal and longitudinal center movements with respect to altitude

Fig. 11
figure11

Geodipole tilting angle daily and hourly variations. Daily and hourly variations of the geodipole tilting angle, computed by GEOPACK package

Fig. 12
figure12

Area threshold variation effect. a demonstrates the SAA area temporal variation, while c the contour plot level of each boundary. b, d illustrate the correlation coefficient between the SAA area, calculated based on the three different threshold values, the Dst index, and the geodipole tilting angle (\(\mu\))

Fig. 13
figure13

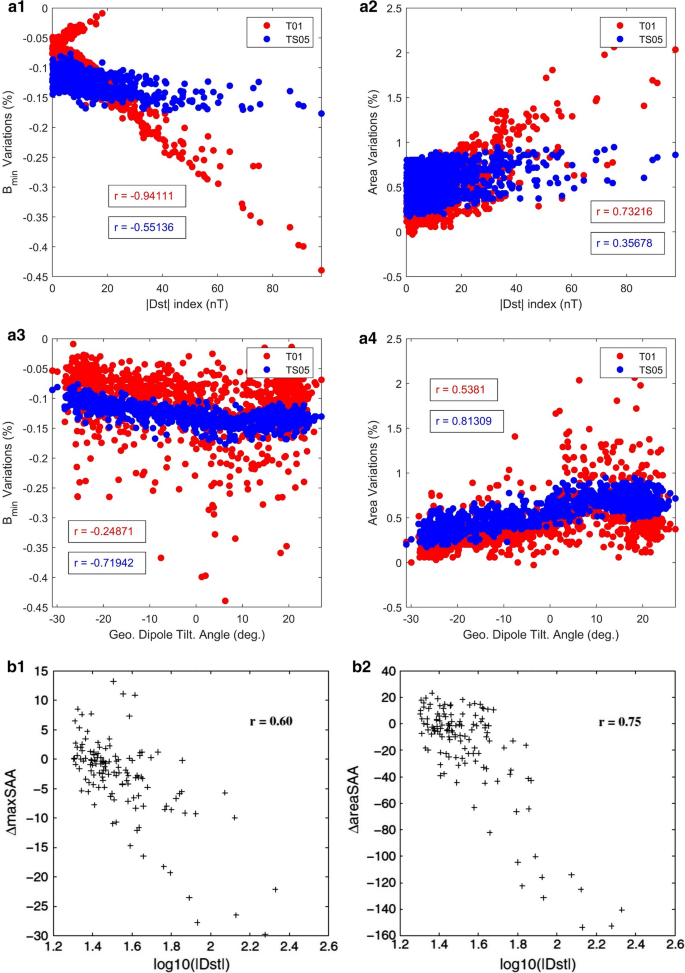

Satellite observations. a represents the scatter plots of the SAA \(B_{{\min }}\) and the area, related to the Dst index and geodipole tilting angle, as computed from Tsyganenko models T01 and TS05, at 800 km. b represents the scatter plots of \(\Delta {{\ max }}SAA\) and \(\Delta {{\ area}}SAA\), corresponding to the maximum flux values and the SAA proton flux area, respectively, with respect to the Dst index, as measured from NOAA 17 (Zou et al. 2015)

Since the implementation of the Tsyganenko models is the core of our study, we should confirm their accuracy at low altitudes. First of all, we recall that the net external magnetic field is described as a superposition of several magnetospheric currents: the large-scale field-aligned current systems, the magnetopause currents, the tail current sheet, and the ring current, as already described in great detail by the review article (Tsyganenko 2013), whose author presented his large contribution for conceiving the data-based models of the Earth’s dynamic magnetosphere. Second, one of the methods to investigate such accuracy is realized by calculating the isotropic precipitation boundary (IB) from the current models and compare the results with the observed values deduced from low-altitude spacecraft measurements: Sergeev and Tsyganenko (1982) compared the computed adiabatic drift shells from T79 model (Tsyganenko 1979) for particles mirroring at 400 km with the experimental data, and found a good agreement with an error of 1° at high latitudes. Weiss et al. (1997) compared the modeled IB from T89 (Tsyganenko 1989) with geosynchronous spacecraft and the low-altitude DMSP spacecraft (830 km) data and estimated the error of the median latitudinal difference to be about 2°. In addition, Shevchenko et al. (2010) calculated the IB by T96 model (Tsyganenko 1996) and compared it with THEMIS data at ionospheric altitudes and found a reasonable agreement with an error of about 1° in latitude. Kubyshkina et al. (2009) found an error of about 1° in quiet conditions using the same T96 model, compared with NOAA spacecraft, which can reach several degrees during substorm time. Ganushkina et al. (2005) estimated the maximum error to be about 0.7°, when Dst = − 16 nT, by implementing T01 model. Glancing at the ranges of the Dst index, the model under-estimates the tail current, where this issue was improved in TS05 model. Third, another method to test the accuracy of Tsyganenko models at low-altitudes can be achieved by calculating the geomagnetic cutoff latitude and comparing it with spacecraft measurements, as shown by Smart and Shea (2005), where the authors implemented T89 model with IGRF, and compared the obtained results with SAMPEX spacecraft data at 450 km. The authors concluded that the modeled and the measured cutoff latitudes exhibit the same general trend, and during magnetic active periods, the estimated error was slightly increased. Further studies on this subject could be found in Smart and Shea (1994) and Kress et al. (2015). Beside the accuracy of the models, a main advantage is their parametrization by the solar wind drivers and/or ground-based indices. Such merit allows to interpret the magnetospheric configuration related to quiet conditions and storm events. Generally speaking, since there is no perfect model that could fulfill all the user requirements, we concentrate our efforts in this study to understand quantitatively and statistically the general behavior of the SAA, due to the variations in solar wind parameters and seasonal changes.

In this paper, we extend the investigation of space weather influence on the SAA magnetic field response, by studying its correspondence with altitude and by introducing the following variables: (1) the area of the SAA calculated beyond a selected threshold of the magnetic field strength; (2) the minimum magnetic field at the center of the SAA (\(B_{{ \min }}\)); and (3) the location (latitude and longitude) of the SAA defined as a point where the magnetic field is minimized. Furthermore, the space weather parameters include two components of the Interplanetary Magnetic Field (IMF), \(B_{yIMF}\) and \(B_{zIMF}\), as well as three velocity components of the solar wind, namely, the solar wind ram pressure, the Dst index, and the geodipole tilting angle (\(\mu\)).

The methodology applied in this research was realized by adopting several different versions of Tsyganenko models, T96, (Tsyganenko 1996), T01, (Tsyganenko 2002a, b), and TS05, (Tsyganenko and Sitnov 2005). This was to describe the external magnetic field by comparing the output results from the three models, besides implementing the IGRF-12 (International Geomagnetic Reference Field) to describe the internal (main) magnetic field.

Materials and methods

The SAA tends to attract energetic particles from the inner radiation belt, due to the reduced magnetic field strength. Thus, the magnetic field is an essential factor that can affect the particle flux response in this region. Therefore, the objective of this investigation is to evaluate, quantitatively, which space weather parameters would affect the SAA variables.

To realize this, we, first of all, demonstrated the SAA variables, as shown in Fig. 1a the minimum magnetic field (= SAA center), the area of the SAA, which was calculated below the magnetic field threshold (\(= 7/6 \approx 1.167 \ B_{{ \min }}\)), and the movement of the SAA center (= variations in longitude and latitude of the SAA center).

In addition, the study placed a typical spacecraft at Low Earth Orbit (LEO) (colored in magenta) that traveled across the SAA anomaly; a dangerous situation arose when the spacecraft body itself (rectangular shape colored with magenta) entered the high charging (= radiation) zone (colored in light red), whereas the safer region was outside of the SAA (colored in light blue). The movement of the SAA center location and the variation of the SAA area are shown in Panels (b) and (c), respectively, in addition to a typical ground track of a LEO satellite. It must be noted that the plot of both variations (red and blue contour lines) in all of the three panels was drawn for illustrative purposes, not according to realistic situations.

SAA variables

The variations of the SAA variables, as demonstrated in this study, were due to external magnetic field changes. They were calculated by subtracting their corresponding values, computed first, by adopting the internal (main) magnetic field only, as described by the IGRF model; and second, by adding the external magnetic field when defined by the Tsyganenko model, besides the internal (main) magnetic field. Normalization was then realized by dividing the resultant value by the variables, computed based on the internal (main) magnetic field, as shown in the simple following equations.

$$\begin{aligned} \Delta \begin{bmatrix}\bar{X}_{j}\end{bmatrix}_{\%}= & {} \frac{\begin{bmatrix}X_{j}\end{bmatrix}_{e + i}-\begin{bmatrix}X_{j}\end{bmatrix}_{i}}{\begin{bmatrix}X_{j}\end{bmatrix}_{i}}\times \ 100 \end{aligned}$$
(1)
$$\begin{aligned} \begin{bmatrix}X_{j}\end{bmatrix}= & {} \begin{bmatrix}A \\ B_{{\min }} \\ \theta \\ \phi \end{bmatrix} \end{aligned}$$
(2)

where \(X_{j}\) is a vector of the four SAA variables (\(j \ = \ 4\)); A is the area; \(B_{{\min }}\) is the minimum magnetic field intensity (= SAA center); \(\theta\) is the latitude of the SAA center; \(\phi\) is the longitude of the SAA center; \([X]_{e+i}\) is the SAA variable computed based on the external and the internal magnetic field, and; \([X]_{i}\) is the SAA variable computed based on internal magnetic field only.

Input data

The required input data to run Tsyganenko model are real solar wind data, such as the three velocity components of the solar wind, namely, the ram pressure, and the IMF components, \(B_{{yIMF}}\) and \(B_{{zIMF}}\). The daily data were provided by the ACE spacecraft from the years 2010 to 2014, in addition to the Dst index and the geodipole tilting angle (\(\mu\)), computed by the GEOPACK package subroutines. All of the information is plotted as shown in Fig. 2. It was expected that the changes in the input space weather variables not only would affect the global magnetic field configuration but would also evoke variations in the inner magnetosphere. Since the global structure of the Earth’s magnetic field was calculated dependent on all of the implemented space weather parameters, a statistical study was carried out, to study the correlation between each of the space weather parameters and the SAA variables, besides demonstrating their temporal evolution, as shown in the next section.

Table 1 Correlation coefficient results of the different Tsyganenko models T96, T01 and TS05, demonstrating the effects of space weather parameters on the SAA variables at an altitude of 800 km

Results

Figure 3 demonstrates the temporal evolution of the two SAA variables: the variation of the area of the SAA and that of the \(B_{{\min }}\) plotted in Panels (a) and (b), respectively. The calculations were made for an altitude of 800 km, using three Tsyganenko models T96, T01 and TS05.

At first glance, the study found that the variations in all of the SAA variables were larger when models T96 and T01 were used, compared with the runs where TS05 was used. In addition, the TS05 results clearly demonstrated a smoother sinusoidal profile, from which it was understood about the strong influence of the geodipole tilting angle on the SAA magnetic response.

The study further interpreted these results quantitatively regarding the relation between the SAA response according to the space weather conditions by performing a statistical study, which indicated a degree of correlation between each variation of the SAA variables and the space weather parameters. The well-known Pearson correlation coefficient had been calculated for two vectors, one standing for every temporal variation of the SAA variables, as discussed earlier in Eqs. 1, 2; and the other one, for every temporal variation of the implemented space weather parameter, corresponding to a selected altitude, and calculated based on each Tsyganenko model, T96, T01 and TS05.

Figures 4, 5 display the correlation coefficient for every SAA variable, with respect to every one of the space weather parameters: the solar wind dynamic pressure, \(B_{{yIMF}}\), \(B_{{zIMF}}\), the geodipole tilting angle, and the Dst index, at altitudes of 100, 400, 700 and 1000 km, using every Tsyganenko model, T96, T01 and TS05. It was found from the T96 calculations that the solar wind dynamic pressure was affecting all of the SAA variables, approximately at all altitudes. At a glance, the IMF had a very weak influence on all of the SAA variables, regardless of the Tsyganenko model used. However, there was still a moderate absolute correlation (\(\approx 0.4\)) between \(B_{{yIMF}}\) and SAA \(B_{{\min }}\) when TS05 was used. Indeed, the three models agreed that both the geodipole tilting angle and the Dst index effects were dominant for all altitudes and for all of the SAA variables. Tsyganenko models T96 and T01 both emphasized the effects of the Dst index on all of the SAA variables; on the other hand, the TS05 calculations decreased the Dst index effect on the SAA behavior.

Table 1 summarizes the correlation analysis, as shown in Figs. 4 and 5, as obtained by the three Tsyganenko models, T96, T01 and TS05 at an altitude of 800 km. The colored values in the table identify the weak (blue, \(0.1 - 0.4\)), moderate (green, \(0.4 - 0.7\)), and strong (red, \(0.7 - 1\)) absolute correlation. It was again deduced numerically that the three models T96, T01 and TS05 agreed together that the Dst index and the geodipole tilting angle (\(\mu\)) were the most influencing space weather parameters on the SAA magnetic response. Moreover, the longitudinal movement of the SAA center was the SAA variable that was least influenced by the external space weather conditions. In this study, since it has focused on the inner magnetosphere dynamics due to the solar storm conditions, it is recommended to take into account the calculations of both models: T01, which better resolves the inner magnetosphere and magnetotail structures, in addition to TS05, that modulates the inner magnetosphere’s response, corresponding to the strong storm events.

Discussion

Comparison of the results using Tsyganenko models T96, T01 and TS05

When adopting T01 and TS05, the SAA variables became less affected by the solar wind ram pressure and the IMF components, in comparison to T96, which was more affected by the Dst index and the geodipole tilting angle. This meant that the magnetotail structure was playing an important role in the SAA magnetic field response, and hence, the inner magnetosphere. This result was also confirmed by Kronberg et al. (2015), who found that an acceleration of the ions in the inner radiation belts was strongly associated to the AE index and less to the changes in the IMF components and the solar wind ram pressure. The magnetotail dynamics were influential on the SAA magnetic response and this is clarified in the next section.

To interpret these results, it is essential to understand the differences between the three Tsyganenko models. As explained in Tsyganenko (1996), T96 was built to study the effects of space weather on the global magnetosphere configuration. T01 and TS05 were then developed to better define the inner magnetosphere response when associated with the space weather conditions (Tsyganenko 2002a, b; Tsyganenko and Sitnov 2005). One of the main differences between TS05 and T01 was the inclusion of different temporal responses of the individual geomagnetic field sources in the TS05 model. Therefore, Tsyganenko and Sitnov (2005) explicitly confirmed that TS05 was more accurate and physically consistent, since both the spatial configuration and the time evolution would become equally significant for describing the storm-time field.

About the Dst index and the geodipole tilting angle effects on the SAA: a direct relationship with the magnetic pole variations

From the previous analysis, it was found that the geodipole tilting angle and the Dst index were the most influencing space weather parameters on the SAA magnetic field response. The effects of both parameters on the global geomagnetic activities were also discussed in great detail by Malin and Isikara (1976) as well as Shore et al. (2016). This was where it was explained that the ring current moves latitudinally through the year, due to the tilting of Earth’s rotational axis with respect to the ecliptic plane, so that the solar wind compression of the magnetosphere pushes the ring current toward the south during the Northern Hemisphere summer, and toward the north 6 months later.

Since the SAA is unlikely to be an isolated feature from the global Earth’s magnetic field, the magnetic poles may “drive” the SAA response. Accordingly, it was further studied regarding the issues of both of the magnetic poles’ response to the space weather condition. Basically, the variables were the maximum magnetic field \(B_{{ \max}}\), the location (latitude and longitude) where the magnetic field was maximized, and the areas of the magnetic poles, defined as the region where the magnetic field was larger than 6/7 (\(\approx 0.88\)) of \(B_{{ \max}}\). We have used the same data series as shown in Fig. 2.

From the study of both magnetic pole temporal variations, many interesting features were found: first, the magnetic poles are also precisely affected by the space weather parameters, namely, the geodipole tilting angle and the Dst index, as shown in Fig. 6. This figure demonstrates the temporal variations of both magnetic pole variables at an altitude of 1000 km, as well as the correlation coefficients between the variations of the magnetic pole variables and the space weather parameters, at three different altitudes, 100, 500 and 1000 km, as illustrated in Fig. 7. Second, it is easier to understand the relationship between both of the variables of the area, and the maximum magnetic field strength variations. From Figs. 6 and 7, a global feature can be observed: the area variations are anti-correlated with the magnetic field changes, not only for the magnetic poles but also for the SAA, as shown earlier in the previous section.

Geodipole tilting angle effects on the magnetic poles and the SAA

Figure 8 demonstrates the geodipole tilting angle effects on both magnetic poles. Panels (a) and (b) show the magnetic field contour lines (in black solid lines) and the magnetic field lines (in white lines) for the positive and the negative geodipole tilting angles, 29.5° and − 29.5° respectively. Panels (c) and (d) are typically projected contour plots of the magnetic field in geodetic latitude and longitude terms. The white lines are the initial magnetic pole boundaries, and the black dotted lines are the boundaries that include the negative and positive geodipole tilting angle effects, as shown in Panels (c) and (d), respectively. Since the magnetic field variations cannot be detected visually in the projected maps, the drawn boundaries in both of the last two panels do not correspond to the calculated magnetic field variations in Panels (a) and (b), but they are actually just drawn to clarify the magnetic pole effects on the SAA area.

The SAA area and the \(B_{{\min }}\)/\(B_{{ \max}}\) variable can be illustrated as a “mountain” for both magnetic poles, where their height describes the magnetic field strength and their width describes the area; in addition, the “valley” describes the SAA, where its depth stands for the weak magnetic field strength and its width, the area.

From this simple concept, if one selects a positive geodipole tilting angle (Panel (a)), which means when the Earth’s axis is pointing toward the sun, the distance between the north magnetic pole and the magnetopause boundary is getting smaller, so that the height of the mountain (\(= B_{{ \max }}\)) decreases and its width (= area) increases. Contrarily, the same conclusion can be derived for the south magnetic pole, where its height is increased and its area is decreased, for the same conditions. Since the variations of south the magnetic pole area are larger than the north, as shown in Fig. 7, the SAA area is getting larger, as is demonstrated in Panel (c) of Fig. 8; hence, the SAA \(B_{{\min }}\) is decreased. The same interpretation can also be made for the negative geodipole tilting angle case, see Panel (b) and its corresponding Panel (d).

The Dst index effects on the magnetic poles and the SAA

Figure 9 explains the Dst index effects on the magnetic poles and the SAA, which is interpreted similarly to Fig. 8. Panels (a) and (b) illustrate the contour plots of the magnetic and the field lines for the two different cases of the Dst index, − 7 nT and − 210 nT, respectively. In Panel (b), the thick black lines correspond to the contour plot of the magnetic strength when the Dst index equals − 210 nT and the dotted black lines are equal to − 7 nT.

From Figs.7 and 9, it can be understood that when the Dst index is decreased, the magnetotail structure is getting thinner and more extending to the night side, so that both magnetic pole areas are decreased and their \(B_{{ \max}}\) is increased. This, in turn, increases the SAA area and decreases its \(B_{{\min }}\).

In brief, what can be concluded from this section is that the space weather parameters, the Dst index, and the geodipole tilting angle are all affecting the SAA, mainly due to the magnetic polar variations.

Several types of research have already confirmed that the Dst index and the geodipole tilting angles are affecting the polar cusp and cap, such as the study of the seasonal variations and interplanetary conditions’ effects on cusp regions using observations from Polar satellite (Stubbs et al. 2004), and the interpretation of the storm activity effects (Dst index) on the global magnetic field using Tsyganenko model T96 by Feshchenko et al. (2000). Moreover, Meng (1982, 1984) and Stasiewicz (1991) found that the latitudinal variations of the polar cusp zone are affected by the Dst index using observations, in addition to the size of the polar cap that was investigated by Kamide et al. (1999), as well as the diurnal variations of the polar cap and the cusp boundaries, by Sergeev (1990), besides the Polar Cap (PC) indices, that can characterize the space weather activity (Stauning et al. 2008).

Diurnal variation effects on SAA response

The analysis in the previous section was realized at a specific condition of the day, UT = 00:00. However, it was also interesting to investigate if the anomaly was also diurnally affected. To achieve this objective, the SAA diurnal variation of 5 January 2010 was studied, by adopting model TS05.

Figure 10 explains the variations of the SAA variables throughout a day (white area) and a night (gray shaded area), computed by implementing TS05. Even though the variations were quantitatively low, it can be detected that there is a direct correlation between the SAA variables and the day/night succession. The SAA \(B_{{\min }}\) and the latitudinal movement of the SAA center were strongly affected and correlated with the hourly variations, where the maximum variation occurred when the SAA was facing the sun. However, the SAA area variations had another profile, which consisted of two minimum values, when the SAA was exactly at dayside and nightside, although the largest variations were found at daytime. The longitudinal movement of the SAA center also had another profile where a shift occurred, comparing this with the hourly succession.

Furthermore, since it was easier to interpret the variations of the SAA \(B_{{\min }}\) and the area, the reason behind the SAA diurnal variations was better understood. It was found that when the SAA was located at nightside, the magnetotail field lines were more extended than when the SAA was located at dayside, due to the differences of the geodipole tilting angle value, (a) \(\mu \approx\) − 5° at UT 15:00 and (b) \(\mu \approx\) − 25° at UT 03:00, as shown in Fig. 11. This was probably the reason why the SAA \(B_{{\min }}\) was decreased and that the SAA area was slightly increased at nightside. Once more, the effects of the magnetotail on the SAA’s response, as explained in the previous section, have been highlighted.

The effects of the magnetic field threshold on the SAA area

In this section, the effects of the magnetic field threshold in calculating the SAA area were studied. Three different values of 1.08 \(B_{{\min }}\), 1.16 \(B_{{\min }}\), 1.25 \(B_{{\min }}\) were selected, to define the SAA boundary, as plotted in Panels (a) and (c) of Fig. 12, with red, blue and green lines, respectively. Panel (a) shows the temporal variation of the SAA area, while Panel (c) shows the contour plot levels of each boundary. Panels (b) and (d) demonstrate the correlation coefficient of the SAA area, calculated based on the three different threshold values, with the Dst index, and the geodipole tilting angle (\(\mu\)). It was found that each SAA area level clearly and similarly showed that both space weather parameters affected the anomaly. Moreover, it was found that as the threshold values were decreased, the SAA area was more influenced by the Dst index. Thus, the SAA area was influenced by the space weather conditions, despite the selected threshold value.

A note about proton flux observations inside the SAA

Figure 13 is another reproduction of the statistical analysis, which is a comparison between the observed data from NOAA 17 (as shown in Panels (b)) as reported by Zou et al. (2015), as well as the numerical results obtained when using Tsyganenko models T01 and TS05 (Panels (a)). The two SAA observed variables were the maximum proton flux and the corresponding flux area, whereas the other SAA variables were the SAA \(B_{{\min }}\) and its corresponding area. It was observed that the computed results agreed well with the observations, in that the Dst index was the main space weather factor on the response of the SAA. Let one suppose that the magnetic field of the SAA is behaving like a cavity wall, where the precipitated protons from the inner radiation belt should move according to its variations. It had already been shown that in severe solar wind conditions, when the Dst index was < − 100 nT, the SAA \(B_{{\min }}\) is decreased and the area was increased. Thus, it is expected that both the corresponding maximum proton flux and the area should also increase. However, observations had shown the opposite of that, where the maximum protons flux and the area had been decreased. In summary, it should be noted that the proton loss, the particle energy and the time scale are considered as another important factors that could affect the proton flux inside the anomaly region, not only the magnetic field.

Conclusion and summary

The SAA magnetic field response to the space weather variations was studied by adopting Tsyganenko models T96, T01 and TS05. The SAA variables introduced in this study were the area of the SAA, the \(B_{{\min }}\), and motion of the location of the SAA center. The main conclusions can be summarized as follows:

  1. 1.

    The Dst index and the geodipole tilting angle were the most influencing space weather parameters on the magnetic field variations of the SAA.

  2. 2.

    TS05, T01 and T96 enhanced the seasonal variations, namely, the Dst index, and the ram pressure on the SAA magnetic field response, respectively.

  3. 3.

    The dynamics of the magnetotail were considered to be an important factor of the SAA magnetic field response.

  4. 4.

    The magnetic field variations of the SAA were mainly driven by both magnetic poles, in a response to the space weather conditions (the Dst index and the geodipole tilting angle variations).

  5. 5.

    The SAA magnetic field response was also subjected to diurnal effects, where the maximum variations of \(B_{{\min }}\), the area and the latitudinal movement occurred at dayside.

By recalling the main objective of the current study, the understanding of how the SAA magnetic response is influenced by the space weather parameters is considered as one of the keys that could help us to interpret the variations of the SAA proton flux response, according to the geomagnetic storms and seasonal variations, which will be carried out in a future study.
