A multimethod paleointensity approach applied to the historical Xitle lava flows (Central Mexico): towards the accurate paleointensity determination

Abstract

An inclusive rock-magnetic and absolute paleointensity survey of the ~ 2-ka-old Xitle volcano (southerly Basin of Mexico) was undertaken to assess the faithfulness of the paleomagnetic log carried by fresh, widely exposed and well-preserved lava flows. Paleomagnetic samples from six lava flows were subjected to paleointensity analysis with a multi-method approach: the Thellier–Coe, IZZI, and multi-specimen methods. Overall mean flow PI values from flows 4–6 obtained by the Thellier-type methods used yielded 68.4 µT (σ = ± 5.6 µT), 63.9 µT (σ = ± 5.8 µT) and 61.5 µT (σ = ± 4.3 µT) for the TC, IZZI, and IZZI with CR correction methods, respectively. Although multi-specimen paleointensity results were, in general, lower than that obtained with the other methods for the same flows, that for Flow 5 (61.8 µT) was very similar to those obtained with the Thellier-type methods. Based on the results obtained, this lava flows sequence could correspond to two eruptive periods; one related with the Xitle volcano (flows 3–6), and another older (flows 1 and 2). The combined archeomagnetic dating of the different flows reinforces this hypothesis, as well as the multi-modal distribution for the age of the Xitle, proposed two decades ago. The application of stricter acceptance criteria and consideration of cooling-rate correction could slightly reduce the scattered observations. The multi-method approach employed under this study, combined with detailed rock-magnetic experiments, may definitively increase the accuracy of paleointensity determinations.

Introduction

The Xitle volcano belongs to the Chichinautzin Quaternary volcanic field. It is located south of the Valley of Mexico (Herrero-Bervera et al. 1986; Urrutia-Fucugauchi and Martin-del Pozzo 1993). It is a monogenetic cone whose lavas overlay an area of approximately 80 km2 in which seven flow-units are identified (Fig. 1; Delgado-Granados et al. 1998). The largest flow to the north is more than 13 km long, encompassing an area of 70 km2 (Martin-del Pozzo et al. 1997; Delgado-Granados et al. 1998) and covering the first urban settlements of the Valley of Mexico (Heizer and Bennyhoff 1958)—the archeological center of Cuicuilco.

Fig. 1
figure1

(modified from Delgado-Granados et al. 1998)

Location map of Xitle volcano and the spatial distribution of its different lava flows

Being one of the youngest volcanoes, charred material (charcoal from pottery level below lava) by its eruption was used during the development of the innovative radiocarbon method for dating organic materials (Arnold and Libby 1951; Libby 1955), obtaining a date of 2422 ± 250 years BP. After this, more than 30 further studies have been reported, yielding a breadth age interval for the Xitle’s eruption. Through a comprehensive review of the available radiometric dates, Urrutia-Fucugauchi (1996) identified three apparent clusters roughly around 4000, 2375, and 2000 years BP. The older cluster is mainly associated with the early archeological occupation Tlalpan stages (Fergusson and Libby 1963), while the other two to the age for the Xitle eruption, respectively. Moreover, an age of 1670 years BP was proposed (Siebe 2000).

Likewise, its different lavas have aided to appraise the reliableness of the paleomagnetic log carried by fresh, widely exposed and well-preserved lava flows (Urrutia-Fucugauchi 1996). In the case of paleointensity (PI) determinations, it seems to be also a matter of controversy. Pioneer estimations of Nagata et al. (1965a) yielded a mean PI value of 56.11 ± 5.89 μT (n = 8), while those of González-Huesca (1992), Morales-Contreras (1995) and Urrutia-Fucugauchi (1996) yielded mean PI values of 66.83 ± 10.09 μT (n = 6), 59.2 ± 11.0 (n = 9) and 60.04 ± 9.62 μT (n = 6), respectively. It is worth mentioning that all these studies were carried out on sites from different flows of the Xitle volcano.

Moreover, variations in the PI values are observed across vertical sections within a single flow (e.g., Urrutia-Fucugauchi 1996; Böhnel et al. 1997; Alva-Valdivia 2005; Morales et al. 2006). Given its monogenetic nature and considering that recent historical eruptions of similar volcanoes in the Mexican volcanic belt point to brief activity periods, around a decade or so (e.g., Paricutin 1943–1953 or the 1759–1774 Jorullo eruptions; Bullard 1976) no such PI differences should be obtained. Attempts to correlate the observed PI variation to rock-magnetic properties, different oxidation states, etc., have not been able to account for these inter-flow variations.

The refinement of PI methods and the proposal of stricter acceptance criteria have arisen with time, as well as new PI methods, which could contribute to a better understanding of the causes for such variations. Even more, multi-method approaches have been recently applied to the study of volcanic rock (e.g., Calvo-Rathert et al. 2016 and Calvo-Rathert et al. 2019) as an alternative criterion of reliability.

In the present study, we report the paleointensity results from six different lava effusion episodes from unit V of the Xitle volcano obtained with the multi-specimens and IZZI methods, considering also cooling rate correction. Likewise, we carried out a reassessment of the Thellier–Coe paleointensity results previously reported on sister samples using stricter acceptance criteria.

Material and rock-magnetic results from the previous study

The paleomagnetic sampling of lava flows was done previously and results were reported by Cervantes-Solano et al. (2019). Sampling was completed at the Ciudad Universitaria Basaltic Lava member (BCU), at the site known as La Cantera (19° 18′ 47.10″ N, 99° 10′ 19.01″ W)—a quarry at the neighborhood of the UNAM facilities (Fig. 1). At this site is the most complete exposure of lava flows with a thickness of 40 m, which corresponds to the unit V described by Delgado-Granados et al. (1998), in which seven individual lava units with thicknesses of 2 to 8 m each are distinguished (Fig. 2). Lava-flow sampling was realized using a hand-held water-cooled gasoline-powered drilling device with a diamond bit; all samples were oriented using a precision core orienting accessory with a magnetic compass mounted on it. Fifty-four standard paleomagnetic cores (8 to 10 samples per flow) were obtained from the exposed-interiors of six flows, which were consecutively numbered according to their stratigraphic position (i.e., 95X001AL–95X054L; L: A, B or C, the outermost specimen, the one at the middle, or the innermost specimen), with Flow 1 the one at the bottom and Flow 6 the one at the top of the exposure. Because of its inaccessibility, Flow 7 was unable to be sampled.

Fig. 2
figure2

(adopted from Alva-Valdivia 2005). Left: a closer view of the paleomagnetic sampling

Right: view of the 7 flows exposed at BCU quarry

Thermomagnetic curves indicate the existence of a magnetic phase during heating with Curie temperature between 520 °C and 560 °C, suggesting magnetite or titanomagnetite with low titanium content as responsible for the magnetization. Cooling curves are similar to heating ones, showing a decrease in initial susceptibility less than 15%, which is likely due to oxidation produced during heating (Fig. 3). For details of the opaque mineralogy, the reader is referred to the paper by Alva-Valdivia (2005).

Fig. 3
figure3

Representative thermomagnetic (κ-T) curves for the different flows analyzed, obtained in the previous study (Cervantes-Solano et al. 2019). Curves in red correspond to the heating, while those in blue to the cooling

In most samples studied (60%), two magnetization components are observed, the first of which is removed during the first steps of demagnetization (fields from 5 mT to 10 mT) and represents less than 10% of the value of the total magnetization of the samples and is likely to be of viscous origin. Once this component was removed, the behavior was linear towards the origin in the orthogonal Zijderveld (1967) diagrams. Another group of samples (31%), corresponding to flows 2 and 5, retain about 40 to 50% of the initial magnetization after having applied magnetic fields of 90 mT, however, a linear behavior towards the origin of coordinates is also observed. In the remaining 9% of samples, a single stable component was identified with a single behavior towards the origin.

Paleointensity experiments were carried out on six to seven specimens per flow (40 in total) using the Thellier double-heating method (Thellier and Thellier 1959) as modified by Coe (Coe 1967), here thereafter called Thellier–Coe (TC). Heating and cooling were done in a TD48 thermal demagnetizer from ASC Scientific. Once the specimens reached the desired temperature at each heating step, they were left for an idle of 20 min at that temperature so that all specimens got thermal equilibrium. Afterward, the fan was turned on permitting the samples to cool down. The laboratory field (45.0 ± 0.5 µT) remained on for infield steps during the whole heating–cooling cycle. Thirteen temperature steps were distributed between room temperature and 580 °C, and pTRM checks were carried out at every third heating step, except at the last one. Natural and laboratory-induced remanent magnetizations were both measured through a JR6 dual-speed spinner magnetometer from AGICO.

Experimental procedure

The experiments were performed with material left from the former study (Cervantes-Solano et al. 2019), and the original numbers of the specimens were preserved, but for the sake of simplicity, the initial number (95) in the specimen’s ID was eliminated. This enabled us to analyze sister samples, minimizing the possibility of within-flow heterogeneities, as well as the application of a multi-methodological exercise on almost the same material.

Rock-magnetic experiments

Stepwise low-field susceptibility (κ-T) curves were obtained for precise monitoring of the onset of the magneto-chemical alteration of the magnetic mineralogy. This monitoring was done using an MFK1B Kappabridge from AGICO in an argon atmosphere. A four-step procedure, initiating at 100 °C and with an opening return-temperature of 350 °C, was followed up to a maximum final temperature of 500 °C. Temperature increments of 50 °C were set for the following return-temperatures (i.e., 350, 400, 450, and 500 °C).

Paleointensity determinations

Absolute paleointensity determinations were accomplished employing two different methodologies. The first set of paleointensity experiments was performed with the multi-specimen (MS) technique proposed by Hoffman et al. (1989) as modified by Dekkers and Böhnel (2006). Protocols for fraction correction (FC) and domain-state correction (DSC)—proposed by Fabian and Leonhardt (2010)—were also included. Three different standard paleomagnetic cores per flow were used for these experiments. Each standard paleomagnetic core was cut into eight specimens, which were pressed into standard-dimension cylindrical salt pellets and labeled from 1 to 8 (e.g., X001-C-1–X001-C-8), obtaining 144 specimens. The multi-specimen method was carried out at a temperature of 450 °C—a temperature below the lowermost Curie temperature observed from κ-T curves but enough to create a pTRM. Experiments were performed using a TD48-SC furnace (ASC Scientific) with laboratory fields varying from 10 to 70 μT, and increments of 10 μT. The following measurement sequence was applied to the specimens subjected this methodology: (i) the natural remanent magnetization (NRM) of the different specimens were measured; (ii) six specimens were oriented so that their corresponding NRM directions lay parallel to the axis of the heating compartment and heated at 450 °C using the first laboratory field selected (10 μT). After cooled down, their remanences were measured; (iii) specimens were set and heated as in the previous step but inverting the laboratory field direction. Then, their remanences were measured; (iv) specimens were reheated in zero field and cooled infield, and their remanences measured; (v) Step (ii) was repeated. Once finished this five-step procedure, another set of six specimens was worked, using the next laboratory field (20 μT) up to 70 μT.

All calculations (relative differences between pTRMs and NRMs) and corresponding correction factors were accomplished following Fabian and Leonhardt (2010).

The so-called ‘IZZI’ method (Tauxe and Staudigel 2004; Yu et al. 2004) was employed for the second set of paleointensity experiments, using one or two standard paleomagnetic cores per flow, which were previously cut, pressed into salt pellets and numbered consecutively (e.g., X014C-1–X014C-4). 32 specimens were treated using the following measurement sequence: (i) The NRM of the specimens was measured. (ii) The specimens were heated to temperature T1 in a close to zero (~ 50 nT) magnetic field strength and then their remanences were measured. (iii) The specimens were heated again to temperature T1, but this time in the presence of a magnetic field (50.0 ± 0.5 µT), and then their remanences were measured. (iv) The next heating step is performed at a temperature T2 (with T1 < T2) in the presence of a magnetic field. (v) The T2 temperature step is repeated in the absence of a magnetic field. (vi) The temperature is increased further to a T3 value, the samples were heated in the absence of a magnetic field. (vii) A pTRM check is performed from T3 to T1. (viii) The specimens are then reheated to T3 in the presence of a magnetic field. (ix) A pTRM tail check is performed. (x) Steps (iv) to (ix) were repeated as often as necessary to cover the entire Curie temperature range of the ferromagnetic minerals present in specimens under analysis.

Although cooling rate (CR) effects on volcanic rocks are not normally considered in most paleointensity experiments (Morales et al. 2006), we have decided to consider it at the end of this experiment. Cooling rate dependence on TRMs was studied using a modified procedure to the one outlined by Chauvin et al. (2000) (e.g., Morales et al. 2006). Finally, to account for non‐ideal multidomain (MD) behavior, the curvature k of the individual Arai plots was estimated.

Results

k-T curves

Stepwise low-field susceptibility vs temperature (κ-T) curves helped to evidence the temperature range at which mineral alteration took place. In the cases of Flow 1 and Flow 3, evident magneto-chemical alteration seems to start at moderate temperatures, between 350 and 400 °C (Fig. 4). On the contrary, alteration appears to start at higher temperatures (400 °C and 450 °C) in the case of Flow 6. The analysis of the susceptibility curves was accomplished using the Cureval 8.0.2 software (Chadima and Hrouda 2012).

Fig. 4
figure4

Representative stepwise thermomagnetic (κ-T) curves for the different flows analyzed, obtained in this study. Peak heating steps used: 350, 400, 450, and 500 °C. Curves in red correspond to the heating, while those in blue to the cooling

Paleointensity determinations

Reassessment of the Thellier–Coe results from the previous study

Different factors play significant roles in the reliability of a paleointensity determination—quality of the experimental conditions, the occurrence of alteration, and the presence of remanent magnetization carried by MD grains (Calvo-Rathert et al. 2016). On the other hand, several statistical parameters and different reliability criteria for paleointensity determinations have been proposed to take into account for these experimental situations (e.g., Selkin and Tauxe 2000; Kissel and Laj 2004), however, no specific criteria and parameter set is normally applied (Calvo-Rathert et al. 2016).

Accordingly, we carried out a reassessment of the Thellier–Coe paleointensity results previously reported by Cervantes-Solano et al. (2019) on sister samples using the same stricter acceptance criteria used for the results obtained in this multi-methodological exercise.

Acceptance criteria of different strictness (A, B, or C, as proposed by Leonhardt et al. 2004) were employed to label successful paleointensity determinations according to specific quality levels, which are summarized in Table 1.

Table 1 Selection criteria and threshold values for the three determination classes (A, B, and C) for Thellier–Coe experiments

Additionally, concave-up shape Arai plots are rejected for the PI calculations because, in such cases, the remanence is very likely carried by MD grains (Levi 1977). Its contribution was assessed estimating the curvature k of the selected data points of the Arai plot (Paterson 2011). Following Paterson (2011), threshold values for k = 0.164 and k ≤ 0.270, defined using samples with known grain sizes, were used. The curvature k was determined in MATLAB using the function CircleFitByPratt (XY) (Chernov 2019) which uses the method proposed by Pratt (1987) for fitting a circle to a set of data points on a plane. Estimation of paleointensity values was performed using the ThellierTool4.0 software (Leonhardt et al. 2004).

Based on the above-mentioned criteria, no reliable paleointensity determinations could be gathered from flows 1 and 2, except for one specimen from Flow 1 (X004A).

Most specimens showed very scattered Arai plots and negative pTRM checks even at low temperatures. Given the negative pTRM checks and the irreversible κ-T behavior of the curves obtained on sister samples, this misbehavior could be attributed to significant thermochemical alteration during the paleointensity experiments. On the contrary, although with a very low success-rate, reliable PI determinations were obtained from flows 3 to 6. A representative Arai plot (Nagata et al. 1965b) is shown in Fig. 5a.

Fig. 5
figure5

a Representative Arai plot (Nagata et al. 1965b) obtained from the TC experiments. b Representative plot obtained from the MS experiments. c Representative Arai plot (Nagata et al. 1965b) obtained from the IZZI CRcorr experiments

It is observed that flows 4 and 6 yielded slightly similar PI of 66.0 ± 5.5 µT (n = 3) and 72.8 ± 3 µT (n = 3), respectively. For flows 3 and 5, however, only one specimen per flow yielded an acceptable result, 86.2 ± 4.0 µT, and 62.4 ± 3.1 µT, respectively. Results are summarized in Table 2 and are graphically presented in Fig. 6.

Table 2 Thellier–Coe paleointensity results for all six studied flows. Tmin/Tmax: lower/upper temperature step used to determine the archeointensity
Fig. 6
figure6

Comparison of PI results obtained by the different methodologies used (TC, IZZI CRcorr, and MS) for the 6 flows analyzed. Error bars represent the corresponding standard deviations in the case of TC and IZZI CRcorr results, while for the MS data to the Min and Max values obtained

This means that only 8 out of the 40 previously reported results (20%) can be considered as reliable. If the curvature parameter is also considered, only five results survive (12.5%).

Representative Arai (Nagata et al. 1965b) and associated vectorial (Zijderveld 1967) plots for the six flows analyzed are shown as Additional file 1: Figure S1.

Multi-specimen method

As above-mentioned, two magnetization components were observed in almost 60% of the samples studied. These soft overprints were also observed at the vectorial plots obtained from the Thellier-type double-heating method, which were eliminated at temperatures between 200 and 350 °C. Thus, the chosen heating temperature of 450 °C seems to be suitable to remove these overprints on the one hand and locates somewhat below the Curie temperature observed from M-T curves on the other hand, so that thermochemical alteration on the specimens due to heating should be less likely. Calculations were performed through the VBA software of Monster et al. (2015a).

Reliability criteria applied for this methodology was based on: (i) a maximum acceptable angular deviation (AAD) of 10°; (ii) the “overprint?” check and (Δdec and Δinc) < 10°; (iii) the amount of progressive alteration (εalt) ≤ 10%; (iv) the intersection with the y-axis (Δb = −1 at Hlab = 0), and (v) the linear least-squares fit (R2).

All PI determinations fulfill with the criterion of δb between (0, 1) and show r2 values ≥ 0.9, except one case (Flow 5). However, despite the low enough chosen heating temperature of 450 °C, Avg εalt range between 6 and 12%. In general, the original DBc, fraction, and domain-state-corrected determinations with alignment correction (FCc and DSCc, respectively) yield higher R2 values than the corresponding uncorrected values.

Flow 1 yielded a significantly lower mean PI value (21.6 µT; min = 17.9 µT, max = 23.8 µT), compared with those obtained from the other flows, and no significant differences between the results of the original DBc and the extended protocols FCc and DSCc are observed. Flow 2 and Flow 4 yielded undistinguishable PI values of 52.9 µT and 49.5 µT, while Flow 3 and Flow 5 PI values of 58.2 µT and 61.8 µT, respectively. In the case of Flow 6, a PI value of 51.9 µT was obtained, although with a higher Avg. εalt of − 17.6%. A summary of the results is provided in Table 3, and a representative plot is shown in Fig. 5b. Plots for the six flows analyzed are shown as Additional file 1: Figure S2.

Table 3 Multi-specimen (QDSC) paleointensity results for the different flows studied. Min and Max: estimated minimum and maximum paleointensity values

IZZI method

For this type of experiment, a similar acceptance criterion to that used for the TC experiments was considered, and paleointensity estimations were performed also with the ThellierTool4.22 software (Leonhardt et al. 2004). No reliable results could be obtained from Flow 1 (specimens X003 and X007), except for one sub-specimen (X003C-2). Negative pTRM checks due to alteration, even at temperatures below 400 °C, and a zig− zag type behavior of the magnetization component observed at the Zijderveld plot precluded the estimation of PI values for this flow. One must note, however, that corresponding κ-T plot seems to be quite reversible up to a temperature of ~ 450 °C (Fig. 3) and provided no clue for these unsuccessful results. Flow 2 (specimens X014 and X017) yielded consistent and quite reliable specimen’s mean results of 49.4 ± 4.4 and 49.5 ± 3.6 µT, respectively, with a flow mean result of 49.4 ± 3.7 µT (n = 8). Flows 3 and 4 (specimens X029 and X032, respectively) yielded also consistent and quite reliable specimen’s mean results of 76.5 ± 3.2 and 63.9 ± 1.5 µT, respectively, although significantly higher than the underlying flow. For Flow 5 (specimens X041 and X042) two somewhat different specimen’s mean results of 68.2 ± 6.0 and 59.4 ± 3.6 µT, respectively, were obtained, with a flow mean result of 63.8 ± 6.6 µT (n = 8). In case of Flow 6 (specimens X047 and X050) quite similar specimen’s mean results of 63.9 ± 10.2 and 64.0 ± 2.3 µT, respectively, with a flow mean result of 63.9 ± 6.9 µT (n = 8). A representative Arai plot (Nagata et al. 1965b) is shown in Fig. 5c. Results are summarized in Table 4 and are graphically presented in Fig. 6.

Table 4 IZZI CRcorr paleointensity results for all six studied flows. Columns as defined in Table 2

Representative examples of the Arai plots (Nagata et al. 1965b) for the six flows are shown as Additional file 1: Figure S3. The corresponding vectorial plots (Zijderveld 1967) are shown as Additional file 1: Figure S4.

From the different individual specimen’s results from flows 4–6, an overall Xitle’s PI value of 63.9 ± 5.8 µT (n = 20) was estimated. Corresponding cooling rate-corrected values yield an overall PI value of 61.5 ± 4.3 µT (n = 19). As noted, the cooling rate correction of PI results slightly reduced the raw value and, in some cases, also the dispersion. Half of the 32 analyzed specimens showed k values < 0.164, seven 0.164 < k < 0.270 and only one a k > 0.270. Representative plots of the fitted circles to the data of the Arai diagrams are shown as Additional file 1: Figure S5.

Discussion and concluding remarks

The comparison between the results obtained by the three methods used (TC, IZZI CRcorr, and MS) shows some differences (Table 5). TC type results are in most cases higher than corresponding IZZI CRcorr values, except for Flow 5. On the contrary, MS data are in most cases significantly lower than the corresponding Thellier-type values, except for Flow 2 and Flow 5. For this last flow, a PI of 61.8 µT, compatible with those obtained from Thellier-type methods, was obtained. In general, the thermochemical alteration—attested by Avg εalt > 10%—seems to be the main cause for the inter-method differences observed.

Table 5 Summary of the mean PI values from three methods for the six flows

Taking into account that consistent results obtained with methodologies relying on dissimilar physical bases can be regarded as an alternative means to support the reliability of paleointensity determinations (e.g., De Groot et al. 2015; Enterpinar et al. 2016; Monster et al. 2015b; Calvo-Rathert et al. 2016), similar results for Flow 5 obtained by the three methodologies should be considered as the most reliable PI value for this flow. A mean multi-method PI flow value of 62.1 ± 5.9 µT (n = 12) was obtained for Flow 5.

The results obtained from the Thellier-type methodologies are very similar in the cases of Flow 4 and Flow 5, and slightly different in the case of Flow 6 (Fig. 6). Overall mean PI flow values from flows 4 to 6 obtained by the TC methods used yielded 68.4 ± 5.6 µT and 61.5 ± 4.3 µT for the TC and IZZI CRcorr methods, respectively. Therefore, the cooling rate-corrected IZZI result could be considered as the most reliable PI result for the flows 4–6 sequence of the Xitle.

As a support for the reliability of the obtained results, Alva-Valdivia et al. (2020) recently carried out a reassessment of paleointensity estimated of a single lava flow from Xitle volcano by means of the multispecimen domain-state-corrected method, obtaining nearly identical paleointensity results of 60.5 ± 4 µT. Figure 7 shows a summary of the results obtained in this investigation, together with the results obtained in previous studies on lavas of the Xitle volcano. We must mention that previous studies on potteries or baked sediments found beneath Xitle’s lavas were excluded since this would inevitably add another factor (anisotropy of thermoremanence) to be considered in the study.

Fig. 7
figure7

Box-and-whisker plots showing the available lava PI data for Xitle, together with those obtained in this investigation. N-65: Nagata et al. (1965a); UF-96: Urrutia-Fucugauchi (1996); GH-97: Gonzalez et al. (1997); B-97: Böhnel et al. (1997); M-01: Morales et al. (2001); B-03: Böhnel et al. (2003); M-06: Morales et al. (2006); AV-20: Alva-Valdivia et al. (2020); Flow 5 (MS): mean PI result for Flow 5 obtained with the MS method; Flow 5 (multi-method): mean PI result for Flow 5 obtained with the TC, IZZI CRcorr and MS methods; flows 4–6 (IZZI): mean PI result from flows 4–6 obtained with the IZZI CRcorr method. The dotted line and shaded area correspond to the Xitle’s mean IZZI CRcorr paleointensity value obtained in this study, and its associated standard deviation

At this point, a comparison of our results against the different model predictions available—CALS10k.1b (Constable et al. 2016), SHA.DIF.14 k (Pavón-Carrasco et al. 2014), A_FM (Licht et al. 2013), etc.—seems natural. Nonetheless, the different model predictions available show, for some intervals, significant differences.

On the other hand, even though the Xitle is one of the youngest volcanoes, a breadth age-interval for the Xitle’s eruption does (still) persist, as mentioned above. Moreover, among the different age intervals proposed so far, that of Siebe (2000) and Gonzalez et al. (2000) (1670 BP) would seem to be the more reliable one. However, Urrutia-Fucugauchi et al. (2016) recently carried out a bootstrap analysis of radiocarbon dates and paleomagnetic data—by correlating full vector data with the geomagnetic secular variation reference model (SHA.DIF.14 k)—for the Xitle lava flows to constrain the best date estimates, from which new age estimates (2041 BP and 2035 BP, respectively) for the eruption were determined. Therefore, an attempt to correlate PI estimates with the different model predictions would seem to be somewhat meaningless at this stage.

Another interesting result observed from Fig. 6 is that the IZZI CRcorr PI values for flows 1 and 2 are quite similar between them, but also quite different from those for flows 4–6. Cervantes-Solano et al. (2019) have suggested that this lava-flow sequence could represent, at least, two eruptive periods; one related to the Xitle volcano (flows 4–6), and other older (flows 1−2) of an unknown source. Nonetheless, Delgado-Granados et al. (1998) had already speculated the ages of the ~ 4000 yr cluster identified by Urrutia-Fucugauchi (1996) could represent the age of Tenantongo Basaltic Andesite, being geomorphologically very similar to Xitle volcano lavas, and thus, very easy to confuse.

Whether or not the mean paleodirections of flows 1 and 2 are statistically different from those of flows 3 to 6 is difficult to ascertain. However, a simple look at the corresponding equal-area projections suggests slightly different mean paleodirections (Fig. 8). Separated equal-area projections for flows 1 and 2 and for flows 3 to 6 are shown as Additional file 1: Figure S6.

Fig. 8
figure8

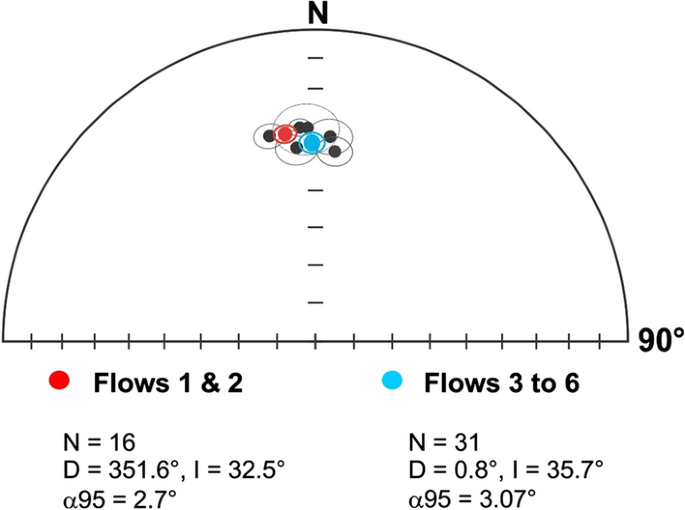

Equal area projection showing the corresponding mean paleomagnetic directions for flows 1 and 2 (red dot), and for flows 3 to 6 (blue dot), together with their corresponding alpha_95 intervals

The reassessment of the archeomagnetic dating of the different flows through the reference model SHA.DIF.14 k, using the reliable IZZI CRcorr PI data obtained in this study, yield the following periods as the most probable ages: [1620 BC–1520 BC] (3570 BP- 3470 BP) for Flow 1; [1749 BC–1597 BC] (3699 BP- 3547 BP) for Flow 2; [61 BC–5 BC] (2011 BP- 1955 BP) for Flow 3; [55 BC–1 AD] (2005 BP–1949 BP) for Flow 4; [24 BC–270 AD] (1974 BP–1680 BP) for Flow 5; [164 AD–342 AD] (1786 BP–1608 BP) for Flow 6, thus, supporting the different origin for the first two flows (Flow 1 and Flow 2) of the sequence on the one hand, and the multi-modal age distribution obtained by Urrutia-Fucugauchi (1996) on the other hand.

Dating of a burnt wood fragment found beneath a lava flow from Unit V yielded and age of 1960 ± 65 yr BP (Ortega-Guerrero et al. 1993), in good agreement with the archeomagnetic dating results. Archeomagnetic dating plots for the different flows are shown as Additional file 1: Figures S7.1–S7.6.

As evidenced from the results obtained, the large scatter of PI values obtained in previous studies should be attributed to the use of relaxed acceptance criteria on the one hand, and on the undetected non‐ideal behavior—mainly MD effects and alteration during laboratory heating—on the other hand. This is comprehensible since those studies were carried out before stringent protocols—including extra experimental steps for the quantification and, when possible, the correction of non‐ideal behavior (Paterson 2011)—were proposed, and due to the lack of standard tests.

From the results obtained in this investigation, the practice of stricter acceptance criteria, together with CR correction and curvature estimation, would help to eliminate the “enigmatic” character to the Xitle’s lava flows.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

AAD:

Acceptable angular deviation

AV-05:

Alva-Valdivia et al. (2005)

AV-20:

Alva-Valdivia et al. (2020)

Avg:

Average

B-03:

Böhnel et al. (2003)

B-97:

Böhnel et al. (1997)

BP:

Before present

BCU:

Ciudad Universitaria Basaltic Lava member

CRcorr:

Cooling rate correction

DRAT:

Difference ratio

DB:

Dekkers–Böhnel method

DSC:

Domain state correction

Flow 5 (MS):

Mean PI result for Flow 5 obtained with the MS method

Flow 5 (Multi-method):

Mean PI result for Flow 5 obtained with the TC, IZZI CRcorr and MS methods

Flows 4–6 (IZZI):

Mean PI result from flows 4–6 obtained with the IZZI CRcorr method

FC:

Fraction correction

GH-97:

Gonzalez et al. (1997)

IZZI:

Infield, Zero field, Zero field, Infield paleointensity method

M-01:

Morales et al. (2001)

M-06:

Morales et al. (2006)

MAD-anc:

Anchored maximum angular deviation

Max:

Maximum

MD:

Multidomain grains

Min:

Minimum

MS:

Multi-specimen method for paleointensity determinations

N-65:

Nagata et al. (1965a)

NRM:

Natural remanent magnetization

PI:

Paleointensity

PIcrc:

Cooling rate-corrected PI

pTRM:

Partial thermoremanent magnetization

TC:

Thellier–Coe method

TRM:

Thermoremanent magnetization

UF-96:

Urrutia-Fucugauchi (1996)

UNAM:

Universidad Nacional Autónoma de México

VBA:

Visual Basic for Applications
