Validity of the dispersion relations in magnetotellurics. Part II: synthetic and field data

Abstract

The impedance tensor and tipper are shown to be non-causal in some classes of 2-D and 3-D magnetotelluric (MT) models, including those widely encountered off shore. At the same time, examination of a large database of onshore MT records yields only a handful of non-causal tensors, being non-causal due to the influence of nearby artificial conductors rather than some exotic geological conditions. This result implies that the actual chance to encounter a non-causal impedance tensor or tipper in terrestrial MT exploration is vanishingly small, thus securing the universal applicability of the dispersion relation technique for quality assessment of the mentioned transfer functions.

Introduction

In the past century, the dispersion relations (DR) were widely used for processing, quality assessment and checking the consistency of broadband magnetotelluric (MT) data for qualitative interpretation (Kunetz 1972; Boehl et al. 1977; Fischer and Schnegg 1980; Sutarno and Vozoff 1991). However, in recent times, the technique has slowly started losing favor with the MT practitioners. The main reason is that the DR are universally valid only in 1-D (Weidelt 1972) and H-polarized 2-D (Weidelt and Kaikkonen 1994) isotropic media, while in more complex MT models with high resistivity contrast, they are sometimes found violated (Berdichevsky and Dmitriev 2008; Alekseev et al. 2009; Ichihara and Mogi 2009).

The arising problem is straightforward—is it legit to employ the DR violation criterion as a plain indicator of noisy/biased/poor processed data in a general 3-D case, if the complex geology alone can lead to DR violations? The main goal of our research is to substantiate positive answer to the above question by showing that any intrinsic (i.e., related to complex geology rather than noisy data) DR violation can be steadily identified. The other goal is to estimate the occurrence frequencies of the intrinsic DR violations in field MT data.

We have spent the first part of the paper (Zorin et al. 2020, hereinafter referred to as Part I) considering the issue of the DR validity in MT transfer functions from the most general perspectives of the black box approach. For ease of further reading, the main conclusions are briefly summarized below (the angular frequency is hereinafter denoted by \(\omega\), while \(X\) stands for an arbitrary MT transfer function in the frequency domain—e.g., the impedance, tipper, etc.):

  • Any tensor \(\hat{X}\) at a given observation site is either causal or non-causal, and this property is invariant to the coordinate system rotation.

  • Any component \(X_{ij}\) of a causal tensor \(\hat{X}\) is either minimum phase (MP) or non-MP, and this property is sensitive to the rotation procedure.

  • The DR of the first kind (DR-I)

    $${\text{Im}}X_{ij} = \frac{\pi }{2} \cdot \frac{{d\text{Re} X_{ij} }}{d\ln \omega }*B\left( {\ln \omega } \right) = {\text{DR}}\left[ {\text{Re} X_{ij} } \right],$$
    (1a)
    $$B\left( {\ln \omega } \right) = \frac{2}{{\pi^{2} }}\ln \coth \frac{{\left| {\ln \omega } \right|}}{2},$$
    (1b)

    is valid in all components of a causal tensor \(\hat{X}\).

  • The DR of the second kind (DR-II)

    $$\arg X_{ij} = \frac{\pi }{2} \cdot \frac{{d\ln \left| {X_{ij} } \right|}}{d\ln \omega }*B\left( {\ln \omega } \right) = {\text{DR}}\left[ {\ln \left| {X_{ij} } \right|} \right],$$
    (2a)
    $$B\left( {\ln \omega } \right) = \frac{2}{{\pi^{2} }}\ln \coth \frac{{\left| {\ln \omega } \right|}}{2}$$
    (2b)

    is valid only in MP components of a causal tensor \(\hat{X}\).

  • The DR-II violation in any non-MP component of a causal tensor \(\hat{X}\) is strictly positive (for the harmonic time factor \(e^{i\omega t}\) used in the paper) and consists of one or more 180° phase flips, known in the MT literature as the “phase rolling out of quadrant” (PROQ) phenomenon.

  • The DR-II violations in a non-causal tensor \(\hat{X}\) consist of at least one negative 180° phase flip, but may also include some positive 180° phase flips on top as well. With that, the exact number and frequency behavior of the positive flips are sensitive to the rotation procedure and vary from component to component, while those of the negative flips do not.

From practical standpoint, the obtained results imply that any component \(X_{ij}\) of any MT tensor \(\hat{X}\) in a given coordinate system can be relegated to one of the three general classes of the DR validity (Table 1). According to this classification, the DR application for quality assessment of causal MT tensors acquired in arbitrarily complex geological conditions is straightforward: if there is no PROQ phenomenon, then any observed DR-II or DR-I violation comes from poor data quality; if a positive phase flip is revealed, then one should use the DR-I only (or, if deemed more suitable, modified DR-II—see Eq. 7 in Part I). Non-causal MT tensors, if they do at all exist, can be steadily identified and equivalently represented via one or several causal tensors from the same response space.

Table 1 Classification of the components of an arbitrary MT tensor \(\hat{X}\) from the standpoint of the DR validity

Modeling

According to Table 1, an intrinsic DR-II violation in any MT transfer function is always associated with some “unexpected” positive or negative 180° phase flips (i.e., sign reversals), which naturally suggests looking for such irregularities in the synthetic models where some of the MT field components reverse their initial direction with frequency.

1-D model with anisotropy

In isotropic 1-D media the off-diagonal impedance components \(Z_{xy}\) and \(Z_{yx}\) are causal and minimum phase (Weidelt 1972; see also Berdichevsky and Pokhotelov 1997; Weidelt 2003 for the case of polarizable layers), while the diagonal components \(Z_{xx}\) and \(Z_{yy}\) are identically equal to zero. However, a completely different situation arises if some of the layers in a 1-D model are considered to be anisotropic: in this case, \(Z_{xx}\) and \(Z_{yy} = - Z_{xx}\) become generally non-zero and may show numerous sign reversals (Marti 2014).

The simplest model we found to reveal a non-MP magnetotelluric response is given in Fig. 1. It consists of two anisotropic layers with the same values of principal resistivities \(\rho_{x'} = 1\; \varOmega {\text{m}}\), \(\rho_{y'} = 100\; \varOmega {\text{m}}\) and \(\rho_{z'} = 100 \; \varOmega {\text{m}}\), but with different strike angles \(\alpha_{\text{strike}}\) (azimuth between the \(x\)-axis and the corresponding principal direction \(x'\) of the resistivity tensor): − 45° for the upper layer, and + 45° for the lower one.

Fig. 1
figure1

Anisotropic 1-D model. Principal resistivities for both layers are \(\rho_{x'} = 1 \;\varOmega {\text{m}}\), \(\rho_{y'} = 100 \;\varOmega {\text{m}}\) and \(\rho_{z'} = 100 \;\varOmega {\text{m}}\)

The forward problem was solved in the MT1DAnisoFwd software (author D. Alekseev) based on the numerical algorithm developed by Kovacikova and Pek (2002). The \(Z_{yy}\) response calculated for the upper layer’s thickness \(h\) = 0.1 km, 1 km and 10 km is shown in Fig. 2 (note using Basokur’s frequency normalization \(\hat{Z}^{n} = \hat{Z}/\sqrt {i\omega \mu_{0} }\), discussed in Part I, for the lower curves). The depicted MT data clearly shows that \(Z_{yy}\) represents a causal but non-MP function (class 2), with valid DR-I and distinctly violated DR-II. This violation is associated with the reversal of the corresponding component of the induced electric current, which takes place at the periods when the relative influence of the basement layer on the measured response outweigh that of the upper layer.

Fig. 2
figure2

The DR validity in the \(Z_{yy}\) component (class 2) for various values of the upper layer’s thickness \(h\)

Since in a two-layered medium the impedance phase values represent functions of \(h\sqrt \omega\) (Kovacikova and Pek 2002), a tenfold increase of \(h\) naturally “shifts” the whole \(Z_{yy}\) phase curve along with all its irregularities by 2 decades of period rightwards. As a result, the DR-II violation becomes practically observable only if the upper layer’s thickness corresponds to the measured frequency range. For \(h > 1\) km and \(T < 1\) s the influence of the basement layer on \(\hat{Z}\) is negligible and the DR-II in \(Z_{yy}\) is effectively valid. Similarly, for \(h < 0.1\) km and \(T > 10\) s, the subsurface layer ceases to affect the frequency behavior of \(\hat{Z}\), and the DR-II in \(Z_{yy}\) turns out to be valid as well, albeit after the corresponding correction for the initial sign of the measured response. This means that MP or non-MP behavior is essentially a local (in frequency) rather than global attribute of a transfer function, and the same component of \(\hat{Z}\) may be relegated to different classes of the DR validity, depending on the particular period range. For example, in the considered 1-D model with \(h\) = 1 km (Fig. 2, middle column) \(Z_{yy}\) is effectively MP (class 1) within the AMT period range (from 10−4 s to 1 s), but turns out to be non-MP (class 2) when considered at MT periods (from 3 · 10−3 s to 103 s).

The DR-II violation in \(Z_{yy}\) defined as

$$\tilde{\varphi }_{yy} = \arg Z_{yy} - {\text{DR}}\left[ {\ln \left| {Z_{yy} } \right|} \right],$$
(3)

and calculated for various thicknesses \(h\) of the upper layer is shown in Fig. 3 (dotted lines). All curves have the same smooth shape, which can be easily identified (cf. Fig. 9a in Part 1) as that of the elementary phase lag \(\theta_{1}\), given by

Fig. 3
figure3

The DR-II violation in \(Z_{yy}\) (dotted line), the best-fit elementary phase lag \(\theta_{1}\) (solid line) and the corresponding lower half-plane zero (open circle) of \(Z_{yy} \left( \varOmega \right)\) for various values of \(h\)

$$\theta_{1} \left( \omega \right) = 2\arctan \frac{{\left| {\varOmega_{1} } \right|}}{\omega }.$$
(4)

This implies that, when considered on the complex \(\varOmega\)-plane, \(Z_{yy} \left( \varOmega \right)\) has a single zero right on the negative half-axis of imaginary frequencies, and its location \(\varOmega_{1} = - iz_{1}\) may be steadily defined by fitting the obtained data with the corresponding theoretic curves (Fig. 3, solid lines). The resulting estimates of \(z_{1}\) (namely 2.8 · 101 rad/s for \(h\) = 0.1 km, 3.1 · 10−1 rad/s for \(h\) = 1 km and 2.9 · 10−3 rad/s for \(h\) = 10 km) characterize the central frequencies of the DR-II violation in \(Z_{yy}\) for the given \(h\) values and expectedly differ from each other by about two orders of magnitude.

2-D model with topography

As follows from numerous published results (see Marti 2014 for a review), incorporation of strongly anisotropic objects into a 2-D model may lead to PROQ not only in diagonal, but also in off-diagonal impedance components as well. However, all such examples apparently belong to the same class 2 of the DR validity as the \(Z_{yy}\) component in the above 1-D model, with the DR-II violated by the amount of an elementary phase lag \(\theta_{n}\) and the DR-I being universally valid. Emergence of a non-causal (class 3) impedance component requires strong perturbations of horizontal magnetic field (see Part I), which could be associated with the phenomenon of excessive concentration of the induced currents in highly conductive elongated structures, usually referred to as “current channeling” (Simpson and Bahr 2005; Berdichevsky and Dmitriev 2008).

Since the rigorous proof of the DR validity in MT impedance on the surface of isotropic 2D Earth exists only for H-polarized models (Weidelt and Kaikkonen 1994), the efforts of many researchers within the last decades were directed to numerical investigations of the MT curves in the vicinity of highly conductive E-polarized 2-D bodies (Berdichevsky and Dmitriev 2008). To the best of our knowledge, none of the proposed models have revealed any observable DR violation. However, in some synthetic examples with huge resistivity contrast (Parker 2010; Selway et al. 2012) the impedance phase curve was found out to be slightly leaving its quadrant downwards and then immediately returning back to “normal” values from the same side (i.e., without any phase flips). Though such behavior does not yet imply the DR violation (see Zorin and Alekseev 2018), it clearly indicates the existence of strong magnetic field perturbations, which cannot be encountered on the surface of H-polarized media. A possible reason why these perturbations do not lead to the breakdown of causality is that in flat models considered by the above authors the induced currents are flowing exclusively below the observation sites. As a result, the horizontal component of the secondary magnetic field produced by a 2-D current channel of any intensity has the same sign as the primary magnetic field, and hence cannot force the observed response to reverse its polarity. In this situation we may yet expect the total magnetic field to be reversed at an observation site located below the conductive body, e.g., due to steep 2-D topography, as that shown in Fig. 4.

Fig. 4
figure4

Isotropic model of an elevated 2-D conductor. Observation site is marked with red triangle

To check this assumption, we assembled the given model of an “elevated 2-D conductor” on a 220 × 80 finite-element grid with minimum mesh size of 2.5 × 5 m, and applied to it the NWMT2D code (author A. Kaminsky). The obtained MT response reveals dramatic violations of DR-I and DR-II in the considered transfer functions (Fig. 5), thus showing that both \(\hat{Z}\) and \(\hat{W}\) observed near the cliff are non-causal.

Fig. 5
figure5

The DR validity in \(Z_{xy}\) and \(W_{zy}\) components observed near the 2-D cliff

As follows from Table 1, one of the possible ways to assess quality of non-causal (class 3) transfer functions using the DR technique is to consider the corresponding inverse tensors: \(\hat{Y}\) instead of \(\hat{Z}\), \(\hat{Y}^{n} = \hat{Y}\sqrt {i\omega \mu_{0} }\) instead of \(\hat{Z}^{n} = \hat{Z}/\sqrt {i\omega \mu_{0} }\), and so on. Nonsquare tipper matrix \(\hat{W}\) for this purpose might be replaced by the pseudoinverse matrix \(\hat{W}^{ + }\) defined by the following equation:

$$\varvec{H} = \left[ {\begin{array}{*{20}c} {H_{x} } \\ {H_{y} } \\ \end{array} } \right] = \left[ {\begin{array}{*{20}c} {W^{ + }_{xz} } \\ {W^{ + }_{yz} } \\ \end{array} } \right]H_{z} = \hat{W}^{ + } H_{z} .$$
(5)

The spectral components of \(Y_{yx}\) and \(W_{yz}^{ + }\) are plotted in Fig. 6. Though these functions represent exactly the same data as contained in \(Z_{xy} = 1/Y_{yx}\) and \(W_{zy} = 1/W_{yz}^{ + }\), respectively, they both belong to the (lower) class 2 of the DR validity and hence are both causal.

Fig. 6
figure6

The DR validity in \({\text{Y}}_{\text{yx}}\) and \({\text{W}}_{\text{yz}}^{ + }\) components observed near the 2-D cliff

The obtained results also reveal an interesting aspect of the DR violations in non-causal 2-D MT tensors, which at first glance may even seem to be self-contradictory. Indeed, on the one side, we see that the impedance \(\hat{Z}\) observed near the cliff is non-causal (Fig. 5); hence, all its components formally belong to the class 3 of the DR validity and both dispersion relations in them are meant to be violated. But at the same time, as shown by Weidelt and Kaikkonen (1994), in any isotropic 2-D model with arbitrary topography, the impedance tensor component corresponding to H-polarization of the medium must be minimum phase.

To solve this apparent contradiction we note that, for the model in hand, Eq. (13 in Part I) is simplified as follows:

$$\left[ {\begin{array}{*{20}c} 0 \\ {Z_{yx} } \\ \end{array} \begin{array}{*{20}c} {Z_{xy} } \\ 0 \\ \end{array} } \right] = \frac{1}{{\det \hat{h}}}\left[ {\begin{array}{*{20}c} 0 \\ {h_{yy} e_{yx} } \\ \end{array} \begin{array}{*{20}c} {h_{xx} e_{xy} } \\ 0 \\ \end{array} } \right],$$
(6)

where the H-polarization magnetic response function \(h_{xx}\) is MP, while the E-polarization magnetic response function \(h_{yy}\) is not and hence have at least one lower half-plane zero. As a consequence, each of these zeros is translated from \(h_{yy}\) right into \(\det \hat{h} = h_{xx} h_{yy}\), thus becoming a non-causal singularity of the whole tensor \(\hat{Z}\). However, \(h_{yy}\) also appears as a multiplier within the \(Z_{yx}\) component (Eq. 6), so that all its poles and zeros are mutually canceled out, and the transverse impedance \(Z_{yx}\) turns out to be MP in the given coordinate system.

To have a closer look at this phenomenon we shall make use of the rotation procedure. Figure 7 shows the apparent resistivity \(\rho_{xy}\), impedance phase \(\arg Z_{xy}\), DR-II violation curve \(\tilde{\varphi }_{xy} = \arg Z_{xy} - {\text{DR}}\left[ {\ln \left| {Z_{xy} } \right|} \right]\) and corresponding best-fit locations of the lower half-plane poles and zeros of the \(Z_{xy}\) component rotated 0°, 15°, 30°, 45°, 60°, 75° and 90° clockwise, respectively. As expected, the locus of two thuswise discovered poles (viz., \(\varOmega_{1} \approx - 8.6i\) rad/s and \(\varOmega_{2} \approx - 91i\) rad/s) does not show any dependence on the rotation angle \(\alpha\), and the shape of the associated negative part of the total DR-II violation \(\tilde{\varphi }_{xy}\) remains the same for all values of \(\alpha\). On the other hand, gradual rotation of the coordinate system forces the zeros of \(Z_{xy} \left( \varOmega \right)\) to move along the complex frequency plane, and, as could be anticipated from the emerging negative cusp of \(\lg \rho_{xy}\), at \(\alpha\) higher than ~ 30° a pair of such zeros approaches the real-frequency axis from above. At \(\alpha \approx\) 39° these zeros cross the \(\omega\)-axis at \(\omega_{1,2} \approx\) ± 20 rad/s (± 3 Hz), turning for a moment the cusp of \(\lg \rho_{xy}\) into an infinite spike and introducing an additional positive 360° phase lag into the total DR-II violation curve. At \(\alpha\)\(\approx\) 56° the zeros meet at the imaginary frequency axis, split up, and start moving from each other in the opposite directions. Finally, at \(\alpha =\) 90°, i.e., in the proper H-polarization mode, both zeros coincide with the corresponding poles, the positive and negative phase flips fully compensate each other, and the dispersion relations in \(Z_{xy}\) become valid (slight mismatch of the compared curves at the very ends of the available frequency range is attributed to the inherent properties of the DR calculation—see Part I for details).

Fig. 7
figure7

The DR-II violation in \(Z_{xy}\) for different values of the coordinate system rotation angle \(\alpha\). Red crosses and green circles in the right denote the revealed lower half-plane poles and zeros of \(Z_{xy}\), respectively

The above example shows that a component of a non-causal MT tensor may indeed be minimum phase—for that to happen, its lower half-plane poles have to be exactly overlapped by the corresponding zeros. However, such MP property is not the same as that in a causal tensor, since an infinitely small rotation of the coordinate system in any direction would lead to its failure. As a result, it seems reasonable to leave the general classification given in Table 1 intact and consider the MP components of a non-causal tensor as those belonging to the third class of the DR validity with the dispersion relations being violated by the amount of zero (i.e., \(\theta_{n} \equiv \theta_{m}\)).

2-D model with bathymetry

While placing an MT station below a 2-D conductor requires rather exotic geological conditions on the land surface, this is evidently a common practice for the seafloor observations, which implies that non-causal impedance tensors and tippers be encountered in marine magnetotellurics on a regular basis. Indeed, the unique behavior of the offshore MT data in the coastal regions, which is “seldom, if ever, encountered on land” (Constable et al. 2009), was revealed decades ago and successfully simulated with the help of simple E-polarized 2-D models (e.g., Vanyan and Palshin 1990, White and Heinson 1994). Characterized by numerous negative phase flips, this behavior is reported to be a plain indicator of the DR-II violation in the offshore impedances (Alekseev et al. 2009, Kapinos and Brasse 2011; Kaufman et al. 2014). Surprisingly, none of the authors tried to check the validity of the DR-I in such data since this would have marked a decisive end to the hot discussion of the unsupported statement of Yee and Paulson (1988) about the general causality of \(\hat{Z}\) in real MT data (see Berdichevsky and Dmitriev 2008) by providing a simple and geologically reasonable counterexample. In this section, we fill this gap by pointing out the non-causal behavior of \(\hat{Z}\) in a simple E-polarized model of the coast effect.

The model consists of a conductive (0.3 Ωm) semi-infinite 2-D “ocean” located on top of a more resistive (100 Ωm) “continent”, as shown in Fig. 8 (bottom). The origin of the horizontal axis \(y\) is chosen at the place where the ocean depth reaches half (0.5 km) of its maximum (1 km) value, which happens to be a convenient reference point for estimating the spatial limits of the coast effect influence on MT data (Worzewski et al. 2012). The forward MT responses were calculated using the NWMT2D code at 101 observation sites equally spaced along the 50-km survey line, with an increased period density of 15 per decade, necessary for accurate representation of the anomalous curves.

Fig. 8
figure8

The DR-II validity in \({\text{Z}}_{\text{xy}}\) component observed in E-polarized 2-D model of the coast effect

The map given in the middle part of Fig. 8 shows the absolute value of the DR-II violation in \(Z_{xy}\) defined as

$$\left| {\tilde{\varphi }} \right|_{xy} = \arccos \left[ {\cos \left[ {\arg Z_{xy} - {\text{DR}}\left[ {\ln \left| {Z_{xy} } \right|} \right]} \right]} \right].$$
(7)

This parameter is restricted to lie within the interval \(\left[ {0,\pi } \right]\) and thus is more convenient for examination of the MT responses with particularly complex frequency behavior, than the simple sign-variable parameter \(\tilde{\varphi }_{xy} = \arg Z_{xy} - {\text{DR}}\left[ {\ln \left| {Z_{xy} } \right|} \right]\) used above (cf. Figs. 3, 7). As seen from the map, the DR-II is prominently violated at all underwater stations from the very coastline and up to those located at about \(y \approx\) 30 km. At the same time, the frequency behavior of this violation varies greatly with distance, involving almost all periods within the considered range of 1 s–10,000 s near the foot of the continental slope, but becoming sharply localized around the periods of 100 s–200 s at the remote offshore sites. To further investigate this phenomenon we have examined each survey site separately (some examples are depicted at the top part of Fig. 8) and fitted all the anomalous curves with the help of elementary phase lags described in Part I.

The absolute values of the obtained complex frequencies at which \(Z_{xy} \left( \varOmega \right)\) has a pole (or a pair of poles) are plotted with correspondingly labeled hatched lines over the DR-II violation map in Fig. 8 (middle). These curves are, in fact, describing how the non-causal poles of \(Z_{xy} \left( \varOmega \right)\) change their locations in the complex frequency plane when we travel along the survey line (at any particular station their locations are securely fixed, like those of the zeros shown in Fig. 7). Now, going towards the coastline from the open water, we can see that at \(y \approx\) 30 km, a conjugate pair of poles crosses the real frequency axis at \(\omega \approx\) ± 0.035 rad/s (\(T \approx\) ± 180 s) from above, resulting in the breakdown of \(\hat{Z}\) causality. At \(y \approx\) 19 km, the poles reach the imaginary axis, split up, and start moving from each other, making the period range with the out-of-quadrant impedance phase wider. Around \(y \approx\) 10 km, one of these poles finds yet another pole to combine with and cross the real frequency axis again at \(\omega \approx\) ± 5.2 rad/s (\(T \approx\) ± 1.2 s), while the other one stays alone up to the very coastline, where it finally gets out of the available period range towards higher frequencies.

Non-causal behavior of \(Z_{xy}\) component at the MT stations marked with red color in Fig. 8(bottom) is also confirmed by Fig. 9, which shows the map of normalized DR-I violation parameter for \(Z_{xy}\) defined as

Fig. 9
figure9

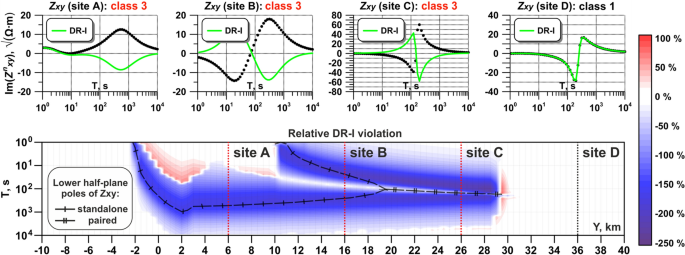

The DR-I validity in \(Z_{xy}\) component observed in E-polarized 2-D model of the coast effect

$$\widetilde{\text{Im}}^{n} \left[ {Z_{xy}^{n} } \right] = \frac{{{\text{Im}}Z_{xy}^{n} - {\text{DR}}\left[ {\text{Re} Z_{xy}^{n} } \right]}}{{\left| {Z_{xy}^{n} } \right|}}.$$
(8)

As follows from the figure, at periods corresponding to the non-causal poles of \(Z_{xy}^{n} \left( \varOmega \right)\), the DR-I fails to correctly “predict” the actual sign of \({\text{Im}}Z_{xy}^{n}\), so that the inaccuracy of its application comes up to ~ 200% of the total \(Z_{xy}^{n}\) amplitude, which is in good agreement with the general expectations of the DR-I violation in this type of functions (see Appendix 2 in Part I).

Figure 10 shows the \(\rho_{xy}\) values along the survey line. As should be expected, the regions where the complex plane poles of \(Z_{xy} \left( \varOmega \right)\) approach the \(\omega\)-axis are characterized by emerging positive cusps on the resistivity curves, which turn into infinite spikes at the points where the poles are purely real, i.e., where the corresponding magnetic field component totally vanish. According to the papers (Key and Constable 2011; Worzewski et al. 2012), in simplistic 2-D models of the coast effect, one such point is always present at the distance \(r \approx 0.09\rho_{l} \left( {h/\rho_{w} } \right)\) from the middle of the continental slope and the period \(\tau \approx 0.19\rho_{l} \left( {h/\rho_{w} } \right)^{2}\), where \(\rho_{w}\) and \(\rho_{l}\) stand for the water and land resistivities, respectively, and \(h\) is the ocean depth in kilometers. Substituting \(\rho_{w}\) = 0.3 Ωm, \(\rho_{l}\) = 100 Ωm, and \(h\) = 1 km into the above equations, we get the values very close to those describing the apparent resistivity peak observed at \(y \approx\) 30 km. Though this particular singularity of \(\rho_{xy}\) is not unique for the present model (we see another one at about \(y \approx\) 10 km, \(T \approx\) 1 s, and probably, there are even more of a kind at higher frequencies), it appears to be of most practical importance as the one drawing a clear boundary between the MT sites with causal and non-causal behavior of the impedance tensor at long periods.

Fig. 10
figure10

The apparent resistivity \(\rho_{xy}\) curves observed in E-polarized 2-D model of the coast effect

In conclusion, it should be noted that the transverse (H-polarization) impedance value \(Z_{yx}\) obtained for the given periods and model parameters demonstrates MP behavior at all MT stations along the survey line. This means that the same mechanism of “compensating zeros” encountered in the above model of an elevated 2-D conductor (Fig. 7) applies to the H-polarized seafloor models as well. Furthermore, the observed MP behavior of the horizontal electric field components ensures causality of the admittance tensor \(\hat{Y} = 1/\hat{Z}\) along the whole survey line, thus solving the issue of the DR application for quality assessment of the MT data heavily distorted by the 2-D coast affect.

3-D model with a curved conductor

For completeness we shall consider one of the curved conductive 3-D structures known for producing MT responses with PROQ (e.g., Weckmann et al. 2003; Thiel et al. 2009; Ichihara and Mogi 2009; Kaufman et al. 2014). The most simple and, hence, geologically reasonable among them is the L-form model of Ichihara and Mogi (2009). As shown by these authors, anomalous behavior of \(\hat{Z}\) over the L-shaped conductor is associated with local “reversed channeling” (sign reversal) of the electric current observed in a minor region of the model, while the horizontal magnetic field “varies slightly in all area”. This result suggests that in the L-form model one can encounter the impedance components only of the first two classes of the DR validity, while the emergence of a non-causal impedance tensor on the flat Earth’s surface requires more exotic shape of the conductor, such as the “S” shape proposed by Aleksanova and Blinova (Kaufman et al. 2014). Indeed, in the S-form model the reversed current is observed in a very large region and happens to be so intense that we should expect the associated secondary magnetic field to dominate the total magnetic field within this region, which may even cause its sign reversals along with the breakdown of \(\hat{Z}\) causality.

To observe the MT responses produced by both L-shaped and S-shaped conductors at once we have constructed a combination of these two models shown in Fig. 11. The resulting “SL-shaped” conductor (0.5 Ωm) is located 50 m below the flat Earth’s surface, has constant thickness of 400 m and extends infinitely along both directions of the \(y\)-axis. The background medium is a resistive (500 Ωm) homogeneous half-space.

Fig. 11
figure11

Horizontal slice (z = 100 m) of the SL-shaped conductor model. Grid lines delineate the cell boundaries

The forward problem was solved for 57 periods on a rectangular grid of 627,200 (112 × 112 × 50) meshes using the ModEM code of Egbert and Kelbert (2012). To reduce excessive time consumption of the corresponding calculations, they were performed on the supercomputing complex Lomonosov at Moscow State University (Sadovnichy et al. 2013).

Figure 12a, b shows the maps of maximum absolute values of the DR-II violation (Eq. 7) in the off-diagonal impedance components \(Z_{xy}\) and \(Z_{yx}\) within the period range from 10−3 s to 103 s. The same maps obtained for the coordinate system rotated 45° clockwise are shown in Fig. 12c, d. The validity of the DR-II in \(\hat{Z}\) components depends on the employed coordinate system, and this dependence also considerably varies from site to site. Particularly, we have discovered that for each point over the L-shaped part of the conductor (e.g., in the site A), there exist some rotation angles at which both \(Z_{xy}\) and \(Z_{yx}\) are minimum phase. In more heavily distorted area over the central part of the conductor (e.g., in the sites B and C) at least one of these components happens to be non-MP, irrespective of the rotation angle. Trying to delineate this area, we found out that a reasonable approximation could be obtained by highlighting the region of the DR-II violation in the Berdichevsky impedance \(Z_{brd}\) (Fig. 12e), which is basically an arithmetic mean of the principal impedance components with an intrinsic property of being a rotational invariant (Berdichevsky and Dmitriev 2008):

Fig. 12
figure12

Maps of maximum absolute DR-II violation within the period range from 10−3 s to 103 s for various MT functions. Green dot marks out the location of the reference site used for calculation of the inter-site tensors \(\hat{M}\), \(\hat{Q}\) and \(\hat{S}\); red dots show the MT sites to be considered separately (see Figs. 13, 14)

$$Z_{\text{brd}} = \frac{{Z_{xy} - Z_{yx} }}{2}.$$
(9)

The DR-II violation map for another important rotational invariant—the magnetic tensor determinant \(\det \hat{M}\)—is given in Fig. 12f. As pointed out in Part I, both \(\hat{Z}\) and \(\hat{W}\) are causal at all MT sites with MP behavior of \(\det \hat{M}\) obtained with the base site placed in an area with regular field behavior (i.e., over the 1-D background or, simply, far enough from strong magnetic anomalies). Consequently, the given DR-II violation map for \(\det \hat{M}\) implies that all components of \(\hat{Z}\) and \(\hat{W}\) observed at the sites A and B should belong to either of the first two classes of the DR validity, while at the site C, we should encounter only those of the class 3, which is fully confirmed by Fig. 13.

Fig. 13
figure13

The DR validity in \(Z_{yx}\) and \(W_{zx}\) components observed in MT sites A, B and C over the SL-form model

For being able to apply the DR technique for quality assessment of non-causal MT data, it is necessary to use some other transfer functions, which contain the same information but are causal. In accordance with Table 1, for this purpose one may try to consider the corresponding inverse or inter-site transfer functions from the given response space. The first approach, proved useful in the above 2-D examples, is not applicable to the present model, since all of the MT field components observed over the middle part of the SL-shaped conductor are greatly distorted. However, if the MT measurements are synchronously taken at some remote station with regular field behavior, it is always possible to express local MT transfer functions via the corresponding causal inter-site transfer functions. For instance, using the data from the base site shown in Fig. 12, the pair of tensors \(\hat{Z}\) and \(\hat{W}\) at sites A, B and C can be equivalently represented by causal tensors \(\hat{M}\), \(\hat{Q} = \hat{Z}\hat{M}\) and \(\hat{S} = \hat{W}\hat{M}\) (see Eqs. 12–17 in Part I), whose components belong either to class 1 or class 2 of the DR validity (Fig. 14).

Fig. 14
figure14

The DR validity in \(Q_{yx}\), \(M_{xx}\) and \(S_{zx}\) components observed in MT sites A, B and C over the SL-form model

Field data

As follows from the performed modeling, the field MT observations are potentially able to yield non-causal impedances and tippers. To assess the practical risks of encountering such data, the following search algorithm was applied to the available field data sets:

  1. 1.

    First, the impedance tensors with \(\arg Z_{xy}\) and/or \(\arg Z_{yx}\) leaving their regular quadrants are marked out. To make this procedure resistant to the possible presence of the outliers and other data inaccuracy, we use the criterion of the phase values being continuously out of quadrant for at least half decade of periods.

  2. 2.

    Then among the off-diagonal impedance components with out-of-quadrant phase values are chosen those with distinctly violated DR-II. As a robust indicator of such violation we use the condition \(\left| {p.v.\tilde{\varphi }_{ij} } \right| > \pi /2\) for at least half decade of periods, where \(p.v.\tilde{\varphi }_{ij}\) stands for the principal value (i.e., one belonging to the interval from \({-}\pi\) to \(\pi\)) of the DR-II violation function \(\tilde{\varphi }_{ij} = \arg Z_{ij} - {\text{DR}}\left[ {\ln \left| {Z_{ij} } \right|} \right]\). Thuswise discovered impedance tensors are labeled as “anomalous”.

  3. 3.

    At the third step, all the determined anomalous tensors are further checked for validity of the DR-II in their rotational invariant \(Z_{\text{brd}}\) (Eq. 9). The impedance tensors which satisfy the condition \(\left| {p.v.\tilde{\varphi }_{\text{brd}} } \right| > \pi /2\) on at least half decade of periods are thereby labeled as “strongly anomalous”.

  4. 4.

    Finally, the normalized DR-I violation parameter \(\widetilde{\text{Im}}^{n} \left[ {Z_{\text{brd}}^{n} } \right]\) (Eq. 8) is calculated for each strongly anomalous data example. All the revealed tensors with \(\left| {\widetilde{\text{Im}}^{n} \left[ {Z_{\text{brd}}^{n} } \right]} \right| >\) 100% for at least half decade of periods are acknowledged to be non-causal.

The proposed algorithm is constructed in such a way that, being applied to the impedance tensors observed over the SL-shaped model (Fig. 12), it labels the sites A, B, C as anomalous, sites B, C—as strongly anomalous, and site C—as non-causal, while paying no attention to the (regular) Base site.

Land MT exploration

The overall MT database associated with numerous onshore projects performed by Nord-West Ltd. in the past 2 decades consists of more than 100,000 standalone AMT, MT and BBMT (AMT + MT) records acquired mostly in Asia, Europe and Latin America. However, for the purpose in hand we have removed from consideration relatively narrow-banded AMT records (so that only MT and BBMT ones are used in the below statistics) and repeated measurements acquired at the same location (so that for each unique survey site only the most recent record is used). At the same time, all the repeated measurements characterized by a considerable (> 50 m) shift of the survey location were left intact. Though such doing naturally introduces a number of low-quality records which then have to be identified and removed from the statistics in order not to be falsely labeled as anomalous, it ensures that none of truly anomalous MT responses be missed.

The result of applying the above algorithm to the whole selected database (60,226 impedance tensors, as of April 2019) and to some particular objects from it individually is given in Table 2. As to be expected, the overall percentage of the encountered anomalous impedances varies greatly from project to project and is also highly non-uniform in space (Fig. 15). In thick sedimentary basins and other “calm” geological conditions, MT surveying rarely yields more than 1% of anomalous data examples. However, as revealed by regional MT exploration projects considered here (e.g., the geotraverses 1-SB, 3-DV) and elsewhere (e.g., Weckmann et al. 2003; Thiel et al. 2009; Pina-Varas and Dentith 2018), this proportion may easily bounce up to more than 10–20% in orogenic belts, graphitized zones of ancient crystalline rock formations and other regions characterized by abrupt lateral variation of resistivity.

Table 2 The DR violation statistics for the impedance tensors from the onshore MT/BBMT database of Nord-West Ltd
Fig. 15
figure15

East Russian part of the Nord-West Ltd. onshore MT/BBMT database employed in the paper

As follows from Table 2, pretty much every single impedance tensor (viz., 60,220 out of 60,226) from the database is labeled as causal, which implies that virtually all revealed MT data with PROQ belong to the second class of the DR validity. An example is given in Fig. 16. This record was acquired in August, 2017 at the site 28-002 of the Chara-Tokko MT project in Southeastern Russia (Fig. 15). Since only electric field was measured directly at the survey site, and the magnetic field taken from an adjacent location, the resulting transfer function formally represents an inter-site impedance \(\hat{Q}\) (Eq. 16 in Part I). With phase rolling out upwards and DR-II violated by the presence of a ~ 180° lag at longer periods, the \(Q_{xy}\) component is easily recognized as that belonging to the class 2 of the DR validity with a single non-MP zero (\(n = 1\)). In Part I we propose three ways of quality assessment of such data using the DR technique:

Fig. 16
figure16

The DR application to the \(Q_{xy}\) transfer function observed at site 28-002 in Yakutia, Russia

  • apply the DR-I instead of DR-II;

  • modify the DR-II by the elementary phase lag \(\theta_{1}\) (Eq. 4);

  • rotate tensor \(\hat{Q}\), and if its components become MP, apply the DR-II to them.

The last approach happens to be of no use for the given case—the MT response observed at the site 28-002 belongs to the list of “strongly anomalous” impedances (Table 2), and either \(Q_{xy}\) or \(Q_{yx}\) is always non-MP, irrespective of the applied rotation angle. At the same time, application of the modified DR-II with an automatically fitted variable \(\left| {\varOmega_{1} } \right|\) (Fig. 16, top) and straightforward DR-I application (Fig. 16, bottom) both work well.

Now, let us consider the six non-causal impedances revealed in our database by the applied search algorithm. The first one (Fig. 17), characterized by much better quality than the other five, was acquired in October 2009 at the site 932G of the 3-DV geotraverse (Fig. 15), very close (< 100 m) to a local railway under construction. Since the railroad had not been put into service by the time of the field work commencement, it was not initially supposed to become an obstacle for MT exploration. However, the first obtained results proved just the opposite—apparently, in the context of highly resistive rock formations of that region, the secondary magnetic field associated with telluric currents flowing in the rails turned out to be intensive enough to overwhelm the primary magnetic field in near surroundings. As long as the initial location of the survey site happened to be on a hillside well below the railway embankment, the magnetic field distortion also resulted in the breakdown of causality in both \(\hat{Z}\) and \(\hat{W}\) (Fig. 17), very similar to that observed in the synthetic model of an elevated 2-D conductor (cf. Fig. 5). This explanation seems to be particularly reasonable given the fact that in the original model the channeled current flows within the material with the conductivity \(\sigma\) ≈ 0.3 S/m and has the effective cross-sectional area of about ~ 104 m2 (Fig. 4), which is equivalent to the current flowing in a long-length metallic (\(\sigma\) ~ 106–107 S/m) conductor with the cross-sectional area of just about several square centimeters.

Fig. 17
figure17

Non-causal MT response functions acquired near an out-of-service railroad (site 932G, Eastern Russia)

On closer examination, it turned out that all 5 remaining non-causal impedances also reveal behavior very similar to that produced by the conceptual model in Fig. 4, which implies that the corresponding MT measurements be taken in a generally resistive environment with some elevated 2-D conductor enclosing a huge portion of local telluric currents. With that, 4 out of these five MT records were tagged by the field personnel as those acquired in a close proximity (< 300 m) to high-voltage overhead power lines, which in most cases are equipped with thick steel/aluminum ground-wire cables used for lightning protection. As for the last record from the “red” list of Table 2, we have no a priori information about the presence of power lines or other overhead metallic constructions in the survey area, but the latter is known to be relatively flat, so a reasonable geological explanation for an elevated conducting body could hardly exist anyway.

The obtained results show that application of the above search algorithm to the whole onshore MT/BBMT database of Nord-West Ltd., which includes thousands of records taken in complex geological conditions and extremely rugged topography (e.g., those acquired in Sub-Andean fold belt—see Palshin et al. 2020) has not yield a single impedance tensor, which could be confidently regarded as being non-causal due to geological reasons. This allows concluding that, though the potential existence of non-causal impedances (and hence magnetic tensors, tippers and any other transfer functions formally treating the horizontal magnetic field as an input—see Part I) on the land surface should not be excluded completely, the actual chance to encounter such data in practice is negligible.

Seafloor MT exploration

Offshore magnetotellurics, with hardly more than several hundreds of records annually acquired worldwide, is less popular than its onshore equivalent for the following reasons. The shallow-water (< 100 m) modification of the method, being highly vulnerable to the wave-motion noise and other sources of distortion (Constable et al. 1998), still remains rather undeveloped and only a few successful projects were reported recently (e.g., Geraskin et al. 2010; Ueda et al. 2014, Epishkin et al. 2018). The deep-sea MT exploration technique is equipped with state-of-the-art instrumentation, but the latter is very expensive and is deployed only from large sea vessels (Constable 2013). Moreover, though the receiving units are usually left underwater for many days of continuous operation, the effective bandwidth of the resulting data rarely exceeds 2–3 decades of period (starting from about 102 s) due to extreme attenuation of the high-frequency part of MT spectrum in saline water.

Among other things, the described specifics of marine magnetotellurics make the task of obtaining representative DR violation statistics in seafloor data rather challenging. However, hoping to reveal at least the main features of the offshore MT observations, we applied a similar search algorithm as used above to the integrated database of projects that Earthquake Research Institute (ERI) of the University of Tokyo and/or Japan Agency for Marine-Earth Science and Technology (JAMSTEC) participated in. This database includes: Normal Oceanic Mantle (NOMAN) project in northwestern Pacific (Baba et al. 2013, 2017a), Stagnant Slab Project (SSP) in Philippine Sea (Seama et al. 2007; Baba et al. 2010), Mantle Electromagnetic and Tomography (MELT) experiment on East Pacific Rise (Evans et al. 1999; Baba et al.2006a, b), Tomographic Investigation by seafloor ARray Experiment for the Society hotspot (TIARES) project in French Polynesia (Nolasco et al. 1998; Tada et al. 2016), as well as marine data acquired in the vicinity of the Sado ridge (Toh et al. 2006), Mariana trough (Matsuno et al. 2010), and Tristan-da-Cunha hotspot (Baba et al. 2017b). The obtained results are given in Table 3. As to be anticipated, the seafloor MT measurements generally do not show any anomalous data far enough from coasts and other sharp bathymetric variations (e.g., NOMAN project), but may have plenty of such data when the observations are made in close proximity of continents, islands or seamounts (e.g., TIARES project). With that, vast majority of the revealed anomalous impedances were found to be non-causal. This fact suggests that the DR violations encountered in long-period offshore MT data are largely associated with irregular behavior of magnetic field due to intensive telluric currents flowing along underwater slopes.

Table 3 The DR violation statistics for the impedance tensors from the integrated offshore MT database of ERI and JAMSTEC

By way of example we consider a seafloor MT record from the site Tris-11, acquired 3578 m underwater in the course of the cooperative German–Japanese academic project near the Tristan da Cunha archipelago (Baba et al. 2017b), just about ~ 25 km NE of the main island. The observed impedance components show prominently non-causal behavior for all true azimuth angles of the corresponding electric field except those about ~ 33° (and, consequently, ~ 213°), which could be easily recognized as the principal direction from the survey site to the nearest shore line (Fig. 18). This fact suggests that the same mechanism of “compensating zeros” as that securing the MP properties for the H-polarized (transverse) component of a non-causal tensor \(\hat{Z}\) in 2-D models (Fig. 8), applies to the H-polarized (radial) component of \(\hat{Z}\) in axially symmetric 3-D models as well.

Fig. 18
figure18

Location of the seafloor MT site Tris-11 in the South Atlantic. The employed coordinate axes are rotated 33° clockwise with respect to the geographical ones

The DR violation in off-diagonal components of \(\hat{Z}\) obtained at site Tris-11 is shown in Fig. 19. Though only \(Z_{yx}\) reveals strongly pronounced non-causal behavior, both of these functions belong to the class 3 of the DR validity (Table 1). As a result, the dispersion relations should not be directly applied for quality assessment of \(Z_{xy}\) as well, since it is difficult to tell whether the revealed minor DR violations in it are associated with actual data noise or merely with a slight mismatch of the corresponding lower half-plane poles and zeros (see Fig. 7). In accordance with Table 1, for this task one should find some other transfer function or a set of functions from the given response space, which would effectively carry the same information but be causal. It appears that for the offshore observations the most convenient choice of the kind is using the admittance tensor \(\hat{Y} = 1/\hat{Z}\). Indeed, as follows from the above modeling and the present statistical review, the long-period MT measurements at the seafloor are mostly characterized by regular (MP) behavior of the horizontal electric field, which implies the causality of \(\hat{Y}\).

Fig. 19
figure19

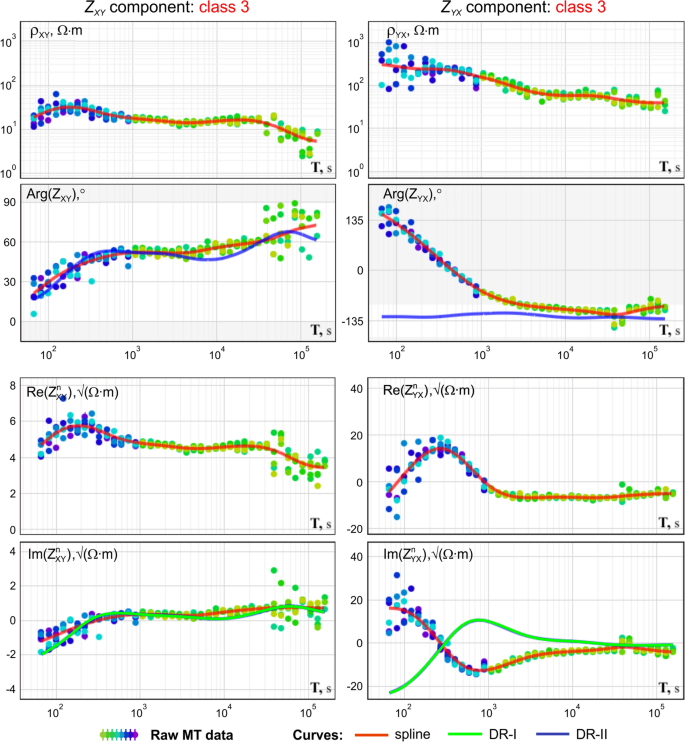

The DR validity in a non-causal impedance tensor observed at the seafloor site Tris-11 (Tristan da Cunha)

Figure 20 shows the off-diagonal components of the admittance tensor \(\hat{Y}\) representing the same MT data acquired at site Tris-11. Now, \(\hat{Y}\) is causal and \(Y_{yx}\) is minimum phase (class 1), which allows to directly attribute any significant DR violation observed in \(Y_{yx}\) to noise, source effect or other data quality issues. As for the \(Y_{xy}\) component, with its phase rolling out of quadrant upwards (or, equivalently, rolling into the relevant quadrant from below) and DR-II violated by way more than ~ 180°, this function is recognized as one belonging to the class 2 of the DR validity with at least two non-MP zeros (\(n \ge 2\)). Consequently, correct application of the DR technique to such data can be realized either using the modified DR-II with several additional variables or, simply, the DR-I (Fig. 20, right).

Fig. 20
figure20

The DR application to the admittance tensor components observed at site Tris-11 (Tristan da Cunha)

Discussion and conclusions

Correct interpretation of the PROQ phenomenon, which used to be a daunting challenge at the times of simplistic 1-D and 2-D inversion codes (Jones et al. 1993), nowadays does not present a serious problem. Indeed, the electric field reversals responsible for non-MP behavior of the impedance components widely encountered on land (Table 2) are now treated as a useful constraint rather than a major impediment for MT interpretation (Ichihara et al. 2013), and can be effectively reconstructed by modern algorithms of 3-D inversion (e.g., Ichihara et al. 2014; Bologna et al. 2017; Pina-Varas and Dentith 2018). In the similar way, the magnetic field reversals responsible for the breakdown of the impedance and tipper causality in offshore MT data (Table 3) are readily accounted for by introducing detailed seafloor topography (Constable et al. 2009; Key and Constable 2011) and thus is no longer regarded as an obstacle—on the contrary, the distorted magnetic field is even reported to enhance the MT sensitivity to some geoelectric structures (Worzewski et al. 2012).

At the same time, the issues of appropriate processing and quality assessment of the MT data with violated dispersion relations still have some blind spots and open questions. In our research, we make significant progress on the subject by showing how to recognize the non-MP (class 2) and non-causal (class 3) behavior of a given MT response, and proposing three methods of the DR technique application to the revealed non-MP transfer functions:

  • employ the DR-I instead of DR-II,

  • employ the modified DR-II with \(n\) unknowns, or

  • try rotating the whole tensor unless all its significant components become MP.

But which method should be chosen in practice? Since the DR-I is directly applicable to any component of any causal tensor, the first approach is clearly the most universal and is already recognized by some MT practitioners (e.g., Hacioglu et al. 2020). However, the DR-I application also implies linear vertical scaling of the functions under study. Though it might be advantageous for the MT transfer functions oscillating around zero value (such as the tipper or diagonal impedance components), linear scaling appears to be less favorable for the apparent resistivity curves since it effectively flattens the low-background anomalies while overemphasizing the high-background ones (see Fig. 16). In this context, we should expect that effective DR-I application to the MT data characterized by large range of values may require additional normalization procedures or other actions. The modified DR-II employs conventional log-scale representation of MT data, but its application also requires making use of \(n\) unknown variables (Eq. 7 in Part I). Though not a problem for \(n = 1\) (Fig. 16), it might become an issue for \(n \ge 2\) (Fig. 20). The third method, based on the rotation procedure, is very straightforward but inapplicable to “strongly anomalous” MT tensors characterized by the presence of non-MP components at any rotation angle—such as the ones observed at the site B over the SL-shaped model (Additional file 1) or site 28-002 of the Chara-Tokko MT project (Additional file 2). Furthermore, the mere fact of using different coordinate axes for data processing, post-processing and inversion may lead to unnecessary quality losses. From this standpoint it seems advisable to keep the post-processing operations in accordance with the subsequent inversion routine, both in terms of the employed coordinate axes and data representation formats.

Another open issue of the DR application we see is the problem of quantifying errors. When employed at the post-processing step, the dispersion relations may effectively help to find less biased estimates (Fig. 5 in Part I), or even fill the gaps with no data at all (Fig. 8 in Part I). Apparently, this would improve the overall quality of the estimated transfer function, but for how much? Should the weighting matrix for the subsequent inversion routine be based upon the initial data error estimates at the given frequencies, or some special approach to the data weighting need to be introduced? Similar questions arise when the DR are applied for the quality assessment of the processed MT data. How to quantify the misfit between an actual MT curve and the corresponding DR value? Which norm should be chosen for the data represented as real and imaginary parts of a transfer function? And which one to use for a function given by phase and logarithmic amplitude, if the latter approaches infinite values (either negative or positive)? We suppose that finding correct answers to the raised questions would require further research and hands-on experience. However, some useful ideas on the subject could already be found in the papers discussing the general issue of choosing optimal misfit space for the inversion procedure (Miensopust et al. 2013; Wheelock et al. 2015; Miensopust 2017).

The main conclusion of our research is that it is legit and practically possible to apply the DR technique for assessing quality of virtually any acquired broadband MT data. If a function under study is causal, then any discrepancy between its imaginary part and the corresponding DR-I curve, as well as any discrepancy (other than related to the PROQ phenomena) between its phase and corresponding DR-II curve comes from poor data quality. If an MT tensor under study is non-causal, it can be equivalently represented via one or several causal tensors from the same response space.

The other principal conclusion refers to the old and heretofore unresolved dispute over the general existence of non-causal impedance tensors in real MT observations (see Berdichevsky and Dmitriev 2008). We show that these tensors do exist, but only at the sites with “abnormal” (non-MP) behavior of horizontal magnetic field characterized by one or more phase flips, such as those regularly observed off shore (Constable et al. 2009). As for the onshore measurements, though we succeeded to construct a couple of synthetic situations (one for a class of 2-D models with an elevated conductor, and another one—for a flat 3-D model) capable of producing a non-causal impedance function, none of them seems to be geologically reasonable. Furthermore, the subsequent examination of 60,000 + MT/BBMT onshore records yielded only a handful of non-causal tensors, with most, if not all, of them being non-causal due to the influence of nearby artificial conductors rather than some exotic geological conditions. This result is of high practical importance since it implies that the actual chance to encounter non-causal impedances, tippers and magnetic tensors in terrestrial MT exploration is vanishingly small. Given that the tipper function is especially vulnerable to noise and the source-effect distortions (Jones and Spratt 2002; Utada 2018), the relevant DR-I application for quality assessment of the tipper components proposed in (Marcuello et al. 2005; Shimizu et al. 2011) and justified by our research should be particularly useful.

Availability of data and materials

The synthetic and field MT responses referred to in the text are included as additional files. Additional file 1: Synthetic data pack. Additional file 2: Field data pack.

Abbreviations

MT:

Magnetotelluric

AMT:

Audio-frequency magnetotelluric

BBMT:

Broadband (AMT + MT) magnetotelluric

DR:

Dispersion relation

DR-I:

Dispersion relation of the first kind

DR-II:

Dispersion relation of the second kind

MP:

Minimum phase

PROQ:

Phase rolling out of quadrant

1-D:

One dimensional

2-D:

Two dimensional

3-D:

Three dimensional

NOMAN:

Normal oceanic mantle project

TIARES:

Tomographic Investigation by seafloor ARray Experiment for the Society hotspot project

References

  1. Alekseev DA, Palshin NA, Varentsov IM (2009) Magnetotelluric dispersion relations in a two-dimensional model of the coastal effect. Izv Phys Solid Earth 45:167–170. https://doi.org/10.1134/S1069351309020062

    Article  Google Scholar

  2. Baba K, Chave AD, Evans RL, Hirth G, Mackie RL (2006a) Mantle dynamics beneath the East Pacific Rise at 17°S: insights from the Mantle Electromagnetic and Tomography (MELT) experiment. J Geophys Res 111:B02101. https://doi.org/10.1029/2004JB003598

    Article  Google Scholar

  3. Baba K, Tarits P, Chave AD, Evans RL, Hirth G, Mackie RL (2006b) Electrical structure beneath the northern MELT line on the East Pacific Rise at 15°45′S. Geophys Res Lett 33:L22301. https://doi.org/10.1029/2006GL027528

    Article  Google Scholar

  4. Baba K, Utada H, Goto T, Kasaya T, Shimizu H, Tada N (2010) Electrical conductivity imaging of the Philippine Sea upper mantle using seafloor magnetotelluric data. Phys Earth Planetary Inters 183:44–62. https://doi.org/10.1016/j.pepi.2010.09.010

    Article  Google Scholar

  5. Baba K, Tada N, Zhang L, Liang P, Shimizu H, Utada H (2013) Is the electrical conductivity of the northwestern Pacific upper mantle normal? Geochem Geophys Geosyst 14(12):4969–4979. https://doi.org/10.1002/2013GC004997

    Article  Google Scholar

  6. Baba K, Tada N, Matsuno T, Liang P, Li R, Zhang L, Shimizu H, Abe N, Hirano N, Ichiki M, Utada H (2017a) Electrical conductivity of old oceanic mantle in the northwestern Pacific I: 1-D profiles suggesting differences in thermal structure not predictable from a plate cooling model. Earth Planets Space 69:111. https://doi.org/10.1186/s40623-017-0697-0

    Article  Google Scholar

  7. Baba K, Chen J, Sommer M, Utada H, Geissler WH, Jokat W, Jegen M (2017b) Marine magnetotellurics imaged no distinct plume beneath the Tristan da Cunha hotspot in the southern Atlantic Ocean. Tectonophys 716:52–63. https://doi.org/10.1016/j.tecto.2016.09.033

    Article  Google Scholar

  8. Berdichevsky MN, Dmitriev VI (2008) Models and methods of magnetotellurics. Springer, Berlin

    Google Scholar

  9. Berdichevsky MN, Pokhotelov DO (1997) Dispersion relations in the magnetotelluric impedance of polarizable medium. Phiz Zemly 7:29–32 (in Russian)

    Google Scholar

  10. Boehl JE, Bostick FX, Smith HW (1977) An application of the Hilbert transform to the magnetotelluric method. Tech Rep Electr Geophys Res Lab, UT Austin

    Google Scholar

  11. Bologna MS, Egbert GD, Padilha AL, Padua MB, Vitorello I (2017) 3-D inversion of complex magnetotelluric data from an Archean-Proterozoic terrain in northeastern Sao Francisco Craton, Brazil. Geophys J Int 210:1545–1559. https://doi.org/10.1093/gji/ggx261

    Article  Google Scholar

  12. Constable S (2013) Review paper: instrumentation for marine magnetotelluric and controlled source electromagnetic sounding. Geophys Prosp 61:505–532. https://doi.org/10.1111/j.1365-2478.2012.01117.x

    Article  Google Scholar

  13. Constable SC, Orange AS, Hoversten GM, Morrison HF (1998) Marine magnetotellurics for petroleum exploration. Part I: a sea-floor equipment system. Geophys 63:816–825. https://doi.org/10.1190/1.1444393

    Article  Google Scholar

  14. Constable S, Key K, Lewis L (2009) Mapping offshore sedimentary structure using electromagnetic methods and terrain effects in marine magnetotelluric data. Geophys J Int 176:431–442. https://doi.org/10.1111/j.1365-246X.2008.03975.x

    Article  Google Scholar

  15. Egbert GD, Kelbert A (2012) Computational recipes for electromagnetic inverse problems. Geophys J Int 189:251–267. https://doi.org/10.1111/j.1365-246X.2011.05347.x

    Article  Google Scholar

  16. Epishkin D, Palshin N, Yakovlev A, Yakovlev D (2018) Technology of marine magnetotelluric sounding in transition zone. In: Paper presented at the 24th EM Induction Workshop, Helsingor, Denmark, 13–20 August 2018. https://doi.org/10.13140/rg.2.2.33684.60808

  17. Evans RL, Tarits P, Chave AD, White A, Heinson G, Filloux JH, Toh H, Seama N, Utada H, Booker JR, Unsworth MJ (1999) Asymmetric electrical structure in the mantle beneath the East Pacific Rise at 17° S. Science 286:752–756. https://doi.org/10.1126/science.286.5440.752

    Article  Google Scholar

  18. Fischer G, Schnegg PA (1980) The dispersion relations of the magnetotelluric response and their incidence on the inversion problem. Geophys J R Astr Soc 62:661–673. https://doi.org/10.1111/j.1365-246X.1980.tb02598.x

    Article  Google Scholar

  19. Geraskin A, Trigubovich G, Yakovlev D, Palshin N, Yakovlev A (2010) Shallow water MT technology: results from the Caspian and the Black Sea Shelf. In: Paper presented at the 20th EM Induction Workshop, Giza, Egypt, 18–24 September 2010

  20. Hacioglu O, Basokur AT, Diner C, Meqbel N, Arslan HI, Oguz K (2020) The effect of active extensional tectonics on the structural controls and heat transport mechanism in the Menderes Massif geothermal province: inferred from three-dimensional electrical resistivity structure of the Kurşunlu geothermal field (Gediz Graben, western Anatolia). Geotherm 85:101708. https://doi.org/10.1016/j.geothermics.2019.07.006

    Article  Google Scholar

  21. Ichihara H, Mogi T (2009) A realistic 3-D resistivity model explaining anomalous large magnetotelluric phases: the L-shaped conductor model. Geophys J Int 179:14–17. https://doi.org/10.1111/j.1365-246X.2009.04310.x

    Article  Google Scholar

  22. Ichihara H, Mogi T, Yamaya Y (2013) Three-dimensional resistivity modelling of a seismogenic area in an oblique subduction zone in the western Kurile arc: constraints from anomalous magnetotelluric phases. Tectonophys 603:114–122. https://doi.org/10.1016/j.tecto.2013.05.020

    Article  Google Scholar

  23. Ichihara H, Sakanaka S, Mishina M, Uyeshima M, Nishitani T, Ogawa Y, Yamaya Y, Mogi T, Amita K, Miura T (2014) A 3-D electrical resistivity model beneath the focal zone of the 2008 Iwate-Miyagi Nairiku earthquake (M 7.2). Earth Planets Space 66:50. https://doi.org/10.1186/1880-5981-66-50

    Article  Google Scholar

  24. Jones AG, Spratt J (2002) A simple method for deriving the uniform field MT responses in auroral zones. Earth Planets Space 54:443–450. https://doi.org/10.1186/BF03353035

    Article  Google Scholar

  25. Jones AG, Groom RW, Kurtz RD (1993) Decomposition and modelling of the BC87 dataset. J Geomag Geoelectr 45:1127–1150. https://doi.org/10.5636/jgg.45.1127

    Article  Google Scholar

  26. Kapinos G, Brasse H (2011) Offshore magnetotellurics in the presence of bathymetry. In: Proceedings of the 24th Schmucker-Weidelt Colloquium, pp 113–117

  27. Kaufman AA, Alekseev D, Oristaglio M (2014) Principles of EM methods in surface geophysics. In: Methods in geochemistry and geophysics 45. Elsevier, Amsterdam

  28. Key K, Constable S (2011) Coast effect distortion of marine magnetotelluric data: insights from a pilot study offshore northeastern Japan. Phys Earth Planetary Inters 184:194–207. https://doi.org/10.1016/j.pepi.2010.11.008

    Article  Google Scholar

  29. Kovacikova S, Pek J (2002) Generalized Riccati equations for 1-D magnetotelluric impedances over anisotropic conductors. Part I: plane wave field model. Earth Planets Space 54:473–482. https://doi.org/10.1186/BF03353038

    Article  Google Scholar

  30. Kunetz G (1972) Processing and interpretation of magnetotelluric soundings. Geophysics 37:1005–1021. https://doi.org/10.1190/1.1440310

    Article  Google Scholar

  31. Marcuello A, Queralt P, Ledo J (2005) Applications of dispersion relations to the geomagnetic transfer function. Phys Earth Planetary Inters 150:85–91. https://doi.org/10.1016/j.pepi.2004.08.016

    Article  Google Scholar

  32. Marti A (2014) The role of electrical anisotropy in magnetotelluric responses: from modelling and dimensionality analysis to inversion and interpretation. Surv Geophys 35:179–218. https://doi.org/10.1007/s10712-013-9233-3

    Article  Google Scholar

  33. Matsuno T, Seama N, Evans RL, Chave AD, Baba K, White A, Goto T, Heinson G, Boren G, Yoneda A, Utada H (2010) Upper mantle electrical resistivity structure beneath the central Mariana subduction system. Geochem Geophys Geosys 11:Q09003. https://doi.org/10.1029/2010GC003101

    Article  Google Scholar

  34. Miensopust MP (2017) Application of 3-D electromagnetic inversion in practice: challenges, pitfalls and solution approaches. Surv Geophys 38:869–933. https://doi.org/10.1007/s10712-017-9435-1

    Article  Google Scholar

  35. Miensopust MP, Queralt P, Jones AG, the 3D MT modellers (2013) Magnetotelluric 3-D inversion—a review of two successful workshops on forward and inversion code testing and comparison. Geophys J Int 193:1216–1238. https://doi.org/10.1093/gji/ggt066

    Article  Google Scholar

  36. Nolasco R, Tarits P, Filloux JH, Chave AD (1998) Magnetotelluric imaging of the Society Islands hotspot. J Geophys Res 103(B12):30287–30309. https://doi.org/10.1029/98JB02129

    Article  Google Scholar

  37. Palshin N, Giraudo RE, Yakovlev D, Zaytsev S, Aleksanova E, Zaltsman R, Korbutiak S (2020) Detailed magnetotelluric study of the northern part of Subandian fold belt, Bolivia. J Appl Geophys. https://doi.org/10.1016/j.jappgeo.2020.104136

    Article  Google Scholar

  38. Parker RL (2010) Can a 2-D MT frequency response always be interpreted as a 1-D response? Geophys J Int 181:269–274. https://doi.org/10.1111/j.1365-246X.2010.04512.x

    Article  Google Scholar

  39. Pina-Varas P, Dentith M (2018) Magnetotelluric data from the Southeastern Capricorn Orogen, Western Australia: an example of widespread out-of-quadrant phase responses associated with strong 3-D resistivity contrasts. Geophys J Int 212:1022–1032. https://doi.org/10.1093/gji/ggx459

    Article  Google Scholar

  40. Sadovnichy V, Tikhonravov A, Vl Voevodin, Opanasenko V (2013) Lomonosov: supercomputing at Moscow State University. In: Vetter JS (ed) Contemporary high performance computing: from petascale toward exascale. CRC Press, Boca Raton

    Google Scholar

  41. Seama N, Baba K, Utada H, Toh H, Tada N, Ichiki M, Matsuno T (2007) 1-D electrical conductivity structure beneath the Philippine Sea: results from an ocean bottom magnetotelluric survey. Phys Earth Planet Inter 162:2–12. https://doi.org/10.1016/j.pepi.2007.02.014

    Article  Google Scholar

  42. Selway K, Thiel S, Key K (2012) A simple 2-D explanation for negative phases in TE magnetotellurics data. Geophys J Int 188:945–958. https://doi.org/10.1111/j.1365-246X.2011.05312.x

    Article  Google Scholar

  43. Shimizu H, Yoneda A, Baba K, Utada H, Palshin NA (2011) Sq effect on the electromagnetic response functions in the period range between 104 and 105 s. Geophys J Int 186:193–206. https://doi.org/10.1111/j.1365-246X.2011.05036.x

    Article  Google Scholar

  44. Simpson F, Bahr K (2005) Practical magnetotellurics. Cambridge University Press, Cambridge

    Google Scholar

  45. Sutarno D, Vozoff K (1991) Phase-smoothed robust M-estimation of magnetotelluric impedance functions. Geophysics 56:1999–2007. https://doi.org/10.1190/1.1443012

    Article  Google Scholar

  46. Tada N, Tarits P, Baba K, Utada H, Kasaya T, Suetsugu D (2016) Electromagnetic evidence for volatile-rich upwelling beneath the Society hotspot, French Polynesia. Geophys Res Lett 43:12021–12026. https://doi.org/10.1002/2016GL071331

    Article  Google Scholar

  47. Thiel S, Heinson G, Gray DR, Gregory RT (2009) Ophiolite emplacement in NE Oman: constraints from magnetotelluric sounding. Geophys J Int 176:753–766. https://doi.org/10.1111/j.1365-246X.2008.04053.x

    Article  Google Scholar

  48. Toh H, Baba K, Ichiki M, Motobayashi T, Ogawa Y, Mishina M, Takahashi I (2006) Two-dimensional electrical section beneath the eastern margin of Japan Sea. Geophys Res Lett 33:L22309. https://doi.org/10.1029/2006GL027435

    Article  Google Scholar

  49. Ueda T, Mitsuhata Y, Uchida T, Marui A, Ohsawa K (2014) A new marine magnetotelluric measurement system in a shallow-water environment for hydrogeological study. J Appl Geophys 100:23–31. https://doi.org/10.1016/j.jappgeo.2013.10.003

    Article  Google Scholar

  50. Utada H (2018) Plane-wave and flat Earth approximations in natural-source electromagnetic induction studies. Bull Earthq Res Inst Univ Tokyo 93:1–14

    Google Scholar

  51. Vanyan LL, Palshin NA (1990) Distortion of the ocean-bottom MTS data in the coastal area. Izv Acad Nauk SSSR Fiz Zemly 8:62–78 (in Russian)

    Google Scholar

  52. Weckmann U, Ritter O, Haak V (2003) A magnetotelluric study of the Damara Belt in Namibia 2. MT phases over 90° reveal the internal structure of the Waterberg Fault/Omaruru Lineament. Phys Earth Planetary Inters 138:91–112. https://doi.org/10.1016/S0031-9201(03)00079-7

    Article  Google Scholar

  53. Weidelt P (1972) The inverse problem of geomagnetic induction. Zeitschrift fur Geophysik 38:257–289. https://doi.org/10.1093/gji/35.1.379

    Article  Google Scholar

  54. Weidelt P (2003) Dispersive conductors: the position of singularities of magnetotelluric transfer functions in the complex frequency plane. In: Hordt A, Stoll JB (eds) Proceedings of the 20th Schmucker-Weidelt Colloquium, pp 280–289

  55. Weidelt P, Kaikkonen P (1994) Local 1-D interpretation of magnetotelluric B-polarization impedances. Geophys J Int 117:733–748. https://doi.org/10.1111/j.1365-246x.1994.tb02466.x

    Article  Google Scholar

  56. Wheelock B, Constable S, Key K (2015) The advantages of logarithmically scaled data for electromagnetic inversion. Geophys J Int 201:1765–1780. https://doi.org/10.1093/gji/ggv107

    Article  Google Scholar

  57. White A, Heinson G (1994) Two-dimensional electrical conductivity structure across the Southern Coastline of Australia. J Geomag Geoelectr 46:1067–1081. https://doi.org/10.5636/jgg.46.1067

    Article  Google Scholar

  58. Worzewski T, Jegen M, Swidinsky A (2012) Approximations for the 2-D coast effect on marine magnetotelluric data. Geophys J Int 189:357–368. https://doi.org/10.1111/j.1365-246X.2012.5385.x

    Article  Google Scholar

  59. Yee E, Paulson KV (1988) Concerning dispersion relations for the magnetotelluric impedance tensor. Geophys J 95:549–559. https://doi.org/10.1111/j.1365-246X.1988.tb06703.x

    Article  Google Scholar

  60. Zorin NI, Alekseev DA (2018) Causality and dispersion relations in electrical prospecting. Russian Geol Geophys 59:313–323. https://doi.org/10.1016/j.rgg.2018.03.009

    Article  Google Scholar

  61. Zorin N, Aleksanova E, Shimizu H, Yakovlev D (2020) Validity of the dispersion relations in magnetotellurics: part I—theory. Earth Planets Space 72:9. https://doi.org/10.1186/s40623-020-1133-4

    Article  Google Scholar

Download references

Acknowledgements

Some data used in the research were kindly provided by Drs. K. Baba, H. Ichihara, T. Matsuno and N. Tada. The statistical analysis procedure for the archive MT data was implemented by M. Andreev. Two anonymous reviewers are thanked for their helpful comments. We also would like to express deep gratitude to Drs. A. Yakovlev, N. Palshin, H. Utada and many other members of Nord-West Ltd. and Earthquake Research Institute, without whom this collaborative research project could not be implemented.

Funding

The research stays of NZ at the University of Tokyo were funded by Short-Term Postdoctoral Fellowship for Research in Japan in FY 2018-2019 (JSPS/OF165) from the Japan Society for the Promotion of Science (JSPS), and by Students and Researchers Exchange Program (STEPS) in FY 2017 from the Ministry of Education, Culture, Sports, Science and Technology (MEXT). HS was supported by Grants-in-Aid for Scientific Research (KAKENHI) JP18H01302 and JP18H03735 from the Japan Society for the Promotion of Science (JSPS). The study was supported by State Assignment of Russian Ministry of Science and Higher Education №0149-2019-0006.

Author information

Affiliations

Authors

Contributions

NZ and HS (corresponding author)—writing and compiling the manuscript. SZ, NZ and DA—modeling. HS and DY—provision and selection of the field data. DE—data processing. DY—preparation of figures. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Hisayoshi Shimizu.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1.

 Synthetic data pack.

Additional file 2.

 Field data pack.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Zorin, N., Alekseev, D., Epishkin, D. et al. Validity of the dispersion relations in magnetotellurics. Part II: synthetic and field data. Earth Planets Space 72, 139 (2020). https://doi.org/10.1186/s40623-020-01273-4

Download citation

Keywords

  • Magnetotellurics
  • Dispersion relations
  • Causality
  • Minimum phase
  • Phase out of quadrant
