Seasonal and transient surface displacements in the Kumamoto area, Japan, associated with the 2016 Kumamoto earthquake: implications for seismic-induced groundwater level change

Abstract

The 2016 Kumamoto earthquake sequence on April 14 (Mw 6.2) and April 16 (Mw 7.0) altered the regional groundwater level. To better understand the relationship between groundwater level change and surface displacement, we estimated surface displacement in the Kumamoto area (Japan) using persistent scatterer interferometry from 19 ALOS/PALSAR images acquired between January 7, 2007 and March 5, 2011, 28 ALOS-2/PALSAR-2 images acquired between April 17, 2016 and December 10, 2018, and 113 Sentinel-1 images acquired between May 26, 2016 and December 30, 2018. Our estimation shows that transient surface displacement occurred following the 2016 Kumamoto earthquake sequence, together with seasonal surface displacement that was not detected from the 2007–2011 images. We suggest that a portion of the transient displacement occurred via groundwater drawdown through new ruptures that formed owing to the 2016 Kumamoto earthquake sequence and sediment compaction. Seasonal surface displacements detected after the 2016 Kumamoto earthquake sequence are linked to groundwater level variations.

Introduction

Substantial changes in groundwater levels following large-scale earthquakes have been extensively reported (e.g., Montgomery and Manga 2003; Manga et al. 2012; Manga and Wang 2015). The groundwater level change mechanism is related to changes in pore pressure (e.g., Jonsson et al. 2003), permeability (e.g., Elkhoury et al. 2006), and seismogenic dilatant cracks (e.g., Sibson and Rowland, 2003). A notable example is the 2016 Kumamoto earthquake sequence, which began on April 14 (Mw 6.2) followed by a mainshock (Mw 7.0) on April 16 along the Hinagu and Futagawa fault systems in southwestern Japan (Fig. 1a, b). Coseismic groundwater drawdown was observed in the 30–45 days following the mainshock using high-resolution groundwater level network data (Hosono et al. 2019; Nakagawa et al. 2019; Kagabu et al. 2019) in both confined and unconfined aquifers in central Kumamoto where newly formed surface fissures had also been reported (Hosono et al. 2019). In contrast, groundwater levels continuously increased in the confined aquifer of the eastern terraces in the first 2 weeks following the mainshock (Hosono et al. 2019) and immediately increased after the mainshock in the confined aquifer along the western coast. Nakagawa et al. (2019) showed that confined aquifer groundwater levels changed over a period of several weeks to months; whereas, the groundwater in shallow unconfined aquifers rapidly recovered to initial levels. Kagabu et al. (2019) suggested that the post-seismic increase in water levels observed in the eastern terraces of Kumamoto were owing to mountain water release.

Fig. 1
figure1

a Location of the Kumamoto area. b The general groundwater flow path (blue arrows) overlaid on topography. Groundwater flow path (blue arrows) is based on Kumamoto Prefecture (1995). Black square is the location of the city of Kumamoto, and black circles indicate the locations of GNSS stations (Kumamoto (North station) and Jonan (South station)). Dashed rectangle is the area of interest. G1, G2 an G3 indicate the locations of groundwater wells plotted in Fig. 8. Black lines indicate surface ruptures associated with the 2016 Kumamoto earthquake based on Toda et al. (2016). A black triangle is the reference location of PSI analysis. The focal mechanism for the foreshock (Mw 6.2) and mainshock (Mw 7.0) was derived by F-net managed by the National Research Institute for Earth Science and Disaster Resilience (Asano and Iwata, 2016)

Hydraulic head variations can lead to the compaction and expansion of granular aquifer skeletons, which can induce surface displacement. To quantify these features, synthetic aperture radar interferometry (InSAR) (Massonnet and Feigl 1998) and time-series InSAR analysis, such as persistent scatterer interferometry (PSI) (Ferretti et al. 2000, 2001), have been used to determine the spatial pattern and temporal evolution of surface displacement. Valuable information has, thus, been obtained regarding surface displacement characteristics and groundwater level response (e.g., Bell et al. 2008; Osmanoglu et al. 2010; Erban et al. 2014; Khakim et al. 2014; Ishitsuka et al. 2014; Chaussard et al. 2014; Chen et al. 2017; Hu et al. 2018). InSAR and time-series InSAR analysis have also been proven useful for understanding how earthquakes influence the relationship between surface displacement and groundwater level (e.g., the 1992 Landers earthquake, Johnston et al. 1995; the 2000 Iceland earthquake, Jonsson et al. 2003; the 2011 Tohoku earthquakes, Ishitsuka et al. 2017). Previous studies in the Kumamoto area characterized the groundwater level change associated with the 2016 Kumamoto earthquake sequence using high-resolution groundwater level network data (Hosono et al. 2019; Nakagawa et al. 2019; Kagabu et al. 2019). The Kumamoto area is, thus, highly suitable for comparing surface displacement patterns and groundwater level changes associated with earthquakes.

In this study, we estimated surface displacement in the Kumamoto area before and after the 2016 Kumamoto earthquake sequence using PSI analysis of the Advanced Land Observing Satellite (ALOS)/phased array-type L-band synthetic aperture radar (PALSAR) images, ALOS-2/PALSAR-2 images, and C-band Sentinel-1 images. We further combined the satellite data analysis with groundwater level variations to constrain the mechanisms of surface displacement following the 2016 Kumamoto earthquake.

Hydrogeological setting

The Kumamoto area, located in central Kyushu in southwestern Japan, has abundant groundwater resources that are recharged along the western flank of the Aso volcano and flow toward the Ariake Sea under topographic constraints (Fig. 1b) (AIST-GSJ 2014). Most of the water used in the city of Kumamoto is derived from groundwater (Kumamoto Prefecture, 1995). The surface geology of the western part of the Kumamoto area consists of Quaternary alluvium (Fig. 2a); whereas, the eastern part is characterized by pyroclastic deposits from the Aso volcano that erupted over four periods between 30 and 90 ka as well as terrace deposits (Fig. 2a). The aquifers consist mainly of pyroclastic deposits from the Aso volcano. The upper aquifers are either unconfined or confined and composed of the most recent pyroclastic deposits and marine beds; whereas, the lower aquifers are confined and consist mainly of older pyroclastic deposits (AIST-GSJ 2014). The altitude of the upper aquifer is approximately 0–200 m at the terrace and − 50 to 0 m in the lowland area; whereas, that of the lower aquifer is approximately 0–100 m at the terrace and − 250 to 0 m in the lowland area (National Institute of Advanced Industrial Science and Technology (AIST)—Geological Survey of Japan (GSJ) 2014) (Fig. 2b, c). The spatial groundwater flow patterns in the upper and lower aquifers are generally similar (AIST-GSJ 2014).

Fig. 2
figure2

a Surface geology of the Kumamoto area (based on AIST-GSJ, 2003). b, c the depth of the upper and the lower aquifer in May 1985 (based on AIST-GSJ 2014)

Data and methodology

Synthetic aperture radar images

For the pre-earthquake period, we used 19 ALOS/PALSAR images taken on a descending orbit between January 7, 2007 and March 5, 2011 (Table 1, Additional file 1: Table S1). For the post-earthquake period, we used 143 images taken over a period of 32 months, including (1) 28 ALOS-2/PALSAR-2 images obtained on a descending orbit between April 18, 2016 and December 10, 2018, (2) 65 Sentinel-1 images obtained on a descending orbit between July 1, 2016 and December 30, 2018, and (3) 48 C-band Sentinel-1 images obtained on an ascending orbit between November 16, 2016 and June 15, 2018 (Table 1, Additional file 1: Table S2).

Table 1 Basic information of SAR images used in this study

The ALOS-2 images are expected to be less affected by temporal decorrelation owing to the longer wavelength (~ 23.8 cm); whereas, the higher temporal sampling of the Sentinel-1 images maintains coherence despite the smaller wavelength (~ 5.6 cm). The aim of using PALSAR-2 and Sentinel-1 descending images is to demonstrate the reliability of the estimated surface displacement by comparing the spatial and temporal patterns obtained from different satellite images. We used the Sentinel-1 ascending images to understand the quasi-vertical and quasi-EW (East–West) displacement by combining Sentinel-1 images from descending and ascending orbits.

Persistent scatterer interferometry and characterization of time-series displacement pattern

Persistent scatterers (PSs) are point-like scatterers that are coherent for all baseline conditions (Ferretti et al. 2000, 2001) and, therefore, show little or no decorrelation noise that typically appears in pixels without PSs. Man-made objects or bared surfaces are physical examples of PSs that coherently reflect microwaves. Accurate surface displacements can, thus, be estimated from the temporal phase changes of PSs.

PSI analysis provides the processing flow that identifies PSs and estimates surface displacement using SAR images (Ferretti et al. 2000, 2001; Werner et al. 2003; Hooper et al. 2004; Kampes 2006; Ferretti 2014). PSI analysis also includes strategies to mitigate atmospheric phase contributions based on their spatial and temporal characteristics. The PSI processing sequence used in this study was based on the approach of Kampes (2006). We used the radar interferometry calculation tool (Ozawa et al. 2016) to generate single-look differential interferograms for the PALSAR images and GAMMA software (Wegmüller and Werner 1997; Wegmüller et al. 2016) for the Sentinel-1 and PALSAR-2 images. Other PSI processing steps were implemented using Fortran and Matlab (version R2019a). Further implementation details are provided in Ishitsuka (2015) and Ishitsuka and Matsuoka (2016), and other PSI processing applications are discussed in Ishitsuka et al. (2016a; 2016b; 2017).

We selected all interferometric pairs with respect to a single reference image (Ferretti et al. 2001) (Table 1). The PS candidates (PSCs) were selected based on an amplitude dispersion index (Ferretti et al. 2001) of 0.30. We then created single-look differential interferograms of the interferometric pairs at the PSC pixels. We used a 10-m mesh digital elevation model (DEM) provided by the Geospatial Information Authority of Japan to remove topographic phase components. Phase stability was subsequently evaluated using phase coherence (Ferretti et al. 2001). We used a coherence threshold of 0.85 for the PALSAR images and 0.80 for the PALSAR-2 and Sentinel-1 images. Because the phase contribution of the DEM error was estimated during the phase coherence evaluation, we subtracted the phase contribution from the interferometric phases of each PS pixel. A minimum cost flow algorithm was used for phase unwrapping (Costantini and Rosen, 1999). The line-of-sight time-series displacement mest was estimated by combining all of the interferograms using the least squares method. To reduce the atmospheric phase contribution, we simultaneously smoothed the temporal phase variations based on the assumption that the atmospheric phase contribution in the time domain is within the high-frequency end of the spectrum (Eq. (1)) (Schmidt and Bürgmann 2003). Spatial filtering is also often used to mitigate atmospheric contributions; however, we did not use spatial filtering in this study because surface displacement can occur after a large earthquake with a variety of spatial characteristics.

$$ m_{\text{est}} = {\text{argmin}}\left| {\left[ {\begin{array}{*{20}c} G \\ {\tau \frac{d}{{{\text{d}}t}}} \\ \end{array} } \right]m - \left[ {\begin{array}{*{20}c} d \\ 0 \\ \end{array} } \right]} \right|^{2} , $$
(1)

where \( G \) is a matrix representing the temporal distribution of the SAR acquisitions with values of 1 or 0 depending on the data availability at a given time, \( d \) is a displacement dataset obtained from the PSI analysis with vector dimensions of 18 × 1 in the case of the ALOS/PALSAR images, \( m \) represents the time-series surface displacement of the 19 SAR acquisition time, and \( \tau \) is a weighting factor that indicates the degree of temporal smoothing of the time-series surface displacement and determined based on Akaike’s Bayesian information criterion (ABIC) (Akaike 1980). We assume that atmospheric contributions in the temporal domain appear as a Gaussian distribution; ABIC can, thus, be calculated as:

$$ {\text{ABIC}}\left( \tau \right) = \left( {N + P - M} \right){ \log }s\left( {\hat{m}} \right) - P{ \log }\tau + { \log }G^{\text{T}} G + \tau H, $$
(2)

with

$$ s\left( {\hat{m}} \right) = \left( {d - G\hat{m}} \right)^{\text{T}} \left( {d - G\hat{m}} \right) + \tau \hat{m}^{\text{T}} H\hat{m}, $$
(3)

where \( H \) is the designed matrix of \( d/{\text{d}}t \) in Eq. (1), \( \hat{m} \) is the optimal value of the time-series surface displacement, and \( N \), \( P \), and \( M \) are the number of images, rank of matrix \( H \), and rank of \( m \), respectively. To determine \( \tau \), we calculated the ABIC of \( \tau \) over a range of 0.001–1.0 and interval of 0.001 using the time-series displacement at a PS pixel to obtain the optimal \( \tau \) that minimizes ABIC. More specifically, we first calculated the optimal \( \tau \) values of randomly selected 10% of the total PS pixels from the range and interval. The \( \tau \) value in Eq. (1) was then determined from the averaged values. As a reference point, we assumed that no surface displacement occurred in the northern section of the study area (Fig. 1b).

To validate the estimated surface displacement, we compared the line-of-sight surface displacements derived by the PSI analysis with those obtained from global navigation satellite system (GNSS) observations of GEONET, which is a nationwide GNSS network operated by the Geospatial Information Authority of Japan (Hatanaka et al. 2003) and provides daily coordinate values. Observations were made for the Kumamoto GEONET station with respect to the Jonan GEONET station within the study area (Fig. 1b). To reduce random noise, we applied a moving average filter to the GEONET displacement time series using a window size of 5 days before and after the date of interest (i.e., 11 days) except in the case of the GNSS observations on April 18, 2016 (a PALSAR-2 acquisition date), which were collected 2 days after the mainshock of the 2016 Kumamoto earthquake sequence. To obtain the reference surface displacement of the date, we averaged the daily coordinate values of the date in reference and the 5 subsequent days. To compare with the GNSS observations, we averaged the surface displacement of the PSI analysis using PS pixels within 300 m from a GNSS station.

To better understand the surface displacement characteristics, we modeled the time-series displacements as the sum of sinusoidal and exponential functions. The sinusoidal function was used to model the seasonal displacement over a period of 1 year. The exponential function was used to model the transient displacement. We estimated four unknown parameters (\( \alpha \), \( \theta \), \( \beta \), and \( k \)) using the least squares method:

$$ {\text{U}}\left( t \right) = \alpha \left\{ {{ \sin }\left( {\frac{2\pi }{365}t + \theta } \right) - \sin \left( \theta \right)} \right\} + \beta \left\{ {{ \exp }\left( { - \frac{t}{k}} \right) - 1} \right\}, $$
(4)

where \( \alpha \) represents the magnitude of the seasonal displacement and \( \theta \) is the time shift at the beginning of the seasonal uplift in the sinusoidal function relative to the acquisition time of the first SAR image. The factor \( { \sin }\left( \theta \right) \) was introduced such that \( U\left( 0 \right) = 0 \). Here, \( \beta \) is the magnitude of the exponential function and \( k \) is the temporal scaling time. The scaling time represents the day when 63.2% of the total transient displacement had occurred. We estimated \( \theta \) and \( k \) using a grid search algorithm over a search range of − 180 to 180° and 5° intervals for \( \theta \) and search range of 20–10,000 with an interval of 10 for \( k \). During the grid search, we simultaneously estimated \( \alpha \) and \( \beta \) using a least squares approach. We then determined the optimal values of \( \alpha \), \( \theta \), \( \beta \), and \( k \) that minimize the square difference between the modeled and PSI time-series displacement. The temporal model in Eq. (4) consistently satisfies \( {\text{U}}\left( 0 \right) = 0, \) where \( t = 0 \) is the acquisition date of the first SAR image.

Transient displacement after an earthquake can occur in the vertical and/or horizontal directions and reflects the displacement mechanism. We, therefore, converted the first year of transient surface displacement, modeled as an exponential function in Eq. (4), into quasi-vertical and quasi-EW directions by combining the Sentinel-1 descending and ascending line-of-sight displacement data. This processing is referred to as 2.5-D analysis (Fujiwara et al. 2000). The acquisition geometry of the SAR images is insensitive to the NS (North–South) direction; displacements in the quasi-NS direction can, therefore, not be retrieved using the analysis. Owing to data availability, the Sentinel-1 ascending images used for the 2.5-D analysis were from between November 16, 2016 and June 15, 2018. To combine with descending images in a corresponding time span, we used the Sentinel-1 descending images from November 22, 2016 to June 9, 2018 for the 2.5-D analysis. Because a part of PS pixels of the Sentinel-1 descending and ascending images do not cover the same location, we applied nearest neighbor interpolation with a search radius of 10 s in longitude–latitude coordinate to obtain the interpolated surface displacement in the line-of-sight direction from the descending and ascending images. We then converted the interpolated line-of-sight displacements in the quasi-vertical and quasi-EW directions. The dip angle in the quasi-vertical direction was 81.7° toward the south and the strike angle of the quasi-EW direction was 91.3° from the north.

Results

Surface displacement before the 2016 Kumamoto earthquake sequence (January 2007–March 2011)

Figure 3a, b shows the spatial distribution of the transient (exponential) displacement during the first year from the first SAR image (\( \beta \left\{ {exp\left( { - t/k} \right) - 1} \right\} \) and \( t = 365 \) days in Eq. (4)) and seasonal (sinusoidal) displacement magnitude (\( \alpha \) in Eq. (4)) using PSI analysis of the ALOS/PALSAR images acquired between January 2007 and March 2011. Figure 3c–e shows examples of time-series displacement and best-fit model in Fig. 3a, b. Although the best-fit models are not accurately fitted to the observed PSI, the results demonstrate that nearly no significant steady surface displacement occurred during the time period in most of the study area (Fig. 3a). The time-series displacement in the northern section of the study area fluctuated more than in other areas (Fig. 3e); however, the seasonal displacement magnitude was less than 0.25 cm during this period (Fig. 3b). Figure 3f shows a comparison of the PSI analysis and GNSS data at the Kumamoto station. PSI and GNSS line-of-sight displacement are compared at the GNSS station of Kumamoto using the GNSS station of Jonan as a reference point. The absolute differences of the PSI analysis and GNSS data were 0.15 cm for the seasonal displacement magnitude and 0.30 cm for the transient displacement during the first year from the first SAR image.

Fig. 3
figure3

Surface displacement in the Kumamoto area estimated by PSI analysis of ALOS/PALSAR images before the 2016 Kumamoto earthquake (January 7, 2007–March 5, 2011): a transient surface displacement (modeled by the exponential function in Eq. (4)) during the first year from the first SAR image, b magnitude of the seasonal surface displacement (\( \alpha \) in Eq. (4)). ce examples of time-series displacements, and f Comparison of GNSS observation and the time-series displacement estimated by PSI analysis at the GNSS station of Kumamoto using the GNSS station of Jonan as a reference point. The locations of ce are in a, and the locations of two GNSS stations are represented as black circles (North: Kumamoto station, South: Jonan station) in a. Colored dots indicate PS pixels, where surface displacements were estimated, and gray dashed lines represent the covered area of the SAR images. Positive sign indicates surface displacement toward satellite direction. Gray lines indicate surface ruptures associated with the 2016 Kumamoto earthquake shown in Fig. 1b (Toda et al. 2016)

Surface displacement during the 32 months following the 2016 Kumamoto earthquake sequence

The spatial distribution of the transient displacement during the first year and seasonal displacement magnitude of the PALSAR-2 and Sentinel-1 descending images are shown in Figs. 4a, b, 5a, b. Examples of the time-series displacement and best-fit model are shown in Figs. 4c–e and 5c–e. A comparison of the line-of-sight time-series displacement between the PSI analysis and GNSS data at the Kumamoto station with respect to the Jonan station are shown in Figs. 4f and 5f. The absolute differences of the seasonal displacement magnitude between PSI analysis and GNSS data are 0.072 cm (PALSAR-2 descending images) and 0.027 cm (Sentinel-1 descending images), and the absolute differences of the transient displacement during the first year are 0.12 cm (PALSAR-2 descending images) and 0.19 cm (Sentinel-1 descending images).

Fig. 4
figure4

Surface displacement in the period following the 2016 Kumamoto earthquake sequence using ALOS-2 images (April 18, 2016–December 10, 2018). a Transient surface displacement during the first year from the first SAR image, b magnitude of the seasonal displacement, ce examples of time-series displacements in I–III, and f Comparison of GNSS observation and the time-series displacement estimated by PSI analysis at the GNSS station of Kumamoto using the GNSS station of Jonan as a reference point

Fig. 5
figure5

Surface displacement in the period following the 2016 Kumamoto earthquake sequence using Sentinel-1 descending images (July 1, 2016–December 30, 2018). a Transient surface displacement during the first year from the first SAR image, b the magnitude of the seasonal displacement, ce examples of time-series displacements in I–III, and f Comparison of GNSS observation and the time-series displacement estimated by PSI analysis at the GNSS station of Kumamoto using the GNSS station of Jonan as a reference point

The PSI analysis of the PALSAR-2 and Sentinel-1 descending images shows a similar surface displacement pattern. For the transient surface displacement, displacements toward the satellite were found mainly in the northern section of the Futagawa–Hinagu fault system. Surface displacements away from the satellite were identified particularly around the central part of the study area (indicated by I in Figs. 4 and 5) and around the western coastal area (indicated by II in Figs. 4 and 5). The magnitude of the transient displacement during the first year in I was approximately < − 1.1 cm (where the negative sign indicates the direction away from the satellite), and that in II was approximately < − 2.0 cm (Figs. 4a, 5a). Seasonal surface displacements with a magnitude of ~ 0.5 cm were identified in the northern and central parts of the study area (III in Figs. 4 and 5) in both the PALSAR-2 and Sentinel-1 results. The area of the relatively large seasonal displacement is almost the same in the descending PALSAR-2 and Sentinel-1 images; the areal distances involved are several kilometers (Figs. 4b, 5b). The seasonal displacement with a magnitude of less than 0.25 cm was estimated between January 7, 2007 and March 5, 2011; however, the magnitude of the seasonal displacement in the period following the 2016 Kumamoto earthquake sequence was approximately 0.5 cm (Fig. 5b), which is larger than these earlier estimates and beyond the error derived from the comparison between the GNSS and PSI displacements (0.15, PALSAR images; 0.072, PALSAR-2 images; 0.027 cm Sentinel-1 descending images).

We then combined the line-of-sight surface displacements derived from the Sentinel-1 descending and ascending images using 2.5-D analysis. As described in “Persistent scatterer interferometry and characterization of time-series displacement pattern” section, because the temporal span of the Sentinel-1 ascending images used in this study (November 16, 2016–June 15, 2018) was shorter than that of the Sentinel-1 descending images (April 18, 2016–December 10, 2018), we used 43 Sentinel-1 descending images acquired from November 22, 2016 to June 9, 2018, which correspond to the time span of the ascending images, to compare with the Sentinel-1 ascending image analysis. The transient displacements during the first year are shown in Fig. 6a for the Sentinel-1 descending images and Fig. 6b for the Sentinel-1 ascending images. Although the first SAR image used in Fig. 6a, b was acquired approximately 7 months after the 2016 Kumamoto earthquake, the surface displacements away from the satellite around the center of Kumamoto area (I in Fig. 6a, b) and coastal area (II in Fig. 6a, b) were found as well as in Figs. 4a, b, 5a and b. These displacements from the Sentinel-1 ascending images were validated by a comparison with the GNSS data, which yielded an absolute difference of the seasonal displacement magnitude of 0.038 cm and of the transient displacement during the first year of 0.11 cm (Additional file 1: Fig. S1). Figure 6c, d illustrate the transient surface displacements in the quasi-vertical and quasi-EW directions estimated using the analysis. We found that the transient displacements in I and II of Figs. 4 and 5 occurred in the vertical downward (subsidence) direction (Fig. 6d). The surface displacements along the Futagawa fault included both the vertical and the EW directions (Fig. 6c, d).

Fig. 6
figure6

Surface displacement during the first year from the first SAR image using a Sentinel-1 descending (November 22, 2016–June 9, 2018) and b ascending images (November 16, 2016–June 15, 2018). c Quasi-vertical and d quasi-EW (East–West) surface displacement derived from images from both descending and ascending Sentinel-1 orbits. Positive sign of the quasi-vertical displacement indicates upward movement, while positive sign of the quasi-EW displacement indicates eastward movement

We further conducted cross-comparisons of our PSI processing of the PALSAR-2 and Sentinel-1 descending and ascending images at pixels where the horizontal displacement was negligible based on the quasi-EW components. For pixels with a quasi-EW displacement of < 0.05 cm, we assumed a negligible horizonal displacement and averaged the line-of-sight displacement within a 100-m radius of these pixels. The averaged line-of-sight displacements were subsequently converted into vertical displacements. The root mean square errors (RMSEs) between the vertical transient displacements during the first year from the PALSAR-2–Sentinel-1 descending images, PALSAR-2–Sentinel-1 ascending images and Sentinel-1 descending–Sentinel-1 ascending images are 0.55, 0.54, and 0.24 cm, respectively (Additional file 1: Fig. S2). These RMSEs of the cross-comparison are comparable with those of Du et al. (2018) who reported RMSE of 0.75 cm/year for the annual displacement velocities from the PALSAR-2 and Sentinel-1 images.

Implications of surface displacement and groundwater level change

After a large earthquake, surface displacements along the mainshock fault include post-seismic afterslip, viscoelastic relaxation, and poroelastic displacement (e.g., Feigl and Thatcher 2006). Post-seismic afterslip occurs because a mainshock fault releases strain energy, even after the main earthquake. Post-seismic afterslip, therefore, generally occurs along the mainshock fault. Conversely, viscoelastic relaxation occurs because of stress release in the lower crust and upper mantle associated with mainshock fault slip. Moore et al. (2017) and Politz et al. (2017) estimated surface displacement owing to the viscoelastic relaxation in Kumamoto using surface displacement data for 91 days and 8.5 months following the earthquake. They assumed that the depth of the ductile region was approximately 20–80 km based on the regional Moho depth pattern (e.g., Katsumata, 2010). Although there may be spatial heterogeneity in the viscoelastic structures, this viscoelastic relaxation depth causes high wavelength surface displacement (> 20 km). Poroelastic displacement by earthquakes has been observed around mainshock faults for the 1992 Landers earthquake (Johnston et al. 1995; Fialko 2004) and 2000 southern Iceland earthquake (Jonsson et al. 2003). The poroelastic displacement model shows that groundwater migrates because of volumetric stress/strain (pore pressure) changes caused by an earthquake. This allows the spatial patterns in the displacement model to be correlated with the volumetric stress/strain associated with the earthquake.

We identified post-seismic surface displacements in the Kumamoto area that cannot be explained by the above model (e.g., afterslip, viscoelastic relaxation, and poroelastic displacement owing to static stress changes). These surface displacements show that the spatial patterns do not agree with the spatial characteristics expected from afterslip and viscoelastic relaxation, and do not correlate with the coseismic volumetric strain shown in Fig. 7. Such areas include the transient subsidence around the central part (I in Figs. 4, 6) and western coastal area (II in Figs. 4, 5, 6) of the study area, and the seasonal displacement around the northern and central parts of the study area (III in Figs. 4, 5). We subsequently discuss how these displacements differ from the above post-seismic displacements (e.g., afterslip, viscoelastic relaxation, poroelastic displacement) and their implications.

Fig. 7
figure7

Coseismic volumetric strain (black lines) at a depth of 100 m associated with the 2016 Kumamoto earthquake (based on Hosono et al. 2019). Magenta dashed lines are newly formed surface ruptures reported by Fujiwara et al. (2016). Blue lines indicate surface ruptures associated with the 2016 Kumamoto earthquake based on Toda et al. (2016)

Transient subsidence around the central and western areas

Hosono et al. (2019) analyzed the groundwater drawdown immediately after the 2016 Kumamoto earthquake sequence around the central part of Kumamoto (I in Figs. 4, 5, 6), and a newly formed rupture zone was identified by the InSAR analysis of Fujiwara et al. (2016) (Fig. 7). Groundwater drawdown was observed in both confined and unconfined aquifers with a maximum decline of 4.74 m. Groundwater levels recovered and returned to the background levels within 45 days. Hosono et al. (2019) demonstrated that the groundwater level reductions can be explained by downward groundwater transfer (for a volume of 2.7 × 107 m3) through the newly formed rupture system, which extended downward to 6.8 km. The area of the ground subsidence around the central part of Kumamoto (I in Figs. 4, 5, 6) corresponds to the newly formed rupture zone and post-seismic groundwater drawdown area. Because the magnitude of the groundwater level drop cannot be explained by volumetric stress changes caused by the 2016 Kumamoto earthquake sequence (Hosono et al. 2019) (Fig. 7), the process of poroelastic deformation is not a viable mechanism for the ground subsidence estimated in this study.

In the western coastal areas where ground subsidence was identified, groundwater level increases of up to 1 m were observed after the 2016 Kumamoto earthquake sequence (Hosono et al. 2019). The subsidence and associated groundwater level changes can be explained by liquefaction and consolidation of the sediment. Large-scale liquefaction after an earthquake has often been reported by InSAR, for example, in the 2011 Tohoku earthquake, Japan (Mw 9.0) (Ishitsuka et al. 2012) and the Fairview (Mw 5.0), Pawnee (Mw 5.8), and Cushing (Mw 5.0) earthquakes in Oklahoma (Barnhart et al. 2018). The alluvial delta in the western parts of Kumamoto consists of interbedded clay, sand, and gravel layers, and flood deposits overlying the pyroclastic deposits are partly distributed along the rivers. The aforementioned explanation is supported by the work of Wakamatsu et al. (2017) who carried out a field reconnaissance study, analyzed aerial photographs, and found that soil liquefaction had occurred at numerous locations in the western coastal area.

Seasonal displacements in the northern part of the Kumamoto area

Groundwater levels in the Kumamoto area show a seasonal pattern in response to seasonal rainfall variations. The rainfall in the study area generally increases from June to August (Fig. 8) (JMA 2020). Correspondingly, the groundwater level starts to increase in June and decrease in October or November (Fig. 8). Figure 8c shows the monthly precipitation and groundwater levels around the seasonal surface displacement areas between January 2016 and December 2018. The seasonal surface displacement in the line-of-sight direction identified by the PSI analysis are in Fig. 8a, b, and show that the seasonal surface displacement correlates with the groundwater level changes. To examine the possible amount of precipitation induced the seasonal displacement, we calculated the average monthly precipitation during the period and obtained a value of 174.3 mm/year, which is similar to the average precipitation during the PALSAR period (159.6 mm/year). This possibility of seasonal displacement owing to the increased precipitation can be dismissed from the observed groundwater levels. Compared with the seasonal groundwater level changes during the PALSAR-2, Sentinel-1, and PALSAR periods, the general pattern of seasonal changes in groundwater levels did not vary significantly. We therefore suggest that there are two possible scenarios that can explain the increase in seasonal surface displacement. One is that the magnitude of the seasonal groundwater levels increased in a deeper part of the area where groundwater levels have not been measured. The other possibility is that the sensitivity of the surface displacements to groundwater level changes was altered by the earthquake.

Fig. 8
figure8

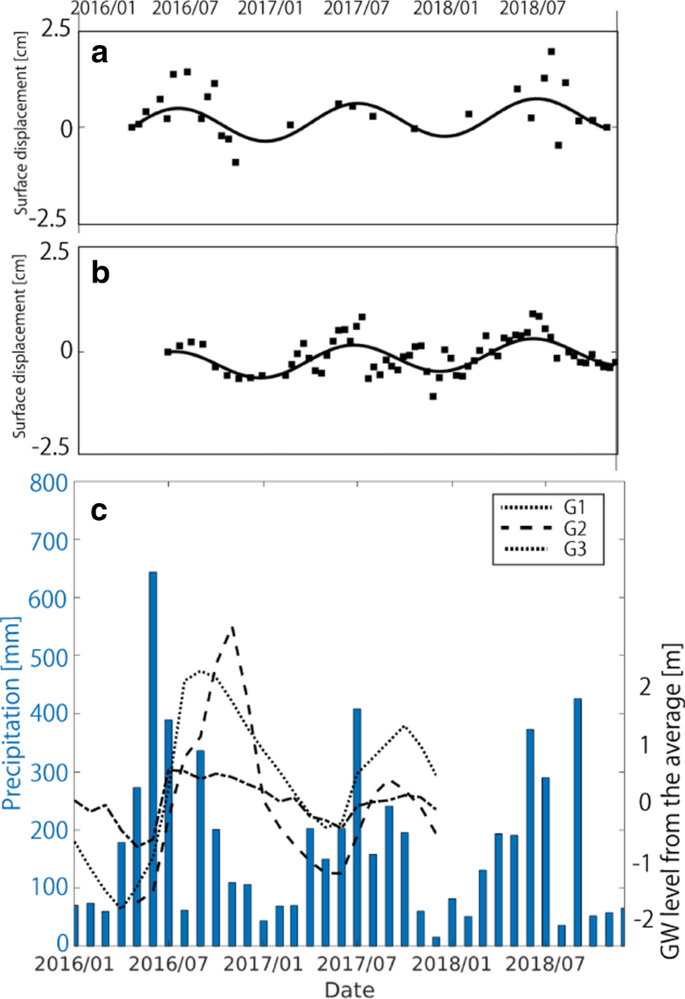

a, b Examples of time-series displacements and best-fit models from a PALSAR-2 (Fig. 4e) and b Sentinel-1 descending (Fig. 5e) images. c Monthly precipitation in the Kumamoto area (JMA 2020) during January 2016–December 2018 (the period corresponding to ALOS-2/PALSAR-2 and Sentinel-1 images used in this study). Dashed lines are the groundwater level data with respect to the average level. The locations of G1, G2 and G3 are mapped in Fig. 1b

With regard to the first possibility of groundwater level variations in the deeper section, the groundwater variation after an earthquake can be explained by a permeability enhancement. For example, seismic vibration due to an earthquake might remove colloids and bubbles that clog pores, thereby changing the permeability. Such changes in permeability have been previously observed in association with the 1952 Kern Country earthquake (Manga et al. 2003), 1989 Loma Prieta earthquake (Rojstaczer and Wolf 1992), and 1995 Kobe earthquake (Tokunaga 1999; Sato et al. 2000).

The storage coefficient must be taken into consideration to investigate the second possibility with regard to the alteration of the surface displacement sensitivity to groundwater level change. The storage coefficient (\( S \)), or storativity of a confined aquifer or aquitard, is linked to the volume of water released/accumulated from a unit area when the hydraulic head declines/increases by a unit amount. The coefficient can be measured using surface displacement and groundwater level changes. The coefficient is a dimensionless quantity that ranges between zero and the effective aquifer porosity (Chaussard et al. 2014), and is given by:

$$ S = \frac{\Delta d}{\Delta h}, $$
(5)

where \( \Delta d \) and \( \Delta h \) represent the surface vertical displacement and hydraulic head change, respectively. If it is assumed that no gas phase is present in the pores of a confined aquifer, then \( S \) is simply a function of the matrix compressibility (\( c_{\text{m}} \)) and porosity (\( \nu \)) (Riley 1969), where:

$$ S = \rho_{\text{w}} g\left( {c_{\text{m}} + \nu c_{\text{f}} } \right)b, $$
(6)

where \( \rho_{w} \) is the pore fluid density, \( c_{f} \) is the pore fluid compressibility, \( g \) is the acceleration of gravity, and \( b \) is the thickness of the saturated system. If it is assumed that pore fluid compression/expansion can be ignored, the \( S \) represents the purely skeletal characteristics of an aquifer system. It is plausible to assume that \( \rho_{\text{w}} \), \( g \), \( c_{\text{f}} \), and \( b \) are identical before and after an earthquake. Consequently, assuming that the enhanced permeability described above did not occur and the porosity \( \nu \) did not significantly vary, one plausible mechanism to explain why the seasonal displacement occurred is the change in compressibility (\( c_{\text{m}} \)) of the aquifer.

Alteration of the characteristics of an aquifer by an earthquake generally occurs in unconsolidated materials (Wang et al. 2004; Cox et al. 2012; Quigley et al. 2013; Manga and Wang 2015). This suggests that areas with high values of α in Eq. (4) generally represent underlying terrace deposits, which might contain large amounts of soft material such as unconsolidated sediments. Furthermore, areas with a larger seasonal displacement are found mainly in the northern section of the analyzed area. This occurs because these areas are covered mostly by terrace deposits, whereas the southern and southeastern parts of the analyzed area contain volcanic and metamorphic rocks (Fig. 2a). Resistivity maps obtained using magnetotelluric methods show that the northern areas had a lower resistivity than the southern and southeastern areas (Asaue et al. 2012). Therefore, it is likely that the geological conditions led to the variation in the aquifer properties, which are related to the characteristics of the observed seasonal surface displacement.

Conclusions

We mapped the surface displacements in the Kumamoto area using PALSAR, PALSAR-2, and Sentinel-1 images. Transient and seasonal surface displacements were observed following the 2016 Kumamoto earthquake sequence. In addition to the transient displacements found along the mainshock fault, subsidence was also detected around the central part of the study area where groundwater drawdown has previously been reported to be associated with coseismic ruptures. Moreover, post-seismic seasonal displacement was identified in the northern section of the Kumamoto area, showing a higher magnitude than that estimated for the periods between January 2007 and March 2011. We suggest that the seasonal displacements are correlated with the seasonal variations of groundwater level, and can have thus been enhanced by the 2016 Kumamoto earthquake due to changes in aquifer permeability and/or compressibility. Surface displacement associated with coseismic ruptures and the alteration of permeability/compressibility has rarely been reported. Our estimation of surface displacement, therefore, provides important guidelines to better understand surface displacement following a large earthquake, especially in relation to changes in groundwater level.

Availability of data

The PSI results analyzed during the current study are available from the corresponding author on reasonable request. The PALSAR and PALSAR-2 SAR images used in this study are available from the Japan Aerospace Exploration Agency, but restrictions apply to their availability, which were used under license for the current study and are therefore not publicly available. The PALSAR and PALSAR-2 SAR images are available from the authors upon reasonable request and with permission from the Japan Aerospace Exploration Agency. The Sentinel-1 SAR images were provided by the European Space Agency and can be freely downloaded from https://scihub.copernicus.eu/.

Abbreviations

AIST-GSJ:

Advanced Industrial Science and Technology-Geological Survey of Japan

ALOS:

Advanced Land Observing Satellite

DEM:

Digital elevation model

EW:

East–West

GEONET:

GNSS Earth Observation Network System

GNSS:

Global Navigation Satellite System

InSAR:

Synthetic aperture radar interferometry

NS:

North–South

PALSAR:

Phased array type L-band synthetic aperture radar

PS:

Persistent scatterer

PSI:

Persistent scatterer interferometry

RMSE:

Root Mean square error

SAR:

Synthetic Aperture radar

UD:

Up–down

References

  1. Akaike H (1980) Likelihood and the Bayes Procedure. Bayesian Statistics. University Press, Valencia, Spain. https://doi.org/10.1007/978-1-4612-1694-0_24

  2. Asano K, Iwata T (2016) Source rupture processes of the foreshock and mainshock in the 2016 Kumamoto earthquake sequence estimated from the kinematic waveform inversion of strong motion data. Earth Planets Space 68(8):147. https://doi.org/10.1186/s40623-016-0519-9

    Article  Google Scholar

  3. Asaue H, Kubo T, Yoshinaga T, Koike K (2012) Application of magnetotelluric (MT) imaging of regional three-dimensional geologic structures and groundwater systems. Nat Resour Res 21(3):383–393. https://doi.org/10.1007/s11053-012-9184-2

    Article  Google Scholar

  4. Barnhart WD, Yeck WL, DE McNamara (2018) Induced earthquake and liquefaction hazards in Oklahoma, USA: constraints from InSAR. Remote Sens Environ 218(1):1–12. https://doi.org/10.1016/j.rse.2018.09.005

    Article  Google Scholar

  5. Bell JW, Amelung F, Ferretti A, Bianchi M, Novali F (2008) Permanent scatterer InSAR reveals seasonal and long-term aquifer system response to groundwater pumping and artificial recharge. Water Resour Res 44:W02407. https://doi.org/10.1029/2007wr006152

    Article  Google Scholar

  6. Chaussard E, Bürgmann R, Shirzaei M, Fielding EJ, Baker B (2014) Predictability of hydraulic head changes and characterization of aquifer-system and fault properties from InSAR-derived ground deformation. J Geophys Res Solid Earth 119:6572–6590. https://doi.org/10.1002/2014jb011266

    Article  Google Scholar

  7. Chen J, Knight R, Zebker HA (2017) The temporal and spatial variability of the confined aquifer head and storage properties in the San Luis Valley, Colorado inferred from multiple InSAR missions. Water Resour Res 53:9708–9720. https://doi.org/10.1002/2017wr020881

    Article  Google Scholar

  8. Costantini M, Rosen PA (1999) A generalized phase unwrapping for sparse data, Paper presented at the IGARSS’99, 267–269, Hamburg, Germany, 28 June–2 July. https://doi.org/10.1109/igarss.1999.773467

  9. Cox SC, Rutter HJ, Sims A, Manga M, Weir JJ, Ezzy T, Horton TW, Scott D (2012) Hydrological effects of the Darfield (Canterbury) Mw 7.1 earthquake, 4 September 2010, New Zealand. NZ J Geol Geophys 55:231–247. https://doi.org/10.1080/00288306.2012.680474

    Article  Google Scholar

  10. Du Z, Ge L, Ng AHM, Zhu Q, Yang X, Li L (2018) Correlating the subsidence pattern and land use in Bandung, Indonesia with both Sentinel-1/2 and ALOS-2 satellite images. Int J. Appl Earth Obs. Geoinf 67:54–68. https://doi.org/10.1016/j.jag.2018.01.001

    Article  Google Scholar

  11. Elkhoury JE, Brodsky EE, Agnew DC (2006) Seismic waves increase permeability. Nature 441:1135–1138. https://doi.org/10.1038/nature04798

    Article  Google Scholar

  12. Feigl KL, Thatcher W (2006) Geodetic observations of post-seismic transients in the context of the earthquake deformation cycle. CR Geosci 338:1012–1028. https://doi.org/10.1016/j.crte.2006.06.006

    Article  Google Scholar

  13. Ferretti A (2014) Satellite InSAR data: reservoir monitoring from space. EAGE Publications, Netherlands

    Google Scholar

  14. Ferretti A, Prati C, Rocca F (2000) Nonlinear subsidence rate estimation using permanent scatterers in differential SAR interferometry. IEEE Trans Geosci Remote Sens 38(5):2202–2212. https://doi.org/10.1109/36.868878

    Article  Google Scholar

  15. Ferretti A, Prati C, Rocca F (2001) Permanent Scatterers in SAR Interferometry. IEEE Geosci Remote Sens 39:8–20. https://doi.org/10.1109/36.898661

    Article  Google Scholar

  16. Fialko Y (2004) Evidence of fluid-filled upper crust from observations of postseismic deformation due to the 1992 Mw 7.3 Landers earthquake. J Geophys Res 109:B08401. https://doi.org/10.1029/2004jb002985

    Article  Google Scholar

  17. Fujiwara S, Nishimura T, Murakami M, Nakagawa H, Tobita M (2000) 2.5-D surface deformation of M 6.1 earthquake near Mt Iwate detected by SAR interferometry. Geophys Res Lett 27(14):2049–2052. https://doi.org/10.1029/1999gl011291

    Article  Google Scholar

  18. Fujiwara S, Yarai H, Kobayashi T, Morishita Y, Nakano T, Miyahara B, Nakai H, Miura Y, Ueshiba H, Kakiage Y, Une H (2016) Small-displacement linear surface ruptures of the 2016 Kumamoto earthquake sequence detected by ALOS-2 SAR interferometry. Earth Planets Space 68(1):160. https://doi.org/10.1186/s40623-016-0534-x

    Article  Google Scholar

  19. Hatanaka Y, Iizuka T, Sawada M, Yamagiwa A, Kikuta Y, Johnson JM, Rocken C (2003) Improvement of the analysis strategy of GEONET. Bull GSI 49:11–37

    Google Scholar

  20. Hooper A, Zebker H, Segall P, Kampes B (2004) A new method for measuring deformation on volcanoes and other natural terrains using InSAR persistent scatterers. Geophys Res Lett 31:L23611. https://doi.org/10.1029/2004gl021737

    Article  Google Scholar

  21. Hosono T, Yamada C, Shibata T, Tawara Y, Wang CY, Manga M, Rahman ATMS, Shimada J (2019) Coseismic groundwater drawdown along crustal ruptures during the 2016 Mw 7.0 Kumamoto earthquake. Water Resour Res 55:5891–5903. https://doi.org/10.1029/2019wr024871

    Article  Google Scholar

  22. Hu X, Lu Z, Wang T (2018) Characterization of hydrogeological properties in Salt Lake Valley, Utah, using InSAR. J Geophys Res 123:1257–1271. https://doi.org/10.1029/2017jf004497

    Article  Google Scholar

  23. Ishitsuka K (2015) Synthetic aperture radar interferometry time-series for surface displacement monitoring: data interpretation and improvement in accuracy, Ph.D. dissertation, Kyoto University

  24. Ishitsuka K, Matsuoka T (2016) Accuracy evaluation of persistent scatterer interferometry using ALOS/PALSAR data: a case study of surface displacement in the Kujukuri Plain, Chiba Prefecture. J Remote Sens Soc Jpn 36(4):328–337. https://doi.org/10.11440/rssj.36.328(in Japanese with English abstract)

    Article  Google Scholar

  25. Ishitsuka K, Tsuji T, Matsuoka T (2012) Detection and mapping of soil liquefaction in the 2011 Tohoku earthquake using SAR interferometry. Earth Planets Space 64(12):1267–1276. https://doi.org/10.5047/eps.2012.11.002

    Article  Google Scholar

  26. Ishitsuka K, Fukushima Y, Tsuji T, Yamada Y, Matsuoka T, Giao PH (2014) Natural surface rebound of the Bangkok plain and aquifer characterization by persistent scatterer interferometry. Geochem Geophys Geosyst 15(4):965–974. https://doi.org/10.1002/2013gc005154

    Article  Google Scholar

  27. Ishitsuka K, Tsuji T, Matsuoka T, Nishijima J, Fujimitsu Y (2016a) Heterogeneous surface displacement pattern at the Hatchobaru geothermal field inferred from SAR interferometry time-series. Int J Appl Earth Obs Geoinf 44:95–103. https://doi.org/10.1016/j.jag.2015.07.006

    Article  Google Scholar

  28. Ishitsuka K, Tsuji T, Matsuoka T (2016b) Pixel-based interferometric pair selection in InSAR time-series analysis with baseline criteria. Remote Sens Lett 7(7):711–720. https://doi.org/10.1080/2150704x.2016.1182660

    Article  Google Scholar

  29. Ishitsuka K, Matsuoka T, Nishimura T, Tsuji T, ElGharbawi T (2017) Ground uplift related to permeability enhancement following the 2011 Tohoku earthquake in the Kanto plain, Japan. Earth Planets Space 69(1):81. https://doi.org/10.1002/2013gc005154

    Article  Google Scholar

  30. Japan Meteorological Agency (JMA) (2020) Past meteorological data in Japan. http://www.data.jma.go.jp/obd/stats/etrn/index.php. Accessed 25 June 2020)

  31. Johnston MJS, Hill DP, Linde AT, Langbein J, Bilham R (1995) Transient displacement during triggered seismicity from the June 1992 Mw = 7.3 Landers earthquake at Long valley volcanic caldera, California. Bull Seismol Soc Am 85(3):787–795

    Google Scholar

  32. Jonsson S, Segall P, Pedersen R, Bjornsson G (2003) Post-earthquake ground movements correlated to pore-pressure transients. Nature 424:179–183. https://doi.org/10.1038/nature01776

    Article  Google Scholar

  33. Kagabu M, Ide K, Hosono T, Nakagawa K, Shimada J (2019) Describing coseismic groundwater level rise using tank model in volcanic aquifers, Kumamoto, southern Japan. J Hydrol. https://doi.org/10.1016/j.jhydrol.2019.124464

    Article  Google Scholar

  34. Kampes B (2006) Radar interferometry: persistent scatterer technique. Springer-Verlag, Dordrecht

    Google Scholar

  35. Katsumata A (2010) Depth of the moho discontinuity beneath the Japanese islands estimated by traveltime analysis. J Geophys Res 115:B04303. https://doi.org/10.1029/2008jb005864

    Article  Google Scholar

  36. Khakim MYN, Tsuji T, Matsuoka T (2014) Lithology-controlled subsidence and seasonal aquifer response in the Bandung basin, Indonesia, observed by synthetic aperture radar interferometry. Int J Appl. Earth Obs Geoinf 32:199–207. https://doi.org/10.1016/j.jag.2014.04.012

    Article  Google Scholar

  37. Kumamoto Prefecture (1995) Kumamoto area groundwater overall investigation report, Fiscal year 1994, p 127. (in Japanese)

  38. LE Erban, Gorelick SM, Zebker HA (2014) Groundwater extraction, land subsidence, and sea-level rise in the Mekong Delta, Vietnam. Environ Res Lett 9:084010. https://doi.org/10.1088/1748-9326/9/8/084010

    Article  Google Scholar

  39. Manga M, Wang CY (2015) Earthquake hydrology. In: Schubert G (ed) Treatise on geophysics. Elsevier, Oxford, pp 305–328. https://doi.org/10.1016/b978-0-444-53802-4.00082-8

    Google Scholar

  40. Manga M, Brodsky EE, Boone M (2003) Response of steam flow to multiple earthquake. Geophys Res Lett 30(5):1214. https://doi.org/10.1029/2002gl016618

    Article  Google Scholar

  41. Manga M, Beresnev I, Brodsky EE, Elkhoury JE, Elsworth D, Ingebritsen SE, Mays DC, Wang CY (2012) Change in permeability caused by transient stresses: field observations, experiments, and mechanism. Rev Geophys 50:RG2004. https://doi.org/10.1029/2011rg000382

    Article  Google Scholar

  42. Massonnet D, Feigl KL (1998) Radar interferometry and its application to changes in the Earth’s surface. Rev Geophys 36(4):441–500. https://doi.org/10.1029/97rg03139

    Article  Google Scholar

  43. Montgomery DR, Manga M (2003) Streamflow and water well responses to earthquakes. Science 300:2047–2049. https://doi.org/10.1126/science.1082980

    Article  Google Scholar

  44. Moore JDP, Yu H, Tang CH, Wang T, Barbot S, Peng D, Masuti S, Dauwels J, Hsu YJ, Lambert V, Nanjundiah P, Wei S, Lindsey E, Feng L, Shibazaki B (2017) Imaging the distribution of transient viscosity after the 2016 Mw 7.1 Kumamoto earthquake. Science 356:163–167. https://doi.org/10.1126/science.aal3422

    Article  Google Scholar

  45. Nakagawa K, Yu ZQ, Berndtsson R, Kagabu M (2019) Analysis of earthquake-induced groundwater level change using self-organizing maps. Environ Earth Sci 78:455. https://doi.org/10.1007/s12665-019-8473-z

    Article  Google Scholar

  46. National Institute of Advanced Industrial Science and Technology (AIST)—Geological Survey of Japan (GSJ) (2003). Geological map of Japan 1:1000000, 3rd edition, 2nd CD-ROM version. (in Japanese)

  47. National Institute of Advanced Industrial Science and Technology (AIST)—Geological Survey of Japan (GSJ) (2014) Water Environment Map “Kumamoto area”. (in Japanese)

  48. Osmanoglu B, Dixon TH, Wdowinski S, Cabral-Cano E, Jiang Y (2010) Mexico city subsidence observed with persistent scatterer InSAR. Int J Appl Earth Obs Geoinf 13(1):1–12. https://doi.org/10.1016/j.jag.2010.05.009

    Article  Google Scholar

  49. Ozawa T, Fujita E, Ueda H (2016) Crustal deformation associated with the 2016 Kumamoto earthquake and its effect on the magma system of Aso volcano. Earth Planets Space 68(1):186. https://doi.org/10.1186/s40623-016-0563-5

    Article  Google Scholar

  50. Politz FF, Kobayashi T, Yarai H, Shibazaki B, Matsumoto T (2017) Viscoelastic lower crust and mantle relaxation following the 14–16 April 2016, Kumamoto, Japan, earthquake sequence. Geophys Res Lett 44:8795–8803. https://doi.org/10.1002/2017gl074783

    Article  Google Scholar

  51. Quigley MC, Bastin S, Bdadley BA (2013) Recurrent liquefaction in Christchurch, New Zealand, during the Canterbury earthquake sequence. Geology 41(4):419–422. https://doi.org/10.1130/g33944

    Article  Google Scholar

  52. Riley FS (1969) Analysis of borehole extensometer data from central California. In: Tison LK (ed) Land subsidence, vol. 2, Int. Assoc. Sci. Hydrol. Publ., 89:423–431

  53. Rojstaczer S, Wolf S (1992) Permeability changes associated with large earthquakes: an example from Loma Prieta, California. Geology 20:211–214. https://doi.org/10.1130/0091-7613(1992)020%3c0211:pcawle%3e2.3.co;2

    Article  Google Scholar

  54. Sato T, Sakai R, Furuya K, Kodama T (2000) Coseismic spring flow changes associated with the 1995 Kobe earthquake. Geophys Res Lett 27:1219–1222. https://doi.org/10.1130/0091-7613(1992)020

    Article  Google Scholar

  55. Schmidt DA, Bürgmann R (2003) Time-dependent land uplift and subsidence in the Santa Clara valley, California, from a large interferometric synthetic aperture radar data set. J Geophys Res 108(B9):2416. https://doi.org/10.1029/2002jb002267

    Article  Google Scholar

  56. Sibson RH, Rowland JV (2003) Stress, fluid pressure and structural permeability in seismogenic crust, North island, New Zealand. Geophys J Int 154(2):584–594. https://doi.org/10.1046/j.1365-246x.2003.01965.x

    Article  Google Scholar

  57. Toda S, Kaneda H, Okada S, Ishimura D, Mildon ZK (2016) Slip-partitioned surface ruptures for the Mw 7.0 16 April 2016 Kumamoto, Japan, earthquake. Earth Planets Space 68(1):188. https://doi.org/10.1186/s40623-016-0560-8

    Article  Google Scholar

  58. Tokunaga T (1999) Estimating permeability change and specific yield from earthquake-induced hydrological changes: an example from Kobe earthquake. J Jpn Soc Eng Geol 40:99–106. https://doi.org/10.5110/jjseg.40.99(in Japanese with English abstract)

    Article  Google Scholar

  59. Wakamatsu K, Senna S, Ozawa K (2017) Liquefaction and its characteristics during the 2016 Kumamoto earthquake. J Seismol Soc Jpn 17(4):81–100 (in Japanese with English abstract)

    Google Scholar

  60. Wang CY, Wang CH, Kuo CY (2004) Temporal change in groundwater level following the 1999 (Mw = 7.5) Chi-Chi earthquake, Taiwan. Geofluids 4:210–220. https://doi.org/10.1111/j.1468-8123.2004.00082.x

    Article  Google Scholar

  61. Wegmüller U, Werner CL (1997) GAMMA SAR processor and interferometry software. In: Proc. 3rd ERS Symposium 1687–1692

  62. Wegmüller U, Werner C, Strozzi T, Wiesmann A, Frey O, Santoro M (2016) Sentinel-1 support in the GAMMA software. Procedia Comput Sci 100:1305–1312. https://doi.org/10.1016/j.procs.2016.09.246

    Article  Google Scholar

  63. Werner C, Wegmüller U, Strozzi T, Wiesmann A (2003) Interferometric point target analysis for deformation mapping. Paper presented in IGARSS 2003 4362–4364, Toulouse, France, 21–25 July. https://doi.org/10.1109/igarss.2003.1295516

  64. Wessel P, Smith WHF, Scharoo R, Luis J, Wobbe F (2013) Generic mapping tools: improved version released. EOS Trans Am Geophys Union 94:409–410. https://doi.org/10.1002/2013eo450001

    Article  Google Scholar

Download references

Acknowledgements

The ALOS/PALSAR and ALOS-2/PALSAR-2 level 1.1 images used in this study were obtained through cooperative research with the Japan Aerospace Exploration Agency (JAXA), the PALSAR Interferometry Consortium to Study our Evolving Land Surface (PIXEL), and the Earthquake Research Institute of the University of Tokyo. A part of the ALOS-2/PALSAR-2 images used in this study were provided as part of the 2nd research announcement of the earth observations by JAXA. The groundwater level data used in this study were measured by several public institutions and corrected by the working group of the Japan Association of Groundwater Hydrology. Parts of the figures were created using Generic Mapping Tools (Wessel et al. 2013). We also express our appreciation to an editor and two anonymous reviewers for their insightful comments.

Funding

This study was supported in part by the Japan Society for the Promotion of Science (JSPS) KAKENHI (Grant Nos. 17K14724 and 20K15219) and the Japan Construction Information Center Foundation (JACIC) (Grant No. 2019-2).

Author information

Affiliations

Authors

Contributions

KI analyzed the SAR images and modeled the seasonal and the transient displacement. KI, TT, and WL interpreted the estimated surface displacement. MK and JS analyzed the groundwater level data. KI produced the initial draft of the manuscript, which was improved by TT, WL, MK, and JS. All authors discussed the research issues and results. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Kazuya Ishitsuka.

Ethics declarations

Competing interests

The authors declare that there is no conflict of interest regarding the publication of this paper.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1.

Additional figures and tables.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ishitsuka, K., Tsuji, T., Lin, W. et al. Seasonal and transient surface displacements in the Kumamoto area, Japan, associated with the 2016 Kumamoto earthquake: implications for seismic-induced groundwater level change. Earth Planets Space 72, 144 (2020). https://doi.org/10.1186/s40623-020-01275-2

Download citation

Keywords

  • Post-seismic displacement
  • Groundwater
  • Persistent scatterer interferometry
  • The 2016 Kumamoto earthquake sequence
  • PALSAR-2
  • PALSAR
  • Sentinel-1
