Reductive dissolution of biogenic magnetite

Abstract

Reductive dissolution of magnetite is known to occur below the Fe-redox boundary in sediments. In this study, detailed processes associated with biogenic magnetite dissolution are documented. A sediment core from the Japan Sea was used for this purpose, in which reductive dissolution of magnetic minerals is known to start at depths of about 1.15 m and is mostly complete within a depth interval of about 0.35 m. Using first-order reversal curve diagrams, preferential dissolution of biogenic magnetite within this interval is estimated from the observation that a narrow peak that extends along the coercivity axis (central ridge), which is indicative of biogenic magnetite, diminishes downcore. Transmission electron microscopy is used to demonstrate that the sediments contain three magnetofossil morpho-types: octahedra, hexagonal prisms, and bullet-shaped forms. Within the reductive dissolution zone, partially etched crystals are commonly observed. With progressive dissolution, the proportion of bullet-shaped magnetofossils decreases, whereas hexagonal prisms become more dominant. This observation can be explained by the differences in resistance to dissolution among crystal planes of magnetite and the differences in surface area to volume ratios. Magnetofossil morphology may reflect the preference of magnetotactic bacterial lineages for inhabiting specific chemical environments in sediments. However, it could also reflect alteration of the original morphological compositions during reductive diagenesis, which should be considered when using magnetofossil morphology as a paleoenvironmental proxy.

Introduction

It is important to understand magnetic mineral diagenesis after deposition of sediments to constrain interpretation of paleomagnetic records and of paleoenvironments using rock-magnetic proxies (e.g., Roberts 2015). Associated with organic matter degradation, reduction from Fe³⁺ to Fe²⁺ begins after sequential progression of aerobic respiration, nitrate reduction, and manganese reduction. Below the Fe-redox boundary, where iron reduction starts, magnetic mineral dissolution may occur. The depth of the Fe-redox boundary in a sediment column varies from zero to tens of meters or more below the seafloor depending on various factors, including organic-carbon influx and bottom-water oxygen content. Reductive dissolution of magnetic minerals has been reported widely from various sediments (e.g., Karlin and Levi 1983; Canfield and Berner 1987; Yamazaki et al. 2003; Rowan et al. 2009; Korff et al. 2016). As reduction continues, sediments undergo sulfidic diagenesis and iron sulfide minerals like greigite and pyrite grow within the sediments (Rowan et al. 2009; Roberts 2015).

It is now recognized widely that biogenic magnetite is a major constituent of magnetic mineral assemblages in marine sediments that have not undergone reductive diagenesis (Roberts et al. 2011, 2012, 2013; Yamazaki and Ikehara 2012; Yamazaki and Shimono 2013). Biogenic magnetite may, thus, play an important role in sedimentary remanent magnetization acquisition (Kirschvink 1982; Ouyang et al. 2014; Chen et al. 2017). In addition, magnetofossil morphology may be a proxy for past sediment chemical conditions (Hesse 1994; Yamazaki and Kawahata 1998; Chang et al. 2018; Yamazaki et al. 2019). Biogenic magnetite undergoes reductive dissolution like magnetic minerals of other origins, and biogenic magnetite is inferred to be lost earlier than other magnetite types because of its finer grain sizes (Karlin 1990). Reductive dissolution of biogenic magnetite should influence paleomagnetic and paleoenvironmental interpretation, but the details of the dissolution processes have not been reported so far.

The purpose of this study is to document dissolution processes of biogenic magnetite during reductive diagenesis based on first-order reversal curve (FORC) diagrams and transmission electron microscope (TEM) observations. We discuss differences in resistance to reductive diagenesis depending on magnetofossil morphology.

Material

Sediment core GH98-1232 from the northern part of the Japan Sea at 44° 48.09′ N, 139° 41.97′ E was used for this study (Fig. 1). The water depth of the coring site is 838 m, and the present-day Fe-redox boundary occurs a few centimeters below the sediment–water interface, which is recognized from a brown-to-gray change in sediment color. A rock-magnetic study by Yamazaki et al. (2003) revealed that reductive dissolution of magnetic minerals starts at depths of about 1.15 m in this core and is mostly completed within an interval of about 0.35 m (Fig. 2, Additional file 1: Table S1). Magnetic concentration-dependent parameters decrease rapidly downcore within this interval with the anhysteretic remanent magnetization (ARM) decreasing first, followed by the saturation isothermal remanent magnetization (SIRM), and then the low-field magnetic susceptibility. Average magnetic grain size estimated from the ratio of ARM susceptibility (k_ARM) to SIRM rapidly increases downcore from 1.18 to 1.35 m, which indicates that finer magnetic grains are lost before larger grains. Average magnetic grain size then decreases a little between 1.35 and 1.6 m. Based on S-ratio and low-temperature measurements, magnetite dominates the magnetic mineral assemblage of surface sediments to the depth at which dissolution initiates, and the relative proportion of high-coercivity minerals (e.g., hematite) increases with depth as magnetite dissolves preferentially in this interval (Yamazaki et al. 2003).

Fig. 1

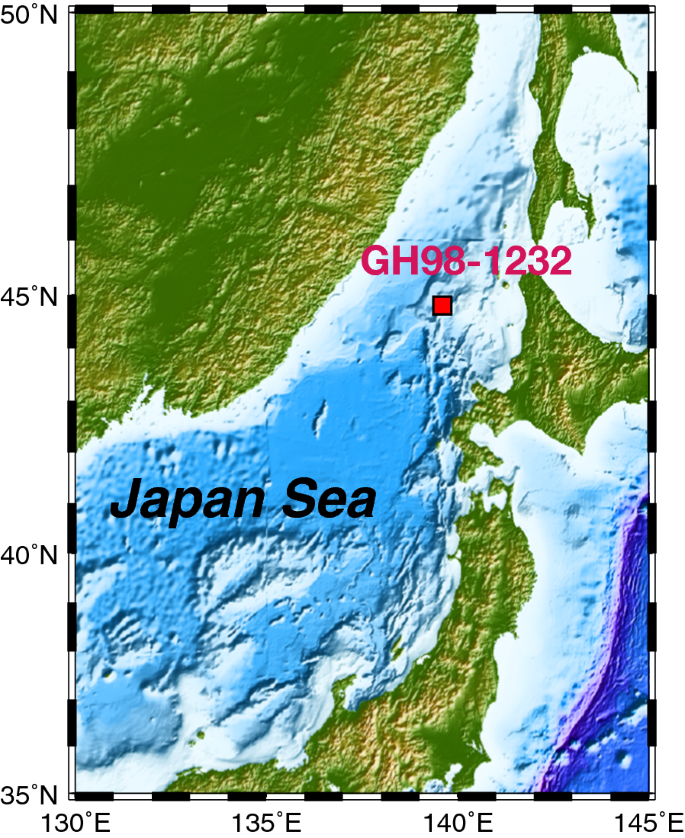

Location of the studied core in the Japan Sea

Fig. 2

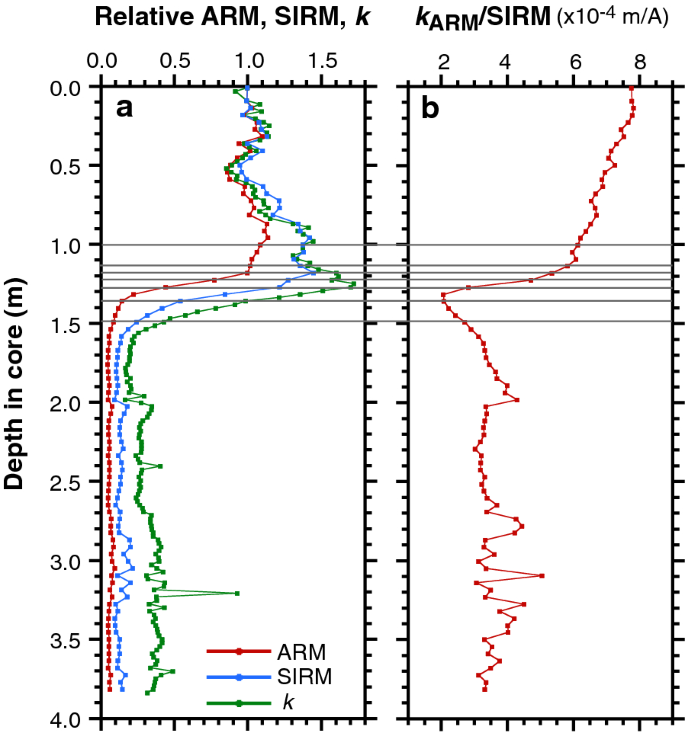

Variations of magnetic-mineral concentration and grain size with depth in core GH98-1232. a Relative variations of anhysteretic remanent magnetization (ARM) (red), saturation isothermal remanent magnetization (SIRM) (green), and magnetic susceptibility (k) (blue) after Yamazaki et al. (2003). b The ratio of ARM susceptibility (k_ARM) to SIRM. Smaller ratios are interpreted to be indicative of larger average magnetic grain sizes. Thin horizontal lines indicate depth horizons for samples for which datasets are shown in Figs. 3 and 4

FORC diagrams

FORC diagrams are used widely in rock magnetism to elucidate the distribution of coercivities (H_c) and magnetostatic interactions (H_u) within magnetic particle assemblages, from which information on domain states, grain sizes and shapes, mineralogy, and spatial distribution of constituents can be obtained (e.g., Pike et al. 1999; Roberts et al. 2000, 2014). FORC diagrams are particularly useful for detecting biogenic magnetite in sediments; intact chains of biogenic magnetite behave as isolated non-interacting single-domain (SD) grains, which produce a characteristic narrow peak that extends along the coercivity axis at zero interaction field on a FORC diagram, called the “central ridge” (Egli et al. 2010; Li et al. 2012; Roberts et al. 2012; Yamazaki and Ikehara 2012; Chang et al. 2014).

FORC measurements were conducted at ~ 5 cm stratigraphic intervals within and near the magnetic-mineral dissolution zone using an alternating-gradient magnetometer (Princeton Measurements Corporation MicroMag 2900) at the Geological Survey of Japan (GSJ), National Institute of Advanced Industrial Science and Technology (AIST). A total of 167 FORCs were measured for each sample, with H_c between 0 and 100 mT, H_u between − 50 and 50 mT, and field spacing of approximately 1.3 mT. The maximum applied field was 1.0 T, and the averaging time for each measurement point was 200 ms. The FORCinel software (Harrison and Feinberg 2008, version 3.05 in 2019) was used to produce diagrams, and the VARIFORC algorithm of Egli (2013) was used to smooth the data with smoothing parameters of S_c0 = 4, S_b0 = 3, and S_c1 = S_b1 = 7.

FORC diagrams above the magnetic-mineral dissolution zone (1.00 and 1.14 m) have a sharp central ridge feature along the H_u = 0 axis, which indicates the contribution of non-interacting SD grains (Fig. 3a). This SD signature is interpreted to be of biogenic origin. The FORC diagrams also have broad vertical spread with an elliptical peak at a coercivity of 10–15 mT, and outer contours diverge from the H_u = 0 line toward the H_u axis. This component is considered to be carried by a mixture of interacting SD, vortex state, and multi-domain (MD) grains (Roberts et al. 2000, 2014, 2017; Lascu et al. 2018), which are interpreted to be of terrigenous origin. Collapsed chains of biogenic magnetite may also be included in this component (Li et al. 2012; Harrison and Lascu 2014). The contribution of the central ridge component decreases with depth within the dissolution zone, which is evident as a diminishing extracted central ridge signal with depth (Fig. 3b) and a downcore decrease of the proportion of the central ridge component to the broader, more vertically spread components on profiles along H_c = 40 mT (Fig. 3c) and along H_u = 0 (Fig. 3d). These observations indicate selective dissolution of biogenic magnetite. Coercivity distributions of both the biogenic and terrigenous components shift to lower values along with progressive reductive diagenesis (Fig. 3d); the peak coercivity of the biogenic component, initially ~ 45 mT, decreases to ~ 25 mT. This is probably due to decreasing grain volumes with dissolution. For the sample from the base of the dissolution zone at 1.49 m, vertical spread becomes somewhat narrower and the proportion of the central ridge component increases a little compared with the sample from 1.36 m.

Fig. 3

First-order reversal curve (FORC) results for samples from seven depth horizons shown in Fig. 2, indicating a FORC diagrams, b the central ridge component extracted from the respective FORC diagrams (Egli et al. 2010), c profiles of magnetostatic-interaction field (H_u) distributions at a coercivity (H_c) of 40 mT: the central-ridge component (blue), the background component with vertical spread (black), and the total of the two (red), and d profiles of coercivity distributions at zero interaction field (H_u = 0): the central-ridge component (red) and the total (black)

TEM observations

TEM observations provide a direct way to investigate biogenic magnetite in sediments, which is complementary to FORC measurements. Biogenic magnetite can be identified directly in TEM images from its characteristic morphologies (bullet shaped, hexagonal prisms, and octahedra) and uniform SD grain sizes (Bazylinski et al. 1994; Kopp and Kirschvink 2008). Particle morphology is not known from FORC distributions, although particle elongation may be estimated from coercivity distributions (Egli 2004; Yamazaki and Ikehara 2012; Usui et al. 2017; Chang et al. 2018; Yamazaki et al. 2020). The limitation of TEM observations is, on the other hand, that a particle population under a TEM may not faithfully represent the original magnetic-mineral assemblage in a sample because magnetic-mineral extraction is required for observations. In this context, FORC distributions provide more quantitative information.

Magnetic minerals extracted from seven depths in the core, 1.00, 1.14, 1.18, 1.23, 1.27, 1.36, and 1.49 m, were observed using a TEM. To extract magnetic minerals, sediments were first dispersed in distilled water with sodium hexametaphosphate using an ultrasonic bath, and magnetic minerals were then collected by circulating the dispersed sediments through a high magnetic field gradient. The magnetic extracts were dispersed in ethanol, and a small drop of the suspension was subsequently dried on a carbon-coated copper grid. A TEM (JEOL JEM-1400) at the Atmosphere and Ocean Research Institute, The University of Tokyo, operated at 120 kV, was used for the observations.

From morphologies seen in TEM images, magnetofossils were classified into three groups: bullet shaped, elongated, and equant (Fig. 4), although some ambiguity remains in estimating three-dimensional morphology from an image projected onto a plane. The elongated group consists of hexagonal prisms and elongated octahedra. The equant group is represented by cubo-octahedra, although short hexagonal prisms with length/width ratios close to one are also included in this group. Bullet-shaped magnetofossils can be identified easily from their morphology. Relative abundances of biogenic magnetite from each morphological group and their grain-size distributions were obtained by counting several hundred grains in about 100 images for each sample. It should be noted that this kind of analysis remains semi-quantitative.

Fig. 4

Transmission electron microscope (TEM) images of magnetic extracts from seven depth horizons shown in Fig. 2. Samples from a 1.00 m, b, c 1.14 m, d–f 1.18 m, g, h 1.23 m, i, j 1.27 m, k 1.36 m, and l 1.49 m. Magnetofossils in (a, b) have sharp crystal edges, whereas those of (c) through (j) are partially etched. Grains in k, l are likely silicates with magnetic inclusions. Scale bar: 50 nm (c–e, g, i, j), 100 nm (a, b, f, h), and 200 nm (k, l)

The sediments before reductive dissolution starts contain abundant magnetofossils of all three morpho-types (Fig. 4a), as reflected by the wide coercivity distribution along the central ridge of the FORC diagrams, from about 20 to 80 mT (Fig. 3). At the beginning of the reductive dissolution interval at 1.14 m, most of the biogenic magnetite has sharp crystal edges with little sign of dissolution in TEM images (Fig. 4b). However, some bullet-shaped magnetofossils have wavy crystal surfaces (Fig. 4c, arrows), which are indicative of partial dissolution. For the samples from 1.18 and 1.23 m, at which dissolution is underway (Fig. 2), many crystals are partially etched (Fig. 4d–g). It is often observed that the caps of hexagonal prisms, which are constituted by {111} faces (Mann 1985; Meldrum et al. 1993), are etched, while side faces are almost intact (Fig. 4d, f). The wavy corrosion also affects bullet-shaped magnetofossils (Fig. 4e). Corroded equant magnetofossils have rounded shapes in general, which suggests that octahedral edges are corroded (Fig. 4g, h). In the lower part of the dissolution interval at 1.27 m, the characteristic morphologies of biogenic magnetite are almost lost (Fig. 4i, j), although some particles are inferred to be of biogenic origin from their sizes within or near the SD range. At 1.36 and 1.49 m near the base of the dissolution interval, no magnetofossils remain. Some grains that resemble silicate-hosted magnetic inclusions (Chang et al. 2016a; Zhang et al. 2018) are observed (Fig. 4k, l).

Length/width distributions for each magnetofossil morpho-type determined in TEM images at four depths above and within the dissolution zone are shown in Fig. 5 and Additional file 2: Table S2. Bullet-shaped magnetofossils are lost before others, and magnetofossils of the elongated group are most resistant to reductive dissolution. The proportion of the bullet-shaped group is ~ 40% before dissolution starts, and decreases to 14% at 1.23 m. On the other hand, the proportion of the elongated group increases from 38 to 63%.

Fig. 5

Morphology and grain size of magnetofossils with respect to magnetic domain state. Samples are depths of a 1.00 m, b 1.14 m, c 1.18 m, and d 1.23 m in the core. Magnetofossils are categorized into the three groups based on their morphology: bullet shaped (red), elongated (blue), and equant (green). Bold dashed curves indicate the maximum single-domain (SD) region for chains of magnetite particles with magnetostatic interactions after Muxworthy and Williams (2009)

Discussion

FORC diagrams and TEM observations presented here reveal that biogenic magnetite dissolves preferentially in the interval between ~ 1.15 and 1.5 m in core GH98-1232, where magnetic-mineral dissolution was previously estimated from a rapid magnetic-mineral concentration decrease with an average grain-size increase. Biogenic magnetite generally has smaller grain size and hence higher surface area to volume ratio than terrigenous magnetic minerals, which is presumably responsible for the earlier dissolution of biogenic magnetite. Magnetite may also occur as inclusions within silicate minerals (Figs. 4k, l) and be protected from reductive dissolution (Chang et al. 2016a; Zhang et al. 2018; Usui et al. 2018). This contributes to the relative loss and preferential dissolution of biogenic magnetite with respect to detrital magnetite. In low-temperature measurements, the temperature of the maximum gradient in thermal decay curves of SIRM imparted at 6 K increases downcore from ~ 106 to 118 K at about 1.5 m (Fig. 11 of Yamazaki et al. (2003)), which is close to the depth of magnetofossil disappearance. This indicates the usefulness of the method proposed by Chang et al. (2016b) for discriminating biogenic magnetite from the detrital counterpart using the Verwey transition temperature. The narrower vertical spread in the FORC diagram and the remaining central-ridge component at the base of the dissolution zone at 1.49 m (Fig. 3) may be explained by the presence of silicate-hosted magnetic mineral inclusions, which are resistant to dissolution. The inclusions would have smaller magnetostatic interactions compared with aggregated bare terrigenous magnetites, which were mostly dissolved by this depth. The rebound of the average magnetic grain size observed in k_ARM/SIRM (Fig. 2b) may also be explained by the silicate-hosted magnetic inclusions; their grain sizes could be smaller than unprotected terrigenous magnetites.

This study reveals that resistance to reductive dissolution depends on magnetofossil morphology. With progressive reductive dissolution, the proportion of bullet-shaped magnetofossils decreases, whereas that of elongated magnetofossils, which mainly consist of hexagonal prisms, increases. Because of the short dissolution interval of ~ 0.35 m, changes of biogenic magnetite production associated with variations in sediment environments should be small. This is supported by the similarity of the proportions of individual morpho-types above (1.00 m) and at the top (1.14 m) of the dissolution interval (Fig. 5).

The morphological dependence of magnetofossil dissolution can be explained by differences of crystallographic planes in magnetite and their different susceptibility to reductive dissolution. Allen et al. (1988) reported that among the (111), (110), and (100) planes of magnetite, the dissolution rate in a reducing agent is the largest for the (111) plane and smallest for the (110) plane, and that the difference in dissolution rate is more than a factor of two. The difference was inferred to be due to the fact that the (111) plane has a close-packed array of oxygen atoms, which would be easily protonated under acidic conditions (Allen et al. 1988). Hexagonal prisms elongate in the [111] direction with {111} caps and {110} side faces (Mann 1985; Meldrum et al. 1993). The observations of TEM images from this study that {111} caps of hexagonal prisms are often etched, whereas {110} side faces are almost intact are consistent with the (111) plane being the most vulnerable to dissolution. Equant octahedral magnetofossils have eight {111} faces that are truncated by apexes with {100} faces (Mann et al. 1984). For bullet-shaped magnetite, a variety of crystal growth has been reported, but the development of {110} faces is limited (Mann et al. 1987; Lefèvre et al. 2011; Li et al. 2015, 2020). Thus, hexagonal prismatic magnetofossils have larger proportions of resistant {110} faces in their surfaces compared to equant octahedral and bullet-shaped magnetofossils. Furthermore, bullet-shaped magnetofossils have smaller axial ratios and have higher surface area to volume ratios than other morpho-types, which presumably leads also to the proportionally larger decrease of bullet-shaped magnetofossils with progressive reductive dissolution.

The morphology of magnetite produced by magnetotactic bacteria (MTB) is considered to be specific to phylum- or class-level lineages (Bazylinski et al. 1994; Kopp and Kirschvink 2008; Lefèvre and Bazylinski 2013), or may be even species specific (Li et al. 2020). Recent magnetic and microbiological studies have suggested that bullet-shaped magnetofossils are preferentially found in the oxic–anoxic transition zone (OATZ), which are produced by MTB of Nitrospirae lineage, whereas hexagonal prismatic and octahedral magnetofossils are distributed both above and within the OATZ positions (Yamazaki et al. 2019; Nakano et al. submitted to Environmental Microbiology Reports). Thus, magnetofossil morphology in sediments can be used as a proxy for past OATZ (Usui et al. 2017; Yamazaki et al. 2020). However, when studying reducing sedimentary environments (Rodelli et al. 2019), care is needed because of possible alteration of the original magnetofossil morphological compositions in the dissolution process.

Conclusions

Biogenic magnetite particles with hexagonal prismatic, bullet-shaped, and octahedral morpho-types are abundant in the studied sediment core from the Japan Sea. When they undergo reductive diagenesis, bullet-shaped magnetofossils dissolve earlier than the other two morpho-types, whereas hexagonal prisms are the most resistant to dissolution. This observation can be explained by differences in resistance among crystal planes against reductive dissolution and differences in surface area to volume ratios. When magnetofossil morphology is used as a proxy for paleoenvironments, care is needed to ensure that interpretation is not biased by possible alteration of original magnetofossil morphological compositions during reductive diagenesis.
