Assessment of HY-2A GM data by deriving the gravity field and bathymetry over the Gulf of Guinea

Abstract

Nine cycles of Haiyang-2A (HY-2A) IGDR (Interim Geophysical Data Record) data are used to derive gravity products over the Gulf of Guinea (15° W–5° E, 4° S–4° N). Firstly, the sea surface heights (SSH) and vertical deflections are derived and their precisions are evaluated. The comparison results show that the east component of vertical deflections has a poorer precision than the north component by 4.15 times. A theoretical proof was given to explain this point according to the error propagation rule. Gravity anomalies are then derived from vertical deflections using the remove–restore method. The precision of the derived HY-2A gravity anomalies is evaluated with SIO, DTU13, EGM2008, EIGEN-6C4 products. The results showed that the differences between HY-2A-derived gravity anomalies and these models have mean values larger than 0.5 mGal and std values around 7.0–7.3 mGal. In order to improve the precision, an improved new version of gravity anomalies was derived by assigning a small weight to the east component of vertical deflections, since the precision of which is poorer than the north component. Comparison with the initial model showed that the precision of the new gravity anomalies is an improvement of the initial model by approximately two times. When compared with EGM2008, EIGEN-6C4, SIOv28 and DTU13, the mean values of the differences are close to zero and standard deviation of the differences are around 2.7–3.0 mGal. The improved gravity anomalies were used to invert the bathymetry of the region using the gravity-geologic method. The modeled bathymetry compared well with a previous bathymetric study by the authors that used DTU13 gravity anomalies. It also performed well against ETOPO1 and SRTM15+V2; with difference means, standard deviations and correlation coefficients of 26.67 m, 183.09 m, 0.9562; and 12.26 m, 174.55 m, 0.9590, respectively. This implies that SSH data from HY-2A are geophysically reliable; and hence, can be incorporated with SSH data from other satellite altimeters.

Introduction

Marine gravity anomaly is one of the most fundamental quantities in the geo-related industries and for research in the Earth sciences. It is the anomaly in gravity over the oceans, measured on the geoid—the equipotential surface—and the theoretical gravity measured on a reference ellipsoid. It has various applications, such as: being a tool for exploration of energy resources (Becker et al. 2009), for modeling marine geoid (Soltanpour et al. 2007; Chander and Majumdar, 2016), a medium for enhancing bathymetric models (Hsiao et al 2016; Sandwell et al. 2001; Hwang and Chang 2014), as well as for delineating continent–ocean boundaries (Sandwell et al. 2013). The traditional means of acquiring marine gravity anomaly data is by using gravimeters onboard ships; however, this process is very expensive and is mostly restricted to regional maritime boundaries.

Satellite altimetry, a space technology developed by the National Aeronautics and Space Administration (NASA) about four decades ago, is a remote sensing technique of measuring heights of the Earth’s surface (preferably the ocean surfaces) relative to an ellipsoidal surface. Due to the variety of its applications, various countries and economic blocs have launched their respective altimeter satellites, which has since 1991 provided the geoscience community with significant volume of sea surface height (SSH) data. The SSH data are then used to recover marine gravity anomalies (Andersen and Knudsen 1998; Hwang 1998; Soltanpour et al. 2007; Dadzie et al. 2008; Sandwell et al. 2014, 2019; Zhang et al. 2016). Comparatively, satellite altimetry is less time-consuming; and has been proven by Sandwell et al. (2013) to yield comparable marine gravity models to existing governmental shipborne gravity data.

This increase in data quantity and quality has definitely led to researchers to model the marine gravity anomalies of their respective countries’ maritime waters. For instance: Soltanpour et al. (2007) modeled the gravity field of Norway’s maritime waters using data from ERS-1, ERS-2 and ENVISAT satellites. Dadzie et al. (2008) used combined data to derive a 2.5′ × 2.5′ gravity field of the south China and Philippine seas. Recently, Zhang et al. (2016) and Zhu et al. (2020) have separately constructed 1′ × 1′ marine gravity models over the south China seas.

Even though the proliferation of satellite altimetry data has led to improved regional marine gravity models of various countries and economic blocs, this is yet to be realized for the waters of West Africa. The marine waters of West Africa are not extensively studied, even though the region harbors a significant 5% of the world’s oil reserves (Osaretin 2011; Weszkanys 2011). It is well known that ocean surface activities have submarine origins caused by crustal mass variations which are best revealed by gravity anomalies. This, coupled with the region’s varying seafloor topography as shown by Annan and Wan (2020), makes it imperative to investigate the marine gravity field in the region. The present study does this investigation by taking advantage of SSH data from the geodetic phase of China’s Haiyang-2A (HY-2A) satellite.

The HY-2A satellite, launched in 2011, is the first Chinese altimetry satellite designed for ocean dynamic and environmental parameters detection. In order to achieve its goal, the main payloads of HY-2A include a dual-frequency radar altimeter for providing sea surface height observations, a microwave scatterometer for marine wind detection, a scanning microwave radiometer for detecting sea surface temperature, wind speed, water vapor; a calibration microwave radiometer for wet tropospheric path delay correction (Jiang et al. 2018), and a Global Positioning System (GPS) receiver for satellite orbit determination. The satellite has an inclination of 99.34° and operates with a 14-day repeat period for physical oceanography studies and then with a 168-repeat period for geodetic studies (referred here as HY-2A/GM) since March 2016 (Jiang et al. 2018). Though there have been studies which discussed the reliability of data from its geodetic mission, these studies are very few and were conducted in the South China Sea. For instance: Zhang et al (2020) modeled a 1′ × 1′ marine gravity field of the South China Sea by incorporating HY-2A geodetic mission data with other satellites’ data. Another study over the South China Sea by Zhu et al (2019) concluded that marine gravity derived from HY-2A is comparable to those derived from similar Ku-band satellite altimeters. Zhu et al (2020) also developed SCSGA (South China Sea Gravity Anomaly) version 1.0, which incorporated HY-2A/GM with other satellites.

There are two main methods of inverting marine gravity anomalies from SSH data. The first method computes gravity anomalies through geoidal heights by using the inverse Stokes’ formula solved by Fast Fourier Transform (FFT) or least squares collocation (LSC). This method has the weakness of being sensitive to cross-track gradients from sea surface variability resulting in the diminishing of distance between parallel tracks (Olgiati et al. 1995; Andersen and Knudsen 1998). The second approach converts deflections of the vertical derived from geoid gradients, to gravity anomalies via the inverse Vening Meinesz formula or Sandwell’s method (Sandwell and Smith, 1997). This approach is also solvable by FFT or LSC.

The present study assesses the reliability and geophysical capabilities of SSH data from HY-2A/GM over the Gulf of Guinea by deriving a marine gravity field for the region. The derived marine gravity field is further used to predict the bathymetry of the region using the gravity-geologic method (GGM). Through this, a regional marine gravity model is derived for the region and the performance of HY-2A/GM is assessed in another environment with significant mass variations apart from the South China Sea, where almost all the regional evaluations of HY-2A performance have been carried out.

Data source and study area

All the available data of HY-2A, provided by National Satellite Ocean Administration Service of China (ftp2.nsoas.org.cn), are used in this research, i.e., 1–9 cycles of IGDR (Interim Geophysical Data Record) data (Yang et al. 2016). The time period is from March 30, 2016 to April 30, 2020. Using geophysical correction constraints compiled in Table 1, the IGDR data are used to compute SSH according to Eq. (1):

$${\text{SSH}} = {\text{orbit}} - {\text{range}} - \sum {{\text{corrections}}} ,$$
(1)
Table 1 Constraints on geophysical corrections (unit: m)

where \(\sum {{\text{corrections}} = \sum {{\text{corrections}}\,{\text{due}}\,{\text{to}}\left( {\begin{array}{*{20}c} \begin{gathered} {\text{dry}}\,{\text{troposphere}}, \hfill \\ {\text{wet}}\,{\text{troposphere}}, \hfill \\ {\text{ionosphere}}, \hfill \\ {\text{sea}}\,{\text{state}}\,{\text{bias}}, \hfill \\ \end{gathered} & \begin{gathered} {\text{solid}}\,{\text{earth}}\,{\text{tide}}, \hfill \\ {\text{pole}}\,{\text{tide}}, \hfill \\ {\text{ocean}}\,{\text{tide}}, \hfill \\ {\text{inverse}}\,{\text{barometric}}\,{\text{effect}} \hfill \\ \end{gathered} \\ \end{array} } \right)} } .\).

A crossover analysis is then performed on the obtained SSH. Figure 1 is a map of study area which covers longitude 15° W to 5° E, and from latitude 4° S to 4° N. The region stretches from the continental shelve of Liberia in West Africa to the central African country of Gabon.

Fig. 1
figure1

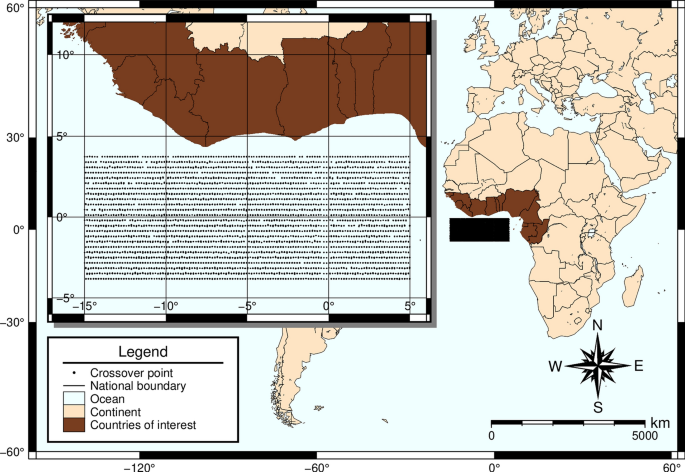

Map of the study area

Method

Computation of vertical deflections

According to Sandwell and Smith (1997), vertical deflections can be derived from the following equations. Firstly, using the observations of altimetry satellite, the geoid difference values along the satellite orbit can be obtained by Eq. (2):

$$\left\{ \begin{aligned} \Delta N_{{\text{a}}} = \frac{\partial N}{{\partial \theta }}\Delta \theta_{{\text{a}}} + \frac{\partial N}{{\partial \lambda }}\Delta \lambda_{{\text{a}}} \hfill \\ \Delta N_{{\text{d}}} = \frac{\partial N}{{\partial \theta }}\Delta \theta_{{\text{d}}} + \frac{\partial N}{{\partial \lambda }}\Delta \lambda_{{\text{d}}} \hfill \\ \end{aligned} \right.,$$

where \(\Delta \theta_{{\text{a}}}\) and \(\Delta \theta_{{\text{d}}}\) mean the co-latitude variation values along the ascending and descending orbits, respectively; \(\Delta \lambda_{{\text{a}}}\) and \(\Delta \lambda_{{\text{d}}}\) mean the longitude variation values along the ascending and descending orbits, respectively; \(N\) denotes geoid heights; \(\Delta N_{{\text{a}}}\) and \(\Delta N_{{\text{d}}}\) mean the geoid height variation values along the ascending and descending orbits. As long as \(\frac{\partial N}{{\partial \theta }}\) are \(\frac{\partial N}{{\partial \lambda }}\) obtained, the two components of vertical deflections can be easily derived as,

$$\left\{ \begin{array}{*{20}l} \varepsilon = \frac{\partial N}{{r\partial \theta }} \hfill \\ \eta = - \frac{\partial N}{{r\sin \theta \partial \lambda }} \hfill \\ \end{array} \right.,$$

where \(r\) is the radius of the Earth; \(\varepsilon\) and \(\eta\) denote the north and east components of the vertical deflections. In order to analyze the accuracy of vertical defection, Eq. (4) is derived from Eq. (2):

$$\left\{ \begin{aligned} \frac{\partial N}{{\partial \theta }} = \frac{{\Delta N_{{\text{a}}} \Delta \lambda_{{\text{d}}} { - }\Delta N_{{\text{d}}} \Delta \lambda_{{\text{a}}} }}{{\Delta \theta_{{\text{a}}} \Delta \lambda_{{\text{d}}} { - }\Delta \theta_{{\text{d}}} \Delta \lambda_{{\text{a}}} }} \hfill \\ \frac{\partial N}{{\partial \lambda }} = \frac{{\Delta N_{{\text{a}}} \Delta \theta_{{\text{d}}} { - }\Delta N_{{\text{d}}} \Delta \theta_{{\text{a}}} }}{{\Delta \lambda_{{\text{a}}} \Delta \theta_{{\text{d}}} { - }\Delta \lambda_{{\text{d}}} \Delta \theta_{{\text{a}}} }} \hfill \\ \end{aligned} \right..$$

By setting \(\Delta \theta_{{\text{a}}} \approx { - }\Delta \theta_{{\text{d}}} = \Delta \theta\), \(\Delta \lambda_{{\text{a}}} \approx \Delta \lambda_{{\text{d}}} = \Delta \lambda\), this formula can be simplified as:

$$\left\{ \begin{aligned} \frac{\partial N}{{\partial \theta }} = \frac{{\Delta N_{{\text{a}}} { - }\Delta N_{{\text{d}}} }}{2\Delta \theta } \hfill \\ \frac{\partial N}{{\partial \lambda }} = \frac{{\Delta N_{{\text{a}}} { - }\Delta N_{{\text{d}}} }}{{{ - }\;{2}\Delta \lambda }} \hfill \\ \end{aligned} \right..$$

Inversion of gravity anomaly

Residual gravity anomaly, denoted as \(\delta g\), can be derived from residual vertical deflections (denoted as \(\Delta \varepsilon\), \(\Delta \eta\)) (Sandwell and Smith 1997) through Eq. (6):

$$\delta g = {\text{ifft}}\left( {\frac{i}{\left| K \right|}\overline{\gamma } \left[ {u\Delta \varepsilon \left( K \right) + v\Delta \eta \left( K \right)} \right]} \right),$$
(6)

where

$$\left\{ \begin{array}{*{20}l} K = \left( {u,v} \right) \hfill \\ u = \frac{1}{{\lambda_{x} }} \hfill \\ v = \frac{1}{{\lambda_{y} }} \hfill \\ \left| K \right| = \sqrt {u^{2} + v^{2} } \hfill \\ \end{array} \right.,$$
(7)

\({\text{ifft}}\) is the inverse FFT, and \(\overline{\gamma }\) is the mean value of gravity. Gravity anomaly can then be recovered through the remove–restore method as summarized in Fig. 2, where the former 360 degrees and orders of EGM2008 are selected as the reference model. Indeed, some other recent gravity field models, such as XGM2019e (Zingerle et al. 2020), can also be used as the reference model for deriving gravity anomalies and may help improve the accuracy of the derived gravity anomalies, because more data are used for deriving these models than EGM2008 (Zingerle et al. 2020). However, this contribution would not originate from the HY-2A observations. Since the topic of this study is to assess the performance of HY-2A, we select EGM2008 as the reference model which is commonly used in most altimetry-derived gravity anomalies (Andersen et al. 2010; Sandwell et al. 2013, 2019; Andersen and Knudsen 2019; Zhu et al. 2019, 2020; Zhang et al. 2020).

Fig. 2
figure2

Flowchart of the remove–restore procedure

Results and analysis

Sea surface heights

The crossover adjusted SSH used in this study is visualized as Fig. 3, with Fig. 3a being a 2D view. The mean sea height observed is 18.266 m with a standard deviation of ± 1.539 m. The HY-2A-derived sea surface topography of the Gulf of Guinea is compared with DTU18 and CLS15. DTU18 is a mean sea surface model from the Technical University of Denmark, while CLS2015 is a collaborative product from Collecte Localisation Satellites (CLS) and the Centre National d’Etudes Spatiales (CNES) of France. The statistics of this comparison is summarized in Table 2. It can be seen that the sea surface topography along the north-western continental shelves (comprising Liberia, Sierra Leone, Ivory Coast and Ghana) is relatively higher than the sea surface topography of eastern continental shelves which comprises Nigeria, Cameroon, Equatorial Guinea and Gabon. Figure 3b is a perspective view that clearly shows a narrow valley along latitude 2° N. The crossover differences are shown in Fig. 4. The mean crossover error and its corresponding standard deviation are − 0.0095 m and ± 0.1007 m, respectively. According to Table 2, the mean and std values of the differences between HY-2A and DTU18, CLS15 are about − 0.88 m and ± 0.13 m, respectively. The index of mean differences is not close to zero which indicates there are systematic differences between HY-2A and DTU18 and CLS15. This means a calibration process is needed in order to obtain highly accurate HY-2A sea surface heights. The tide gauge and the GPS buoy are the most commonly used methodologies for the calibration (Chen et al. 2019). However, currently no data from the tide gauge and the GPS buoy are available in the study area. Instead, the calibration processing would be conducted in the near future. On the other hand, although systematic differences exist, the influence would be reduced during the vertical deflection computation since difference computation is conducted along the orbits. This is also the reason why we derive gravity anomalies by vertical deflections instead of by geoid height directly.

Fig. 3
figure3

SSH derived from HY-2A: a 2D view; b 3D view

Table 2 Summary statistics of sea surface over the study area (unit: m)
Fig. 4
figure4

Self-crossover errors of SSH

Vertical deflections

The computed north (ε) and east (η) components of deflection of the vertical are shown as Fig. 5a and b, respectively. In order to validate the vertical deflection components, they are compared with simulated components from EGM2008 and EIGEN-6C4 global geopotential models. The simulation was done using 2160 degree/order of the global geopotential models. Figure 6 shows boxplots of the vertical deflection components. The boxplots analyze the dispersion of points (red crosses) around the median point (central red line). The blue box engulfing the median represents the lower and upper quartiles of each dataset; while the black lines are the whisker lines, beyond which are outlying points (red pluses) of each dataset. Similar results are seen for the north component in all three models, as shown in Fig. 6a. The statistics of the east component does not favor HY-2A, as seen in Fig. 6b. It is obvious that the accuracy of the north component is better than the accuracy of the east component. Table 3 summarizes the result of this comparison.

Fig. 5
figure5

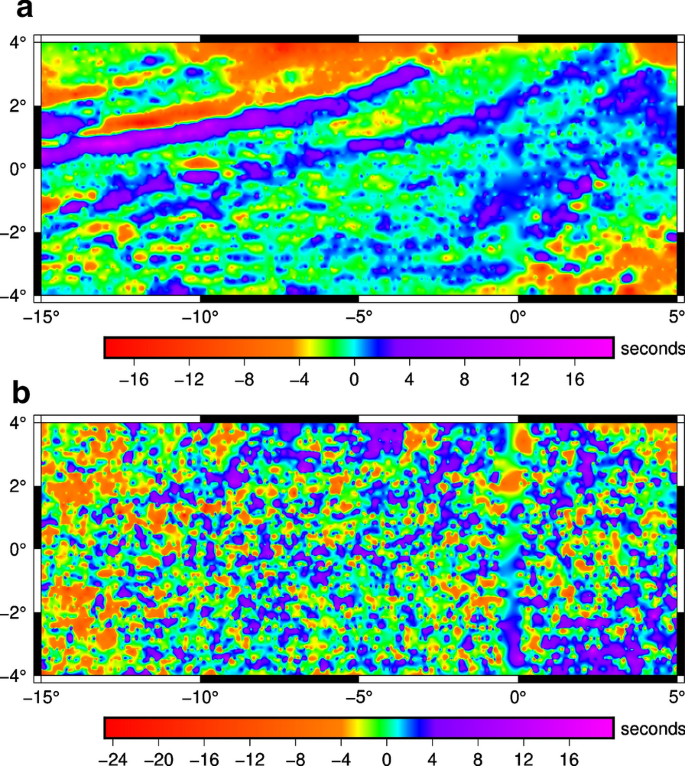

Vertical deflections derived from HY-2A data: a North component; b East component

Fig. 6
figure6

Dispersions of a North and b East components of vertical deflection

Table 3 Summary statistics of components of vertical deflection (unit: seconds)

Indeed, the phenomenon that the accuracy of the east components of the vertical deflections is lower than that of the north component has once been pointed out by other researches, such as Sandwell and Smith (1997) and Zhang (2017). Here, the explanation for that is given via error propagation analysis. Assuming the precisions of the height observations along the ascending orbit and descending orbit are both δh, precisions of vertical deflections can be derived according to error propagation rule from Eqs. (3) and (5), i.e.,

$$\left\{ \begin{array}{*{20}l} \delta_{\varepsilon }^{2} = \left( {\frac{1}{r\Delta \theta }} \right)^{2} \delta_{{\text{h}}}^{2} \hfill \\ \delta_{\eta }^{2} = \left( {\frac{1}{r\sin \theta \Delta \lambda }} \right)^{2} \delta_{{\text{h}}}^{2} \hfill \\ \end{array} \right..$$
(8)

And thus,

$$\frac{{\delta_{\eta }^{2} }}{{\delta_{\varepsilon }^{2} }}{ = }\frac{{\Delta \theta^{2} }}{{\Delta \lambda_{{}}^{2} \sin \theta^{2} }}.$$
(9)

Based on angular velocities of the satellite and the Earth rotation, denoted as \(\omega_{{\text{s}}}\) and \(\omega_{{{\text{Earth}}}}\), respectively, we have,

$$\left\{ \begin{array}{*{20}l} \Delta \theta \;{ = }\;\omega_{{\text{s}}} \cos \left( {90 - I} \right)\Delta t \hfill \\ \Delta \lambda \;{ = }\;\left( {\omega_{{{\text{Earth}}}}^{{}} - \frac{{\omega_{{\text{s}}} \sin \left( {90 - I} \right)}}{\sin \theta }} \right)\Delta t \hfill \\ \end{array} \right.,$$
(10)

where \(I\) is the orbital inclination, and \(\Delta t\) is the time interval. Hence, Eq. (11) can be obtained:

$$k = \frac{{\delta_{\eta }^{{}} }}{{\delta_{\varepsilon }^{{}} }}{ = }\left| {\frac{{\omega_{{\text{s}}} \cos \left( {90 - I} \right)}}{{\omega_{{{\text{Earth}}}}^{{}} \sin \theta - \omega_{{\text{s}}} \sin \left( {90 - I} \right)}}} \right|.$$
(11)

Figure 7 shows the values of \(k\) with different values of \(\theta\) in our study area. According to this figure, the error of the east component of vertical deflections is larger than the north component by nearly 4.2 times in the study area. This conclusion is consistent with the results of Table 3, in which the error of the east component of vertical deflections is larger than the north component by 4.15 times.

Fig. 7
figure7

Values of \(k\)

Gravity anomalies

Finally, the gravity anomalies are derived according to the procedure described in Fig. 2. The distribution of the HY-2A-derived gravity anomalies is shown in Fig. 8, and the differences between them and other models are given in Table 4. These gravity anomaly models include: DTU13, SIOv28 (Scripps Institution of Oceanography version 28) and simulated gravity anomalies from EGM2008 and EIGEN-6C4.

Fig. 8
figure8

Initial gravity anomaly derived from HY-2A

Table 4 Comparing initial HY-2A-derived gravity anomalies with other models (unit: mGal)

According to Table 4, the differences between HY-2A-derived gravity anomalies and SIO, DTU13, EGM2008 and EIGEN-6C4 are close to each other. This means SIO, DTU13, EGM2008 and EIGEN-6C4 have closely the same accuracy. The magnitudes of the minimum and maximum differences all exceed 25 mGal. The mean values of the differences all exceed 0.6 mGal. This means some systematic errors exist in the derived gravity anomalies. The standard deviations of the differences are all smaller than 7.5 mGal which arrives at the marine detection objectives of HY-2A, i.e., 10 mGal.

According to Small and Sandwell (1992) and Hwang and Parsons (1996), the residual gravity anomaly can also be derived by either \(\Delta \varepsilon\) or \(\Delta \eta\), i.e.,

$$\left\{ \begin{array}{*{20}l} \delta g_{\varepsilon } = {\text{ifft}}\left( {\frac{{i\overline{\gamma } }}{\left| K \right|}u\Delta \varepsilon \left( K \right)} \right) \hfill \\ \delta g_{\eta } = {\text{ifft}}\left( {\frac{{i\overline{\gamma } }}{\left| K \right|}v\Delta \eta \left( K \right)} \right) \hfill \\ \end{array} \right..$$
(12)

Considering the different precisions of \(\varepsilon\) or \(\eta\), Hwang and Parsons (1996) proposed an optimal method to combine them to improve the accuracy of the final gravity anomaly products. According to the analysis of the deflections of the vertical, the east component of vertical deflections has a poorer accuracy compared to the north component. The method, similar to Hwang and Parsons (1996) was experimented here to further improve the accuracy of the derived gravity anomalies, i.e., by giving different weights to \(\delta g_{\varepsilon }\) and \(\delta g_{\eta }\) to obtain a new version of gravity anomalies. In order to find the optimal weights, the following extreme problem was constructed:

$$\left\{ \begin{array}{*{20}l} \delta g = a\delta g_{\varepsilon } + b\delta g_{\eta } \hfill \\ a + b = 1 \hfill \\ f_{\min } = \min \left( {a^{2} \delta_{{\delta_{{g_{\varepsilon } }} }}^{2} + b^{2} \delta_{{\delta_{{g_{\eta } }} }}^{2} + 2ab\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2} } \right) \hfill \\ \end{array} \right.,$$
(13)

where \(a\) and \(b\) are the combination parameters to derive the new gravity anomalies; \(\delta_{{\delta_{{g_{\varepsilon } }} }}^{2}\), \(\delta_{{\delta_{{g_{\eta } }} }}^{2}\) are the error variances of \(\delta g_{\varepsilon }\) and \(\delta g_{\eta }\); \(\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2}\) is the co-variances between \(\delta g_{\varepsilon }\) and \(\delta g_{\eta }\). If \(\delta_{{\delta_{{g_{\varepsilon } }} }}^{2}\), \(\delta_{{\delta_{{g_{\eta } }} }}^{2}\) and \(\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2}\) are known, the solution of Eq. (13) is:

$$\left\{ \begin{array}{*{20}l} a = \frac{{\delta_{{\delta_{{g_{\eta } }} }}^{2} - \delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2} }}{{\delta_{{\delta_{{g_{\varepsilon } }} }}^{2} + \delta_{{\delta_{{g_{\eta } }} }}^{2} - 2\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2} }} \hfill \\ b = \frac{{\delta_{{\delta_{{g_{\varepsilon } }} }}^{2} - \delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2} }}{{\delta_{{\delta_{{g_{\varepsilon } }} }}^{2} + \delta_{{\delta_{{g_{\eta } }} }}^{2} - 2\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2} }} \hfill \\ \end{array} \right..$$
(14)

It needs to be noted that the utmost concern is the relative values of \(\delta_{{\delta_{{g_{\varepsilon } }} }}^{2}\), \(\delta_{{\delta_{{g_{\eta } }} }}^{2}\) and \(\delta_{{\delta_{{g_{\varepsilon } }} \delta_{{g_{\eta } }} }}^{2}\), but not their absolute values. Since their values are mainly decided by the accuracy of HY-2A vertical deflections, \(a\) and \(b\) are derived using variance and co-variances of vertical deflections instead, i.e.,

$$\left\{ \begin{array}{*{20}l} a = \frac{{\delta_{\Delta \eta }^{2} - \delta_{\Delta \varepsilon \Delta \eta }^{2} }}{{\delta_{\Delta \varepsilon }^{2} + \delta_{\Delta \eta }^{2} - 2\delta_{\Delta \varepsilon \Delta \eta }^{2} }} \hfill \\ b = \frac{{\delta_{\Delta \varepsilon }^{2} - \delta_{\Delta \varepsilon \Delta \eta }^{2} }}{{\delta_{\Delta \varepsilon }^{2} + \delta_{\Delta \eta }^{2} - 2\delta_{\Delta \varepsilon \Delta \eta }^{2} }} \hfill \\ \end{array} \right..$$
(15)

\(\delta_{\Delta \varepsilon }^{2}\),\(\delta_{\Delta \eta }^{2}\) are the error variances of \(\Delta \varepsilon\) and \(\Delta \eta\); \(\delta_{\Delta \varepsilon \Delta \eta }^{2}\) is the co-variances between \(\Delta \varepsilon\) and \(\Delta \eta\). In order to derive \(a\) and \(b\), the vertical deflections from 2160 degrees and orders of EGM2008 and EIGEN-6C4 are seen as the true values and thus \(\delta_{\Delta \varepsilon }^{2}\), \(\delta_{\Delta \eta }^{2}\) can be derived by the results of Table 3. The statistics about the variances and co-variances are given in Table 5.

Table 5 Statistics about the variances and co-variances of vertical deflection errors

Hence, \(a\) = 0.947 and \(b\) = 0.053. Using these parameters, an improved new version of gravity anomalies (Fig. 9) in the study area are derived. The comparison between the new and initial HY-2A gravity anomalies is summarized in Table 6. It also shows that the new version has a greater range of gravity anomalies. The difference between the new gravity anomalies and DTU13, SIOv28, EGM2008 and EIGEN-6C4 gravity anomalies are given in Table 7. Figure 10 is a perspective view of these differences. The similarities in the constituents of Fig. 10 validate the statistics contained in Table 7. Further analysis of these comparisons revealed that on average, a significant 83–95% of the HY-2A data yielded gravity anomaly differences around 2.0–3.5 mGal as seen in Fig. 11. Obviously, these differences are mainly caused by the SSH observation noises. With more observations, the differences would be reduced further in future.

Fig. 9
figure9

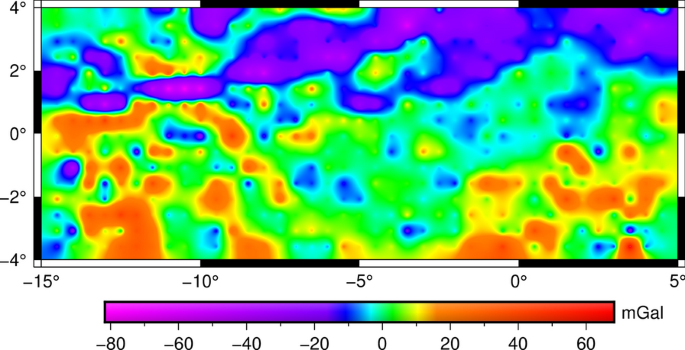

Improved HY-2A-derived gravity anomaly

Table 6 Comparing the initial and improved versions of HY-2A-derived gravity anomalies (unit: mGal)
Table 7 Comparing new version of HY-2A-derived gravity anomalies with other models (unit: mGal)
Fig. 10
figure10

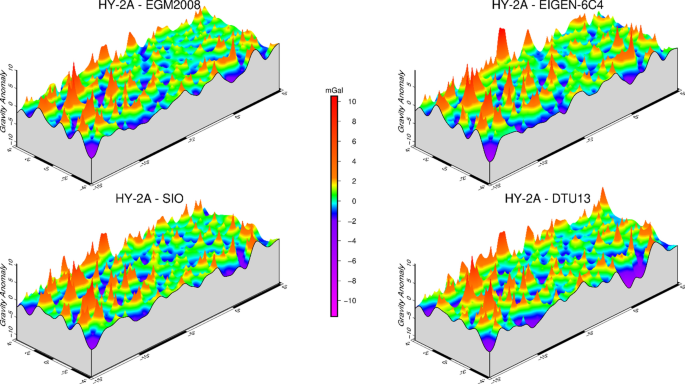

Differences between HY-2A-derived gravity anomaly and the other models

Fig. 11
figure11

Percentage evaluation of HY-2A data in gravity anomaly accuracy achievement

Definitely, compared with Table 4, the accuracy of the new version of gravity anomalies is improved largely. According to Table 7, the mean differences are close to zero which indicate no systematic errors exist as the results of Table 4. In terms of std, the accuracy is also improved largely, by about more than two times. All these improvements indicate that the main errors of the initial HY-2A-derived gravity anomalies are created by the east component of vertical deflections. These results also prove that the accuracy of the HY-2A-derived gravity anomalies can be improved by assigning a smaller weight to the east component of vertical deflections and a bigger weight to the north component.

Bathymetry inversion

To further assess the reliability and geophysical capabilities of the HY-2A-derived gravity anomalies, they are used to invert the bathymetry of the study region using gravity-geologic method (GGM). The GGM was developed by Ibrahim and Hinze (Ibrahim and Hinze 1972) to map out elevations hidden by glacial drift deposits. It is a technique that combines satellite altimeter-derived gravity anomalies with sparse shipborne depths to predict reliable models of bathymetry (Hsiao et al. 2016; Xiang et al 2017; Kim and Yun 2018; Yeu et al. 2018). GGM uses the difference between the density of seawater (1030 kg/m3) and density of ocean bedrock (2700 kg/m3) to establish a relationship between the short-wavelength of gravity anomaly and depth (Xiang et al 2017). Recent studies such as: Kim et al. (2011), Xiang et al. (2017) and Yeu et al. (2018) have shown that though the use of a density contrast of 1670 kg/m3 yields good results, the use of the so-called iterative density contrast produces better results. The iterative density contrast chooses an optimal density contrast among a range of values that minimizes the root mean square error of the observed shipborne depth and its corresponding predicted bathymetry. It must be appreciated that this density contrast has more analytical meaning. This is because such optimal density contrast is usually greater than the physically meaningful value of 1670 kg/m3. Therefore, the present study applies the iterative density contrast in the GGM implementation.

Shipborne depths were obtained from the National Geophysical Data Center of the National Oceanic and Atmospheric Administration. They were randomly divided into 75% control and 25% test points. The gravity anomalies, \(\Delta g(i)\), were decomposed into long-wavelength, \(\Delta g_{{\text{l}}} (i)\), and short-wavelength, \(\Delta g_{{\text{s}}} (i)\). This is given by:

$$\Delta g(i) = \Delta g_{s} (i) + \Delta g_{l} (i).$$
(16)

At each control point i, the short-wavelength gravity anomaly, \(\Delta g_{{\text{s}}} (i)\), is related to depth, \(E(i)\), by:

$$\Delta g_{{\text{s}}} (i) = 2\pi G\Delta \rho \left( {E(i) - D} \right),$$
(17)

where Δρ is density contrast; G = 6.67×10−11 N m2/kg2, is the gravitational constant; and D is the deepest depth.

The long-wavelength gravity anomalies, \(\Delta g_{{\text{l}}} (i)\), at control point i, were obtained by subtracting the short-wavelength gravity anomalies, \(\Delta g_{{\text{s}}} (i)\), from the observed gravity anomalies, \(\Delta g(i)\). These \(\Delta g_{{\text{l}}} (i)\) values were then gridded to interpolate for the long-wavelength gravity anomalies, \(\Delta g_{{\text{l}}} (j)\), of uncharted points, j. The values of \(\Delta g_{{\text{l}}} (j)\) were subsequently removed from their corresponding \(\Delta g(j)\) to obtain short-wavelength gravity anomalies, \(\Delta g_{{\text{s}}} (j)\), of uncharted points. By making E(j) the subject of Eq. (17), the elevations of uncharted points, j, above the datum are computed by:

$$E(j) = \frac{{\Delta g_{{\text{s}}} (j)}}{2\pi G\Delta \rho } + D.$$
(18)

Using an optimal density contrast of 7500 kg/m3, the bathymetry (see Fig. 12) of the study area was finally predicted using the HY-2A-derived gravity anomalies. The predicted bathymetry was assessed by comparing it with the ETOPO1 (Earth Topographical Database 1) (Amante and Eakins 2009) and SRTM15 + V2.0 (Shuttle Radar Topography Mission 15_Plus Version 2) models (Tozer et al. 2019). The summary statistics of the three bathymetric models is presented in Table 8. Table 9 shows the performance of the HY-2A-derived bathymetric model expressed in terms of mean and standard deviation of its differences between and shipborne depths, ETOPO1 and SRTM15+V2; as well as its correlation coefficients with these reference models at 0.9568, 0.9562 and 0.9590, respectively. Figure 13 presents a pictorial view of the reference models, as well as their differences with respect to the HY-2A-derived bathymetry. According to this figure, the HY-2A-derived bathymetry differs slightly from ship-borne-depths, SRTM15 + V2, and ETOPO1 except in south-eastern corner of the study area.

Fig. 12
figure12

Bathymetry of study area predicted by HY-2A-derived gravity anomaly

Table 8 Statistics of bathymetry models from HY-2A, ETOPO1 and SRTM15 + (unit: m)
Table 9 Performance of HY-2A-derived bathymetry
Fig. 13
figure13

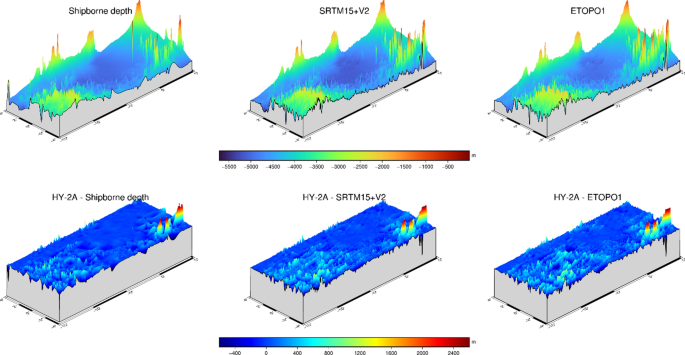

HY-2A-derived bathymetry as compared with other bathymetric models

Discussion

The HY-2A-derived bathymetry generally compares well with a previous study of the study area by the authors (Annan and Wan 2020) that used DTU13 gravity anomalies. In Annan and Wan (2020), the overall standard deviation of differences between the inverted model and ship depths was 184.74 m, whereas it is 185.69 m in this study. The bathymetric model in this study also generally depicts the rugged topography at the southern corners of the study area, as well as the fairly gentle terrain at the center. The observed large discrepancies in bathymetric differences (see Fig. 13) at the south-eastern part of the study region is as a result of the sparseness of shipborne depth coupled with shallow waters. Similar observations were made in Annan and Wan (2020). Therefore, it can be concluded that the accuracy of the study region’s bathymetry through GGM could be improved if shipborne depths in this subregion can be densified.

The objective of the present study is to assess the HY-2A observations in the study area; therefore, data from other satellites were not considered. However, it is expected that the inclusion of SSH data from other modern satellites such as SARAL/AltiKa and the interferometric altimeter satellite Cryosat-2, can improve the results of marine gravity fields recoveries and/or bathymetry estimations. These two satellites have good spatial resolution. Also, it is expected that future SSH data from the SWOT (Surface Water and Ocean Topography) mission to be launched in September 2021, will contribute significantly to this topic. In addition, the reference model can be replaced by a more recent model such as XGM2019e (Zingerle et al. 2020), which may also improve the accuracy of the derived gravity anomalies in the study area.

In summary, the reliability of HY-2A has been assessed in another environment with significant mass variations apart from the South China Sea, where almost all its previous regional evaluations have been carried out. This indicates that the SSH data from HY-2A are reliable and are geophysically capable. Therefore, they can be incorporated with data from other satellite altimeters for geodetic, geophysical and oceanographic applications.

Conclusion

The performance of HY-2A/GM observations for deriving marine gravity field products in the Gulf of Guinea was studied in this paper. The results show that the HY-2A-derived gravity anomalies have a precision higher than 7.5 mGal in the study area. The numerical analysis shows that the east component of the vertical deflections has a poorer precision than the north component, which has also been proven by theoretical analysis according to the error propagation rule. By giving a smaller weight to the east component of the vertical deflections, the precision of the newly derived gravity anomalies was improved largely. This means it is key to improve the precision of east component of vertical deflections in order to obtain highly accurate marine gravity field products. One possible method is to combine other altimetry satellite observations, especially those observations provided by altimetry satellites with non-polar orbits, such as Topex. A bathymetric model predicted by the improved HY-2A-derived gravity anomalies yielded comparable results with a previous study (Annan and Wan 2020) of the region by the authors. The modeled bathymetry also compared well with ETOPO1 (with resolution of 1 arc-minute) and SRTM15+V2 (with resolution of 15 arc-seconds). This proves that SSH data from HY-2A are capable for geodetic, geophysical and oceanographic applications. Indeed, the Chinese government is designing and developing HY-2A follow-on satellites (Pang and Wang 2016). HY-2B has been launched in 2018 and HY-2C would be launched in the near future. HY-2C is designed with an inclined-orbit, which would be very beneficial to improve the precisions of the east component of vertical deflections as well as the gravity anomalies products.

Availability of data and materials

The data used in this study is available from the National Satellite Ocean Administration Service of China (ftp2.nsoas.org.cn).

Abbreviations

HY-2A:

Haiyang-2A

GM:

Geodetic mission

IGDR:

Interim geophysical data record

SIO:

Scripps Institution of Oceanography

DTU13, 18:

Technical University of Denmark 2013, 2018

EGM2008:

Earth Geopotential Model 2008

EIGEN-6C4:

Fourth release of European Improved Gravity model of the Earth by New techniques 6C

NASA:

National Aeronautics and Space Administration

SSH:

Sea surface height

ERS:

European Space Agency

ENVISAT:

Environmental Satellite

FFT:

Fast Fourier transform

LSC:

Least squares collocation

GMT:

Generic Mapping Tools

CLS15:

Collecte Localisation Satellites 2015

CNES:

Centre National d’Etudes Spatiales

AVISO:

Archiving, Validation and Interpretation of Satellite Oceanographic data

GGM:

Gravity-geologic method

ETOPO1:

Earth Topographical Database 1

SRTM15 + V2:

Shuttle Radar Topography Mission 15_Plus Version 2

XGM2019e:

Experimental Geopotential Model 2019

Cryosat-2:

Cryosphere Satellite 2

SARAL/AltiKa:

Satellite with ARgos and ALtiKa

SWOT:

Surface Water and Ocean Topography
