Magnetotelluric study in the Los Lagos Region (Chile) to investigate volcano-tectonic processes in the Southern Andes

Abstract

To analyze the process of subduction of the Nazca and South American plates in the area of the Southern Andes, and its relationship with the tectonic and volcanic regime of the place, magnetotelluric measurements were made through a transversal profile of the Chilean continental margin. The data-processing stage included the analysis of dimensional parameters, which as first results showed a three-dimensional environment for periods less than 1 s and two-dimensional for periods greater than 10 s. In addition, through the geomagnetic transfer function (tipper), the presence of structural electrical anisotropy was identified in the data. After the dimensional analysis, a deep electrical resistivity image was obtained by inverting a 2D and a 3D model. Surface conductive anomalies were obtained beneath the central depression related to the early dehydration of the slab and the serpentinization process of the mantle that coincides in location with a discontinuity in the electrical resistivity of a regional body that we identified as the Nazca plate. A shallow conductive body was located around the Calbuco volcano and was correlated with a magmatic chamber or reservoir which in turn appears to be connected to the Liquiñe Ofqui fault system and the Andean Transverse Fault system. In addition to the serpentinization process, when the oceanic crust reaches a depth of 80–100 km, the ascending fluids produced by the dehydration and phase changes of the minerals present in the oceanic plate produce basaltic melts in the wedge of the subcontinental mantle that give rise to an eclogitization process and this explains a large conductivity anomaly present beneath the main mountain range.

Key points

Electrical resistivity images of the Los Lagos region, Chile

Two- and three-dimensional models of the electrical resistivity structure of the Southern Andes subduction zone (41° S).

Processes of generation, Migration and accumulation of fluids

Serpentinization and eclogitization processes

Introduction

The Southern Andes constitute an orogenic mountain belt developed on an active continental margin, with subduction between the Nazca and South American tectonic plates as the main cause of the magmatic and tectonic processes in the area (Hervé, 1994). The area of study is framed in the Southern Volcanic Zone of the Andes (SVZ), in this zone, the complex interaction between tectonic and magmatic processes is evident in the architecture and geochemical signature of the volcanic systems, and Cembrano and Lara (2009) relate this spatial distribution of plutons, dikes and volcanic cones, with the lithospheric stress generated by the Liquiñe Ofqui Fault System. The Liquiñe Ofqui Fault Zone (LOFZ) corresponds to a strike-slip system of approximately 1200 km long, where most of the seismic activity of the continental crust in the South of Chile is concentrated (Lavenu and Cembrano 1999). The South of Chile represents an attractive place for a volcano-tectonic study; since it is located in an orogenic margin, with an important system of faults dominating the terrestrial crust and active volcanic centers, it appears as a favorable environment for the development of natural disasters related to volcanoes and earthquakes. Arc volcanism and seismic activity are closely related to the distribution of fluids from physical–chemical processes that occur in subduction (Saffer 2017).

The process of generating magmatic fluids that migrate through the continental crust depends on some physical parameters of the oceanic plate such as its composition, thickness, angle of inclination with which it subducts and its degree of hydration, which in turn depends on the age and porosity of the plate (Völker and Stipp 2015). As the oceanic slab subduces the continental slab, due to the increase of temperature and pressure conditions, mineralogical changes are generated as a result of the dehydration of the Nazca plate. One of the most significant processes corresponds to the serpentinization process of the mantle, in which a metamorphic alteration is produced that affects the ultramafic rocks of the upper mantle. In seismic studies, the serpentinization zones can be observed as zones where the seismic velocity of S wave, and the density of the mantle is drastically reduced (Hyndman and Peacock 2003). Serpentinization can also generate seismic reflectivity, increased magnetization and a reduction in mechanical strength (Hyndman and Peacock 2003). The other important process corresponds to eclogitization that occurs at greater depths where the temperature and pressure conditions are extreme, and in this process, all the remaining water present in the slab forming minerals is released (Leech 2001). The serpentined and eclogitized zones are clearly shown in seismic tomography and in resistivity images measured with the magnetotelluric method. Examples of works where these processes can be identified by geophysical methods are those of Reynard et al. (2011), Navarro (2019), Evans et al. (2014), Wannamaker et al. (2014), Kapinos et al. (2016) and Cordell et al. (2019).

As the oceanic slab dehydrates, through processes of serpentinization and eclogitization, fluids are generated that rise and fall the melting point of the continental crustal rock, forming magmatic fluids that migrate and control the creation of volcanoes in the arcs. These fluids can be transported through fault networks to the surface of the Earth (Clemens and Mawer 1992). Therefore, the stress of the lithosphere influences the spatial distribution of plutons, dikes and volcanic cones.

The magnetotelluric method is useful in the study of the above processes because the conductivity of the crust and mantle rocks increases with the presence of fluids, and it is one of the few geophysical methods that can penetrate to the depths at which these processes are generated.

The present work seeks to study the lithospheric structure of electrical resistivity in the Southern Andes to analyze processes of generation, migration and accumulation of fluids related to the subduction between the Nazca and South American plates in the Chilean continental margin.

Geological setting

The oceanic Nazca plate subducts beneath the continental South American plate along the Andes with a convergence rate of 6.6.cm/year and an azimuth of 77° (Angermann et al. 1999). In the SVZ between 33° S and 46° S latitude, the Nazca plate has a subduction angle of ~ 20° (Tassara and Echaurren 2012). The stretch of oceanic plate between 40.5° S and 41.5° S and around 75° W longitude has an age of 18.3 Ma (Völker and Stipp 2015).

In Fig. 1, from West to East, the main morphological units are given by The Coastal Range, south of 38° S, which is an accretionary prism metamorphosed in late Paleozoic to late Triassic times (Thomson and Hervé 2002). The eastern flank of the Coastal Range is characterized by intrusive and volcanic-sedimentary Mesozoic sequences suggesting the eastward migration of the volcanic arc from the Jurassic; the Depression or Central Valley, which constitutes the extension of the Osorno–Llanquihue basin towards the south, contains approximately 4 km of Cenozoic marine volcanic rocks and glacial sediments in a 70-km-wide depocenter parallel to the trench (Jordan et al. 2001); the eastern limit of the Central Depression is defined by the North Patagonian Batholith and the current Volcanic Arc in the Northern Patagonian Andes, where the Liquiñe Ofqui Fault Zone is developed. The Batholith is 2000-km long and 200-km wide, it is composed mainly of plutonic alkaline rocks from the Middle Jurassic to the Miocene (Glodny et al. 2008). The main water bodies in the study area are the lakes of glacial origin, Llanquihue Lake (L.LL) and Todos Los Santos Lake (L.TS). In the Southern Volcanic Zone of the Andes, cortical level structures related to the LOFZ and Andean Transverse Fault (ATF) have been identified. The oblique convergence between the Nazca and South American plates is the main cause of the transpressive dextral deformation in the Earth’s crust, dominated by the sliding of regional to local scale by these fracture networks.

Fig. 1
figure1

Study area and location of magnetotelluric sites. From west to east, the main morpho-structures that dominate the study zone correspond to the coastal mountain range that dates from the Paleozoic and is made up of the western series, the central valley made up mainly of marine Cenozoic volcanic rocks and glacial sediments and the Andes mountain range where the Nor-Patagonic batholith is developed, made up mainly of alkaline plutonic rocks from the Middle Jurassic to the Miocene. Dotted line represents the trace of the Liquiñe Ofqui fault zone LOFZ, L.LL Lake Llanquihue, LTS Lake Todos los Santos and VO, VC, VP, VT represents the Osorno, Calbuco, Puntiagudo and Tronador volcanoes respectively

The LOFZ is associated with a dextral transpressive regime from at least the last 6 Ma (Cembrano et al. 1996), extending from the town of Liquiñe (39° S) to the isthmus of Ofqui (47° S). At latitude 41° S, Lavenu and Cembrano (1999) attribute a vertical geometry to the fault line, generated by dextral transpressive systems of N–S orientation, with double vergence, developed between the Neogene and Quaternary. The LOFZ is characterized by sub-vertical NNE-oriented master segments and transtensional faults from ENE to EW (Cembrano and Hervé 1993).

Most, if not all, of the volcanic systems at the top of the LOFZ are monogenetic, suggesting that they were formed by geologically instantaneous events (Cembrano and Lara 2009).

Another important fault system to highlight in the Southern Volcanic Zone corresponds to the Andean Transverse Fault, these include a series of NW oriented faults, probably inherited from a pre-Andean architecture with inverse sinistral kinematics and local reactivation of normal sliding (Radic 2010). It is suggested that the ATF is older, dating from the pre-Andean, or equivalent to the LOFZ (Pankhurst et al. 2006).

Fracture networks or faults in the continental crust have been considered as an efficient route through which fluids are transported to the earth’s surface (Clemens and Mawer 1992). Therefore, the lithospheric stress influences the spatial distribution of plutons, dikes and volcanic cones. However, crustal deformation not only plays an important role in magma migration. More importantly, it can exert fundamental control over magma-differentiation processes which, in turn, can determine the nature and composition of volcanism along continental margins.

The volcanic zone of the Southern Andes is located between 33° S and 46° S. The complex interaction between tectonic and magmatic processes is evidenced by both the architecture and the geochemical signature of the volcanic buildings in this zone. Throughout the SVZ strike, variations in the composition of the products of the volcanoes and in their orientation are evident. The structures of NE–SW orientation and originating mostly from primitive magmas belong to stratovolcanoes and monogenetic cones associated to LOFZ guidelines while stratovolcanoes of WNW orientation and with compositional products from basaltic to rhyolitic rocks are associated to structures of the ATF (Cembrano and Lara 2009). The main factors that explain the variations along the strike in the nature and composition of volcanism are the variation in crust thickness, the source of magma, the lithospheric nature and structure and the existence of a predominant intra-arc fault system (Cembrano and Lara 2009). The thickness of the crust below the volcanic arc is approximately 50 km at latitude 33° S and decreases towards the South, reaching a thickness of 35 km at 46° S (Tassara and Yañez 2003).

One of the most important volcanoes for its activity in the area corresponds to the Calbuco volcano (2003 m.a.s.l.), it is built on a base of Miocene granite and meta-sedimentary mafic igneous rocks of the Upper Paleozoic and, unlike most of the volcanoes of the Southern Andes, it is located west of the main route of the Liquiñe Ofqui Fault Zone, and is not clearly related to or controlled by regional structures. Its documented historical activity includes at least 12 eruptive cycles, 4 of which in the twentieth century included effusive and explosive activity. The highly hydrated magmas that characterize the volcano’s petrology increase its potential to generate explosive eruptions. The main hazards are associated with the volcano, however, there are the evidences of lahars and block and ash flows, mainly directed towards the fans to the Northeast, South and Southeast, in areas with growing population and infrastructure development (Selles and Moreno 2011). In April 2015, the last volcanic eruption of the Calbuco was recorded. According to studies such as Castruccio et al. (2016), the erupted products were mainly basaltic andesites. Another important volcanic structure to mention in our study area corresponds to the Osorno stratovolcano belonging to the Middle Pleistocene (< ca. 200 ka). Together with the La Picada, Puntiagudo and Cordón Cenizos volcanoes, it forms a transversal volcanic chain of N60º E orientation. The eruptions of the central crater, Osorno volcano, have generated basaltic pyroclastic flows and tephras of dacitic composition that date from the Holocene (< 10 ka) and are distributed in a wide sector around the volcano. The historical eruptive activity of the Osorno volcano has been essentially characterized by low explosive episodes among which the fissural eruption of 1835 AD stands out (Moreno et al. 2010).

Other volcanic centers in our study area correspond to the Puntiagudo and Tronador stratovolcanoes. The former stands out for the prominent lava, pyroclastic and laharsic deposits, while the latter for a large glacier on its summit. It is known that glaciers play a critical role in the violent interaction between magma and water, generating explosive reactions (Mella et al. 2005).

Methods

Magnetotelluric data

Magnetotellurics (MT) is an electromagnetic method of geophysical exploration used to deduce the electrical resistivity structure of the Earth at depths ranging from tens of meters to hundreds of kilometers. This method uses a source signal of external origin, natural variations of electric and magnetic fields of the Earth, generated by physical processes such as solar variations and magnetic storms. The spectra of these variations cover periods ranging from 10–3 to 105 [s] and are generated by the interaction between the solar wind, the magnetosphere and the ionosphere of planet Earth (Vozoff 1991).

The MT method is based on the simultaneous measurement of the total electromagnetic field, i.e., the time variation of the magnetic field B(t) and the induced electric field E(t). The electrical properties of the underlying material can be determined from the relationship between the components of the measured variations of electric (E) and magnetic (B) fields, or transfer functions: the horizontal electric (Ex and Ey) and the horizontal magnetic (Bx and By) and vertical (Bz) field components. The transfer functions consist of a complex impedance tensor which relates the measured electric field components to the magnetic field components and a geomagnetic transfer function which is often called a tipper and relates the horizontal magnetic field components to the vertical magnetic field component. In general, the resistivity structure of the earth is three-dimensional obtaining a complex impedance tensor of four components, however, if it is a two-dimensional structure where the resistivity does not vary along the geoelectric strike, the diagonal components of the tensor are null as long as the coordinate system is parallel to the strike direction. In this case, the two surviving tensor components are related to two independent modes, the magnetic transverse (TM) and the electric transverse (TE). Sometimes if the strike preference angle is known, the tensor can be rotated so that the diagonal components are minimized. Generally, the elements of the impedance tensor can be plotted as apparent resistivity and phase as a function of period (reciprocal of frequency), and these graphs can give us an idea of variations in the average resistivity of the medium that has been measured so that short periods are related to shallow depths and long periods to greater depths. Some components of the measured electric fields can be affected by a phenomenon called Static Shift that is a galvanic distortion effect that locally shifts apparent resistivity sounding curves by a scaling factor that is independent of the frequency, keeping the phases unchanged. This effect is caused by charge accumulation at boundaries of shallow conductive heterogeneities, which disturb the regional electric field locally (Tournerie et al. 2007). On the other hand, the geomagnetic transfer function serves to identify lateral resistivity contrasts and can be represented as arrows or induction vectors, under the convention of Wiese (1962) the vectors point in the opposite direction to the conducting body. When making long-period measurements near the ocean, it is expected to observe the so-called shore effect on the induction vectors for long periods. Due to the large resistivity contrast between the ocean and the continent the orientation of the vectors over longer periods should be expected to be in the opposite direction and perpendicular to the shore.

To obtain a lithospheric model of the electrical resistivity structure of the study area, several field campaigns were carried out between December 2018 and April 2019, where 14 long-period and 10 broadband stations were installed along the profile transverse to the coast (Fig. 1). Three types of instruments were used to carry out the measurements, ADU (Analog/Digital Signal Conditioning Unit) with induction coils MFS-07e and electrodes EFP-06, manufactured by Metronix geophysics; NIMS (Narod Intelligent Magnetotelluric Systems) with Triaxial ring-core magnetometer and OSU Pb–PbCl2 gel-type electrodes; and instruments Lemi417 with non-polarized electrodes Lemi-701 and Flux Gate sensor Lemi-424 manufactured by LEMI LLC. All stations were oriented with a geomagnetic coordinate system. The data processing included the application of filters to the obtained time signals to eliminate noise signals where possible, remote reference application in some cases to improve the data quality of the stations that were measuring simultaneously. The signals obtained with ADU stations were processed with the robust process developed by Egbert and Booker (1986), those obtained from NIMS stations were processed with the code developed by Egbert and Livelybrooks (1996) and the signal obtained with Lemi stations were processed with the robust code developed by Egbert (1997).

We proceeded to calculate the strike in period intervals for all stations with the code developed by Smith (1995) to know if there was any preferential direction of the structure and to diagnose a possible two-dimensional space. In Fig. 2, it can be seen that for the range of periods between 10−3 and 100 s, the structure does not have a preferential orientation, evidencing a three-dimensional environment, while for periods greater than 1 s the structure begins to behave two-dimensionally. In Fig. 3, the induction vectors are plotted in a length vs period profile where we can observe characteristic behaviors of areas where we expect to find conductive bodies in the inversion models. The small magnitude of the arrows enclosed by the dotted celestial line and the W–E direction of the arrows enclosed by the purple line suggests a conductive zone towards the west of the Llanquihue Lake, the direction of the vectors enclosed by the pink dotted line could be indicating the presence of a conductive body around the Osorno volcano, while the magnitude of the arrows enclosed by the green dotted line indicates the presence of a body of low resistivity in the Andes mountain range.

Fig. 2
figure2

Geoelectric strike for two period ranges. a The geoelectric strike for sites with periods between 10−3 and 100 s. b The geoelectric strike for sites with periods between 101 and 104 s

Fig. 3
figure3

Induction vectors plotted under the convention of Wiese (1962), the arrows point in the opposite direction of the conductive zone. The vectors enclosed in the yellow box indicate an anisotropic electrical behavior in the crust, the vectors enclosed by the light blue and green zones, because of their magnitude, could indicate data that are within a conductive body and the vectors enclosed in the purple zone indicate a strong conductor to the west area of the profile, the arrows enclosed by the pink line would be related to a conductor in the Osorno volcano

For long periods (> 101 s), the arrows were expected to have a regional behavior in W–E direction due to the coast effect, however, it can be observed in the vectors delimited by the yellow dotted line that have a SW–NE direction. This behavior of the vectors is studied by Brasse et al. (2009) in the Chilean continental margin, between latitudes 38° and 41° S, and they attribute it to the resultant between the effect of the ocean and the presence of a layer with structural electrical anisotropy in the crust. Anisotropy was also identified in some phase curves that escaped their natural quadrant (see Additional files). However, phases out of quadrant can also be explained by strong galvanic distortion, 2D structures with high resistivity contrasts, and 3D conductive bodies generating strong current channeling or a superposition of different effects (Martí 2014).

An electrically anisotropic medium can be, for example, a space influenced by micro-scale hydrated faults that can become a macro-scale structure if these structures have a preferential general orientation. From the above, it can be inferred that one way to mitigate the effect of anisotropy on the data is to work with the periods between 101 and 104 s, since this range has a general preferential strike (Martí 2014).

Magnetotelluric data inversion

We carried out 2D and 3D inversions to obtain a realistic model that is close to the geology of the region. In addition, Martí (2014) recommends testing different inversion software, different models and altering different parameters in the inversions until we obtain models without artifacts resulting from structural electrical anisotropy.

For the two-dimensional inversion, we used the WinGlink software that uses the 2D inversion code from Rodi and Mackie (2001), this algorithm minimizes an objective function, by means of the non-linear conjugate gradient method (NLCG), which penalizes the differences between the data and the model response, to obtain a contrast of resistivities in a smooth model. Taking into account the dimensional analysis performed previously, the dataset was chosen between the range of periods 101 and 104 s. The field measurements were made with respect to the magnetic North and the general strike calculated for periods greater than 10 s (N8° E) is approximate to the geological structures in the area, so it was decided not to rotate the data since it is assumed that the regional resistivity structure can approximate a 2D structure that varies in the E–W direction, parallel to our profile. As the anisotropy is mostly reflected in the induction vectors, it was chosen to model only the TE and TM mode impedance data.

Background resistivities of 100 and 500 Ω m were tested. For longer periods, the same result in both tests were performed. The minimum frequency used was 0.00008 Hz, error floors were set to 20% for apparent resistivities and 5% for phases. A fine grid with growth factor 1.2 was used in depth and to the sides of each station. Although, the topography option was activated, it is not influential in the inversion when working with long-period data. Some initial tests were performed varying the regularization factor until a tradeoff between roughness and RMS was found, the value was set to τ = 8.

To the initial inversion known information of the zone was delivered, an ocean was drawn with a resistivity of 0.3 Ω m and a mean depth of 5 km according to the bathymetry registered by the National Oceanic and Atmospheric Administration (http://www.ngdc.noaa.gov/mgg/topo/topo.html).

To mitigate the impact of anisotropy on data, separate tests of inversions of the tipper and the TE and TM modes were carried out, following recommendation of Martí (2014), In addition, a joint inversion of the TE, TM modes and tipper was made assigning a high error floor to the tipper according to Brasse et al. (2009) (see Additional files). Eventually, a model that does not include the tipper data was chosen, since the same bodies with a lower RMS were obtained. It should be noted that there are other methodologies to identify anisotropy in the data through dimensional analysis (e.g., WALDIM and Marti et al. 2009) near our study area, and Kapinos (2011) performs forward methodology to model anisotropic layer that explain the anomalous behavior in the data. Therefore, it is clear that the models presented in this study are not ultimate but working with electrical anisotropy is too complicated and there are no computational tools available at the moment.

From the results of 2D and 3D models of synthetic and real data, Chang-Hong et al. (2011) show that it is possible to interpret 2D profile data using 3D inversion method, provided that using all components of the impedance tensor, not only a reasonable image beneath the profile but also reasonable pictures of nearby 3D structure can be obtained.

There are several MT studies, which deliver 3D models from data collected along a 2D profile, for example, Meqbel et al. (2016), Patro and Egbert (2011) and Beka et al. (2016).

For the three-dimensional model, a logarithmic grid was designed according to the order of periods and the maximum depth expected to be reached with each set of data. The growth factor in x and y direction was set at 1.3 while 1.2 was chosen for the depth (Kelbert et al. 2014).

A total of 52 frequencies were used for the impedance tensor and 50 frequencies for the tipper. The smoothing factor was set at 0.7, according to Slezak et al. (2019) with small values (0.3, 0.4) the inversion algorithm fits the transfer functions by modifying only the small local surface structures. The error floor was 7% |Zxx Zyy|1/2 and 5% |Zxy Zyx|1/2 and the tipper (Tzx and Tzy) was 0.05 (absolute value), as a result of the better quality of the data present in the components outside the diagonal and the Tipper. For this model, the bathymetry of the Pacific Ocean was taken into account, this was downloaded from the National Oceanic and Atmospheric Administration and with an electrical resistivity defined at 0.3 Ω m.

Tests were performed including and excluding the Nazca plate in the 2D and 3D grids of the a priori models (see Additional files), the Nazca plate was drawn as a layer of 9.000 Ω m taking into account the study of Cordell et al. (2019), resistivity with the depths indicated in the study by Tassara and Echaurren (2012) that presents a model of the depth of the Slab, the continental moho and the contact between lithosphere and asthenosphere in our study zone. We observed that the bodies generated in each case were similar in location, magnitude and shape; however, we obtained better RMS in the models that did not include the Nazca plate.

Finally, we performed sensitivity analyses in both models obtained to validate the need of each body within the model for the final fit of the curves of each station.

The sensitivity analysis consists of eliminating the structure and studying the response of the model through forward modeling. The response of the new model is compared with the response of the original model to investigate how it is modified when a body is removed. If the variation influences different stations and the size and distance to the location of the body is consistent with the perceived fluctuation in the curves of each site, it can be concluded that the body is necessary for the fit of the observed data (see Additional files).

Result

The two-dimensional model (Fig. 4) was fitted with an RMS of 1.88% after 200 iterations. In it, several conductive and resistive bodies can be observed that can be roughly related to the known geology and tectonics of the zone. In Fig. 4, the resistive body R1, with values between 1000 and 8000 Ω m, is intrinsically related to the subducting Nazca plate; it must be taken into account that the plate has a resistivity decrease at 50 km depth (between BA03 and BA02 sites). R2, on the other hand, is a highly resistive body, located under the Osorno volcano and between the Llanquihue and Todos Los Santos Lakes. It is located within the continental crust, from a shallow depth to ~ 20 km. Conductive “C” bodies are often related to fluids, hot zones, salt–water bodies, etc. Towards the west of the profile, in the central depression, two conductive bodies appear, shallow C1 and C2 and with resistivity of 1 and 7 Ω m respectively. Towards the east of the profile, near the Tronador volcano, a body “C3” is observed that crosses the earth’s crust, from the mantle, with a resistivity of between 13 and 50 Ω m. In magnetotellurics, broadband data has better resolution for shallow depths while long-period data has better resolution for greater depths. Although the present work inverted models with both broadband and long-period data, it should be noted that the periods used for broadband stations were ≥ 101 s, so it is not expected to obtain high resolution of the surface bodies.

Fig. 4
figure4

Final two-dimensional model RMS 1.88%. With the local geology of reference, Lago Llanquihue (L.LL), Lago de Todos Los Santos (L.TS), Calbuco (VC), Osorno (VO), Tronador (VT) and Puntiagudo (VP) volcanoes; the white circles correspond to the seismicity of the zone recorded among the 39. 5° and 41.5° S by the Chilean CSN. The white dashed line (approx. 25 km depth) corresponds to the Moho discontinuity, taken from the Crust1.0 model by Laske et al. (2013). The white dashed line lower refers to the Slab1.0 (Hayes et al. 2012). “C" bodies correspond to conductive structures while "R" bodies correspond to resistive ones

It is believed that the seismicity in the South of Chile is quite lower, compared to the seismicity rate of the rest of the country. Several authors such as Agurto-Detzel et al. (2014) and Lange et al. (2008) affirm that the seismicity of this zone is dominated mainly by the Liquiñe Ofqui fault system. By plotting the seismicity registered since 2013 in our electrical resistivity image, it is easy to notice the accommodation of the earthquakes in the subduction zone and in the zone where the fault system is believed to cross the latitude of the profile.

In the three-dimensional model, Fig. 5 shows three cross-sections parallel to the station profile (located in Fig. 5d). In this model, different conductive and resistive bodies can be seen below and outside the profile. There is a good correlation with the bodies “C” and “R” generated by the 2D inversion with the bodies generated by the 3D inversion being C5, C6 and C7 three conductive bodies that only appear in the 3D, this could be due to the fact that in the two-dimensional model the value of the resistive R2 is very high and fades the resistivity value of these bodies. The reason why some bodies are shown in the 2D inversion, even when they are outside the profile, according to the 3D model, may be due to a high resistivity contrast between these bodies and the resistivity below the stations, for example, C1 and C2.

Fig. 5.
figure5

3D model profiles RMS 1.95% a top profile 40.97° S, b Central profile 41.17° S, c lower profile 41.29° S. Location of the profiles shown in d. Hatched zones are related to poor resolution

It is also possible that the location of the bodies outside the profile in the 3D model is related to the influence of the tipper that was discarded in the 2D inversion due to structural electrical anisotropy. However, there are studies such as the one by Slezak et al. (2016), located in the Northwest of Poland where, without having evidence of structural electrical anisotropy in the crust, they obtain in the 3D model conductive bodies outside the profile that are not evident in the 2D model.

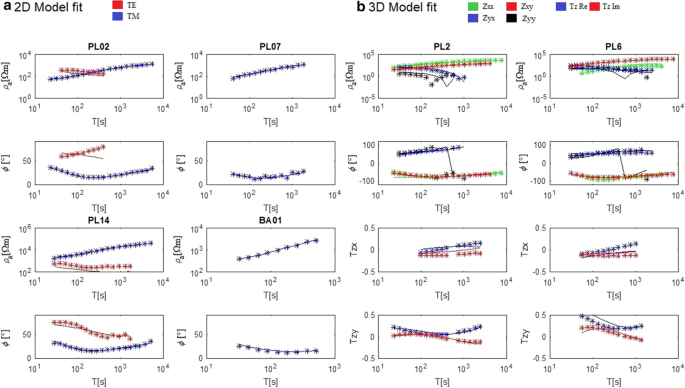

An example of data fit of the 2D and 3D models is shown in Fig. 6 were we include the stations with better and worse fit.

Fig. 6
figure6

To make the comparison between measured data (asterisk) and model response (continuous lines) at four exemplary sites. a 3D model fit curves best and worst fitting curves. b 2D model fit curves best and worst fitting curves

The model we chose to interpret and discuss corresponds to the 3D model, with a RMS 1.95% (see data fit in Fig. 6a), because it covers all the bodies shown in the 2D model and additionally provides other bodies that converge well with the geology of the zone. The three-dimensional model was obtained with all the available information from the impedance tensor and tipper.

Discussion

R1 has been identified as a regional body at great depths related to the Nazca plate that subducts under the South American plate and its decrease in resistivity at 50 km depth is related to the process of serpentinization by an early dehydration of the Slab. This serpentinization of the mantle produces an increase in porosity that leads to a decrease in electrical resistivity, which can be further reduced by the production of electrically conductive magnetite networks (Stesky and Brace 1973). The Nazca plate has been determined by several long-term magnetotelluric studies, in the South Central and Southern zone of Chile, for example, Brasse et al. (2009), Kapinos et al. (2016) and Cordell et al. (2019). On the other hand, Worzewski et al. (2011) with a study of MT in Central America where the Nazca, Cocos and Caribbean plates interact observe this important decrease in resistivity in the same zone where DeShon et al. (2006) observe a decrease in the S wave velocities, both studies propose that this is a zone of serpentinization of the mantle.

Below the Central Valley, conductive anomalies formed by bodies C1 and C2 are located superficially in the crust, just above where the Nazca plate discontinuity appears. In the three-dimensional model (see central profile), body C2 seems to migrate from the mantle, the body extends from the Moho to the surface; this conductor body is probably the result of fluids released from prograde metamorphism of clay‐rich oceanic upper crustal sediments. We relate these bodies to the early dehydration of the slab, in this process, water bound to the pores is expelled from the subducting slab to shallow depths by compaction and lithification (Peacock 1990).

The result of a seismic profile almost coincident with our magnetotelluric profile in the zone of the Central Valley, studied by Jordan et al. (2001), shows some seismic reflectors in the zone where bodies C1 and C2 are observed that relate to faults at a depth not greater than 10 km, and we could affirm that these faults are facilitating the migration and distribution of fluids in the Central Valley.

The C3 anomaly can be interpreted as a zone of fluid accumulation resulting from a partial fusion related to the Nazca plate serpentinization or eclogitization process and high pressure and temperature conditions at depth. Numerical models by Völker and Stipp (2015) suggest that approximately 50% of the water intake fluids from the crust and mantle are released in the front arc or rear arc, this could explain why the C3 conductor is much larger than the other conductors and why it is located more to the east of the profile. However, to constrain the east extension of this body, more measurements are needed towards the Argentina mountain range side. This important conductivity anomaly is comparable to anomalies found in studies conducted in other zones that have developed typical surface expressions such as volcanic arcs around the world, e.g., magnetotelluric studies in British Columbia (Soyer and Unsworth 2006), in Oregon (Cascadia) (Jiracek and Curtis 1989), in Mexico (Jödicke et al. 2006), in Northern Chile (Schwalenberg et al. 2002) and (Brasse et al. 2002), in Greece (Galanopoulos et al. 2005), in Japan (Nankai) (Ichiki et al. 2000) and (Ryukyu Trench) (Shimakawa and Honkura 1991), in Costa Rica (Worzewski et al. 2011), in Central and Southern Chile (Cordell et al. 2019), (Brasse et al. 2009) and (Kapinos et al. 2016).

The C5 body with resistivities around 1 Ω m located north of the Osorno volcano at a depth less than 10 km could be related to an active magmatic or hydrothermal system associated with the volcano, its such low resistivity values correlate well with a conductive zone of molten mass accumulation. The report of volcanic activity in the Los Lagos region (SERNAGEOMIN, n.d.) has recorded multiple seismic activity between 2017 and 2019, related to the Osorno volcano. Most of the seismic events have been located towards the Northwest of the volcano at depths of less than 10 km, coinciding with the location of the anomaly, however, taking into account that the last volcanic eruption dates back to 1835 and that the information in the reports is neither exact nor sufficient to analyze the focal mechanisms and confirm that the events are typical of the volcano, nad we can affirm that these events are attributed to the Liquiñe Ofqui Fault System. An important consideration relates to the effect of including or excluding topography in inversion algorithms. For the Merapi volcano, located in Indonesia, Müller and Haak (2004) show that the induction vectors suggest a conductive structure centered in the volcano that they attribute to the high topography of its cone, that is, in these cases special care must be taken to differentiate how much of the response of the induction vector is due to the topography and how much to the conductivity of the rock. Brasse and Eydam (2008) also analyze the topographic effect on volcanic buildings with a high slope, finding that the inversions create artifacts related to a static displacement in the electric field resulting from the effect of the topography. According to the above and knowing that in the 2D and 3D models of our study the topography was not included, it is very likely that C5 is simply an artifact created by the inversion software as an effect of the topography of the cone of the Osorno volcano. In addition, a broadband MT study on the Osorno volcano by Diaz et al. (2020) confirms that this anomaly does not exist.

The anomaly named C6, located to the east of the Osorno volcano, coincides with the location of the Liquiñe Ofqui fault zone at 72.28° W in length and 41.17° S latitude (see Fig. 5c). The elongated shape of this body supports well the idea that it is a fluid ascent facilitation conduit due to a fractured weakness zone related to the fault system. The papers by Cembrano and Lara (2009) and Perez-Florez et al. (2017) confirm that transverse strike-slip faults are oriented favorably with respect to the stress field and promote vertical migration of magma. It should be noted that the C6 body, in our model, does not present resolution for depths greater than 20 km. This trace of the fault is also observed in the study of Zuñiga Armijo (2019), by means of broadband magnetotelluric measurements, Zuñiga Armijo (2019) proposes that this fault is facilitating the ascent of fluids towards a mush type reservoir of the Osorno volcano.

The C7 anomaly shown in the three-dimensional inversion is a conductive body, located under Calbuco volcano that could be interpreted as a magmatic reservoir of depth between 10 and 20 km that is connected to a conduit or structure of the Andean transverse faults and that is directed towards the trace of the Liquiñe Ofqui fault.

According to Selles and Moreno (2011), the Calbuco volcano does not present evidence of being located on an important regional structure, however, Perez-Florez et al. (2017) outline some guidelines of the Andean Transverse Fault system, which present orientation not located in the southern volcanic zone of the Andes. Lerner et al. (2020) state that magma reservoirs are often horizontally offset from their associated volcanic edifices by multiple kilometers, the inferred magma reservoir centroids occur outside of the overlying volcano’s mean radius.

Morgado et al. (2019) through a petrochemical study of samples from the Calbuco eruption in 2015, propose the existence of a mush type deposit, located in the upper crust up to 5.5–9.5 km deep. Delgado et al. (2017) suggest a pressurized flattened spheroid shape for the reservoir below the Calbuco volcano through modeling of the co-eruptive subsidence signal. Considering the 2015 lava flows, Morgado et al. (2019) restricted the pre-eruptive conditions to: temperature 900–1060 °C, pressure 2–6 kbar, 2–4% H2O and a variable amount of SiO2 between 55.6 and 56.9%. Castruccio et al. (2016) calculated SiO2 between 54 and 55 wt% and Na2O between 3.6 and 3.8%, 4–5% H2O and pressures of 180–240 MPa.

Using the SIGMELTS web application (Pommier and Le-Trong 2011), a model was built with the above parameters, estimating an electrical resistivity of the variable magmatic reservoir between 2 and 10 Ω m, which could be an indicator that our C7 anomaly is less deep and more conductive.

There is a difference in the composition of the products in the two volcanoes: the Osorno is predominantly basaltic while the Calbuco is andesitic. However, ground, petrographic and geochemical observations suggest that the andesitic composition of the Calbuco is the result of a contamination of subcortical basaltic magmas with magmas generated at the cortical level (Lopez-Escobar et al. 1992). Thus, the difference between the composition of the Osorno and Calbuco products could be explained by an apparent differentiation of the magma that has to travel a greater distance to reach the volcanic reservoir, or perhaps it could also be due to the fact that the magmatic material of this volcano has a longer residence time in the crust than the rest of the volcanic centers in the southern zone of the Andes.

Finally, the highly resistive R2 is correlated with the North Patagonian Batholith, a granitic basement widespread mainly on the southeast and west sides of the Osorno volcano.

The North Patagonian Batholith includes granites, granodiorites, diorites and tonalites, and felsic igneous rocks that range resistivities values from 1000 to 100,000 Ω m according to Palacky (1987).

Conclusions

Based on 2D and 3D inversions of magnetotelluric data in a period range of 101–104 s, collected through a profile of 19 sites located between the Central Valley and the Andes mountain range at latitude ~ 41° S, we derived the lithospheric‐scale resistivity model of the subduction zone of the Southern Andes.

Different models and dimensional parameters were generated to circumvent the effect of the electrical structural anisotropy detected in the data. Data fit is generally good and together with the results of the sensitivity tests, we confirmed the robustness of the interpreted model.

The deep electrical resistivity image allowed us to analyze different volcano processes that occur thanks to subduction, in the Southern Zone of the Andes. In our model, it was possible to observe the process of serpentinization of the mantle with the early dehydration of the slab marked as an important decrease of resistivity in the Nazca plate at a depth of approximately 50 km, in addition, conductive fluids (C1, C2) were observed located in the crust just at the top of where the mantle wedge should be serpentinizing as a result of the dehydration of the slab. The location of the conductors under the Central Valley suggests that the release of fluids occurs continuously at different depths during the mineralogical changes presented in the Nazca plate in the development of its subduction.

The position of the large conductor (C3) in the main mountain range is similar to that found by various magnetotelluric studies around the world in subduction zones and which they interpret as a zone of fluid accumulation, generated by a partial fusion related to the phenomenon of eclogitization of the plate that can occur at different depths depending on the degree of hydration or age of the slab.

Other processes of migration and accumulation of fluids through the continental crust were identified in our resistivity image, such as the C5, C6 and C7 anomalies, associated with the Osorno Calbuco volcanoes and the fault systems that dominate the zone. The C5 anomaly that was initially associated with a magmatic chamber located 10-km deep northwest of the Osorno volcano was finally discarded and interpreted as an artifact created by the inversion of the volcanic cone topography. Since in the study by Diaz et al. (2020), which has better resolution for shallow bodies by the used broadband data and more density of stations in the northern zone of the volcano, this body does not exist.

C6 coincided with the location of a trace of the Liquiñe Ofqui Fault Zone, because of its elongated shape and resistivity values, this anomaly was interpreted as a conduit through which the transport and ascent of fluids is being facilitated and which perhaps communicates with some pre-Andean (Permian–Paleozoic) lineage, belonging to the Andean Transverse Fault system that could be connected in turn to the Calbuco volcano by means of the anomaly (C7), thus explaining the discrepancy between the composition of the lava of the Calbuco and Osorno volcanoes by an apparent differentiation of the magma that has to travel a greater distance and by a different fault system to reach the Calbuco volcanic reservoir.

Availability of data and materials

In the following link, reviewers can view information supporting the research. Only they can access the data for information purposes. This information is private and cannot be reproduced or modified. This information can only be seen by the reviewers of the paper for information purposes. The information will be published once the article is accepted and published in the journal. https://osf.io/zsqjc/?view_only=c606c5b2ba7a4991a539630d7e876d5f

Abbreviations

SVZ:

Southern Volcanic Zone of the Andes

LOFZ:

Liquiñe Ofqui Fault Zone

L.LL:

Llanquihue Lake

L.TS:

Todos Los Santos Lake

ATF:

Andean Transverse Fault

MT:

Magnetotellurics

TM:

Magnetic transverse

TE:

Electric transverse

ADU:

Analog/Digital Signal Conditioning Unit

NIMS:

Narod Intelligent Magnetotelluric Systems

VO:

Osorno volcano

VC:

Calbuco volcano

VP:

Puntiagudo volcano

VT:

Tronador volcano

RMS:

Normalized root mean square

2D:

Two dimensional

3D:

Three dimensional

CSN:

Centro Sismológico Nacional de Chile
