The ionospheric condition and GPS positioning performance during the 2013 tropical cyclone Usagi event in the Hong Kong region

Abstract

The ionosphere plays a critical role in the electromagnetic waves in communication systems such as the global positioning system (GPS). However, it is suspected that the strong convection during the tropical cyclone (TC) events can be a trigger to anomalous electron density variation in the ionosphere. This study analyzed the variation of three ionosphere-related parameters based on the GPS data including scintillation index S4, cycle slips, and total electron content (TEC) rate (TECR) during the tropical cyclone event (the 2013 TC Usagi) in the Hong Kong region. The results showed that the ionosphere-related parameters had a consistent significant increase on the second day after the Usagi made landfall near Hong Kong. Consequently, the positioning performance of GPS precise point positioning (PPP) and relative positioning modes was degraded. The degradation was ~ 138%, ~ 181%, and ~ 460% in the east (root mean square (RMS) 0.050 m), north (RMS 0.045 m), and up (RMS 0.185 m), respectively, compared with the RMS of 0.021 m in the east, 0.016 m in the north, and 0.033 m in the up on the normal day. Regarding the relative positioning, the positioning errors in the east (RMS 0.134 m) and north (RMS 0.118 m) directions were ~ 7.1 and ~ 7.9 times, respectively, as large as the RMS of 0.019 m in the east and 0.015 m in the north on the normal day. The positioning errors in the up (RMS 0.513 m) direction were ~ 12.2 times larger than the RMS of 0.042 m on the normal day.

Introduction

The ionosphere is the layer of the Earth’s atmosphere that is ionized by solar and cosmic radiation. Its height ranges from ~ 50 km up to ~ 1000 km above the Earth surface. The electron density in the ionosphere is the most important parameter characterizing the refractive index for radio waves (Gordon 1987). As the Global Positioning System (GPS) signals are carried on the radio waves, the different refractive indices which represent the ionospheric condition lead to different ionospheric delays on the GPS observations. Therefore, it is crucial to study the quality of the GPS signals under different ionospheric conditions.

Besides the solar and cosmic radiation and geomagnetic activities, the convection in the lower atmosphere can also make an impact on the variation of electron density in the ionosphere. In the past 20 years, a considerable number of studies have been conducted to analyze the coupling effects between ionospheric disturbances and severe weather events, such as typhoon, tornadoes, and hurricanes (Lastovicka 2009; Mukhtarov et al. 2010). The GPS-derived total electron content (TEC) has been widely analyzed during severe weather events. Both the GPS-derived TEC and the F2 layer (foF2) increased within 2 days after the wind speed reached the peak during the Typhoons Ingrid (2005), George (2007), and Pancho (2008) in Australia (Li et al. 2018). The anomalous decrease of 3.8 TEC unit (TECU) and 2.1 TECU in the vertical TEC (VTEC) value from the monthly mean presented on the landfall day for the tropical cyclones Mahasen (2013) and Hudhud (2014), respectively, in the Indian sector (Guha et al. 2016). In addition, the obvious ionospheric disturbance in response to the 2015 Typhoon Dujuan in China was observed by analyzing the GPS-derived TEC sequences (Kong et al. 2017). Moreover, the close connection between the troposphere and low ionosphere was revealed through analyzing 41 tropical depression events in the North Atlantic Ocean in the period of 2004–2010 (Nina et al. 2017). The ionospheric responses to severe weather events can be explained as that the acoustic gravity waves (AGWs) are generated by the powerful convection during severe weather events. Then, the AGWs propagate up to the ionospheric altitude, leading to anomalous electron density variation (Xiao et al. 2007; Perevalova and Ishin 2011; Vanina-Dart and Sharkov 2016).

However, almost all the past work focused on using GPS-derived TEC to study the ionospheric responses to severe weather events. The other ionosphere-related parameters based on GPS data such as scintillation index \({S}_{4}\), cycle slips, TEC rate (TECR), as well as GPS positioning performance were rarely investigated. Although previous studies have been carried out to evaluate the GPS precise point positioning (PPP) performance during the period of ionospheric disturbance (Chen et al. 2008; Xu et al. 2012; Luo et al. 2018), these studies revealed that PPP performance was degraded by ionospheric scintillations that were induced by the powerful solar and geomagnetic activities. The PPP performance under complicated ionospheric condition induced by severe weather events was seldom analyzed. In addition, relative positioning under this condition has not been conducted yet either. In this study, the positioning performance during the severe weather event (the 2013 TC Usagi) in Hong Kong is analyzed and discussed.

In the following sections, the data set used in this study and the properties of the 2013 TC Usagi are introduced firstly. Three ionosphere-related parameters including the scintillation index \({S}_{4}\), cycle slips, and the TECR are analyzed during the period of the 2013 TC Usagi. Then, the GPS positioning performance in terms of PPP and relative positioning is analyzed. Finally, the conclusions drawn from the study are provided.

Data

Tropical cyclone (Usagi 2013)

The 2013 TC Usagi formed as a tropical depression over the western North Pacific about 1240 km east-northeast of Manila, Philippines, on 16 September 2013. The Usagi entered the South China Sea during the evening on 21 September. Then, it made landfall near Shanwei, Guangdong, China, about 160 km east-northeast of Hong Kong at about 12:00 UT (20:00 LT) on 22 September (Hong Kong Observatory 2015). The trajectory of the Usagi is depicted in Fig. 1. The dots with colors represent the locations of the tropical cyclone center at the corresponding time with interval of 6 h. The locations of the Usagi at 00:00 UT (08:00 LT) of each day are labeled.

Fig. 1
figure1

Trajectory of the tropical cyclone Usagi 2013. It was generated on 16 September 2013 and dissipated on 24 September 2013. The dots with colors denote the locations of the tropical cyclone center at the corresponding time. The circle with a star represents the location of Hong Kong

Figure 2 presents the brightness temperature image when the Usagi made landfall near Hong Kong. It is clear to see that Hong Kong was situated in the affected area of the Usagi with a distance of ~ 160 km from the TC center. After landfall, the Usagi dissipated over the inland areas of Guangxi, China, in the afternoon on 23 September. According to the 2013 tropical cyclones report provided by Hong Kong Observatory (HKO) (Hong Kong Observatory 2015), the Usagi was the most intense tropical cyclone affecting Hong Kong in 2013.

Fig. 2
figure2

Location (black cross mark) of the 2013 TC Usagi at 12:00 UT (20:00 LT) on 22 September 2013, and the locations (red dots) of Hong Kong, Guangzhou, and Guilin. The background color represents brightness temperature (Celsius) extracted from the Himawari 7 images

GPS data

The GPS data used in this study were collected at the Hong Kong Satellite Positioning Reference Station Network (SatRef) stations (Chan and Li 2007), and the location of the stations is shown in Fig. 3. Three SatRef stations, i.e., HKPC (World Geodetic System 1984 (WGS84) ellipsoidal height: 18.130 m), HKOH (WGS84 ellipsoidal height: 166.401 m), and HKST (WGS84 ellipsoidal height: 258.705 m), were selected and used in this study. They had an evenly spatial distribution in Hong Kong. The HKPC station is situated on the Peng Chau Island near the Lantau Island; the HKOH station is situated at Obelisk Hill on the Hong Kong Island; the HKST station is situated in Sha Tin. The GPS receivers and antennas of three stations have the same type, i.e., the Leica GR50 receiver and LEIAR25.R4 LEIT antenna. Besides the three SatRef GPS stations, one Ionospheric Scintillation Monitoring Receiver (ISMR) located in the south of Hong Kong was also used to study the ionospheric condition. This station can provide ionospheric scintillation in-phase and quadra-phase data at 100 Hz and carrier phase measurements at 50 Hz (Liu et al. 2013).

Fig. 3
figure3

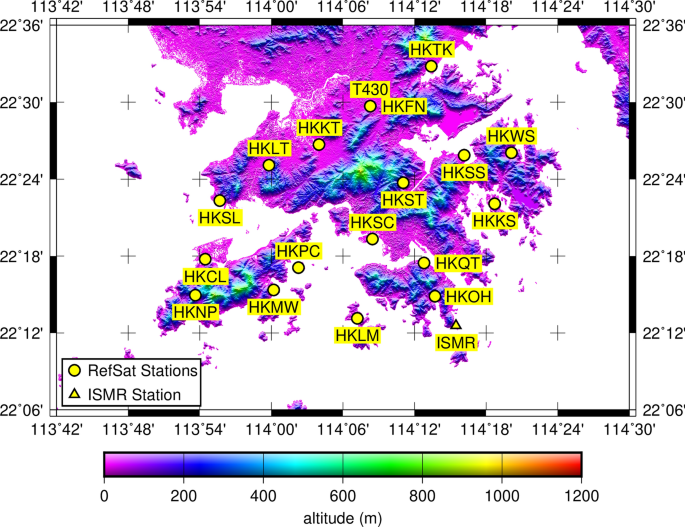

The spatial distribution of the SatRef and ISMR stations. The yellow circles denote the SatRef stations; the yellow triangle denotes the ISMR station. The background color represents the digital elevation model (DEM) of Hong Kong with the resolution of 30 m

Ionospheric condition

The ionospheric condition during the TC Usagi was analyzed in terms of scintillation index S4, occurrence rate of cycle slips, and TECR. Firstly, the variations of Kp, Dst, and F10.7 (Rostoker 1972) indices during the Usagi were studied because the strong geomagnetic and solar activities can also induce the ionospheric disturbance (Moeketsi et al. 2007; Brunini and Azpilicueta 2010; Guo et al. 2017). For a quiet geomagnetic condition, the Kp index should be smaller than 3 (Mungufeni et al. 2016), and the Dst index should be larger than − 20 nT (Gulyaeva and Arikan 2017). For a relatively quiet solar condition, the F10.7 index should be smaller than 150 sfu (Tapping 2013). According to the variations of the indices as shown in Fig. 4, there were no strong geomagnetic or solar activities during the 2013 TC Usagi. The Kp index varies below 3 with the mean of 1.3 during the period from 13 September to 12 October. The variation of Dst index confirms that the geomagnetic condition was quiet during the Usagi with the average value of − 7.8 nT, which is much larger than − 20 nT. As for the solar condition, the F10.7 index is very stable with the mean of 108.3 sfu, which indicates a relatively quiet solar condition.

Fig. 4
figure4

The indices of Kp (a), Dst (b), and F10.7 (c) during the period from 13 September to 12 October 2013. The period from 16 to 24 September represented as a gray background area between two vertical dashed lines is the life cycle of the Usagi. The red solid horizontal lines denote the mean value of the indices. The red solid vertical line denotes the TC’s landfall near Hong Kong on 22 September 2013

Furthermore, we also investigated two other solar-related indices, i.e., X-ray flux and electron flux, to further confirm the solar condition. The data were retrieved from the National Oceanic and Atmospheric Administration (NOAA)/National Aeronautics and Space Administration (NASA) Geostationary Operational Environmental Satellite (GOES) 15 satellite. The results are shown in Fig. 5. The X-ray flux measured at the wavelength of 0.1–0.8 nm varied stably without significant increases during the TC period including the TC landfall day. There were no intensive solar X-ray flares of X-class (X-radiation flux larger than 10–4 W/m2 for wavelength between 0.1 and 0.8 nm) or M-class (X-radiation flux between 10–5 W/m2 and 10–4 W/m2) during the TC period (16 to 24 September), while the recorded solar X-ray flares of Class C (X-radiation flux between 10–6 W/m2 and 10–5 W/m2) were too weak (their flux were lower than 4 × 10–6 W/m2) to cause significant disturbances in the ionosphere. Figure 5c shows the variation of E2 electron fluxes from 13 September 2013 and 11 October 2013. During this TC period, as denoted by the period of two vertical red dashed lines, it started to increase on 19 September and kept a high value larger than 1000 cm−2 s−1 sr−1 between 20 and 24 September, which would affect the operation of spacecraft systems (Forsyth et al. 2020). However, the reason for this high electron flux cannot be easily attributed to the solar radiations and geomagnetic activities, because other indices, including Kp, Dst, F10.7, X-ray flux, and solar X-ray flare counts, clearly indicate a quiet geomagnetic and solar conditions during the TC period. Thus such an electron flux increase is very likely attributed to the TC event.

Fig. 5
figure5

Time series of X-ray (a), solar X-ray flare count (b), and electron flux (c) during the period from 13 September to 11 October 2013, which were measured by the GOES 15 geostationary satellite. Solar X-ray flux (https://satdat.ngdc.noaa.gov/sem/goes/data/avg/2013/09/goes15/netcdf/) was measured at the wavelength of 0.1–0.8 nm. Solar X-ray flare counts (https://hesperia.gsfc.nasa.gov/goes/goes_event_listings/) are classified into 3 categories (C, M, and X classes of these flares). Electron flux (https://satdat.ngdc.noaa.gov/sem/goes/data/avg/2013/09/goes15/netcdf/) was measured at electron channels of E2 (> 2 meV). The life cycle of the Usagi was from 16 to 24 September 2013, as represented by the gray background area between two vertical red dashed lines. The vertical red solid line denotes the TC’s landfall near Hong Kong on 22 September 2013

Scintillation index S 4

The electron density irregularities in the ionosphere can cause rapid amplitude and phase fluctuations, under some conditions, even the loss of lock of GPS signals. Such irregularities are called ionospheric amplitude and phase scintillations (Čokrlić and Galas 2013). Here, we just analyzed the amplitude scintillations during the period of the Usagi due to the strong correlation with the phase scintillations (Mushini et al. 2012). The amplitude scintillation can be described as the index of S4. The formula of S4 can be written as (Van Dierendonck et al. 1993):

$${S}_{4}=\sqrt{\frac{\langle {SI}^{2}\rangle -{\langle SI\rangle }^{2}}{{\langle SI\rangle }^{2}}},$$
(1)

where SI denotes the GPS signal intensity. 〈∙〉 represents the mean operation within the interval of interest, i.e., 60 s used in this study.

The ionospheric scintillation index S4 was calculated based on the data from the ISMR station, and the GPS data observed above 30° elevation angle were considered to reduce the multipath effects (Yang and Liu 2016b). As S4 > 0.3 always indicates nonignorable scintillation activity (Muella et al. 2008), the number of scintillations with S4 > 0.3 from 14 September to 12 October 2013 is shown in Fig. 6. It is noteworthy that there was no significant increase of scintillations during the period of the Usagi, even on the landfall day of 22 September 2013. However, a sudden increase of scintillations was observed on 24 September 2013, the second day after the Usagi made landfall. The number of scintillations reached up to 508. Then, the count of scintillation events returned to normal levels on 26, 27, and 28 September 2013. Again, a slight increase of 185 and 100 scintillation events showed on September 29 and October 1, respectively. The number of scintillations returns to normal level afterwards except October 4.

Fig. 6
figure6

Number of S4 > 0.3 calculated from the ionospheric scintillation monitoring station during the period from 14 September to 12 October 2013. The life cycle of the Usagi was from 16 to 24 September 2013, as represented by the gray background area between two vertical red dashed lines. The vertical red solid line denotes the TC’s landfall near Hong Kong on 22 September 2013

Cycle slips

The electron density irregularities in the ionosphere can also interrupt the propagation of the GPS signals, known as cycle slips on the carrier phase measurements (Brunini and Azpilicueta 2010). Although other factors, i.e., (1) low signal–noise ratio (SNR) and multipath; (2) surrounding obstructions; (3) high dynamic state of the receiver; (4) failure in the receiver software can trigger the occurrence of cycle slips (Wang et al. 2016), the ionospheric disturbance is the major factor for the occurrence of cycle slips in this study because of  the well-performed GPS receivers and carefully-selected locations of the Hong Kong SatRef network stations (Chan and Li 2007).

The sophisticated cycle slip detection algorithm based on the TECR and Melbourne–Wübbena wide lane (MWWL) observations was applied in this study (Liu 2011). The algorithm was validated under the active ionospheric condition (Cai et al. 2013). Figure 7 shows the total cycle slips for the HKOH, HKPC, and HKST stations on each day during the period from 14 September to 12 October 2013. The variation of the number of cycle slips on the GPS L1 and L2 signals shares the same pattern as the change of the scintillations. During the TC period, the occurrence rate of cycle slips on each day shows a stable variation. However, a sudden increase of cycle slips can be observed on 24 September 2013, the second day after the Usagi made landfall. The total number of cycle slips reaches up to ~ 400. Then, the number of cycle slips on September 27 falls back to a normal level. Again, the number of cycle slips bounces back on September 29 and October 1 with the value of ~ 300 and ~ 200. Afterwards, the number of cycle slips returns to a normal level.

Fig. 7
figure7

Count of cycle slips calculated from the HKOH (red line with stars), HKPC (green line with triangles), and HKST (blue line with squares) stations from 14 September to 12 October 2013 on the GPS L1 (a) and L2 (b) signals. The life cycle of the Usagi was from 16 to 24 September 2013, as represented by the gray background area between two vertical red dashed lines. The vertical red solid line denotes the TC’s landfall near Hong Kong on 22 September 2013

TECR

The scintillations always indicate the electron density irregularities in the ionosphere. However, it is difficult to derive the electron density directly from the GPS measurements. Fortunately, the TECR along the satellite–receiver line-of-sight (LOS) can be derived to study the variation of the TEC in the ionosphere. Considering the large noise on the pseudorange measurements, the carrier phase measurements are used to calculate the TECR in this study. The TECR can be calculated by differentiating the TEC values between two consecutive epochs. It can be written as (Liu 2011):

$$\text{TECR}=\frac{TEC\left(k\right)-TEC(k-1)}{\Delta t},$$
(2)

where Δt is the sample interval, in the unit of seconds.

$${\text{TEC}}\left(k\right)=\frac{{f}_{1}^{2}\{\left[{\lambda }_{1} \varphi_{1}\left(k\right)-{\lambda }_{2}{\varphi}_{2}\left(k\right)\right]-\left[{\lambda }_{1}{N}_{1}-{\lambda }_{2}{N}_{2}\right]-{b}_{r}-{b}^{s}\}}{40.3\times {10}^{16}(\gamma -1)},$$
(3)

where \({\varphi}_{1}\)(k) and \({\varphi}_{2}\)(k), in the unit of cycles, are the carrier phase measurements of the two frequencies \({f}_{1}\) and \({f}_{2}\), respectively, at the epoch k; \({\lambda }_{1}\) and \({\lambda }_{2}\) are the wavelength of the frequencies \({f}_{1}\) and \({f}_{2}\), respectively, in unit of m/cycle; \({N}_{1}\) and \({N}_{2}\), in unit of cycles, are the ambiguities for the frequencies \({f}_{1}\) and \({f}_{2}\), respectively, which are often constants in a continuous arc; \({b}_{r}\) and \({b}^{s}\), in unit of meters, are the inter-frequency biases of the receiver r and the satellite s, respectively, which can also be regarded as constants in a continuous arc; \(\gamma ={f}_{1}^{2}/{f}_{2}^{2}\) is the ratio of the squared frequencies. Cycle slip detection and repair is needed before the TECR computation in order to make sure a continuous observation arc is obtained.

Figure 8 shows the variation of the TECR derived from the HKPC station in terms of mean and standard deviation (STD) for each GPS satellite during the period from 14 September to 12 October 2013. The variation of the mean value of the TECR is stable, changing within approximately ± 0.005 TECU/sec as shown in Fig. 8a. However, the change of the STD of the TECR shows a different way for each GPS satellite as shown in Fig. 8b. It is clear to see the TECR of GPS pseudorandom noise (PRN) 29 and GPS PRN 24 satellites has a relatively large standard deviation. It is suspected that the electron structure in the ionosphere along the LOS for GPS PRN 29 and GPS PRN 24 experienced an abnormal change. In addition, a sudden increase of the STD of the TECR for some GPS satellites can be observed on 24, 25, 29, and 30 September and 1 October 2013.

Fig. 8
figure8

Daily mean and STD of the TECR (unit: TECU/sec) derived from the HKPC station for each GPS satellite during the period from 14 September to 12 October 2013. Different colors denote different satellites. The life cycle of the Usagi was from 16 to 24 September 2013, as represented by the gray background area between two vertical red dashed lines. The vertical red solid line denotes the TC’s landfall near Hong Kong on 22 September 2013

Figure 9 demonstrates the daily STD of the TECR for the HKOH, HKPC, and HKST stations during the period from 14 September to 12 October 2013. The STD of the TECR was averaged over the STD of the TECR of all the GPS satellites for each day. The change of the STD of the TECR for the HKOH, HKPC, and HKST stations is consistent with each other. It is worth noting that the change pattern of the STD of the TECR is the same as the change pattern of the scintillations and cycle slips. A stable period can be observed during the Usagi with an average value of ~ 0.008 TECU/sec. Then, the STD of the TECR suddenly increases to ~ 0.016 TECU/sec on 24 September 2013. After 2 days’ decrease, the STD of the TECR comes back to the normal value of ~ 0.007 TECU/s. Again, it bounces back on September 29 with the value of ~ 0.013 TECU/s. Afterwards, the STD of the TECR returns to a normal level.

Fig. 9
figure9

Daily STD of the TECR (unit: TECU/s) for the HKOH (red line with stars), HKPC (green line with triangles), and HKST (blue line with squares) stations during the period from 14 September to 12 October 2013. The STD of TECR is calculated from the TECR of all the GPS satellites in a particular day. The life cycle of the Usagi was from 16 to 24 September 2013, as represented by the gray background area between two vertical red dashed lines. The vertical red solid line denotes the TC’s landfall near Hong Kong on 22 September 2013

The connection between the TC and ionospheric disturbances

The ionospheric disturbance occurred in the context of the clear geomagnetic and solar condition. It is suspected that the strong convection like TCs generates the AGWs, especially during the landfall period when the strong convection interacted with rough terrains, strengthening the AGWs power to propagate to the ionospheric layer (Chen et al. 2016; Chou et al. 2017; Kong et al. 2017).

Our findings show that the strong ionospheric disturbances occurred on the second day after the TC made landfall near Hong Kong. Moreover, the ionospheric disturbances often presented during the period from 12:00 UT (20:00 LT) to 18:00 UT (02:00 LT), which will be provided in the following section. It shows that the AGWs cannot trigger the ionospheric disturbances, i.e., scintillations, immediately. The reason is that the electron density in the ionosphere is relatively stable before sunset. After sunset, steep gradients of the electron above Hong Kong were generated from the eastward electric field (Song et al. 2017; Lou et al. 2019). The two factors, upward AGWs and steep gradients of the electron, jointly produced a more unpredictable electron distribution in the ionosphere. Consequently, strong ionospheric disturbances were triggered between 12:00 UT (20:00 LT) and 18:00 UT (02:00 LT) on 24 September 2013, the second day after the TC made landfall. Previous studies have shown that ionospheric disturbances occurred with one to four days delay after other TCs. Yang and Liu (2016a) found the ionospheric irregularities above Hong Kong on the second day after the 2012 TC Tembin made landfall over the southern coast of Taiwan. The ionospheric anomaly on the fourth day after the 2013 TC Haiyan made landfall over the eastern coast of Philippines was observed by Li et al. (2017). In Australia, the ionospheric disturbances occurred on the second day after the 2011 TC Yasi and the 2018 TC Marcus made landfall over the eastern and northern coast of Australia, respectively (Ke et al. 2019). Similar results were obtained for hurricanes near America, the ionospheric disturbances were observed 2 days delay after the 2005 Hurricane Katrina and Rita made landfall over the northern Gulf coast and the Texas/Louisiana border, and one day delay after the 2005 Hurricane Wilma made landfall near the northeastern Yucatan Peninsula (Polyakova and Perevalova 2011).

Furthermore, our findings show that there were strong ionospheric disturbances on 29 September and 1 October in terms of S4, number of cycle slips, and TECR. The disturbances were probably caused by the other TC, i.e., the TC 2013 Wutip. It passed by the south of Xisha Islands on 29 September with the intensity of Severe Typhoon and made landfall over the coast of central Vietnam on 30 September 2013 with the intensity of severe tropical storm. Compared with the TC Usagi, the TC Wutip had a weaker intensity. Therefore, the number of scintillations and cycle slips, and the value of TECR showed a lower level.

GPS positioning performance

As it has demonstrated that significant ionospheric scintillation occurred during Usagi, thus the positioning performance in PPP and relative positioning during the period of the tropical cyclone was analyzed. In addition, the postprocessing residuals of GPS observations were studied as well.

GPS PPP

The ionosphere-free pseudorange and carrier phase observations used in PPP can be expressed as the following (Leick et al. 2015):

$${P}_{r,IF}^{s}={\rho }_{r}^{s}+c\cdot \left(d{t}_{r}-d{t}^{s}\right)+{T}_{r}^{s}+{e}_{IF},$$
(4)
$${\lambda }_{IF}{\varphi}_{r,IF}^{s}={\rho }_{r}^{s}+c\cdot \left(d{t}_{r}-d{t}^{s}\right)+{T}_{r}^{s}+{\lambda }_{IF}{N}_{IF}+{\epsilon }_{IF},$$
(5)

where \({P}_{r,IF}^{s}\) in the unit of meter and \({\varphi}_{r,IF}^{s}\) in the unit of cycle are the pseudorange and carrier phase measurements from the satellite s to the receiver r, respectively; \({\rho }_{r}^{s}\) represents the geometrical distance between the satellite and the receiver in the unit of meter; c is the speed of light in vacuum in the unit of m/s; \(d{t}_{r}\) and \(d{t}^{s}\) are the clock errors of the receiver and satellite in the unit of second, respectively; \({T}_{r}^{s}\) is the signal path delay due to the neutral atmosphere (primarily the troposphere) in the unit of meter; \({\lambda }_{IF}\) is the carrier phase wavelength of the ionosphere-free combination; \({N}_{IF}\) represents the noninteger ambiguity of ionosphere-free carrier phase combination; \({e}_{IF}\) and \({\epsilon }_{IF}\) are the relevant measurement noise components on pseudorange and carrier phase measurements, respectively.

The detailed models and strategies of PPP processing are listed in Table 1. Figure 10 shows examples of PPP results along with the ionospheric scintillation index at the HKPC station on four typical days. Figure 10a shows the PPP results on 19 September 2013 when no scintillations occurred. It is clear to see the PPP results in the components of east, north, and up are very stable with the RMS of 0.021 m, 0.016 m, and 0.033 m, respectively. It should be noted that the RMS was calculated after the convergence of positioning results. However, the PPP results on 24, 25, 29 September show degraded performances on the scintillation-impacted days, especially when the ionospheric scintillation index shows a significant increase. During the period of scintillations from 12:00 to 18:00 UT on 24 September 2013, the positioning results in the up direction have a large error with the RMS of 0.185 m, ~ 3.2 times as large as that before the scintillation period, ~ 5.1 times as large as that after the scintillation period, and ~ 5.6 times as large as that on September 19. Concerning the positioning results in horizontal component, the RMS during the scintillation period is 0.050 m (east) and 0.045 m (north), which increases by 138% and 181% compared with the results on the normal day (19 September 2013). The strong scintillation events on 25 September 2013 started at ~ 12:00 UT and ended at ~ 17:00 UT. The RMS of positioning errors in the east and north directions during the scintillation period on the day are ~ 3.3 and ~ 6.1 times as large as that before and after the scintillation period, respectively. They are ~ 4.7 and ~ 4.0 times larger than the results on the normal day September 19. The large positioning error in the up direction with the RMS of 0.069 m can be observed during the scintillation period. It is ~ 1.9 and ~ 2.2 times as large as the RMS before and after the scintillation periods, respectively, and ~ 2.1 times as large as that on the normal day September 19. As the scintillations weakened on 29 September 2013, the positioning performance on this day is better than those on 24 and 25 September 2013.

Table 1 Summary of PPP processing models and strategies
Fig. 10
figure10

Positioning errors in the components of east, north, and up along with ionospheric scintillation index at the HKPC station on four typical days: 19 September 2013 (a) with no scintillations; 24 (b), 25 (c), and 29 (d) September 2013 with much more scintillations. The RMS of the positioning errors during different periods, as separated by the vertical dashed lines, is presented in the tables

The unexpected loss of lock of tracked satellites, which reduces the available observations and considerably weakens the geometry, contributes to the degraded PPP performance in the scintillation period. In addition, the frequent loss of lock of tracked satellites makes it difficult for the PPP processing to handle cycle slips and ambiguity resolution. Furthermore, abnormal blunders on the pseudorange measurements are responsible for the PPP results with low accuracy (Zhang et al. 2014). Figure 11 depicts the spatial distribution of cycle slips on GPS L1 and L2 signals derived from the HKPC station along the trajectory of GPS satellites on 24 September 2013. It is clear to see that cycle slips occurred with even spatial distribution, which led to a weak geometry. In addition, the time series of cycle slips for each GPS satellite is shown in Fig. 12. Most cycle slips occurred in the scintillation period from 12:00 to 18:00 UT. That is why large positioning error occurred during the scintillation period.

Fig. 11
figure11

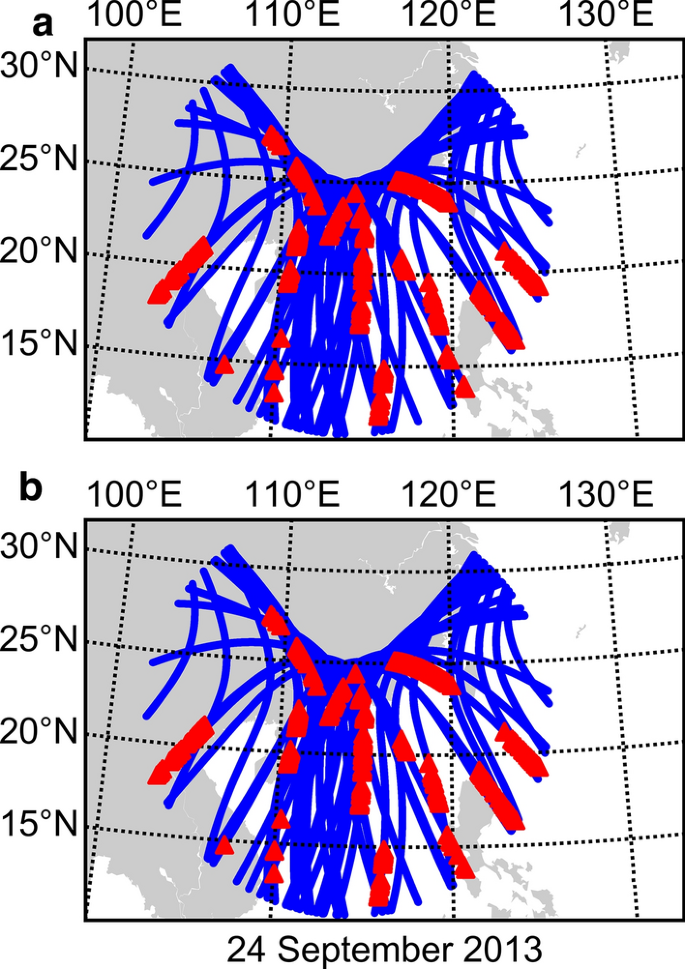

Spatial distribution of cycle slips on GPS L1 (a) and L2 (b) signals derived from the HKPC station on 24 September 2013. The blue lines denote the trajectory of the GPS satellites projected on the plane at the altitude of 350 km. The red triangles on the blue line represent cycle slips

Fig. 12
figure12

Visibility and cycle slip of each GPS satellite derived from the HKPC station on 24 September 2013. The horizontal blue lines denote the visibility of the GPS satellites. The red triangles on the blue line are cycle slips. The scintillation period is from 12:00 to 18:00 UT represented with two vertical red dashed lines

Figure 13 provides two examples of the STD of residuals of GPS PRN 5 and 29 satellites for ionosphere-free pseudorange and carrier phase measurements at the site of HKPC on 24 September 2013. The elevation and cycle slip information are also displayed. The postprocessing residuals on the ionosphere-free combination observations were calculated by canceling multiple errors, i.e., tropospheric delay, satellites’ orbit and clock errors, phase wind-up effects, site displacement, and antenna phase center offset and variation. It is clear to see that the STD of residuals on pseudorange and carrier phase measurements had a significant increase when cycle slips occurred. It means that the ionospheric disturbance severely affects the quality of pseudorange and carrier phase measurements.

Fig. 13
figure13

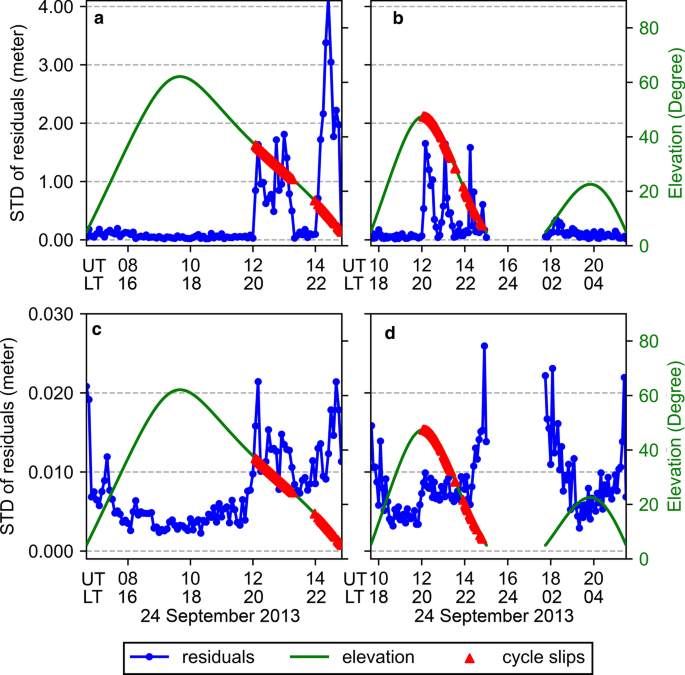

STD of residuals of ionosphere-free measurements on pseudorange and carrier phase for GPS PRN 5 (a, c) and GPS PRN 29 (b, d) at the site of HKPC on 24 September 2013, along with the elevation and cycle slip information. The blue line with circles denotes STD of the residual for every 5 min; the green lines denote the elevation angle; the red triangles represent cycle slips

Figure 14 shows the STD of residuals on ionosphere-free pseudorange and carrier phase measurements for the satellites which experienced cycle slips in three periods (1) 00:00–12:00 UT; (2) 12:00–18:00 UT; (3) 18:00–24:00 UT. Only observations with elevation angle above 15° were used for the sake of reducing multipath effects. It is obvious to note that when cycle slips occurred frequently during 12:00–18:00 UT, residuals had a larger standard deviation than those in the other two periods. For GPS PRN 26, the STD of residuals on pseudorange measurements shows a slight decrease during the period from 12:00 to 18:00 UT. That is because cycle slips exactly occurred at around 12:00 UT as shown in Fig. 12. For the GPS PRN 29, the residuals on the carrier phase measurements during the period from 18:00 to 24:00 UT had a larger standard deviation than that during the scintillation period. That is due to the low elevation angle as shown in Fig. 13. In addition, the low elevation angle is responsible for the slight large standard deviation on the carrier phase measurements during the period from 00:00 to 12:00 UT for the GPS PRN 12.

Fig. 14
figure14

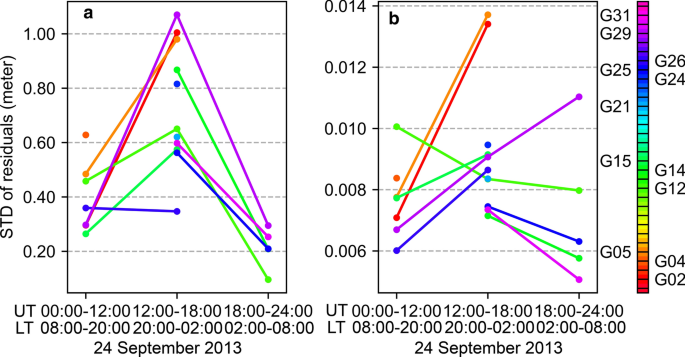

STD of residuals on ionosphere-free pseudorange (a) and carrier phase (b) measurements for the satellites which suffer cycle slips from aspects of three period (1) 00:00–12:00 UT; (2) 12:00–18:00 UT; (3) 18:00–24:00 UT at the site of HKPC on 24 September 2013. The isolated points without linkage with other points mean that the satellites are just visible in one of the three periods

GPS relative positioning

The double-differenced observation equations on ionosphere-free pseudorange and carrier phase measurements can be expressed as (Leick et al. 2015):

$${p}_{mr}^{ij}={\rho }_{mr}^{ij}+{T}_{mr}^{ij}+{e}_{mr}^{ij},$$
(6)
$${{\lambda }_{\text{IF}}\varphi}_{mr}^{ij}={\rho }_{mr}^{ij}+{\text{T}}_{mr}^{ir}+{\lambda }_{\text{IF}}{N}_{mr}^{ij}+{\epsilon }_{mr}^{ij},$$
(7)

where the superscript i denotes the reference satellite, and j denotes another satellite. The m and r are the master and rover receivers, respectively.

For the baseline solution, the elevation mask angle was set to 5°, and the integer ambiguities were estimated as real numbers. Figure 15 shows result examples of the baseline HKPC–HKOH on four typical days. The baseline solution on 20 September 2013 is shown in Fig. 15a. This day had no scintillations either. It is clear to see the solutions in east, north, and up directions have very good accuracy with RMS of 0.019 m, 0.015 m, and 0.042 m, respectively. However, the solutions on 24, 25 and 29 September 2013 are severely affected by the scintillations. On 24 September 2013, the strongest scintillations occurred between 12:00 and 18:00 UT, and the RMS of baseline solution during this period is 0.134 m, 0.118 m, and 0.513 m in the components of east, north, and up, respectively. The RMS in the east and north directions is ~ 5.3 times as large as the RMS before the scintillation period, ~ 8.4 times as large as the RMS after the scintillation period, and ~ 7.4 times as large as the RMS on the normal day (20 September 2013). In the up direction, the RMS of 0.513 m during the scintillation period is ~ 7.5 times as large as the RMS before the scintillation period, ~ 12.5 times as large as the RMS after the scintillation period, and ~ 12.2 times as large as the RMS on the normal day. As for the other 2 days (25 and 29 September 2013), similarly, scintillations show a significant impact on the baseline results and a larger bias is observed in the solution during the scintillation period.

Fig. 15
figure15

Baseline solution of HKPC–HKOH in the components of east, north, and up along with ionospheric scintillation index on four typical days: 20 September 2013 without scintillations as shown in a, 24 September, 25 September, and 29 September with strong scintillations as shown in bd. The RMS of the positioning errors during different periods separated by the vertical dashed lines is presented in the tables

Figure 16 provides three examples of the STD of residuals of GPS PRN 2, 12, and 18 satellites on ionosphere-free pseudorange and carrier phase measurements for the baseline HKPC–HKOH on 24 September 2013. The elevation and cycle slip information are also displayed. The relatively large STD of residuals on the ionosphere-free pseudorange measurements can be observed when the satellites experienced cycle slips. Compared with the STD of residuals on ionosphere-free pseudorange measurements, the STD of residuals on ionosphere-free carrier phase measurements shows a smaller increase when cycle slips occurred.

Fig. 16
figure16

STD of residuals of ionosphere-free measurements on pseudorange and carrier phase GPS PRN 2 (a, d), GPS PRN 12 (b, e), and GPS PRN 18 (c, f) for the baseline HKPC–HKOH along with the elevation and cycle slip information on 24 September 2013. The blue line with circles denotes the STD of residuals for every 5 min; the green line denotes the elevation angle; the red triangles on green lines represent cycle slips of GPS PRN 2, 12, and 18 satellites. The thick straight line with colors represents reference satellites; the red triangles on the thick straight lines represent cycle slips of the reference satellites

The STD of residuals on ionosphere-free pseudorange and carrier phase measurements for all the GPS satellites was analyzed in terms of three periods: (1) 00:00–12:00 UT; (2) 12:00–18:00 UT; (3) 18:00–24:00 UT as shown in Fig. 17. It is clear to see that a significant increase of the STD on the ionosphere-free pseudorange measurements between 12:00 and 18:00 UT can be observed, which means the pseudorange measurements are severely affected during the period of ionospheric disturbance. Compared with ionosphere-free pseudorange measurements, the STD of residuals of the ionosphere-free carrier phase measurements for baseline HKPC–HKOH solution does not show a close relationship with the scintillations, which indicates that the carrier phase measurements were not degraded during the scintillation period.

Fig. 17
figure17

STD of residuals on ionosphere-free pseudorange (a) and carrier phase (b) measurements from three periods (1) 00:00–12:00 UT; (2) 12:00–18:00 UT; (3) 18:00–24:00 UT for the baseline HKPC–HKOH on 24 September 2013. The isolated points without linkage with other points mean that the satellites are just visible in one of the three periods

Conclusions

The ionosphere observation in Hong Kong showed abnormal variation during the TC 2013 Usagi. The three GPS-based ionosphere-related parameters, i.e., scintillation index S4, cycle slip, and TECR, simultaneously showed a significant increase on the second day after the Usagi made landfall. The explanation for this phenomenon was that the AWGs was strengthened during the TC landfall period. When the upward AWGs was combined with the eastward electric field after sunset, i.e., 20:00 LT to 02:00 LT, the ionospheric condition became more unstable and unpredictable. As a result, the ionospheric disturbances were observed between 20:00 LT and 02:00 LT on the second day after the TCs made landfall near Hong Kong.

The GPS positioning performance in PPP and relative positioning was also degraded by the ionospheric disturbances. The RMS of the GPS PPP errors on the ionosphere quiet day (19 September 2013) were 0.021 m, 0.016 m, and 0.033 m in the components of east, north, and up, respectively. However, the RMS of the positioning errors on the second day after the Usagi made landfall (24 September 2013) were 0.050 m, 0.045 m, and 0.185 m in the components of east, north, and up, respectively. As for the relative positioning, the RMS of the positioning errors in the east and north directions during the period of TC-induced ionospheric disturbance (24 September 2013) were 0.134 m and 0.118 m, which were ~ 7.1 and ~ 7.8 times as large as the RMS on the ionosphere quiet day, i.e., 0.019 m in the east direction and 0.015 m in the north direction. Furthermore, the positioning errors in the up (RMS 0.513 m) direction during the period of TC-induced ionospheric disturbance could reach up to ~ 12.2 times of the RMS of 0.042 m on the ionosphere quiet day. The degraded positioning performance was attributed to the poor GPS measurement, which was caused by the unstable ionospheric environment. Furthermore, the ionospheric disturbances were most probably triggered by the TC Usagi making landfall.
