Spatial scale of geomagnetic Pc5/Pi3 pulsations as a factor of their efficiency in generation of geomagnetically induced currents

Abstract

Geomagnetically induced currents (GICs) in a quasi-meridional power transmission line on the Kola Peninsula are analyzed during the intervals of Pc5/Pi3 (frequency range from 1.5 to 5 mHz) pulsations recorded at the IMAGE magnetometer network. We have analyzed GIC in a transformer at the terminal station Vykhodnoy (\(68^{\circ }\) N, \(33^{\circ }\) E) during the entire year of 2015, near the maximum of the 24th Solar cycle. To quantify the efficiency of GIC generation by geomagnetic pulsations, a ratio between power spectral densities of GIC and magnetic field variations is introduced. Upon examination of the geomagnetic pulsation efficiency in GIC generation, the emphasis is given to its dependence on frequency and spatial scale. To estimate pulsation spatial scales in latitudinal and longitudinal directions, the triangle of stations KEV-SOD-KIL has been used. Large-scale pulsations (with a high spectral coherence, low phase difference, and similar amplitudes at latitudinally separated stations) are found to be more effective in GIC generation than small-scale pulsations. The GIC response also depends on the pulsation scale across the electric power line.

Introduction

Interaction of solar ejecta with the near-Earth environment activates global space weather processes: intensification of the magnetosphere–ionosphere current systems, energization of ring current and radiation belt particles, enhanced precipitation into the auroral oval, disturbance of the geomagnetic field, etc. These processes are potentially risky for space and ground technologies. Generation of geomagnetically induced currents (GICs) related to abrupt changes of the geomagnetic field is one of the most significant space weather factors for power transmission lines (e.g., Boteler 2001; Kappenman 2004). To evaluate the space weather risk, the geophysical community is making tremendous efforts to develop a global computer model of storm/substorm activity augmented by the magnetotelluric reconstruction of telluric currents (Pulkkinen et al. 2007; Pulkkinen 2015; Love et al. 2018).

However, high-risk GICs may be related not only to global processes with an enormous energy yield (e.g., for typical substorm it is of \(10^{14}\) J), but also to more localized and rapid processes. The solar wind–magnetosphere interaction results in the occurrence of diverse types of perturbations with various spatial and time scales. Such localized and fast disturbances embedded into the global magnetospheric processes may be the actual drivers of GIC bursts (Belakhovsky et al. 2019). In general, the amplitudes of geomagnetic variations decrease with frequency, whereas the induced electric field magnitudes are expected to grow with frequency. Therefore, the GIC response, which is a convolution of both factors, must have a maximum at some frequencies. Many case studies of GIC bursts demonstrated that this time scale is about \(2-10~\)min. That is, it falls into the band of Pc5/Pi3 pulsations, i.e., at the low-frequency edge of the ultra-low-frequency (ULF) range.

The impulsive geomagnetic disturbances during nighttime may be associated with substorm onsets and subsequent activations, magnetic perturbation events—isolated disturbances with the duration of about 5–10 min (Engebretson et al. 2019), intense Ps6/Pi3 pulsations—quasi-periodic series of impulses with duration of \(10-20~\)min, and narrow band Pc5 pulsations with frequencies of \(\sim\)2–7 mHz. Though the power of such processes is much lower than the power of magnetospheric storms and substorms, the rapidly varying electromagnetic fields of these disturbances can induce a significant GIC (Viljanen 1998; Apatenkov et al. 2004; Belakhovsky et al. 2018). The events were presented when the ULF variations of the Pi3 or Ps6 type induced GIC in power transmission line up to 120 A (Belakhovsky et al. 2019; Apatenkov et al. 2020).

The most severe space weather effects on technology, naturally have been reported at auroral latitudes, where amplitudes of magnetic field variations and GICs are maximal. However, the most intense storms are characterized by two effects which dictate the growing interest to GIC problem at middle and low latitudes, as well. The first one is the equatorial displacement of the auroral oval during intensive storms (see, e.g., Milan 2009; Yokoyama et al. 1998 and references therein). Another storm-related phenomenon is generation of global Pc5 pulsations. These pulsations which develop at the recovery phase of strong magnetic storms could be very effective GIC drivers. They are extremely intense (up to few hundreds of nT) (Nagai 1964), long-lasting up to several hours (Boteler 2019; Hayakawa et al. 2020), can propagate to very low latitudes (Marin et al. 2014), and are coherent over thousands of kilometers (Kleimenova et al. 2005; Lee et al. 2007). Both effects were reported for extreme historical storms (Nagai 1964; Boteler 2019; Hayakawa et al. 2020). It is important in the context of our present study, that the 1958 magnetic storm resulted in Pc5 pulsations which were lasting for nearly 4 h with 100 nT amplitude at a low latitude Kakioka station (see Fig. 1 in Nagai (1964)).

Fig. 1
figure1

Locations of the magnetic observatories, the observational point of GIC recording at VKH. The electric power line is schematically shown with a red dashed line

The actual driver of GICs, telluric electric field, can be estimated for a given magnetic field B(f) varying with the frequency f above a homogeneous ground with the conductivity \(\sigma\) from the boundary impedance condition (in the plane wave approximation) as \(E/B=\omega ^{1/2}(\mu \sigma )^{-1/2}\), where \(\omega =2\pi f\), and \(\mu\) is the magnetic constant. For the Pc5 pulsations with \(\omega =0.01~\)s\(^{-1}\) and the average conductivity in Fennoscandia \(\sigma =10^{-4}\) S/m this relation gives E[mV/km]/B[nT]\(\approx 12\) (mV/km)/nT. For the global Pc5 pulsations with \(B\approx 100~\)nT, the expected telluric field can reach \(E\approx 10^3~\)mV/km. This value is almost as high as the estimate given by Lucas et al. (2020) for the extreme once-per-century electro-telluric field over the US territory.

Viljanen et al. (2001) suggested that the Pc5 waves during the recovery phase of a magnetic storm may cause intense GICs. Pulkkinen and Kataoka (2006) further proposed that a moderate and steady wave activity could lead to cumulative GIC effects such as corrosion of natural gas pipelines. Gusev et al. (2020) showed that GICs are more dangerous to power transformers during transients than during their stationary functioning. Moreover, if hysteresis effect in power transformers is taken into account, potentially risky GIC amplitudes become lower. This makes long-lasting geomagnetic pulsations even more dangerous, than intensive transients.

Geomagnetic pulsations on the ground are the image of magnetohydrodynamic (MHD) waves in the magnetosphere. The ULF wave activity is controlled by the solar wind–magnetosphere interaction and processes inside the magnetosphere. The common view is that pulsations of extra-magnetospheric origin have longer azimuthal wavelengths than pulsations generated via wave–particle interaction inside the magnetosphere (Baker et al. 2003; James et al. 2013). Small-scale pulsations at auroral latitudes are the result of different kinetic processes (see, e.g., Baddeley et al. 2004; Mager et al. 2013). These waves are severely screened by the ionosphere, and are almost undetectable on the ground surface.

The terrestrial magnetosphere forms a wide variety of MHD resonators and waveguides for ULF waves resulting in an essentially inhomogeneous ULF wave electromagnetic field. In addition, the occurrence of strong gradients of the ionospheric conductivity and ground geoelectric parameters may cause a non-uniform geomagnetic response even to large-scale magnetospheric sources (e.g., Alperovich and Fedorov 2007; Mazur and Chuiko 2017). Indeed, telluric electric field in realistic conditions is found to be more inhomogeneous in amplitude and direction than the primary magnetic field variations because of horizontal inhomogeneity of crust electric conductivity. Bedrosian and Love (2015) demonstrated that a telluric E-field can exhibit rapid spatial variations even in the presence of a spatially uniform B-field.

These factors lead to an essential difference between the spatial structures of geomagnetic pulsations and global processes like storms and substorms. In most cases, plane wave approximation provides good agreement between modeled and measured GICs during global storm-time disturbances (Viljanen et al. 2004). On the contrary, spatial distribution of pulsation magnetic field is essentially non-uniform even for narrow-band Pc pulsations, especially in the vicinity of Alfven field line (Pilipenko et al. 1999; Menk et al. 2004; Sandhu et al. 2018), plasmapause projection (Milling et al. 2001; Kale et al. 2007) and equatorial electrojet (Fedorov et al. 1999).

In almost all the previous studies of the relationship between GIC and geomagnetic variations, it was implicitly assumed that the magnetic field is homogeneous along an electric power line (EPL). The role of a geomagnetic variation spatial scale has never been thoroughly examined, although the importance of this effect has been postulated (e.g., Boteler and Pirjola 2017; Yagova et al. 2018).

Recently, a correlation between GIC and geomagnetic spectral amplitudes depending on pulsation spatial scale and polarization was studied by Sakharov et al. (2021) for the conductivity distributions corresponding to GIC to magnetic field spectral amplitude ratio with a power-law dependence on frequency:

$$\begin{aligned} J \propto f^{\alpha }B_C, \end{aligned}$$
(1)

where J and \(B_C\) are the spectral amplitudes of pulsations of the GIC and geomagnetic field component (\(C=X,Y\)). It was shown, than for the “Northern Transit” EPL prolongated approximately along the meridian the inter-relation between GIC and geomagnetic pulsations is closer for \(B_Y\) component than for \(B_X\) one and for the large-scale pulsations than for small-scale ones. This result shows an importance of spatial scale of geomagnetic pulsation in GIC generation at auroral latitudes. The present study is aimed at detailed analysis of pulsations efficiency in GIC generation and coherence between geomagnetic and GIC pulsations depending on spatial scale of the geomagnetic pulsations.

Data set and event analysis technique

The data of the IMAGE magnetometer network (10-s cadence) (Tanskanen 2009) are used for the analysis of geomagnetic field variations. The GIC recordings are provided by the system deployed in the “Northern Transit” EPL at the Kola Peninsula by the Polar Geophysical Institute and the Northern Energetics Research Center KSC RAS (Barannik et al. 2012; Viljanen et al. 2012). This 330 kV power line is oriented nearly along the magnetic meridian. We use the data from the terminal station Vykhodnoy (VKH) located at the corrected geomagnetic (CGM) latitude \(\Phi =65^{\circ }\). The station records a quasi-DC current in the dead-grounded neutral of a transformer with a 1-min sampling rate. We analyze the Pc5/Pi3s pulsations detected during the year of 2015.

Kevo (KEV) magnetic station, the nearest to VKH and nearly at the same geomagnetic latitude, is taken as a reference point. Sodankylä (SOD) and Kilpisjärvi (KIL) stations are used for estimates of the pulsation’s meridional and latitudinal spatial scales, respectively. Station locations are shown on the map (Fig. 1) and the station information is summarized in Table 1.

Table 1 Stations information

The following data analysis technique has been used. Geomagnetic data is filtered in a \(0.8-8.3~\)mHz band and then decimated to a 1-min sampling rate. GIC data is high-pass filtered with the 0.8 mHz cutoff frequency. Then, the spectral estimates are made in a 64-point (3840 s) running window with a 5-min shift between subsequent intervals. Overall, about 700 h of essential pulsation activity were analyzed. This resulted in more than 8000 calculated spectra for overlapping intervals (1200 for non-overlapping ones). These intervals correspond to all the levels of geomagnetic storm activity. Their distribution over minimal Dst indices for two intervals of time delay corresponding to the the main and recovery phases of geomagnetic storms is presented in Table 2. Roughly, about one third of intervals corresponds to non-storm intervals, more than one half is found to occur after weak and moderate magnetic storms (i.e., those with Dst\(_{\min }>-90~\)nT), and the rest occurs after intensive storms. For comparison, the data for the whole year 2015 is also given in the table. In agreement with previous studies, occurrence of Pc5/Pi3 pulsations increases at main and recovery phases of geomagnetic storms. However, the contribution of non-storm pulsations is also significant.

The power spectral density (PSD) is calculated with the Blackmann–Tukey method (Kay 1988). Spectral coherence \(\gamma ^2\) and phase difference \(\Delta \varphi\) are obtained from cross spectra. Periodic ULF disturbances are automatically selected with a detection program for the time intervals with a pronounced spectral maximum over the background “colored noise” spectrum (Yagova et al. 2015). The results of this selection have been visually checked. The bandwidth analyzed comprises the Pi3 range (predominantly \(f<2~\)mHz) and Pc5 range (\(f>1.7~\)mHz).

Efficiency of GIC generation is quantified with the \(R_{I-B}(f)\) parameter, which is the ratio of PSDs of GIC variations and geomagnetic pulsations at a given frequency. This ratio is calculated for each Pc5/Pi3 interval. Then, the \(R_{I-B}\) dependence on frequency and parameters characterizing spatial structure of geomagnetic pulsations is analyzed statistically. As the present analysis is based on the same system of GIC measurements as in (Sakharov et al. 2021), \(B_Y\) component only is utilized for statistical analysis of pulsation efficiency in GIC generation.

Both the absolute values of wave amplitude and phase gradients and the angle between the gradient and the EPL are important for GIC generation. First, we examine how the efficiency of GIC generation by Pc5/Pi3 pulsations depends on the pulsation’s scale across the EPL. For that, we analyze the East–West (E–W) structure of pulsation magnetic field. Auroral Pc5 pulsations are typically large-scale in azimuthal direction, so their amplitudes and spectral content are almost constant along geomagnetic parallel at distances up to several hundred kilometers (Chisham and Mann 1999; Baker et al. 2003). For such pulsations, even a mismatch of about few hundred kilometers in longitude between a magnetometer location and an EPL is not significant. However, at auroral latitudes ULF pulsations with essential variation of amplitude and phase along geomagnetic longitude are also possible (Chisham and Mann 1999). Yagova et al. (2018) presented examples of Pi3 pulsations localized in the E–W direction and prolongated in the N–S direction. In this situation, magnetic pulsations at an EPL longitude can differ essentially from pulsations at the longitude of a magnetic station. For such E–W short-scale pulsations, any estimates of GIC amplitude in an EPL would be inaccurate if the magnetic data is taken from a station located far from the EPL meridian. That is why, spatial distribution of pulsation magnetic field in the E–W direction is to be taken into account for GIC applications.

For the further analysis, we use the same classification of the large- and small-scale pulsations, as in Sakharov et al. (2021). For the classification of pulsations into E–W large- and small scale, we use the KEV-KIL station pair. KIL is separated from KEV by \(\Delta \Lambda =5.5^{\circ }\) (250 km). Amplitude variation is taken into account with the East-to-West (KEV/KIL) PSD ratio \(R_{EW,By}\).

We define a Pc5/Pi3 pulsation as E–W large-scale, if \(R_{EW,By}\) is close to 1 and spectral coherence \(\gamma ^2_{EW}\) is high. The notation \(L_{EW}\) is used for these pulsations. All the other pulsations are considered as short-scale in the E–W direction and referred to as \(S_{EW}\).

A hypothesis to check is that the \(L_{EW}\) pulsations demonstrate higher spectral coherence with GIC variations than the \(S_{EW}\) ones.

A pulsation scale along the EPL may influence GIC amplitude if the amplitude and/or phase of the pulsation changes essentially along the power line length. GIC to magnetic field PSD ratio is controlled by the shorter between two scales, namely the EPL length and the pulsation’s scale. Amplitude and phase distributions of real pulsation field are not identical to those of a plane wave. Thus, the pulsation spatial scales obtained from amplitude and phase spatial distributions can be different. Phase difference is of critical importance for GIC efficiency, because only in the case of small phase difference at EPL length, time derivative of the magnetic field dB/dt has the same polarity throughout the EPL. Amplitude distribution along the meridian is the second factor, which also influences GIC amplitude. For nearly in-phase pulsations, GIC amplitude is determined by the amplitude averaged over EPL length.

In our consideration, we use the data from the KEV-SOD station pair for the analysis of Pc5/Pi3 magnetic field distribution along the meridian. SOD is located at \(\Phi =67.37^{\circ }\), i.e., it is shifted by \(\Delta \Phi =2.4^{\circ }\) (270 km) to the South from KEV. The magnetic latitudes of these two stations correspond to the Northern part of the EPL latitudes. In such a geometry, the pulsation efficiency should be higher for pulsations with higher South-to-North PSD ratio \(R_{SN,By}\). That is, we define a pulsation as N–S large-scale (\(L_{NS}\)), if high spectral coherence, low phase difference, and relatively high South-to-North PSD ratio are found at KEV-KIL station pair.

A hypothesis to check is that \(L_{NS}\) pulsations generate more intensive GICs than \(S_{NS}\) ones of the same amplitude and frequency, i.e., that the \(R_{I-By}\) is higher for the \(L_{NS}\) than for the \(S_{NS}\) pulsations.

The boundary values for coherence, phase difference and South-to-North PSD ratio are equal to \(\gamma _b=0.7\), \(\mu _b=0.85\) (\(\mu =cos(\Delta \varphi\))), and \(R_{SN,By} =0.5\), respectively. These values provide comparable number of events in each of pulsation sub-groups.

Results

Examples of pulsations with different GIC efficiency

A large-scale pulsation registered on 1 March 2015 (day 60) at 7:15 UT

Table 2 Distribution of the selected and all intervals over Dst (% of the total number)
Fig. 2
figure2

Event 1 Pulsations recorded in the geomagnetic field and GIC on day 2015 060. a aveforms of \(B_Y\) pulsations at KEV (magenta) and GIC at VKH (dark blue); b normalized PSD spectra; c \(B-I\) spectral coherence for \(B_Y\) (solid line) and \(B_X\) - (dashed); d GIC to \(B_Y\) PSD ratio

Waveforms and spectral parameters of Pc5 pulsations recorded simultaneously in geomagnetic field at KEV and in GIC at VKH are given in Fig.  2. The pulsation’s main period is approximately 4 min. The peak-to-peak amplitude of the pulsation varies from 20 to 40 nT for the geomagnetic field and from 5 to 10 A for the GIC (Fig. 2a). Both geomagnetic and GIC PSD spectra demonstrate maxima at \(f_1=1.7\), \(f_2=2.7\), and \(f_3=4~\)mHz (Fig.  2b). Spectral coherence \(\gamma ^2_{I-By}\) (Fig.  2c) is almost 1 at all the frequency band \(1.7-5~\)mHz. This panel also shows spectral coherence \(\gamma ^2_{I-Bx}\) between the \(B_X\) component and GIC. Although it exceeds 0.5, it is lower than \(\gamma ^2_{I-By}\) at all the frequencies analyzed. GIC to \(B_Y\) PSD ratio \(R_{I-By}\) varies in the range of \(0.01-0.03~\)A\(^2\)/nT\(^2\) and it has a maximum at the \(f_2\) frequency and it grows with frequency at \(f>3.3~\)mHz (Fig. 2d).

Fig. 3
figure3

Parameters of the event 1 pulsation in the E–W direction: a \(B_Y\) waveforms at KEV (magenta) and KIL (green); b normalized PSD spectra; c E–W spectral coherence for \(B_Y\) (solid) and \(B_X\) (dashed); d E–W PSD ratio for \(B_Y\) (solid), and \(B_X\) (dashed)

What about the spatial properties of this pulsation? Distribution of the pulsation parameters along the latitude is illustrated by Fig. 3. For the KEV-KIL station pair, the pulsation’s waveforms are similar (Fig.  3a). This is also confirmed by spectral parameters (Fig. 3b–d). The spectral coherence \(\gamma ^2_{EW,By}\) exceeds 0.5 (Fig. 3c) at frequencies of all the spectral maxima found in KEV PSD spectrum. As for \(B_X\) component, \(\gamma ^2_{EW,Bx}\) is almost 1.

Figure 3d depicts East-to-West PSD spectral ratio for both horizontal components. \(R_{EW,By}\) at these frequencies exceeds 1. This means that spectral power grows at this longitude interval towards noon and is higher at KEV than at KIL. \(R_{EW,Bx}\) is even higher, than \(R_{EW,By}\), and it exceeds 1 at all the analyzed frequencies.

Thus, we classify this as an E–W large-scale pulsation. Found spectral ratio and coherence allow us to suggest that at the EPL longitude, the pulsation should have nearly the same spectral content, as at KEV, and a comparable (or, probably, somewhat higher) amplitude.

Fig. 4
figure4

Parameters of the event 1 pulsation in the N–S direction: a, b \(B_Y\) and \(B_X\) waveforms at KEV (magenta) and SOD (blue); c normalized PSD spectra; d, e N–S spectral coherence and phase difference for \(B_Y\) (solid) and \(B_X\) —(dashed); f South-to-North PSD ratio for \(B_Y\) (solid) and \(B_X\) - (dashed)

Distribution of the pulsation parameters along the meridian is illustrated by Fig.  4. Waveforms of both horizontal components are shown on the left-hand panel of Fig. (4a, b). The \(B_Y\) pulsation is clearly seen at SOD but its amplitude is lower than that at KEV. Spectral coherence is almost 1 for all the spectral maxima. At \(f_1\) frequency, pulsations are in phase. At two higher frequencies, phase difference does not exceed \(25^{\circ }\). Thus, \(dB_Y/dt\) polarity remains the same during almost all of the pulsation half-period. The South-to-North PSD ratio changes from 1 at 1.7 mHz to about 0.3 at the frequencies of two other spectral maxima (note, that 0.3 in PSD spectral ratio corresponds to 0.55 in amplitude spectral ratio). The variations of \(B_X\) component are almost out-of-phase with \(B_Y\) component. Meanwhile, spectral content differs between the components. Thus, PSD of \(B_X\) has the main maximum at \(f_2\), and it is higher than that of \(B_Y\). The absolute value of phase difference in \(B_X\) does not exceed \(45^{\circ }\) at \(f<4~\)mHz, and its sign at \(f_2\) is positive, in contrast to that in \(B_Y\). The South-to-North PSD ratio in \(B_X\) is about 0.3 at these frequencies.

At frequencies below 4 mHz, the pulsation is polarized almost linearly. However, the difference between the two components is seen in the PSD and phase spectra near \(f_2\). This can result from FLR at L-shell somewhere between KEV and SOD. Actually, near \(f_2\), \(B_X\) component demonstrates all the typical resonance features (Baransky et al. 1995), namely a clear PSD maximum (Fig.  4c), apparent poleward propagation (Fig.  4b,e) and elevated South to North PSD ratio.

We can summarize, that this pulsation demonstrates high coherence and low phase difference in both horizontal components. Thus, we classify this as a large-scale pulsation in the N–S direction. We expect that it should be effective for GIC generation. Actually, GIC to \(B_Y\) PSD ratio varies with frequency in the range of \(0.01-0.03~\)A\(^2\)/nT\(^2\) (i.e., \(0.1-0.2~\)A/nT in the amplitude spectra).

A small-scale pulsation registered on 12 May 2015 (day 132) at 4:05 UT

A pulsation recorded in the early morning (7 MLT at KEV) of May 12 is illustrated in Fig.  5. Peak-to-peak amplitude of the geomagnetic pulsation at KEV reaches 60 nT. Simultaneously, the pulsation is seen in GIC with amplitude of about 1 A (Fig.  5a). A main spectral maximum is found in the PSD spectra at \(f_1=2.1~\)mHz, and a minor maximum—at \(f_2=3.7~\)mHz (Fig.  5b). Both frequencies are stressed in coherence spectrum, as well. Coherence between GIC and \(B_X\) is lower than that between GIC and \(B_Y\) (Fig.  5c). It should also be noted, that spectral coherence is lower than in the previous event. The GIC to \(B_Y\) PSD ratio varies near \(R_{I-By}=3\cdot 10^{-4}~\)A\(^2\)/nT\(^2\) (Fig.  5d), i.e., it is two orders of magnitude lower, than for the previous event.

Fig. 5
figure5

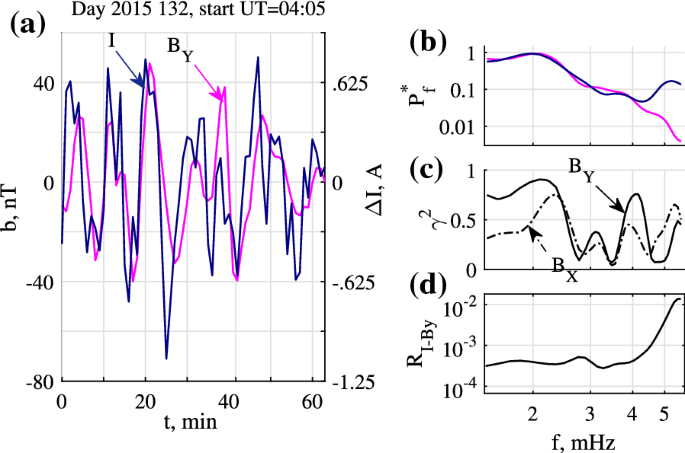

Event 2 Pulsations recorded in the geomagnetic field and GIC on day 2015 132. a waveforms of \(B_Y\) pulsations at KEV (magenta) and GIC at VKH (dark blue); b normalized PSD spectra; c \(B-I\) spectral coherence for \(B_Y\) (solid) and \(B_X\) (dashed); d I to \(B_Y\) PSD ratio

Fig. 6
figure6

Parameters of the event 2 pulsation in the E–W direction: a \(B_Y\) waveforms at KEV (magenta) and KIL (green); b normalized PSD spectra; c E–W spectral coherence for \(B_Y\) (solid) and \(B_X\) (dashed); d E–W PSD ratio for \(B_Y\) (solid) and \(B_X\) (dashed)

Pulsation waveforms for the KEV-KIL station pair and their spectral parameters are presented in Fig.  6. The \(B_Y\) pulsation is seen at both stations with similar waveforms and comparable amplitudes (Fig.  6a). Both frequencies of spectral maxima at KEV, can also be seen in the PSD spectrum at KIL (Fig.  6b). However, a maximum in coherence spectrum is only found for \(f_1\) frequency with \(\gamma ^2=0.9\), while at \(f_2\), \(\gamma ^2\) is about 0.5. The \(B_X\) coherence spectrum is similar to that of \(B_Y\) at \(f<2.4~\)mHz and then \(\gamma ^2_{EW,Bx}\) decreases with f quicker than \(\gamma ^2_{EW,By}\). For the \(B_X\) component, the East-to-West PSD ratio \(R_{EW,Bx}\) exceeds 1 at all frequencies, while for \(B_Y\), it is nearly 1 at \(f_1\) and about 0.3 at \(f_2\). This allows us to assume that the pulsation should be seen in \(B_Y\) at the VKH longitude with an amplitude close to that at KEV at \(f_1\) and with a somewhat lower amplitude at \(f_2\).

Fig. 7
figure7

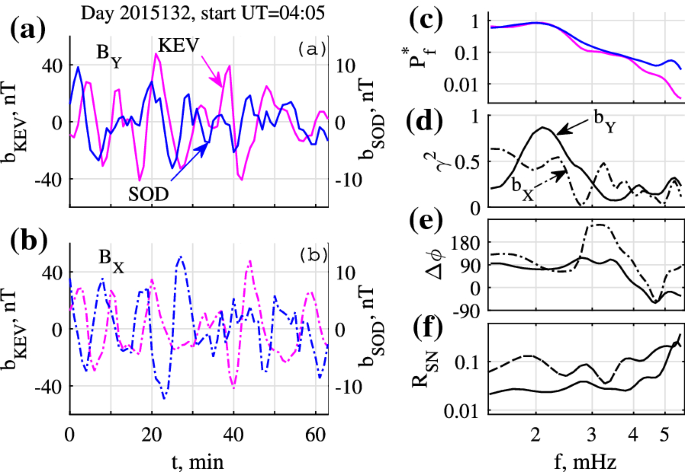

Parameters of the event 2 pulsation in the N–S direction: a, b \(B_Y\) and \(B_X\) waveforms at KEV (magenta) and SOD (blue), note different vertical scale for two stations; c normalized PSD spectra; d, e N–S spectral coherence and phase difference for \(B_Y\) (solid) and \(B_X\) (dashed); f South-to-North PSD ratio for \(B_Y\) (solid) and \(B_X\) (dashed)

Distribution of the pulsation parameters along the meridian is shown in Fig.  7. In both components, the pulsation is seen at the KEV and SOD stations with similar apparent periods, but its amplitude and phase differ essentially. As a result, \(dB_Y/dt\) polarity remains the same between KEV and SOD only during approximately a fourth of the pulsation period (it is only a half compared to the event 1). The spectral peak at \(f_1\) frequency is seen in both the PSD and coherence spectra (Fig.  7c, d). As for the South-to-North PSD ratio, it is about 0.03 ( 0.2 in the amplitude spectra). \(B_X\) coherence is lower, phase difference is nearly the same, and \(R_{SN,Bx}\) is higher than the corresponding parameters for \(B_Y\) component.

According to the selection criteria, this pulsation is small-scale in both directions. A comparison of pulsation amplitudes in GIC and geomagnetic components for the two events analyzed demonstrates that the first pulsation is more effective in GIC generation than the second one. In fact, the GIC amplitude during the second interval is only about 1 A, i.e., it is an order of magnitude lower than for the first event PSD spectrum though the amplitude of the geomagnetic pulsation is higher in the second event. We assume that this results from the difference of spatial scales of the pulsations. In the next subsection we shall verify this assumption using the analysis of pulsations registered in \(B_Y\) component of the geomagnetic field and GIC during the year 2015.

Statistics

Pulsation scale in the E–W direction (i.e., transversal to the EPL) influences GIC parameters due to the fact that magnetic stations are usually not co-located with an EPL. Thus, the magnetic data used for GIC estimates is not exactly the same, as at the EPL longitude. When magnetic field is recorded not at an EPL longitude and the acquired data is utilized to estimate GIC parameters in the EPL, some kind of interpolation procedure is explicitly or implicitly used. This can lead to essential or negligible errors depending on E–W inhomogeneity of pulsation magnetic field.

Spectral coherence \(\gamma ^2_{I-By}\) quantifies the inter-dependence between GIC and magnetic field variations. Figure 8 shows empirical PDFs, calculated as \(F=n_i/N_t\), where \(n_i\) is the number of Pc5/Pi3 intervals with \(\gamma ^2_{I-By}\) in an interval \(\Delta \gamma ^2_i\), where \(\Delta \gamma ^2_i=(\gamma ^2_i,\gamma ^2_{i+1})\) and \(N_t=\sum (n_i \Delta \gamma ^2_i)\). In the figure, the distributions of Pc5/Pi3 intervals over \(\gamma ^2_{I-By}\) are given separately for the \(L_{EW}\) and \(S_{EW}\) pulsations. The difference in distributions is clearly seen in all the frequency bands. A fraction of low-coherent intervals is essentially higher for small-scale pulsations, while the large-scale pulsations demonstrate a pronounced high-coherence maxima at all frequencies.

Fig. 8
figure8

\(\gamma ^2_{I-By}\) empirical PDF for the E–W large- (\(L_{EW}\)) and small-scale (\(S_{EW}\)) pulsations

Fig. 9
figure9

\(R_{I-By}\) normalized PDF for the N–S large (\(L_{NS}\)) small-scale (\(S_{NS}\)) pulsations

The GIC efficiency of Pc5/Pi3s depends on their spatial scale in the N–S direction. N–S large-scale pulsations generate GICs with the amplitudes higher than N–S small-scale pulsations of the same amplitude. This effect is seen in the GIC to \(B_Y\) PSD ratio \(R_{I-By}\). Figure 9 shows \(R_{I-By}\) normalized PDFs for (\(L_{NS}\)) and small-scale (\(S_{NS}\)) pulsations. For all the frequency bands, the distributions for small-scale pulsations are enriched with low values of \(R_{I-By}\). At the two lower frequencies, the most probable value of \(R_{I-By}\) is the same for the two groups of pulsations, while for the two higher frequencies, the most probable \(R_{I-By}\) is also higher for the large-scale pulsations. The fraction of \(R_{I-By}>0.1~\)A\(^2\)/nT\(^2\) is nearly two times higher for the large-scale pulsations, than for the small-scale ones in all the frequency bands. As for the rare events (\(F^* \simeq 10^{-3}\)) with extremely high values of \(R_{I-By} \ge 1~\)A\(^2\)/nT\(^2\), their fraction is even higher for the small-scale pulsations, than for the large-scale ones. This effect is probably related to pulsations of complex harmonic content with steep fronts (e.g., Yagova et al. 2018).

Actually, we have used three parameters to discriminate between large-scale and small-scale pulsations, namely, the spectral coherence, phase difference, and South-to-North PSD ratio. In a realistic ULF wave they are not independent. However, we can try to estimate the influence of each parameter on \(R_{I-By}\). A low coherence at a given frequency means that the phase difference changes essentially during the time interval for which the spectrum is calculated. Thus, phase difference estimates are valid only for coherent pulsations. We expect that the coherence and phase difference influence \(R_{I-By}\) in a similar way, because both the low coherence and high phase difference at the EPL length lead to a situation, where different EPL segments contribute to EMF with the opposite signs. On the contrary, the South-to-North PSD ratio \(R_{SN,By}\), influences the GIC only via EMF amplitude variation along the EPL. Thus, the \(R_{I-By}\) dependence on the \(R_{SN,By}\) is expected to be weaker than its dependence on coherence and phase difference.

Figure 10 illustrates GIC efficiency of the pulsation depending on its coherence, phase, and PSD distribution along the magnetic meridian. For that, \(R_{I-By}\) spectra averaged over each of the emerging 6 groups of pulsations are calculated. First, we divide pulsations into small- and large-scale ones, depending on their spectral coherence (marked \(S_{\gamma }\) and \(L_{\gamma }\) in the figure). This first division allows us to analyze phase distribution for the group of coherent pulsations (\(L_{\gamma }\)). The \(L_{\gamma }\) group is divided into small- and large-scale sub-groups in accordance to their phase difference (\(L_{\gamma }S_{\varphi }\) and \(L_{\gamma }L_{\varphi }\) in the figure). At the last stage, we divide the \(L_{\gamma }L_{\varphi }\) group into small- and large-scale sub-groups depending on their South-to-North PSD ratio \(R_{SN,By}\) (\(L_{\gamma }L_{\varphi }S_P\) and \(L_{\gamma }L_{\varphi }L_P\) in the figure).

Fig. 10
figure10

Averaged \(R_{I-By}\) spectra for 6 groups of pulsations: 1)-2) small-scale \(S_{\gamma }\) and large-scale \(L_{\gamma }\) in accordance to the N–S spectral coherence; 3)-4) \(L_{\gamma }S_{\varphi }\) and \(L_{\gamma }L_{\varphi }\) are the small-/large-scale sub-groups of the \(L_{\gamma }\) group defined in accordance to the phase difference; 5)-6) \(L_{\gamma }L_{\varphi }S_P\) and \(L_{\gamma }L_{\varphi }L_P\) are the small- /large-scale sub-groups of the \(L_{\gamma }L_{\varphi }\) groups defined in accordance to the South-to-North PSD ratio

Fig. 11
figure11

a Averaged \(R_{I-By}\) spectra for the N–S large- (\(L_{NS}\)) and small-scale (\(S_{NS}\)) pulsations. (\(L_{NS} = L_{\gamma }L_{\varphi }L_P\) in Figure 10, while all the other groups form the \(S_{NS}\) group) ; b frequency dependence of \(R_{I-By} >0.1~\)A\(^2\)/nT\(^2\) fraction for the same groups of pulsations

The average value of \(R_{I-By}\) ratio is nearly 3 times higher for the \(L_{\gamma }\) and \(L_{\gamma }L_{\varphi }\) groups than for the \(S_{\gamma }\) and \(L_{\gamma }S_{\varphi }\) ones. This means that low coherence and high phase difference lead to a comparable decrease of pulsation efficiency in GIC generation.

The parameter \(R_{I-By}\) for one group of pulsations demonstrates specific spectral features at the high-frequency flank of the frequency band analyzed, i.e., in the vicinity of Alfven resonance frequency at KEV. In contrast to the other groups, \(R_{I-By}\) frequency dependence is not monotonous for the \(L_{\gamma }S_{\varphi }\) group. It has a maximum at \(f=3.3~\) mHz and its value at this frequency is approximately two times higher, than at the frequency of a local minimum at \(f=3.7~\) mHz. This effect should be taken into account for estimates of expected GIC amplitudes.

A dependence of GIC efficiency of a pulsation on its PSD distribution can be seen from the comparison of \(R_{I-By}\) spectra of the \(L_{\gamma }L_{\varphi }L_P\) and \(L_{\gamma }L_{\varphi }S_P\) groups. One can see from the figure, that \(R_{I-By}\) for the pulsations defined as large-scale with all three parameters (\(L_{\gamma }L_{\varphi }L_P\) group) is about 2 times higher than that for the \(L_{\gamma }L_{\varphi }S_P\) group. This demonstrates that the PSD meridional distribution has a weaker influence on the efficiency of GIC generation than the phase distribution. As for the \(R_{I-By}\) ratio for the most effective \(L_{\gamma }L_{\varphi }L_P\) group, it is 4 times higher than that for the \(S_{\gamma }\) group for which the GIC efficiency is minimal.

In the final analysis, we return to the classification of pulsations into two groups and define only the \(L_{\gamma }L_{\varphi }L_P\) group, as large-scale (\(L_{NS}\)). All other pulsations are considered to be small-scale (\(S_{NS}\)). The resulting averaged \(R_{I-By}\) spectra for these two groups are given in Figure 11a. The large-scale pulsations produce a higher average PSD in GIC than the small-scale ones. The \(R_{I-By}\) ratio grows from \(1.5\cdot 10^{-2}~\)A\(^2\)/nT\(^2\) at 1.5 mHz to \(4.4\cdot 10^{-2}~\) A\(^2\)/nT\(^2\) at 5 mHz for the large-scale pulsations and from \(5\cdot 10^{-3}\) to \(2.2\cdot 10^{-2}~\) A\(^2\)/nT\(^2\) for the small-scale ones. Its value averaged over the frequency band is three times higher for the large-scale pulsations than for the small-scale ones.

The slopes of the \(R_{I-By}\) spectra differ for the two groups of pulsations. For the large-scale pulsations, it corresponds to a model of constant crust conductivity (\(\alpha =0.5\) in Eq. (1)). The spectrum for the \(S_{NS}\) pulsations is close to linear dependence of GIC amplitude on frequency. This means that the electric current is roughly proportional to d\(B_Y\)/dt.

The pulsations’ efficiency in GIC production is characterized not only by the mean magnitudes of GIC, but also by a fraction of high \(R_{I-By}\) values. At the lower panel of Fig. 11b, the frequency dependence of \(R_{I-By}>0.1~\) A\(^2\)/nT\(^2\) probability \(P_{0.1}\) is shown for the same two groups of pulsations, as at the 11a panel. \(P_{0.1}\) is 2–3 times higher for the large-scale than for small-scale pulsations, and at \(f>3~\)mHz it exceeds 0.1, i.e., at these frequencies for each tenth interval the GIC to \(B_Y\) PSD ratio exceeds 0.1  A\(^2\)/nT\(^2\).

Discussion

Using the GIC and magnetic field data recorded in the Russian North–West and Fennoscandia in 2015, we have analyzed the influence of spatial scale of the Pc5/Pi3 pulsations on their efficiency in GIC generation. Our results are based on the analysis of GIC in the EPL prolongated along the meridian and \(B_Y\) component of geomagnetic pulsations.

The GIC to \(B_Y\) PSD spectral ratio \(R_{I-By}\) varies from \(10^{-4}\) to 1 A\(^2\)/nT\(^2\) with most probable values of \(1-3\cdot 10^{-2}~\)A\(^2\)/nT\(^2\) depending on pulsation frequency and spatial scale. The pulsation scale in the E–W direction (transversal to the EPL) is important, because the magnetic field of E–W short-scale pulsations can differ essentially at longitudes of the EPL and magnetic station.

The N–S large-scale pulsations generate more intensive GICs than the short-scale pulsations of the same amplitudes. The dependence of GIC efficiency of Pc5/Pi3s on their phase and coherence distribution along a meridian is stronger, as compared with the dependence on the PSD distribution.

A non-monotonous dependence of \(R_{I-By}\) on frequency, found for the \(L_{\gamma }S_{\varphi }\) group (coherent pulsations with a high phase difference), is probably associated with the FLR (Baransky et al. 1995). Although, this effect reveals itself more evidently in \(B_X\) component, weaker resonance features are also found in meridional distribution of \(B_Y\) amplitude and phase (Lifshicz and Fedorov 1986). Phase and amplitude gradients are higher in the vicinity of a resonance latitude than at non-resonant latitudes and a segment, where the pulsation amplitude grows towards low latitude appears. In the case of a meridional EPL, \(R_{I-By}\) decreases with absolute value of phase difference. Meanwhile, for the system analyzed, the parameter \(R_{I-By}\) increases with the South-to-North PSD ratio. As a result, phase and amplitude gradients have opposite influence on the GIC efficiency. The combination of these two factors can lead to a non-monotonous dependence of \(R_{I-By}\) on frequency. As FLR effect is stronger in \(B_X\) component than in \(B_Y\) one, it can be significant in EPLs extended along a magnetic parallel. It vanishes in a hypothetic situation of zero meridional projection of an EPL. However, in a general case of non-zero angle between an EPL and a magnetic parallel, a non-monotonous dependence of GIC efficiency of Pc5s is expected for both horizontal components.

The slopes of \(R_{I-By}\) spectra shown in Figure 11 differ for two groups of pulsations. For large- and small-scale pulsations it corresponds to \(\alpha =0.5\) and 1, respectively, in Eq. (1). Under the average conductivity in Fennoscandia of about \(10^{-4}~\) S/m, the skin depth for the \(1.5-5~\) mHz frequency band is about several hundred kilometers. For such values of conductivity, wavelength of large-scale pulsations exceeds the skin depth. In the case of small-scale pulsations, effective depth of the GIC electric circuit is of the same order of magnitude as the pulsation wavelength. This explains the difference in effective conductivity distributions between these two cases.

The statistical analysis of pulsation intervals recorded during the year 2015 has shown that the yearly mean values of \(R_{I-By}\) are about three times higher for the N–S large-scale (\(L_{NS}\)) pulsations than for the small-scale (\(S_{NS}\)) ones. Meanwhile, a lower contrast in frequency-integrated \(R_{I-By}\) values is obtained for the conductivity distributions described by Eq. 1 with \(\alpha =0.5\) and 1. This means that GIC efficiency of Pc3/Pi5s depends on their spatial scale at least as much as on conductivity distribution from the ground surface to the skin-depth.

Our present knowledge of magnetic field polarization, frequency and spatial distribution for different kinds of geomagnetic disturbances is not sufficient for a reliable GIC prediction. Actually, the absolute majority of publications is based on the data on extremal geomagnetic disturbances like magnetic storms. These disturbances are global. Therefore, the problem of spatial scale analysis does not exist for them. The sudden commencement events, leading to either storm sudden commencement (SSC), or sudden impulse (SI) provide global disturbance which can cause essential GICs even at low latitudes (e.g., Marshall et al. 2012). These disturbances are characterized by high levels of dB/dt (Fiori et al. 2014). Our consideration predicts that GIC efficiency of such disturbances should be high because of their large spatial scale. These factors may interfere and result in higher GIC to magnetic field PSD ratio, as compared with other disturbances. Belakhovsky et al. (2017) found that GIC to magnetic field amplitude ratio was higher for the SC than for the substorm onset after the interplanetary shock on January 24, 2012. However, this hypothesis has not yet been tested statistically. Besides, it is unclear whether GIC amplitude or its duration has a greater influence on electric equipment. To solve this problem, additional analysis of long-term magnetic and GIC recordings along with parameters of electric equipment functioning is needed.

In a general case, a theoretical solution for GIC can be obtained for a spatial harmonic and then integrated. An empirical model for spatial distribution of pulsation magnetic field would be necessary for that. Incomplete data on Earth conductivity distribution and on the elements of an electric network calls for a comprehensive empirical study of the GIC dependence on pulsation spectra, polarization, and spatial distribution. The numerical studies of GICs at Japanese islands were undertaken by Fujita et al. (2018), Nakamura et al. (2018). The 3-D conductivity model was developed and adopted to calculations of electrotelluric field and GICs in Japan (Nakamura et al. 2018). The authors showed that the agreement between calculated and measured disturbances varied even within Japan. Besides, the accuracy of GIC prediction depends on source model and it is lower at shorter timescales. The authors reported on proper a satisfactory agreement for the timescales of about or longer than 1 h. On the contrary, variations with shorter periods, including Pc5/Pi3 pulsations, can demonstrate essential difference between measured and calculated electric field and GIC values.

At present, our understanding of ULF related GICs is limited even for Pc5 pulsations, whereas quasi-sinusoidal waves are not the only type of auroral disturbances. During severe disturbances, intensive irregular broadband variations are also common (see, e.g., (Posch et al. 2003)). GIC efficiency of some of these pulsations may be higher than that of the usual Pc5s. A similar effect can be caused by a coincidence of wave and bay-like disturbances (Yagova et al. 2018).

The values \(\alpha =1\) and 0.5 in Eq. (1) correspond to two important models of electric conductivity distribution with depth. The parameter of \(\alpha =1\) corresponds to GIC proportional to dB/dt. Such dependence relates to the “electrotechnical” model when EMF is generated in a circuit formed by the EPL and a thin conductive layer at a fixed depth. The model of constant Earth conductivity results in the value of \(\alpha =0.5\) in Eq. (1). It was shown that the correlation between GIC and geomagnetic amplitudes is essentially higher for the large-scale pulsations than for the small-scale ones. Meanwhile, no essential difference was found for conductivity models with \(\alpha =0.5\) and 1 in Eq. (1). This result prompts that ULF pulsation spatial scale is an important though underestimated factor in GIC generation.

If wave field is essentially inhomogeneous, a qualitative technique employed in the present study, based on classification according to phase and amplitude information as separate parameters may be of use. The above analysis allows to estimate the boundary between large- and small-scale pulsations as \(2-5\cdot 10^2~\) km depending on the direction and a particular variable studied. It is worth noting that the meaning of the term “small-scale pulsation” can be different depending on the problem analyzed. A pulsation scale in the GIC problem is defined by phase and amplitude variation at an EPL length for the direction along the EPL and between the EPL and the nearest magnetic station for the transversal direction. Meanwhile, these pulsations are usually classified as medium-scale in the studies of wave properties in the magnetosphere (see, e.g., Mager et al. 2019).

The comparison of storm activity distribution for the Pc5/Pi3 and all intervals in 2015 in Table 2 shows that the non-storm Pc5/Pi3 pulsations are typical at auroral latitudes, while their role in GIC generation is underestimated. Besides, a forecast of such disturbances is difficult, if ever possible. A geomagnetic storm is caused by a SW irregularity which is being routinely registered onboard at the libration point. On the contrary, non-storm pulsations originate from processes inside the magnetosphere and no “precursors” are known for them. Their N–S spatial scale can reach several hundred kilometers, and their amplitudes at auroral and sub-auroral latitudes are high enough to provide GICs exceeding several Amperes. Thus, they are potentially dangerous for quasi-meridional EPLs at auroral and sub-auroral latitudes.

The above analysis of auroral observations can only partly be applied to the problem of ULF-related GICs at low and middle latitudes. Pc5/Pi3 amplitudes at middle and low latitudes are high enough for GIC generation only during the main (Lee et al. 2007) or recovery (Kleimenova et al. 2005) phase of geomagnetic storms. Estimates of maximal GIC amplitudes at middle and low latitudes were given by Marshall et al. (2011). Marshall et al. (2010) showed a close relation between geomagnetic variations and potentials in pipelines in Australia for disturbed and quiet conditions and suggested a GIC index to estimate GIC amplitudes for a particular geomagnetic disturbance. Later this index was successfully applied to the analysis of a GIC event that occurred in New Zealand’s South Island in 2001 after a solar wind dynamic pressure jump (Marshall et al. 2012).

These pulsations are usually global and almost in-phase at long distances along a meridian. However, essential amplitude and phase gradients are found near the plasmapause projection (Kale et al. 2007) and in the narrow near-equatorial region (Fedorov et al. 1999). This leads to non-negligible differences in the GICs modeled from magnetic measurements at different low-latitude sites (Ngwira et al. 2009). The E–W distribution of Pc5 magnetic field at middle and low latitudes reproduces (in main features) its distribution at auroral latitudes. Thus, their E–W spatial scale can be important for GICs in EPLs prolongated in the E–W direction.

GICs generated by Pc3–4 pulsations have not been studied till now. Although no extreme GIC amplitudes are expected for these pulsations, the question of potential GIC risks related to these pulsations is to be studied. This research is hampered by 1-min time resolution typical for the existing GIC measurements.

The new information about GIC dependence on pulsation properties is to be integrated into the existing picture of GIC generation. First, a consideration of interference of different inhomogeneities is necessary. The greatest effect can be expected for inhomogeneities of comparable spatial scales. Here, two separate topics maybe formulated: interference of wave finite wavelength effect with (1) inhomogeneity of the Earth conductivity and (2) configuration of the electric network. The first problem requires the inclusion of satellite data into analysis of ULF-related GICs to discriminate between space and ground sources of pulsation field gradients. For the second problem, finite pulsation wavelength should be included into the models of GIC dependence on electric network configuration. Pirjola (2008) proved that inter-node interaction becomes important at distances of about few dozen kilometers for spatially uniform magnetic field. In general, the role of distance between nodes was proved to be small. The low limit of pulsation spatial scale is about 100 km because of ionospheric screening (Kokubun et al. 1989). This value is high in comparison with the one for which inter-node distance contributes to GIC. Thus, no essential synergetic effects between pulsation scale and inter-node distance are expected. Some inter-dependence of these two factors may occur only at auroral latitudes, where intensive pulsations with essential amplitude and phase gradients are common.

Conclusion

The pulsation’s spatial scale at the frequency range of several mHz (Pc5/Pi3) influences its efficiency in GIC generation and similarity of geomagnetic and GIC pulsations. The statistical and case studies of GIC and geomagnetic pulsations were carried out with the geomagnetic and GIC data recorded in 2015 in the “Northern Transit” EPL, prolongated along the meridian. Higher coherence between geomagnetic and GIC variations is found for the E–W large-scale pulsations. The N–S large-scale pulsations generate more intensive GICs, than the small-scale pulsations of the same amplitudes. The spectral power of GICs generated by large-scale pulsations is three times higher than for the small-scale ones. This proves, that at auroral latitudes, horizontal inhomogeneity of pulsation’s magnetic field is an important factor controlling its efficiency in GIC generation.

Availability of data and materials

Calculated spectra are available as supplementary file and on request.

Abbreviations

CGM:

Corrected GeoMagnetic (coordinates)

EMF:

Electromotive Force

EPL:

Electric Power Line

E–W:

East–West

FLR:

Field Line Resonance

GIC:

Geomagnetically Induced Current

MHD:

Magneto-Hydro-Dynamic

MLT:

Magnetic Local Time

N–S:

North–South

Pc:

Pulsations continuous

PDF:

Probability Density Function

Pi:

Pulsations irregular

PSD:

Power Spectral Density

ULF:

Ultra Low Frequency

UT:

Universal Time
