Frictional stability of porous tuff breccia under subsurface pressure conditions and implications for shallow seismicity

Abstract

Thick sediment layers frequently cover the Japan islands’ surface, and their frictional properties significantly affect the shallow slip behavior that occurs during earthquakes. However, laboratory data on the properties of the shallow zone remain limited. We collected tuff breccia samples from deep borehole cores in the Miocene “Green Tuff” formation, a major surface cover, and performed velocity-stepping friction tests on these samples under in situ stresses of 2 to 20 MPa to assess the velocity dependence of their frictional strength. The samples exhibit predominantly frictionally stable, velocity-strengthening behavior over the range of normal stresses tested, which supports the hypothesis that shallow sediment layers are seismically quiescent. This result is consistent with the low seismicity and attenuation of coseismic slip occurring in the shallow zone that is observed during regional earthquakes. Microstructural observations of the postmortem samples using optical and scanning electron microscopes indicate a fabric transition from boundary shear localization to distributed cataclastic flow with increasing normal stress. Our laboratory investigation of the depth-variable distribution of the frictional velocity dependence of a shallow sediment layer would provide further insight into the mechanical role for earthquake rupture dynamics and shallow seismicity.

Introduction

Seismological observations have shown that earthquake activity is largely concentrated in the upper portion of the brittle crust, named the seismogenic layer (Sibson 1983). The thickness of this layer varies from 10 to 50 km and is strongly dependent on the thermal structure in different tectonic settings. This thickness is a critical index to estimate the depth extent of the fault rupture area and the proportional seismic moment release (magnitude) of potential future earthquakes (e.g., Ito 1999; Maggi et al. 2000; Nazareth and Hauksson, 2004). From the view point of the rock deformation mechanism, the bottom of the seismogenic layer is considered to correspond to a transition zone from the frictional/brittle regime to the plastic regime, as temperature increases with depth (Sibson 1982, 1983; Fredrich et al. 1989). After the introduction and development of the rate- and state-dependent friction constitutive law, the sign of the frictional response to a transient increase in the sliding velocity has been used as a critical benchmark of earthquake instability (Dieterich 1979; Ruina 1983). While a positive sign represents velocity-strengthening, which promotes stable slippage of the fault, a negative sign represents velocity-weakening, which leads to unstable earthquake slips (Marone 1998; Scholz 1998). It is suggested that the lower boundary of the seismogenic layer marks the transition that occurs with depth from an unstable velocity-weakening field to a stable velocity-strengthening field (Tse and Rice 1986; Blanpied et al. 1991). Meanwhile, above the seismogenic layer, there is a seismically quiescent zone in the subsurface that is several kilometers thick (Doser and Kanamori 1986; Marone and Scholz 1988).

The presence of the shallow zone has been shown to significantly influence the fault behavior during dynamic earthquake ruptures, and its resultant properties of strong ground motion (Marone et al. 1991; Brune and Anooshehpoor 1998; Scholz 1998; Day and Ely 2002). For large earthquakes, a fault slip likely nucleates near the base of the seismogenic layer (Sibson 1982, 1983; Das and Scholz 1983), and then propagates upward as well as downward along the faults (Sibson 1983; Scholz 1998). Detailed studies on coseismic slip distributions determined from slip inversions of geodetic data have indicated that when a rupture enters the shallow zone, further upward migration of the rupture tends to be evidently hindered, resulting in a decrease in coseismic slip toward the ground surface (Wald and Heaton 1994; Simons et al. 2002; Fialko et al. 2005). Over the last decades, the cause of such shallow slip deficits has been discussed, especially in relation to the frictional properties of the materials that make up the shallow zone (Marone et al. 1991; Scholz 1998; Fialko et al. 2005; Zinke et al. 2014). It was found that earthquake cycle simulation involving depth variation in velocity-dependent friction model including a shallow velocity-strengthening regime can reproduce the decrease in on-fault slip toward the surface (Marone et al. 1991; Rice 1993). Another explanation on the shallow slip deficit in addition to the frictional properties of the fault plane is that dispersed off-fault deformation of the protolith medium during the coseismic as well as interseismic periods can accommodate a portion of expected elastic strain energy, comparable to the portion accommodated at deep depths, because of the low rigidity and the velocity-strengthening property of the medium under shallow conditions (Fialko et al. 2005; Kaneko and Fialko 2011). When the rupture is confined to the shallow zone without breaching the surface, the near-field ground motion is amplified (Somerville 2003; Pitarka et al. 2009), thereby causing more severe damage to the infrastructure in the inland earthquake source areas. For subduction zone earthquakes, whether the rupture propagation in the shallow part is suppressed or not is directly linked to the generation of devastating tsunamis (Hyndman et al. 1997; Moore et al. 2007). For instance, several experimental studies have reported the frictional properties of samples retrieved from the shallow part of the Japan trench subduction zone in order to investigate why during the 2011 Tohoku-Oki earthquake the rupture that accompanied an extraordinary large slip passed the shallow part, traditionally thought to be frictionally stable, and reached the sea floor to generate huge tsunamis (Fujiwara et al. 2011; Ito et al. 2011; Kodaira et al. 2012; Ujiie et al. 2013; Ikari et al. 2015; Sawai et al. 2017). Elucidating the frictional properties of the crustal shallow zone is essential to understand earthquake rupture process and to further improve our capability to assess seismic hazards. However, our knowledge of these frictional properties remains incomplete owing to the paucity of laboratory data other than data on major continental faults and plate boundary faults (Verberne et al. 2010; Carpenter et al. 2011, 2015; Boulton et al. 2012; Ikari et al. 2015; Niemeijer et al. 2016).

For the Japanese island arc, where intraplate crustal earthquakes frequently occur (Matsuda 1977; Wesnousky et al. 1984), more than 50% of the surface is dominated by Quaternary and Neogene clastic and volcaniclastic km-scale-thick sediment layers that fill the fore-arc and back-arc basins and the volcanic front region and overlie crystalline or metamorphic basement rocks (von Huene et al. 1982; Murata and Kano 1995). In this study, we aim at investigating the rate-dependence of the frictional resistance of a thick sediment layer that overlies the basement rocks, and widely covers the inland earthquake source area. To perform this investigation, we used velocity-stepping friction tests in a bi-axial shear configuration, under pressure conditions of up to ~ 2 km in depth. The friction tests were conducted on porous tuff breccia samples collected at a 60-m depth from a borehole drilled in the Miocene “Green Tuff” formation, a thick deposit over the Japan Sea side of Northeast Japan (Huzioka 1963; Kikuchi et al. 1991). We analyzed the experimental data with the Dieterich’s rate- and state-dependent friction constitutive law (Dieterich 1979, 1981) to obtain the variation in friction parameters as a function of normal stress. In addition, microstructural observations of the deformed samples allowed us to discuss the relationship between the variable friction behavior and the deformation mechanism. The laboratory-derived shallow zone properties we present here enable more rigorous discussion on the impact of the shallow zone on slip behavior during an earthquake.

Experimental procedures

Samples

The samples used in this study were taken from porous andesitic tuff breccia from the Anamizu (Iwaine) Formation on the shore of the Noto Peninsula in central Japan (Fig. 1). The pyroclastic rock is a member of the “Green Tuff” Formation, which comprises several thousand meters of thick sequences of volcaniclastic deposits resulting from submarine volcanism associated with the opening of the Japan Sea from the late Oligocene to the middle Miocene (Kikuchi et al. 1991; Sato and Amano 1991; Kano et al. 2007). These deposits are distributed over an area of 44,000 km2, corresponding to more than 10% of the island arc, along the Japan Sea coast (Huzioka 1963; Murata and Kano 1995). The “Green Tuff” area has experienced three large earthquakes in the last two decades including the 2004 M6.6 mid‐Niigata Prefecture earthquake, the 2007 M6.6 Niigataken Chuetsu-oki earthquake, and the 2007 M6.7 Noto Hanto earthquake, according to the database of the Japan Meteorological Agency.

Fig. 1
figure1

Map of the Japanese island arc showing the distribution of the “Green Tuff” formation (dotted area), after Huzioka (1963). The stars represent the epicenters of the 2004 M6.6 mid-Niigata Prefecture earthquake (2004NP), the 2007 M6.6 Niigataken Chuetsu-oki earthquake (2007NCO), and the 2007 M6.7 Noto Hanto earthquake (2007NH). The upper left inset shows the volcaniclastic rocks distribution of the “Green Tuff” formation in the Noto Peninsula (Kaseno 1965). The Andesitic rock indicated by the gray areas represents the Anamizu Formation, where the tuff breccia samples for the present experiments were collected. The open circle shows the location drilled for sampling. The position of the inset is given by the rectangle box in the main figure

Stratigraphic studies have shown that the Anamizu Formation from which the experimental samples were collected is ~ 2 km thick in the Noto region (Kaseno 1965; Ozaki et al. 2010). For the friction experiment, fresh core samples of tuff breccia retrieved from the Miocene Anamizu Formation at a depth of 60 m following drilling in the middle western coast of the Peninsula (Fig. 1) were used. The tuff breccia samples were composed of conglomerate-sized andesitic fragments in a matrix of tuff. We used the matrix part of the sample for the friction experiment. Using optical microscopic observation combined with powder X-ray diffraction analysis (Fig. 2a, b), we confirmed that the tuff matrix was characterized by phenocrysts of plagioclase, orthopyroxene, and clinopyroxene with a grain size ranging from 0.3 to 1.1 mm in a fine-grained groundmass of plagioclase, clinopyroxene, and alteration products of smectite and hematite into which volcanic glasses were chemically transformed. The mineral composition was plagioclase (~ 57%), orthopyroxene (~ 4%), clinopyroxene (~ 8%), smectite (~ 17%), and hematite (~ 8%). The porosity of the rock, estimated by measuring the weight difference between completely dried and water-saturated samples under atmospheric conditions, ranged between 19.5% and 26.1%. In addition, the bulk density, which is the mass divided by the volume including any pore space, was calculated to be 2030 ± 80 kg/m3.

Fig. 2
figure2

Porous tuff breccia sample used in the experiments. a Photomicrograph of the tuff breccia sample under plane-polarized light. b X-ray diffraction profile of the experimental sample. The X-ray diffraction analysis was done under the following conditions: a Cu anode, acceleration voltage of 40 kV, current of 20 mA, step size of 0.02°, and scan speed of 2°/min. Pl, plagioclase; Opx, orthopyroxene; Cpx, clinopyroxene; Sm, smectite; Hem, hematite

Bi-axial double-direct shear-loading apparatus

To perform the friction tests in this study, we used a newly installed Bi-Axial double-direct SHear loading apparatus (BASH), designed at the Central Research Institute of Electric Power Industry and manufactured by Marui Co., Ltd (Japan). The three main components of the apparatus are a shear-loading unit with a maximum load of 1000 kN, a stroke of 50 mm, and sliding velocities ranging from 0.1 μm/s to 5 mm/s; a specimen chamber unit that is 500 mm in length, 300 mm in height, and 100 mm in width; and a normal load unit with a maximum load of 600 kN (Fig. 3a).

Fig. 3
figure3

The bi-axial double-direct shear-loading apparatus (BASH). a Schematic diagram showing the bi-axial compression apparatus built at CRIEPI, including a sample assembly in a double-direct shear configuration for a 50-cm-long rock specimen. b Single-direct shear sample assembly for long rock specimens. c Double-direct shear sample assembly for short rock specimens used in this study. SLC, shear load cell; SDT, shear displacement transducer; NLC, normal load cell; NDT, normal displacement transducer; AC, accumulator; EMC, electromagnetic clutch

In the shear-loading unit, a rotary shaft is connected between a 22-kW servo-controlled electric motor with a maximum rotation speed of 1500 rpm and an optionally attached 1/4 reduction gear and a 1000 kN ball screw jack, via a gear system for adjusting the rotation speed (Fig. 3a). The gear system provides a direct line and two speed-down output lines with ratios of 1/11 and 1/29, respectively. The rotation from the motor is converted by the screw jack to linear motion in the horizontal shaft, thus exerting a shear load on the facing rock sample in the chamber. The three speed lines are engaged manually using the combination of an electromagnetic tooth clutch and three single-disc electromagnetic clutches to produce the target sliding velocity of the horizontal shaft. A load cell (SLC in Fig. 3a) with a capacity of 1000 kN and a resolution of 0.6 kN for shear force and a strain gauge-type displacement transducer (SDT in Fig. 3a) with a capacity of 100 mm and a resolution of 0.04 mm for the sliding distance are positioned on the shear-loading shaft. For the low-stress experiments performed in this study, we temporarily installed a 100-kN load cell with a 0.05-kN resolution for the shear stress and an 80-mm laser displacement sensor with a 0.25-μm resolution for the shear displacement on the shaft.

The sample chamber can host three rock samples with contact areas of 50 cm × 10 cm and a thickness of 10 cm. The central block is sandwiched between the side blocks and pressed by the horizontally moving shaft connected to the screw jack in the double-direct shear configuration (Fig. 3a). When we conduct the single-direct shear friction experiment, the lower stationary rock block is replaced by a stainless-steel block with similar dimensions involving a low-friction roller at the bottom (Fig. 3b). For small rock samples with dimensions of 10 cm × 5 cm such as those used in the present study, the extra assembly shown in Fig. 3c is installed into the chamber.

The normal load unit comprises three 200-kN hydraulic cylinders, with each containing a 660-mL air accumulator for oil pressure levels less than 45 MPa, a 17.6-mL spring-charged accumulator for higher pressure levels, and a manual screw hydraulic pump for stabilizing the oil pressure fluctuation that is caused by a fault-normal dilatancy/compaction of ≤ 5 mm during shear experiments. A 70-MPa hydraulic motor-driven pump supplies pressurized oil to the cylinders. The hydraulic cylinders are aligned parallel to the shear direction at an interval of 17 cm, with the oil pressure in each cylinder controlled independently. This allows the application of a normal load on a 50-cm-long rock sample in a spatially uniform or non-uniform manner. A load cell (NLC in Fig. 3a) with a capacity of 200 kN and a resolution of 0.1 kN for normal force is mounted on the bottom of each hydraulic cylinder. A strain gauge-type displacement transducer (NDT in Fig. 3a) with a capacity of 50 mm and a resolution of 0.02 mm for normal distance is attached to the normal loading shaft, through which a normal force is transmitted from each hydraulic cylinder to the upper face of the sample block. Among the three cylinders, that on the right was only used to press the small samples in the present study.

Data from all sensors (i.e., the shear load, shear displacement, normal load and normal displacement) are recorded during the experiments using a 24 bit analog-to-digital converter at a sampling rate of 24 kHz. This is typically decimated down to a lower sampling rate (100 Hz in the present study) after the data acquisition.

Friction experiments

For the friction experiments, we prepared 5-mm-thick squared rock plates from the core samples of the tuff breccia. Since the tuff breccia core samples were consolidated enough that they could be easily handled, they were cut into squared plates, with the end surfaces facing the granite blocks polished using a high-precision surface grinding machine to ensure flatness and parallelism within 12 μm. Before being inserted into the apparatus, the samples were vacuumed and immersed in deionized water for more than 16 h, which was long enough to saturate the internal pores with water. In our experiments, we used water-saturated samples to simulate the in situ (wet) conditions at depth.

The friction experiments were performed using the bi-axial loading apparatus described above in a double-direct shear configuration in which two 5-mm-thick squared plates were placed between a central granite block and two side granite blocks, across contacting interfaces with dimensions of 48 mm × 48 mm (inset in Fig. 4a). The surfaces of the three granite blocks were ground and roughened with #14 SiC abrasive to induce deformation within the plate sample, and not along the boundary between the plate sample and the granite block. Shear deformation in the two plate samples was attained through the movement of the central block against the stationary side blocks. In the sample chamber, our thin plate samples sandwiched between the forcing granite blocks were not confined by a jacket, and the end surfaces were directly exposed to the atmospheric environment, indicating that the pore pressure in the sample could be implicitly controlled to be equal to atmospheric pressure.

Fig. 4
figure4

Mechanical data from velocity-stepping experiments conducted at elevated normal stresses. a Shear stress versus shear displacement for the samples deformed at 2 (orange), 5 (green), 10 (red) and 20 MPa (blue). The upper left inset displays a schematic of the double-direct shear configuration. b Steady-state shear stress (τ) as a function of the normal stress (σ) at a 1.5-mm shear displacement where a quasi-steady-state is achieved. The friction coefficient and cohesive strength determined by a least-square fit (coefficient of determination R2 = 0.9975) with the Mohr–Coulomb linear equation (dashed lines) were 0.43 (± 0.02) and 0.22 (± 0.17), respectively. c Quasi-steady-state friction coefficient corrected for the cohesive strength (0.22 MPa) as a function of normal stress

A series of velocity-stepping friction tests was conducted under atmospheric conditions at normal stresses ranging from 2 to 20 MPa. These stresses simulated the ambient effective pressure conditions at depths down to the bottom of the Anamizu Formation (a 2-km depth), assuming 10 MPa/km from the bulk density of the samples and from the water density (1000 kg/m3) (Table 1). The normal stress (σn) was kept constant during the sliding, while the shear stress (τ) was increased to deform the plate samples. The normal and shear stresses, shear displacement, and sample thickness data were recorded at 100 Hz during the experiments. After the start of the experiment, the plate samples were first sheared to a displacement of 2 mm or larger at 1 μm/s until the shear stress reached a steady state. We then changed the sliding velocity in stepwise fashion from 0.1 to 100 μm/s, with at least a 0.3-mm displacement in each step, to evaluate the dependence of the friction parameters on the velocity. After the experiments, the deformed plate samples were thin-sectioned parallel to the shear direction in order to observe the microstructural changes associated with different normal stresses using optical and scanning electron (JEOL JSM-7001F) microscopes.

Table 1 List of optimized values of the friction parameters from inversion modeling for all experiments

The velocity-stepping friction data were analyzed using an iterative least-square inversion modeling technique (e.g., Reinen and Weeks 1993; Blanpied et al. 1998) with Dieterich’s rate- and state-dependent friction constitutive law (aging law) with one state variable (Dieterich 1979, 1981). In the constitutive law, the friction coefficient can be expressed as:

$$ \mu = \mu_{0} + a\ln \left( {\frac{V}{{V_{0} }}} \right) + b\ln \left( {\frac{{V_{0} \theta }}{{D_{c} }}} \right), $$
(1)
$$ \frac{{{\text{d}}\theta }}{{{\text{d}}t}} = 1 - \frac{V\theta }{{D_{c} }}, $$
(2)

where μ0 is the steady-state friction coefficient at a reference velocity V0, V is the sliding velocity after the velocity step from V0, θ is the state variable, Dc is the critical slip distance, and a (direct effect) and b (evolution effect) are constants. At a steady state (dθ/dt = 0, and then  = Dc), the friction coefficient is:

$$ \mu_{{{\text{ss}}}} = \mu_{0} + \left( {a - b} \right)\ln \left( {\frac{V}{{V_{0} }}} \right). $$
(3)

Here, the velocity dependence of the friction is given by (μss − μ0)/ln(V/V0) = a − b. While a positive value of (a − b) represents velocity-strengthening, which promotes a stable fault slip, velocity-weakening linked to a negative (a − b) value is a necessity for the nucleation of unstable fault slips leading to earthquake generation (Marone 1998; Scholz 1998). Since the elastic interaction between the fault friction and the apparatus surrounding the sample was considered in the modeling, we obtained optimized values of the friction parameters as well as the apparatus stiffness from the inversion technique using the Levenberg–Marquardt method (Reinen and Weeks 1993; Noda and Shimamoto 2009; Takahashi et al. 2011). Also, we eliminated the background linear slip-hardening or slip-weakening trend from the displacement–friction curve data before performing the inversion analysis (Blanpied et al. 1998; Mair and Marone 1999; Takahashi et al. 2011). However, it is noted that this detrending procedure should be done with great care because it leads to uncertainty in the optimized values of the friction parameters.

Results

In the displacement vs shear stress curves of the tuff breccia samples deformed at normal stresses of 2 to 20 MPa, all samples exhibit a linear increase in shear stress to the yield point at a displacement of ~ 0.3 mm, then they reach a residual constant or slightly increasing trend at a steady state (Fig. 4a). Using data on the normal and shear stresses at a 1.5-mm displacement where a quasi-steady-state is reached, we constructed the Mohr–Coulomb failure envelope for the frictional behavior of our samples (Byerlee 1978; Handin 1969) using the following expression:

$$ \tau = {\text{C}} + \mu \cdot \sigma , $$
(4)

where τ is shear stress, σ is normal stress, and C is cohesive strength (Fig. 4b). In this study, we corrected the friction coefficient considering C = 0.22 MPa, as derived from the linear regression between the normal versus shear stresses, while the apparent friction coefficient, in which C is inevitably assumed to be zero, is frequently used in rock friction studies. Figure 4c shows the steady-state friction coefficient, which was calculated from the shear/normal stresses at a 1.5-mm displacement using Eq. (4) and the C value. The frictional coefficient of our breccia samples ranged between 0.40 and 0.47, decreasing from the maximum (~ 0.47) to the minimum value (~ 0.40) as the normal stress increased from 2 to 10 MPa, followed by a slight increase to 0.43 at 20 MPa (Fig. 4c).

Figure 5a shows the frictional response during the velocity step sequence (0.1–1–10–100 μm/s) at a range of normal stresses. A step increase or decrease in the sliding velocity by an order of magnitude after a steady state was achieved yielded a frictional response composed of an instantaneous increase or decrease in friction by aln(V/V0) and a subsequent gradual change by bln(V/V0) to a new steady state with increasing displacement, thereby obeying the rate and state friction law (Fig. 5b).

Fig. 5
figure5

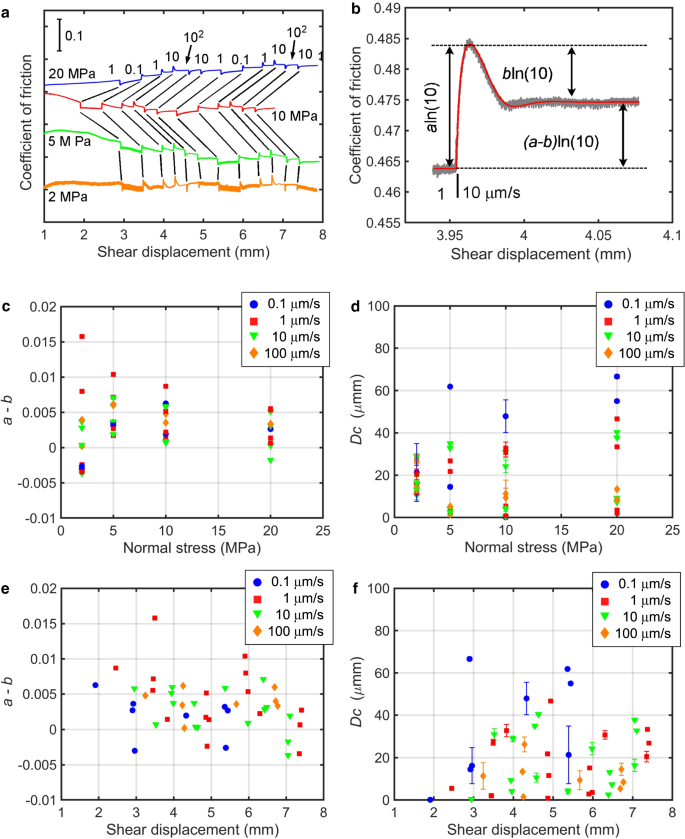

Experimental data and the friction parameter modeling results. a Friction as a function of shear displacement with velocity steps between 0.1 and 100 μm/s at normal stresses of 2, 5, 10 and 20 MPa. Curves are offset vertically for clarity. b An example of the friction response to a velocity step from 1 to 10 μm/s (gray) with a best-fitting curve obtained by inversion analysis (red). c Velocity-dependent friction parameter (a – b) and d critical slip distance Dc plotted as a function of normal stress for all velocity steps (blue circle, 0.1 μm/s; red square, 1 μm/s; green triangle, 10 μm/s; orange diamond, 100 μm/s)

For the samples tested in the present study, a complex link exists between the velocity dependence of friction and the normal stress (Fig. 5c and Table 1). At a normal stress of 2 MPa, we observed a wide range of (a − b) values between − 0.037 and 0.016. When the normal stress was increased up to 10 MPa, the sample exhibits velocity-strengthening behavior, with the values of (a − b) ranging from ~ 0 to 0.010. Then, (a − b) decreases back to values of − 0.002 to 0.005 at a normal stress of 20 MPa, corresponding to the stress at a depth of 2 km. We observe a decreasing trend in the value of (a − b) with an increasing normal stress except at 2 MPa, where significant scatter was observed. For Dc, our data show no systematic trend as the normal stress was increased, although the range of values becames wider (~ 60 μm) at higher normal stresses (Fig. 5d). Also, whereas several studies have reported that these friction parameters evolve with shear displacement (Mair and Marone 1999; Saffer and Marone 2003), no clear slip dependence of the friction parameters is documented in our data (Fig. 5e, f).

The deformed samples show monotonic microstructural change from localized shear deformation to distributed cataclastic flow with increasing normal stress (Fig. 6). For the sample deformed at 2 MPa, we observed a sharp boundary shear zone with a width of more than 150 μm (this thickness is a minimum estimate because some grains can be lost during the preparation of thin sections) along the sample margin (Fig. 6a). In this zone, substantial fracturing and comminution of angular phenocrysts of plagioclase produced gouge materials with grain sizes less than tens of micrometers (Fig. 6b). Because most of the shear strain imposed during the experiment is likely to be accommodated by the boundary shear zone, other parts of the sample lack an obvious imprint of shear deformation. As the normal stress becomes greater, the shear deformation zone widens toward the interior of the sample, and the plagioclase grains located inside the zone are cataclastically deformed into small fragments aligned following the P orientation to form a distinct foliation (Logan et al. 1992; Passchier and Trouw 2005) (Fig. 6c, d). The brittle fracturing is observed dominantly in the plagioclase grains and rarely in the pyroxene grains. At a normal stress of 20 MPa, the degree of deformation accommodated by the boundary shearing decreases significantly, and inversely, the distributed deformation characterized by cataclastic foliations are more frequent across the entire width of the sample and the foliations are occasionally offset by Riedel micro-shear zones. The shear zones are composed of fine-grained gouges (commonly < 20 µm), and their thickness is approximately a few hundred micrometers (Fig. 6e, f). Both plagioclase and pyroxene grains are subjected to intense cataclasis under high stress conditions. For porous rocks, distributed cataclastic deformation is often associated with strain hardening, while localized shear deformation is associated with strain weakening (Wong and Baud 2012). Thus, the slip hardening/weakening trends observed in our samples might be related to the transition of deformation mode, although additional research is clearly needed.

Fig. 6
figure6

Microstructures of the deformed samples after the velocity-stepping friction tests at normal stresses of a, b 2 MPa, c, d 10 MPa and e, f 20 MPa, under optical (a, c, f) and electron (b, d, f) microscopes. Shear sense is top-to-the-left. a The boundary shear zone (BZ), the lower boundary of which is delimited by the dotted white line, is located along the upper edge of the sample. The black box gives the position of b. b A close-up view of the boundary shear zone characterized by < 20 μm small grains, located above the dotted yellow line. c The dotted lines indicate cataclastic P foliations formed in the upper part of the sample. The black box gives the position of d. d A close-up view of elongated plagioclase fragments, demarcated by the dotted yellow line, forming the cataclastic foliation. e The P foliation (dotted lines) is pervasive across the bulk sample, and sometimes offset by left-lateral Riedel shears (solid white line). The black box gives the position of f. f A close-up view of the Riedel micro-shear zone bounded by the dotted yellow lines. Pl, plagioclase; Opx, orthopyroxene; Cpx, clinopyroxene; Hem, hematite

Discussion

We examined the velocity dependence of friction under a range of normal stresses from 2 to 20 MPa for the sedimentary cover in the shallow part of the crust. The porous tuff breccia samples are characterized by predominantly velocity-strengthening behavior, and they show a slightly decreasing trend of velocity dependence as the normal stress is increased from 5 to 20 MPa. Experimental studies have found that the velocity dependence of friction varies with normal stress (e.g., Mair and Marone 1999; Saffer and Marone 2003; Niemeijer and Collettini 2014; Carpenter et al. 2016; Sawai et al. 2016; Morrow et al. 2017). The data on powdered gouge prepared from kaolinite-rich claystone by Orellana et al. (2018) and on smectite-rich natural fault gouge by Carpenter et al. (2015) have shown that mostly velocity-strengthening behavior is apparent at normal stresses below 100 MPa, with a decreasing trend in (a − b) displayed in some cases at low normal stresses of less than 40 MPa. Our samples exhibit similar positive velocity dependence and showed a decrease of velocity dependence with normal stress, which is likely to be due to the presence of clay mineral (smectite) contained in the sample. In addition, friction experiments performed by Ikari et al. (2011a) on a range of gouge materials demonstrated a correlation between the velocity dependence of friction and the frictional strength. At coefficients of friction less than 0.5, (a − b) was always positive, a finding that is roughly consistent with our results (Fig. 4c).

Next, we discuss the relationship between the velocity-dependent frictional property and the microstructures observed in our samples. Several studies have suggested that rocks exhibiting velocity-weakening behavior show localized shearing, whereas a widely distributed deformation fabric is present in those exhibiting velocity-strengthening behavior (Beeler et al. 1996; Mair and Marone 1999). Our deformed samples are characterized by a systematic change in the deformation fabric from shear localization to distributed cataclastic flow as a function of normal stress (Fig. 6), but we do not observe any apparent correlation between the microstructures and friction velocity dependence, as was suggested in previous observations. The sample at 2 MPa, where most of the shear occurs in the boundary zone, shows some negative (a − b) values, but showed mainly velocity-strengthening behavior. In the 20-MPa case in which shear-localized Riedel shear zones are developed, only one case of velocity-weakening is observed. It is suggested that Riedel shears may encourage the velocity-weakening behavior (Ikari et al. 2011b). Although we believe that the microstructural localization/delocalization features seem to have a partial correlation with the friction velocity dependence in our results, further investigations are required to fully elucidate the mechanism responsible for the stress-dependent frictional properties observed in the porous tuff breccia.

Our velocity-stepping friction experiments at elevated pressures provide a better quantitative estimate of the stress-variable, namely depth-variable, distribution of friction velocity dependence in a shallow crustal zone in the Japan arc islands, where the subsurface lithology is frequently dominated by thick sediment deposits. Therefore, these findings provide some insights into its mechanical role for earthquake rupture dynamics. Note that the effect of temperature on the frictional properties was not considered in this work because the temperature at the shallow depths is relatively low (< 60 °C), but the effect should be investigated in future research.

With our results that the tuff breccia sample exhibits mostly frictionally stable, velocity-strengthening behavior, we confirm the widely accepted hypothesis that a shallow crustal layer behaves predominantly as a barrier for dynamic (unstable) rupture propagation from the seismogenic zone during an earthquake. This finding explains the upper limit of the seismogenic zone’s width and the emergence of a shallow slip deficit (Wald and Heaton 1994; Simons et al. 2002; Fialko et al. 2005). The aftershock distribution of the 2007 Noto Hanto earthquake near the study area shows that the seismogenic zone has an upper bound defined by the approximately 2-km-thick sediment layer composed of the Miocene volcaniclastic deposits from which our sample was collected (Kato et al. 2008). This is consistent with the seismically stable properties obtained in the experiments. Furthermore, for the 2004 mid‐Niigata prefecture earthquake, which also occurred in the “Green Tuff” region, the associated surface slip was an order of magnitude smaller than the slip at depth estimated from seismic data (Maruyama et al. 2005). This was interpreted as a shallow slip deficit due to thick sediment cover, a conclusion that is implicitly supported by our laboratory data. However, the present results obtained at low slip velocities do not exclude the possibility that earthquake rupture propagation could runaway through a shallow layer that exhibits a velocity-strengthening at the low slip rates when a dynamic weakening mechanism is activated at coseismic slip rates (Di Toro et al. 2011; Noda and Lapusta 2013).

Conclusions

To examine the frictional properties of a shallow sediment layer, we performed velocity-stepping friction tests on porous tuff breccia samples from the Miocene “Green Tuff” formation, a major sediment deposit in Japan, at normal stresses of 2 to 20 MPa. The experimental results document that the samples exhibit mostly velocity-strengthening behavior with a slightly decreasing trend in (a − b) as normal stress increases. The frictionally stable properties are in accordance with the observations that earthquakes occurring in the “Green Tuff” area are characterized by low seismicity and the occurrence of a shallow slip deficit in the shallow zone. Microstructural analyses of the postmortem samples reveal that the deformation fabric transitions from shear localization to distributed cataclastic flow with increasing normal stress. In our samples, however, we do not observe a clear relationship between microstructures and friction velocity dependence as previously reported. We suggest that laboratory investigations, such as that presented here, can illuminate in detail the depth-variable distribution of the friction velocity dependence of a shallow sediment layer. Our findings, in combination with further investigations on a variety of subsurface sediment materials, could facilitate a comprehensive understanding of the mechanical role of a shallow sediment layer for earthquake rupture dynamics and shallow seismicity.
