Co- and postseismic slip behaviors extracted from decadal seafloor geodesy after the 2011 Tohoku-oki earthquake

Abstract

Investigations of the co- and postseismic processes of the 2011 Tohoku-oki earthquake provide essential information on the seismic cycle in the Japan Trench. Although almost all of the source region lies beneath the seafloor, recent seafloor geophysical instruments have enabled to detect the near-field signals of both the coseismic rupture and the postseismic stress relaxation phenomena. Annual-scale seafloor geodesy contributed to refining the postseismic deformation models, specifically to the incorporation of viscoelastic effects. However, because of the insufficiency in the spatial coverage and observation period of seafloor geodetic observations, no consensus on crustal deformation models has been reached, especially on the along-strike extent of the main rupture, even for the coseismic process. To decompose the postseismic transient processes in and around the source region, i.e., viscoelastic relaxation and afterslip, long-term postseismic geodetic observations on the seafloor play an essential role. Here, from decadal seafloor geodetic data, we provide empirical evidence for offshore aseismic afterslip on the rupture edges that had almost decayed within 2–3 year. The afterslip regions are considered to have stopped the north–south rupture propagation due to their velocity strengthening frictional properties. In the southern source region (~ 37° N), despite not being resolved by coseismic geodetic data, shallow tsunamigenic slip near the trench is inferred from postseismic seafloor geodesy as a subsequent viscoelastic deformation causing persistent seafloor subsidence at a geodetic site off-Fukushima. After a decade from the earthquake, the long-term viscoelastic relaxation process in the oceanic asthenosphere is currently in progress and is still dominant not only in the rupture area, but also in the off-Fukushima region.

Introduction

In general, a large fault rupture is followed by postseismic relaxation processes such as viscoelastic relaxation in the asthenosphere and aseismic slip on the fault plane, which lead to transient crustal deformation on the solid Earth’s surface (e.g., Wang et al. 2012). Postseismic geodetic data following a megathrust earthquake show the sum of these relaxation processes and deformation caused by interplate coupling due to the secular plate subduction. Along the Japan Trench, postseismic processes were triggered by the 2011 Tohoku-oki earthquake (Mw 9.0) and continue in this decade. Clarifying the interplate slip behaviors for the co- and postseismic phase will contribute to the understanding of the frictional state of faults, slow earthquake activities, and seismic cycles in this region.

The Tohoku-oki earthquake caused trench-ward seafloor displacements of several tens of meters (Sato et al. 2011; Kido et al. 2011), reaching about 50 m at the trench (Fujiwara et al. 2011). Using seafloor geodetic data (Sato et al. 2011; Kido et al. 2011), an extremely large slip was estimated at the plate interface shallower than the hypocenter (Fig. 1) (e.g., Ozawa et al. 2012; Iinuma et al. 2012). Except for the north–south extent of the shallow rupture, which could not be resolved by the geodetic data at that time, a consensus has been reached on the north–south rupture propagation at depths near the hypocenter, where almost all of the fault models produce similar results (summarized by Sun et al. 2017; Wang et al. 2018; Lay 2018; Uchida and Bürgmann 2021). This implies that the rupture in 2011 did not progress to the northern region (> 39° N), even though Mw 8 earthquakes have historically occurred in this region (Fig. 1) (Nagai et al. 2001; Yamanaka and Kikuchi 2004). Investigations of the postseismic behaviors, including the occurrence of afterslip, in the northern and southern regions outside the main rupture area provide useful information on how rupture propagation may have been restrained in a compact region in the depths near the hypocenter.

Fig. 1
figure1

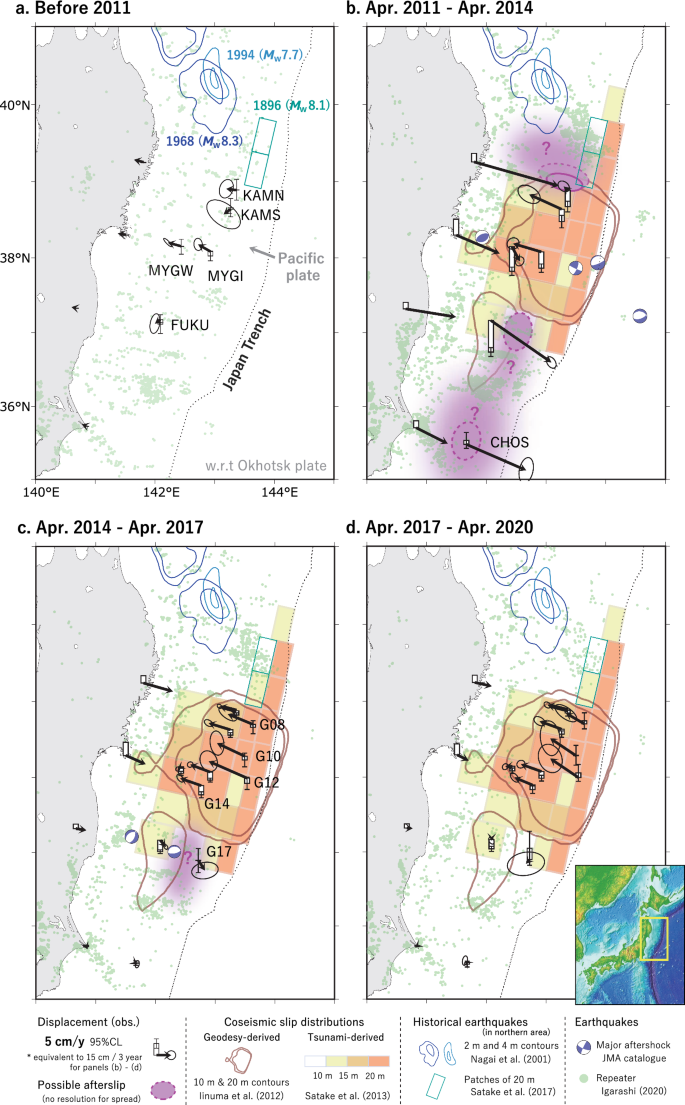

Seafloor motion derived from GNSS-A observations. Average horizontal and vertical velocities for a preseismic period, and three-year cumulative displacements for b 2011–2014, c 2014–2017, and d 2017–2020 are indicated as black arrows and open rectangles, respectively. Selected terrestrial GNSS velocities or cumulative displacements were extracted from the F3 solution of the GEONET sites (Nakagawa et al. 2009). Onshore velocities during 2007–2011 are shown in (a). Purple patches indicate possible afterslip regions, but there is little or no resolution for their spatial spread. Brown contours and colored tiles indicate geodetically derived (Iinuma et al. 2012) and tsunami-derived (Satake et al. 2013) coseismic slip distributions of the 2011 Tohoku-oki earthquake, respectively. Green circles denote repeating earthquakes that occurred in each period (Igarashi 2020). CMT solutions for the use of displacement correction are shown in each panel. Navy and blue lines indicate 2-m and 4-m slip contours of historical earthquakes in the northern area (Nagai et al. 2001). Green rectangles indicate patches with a slip of 20 m for the 1896 tsunami earthquake (Satake et al. 2017)

For the detection of transient postseismic crustal deformation to decompose the elementary processes, sufficiently long-term, high-frequency, and well-distributed geodetic data are required because these sources have different decay times and deformation patterns (e.g., Wang et al. 2012). Although the terrestrial Global Navigation Satellite System (GNSS) observation network has an extremely high spatiotemporal resolution, it cannot easily decompose the transient processes because the two processes of interest cause similar trench-ward movements in the onshore regions and thus cannot be distinguished from one another. In contrast, the viscoelastic relaxation in the oceanic asthenosphere and the afterslip are expected to cause displacements in opposite directions on the seafloor above the main rupture, i.e., landward and trench-ward directions, respectively (e.g., Hu et al. 2016). Therefore, seafloor geodetic observations can be used to decompose transient deformation sources despite their lower temporal resolution compared to that of terrestrial observations. Actually, seafloor geodetic technique detected postseismic landward movements larger than the subduction rate (~ 9 cm/year) (Argus et al. 2011) above the main rupture area, whereas terrestrial geodetic sites showed trench-ward movements. This is a conclusive evidence for the dominance of viscoelastic relaxation in the oceanic asthenosphere below the subducting plate on the postseismic deformation in the main rupture area (Watanabe et al. 2014; Sun et al. 2014; Hu et al. 2016; Tomita et al. 2017; Honsho et al. 2019).

The seafloor observation results stimulated researchers to develop postseismic deformation models incorporating the viscoelastic effects. Table 1 summarizes the postseismic models (1) referencing the seafloor geodetic data; (2) incorporating the afterslip models; (3) modeling the subducting cold slab, and (4) calculating the viscoelastic deformation in an area wider than the latitude range of 37–39° N. Every model indicated that the deformation patterns in the main rupture area can be roughly explained as the viscoelastic response, but that the observed deformation outside of main rupture cannot be reproduced only by viscoelastic relaxation. Hu et al. (2016) proposed a model where the afterslip effects are approximated as a viscoelastic flow in a thin layer whose locations are constrained by repeating earthquakes, which was yet insufficient to explain the vertical motions of the seafloor. Some models put additional afterslip patches in the offshore region to reproduce the geodetic data (e.g., Sun and Wang 2015; Freed et al. 2017; Wang et al. 2018), even though these were only tentative models because of the insufficient spatiotemporal resolution and observation period (at most 5 years) of available seafloor data.

Table 1 Summary of previously proposed postseismic deformation models

On the other hand, there remains the uncertainty in some coseismic dislocation input for the postseismic deformation modeling. Many researchers had adopted coseismic slip distribution models inverted from seafloor and terrestrial coseismic geodetic data with constraints of smooth slip distribution (e.g., Iinuma et al. 2012; Freed et al. 2017). However, the geodetic network in 2011 did not cover the whole source region, lacking information especially on the coseismic rupture in the shallower portion. Thus, it is important to consider seismic and tsunami waveforms, together with geodetic data (e.g., Lay 2018; Uchida and Bürgmann 2021). To visualize the difference, Fig. 1 displays both the geodetically and tsunami-derived slip distributions (Iinuma et al. 2012 and Satake et al. 2013, respectively). Tsunami data, which are sensitive to topographical changes of the seafloor, indicate that the tsunamigenic area was extended, especially in the northern (> 39° N) and southern (~ 37° N) areas along the trench (Fig. 1) (Satake et al. 2013). This feature does not appear in geodetic inversion due to the absence of data. Such difference in the coseismic input would affect the coseismic stress-change field and the postseismic relaxation processes. For instance, Agata et al. (2019) proposed a viscoelastic model using coseismic slip distribution derived from seismic cycle simulation (Nakata et al. 2016). The coseismic input included an additional shallow slip near the trench eastern off-Fukushima (~ 37° N). Their model showed significant seafloor deformation in the off-Fukushima region caused by viscoelastic relaxation, whereas other models based on geodetic coseismic input could not induce enough stress to cause such significant viscoelastic deformation in this region (e.g., Sun et al. 2014; Freed et al. 2017). The difference between the models suggests that we will be able to estimate shallow coseismic slip behavior and following postseismic models by decomposing and discussing the postseismic deformation sources with longer-term seafloor geodetic data, as discussed in Tomita et al. (2020). Some researchers took a different approach to estimate coseismic distribution by constraining their models with postseismic data (e.g., Yamagiwa et al. 2015; Tomita et al. 2020; Fukuda and Johnson 2021).

In this study, decadal seafloor geodetic data that contain the temporal evolutions of surface velocity are used to decompose the deformation sources. Based on the results, we clarify the co- and postseismic slip behaviors in the northern and southern parts of the source region.

Data and methods

To investigate the temporal evolution of seafloor crustal deformation, the Japan Coast Guard (JCG) regularly performs seafloor geodetic observations using GNSS–acoustic ranging combined seafloor positioning system (GNSS-A) (Additional file 1: Figure S1), in the Japan Trench region (e.g., Watanabe et al. 2020). GNSS-A data were obtained at six JCG sites (KAMN, KAMS, MYGI, MYGW, FUKU, and CHOS; Additional file 1: Table S1) from March 2011 to June 2020 using survey vessels, and were processed with GARPOS v1.0.0 (Watanabe et al. 2021d). Note that the present analysis method, which incorporates the estimation process of horizontal gradients in the sound speed structure, has been applied to the previously published data (Watanabe et al. 2014). The JCG also performed GNSS-A observations at five sites (G08, G10, G12, G14, and G17; Additional file 1: Table S1) installed by Tohoku University (TU) (Kido et al. 2015) since 2013, independently of TU. We additionally reprocessed the GNSS-A data before the Tohoku-oki earthquake at five JCG sites (Sato et al. 2013a) using the present analysis method to determine the preseismic seafloor velocities.

All GNSS-A data used in this study are available at Zenodo (Watanabe et al. 2021a, b). Note that the GNSS-A data before 2009 were obtained by the old “drifting observation” system, where the ship engine had to be turned off during the observation; thus, the ship track cannot be controlled (Additional file 1: Figure S1a). The data obtained by the “drifting observation” system are less precise than the “sailing observation” system, where the ship moves along a planned track (Sato et al. 2013b; Ishikawa et al. 2020).

To extract the annual-scale velocity changes, we took the following steps: We first subtract the effects of aftershocks that can cause coseismic displacement of more than 1 cm at seafloor sites (sources are shown in Fig. 1) by applying the method of Okada (1992). We used the Centroid Moment Tensor (CMT) solution catalogue provided by the Japan Meteorological Agency, which are available online (https://www.data.jma.go.jp/svd/eqev/data/bulletin/index_e.html). We then smoothen the time series of postseismic displacements, \(x\left( t \right)\), where \(t\) denotes the time after the event, by fitting with a function which is modified from the fitting function of Tobita (2016), i.e.,

$$\begin{array}{*{20}c} {x\left( t \right) = x_{0} + vt + \alpha_{1} \log \left( {1 + \frac{t}{{\tau_{1} }}} \right) + \alpha_{2} \log \left( {1 + \frac{t}{{\tau_{2} }}} \right),} \\ \end{array}$$
(1)

where \(x_{0}\), \(v\), \(\alpha_{1}\) and \(\alpha_{2}\) are estimation parameters. For the time constants \(\tau_{1}\) and \(\tau_{2}\), we applied the values of Fujiwara et al. (2021), i.e., \(\tau_{1} = 2.1176\ {\text{day}}\) and \(\tau_{2} = 287.45\ {\text{day}}\), because the GNSS-A observation frequency is as low as several times per year per site which is insufficient to determine these parameters. Additionally, we approximated the exponential term in their formulation to a linear component, \(vt\), since an extremely large time constant was found by Fujiwara et al. (2021). It should also be noted that we put \(\alpha_{1} = 0\) for the TU sites where the observation started in 2013.

Results

Time series of post- and preseismic seafloor displacements with respect to the Okhotsk plate of NNR-MORVEL56 model (Argus et al. 2011) within a framework of the International Terrestrial Reference Frame 2014 (Altamimi et al. 2016, 2017) are shown in Figs. 2 and S2 (Additional file 1), respectively. The values of the displacement, without corrections for aftershocks, are available at Zenodo (Watanabe et al. 2021c). To discuss the motion changes over several years, we extracted 3-year cumulative movements from the fitted curves for the periods of Apr. 2011–Apr. 2014, Apr. 2014–Apr. 2017, and Apr. 2017–Apr. 2020 (Table 2, Fig. 1). For the preseismic period, we only consider the average velocity (Table 2, Fig. 1a).

Fig. 2
figure2

Time series of postseismic seafloor displacement. Displacements with respect to the Okhotsk plate of NNR-MORVEL56 model (Argus et al. 2011) are shown (black circles). Fitted logarithmic curves are shown as the solid lines. The 95% confidence intervals for curve fittings are shown as shaded areas. Results provided by Honsho et al. (2019) for gk are indicated as brown squares

Table 2 Displacements with respect to the Okhotsk plate from the fitted curves with variance-covariance information

The GNSS-A results at the TU sites independently observed by the TU research group (Kido et al. 2015; Honsho et al. 2019) are simultaneously plotted in Fig. 2g–k for comparison. Because the absolute positions estimated in the different GNSS-A systems tend to be biased due to the differences in the GNSS’s reference or the assumed sound speed model, there are offsets in the results between two observation systems, i.e., JCG and TU. The offsets were estimated and corrected as follows: we first estimated the linear trend of JCG’s results in the period of 2013–2017 as a reference. Offsets were calculated from the average of the residuals of the TU’s time series for 2013–2017 relative to the JCG’s trend. Text S1 (Additional file 1) describes the validations for data at G17, where the positioning precision is lower than the other sites.

Discussion

Based on the temporal changes of seafloor movement (Fig. 1), we discuss the expressions of viscoelastic relaxation and afterslip in the northern (off-Kamaishi), central (off-Miyagi/main rupture), and southern (off-Fukushima and off-Choshi) parts of the source region, which are conceptually illustrated in Fig. 3.

Fig. 3
figure3

Schematic diagram of deformation sources beneath the seafloor. a Slips on the plate interface. Purple, red, and orange regions indicate possible afterslip region and geodetically derived (Iinuma et al. 2012) and tsunami-derived (Satake et al. 2013) coseismic slip areas of the 2011 Tohoku-oki earthquake, respectively. Blue circles and bars indicate the locations of GNSS-A sites and their projections to the plate interface, respectively. Black rectangles show the locations for cross sections illustrated in subsequent panels. Note that little or no information for the spread of afterslip regions can be added by the present GNSS-A data. b Cross sections for each region with one of possible qualitative explanations for the contributions of each deformation source to the motion at GNSS-A sites. Black, red, purple, and yellow arrows indicate the observed motion and components due to viscoelastic relaxation, afterslip, and interplate coupling, respectively

In previous studies that analyzed the data until 2014 (Watanabe et al. 2014; Sun et al. 2014), landward movements at rates larger than the Pacific plate subduction were detected at the sites located above the main rupture, i.e., KAMS and MYGI (Fig. 1b). This indicated the dominance of the effects of viscoelastic relaxation in the oceanic asthenosphere beneath the Pacific plate, and the interplate backslip, assuming that the interplate coupling was restored (Fig. 3b). Crustal deformation in this area was consistent with the quantitative models incorporating the viscoelastic response to the geodetically constrained coseismic input (Sun et al. 2014; Sun and Wang 2015; Freed et al. 2017; Wang et al. 2018). The large landward movements at these sites continued with a slight decay over the whole period, as well as at G08, G10, G12, and G14 (Fig. 1c). The decay of the landward motion can be explained as the time-dependent viscoelastic deformation (Fig. 3b).

Little temporal change in the present decade was found in the horizontal movement at MYGW near the downdip edge of the main rupture (Fig. 1b–d). If the interplate coupling in the main rupture had been restored, its landward motion of about 4–5 cm/year should be canceled by a trench-ward motion driven by viscoelastic relaxation in the mantle wedge (e.g., Fig. 4a of Hu et al. 2016) or afterslip to maintain balance for almost 10 years. Although the landward motion cannot be clearly detected, it seems to have been slightly restored after 2017. This might indicate a decrease in the dominance of relaxation processes similar to those in the main rupture area (Fig. 3b).

At the northern edge of the main rupture, little horizontal displacement was observed at KAMN until 2014 (Fig. 1b). Because viscoelastic relaxation is mainly driven by the stress induced in the low-viscosity layer beneath the lithosphere, it tends to cause almost the same movements at KAMN and KAMS which are only 30 km apart. To explain the velocity contrast at KAMN and KAMS, some postseismic models require afterslip to reach the trench on the northern side of the main rupture to cause a relative trench-ward motion at KAMN with respect to KAMS (Sun and Wang 2015; Freed et al. 2017).

After 2014, landward motion significantly accelerated at KAMN and had almost the same velocity at KAMS and MYGI (Table 2c and Fig. 1c). With the preseismic velocities (about 3–4 cm/year at both KAMN and KAMS though with large uncertainty; Table 2a and Fig. 1a) taken into account, the consistency in the movements at KAMN and KAMS after 2014 indicates that the two sites have been similarly influenced by long-term viscoelastic relaxation. Because the spatial pattern of the viscoelastic deformation has not significantly changed in the present decade, the viscoelastic relaxation is expected to have caused almost the same displacements at these sites before 2014. This supports that the afterslip in the off-Kamaishi region actually caused the relative trench-ward motion of 10 cm/year in three-year average at KAMN before 2014 to cancel the landward motion driven by the viscoelastic relaxation and interseismic backslip (Fig. 3b). Furthermore, the temporal evolution of KAMN’s movement (Fig. 2a) confirms that the afterslip in that region had decayed sufficiently in 3 years. After the decay of the afterslip, the viscoelastic response and interplate coupling became dominant for the crustal deformation around KAMN, similar to the case at neighboring GNSS-A sites (Fig. 3b).

To reproduce the difference in the average displacement rate of about 10 cm/year between KAMN and KAMS before 2014, afterslip in the northern region outside the coseismic rupture with an average displacement rate on the order of meters per year is required (see Additional file 1: Text S2 for detail). However, the slip magnitude depends on the afterslip distribution, which cannot be geodetically constrained. Taking into account the tsunami-derived shallow coseismic slip in the off-Kamaishi area, the afterslip would not be expected to have reached the trench at 39° N (Fig. 1b).

In contrast to the off-Miyagi region, rapid trench-ward movements were observed at FUKU and CHOS in the southern region (< 37.5° N) especially in the first 1–2 years after the Tohoku-oki earthquake (Fig. 2e, f). The trench-ward motion became much smaller after 2013. Almost no significant horizontal movement was found at G17, located on the trench side of FUKU, despite the low positioning accuracy due to instrumental malfunction (< 5–6 cm/year for three-year average displacement rate; see Additional file 1: Text S1 for detail).

For the horizontal movement, it is reasonable to assume that the afterslip caused the trench-ward motion with rapid decay of 1–2 years, as shown in most of the postseismic models (Sun and Wang 2015; Iinuma et al. 2016; Freed et al. 2017; Agata et al. 2019). Actually, it had been indicated that viscoelastic deformation cannot cause significant motion at FUKU in some of the finite element models (Sun et al. 2014; Freed et al. 2017), which used the coseismic input based on the geodetic inversion with a single peak beneath FUKU, such as the model by Iinuma et al. (2012) (Fig. 1b). Therefore, such models require to reproduce both the horizontal and vertical motion at FUKU by only the afterslip, leading to the assumption that strong afterslip in the shallow portion is necessary to explain the rapid subsidence observed at FUKU.

However, the subsidence at FUKU continued at almost a constant rate of about 4 cm/year, even after 2014 when the trench-ward movement had almost ceased. This result conflicts with models which try to explain both the trench-ward motion and the subsidence with shallow afterslip. A single afterslip cannot cause such persistent subsidence without significant trench-ward movement at FUKU and G17, because of the low dip angle of the plate boundary (see Additional file 1: Text S3 for detail). Therefore, we should assume another input for the viscoelastic deformation rather than the geodetic inversion model to reproduce the persistent subsidence at FUKU.

Agata et al. (2019) used a coseismic slip model derived from an earthquake cycle simulation (Nakata et al. 2016), which incorporates an additional peak of coseismic rupture near the trench at 37° N. Although the source model has not reproduced the coseismic seafloor uplift observed at FUKU (Sato et al. 2011), it can provide a practical example for the viscoelastic deformation pattern associated with the shallow coseismic slip. Their viscoelastic finite element model demonstrated sufficient subsidence at FUKU. According to the comparisons of the numerical examples of viscoelastic deformation to the coseismic slip distribution, as illustrated in Fig. 6 of Sun and Wang (2015), the hinge line of horizontal deformation and the peak of viscoelastic subsidence were located above the downdip side of the major slip. For this reason, the coseismic slip near the trench caused the subsidence at FUKU in the model of Agata et al. (2019). The tsunami-derived coseismic slip distribution in the off-Fukushima region (Satake et al. 2013) has two peaks in the along-dip direction (Fig. 1b). Based on the postseismic model of Agata et al. (2019), the viscoelastic relaxation driven by the shallower coseismic slip can cause long-term subsidence at FUKU (red arrows in Fig. 3b).

The discussion above suggests that the coseismic models that include constraints from tsunami observations (e.g., Yokota et al. 2011; Minson et al. 2014; Romano et al. 2014; Bletery et al. 2014; Melgar and Bock 2015) should be adopted in the viscoelastic relaxation model to reasonably explain the spatiotemporal variation of seafloor deformation. In this case, both the viscoelastic relaxation and possible interseismic backslip are predicted to cause landward motion at G17 (red and yellow arrows in Fig. 3b, respectively). However, it cannot be well detected because of the low accuracy of observations at G17. The data are consistent for both cases where G17 actually moves toward the land and where the landward motion is canceled or weakened by the remaining afterslip. Therefore, the data cannot constrain the degrees of contribution of viscoelastic response and afterslip to the slight trench-ward motion at FUKU in 2014–2017.

In any cases, we can consider that the trench-ward movements at FUKU and CHOS for the first 1–2 years were mainly caused by afterslip in the southern region (purple arrows in Fig. 3b). Although we cannot constrain and estimate the spatial extent of the southern afterslip region because of the low spatial density of geodetic observation sites at that time, annual-scale afterslip was a dominant deformation source in the southern region except for the vertical component at FUKU. Recalling the tsunami-derived rupture distribution at 37° N, for reproducing the trench-ward motion at FUKU, it might be reasonable to put the afterslip on the fault between the two peaks of the coseismic slip (Fig. 1b) rather than putting strong afterslip patches only in far south of FUKU (< 37° N) as considered in the forward slip model shown by Agata et al. (2019).

Considering that afterslip occurs on a fault with aseismic frictional properties, the assumed afterslip regions on the northern and southern sides of the main rupture are considered to have behaved as barriers to the rupture propagation. It is plausible that the shallow tsunamigenic slip in the off-Kamaishi and off-Fukushima areas (Satake et al. 2013) additionally loaded stress on the downdip side, helping to drive the afterslip. The northern afterslip occurred between the rupture zones of major earthquakes, i.e., the 1968 Tokachi-oki earthquake (Mw 8.3), the 1994 offshore Sanriku earthquake (Mw 7.7) (Nagai et al. 2001), the 1896 Meiji Sanriku tsunami earthquake (Mw 8.1) (Satake et al. 2017), and the 2011 Tohoku-oki earthquake. The gap between the major earthquake ruptures is characterized by relatively low seismicity (Mochizuki et al. 2005), including repeating earthquakes (Uchida and Matsuzawa 2013; Igarashi 2020). Slow earthquake activity has been reported in this area (Nishikawa et al. 2019) as well. Although the northern and along-dip extensions of the afterslip zones cannot be resolved due to the absence of geodetic instruments, these features are consistent with the aseismic frictional properties. In the off-Fukushima region, co- and postseismic deformation sequences where the postseismic moment release due to the afterslip exceeded the coseismic moment of the mainshock were observed for the 2008 and 2010 Fukushima-ken-oki earthquakes (Mj 6.9 and Mj 6.7, respectively) (Suito et al. 2011). Although the spatial resolution for these sequences at that time, estimated only with terrestrial GNSS, is insufficient to compare with the afterslip region in the present study, it is possible that the proposed afterslip in the off-Fukushima region following the Tohoku-oki earthquake occurred in a region near the previous afterslip episodes.

The model proposed by Fukuda and Johnson (2021) seems reproduce the spatial distribution of afterslip inferred in the present study (Fig. 1b). However, there remain deviations in the temporal evolution, especially in the persistent subsidence observed at FUKU. Although it must be difficult to thoroughly reproduce the observations, GNSS-A results suggest that long-term viscoelastic relaxation in the oceanic asthenosphere should have a larger contribution to the movement at FUKU. In addition, because the precisions of preseismic seafloor data are insufficient (as shown in Table 2a and Fig. 1a), effects of the interplate coupling should also be evaluated simultaneously using the postseismic data.

Conclusions

Based on the GNSS-A observations and the above interpretations, the slip behaviors in the northern and southern areas can be summarized as follows. (1) Afterslip occurred in the northern and southern regions away from the main rupture at depths near the hypocenter, which is consistent with the shallower tsunamigenic slip inducing stress on the downdip aseismic sections of the subduction thrust. It is plausible that these aseismic afterslip regions stopped the north–south rupture propagation (e.g., Nakata et al. 2021). (2) By at least 2014, the afterslip in the off-Kamaishi, off-Fukushima, and off-Choshi regions had almost fully decayed, though there is less evidence for the off-Fukushima region due to the insufficiency of information for determining the viscoelastic deformation patterns. (3) Shallow tsunamigenic slip in the south resulted in subsequent viscoelastic deformation that caused persistent seafloor subsidence, which was captured by postseismic seafloor geodesy. Additionally, the GNSS-A results indicate that the long-term viscoelastic relaxation process is continuing and is dominant in the off-Miyagi and off-Kamaishi regions. It also plays an important role in the off-Fukushima region, although its contribution cannot be well resolved. These long-term behaviors should be investigated by continuing and expanding seafloor geodetic observations.

Availability of data and materials

The dataset generated during this study is available at Zenodo (Watanabe et al. 2021c). The GNSS-A analysis software “GARPOS v1.0.0” is available at Zenodo (Watanabe et al. 2021d). The GNSS-A data are available at Zenodo (Watanabe et al. 2021a; b). The daily coordinates of terrestrial GNSS sites were provided by the Geospatial Information Authority of Japan (http://terras.gsi.go.jp) (Nakagawa et al. 2009). The contours for some earthquakes were obtained from the website created by N. Uchida (https://www.aob.gp.tohoku.ac.jp/~uchida/page_3_asp-e.html). The depths of the upper interface of the subducting Pacific plate were obtained from the website created by F. Hirose (https://www.mri-jma.go.jp/Dep/sei/fhirose/plate/en.PlateData.html). The CMT solutions provided by the Japan Meteorological Agency are available at https://www.data.jma.go.jp/svd/eqev/data/bulletin/index_e.html. Some figures were prepared using Generic Mapping Tools (https://www.generic-mapping-tools.org/).

Abbreviations

CMT:

Centroid Moment Tensor

GNSS:

Global Navigation Satellite System

GNSS-A:

GNSS–acoustic ranging combined seafloor positioning system

JCG:

Japan Coast Guard

TU:

Tohoku University

References

  1. Agata R, Barbot SD, Fujita K, Hyodo M, Iinuma T, Nakata R, Ichimura T, Hori T (2019) Rapid mantle flow with power-law creep explains deformation after the 2011 Tohoku mega-quake. Nat Commun 10:1385. https://doi.org/10.1038/s41467-019-08984-7

    Article  Google Scholar

  2. Altamimi Z, Rebischung P, Métivier L, Collilieux X (2016) ITRF2014: A new release of the International Terrestrial Reference Frame modeling nonlinear station motions. J Geophys Res Solid Earth 121:6109–6131. https://doi.org/10.1002/2016JB013098

    Article  Google Scholar

  3. Altamimi Z, Métivier L, Rebischung P, Rouby H, Collilieux X (2017) ITRF2014 plate motion model. Geophys J Int 209:1906–1912. https://doi.org/10.1093/gji/ggx136

    Article  Google Scholar

  4. Argus DF, Gordon RG, DeMets C (2011) Geologically current motion of 56 plates relative to the no-net-rotation reference frame. Geochem Geophys Geosyst 12:Q11001. https://doi.org/10.1029/2011GC003751

    Article  Google Scholar

  5. Bletery Q, Sladen A, Delouis B, Vallée M, Nocquet J-M, Rolland L, Jiang J (2014) A detailed source model for the Mw9.0 Tohoku-Oki earthquake reconciling geodesy, seismology, and tsunami records. J Geophys Res Solid Earth 119:7636–7653. https://doi.org/10.1002/2014JB011261

    Article  Google Scholar

  6. Freed AM, Hashima A, Becker TW, Okaya DA, Sato H, Hatanaka Y (2017) Resolving depth-dependent subduction zone viscosity and afterslip from postseismic displacements following the 2011 Tohoku-Oki, Japan earthquake. Earth Planet Sci Lett 459:279–290. https://doi.org/10.1016/j.epsl.2016.11.040

    Article  Google Scholar

  7. Fukuda J, Johnson KM (2021) Bayesian inversion for a stress-driven model of afterslip and viscoelastic relaxation: Method and application to postseismic deformation following the 2011 MW 9.0 Tohoku-Oki earthquake. J Geophys Res Solid Earth. 126:e2020JB021620. https://doi.org/10.1029/2020JB021620

    Article  Google Scholar

  8. Fujiwara S, Tobita M, Ozawa S (2021) Spatiotemporal functional modeling of postseismic deformation after the 2011 Tohoku-Oki Earthquake. Res Sq. https://doi.org/10.21203/rs.3.rs-423959/v1

    Article  Google Scholar

  9. Fujiwara T, Kodaira S, No T, Kaiho Y, Takahashi N, Kaneda Y (2011) The 2011 Tohoku-Oki earthquake: displacement reaching the trench axis. Science 334:1240. https://doi.org/10.1126/science.1211554

    Article  Google Scholar

  10. Honsho C, Kido M, Tomita F, Uchida N (2019) Offshore postseismic deformation of the 2011 Tohoku earthquake revisited: application of an improved GPS-acoustic positioning method considering horizontal gradient of sound speed structure. J Geophys Res Solid Earth 124:5990–6009. https://doi.org/10.1029/2018JB017135

    Article  Google Scholar

  11. Hu Y, Bürgmann R, Uchida N, Banerjee P, Freymueller JT (2016) Stress-driven relaxation of heterogeneous upper mantle and time-dependent afterslip following the 2011 Tohoku earthquake. J Geophys Res Solid Earth 121:385–411. https://doi.org/10.1002/2015JB012508

    Article  Google Scholar

  12. Igarashi T (2020) Catalog of small repeating earthquakes for the Japanese Islands. Earth Planets Space 72:73. https://doi.org/10.1186/s40623-020-01205-2

    Article  Google Scholar

  13. Iinuma T, Hino R, Kido M, Inazu D, Osada Y, Ito Y, Ohzono M, Tsushima H, Suzuki S, Fujimoto H, Miura S (2012) Coseismic slip distribution of the 2011 off the Pacific Coast of Tohoku Earthquake (M9.0) refined by means of seafloor geodetic data. J Geophys Res 117:B07409. https://doi.org/10.1029/2012JB009186

    Article  Google Scholar

  14. Iinuma T, Hino R, Uchida N, Nakamura W, Kido M, Osada Y, Miura S (2016) Seafloor observations indicate spatial separation of coseismic and postseismic slips in the 2011 Tohoku earthquake. Nat Commun 7:13506. https://doi.org/10.1038/ncomms13506

    Article  Google Scholar

  15. Ishikawa T, Yokota Y, Watanabe S, Nakamura Y (2020) History of on-board equipment improvement for GNSS-A observation with focus on observation frequency. Front Earth Sci 8:150. https://doi.org/10.3389/feart.2020.00150

    Article  Google Scholar

  16. Kido M, Osada Y, Fujimoto H, Hino R, Ito Y (2011) Trench-normal variation in observed seafloor displacements associated with the 2011 Tohoku-Oki earthquake. Geophys Res Lett 38:L24303. https://doi.org/10.1029/2011GL050057

    Article  Google Scholar

  17. Kido M, Fujimoto H, Hino R, Ohta Y, Osada Y, Iinuma T, Azuma R, Wada I, Miura S, Suzuki S, Tomita F, Imano M (2015) Progress in the project for development of GPS/Acoustic technique over the last 4 years. In: Hashimoto M (ed) International symposium on geodesy for earthquake and natural hazards (GENAH). Springer, Berlin, pp 3–10. https://doi.org/10.1007/1345_2015_127

    Chapter  Google Scholar

  18. Lay T (2018) A review of the rupture characteristics of the 2011 Tohoku-oki Mw 9.1 earthquake. Tectonophysics 733:4–36. https://doi.org/10.1016/j.tecto.2017.09.022

    Article  Google Scholar

  19. Melgar D, Bock Y (2015) Kinematic earthquake source inversion and tsunami runup prediction with regional geophysical data. J Geophys Res Solid Earth 120:3324–3349. https://doi.org/10.1002/2014JB011832

    Article  Google Scholar

  20. Minson SE, Simons M, Beck JL, Ortega F, Jiang J, Owen SE, Moore AW, Inbal A, Sladen A (2014) Bayesian inversion for finite fault earthquake source models – II: the 2011 great Tohoku-oki, Japan earthquake. Geophys J Int 198:922–940. https://doi.org/10.1093/gji/ggu170

    Article  Google Scholar

  21. Mochizuki K, Nakamura M, Kasahara J, Hino R, Nishino M, Kuwano A, Nakamura Y, Yamada T, Shinohara M, Sato T, Moghaddam PP, Kanazawa T (2005) Intense PP reflection beneath the aseismic forearc slope of the Japan Trench subduction zone and its implication of aseismic slip subduction. J Geophys Res 110:B01302. https://doi.org/10.1029/2003JB002892

    Article  Google Scholar

  22. Nagai R, Kikuchi M, Yamanaka Y (2001) Comparative study on the source processes of recurrent large earthquakes in Sanriku-oki Region: The 1968 Tokachi-oki earthquake and the 1994 Sanriku-oki earthquake. Zisin. 54:267–280. https://doi.org/10.4294/zisin1948.54.2_267

    Article  Google Scholar

  23. Nakagawa H, Toyofuku T, Kotani K, Miyahara B, Iwashita C, Kawamoto S, Hatanaka Y, Munekane H, Ishimoto M, Yutsudo T, Ishikura N, Sugawara Y (2009) Development and validation of GEONET new analysis strategy (Version 4). J Geogr Survey Inst 118:1–8

    Google Scholar

  24. Nakata R, Hori T, Hyodo M, Ariyoshi K (2016) Possible scenarios for occurrence of M ~ 7 interplate earthquakes prior to and following the 2011 Tohoku-Oki earthquake based on numerical simulation. Sci Rep 6:25704. https://doi.org/10.1038/srep25704

    Article  Google Scholar

  25. Nakata R, Hori T, Miura S, Hino R (2021) Presence of interplate channel layer controls of slip during and after the 2011 Tohoku-Oki earthquake through the frictional characteristics. Sci Rep 11:6480. https://doi.org/10.1038/s41598-021-86020-9

    Article  Google Scholar

  26. Nishikawa T, Matsuzawa T, Ohta K, Uchida N, Nishimura T, Ide S (2019) The slow earthquake spectrum in the Japan Trench illuminated by the S-net seafloor observatories. Science 365:808–813. https://doi.org/10.1126/science.aax5618

    Article  Google Scholar

  27. Okada Y (1992) Internal deformation due to shear and tensile faults in a half-space. Bull Seism Soc Am 82:1018–1040

    Google Scholar

  28. Ozawa S, Nishimura T, Munekane H, Suito H, Kobayashi T, Tobita M, Imakiire T (2012) Preceding, coseismic, and postseismic slips of the 2011 Tohoku earthquake, Japan. J Geophys Res 117:B07404. https://doi.org/10.1029/2011JB009120

    Article  Google Scholar

  29. Romano F, Trasatti E, Lorito S, Piromallo C, Piatanesi A, Ito Y, Zhao D, Hirata K, Lanucara P, Cocco M (2014) Structural control on the Tohoku earthquake rupture process investigated by 3D FEM, tsunami and geodetic data. Sci Rep 4:5631. https://doi.org/10.1038/srep05631

    Article  Google Scholar

  30. Satake K, Fujii Y, Harada T, Namegaya Y (2013) Time and space distribution of coseismic slip of the 2011 Tohoku earthquake as inferred from tsunami waveform data. Bull Seismol Soc Am 103:1473–1492. https://doi.org/10.1785/0120120122

    Article  Google Scholar

  31. Satake K, Fujii Y, Yamaki S (2017) Different depths of near-trench slips of the 1896 Sanriku and 2011 Tohoku earthquakes. Geosci Lett 4:33. https://doi.org/10.1186/s40562-017-0099-y

    Article  Google Scholar

  32. Sato M, Fujita M, Matsumoto Y, Ishikawa T, Saito H, Mochizuki M, Asada A (2013a) Interplate coupling off northeastern Japan before the 2011 Tohoku-oki earthquake, inferred from seafloor geodetic data. J Geophys Res 118:3860–3869. https://doi.org/10.1002/jgrb.50275

    Article  Google Scholar

  33. Sato M, Fujita M, Matsumoto Y, Saito H, Ishikawa T, Asakura T (2013b) Improvement of GPS/acoustic seafloor positioning precision through controlling the ship’s track line. J Geod 118:1–10. https://doi.org/10.1007/s00190-013-0649-9

    Article  Google Scholar

  34. Sato M, Ishikawa T, Ujihara N, Yoshida S, Fujita M, Mochizuki M, Asada A (2011) Displacement above the hypocenter of the 2011 Tohoku-oki earthquake. Science 332:1395. https://doi.org/10.1126/science.1207401

    Article  Google Scholar

  35. Suito H, Nishimura T, Tobita M, Imakiire T, Ozawa S (2011) Interplate fault slip along the Japan Trench before the occurrence of the 2011 off the Pacific coast of Tohoku Earthquake as inferred from GPS data. Earth Planets Space 63:615–619. https://doi.org/10.5047/eps.2011.06.053

    Article  Google Scholar

  36. Sun T, Wang K (2015) Viscoelastic relaxation following subduction earthquakes and its effects on afterslip determination. J Geophys Res 120:1329–1344. https://doi.org/10.1002/2014JB011707

    Article  Google Scholar

  37. Sun T, Wang K, Fujiwara T, Kodaira S, He J (2017) Large fault slip peaking at trench in the 2011 Tohoku-oki earthquake. Nat Commun 8:14044. https://doi.org/10.1038/ncomms14044

    Article  Google Scholar

  38. Sun T, Wang K, Iinuma T, Hino R, He J, Fujimoto H, Kido M, Osada Y, Miura S, Ohta Y, Hu Y (2014) Prevalence of viscoelastic relaxation after the 2011 Tohoku-oki earthquake. Nature 514:84–87. https://doi.org/10.1038/nature13778

    Article  Google Scholar

  39. Tobita M (2016) Combined logarithmic and exponential function model for fitting postseismic GNSS time series after 2011 Tohoku-Oki earthquake. Earth Planets Space 68:41. https://doi.org/10.1186/s40623-016-0422-4

    Article  Google Scholar

  40. Tomita F, Kido M, Ohta Y, Iinuma T, Hino R (2017) Along-trench variation in seafloor displacements after the 2011 Tohoku earthquake. Sci Adv 3(7):e1700113. https://doi.org/10.1126/sciadv.1700113

    Article  Google Scholar

  41. Tomita F, Iinuma T, Ohta Y, Hino R, Kido M, Uchida N (2020) Improvement on spatial resolution of a coseismic slip distribution using postseismic geodetic data through a viscoelastic inversion. Earth Planets Space 72:84. https://doi.org/10.1186/s40623-020-01207-0

    Article  Google Scholar

  42. Uchida N, Bürgmann R (2021) A decade of lessons learned from the 2011 Tohoku-Oki earthquake. Rev Geophys 59:e2020RG000713. https://doi.org/10.1029/2020RG000713

    Article  Google Scholar

  43. Uchida N, Matsuzawa T (2013) Pre- and postseismic slow slip surrounding the 2011 Tohoku-oki earthquake rupture. Earth Planet Sci Lett 374:81–91. https://doi.org/10.1016/j.epsl.2013.05.021

    Article  Google Scholar

  44. Wang K, Hu Y, He J (2012) Deformation cycles of subduction earthquake in a viscoelastic Earth. Nature 484:327–332. https://doi.org/10.1038/nature11032

    Article  Google Scholar

  45. Wang K, Sun T, Brown L, Hino R, Tomita F, Kido M, Iinuma T, Kodaira S, Fujiwara T (2018) Learning from crustal deformation associated with M9 2011 Tohoku-oki earthquake. Geosphere 14:552–571. https://doi.org/10.1130/GES01531.1

    Article  Google Scholar

  46. Watanabe S, Ishikawa T, Yokota Y, Nakamura Y (2020) GARPOS: Analysis Software for the GNSS-A seafloor positioning with simultaneous estimation of sound speed structure. Front Earth Sci 8:597532. https://doi.org/10.3389/feart.2020.597532

    Article  Google Scholar

  47. Watanabe S, Ishikawa T, Nakamura Y, Yokota Y (2021a) GNSS-A data obtained at the sites along the Japan Trench before the 2011 Tohoku-oki earthquake (Version 1.0.0). Zenodo. https://doi.org/10.5281/zenodo.4528990

  48. Watanabe S, Ishikawa T, Nakamura Y, Yokota Y (2021b) GNSS-A data obtained at the sites along the Japan Trench from March 2011 to June 2020 (Version 1.0.0). Zenodo. https://doi.org/10.5281/zenodo.4529008

  49. Watanabe S, Ishikawa T, Nakamura Y, Yokota Y (2021c) Time series of seafloor displacement at GNSS-A sites along the Japan Trench: from March 2011 to June 2020 and before the 2011 Tohoku-oki earthquake (Version 1.0.0). Zenodo. https://doi.org/10.5281/zenodo.4628550

  50. Watanabe S, Ishikawa T, Yokota Y, Nakamura Y (2021d) GARPOS: Analysis tool for GNSS-Acoustic seafloor positioning (Version 1.0.0). Zenodo. https://doi.org/10.5281/zenodo.4522027

  51. Watanabe S, Sato M, Fujita M, Ishikawa T, Yokota Y, Ujihara N, Asada A (2014) Evidence of viscoelastic deformation following the 2011 Tohoku-oki earthquake revealed from seafloor geodetic observation. Geophys Res Lett 41:5789–5796. https://doi.org/10.1002/2014GL061134

    Article  Google Scholar

  52. Yamagiwa S, Miyazaki S, Hirahara K, Fukahata Y (2015) Afterslip and viscoelastic relaxation following the 2011 Tohoku-oki earthquake (Mw9.0) inferred from inland GPS and seafloor GPS/Acoustic data. Geophys Res Lett 42:66–73. https://doi.org/10.1002/2014GL061735

    Article  Google Scholar

  53. Yamanaka Y, Kikuchi M (2004) Asperity map along the subduction zone in northeastern Japan inferred from regional seismic data. J Geophys Res 109:B07307. https://doi.org/10.1029/2003JB002683

    Article  Google Scholar

  54. Yokota Y, Koketsu K, Fujii Y, Satake K, Sakai S, Shinohara M, Kanazawa T (2011) Joint inversion of strong motion, teleseismic, geodetic, and tsunami datasets for the rupture process of the 2011 Tohoku earthquake. Geophys Res Lett 38:L00G21. https://doi.org/10.1029/2011GL050098

    Article  Google Scholar

Download references

Acknowledgements

The authors thank Motoyuki Kido of the Tohoku University for allowing them to use the TU’s seafloor geodetic instruments, i.e., G08, G10, G12, G14 and G17. In situ observations were performed by the survey vessels operated by the Japan Coast Guard. The authors thank Roland Bürgmann and an anonymous reviewer for their constructive comments to improve the manuscript.

Funding

This study was supported by the Japan Coast Guard (SW, TI, YN) and the University of Tokyo Excellent Young Researcher project (YY).

Author information

Affiliations

Authors

Contributions

Conceptualization: SW, TI, YY. Methodology: SW, TI, YN, YY. Software: SW. Formal analysis: SW, YN. Data curation: SW, YN. Investigation: SW, TI, YN, YY. Validation: SW. Visualization: SW. Writing—original draft: SW. Writing—review and editing: SW, TI, YN, YY. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Shun-ichi Watanabe.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1.

Figure S1 shows schematic diagrams of the GNSS-A observation operated by the Japan Coast Guard. Figure S2 shows the time series of preseismic seafloor displacements with respect to the Okhotsk plate. Text S1 describes the validations for the GNSS-A results obtained at G17, which has lower precision than the other sites. Figure S3 shows the actual track lines during the GNSS-A campaign observations at G17, which is referenced in Text S1. Texts S2 and S3 discuss the validity or invalidity of afterslip contributions to the GNSS-A data in the northern and southern regions, respectively. Figures S4 and S5 show the contributions of interplate dislocations to the GNSS-A sites in the northern and southern regions, respectively. Table S1 shows the reference locations of the GNSS-A sites.
