Formation mechanisms of ringwoodite: clues from the Martian meteorite Northwest Africa 8705

Abstract

Ringwoodite and wadsleyite are the high-pressure polymorphs of olivine, which are common in shocked meteorites. They are the major constituent minerals in the terrestrial mantle. NWA 8705, an olivine-phyric shergottite, was heavily shocked, producing shock-induced melt veins and pockets associated with four occurrences of ringwoodite: (1) the lamellae intergrown with the host olivine adjacent to a shock-induced melt pocket; (2) polycrystalline assemblages preserving the shapes and compositions of the pre-existing olivine within a shock-induced melt vein (60 μm in width); (3) the rod-like grains coexisting with wadsleyite and clinopyroxene within a shock-induced melt vein; (4) the microlite clusters embedded in silicate glass within a very thin shock-induced melt vein (20 μm in width). The first two occurrences of ringwoodite likely formed via solid-state transformation from olivine, supported by their morphological features and homogeneous compositions (Mg# 64–62) similar to the host olivine (Mg# 66–64). The third occurrence of ringwoodite might fractionally crystallize from the shock-induced melt, based on its heterogeneous and more FeO-enriched compositions (Mg# 76–51) than those of the coexisting wadsleyite (Mg# 77–67) and the host olivine (Mg# 66–64) of this meteorite. The coexistence of ringwoodite, wadsleyite, and clinopyroxene suggests a post-shock pressure of 14–16 GPa and a temperature of 1650–1750 °C. The fourth occurrence of ringwoodite with compositional variation (Mg# 72–58) likely crystallized from melt at 16–18 GPa and 1750–1850 °C. The presence of the four occurrences of ringwoodite was probably due to their very fast cooling rates in and/or adjacent to the thin shock-induced melt veins and small pockets. In addition, the higher Fa-contents of the host olivine (Fa35–39) in NWA 8705 than those in ordinary chondrites (Fa16–32) makes the olivine–ringwoodite transformation prolong to a lower pressure.

Introduction

Meteorites commonly experienced various degrees of shock metamorphism, and some of them contain shock-induced melts and numerous high-pressure minerals (e.g., Stöffler and Keil 1991; Binns et al. 1969; Gillet et al. 2000; Xie et al. 2002; Langenhorst and Poirier 2000; Tschauner, 2014; Beck et al. 2004; Tomioka and Miyahara 2017; and references therein). The high-pressure polymorphs of olivine [(Mg, Fe)2SiO4], ringwoodite (γ-(Mg, Fe)2SiO4) and wadsleyite (β-(Mg, Fe)2SiO4), are of particularly important, because they are the major constituents of the Earth’s mantle transition zone (Ohtani and Sakai 2008). Previous studies of ringwoodite/wadsleyite in meteorites suggested that they were mainly produced via solid-state transformation from olivine and crystallization from shock-induced melts (Miyahara et al. 2008; Walton and McCarthy 2017; Chen et al. 2004). Studying the transformation mechanisms of ringwoodite is not only helpful to understand the Earth’s interior dynamic process (Kerschhofer et al. 1996; Mohiuddin et al. 2020), but also important to determine the post-shock P–T–t conditions and the related sizes of the impactors (e.g., Hu and Sharp 2016; Ozawa et al. 2010; Sharp and De Carli 2006; Ohtani et al. 2004; Beck et al. 2005; Fritz et al. 2005).

Three occurrences of ringwoodite in heavily shocked meteorites have been reported, i.e., fine-grained ringwoodite in shock-induced melt vein matrix (Xie et al. 2006a; Miyahara et al. 2008), lamellar ringwoodite intergrown with the host olivine (Miyahara et al. 2010; Greshake et al. 2013; Chen et al. 2006), and polycrystalline ringwoodite assemblages with pseudomorph of olivine (Ozawa et al. 2010; Ohtani et al. 2004; Chen et al. 1996). The first occurrence of ringwoodite crystallized from shock-induced melt (Xie et al. 2006a; Fritz and Greshake 2009), whereas the other two occurrences were probably produced via solid-state phase transformation from olivine, including homogeneous intracrystalline nucleation throughout the olivine (Chen et al. 1996), heterogeneous intracrystalline nucleation at defect sites (fractures and stacking faults) of the olivine (Kerschhofer et al. 1996, 2000; Miyahara et al. 2010; Chen et al. 2006, 2007), and grain boundary nucleation and growth mechanism (Liu et al. 1998; Kerschhofer et al. 1998). In some cases, the ringwoodite lamellae have a crystallographic relationship of {111}Rwt//(100)Ol with the host olivine, indicating a coherent nucleation process of ringwoodite (Miyahara et al. 2010, 2016). In terms of chemical compositions, some ringwoodite lamellae and polycrystalline grains have almost identical compositions to the original olivine, indicating an interface-controlled growth process (Xie and Sharp 2007; Mosenfelder et al. 2001; Ohtani et al. 2004; Chen et al. 1996) in which the growth of ringwoodite is controlled by the rate of short range diffusion across the interface between the two phases (Sharp and De Carli 2006). Some polycrystalline ringwoodite rims surrounding the olivine show a Fe–Mg diffusion-controlled growth process (Walton and McCarthy 2017; Yin et al. 2018; Pittarello et al. 2015) with Fe preferentially partitioned to ringwoodite, leading to a higher FeO content of ringwoodite compared with the residual olivine.

Many high-pressure minerals have been identified within and adjacent to shock-induced melt veins and pockets in Martian basaltic meteorites as Tomioka and Miyahara (2017) have summarized. Of these high-pressure polymorphs, ringwoodite was reported in Tissint, EETA 79001, DaG 670, NWA 8159, NWA 7755, Chassigny, RBT 04261, NWA 1068, and LAR 12095 (Walton 2013; Ma et al. 2016; Greshake et al. 2013; Fritz and Greshake 2009; Wang et al. 2017; Sharp et al. 2019; Takenouchi et al. 2018). It occurs as lamellae and polycrystalline grains in the host olivine (Walton 2013; Ma et al. 2016; Greshake et al. 2013; Sharp et al. 2019; Walton et al. 2014; Takenouchi et al. 2018), or as submicron-sized grains in the melt veins (Walton, 2013; Fritz and Greshake 2009; Sharp et al. 2019). Discovery of more occurrences of ringwoodite would be helpful to understand its formation mechanisms and to clarify impact history of the Martian meteorites (Wang et al. 2017; Miyahara et al. 2016).

NWA 8705 is a Martian olivine-phyric basaltic meteorite found recently (Irving et al. 2017). It experienced strong shock metamorphism with the presence of shock-induced melt veins and pockets, making it ideal to study the phase transformation of ringwoodite and wadsleyite from olivine in Martian meteorites. In this study, we found four occurrences of ringwoodite in NWA 8705, and conducted a comprehensive petrographic, mineral-chemical and crystallographic analyses to clarify their formation mechanisms, constrain the post-shock P–T conditions, and to shed light on the impact history of the NWA 8705.

Sample and methods

The Martian meteorite NWA 8705 (6.2 g) was found in Morocco in 2014 and classified as an olivine-phyric shergottite (Irving et al. 2017). One polished section was used in this study, with a surface of ~ 1 × 0.7 cm2.

The section was observed with a field emission scanning electron microscope (FE-SEM) of FEI Nava NanoSEM 450 FE-SEM equipped with an Oxford X-MAXN 80 mm2 energy dispersive spectrometer (EDS) at the Institute of Geology and Geophysics, Chinese Academy of Sciences (IGGCAS). The FE-SEM was operated under a condition of 15 kV accelerating voltage and 1.6–3.2 nA beam current.

Raman spectra were acquired using a confocal Raman microscope (LabRAM HR Evolution system) equipped with 1800 g/mm gratings and a liquid nitrogen-cooled CCD detector, operating with an Nd: YAG laser of 532 nm wavelength at the National Astronomical Observatory, Chinese Academy of Sciences (NAOCAS). The laser power was ~ 3.7 mW, and the spatial resolution was ~ 1 μm. The spectrum was calibrated with the peak of the silicon standard at 520.7 ± 1 cm–1, and each spectrum was integrated twice for 30 s per time from 50 to 1500 cm–1.

Quantitative analysis of minerals was conducted with a JEOL JXA-8100 electron probe microanalyzer (EPMA) at IGGCAS. An accelerating voltage of 15 kV and a beam current of 20 nA were used for all analyses with a beam diameter ranging from 1 to 5 μm. Data were corrected using a modified ZAF correction procedure. Synthetic and natural minerals were used as the calibration standards: hematite for Fe, synthetic rutile for Ti, Cr2O3 for Cr, San Carlos olivine for Mg, diopside for Si and Ca, rhodonite for Mn, apatite for P, nickel oxide for Ni, albite for Na and Al, and orthoclase for K. The detection limits are 0.01 wt% for K2O and Al2O3, 0.02 wt% for MgO, Cr2O3, MnO, TiO2, SiO2, CaO, and Na2O, 0.03 wt% for FeO and NiO, 0.04 wt% for P2O5.

Ultra-thin (~ 100 nm; ~ 10 × 3 μm2 in area) regions of interest on the polished meteorite section were prepared using a focused ion beam (FIB) of a Zeiss Auriga Compact dual-beam instrument equipped with an Omniprobe Auto Probe 200 micromanipulator at IGGCAS. A Ga+ beam current of 200 pA (30 kV) and a 50 pA (5 kV) were applied for final thinning and polishing, respectively. The FIB slices were then analyzed using a transmission electron microscope (TEM) of JEM-2100 equipped with an EDS operated at 200 kV at IGGCAS. The microstructures were studied using the high-resolution TEM imaging (HRTEM) and the selected area electron diffraction (SAED) followed the methods described by Gu et al. (2022) and Tang et al. (2020). Elemental mapping was performed using a FEI Tecnai F30 type of high-angle annular dark-field scanning TEM (HAADF-TEM) equipped with four windowless X-ray detectors at 300 kV at the Peking University.

Results

Petrography and mineral chemistry

NWA 8705 is an olivine-phyric shergottite, consisting of large (up to 2 mm) olivine phenocrysts embedded in the fine-grained groundmass (Fig. 1). The modal mineral abundance is 15 vol% olivine, 55 vol% pigeonite, 5.8 vol% augite and 20.5 vol% plagioclase (maskelynite), and 3.7 vol% accessory phases including chromite, ilmenite, sulfide, and phosphate. The olivine and pyroxene grains are highly fractured (Fig. 1a), whereas plagioclase grains have smooth surfaces with few cleavages (Fig. 1b, c). The Raman spectra indicate that many plagioclase grains have been converted into maskelynite (Fig. 1; Figure S1, #1, see Additional file 1 for details). Several shock-induced melt veins (< 60 μm in width) and pockets (< 400 × 250µm2 in area) were found in the section. Ringwoodite and/or wadsleyite were observed within or adjacent to the shock-induced melt veins and pockets (Figs. 2, 4 and 7). The detailed occurrences of ringwoodite and wadsleyite are depicted in the following subsection.

Fig. 1
figure1

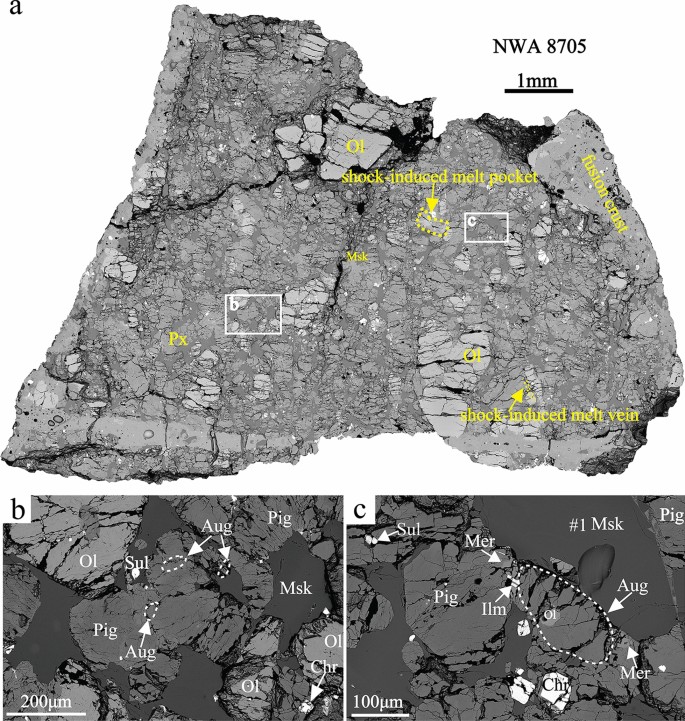

BSE images of NWA 8705. a BSE mosaic map of NWA 8705. Shock-induced melt veins and pockets are indicated by yellow dotted lines and arrows. b, c are the enlarged BSE images of NWA 8705 marked as white boxes in a. Augite (Aug) occurs as the margin of pigeonite (Pig) or as individual grains (outlined by dotted lines). Note abundant fractures of olivine and pyroxene, in comparison with the smooth surface of maskelynite. #1 is the position of a Raman analysis of maskelynite (Msk). Other abbreviations: Rwt ringwoodite, Chr chromite, Mer merrillite, Ilm ilmenite, Sul sulfide

Fig. 2
figure2

BSE images of ringwoodite lamellae. a shock-induced melt pocket (SMP) outlined by the dotted line. The grain labeled “b” and the white box labeled “d” are shown in b and d, respectively. b High magnification image of grain “b”, showing significant heterogeneity. Raman analyses were conducted on the adjacent pyroxene (#2 px-gl) and on the lamellae (R3). c Enlarged image of white box “c” in b reveals ringwoodite (Rwt) lamellae intergrown with the host olivine (Ol). R1, R2, and R4 are the analyses positions of Raman spectra. The yellow box indicates the position of FIB-slice #1. d Enlarged image of white box “d” in a shows that the olivine in contact with the glass phase (Gl) has been transformed into ringwoodite lamellae. e Bright-field (BF) TEM image from the FIB-slice #1. The lamellae parallel to each other. f Enlarged BF-TEM image of the white box “f” in e. The SAED pattern of region 1 shows olivine viewed along the crystal zone axis [01 \(\overline{3 }\)]. The SAED pattern of region 2 shows that crystallographic relationship {111}Rwt//(100)Ol exist. SMP shock-induced melt pocket, Ap apatite; others are the same as above

Most of olivine gains (< 1 mm in length) have homogeneous compositions, with a range of the Fa-content of 35–39 (Fa = molar 100 × Fe/(Fe + Mg)) among grains. A few larger olivine crystals (~ 2 mm in length) are chemically zoned, with the Fa-content increasing from 29.4 in the cores to 37 at the rims (Table S1, see Additional file 2 for details). MnO and CaO contents in olivine range from 0.55 to 0.68 wt% and from 0.14 to 0.38 wt%, respectively. Pigeonite occurs as elongated prismatic or oval grains with a length of 0.2–1.0 mm. Individual pigeonite grains also show the core–rim zonings, with the Fs-contents (Fs = molar 100 × Fe/(Fe + Mg + Ca)) increasing from 23.6 mol% in the cores to 31.3 mol% at the rims. The overall chemical compositions of pigeonite are in a range of Fs22.8–33.1En59.7– 69.6Wo6.6–12.6. The minor elements are Al2O3 (0.4–1.4 wt%), Cr2O3 (0.2–0.9 wt%) and TiO2 (0.03–0.8 wt%). Augite typically occurs either at the margins of pigeonite (Fig. 1b, c) or as separate grains with sizes of 50–100 μm. The individual augite grains are relatively homogeneous in chemical composition, while showing significant variation among different grains (Fs15.2–29.1En44.5–58.9Wo18.3–38.6). The minor elements are Al2O3 (1.4–2.3 wt%), Cr2O3 (0.1–1.0 wt%) and TiO2 (0.2–1.0 wt%). Maskelynite is subhedral lath-shaped (0.8–1.3 mm in length) and interstitial to pyroxene and olivine. The composition of the maskelynite is An50–67Ab49–33Or0–1, while a few grains display zoning features, e.g., with An61Ab38Or1 in the cores to An52Ab47Or1 at the rims. The representative chemical compositions of these minerals are listed in Table S1 and S2 (see Additional file 2 for details).

Four occurrences of ringwoodite

Ringwoodite lamellae

Olivine grains (Fig. 2a, b) that are located within and/or adjacent to the shock-induced melts often appear heterogeneous in contrast in BSE images, with one to three sets of brighter lamellae (< 3 μm in width) intergrown with the host olivine (Fig. 2c). It is noticed that the lamellae also develop at the olivine margin in contact with melt and disappear away from it (Fig. 2d). Laser Raman analysis confirms that these lamellae are ringwoodite, with the diagnostic peaks at 792–795 cm−1 and 842 cm−1 (R2 and R3 in Fig. 3a). In addition, additional peaks at 213–217 cm−1 and 586 cm−1 correspond to ringwoodite (Walton and McCarthy 2017; Acosta-Maeda et al. 2013). The peak at 697 cm−1 may also be derived from ringwoodite, which is similar to the peak at 692 cm−1 of ringwoodite in LAR 12095 (Takenouchi et al. 2018). Raman analyses without significant peaks indicate the presence of olivine glass (R4 in Fig. 3a; Fa35.9, Additional file 2: Table S3) adjacent to the melt (Fig. 2c). The texture of olivine glass is similar to the glass depicted in NWA 4468 (Boonsue and Spray 2012). The Mg#-numbers of the ringwoodite lamellae (Mg# 64.2–62.7; Mg# = 100*Mg/(Mg + Fe)) are very similar to those of the host olivine (Mg# 65.4–64; Table S3, see Additional file 2 for details). The TEM observations of the FIB section (FIB-slice #1) prepared from the region marked in Fig. 2c show ringwoodite platelets with width ranging from ~ 10 to ~ 100 nm (Fig. 2e, f). The selected area electron diffraction (SAED) patterns show the crystallographic orientation between ringwoodite lamellae and the host olivine: {111}Rwt//(100)Ol (Fig. 2f).

Fig. 3
figure3

Raman spectra of various polymorphs of olivine (Ol). a Raman spectra of olivine (R1), lamellar ringwoodite (R2–R3), olivine glass (R4), polycrystalline, and ringwoodite microlite clusters (R5–R6). b Raman spectra of olivine (R7), polycrystalline ringwoodite aggregates (R8), rod-like ringwoodite, wadsleyite, and pyroxene (R9–R11). Wad wadsleyite, Px pyroxene; others are the same as above

Polycrystalline ringwoodite aggregates with pseudomorph of pre-existing olivine fragment

The olivine fragments within the shock-induced melt vein (60 μm in width) have been transformed to polycrystalline ringwoodite aggregates (Fig. 4b, c). These fragments (3–20 µm in width) preserve pseudomorphs of olivine, but appear cloudy under high magnification BSE images (Fig. 4b, c, and f), distinguished from the homogeneous surface of the host olivine away from the melts. Raman spectra of the fragments have two strong characteristic peaks at 794 and 842 cm−1 and one weak characteristic peak at 292 cm−1 (Fig. 3b, R8) indicative of ringwoodite. Additional peaks near 585 cm−1 and 660 cm−1 (Fig. 3b, R8) have been documented from ringwoodite and olivine, respectively (Walton and McCarthy, 2017; Acosta-Maeda et al. 2013). The peak at 697 cm−1 may also be derived from the ringwoodite, similar to the peak at 692 cm−1 of the ringwoodite (Takenouchi et al. 2018). In addition, the pigeonite fragments (Fig. 4c) in the shock-induced melt vein have not been transformed to high-pressure polymorphs or glass based on Raman analysis (Figure S1, #3, see Additional file 1 for details). The Mg#-numbers of the ringwoodite are 64.1–62.4, comparable with the host olivine (Table S4, see Additional file 2 for details).

Fig. 4
figure4

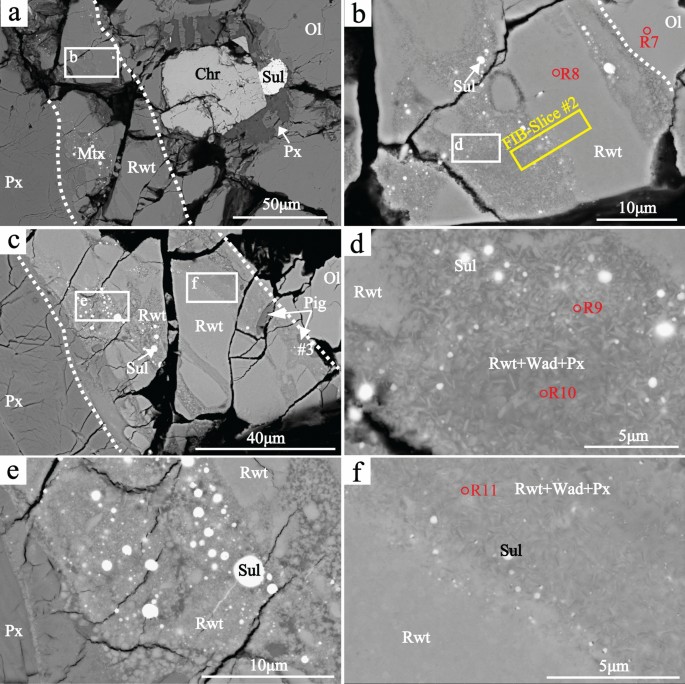

BSE images of polycrystalline ringwoodite, rod-like ringwoodite and the coexisting wadsleyite in the shock-induced melt vein. a Low magnification BSE image shows a partially melted region (outlined with dotted line) with the presence of ringwoodite (Rwt) and matrix (Mtx). b Enlarged image of the white box “b” in a shows the polycrystalline ringwoodite with olivine (Ol) fragment pseudomorph. The yellow box is the position of FIB-slice #2. R7 and R8 are Raman analysis positions. c Higher magnification BSE image of the partially melted region in a, showing the presence of ringwoodite fragment and matrix. Pigeonite fragments (analyzed by Raman spectrum #3) are indicated by the white arrow. d Enlarged image of white box “d” in b. Raman spectra (R9 and R10) the intergrowth of ringwoodite, wadsleyite (Wad) and pyroxene (Px). The white spheres are sulfide (Sul). e Enlarged image of the white box “e” in c shows the texture of the shock-induced melt. The presence of ringwoodite was confirmed by Raman analysis, and the white spheres are sulfide. f Enlarged image of the white box “f” in c shows the intergrowth of rod-like ringwoodite, wadsleyite, and pyroxene in the matrix and the polycrystalline ringwoodite fragment. The small white grains are sulfide. Other abbreviations are the same as above

TEM observations of the polycrystalline ringwoodite aggregates (FIB-slice #2, Fig. 5b) confirm that these assemblages are nano-sized ringwoodite with the size of 100 to 500 nm and 120° conjunction. The TEM–EDS spot analysis (Additional file 2: Table S6) and element mapping images (Fig. 6a–c) show that the Mg#-numbers of ringwoodite grains are relatively homogeneous (Mg# 64.8–61.8), which are consistent with the EPMA analyses data (Mg# 64.1–62.4, Additional file 2: Table S4). The TEM observations show that the nano-sized ringwoodite has various crystallographic orientations.

Fig. 5
figure5

BF-TEM images, SAED patterns of polycrystalline ringwoodite, rod-like ringwoodite and the coexisting wadsleyite. a SE image of FIB-slice #2 consists of two parts. b Enlarged BF-TEM image of the white box “b” in a. SAED pattern of grain 1 corresponds to ringwoodite. c, d Enlarged BF-TEM images of the white box “c” and “d” from a in the matrix. SAED patterns of representative grains indicate that they are troilite, ringwoodite, and wadsleyite, respectively. The white dotted-line box represents the TEM-EDS elemental mapping region. e Enlarged BF-TEM images of the white box “e” in c. The rod-like ringwoodite was identified from the SAED pattern. f clinopyroxene was identified by SAED pattern and TEM–EDS. Tr troilite, Cpx clinopyroxene, others are the same as above

Fig. 6
figure6

TEM–EDS elemental mapping images of Mg, Fe, and Ca of polycrystalline ringwoodite and matrix (Mtx). ac Elemental mapping images of Fe, Mg, and Ca for polycrystalline ringwoodite in Fig. 5b show the homogeneous composition distribution. df Elemental mapping images of Fe, Mg, and Ca in the matrix from white dotted-line box in Fig. 5d shows that the distributions of Fe, Mg, and Ca are heterogeneous. Between the ringwoodite and wadsleyite, there exists Ca-rich interstitial material

Submicron-sized rod-like ringwoodite coexisting with the wadsleyite in shock-induced melt vein matrix

The matrix of the shock-induced melt vein in touch with the polycrystalline ringwoodite fragments consists mainly of submicron-sized rod-like grains, with the presence of abundant sulfide spheres (Fig. 4b–f). The presence of ringwoodite, wadsleyite, and pyroxene in the matrix was confirmed by Raman analyses (Fig. 3, R9–R11). The Raman spectra show strong characteristic peaks of ringwoodite at 785/792 and 842 cm−1; weak characteristic peaks of pyroxene at 334, 400, 534, 542, and 1005 cm−1; and weak peaks of wadsleyite at 917 and 717 cm−1. Electron probe analyses with a defocused beam of the ringwoodite–wadsleyite–pyroxene assemblages show slightly more enriched in SiO2 (41.7–44.5 wt%), Al2O3 (1.57–3.74 wt%), Cr2O3 (0.29–0.41 wt%), and CaO (2.02–3.31 wt%) than the polycrystalline ringwoodite aggregates (Table S4, see Additional file 2 for details).

The TEM observations of the fine-grained melt matrix (FIB-slice #2, Fig. 5c–f) depict in detail the microstructures and the corresponding chemical compositions of the ringwoodite, wadsleyite, and clinopyroxene. According to the BF-TEM images and SAED patterns, some rod-like ringwoodite (100–300 nm in size) (Fig. 5d, e) with the length-to-width ratio of ~ 3 and the wadsleyite (100–200 nm in width) (Fig. 5c, d) are distributed randomly. TEM–EDS analyses of the ringwoodite and wadsleyite crystals reveal highly heterogeneous compositions (Additional file 2: Table S6 and Fig. 6d–f) and the wadsleyite (Mg# 77.5–67.2) is Fe-depleted than the coexisting ringwoodite (Mg# 76.2–35.5). TEM–EDS elemental mapping images (Fig. 6f) and TEM–EDS spot analyses (Additional file 2: Table S6) show that the interstitial regions between the ringwoodite and wadsleyite contain 48.8–54.5 wt% SiO2, 1.9–2.2 wt% Al2O3, 3.8–6.9 wt% CaO, 19.2–22.4 wt% FeO, and 15.7–21.8 wt% MgO. From the interstitial region, the existence of clinopyroxene (Fs34En51Wo15) was confirmed based on the SAED patterns (Fig. 5f) and TEM–EDS analyses (Table S6, see Additional file 2 for details).

Ringwoodite microlite clusters in the shock-induced melt vein

The microlites of ringwoodite cluster together as small grain-like assemblages in the glassy matrix of a shock-induced melt vein (20 μm in width) cutting through the host olivine phenocryst (Fig. 7). Raman spectra of these microlites show the peaks of ringwoodite at 795 and 842 cm−1 (Fig. 3a, R6). It is also noticed that the grain sizes of the ringwoodite microlites are larger at the center of the shock-induced melt vein than those at the rims (Fig. 7b). A few tiny grains of sulfide (Fig. 7c) and one augite grain (Fs17.1–19.3En48.1–50.3Wo30.4–34.8 analyzed by EDS) (Fig. 7d, Figure S1, #4, see Additional file 1 for details) were also found in the shock-induced melt vein. Because of the small size of ringwoodite in the shock-induced melt vein, EPMA analyses on these submicron ringwoodite crystals have unavoidably overlapped nearby glass. The bulk composition of the shock-induced melt vein was determined with a defocused beam of EPMA, with 44.6–46.7 wt% SiO2, 2.30–2.86 wt% Al2O3, 3.20–3.66 wt% CaO, and 0.29–0.34 wt% Na2O (Table S4, see Additional file 2 for details).

Fig. 7
figure7

BSE images of the granular ringwoodite. a A shock-induced melt vein (~ 20 μm in width), cutting through olivine. The regions marked by white boxes “b”, “c”, and “d” are shown in b, c, d, respectively. b Submicron-sized ringwoodite grains embedded in a Si-rich glass (Gl). Note larger ringwoodite grains in the center than those adjacent to the rims. The olivine walls in contact with the vein have been transformed into ringwoodite too. c Similar texture of b. The yellow box shows the position of FIB-slice #3. Two Raman analyses are marked as R5 and R6. d Ringwoodite microlite clusters and an augite in the melt vein. Raman spectrum #4 confirms the augite. Chr chromite; others are the same as above

The SE image (Fig. 8a) of the whole FIB-slice #3 (marked in Fig. 7c) shows the olivine, the ringwoodite adjacent to the melt vein, and the shock-induced melt vein (ringwoodite microlite clusters and glass) from left to right. The BF-TEM images depict the ringwoodite microlites (100–500 nm in size) clumping together embedded in glassy matrix. A few small sulfide spheres can be noticed in the glassy matrix too (Fig. 8c and f). The weak streaks around the diffraction spot in the SAED pattern (Fig. 8d) of the ringwoodite indicate the presence of stacking faults on (110). The TEM–EDS results reveal heterogeneous compositions of the ringwoodite microlites, with the Mg#-numbers ranging from 72 to 58 (Table S7, see Additional file 2 for details). In addition, the TEM–EDS spot analyses show that the glassy matrix interstitial to the ringwoodite microlites is rich in SiO2 (52.3–69.7 wt%), Al2O3 (2.0–4.6 wt%), and CaO (0.3–6.9 wt%) (Table S7, see Additional file 2 for details).

Fig. 8
figure8

BF-TEM images of FIB-slice #3 of the ringwoodite microlite clusters. a SE image of FIB-TEM-slice #3. b, c Enlarged BF-TEM images of the yellow rectangle “b” and “c” in a. BF-TEM image and SAED pattern indicate that the ringwoodite grains are distributed in glass matrix. d Enlarged BF-TEM image of the yellow rectangle “d” in c. SAED pattern of grain 3 shows that the ringwoodite has one set of weak stacking fault on (110)

Additionally, it is noted that the point of contact between the olivine and the shock-induced melt vein appears brighter than the interior of the host olivine in BSE image (Figs. 7b and c). Laser Raman spectra confirm that the contact interface which we refer to below as ‘walls’ is ringwoodite (Fig. 3a, R5). Based on the observations of TEM, the lamellar ringwoodite walls at the contact between the olivine and melt vein consist of polycrystalline ringwoodite grains (Figure S2b, see Additional file 1 for details). EPMA analyses of the lamellar ringwoodite (Mg# 64.9) show identical chemical compositions (Table S4, see Additional file 2 for details) to the host olivine (Mg# 64.6). Away from the melt vein, the ringwoodite platelets have a crystallographic relationship of {111}Rwt//(100)Ol with the host olivine (Figure S2c, see Additional file 1 for details). TEM–EDS spot analyses indicate that the ringwoodite platelets (Mg# 58.8) are a little more iron-rich than the coexisting olivine (Mg# 68.4) (Table S7, see Additional file 2 for details).

Discussion

Formation mechanisms of ringwoodite in NWA 8705

Solid-state transformation of ringwoodite lamellae

The olivine grains retained in or adjacent to the shock-induced melt pocket were partially transformed into ringwoodite lamellae (Fig. 2). The low-frequency Raman spectral peak of the ringwoodite lamellae at ~ 212–217 cm−1 (Fig. 3) is unusually strong, similar to that of ahrensite (Fa > 50) in Dhofar 1970 and Tissint (Ma et al. 2016; Walton and McCarthy 2017). Nevertheless, the Fa-content of the ringwoodite lamellae in NWA 8705 is ~ 36 mol%, much lower than that of ahrensite. Therefore, this low-frequency spectral peak may not be directly related to the high Fa-content, but could be attributed to the Fe–Mg rearrangement at the (M1, M2) positions (Kleppe et al. 2002; Walton and McCarthy 2017). Ringwoodite lamellae adjacent to the shock-induced melt in NWA 8705 (Figs. 2c–d) seem to be composed of small crystals rather than being single ones and are orientated along specific orientations, which is similar to the lamellae in texture and morphology reported in other Martian meteorites (Greshake et al. 2013; Walton 2013). These ringwoodite lamellae were proposed to form via heterogeneous incoherent nucleation process as proposed in other meteorites (Greshake et al. 2013; Walton 2013). In addition, the Mg#-numbers of the ringwoodite lamellae (Mg# 64.2–62.7) here are relatively constant and similar to that of the host olivine (Mg# 65.4–64; Table S3, see Additional file 2 for details), suggestive of no fractionation between both phases and an interface-controlled growth process (Sharp and De Carli 2006). Meanwhile, the single set of oriented lamellae was found in the interior of olivine (Fig. 2c), which is similar to those observed in Yamato 791,384 and Tissint (Miyahara et al. 2010, 2016; Walton et al. 2014). TEM observations (Fig. 2e, f) suggest that this single set of ringwoodite lamellae are thin in width (10–100 nm) and depict coherent crystallographic orientation with the host olivine {111}Rwt//(100)Ol (Miyahara et al. 2010). It is known that coherent phase transformation occurs in two stages (1) a stacking fault develops in an original olivine grain by lattice plane slipping on (100)Ol; (2) coherent nucleation and growth of ringwoodite platelets occur on the stacking faults (Kerschhofer et al. 1996, 1998). The ringwoodite lamellae in NWA 8705 have a specific crystallographic relationship with the host olivine {111}Rwt//(100)Ol (Fig. 2e, f), which is the evidence for a coherent phase transformation mechanism (Tomioka and Miyahara 2017; Miyahara et al. 2010). In addition, the Mg#-numbers of the ringwoodite lamellae (Mg# 63–60) are relatively constant and similar to that of the host olivine (Mg# 62.4–60.9) (Tables S5, see Additional file 2 for details), suggestive of no compositional fractionation between them and consistent with an interface-controlled growth mechanism (Sharp and De Carli 2006; Kerschhofer et al. 1996).

The thin ringwoodite lamellae adjacent to the melt vein also have a crystallographic relationship of {111}Rwt//(100)Ol with the host olivine (Figure S2c, see Additional file 1 for details), suggestive of a coherent nucleation process (Miyahara et al. 2010; Walton et al. 2014). However, differences in chemical compositions between the host olivine (Mg# 69.9–66.3) and the ringwoodite (Mg# 63.2–54.4) were detected (Tables S7, see Additional file 2 for details), implying a Fe–Mg exchanging with Fe preferentially partitioned to ringwoodite. Thus, the growth of the ringwoodite lamellae was Fe–Mg diffusion-controlled as proposed by Sharp and De Carli (2006).

Solid-state transformation of polycrystalline ringwoodite aggregates

The polycrystalline ringwoodite aggregates (Fig. 4b, c) were transformed from the pre-existing olivine fragments with rounded outlines. The TEM observations (Fig. 5b) of the polycrystalline ringwoodite (100–500 nm) reveal random crystallographic orientation of the crystals with triple junctions. The random orientations and homogeneous distributions of the polycrystalline ringwoodite, similar to that of some shocked meteorites (Xie and Sharp 2007; Chen et al. 1996; Putnis and Price 1979; Wang et al. 2017), may indicate a solid-state homogeneous nucleation throughout the olivine fragment (Sharp and De Carli 2006; Xie and Sharp 2007). STEM-EDS mapping images (Fig. 6a–c), TEM-EDS (Table S6, see Additional file 2 for details), and EPMA spot analyses (Table S4, see Additional file 2 for details) show that the Mg#-numbers of the polycrystalline ringwoodite (Mg# 65–62) are relatively constant and close to that of the adjacent olivine (Mg# 66–64), implying that there was no Fe–Mg interdiffusion during transformation. It is possible that the polycrystalline ringwoodite was produced via the interface-controlled growth process as proposed by previous studies (Kerschhofer et al. 1998; Mosenfelder et al. 2001; Miyahara et al. 2010; Sharp and De Carli 2006).

In addition, the lamellar ringwoodite walls in contact with the very thin shock-induced melt vein (Fig. 7c, d) are composed of polycrystalline ringwoodite with random crystallographic orientations (Additional file 1: Figure S2) and there is no specific crystallographic orientation between original olivine and ringwoodite, indicating of an incoherent nucleation (Tomioka and Miyahara 2017). Mg#-numbers (Mg# 68–64) of ringwoodite here are comparable with the host olivine (Mg# 69.9–66.3) (Additional file 2: Table S7), manifesting an interface-controlled growth mechanism (Sharp and De Carli 2006; Xie and Sharp 2007) as discussed above.

Melt crystallization of submicron-sized rod-like ringwoodite coexisting with the wadsleyite

The fine-grained matrix of the shock-induced melt vein consists mainly of ringwoodite, wadsleyite, clinopyroxene, and a few metal-sulfide spheres (Fig. 4). As in other shocked meteorites (Hu and Sharp 2016; Xie et al. 2006a; Martinez et al. 2019), this mixture in the shock-induced melt vein is inferred to represent immiscible silicate and metal-sulfide liquids that were rapidly quenched although the mineral assemblages are different. Additionally, the bulk compositions of the matrix (Table S8, see Additional file 2 for details) are relatively rich in SiO2, Al2O3, and CaO compared with the olivine fragments, indicating that the shock-induced melt vein matrix was mainly mixed with olivine, some pyroxene, and probably plagioclase. The TEM observations indicate that ringwoodite and wadsleyite grains have random crystallographic orientations and they are distributed randomly (Fig. 5c, d). The results of elemental mapping images and STEM–EDS spot analyses show that the fine-grained matrix is heterogeneous (Fig. 6d–f) and there exist large compositional ranges between the coexisting ringwoodite (Mg# 76.2–35.5) and wadsleyite (Mg# 77.5–67.2) (Additional file 2: Table S6) with the ringwoodite more FeO-enriched than the coexisting wadsleyite. Two different Raman spectrum peaks of ringwoodite at 785 and 792 cm−1 also indicate the large compositional ranges of ringwoodite (Feng et al. 2011), although the corresponding Fa-contents of ringwoodite (Fa24.8–64.5) are slightly lower than the reports (Fa72 and Fa48) of Feng et al. (2011). The inconsistency in the Fa-contents here compared with that of the reports (Feng et al. 2011) may be related to the uncertainty or influence by the underlying material of TEM–EDS point analyses. The observed difference in composition between the sub-micron rod-like ringwoodite and the coexisting wadsleyite is consistent with Fe–Mg partition between them during the crystallization from the shock-induced melt (Miyahara et al. 2008, 2009), indicative of the fractional crystallization of ringwoodite and wadsleyite from the shock-induced melt.

Melt crystallization of the ringwoodite microlite clusters

The ringwoodite microlite clusters in the glass matrix of the very thin melt vein (Fig. 7) show a large range of composition (Mg# 72–58) and different crystallographic orientations (Fig. 8). The glass matrix is rich in SiO2, CaO, and Al2O3 compared to the coexisting ringwoodite (Table S7, see Additional file 2 for details), indicating that the shock-induced melt vein was not mono-olivine melt, but mixed with some plagioclase and probably pyroxene too. This is confirmed by the bulk composition of the shock-induced melt vein (Table S8, see Additional file 2 for details). The heterogeneous compositions of the ringwoodite and the presence of the glass matrix convincingly suggest that the ringwoodite crystallized from melt, different from the common coexistence of ringwoodite with wadsleyite, clinopyroxene and other phases in typical shock-induced melt veins depicted above and in other meteorites (Xie et al. 2006a, 2011; Fritz and Greshake 2009; Hu and Sharp 2016). It is also observed that the ringwoodite grains become smaller from the center of the vein towards the rim (Fig. 7b). This is a typical feature of crystallization of shock-induced melt veins because of a faster cooling rate at the rim, further confirming the crystallization of ringwoodite. In addition, some ringwoodite grains developed a set of stacking fault observed with TEM (Fig. 8d), which is probably due to the stress induced by the deformation of the crystals during segmentation or growth defects (Miyahara et al. 2008; Pittarello et al. 2015).

Post-shock P–T conditions constrained by ringwoodite in NWA 8705

As discussed above, the lamellar and polycrystalline ringwoodite were produced by the solid-state transformation of olivine. The transformation depends on the P–T condition and the chemical composition of olivine. According to the P–T phase diagram of olivine with Fa35 (Fig. 9) modified from the pressure–temperature–composition phase diagram of olivine (Tomioka and Miyahara 2017; Frost 2008; Ito and Takahashi 1989; Katsura and Ito 1989), olivine and ringwoodite have coexisted in the olivine grain in contact with a shock-melt vein, indicating that the shock pressure is 9–13 GPa or more. However, the pressure condition could be underestimated because the initiation of the solid-state transformation of olivine involves a breakage of the Si–O bond, which requires to some extent a higher pressure than the value indicated by the phase boundary, and the process is kinetically sluggish (Sharp and De Carli 2006).

Fig. 9
figure9

Pressure–temperature phase diagram for olivine (Fo65) after Ito and Takahashi (1989), Frost (2008), Tomioka and Miyahara (2017). The shaded region corresponds to the ringwoodite stability field. Bdm, bridgmanite; Mw, magnesiowüstite; others are the same as above

Some ringwoodite or wadsleyite crystallized from shock-induced melts. Crystallization processes at high temperatures only need to overcome lower kinetic barriers, requiring no pressure overstepping (Sharp and De Carli 2006). Consequently, in order to constrain the P–T condition more accurately, we adopt another phase diagram (Fig. 10) built from high-pressure melting experiments on the Allende carbonaceous chondrites (Agee et al. 1995; Asahara et al. 2004) which has a bulk FeO abundance (27 wt%) closer to the shock-induced melts in NWA 8705 (19–24 wt%) than the peridotite KBL-1 (9 wt%) (Zhang and Herzberg 1994; Trønnes and Frost 2002).

Fig. 10
figure10

A simplified P–T diagram for the Allende meteorite (solid lines) after Agee et al. (1995) and Asahara et al. (2004), and the P–T diagram for the peridotite (dot-dash lines) from Zhang and Herzberg (1994) and Trønnes and Frost (2002)

The shock-induced melt vein (Fig. 4) contains ringwoodite, wadsleyite, and clinopyroxene, but we could not identify the majorite reported in other meteorites (e.g., Xie et al. 2006a, 2011; Tomioka and Miyahara 2017; and references therein). The mineral assemblages with the absence of majorite in the shock-induced melt vein (Fig. 4) in NWA 8705 is consistent with the metastable crystallization of subsolidus phases from a supercooled liquid where nucleation of the majorite was inhibited (Hu and Sharp 2016; Xie et al. 2006b). The sulfide spheres throughout the matrix are also the evidence for a fast quench. Based on the Allende phase diagram (Fig. 10), ringwoodite, wadsleyite, and clinopyroxene (En51Fs34Wo15) could crystallize at a condition of 14–17 GPa, 1650–1750 ℃. In addition, the pigeonite (En67.5Fs24.5Wo8) relict fragments in the shock-induced melt constrain the pressure conditions of the shock-induced melt vein to below the pyroxene–majorite phase boundary that is < 16 GPa at 1800 °C (Tomioka and Miyahara 2017; Ozawa et al. 2010; Ohtani et al. 1991). Therefore, we estimate the crystallization pressure and temperature of the shock-induced melt vein to be 14–16 GPa, 1650–1750 ℃, respectively. This P–T condition is similar to that of LL6 chondrite NWA 757 and L6 Château-Renard (Baziotis et al. 2018; Hu and Sharp 2016). Ca-rich pyroxene (augite) in another shock-induced melt vein (Fig. 7d) can be stable up to 18 GPa (Oguri et al. 1997). The overlap in stability fields between ringwoodite (Fig. 9) and Ca-rich pyroxene constrains the crystallization pressure of the shock vein to be 13–18 GPa. This pressure estimate agrees with the overlap in the pressure stability field of those minerals (ringwoodite + clinopyroxene, 16–18 GPa) at the phase diagram for Allende (Fig. 10). Within this pressure range, the inferred crystallization temperature is 1750–1850 °C. Thus, we estimate that the crystallization pressure and temperature of the shock-induced melt vein is 16–18 GPa, 1750–1850 ℃, respectively.

Very thin shock-induced melt vein and melt vein margins are most rapidly quenched and most likely to contain crystallization products recording the shock pressure condition (Sharp and De Carli 2006; Hu and Sharp 2016). The two melt veins discussed above are thin (≤ 60 μm) and lower pressure mineral assemblages were not observed in the core from the two thin shock-induced melt veins, suggesting that the crystallization occurred during shock pressure (Xie et al. 2006b). The two shock-induced melt veins discussed above are similar in chemical bulk compositions (Table S8, see Additional file 2 for details). The differences in mineralogy and micro-texture seem to be related to crystallization pressure and cooling rate (see quench time in the following section). The cooling rate of the melt vein (~ 60 μm) was not rapid enough to quench to the glass compared with the thinner shock-induced melt vein which recorded the possible shock pressure. The shock-induced melt vein (~ 60 μm) may crystallize quickly during a slight decrease in pressure and did not produce core–edge zoning of minerals (Sharp and De Carli 2006). Therefore, the very thin shock-induced melt vein (20 μm) should record the shock pressure ~ 18 GPa based on the crystallization pressure condition discussed above.

Constraints on quench time and shock pressure duration in NWA 8705

The mineral assemblages crystallizing in shock-induced melt veins depend on the quench time and the duration of the shock pressure (Sharp and De Carli 2006; Xie et al. 2006a). If the quench time is much longer than the shock pressure duration, crystallization will occur during a pressure release and we should see a difference in mineralogy between the vein edge and the vein center. If the quench time is shorter or a little longer than the shock pressure duration, crystallization occurred at constant pressure or during a slight release of pressure and we should see mineral assemblages of similar pressure stabilities throughout a given melt vein (Walton et al. 2014; Walton 2013; Sharp and De Carli 2006; Xie et al. 2006b). The quench time (t) of a shock-induced melt vein can be simply calculated by a thermal conduction equation, t = L2/α, where L = width of the shock-induced melt vein in meters, α is the thermal diffusion coefficient that is set to10−6 m2s−1 (Greshake et al. 2013; Fritz and Greshake 2009; Fritz et al. 2017). Thus, the quench times of the shock-induced melt veins (20–60 μm in width) in NWA 8705 are 0.4–3.6 ms. The duration of the shock pressure can be constrained by using the transformation kinetic data for a given sample (Ohtani et al. 2004; Mosenfelder et al. 2001; Xie and Sharp 2007; Kerschhofer et al. 2000; Miyahara et al. 2010). Using calculated growth rates (Mosenfelder et al. 2001) and the size of ringwoodite, we can estimate the time required for ringwoodite growth in NWA 8705 as a function of temperature and thereby constrain the minimum duration of the shock pressure as Xie and Sharp (2007) has reported. At ~ 18 GPa, if we expect the host olivine grains within and in contact with shock-induced melt veins to reach the temperature of 1700–1800 K, the time required to grow a 500-nm ringwoodite crystal in NWA 8705 is about 10–3.4 ms. This minimum shock pressure duration (10–3.4 ms) is consistent with a shorter impact duration (< 100 ms) of Martian meteorites compared to that of chondrites (~ 1 s) (e.g., Beck et al. 2005; Fritz and Greshake 2009; Walton 2013; Walton et al. 2014).

Implications for the findings of ringwoodite in NWA 8705

As discussed above, there are four occurrences of ringwoodite found within an mm-scaled region in NWA 8705. Two conditions must be met for the formation and preservation of ringwoodite in the shocked meteorites. (1) The shock-induced formation of ringwoodite requires high enough temperature and pressure (Xie and Sharp 2007; Baziotis et al. 2013; Sharp and De Carli 2006) to provide the rapid transformation kinetics. (2) After the formation of ringwoodite, rapid cooling to low temperature (< 900 °C) is needed to preserve the phase during shock compression and subsequent decompression within the ringwoodite stability field (Greshake et al. 2013; Ming et al. 1991; Suzuki et al. 1980).

The findings of four occurrences of ringwoodite in NWA 8705 do satisfy the two conditions described above after our study. On the one hand, the four occurrences of ringwoodite are restricted to shock-induced melt veins and pockets where temperatures were high enough. The preservation of four occurrences of ringwoodite within the very small region in NWA 8705 could be largely attributed to the very thin width of the melt veins (~ 20–60 µm) or small shock-induced melt pockets (Sharp and De Carli 2006) which have very fast cooling rates and short quench times as discussed above.

More occurrences of ringwoodite in NWA 8705 may also be related to the higher FeO-contents of olivine (Fa29–39). Compared with the olivine in H-type (Fa16–20), L-type (Fa23–26), and LL-type (Fa27–32) ordinary chondrites (Weisberg et al. 2006), most olivine grains in Martian meteorites are more fayalitic in composition, e.g., olivine-phyric shergottites, Fa23–Fa48; poikilitic shergottites, Fa16–Fa40; nakhlites, Fa56–Fa85; chassignites, Fa21–Fa46 (McSween 1985; Treiman 2005; Hewins et al. 2020; Sarbadhikari et al. 2016). The high FeO-contents olivine in the Martian meteorites can be transformed to ringwoodite or ahrensite under lower pressure in comparison with those in ordinary chondrites, based on the Mg2SiO4–Fe2SiO4 phase diagram (Presnall, 1995). Besides, ringwoodite with higher Fa-content could be preserved under relatively lower pressure. Therefore, ringwoodite with higher Fa-content is more likely to form and preserve in NWA 8705, broadening the pressure stability field of ringwoodite.

Four occurrences of ringwoodite in NWA 8705 are within and around shock-induced melt veins and pockets where pressure conditions may be almost homogeneous because shock-induced melt is a perfect pressure transmitting medium (Miyahara et al. 2016). The different formation mechanisms and arrangements are most likely due to temperatures difference at different locations within or close to the shock-induced melt veins and pockets (Miyahara et al. 2016; Hu and Sharp 2016, 2017). For instance, solid-state transformations of olivine usually occur at the olivine clasts within and adjacent to shock-induced melt veins and pockets in NWA 8705 and other meteorites (Miyahara et al. 2010; Ozawa et al. 2010; Xie and Sharp 2004) where the temperatures may have been high enough to overcome the nucleation energy barrier for incoherent and coherent nucleation of ringwoodite, so they can nucleate simultaneously (Wang et al. 2017). Nevertheless, the kinetics data indicate that the grain growth rate subsequent to nucleation in the incoherent process is much higher than that in the coherent process (Miyahara et al. 2016; Kerschhofer et al. 2000). Thus, incoherent grains may grow immediately to overtake coherent grain growth, and polycrystalline ringwoodites dominate adjacent to the shock-induced melt vein (Fig. 7), similar to that in Tissint and Yamato 791384 (Miyahara et al. 2016, 2010). With the increases of the distance from shock-induced melt vein and pocket, the ringwoodite changes from polycrystals to platelets (This study; Gillet and El Goresy 2013; Miyahara et al. 2016), which is likely because the temperatures are not sufficiently high to overcome the energy barrier for incoherent nucleation of polycrystalline ringwoodite, but are high enough for coherent nucleation of ringwoodite platelets (Wang et al. 2017; Kerschhofer et al. 2000).

The coexistence of ringwoodite and wadsleyite in the shock-induced melt vein here is particularly rare in other Martian meteorites and has only been reported in Chassigny (Fritz and Greshake 2009) and the poikilitic shergottite Asuka 12325 (Takenouchi et al. 2019). The ubiquity of ringwoodite and relative scarcity of wadsleyite in Martian meteorites may indicate that shock pressure in samples is generally well above the metastable olivine–ringwoodite equilibrium boundary (Fudge et al. 2014). In this case, olivine transforms directly to the ringwoodite over full range of transformation temperatures. The coexistence of ringwoodite and wadsleyite in the shock-induced melt vein of NWA 8705 may suggest that a lower formation pressure than that of other Martian meteorites (e.g., Miyahara et al. 2016, 2011; Wang et al. 2017). Additionally, the rare occurrences of the rod-like ringwoodite coexisting with the wadsleyite and the ringwoodite microlite clusters within the shock-induced melt veins in NWA8705 seem to imply a special crystallization process which may widen the understanding of the formation mechanism of ringwoodite.

NWA 8705 impact history

Shock-induced melt veins in NWA 8705 have recorded the P–T path after the impact event. The meteorite NWA 8705 was heated heterogeneously up to a temperature of ~ 2000 ℃ at ~ 18 GPa (Fig. 10), producing the shock-induced melt during the shock event. The ringwoodite microlite clusters crystallized from the olivine-dominant melt at a condition of 16–18 GPa and ~ 1800 ℃. The association of the rod-like ringwoodite, wadsleyite, and pyroxene in the shock-induced melt veins quenched at slightly lower pressure (14–16 GPa) and temperature (~ 1700 ℃).

The shock pressure duration of Martian meteorites was short and has been estimated to be ~ 10 ms (Beck et al. 2005; Fritz and Greshake 2009; Ma et al. 2016), ~ 10–20 ms (Walton et al. 2014; Walton 2013), and ~ 100 ms (Sharp et al. 2019). The shock pressure duration estimated from NWA 8705 is ~ 3.4–10 ms, consistent with that of most other Martian meteorites. The impact scenario of NWA 8705 is probably similar with other shergottites, delivered from small craters (1.5–5 km in diameter) (Beck et al. 2005; Artemieva and Ivanov 2004). It is generally suggested that Martian impact ejection events were small because of their young CRE ages, the decrease in size-frequency distribution of impact craters over the history of solar system, and that there are too few young large impact craters on Mars to account for all different ejection events (Head et al. 2002; Artemieva and Ivanov 2004). The cosmic ray exposure (CRE) age of NWA 8705 is 1.7 Ma (Irving et al. 2017), which is young and similar to that of other olivine-phyric shergottites within error, e.g., CRE ages from 0.6 to 1.8 Ma (Head et al. 2002; Nishiizumi et al. 2011; Eugster et al. 2006; Nyquist et al. 2001), suggesting that they may originate from the same small impact ejection event on Mars (Beck et al. 2005). In NWA 8705, the shock pressure ~ 18 GPa estimated from the minerals assemblages within and adjacent to the shock-induced melt veins and pockets is lower compared with other olivine-phyric shergottites, e.g., ≥ 26–30 GPa and 26–40 GPa for Tissint (Baziotis et al. 2013; Walton et al. 2014), ~ 23 GPa for NWA 4468 (Boonsue and Spray, 2012), 23–25 GPa for NWA 6162 (El Goresy et al. 2013), > 25 GPa for DaG 735 (Miyahara et al. 2011). One reason may be that the lower pressure conditions in NWA 8075 estimated are for local hot spots rather than the peak shock conditions estimated based on the bulk shock metamorphism (Fritz et al. 2017). Another possibility is that its parent rock derived from regions outside the isobaric core (Gillet and El Goresy 2013; Fritz et al. 2017), and the mineral assemblages in shock-induced melt veins formed at a lower shock pressure.

Conclusions

NWA 8705 is an olivine-phyric shergottite with large olivine crystals in the finer-grained groundmass consisting mainly of pyroxene (pigeonite and augite) and interstitial maskelynite. There are four occurrences of ringwoodite: lamellae in the host olivine within or adjacent to shock-induced melt veins and pockets; polycrystalline ringwoodite olivine entrained in and adjacent to the shock-induced melt vein; rod-like ringwoodite coexisting with wadsleyite and pyroxene in the shock-induced melt vein matrix; the ringwoodite microlite clusters in a very thin shock-induced melt vein across the olivine. Based on their textures, TEM observations, and mineral compositions, polycrystalline ringwoodite and ringwoodite lamellae within the olivine adjacent to the shock-induced melt were produced via solid-state transformation, whereas the other two occurrences of ringwoodite in the shock-induced melt veins crystallized from the shock-induced melt.

The association of wadsleyite and ringwoodite in the matrix crystallized from the shock-induced melt vein limits the P–T parameters to 14–16 GPa and 1650–1750 °C, respectively. The association of ringwoodite and glass in the melt vein constrains the crystallization pressure and temperature to 16–18 Gpa and 1750–1850 °C, respectively. According to the P–T conditions constrained from the mineral assemblages within and adjacent to the shock-induced melt veins and pockets, a shock pressure of ~ 18 GPa was estimated. The cooling times for the 20 and 60 μm shock-induced melt veins are 0.4 and 3.6 ms, respectively. The higher Fa-contents of the host olivine in NWA 8705 makes the olivine–ringwoodite transformation prolong to a lower pressure. The presence of four types of ringwoodite with two different formation mechanisms within a mm-sized scale of the same meteorite was probably due to a very fast cooling rate and heterogenous temperature within and/or adjacent to shock-induced melt veins and pockets.

Availability of data and materials

The datasets in this study are available from the corresponding author on reasonable request.

Abbreviations

NWA:

Northwest Africa

SEM:

Scanning electron microscope

EDS:

Energy-dispersive X-ray spectrometer

EPMA:

Electron probe micro-analyzer

FIB:

Focused ion beam

TEM:

Transmission electron microscope

BSE:

Backscattered electron

SAED:

Selected area electron diffraction

HRTEM:

High-resolution transmission electron microscope

BF-TEM:

Bright-field transmission electron microscope

IGGCAS:

Institute of Geology and Geophysics, Chinese Academy of Sciences

Rwt:

Ringwoodite

Wad:

Wadsleyite

SMP:

Shock-induced melt pocket

px:

Pyroxene

Cpx:

Clinopyroxene

Gl:

Glass

Ol:

Olivine

Aug:

Augite

Pig:

Pigeonite

Msk:

Maskelynite

Chr:

Chromite

Ilm:

Ilmenite

Sul:

Sulfide

Mer:

Merrillite

Ap:

Apatite

Tr:

Troilite

CRE:

Cosmic ray exposure
