Characteristics of landslides triggered by the 2013 ML6.5 Nantou, Taiwan, earthquake

Abstract

Earthquake-triggered landslides are common disasters of active mountain belts. Due to the lack of earthquake-triggered landslide inventory in Taiwan, it is not intuitive to observe spatial relationships and discover unique patterns between landslides and essential triggers. We examined strong earthquake events in Taiwan after the 1999 Mw7.6 Chi-Chi earthquake and targeted the 2013 ML6.5 Nantou earthquake to create the landslide inventory. We adopted two Landsat-8 satellite images before and after the event to detect landslides, and incorporated a 20-m DEM and rock type data of Taiwan to represent key factors triggering earthquake-induced landslides such as peak ground acceleration (PGA), lithology, slope roughness, slope, and aspect. Based on the analysis of the density of landslides, there are strong correlations between the landslide occurrence and seismic and geomorphic factors. Furthermore, we noticed that the landslide aspects have a systematic tendency towards the northeast, which is not correlated with the dip directions and wave propagation directions. Instead, we found that the northeastward landslide aspect is more associated with the westward–southwestward surface movement at the landslides. We found that the included angles between the landslide aspects and the displacement directions for all the landslides are  ~ 100°–180°. The relationship indicated that the coseismic deformation of the Nantou earthquake may play a role in the landslide distribution.

Graphical Abstract

Introduction

Earthquake-triggered landslides are important disasters, which can cause fatalities (Marano et al. 2009; Daniell et al. 2017; Nowicki Jessee et al. 2020) and further surface processes influencing geomorphic evolution (e.g., Chuang et al. 2020; Fan et al. 2019). In order to understand driving factors of earthquake-triggered landslides (e.g. Keefer 1984, 2002; Khazai and Sitar 2004; Meunier et al. 2007; Tibaldi et al. 1995), it is essential to have the inventories of earthquake-triggered landslides for the analyses (Harp et al. 2011; van Westen et al. 2006). The landslide datasets can be used to analyze the relationship between the landslide occurrence and the seismic and geologic factors. In addition, the landslide datasets can serve as the training data for susceptibility assessments and real-time prediction (e.g., Chuang et al. 2021; Budimir et al. 2015; Nowicki Jessee et al. 2018). The inventories rely on mapping results for individual seismic events, and global inventories have been progressively compiled (Keefer 1984; Rodriguez et al. 1999; Schimitt et al. 2017; Tanyaş et al. 2017). It is important to keep generating such inventories to have a more comprehensive database of earthquake-triggered landslides.

Among landslide hotspots in the world (Nadim et al. 2006), the island of Taiwan is subject to abundant earthquakes and heavy rainfalls. Accordingly, landslides occur frequently in Taiwan, and it is critical to map landslides in Taiwan after large seismic or rainfall events. Especially, the Taiwan orogenic belt is formed under the strong plate convergence between the Eurasian and Philippine Sea plates with numerous seismogenic structures (e.g., Shyu et al. 2005, 2020) and frequent earthquakes (e.g., Wu et al. 2008) across the orogenic belt, causing high seismic potential (Chan et al. 2020; Shyu et al. 2005). In the recent 2 decades, several M  > 6 earthquakes in Taiwan occurred in the mountain belt and indeed caused significant hazards and distributed landslides. Compared to rainfall-induced landslides (Lee and Fei 2015; Lin et al. 2017), however, earthquake-induced landslides in Taiwan are less mapped and analyzed. To date, only a couple of earthquake events, the 1998 ML6.2 Jueili earthquake and the 1999 Mw7.6 Chi-Chi earthquake, have comprehensive landslide inventories (Huang and Lee 1999; Liao and Lee 2000). The Chi-Chi earthquake generated more than 9000 landslides (Liao and Lee 2000). Therefore, we examined all the M  > 6 on-land earthquakes after the Chi-Chi earthquake and targeted the 2013 ML6.5 Nantou earthquake to analyze its earthquake-triggered landslides.

In this study, we aimed to map earthquake-triggered landslides of the Nantou earthquake and to analyze the relationship between the landslide distribution and seismic and environmental factors. The 2013 ML6.5 Nantou earthquake is one of the strong earthquakes after the Chi-Chi earthquake that has reported coseismic landslides. The Nantou earthquake occurred in the most active part of the Taiwan orogen, which also lies within the damaged area of the Chi-Chi earthquake. Therefore, the analysis will help us to better understand the characteristics of earthquake-triggered landslides of the active Taiwan orogenic belt.

Study area

The study area of this research is at the Nantou County, the central part of Taiwan, which is also the center of the Taiwan mountain belt (Fig. 1). The epicenter of the 2013 ML6.5 Nantou earthquake is close to the Lishan fault, a boundary between the Central Range to the east and Hsuenshan Range to the west. The Nantou area experienced severe damage during the 1916 Nantou earthquake sequence (Cheng et al. 1999). Almost a century later, the Mw7.6 Chi-Chi earthquake struck central Taiwan with widespread coseismic landslides (Liao and Lee 2000). Especially, there were several Mw  > 5.8 aftershocks of the Chi-Chi earthquake that occurred in the study area. The landslides transiently increased landslide rates (Chang et al. 2007) and sediment discharge (Dadson et al. 2004; Hovius et al. 2011) around central Taiwan for  ~ 6 years. After the increased landslides and sediment delivery were diminished, two strong earthquakes in 2013, the ML6.2 Nantou earthquake in March and the ML6.5 Nantou earthquake in June, occurred to the east of the Chi-Chi earthquake in the study area (Fig. 1). The two earthquakes had no surface rupture, but the second earthquake produced larger surface displacements (Chuang et al. 2013) and ground shaking with scattered landslides. Geodetic inversions suggested that the two earthquakes occurred on the same east-dipping mid-crust fault (Chuang et al. 2013). Source inversions showed that the earthquakes had distinct directivity effects, indicating stress heterogeneity in this area (Lee et al. 2015; Wen et al. 2014). The ML6.5 Nantou earthquake with the landslides occurred within the damaged area of the Chi-Chi earthquake and drew local people’s attention. Therefore, in this study, we used satellite imagery to map the landslides induced by the earthquake and analyzed what controlled the landslides of this seismic event.

Fig. 1
figure 1

Landslide areas for the 2013 ML6.5 Nantou earthquake. Square A: the main extent of landslides. Square B: landslides might be triggered by the earthquake

Material and methods

This study focused on the use of remote sensing data for mapping earthquake-triggered landslides and the spatial relationship between landslides and key triggers. First, we screened earthquake events that have high magnitude and impacts on the Taiwan island followed the criteria below: (1) it happened after the Chi-Chi earthquake on September 21, 1999. (2) The magnitude of this event was larger than ML6.0. (3) The epicenter was located on the island of Taiwan. (4) Landsat images before and after 2 or 3 months of an earthquake with cloud cover less than 10% could be identified. Based on these criteria, we chose the 2013 ML6.5 Nantou earthquake in this study.

We used satellite imagery before and after the earthquake to map large earthquake-triggered landslides of the Nantou earthquake. The earthquake took place on June 2, 2013, and caused landslides and loss of human lives. The epicenter was 23.86°N, 120.97°E and the depth of the epicenter was 14.5 km. Since there is no landslide inventory for the 2013 Nantou earthquake, we conducted landslide detection through the use of remote sensing technologies. Two Landsat-8 images acquired on April 16, 2013, and July 5, 2013, were cloud-free, and we searched for large landslides within a 100-km radius of the epicenter. There was no heavy rainfall before the earthquake, so we excluded the influence of rainfall on the landslides (Additional file 1: Figure S1). The advantage of using Landsat imagery is twofold: (1) it is free-access open data, and (2) it has been broadly used in landslide detection for a large area (e.g., Barlow et al. 2003; Deijns et al. 2020; Mantovani et al. 1996; Marcelino et al. 2009; Yu et al. 2020). Due to the spatial resolution of Landsat images, we did not identify landslide areas under 3600 m2 (4 pixels) and focused on large landslides. We projected the pre- and post-earthquake images to the TWD97 projected coordinate system, which is the Taiwan datum defined in 1997 based on the GRS80 reference ellipsoid with respect to the ITRF94 at the epoch of the beginning of 1997 (Yang et al. 2001). The extraction of landslide areas required three types of spectrum bands from Landsat images: visible bands, infrared radiation bands, and Landsat Collection 1 Level-1 Quality Assessment Band. After the preparation of all images, we detected changes from both pre- and post-earthquake images to identify landslide areas and converted all the landslide areas to polygons data. All the vector-based landslide areas are converted to 20-m-resolution raster data for further analysis.

After we mapped landslides, we calculated the areas and volume of all landslides and analyzed the relationship between landslides and key factors that cause earthquake-triggered landslides. The relationship between area (A) and volume (V) of landslides is:

$$V = \alpha \times A^{\gamma } .$$

Since we cannot well distinguish the type of landslides from remote sensing imagery, we adopted the parameters of α  = 0.146 and γ  = 1.332 ± 0.005 for all landslide types from Larsen et al. (2010). After the detection of landslide areas, we examined the spatial relationship between the locations of landslides and key factors that caused earthquake-triggered landslides. Based on the statistical model for earthquake-triggered landslides in Taiwan (Chuang et al. 2021), key factors selected in this study were peak ground acceleration (PGA), lithology, slope roughness, slope, and aspect. PGA represents the seismic shaking of the earthquake. We accessed PGA data from the Central Weather Bureau (CWB), Taiwan and interpolated the point-based data to represent the degree of ground motion of the 2013 ML6.5 Nantou earthquake. One seismic station MTN167 shows very high PGA over 1 g in the horizontal direction. Compared with the PGA values with other surrounding stations, the data of MTN167 may be an outlier. Therefore, we interpolated PGA based on the method of Hsiao (2007). Slope, slope roughness, and aspect are the topographic properties of the study area. Lithology is the rock type in Taiwan. We generated lithological data based on the classification of rock types based on the geologic map of Taiwan from the Central Geological Survey (CGS) (Central Geological Survey 2000). We used the 20-m digital elevation model (DEM) of Taiwan in ArcGIS 10.6 to calculate aspect and slope angle. We adopted the slope dataset for the calculation of slope roughness. Following previous studies (Budimir et al. 2015; Chuang et al. 2021), the value of slope roughness of each cell is calculated by the standard deviation of the slope with surrounding 8 cells (a 3 × 3 moving window). We categorized all data into different classes and overlaid landslide areas with each classified dataset to calculate the density of landslides. The density of landslides is the ratio between the total landslide area in one class and the total area of that class. We drew a chart to represent the density of landslides in each class from one dataset. The overlaid datasets and the statistical results were listed together to observe the spatial correlation of landslides and those triggering factors.

Results

We classified two Landsat images for the 2013 ML6.5 Nantou earthquake and extracted 30 large earthquake-triggered landslides (Fig. 1). The total area of triggered landslide is 2.1353 km2 and the total volume of landslide mass is 0.1728 ± 0.0007 km3. We examined the mapped landslides of the 2013 Nantou earthquake and the landslide inventory of the 1999 Chi-Chi earthquake (Liao and Lee 2000), and we found that most of the mapped landslides are newly formed and only 10% of the mapped landslides are partially overlapped with the Chi-Chi earthquake landslides. In addition, since the increased landslide rate of the Chi-Chi earthquake is transient and decays to the background value in 4 years (Marc et al. 2015), we ignored the influence of the Chi-Chi earthquake on the mapped landslides.

The seismogenic fault of the Nantou earthquake is an east-dipping thrust fault (Chuang et al. 2013) and all of the mapped landslides are located in the hanging-wall area (Fig. 1), consistent with the observation that most landslides occur in the hanging-wall area for thrust-faulting earthquakes (Dai et al. 2011; Khazai and Sitar 2004; Sato et al. 2007; Yagi et al. 2009; Zhao et al. 2019). The number of the mapped large landslides in this study is small because the focal depth of the Nantou earthquake is deep and has no surface rupture, similar to the finding in previous studies that the number of landslides for such earthquakes can be significantly smaller than the one for shallow earthquakes with surface ruptures (e.g., Kargel et al. 2016).

We overlaid the landslides with each triggering factor and analyzed the spatial relationship between the landslides and these factors. Figure 2 shows the statistical results and spatial distribution of landslides. Firstly, as we stated in the previous section, we conducted spatial interpolation of PGA data based on a 0.1g interval (Fig. 2a). The mapped landslides occurred at places with PGA values greater than 0.2, which is reasonable for the threshold for earthquake-triggered landslides (e.g., Liao and Lee 2000; Tanyaş and Lombardo 2019). The statistical results also reflected high PGA values between 0.35g and 0.5g had a high density of landslides, which is consistent with a high correlation between ground shaking and landslide occurrence (e.g., Chuang et al. 2021; Meunier et al. 2007; Nowicki et al. 2014).

Fig. 2
figure 2figure 2

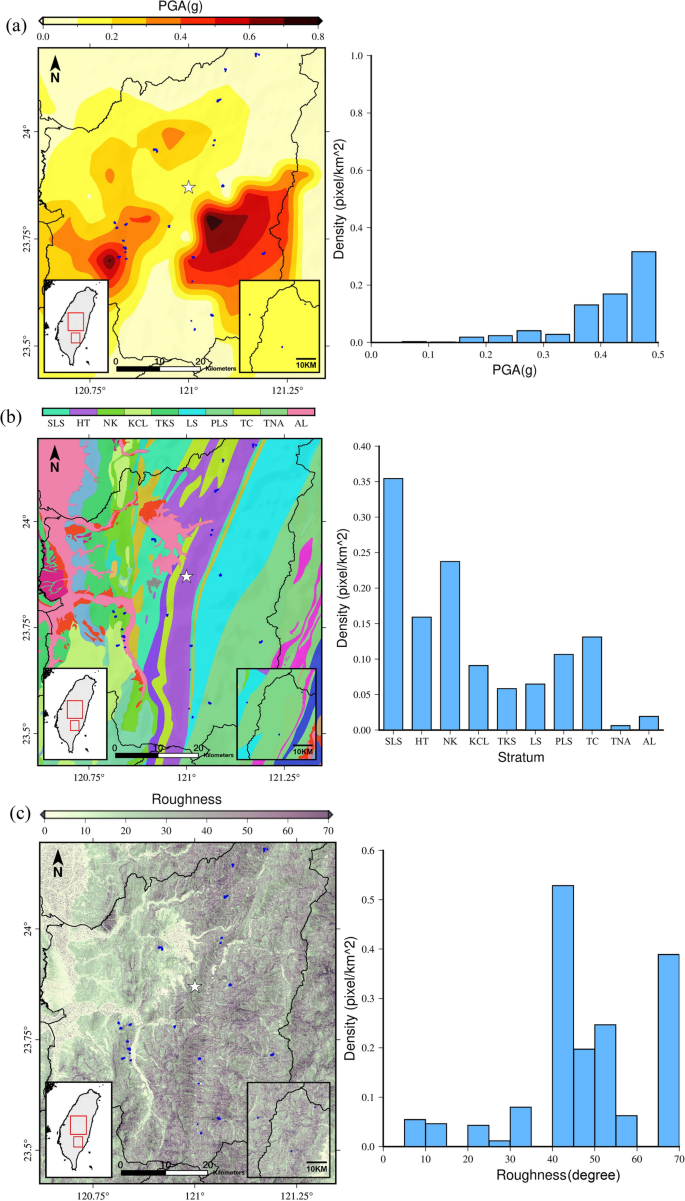

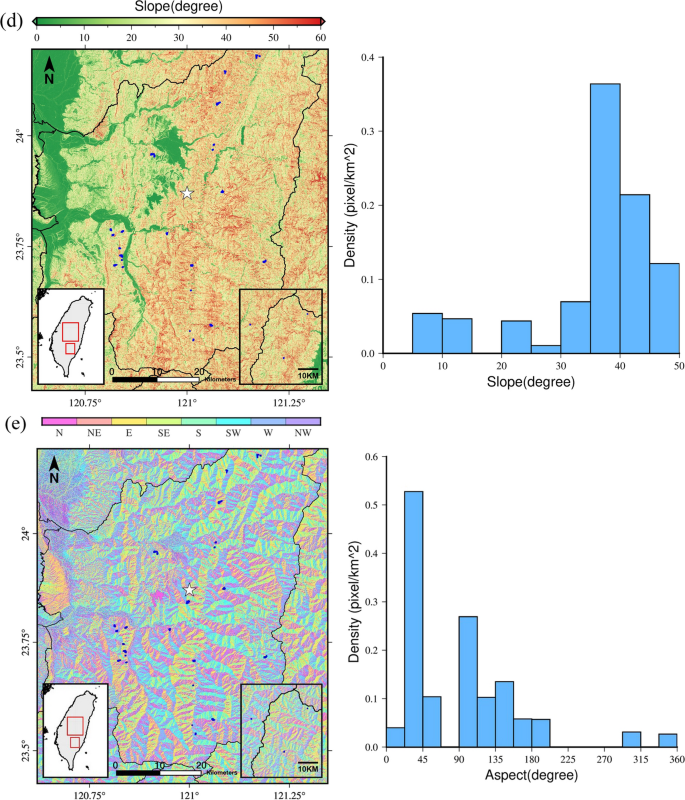

Spatial correlations and bar charts between landslide densities and triggering factors: a PGA, b lithology, c slope roughness, d slope angle, and e aspect. Slope roughness: the standard deviation of the slope within a 3 × 3 cell window, SLS Szeleng Sandstone and Paileng Formation; HT Hsitsun Formation; NK Nankang Formation; KCL Kueichulin Formation; TKS Toukoshan Formation; LS Lushan Formation; PLS Pilushan Formation; TC Tachien Sandstone; TNA Tananao Schist; AL alluvium

Secondly, we generated the lithological data to ten rock types (Fig. 2b): Szeleng Sandstone and Paileng Formation (SLS), Hsitsun Formation (HT), Nankang Formation (NK), Kueichulin Formation (KCL), Toukoshan Formation (TKS), Lushan Formation (LS), Pilushan Formation (PLS), Tachien Sandstone (TC), Tananao Schist (TNA), and alluvium (AL). The landslide occurred within the formations around the epicenter, but did not show clear correlation with the specific formation. SLS and NK have higher landslide density, and TNA and AL have lower landslide density.

Thirdly, we classified the slope roughness layer and noticed a spatial pattern that landslides were mostly located at pixels with high values of slope and slope roughness (Fig. 2c, d). From the statistical analysis of slope roughness, a high density of landslides was found at slope roughness values greater than 40. The positive correlation between the landslide occurrence and slope roughness is consistent with the influence of high slope variations suggested by previous studies (Budimir et al. 2015; Chuang et al. 2021). Another factor, slope, also indicates a similar pattern. The high density of landslides is located at the slope between 35 and 50 degrees, which is similar to the analysis of the landslides of the Chi-Chi earthquake (Khazai and Sitar 2004; Meunier et al. 2008). The slope below 30 degrees had a low density of landslides. The correlation between the landslides and high slope angles is also consistent with previous studies (Huang and Montgomery 2014; Huang et al. 2017).

Lastly, we used the DEM data to calculate an aspect layer and generated eight classes to represent eight sections of aspect directions. It was not intuitive to observe the spatial relationship between the aspects and landslides from the map. However, the statistical results revealed that the direction of the northeast had the highest density of landslides (Fig. 2e). A rose diagram further denotes that the main direction of the landslides is the northeast (Fig. 3a).

Fig. 3
figure 3

Rose diagrams of a slope aspects, b dip directions, c wave propagation directions, and d surface displacement directions

In summary, the above outcomes indicate that earthquake-triggered landslides had a high spatial relationship with the topological and seismic factors. From the analysis of the density of landslides and key factors, we also explored a strong correlation between landslides and certain classes within each factor.

Discussion

Seismic and geomorphic factors are two drivers leading to earthquake-triggered landslides in this study. Seismic factors primarily control the distribution and occurrence of earthquake-triggered landslides. Seismic factors, which describe the intensity of ground shaking and earthquake behaviors at surrounding localities near epicenters, are the most influential in earthquake-triggered landslides (Keefer 1994; Malamud et al. 2004; Meunier et al. 2007). Explicit factors representing the seismic shaking such as PGA and Arias intensity (Arias 1970) and implicit factors such as the distance to the epicenter and to fault rupture are highly related to the number of landslides, which is consistent with our result (Fig. 2a).

Geomorphic factors also control the earthquake-triggered landslides, and the landslide distribution shows a distinct pattern of the aspect directions. The slope is one major geomorphic factor controlling the distribution of earthquake-triggered landslides (e.g., Keefer 2002; Nowicki et al. 2014; Nowicki Jessee et al. 2018), and slope roughness is also important for earthquake-triggered landslides in Taiwan (Budimir et al. 2015; Chuang et al. 2021; Lee et al. 2008). Based on our result, most of the landslides occurred on the east-facing slopes, especially in the northeastern direction, which means the landslides tend to occur in areas with higher values of slope and slope roughness (Fig. 2c, d).

The landslide aspects seem to be less associated with dip directions and seismic wave propagations. Since the landslides had a tendency of the aspects in the northeast directions (Fig. 3a), we compared this unique pattern with other directional factors. One possible factor is the dip directions of rocks because the dip slopes are prone to landslides (Khazai and Sitar 2004; Lin and Tung 2004). We obtained the dataset of the dip directions from the geology cloud data service at CGS (https://geologycloud.tw/geohome/DataService) and used the nearest dip direction for each landslide (Fig. 3b). The result shows that the dip directions of the rocks at the landslides are in the southeast and northwest, which do not fit the landslide aspects. The disagreement between the landslide directions and the dip directions is similar to the situation of the Chi-Chi earthquake landslides (Chen et al. 2019). Another possible factor to control the aspect directions of earthquake-triggered landslides is the directions of seismic wave propagation that Earthquake-triggered landslides tend to occur on the slopes at the back sides of the wave propagation directions. (Chen et al. 2019; Meunier et al. 2008; Tibaldi et al. 1995). In this study, however, the seismic wave directions of the landslides show a radial pattern (Fig. 3c) and are not correlated with the landslide aspects.

Some of the landslide aspects seem to be in the opposite direction of the coseismic displacements. In addition to the seismic wave propagation, coseismic surface movements can be related to the landslide distributions (Kargel et al. 2016; Lee 2013). Because the Nantou earthquake occurred on a blind thrust without surface rupture (Chuang et al. 2013), all the landslides basically are located in the hanging-wall area (Fig. 1). Considering the focal mechanism solution (Fig. 1), the coseismic displacements should be in the west-southwest direction, which could be in the opposite direction with the landslide aspects. Therefore, we compared the landslide aspects to the directions of coseismic deformation. We used GPS observations of coseismic displacements (Chuang et al. 2013) to interpolate the horizontal displacement at each landslide location. Figures 3d, 4 show that the coseismic displacements are mainly towards southwest-west and facing away from the aspects, especially close to the epicenter. Especially, one group of the surface displacements is in the exact opposite direction of the northeastward landslide aspect. It seems that some landslides indeed are in the opposite directions of the surface displacements (Fig. 4). We calculated the included angles between the aspects and the displacement directions for all the landslides to quantify the deviation from the landslide aspects and surface displacements. Then, we compared the included angles with the distances to the epicenter. The included angles are  ~ 100°–180° for all the landslides.

Fig. 4
figure 4

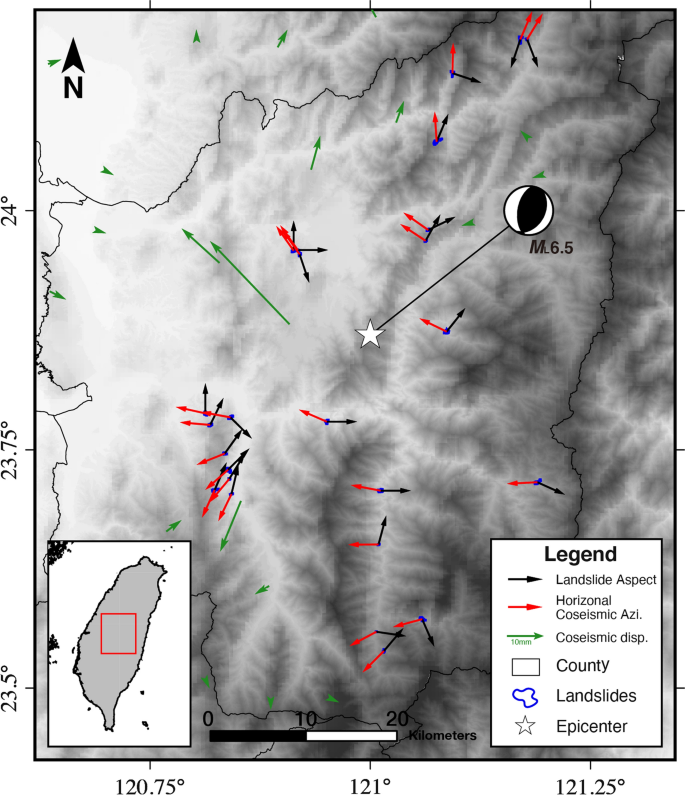

Comparison between landslide aspects (black arrows) and the azimuths of horizontal coseismic displacement (red arrows) for the landslides induced by the 2013 ML6.5 Nantou earthquake. White star denotes the epicenter. Small blue polygons are earthquake-triggered landslides. Black arrows are landslide aspects, red arrows are surface displacements at landslides, green arrows are observed coseismic displacements

Coseismic displacements may affect the landslide distribution and orientation. Ground shaking due to seismic wave propagation can cause surface motion and result in slope instability. Intuitively, surface displacements due to coseismic deformation could be another ground motion source that can cause slope instability. Lee (2013) found that a lot of south- to southeast-facing landslides of the Chi-Chi earthquake may be associated with the northwestern movements on the hanging-wall area. Similar to Lee (2013), our result shows east-facing landslides may be also associated with the west–southwestward movements of the hanging-wall thrust block. Some factors control the occurrence of earthquake-triggered landslides such as coseismic slip patterns (e.g., Gorum et al. 2011; Meunier et al. 2013) and the distance to fault rupture (e.g., Budimir et al. 2014; Chigira et al. 2010; Lee 2013), which could be highly correlated with coseismic displacements, but they are interpreted to represent seismic intensity or seismic directivity rather than coseismic deformation. The total contribution of ground motion due to seismic shaking and coseismic deformation needs more further studies, and the specific ground-motion process in three dimensions at each earthquake-triggered landslide also needs more investigation.
