Potential for crustal deformation monitoring using a dense cell phone carrier Global Navigation Satellite System network
Earth, Planets and Space volume 74, Article number: 25 (2022)
Abstract
Monitoring of crustal deformation provides essential information for seismology and volcanology. For such earth science fields and other purposes, various Global Navigation Satellite System (GNSS) networks have been constructed at the national and regional levels. In Japan, the continuous nationwide GNSS network, the GNSS Earth Observation Network System (GEONET), is operated by the Geospatial Information Authority of Japan. Although GEONET has made a substantial contribution to earth science research, the large spacing of GEONET sites makes it difficult to accurately understand crustal deformation phenomena in some cases. However, cell phone carriers in Japan have constructed independent GNSS networks to improve their positioning services in recent years. In this study, we examine the performance of a GNSS network operated by SoftBank Corp. for crustal deformation monitoring. The network has more than 3300 sites throughout Japan, which is approximately 2.5 times the number of the GEONET sites. To assess the quality of SoftBank's GNSS data, we first analyzed data from Miyagi Prefecture and evaluated the stability of the coordinate time series for nine consecutive days during a quiet (interseismic) period. The calculated standard deviations were approximately the same for both networks. Furthermore, we calculated the displacement between September 2020 and March 2021. The results reveal that almost all SoftBank sites showed a consistent displacement with their surrounding GEONET sites. Next, we analyzed the coseismic deformation associated with the off-Fukushima earthquake (MJMA 7.3) on February 13, 2021, in both static and kinematic modes. We obtained a westward coherent displacement along the coastline in both networks, although several outliers were observed for the SoftBank sites. Based on these initial assessments, we conclude that these private sector GNSS sites are useful for crustal deformation monitoring with appropriate data quality control.
Graphical Abstract

Introduction
Monitoring of crustal deformation is crucial for understanding the status of strain accumulation in areas around a plate boundary, active faults, and volcanoes. The Global Navigation Satellite System (GNSS) is widely used to capture crustal deformation with a high temporal resolution. Over the past several decades, many GNSS networks have been constructed. For example, regional networks have been established in the United States, which mainly cover seismically and volcanically active areas such as the San Andreas fault system, Aleutian Arc, the Island of Hawai'i, and Yellowstone (e.g., Murray et al. 2019). The station distribution reflects the purpose of these networks to monitor deformation at the regional scale. A part of the data from these networks is analyzed in real time and used for earthquake early warning (EEW) (e.g., Murray et al. 2018; Allen and Melgar 2019).
In Japan, the continuous nationwide GNSS network, GNSS Earth Observation Network System (GEONET), is operated by the Geospatial Information Authority of Japan (GSI). GEONET has more than 1300 sites, and the average distance between the GNSS sites is approximately 20–25 km. This dense nationwide GNSS network has revealed various crustal deformation phenomena (e.g., Hashimoto et al. 1996; Heki et al. 1997; Sagiya et al. 2000; Ohta et al. 2004; Nishimura et al. 2013; Ohzono et al. 2015). In recent years, a system has been developed to automatically estimate crustal deformation and fault models of a large earthquake using GEONET data (e.g., Ohta et al. 2012, 2018; Kawamoto et al. 2016, 2017).
However, the number of GEONET sites is not sufficient to capture more details about crustal deformation phenomena. For example, M6 to M7 class earthquakes occurring on inland active faults have fault lengths of approximately 20–40 km. The GEONET site spacing is not sufficient for estimating the fault models of these earthquakes. Ohta et al. (2008a) investigated the coseismic fault model of the 2008 Iwate-Miyagi inland earthquake (MJMA 7.2). They constructed a dense GNSS network to complement GEONET in monitoring strain accumulation along the inland active fault. The 2008 Iwate-Miyagi inland earthquake occurred within this network, and the fault model estimated from this network suggests that the earthquake occurred at a blind fault. Without network densification, it would have been difficult to estimate an accurate coseismic fault model using GEONET data only (Ohta et al. 2008a). In addition, a campaign GNSS observation was also conducted after the earthquake to observe the postseismic displacement. The results showed that aseismic slip occurred in a different fault from the mainshock (Iinuma et al. 2009). Therefore, the availability of such dense observation data is essential for understanding the physical processes of M6–M7 class seismic events that occur more frequently than larger magnitude events. In recent years, cell phone carriers in Japan have been constructing a GNSS network to upgrade the location information for applications such as automated driving, automated agriculture, and public surveying. For these applications, it is necessary to obtain accurate location information with an error of a few centimeters. For example, one of the Japanese telecommunication providers, SoftBank Corp. (hereafter referred to as "SoftBank"), constructed a dense GNSS network in November 2019. The network has more than 3300 sites, which is approximately 2.5 times the number of GEONET sites. This observation network aims to be a reference station for real-time kinematic (RTK) analysis to obtain high-precision locations for their customers. However, to the best of our knowledge, no study has evaluated the performance of this network in terms of crustal deformation monitoring. Therefore, the purpose of this study was to assess the applicability of SoftBank's dense GNSS network for monitoring crustal deformation. We focused on the initial precision assessment. Geophysical interpretation of the obtained crustal deformation field was kept at a minimum.
GNSS data and its analysis

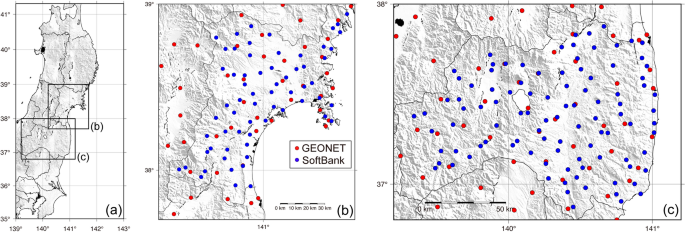

SoftBank network GNSS raw data were provided by SoftBank to evaluate the quality of the observation data for crustal deformation monitoring purposes. The raw GNSS data were procured through a contract with SoftBank. SoftBank's GNSS network uses identical GNSS equipment. The equipment has adopted a GNSS receiver and antenna manufactured by Septentrio. The GNSS receiver and antenna are geodetic-grade products and can measure multi-constellation and frequency data. All GNSS receivers and antennas are installed at cell phone base stations. Owing to the contract between SoftBank and us, we were unable to disclose more detailed information about these GNSS observation equipment and monumentation.
For real-time applications, the original phase and code data are recorded for the Global Positioning System (GPS), Quasi-Zenith Satellite System, Global Navigation Satellite System (GLONASS), Galileo, and BeiDou; the data have a sampling interval of 1 s. However, to analyze the data in the static mode for daily coordinate time series, only GPS data were used in this study to facilitate the interpretation of the analysis results. For comparison, the surrounding raw data of GEONET sites were analyzed together with the data of the SoftBank sites.
We analyzed data of two different datasets to evaluate the ability of the very dense SoftBank GNSS network to monitor crustal deformation. The first dataset was from a quiet period in Miyagi Prefecture, northeastern Japan. The second dataset covered a coseismic period of the off-Fukushima earthquake (MJMA 7.3) that occurred on February 13, 2021. More details of the data and their analysis are provided in the following sections.
Evaluation of daily coordinate stability of SoftBank data
A massive Mw 9.0 earthquake occurred beneath the Pacific Ocean near northeastern Japan on March 11, 2011. After this event, long-term deformation was clearly observed (e.g., Sun et al. 2014). To examine the daily coordinate stability of SoftBank data and their consistency with GEONET data, we analyzed data from nine consecutive days in September 2020 and March 2021 in Miyagi Prefecture. The number of observation sites was 64 and 30 for SoftBank and GEONET, respectively. Figure 1b shows the distribution of these sites. As described in the previous section, SoftBank’s GNSS network began operation in November 2019. Therefore, we calculated the difference in daily coordinates between the average daily coordinates for September 21–30, 2020, and the average daily coordinates for March 21–30, 2021.
Evaluation of detectability of coseismic displacement
To examine the performance of the SoftBank network in monitoring coseismic deformation, we chose the off-Fukushima earthquake (MJMA 7.3) that occurred on February 13, 2021, at 14:07:50.5 (UTC) and was one of the most significant events after the installation of the SoftBank network. The Centroid Moment Tensor (CMT) solution, estimated by F-net of the National Research Institute for Earth Science and Disaster Resilience (NIED), suggested a reverse fault-type mechanism with a west-northwest and east-southeast compression axis. The site distribution is shown in Fig. 1c. We calculated the difference between the daily coordinates on February 12 and 14 to obtain the coseismic displacement.
GNSS data analysis
We estimated the GEONET and SoftBank sites’ daily coordinate time series through conventional baseline analysis using the Bernese GNSS Software version 5.2 (Dach et al. 2015). The provided raw data included GPS and GLONASS dual-frequency data, but only GPS data were used in this analysis. We adopted the final precise satellite orbits and earth rotation parameters provided by the International GNSS Service (IGS).
To correct for phase center variation of ground sites and GPS satellites, we applied the absolute antenna phase center variation table provided by the IGS. The estimated daily coordinates were constrained by the International Terrestrial Reference Frame 2014 (ITRF2014, Altamimi et al. 2016) with four neighboring IGS sites around Japan. The zenith tropospheric delay and the tropospheric gradient were estimated every two hours. Carrier-phase ambiguities were resolved through different methods depending on the baseline length. When the baseline was longer than 20 km, it was solved with the quasi-ionosphere-free ambiguity resolution. In contrast, if the baseline was shorter than 20 km, direct L1/L2 ambiguity resolution was applied. This method follows the standard analysis method in the Bernese GNSS software (RNX2SNX.PCF in Dach et al. 2015). Finally, we calculated the displacement relative to the GEONET 950241 site (Ogata in Niigata Prefecture, latitude 37.231°N, longitude 138.334°E).
In view of the application of GNSS as a strong-motion seismometer, PPP kinematic analysis was also performed on the data from several sites for the 2021 off-Fukushima earthquake. We used RTKLIB (Takasu and Yasuda 2009) ver. 2.4.3. We adopted the Center for Orbit Determination in Europe’s final precise orbit and clock correction for every 5 s. Both GPS and GLONASS data were used for this analysis.
Results and discussion
Stability of daily coordinate time series
First, we assessed the stability of the estimated time series to evaluate the quality of SoftBank's GNSS data. Figure 2a–c shows the standard deviation (SD) between September 22 and 30, 2020, for the three components (east–west [EW], north–south [NS], and up–down [UD]) in Miyagi prefecture. To create the figure, we assumed September 21, 2020 (day of year, 265) as the reference day for all stations. There were no significant earthquake events during this period. The averaged SD of all SoftBank time series was 1.7, 1.6, and 5.3 mm for the EW, NS, and UD components, respectively. Similarly, the averaged SD of all GEONET time series was 1.6, 1.4, and 5.9 mm for the EW, NS, and UD components, respectively. The calculated SDs were approximately the same for each network.
a–c Standard deviation (SD) for September 22–30, 2020, for three components in Miyagi Prefecture. Thin and thick black outlines show the GEONET and SoftBank sites, respectively. a East–west component, b north–south component, and c up–down component. d–i Box-and-whisker plots of daily coordinate time series in Miyagi Prefecture during days 266 to 274 in 2020. The left and right columns show GEONET and SoftBank, respectively. Small circles denote outliers, defined when there was a distance of 1.5 times the interquartile range (IQR) value
Furthermore, box-and-whisker plots were developed for each observation network to compare the daily time series variability of all stations (Fig. 2d–i). Outliers were defined as data exceed 1.5 times the interquartile range (IQR) value. When we evaluated the day-to-day variability, the number of outliers was slightly higher for the SoftBank network. The number of outliers for the EW, NS, and UD components was 19, 8, and 17, respectively, for GEONET, and 22, 16, and 13 for SoftBank, respectively. The range of the upper and lower quartiles between the networks was similar. These results suggest that the stability of the time series of the SoftBank network data may be sufficient to monitor crustal deformation.
Figure 3 shows the displacement between the averages for September 21–30, 2020, and March 21–30, 2021. Note that the duration was approximately half a year. A significant trenchward displacement and clear uplift in the forearc region appeared in the horizontal and vertical components, respectively. These characteristics mainly reflect the viscoelastic relaxation of the 2011 Tohoku-Oki earthquake (e.g., Suito 2017). Almost all sites showed a consistent displacement with their surroundings. However, several sites showed anomalous displacements. To determine whether these data represent crustal deformation properly, they need to be examined more rigorously using extended time series.
Displacement field between the averages for September 21–30, 2020, and March 21–30, 2021. The red and blue circles denote the GEONET and SoftBank sites, respectively. The vectors plotted in the figures are those relative to 950241 (Ogata in Niigata Prefecture, latitude 37.231°N, longitude 138.334°E). a Horizontal component, b vertical component. The error ellipsoid and bars indicate the one sigma confidential level
Detectability of coseismic displacement
Figure 4 shows the horizontal coseismic displacement of the 2021 off-Fukushima earthquake. A westward coherent displacement appeared along the coastline. In contrast, several outliers at the SoftBank sites were also confirmed. For example, the BHC0 site, 50 km away from the coastline, showed a westward displacement of approximately 20 mm, although the surrounding sites showed almost zero displacement (Fig. 4).
Horizontal coseismic displacement of the 2021 off-Fukushima earthquake (MJMA 7.3). The red and blue circles denote the GEONET and SoftBank sites, respectively. The orange circles denote K-net FKS007 and FKS019. The vectors plotted in the figures are those relative to 950241 (Ogata in Niigata prefecture, latitude 37.231°N, longitude 138.334°E). The CMT solution was estimated F-net of the NIED. Gray vectors represent the outliers identified by comparing them with the surrounding sites. The sites of SoftBank, BH7H and BHC0, are indicated by a thick dashed black open circle, and the details of this point are provided in the Sect. “Detectability of coseismic displacement”
Figure 5 shows the displacement time series of BH7H and BHC0. We compared these SoftBank GNSS sites and nearby strong-motion seismometer sites (NIED K-net FKS007 and FKS019, sampling frequency: 100 Hz) (Fig. 5). The distance between the SoftBank GNSS and NIED K-net sites is 4.3 km for BH7H and FKS007, and 5.9 km for BHC0 and FKS019, respectively (Fig. 4). In the comparison between the two time series, the strong-motion seismometer time series was integrated twice. For FKS019, a large undulation clearly appeared in the integrated time series in the EW and NS component (Fig. 5b). Thus, a high-pass filter with a corner frequency of 0.05 Hz was applied for the integrated time series of FKS019 in the EW and NS components. The displacement waveforms of BH7H and FKS007 are basically consistent with each other. But the waveform of FKS007 suffered from a low-frequency bias caused by the integration while the shaking of BH7H lasts longer until the latter half of the time series. The latter may reflect a resonance of the cell phone base station caused by the strong motion or other local site effects.
Kinematic PPP analysis time series in BH7H and BHC0 during the 2021 off-Fukushima earthquake (MJMA 7.3). For comparison, the time series of the K-net FKS007 and FKS019 strong motion records, which are close to BH7H and BHC0, respectively, are also shown. The horizontal axis indicates the lapse time from the origin time [February 13, 2021, 14:07:50.5 (UTC)]. The vertical axis indicates the displacement in EW, NS, and UD from top to bottom. a Kinematic time series of BH7H and K-net FKS007 strong-motion time series. The blue and black lines denote the BH7H and integrated FKS007 time series, respectively. b Kinematic time series of BHC0 and K-net FKS019 strong-motion time series. The blue line denotes the BHC0 time series. The gray line denotes the integrated FKS019 time series of the EW and NS. The black line denotes the high-pass filtered time series with a corner frequency of 0.05 Hz applied to the integrated time series except for the UD. No high-pass filter was applied to the UD component. The black dashed line in the EW component in the kinematic PPP time series denotes the reference position before the earthquake
Figure 5b shows the time series of BHC0 and FKS019, where BHC0 showed a displacement different from that of the surrounding sites based on the daily coordinate analysis. The EW components in BHC0 exhibited a permanent westward displacement after the S-wave arrival. This result suggested that the westward displacement of the GNSS antenna may not have occurred by coincidence because of variations in the analysis, but may have been caused by the westward displacement of the GNSS antenna. In addition, the amplitude of the displacement time series due to the seismic wave was clearly larger in BHC0 than in FKS019. These results may suggest that the mounting of BHC0 to the ground is unstable. There are previous studies on these unexpected abnormal displacements that differ from surrounding sites during and after an earthquake. Ohta et al. (2008b) found a localized abnormal coseismic and postseismic displacement in a GEONET site after the 2007 Chuetsu-Oki earthquake (MJMA 6.8) in central Japan. They installed another campaign GNSS site near the GEONET site to evaluate the displacement. Based on short baseline analysis, they concluded that a small-scale landslide occurred after the mainshock due to strong shaking. Such monumentation instability may also occur in private sector GNSS networks such as SoftBank. In GEONET, tiltmeters are installed inside the pillars (Munekane 2013), against which a comparison can be made for unexpected displacement caused by strong shaking. In the case of SoftBank, it is necessary to utilize a screening approach that takes advantage of a very dense network and its inconsistency with the surrounding observation sites. For example, it is considered that an algorithm should be developed to exclude specific sites that show an amount and direction of displacement that is obviously not in accordance with the surrounding GNSS sites within a certain threshold. The stability of mounting might also be investigated by exhaustively examining the relationship between the noise level and wind speed in kinematic time series based on long-term observation data. On the basis of such quality inspection, the SoftBank network can be used to observe not only static offsets by an earthquake, but also dynamic displacement.
Looking ahead
As demonstrated, the dense GNSS network operated by SoftBank, a private sector company, can be basically used for crustal deformation monitoring with reasonable precision. The use of the SoftBank network in addition to GEONET can considerably improve the spatial resolution of crustal deformation monitoring. For example, GEONET has 38 sites, whereas SoftBank has 99 sites in Fukushima Prefecture. The area of Fukushima Prefecture is approximately 13,780 km2, and the area per site of GEONET is 363 km2. The area per site of SoftBank is 139 km2 and becomes 101 km2 when combined with GEONET sites. When both are used together, there is, on average, one GNSS site in a circle with a radius of approximately 5.7 km. Shen et al.’s (1996) method is often used to estimate the spatial characteristics of strain based on velocity fields of a GNSS site. They estimated strain fields through bilinear fitting with weighted contributions of data according to the distance to an estimation point. To estimate the strain field, it is necessary to assume a hyperparameter (named as “distance decay constant”) for weighting according to distance. This value is generally assumed using the spacing of GNSS sites (e.g., Meneses-Gutierrez and Sagiya 2016). In other words, the combined use of GEONET and SoftBank sites will enable us to understand crustal strain with a higher spatial resolution.
The purpose of the SoftBank network is to provide a location information service with high accuracy and precision in real-time. The data from the SoftBank network are already distributed in real-time using NTRIP (Networked Transport of RTCM via Internet Protocol) format for a charge, and real-time analysis of these data will enable us to monitor crustal deformation in real-time. As described in the Introduction, the GSI is already operating a real-time GNSS analysis and automatic fault modeling system for crustal deformation monitoring. If real-time analysis of GNSS sites of private companies such as SoftBank can be performed simultaneously, it will not only function as a system complementary to GEONET, but also contribute to the estimation of a more detailed fault model. In addition, such a dense real-time GNSS network may be utilized for EEW based on real-time GNSS analysis (e.g., Allen and Melgar 2019).
Finally, data quality control is important. The GSI established the “Performance Standards and Registration Guidelines for GNSS Sites in the Private Sector” in October 2019 (Geospatial Information Authority of Japan 2019) as a system to evaluate the performance of GNSS continuous sites in the private sector and register the sites by classification. Registration makes it possible to use private sector GNSS data that are consistent with national coordinates and have a certain accuracy and precision. By confirming the stability of the observation sites while continuing quality control, we believe that private sector GNSS sites can be used in a wide range of earth science fields, not only in crustal deformation but also in tropospheric, ionospheric, and other studies.
Conclusions
We evaluated the precision of a private sector GNSS network operated by SoftBank Corp. for crustal deformation monitoring. To assess the network, we analyzed two different targets. The first target was a postseismic (interseismic) period in Miyagi Prefecture. We assessed the stability of the estimated time series to evaluate the quality of SoftBank's GNSS data for 9 days. The calculated SDs were similar for each network. Furthermore, we calculated the displacement between September 2020 and March 2021. As a result, almost all sites showed a consistent displacement with their surroundings. The second target was the coseismic period of the off-Fukushima earthquake (MJMA 7.3) that occurred on February 13, 2021. When we calculated the coseismic displacement, we obtained a westward coherent displacement along the coastline in both networks. In contrast, several outliers in the sites of SoftBank were also confirmed. Based on the 1-Hz kPPP analysis for one of these outliers, we identified a possible localized deformation in the site. On the contrary, the nearest strong-motion record and the record of the station that showed a crustal deformation consistent with that of the surrounding area were in good agreement. We conclude that by a continued data quality control, these private sector GNSS sites can be used for crustal deformation monitoring.
