Abstract

We report ground-based environmental assessments performed during development of the sampler system until the launch of the Hayabusa2 spacecraft. We conducted static monitoring of potential contaminants to assess the environmental cleanliness during (1) laboratory work performed throughout the development and manufacturing processes of the sampler devices, (2) installation of the sampler system on the spacecraft, and (3) transportation to the launch site at the Japan Aerospace Exploration Agency’s (JAXA’s) Tanegashima Space Center. Major elements and ions detected in our inorganic analyses were sodium (Na), potassium (K), and ionized chloride (Cl–); those elements and ions were positively correlated with the total organic content and with exposure duration in the range from 101 to 103 nanograms per monitor coupon within an ~ 30-mm diameter scale. We confirmed that total deposits on the coupon were below the microgram-scale order during manufacturing, installation, and transportation in the prelaunch phase. The present assessment yields a nominal safety declaration for analysis of the pristine sample (> 5.4 g) returned from asteroid (162173) Ryugu combined with a highly clean environmental background level. We expect that the sample returned from Ryugu by Hayabusa2 will be free of severe and/or unknown contamination and will allow us to provide native profiles recorded for the carbonaceous asteroid history.

Graphical Abstract

Introduction

The re-entry capsule of the Hayabusa2 spacecraft was successfully retrieved from Woomera, South Australia, on December 6, 2020 (Tachibana et al. 2021; Yada et al. 2021a). Hayabusa2 made comprehensive surveys of C-type near-Earth asteroid (162173) Ryugu (e.g., Watanabe et al. 2019; Sugita et al. 2019; Kitazato et al. 2019, 2021; Grott et al. 2019; Jaumann et al. 2019; Arakawa et al. 2020; Morota et al. 2020; Okada et al. 2020; Tatsumi et al. 2021a, 2021b; Sakatani et al. 2021) with two touchdown operations for sampling. The Hayabusa2 sampler system worked as expected in the two landing operations (e.g., Tachibana et al. 2014, 2021, 2022; Sawada et al. 2017; Okazaki et al. 2017; Appendix). The sample container, which contained the Ryugu sample, was sealed using the metal-seal system developed to maximize the scientific value of the sample, especially with regard to retention of volatile gases from samples and prevention of terrestrial air contamination (e.g., Sawada et al. 2017; Okazaki et al. 2017). If there is no severe and/or unknown contamination on samples, detailed sample analyses will provide us with crucial information on the primordial native condition of organics, water, and mineral interactions regarding key issues in the molecular evolution of the asteroid.

To assess the entire sampling process aimed at safeguarding the scientific value and preventing unknown contamination, the Hayabusa2 sampler team conducted (i) off-nominal operational assessments (e.g., projector operation: Takano et al. 2020; small carry-on impactor: Ito et al. 2021) and (ii) a laboratory-based environmental assessment aimed at monitoring the background cleanliness at each stage of the development of the Hayabusa2 spacecraft (e.g., see the assessment policy by Sawada et al. 2017). Focusing on the latter issues, this technical report describes the assessment results during the prelaunch phase (Table 1). Based on both quantitative and qualitative assessments, we can evaluate potential contaminants that could have been artificially introduced, and this can be performed seamlessly during implementation, engineering development, launch, or capsule re-entry into the Earth’s atmosphere. We can thus provide a robust final safety declaration for analyses of samples from the pristine C-type asteroid Ryugu.

Table 1 Overview and compilation of the entire sample processes from implementation to engineering development and assessment for quality control for the safety declaration of the Ryugu sample
Full size table

Overview of the Hayabusa2 sampler status for quality assurance

We designed a seamless monitoring procedure with an efficient workflow up to the time of initial sample processing (Tachibana et al. 2014; Okazaki et al. 2017; Sawada et al. 2017) to formulate a safety-declaration protocol for the Ryugu sample (i.e., Tachibana et al. 2021, 2022; Yada et al. 2021a, 2021b; Pilorget et al. 2021). Table 1 provides an overview of sample processes through initial implementation, engineering development, and assessment on the Hayabusa2 sampler team axis. To date, we have a range of knowledge from lessons learned during assessments of contaminants in the previous Hayabusa mission (e.g., category-3 particles; Uesugi et al. 2019 and references therein), potential contaminants from off-nominal operations of the Hayabusa2 (e.g., Takano et al. 2020; Ito et al. 2021), the curation procedure and cleanliness level at the Japan Aerospace Exploration Agency (JAXA) Extraterrestrial Sample Curation Center (e.g., Sugahara et al. 2018; Yoshitake et al. 2021; Yoshikawa et al. 2021), and sample transportation containers for Hayabusa2 samples (e.g., Ito et al. 2020; Shirai et al. 2020; Uesugi et al. 2020). We also highlight literature sources for quality control and assurance for other sample-return projects (e.g., Dworkin et al. 2018; McCubbin et al. 2019; Chan et al. 2020; and references therein). As a practical assessment based on that of Sawada et al. (2017), we deployed a contamination monitor coupon set near the sampler flight model to assess how much Earth-derived terrestrial material was present until the launch of the Hayabusa2 spacecraft (Fig. 1a).

Fig. 1
figure 1figure 1

a Photographs of the Hayabusa2 spacecraft in the clean room at ISAS/JAXA (after Tachibana et al. 2014). Please note that hairdressing, perfumes, skincare, cosmetics, hand sanitizer, lotions, and hair spray are prohibited for any visitors to JAXA's clean room facilities. b, c Schematic design and appearance of the monitor coupon equipped with an aluminium schale, Pyrex schale, aluminium disk, sapphire glass disk, aluminium square plate (#1, #2), and carbon adhesive tape (#1, #2) for the Hayabusa2 witness coupon (after Sawada et al. 2017). d Environmental assessment procedures for timelines, locations, and operational profiles from static monitoring. Blue and green bars represent the installation time of the coupon and the nitrogen gas purge time into the sampler system, respectively. Abbreviations for locations are defined at the end of the main text

Full size image

Environmental assessment based on static monitoring

Figure 1b, c presents the schematic design and appearance of the monitor coupon, which contains a Pyrex container, an aluminium container, and carbon adhesive tapes for inorganic and organic assessments and microscopic observations, respectively (see Sawada et al. 2017 for more details). The timeline and assessment plans for quality control, monitoring, collection, and storage during development of the Hayabusa2 sampler are summarized in Fig. 1d. To evaluate both the inorganic and organic background levels of the ambient environment, we deployed the monitor coupon during assembly of the sampler system (Figs. 2 and 3). For comparison with the static cleanliness test described above, we also performed air-filter sampling (Multistage Andersen Cascade Impactor, Tokyo Dylec Corp.) and swab sampling using reference sources involving a quartz filter (8 cm diameter × 4 mm thickness) and glass wool (~ 0.3 g), respectively. The artefacts precipitated during the thermal vacuum test of the spacecraft (Sawada et al. 2017) were also analysed for identification of volatile compounds (Additional file 1).

Fig. 2
figure 2

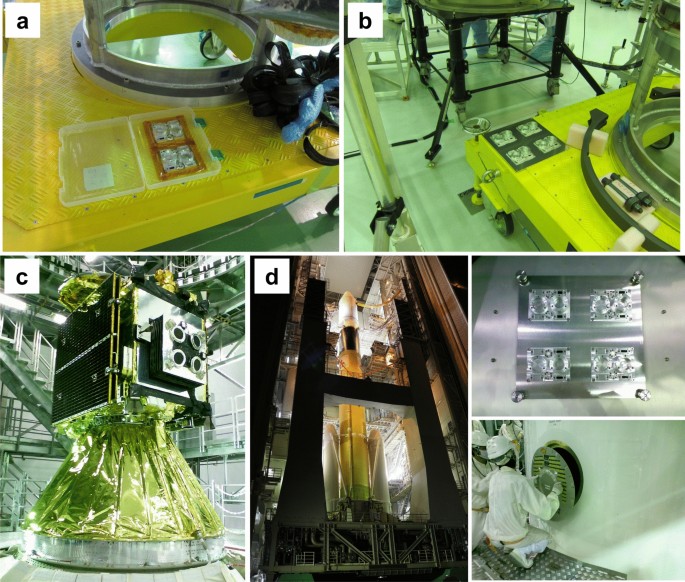

Representative snapshots of the environmental assessment. a Practical deployment of the monitor coupon in the processes of ISAS (ISAS-C building clean room) and TSC (JAXA Tsukuba Space Center), b STA1 building clean room at TNSC (JAXA Tanegashima Space Center), c SFA2 building clean room, d VAB building clean room at TNSC, and e, f the final launch site at TNSC. When moving to the TNSC monitored with coupon set #5, the continuous flow of nitrogen was temporarily stopped due to logistical reasons, and then the nitrogen purge state (i.e., without exposure time of ambient atmosphere) was maintained by sealing the chamber

Full size image
Fig. 3
figure 3

Environmental monitoring near the Hayabusa2 spacecraft. a Sampler horn. b Sample container with witness coupon inside (Sawada et al. 2017). c, d Inside the sample catcher before elimination of surface dust. e, f Microscopic observation using a wipe stick to see if any artefacts were present

Full size image

The analytical methods used for inorganic and organic assessments and quantitative and qualitative evaluations have been reported previously (e.g., Takano et al. 2020; Ito et al. 2021). All glassware and aluminium materials were washed with organic solvent and flushed with ultrapure water, as described by Karouji et al. (2014). All glassware and aluminium parts used in the assessment were cleaned by heating (450 °C for 5 h) in air to remove any artefacts of organic contaminants (e.g., Takano et al. 2020).

Results and summary

Inorganic and organic assessments

The concentrations of total organics, major elements, and major ions monitored by the coupons at different locations, occasions, and/or durations (coupon set code; CPS-1 to CPS-12) are summarized in Fig. 4. Concentrations of elements, ions, and total organics were less than or on the order of 103 nanograms (i.e., 1 μg or less) for all coupons (~ 30 mm in diameter). The raw concentrations of the elements (Fe, Cu, Ni, Cr, Zn, Na, K, Ca, Mn, Al, Ti, Mg, Co, Sn, Pb, V, and P), ions (including Cl−, NO2−, Br−, NO3−, SO42−, PO43−, and F−), and organics are shown in Tables 2, 3, and 4, respectively. The concentrations normalized to surface area (i.e., ng cm−2) were obtained from the monitor coupon size (Fig. 1b). The quantitative values for static monitoring per unit time are shown in Fig. 4b and Table 4. Although there were some difficulties in specifying the exact compound source within the ultrasmall-scale analyses, this coupon was stored at JAXA for future secondary analysis (detailed analysis) if necessary.

Fig. 4
figure 4

a Concentrations of total organics, major elements, and major ions monitored by the monitor coupon (Nos. 1–12, including STA1, SFA2, and VAB). The sample codes were listed in Tables 2 and 3. Each static, quantitative assessment was normalized in units of nanograms per sample (ng/sample). b Quantitative comparison between static monitoring and unit time (days) with regard to total organics and Na concentration

Full size image
Table 2 Concentrations of main elements (Fe, Cu, Ni, Cr, Zn, Na, K, Ca, Mn, Al, Ti, Mg, Co, Sn, Pb, V, and P) from static sampling, air-filter sampling, and swab sampling during sampler-system development up to the launch of the Hayabusa2 spacecraft
Full size table
Table 3 Concentrations of major ions (Cl−, NO2−, Br−, NO3−, SO42−, PO43−, F−, acetic acid, formic acid, NH4+, 2A2M (2-amino-2-methyl-1-propanol), and DMA (dimethylamine), from static sampling, air-filter sampling, and swab sampling during sampler-system development up to the launch of the Hayabusa2 spacecraft
Full size table
Table 4 Concentration of total organics from static and air-filter sampling during sampler-system development up to the launch of the Hayabusa2 spacecraft
Full size table

The major inorganic elements and ions detected were sodium (Na), calcium (Ca), potassium (K), chloride (Cl−), sulfate (SO42−), and nitrate (NO3−). Their profiles were positively correlated with the total organic content in the range 101–103 ng per monitor coupon. This result indicates a profile different from the chemical compositions of oceanic salt and anthropogenic biological fluids (e.g., a seawater and sweat composition; Terasawa et al. 2001). Figure 5 shows time-dependent static accumulation of ambient aerial deposits onto the monitor coupons throughout the procedure (CPS-1–12, including STA1, SFA2, and VAB). There were clear positive correlations between total sodium, potassium, and chloride and total organic contents, which closely approximated the 1:1 line. Both major inorganic ions and total organic fluxes converged in the range 101–103 ng per monitor coupon, resulting in static deposition of < 1 μg overall within ~ 7.0 and ~ 5.3 cm2 for aluminium schale and Pyrex schale, respectively. Representative compositions of organic deposits were obtained by the gas chromatography (Fig. 6). This result is a static monitoring method and may depend on the environmental gradient to determine whether the dust flux had reached equilibrium or not, especially for volatile components. A wide range of aliphatic hydrocarbons comprising straight-chain alkanes (< n-C19H40) was detected (e.g., m/z = 57 for the extracted ion chromatogram). The total amounts of other miscellaneous organics were quantified based on the corresponding responses with the internal standard method (e.g., Takano et al. 2020). The exposure time-dependent accumulation profiles were similar to the results for cleanliness tests run in the clean-room chamber at the Institute of Space and Aeronautical Science (ISAS)/JAXA (i.e., the nitrogen-circulation clean chamber; Sugahara et al. 2018).

Fig. 5
figure 5

Representative profiles of the static accumulation of ambient aerial deposits onto the monitor coupons (Nos. 1–12, including STA1, SFA2, and VAB): a sodium (Na) and total organics, b potassium (K) and ionized chloride (Cl−), c zinc (Zn) and sulfate (SO42−), and d calcium (Ca) and ionized nitrate (NO3−). e Principal component loading using the correlation matrix (Table 5) of the major components in the static monitoring data of CPS1-12 (n = 10) and CAS1-12 (n = 10), as shown in Table 6. Aluminium was used for storage and packaging of the samples, which may have resulted in higher background values

Full size image
Fig. 6
figure 6

Representative extracted ion chromatograms (EICs) of the aliphatic hydrocarbon compounds (n-alkanes; m/z = 57 on EIC) obtained from online thermal desorption-gas chromatography/mass spectrometry (TD-GC/MS) with a quantitative internal standard method (Takano et al. 2020) using an online thermal desorption (TD)-GC/MS using a multipurpose sampling and thermal desorption system (MSTD-258M; GL Science Inc.) and a purge and trap device (P&T; Gestel TDS A2, Gestel Inc.) coupled to a GC/MS system (Agilent 6890 N and 5973 MSD; Agilent Technologies Inc.). a Typical terrestrial reference (humic acid as standard reference; from FUJIFILM Wako Pure Chemical Corporation), b STA1 (code: 20141024-QF-01-#1), c SFA2 (code: 20141024-QF-06-#1). The two signals (*) between 13 and 14 min appear to be compounds that possess the characteristic –C4H9 fragment. d Mass spectra of the gas chromatographic retention time (13.13 min; scan 2252) and the candidate of 2-ethylhexyl acrylate by the NIST database library were shown

Full size image

Tables 5 and 6 summarize the basic statistics and the correlation matrix for the concentrations of major components in the static samples (i.e., CPS1–12 and CAS1–12; n = 10). Most profiles of the major components (e.g., Na, K, Cl−, F−, NO3−, Zn, SO42−, Mg, and P) were positively correlated with each other, except for the profile of aluminium (Fig. 5e and Additional file 1: Figure S2). We note that we used clean room-type aluminium foil to store and carry the monitor coupons, which could potentially introduce a certain amount of aluminium onto the coupon. We also conducted microscopic observations of the solid contaminants to evaluate their morphological characteristics (Fig. 7) and found that globular particles were more common (70%) than fibrous particles (13%). Further non-destructive analyses using microRaman and infrared spectroscopy (e.g., Kitajima et al. 2015) can be performed at ISAS/JAXA upon request.

Table 5 Basic principal component statistics in the static samples (i.e., CPS1–12 and CAS1–12; n = 10)
Full size table
Table 6 Correlation matrix of the major components in the static samples using the CPS1–12 (n = 10) and CAS1–12 (n = 10) data sets
Full size table
Fig. 7
figure 7

a Carbon adhesive tape used for the environmental assessment. b–g Representative microscopic observations of the morphologies of artefact materials on the coupon

Full size image

We stored the potential Earth-derived artefacts obtained from each procedure (Table 1) (i.e., the category-3 particles; Uesugi et al. 2019). Therefore, if necessary, we can provide a careful description, upon request, as suggested by the lessons learned from the previous Hayabusa mission (the asteroid Itokawa) with regard to high-resolution small-scale mass spectrometry (e.g., NanoSIMS: Ito et al. 2014; ToF–SIMS: Naraoka et al. 2015) and spectroscopy (e.g., X-ray absorption: Yabuta et al. 2014). Interestingly, Chan et al. (2021) and Parker et al. (2022) reported a detailed description of exogenous carbonaceous organic matter derived from the Itokawa sample.

Safety declaration of the Ryugu sample processes

The Hayabusa2 mission succeeded in delivering its re-entry capsule to Earth in December 2020, and the total sample amount was confirmed to exceed 5 g (Tachibana et al. 2021, 2022; Yada et al. 2021a, 2021b; Pilorget et al. 2021), including millimeter-sized grains to centimeter-sized pebbles. This study reports the prelaunch phase environmental assessment performed during manufacturing of the sampler devices, their installation onto the spacecraft, and their transportation. We conclude that the exposure-time-dependent deposition profiles of potential contaminants were firmly underscored and similar to the profiles obtained from the clean-room facility assessment (Sugahara et al. 2018). All potential contaminants have been stored at the JAXA Extraterrestrial Sample Curation Center in a nitrogen-purged storage area and are available for future analysis upon request.

The total amount of potential contaminants in the sampler system is estimated to be less than 100 ng cm−2, which is much smaller than the total amount of returned samples. Along with the fact that there was no off-nominal situation from spacecraft launch to the capsule’s re-entry to Earth, we conclude that ambient background artefacts have been characterized and will not affect detailed sample analyses.

We expect that the lessons learned in the process from implementation to practical knowledge during the last 8 years will also provide a valuable baseline for future sample-return missions (e.g., Dworkin et al. 2018; Usui et al. 2020; Anand et al. 2020; Chan et al. 2020; Neveu et al. 2020; Farley et al. 2020; Fujiya et al. 2021) and microspacecraft missions with a launch vehicle secondary payload (e.g., Ito et al. 2018; Hernando-Ayuso et al. 2019; Campagnola et al. 2019).
