Investigations of the degree of asymmetry across the dayside magnetopause under southward interplanetary magnetic field using GEOTAIL observations

Abstract

The magnetic reconnection environment around the dayside geomagnetopause under long-lasting southward interplanetary magnetic field (IMF) conditions is investigated using the in-situ observation by GEOTAIL satellite from 1994 to 2019. We focus on the degrees of asymmetry in the plasma density, ion temperature and the magnetic field strength between both sides of the magnetopause, that is, the ratio of the value in the magnetosphere to that in the magnetosheath in order to compute the much more realistic current sheet systems in numerical simulations. To exclude all of the interplanetary disturbance events such as Corotating Interaction Regions (CIRs) and Coronal Mass Ejections (CMEs), we investigate magnetopause crossings under long-lasting southward IMF conditions. GEOTAIL satellite sometimes repeatedly across the magnetopause during each pass due to the oscillating of the magnetopause. The degrees of asymmetry vary even during a single pass. This variation depends on the locus of the observation point, particularly the GSM Y-position, not on the time. The degrees of asymmetry in the plasma density, ion temperature and the magnetic field strength have significant variation in the data. The data points of the degree of asymmetry in the plasma density significantly spread in the duskside, while that in the magnetic field strength further widely spread in the dawnside. The degree of asymmetry in the plasma density and that in the magnetic field strength have fixed negative correlation on a log–log scale.

Graphical Abstract

Introduction

There is compelling observational evidence that magnetic reconnection plays a major role in the dynamics of the solar corona and the planetary magnetosphere (Parker 1963; Tsuneta 1996; Paschmann et al. 1979; Gosling et al. 1986). Large explosion events such as coronal mass ejection and magnetic reconnection in the magnetotail seem to be associated with symmetric reconnection (Tsuneta 1996; Gosling et al. 1986). On the other hand, small solar flares and flux transfer events in the dayside magnetopause are associated with asymmetric reconnection (Chen et al. 2014; Paschmann et al. 1979).

Asymmetric reconnection has been studied by a lot of researchers (Petschek and Throne 1967; Hoshino and Nishida 1983; Lin and Lee 1993; Kondoh et al. 2004; Cassak and Shay 2007). However, these studies focused on the jet region or the region around the X-point. To understand the spontaneous reconnection system, we must consider the entire reconnection system. Then, we have shown that the entire structure of the asymmetric reconnection is drastically different from the symmetric case even for slight magnetic asymmetry (Nitta et al. 2016; Nitta and Kondoh 2019, 2021, 2022). However, our previous studies have been done on the assumption of the initial isothermal condition for simplicity.

We need to set up much realistic initial conditions to verify our model. Geo-magnetopause is presently the most accessible natural plasma environment where magnetic reconnections and the consequential phenomena can be measured in situ (Archer et al. 2019; Ivchenko et al. 2000; Hasegawa et al. 2003; Phan et al. 2001; Teh and Hau 2004). Then, it is suitable that we apply our model to the asymmetric reconnection in the dayside geo-magnetopause. Phan et al. (2013) showed using THEMIS observations that the majority of reconnection events occurred for the small difference of plasma \(\beta\) on both sides of the current sheet, and the majority of reconnection events occurred over a large range of the degree of magnetic shears. Walsh et al. (2012) investigated a dawn–dusk asymmetry in plasma parameters within the geo-magnetosheath using statistical observations by the THEMIS spacecrafts. They showed the ion density and temperature are greater on the dawnside while the magnetic field strength and bulk flow speed are greater on the duskside.

The main purpose of this paper is to investigate the asymmetric reconnection environment near the ecliptic plane in the dayside magnetopause and evaluate the validation of the initial conditions in the numerical simulations. For these purposes, we identify the magnetopause crossing events by GEOTAIL satellite in the long-lasting southward IMF condition to exclude disturbed events. Then, we investigate the temporal and spatial variation of the ratio of the magnetic strength, the plasma density and the ion temperature between both sides of the magnetopause.

Dataset

We used data obtained by the low-energy particle experiment (LEP) (Mukai et al. 1994) and the magnetic field experiment (MGF) (Kokubun et al. 1994) on board GEOTAIL spacecraft from 1994 to 2019. Plasma moments such as the number density, the ion temperature, and the plasma velocity are calculated under the assumption that all ions are protons. We used 12 s (four-spin) averaged data for magnetic field vectors. In this study, GEOTAIL data were used when the spacecraft was located in the region within \(10<\textrm{MLT}<14\) and when the southward interplanetary magnetic field (IMF) data from OMNI base (https://spdf.gsfc.nasa.gov/pub/data/omni/high_res_omni) continued for at least 200 min. These OMNI data have been shifted from spacecraft positions of observation to the bow shock nose. We identified 81 complete magnetopause crossing events. Partial magnetopause crossing in which the spacecraft did not fully traverse the magnetopause is not included.

Results and discussion

Typical high magnetic asymmetry condition

We investigate a case study of a typical dayside magnetopause environment observed on 26 April 2009. Temporal variations in the IMF \(B_z\) from OMNI database and in the number density N (second panel), the ion temperature T (third panel) and the z-component of the magnetic field \(B_z\) (bottom panel) from GEOTAIL satellite between 20:30 and 23:45 UT are plotted in Fig. 1. The seven periods shown by the vertical yellow (magnetosheath side) and light blue (magnetosphere side) solid lines are identified as the magnetopause crossings by GEOTAIL satellite. The magnetopause crossings are repeatedly observed by GEOTAIL satellite in this single pass, such events are hereafter referred to as “series event” in this paper. We limit the analysis period when the southward IMF \(B_z\) at the bow shock nose continues over 200 min; therefore, the IMF \(B_z\) shown in the top panel is negative all the time in this figure. Temporal variation of the degree of asymmetry in the number density \(k_N=N_0/N_1\) (top panel), the temperature \(k_T=T_0/T_1\) (middle panel) and the z-component of the magnetic field \(k_{B_z}=B_{z0}/B_{z1}\) (bottom panel) between 20:30 and 23:45 UT from GEOTAIL satellite are plotted in Fig. 2. We averaged 5 points (1 min.) data at each line in the previous figure and the subscript 0 and 1 indicates that the value was observed in the magnetosphere and the magnetosheath, respectively. The time indicated in this figure is the observation time of the five points used for the average of the value in the magnetosheath as indicated by the yellow vertical line in Fig. 1. In this series event, \(k_N \lesssim 0.02,\ k_T\sim 10,\ \textrm{and} \ k_{B_z} \gtrsim 2.0\) all the time. This cold dense plasma condition in the magnetosheath in contrast with that in the magnetosphere is typical. It is also found that \(k_{B_z}\) gradually decreases until 22:00 and then keeps about 2.5. From only this figure, it is not impossible to determine whether this is temporal or spatial variation.

Fig. 1
figure 1

Temporal variation in the IMF \(B_z\) (top panel) from OMNI database and in the number density N (second panel), the ion temperature T (third panel) and the z-component of the magnetic field \(B_z\) (bottom panel) observed by GEOTAIL satellite on 26 April 2009. The vertical solid lines show the time when we averaged 5-point (1 min.) values in the magnetosphere (orange lines) and the magnetosheath (light blue lines), respectively

Fig. 2
figure 2

Temporal variation in the degrees of asymmetry in the number density \(k_N=N_0/N_1\) (top panel), the ion temperature \(k_T=T_0/T_1\) (middle panel) and the z-component of the magnetic field \(k_{B_z}=B_{z0}/B_{z1}\) (bottom panel) observed by GEOTAIL satellite on 26 April 2009. The subscript 0 and 1 show the value observed in the magnetosphere and the magnetosheath, respectively

Weak magnetic asymmetry condition

Next, we show another case study of the almost magnetically symmetric dayside magnetopause environment observed on 26 August 2015. The same parameters as in Fig. 2 between 18:00 and 21:00 UT from GEOTAIL satellite are plotted in Fig. 3. In this series event, six magnetopause crossings by GEOTAIL satellite are identified, and all of \(k_{B_z}\) in these crossings are almost 1.0. That is, the dayside magnetopause in this period was magnetically symmetric. The number density and ion temperature remain to be weakly asymmetric. \(k_N\) gradually increases after the magnetopause crossing at 19:30. From only this figure, it is also not impossible to determine whether this is a temporal or spatial variation.

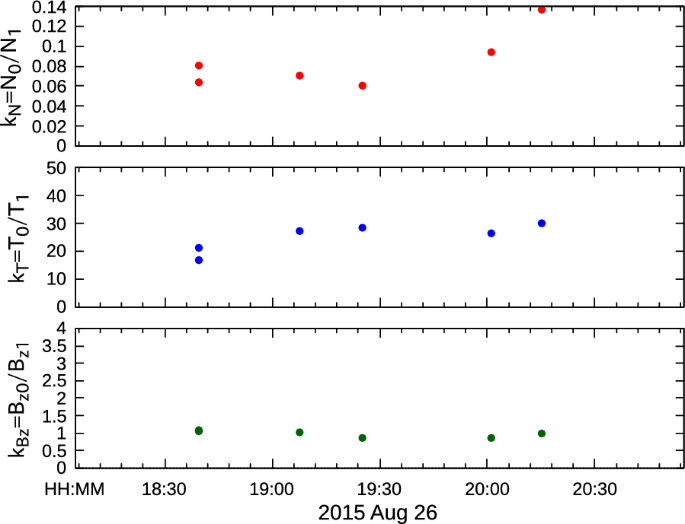

Fig. 3
figure 3

Temporal variation in the degrees of asymmetry observed by GEOTAIL satellite on 26 August 2015. The format is the same as in Fig. 2

Series events

For further investigation of the temporal and spatial variation of the series events, we plot \(k_N, k_T\), and \(k_{B_z}\) in the five series events, which are identified over five magnetopause crossings, including the above two events (plotted with filled circles) with respect to the GSM Y-position in Fig. 4. One single series event is shown by a plot set connected with solid lines. Note that GEOTAIL satellite moves toward positive y-direction. These five series events show spatial dependence, rather than temporal one. The asymmetry parameters \(k_N\) and \(k_T\) enhance in the positive y-position, while \(k_{B_z}\) in the negative y-position. The little temporal dependence in the asymmetry parameters means that the motions of the magnetopause, which allows us to observe the multiple magnetopause crossings, have little impact on the magnetopause condition.

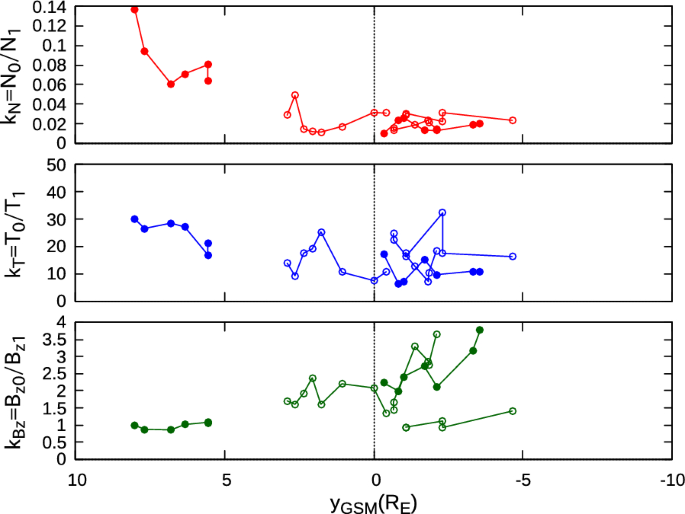

Fig. 4
figure 4

Plot of the degree of asymmetry \(k_N, k_T\) and \(k_{B_z}\) as a function of \(y_{\textrm{GSM}}\) in five series events. The magnetopause crossings were repeatedly observed in a single pass. Such events are referred to as “series events” in this paper. The \(k_N\) is large on the dusk side, whereas the \(k_{B_z}\) on the dawn side

All events

To confirm the above dependence, we plot the asymmetry parameters of all 81 events with respect to the y-position in Fig. 5. Every parameter does not necessarily depend on the y-position; however, the spread in the data of these parameters depends on it. Particularly, \(k_N\) significantly spread in the positive y-position, while \(k_{B_z}\) spread in the negative y-position.

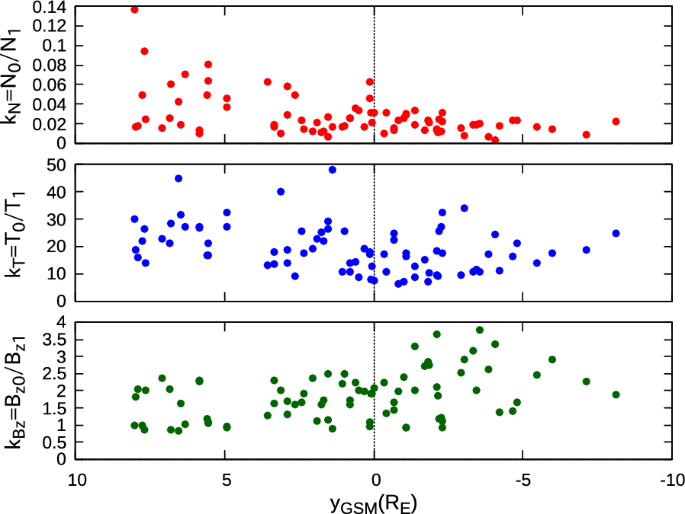

Fig. 5
figure 5

Plot of the degree of asymmetry \(k_N, k_T\) and \(k_{B_z}\) as a function of \(y_{\textrm{GSM}}\) in all 81 crossings. The spread in the data of the \(k_N\) is large on the dusk side, whereas that of the \(k_{B_z}\) on the dawn side

Next, we check the range of these degrees of asymmetry. The degrees of asymmetry in the number density shown in the top panel distribute \(0.01\le k_N \le 0.14\) on the dusk side, while \(k_N\sim 0.01\) on the dawn side. The degrees of asymmetry in ion temperature shown in the middle panel distribute \(k_T\sim 20\) in all y-position. The degrees of asymmetry in the z-component of the magnetic field shown in the bottom panel distribute \(0.5<k_{B_z}<2.5\) on the dusk side, while wide \(1.0\le k_{B_z}<4\) on the dawn side.

Relationship between asymmetry parameters

To investigate the above opposite dependency on the y-position and the relationship between \(k_N\) and \(k_{B_z}\), we show scatterplot of \(k_N\) versus \(k_{B_z}\) in Fig. 6. This scatterplot has a fixed negative correlation on a log–log scale. In the iso-thermal equilibrium condition used in our previous studies, the degree of asymmetry in the plasma density satisfies

$$\begin{aligned} k_N=\frac{\beta _0}{k_{B_z}^2(1+\beta _0)-1}k_{B_z}^2 ,\, \end{aligned}$$

where \(\beta _0\) is the plasma beta value on the low beta side. This scatter plot does not satisfy this relationship.

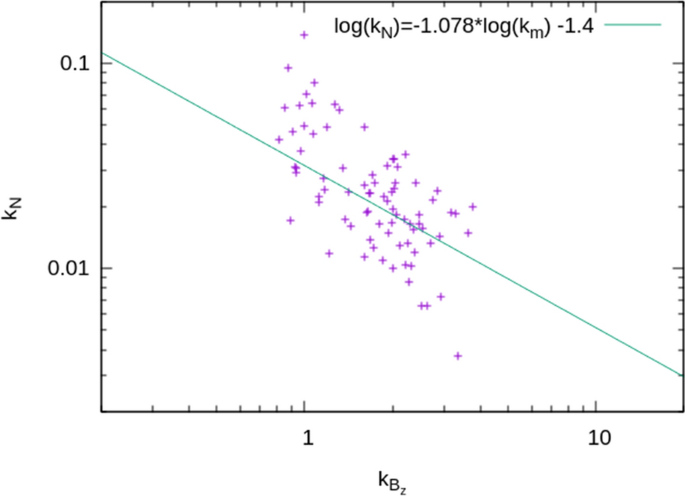

Fig. 6
figure 6

Scatterplot of \(k_N\) versus \(k_{B_z}\) in the all crossings on a log–log scale

As mentioned in the introduction, Walsh et al. (2012) investigated a y-position dependency in the dayside magnetosheath and showed the ion density and temperature are greater on the dawnside while the magnetic field strength is greater on the dusk side in the magnetosheath. Then, they concluded that their results were consistent with the expected dependencies that would result from the interactions of the Parker spiral interplanetary magnetic field with the Earth’s bow shock.

Conclusions

We investigated the magnetopause environment near the ecliptic plane using the observational data from GEOTAIL satellite during the long-lasting negative IMF \(B_z\) component near the bow shock-nose. We focused on the degree of asymmetry on both sides of the current sheet in the dayside magnetopause near the sub-solar point. Our previous studies using numerical simulations showed that these asymmetries cause asymmetric magnetic reconnection and affect the global reconnection structure (Nitta et al. 2016; Nitta and Kondoh 2019, 2021, 2022). The repeated crossings of the magnetopause by GEOTAIL satellite during a single pass, which we call as “series event”, due to the oscillating motion of the magnetopause allowed us to continuously investigate these environments.

In these series events, we found a magnetically symmetric environment with (\(k_{B_z}\sim 1\)) relative to the magnetopause layer (current sheet), not only the typical cold dense plasma environment in the magnetosheath compared with that in the magnetosphere (\(k_{B_z}>1\)). Even in a single series event, the degree of asymmetry varies. This is the spatial variation, not the temporal one. This variation depends on the GSM-Y position. Every degree of asymmetry k has the spread in the data, and the spread depends on the GSM Y-position. The degree of asymmetry in the plasma density \(k_N\) has a fixed negative correlation with that in the magnetic field strength \(k_{B_z}\) on a log–log scale. In future work, we will investigate the asymmetric reconnection evolutions in these realistic degrees of asymmetry conditions.

Availability of data and availability

Publicly available datasets were analyzed in this study. This data can be found here: http://cdaweb.gsfc.nasa.gov/istp_public/.

References

  • Archer MO, Hietala H, Hartinger MD, Plaschke F, Angelopoulos V (2019) Direct observations of a surface eigenmode of the dayside magnetopause. Nat commun. https://doi.org/10.1038/s41467-018-08134-5

    Article  PubMed  PubMed Central  Google Scholar

  • Cassak PA, Shay M (2007) Scaling of asymmetric magnetic reconnection: general theory and collisional simulations. Phys Plasmas 14:10

    Article  Google Scholar

  • Chen H, Zhang J, Cheng X, Ma S, Yang S, Li T (2014) Direct observations of Thether-cutting reconnection during a major solar event from 2014 February 24 to 25. ApJL 797:L15

    Article  ADS  Google Scholar

  • Gosling JT, Thomsen MF, Bame SJ, Russell CT (1986) Accelerated plasma flows at the near-tail magnetopause. J Geophys Res 91:3029–3041

    Article  ADS  Google Scholar

  • Hasegawa H, Fujimoto M, Maezawa K, Saito Y, Mukai T (2003) Geotail observations of the dayside outer boundary region: interplanetary magnetic field control and dawn-dusk asymmetry

  • Hoshino M, Nishida A (1983) Numerical simulation of the dayside reconnection. J Geophys Res 88(A9):6926–6936

    Article  ADS  Google Scholar

  • Ivchenko NV, Sibeck DG, Takahashi K, Kokubun S (2000) A statistical study of the magnetosphere boundary crossings by the Geotail satellite. Geophys Res Lett 27(18):2881–2884

    Article  ADS  Google Scholar

  • Kokubun S, Yamamoto T, Acuna MH, Hayashi K, Shiokawa K, Kawano H (1994) The GEOTAIL magnetic field experiment. J Geomagn Geoelectr 46:7–21

    Article  ADS  Google Scholar

  • Kondoh K, Ugai M, Shimizu T (2004) The dynamics of plasmoid in asymmetric spontaneous fast reconnection. Adv Space Res 33(5):794–798

    Article  ADS  Google Scholar

  • Lin Y, Lee LC (1993) Structure of reconnection layers in the magnetosphere. Space Sci Rev 65:59

    Article  ADS  Google Scholar

  • Mukai T, Machida S, Saito Y, Hirahara M, Terasawa T, Kaya N, Obara T, Ejiri M, Nishida A (1994) The low energy particle (LEP) experiment onboard the GEOTAIL satellite. J Geomagn Geoelectr 46:669–692

    Article  ADS  Google Scholar

  • Nitta S, Wada T, Fuchida T, Kondoh K (2016) Critical differences of asymmetric magnetic reconnection from standard models. ApJ 828:63

    Article  ADS  Google Scholar

  • Nitta S, Kondoh K (2019) Properties of extremely asymmetric magnetic reconnection. ApJ 872:142

    Article  Google Scholar

  • Nitta S, Kondoh K (2021) Fundamental properties of sheared/guide field MHD magnetic reconnection. ApJ 907:21

    Article  ADS  Google Scholar

  • Nitta S, Kondoh K (2022) Effects of magnetic shear and thermodynamic asymmetry on spontaneous magnetohydrodynamic reconnection. ApJ 936:125

    Article  ADS  Google Scholar

  • Parker E (1963) The solar-flare phenomenon and the theory of reconnection and annihiliation of magnetic fields. ApJS 8:177

    Article  ADS  Google Scholar

  • Paschmann G, Sonnerup BUÖ, Papamastorakis I, Sckopke N, Haerendel G, Bame SJ, Asbridge JR, Gosling JT, Russell CT, Elphic RC (1979) Plasma acceleration at the Earth’s magnetopause: evidence for reconnection. Nature 282:243–246

    Article  ADS  Google Scholar

  • Petschek HE (1964) Magnetic field annihilation. In: Hess WN (ed) The physics of solar flares. NASA, Washington, DC, p 425

    Google Scholar

  • Petschek HE, Throne RM (1967) The existence of intermediate waves in neutral sheets. ApJ 147:1157

    Article  ADS  Google Scholar

  • Phan TD, Freeman MP, Kistler LM, Klecker B, Haerendel G, Paschmann G, Sonnerup BUÖ, Baumjohann W, Bavassano-Cattaneo MB, Carlson CW, DiLellis AM, Fornacon K-H, Frank LA, Fujimoto M, Georgescu E, Kokubun S, Moebius E, Mukai T, Paterson WR, Reme H (2001) Evidence for an extended reconnection line at the dayside magnetopause. Earth Planets Space 53:619–62

    Article  ADS  Google Scholar

  • Phan TD, Gosling JT, Oieroset M, Fujimoto M, Drake JF, Angelopoulos V (2013) The dependence of magnetic reconnection on plasma \(\beta\) and magnetic shear: Evidence from magnetopause observations. Geophys Res Lett 40:11–16

    Article  ADS  Google Scholar

  • Teh W-L, Hau L-N (2004) Evidence for pearl-like mangetic island structures at dawn and dusk side magnetopause. Earth Planets Space 56:681–686

    Article  ADS  Google Scholar

  • Tsuneta S (1996) Structure and dynamics of magnetic reconnection in a solar flare. ApJ 456:840

    Article  ADS  Google Scholar

  • Walsh BM, Sibeck DG, Wang Y, Fairfield DH (2012) Dawn-dusk asymmetries in the Earth’s magneto sheath. J Geophys Res 117:A12211. https://doi.org/10.1029/2012JA018240

    Article  ADS  Google Scholar

Download references

Acknowledgements

S.N. would like to especially thank Ippon-Kakou-Kai for motivation.

Funding

This study is supported by MEXT/JSPS KAKENHI under Grant No. 21K03645.

Author information

Authors and Affiliations

Authors

Contributions

KK and SN conceived the idea of the study. KK significantly contributed to data analysis and interpretation. All authors critically reviewed and revised the manuscript draft and approved the final version for submission.

Corresponding author

Correspondence to Koji Kondoh.

Ethics declarations

Competing interests

The authors declare that they have no conflict of interest.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix: Information of All 81 magnetopause crossings

Appendix: Information of All 81 magnetopause crossings

Information of the all events.

See Table 1

Table 1 The observation time, ion number density, Bz component and the satellite GSM position on both sides of the magnetopause
