PC index as a proxy of the solar wind energy that entered into the magnetosphere: 2. Relation to the interplanetary electric field E KL before substorm onset
© Troshichev and Sormakov. 2015
- Received: 2 April 2015
- Accepted: 6 October 2015
- Published: 21 October 2015
This paper (the second of a series) presents the results of statistical investigation of relationship between the interplanetary electric field E KL and the Polar Cap (PC) index in case of magnetic substorms (1998–2001), which have been analyzed in Troshichev et al. (J. Geophys. Res. Space Physics, 119, 2014). The PC index is directly related to the E KL field variations on interval preceding the substorm sudden onset (SO): correlation R > 0.5 is typical of more than 90 % of isolated substorms, 80 % of expanded substorms, and 99 % of events with coordinated E KL and PC jumps. The low or negative correlation observing in ~10 % of examined substorms suggests that the solar wind flow measured by the Advanced Composition Explorer (ACE) spacecraft in the Lagrange point L1 did not encounter the magnetosphere in these cases. Examination of the delay times ΔT in the response of PC index to E KL variations provides the following results: (1) delay times do not depend on separate solar wind parameters, such as solar wind speed V X and interplanetary magnetic field (IMF) B Z component, contrary to general conviction, (2) the ΔT value is best controlled by the E KL field growth rate (dE KL/dt), (3) the lower ΔT limit (5–7 min is attained under conditions of the higher E KL growth rate, and (4) the PC index provides the possibility to verify the solar wind flow transportation time from ACE position (where the solar wind speed is estimated) to magnetosphere. These results, in combination with data testifying that the substorm onsets are related to the PC precursors, demonstrate that the PC index is an adequate ground-based indicator of the solar wind energy incoming into the magnetosphere.
- Interplanetary electric field E KL
- PC index
- Magnetic substorms
- Delay time
- Solar wind parameters growth rate
- Solar wind energy input
In the first paper of a series (Troshichev et al. 2014), the statistical relationships between the Polar Cap (PC) and AL indices for the isolated and expanded magnetic substorms have been studied. It was demonstrated that magnetic substorms are preceded by the РС index growth and start usually when the PC index exceeds some threshold ~1.5 ± 0.5 mV/m. The substorm sudden onsets (SO) are related to sharp increases in the PC growth rate, and the linear dependency of the AL value on the PC index is typical of the periods before and after the sudden onsets, irrespective of the substorm type and intensity. Basing on these results, the conclusion was made that the PC index can be regarded as a ground-based proxy of the solar wind energy that enters into the Earth’s magnetosphere. To verify this idea, we need to have at our disposal either the direct data on variations of this energy (it is unlikely) or rely on the circumstantial evidences, such as the coupling functions, which are determined as the solar wind parameters combine providing the best correlation between the solar wind variations and the magnetosphere state.
where V SW is the velocity of the solar wind, B Y and B Z are the components of the interplanetary magnetic field (IMF), and θ is the angle between the IMF transverse component and the geomagnetic dipole. It should be noted that it is just interplanetary electric field E KL that most closely corresponds to formulas for the optimal coupling function, which were derived by Newell et al. (2007, 2008) and Wang et al. (2014). Thus, the E KL field can be regarded as a parameter related to the solar wind energy input into the magnetosphere.
Correlation between the 15-min averages of the E KL field (shifted to the bow shock) and the 1-min values of polar cap magnetic activity δF was examined in Troshichev et al. (1988). It was shown that correlation is optimal when a delay time ΔT ~ 20–25 min between the E KL and the respective δF variations is taken into account. Subsequent analysis (Stauning and Troshichev 2008) based on the 1-min E KL and δF values showed that the PC index begins to grow in about 10 min after the E KL rises near the magnetosphere’s nose; the index reaches its maximum at about 15–30 min after the E KL maximizes. In the abovementioned studies, the relationship between E KL and PC was examined regardless of the magnetosphere state or substorms. In the present study, the attention will be given to delay time ΔT providing the best correlation between E KL and PC on intervals preceding the substorm onset and to dependency of ΔT values on the solar wind parameters.
The events with isolated and expanded substorms analyzed by Troshichev et al. (2014) (referred further as Paper 1) were served as a basis for the study of the relationships between the PC index and the interplanetary electric field E KL. Substorms in paper 1 have been selected basing on the magnetic disturbance sudden onsets (SO) in the aurora zone, determined as a decrease in the AL index of at least 100 nT within 15 min. Then, substorms were divided into isolated and expanded types: isolated substorms were the ones which arose out of a background of quiet conditions (AL ≤ 200 nT) during the 3 h prior to SO; expanded substorms were the ones which occurred against the background of the enhanced magnetic activity in the polar cap and aurora zone. Since the substorm sudden onset magnitude is linearly related to the value of PC at the SO moment T 0 (see paper 1), the substorms were further separated into groups by their initial intensity, i.e., according to the PC index value at the SO moment (PC0), as follows: PC0 = 0.5 ± 0.25 mV/m, PC0 = 1 ± 0.25 mV/m, PC0 = 1.5 ± 0.25 mV/m, PC0 = 2 ± 0.25 mV/m, etc.
The E KL field was calculated using the data on solar wind and IMF parameters reduced to the magnetopause, as they were presented at the GSFC/SPDF OMNI/Web interface http://omniweb.gsfc.nasa.gov. The PC index was taken as an average value of PCN and PCS indices derived by data from stations Thule (Greenland) and Vostok (Antarctica) to level off a possible asymmetry in magnetic activity produced by the IMF azimuthal component or/and the solar proton invasion in the opposite polar caps (see Troshichev and Janzhura (2012b)). The data with gaps were extrapolated if the gaps were less than 40 % of the event data series; otherwise, events with data gaps were excluded from the analysis. As a result, the total number of examined events for the period 1998–2001 turned out to be N = 163 for the isolated substorms, N = 983 for the expanded substorms, and N = 261 for the coordinated events.
Correlation between the E KL field and PC index was calculated with allowance for delay time. The acting delay time of the PC response to the E KL variation was determined for each event in the following manner: correlation between E KL and PC was calculated under different time displacement (dt) of PC relative to E KL, and the value of displacement providing the best correlation was identified as a delay time (ΔT). Taking into account that typical delay time in the response of PC index to the E KL field variations is ~15–25 min (Stauning and Troshichev 2008; Troshichev et al. 1988), the time shift dt was taken in range from 0 to 45 min. The superposed epoch method was applied to each group with different PC0 to derive the time evolution of the mean PC and AL quantities in the course of a substorm event, the moment T 0 being taken as a key time.
Correlation between E KL and PC on intervals preceding the substorm sudden onset
Thus, the linear relationship between PC and E KL, suggested by Troshichev et al. (1988) relying on general statistical analysis of a large body of data, remains valid in particular case of the substorm development. It is noteworthy that ~8 % of events with isolated substorms and ~20 % of events with expanded substorms demonstrated the low (R < 0.5) or even negative (R < 0) correlation between E KL and PC. Taking into account that all events under examination were chosen as related to the really observed substorm onsets, preceded by the distinct precursors in the PC index, conclusion is made that the solar wind observed on board the ACE spacecraft (at a distance of ~1.5 million kilometers upstream of the Earth) did not encounter the Earth’s magnetosphere at least in 8 % of examined substorms. It implies that the ground-based PC index provides more reliable evidence of the solar wind coupling with the magnetosphere, than the E KL field derived from the solar wind measurements in the Lagrange point L1.
Delay in the response of PC index to changes in E KL field

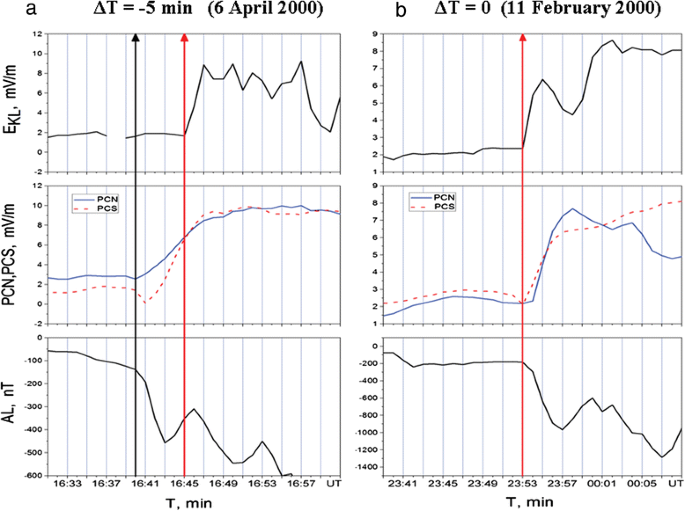

One can see that the substorm onsets in both cases were related to the sudden increase of the PC index, in full agreement with the results presented in paper 1. As our analysis showed, the negative delay times between the E KL jump reduced to the magnetopause and the substorm onset (and, correspondingly, between the E KL jump and the appropriate PC increase) occurred in range of ΔT from 0 to −10 min. The negative and zero delay times were encountered in about 1.5 % of all examining events implying the limits of the incorrect evaluation of the E KL transport time (and their input into the random dispersion).
Role of the solar wind parameters
One can see that, contrary to the expectations, any single solar wind parameter is of minor importance in the ΔT value setting. In case of the solar wind speed, a slight tendency for a decrease of the ΔT value with the growth of V sw is seen. Correspondingly, a slight tendency is seen for the delay time decrease with the solar wind dynamic pressure increase. In case of the IMF B Z component, the ΔT value for isolated and expanded substorms demonstrates the tendency to be less with the positive B Z quantities. Other solar wind parameters, such as the azimuthal and tangential IMF components, do not demonstrate any influence on the ΔT value.
To reveal the actual solar wind parameter controlling the value ΔT, we dwelt on the coordinated events. Indeed, in case of isolated substorms, we deal with a too limited body of data, whereas in case of expanded substorms, the high level of the background magnetic activity can strongly modify the regular relations between ΔT and solar wind parameters. The 1-min values V X, B Z, E KL, and PC fixed in the course of coordinated events were smoothed with the use of the boxcar average of the 15-min width, and then they were separated into different groups according to delay value ΔT. Afterwards, the time evolutions of the smoothed values V X, B Z, E KL, and PC were put through the superposed epoch analysis, the moment of the sudden jump of the 15-min smoothed E KL being taken as a zero time T 0.
One can see that the solar wind speeds V X as large as −800 km/s and as small as −300 km/s are typical of any ΔT group, the time evolution of V X being almost insensitive to the moment T 0. As a result, the tendency for the delay time decrease with increase of │V X│ value is hardly seen in Fig. 7. It implies that the solar wind speed by itself is not a decisive factor in the ΔT setting under the regular conditions. The IMF vertical B Z component starts to turn down (southward) just at the moment T 0, the regularity being evident for individual events as well as for mean B Z in each ΔT group: the higher the B Z alteration magnitude (ΔB Z), the shorter the delay time ΔT. However, the larger ΔB Z values are built up at the expense of positive (northward) B Z preceding the moment T 0, whereas the final level of southward B Z occurs to be almost the same for all ΔT groups (mean B Z ~ −3.5 nT). As a result, the shortest delay times ΔT can be observed under conditions of the northward IMF (averaged for the 1-h interval), as Fig. 6b has demonstrated. At the same time, correlation between ΔT and the E KL field (which presents the product of the solar wind speed V X and the IMF tangential component B T = (B Y 2 + B Z 2)1/2 taken with allowance for angle θ between the IMF transverse component and the geomagnetic dipole) turns out to be quite explicit: the higher the E KL raise (ΔE KL) during the ΔT interval, the shorter the delay time.
E KL growth rate as a clue parameter determining delay time ΔT
One can see that the ΔT value reduces as the quantities dV X/dt and dE KL/dt increase and dB Z/dt decreases. It should be noted that changes of V X on intervals ΔT > 10 min are quite negligible (dV X/dt < 0.5 km/s/min) in spite of rather high level of correlation between ΔT and dV X/dt; in addition, the standard deviation in this case is in excess of 200 %. Change of dB Z/dt on intervals ΔT is more noticeable, the standard deviation being less than 100 %, but correlation between ΔT and dB Z/dt is much worse (R = 0.64). The delay time ΔT is in the best association with the E KL growth rate (dE KL/dt), the sd values being about 75 % of the mean quantity in this case. These experimental facts are indicative of primary importance of dE KL/dt for the delay time setting in the PC response to the solar wind variations.
Mechanisms of the substorms triggering is still being discussed. The commonly accepted idea is that substorms are triggered by geoeffective changes in the solar wind parameters. The alternative concept suggests that substorms can be triggered by internal process (Hsu and McPherron 2003; Liu et al. 2011; McPherron et al. 1986). Indeed, occurrence of moderate and even intense substorms under conditions of relatively steady interplanetary (northward) magnetic field was noted in many studies (e.g., (Kullen and Karlsson 2004; Lee et al. 2007; Wu et al. 2002)). Special attention to intense substorms developed under conditions of persistently northward IMF was given by Lee et al. (2010) with the use of the UV auroral images on board the IMAGE spacecraft and other complementary observations such as magnetic dipolarizations and energetic particle injections on geosynchronous orbit (the GOES and LANL spacecraft measurements). The conclusion was made that occurrence of such substorms implies a large amount of energy remained in the tail even under northward IMF impact on the magnetosphere.
Troshichev et al. (2011) tested the substorms examined by Lee et al. (2010) in their relation to interplanetary electric field E KL and the PC index. It turned out that values E KL and PC in all cases were in excess of the threshold level ~1.5 mV/m, which is required for the ordinary substorm development. The E KL rising on intervals preceding the substorm onset was attained at the expense of the IMF azimuthal component, which is taken into account in the E KL field (with allowance for tilt angle, see expression (1), as distinct from the electric field E Y = V SW B Z examined in the abovementioned papers. As this takes place, the PC index, characterizing the polar cap magnetic activity affected by E KL, demonstrates the evident relation to the substorm onset. The conclusion was made by Troshichev et al. (2011) that substorms considered by Lee et al. (2010), as exclusive events, turn out to be a quite ordinary phenomena, if the proper coupling function E KL and the corresponding PC index are taken into examination.
Thus, use of the interplanetary electric E KL field instead of the E Y field makes needless a hypothetical mechanism of the energy storage in the magnetotail under conditions of ineffective northward IMF and calls into question the concept of nontriggered substorms. It would appear reasonable that substorms, occurring with clearly defined foregoing PC jump but without any evident precursor in the E KL field, testify to the fact that solar wind measured on board the ACE spacecraft (positioned in the Lagrange point L1) did not encounter the Earth’s magnetosphere. Comparison of the E KL and PC time evolutions before the substorm onset makes it possible to separate these rare events. Accordingly, the PC index can be used as a basic guideline in choosing the optimal coupling function (as it was made, for example, by Gao et al. (2012)).
Analysis of delay times ΔT in the response of the PC index to the E KL variations (reduced to the magnetopause) showed, in full consistency with many other experimental data, that 12–20 min is a typical time for the solar wind energy transmission from the magnetopause to polar caps. The value of the actual delay time is determined by the E KL field growth rate, not by separate solar wind parameters. The negative and zero ΔT values, resulted in some cases, should be regarded as indicative of wrong evaluation of time required for the E KL transferring from the ACE spacecraft position to the magnetopause.
Statistical dependence of ΔT on such solar wind parameters, as the IMF B Z component and the solar wind speed V sw averaged for 1-h interval preceding the substorm sudden onset, is negligibly small. This fact is in evident conflict with the commonly accepted concept of reconnection of the interplanetary and geomagnetic field lines (Dungey 1961), as a mechanism providing the response of electric fields in the polar ionosphere to the solar wind variations. Indeed, one might expect from the Dungey’s concept that the reconnection process should be controlled by southward IMF component and the delay time ΔT should be rigidly related to the speed of the reconnecting field lines moving in space, i.e., to the solar wind speed. In actuality, the delay time value is dependent on the growth rates dV X/dt, dB Z/dt, and dE KL/dt, the E KL field growth rate (dE KL/dt) being the main factor in the delay time setting.
In the framework of Dungey’s concept, the renewed convection cells related to the southward IMF strengthening should expand across the polar cap in conformity with the solar wind speed. It will take about 20 min for V X ~ −400 km/s, not ~ 7 ÷ 10 min min observed in actuality. The mechanism other than the reconnection of interplanetary and geomagnetic field lines is required to interpret the observed lowest limits of delay time. From the alternative point of view (see, for example, Antonova and Tverskoy (1998) and Troshichev and Janzhura (2012a)), the polar cap magnetic activity is generated by the magnetospheric region 1 field-aligned currents, and these currents are created on account of the plasma gradients, which are permanently formed within the closed magnetosphere owing to the solar wind impact on the magnetosphere.
As the results of Stauning and Troshichev (2008) and Troshichev et al. (2007) show, the solar wind dynamic pressure is the second, after E KL, most important factor for the PC index increase, the PC index being affected by the pressure growth rate (i.e., jump power ΔP SW/ΔT), not by pressure level. It should be noted in this connection that results (Stauning and Troshichev 2008) demonstrate that impact of the solar dynamic pressure pulses on magnetosphere leads to enhancement of the dayside cusp and region 1 FAC systems, the latter currents being located deeply within the closed magnetosphere. The mechanisms for regulation of both, region 1 and cusp, FAC systems are not well recognized and should be a subject of special investigation.
Statistical analysis of the relationship between the interplanetary electric field E KL and the magnetic activity index PC was fulfilled for events with isolated and expanded substorms and for events with coordinated alterations in E KL and PC. The analysis has demonstrated that the PC index strongly follows the time evolution of E KL field on intervals preceding the substorm onset: correlation R > 0.5 was observed for more than 90 % of isolated substorms, for ~80 % of expanded substorms, and for 99 % of coordinated events. A minor or even negative correlation between E KL and PC obtained for about 10 % of substorms suggests that the solar wind flow, measured in the Lagrange point (about 1.5 million kilometers from the magnetosphere), did not encounter the magnetosphere in these cases.
The delay times ΔT are not related to the value of separate solar wind parameters, such as solar wind speed and IMF B Z components, contrary to general conviction.
The ΔT value is controlled by the growth rate of E KL field.
The lower values of delay time (ΔT ~ 5 min) are observed in case of extremely strong and sharp rise of the E KL field.
PC index provides possibility to verify the time of the solar wind flow transportation from ACE position (where the solar wind speed is estimated) to the magnetosphere.
The set of these results in combination with data testifying that the substorm onsets are related to the PC precursors (see paper 1) demonstrates that the PC index is an adequate ground-based indicator of the solar wind energy incoming into the magnetosphere. The PC index might be useful in fitting the solar wind-magnetosphere coupling function, monitoring and nowcasting the magnetosphere state, and resolving other problems which require the actual information about the solar wind-magnetosphere-ionosphere interaction.
