Relationship between Na layer and CNA variations observed at Syowa, Antarctic

Abstract

We have performed a statistical data analysis on relationship between simultaneous Na density data and cosmic noise absorption (CNA) data, which is an indicator for energetic particle precipitation, obtained at Syowa, Antarctic in 2000–2002. It is found that the Na densities around the topside of Na layers (above $\sim 95 \,\hbox {km}$ height) tended to be smaller when the CNA was larger. The amounts of Na density responses, i.e., Na density decrease or Na loss, were increasing with magnetic local time (MLT) from dusk hours to dawn hours, and those of CNA responses, i.e., CNA increase, were also increasing with MLT. Thus, there were clear negative correlations between the Na density and CNA variations. These results indicate that the Na loss around the topside of Na layer would be induced by the energetic particle precipitation, and its effect would be more severe in dawn hours.

Introduction

The sodium (Na) layer around 80–110-km heights is one of the metal layers existing in the Earth’s upper atmosphere, and has been widely used as a valuable observation target to study the upper atmospheric science using the lidar technique (cf. Chu and Papen 2005, and references therein). The height range, i.e., 80–110-km heights, is corresponding to the mesosphere and lower thermosphere as well as the ionospheric D and E regions. At high latitudes, energetic particles precipitating from the magnetosphere can often penetrate into the E region and even into the D region. For example, electrons with energy of 20 keV can penetrate into $\sim 90\,\hbox {km}$ height (cf. Turunen et al. 2009). Thus, the influence of energetic particles on the Na layer is of interest regarding changes in atmospheric composition accompanied by auroral or geomagnetic activity.

There have been several previous investigations related with this issue (von Zahn et al. 1987; Nomura et al. 1987; Gu et al. 1995; Heinselman et al. 1998; Heinselman 2000; Tsuda et al. 2013; Takahashi et al. 2017; Tsuda et al. 2017). In most of them, event-based investigations (without statistical dataset) were performed, and those reported conflicting results and/or suggestions regarding the response in the Na density to auroral activity. In some cases, the Na density increased (von Zahn et al. 1987; Gu et al. 1995), and in others, it decreased (Nomura et al. 1987; Heinselman et al. 1998; Heinselman 2000; Tsuda et al. 2013; Takahashi et al. 2017).

Contrary to those works, Tsuda et al. (2017) made a statistical investigation on the global response in the Na layer to geomagnetic activity using Na density data from 2004 to 2010 obtained using the Optical Spectrograph and Infrared Imager System (OSIRIS) on board the Odin satellite. As the results, they found a significant decrease in the Na density above $\sim 95 \,\hbox {km}$ height in both the southern and northern polar regions during the geomagnetically active periods. The reason for the Na density decrease is considered to be as follows (cf. Heinselman 2000; Takahashi et al. 2017, and references therein). First, ionization by energetic particles related with geomagnetical activity can produce $\hbox {NO}^{+}$ and $\hbox {O}_{2}^{+}$ ions. Then, the following charge transfer reactions, namely, $\hbox {Na} + \hbox {NO}^{+}\rightarrow \hbox {Na}^{+} + \hbox {NO}$ and $\hbox {Na} + \hbox {O}_{2}^{+} \rightarrow \hbox {Na}^{+} + \hbox {O}_{{2}}$, can lead to the loss of Na and at the same time the generation of $\hbox {Na}^{+}$. In this way, it is considered that the energetic particles can be an important factor to induce such Na-layer variations.

Furthermore, the reason why there was no significant Na decrease below $\sim 95 \,\hbox {km}$ can be explained by considering shorter lifetimes of $\hbox {Na}^{+}$ at lower heights (Tsuda et al. 2017). As mentioned above, the Na decrease and $\hbox {Na}^{+}$ increase can be induced at the same time due to the charge transfer reactions with the enhanced ionization (cf. Heinselman 2000; Takahashi et al. 2017). After that, the produced $\hbox {Na}^{+}$ can be converted back to Na with the $\hbox {Na}^{+}$ lifetime, which is generally shorter at lower heights, e.g., $10^{2}\,\hbox {s}$ at 90 km, $10^{3}\,\hbox {s}$ at 95 km, and $10^{4}\,\hbox {s}$ at 100 km (cf. Matuura et al. 2013). Thus, at lower heights, the decrease in the Na density can be more limited.

In the present study, we perform a statistical analysis on such Na layer responses using Na density data, together with cosmic noise absorption (CNA) data. Those data were obtained from simultaneous observations at Syowa, Antarctic ($69.0^{\circ }\,\hbox {S}$, $39.6^{\circ }\,\hbox {E}$). Utilizing the ground-based observational data, we can investigate local-time characteristics in the Na-layer response for the first time. It should be noted that it was difficult to see such local-time variations in the Na-layer response from the statistical investigation by Tsuda et al. (2017) because of the dataset obtained from the polar orbit satellite, Odin.

Data

Na density

Na lidar observations were carried out, as a part of the Japanese Antarctic Research Expedition (JARE) observations, at Syowa ($69.0^{\circ }\,\hbox {S}$, $39.6^{\circ }\,\hbox {E}$) in Antarctica between 2000 and 2002 (cf. Kawahara et al. 2002, 2004, 2011). In this laser remote sensing, laser pulses tuned to the Na $\hbox {D}_{{2}}$ line (589 nm) were transmitted vertically, and it induced Na resonance scattering in Na layers above Syowa. The scattering signals were collected with the telescope, and then detected with the photomultiplier tube (PMT) through the optical system including the narrowband filter. The regular operations with the two-frequency technique (cf. She et al. 1990) provided neutral temperature and Na density data. The accumulated dataset in 2000–2002 consists of 254 nights. In the present analysis, we used Na density data, derived from 12-min and 2-km integration, of the whole nights, i.e., 254 nights. Thus, the time and height resolutions of the Na density data were 12 min and 2 km, respectively.

CNA

CNA is an absorption of cosmic radio noise in the ionospheric D region, which is caused by the ionospheric electron density enhancement due to energetic particle precipitation. Thus, CNA data can be used as a proxy for energetic particle precipitation into the D region, and it were obtained from the imaging riometer with an $8 \times 8$ dipole antenna array at Syowa (cf. Yamagishi et al. 2000). The observations provided CNA data for $8 \times 8$ beams in an area of about $\hbox {200-km} \times \hbox {200-km}$ at an altitude of 90 km. The observation frequency was 30 MHz, and the data sampling rate was 1 Hz. Precipitation of 10–100-keV electrons into 80–100-km heights could be mainly monitored by the CNA observations. For comparisons with the Na density data, we selected CNA data from a single direction, which was a near-vertical direction, during the same days as the Na density data, i.e., 254 days in total. Here, the center of 24-h data for each day was set to the local midnight at Syowa, i.e., 00:00 local time (LT) $=$ 21:00 magnetic local time (MLT) $=$ 21:00 universal time (UT). Then, 12-min averaged CNA data were calculated to fit the time resolution of the Na density data.

Results

Direct comparison between Na density and CNA

Figure 1a shows a comparison between simultaneous Na density data at 105 km and CNA data, as an example. It seems that there was a large variability, and its correlation coefficient (CC) was very small ($-0.065$). This would be mainly due to large variations in the Na density, which may be due to seasonal, day-to-day, diurnal, and other variations. In addition, the narrow lidar beam, compared with the wide riometer beam, may contribute to the large variability to some extent. We may see a tendency that Na densities were lower ($<1.5 \times 10^{8}\,\hbox {m}^{-3}$) when CNA was larger ($>1.5 \,\hbox {dB}$), while the number of data for such larger CNA may not be enough.

Fig. 1

a Comparison between Na density at 105 km and CNA, and its correlation coefficient is also shown in the figure. b Probability density function (PDF) of Na density at 105 km for CNA of 0–0.25 dB (quiet). Black shows data from observations, and red shows a fitted PDF with a least-squares method. Derived parameters of the fitted PDF are also shown in the figure. c Same as b but for CNA of 0.25–2 dB (active)

Here, to see in more detail, we separated data into two groups based on CNA values. One is CNA of 0–0.25 dB, which corresponds to a quiet condition. The other is CNA of 0.25–2 dB, which corresponds to an active condition. The total number of data points for the quiet condition was 3148, and that for the active condition was 2847. We counted numbers of data points for each bin in the Na density for each group, and then normalized it with the total numbers of data points for each group. After that, we applied fittings with the lease-squares method assuming a log-normal distribution ($f_{\left( x \right) }=\frac{A}{\sqrt{2\pi } \sigma x}{{\mathrm{exp}}}\left( -\frac{\left( {{\mathrm{ln}}}x-\mu \right) ^{2}}{2\sigma ^2}\right)$). In this way, we obtained probability density functions (PDFs) for the two groups, as shown in Figs. 1b and c. The median ($\mathrm{e}^{\mu }$) of PDF for the quiet condition was $1.8\times 10^{8} \pm 1.2\times 10^{7}\,\hbox {m}^{-3}$, and that for the active condition was $1.4\times 10^{8} \pm 5.9 \times 10^{6}\, \hbox {m}^{-3}$. Thus, there was a significant difference between them, and the median Na density for the active condition was smaller. The mode ($\mathrm{e}^{\mu - \sigma ^{2}}$) for the quiet condition was $4.0\times 10^{7}\pm 4.7\times 10^{6}\, \hbox {m}^{-3}$, and that for the active condition was $4.8\times 10^{7}\pm 3.5\times 10^{6}\,\hbox {m}^{-3}$. Thus, the difference between them was not so clear. The standard deviation ($\sqrt{{{\mathrm{e}}}^{2\mu + \sigma ^{2}}\left( {{\mathrm{e}}}^{\sigma ^{2}} -1 \right) }$) for the quiet condition was $6.7\times 10^{8}\pm 7.8\times 10^{7}\,\hbox {m}^{-3}$, and that for the active condition was $3.2\times 10^{8}\pm 2.4\times 10^{7}\,\hbox {m}^{-3}$. Thus, there was a significant difference between them, and the standard deviation for the active condition was smaller.

Fig. 2

a Median values in the fitted PDF of the Na densities from 85 to 105 km for CNA of 0–0.25 dB (blue) and CNA of 0.25–2 dB (red). b Deviation between the median values for CNA of 0–0.25 dB (quiet) and CNA of 0.25–2 dB (active) which are shown in a. The horizontal error vars correspond to $\pm 1 \sigma$

We did same data processing for Na density data from 85 to 105 km, and then the obtained median values of PDFs are shown in Fig. 2a. Also, the deviation between the median values ($\frac{{{\mathrm{Na}}}_{{{\mathrm{active}}}} - {{\mathrm{Na}}}_{{{\mathrm{quiet}}}}}{\mathrm{Na}_{{{\mathrm{quiet}}}}} \times 100$ (%)), where ${{\mathrm{Na}}}_{\mathrm{active}}$ is the median Na density during the active condition, and ${{\mathrm{Na}}}_{{{\mathrm{quiet}}}}$ is the median Na density during the quiet condition, are shown in Fig. 2b. The results at 95–105 km were basically similar to those at 105 km, which is mentioned in the previous paragraph (see Fig. 1), and thus, it is found that the median values above 95 km for the active condition were significantly smaller than those for the quiet condition. The deviations above 95 km correspond to 10–20% decreases (i.e., $-10$ to $-20\%$) in the Na density.

MLT characteristics

For investigation on the MLT characteristics, we used 3-h ap indices which indicate geomagnetical or auroral activity. In similar way as the CNA data, we selected ap indices during the 254 days and calculated 24-h averaged ap index from 09:00 MLT to 09:00 MLT, i.e., the center of time interval was set to the local midnight, 00:00 LT $=$ 21:00 MLT $=$ 21:00 UT. It should be noted that the calculated daily averaged ap index is different from the normal daily averaged ap index, Ap index, which is the averaged ap indices from 00:00 UT to 24:00 UT. We defined quiet days as days with the daily averaged ap index of $<10$, and active days as days with that of $\ge 10$. Thus, we categorized the Na density and CNA data into data of 153 quiet days and data of 101 active days.

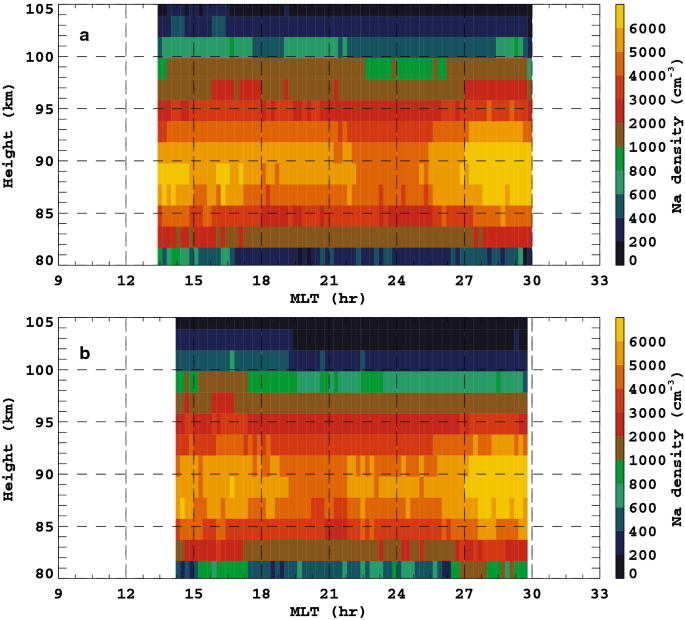

Fig. 3

MLT-height variations in the median Na densities during a the quiet days (the daily averaged ap $< 10$) and b the active days (the daily averaged ap $\ge 10$)

To see statistical features, we calculated median values from the datasets at each time and height for each activity level. Figure 3 shows MLT-height variations in the median Na densities during the quiet and active days. It should be noted that the data coverages were limited during nighttime (14:00–30:00 MLT) because of the Na lidar observations during dark sky. In both the quiet and active days, Na layers were distributed at 80–105-km heights, and its density peaks were located at $\sim 90 \,\hbox {km}$ height. Overall, it seems that there was no big difference between the median Na densities during the quiet and active days, but we can see some slight differences around the topside of Na layers ($\sim 100 \,\hbox {km}$ height). At $\sim 100 \,\hbox {km}$ height, the median Na densities during the active days were a bit smaller than those during the quiet days.

Fig. 4

a–d MLT variations in the Na densities at 97–103-km heights during the quiet days (the daily averaged ap $< 10$). e MLT variation in the CNA during the quiet days. f–i Same as a–d, but for the active days (the daily averaged ap $\ge 10$). j Same as e, but for the active days. Light gray lines show variations on each day. Black lines show median values, and lower and upper quantile values of each dataset. Red points indicate data which have significant differences ($>98\%$ probability) in the median values between the quiet and active days

For more detailed inspection, Fig. 4 shows MLT variations of the Na densities at 97–103-km heights during the quiet and active days, together with the CNA variation. Variations of Na densities and CNA of each day were quite large, which may be due to seasonal, day-to-day, diurnal, and other variations. Here, we investigate statistical features utilizing median values during the quiet and active days. At 103-km height, median Na densities during the active days were $\sim 300 \,\hbox {cm}^{-3}$ at $\sim 15{:}00$ MLT and $\sim 150 \,\hbox {cm}^{-3}$ at $\sim 24{:}00$ MLT, and those during the quiet days were $\sim 400\,\hbox {cm}^{-3}$ at $\sim 15{:}00$ MLT and $\sim 250\,\hbox {cm}^{-3}$ at $\sim 24{:}00$ MLT. Thus, the median Na densities during the active days were mostly small compared with those during the quiet days, and those during both the quiet and active days were decreasing with MLT from dusk hours to dawn hours. Similar characteristics can be seen in those at 97–101-km heights.

On the other hand, median CNA values during the active days were $\sim 0.2 \,\hbox {dB}$ at $\sim 21{:}00$ MLT and $\sim 0.5 \,\hbox {dB}$ at $\sim 30{:}00$ MLT, and those during the quiet days were $\sim 0.0 \,\hbox {dB}$ at $\sim 21{:}00$ MLT and $\sim 0.1 \,\hbox {dB}$ at $\sim 30{:}00$ MLT. Thus, the median CNA values during the active days were mostly large compared with those during the quiet days, and that during the active days was decreasing with MLT from dusk hours to dawn hours.

To confirm significance in such differences between the median values during the quiet and active days, we did a statistical test which is the Mann–Whitney U test. Then, the median values with more than 98% probability were marked by red. It is found that most of such differences were significant in the cases of Na densities at 99–103-km heights, but most of those at 97-km height were not so significant. In the case of CNA, such differences were significant except for 13:00–20:00 MLT.

To make more detailed comparisons, we calculated Na deviations defined as $\frac{{{\mathrm{Na}}}_{{{\mathrm{active}}}} - \mathrm{Na}_{{{\mathrm{quiet}}}}}{{{\mathrm{Na}}}_{{{\mathrm{quiet}}}}} \times 100$ (%), where ${{\mathrm{Na}}}_{{{\mathrm{active}}}}$ is the median Na density during the active days, and ${{\mathrm{Na}}}_{{{\mathrm{quiet}}}}$ is the median Na density during the quiet days. On the other hand, CNA deviations were also calculated as ${{\mathrm{CNA}}}_{{{\mathrm{active}}}} - {{\mathrm{CNA}}}_{{{\mathrm{quiet}}}}$ (dB), where ${{\mathrm{CNA}}}_{{{\mathrm{active}}}}$ is the median CNA during the active days, and ${{\mathrm{CNA}}}_{{{\mathrm{quiet}}}}$ is the median CNA during the quiet days. It should be noted that we did a normalization, i.e., $\times \frac{100}{{{\mathrm{Na}}}_{{{\mathrm{quiet}}}}}$, for the Na deviation, and it would be useful to compare different Na densities at different heights. On the other hand, the CNA deviation corresponds to $10\times \hbox {log}_{{10}}(\hbox {P}_{\mathrm{quiet}}{/}\hbox {P}_{{{\mathrm{active}}}}$), because the definition of CNA is $10\times \hbox {log}_{{10}}(\hbox {P}_{\mathrm{qdc}}/\hbox {P}_{{{\mathrm{abs}}}})$, where $\hbox {P}_{{{\mathrm{qdc}}}}$, $\hbox {P}_{{{\mathrm{abs}}}}$ are the received signal powers for the quiet day curve and the absorption, respectively. Then, $\hbox {P}_{\mathrm{quiet}}$ is the received signal power for the absorption during the quiet days, and $\hbox {P}_{{{\mathrm{active}}}}$ is that during the active days.

Fig. 5

a MLT-height variation in the Na deviation. b Same as a, but insignificant data ($\le 98\%$ probability) are shaded by gray color. c MLT variation in the CNA deviation. Red points indicate data which have significant differences ($>98\%$ probability) in the median values between the quiet and active days. For both the Na and CNA deviations, negative values indicate decrease during the active days, and positive values indicate increase during the active days

Figure 5 shows MLT-height variations in the Na and CNA deviations. Concerning to the Na densities around 95–105-km heights, significant negative Na responses (with $>98\%$ probability), i.e., Na decreases, can be seen during most of the period, i.e., 15:00–30:00 MLT. The Na deviations were $-20\%$ at $\sim 15{:}00$ MLT, and $-60\%$ at $\sim 29{:}00$ MLT. Thus, amounts of the Na decreases were larger with MLT from dusk hours to dawn hours. On the other hand, most of the Na responses below 95-km height were insignificant (with $\le 98\%$ probability). As for the CNA deviations, significant positive CNA responses, i.e., CNA increases, can be seen for 20:00–32:00 MLT. The CNA responses were opposite to the Na density responses, i.e., negative responses. The CNA deviations were $\sim 0.1 \,\hbox {dB}$ at $\sim 21{:}00$ MLT and $\sim 0.4 \,\hbox {dB}$ at $\sim 32{:}00$ MLT. Thus, amounts of the CNA increases were larger with MLT from dusk hours to dawn hours.

Fig. 6

a–d Scatterplots (with zero lag) of the Na and CNA deviations at 97–103-km heights. Red points indicate data which have significant differences ($> 98\%$ probability) in the median values between the quiet and active days. e–h The correlation coefficients (CC) between the Na and CNA deviations (derived from the cross-correlation analysis) at 97–103-km heights

Scatter plots as well as CCs of the Na and CNA deviations are shown in Fig. 6. It should be noted that both the significant and insignificant data were included for CC calculations. It seems that the decreases in the Na deviations tended to be more severe with the increasing CNA deviations. For example, at 103-km height, the Na deviations were 0 to $-40\%$ when the CNA deviations were $\sim 0.0 \,\hbox {dB}$, and the Na deviations were $-20$ to $-60\%$ when the CNA deviations were 0.1–0.2 dB. The CCs at 103-km height have a negative peak around zero lag, and its value was about $-0.6$. Similar characteristics can be seen also at 97–101-km heights. Thus, there were clear negative correlations between the Na and CNA deviations.

Discussion and conclusions

As mentioned in introduction, several event-based investigations were done, and those reported conflicting results and/or suggestions regarding the response in the Na density to auroral activity. In some cases the Na density increased (von Zahn et al. 1987; Gu et al. 1995), and in others, it decreased (Nomura et al. 1987; Heinselman et al. 1998; Heinselman 2000; Tsuda et al. 2013; Takahashi et al. 2017). In addition, Tsuda et al. (2017) made a statistical investigation using Odin/OSIRIS data together with AE index, and it showed a significant decrease in the Na density above $\sim 95 \,\hbox {km}$ height during the geomagnetically active periods. However, statistical investigation based on comparisons with CNA data (or energetic particle information) has not been performed before the present work.

From the direct comparison between Na density and CNA data (indicating energetic particles), it is found that there were large variabilities in relationships between Na density and CNA data (see Fig. 1a). This would indicate that the energetic particle effect is not the only major contributor to Na density, and many other factors (such as seasonal, day-to-day, diurnal, and other variations) can contribute to Na density. To extract the effect due to CNA, we made comparisons in data distributions (or PDFs) during the larger and smaller CNA conditions (or the active and quiet conditions). Then, we found the significant decrease in the median values of the fitted PDF of Na density above $\sim 95 \,\hbox {km}$ height in the active condition (i.e., the larger CNA condition) (see Fig. 2b). This would suggest, for the first time, a direct effect of energetic particles on the topside of the Na layer around 95–105 km. As mentioned in introduction, the reason for the Na loss (cf. Heinselman 2000; Takahashi et al. 2017, and references therein) can be explained by the energetic particle-induced ionization and then the ionization-promoted charge transfer reactions, $\hbox {Na} +\hbox {NO}^{+}$ $\rightarrow \hbox {Na}^{+} + \hbox {NO}$ and $\hbox {Na} + \hbox {O}_{2}^{+}\rightarrow \hbox {Na}^{+} + \hbox {O}_{{2}}$. Hence, larger energy flux of the energetic particles can cause larger ionization (as well as larger CNA), and then more charge transfer reactions by more $\hbox {NO}^{+}$ and $\hbox {O}_{2}^{+}$ ions can be promoted. In this way, it is considered that the larger Na loss would be induced in accordance with the larger CNA (indicating larger ionization).

As for the MLT characteristics, it is found that the CNA deviation was increasing from 18:00 MLT to 32:00 MLT (see Fig. 5c). This result would be a well-known general feature which was obtained from other riometer observations (e.g., Kavanagh et al. 2004). The CNA increase indicates enhancements of D region electron densities, and then such enhancements imply more precipitation (larger energy flux) of the energetic particles (cf. Tanaka et al. 2005), which would consist of mainly 10–100-keV electrons. MLT features of such energetic electrons were investigated by satellite observations (Lam et al. 2010). They showed that the energy flux of energetic electrons ($>30 \,\hbox {keV}$) increased during the active periods (with AE index of $>300 \,\hbox {nT}$), and that the energy flux was increasing from 18:00 MLT to 30:00 MLT, i.e., from dusk hours to dawn hours. Thus, the observed MLT feature in the CNA deviation can be well explained by the MLT feature of the energy flux of the energetic electrons reported in Lam et al. (2010). In addition, Hosokawa and Ogawa (2015) showed that peak height of electron density due to pulsating aurora was lower with MLT (from 110 km at 27:00 MLT to 100 km at 30:00 MLT), analyzing the ground-based observation data obtained at Tromsø, Norway ($69.6^{\circ }\,\hbox {N}$, $19.2^{\circ }\,\hbox {E}$). Their results imply that the energy of energetic electrons become larger with MLT, and it would be also consistent with the MLT feature of the CNA deviation obtained from our statistical data analysis.

On the other hand, an importance of the present work is the statistical investigation on MLT characteristics on Na density as well as CNA based on the simultaneous data from the co-located instruments. The observed MLT characteristics in the Na deviations were mostly negative (i.e., decrease in Na density) above $\sim 95 \,\hbox {km}$ height during the active days (see Fig. 5b). The Na deviations were well correlated with the CNA deviations, and its CC were less than $-0.6$, i.e., clear negative correlations. This would imply a strong link between them. Thus, these observed MLT characteristics in the Na- and CNA-deviations would be observational evidences for the Na loss induced by the energetic particle precipitation during geomagnetic active days, and it suggests that the effect on the Na layer would be more severe in dawn hours. Furthermore, the results in the MLT characteristics are well consistent with that from the direct comparison. These statistical results from the present work would be also consistent with those by Tsuda et al. (2017).

As discussed above, the main cause for the larger Na loss around dawn hours would be due to the larger energy flux of the energetic particles around dawn hours. Such larger energy flux around dawn hours can be coming from the magnetospheric processes such as pitch angle scattering by lower-band chorus waves (cf. Lam et al. 2010; Miyoshi et al. 2015, and references therein), but it is beyond the scope of the present work.
