Evaluation of hydrological and cryospheric angular momentum estimates based on GRACE, GRACE-FO and SLR data for their contributions to polar motion excitation

Abstract

In geodesy, a key application of data from the Gravity Recovery and Climate Experiment (GRACE), GRACE Follow-On (GRACE-FO), and Satellite Laser Ranging (SLR) is an interpretation of changes in polar motion excitation due to variations in the Earth’s surficial fluids, especially in the continental water, snow, and ice. Such impacts are usually examined by computing hydrological and cryospheric polar motion excitation (hydrological and cryospheric angular momentum, HAM/CAM). Three types of GRACE and GRACE-FO data can be used to determine HAM/CAM, namely degree-2 order-1 spherical harmonic coefficients of geopotential, gridded terrestrial water storage anomalies computed from spherical harmonic coefficients, and terrestrial water storage anomalies obtained from mascon solutions. This study compares HAM/CAM computed from these three kinds of gravimetric data. A comparison of GRACE-based excitation series with HAM/CAM obtained from SLR is also provided. A validation of different HAM/CAM estimates is conducted here using the so-called geodetic residual time series (GAO), which describes the hydrological and cryospheric signal in the observed polar motion excitation. Our analysis of GRACE mission data indicates that the use of mascon solutions provides higher consistency between HAM/CAM and GAO than the use of other datasets, especially in the seasonal spectral band. These conclusions are confirmed by the results obtained for data from first 2 years of GRACE-FO. Overall, after 2 years from the start of GRACE-FO, the high consistency between HAM/CAM and GAO that was achieved during the best GRACE period has not yet been repeated. However, it should be remembered that with the systematic appearance of subsequent GRACE-FO observations, this quality can be expected to increase. SLR data can be used for determination of HAM/CAM to fill the one-year-long data gap between the end of GRACE and the start of the GRACE-FO mission. In addition, SLR series could be particularly useful in determination of HAM/CAM in the non-seasonal spectral band. Despite its low seasonal amplitudes, SLR-based HAM/CAM provides high phase consistency with GAO for annual and semiannual oscillation.

Introduction

One of the important tasks in contemporary geodesy is to determine and interpret changes in polar motion (PM), which is one of the parameters describing the rotation of our planet. PM is influenced by wide range of external factors with different frequency and magnitude. In previous works, particular attention was paid to assessing the role of global mass redistribution of liquid and gaseous surface components of the Earth, namely the atmosphere, ocean, continental hydrosphere and cryosphere (Brzeziński et al. 2009; Seoane et al. 2009). Such impacts were examined using information on temporal variations of the gravity field provided by the Gravity Recovery and Climate Experiment (GRACE) mission (Tapley et al. 2004, 2019; Wahr et al. 1998; Wouters et al. 2014), which was operational between 2002 and 2017. After the end of the GRACE activity, a successor of the GRACE mission, GRACE Follow-On (GRACE-FO), was launched in 2018 and continues its measurements to the present (Kornfeld et al. 2019; Landerer et al. 2020).

In the studies on PM variations due to global mass redistribution, particular emphasis was placed on determining the contribution of the continental hydrosphere and cryosphere (e.g., Göttl et al. 2018; Jin et al. 2010, 2012; Meyrath and van Dam 2016; Nastula and Śliwińska 2020; Nastula et al. 2007, 2011, 2019; Seoane et al. 2011, 2012; Śliwińska et al. 2019, 2020a, b; Wińska et al. 2016, 2017). The sum of land hydrosphere and cryosphere components, which include soil water, surface water, groundwater, water in snow cover and ice, and water in vegetation, is commonly known as terrestrial water storage (TWS). It has been shown that variation in TWS mainly affects the annual changes in PM (Chen and Wilson 2005), which may be related to the seasonal change in rainfall and the associated variations in soil moisture. However, groundwater storage, which is a component of TWS with more long-term variability than soil moisture, may affect PM changes at interannual and longer time scales (Youm et al. 2017).

The contribution of continental hydrosphere and cryosphere to changes in PM is typically examined by analyzing two equatorial components (χ1 and χ2) of the so-called hydrological and cryospheric excitation of PM or hydrological and cryospheric angular momentum (HAM/CAM). For convenience, a complex form (χ1 + 2) can be used. Of the two levels of GRACE data processing, Level-2 (Bettadpur 2018a, b; Dahle et al. 2018; Yuan 2018) and Level-3 (Cooley and Landerer 2020), the former has most often been used to determine HAM/CAM (e.g., Fernández et al. 2007; Meyrath and van Dam 2016; Nastula and Śliwińska 2020; Nastula et al. 2007; Seoane et al. 2009; Śliwińska and Nastula 2019; Śliwińska et al. 2020a, b). This method involves using ΔC21 and ΔS21 (degree-2 order-1) spherical harmonic (SH) coefficients of geopotential. Another method of HAM/CAM determination is the use of Level-3 GRACE data, which are represented by TWS anomalies, as presented in Nastula et al. (2019), Seoane et al. (2011), and Śliwińska et al. (2019, 2020b). TWS variations in Level-3 data can be computed either from SH coefficients of geopotential or directly from range-rate measurements by using mascon (MAS) functions.

The great importance and usefulness of the GRACE and GRACE-FO data has been emphasized by the scientific community. However, there is a gap in GRACE/GRACE-FO estimates, spanning from the end of the GRACE mission (July 2017) to the start of GRACE-FO (May 2018). Therefore, researchers began searching for alternative data sources that could be used to fill this gap. For example, for the purpose of HAM/CAM estimation, temporal gravity field models obtained from kinematic orbits of low-Earth-orbit satellites were used by Śliwińska and Nastula (2019).

Another source of data for determination of HAM/CAM is gravity field models obtained from Satellite Laser Ranging (SLR) measurements. It is commonly known that the SLR technique is critical in the precise determination of second zonal parameter (ΔC20) of geopotential, which is related to the Earth’s flattening (Chen and Wilson 2008; Cheng et al. 2011). Moreover, ΔC21 and ΔS21 coefficients, which are proportional to changes in the mass term of PM excitation, are also quite well determined by the SLR method. Another advantage of the SLR approach is that the data available cover the entire period of GRACE and GRACE-FO activity, including a one-year gap between the two missions, so there is a good potential to validate the SLR datasets through comparison with GRACE/GRACE-FO estimates. A disadvantage of the SLR approach is that the currently available SLR solutions have a relatively low resolution (maximum degree and order of 10), and thus it is not possible to obtain high-resolution maps of TWS distribution. Therefore, HAM/CAM estimates based on TWS from SLR may not be sufficiently accurate, and only ΔC21 and ΔS21 coefficients are commonly used for computation of precise HAM/CAM series from SLR.

The objective of this study is to estimate the contribution of the land hydrosphere and cryosphere to PM excitation as observed by GRACE. To do this, we calculate the HAM/CAM series based on different types of GRACE data, namely ΔC21 and ΔS21 coefficients, TWS anomalies computed from SH coefficients of geopotential, and TWS anomalies obtained from MAS data. The analysis of the near 14-year-length GRACE-derived HAM/CAM time series allows us to select the most appropriate method for determining HAM/CAM from GRACE-like mission data in various spectral bands. We also assess the quality of the determined HAM/CAM by comparing them with geodetic residual time series (GAO) data obtained from observations and geophysical models. Comparison and evaluation of HAM/CAM series is conducted separately for trends and for seasonal and non-seasonal variations. As previous studies have demonstrated the highest usefulness of MAS data in the studies of global and regional mass variations of land water and ice (e.g., Jing et al. 2020; Long et al. 2017; Luthcke et al. 2013; Rateb et al. 2017; Schrama et al. 2014), we check whether this also applies to PM excitation. In particular, we assess the improvement of HAM/CAM determined when MAS data are used instead of other GRACE data types. This study also provides preliminary HAM/CAM estimates derived from data from the first two years of the new GRACE-FO mission. As there is a gap in data between the end of the GRACE and start of the GRACE-FO mission that is nearly a year in duration, we also test the usefulness of the SLR solution in the determination of HAM/CAM. The results of this study could be used to recommend the GRACE and GRACE-FO data that are most suitable for PM excitation determination for certain oscillations.

Data and methods

Hydrological and cryospheric signal in observed PM excitation

Contemporary space geodesy techniques, such as VLBI (Very Long Baseline Interferometry), SLR, and GNSS (Global Navigation Satellite Systems), provide precise measurements of variations in pole coordinates (x, y). The method described in Brzezinski (1992) and Eubanks (1993) allows the determination of equatorial components (χ1, χ2) of observed (geodetic) excitation of PM (geodetic angular momentum, GAM) from x and y. GAM series describe total variation in PM resulting from external effects, including hydrological, cryospheric, oceanic, and atmospheric signals. In order to separate the HAM/CAM signal from GAM, the effects of atmospheric pressure and winds (described by mass and motion terms of atmospheric angular momentum, AAM), and ocean bottom pressure and currents (described by mass and motion terms of oceanic angular momentum, OAM), should be removed from GAM. The resulting series are usually denoted as geodetic residual time series and abbreviated as GAM–AAM–OAM or simply GAO. AAM and OAM, needed for computation of GAO, are calculated using data from geophysical models of atmosphere and oceans. Detailed information on determining GAO can be found in Śliwińska et al. (2020a) or Wińska and Śliwińska (2019).

GAO series represent mainly the impact of land hydrosphere and cryosphere on PM excitation; however, they also contain signals from barystatic sea-level changes, large earthquakes, post-glacial rebound, and other un-modeled signals, i.e., errors in AAM and OAM. The post-glacial rebound process mainly affects the trend in PM excitation and can be removed by applying a glacial isostatic adjustment (GIA) model (A et al. 2013; Peltier et al. 2015). It should be also noted that in GAO, both mass and motion parts of HAM/CAM are present, while GRACE and GRACE-FO measurements provide only mass term of HAM/CAM. It has been stated in the work of Dill (2008) that the motion term of HAM is caused mainly by high-velocity river flows in the areas with high topographic slopes, and such regions do not necessarily correspond to the areas with high sensitivity to the mass part of HAM. The motion term of HAM shows seasonality and the maximum river flows occurs in late spring, which is typical of melting snow and ice. However, Dobslaw et al. (2010) computed the annual amplitudes of motion part of HAM, estimated from Land Surface Discharge Model (LSDM), and showed that they are approximately zero. Therefore, it can be assumed that motion term of HAM can be omitted and its absence should not affect the final results. Nevertheless, it should be kept in mind that the HAM motion term obtained from LSDM considers only the fresh water flow. The motion part of CAM is not considered in LSDM as no sophisticated model of ice mass transport and precipitation over glaciated regions is applied (Dill 2008). LSDM includes only the annual snow accumulation and melting, while the long-term ice mass is kept constant. As the integration of complex thermo-mechanical model of ice sheets is still an unsolved task, the absence of CAM motion term has not been validated yet.

In this study, for computation of GAO, we used the following datasets:

There are a number of atmosphere and ocean models that can be used for AAM and OAM determination. We selected the ECMWF and MPIOM models because their use provides results that are consistent with GRACE/GRACE-FO estimations. This is because GRACE/GRACE-FO Atmosphere and Ocean De-Aliasing Level-1B dataset (AOD or AOD1B) (Dobslaw et al. 2017), which was used by the computing centers to remove non-tidal atmospheric and oceanic contributions from GRACE/GRACE-FO gravity fields, is based on the same two models. Therefore, the highest possible consistency between HAM/CAM and GAO in terms of AAM and OAM errors is maintained.

HAM/CAM determination from the GRACE/GRACE-FO Level-2 data

In general, two types of GRACE/GRACE-FO data can be used to calculate mass terms of HAM/CAM, namely Level-2 data and Level-3 data. Level-2 GRACE/GRACE-FO datasets have a form of SH coefficients of geopotential with a specified maximum degree and order. However, for the study of polar motion excitation, only degree-2 order-1 (ΔC21, ΔS21) coefficients are needed. These data are also known as GSM (GRACE Satellite-only Model) coefficients. The changes in χ1 and χ2 equatorial components of HAM/CAM are proportional to the variations in ΔC21 and ΔS21, which allows the calculation of HAM/CAM independently from other coefficients (Chen and Wilson 2008). The relationship between χ1 and χ2 components of HAM/CAM and ΔC21 and ΔS21 coefficients of geopotential can be described as follows (Gross 2015; Eubanks 1993):

$$\chi_{1} = - \sqrt {\frac{5}{3} \cdot } \frac{{1.608 \cdot R_{e}^{2} \cdot M}}{{C - A^{\prime}}}\Delta C_{21} ,$$
(1)
$$\chi_{2} = - \sqrt {\frac{5}{3} \cdot } \frac{{1.608 \cdot R_{e}^{2} \cdot M}}{{C - A^{\prime}}}\Delta S_{21} ,$$
(2)

where Re is the Earth’s mean radius; M is the Earth’s mass; A, B, and C are the principal moments of inertia for Earth (A = 8.0101 × 1037 kg·m2, B = 8.0103 × 1037 kg·m2, and C = 8.0365 × 1037 kg·m2, from Gross 2015); A′ = (A + B)/2 is an average of the equatorial principal moments of inertia; and ΔC21 and ΔS21 are the normalized SH coefficients of geopotential.

Since the atmospheric and oceanic impacts are removed in all GRACE/GRACE-FO datasets using the AOD product, HAM/CAM computed in this way contains mainly the hydrological and cryospheric signals (Bettadpur 2018a; Dobslaw et al. 2017). However, similar to GAO, HAM/CAM computed from ΔC21 and ΔS21 contains also other signals such as the effects of post-glacial rebound, barystatic sea-level changes, or tectonic events related to large earthquakes (Śliwińska et al. 2020a). In addition, some residual atmospheric and ocean signals that remain after applying AOD data to GRACE/GRACE-FO solutions by processing centers may not be completely removed. Such residual effects are mainly related to non-removal of the entire atmosphere and ocean mass, errors in the atmospheric and ocean models used, or leakage between continents and oceans (Nastula 2017). However, the errors of the atmospheric and ocean models are also associated with GAO.

HAM/CAM determination from the GRACE Level-3 data

In contrast to the previous data type, Level-3 GRACE data have a form of terrestrial water storage (TWS) anomalies related to the average value. In the Level-3 GRACE data, a number of corrections are applied for better representation of the TWS anomalies. These corrections are: degree-2 zonal coefficient (ΔC20) or Earth’s flattening correction (Cheng et al. 2011), degree-1 coefficients (ΔC10, ΔC11, ΔS11) or geocenter correction (Swenson et al. 2008), and glacial isostatic adjustment (GIA) correction (Peltier et al. 2018).

TWS variation can be determined from gravity field observations in several ways. The most common methods involve the use of either SH coefficients of Level-2 data (see, for example, Eqs. 1 and 2 in Śliwińska et al. 2019), or MAS solutions (Rowlands et al. 2010; Watkins et al. 2015). The calculation of TWS based on SH coefficients requires summing up the effects represented by all available SH coefficients up to their maximum degree. The resulting TWS variations suffer from limitations associated with the constellation of GRACE satellites, which causes vertical stripes on the maps and requires data filtering (Swenson and Wahr 2006). However, the filtration of TWS data removes part of the actual geophysical signal, which then needs to be restored using gain factors (Landerer and Swenson 2012). Nevertheless, Göttl et al. (2019) showed that filtration has a minor effect on PM excitation obtained from TWS data. In the newest GRACE Level-3 data, TWS anomalies computed from the SH method are filtered to remove north–south stripes, and have gain factors applied to restore geophysical signals removed during filtration (Landerer and Swenson 2012).

In the MAS method, TWS anomalies are derived directly from range-rate and acceleration measurements using mascon functions (Rowlands et al. 2010; Watkins et al. 2015). This approach allows the production of TWS maps without north–south stripes and therefore does not require filtering. In this method, TWS anomalies are determined in equal-area mass concentration blocks, called mascons. In contrast to SH representation, all mascon blocks have a known geographical location.

Equatorial components of HAM/CAM can be computed from TWS anomalies (obtained from both SH and MAS solutions) using the following formulas (Barnes et al. 1983; Eubanks 1993):

$$\chi_{1} = - \frac{{1.0966R_{e}^{2} }}{C - A}\iint {\Delta q\left( {\varphi ,\lambda ,t} \right)\sin \varphi \cos \varphi \cos \lambda {\text{d}}S,}$$
(3)
$$\chi_{2} = - \frac{{1.0966R_{e}^{2} }}{C - A}\iint {\Delta q\left( {\varphi ,\lambda ,t} \right)\sin \varphi \cos \varphi \sin \lambda {\text{d}}S,}$$
(4)

where C and A are Earth’s principal moments of inertia; Re is Earth’s mean radius; ∆q is a change in TWS; \((\varphi ,\lambda ,t)\) are latitude, longitude, and time, respectively; and dS is the surface area. The factor 1.0966 accounts for the yielding of the solid Earth to rotational deformation, surface load, and core–mantle decoupling (Eubanks 1993). Here, for the determination of this relationship, we used Eqs 3–13, 3–33, 3–36 from Eubanks (1993) and the geodetic parameters of the Earth taken from Gross (2015).

The determination of TWS anomalies from raw GRACE/GRACE-FO observations requires many processing steps, including calibration and weighting of observations, removal of unknown signals using background models, or inclusion of appropriate corrections. The data processing algorithms and background models used in the newest release of GRACE solutions and first GRACE-FO datasets are similar. Moreover, for both missions, the three data types (GSM, TWS, and MAS) are available for scientific use. In this study, we consider HAM/CAM series computed using all three GRACE/GRACE-FO data types. To do so, we used the newest solutions provided by the Jet Propulsion Laboratory (JPL):

  • for SH coefficients of geopotential—JPL RL06 solution;

  • for TWS anomalies from SH coefficients of geopotential—JPL RL06 solution;

  • for TWS anomalies from MAS—JPL RL06M v02 solution.

All datasets are accessed from https://podaac-tools.jpl.nasa.gov/drive/files/GeodeticsGravity.

In the remainder of this paper, we use “GSM-based HAM/CAM” for HAM/CAM computed from ΔC21 and ΔS21 SH coefficients of geopotential, “TWS-based HAM/CAM” for HAM/CAM computed from TWS anomalies based on SH coefficients of geopotential, and “MAS-based HAM/CAM” for HAM/CAM computed from TWS anomalies based on MAS data.

At this point, it should be recalled that although non-tidal atmospheric and ocean signals are mostly removed from all GRACE/GRACE-FO data products using AOD, some residual atmospheric and ocean signals are retained in the gravity fields because of the errors in models used. The uncertainties of ocean models affect the ocean areas, while the errors of atmosphere models can affect both the oceans and continents. The signals that are retained over the ocean areas after applying AOD dataset are referred to in this study as residual ocean signals. The use of Eqs. 3 and 4 makes it possible to place a mask on the ocean area, so the resulting HAM/CAM series should be free of signals over oceans. In the case of TWS data, which are determined from the SH expansion, the mask was placed by computing centers (the grids for land and ocean are provided as separate datasets). For MAS-based HAM/CAM, we may consider the so-called global series (global MAS-based HAM/CAM), in which no mask was placed on ocean areas, and the land series (land MAS-based HAM/CAM), in which the mask is applied to ocean regions in order to remove residual ocean signals. In both global and land variants, corrections listed above in this section (GIA, flattening, and geocenter) are included and the only difference between global MAS-based HAM/CAM and land MAS-based HAM/CAM is the removal of residual ocean signals in the latter by placing the mask. By comparing these two variants of MAS-based HAM/CAM, we can assess the effect of residual ocean signals on HAM/CAM variability and on the compatibility between HAM/CAM and GAO.

In contrast, in GSM-based HAM/CAM, whose calculation is based on the relationship between ΔC21 and ΔS21 and χ1 and χ2, the residual ocean signatures are not removed as it is not possible to use a mask for SH data. In addition, GSM-based HAM/CAM has a signal resulting from the lack of removal of GIA. However, for GAO, which is used here for evaluation of different HAM/CAM, residual ocean signatures (due to the errors of the subtracted OAM model) and the GIA trend remain.

HAM/CAM determination from SLR

The SLR data have been extensively used in determination of Earth’s oblateness, the changes of which are proportional to the variations of ΔC20 coefficient, precisely determined with this technique (e.g., Cheng et al. 2011; Chen and Wilson 2008). Moreover, this method delivers also other low-degree coefficients, including ΔC21 and ΔS21, that are necessary for PM excitation computation.

In this study, for HAM/CAM computation, in addition to GRACE/GRACE-FO datasets, we also use the latest monthly SLR solution provided by Center for Space Research (CSR) (available at http://download.csr.utexas.edu/pub/slr/degree_5/CSR_Monthly_5x5_Gravity_Harmonics.txt). The set contains coefficients up to degree and order 5 (plus ΔC61 and ΔS61). The inclusion of ΔC61 and ΔS61 coefficients, not present in previous releases, should improve the consistency between ΔC21 and ΔS21 coefficients from SLR with corresponding values determined from GRACE/GRACE-FO. The SLR series provided by CSR are estimated from analysis of five geodetic satellites, namely LAGEOS-1, LAGEOS-2, Ajisai, Starlette, and Stella (Cheng et al. 2011). From March 2012, the data from an additional satellite (LARES) were included, which contributed to the subsequent improved quality of the SLR solution. It should be also noted that background models used in SLR solution are consistent with those applied in the GRACE/GRACE-FO Release 06 datasets. The series of SH coefficients are provided both with AOD removed and retained. In this study, to maintain consistency with GRACE/GRACE-FO and GAO, we used SLR coefficients in which these effects are eliminated. The data available span from January 2002 to the present.

For computation of HAM/CAM from SLR data, we used ΔC21 and ΔS21 coefficients that had been recomputed into χ1 and χ2 according to Eqs. 1 and 2. For the resulting series, we use “SLR-based HAM/CAM” in the remainder of this paper.

Time series processing and methods of evaluation

Taking into consideration different time resolution of various datasets (GAM are daily data, AAM and OAM are 3-h data, GRACE and GRACE-FO are monthly), we downsampled the series to remove oscillations with periods shorter than one month. To do this, we used a Gaussian filter with full width at a half-maximum (FWHM) of 60 days. We conducted separate analyses for the GRACE period (between January 2003 and July 2016; we excluded periods of lower GRACE accuracy at the beginning and at the end of the mission) and for the first 2 years of GRACE-FO activity (between June 2018 and July 2020).

For the GRACE period, we considered the overall time series (without considering specific oscillations), trends, and seasonal and non-seasonal oscillations. To compute seasonal signals in HAM/CAM and GAO, we fit to the series a model consisting of a first-degree polynomial (trend) and a sum of sinusoids with periods of 365.25 days (annual oscillation), 182.625 days (semiannual oscillation), and 121.75 days (terannual oscillation). Then, to focus only on seasonal variations, we separated the trends and considered each one alone. Seasonal oscillations are presented as time series plots of χ1 and χ2 components of seasonal oscillation and phasor diagrams. Phasor diagrams show the amplitudes and phases of seasonal oscillation (separately for annual, semiannual, and terannual) by plotting vectors whose length corresponds to the magnitude of the amplitude, while their direction reflects the phase of the oscillation. Bizouard (2016), Lambeck (1980), and Munk and MacDonald (1960) showed that PM has an elliptic character with two circular terms: retrograde (clockwise) and prograde (counter-clockwise). Therefore, phasor diagrams are usually shown separately for prograde and retrograde oscillations (Brzeziński et al. 2009; Dobslaw et al. 2010; Nastula et al. 2011; Seoane et al. 2009, 2011; Śliwińska et al. 2019, 2020a; Wińska et al. 2016). Non-seasonal oscillations are obtained after removing trends and seasonal oscillations from the time series and they are presented as time series plots of χ1 and χ2 components of non-seasonal oscillation.

For the GRACE-FO period, because of the short length of data (2 years), we do not study trends and seasonal and non-seasonal oscillations, but only the overall time series.

A validation of different HAM/CAM was performed by comparison with GAO. The quality of HAM/CAM was assessed by analyzing the following parameters: standard deviation (STD) of time series, error of STD (STDerr), correlation coefficient (Corr) between HAM/CAM and GAO, percent of variance of GAO explained by HAM/CAM (relative explained variance, Varexp), and root mean square deviation (RMSD).

STDerr (%) values show an agreement between STD of HAM/CAM and the STD of GAO and were computed as follows:

$${\text{STDerr}} = \left[ {\left( {{\text{STD}}_{{\text{HAM/CAM}}} - {\text{STD}}_{{{\text{GAO}}}} } \right)/\left( {{\text{STD}}_{{{\text{GAO}}}} } \right)} \right] \cdot 100\% .$$
(5)

The positive values indicate higher STD for HAM/CAM series than for GAO, whereas negative values indicate higher STD for GAO than for HAM/CAM. The most favorable value of STDerr is 0%.

Varexp shows the variability agreement between two time series and was computed using the following formula:

$${\text{Var}}_{{{\text{exp}}}} = \left[ {\left( {{\text{Var}}_{{{\text{GAO}}}} - {\text{Var}}_{{\left( {\text{GAO - HAM/CAM}} \right)}} } \right)/\left( {{\text{Var}}_{{{\text{GAO}}}} } \right)} \right] \cdot 100\% .$$
(6)

The values of this parameter are given in % and the most favorable value is 100%.

The centered RMSD was computed as follows (Taylor 2001):

$${\text{RMSD}} = \left\{ {\frac{1}{N}\mathop \sum \limits_{n = 1}^{N} \left[ {\left( {f_{n} - \overline{f}} \right) - \left( {r_{n} - \overline{r}} \right)} \right]^{2} } \right\}^{1/2} ,$$
(7)

where \({f}_{n}\) are reference (GAO) time series, \(\stackrel{-}{f}\) is the mean value of \({f}_{n}\), \({r}_{n}\) are evaluated time series (HAM/CAM), and \(\stackrel{-}{\mathrm{r}}\) is the mean value of \({r}_{n}\). The most satisfactory value of RMSD is 0.

A Taylor diagram was chosen in this study to display STD of the time series, Corr, and RMSD. This method of presentation provides a statistical summary of how well time series match each other and is typically used to compare simulated data with observations (Taylor 2001). The values of STDerr and Varexp and the exact values of the parameters shown in Taylor diagrams are presented in Tables 3, 4, 5, 6 in Appendix.

Later in the paper, we analyze in detail the extent to which the MAS datasets are better than the SH data in the study of HAM/CAM. To achieve this, we analyzed the relative change of STDerr, Corr, Varexp, and RMSD. This change can be calculated as a difference between the parameter value (STDerr, Corr, Varexp, or RMSD) obtained for the MAS solution and the same parameter value obtained for the SH solution. Subsequently, for each of the four parameters, the ratio of the differences to the parameter value obtained for SH data was calculated as follows:

$${\text{STDerr change}} = \left[ {\frac{{\left( {{\text{abs}}({\text{STDerr}}_{{{\text{MAS}}}} ) - {\text{abs}}({\text{STDerr}}_{{{\text{SH}}}} )} \right)}}{{{\text{abs}}\left( {{\text{STDerr}}_{{{\text{SH}}}} } \right)}}} \right] \cdot 100\% ,$$
(8)
$${\text{Corr}}\;{\text{change}} = \left[ {\frac{{\left( {{\text{Corr}}_{{{\text{MAS}}}} - {\text{Corr}}_{{{\text{SH}}}} } \right)}}{{{\text{abs}}\left( {{\text{Corr}}_{{{\text{SH}}}} } \right)}}} \right] \cdot 100\% ,$$
(9)
$${\text{Var}}_{{{\text{exp}}}} \;{\text{change}} = \left[ {\frac{{\left( {{\text{Var}}_{{{\text{exp}}\;{\text{MAS}}}} - {\text{Var}}_{{{\text{exp}}\;{\text{SH}}}} } \right)}}{{{\text{abs}}\left( {{\text{Var}}_{{{\text{exp}}\;{\text{SH}}}} } \right)}}} \right] \cdot 100\% ,$$
(10)
$${\text{RMSD}}\;{\text{change}} = \left[ {\frac{{\left( {{\text{RMSD}}_{{{\text{MAS}}}} - {\text{RMSD}}_{{{\text{SH}}}} } \right)}}{{\left( {{\text{RMSD}}_{{{\text{SH}}}} } \right)}}} \right] \cdot 100\% ,$$
(11)

where abs indicates the absolute value. The values of STDerr change, Corr change, Varexp change, and RMSD change are given in %. These quantities indicate by how many percent STDerr, Corr, Varexp, and RMSD increase (or decrease) when MAS data are used instead of SH data. Note that, in contrast with other formulas, in Eq. 8, we use abs in the numerator, because the sign of STDerr is not relevant. This is because the best value of STDerr is 0%, and therefore the same level of error is indicated regardless of the sign. A minus sign only indicates that HAM/CAM series has smaller STD than GAO series, whereas the absence of a minus means the opposite situation. However, both underestimation and overestimation of GAO variability by HAM/CAM is unwelcome. In Eqs. 9 and 10, the sign of Corr and Varexp is of great importance because both parameters have the maximum value (1 for Corr and 100% for Varexp), which is also the most desirable outcome. The more negative the value of the Corr and Varexp, the less favorable it is. Therefore, abs is not used in the numerator of Eqs. 7 and 8. Moreover, abs is not considered in Eq. 11 because RMSD has only non-negative values (the best value is 0).

Results and discussion

Analysis of overall time series and trends

The analysis was initiated with a comparison of trends in GAO, GRACE-based HAM/CAM, and SLR-based HAM/CAM (Table 1). In the case of GAO, we consider both the trend of the series in which the GIA signal is retained and the trend after removing the post-glacial rebound effect from the series. In this study, we removed the GIA contribution from GAO trend using the same model that was used in GRACE TWS and MAS data, provided by Peltier et al. (2018).

Table 1 Trends in GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM together with their errors. For GAO, the trends are given before and after removing the GIA signals

Preliminary comparison of trend values indicates differences between HAM/CAM obtained from various data types (Table 1). This is not surprising, because the effects of post-glacial rebound are removed in all GRACE Level-3 datasets (TWS, MAS land, and MAS global), but are retained in GRACE Level-2 (GSM) and SLR. This naturally affects the consistency of the trend between series analyzed. It was expected that trends for SLR-based HAM/CAM are similar to those obtained for GSM-based HAM/CAM as both estimates are based on ΔC21 and ΔS21 coefficients in which the effects from post-glacial rebound are not eliminated.

For χ1, all the series agree with each other in terms of the trend sign, but there are visible discrepancies in their magnitude. In particular, TWS-based HAM/CAM and land MAS-based HAM/CAM are characterized by smaller trends than the other time series, whereas GSM-based HAM/CAM and SLR-based HAM/CAM provide high trends that are even bigger than that for GAO (both with and without GIA trend removed). Although the GIA signals are removed from global MAS-based HAM/CAM, it gives a trend as high as the GAO with the GIA retained. This may indicate that the trend in the χ1 component of HAM/CAM is influenced not only by post-glacial rebound, but also factors such as residual ocean signals and ice signatures. This could be partly because χ1 is more sensitive to mass variations over oceans and the Greenland ice sheet than χ2. Since the beginning of this century, a noticeable ice mass loss from Greenland and Antarctica has been observed by GRACE satellites (Luthcke et al. 2013; Velicogna 2009; Velicogna et al. 2014), which might affect the trend, especially in the χ1 component of HAM/CAM. A comparison of χ1 trends for global and land MAS-based HAM/CAM shows that using a mask that removes total signal from the ocean reduces the trend by 1.53 mas/year. Moreover, in the case of the χ1 component of GAO, the removal of effects from post-glacial rebound reduces the GAO trend by 1.02 mas/year.

The analysis of trend values for the χ2 component indicates that there is no consistency among all series in terms of trend signs. The χ2 trend signs for GAO (without GIA trend removed), GSM-based HAM/CAM, and SLR-based HAM/CAM are consistent with each other (negative), because in each series the impact of post-glacial rebound is retained. However, similar to the χ1 component, GSM-based HAM/CAM and SLR-based HAM/CAM overestimate the trend of the χ2 component of GAO (without GIA trend removed). All other series have positive trends, because the GIA signal has been removed in all cases. There is also a consistency between trend values for TWS-based HAM/CAM, land MAS-based HAM/CAM, and global MAS-based HAM/CAM. However, all of them underestimate the GAO (with GIA trend removed) trend. Nevertheless, global MAS-based HAM/CAM provides the trend that is the most consistent with that for GAO (with GIA trend removed).

It is noticeable that for the χ2 component, the signal from GIA has a higher impact on observed PM excitation trend than that for χ1, as the difference in the trend between GAO with GIA removed and GAO without GIA removed is as high as 4.60 mas/year (Table 1). Moreover, the removal of post-glacial rebound effects causes the GAO trend sign to change from negative to positive. This is not surprising, because, on the one hand, post-glacial rebound has the greatest impact on areas of the Northern Hemisphere—Fennoscandia and the northern part of North America. On the other hand, the χ2 component is more sensitive than the χ1 component to mass changes over these areas (Śliwińska et al. 2020a; Youm et al. 2017). In general, removing signals from post-glacial rebound reduces the GAO trend for the χ1 component, but increases the trend for χ2.

Masking ocean areas has an almost two times smaller impact on the χ2 trend than on the χ1 trend, which is not surprising as χ1 is more sensitive to ocean mass changes. For both χ1 and χ2 components of HAM/CAM, the signals from the ocean increase HAM/CAM trends.

We now compare an overall variability of GAO, GRACE-based HAM/CAM, and SLR-based HAM/CAM by comparing their detrended time series (Fig. 1) and Taylor diagrams (Figs. 2, 3). The values of STD, STDerr, Corr, Varexp, and RMSD are also given in Table 3 in Appendix. We do not distinguish between GAO series with GIA removed and GAO series without GIA removed as post-glacial rebound mainly affects trends. The time series plots show that the χ2 component is characterized by bigger amplitudes than χ1 (note that there are different scales on y axis for χ1 and χ2), which has been already demonstrated in other works (e.g., Nastula et al. 2019; Seoane et al. 2011; Śliwińska et al. 2019, 2020a; Wińska et al. 2016, 2017) and arises from continent–ocean distribution (Fig. 1). In general, the phase consistency between various time series is good for the χ2 component, and similar minimum and maximum peaks appear for each time series. However, this consistency is lower for the χ1 component.

Fig. 1
figure1

Comparison of overall detrended time series of the χ1 (a) and χ2 (b) components of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global), and SLR-based HAM/CAM

Fig. 2
figure2

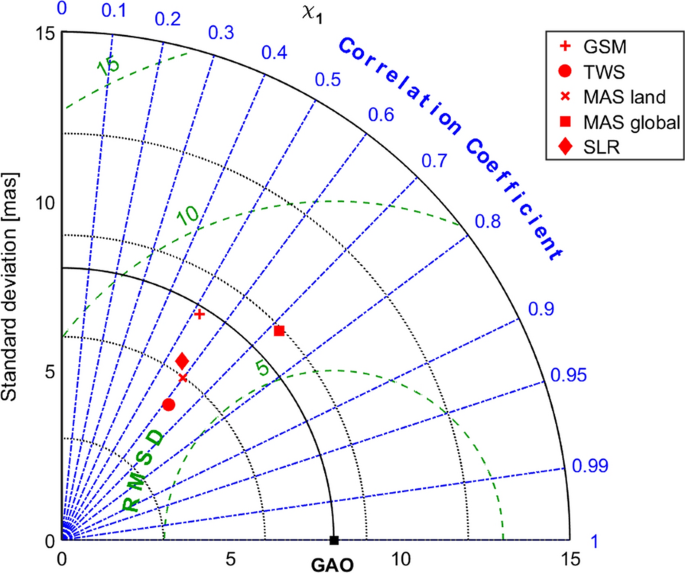

Taylor diagram showing a comparison of overall detrended time series of χ1 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

Fig. 3
figure3

Taylor diagram showing a comparison of overall detrended time series of χ2 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

Figures 2 and 3 show that not removing the residual ocean signals in global MAS-based HAM/CAM increases the STD of series by 2.94 mas for χ1 and 4.27 mas for χ2 compared with land MAS-based HAM/CAM. Moreover, of all HAM/CAM series, global MAS-based HAM/CAM provides the highest consistency with GAO in terms of time series variability (the lowest STDerr) (Table 3). The rest of HAM/CAM underestimate STD of GAO, especially for the χ2 component (negative values of STDerr) (Table 3). In addition, the variability of the χ2 component is higher than variability of χ1, as shown also in Fig. 1. This is as expected because higher variability and amplitudes of the χ2 component of HAM/CAM have previously been reported (e.g., Nastula et al. 2019; Seoane et al. 2011; Śliwińska et al. 2019, 2020a; Wińska et al. 2016, 2017). The comparison of GSM-based HAM/CAM and SLR-based HAM/CAM indicates that both series present similar STD consistency with GAO for χ2; however, series from GRACE GSM are more compatible with GAO for χ1 (Figs. 2, 3, Table 3).

The highest consistency between GAO and HAM/CAM as measured by Corr, Varexp, and RMSD is observed for global MAS-based HAM/CAM (Corr of 0.72 and 0.84 for χ1 and χ2, respectively; Varexp of 36% and 69% for χ1 and χ2, respectively; and RMSD of 6.39 and 7.66 mas for χ1 and χ2, respectively) (Figs. 2, 3, Table 3). GSM-based HAM/CAM, however, in which residual ocean signatures also remain, is characterized by the lowest agreement with GAO of all HAM/CAM series (Corr of 0.52 and 0.60 for χ1 and χ2, respectively; Varexp of 7% and 36% for χ1 and χ2, respectively; and RMSD of 7.71 and 10.94 mas for χ1 and χ2, respectively). This might indicate that incomplete removal of the effects of ocean bottom pressure and currents from GAO and GSM is not a reason for these inconsistencies, but the SH approach might be less appropriate for estimating mass-related PM excitation than the MAS approach.

Of the two HAM/CAM series in which the mask is put on ocean areas, namely TWS-based HAM/CAM and land MAS-based HAM/CAM, the former provides better results for χ1, while the latter ensures a higher consistency with GAO for χ2. Overall, a higher consistency between GAO and HAM/CAM is observed for χ2 than for χ1, and this has already been reported in previous works (Meyrath and van Dam 2016; Seoane et al. 2011; Śliwińska et al. 2019, 2020a) and result from the spatial distribution of the main continents and oceans.

Interestingly, in the HAM/CAM series obtained from ΔC21 and ΔS21 coefficients provided by the SLR technique are distinguished by higher consistency with GAO than corresponding series computed using ΔC21 and ΔS21 coefficients delivered by GRACE (GSM-based HAM/CAM). However, previous studies have shown that SLR data are less appropriate for determination of HAM/CAM than GRACE data and are mainly useful for determination of Earth’s oblateness (Chen and Wilson 2008). In previous studies concerning PM excitation, SLR data were usually used in combination with GRACE or other datasets (Chen et al. 2017). Nevertheless, analysis of the newly released SLR series provided by CSR shows a clear improvement in SLR-based HAM/CAM.

Analysis of seasonal and non-seasonal variations

It is well known that seasonal signals are one of the strongest in PM excitation (Brzeziński et al. 2009; Dobslaw et al. 2010; Nastula et al. 2019; Śliwińska et al. 2019; Wińska et al. 2017), therefore we now divide the analysis into seasonal and non-seasonal parts. We begin with the analysis of seasonal variations, which are presented as time series plots of χ1 and χ2 components (Fig. 4). As with the overall time series analysis, a validation of seasonal variations in HAM/CAM is based on Taylor diagrams (Figs. 5, 6). The corresponding values of STD, STDerr, Corr, Varexp, and RMSD are also given in Table 4 in Appendix.

Fig. 4
figure4

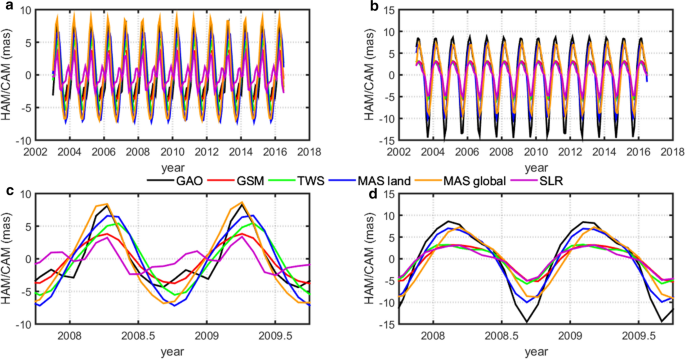

Comparison of seasonal time series of χ1 (a, c) and χ2 (b, d) components of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM. Plots c, d present the same series as a and b, but with a changed scale for better visibility of the seasonal cycle

Fig. 5
figure5

Taylor diagram showing a comparison of seasonal times series of χ1 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

Fig. 6
figure6

Taylor diagram showing a comparison of seasonal times series of χ2 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

An overall comparison of the seasonal time series indicates that the series agree quite well with each other, but some differences in amplitudes occur (Fig. 4). In particular, of all GRACE-based estimates, GSM-based HAM/CAM have the smallest amplitudes while MAS-based HAM/CAM have the biggest amplitudes of seasonal variation. This indicates that the SH approach may reduce amplitudes of seasonal oscillation. TWS-based HAM/CAM, however, which is also based on SH coefficients, provides slightly bigger seasonal amplitudes than amplitudes of GSM-based HAM/CAM. These findings are supported by STD values of seasonal series (Figs. 5, 6, Table 4); GSM-based HAM/CAM are characterized by the lowest variability, while MAS-based HAM/CAM series have the highest STD values (global MAS-based HAM/CAM for χ1 and land MAS-based HAM/CAM for χ2). Notably, land MAS-based HAM/CAM series are characterized by small STDerr (the second lowest value for χ1 and the lowest value for χ2), which indicates a high agreement with GAO in terms of time series variability. Analysis of SLR-based HAM/CAM series shows that SLR data produce series with the smallest amplitudes for χ1. For χ2 the amplitudes of SLR-based HAM/CAM are similar to those obtained from GRACE GSM. This is primarily because both SLR- and GSM-based HAM/CAM series are determined using ΔC21 and ΔS21 coefficients of geopotential. The use of SH coefficients instead of mascon approach can be a reason of lower amplitudes in HAM/CAM. Notably, for the seasonal χ1 component, SLR-based HAM/CAM exhibits an additional peak that precedes the annual maximum and has an amplitude about two times smaller than the amplitude of annual variation. In general, it can be stated that for seasonal oscillations, the choice of data type has a higher impact on amplitude consistency between HAM/CAM and GAO than on phase agreement.

Taylor diagrams (Figs. 5, 6) and parameters shown in Table 4 indicate that the MAS approach better determines seasonal oscillations in HAM/CAM than the SH method. In particular, global MAS-based HAM/CAM is best for determination of the χ1 component (Corr of 0.91; Varexp of 69%; and RMSD of 2.25 mas), whereas land MAS-based HAM/CAM provides the most satisfactory results for χ2 (Corr of 0.98; Varexp of 93%; and RMSD of 1.90 mas). This is unsurprising because χ2 is more sensitive to mass changes over land, whereas χ1 is more responsive to variations over oceans. In GAO and global MAS-based HAM/CAM some residual signals from ocean errors and leakage are retained, which results in a higher agreement of these series in the case of the χ1 component. In general, to obtain the highest possible consistency between seasonal variation in HAM/CAM and seasonal variation in GAO, one should use global MAS data (no mask) for determination of χ1 and land MAS data (with mask) for χ2. However, to receive a “pure” hydrological plus cryospheric signal in PM excitation, without any residual ocean signatures, only the data from continents should be included. It should also be noted that, for seasonal HAM/CAM oscillations, SLR-based HAM/CAM series are less consistent with GAO than HAM/CAM obtained from any type of GRACE data.

We now separate seasonal oscillations into annual and semiannual variations and present their phasor diagrams separately for prograde and retrograde terms (Fig. 7). We do not consider terannual oscillations as Śliwińska et al. (2020a) showed that the amplitudes and phases of these oscillations are smaller than the errors in their determination. For annual oscillations, among all GRACE-derived series, land MAS-based HAM/CAM has the best phase agreement with GAO, especially in the retrograde term. The annual amplitude of GAO is also well captured by these series. The GRACE series based on the SH method (TWS-based HAM/CAM and GSM-based HAM/CAM) visibly underestimates annual amplitudes of GAO for both prograde and retrograde terms. This indicates that methods based on SH cannot reconstruct the full observed amplitude of the annual oscillation in PM excitation. For semiannual variation, the amplitudes of all HAM/CAM series are smaller than amplitudes of GAO. Among all GRACE estimates, global MAS-based HAM/CAM appears to be the most consistent with GAO in terms of phases. However, it should be kept in mind that the annual variation has definitely higher contribution to seasonal PM excitation change than semiannual oscillation. In general, the highest consistency between seasonal HAM/CAM and GAO is obtained for annual retrograde oscillation. The phasor diagrams also show that not removing residual ocean signals in global MAS-based HAM does not have a noticeable impact on annual phases. However, such signals increase annual prograde amplitudes and reduce annual retrograde amplitudes. Notably, SLR-based HAM/CAM, although it definitely underestimates the amplitudes of seasonal oscillations, provides high consistency with GAO phases. This substantial correspondence is particularly evident for prograde oscillation, for which the SLR results for phases are even better than those obtained for the GRACE MAS data.

Fig. 7
figure7

Phasor diagrams of annual prograde (a), annual retrograde (b), semiannual prograde (c), and semiannual retrograde (d) variation in χ1 + 2 for GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM. Phase (ϕ) in a and b is defined by the annual term as sin(2π(t − t0) + ϕ), where t0 is the reference epoch (1 January 2004). Phase (ϕ) in c and d is defined by the semiannual term as sin(4π(t − t0) + ϕ)

We now analyze time series of non-seasonal variations in HAM/CAM and GAO (Fig. 8), together with their Taylor diagrams (Figs. 9, 10). The corresponding values of STD, STDerr, Corr, Varexp, and RMSD are also given in Table 5 in Appendix. Both TWS-based HAM/CAM and land MAS-based HAM/CAM have the smallest amplitudes, which is also supported by the STD values (Figs. 810, Table 5). In contrast, the highest STD was found for global MAS-based HAM/CAM, which was also the most consistent with STD of GAO (the lowest STDerr). This may indicate that residual ocean signatures have an impact on non-seasonal changes in HAM/CAM especially. It is also noticeable that for non-seasonal oscillations, HAM/CAM series from SLR and GRACE GSM have good phase and amplitude agreement, which results from the same method of computing HAM/CAM. The SLR-based and GSM-based HAM/CAM series have also similar STD (Figs. 9, 10).

Fig. 8
figure8

Comparison of non-seasonal time series of χ1 (a) and χ2 (b) components of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global), and SLR-based HAM/CAM

Fig. 9
figure9

Taylor diagram showing a comparison of non-seasonal time series of χ1 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

Fig. 10
figure10

Taylor diagram showing a comparison of non-seasonal time series of χ2 component of GAO with GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

The Corr, Varexp, and RMSD values (Figs. 9, 10, Table 5) indicate that the highest consistency between non-seasonal variations in GAO and non-seasonal variations in HAM/CAM can be obtained when global MAS data are used (Corr of 0.64 and 0.83 for χ1 and χ2, respectively; Varexp of 25% and 64% for χ1 and χ2, respectively; and RMSD of 5.98 and 6.90 mas for χ1 and χ2, respectively). In contrast, GSM-based HAM/CAM, despite having residual ocean signals that have not been removed, provides the lowest level of agreement with GAO. It is also noticeable that TWS-based HAM/CAM and land MAS-based HAM/CAM give almost the same level of consistency with GAO, which mainly result from masking oceans in both datasets. Taylor diagrams and parameters listed in Table 5 also indicate that for the non-seasonal spectral band, SLR observations provide better consistency of HAM/CAM with GAO than GRACE GSM data. This indicates that SLR observations are especially appropriate for determining non-seasonal variations in PM excitation. However, these results are not as satisfactory as for GRACE global MAS data, which, as noticed earlier in this study, are the most appropriate for the study of PM excitation due to land hydrosphere and cryosphere in the non-seasonal spectral band.

Comparison between MAS and SH solutions

The analyses presented in the previous sections showed that, in general, MAS datasets provide higher consistency between HAM/CAM and GAO than solutions based on SH coefficients. We now examine the magnitude of change in consistency between HAM/CAM and GAO when MAS data are used instead of SH solutions, though analysis of the relative change of STDerr, Corr, Varexp, and RMSD. The changes in STDerr, Corr, Varexp, and RMSD are computed here for two cases: first, for land data (land MAS-based HAM/CAM compared to TWS-based HAM/CAM) and second, for global data (global MAS-based HAM/CAM compared to GSM-based HAM/CAM). We consider overall time series (without separating specific oscillations), seasonal oscillations, and non-seasonal changes. Table 2 presents STDerr, Corr, Varexp, and RMSD changes computed according to Eqs. 811.

Table 2 Percentage of change in STDerr, Corr, Varexp, and RMSD when MAS data are used instead of SH solutions

Table 2 shows that for land data, the use of the MAS solution improves the agreement between overall HAM/CAM and GAO series mostly for the χ2 component (improvement in STDerr by 29%, Corr by 5%, Varexp by 18%, and RMSD by 9%), while for the χ1 component only STDerr is improved (by 30%). The highest change in consistency between HAM/CAM and GAO is observed for seasonal variation in the χ2 component. The improvement in STDerr by 65%, Varexp by 43%, and RMSD by 53%, without any change in Corr, indicates that the use of land MAS data especially improves the amplitudes of seasonal oscillation. Indeed, Figs. 3 and 4 show that land MAS-based HAM/CAM has amplitudes are more consistent with GAO than TWS-based HAM/CAM. For non-seasonal variation, there is no noticeable change in results when land MAS-based HAM/CAM is considered instead of TWS-based HAM/CAM.

Analysis of results obtained for global data shows that the increase in overall consistency between HAM/CAM and GAO is visible for both equatorial components, with values ranging between 17 and 414%, and with the highest value for Varexp in the χ1 component. Both equatorial components are also improved for non-seasonal oscillations (the values of improvement range between 19 and 267%, with the highest one for Varexp in χ1 component). Similar to land data, the improvement in agreement between seasonal variation in HAM/CAM and seasonal variation in GAO is more noticeable for χ2. This is mainly due to underestimation of seasonal amplitudes of GAO by GSM-based HAM/CAM.

Preliminary analysis of HAM/CAM series from GRACE-FO

This section presents preliminary estimates of GSM-based, TWS-based, and global and land MAS-based HAM/CAM from the new GRACE-FO mission. A comparison with data from GAO and SLR is also provided. We analyze overall detrended time series from first 2 years of the mission activity (June 2018–July 2020). A comparison plot between GAO and various HAM/CAM series is presented in Fig. 11; Taylor diagrams are given in Figs. 12, 13; and the values of STD, STDerr, Corr, Varexp, and RMSD are provided in Table 6 in Appendix.

Fig. 11
figure11

Comparison of overall detrended time series of χ1 (a) and χ2 (b) components of GAO, GRACE-FO-based HAM/CAM (GSM, TWS, MAS land, and MAS global), and SLR-based HAM/CAM

Fig. 12
figure12

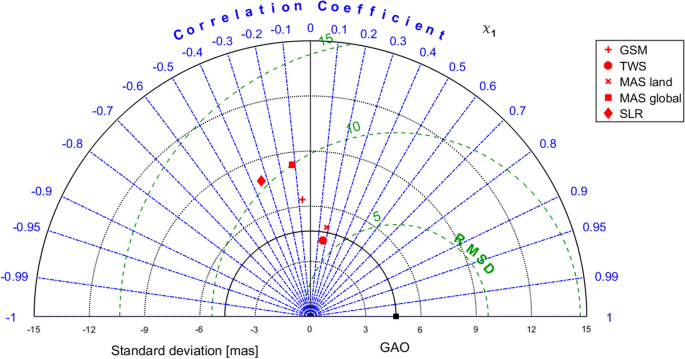

Taylor diagram showing a comparison of overall detrended time series of χ1 component of GAO with GRACE-FO-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM. Note that this diagram, unlike the other Taylor diagrams, is in the shape of a semicircle as some correlations are negative

Fig. 13
figure13

Taylor diagram showing a comparison of overall detrended time series of χ2 component of GAO with GRACE-FO-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM

Figure 11 shows that for χ1, land MAS-based HAM/CAM and TWS-based HAM/CAM series have quite similar amplitudes to that of GAO, but there is some phase shift between series. GSM-based HAM/CAM, global MAS-based HAM/CAM and SLR-based HAM/CAM are in opposite phases to GAO. They also have visibly higher amplitudes than the other time series. This is probably because of the non-removal of residual ocean signals in GSM-based HAM/CAM, global MAS-based HAM/CAM and SLR-based HAM/CAM. In terms of χ2, the phase consistency between GAO and various HAM/CAM is higher than that for χ1, but discrepancies in amplitudes still exist. Similar to χ1, data from land only (in land MAS-based HAM/CAM and TWS-based HAM/CAM) enables us to obtain lower amplitudes than amplitudes of HAM/CAM based on other data types. Unsurprisingly, the consistency between various HAM/CAM estimates is higher for χ2. In particular, each series shows a maximum in mid-2019, which is also apparent for GAO.

Figures 12, 13 and Table 6 confirm that MAS data from land provide better consistency between HAM/CAM and GAO than global data. However, when analyzing the GRACE solutions, we found that for overall time series of GRACE-based HAM/CAM, global MAS datasets give slightly better results than land data. Nevertheless, it should be kept in mind that the length of currently available GRACE-FO series (24 months at the time of conducting this study) may affect objective assessment of HAM/CAM. TWS-based HAM/CAM presents a similar correspondence with GAO as land MAS-based HAM/CAM, which was also observed for GRACE.

All in all, the actual accuracy of HAM/CAM computed using data from new GRACE-FO mission meets expectations (Corr values vary from − 0.12 to 0.54, Varexp values vary from − 364 to 28%, and RMSD values vary from 5.34 to 9.83 mas, depending on data type and equatorial component considered). The high consistency between HAM/CAM and GAO observed in the period of best GRACE performance has not yet been reached. However, the regular appearance of data from the following months of GRACE-FO operation will improve this consistency.

A detailed analysis of series obtained from SLR data indicates that for the period of GRACE-FO activity, SLR-based HAM/CAM series are less consistent with GAO than HAM/CAM obtained from any type of GRACE-FO data. This is partly because GRACE-FO has improved hardware, such as additional laser ranging interferometer for better measurement of distance between satellites or an additional star camera to improve satellite orientation (Kornfeld et al. 2019). The above upgrades undoubtedly contributed to the ameliorated quality of GRACE-FO-based HAM/CAM.

Conclusions

A comparison of HAM/CAM computed from different GRACE data products indicated that the use of MAS solutions provided the highest consistency between HAM/CAM and GAO for all considered spectral bands. However, depending on the oscillations and equatorial components considered, global or land MAS data were more appropriate for this purpose. The advantage of MAS data over more commonly used SH solutions is particularly evident in the seasonal spectral band (global MAS-based HAM/CAM provided the highest consistency with GAO for χ1, and land MAS-based HAM/CAM provided the most satisfactory results for χ2). For non-seasonal oscillations, MAS solutions (global for both χ1 and χ2) also performed better than the SH series. A similar situation was found for trends in HAM/CAM, which are most consistent with GAO trends when global MAS (for χ1) or land MAS (for χ2) are exploited. Analysis of overall HAM/CAM series from the first 2 years of the GRACE-FO mission data confirmed that the use of land MAS data enabled the highest consistency between HAM/CAM and GAO. The actual RMSD of HAM/CAM based on GRACE-FO land MAS data is as high as 6.03 mas for χ1 and 5.34 mas for χ2. With an increasing data length, GRACE-FO-based HAM/CAM quality will increase.

We also noted that the newest release of the SLR solution can be used for determination of HAM/CAM to fill the one-year-long data gap between the end of GRACE activity and the start of the GRACE-FO measurements. In addition, the SLR series could be particularly useful in determination of HAM/CAM in the non-seasonal spectral band, as the performance of this technique is the best for these oscillations. Despite its low seasonal amplitudes, SLR-based HAM/CAM provided high phase consistency with GAO in this spectral band. The key advantage of SLR data is the length of the time series and the regularity of the subsequent monthly observations.

The main conclusion of this study is that the use of GRACE/GRACE-FO MAS solutions in determining PM excitation due to the land hydrosphere and cryosphere allows us to obtain higher consistency with observed excitation than exploiting data based on SH coefficients. We therefore recommend the use of the MAS series in studies concerned with analyses of variations in PM. The MAS method is more recent than the SH method, and has several advantages. First of all, it provides a better separation of land and ocean signals, which is particularly important for areas along the coastlines. Moreover, TWS maps obtained from MAS solutions, in contrast to TWS maps based on SH data, do not need to be filtered. This is because a priori constraints in MAS solutions help to filter out noise from the GRACE/GRACE-FO observations at the Level-2 processing step, which is a more rigorous approach than the empirical post-processing filtering applied to TWS grids derived from SH coefficients. It is known that filtering removes some part of real geophysical signal, which has to be restored using gain factors. However, as gain factors are usually determined using hydrological models (e.g., Landerer and Swenson 2012; Zhang et al. 2016), which are not free of errors, this operation could introduce additional uncertainties. The problem does not occur for the MAS data. Moreover, in MAS solutions, TWS distribution is obtained directly from GRACE/GRACE-FO observations using mascon functions, while in SH data, first the coefficients of geopotential are determined, and then TWS maps are developed on their basis. Additional processing step can increase the errors of resulting SH-based TWS.

Availability of data and materials

The data that support the findings of this study are available upon request from the corresponding author.

Abbreviations

AAM:

Atmospheric angular momentum

AOD:

Atmosphere and ocean de-aliasing

CAM:

Cryospheric angular momentum

Corr:

Correlation coefficient

CSR:

Center for Space Research

ECMWF:

European Center for Medium-Range Weather Forecasts

EOP:

Earth Orientation Parameters

FWHM:

Full width at a half-maximum

GAM:

Geodetic angular momentum

GAO:

Geodetic residuals (GAM minus AAM minus OAM)

GFZ:

GeoForschungsZentrum (German Research Centre for Geosciences)

GIA:

Glacial isostatic adjustment

GNSS:

Global Navigation Satellite Systems

GRACE:

Gravity Recovery and Climate Experiment

GRACE-FO:

Gravity Recovery and Climate Experiment Follow-On

GSFC:

Goddard Space Flight Center

GSM:

GRACE satellite-only model

HAM:

Hydrological angular momentum

HAM/CAM:

Hydrological and cryospheric angular momentum

IERS:

International Earth Rotation and Reference Systems Service

JPL:

Jet Propulsion Laboratory

LSDM:

Land Surface Discharge Model

MAS:

Mascon

MPIOM:

Max Planck Institute Ocean Model

NASA:

American National Aeronautics and Space Administration

OAM:

Oceanic angular momentum

PM:

Polar motion

RMSD:

Root mean square difference

SH:

Spherical harmonics

SLR:

Satellite Laser Ranging

STD:

Standard deviation

STDerr:

Standard deviation error

TWS:

Terrestrial water storage

Varexp :

Relative explained variance

VLBI:

Very Long Baseline Interferometry

References

  1. AG WJ, Zhong S (2013) Computations of the viscoelastic response of a 3-D compressible Earth to surface loading: an application to Glacial Isostatic Adjustment in Antarctica and Canada. Geophys J Int 192:557–572. https://doi.org/10.1093/gji/ggs030

    Article  Google Scholar

  2. Barnes RTH, Hide R, White A, Wilson CA (1983) Atmospheric angular momentum fluctuations, length-of-day changes and polar motion. Proc R Soc Ser A 387:31–73

    Google Scholar

  3. Bettadpur S (2018a) Level-2 gravity field product user handbook, Rev. 4.0, April 25, 2018. Technical Report GRACE 327–734. https://podaac-tools.jpl.nasa.gov/drive/files/allData/grace/docs/L2-UserHandbook_v4.0.pdf. Accessed 10 July 2020

  4. Bettadpur S (2018b) UTCSR level-2 processing standards document for level-2 product release 0006, Rev 5.0, April 18, 2018. Technical Report GRACE 327–742. https://podaac-tools.jpl.nasa.gov/drive/files/allData/grace/docs/L2-CSR006_ProcStd_v5.0.pdf. Accessed 10 July 2020

  5. Bizouard C (2016) Elliptic polarisation of the polar motion excitation. J Geod 90:179–188. https://doi.org/10.1007/s00190-015-0864-7

    Article  Google Scholar

  6. Bizouard C, Lambert S, Gattano C, Becker O (2019) Richard JY (2018) The IERS EOP 14C04 solution for Earth orientation parameters consistent with ITRF 2014. J Geod 93:621–633. https://doi.org/10.1007/s00190-018-1186-3

    Article  Google Scholar

  7. Brzezinski A (1992) Polar motion excitation by variations of the effective angular momentum function: considerations concerning deconvolution problem. Manuscr Geod 17:3–20

    Google Scholar

  8. Brzeziński A, Nastula J, Kołaczek B (2009) Seasonal excitation of polar motion estimated from recent geophysical models and observations. J Geodyn 48(3–5):235–240. https://doi.org/10.1016/j.jog.2009.09.021

    Article  Google Scholar

  9. Chen JL, Wilson CR (2005) Hydrological excitations of polar motion, 1993–2002. Geophys J Int 160(3):833–839. https://doi.org/10.1111/j.1365-246X.2005.02522.x

    Article  Google Scholar

  10. Chen JL, Wilson CR (2008) Low degree gravity changes from GRACE, earth rotation, geophysical models and satellite laser ranging. J Geophys Res Solid Earth 113(6):1–9. https://doi.org/10.1029/2007JB005397

    Article  Google Scholar

  11. Chen W, Li J, Ray J, Cheng M (2017) Improved geophysical excitations constrained by polar motion observations and GRACE/SLR time-dependent gravity. Geod Geodyn 8(6):377–388. https://doi.org/10.1016/j.geog.2017.04.006

    Article  Google Scholar

  12. Cheng M, Ries JC, Tapley BD (2011) Variations of the Earth’s figure axis from satellite laser ranging and GRACE. J Geophys Res 116:B01409. https://doi.org/10.1029/2010JB000850

    Article  Google Scholar

  13. Cooley SS, Landerer F (2020) Gravity recovery and climate experiment follow-on (GRACE-FO) level-3 data product user handbook, July 9, 2020. Technical Report GRACE D-103133, https://podaac-tools.jpl.nasa.gov/drive/files/GeodeticsGravity/gracefo/docs/GRACE-FO_L3_Handbook_JPL.pdf. Accessed 10 July 2020

  14. Dahle C, Flechtner F, Murböck M, Michalak G, Neumayer H, Abrykosov O, Reinhold A, König R (2018) GFZ level-2 processing standards document for level-2 product release 06, Rev. 1.0, October 26, 2018. Scientific Technical Report STR18/04, Potsdam, GFZ German Research Centre for Geosciences, https://doi.org/10.2312/GFZ.b103-18048

  15. Dill R (2008) Hydrological model LSDM for operational Earth rotation and gravity field variations. Scientific Technical Report STR08/09, Potsdam, GFZ German Research Centre for Geosciences, https://doi.org/10.2312/GFZ.b103-08095

  16. Dobslaw H, Dill R, Grötzsch A, Brzeziński A, Thomas M (2010) Seasonal polar motion excitation from numerical models of atmosphere, ocean, and continental hydrosphere. J Geophys Res 115:B10406. https://doi.org/10.1029/2009JB007127

    Article  Google Scholar

  17. Dobslaw H, Wolf I, Dill R, Poropat L, Thomas M, Dahle C, Esselborn S, König R, Flechtner F (2017) A new high-resolution model of non–tidal atmosphere and ocean mass variability for de-aliasing of satellite gravity observations: AOD1B RL06. Geophys J Int 211:263–269. https://doi.org/10.1093/gji/ggx302

    Article  Google Scholar

  18. Eubanks TM (1993) Variations in the orientation of the earth. In: Smith DE, Turcotte DL (eds) Contributions of space geodesy to geodynamics: earth dynamics geodynamics series, vol 24. AGU, Washington, pp 1–54

    Google Scholar

  19. Fernández LI, Schuh H, Schmidt M, Seitz F (2007) Effects of inter-annual water storage variations on polar motion. Geophys J Int 169(1):12–18. https://doi.org/10.1111/j.1365-246X.2006.03304.x

    Article  Google Scholar

  20. Göttl F, Schmidt M, Seitz F (2018) Mass–related excitation of polar motion: an assessment of the new RL06 GRACE gravity field models. Earth Planets Space. https://doi.org/10.1186/s40623-018-0968-4

    Article  Google Scholar

  21. Göttl F, Murböck M, Schmidt M, Seitz F (2019) Reducing filter effects in GRACE-derived polar motion excitations. Earth Planets Space. https://doi.org/10.1186/s40623-019-1101-z

    Article  Google Scholar

  22. Gross R (2015) Theory of earth rotation variations. In: Sneeuw N, Novák P, Crespi M, Sansò F (eds) VIII Hotine-Marussi symposium on mathematical geodesy, vol 142. Springer, Cham; 2015.

  23. Jin S, Chambers DP, Tapley BD (2010) Hydrological and oceanic effects on polar motion from GRACE and models. J Geophys Res Solid Earth 115(2):1–11. https://doi.org/10.1029/2009JB006635

    Article  Google Scholar

  24. Jin SG, Hassan AA, Feng GP (2012) Assessment of terrestrial water contributions to polar motion from GRACE and hydrological models. J Geodyn 62:40–48. https://doi.org/10.1016/j.jog.2012.01.009

    Article  Google Scholar

  25. Jing W, Zhao X, Yao L, Jiang H, Xu J, Yang J, Li Y (2020) Variations in terrestrial water storage in the Lancang-Mekong river basin from GRACE solutions and land surface model. J Hydrol. https://doi.org/10.1016/j.jhydrol.2019.124258

    Article  Google Scholar

  26. Jungclaus JH, Fischer N, Haak H, Lohmann K, Marotzke J, Matei D, Mikolajewicz U, Notz D, vonStorch JS (2013) Characteristics of the ocean simulations in MPIOM, the ocean component of the MPI-Earth system model. J Adv Model Earth Syst 5:422–446. https://doi.org/10.1002/jame.20023

    Article  Google Scholar

  27. Kornfeld RP, Arnold BW, Gross MA, Dahya NT, Klipstein WM (2019) GRACE-FO: the gravity recovery and climate experiment follow-on mission. J Spacecraft Rockets 56(3):931–951. https://doi.org/10.2514/1.A34326

    Article  Google Scholar

  28. Lambeck K (1980) The earth’s variable rotation: geophysical causes and consequences. Cambridge University Press, Cambridge, p 1980. https://doi.org/10.1017/CBO9780511569579

    Google Scholar

  29. Landerer FW, Swenson SC (2012) Accuracy of scaled GRACE terrestrial water storage estimates. Water Resour Res 48:W04531. https://doi.org/10.1029/2011WR011453

    Article  Google Scholar

  30. Landerer FW, Flechtner FM, Save H, Webb FH, Bandikova T, Bertiger WI et al (2020) Extending the global mass change data record: GRACE Follow-On instrument and science data performance. Geophys Res Lett. https://doi.org/10.1029/2020GL088306

    Article  Google Scholar

  31. Long D, Pan Y, Zhou J, Chen Y, Hou X, Hong Y, Scanlon BR, Longuevergne L (2017) Global analysis of spatiotemporal variability in merged total water storage changes using multiple GRACE products and global hydrological models. Remote Sens Environ 192:198–216. https://doi.org/10.1016/j.rse.2017.02.011

    Article  Google Scholar

  32. Luthcke S, Sabaka T, Loomis B, Arendt A, McCarthy J, Camp J (2013) Antarctica, Greenland and Gulf of Alaska land-ice evolution from an iterated GRACE global mascon solution. J Glaciol 59:613–631. https://doi.org/10.3189/2013JoG12J147

    Article  Google Scholar

  33. Meyrath T, van Dam T (2016) A comparison of interannual hydrological polar motion excitation from GRACE and geodetic observations. J Geodyn 99:1–9. https://doi.org/10.1016/j.jog.2016.03.011

    Article  Google Scholar

  34. Munk WH, Mac Donald G (1960) The rotation of the earth. Cambridge University Press, Cambridge

    Google Scholar

  35. Nastula J (2017) Polar motion excitation from several models of land hydrosphere. In: 19th EGU general assembly, EGU2017, proceedings from the conference held 23–28 April, 2017 in Vienna, Austria, pp 11866. https://meetingorganizer.copernicus.org/EGU2017/EGU2017-11866-1.pdf

  36. Nastula J, Śliwińska J (2020) Prograde and retrograde terms of gravimetric polar motion excitation estimates from the GRACE monthly gravity field models. Remote Sens 12(1):1–29. https://doi.org/10.3390/rs12010138

    Article  Google Scholar

  37. Nastula J, Ponte RM, Salstein DA (2007) Comparison of polar motion excitation series derived from GRACE and from analysis of geophysical fluids. Geophys Res Lett. https://doi.org/10.1029/2006GL028983

    Article  Google Scholar

  38. Nastula J, Paśnicka M, Kołaczek B (2011) Comparison of the geophysical excitations of polar motion from the period: 19800–20090. Acta Geophys 59(3):561–577. https://doi.org/10.2478/s11600-011-0008-2

    Article  Google Scholar

  39. Nastula J, Wińska M, Śliwińska J, Salstein D (2019) Hydrological signals in polar motion excitation—evidence after fifteen years of the GRACE mission. J Geodyn 124:119–132. https://doi.org/10.1016/j.jog.2019.01.014

    Article  Google Scholar

  40. Peltier WR, Argus DF, Drummond R (2015) Space geodesy constrains ice-age terminal deglaciation: the global ICE-6G C (VM5a) model. J Geophys Res Solid Earth 120:450–487. https://doi.org/10.1002/2014JB011176

    Article  Google Scholar

  41. Peltier WR, Argus DF, Drummond R (2018) Comment on “An assessment of the ICE-6G_C (VM5a) glacial isostatic adjustment Model” by Purcell et al. J Geophys Res Solid Earth. https://doi.org/10.1002/2016JB013844

    Article  Google Scholar

  42. Rateb A, Kuo CY, Imani M, Tseng KH, Lan WH, Ching KE, Tseng TP (2017) Terrestrial water storage in African Hydrological regimes derived from GRACE mission data: Intercomparison of spherical harmonics, mass concentration, and Scalar Slepian methods. Sensors (Switzerland) 17(3):1–15. https://doi.org/10.3390/s17030566

    Article  Google Scholar

  43. Rowlands DD, Luthcke SB, McCarthy JJ, Klosko SM, Chinn DS, Lemoine FG, Boy J-P, Sabaka TJ (2010) Global mass flux solutions from GRACE: a comparison of parameter estimation strategies—mass concentrations versus Stokes coefficients. J Geophys Res 115:B01403. https://doi.org/10.1029/2009jb006546

    Article  Google Scholar

  44. Schrama EJO, Wouters B, Rietbroek R (2014) A mascon approach to assess ice sheet and glacier mass balances and their uncertainties from GRACE data. J Geophys Res Solid Earth 119(7):6048–6066. https://doi.org/10.1002/2013JB010923

    Article  Google Scholar

  45. Seoane L, Nastula J, Bizouard C, Gambis D (2009) The use of gravimetric data from GRACE mission in the understanding of polar motion variations. Geophys J Int 178(2):614–622. https://doi.org/10.1111/j.1365-246X.2009.04181.x

    Article  Google Scholar

  46. Seoane L, Nastula J, Bizouard C, Gambis D (2011) Hydrological excitation of polar motion derived from GRACE gravity field solutions. Int J Geophys. https://doi.org/10.1155/2011/174396

    Article  Google Scholar

  47. Seoane L, Biancale R, Gambis D (2012) Agreement between Earth’s rotation and mass displacement as detected by GRACE. J Geodyn 62:49–55. https://doi.org/10.1016/j.jog.2012.02.008

    Article  Google Scholar

  48. Śliwińska J, Nastula J (2019) Determining and evaluating the hydrological signal in polar motion excitation from gravity field models obtained from kinematic orbits of LEO satellites. Remote Sens 11(15):1–19. https://doi.org/10.3390/rs11151784

    Article  Google Scholar

  49. Śliwińska J, Wińska M, Nastula J (2019) Terrestrial water storage variations and their effect on polar motion. Acta Geophys 67(1):17–39. https://doi.org/10.1007/s11600-018-0227-x

    Article  Google Scholar

  50. Śliwińska J, Nastula J, Dobslaw H, Dill R (2020a) Evaluating gravimetric polar motion excitation estimates from the RL06 GRACE monthly-mean gravity field models. Remote Sens 12:930. https://doi.org/10.3390/rs12060930

    Article  Google Scholar

  51. Śliwińska J, Wińska M, Nastula J (2020b) Preliminary estimation and validation of polar motion excitation from different types of the grace and grace follow-on missions data. Remote Sens 12(21):1–28. https://doi.org/10.3390/rs12213490

    Article  Google Scholar

  52. Swenson SC, Wahr J (2006) Post-processing removal of correlated errors in GRACE data. Geophys Res Lett 33:L08402. https://doi.org/10.1029/2005GL025285

    Article  Google Scholar

  53. Swenson S, Chambers D, Wahr J (2008) Estimating geocenter variations from a combination of GRACE and ocean model output. J Geophys Res 113:8410. https://doi.org/10.1029/2007JB005338

    Article  Google Scholar

  54. Tapley BD, Bettadpur S, Watkins M, Reigber C (2004) The gravity recovery and climate experiment: mission overview and early results. Geophys Res Lett 2004(31):L09607. https://doi.org/10.1029/2004GL019920

    Article  Google Scholar

  55. Tapley B, Watkins MM, Flechtner F, Reigber C, Bettadpur S, Rodell M, Famiglietti J, Landerer F, Chambers D, Reager J, Gardner A, Save H, Ivins E, Swenson S, Boening C, Dahle C, Wiese D, Dobslaw H, Tamisiea M, Velicogna I (2019) Contributions of GRACE to understanding climate change. Nat Clim Change. https://doi.org/10.1038/s41558-019-0456-2

    Article  Google Scholar

  56. Taylor KE (2001) Summarizing multiple aspects of model performance in a single diagram. J Geophys Res Atmos 106:7183–7192. https://doi.org/10.1029/2000JD900719

    Article  Google Scholar

  57. Velicogna I (2009) Increasing rates of ice mass loss from the Greenland and Antarctic ice sheets revealed by GRACE. Geophys Res Lett 36(19):2–5. https://doi.org/10.1029/2009GL040222

    Article  Google Scholar

  58. Velicogna I, Sutterley TC, Van Den Broeke MR (2014) Regional acceleration in ice mass loss from Greenland and Antarctica using GRACE time-variable gravity data. Geophys Res Lett 41(22):8130–8137. https://doi.org/10.1002/2014GL061052

    Article  Google Scholar

  59. Wahr J, Molenaar M, Bryan F (1998) Time variability of the Earth’s gravity field: hydrological and oceanic effects and their possible detection using GRACE. J Geophys Res 103(B12):30205–30229. https://doi.org/10.1029/98JB02844

    Article  Google Scholar

  60. Watkins MM, Wiese DN, Yuan D-N, Boening C, Landerer FW (2015) Improved methods for observing Earth’s time variable mass distribution with GRACE using spherical cap mascons. J Geophys Res Solid Earth 120:2648–2671. https://doi.org/10.1002/2014JB011547

    Article  Google Scholar

  61. Wińska M, Śliwińska J (2019) Assessing hydrological signal in polar motion from observations and geophysical models. Stud Geophys Geod 63(1):95–117. https://doi.org/10.1007/s11200-018-1028-z

    Article  Google Scholar

  62. Wińska M, Nastula J, Kołaczek B (2016) Assessment of the global and regional land hydrosphere and its impact on the balance of the geophysical excitation function of polar motion. Acta Geophys 64(1):1–23. https://doi.org/10.1515/acgeo-2015-0041

    Article  Google Scholar

  63. Wińska M, Nastula J, Salstein DA (2017) Hydrological excitation of polar motion by different variables from the GLDAS model. J Geodesy 17:7110. https://doi.org/10.1007/s00190-017-1036-8

    Article  Google Scholar

  64. Wouters B, Bonin JA, Chambers DP, Riva REM, Sasgen I, Wahr J (2014) GRACE, time-varying gravity, earths system dynamics and climate change. Rep Progr Phys 77(11):6801–116841. https://doi.org/10.1088/0034-4885/77/11/116801

    Article  Google Scholar

  65. Youm K, Seo KW, Jeon T, Na SH, Chen J, Wilson CR (2017) Ice and groundwater effects on long term polar motion (1979–2010). J Geodyn 106:66–73. https://doi.org/10.1016/j.jog.2017.01.008

    Article  Google Scholar

  66. Yuan D (2018) JPL level-2 processing standards document for level-2 product release 06. Technical Report GRACE 327–744. https://podaac-tools.jpl.nasa.gov/drive/files/GeodeticsGravity/grace/docs/L2-JPL_ProcStds_v6.0.pdf. Accessed 10 July 2020

  67. Zhang L, Dobslaw H, Thomas M (2016) Globally gridded terrestrial water storage variations from GRACE satellite gravimetry for hydrometeorological applications. Geophys J Int 206(1):368–378. https://doi.org/10.1093/gji/ggw153

    Article  Google Scholar

Download references

Acknowledgements

We kindly acknowledge: Christian Bizouard from Paris Observatory for providing GAM series computed from precise pole coordinates, the GFZ team for providing AAM and OAM series, the JPL team for providing GRACE and GRACE-FO Level-2 and Level-3 data, CSR for providing SLR series used in this research. All these datasets are publicly available for all users. The authors thank two anonymous reviewers for their thorough reviews and constructive comments that have contributed to the improvement of the paper.

Funding

This research was funded by the National Science Center, Poland (NCN), grant number 2018/31/N/ST10/00209.

Author information

Affiliations

Authors

Contributions

JŚ designed the research, performed data processing and statistical analysis, participated in the discussion and interpretation of the results obtained, wrote the majority of the paper. JN participated in the discussion and interpretation of the results obtained. MW performed a validation of HAM/CAM based on Taylor diagrams, participated in the discussion and interpretation of the results obtained. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Justyna Śliwińska.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no conflict of interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

See Tables 3, 4, 5, 6.

Table 3 Standard deviation (STD) of overall detrended time series of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM, errors of STD (STDerr), correlation coefficients (Corr) between HAM/CAM and GAO, percentage of variance in GAO explained by HAM/CAM (Varexp), root mean square error (RMSD) of HAM/CAM
Table 4 Standard deviation (STD) of seasonal time series of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM, errors of STD (STDerr), correlation coefficients (Corr) between HAM/CAM and GAO, percentage of variance in GAO explained by HAM/CAM (Varexp), and root mean square error (RMSD) of HAM/CAM
Table 5 Standard deviation (STD) of non-seasonal time series of GAO, GRACE-based HAM/CAM (GSM, TWS, MAS land, and MAS global) and SLR-based HAM/CAM, errors of STD (STDerr), correlation coefficients (Corr) between HAM/CAM and GAO, percentage of variance in GAO explained by HAM/CAM (Varexp), root mean square error (RMSD) of HAM/CAM
Table 6 Standard deviation (STD) of overall detrended time series of GAO, GRACE-FO-based HAM/CAM (GSM, TWS, MAS land, and MAS global), and SLR-based HAM/CAM series, error of STD (STDerr), correlation coefficients (Corr) between HAM/CAM and GAO, percentage of variance in GAO explained by HAM/CAM (Varexp), and root mean square error (RMSD) of HAM/CAM

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Śliwińska, J., Nastula, J. & Wińska, M. Evaluation of hydrological and cryospheric angular momentum estimates based on GRACE, GRACE-FO and SLR data for their contributions to polar motion excitation. Earth Planets Space 73, 71 (2021). https://doi.org/10.1186/s40623-021-01393-5

Download citation

Keywords

  • GRACE
  • SLR
  • Earth rotation
  • Polar motion
  • Terrestrial water storage
  • Cryosphere
\
